Chapter 4 FieldEffect Transistors Microelectronic Circuit Design Richard

Chapter 4 Field-Effect Transistors Microelectronic Circuit Design Richard C. Jaeger Travis N. Blalock Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 4 -1

Chapter Goals • Describe operation of MOSFETs and JFETs. • Define FET characteristics in operation regions of cutoff, triode and saturation. • Develop mathematical models for i-v characteristics of MOSFETs and JFETs. • Introduce graphical representations for output and transfer characteristic descriptions of electron devices. • Define and contrast characteristics of enhancement-mode and depletion -mode FETs. • Define symbols to represent FETs in circuit schematics. • Investigate circuits that bias transistors into different operating regions. • Learn basic structure and mask layout for MOS transistors and circuits. • Explore MOS device scaling Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -2

Chapter Goals (contd. ) • Contrast 3 and 4 terminal device behavior. • Descibe sources of capacitance in MOSFETs and JFETs. • Explore FET modeling in SPICE. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -3

Moore’s Law Intel co-founder Gordon Moore is a visionary. In 1965, his prediction, popularly known as Moore's Law, states that the number of transistors on a chip will double about every two years. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Moore’s Law (cont. ) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Moore’s Law (cont. ) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Moore’s Law (cont. ) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Moore’s Law (cont. ) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Moore’s Law (cont. ) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Transistor History • Nobel prize for transistor (William Shockley) – link • History of transistors - link Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Types of Field-Effect Transistors • MOSFET (Metal-Oxide Semiconductor Field-Effect Transistor) – Primary component in high-density VLSI chips such as memories and microprocessors • JFET (Junction Field-Effect Transistor) – Finds application especially in analog and RF circuit design Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -11

MOS Capacitor Structure • First electrode- Gate : Consists of low-resistivity material such as polycrystalline silicon • Second electrode- Substrate or Body: n- or p-type semiconductor • Dielectric-Silicon dioxide: stable high-quality electrical insulator between gate and substrate. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -12

Substrate Conditions for Different Biases • Accumulation – VG<<VTN • Depletion – VG<VTN • Inversion – VG>VTN Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -13

Low-frequency C-V Characteristics for MOS Capacitor on P-type Substrate • MOS capacitance is non-linear function of voltage. • Total capacitance in any region dictated by the separation between capacitor plates. • Total capacitance modeled as series combination of fixed oxide capacitance and voltage -dependent depletion layer capacitance. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -14

NMOS Transistor: Structure • 4 device terminals: Gate(G), Drain(D), Source(S) and Body(B). • Source and drain regions form pn junctions with substrate. • v. SB, v. DS and v. GS always positive during normal operation. • v. SB always < v. DS and v. GS to reverse bias pn junctions Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -15

NMOS Transistor: Qualitative I-V Behavior • VGS<<VTN : Only small leakage current flows. • VGS<VTN: Depletion region formed under gate merges with source and drain depletion regions. No current flows between source and drain. • VGS>VTN: Channel formed between source and drain. If v. DS>0, , finite i. D flows from drain to source. • i. B=0 and i. G=0. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -16

NMOS Transistor: Triode Region Characteristics for where, Kn= Kn’W/L Kn’=μn. Cox’’ (A/V 2) Cox’’=εox/Tox εox=oxide permittivity (F/cm) Tox=oxide thickness (cm) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -17

NMOS Transistor: Triode Region Characteristics (contd. ) • Output characteristics appear to be linear. • FET behaves like a gate-source voltagecontrolled resistor between source and drain with Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -18

MOSFET as Voltage-Controlled Resistor Example 1: Voltage-Controlled Attenuator If Kn=500μA/V 2, VTN=1 V, R=2 kΩ and VGG=1. 5 V, then, To maintain triode region operation, or or Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -19

MOSFET as Voltage-Controlled Resistor (contd. ) Example 2: Voltage-Controlled High-Pass Filter Voltage Transfer function, where, cut-off frequency If Kn=500μA/V 2, VTN=1 V, C=0. 02μF and VGG=1. 5 V, then, To maintain triode region operation, Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -20

NMOS Transistor: Saturation Region • • • Jaeger/Blalock 7/1/03 If v. DS increases above triode region limit, channel region disappears, also said to be pinched-off. Current saturates at constant value, independent of v. DS. Saturation region operation mostly used for analog amplification. Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -21

NMOS Transistor: Saturation Region (contd. ) for is also called saturation or pinch-off voltage Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -22

State of the Art – 32 nm • Intel – power of smaller - link • 32 nm high k metal gate transistor - link Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Transconductance of a MOS Device • Transconductance relates the change in drain current to a change in gate-source voltage • Taking derivative of the expression for the drain current in saturation region, Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -24

Channel-Length Modulation • As v. DS increases above v. DSAT, length of depleted channel beyond pinch-off point, DL, increases and actual L decreases. • i. D increases slightly with v. DS instead of being constant. l= channel length modulation parameter Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -25

Depletion-Mode MOSFETS • NMOS transistors with • Ion implantation process used to form a built-in n-type channel in device to connect source and drain by a resistive channel • Non-zero drain current for v. GS=0, negative v. GS required to turn device off. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -26

Transfer Characteristics of MOSFETS • Plots drain current versus gate-source voltage for a fixed drain-source voltage Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -27

Body Effect or Substrate Sensitivity • Non-zero v. SB changes threshold voltage, causing substrate sensitivity modeled by where VTO= zero substrate bias for VTN (V) g= body-effect parameter ( ) 2 FF= surface potential parameter (V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -28

Enhancement-Mode PMOS Transistors: Structure • P-type source and drain regions in n-type substrate. • v. GS<0 required to create p-type inversion layer in channel region • For current flow, v. GS< v. TP • To maintain reverse bias on source-substrate and drainsubstrate junctions, v. SB <0 and v. DB <0 • Positive bulk-source potential causes VTP to become more negative Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -29

Enhancement-Mode PMOS Transistors: Output Characteristics • For , transistor is off. • For more negative v. GS, drain current increases in magnitude. • PMOS is in triode region for small values of VDS and in saturation for larger values. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -30

MOSFET Circuit Symbols • (g) and(i) are the most commonly used symbols in VLSI logic design. • MOS devices are symmetric. • In NMOS, n+ region at higher voltage is the drain. • In PMOS p+ region at lower voltage is the drain Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -31

40 years of Moore’s Law and CPU • • The history of microprocessor- link The history of intel CPU – link What did you do 40 years ago? - link 45 nm : biggest change to transistor in 40 years - link Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Process-defining Factors • Minimum Feature Size, F : Width of smallest line or space that can be reliably transferred to wafer surface using given generation of lithographic manufacturing tools • Alignment Tolerance, T: Maximum misalignment that can occur between two mask levels during fabrication Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -33

Mask Sequence for a Polysilicon-Gate Transistor • Mask 1: Defines active area or thin oxide region of transistor • Mask 2: Defines polysilicon gate of transistor, aligns to mask 1 • Mask 3: Delineates the contact window, aligns to mask 2. • Mask 4: Delineates the metal pattern, aligns to mask 3. • Channel region of transistor formed by intersection of first two mask layers. Source and Drain regions formed wherever mask 1 is not covered by mask 2 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -34

Basic Ground Rules for Layout • F=2Λ • T=F/2=L, L could be 1, 0. 5, 0. 25 mm, etc. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -35

Internal Capacitances in Electronic Devices • Limit high-frequency performance of the electronic device they are associated with. • Limit switching speed of circuits in logic applications • Limit frequency at which useful amplification can be obtained in amplifiers. • MOSFET capacitances depend on operation region and are non-linear functions of voltages at device terminals. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -36

NMOS Transistor Capacitances: Triode Region Cox” =Gate-channel capacitance per unit area(F/m 2). CGC =Total gate channel capacitance. CGS = Gate-source capacitance. CGD =Gate-drain capacitance. CGSO and CGDO = overlap capacitances (F/m). Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -37

NMOS Transistor Capacitances: Triode Region (contd. ) CSB = Source-bulk capacitance. CDB = Drain-bulk capacitance. AS and AD = Junction bottom area capacitance of the source and drain regions. PS and PD = Perimeter of the source and drain junction regions. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -38

NMOS Transistor Capacitances: Saturation Region • Drain no longer connected to channel Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -39

NMOS Transistor Capacitances: Cutoff Region • Conducting channel region completely gone. CGB = Gate-bulk capacitance CGBO = gate-bulk capacitance per unit width. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -40

SPICE Model for NMOS Transistor Typical default values used by SPICE: Kn or Kp = 20 m. A/V 2 g=0 l=0 VTO = 1 V mn or mp = 600 cm 2/V. s 2 FF = 0. 6 V CGDO=CGSO=CGBO=CJSW= 0 Tox= 100 nm Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -41

Bias Analysis Approach • Assume an operation region (generally the saturation region) • Use circuit analysis to find VGS • Use VGS to calculate ID, and ID to find VDS • Check validity of operation region assumptions • Change assumptions and analyze again if required. NOTE : An enhancement-mode device with VDS = VGS is always in saturation Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -42

Constant Gate-Source MOSFET Bias Circuit Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Simplified MOSFET Bias Circuit Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Loadline Analysis Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Four-Resistor and Two-Resistor Biasing • Provide excellent bias for transistors in discrete circuits. • Stabilize bias point with respect to device parameter and temperature variations using negative feedback. • Use single voltage source to supply both gate-bias voltage and drain current. • Generally used to bias transistors in saturation region. • Two-resistor biasing uses lesser components that fourresistor biasing and also isolates drain and gate terminals Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -46

Bias Analysis: Example 1 (Four-Resistor Biasing) Assumption: Transistor is saturated, IG=IB=0 Analysis: First, simplify circuit, split VDD into two equal-valued sources and apply Thevenin transformation to find VEQ and REQ for gate-bias voltage Problem: Find Q-pt (ID, VDS) Approach: Assume operation region, find Q-point, check to see if result is consistent with operation region Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -47

Bias Analysis: Example 1 (Four-Resistor Biasing) (contd. ) Since VGS<VTN for VGS= -2. 71 V and MOSFET will be cut-off, and ID= 34. 4 m. A Also, Since IG=0, VDS>VGS-VTN. Hence saturation region assumption is correct. Q-pt: (34. 4 m. A, 6. 08 V) with VGS= 2. 66 V Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -48

Bias Analysis: Example 2 (Four-Resistor Biasing) Analysis with body effect using same assumptions as in example 1: Iterative solution can be found by following steps: • Estimate value of ID and use it to find VGS and VSB • Use VSB to calculate VTN • Find ID’ using above 2 steps • If ID’ is not same as original ID estimate, start again. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -49

Bias Analysis: Example 2 (Four-Resistor Biasing) (contd. ) The iteration sequence leads to ID= 88. 0 m. A VDS>VGS-VTN. Hence saturation region assumption is correct. Q-pt: (88. 0 m. A, 6. 48 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -50

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Four Transistor Bias Summary VEQ = VGS + IDS RS (4. 48) VDD = IDS RD + VDS + IDS RS (4. 50) IDS VGS IDS VDS IDS VGS IDS VDS Assume that the transistor is operating in the saturation region with IDS = Kn/2 (VGS – VTN)2 (4. 47) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

VEQ=VGS+ Rs. Kn/2 (VGS – VTN)2 (4. 49) Solve VGS and check to make sure transistor is not cutoff. Use (4. 53) to compute IDS, (4. 52) to get VDS Verify that transistor is in saturation mode because VDS ≥ VGS -VTN Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Bias Analysis: Example 3 (Two-Resistor Biasing) Since VGS<VTN for VGS= -0. 769 V and MOSFET will be cut-off, Assumption: IG=IB=0, transistor is saturated (since VDS= VGS) Analysis: and ID= 130 m. A VDS>VGS-VTN. Hence saturation region assumption is correct. Q-pt: (130 m. A, 2. 00 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -54

Bias Analysis: Example 4 ( Biasing in Triode Region) Also But VDS<VGS-VTN. Hence, saturation region assumption is incorrect Using triode region equation, Assumption: IG=IB=0, transistor is saturated (since VDS= VGS) Analysis: VGS=VDD=4 V and ID=1. 06 m. A VDS<VGS-VTN, transistor is in triode region Q-pt: (1. 06 m. A, 2. 3 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -55

Bias Analysis: Example 5 (Two-Resistor biasing for PMOS Transistor) Also Since VGS= -0. 369 V is less than VTP= -2 V, VGS = -3. 45 V Assumption: IG=IB=0, transistor is saturated (since VDS= VGS) ID = 52. 5 m. A and VGS = -3. 45 V Analysis: Hence saturation assumption is correct. Q-pt: (52. 5 m. A, -3. 45 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -56

Feedback Analysis • Negative Feedback is used to stabilize the operating point. • ID -VDS -VGS ID Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

MOSFET as Current Source • Ideal current source gives fixed output current regardless of voltage across it. • MOSFET behaves as as an ideal current source if biased in the pinch-off region (output current depends on terminal voltage). Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -58

NMOS Current Mirror But VGS 2=VGS 1 Assumption: M 1 and M 2 have identical VTN, Kn’, l and W/L and are in saturation. Jaeger/Blalock 7/1/03 Thus, output current mirrors reference current if VDS 1=VDS 2. Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -59

NMOS Current Mirror: Example Given data: IREF= 50 m. A, VO= 12 V, VTN= 1 V, Kn= 150 m. A/V 2, l= 0. 0133 V-1 Determine: VGS, VDS 1, IO Analysis: Using trial-and-error, Hence, VDS 1 =1. 81 V. Also, VDS 2=12 V Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -60

MOS Current Mirror Ratio Thus, ratio between IO and IREF can be modified by changing W/L ratios of the current mirror transistors (ignoring differences due to VDS mismatch) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -61

MOS Current Mirror Output Resistance • Output current changes with v. DS due to channel length modulation. • Output resistance is given by • In the current mirror, v. O = v. DS 2 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -62

Current Mirror Layout Two possible layouts of a current mirror Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -63

Design of Multiple Current Mirrors: Example Choose R to set IREF= 25 m. A Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -64

Design of Multiple Current Mirrors (contd). and R can be replaced by transistor M 6 for better integration. We know that VGS 6 = -6. 84 V and ID = 25 m. A and M 6 is in saturation Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -65

MOS Transistor Scaling • Drain current: • Gate Capacitance: wheret is the circuit delay in a logic circuit. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -66

MOS Transistor Scaling (contd. ) • Circuit and Power Densities: • Power-Delay Product: • Cutoff Frequency: f. T improves with square of channel length reduction Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -67

MOS Transistor Scaling (contd. ) • High Field Limitations: – High electric fields arise if technology is scaled down with supply voltage constant. – Cause reduction in mobility of MOS transistor, breakdown of linear relationship between mobility and electric field and carrier velocity saturation. – Ultimately results in reduced long-term reliability and breakdown of gate oxide or pn junction. – Drain current in saturation region is linearised to where, v. SAT is carrier saturation velocity Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -68

MOS Transistor Scaling (contd. ) • Sub-threshold Conduction: – ID decreases exponentially for VGS<VTN. – Reciprocal of the slope in m. V/decade gives the turn off rate for the MOSFET. – VTN should be reduced if dimensions are scaled down, but curve in sub-threshold region shifts horizontally instead of scaling with VTN. . Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -69

MOS Scaling Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

SIA MOS Technology Roadmap Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Worldwide Semiconductor Sales Trend Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Technology Cross-over Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Linear Technology Shrink Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

MOS Technology Scaling Ratio Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Linear Shrink • Cost Per Function : 40% reduction Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

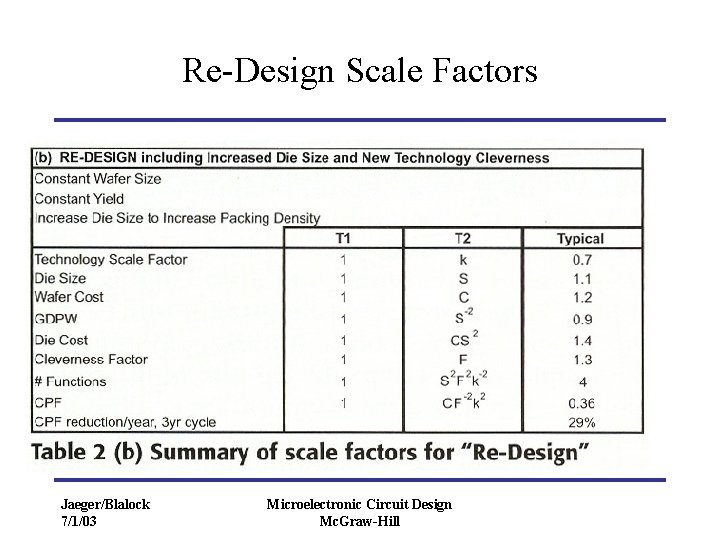

Re-Design Scale Factors Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Intel CPU Scaling Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Wafer Diameter Increase Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Dies on a Wafer Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Gross Die Per Wafer Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Gate Cost • Die Size too small – I/O overhead • Die Size too big - Complexity Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Gate Cost • Pentium 4 has 14 M Gates – Near Optimum Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill

Junction Field-Effect Transistor (JFET) Structure • Much lower input current and much higher input impedance than BJT. • In triode region, JFET is a voltagecontrolled resistor, r = resistivity of channel • N-type semiconductor block that L = channel length houses the channel region in n. W = channel width between pn channel JFET. junction depletion regions • Two pn junctions to form the gate. t = channel depth • Current enters channel at drain and • Inherently a depletion-mode device exits at source. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -98

JFET with Gate-Source Bias • v. GS =0, gate isolated from channel. • VP < v. GS <0, W’<W, channel resistance increases, gate-source junction reverse-biased, i. G almost 0. • v. GS = VP <0, channel region pinchedoff, channel resistance infinite. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -99

JFET Channel with Drain-Source Bias • With constant v. GS, depletion region near drain increases with v. DS. • At v. DSP = v. GS - VP, channel is totally pinched-off, i. D is saturated. • JFET also suffers from channel length modulation like MOSFET at larger values of v. DS. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -100

N-Channel JFET: i-v Characteristics Transfer Characteristics Jaeger/Blalock 7/1/03 Output Characteristics Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -101

N-Channel JFET: i-v Characteristics (contd. ) • For all regions : i. G=0 for • In cutoff region: i. D =0 for • In Triode region: (VP <0). for and • In pinch-off region: for Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -102

P-Channel JFET • Polarities of n- and p-type regions of n-channel JFET are reversed to get the p-Channel JFET. • Channel current direction and operating bias voltages are also reversed. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -103

JFET Circuit Symbols • JFET structures are symmetric like MOSFET. • Source and drain determined by circuit voltages. Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -104

JFET Capacitances and SPICE Modeling • CGD and CGS are determined by depletionlayer capacitances of reverse-biased pn junctions forming gate and are bias dependent. • Typical default values used by SPICE: Vp = -2 V l = CGD =0 Transconductance parameter= BETA =IDSS/VP 2= 100 m. A/V 2 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -105

Biasing JFET and Depletion-Mode MOSFET: Example N-channel JFET Depletion-mode MOSFET • Assumptions: JFET is pinched-off, gate-channel junction is reverse-biased, reverse leakage current of gate, IG = 0 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -106

Biasing JFET and Depletion-Mode MOSFET: Example (contd. ) • Analysis: Since IS = ID , Since VGS= -13. 1 V is less than VP= -5 V, VGS = -1. 91 V and, ID = IS = 1. 91 m. A. Also, VDS>VGS-VP. Hence pinch-off region assumption is correct and gatesource junction is reverse-biased by 1. 91 V. Q-pt: (1. 91 m. A, 6. 27 V) Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill Chap 1 -107

Homework • • • 4. 22 4. 81 4. 85(a) 4. 103(b) 4. 145 Jaeger/Blalock 7/1/03 Microelectronic Circuit Design Mc. Graw-Hill
