Chapter 4 Feedback Control System Characteristics Objectives In

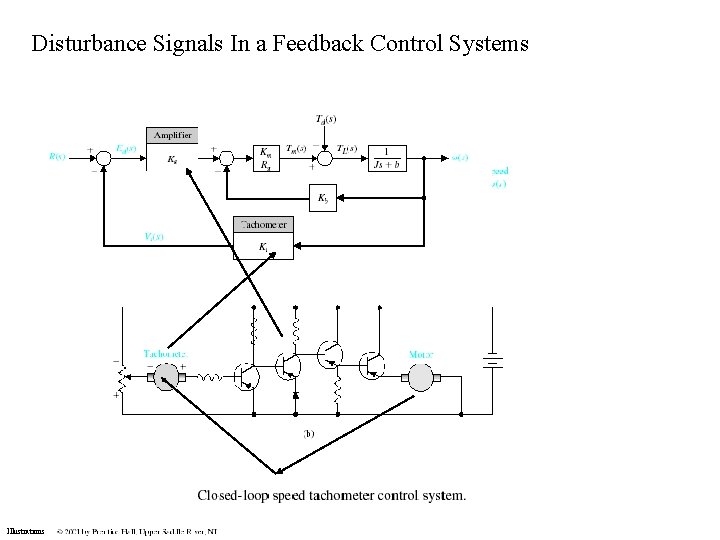

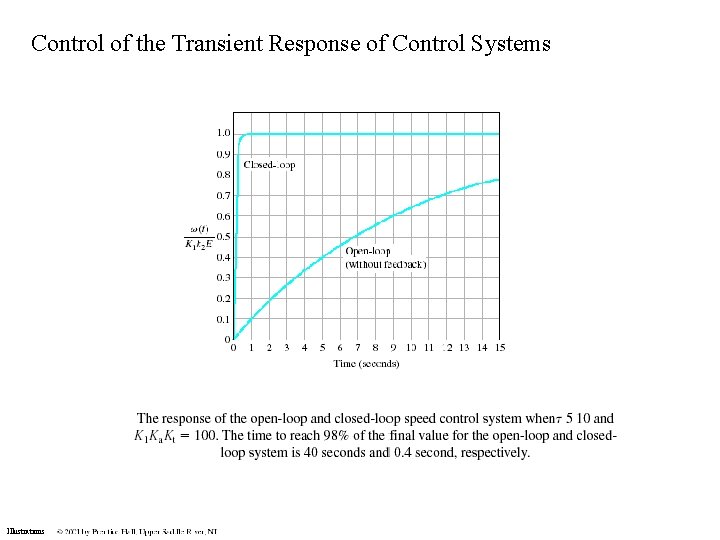

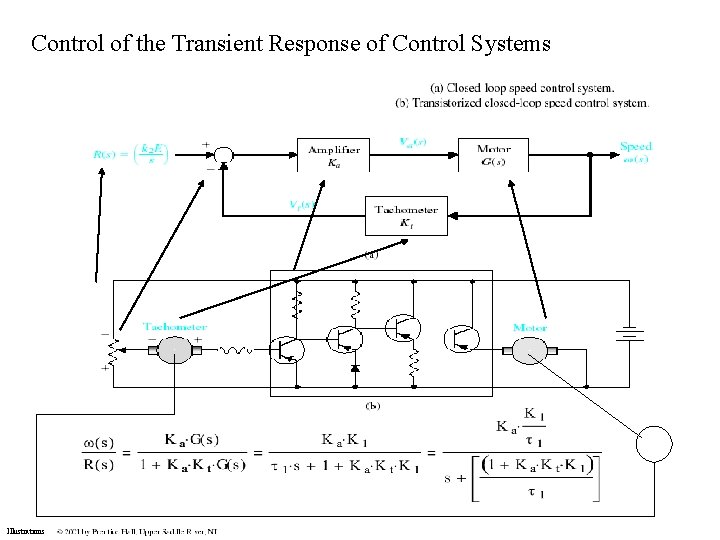

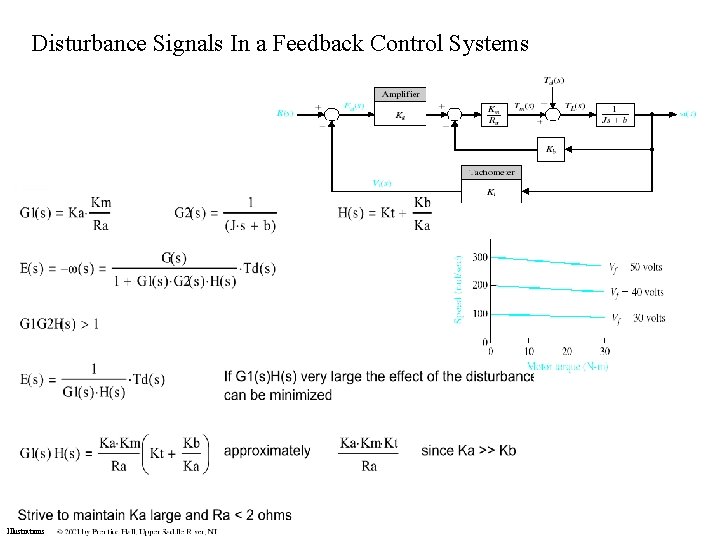

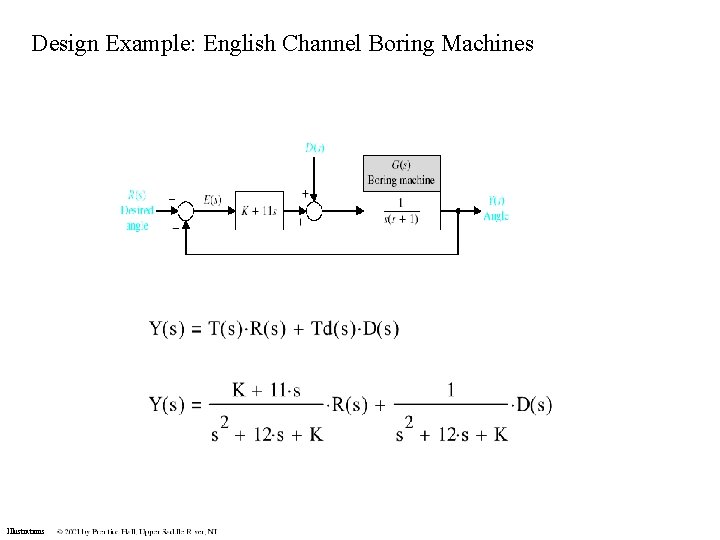

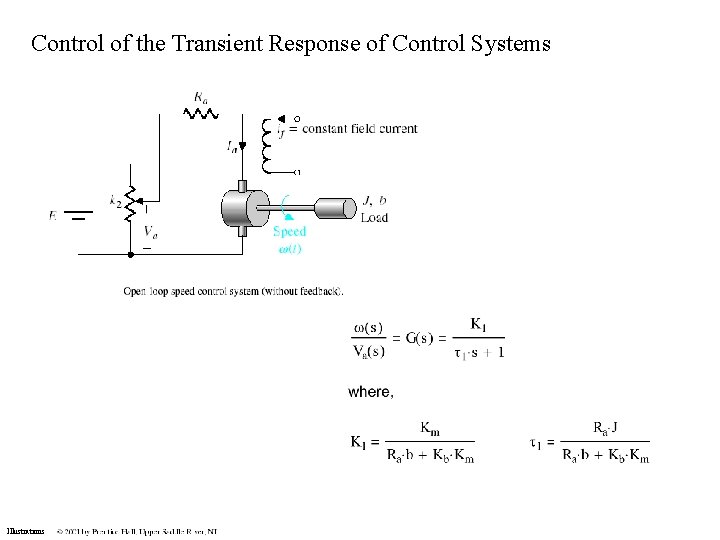

Chapter 4: Feedback Control System Characteristics Objectives In this chapter we extend the ideas of modeling to include control system characteristics, such as sensitivity to model uncertainties, steady-state errors, transient response characteristics to input test signals, and disturbance rejection. We investigate the important role of the system error signal which we generally try to minimize. We will also develop the concept of the sensitivity of a system to a parameter change, since it is desirable to minimize the effects of unwanted parameter variation. We then describe the transient performance of a feedback system and show this performance can be readily improved. We will also investigate a design that reduces the impact of disturbance signals. Illustrations

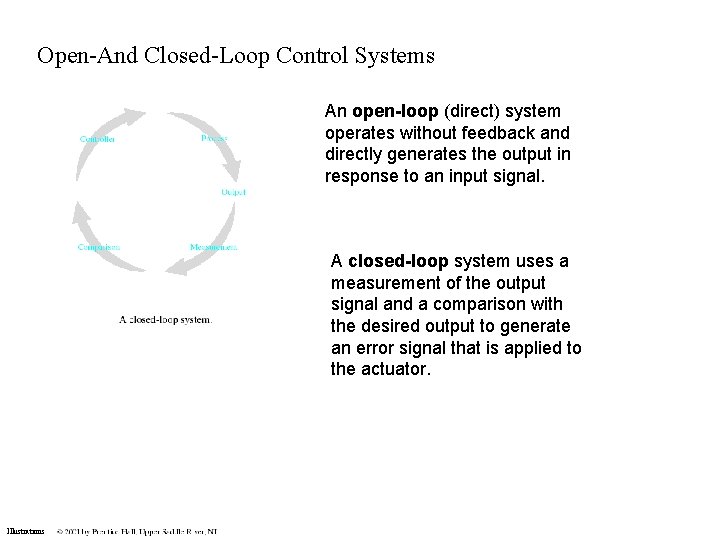

Open-And Closed-Loop Control Systems An open-loop (direct) system operates without feedback and directly generates the output in response to an input signal. A closed-loop system uses a measurement of the output signal and a comparison with the desired output to generate an error signal that is applied to the actuator. Illustrations

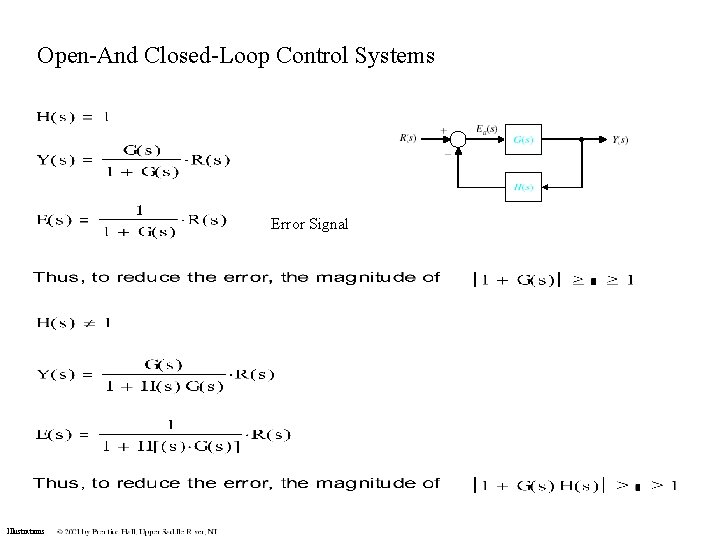

Open-And Closed-Loop Control Systems Error Signal Illustrations

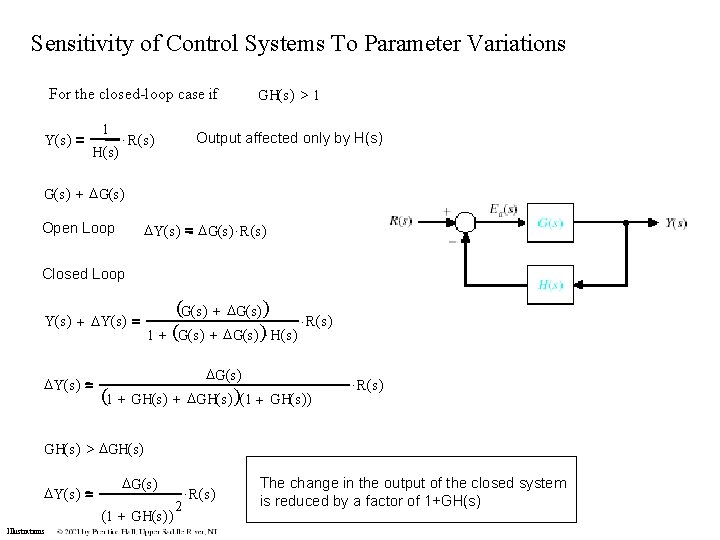

Sensitivity of Control Systems To Parameter Variations For the closed-loop case if Y( s ) 1 H( s ) × R( s ) GH( s ) > 1 Output affected only by H(s) G( s ) + DG( s ) DY( s ) Open Loop DG( s ) × R( s ) Closed Loop Y( s ) + DY( s ) (G( s ) + DG( s ) ) × R( s ) 1 + (G( s ) + DG( s ) )× H( s ) DG( s ) (1 + GH( s ) + DGH( s ) )( 1 + GH(s )) × R( s ) GH( s ) > DGH( s ) DY( s ) DG( s ) ( 1 + GH( s ) ) Illustrations 2 × R( s ) The change in the output of the closed system is reduced by a factor of 1+GH(s)

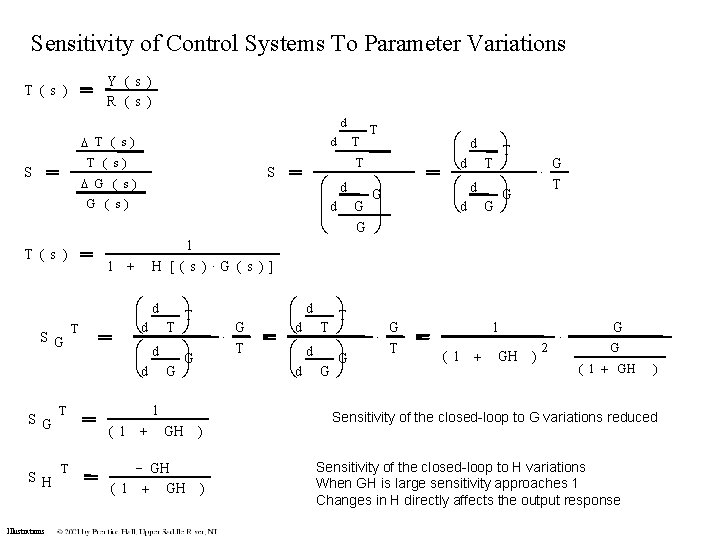

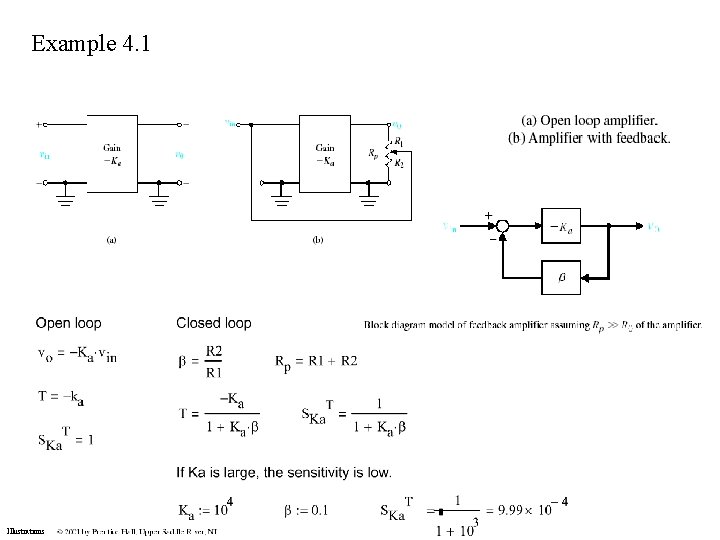

Sensitivity of Control Systems To Parameter Variations Y (s ) R (s ) T (s ) d D T ( s) d T ( s) S S D G ( s) T (s ) S G S H Illustrations æ d öT ç ÷ èd T ø æ d öG ç ÷ èd G ø × 1 T (1 + T T æ d T ö ç ÷ èd T ø æ d öG ç ÷ èd G ø T æ d Gö çd G ÷ ç ÷ G è ø × G T 1 H [(s )×G (s )] 1 + T T GH - GH ( 1 + GH ) ) G T æ d öT ç ÷ èd T ø æ d öG ç ÷ èd G ø × G T 1 (1 + GH ) 2 × G G ( 1 + GH ) Sensitivity of the closed-loop to G variations reduced Sensitivity of the closed-loop to H variations When GH is large sensitivity approaches 1 Changes in H directly affects the output response
