Chapter 4 Evolution and Biodiversity Chapter Overview Questions

Chapter 4 Evolution and Biodiversity

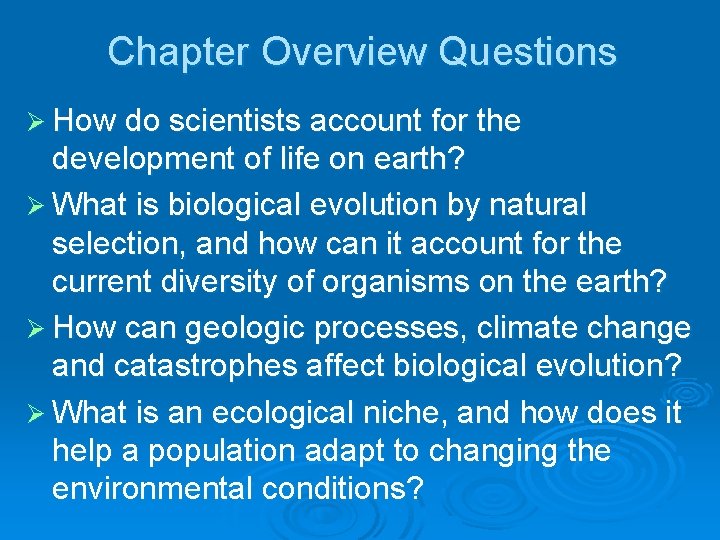

Chapter Overview Questions Ø How do scientists account for the development of life on earth? Ø What is biological evolution by natural selection, and how can it account for the current diversity of organisms on the earth? Ø How can geologic processes, climate change and catastrophes affect biological evolution? Ø What is an ecological niche, and how does it help a population adapt to changing the environmental conditions?

Chapter Overview Questions (cont’d) Ø How do extinction of species and formation of new species affect biodiversity? Ø What is the future of evolution, and what role should humans play in this future? Ø How did we become such a powerful species in a short time?

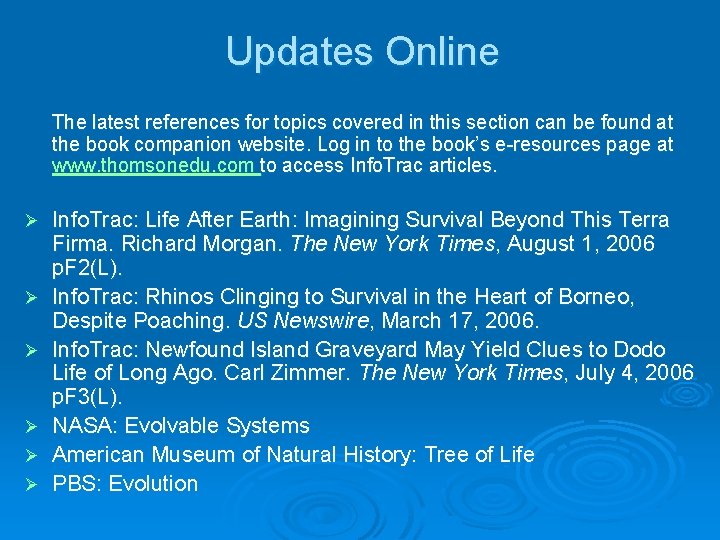

Updates Online The latest references for topics covered in this section can be found at the book companion website. Log in to the book’s e-resources page at www. thomsonedu. com to access Info. Trac articles. Ø Ø Ø Info. Trac: Life After Earth: Imagining Survival Beyond This Terra Firma. Richard Morgan. The New York Times, August 1, 2006 p. F 2(L). Info. Trac: Rhinos Clinging to Survival in the Heart of Borneo, Despite Poaching. US Newswire, March 17, 2006. Info. Trac: Newfound Island Graveyard May Yield Clues to Dodo Life of Long Ago. Carl Zimmer. The New York Times, July 4, 2006 p. F 3(L). NASA: Evolvable Systems American Museum of Natural History: Tree of Life PBS: Evolution

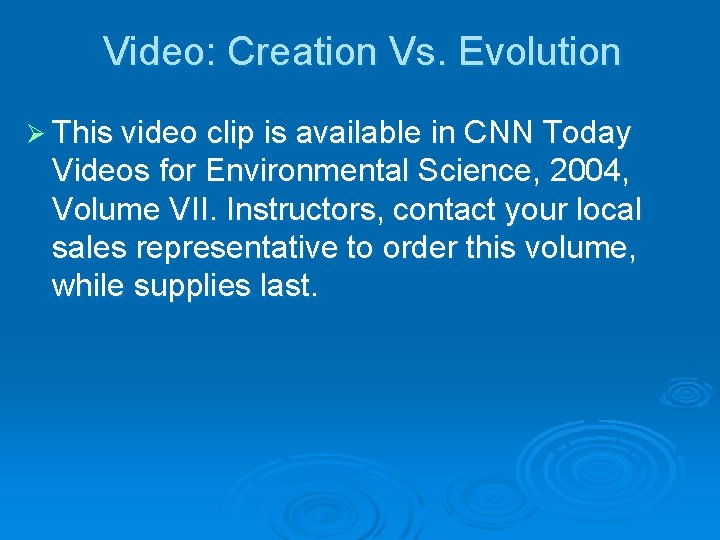

Video: Creation Vs. Evolution Ø This video clip is available in CNN Today Videos for Environmental Science, 2004, Volume VII. Instructors, contact your local sales representative to order this volume, while supplies last.

Core Case Study Earth: The Just-Right, Adaptable Planet Ø During the 3. 7 billion years since life arose, the average surface temperature of the earth has remained within the range of 10 -20 o. C. Figure 4 -1

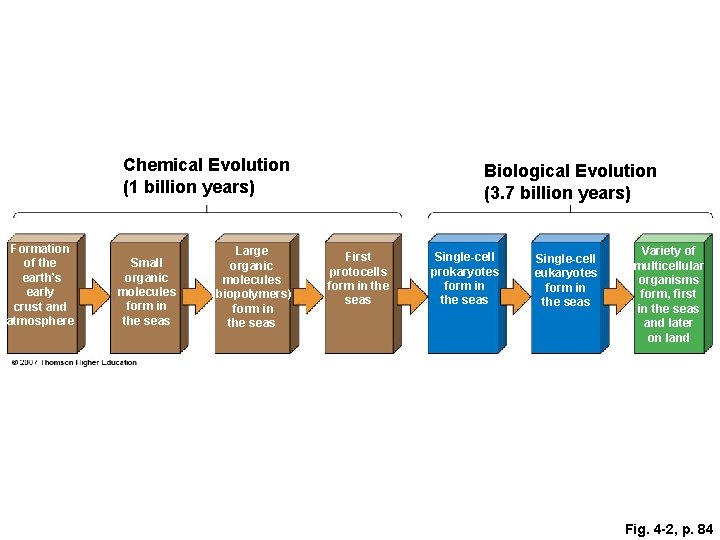

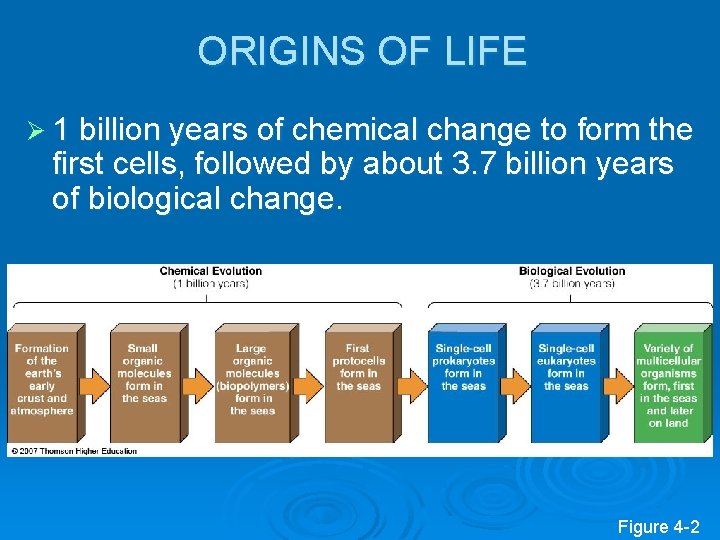

ORIGINS OF LIFE Ø 1 billion years of chemical change to form the first cells, followed by about 3. 7 billion years of biological change. Figure 4 -2

Chemical Evolution (1 billion years) Formation of the earth’s early crust and atmosphere Small organic molecules form in the seas Large organic molecules (biopolymers) form in the seas Biological Evolution (3. 7 billion years) First protocells form in the seas Single-cell prokaryotes form in the seas Single-cell eukaryotes form in the seas Variety of multicellular organisms form, first in the seas and later on land Fig. 4 -2, p. 84

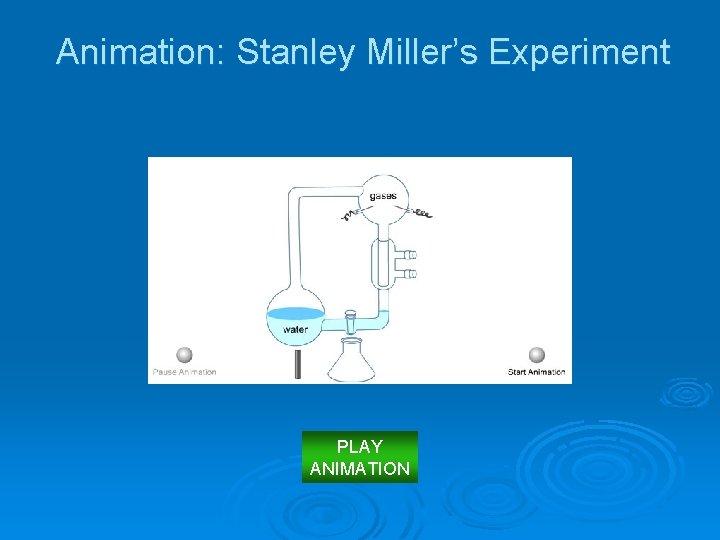

Animation: Stanley Miller’s Experiment PLAY ANIMATION

Biological Evolution Ø This has led to the variety of species we find on the earth today. Figure 4 -2

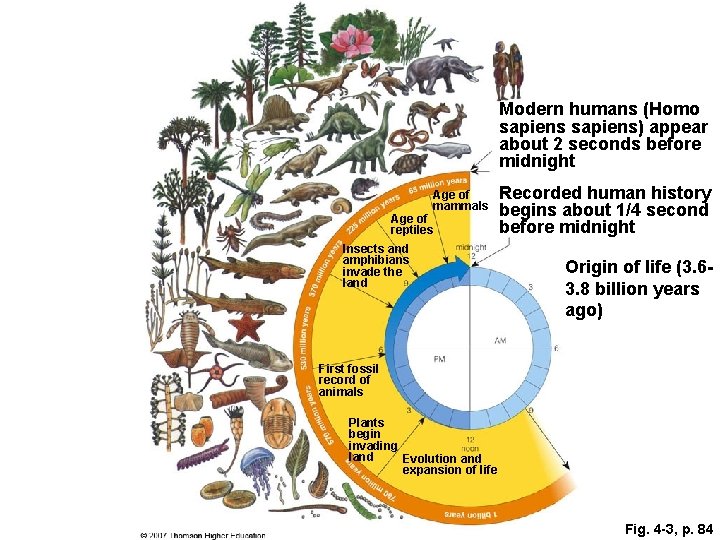

Modern humans (Homo sapiens) appear about 2 seconds before midnight Age of mammals Age of reptiles Insects and amphibians invade the land Recorded human history begins about 1/4 second before midnight Origin of life (3. 63. 8 billion years ago) First fossil record of animals Plants begin invading land Evolution and expansion of life Fig. 4 -3, p. 84

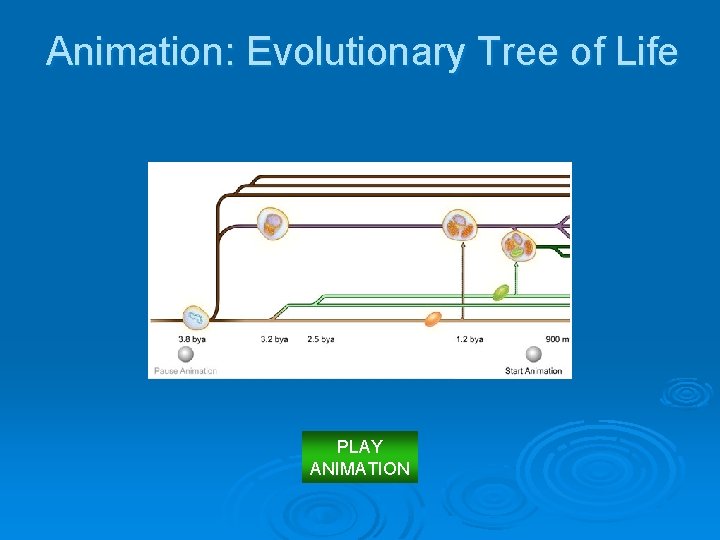

Animation: Evolutionary Tree of Life PLAY ANIMATION

Video: Creation vs. Evolution PLAY VIDEO Ø From ABC News, Environmental Science in the Headlines, 2005 DVD.

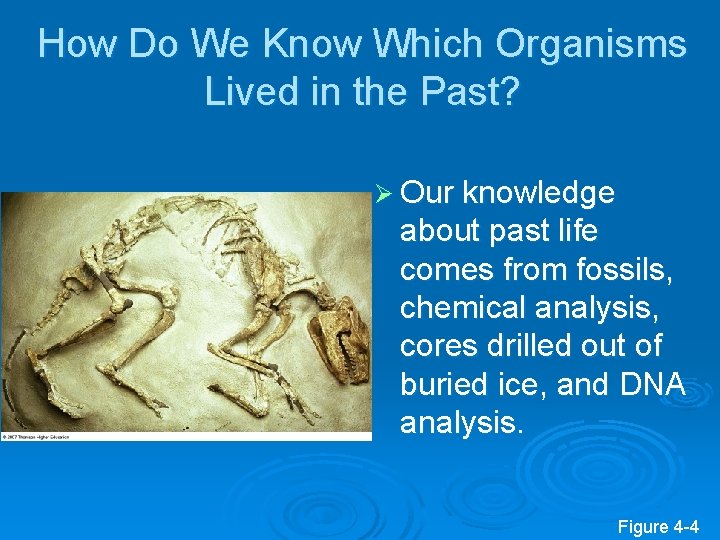

How Do We Know Which Organisms Lived in the Past? Ø Our knowledge about past life comes from fossils, chemical analysis, cores drilled out of buried ice, and DNA analysis. Figure 4 -4

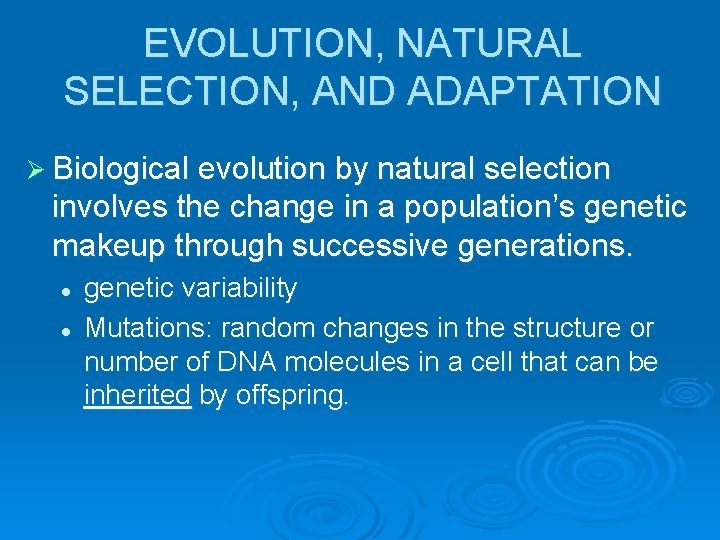

EVOLUTION, NATURAL SELECTION, AND ADAPTATION Ø Biological evolution by natural selection involves the change in a population’s genetic makeup through successive generations. l l genetic variability Mutations: random changes in the structure or number of DNA molecules in a cell that can be inherited by offspring.

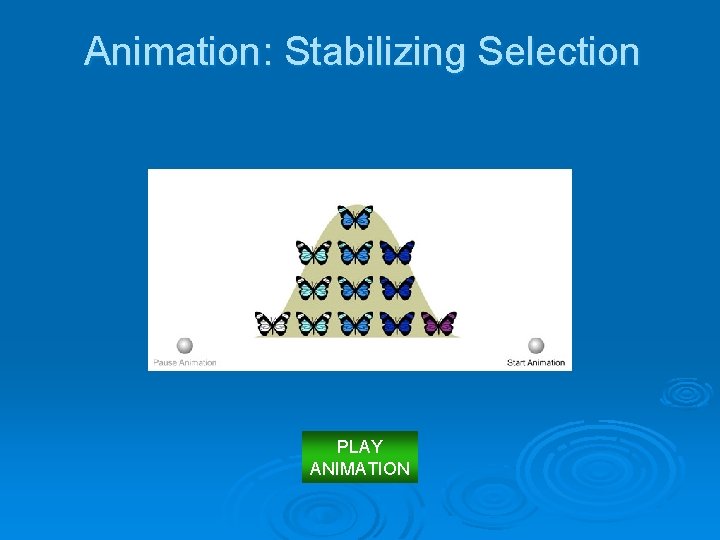

Animation: Stabilizing Selection PLAY ANIMATION

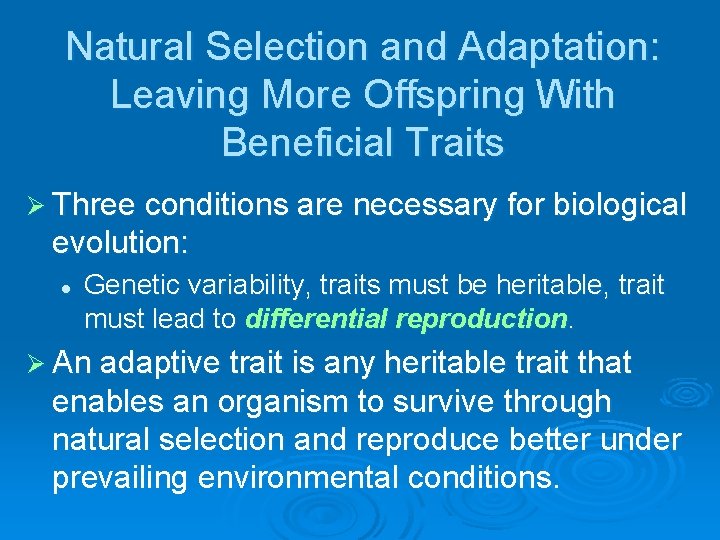

Natural Selection and Adaptation: Leaving More Offspring With Beneficial Traits Ø Three conditions are necessary for biological evolution: l Genetic variability, traits must be heritable, trait must lead to differential reproduction. Ø An adaptive trait is any heritable trait that enables an organism to survive through natural selection and reproduce better under prevailing environmental conditions.

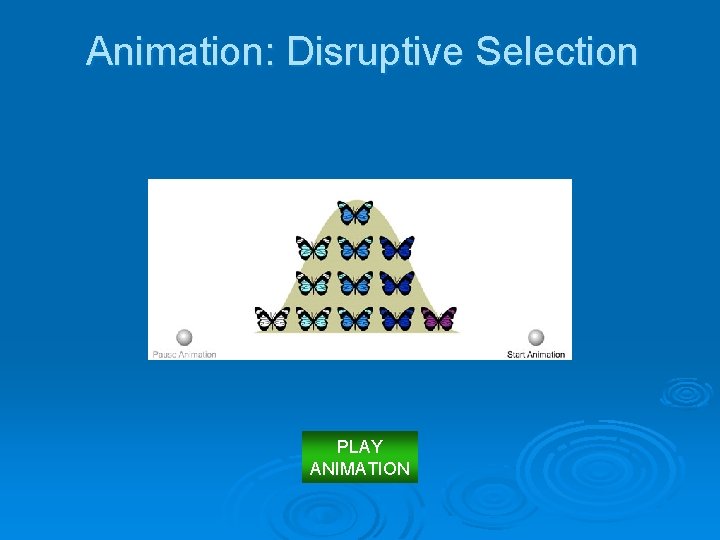

Animation: Disruptive Selection PLAY ANIMATION

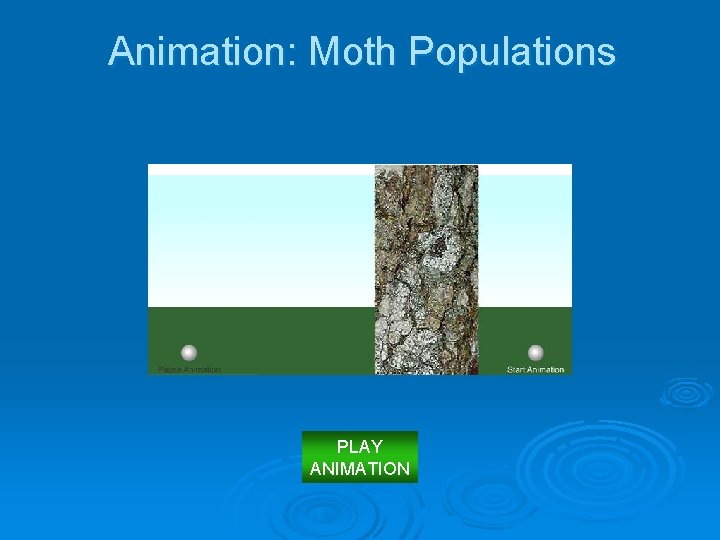

Animation: Moth Populations PLAY ANIMATION

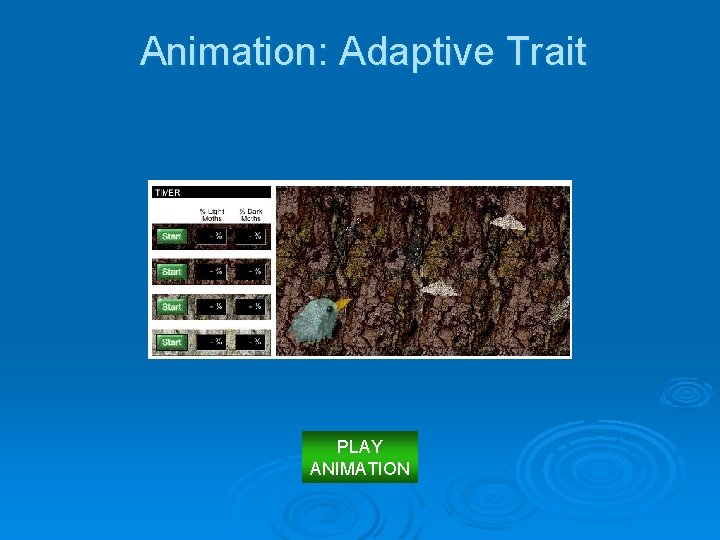

Animation: Adaptive Trait PLAY ANIMATION

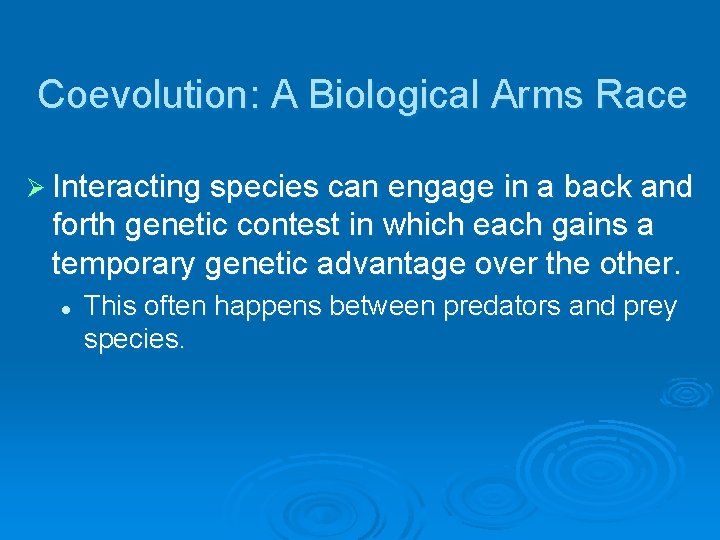

Coevolution: A Biological Arms Race Ø Interacting species can engage in a back and forth genetic contest in which each gains a temporary genetic advantage over the other. l This often happens between predators and prey species.

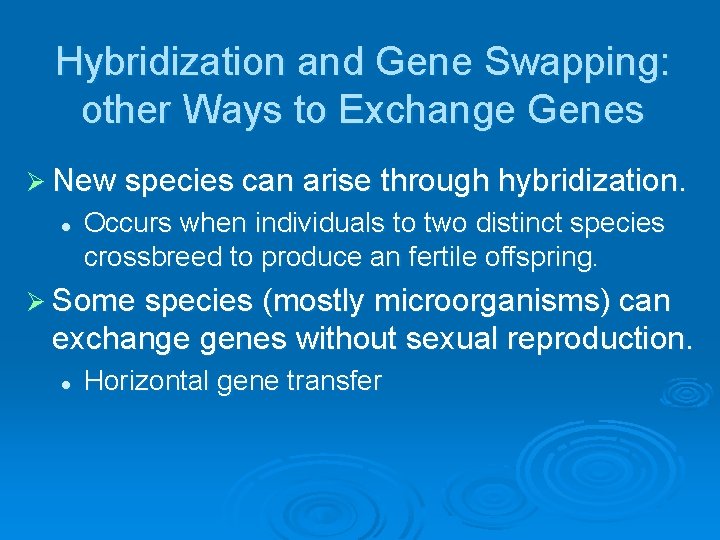

Hybridization and Gene Swapping: other Ways to Exchange Genes Ø New species can arise through hybridization. l Occurs when individuals to two distinct species crossbreed to produce an fertile offspring. Ø Some species (mostly microorganisms) can exchange genes without sexual reproduction. l Horizontal gene transfer

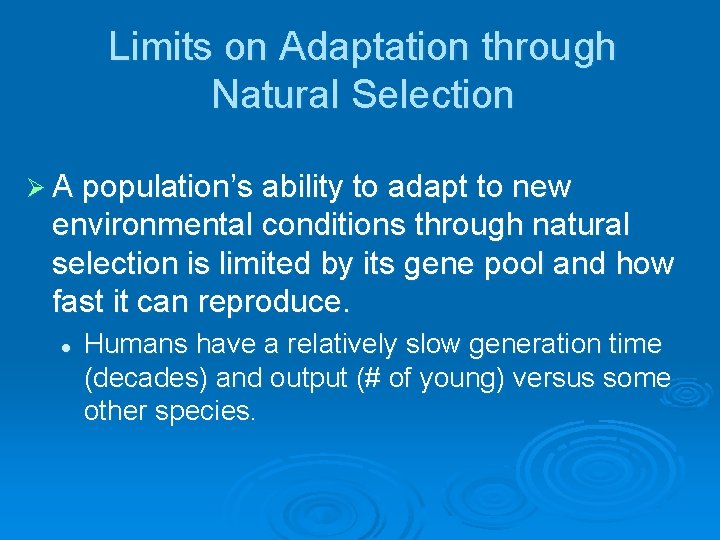

Limits on Adaptation through Natural Selection Ø A population’s ability to adapt to new environmental conditions through natural selection is limited by its gene pool and how fast it can reproduce. l Humans have a relatively slow generation time (decades) and output (# of young) versus some other species.

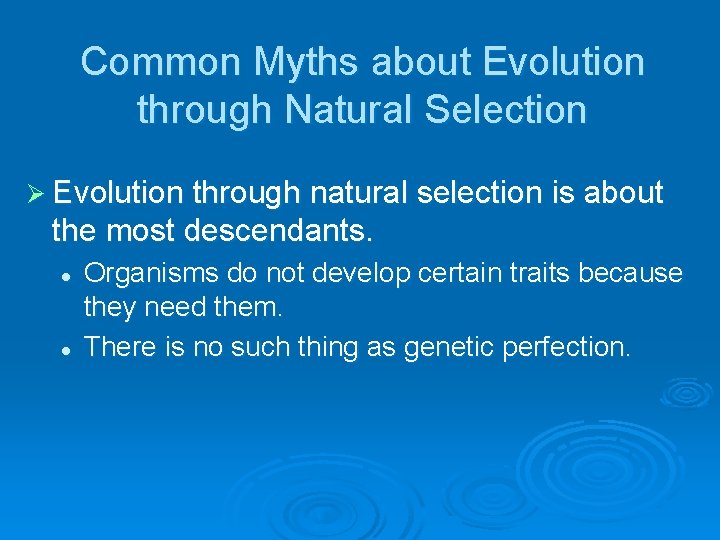

Common Myths about Evolution through Natural Selection Ø Evolution through natural selection is about the most descendants. l l Organisms do not develop certain traits because they need them. There is no such thing as genetic perfection.

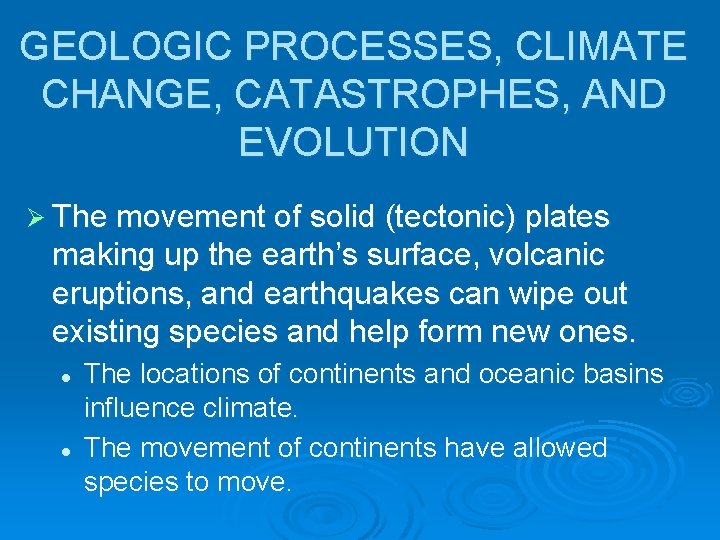

GEOLOGIC PROCESSES, CLIMATE CHANGE, CATASTROPHES, AND EVOLUTION Ø The movement of solid (tectonic) plates making up the earth’s surface, volcanic eruptions, and earthquakes can wipe out existing species and help form new ones. l l The locations of continents and oceanic basins influence climate. The movement of continents have allowed species to move.

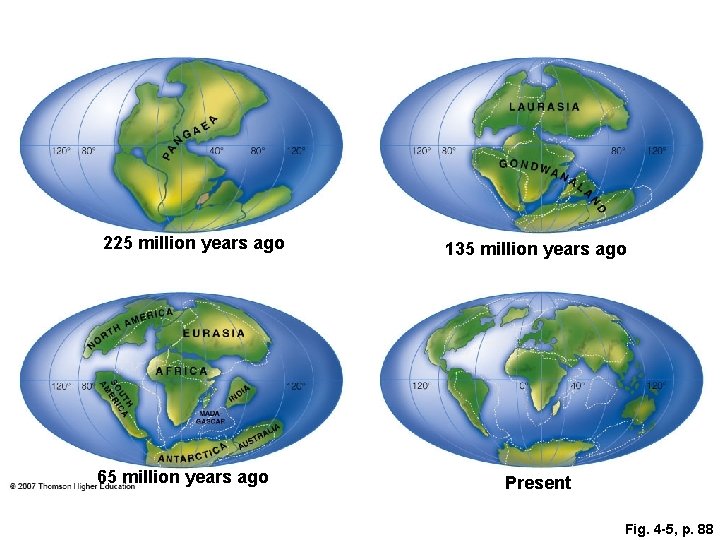

225 million years ago 65 million years ago 135 million years ago Present Fig. 4 -5, p. 88

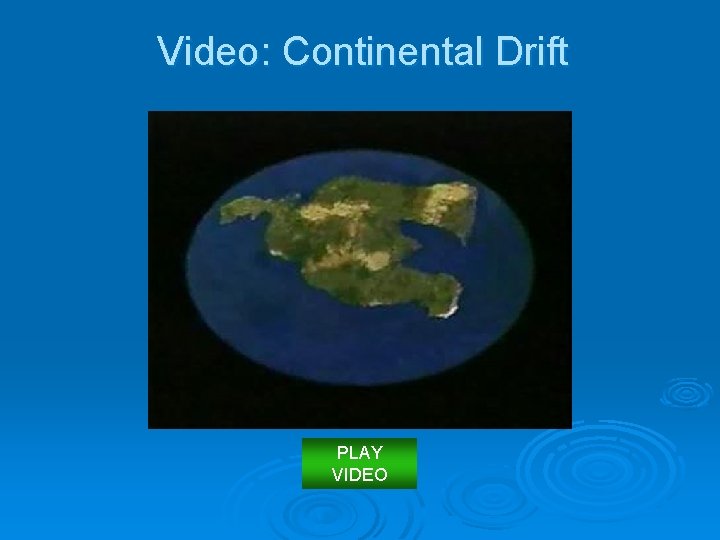

Video: Continental Drift PLAY VIDEO

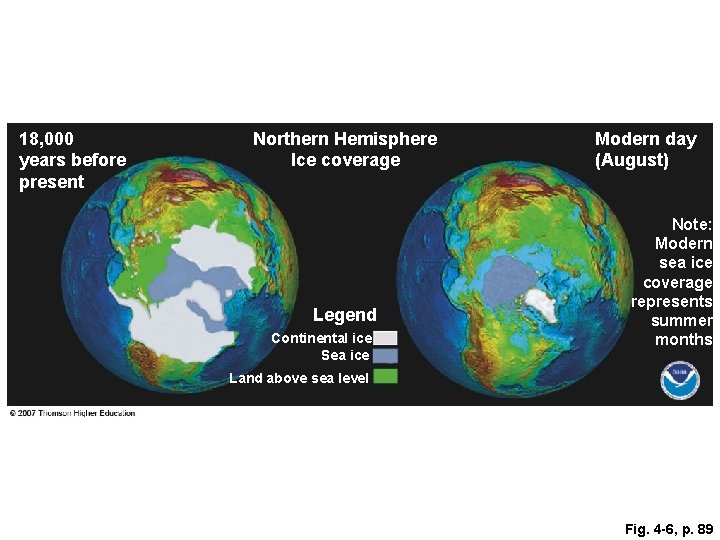

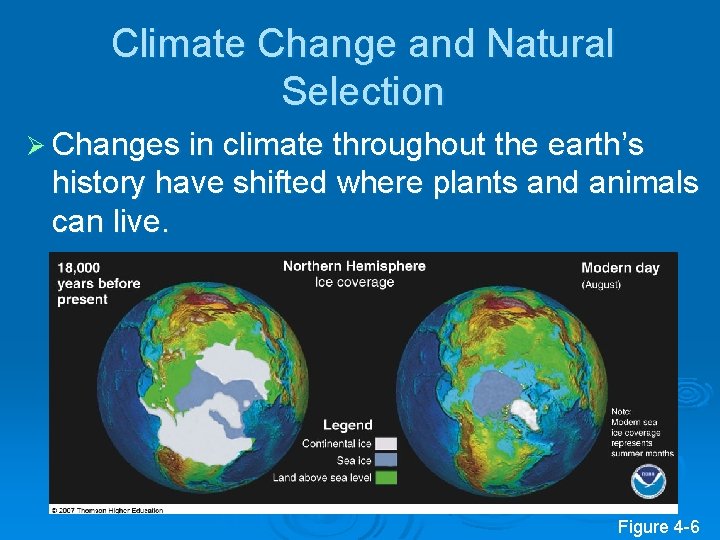

Climate Change and Natural Selection Ø Changes in climate throughout the earth’s history have shifted where plants and animals can live. Figure 4 -6

18, 000 years before present Northern Hemisphere Ice coverage Legend Continental ice Sea ice Modern day (August) Note: Modern sea ice coverage represents summer months Land above sea level Fig. 4 -6, p. 89

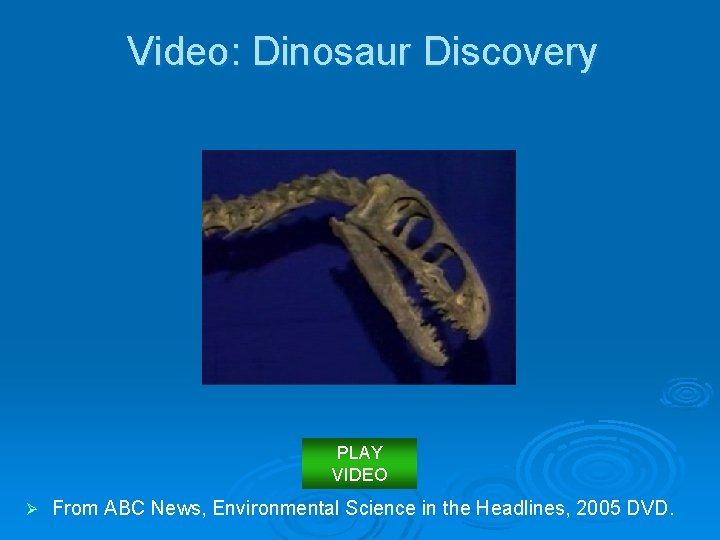

Video: Dinosaur Discovery PLAY VIDEO Ø From ABC News, Environmental Science in the Headlines, 2005 DVD.

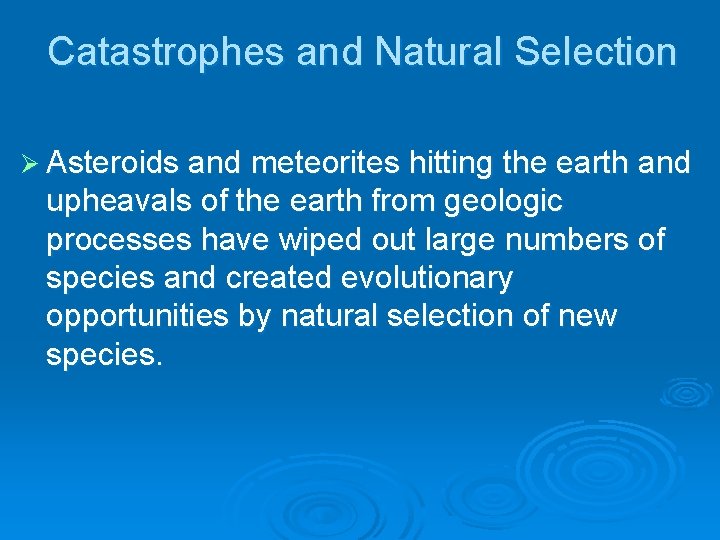

Catastrophes and Natural Selection Ø Asteroids and meteorites hitting the earth and upheavals of the earth from geologic processes have wiped out large numbers of species and created evolutionary opportunities by natural selection of new species.

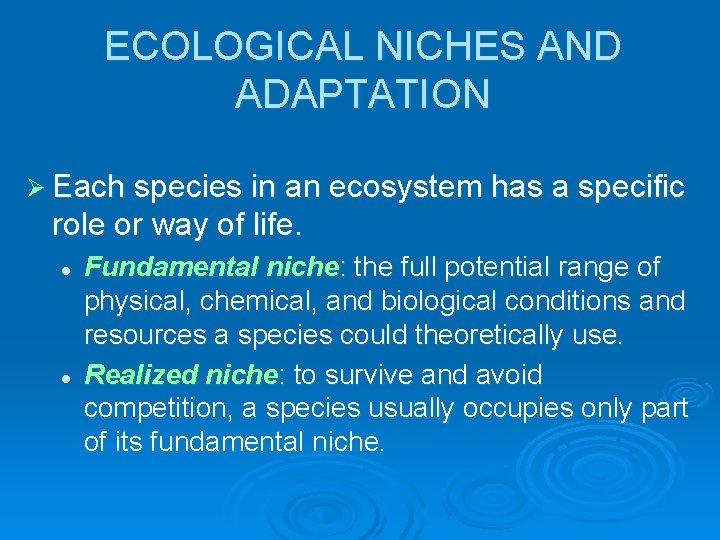

ECOLOGICAL NICHES AND ADAPTATION Ø Each species in an ecosystem has a specific role or way of life. l l Fundamental niche: the full potential range of physical, chemical, and biological conditions and resources a species could theoretically use. Realized niche: to survive and avoid competition, a species usually occupies only part of its fundamental niche.

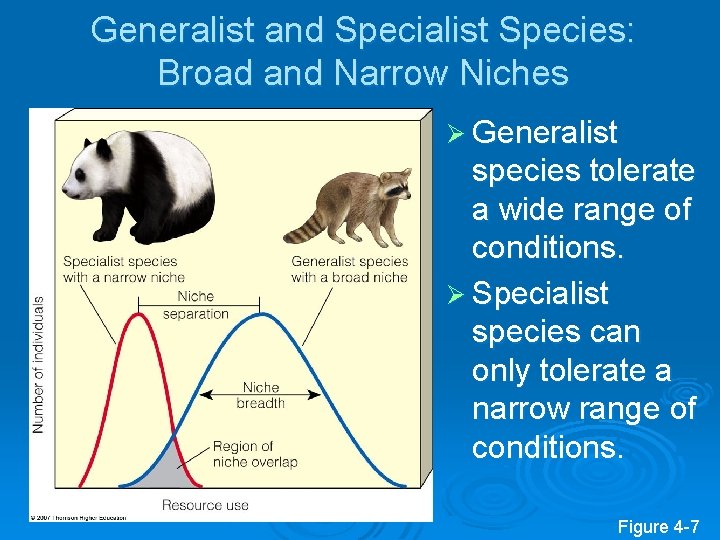

Generalist and Specialist Species: Broad and Narrow Niches Ø Generalist species tolerate a wide range of conditions. Ø Specialist species can only tolerate a narrow range of conditions. Figure 4 -7

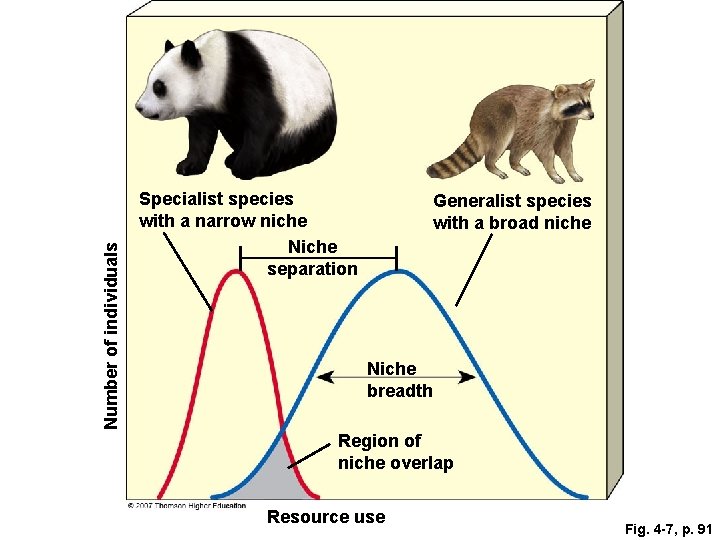

Number of individuals Specialist species with a narrow niche Niche separation Generalist species with a broad niche Niche breadth Region of niche overlap Resource use Fig. 4 -7, p. 91

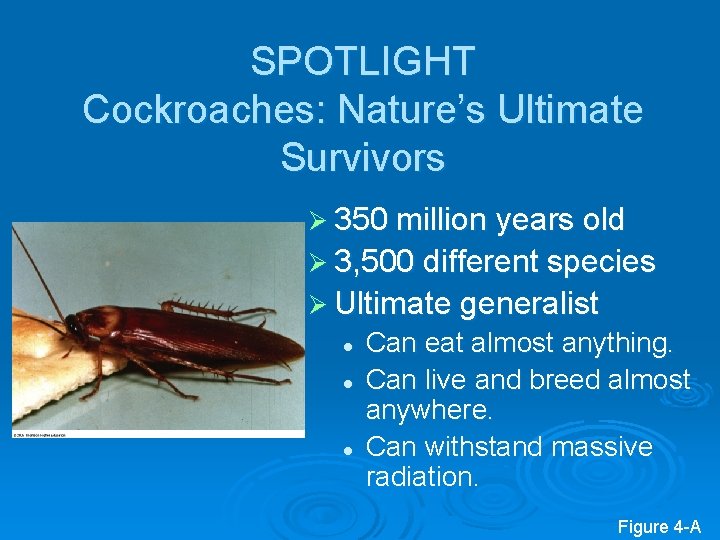

SPOTLIGHT Cockroaches: Nature’s Ultimate Survivors Ø 350 million years old Ø 3, 500 different species Ø Ultimate generalist l l l Can eat almost anything. Can live and breed almost anywhere. Can withstand massive radiation. Figure 4 -A

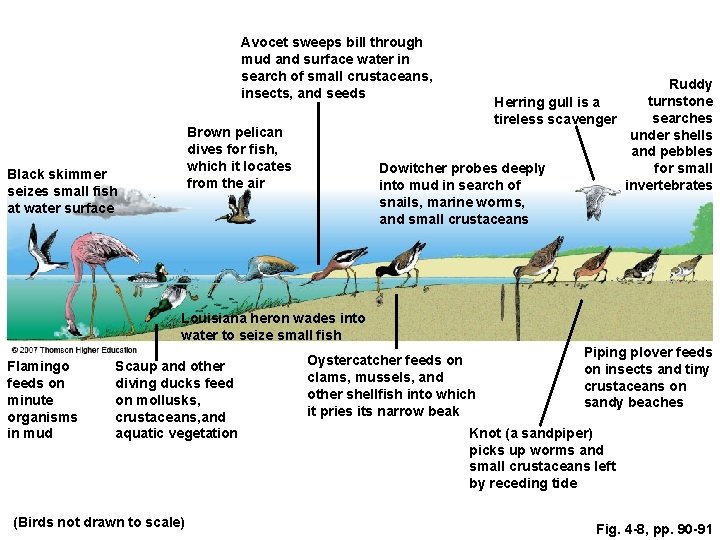

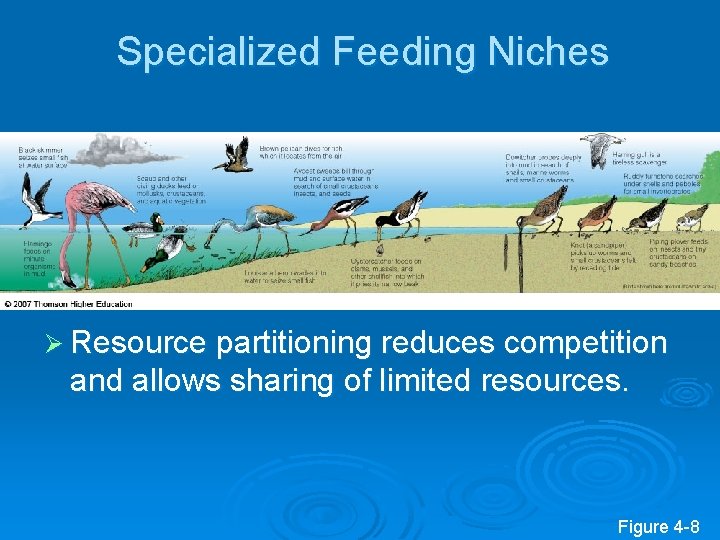

Specialized Feeding Niches Ø Resource partitioning reduces competition and allows sharing of limited resources. Figure 4 -8

Avocet sweeps bill through mud and surface water in search of small crustaceans, insects, and seeds Ruddy turnstone Herring gull is a searches tireless scavenger under shells and pebbles Dowitcher probes deeply for small into mud in search of invertebrates snails, marine worms, and small crustaceans Brown pelican dives for fish, which it locates from the air Black skimmer seizes small fish at water surface Louisiana heron wades into water to seize small fish Flamingo feeds on minute organisms in mud Scaup and other diving ducks feed on mollusks, crustaceans, and aquatic vegetation (Birds not drawn to scale) Oystercatcher feeds on clams, mussels, and other shellfish into which it pries its narrow beak Piping plover feeds on insects and tiny crustaceans on sandy beaches Knot (a sandpiper) picks up worms and small crustaceans left by receding tide Fig. 4 -8, pp. 90 -91

Video: Frogs Galore PLAY VIDEO Ø From ABC News, Environmental Science in the Headlines, 2005 DVD.

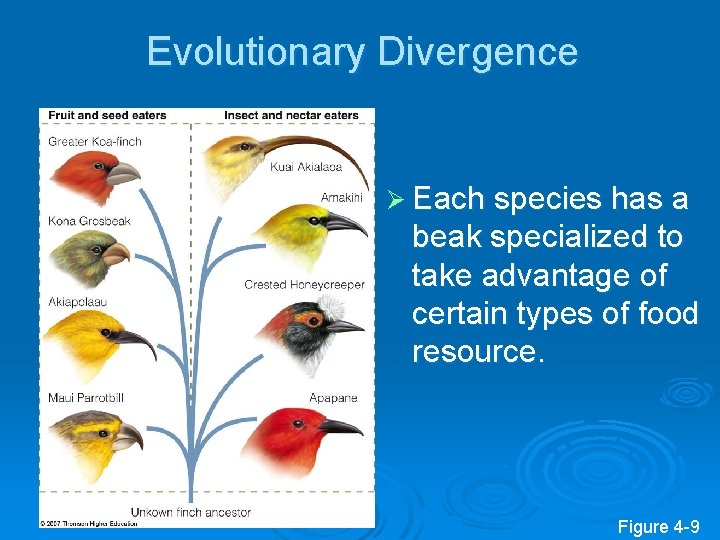

Evolutionary Divergence Ø Each species has a beak specialized to take advantage of certain types of food resource. Figure 4 -9

Fruit and seed eaters Insect and nectar eaters Greater Koa-finch Kuai Akialaoa Amakihi Kona Grosbeak Akiapolaau Crested Honeycreeper Maui Parrotbill Unknown finch ancestor Apapane Fig. 4 -9, p. 91

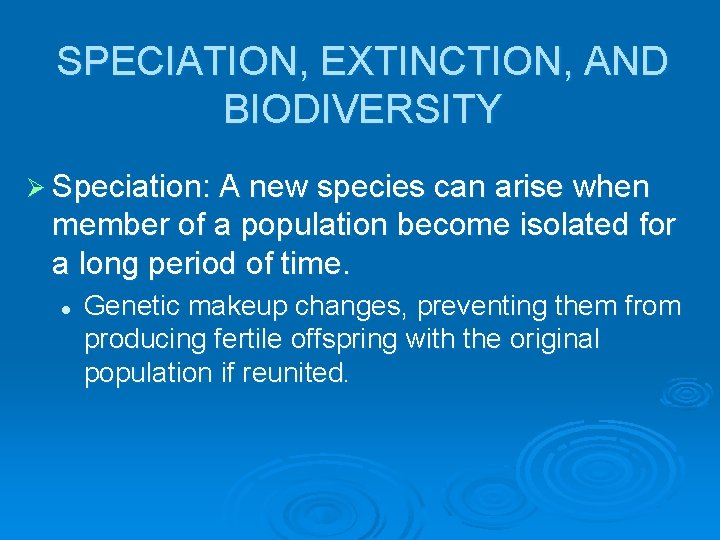

SPECIATION, EXTINCTION, AND BIODIVERSITY Ø Speciation: A new species can arise when member of a population become isolated for a long period of time. l Genetic makeup changes, preventing them from producing fertile offspring with the original population if reunited.

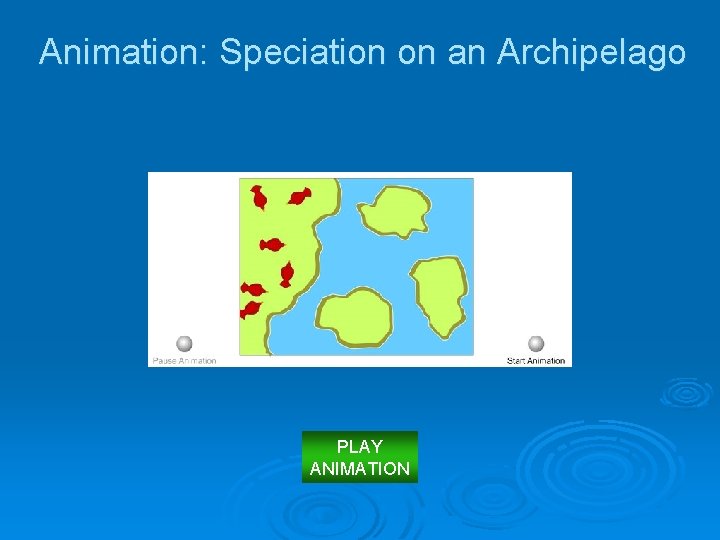

Animation: Speciation on an Archipelago PLAY ANIMATION

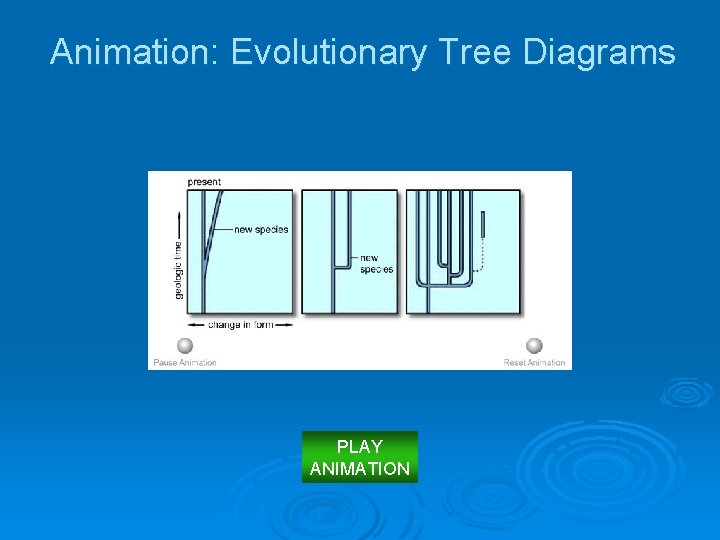

Animation: Evolutionary Tree Diagrams PLAY ANIMATION

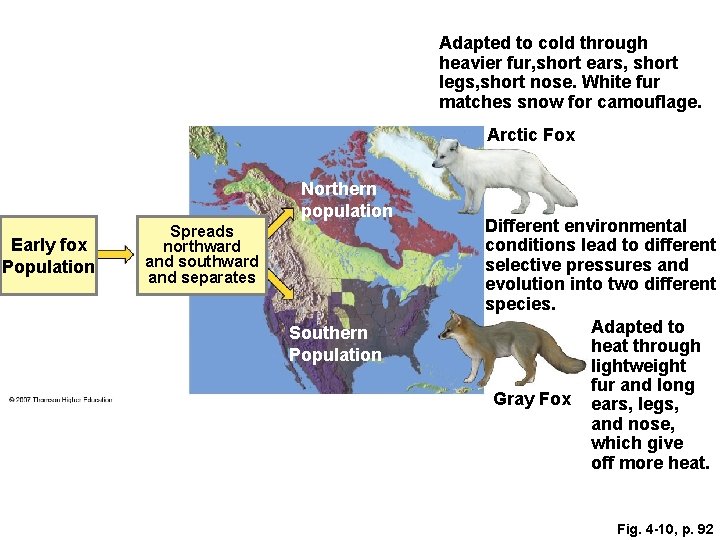

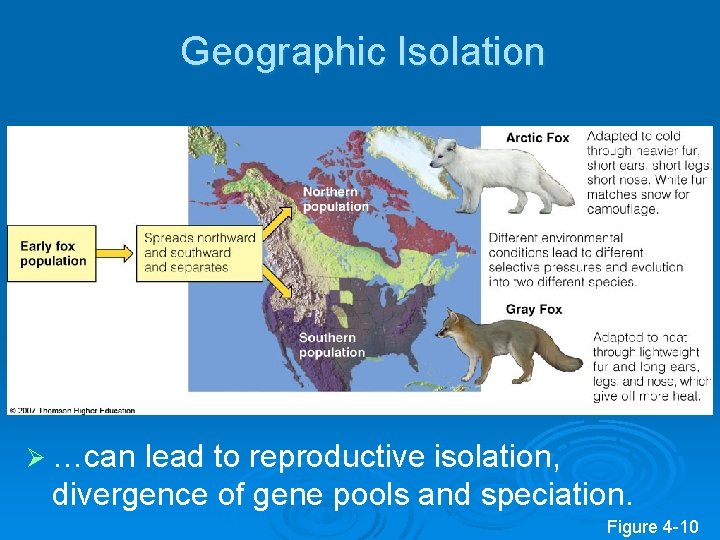

Geographic Isolation Ø …can lead to reproductive isolation, divergence of gene pools and speciation. Figure 4 -10

Adapted to cold through heavier fur, short ears, short legs, short nose. White fur matches snow for camouflage. Arctic Fox Northern population Early fox Population Spreads northward and southward and separates Southern Population Different environmental conditions lead to different selective pressures and evolution into two different species. Adapted to heat through lightweight fur and long Gray Fox ears, legs, and nose, which give off more heat. Fig. 4 -10, p. 92

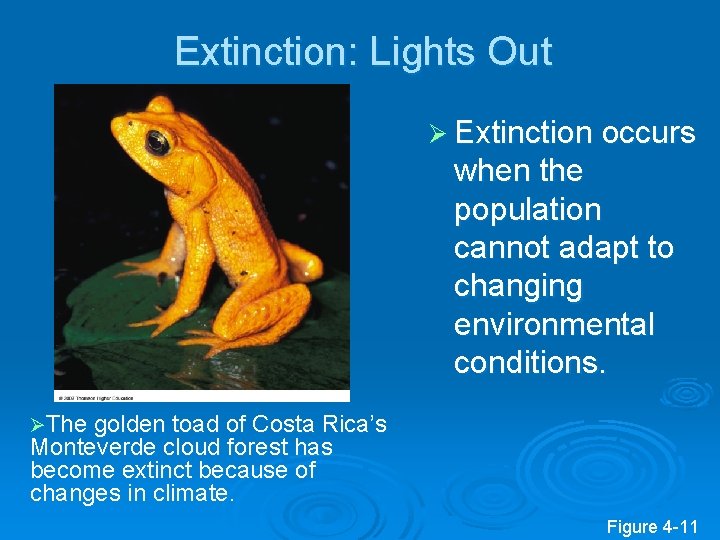

Extinction: Lights Out Ø Extinction occurs when the population cannot adapt to changing environmental conditions. ØThe golden toad of Costa Rica’s Monteverde cloud forest has become extinct because of changes in climate. Figure 4 -11

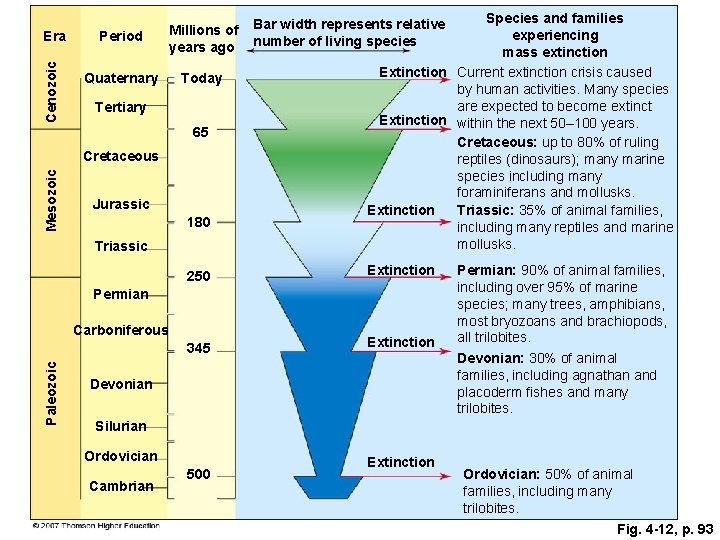

Cenozoic Era Period Millions of years ago Quaternary Today Tertiary 65 Mesozoic Cretaceous Jurassic 180 Triassic Species and families experiencing mass extinction Extinction Current extinction crisis caused by human activities. Many species are expected to become extinct Extinction within the next 50– 100 years. Cretaceous: up to 80% of ruling reptiles (dinosaurs); many marine species including many foraminiferans and mollusks. Extinction Triassic: 35% of animal families, including many reptiles and marine mollusks. Bar width represents relative number of living species 250 Extinction 345 Extinction Permian Paleozoic Carboniferous Devonian Permian: 90% of animal families, including over 95% of marine species; many trees, amphibians, most bryozoans and brachiopods, all trilobites. Devonian: 30% of animal families, including agnathan and placoderm fishes and many trilobites. Silurian Ordovician Cambrian 500 Extinction Ordovician: 50% of animal families, including many trilobites. Fig. 4 -12, p. 93

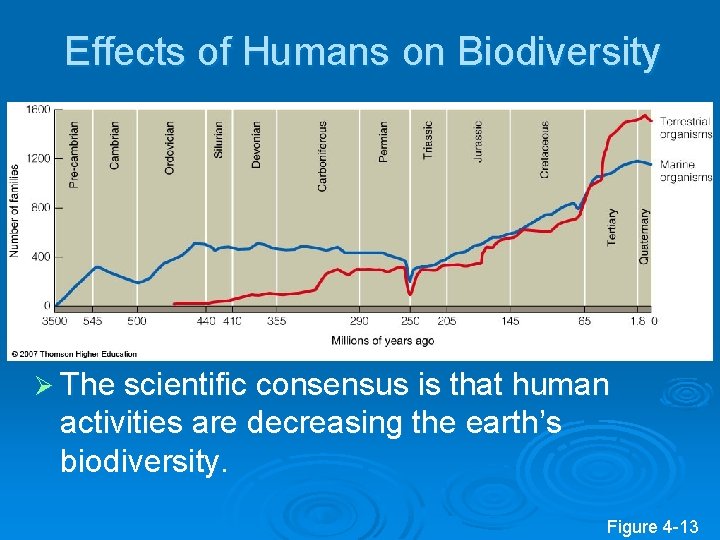

Effects of Humans on Biodiversity Ø The scientific consensus is that human activities are decreasing the earth’s biodiversity. Figure 4 -13

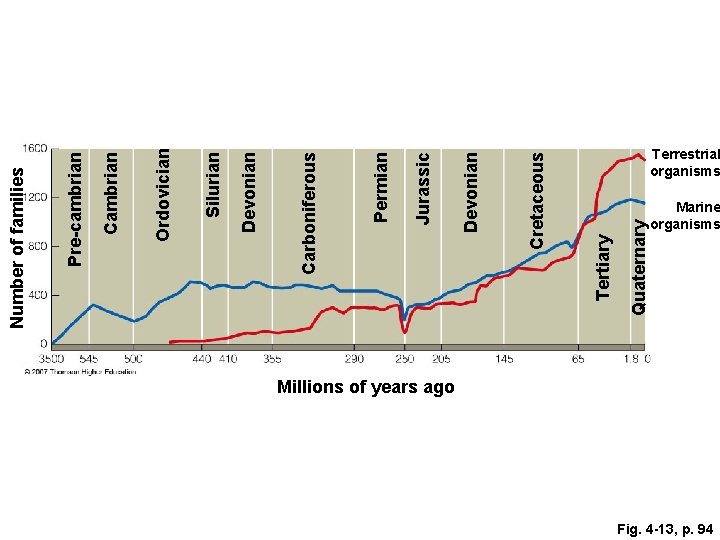

Quaternary Tertiary Cretaceous Devonian Jurassic Permian Carboniferous Devonian Silurian Ordovician Cambrian Pre-cambrian Number of families Terrestrial organisms Marine organisms Millions of years ago Fig. 4 -13, p. 94

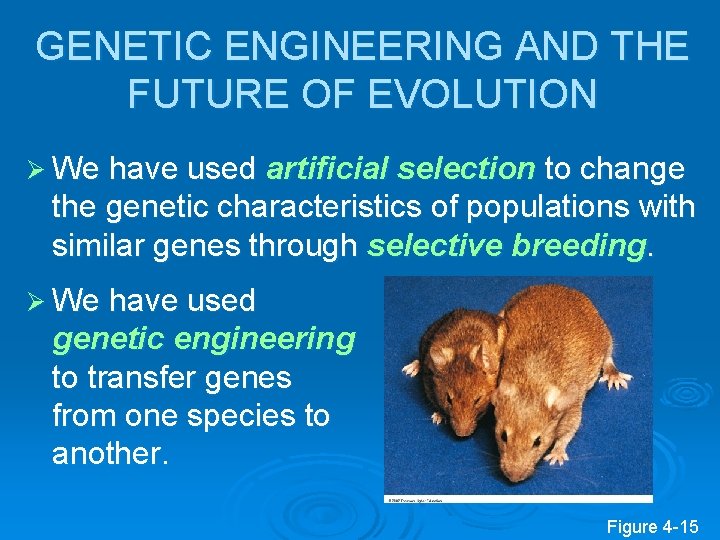

GENETIC ENGINEERING AND THE FUTURE OF EVOLUTION Ø We have used artificial selection to change the genetic characteristics of populations with similar genes through selective breeding. Ø We have used genetic engineering to transfer genes from one species to another. Figure 4 -15

Genetic Engineering: Genetically Modified Organisms (GMO) Ø GMOs use recombinant DNA l genes or portions of genes from different organisms. Figure 4 -14

Phase 1 Make Modified Gene E. coli Cell Extract DNA Gene of interest DNA Identify and remove portion extract gene with of DNA with desired trait Extract Plasmid Genetically modified plasmid Insert modified plasmid into E. coli Plasmid Remove Insert extracted plasmid (step 2) into plasmid from DNA of (step 3) E. coli Grow in tissue culture to make copies Fig. 4 -14, p. 95

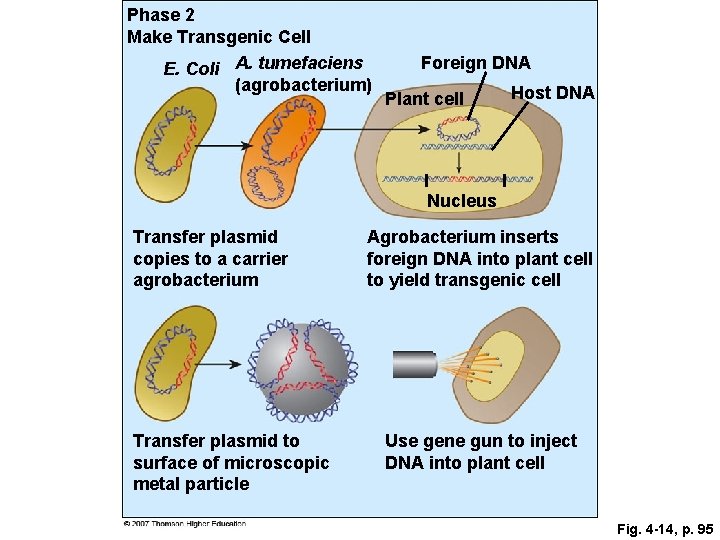

Phase 2 Make Transgenic Cell E. Coli A. tumefaciens (agrobacterium) Foreign DNA Plant cell Host DNA Nucleus Transfer plasmid copies to a carrier agrobacterium Transfer plasmid to surface of microscopic metal particle Agrobacterium inserts foreign DNA into plant cell to yield transgenic cell Use gene gun to inject DNA into plant cell Fig. 4 -14, p. 95

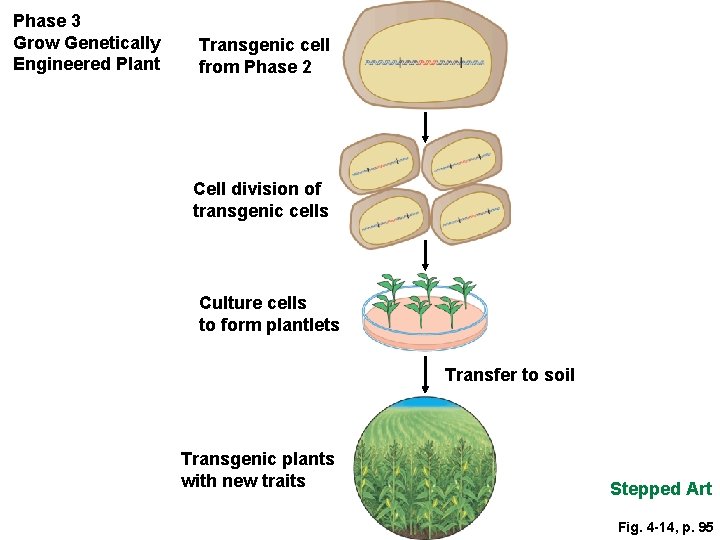

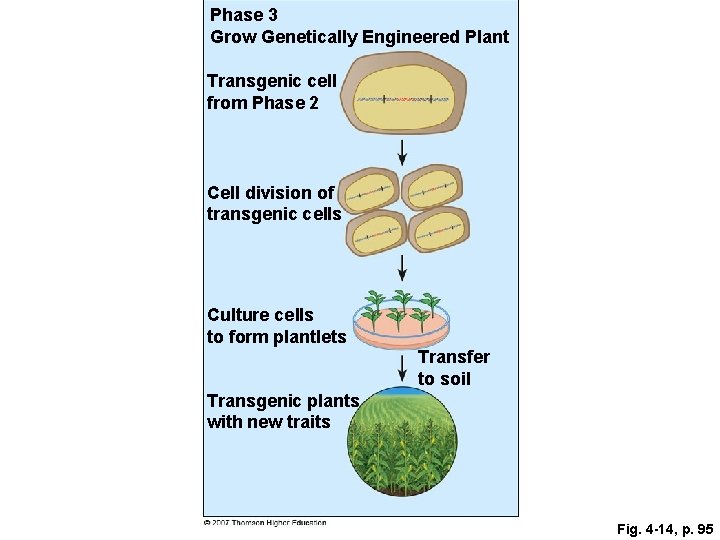

Phase 3 Grow Genetically Engineered Plant Transgenic cell from Phase 2 Cell division of transgenic cells Culture cells to form plantlets Transfer to soil Transgenic plants with new traits Fig. 4 -14, p. 95

Phase 3 Grow Genetically Engineered Plant Transgenic cell from Phase 2 Cell division of transgenic cells Culture cells to form plantlets Transfer to soil Transgenic plants with new traits Stepped Art Fig. 4 -14, p. 95

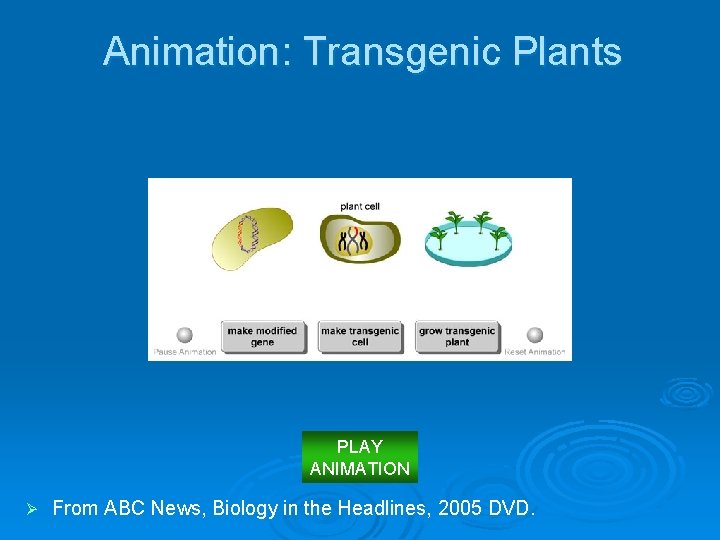

Animation: Transgenic Plants PLAY ANIMATION Ø From ABC News, Biology in the Headlines, 2005 DVD.

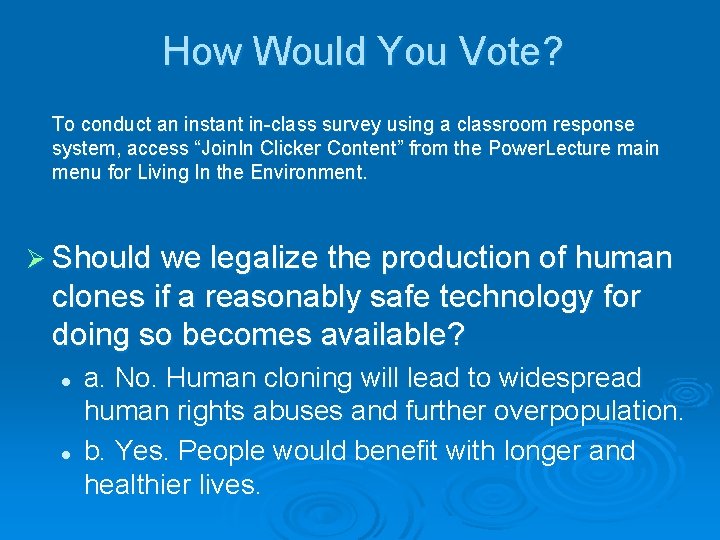

How Would You Vote? To conduct an instant in-class survey using a classroom response system, access “Join. In Clicker Content” from the Power. Lecture main menu for Living In the Environment. Ø Should we legalize the production of human clones if a reasonably safe technology for doing so becomes available? l l a. No. Human cloning will lead to widespread human rights abuses and further overpopulation. b. Yes. People would benefit with longer and healthier lives.

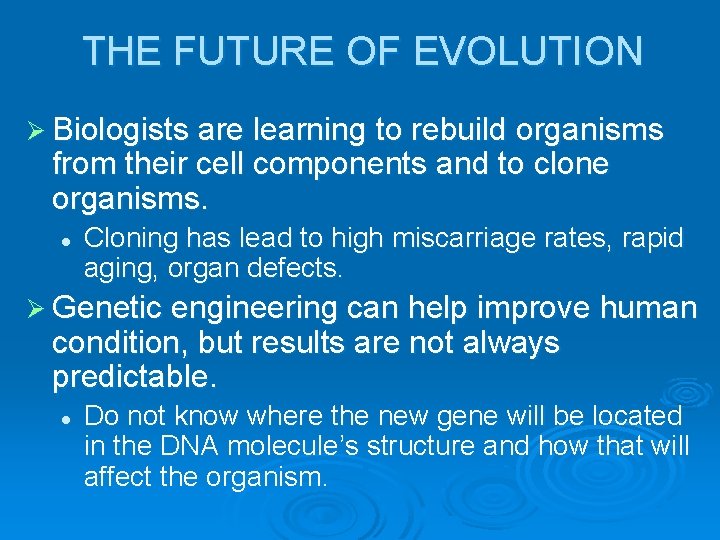

THE FUTURE OF EVOLUTION Ø Biologists are learning to rebuild organisms from their cell components and to clone organisms. l Cloning has lead to high miscarriage rates, rapid aging, organ defects. Ø Genetic engineering can help improve human condition, but results are not always predictable. l Do not know where the new gene will be located in the DNA molecule’s structure and how that will affect the organism.

Video: Cloned Pooch PLAY VIDEO Ø From ABC News, Biology in the Headlines, 2005 DVD.

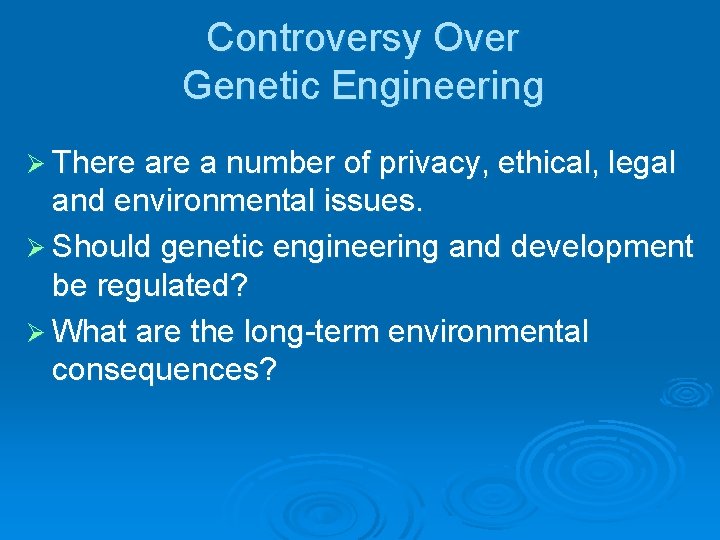

Controversy Over Genetic Engineering Ø There a number of privacy, ethical, legal and environmental issues. Ø Should genetic engineering and development be regulated? Ø What are the long-term environmental consequences?

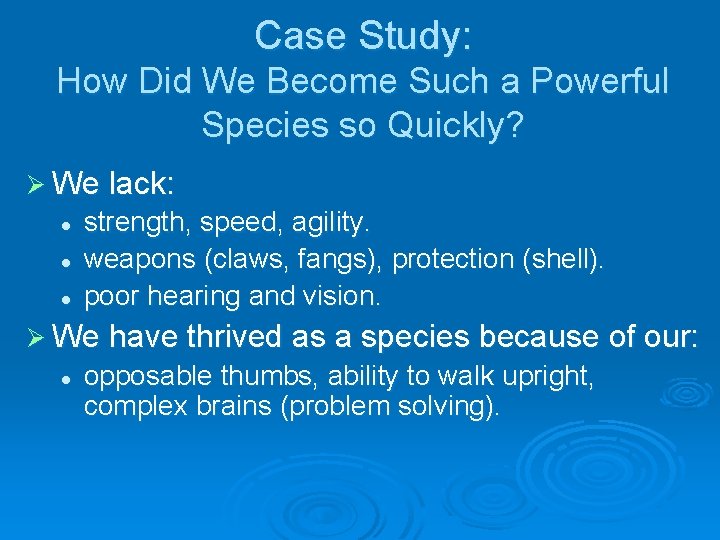

Case Study: How Did We Become Such a Powerful Species so Quickly? Ø We lack: l l l strength, speed, agility. weapons (claws, fangs), protection (shell). poor hearing and vision. Ø We have thrived as a species because of our: l opposable thumbs, ability to walk upright, complex brains (problem solving).
