4 장 Digital Transmission 4. 1 Line Coding 4. 2 Block Coding 4. 3 Sampling 4. 4 Transmission Mode Kyung Hee University 2
Line Coding q Converts sequence of bits to a digital signal Kyung Hee University 3
Characteristics of Line Coding q Signal level vs. data level q Pulse rate vs. bit rate q dc components q Self-synchronization Kyung Hee University 4
Signal Level versus Data Level q Signal level – number of values allowed in a signal q Data level – number of values used to represent data Kyung Hee University Three signal levels, two data levels 5

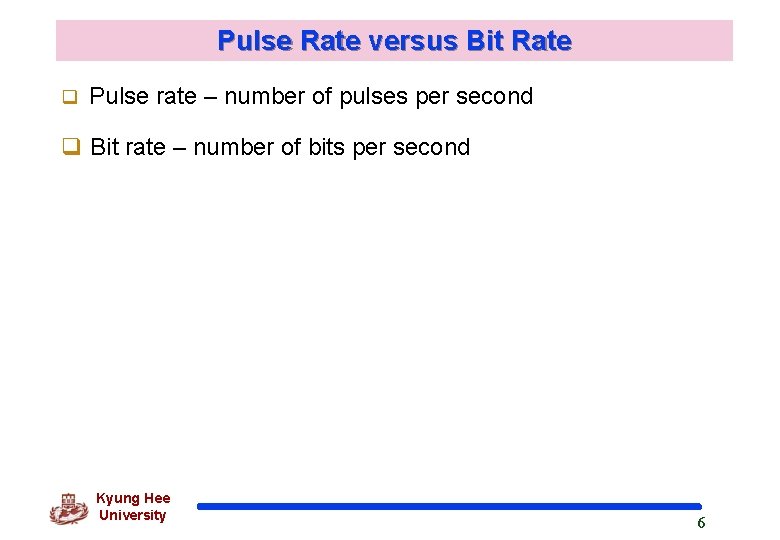

Pulse Rate versus Bit Rate q Pulse rate – number of pulses per second q Bit rate – number of bits per second Kyung Hee University 6
Pulse Rate versus Bit Rate Example 1> A signal has two data levels with a pulse duration of 1 ms. We calculate the pulse rate and bit rate as follows: q. Pulse Rate = 1/ 10 -3= 1000 pulses/s q. Bit Rate = Pulse Rate x log 2 L = 1000 x log 2 2 = 1000 bps Kyung Hee University 7
Pulse Rate versus Bit Rate Example 2 > A signal has four data levels with a pulse duration of 1 ms. We calculate the pulse rate and bit rate as follows q. Pulse Rate = = 1000 pulses/s q. Bit Rate = Pulse. Rate x log 2 L = 1000 x log 2 4 = 2000 bps Kyung Hee University 8
DC Components q Some systems (such as transformer) will not allow passage of dc component q DC Component is just extra energy on the line, but useless Kyung Hee University 9
Self-Synchronization q Receiver’s bit intervals must correspond exactly to the sender’s bit intervals q Self-synchronizing signal includes timing information q If the receiver’s clcok is out of synchronization, these alerting points can reset the clock. Kyung Hee University 10
Self-Synchronization - Lack of synchronization Kyung Hee University 11
Self-Synchronization q Example 3 In a digital transmission, the receiver clock is 0. 1 percent faster than the sender clock. How many extra bits per second does the receiver receive if the data rate is 1 Kbps? How many if the data rate is 1 Mbps? q Solution At 1 Kbps: 1000 bits sent 1001 bits received 1 extra bps At 1 Mbps: 1, 000 bits sent 1, 000 bits received 1000 extra bps Kyung Hee University 12
Line Coding Scheme Kyung Hee University 13
Unipolar coding q Unipolar encoding uses only one voltage level. Kyung Hee University 14
Unipolar encoding disadvantages q dc component q no synchronization Kyung Hee University 15

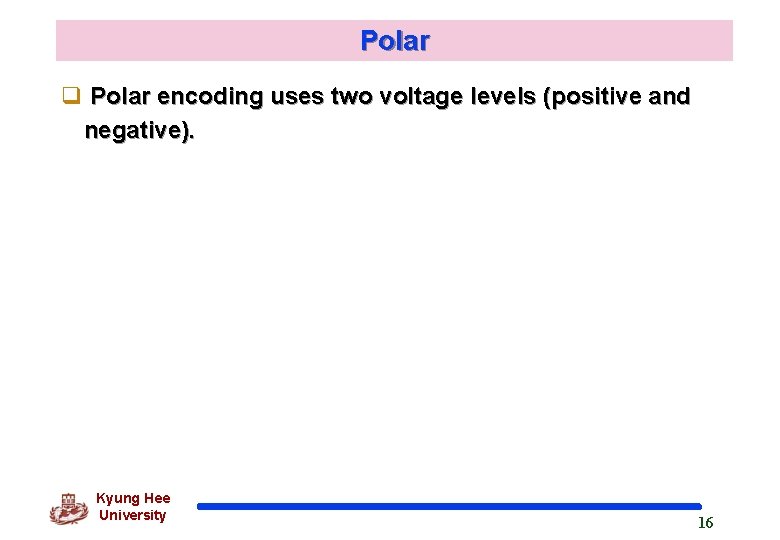

Polar q Polar encoding uses two voltage levels (positive and negative). Kyung Hee University 16

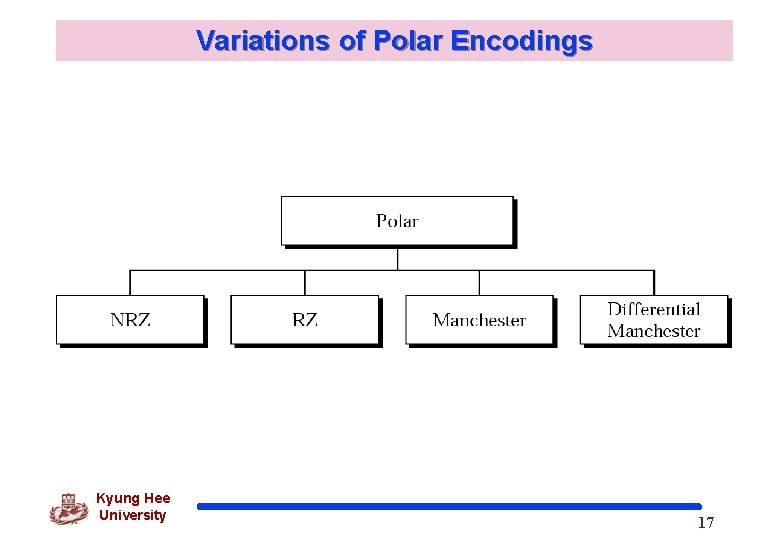

Variations of Polar Encodings Kyung Hee University 17
Variations of Polar Encodings q In Nonreturn to Zero-level (NRZ-L) the level of the signal is dependent upon the state of the bit. q In Nonreturn to Zero-Invert (NRZ-I) the signal is inverted if a 1 is encountered. Kyung Hee University 18
NRZ-L (level) and NRZ-I (invert) encoding q Kyung Hee University 19
Return to Zero (RZ) encoding A good encoded digital signal must contain a provision for synchronization. Kyung Hee University 20
Manchester Encoding In Manchester encoding, the transition at the middle of the bit is used for both synchronization and bit representation. Kyung Hee University 21
Differential Manchester q In differential Manchester encoding, the transition at the middle of the bit is used only for synchronization. The bit representation is defined by the inversion or noninversion at the beginning of the bit. Kyung Hee University 22
Bipolar q In bipolar encoding, we use three levels: positive, zero, and negative. q Bipolar AMI encoding Kyung Hee University 23
Some Other Schemes q 2 B 1 Q (two binary, one quaternary) -1 -2 q MLT 3 (Multiline Transmission, three level (MLT-3) Kyung Hee University 24
4. 2 Block Coding q Steps in transmission Step 1: Division l divide sequence of bits into groups of m bits Step 2: Substitution l substitute an m-bit code for an n-bit group Step 3: Line Coding l create the signal Kyung Hee University 25
Block coding Kyung Hee University 26
Block coding q Substitution in block coding Kyung Hee University 27
Block coding q 4 B/5 B encoding Data Code 0000 11110 10010 0001 010011 0010 1010 10110 0011 10101 10111 0100 01010 11010 01011 11011 0110 011100 01111 11101 q no more than 1 leading 0 q no more than 2 trailing 0 s q normally encoded w/ NRZ-I (1 indicated by transition) Kyung Hee University 28
Block coding q Rest of the 5 bit codes Synchronization Error correction q Example J (start delimiter) : 11000 T (end delimiter) : 01101 S (set) : 11001 R (reset) : 00111 Kyung Hee University 29
Block coding q 8 B/6 T substitute 8 bit group w/ 6 symbol code each symbol is ternary (+1, 0, -1) 8 bit code = 28 = 256 6 bit ternary = 36 = 729 Kyung Hee University 30
4. 3 Sampling q PAM : Pulse Amplitude Modulation Kyung Hee University 31

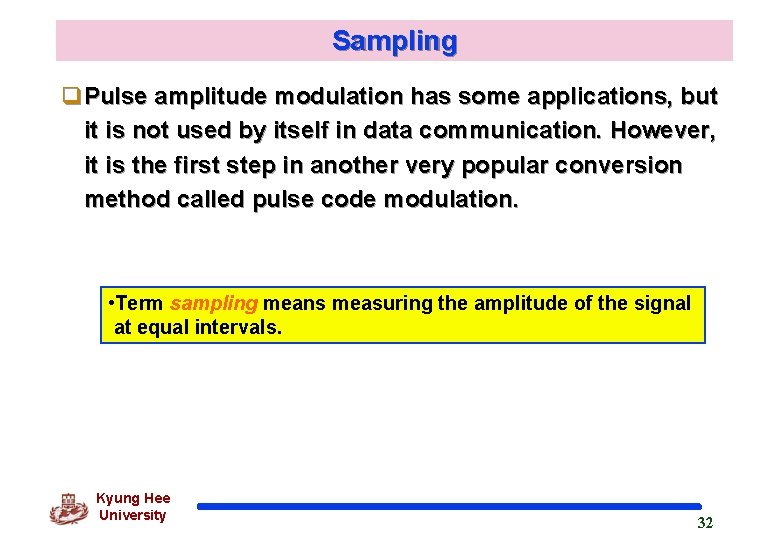

Sampling q. Pulse amplitude modulation has some applications, but it is not used by itself in data communication. However, it is the first step in another very popular conversion method called pulse code modulation. • Term sampling means measuring the amplitude of the signal at equal intervals. Kyung Hee University 32
Sampling q Quantized PAM Signal Kyung Hee University 33
Sampling q Quantizing by using sign and magnitude Kyung Hee University 34
PCM Kyung Hee University 35
PCM q From analog signal to PCM digital code Kyung Hee University 36
Sampling Rate and Nyquist Theorem q. According to the Nyquist theorem, the sampling rate must be at least 2 times the highest frequency. Kyung Hee University 37
Sampling Rate and Nyquist Theorem Example 4 What sampling rate is needed for a signal with a bandwidth of 10, 000 Hz (1000 to 11, 000 Hz)? Solution The sampling rate must be twice the highest frequency in the signal: Sampling rate = 2 x (11, 000) = 22, 000 samples/s Kyung Hee University 38
Sampling Rate and Nyquist Theorem Example 5 A signal is sampled. Each sample requires at least 12 levels of precision (+0 to +5 and -0 to -5). How many bits should be sent for each sample? Solution We need 4 bits; 1 bit for the sign and 3 bits for the value. A 3 -bit value can represent 23 = 8 levels (000 to 111), which is more than what we need. A 2 -bit value is not enough since 22 = 4. A 4 -bit value is too much because 24 Kyung Hee = 16. University 39
Sampling Rate and Nyquist Theorem Example 6 We want to digitize the human voice. What is the bit rate, assuming 8 bits per sample? Solution The human voice normally contains frequencies from 0 to 4000 Hz. Sampling rate = 4000 x 2 = 8000 samples/s Bit rate = sampling rate x number of bits per sample =Kyung 8000 Hee x 8 = 64, 000 bps = 64 Kbps University 40
4. 4 Transmission Mode q Kyung Hee University 41
Parallel Transmission Kyung Hee University 42
Serial Transmission q Kyung Hee University 43
Asynchronous Transmission q In asynchronous transmission, we send 1 start bit (0) at the beginning and 1 or more stop bits (1 s) at the end of each byte. There may be a gap between each byte. q Asynchronous here means “asynchronous at the byte level, ” but the bits are still synchronized; their durations are the same. Kyung Hee University 44

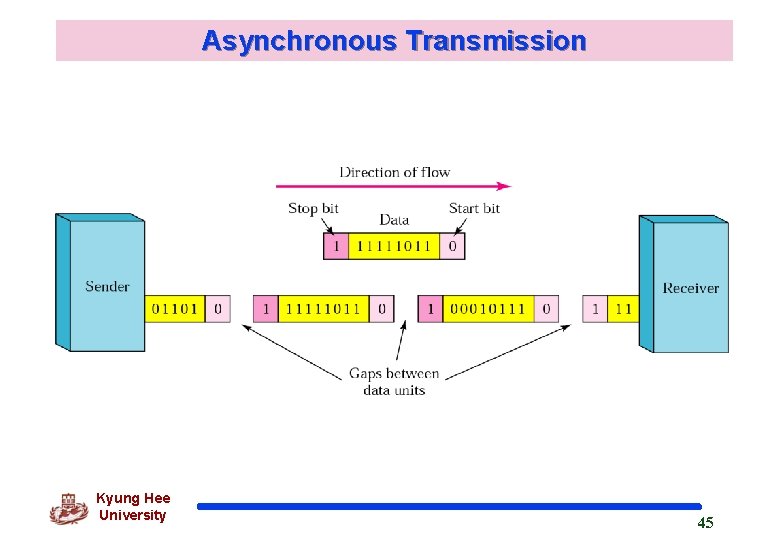

Asynchronous Transmission Kyung Hee University 45
Synchronous Transmission q In synchronous transmission, we send bits one after another without start/stop bits or gaps. It is the responsibility of the receiver to group the bits. Kyung Hee University 46
