CHAPTER 4 COUNTER 1 2 BIT SYNCHRONOUS COUNTER
CHAPTER 4 COUNTER 1

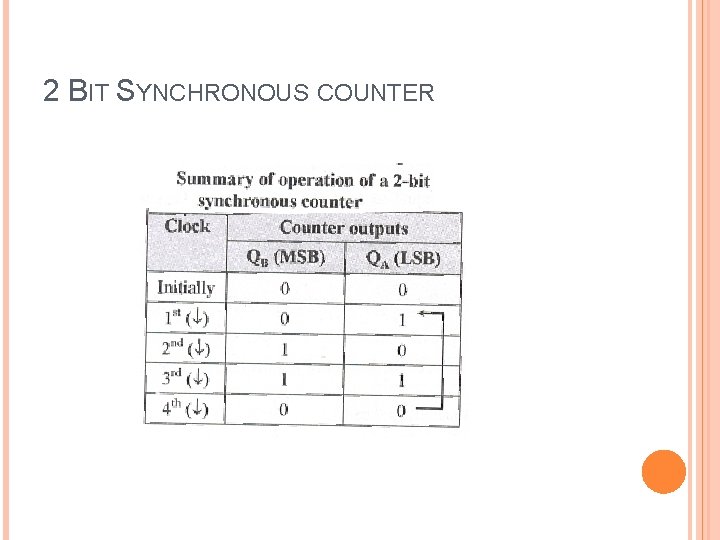

2 BIT SYNCHRONOUS COUNTER
2 BIT SYNCHRONOUS COUNTER
2 BIT SYNCHRONOUS COUNTER

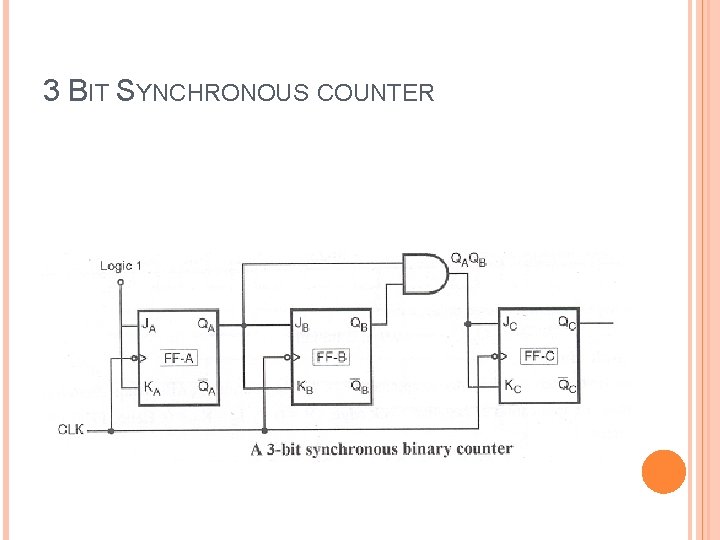

3 BIT SYNCHRONOUS COUNTER
3 BIT SYNCHRONOUS COUNTER
3 BIT SYNCHRONOUS COUNTER
3 BIT SYNCHRONOUS COUNTER USING T FLIPFLOP

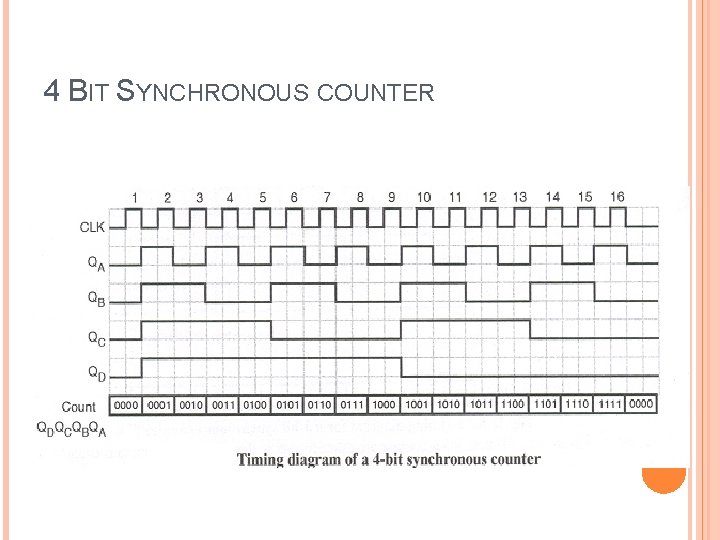

4 BIT SYNCHRONOUS COUNTER
4 BIT SYNCHRONOUS COUNTER

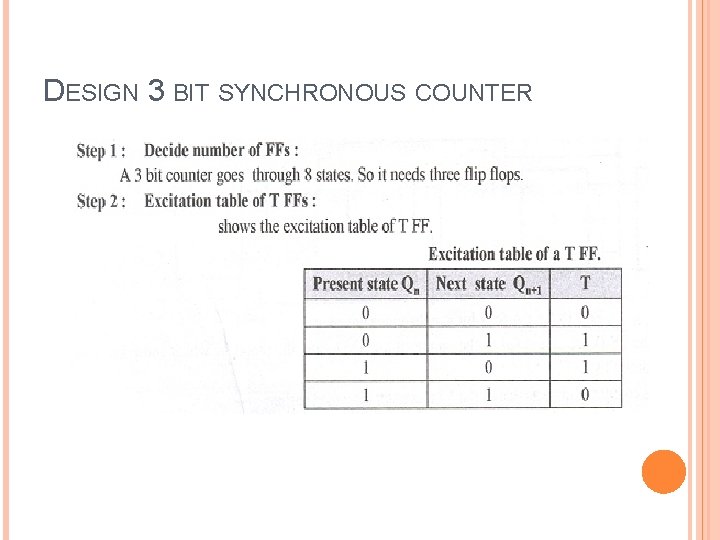

DESIGN 3 BIT SYNCHRONOUS COUNTER

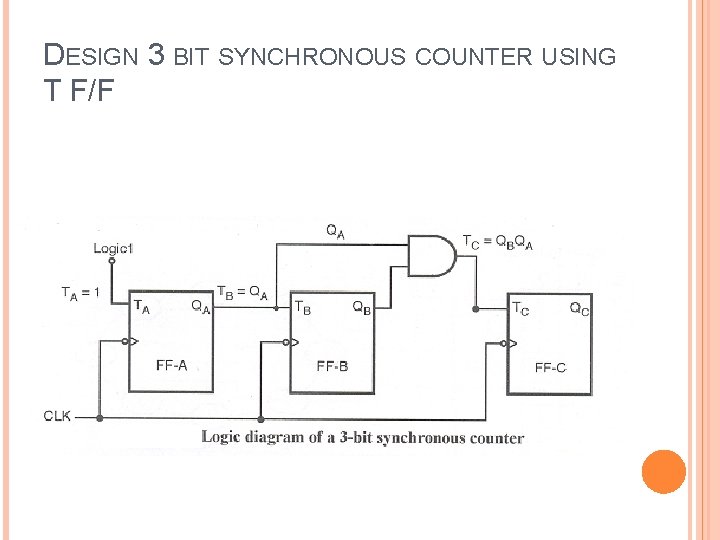

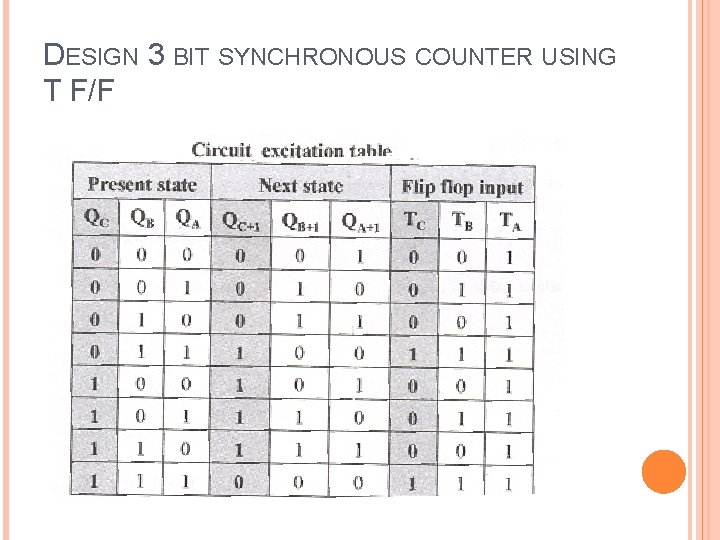

DESIGN 3 BIT SYNCHRONOUS COUNTER USING T F/F
DESIGN 3 BIT SYNCHRONOUS COUNTER USING T F/F
DESIGN 3 BIT SYNCHRONOUS COUNTER USING T F/F
DESIGN 3 BIT SYNCHRONOUS COUNTER USING T F/F

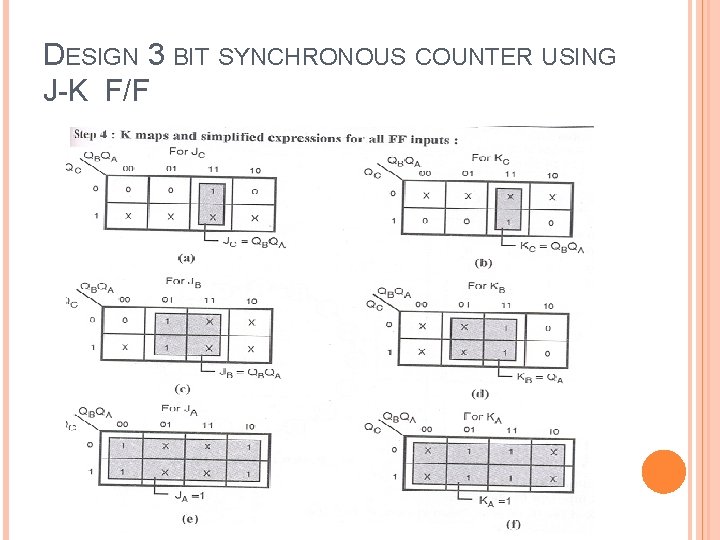

DESIGN 3 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 3 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 3 BIT SYNCHRONOUS COUNTER USING J-K F/F

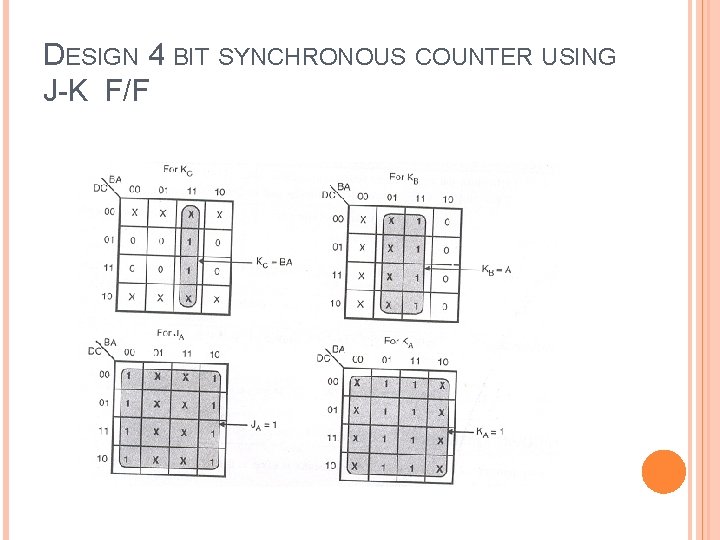

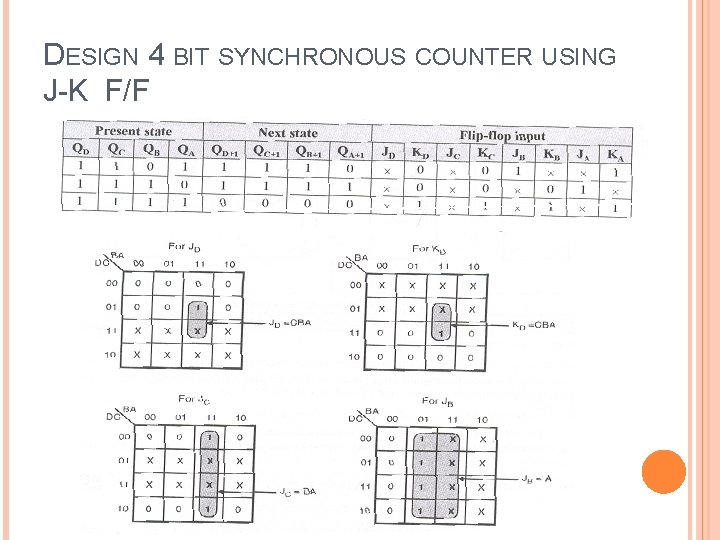

DESIGN 4 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 4 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 4 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 4 BIT SYNCHRONOUS COUNTER USING J-K F/F
DESIGN 4 BIT SYNCHRONOUS COUNTER USING J-K F/F
UP-DOWN SYNCHRONOUS COUNTER

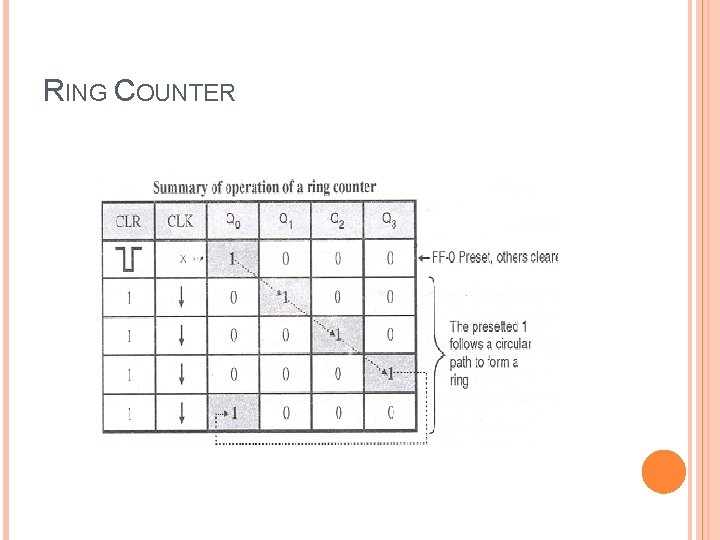

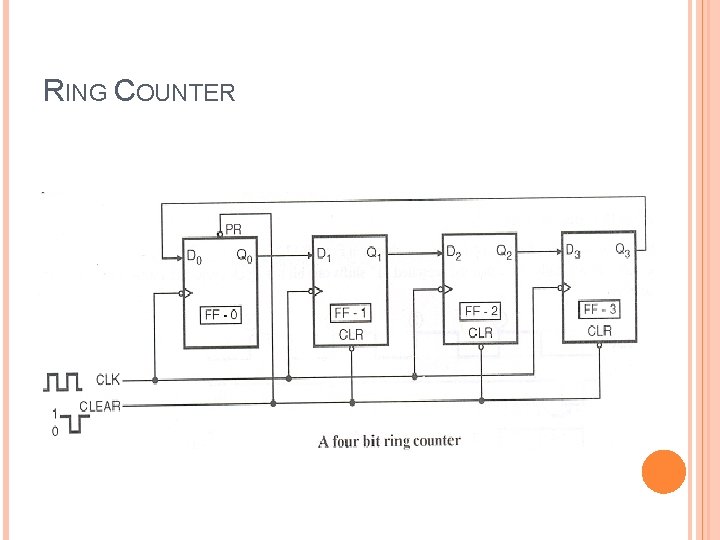

RING COUNTER
RING COUNTER
RING COUNTER

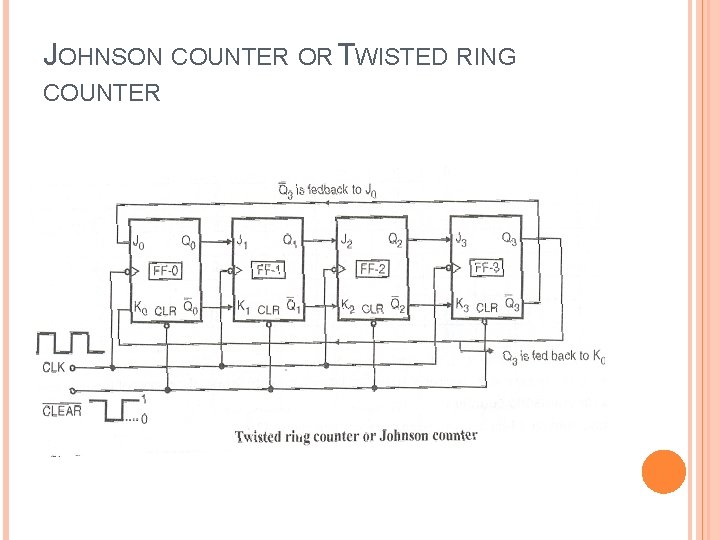

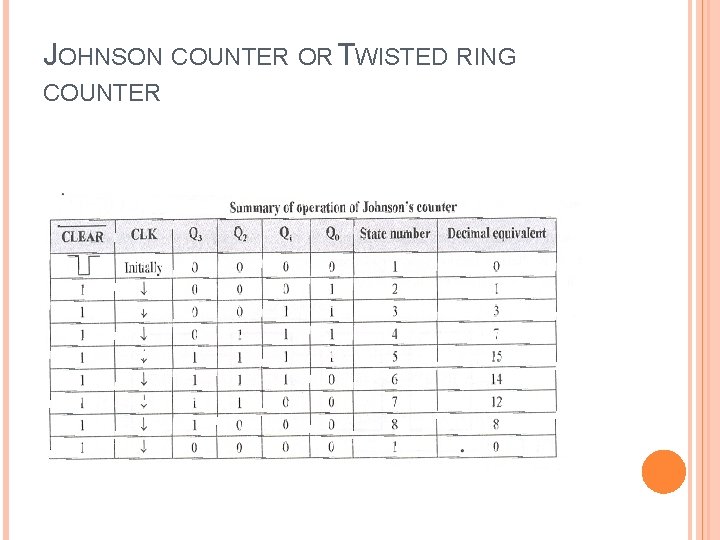

JOHNSON COUNTER OR TWISTED RING COUNTER
JOHNSON COUNTER OR TWISTED RING COUNTER
JOHNSON COUNTER OR TWISTED RING COUNTER
JOHNSON COUNTER OR TWISTED RING COUNTER

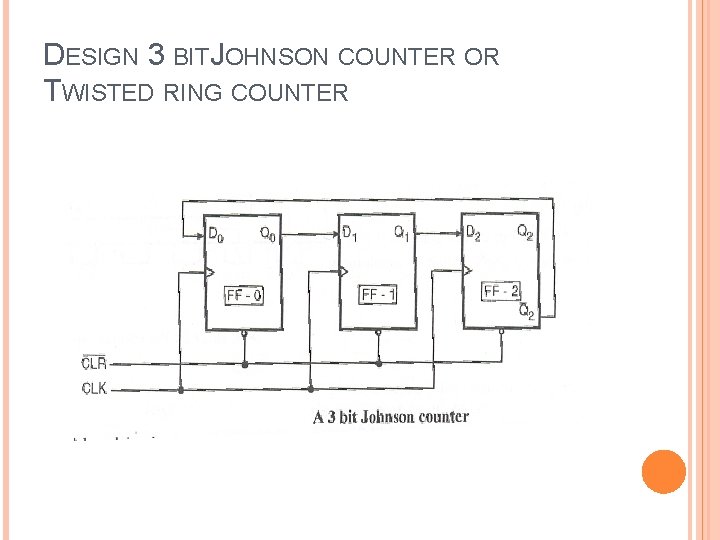

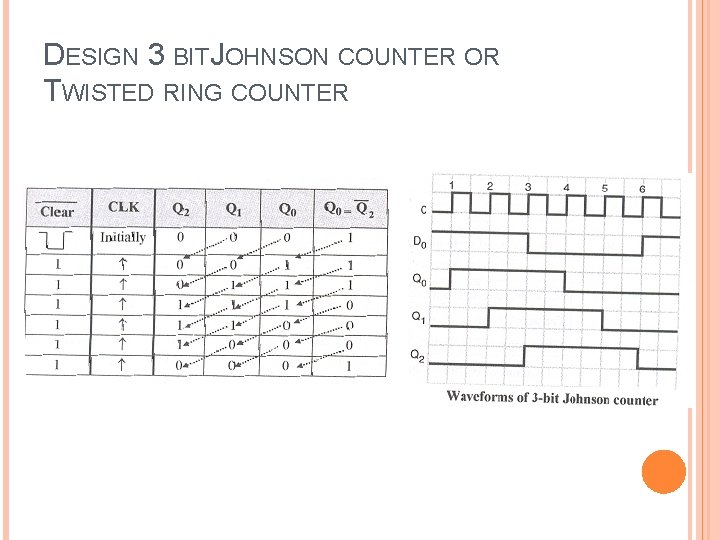

DESIGN 3 BITJOHNSON COUNTER OR TWISTED RING COUNTER
DESIGN 3 BITJOHNSON COUNTER OR TWISTED RING COUNTER

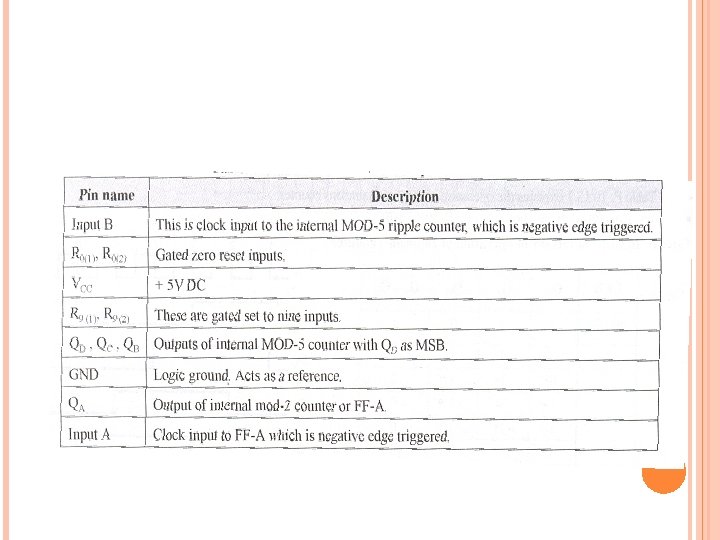

IC 7490 DECADE COUNTER
DESIGN MOD -10 USINGIC 7490
DESIGN MOD -10 USINGIC 7490

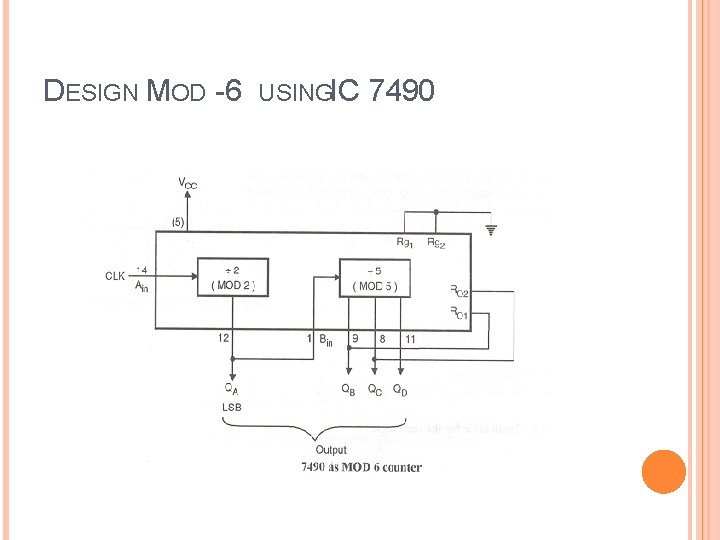

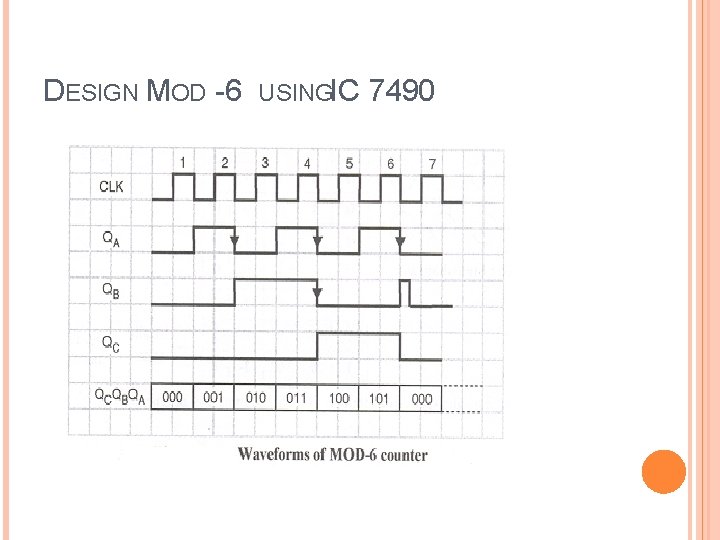

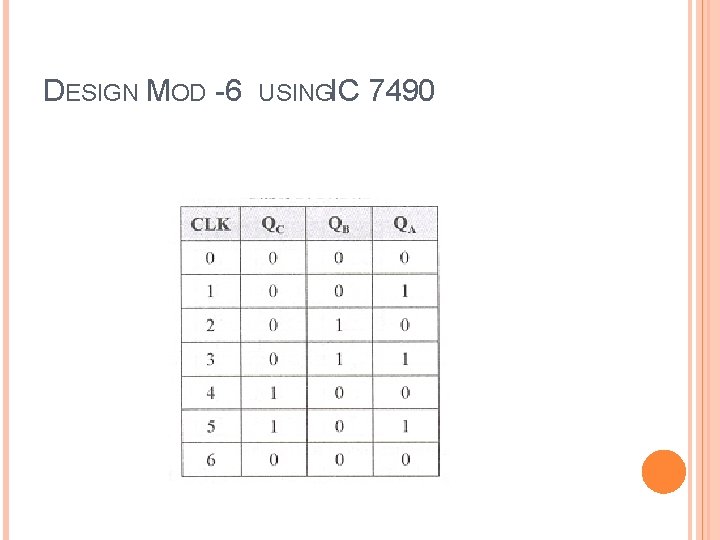

DESIGN MOD -6 USINGIC 7490
DESIGN MOD -6 USINGIC 7490
DESIGN MOD -6 USINGIC 7490

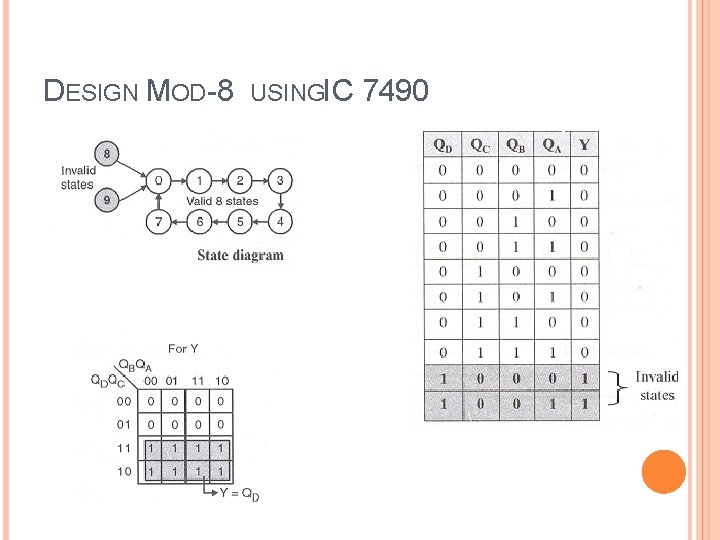

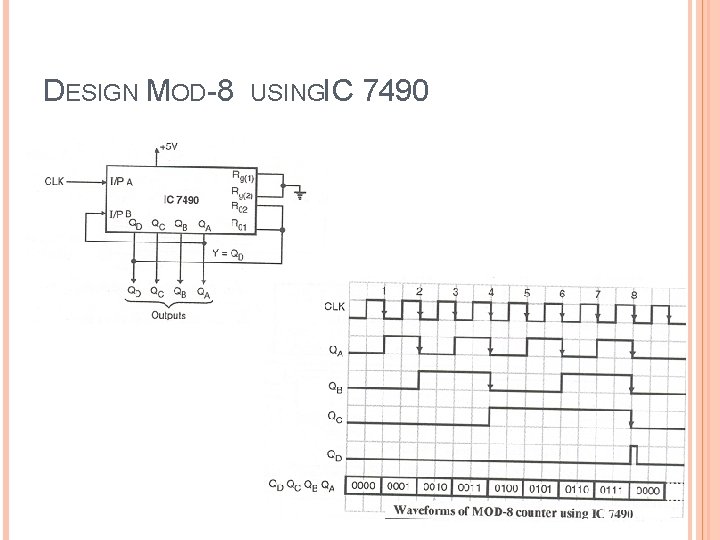

DESIGN MOD-8 USINGIC 7490
DESIGN MOD-8 USINGIC 7490

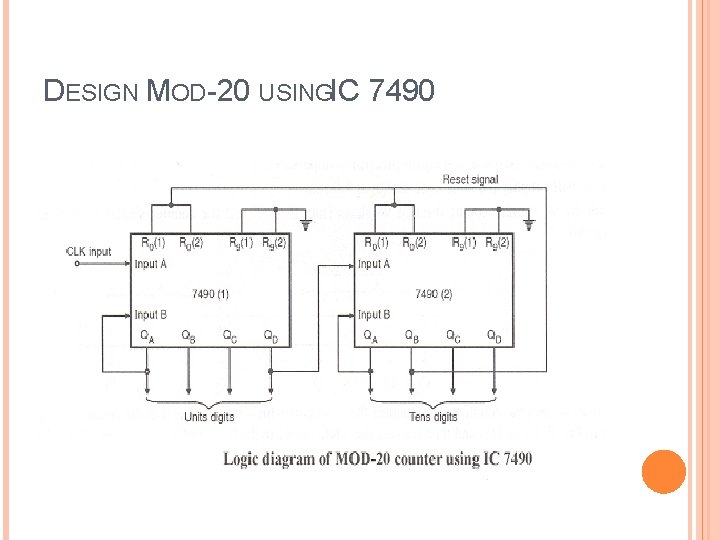

DESIGN MOD-20 USINGIC 7490
COMPARISION
