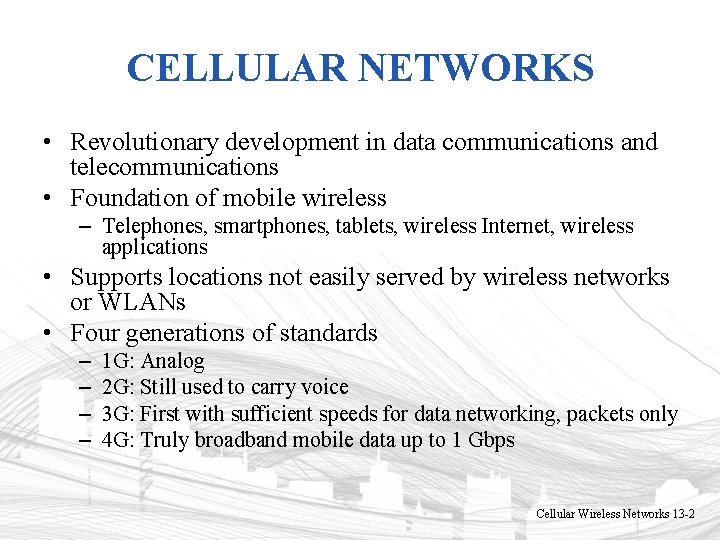

CELLULAR NETWORKS • Revolutionary development in data communications and telecommunications • Foundation of mobile wireless – Telephones, smartphones, tablets, wireless Internet, wireless applications • Supports locations not easily served by wireless networks or WLANs • Four generations of standards – – 1 G: Analog 2 G: Still used to carry voice 3 G: First with sufficient speeds for data networking, packets only 4 G: Truly broadband mobile data up to 1 Gbps Cellular Wireless Networks 13 -2

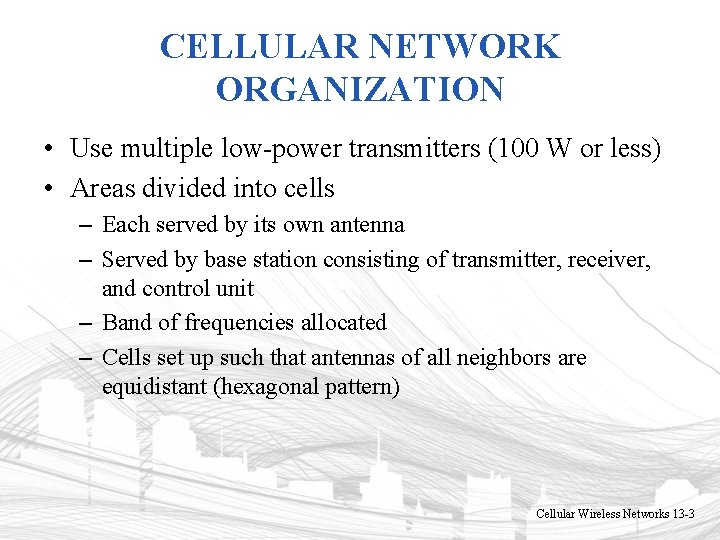

CELLULAR NETWORK ORGANIZATION • Use multiple low-power transmitters (100 W or less) • Areas divided into cells – Each served by its own antenna – Served by base station consisting of transmitter, receiver, and control unit – Band of frequencies allocated – Cells set up such that antennas of all neighbors are equidistant (hexagonal pattern) Cellular Wireless Networks 13 -3

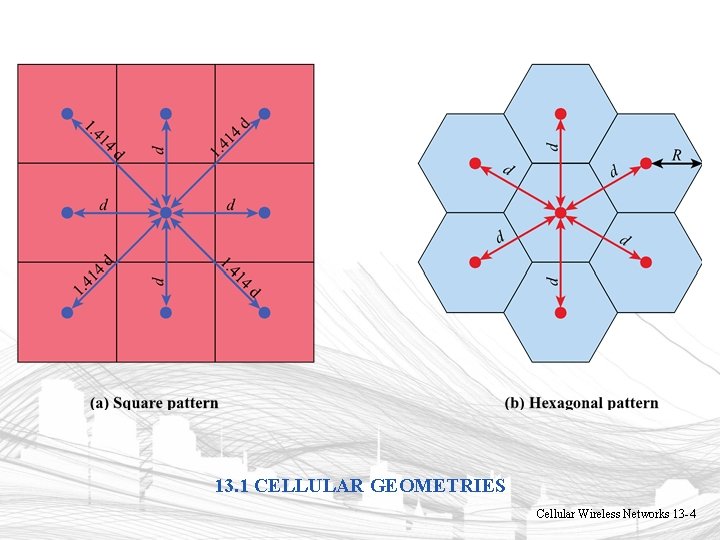

13. 1 CELLULAR GEOMETRIES Cellular Wireless Networks 13 -4

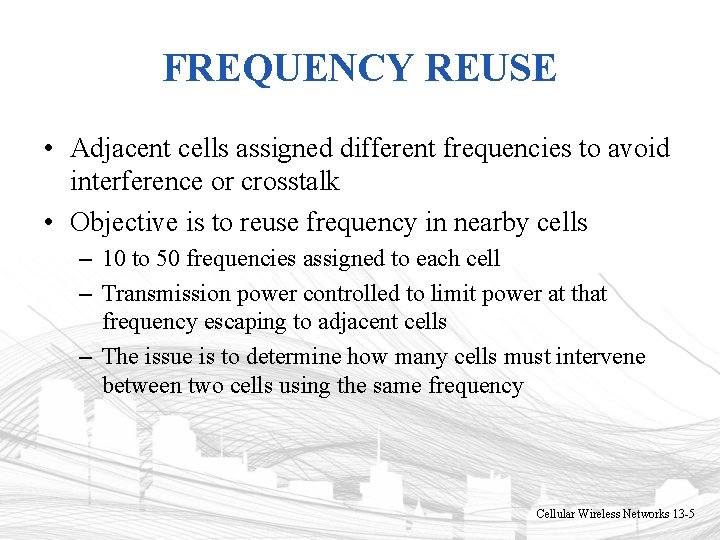

FREQUENCY REUSE • Adjacent cells assigned different frequencies to avoid interference or crosstalk • Objective is to reuse frequency in nearby cells – 10 to 50 frequencies assigned to each cell – Transmission power controlled to limit power at that frequency escaping to adjacent cells – The issue is to determine how many cells must intervene between two cells using the same frequency Cellular Wireless Networks 13 -5

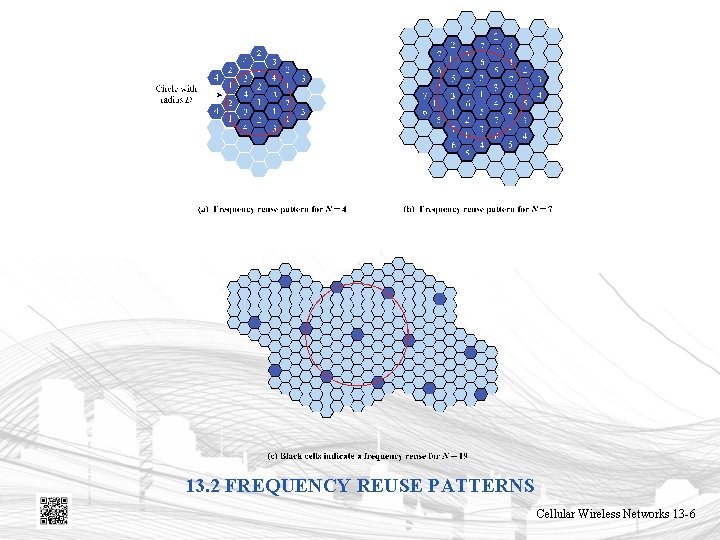

13. 2 FREQUENCY REUSE PATTERNS Cellular Wireless Networks 13 -6

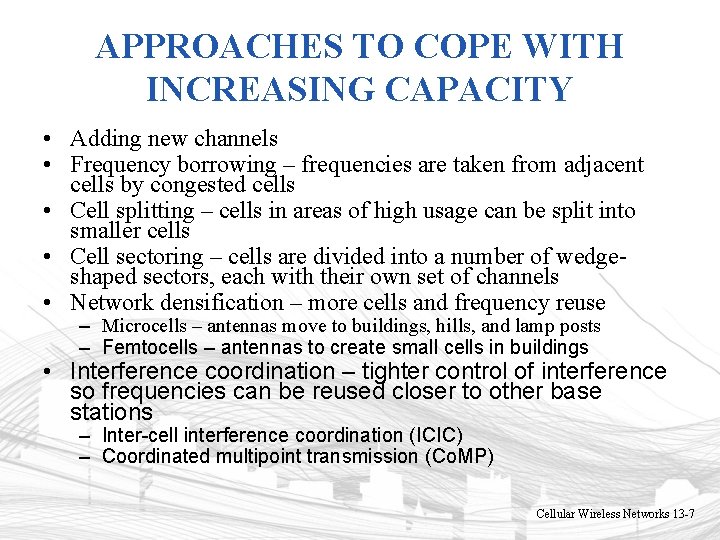

APPROACHES TO COPE WITH INCREASING CAPACITY • Adding new channels • Frequency borrowing – frequencies are taken from adjacent cells by congested cells • Cell splitting – cells in areas of high usage can be split into smaller cells • Cell sectoring – cells are divided into a number of wedgeshaped sectors, each with their own set of channels • Network densification – more cells and frequency reuse – Microcells – antennas move to buildings, hills, and lamp posts – Femtocells – antennas to create small cells in buildings • Interference coordination – tighter control of interference so frequencies can be reused closer to other base stations – Inter-cell interference coordination (ICIC) – Coordinated multipoint transmission (Co. MP) Cellular Wireless Networks 13 -7

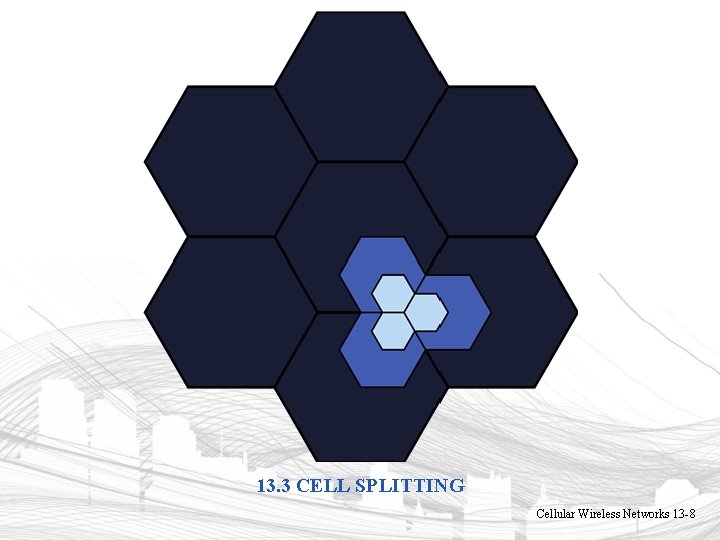

13. 3 CELL SPLITTING Cellular Wireless Networks 13 -8

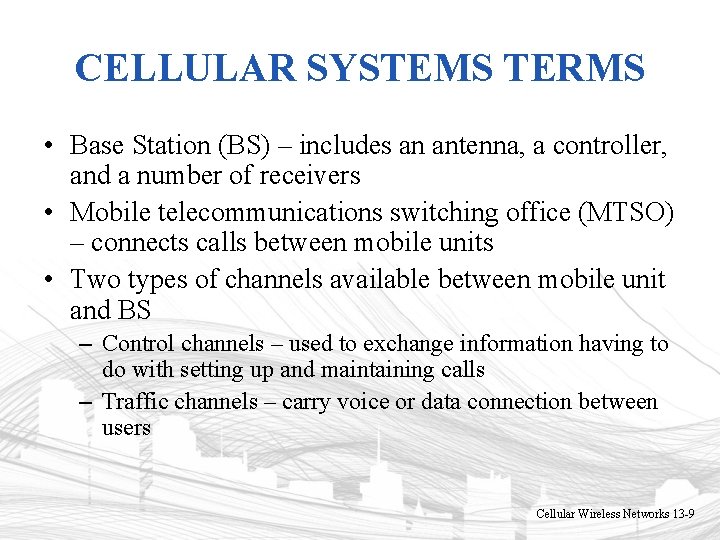

CELLULAR SYSTEMS TERMS • Base Station (BS) – includes an antenna, a controller, and a number of receivers • Mobile telecommunications switching office (MTSO) – connects calls between mobile units • Two types of channels available between mobile unit and BS – Control channels – used to exchange information having to do with setting up and maintaining calls – Traffic channels – carry voice or data connection between users Cellular Wireless Networks 13 -9

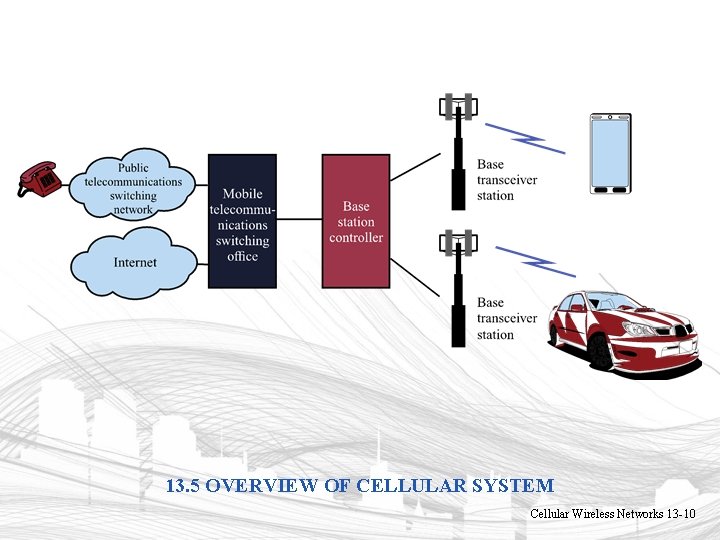

13. 5 OVERVIEW OF CELLULAR SYSTEM Cellular Wireless Networks 13 -10

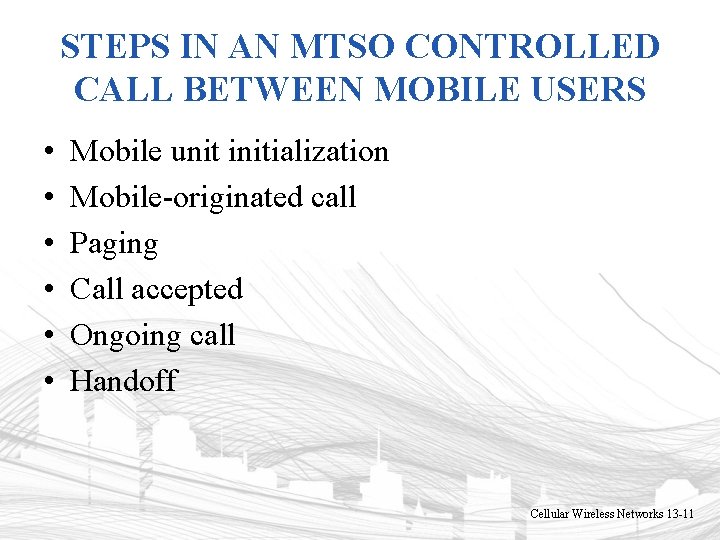

STEPS IN AN MTSO CONTROLLED CALL BETWEEN MOBILE USERS • • • Mobile unit initialization Mobile-originated call Paging Call accepted Ongoing call Handoff Cellular Wireless Networks 13 -11

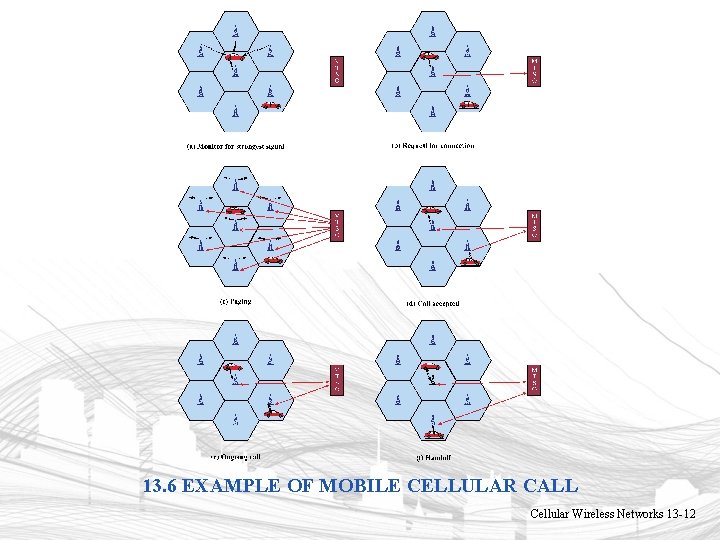

13. 6 EXAMPLE OF MOBILE CELLULAR CALL Cellular Wireless Networks 13 -12

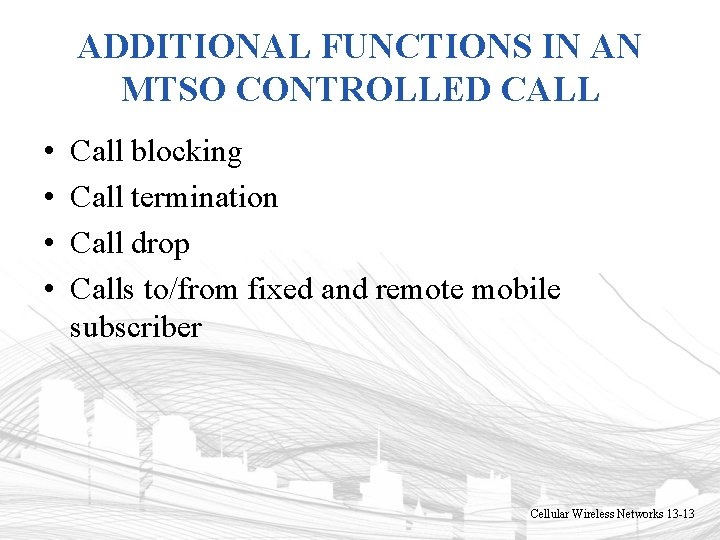

ADDITIONAL FUNCTIONS IN AN MTSO CONTROLLED CALL • • Call blocking Call termination Call drop Calls to/from fixed and remote mobile subscriber Cellular Wireless Networks 13 -13

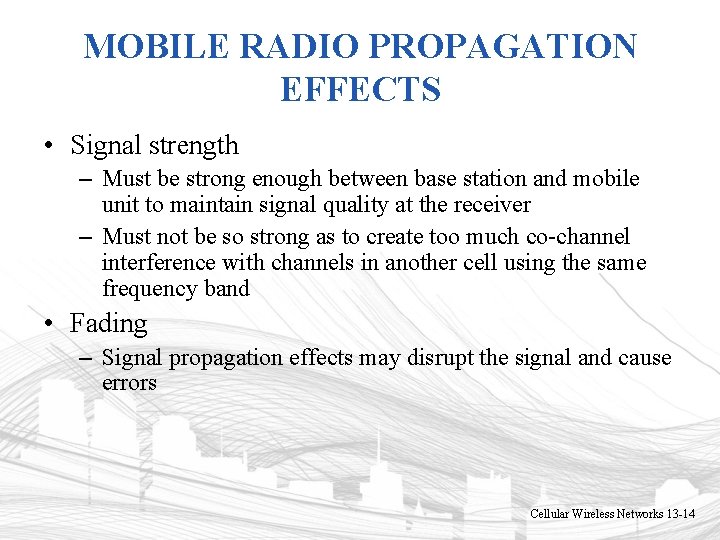

MOBILE RADIO PROPAGATION EFFECTS • Signal strength – Must be strong enough between base station and mobile unit to maintain signal quality at the receiver – Must not be so strong as to create too much co-channel interference with channels in another cell using the same frequency band • Fading – Signal propagation effects may disrupt the signal and cause errors Cellular Wireless Networks 13 -14

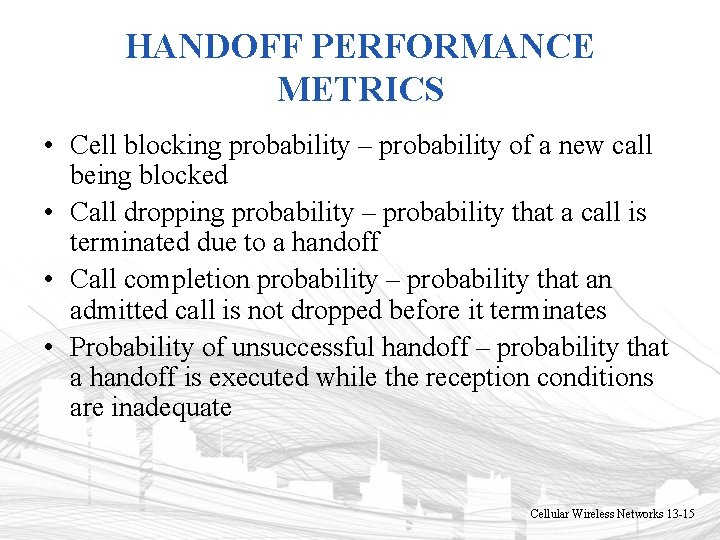

HANDOFF PERFORMANCE METRICS • Cell blocking probability – probability of a new call being blocked • Call dropping probability – probability that a call is terminated due to a handoff • Call completion probability – probability that an admitted call is not dropped before it terminates • Probability of unsuccessful handoff – probability that a handoff is executed while the reception conditions are inadequate Cellular Wireless Networks 13 -15

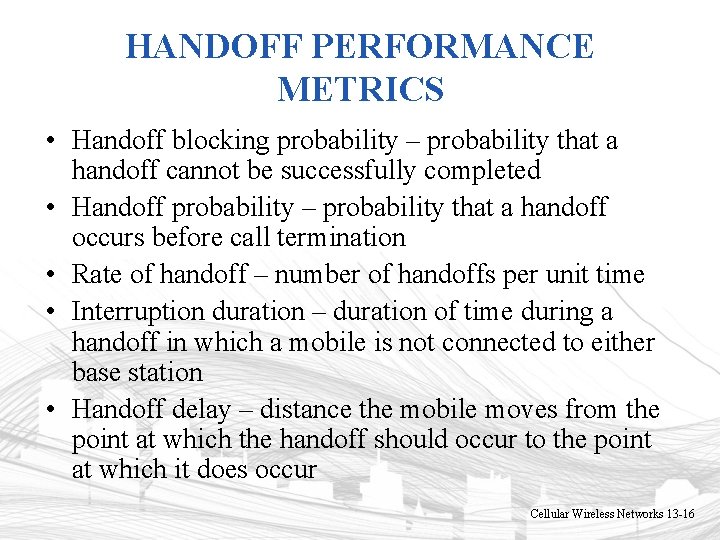

HANDOFF PERFORMANCE METRICS • Handoff blocking probability – probability that a handoff cannot be successfully completed • Handoff probability – probability that a handoff occurs before call termination • Rate of handoff – number of handoffs per unit time • Interruption duration – duration of time during a handoff in which a mobile is not connected to either base station • Handoff delay – distance the mobile moves from the point at which the handoff should occur to the point at which it does occur Cellular Wireless Networks 13 -16

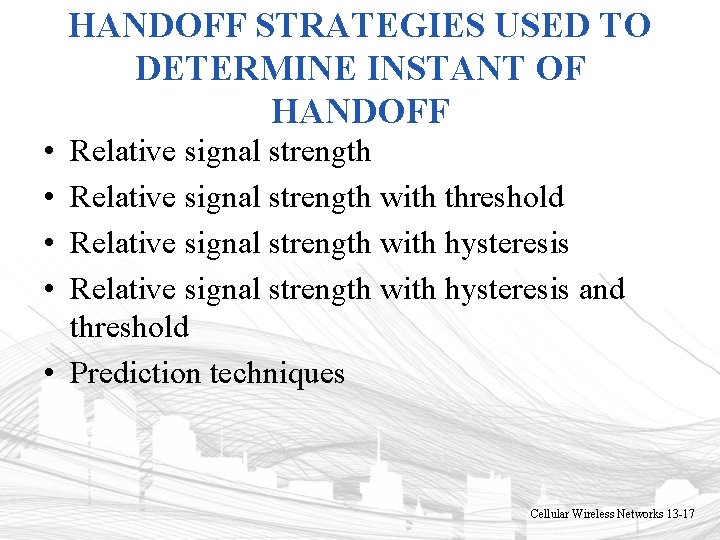

HANDOFF STRATEGIES USED TO DETERMINE INSTANT OF HANDOFF • • Relative signal strength with threshold Relative signal strength with hysteresis and threshold • Prediction techniques Cellular Wireless Networks 13 -17

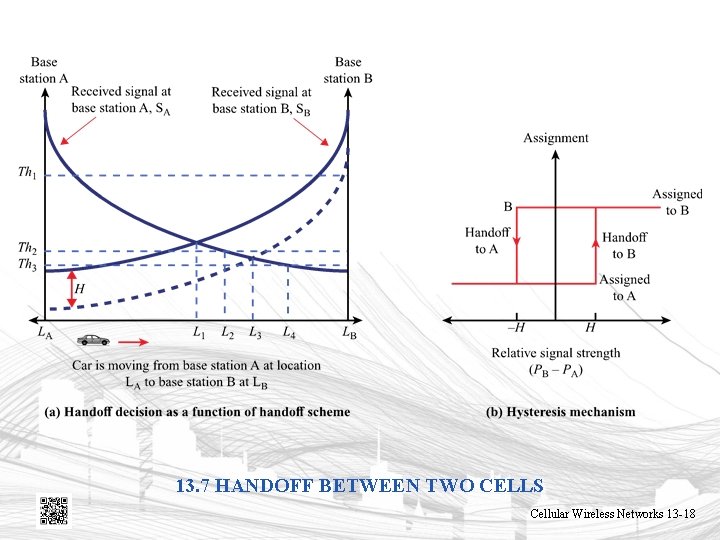

13. 7 HANDOFF BETWEEN TWO CELLS Cellular Wireless Networks 13 -18

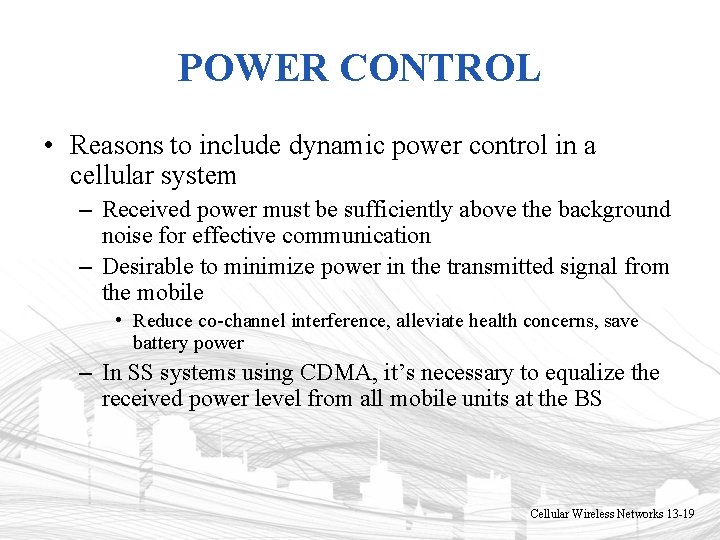

POWER CONTROL • Reasons to include dynamic power control in a cellular system – Received power must be sufficiently above the background noise for effective communication – Desirable to minimize power in the transmitted signal from the mobile • Reduce co-channel interference, alleviate health concerns, save battery power – In SS systems using CDMA, it’s necessary to equalize the received power level from all mobile units at the BS Cellular Wireless Networks 13 -19

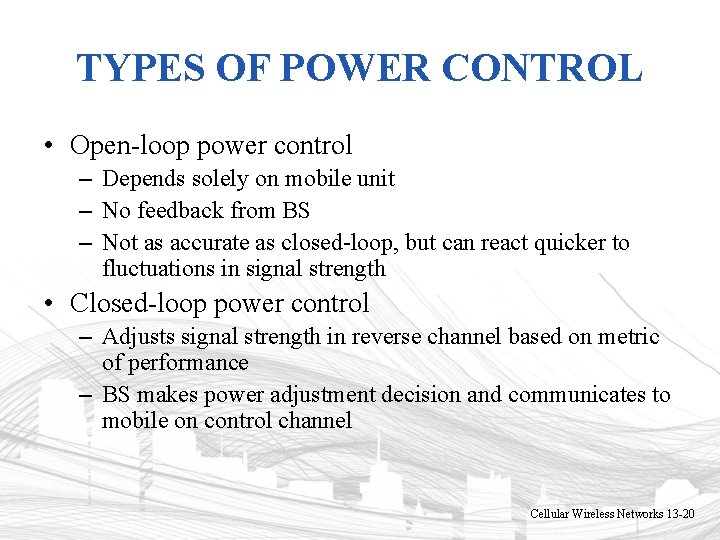

TYPES OF POWER CONTROL • Open-loop power control – Depends solely on mobile unit – No feedback from BS – Not as accurate as closed-loop, but can react quicker to fluctuations in signal strength • Closed-loop power control – Adjusts signal strength in reverse channel based on metric of performance – BS makes power adjustment decision and communicates to mobile on control channel Cellular Wireless Networks 13 -20

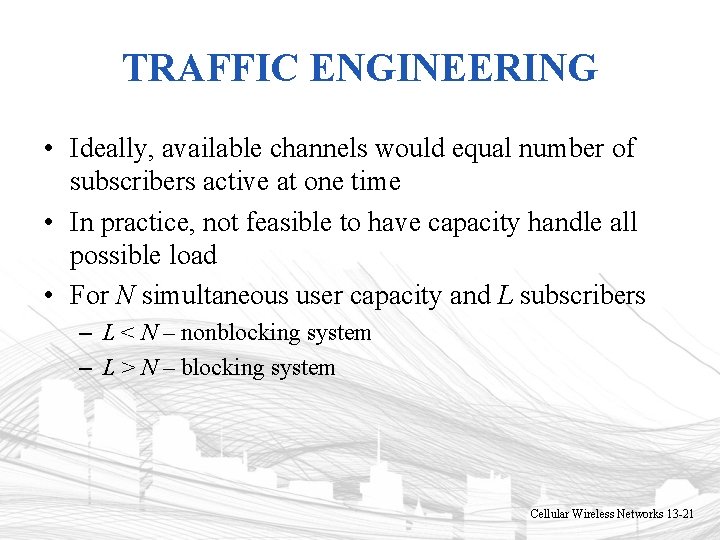

TRAFFIC ENGINEERING • Ideally, available channels would equal number of subscribers active at one time • In practice, not feasible to have capacity handle all possible load • For N simultaneous user capacity and L subscribers – L < N – nonblocking system – L > N – blocking system Cellular Wireless Networks 13 -21

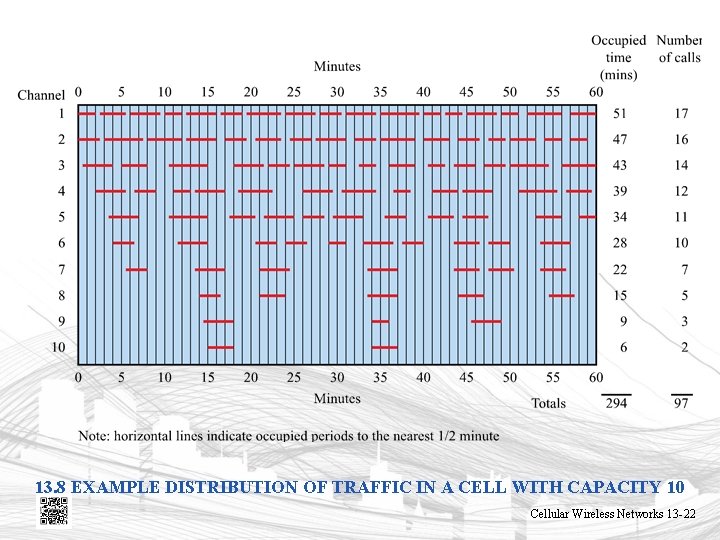

13. 8 EXAMPLE DISTRIBUTION OF TRAFFIC IN A CELL WITH CAPACITY 10 Cellular Wireless Networks 13 -22

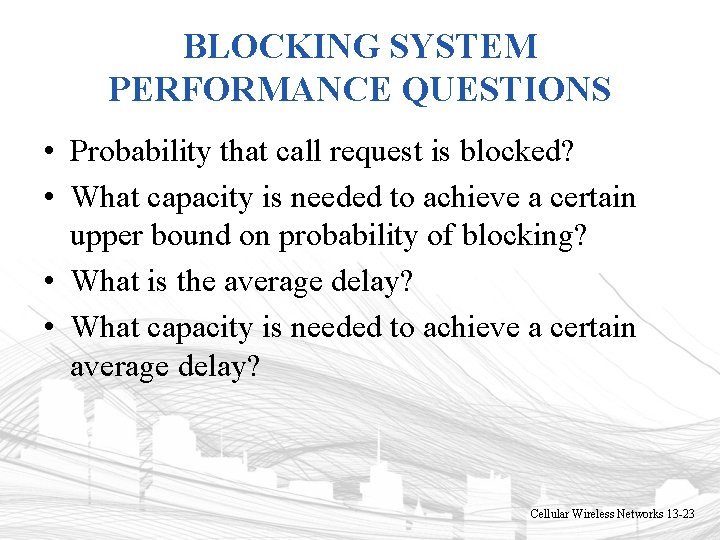

BLOCKING SYSTEM PERFORMANCE QUESTIONS • Probability that call request is blocked? • What capacity is needed to achieve a certain upper bound on probability of blocking? • What is the average delay? • What capacity is needed to achieve a certain average delay? Cellular Wireless Networks 13 -23

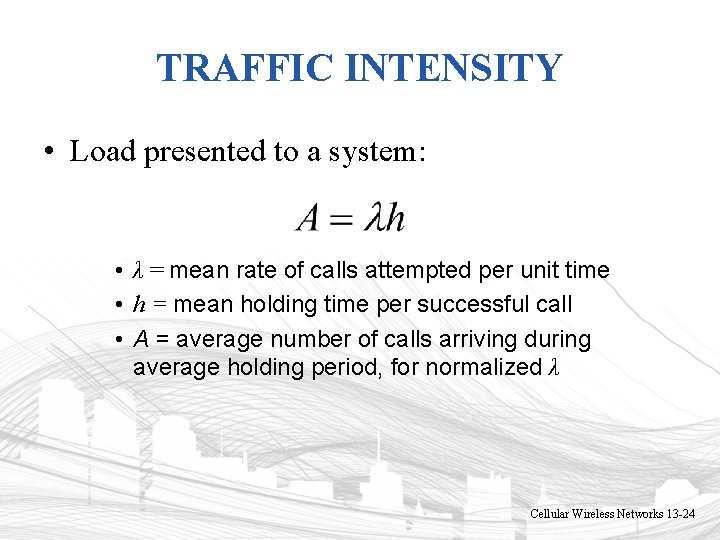

TRAFFIC INTENSITY • Load presented to a system: • λ = mean rate of calls attempted per unit time • h = mean holding time per successful call • A = average number of calls arriving during average holding period, for normalized λ Cellular Wireless Networks 13 -24

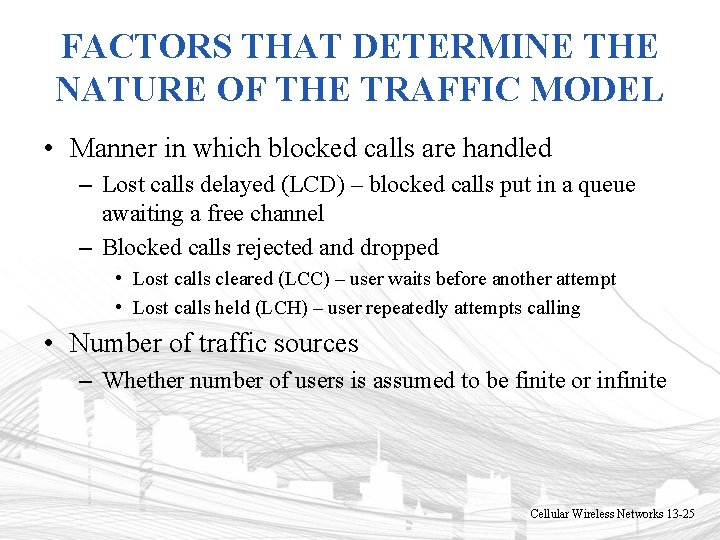

FACTORS THAT DETERMINE THE NATURE OF THE TRAFFIC MODEL • Manner in which blocked calls are handled – Lost calls delayed (LCD) – blocked calls put in a queue awaiting a free channel – Blocked calls rejected and dropped • Lost calls cleared (LCC) – user waits before another attempt • Lost calls held (LCH) – user repeatedly attempts calling • Number of traffic sources – Whether number of users is assumed to be finite or infinite Cellular Wireless Networks 13 -25

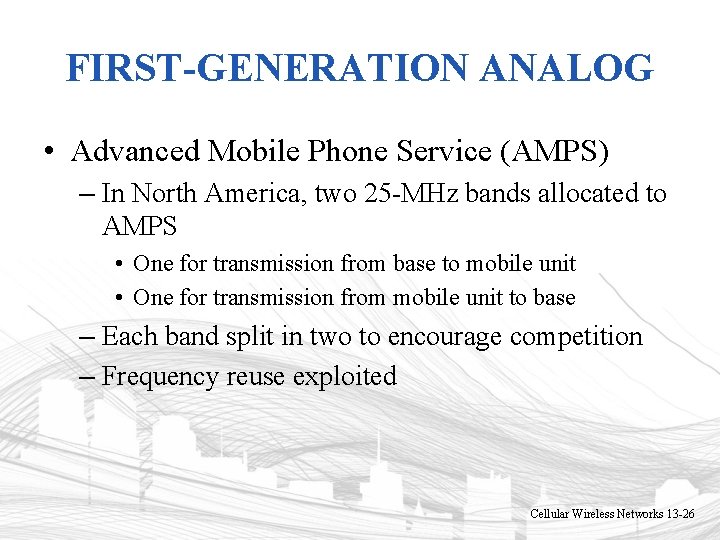

FIRST-GENERATION ANALOG • Advanced Mobile Phone Service (AMPS) – In North America, two 25 -MHz bands allocated to AMPS • One for transmission from base to mobile unit • One for transmission from mobile unit to base – Each band split in two to encourage competition – Frequency reuse exploited Cellular Wireless Networks 13 -26

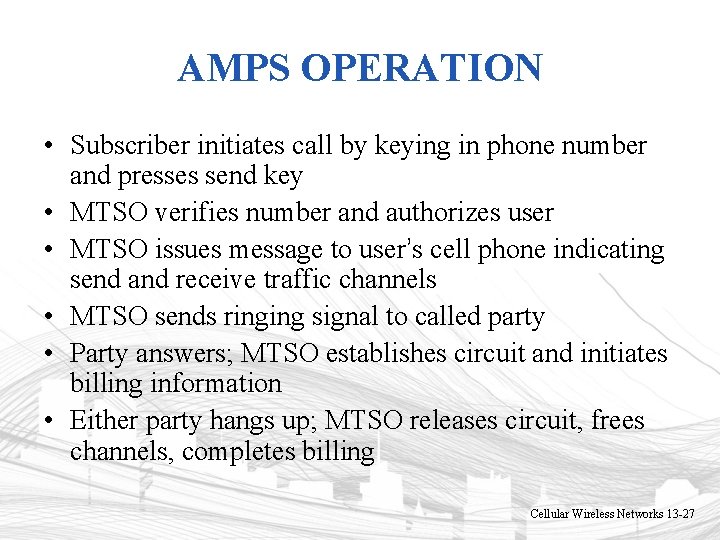

AMPS OPERATION • Subscriber initiates call by keying in phone number and presses send key • MTSO verifies number and authorizes user • MTSO issues message to user’s cell phone indicating send and receive traffic channels • MTSO sends ringing signal to called party • Party answers; MTSO establishes circuit and initiates billing information • Either party hangs up; MTSO releases circuit, frees channels, completes billing Cellular Wireless Networks 13 -27

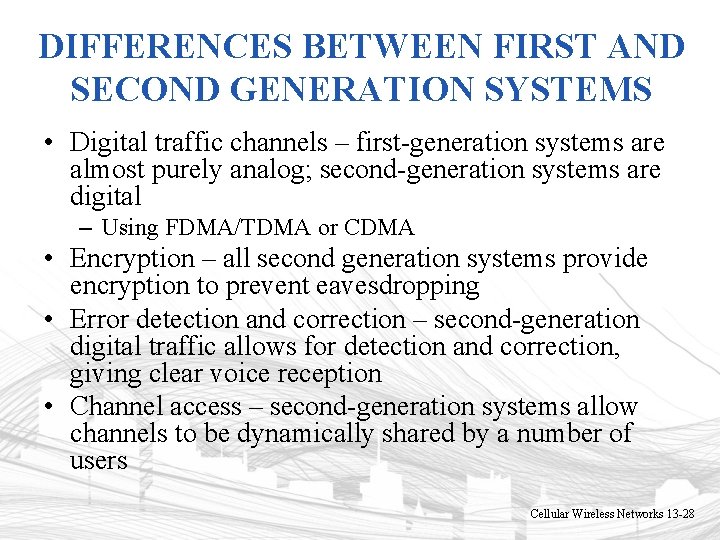

DIFFERENCES BETWEEN FIRST AND SECOND GENERATION SYSTEMS • Digital traffic channels – first-generation systems are almost purely analog; second-generation systems are digital – Using FDMA/TDMA or CDMA • Encryption – all second generation systems provide encryption to prevent eavesdropping • Error detection and correction – second-generation digital traffic allows for detection and correction, giving clear voice reception • Channel access – second-generation systems allow channels to be dynamically shared by a number of users Cellular Wireless Networks 13 -28

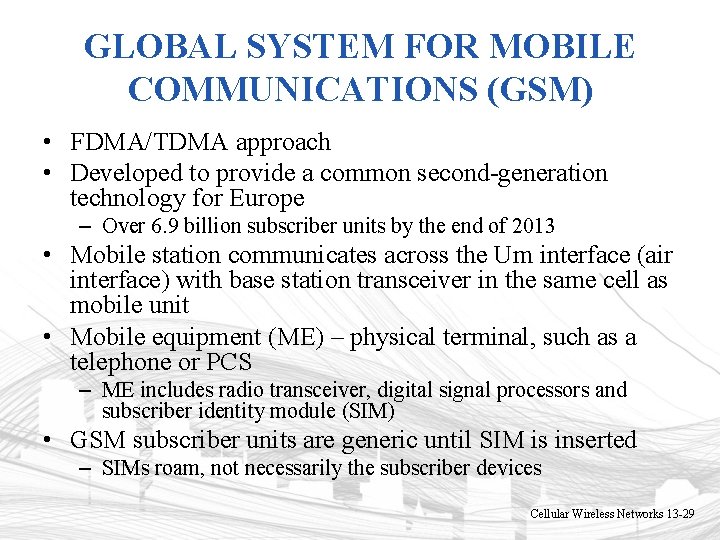

GLOBAL SYSTEM FOR MOBILE COMMUNICATIONS (GSM) • FDMA/TDMA approach • Developed to provide a common second-generation technology for Europe – Over 6. 9 billion subscriber units by the end of 2013 • Mobile station communicates across the Um interface (air interface) with base station transceiver in the same cell as mobile unit • Mobile equipment (ME) – physical terminal, such as a telephone or PCS – ME includes radio transceiver, digital signal processors and subscriber identity module (SIM) • GSM subscriber units are generic until SIM is inserted – SIMs roam, not necessarily the subscriber devices Cellular Wireless Networks 13 -29

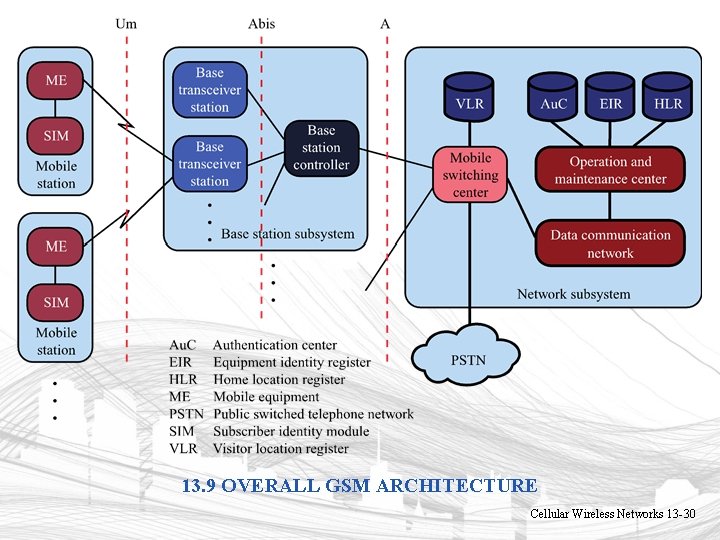

13. 9 OVERALL GSM ARCHITECTURE Cellular Wireless Networks 13 -30

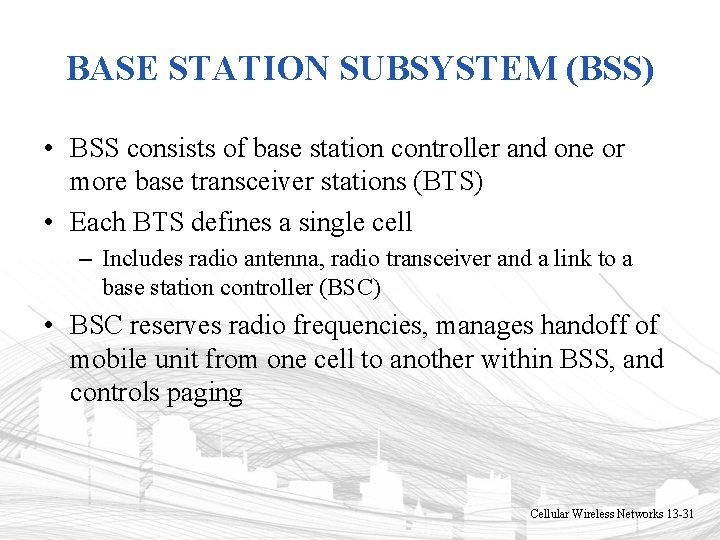

BASE STATION SUBSYSTEM (BSS) • BSS consists of base station controller and one or more base transceiver stations (BTS) • Each BTS defines a single cell – Includes radio antenna, radio transceiver and a link to a base station controller (BSC) • BSC reserves radio frequencies, manages handoff of mobile unit from one cell to another within BSS, and controls paging Cellular Wireless Networks 13 -31

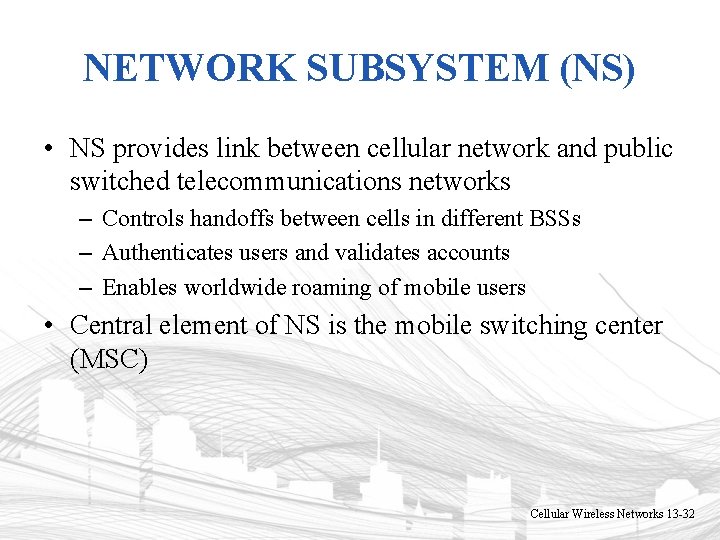

NETWORK SUBSYSTEM (NS) • NS provides link between cellular network and public switched telecommunications networks – Controls handoffs between cells in different BSSs – Authenticates users and validates accounts – Enables worldwide roaming of mobile users • Central element of NS is the mobile switching center (MSC) Cellular Wireless Networks 13 -32

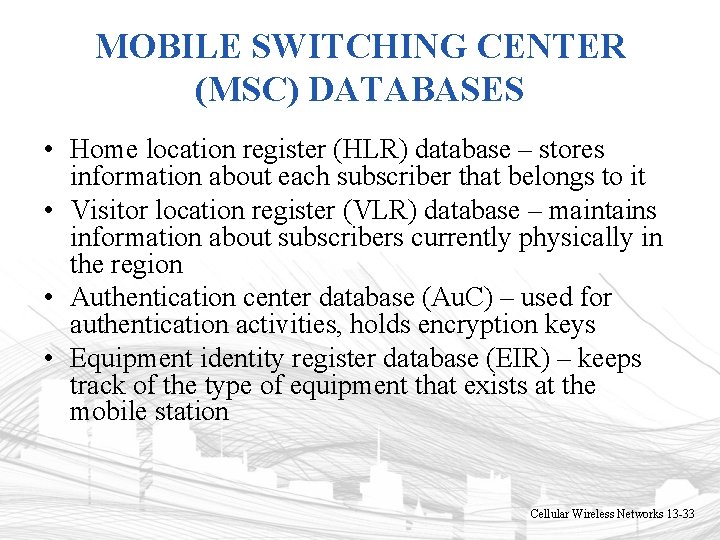

MOBILE SWITCHING CENTER (MSC) DATABASES • Home location register (HLR) database – stores information about each subscriber that belongs to it • Visitor location register (VLR) database – maintains information about subscribers currently physically in the region • Authentication center database (Au. C) – used for authentication activities, holds encryption keys • Equipment identity register database (EIR) – keeps track of the type of equipment that exists at the mobile station Cellular Wireless Networks 13 -33

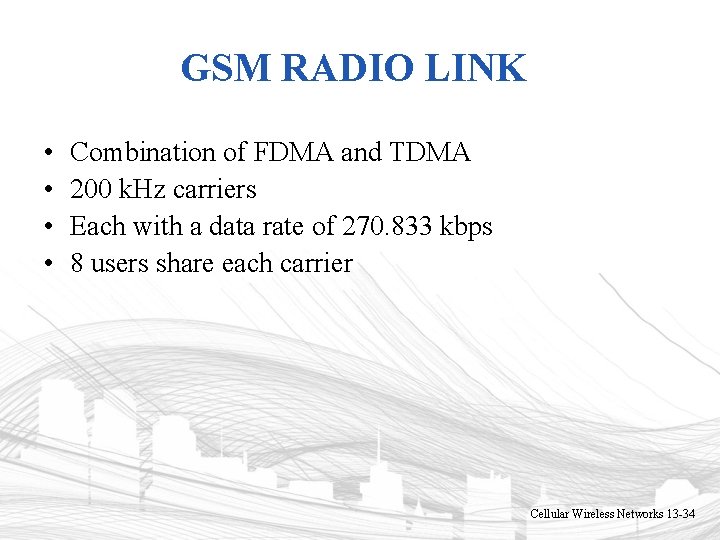

GSM RADIO LINK • • Combination of FDMA and TDMA 200 k. Hz carriers Each with a data rate of 270. 833 kbps 8 users share each carrier Cellular Wireless Networks 13 -34

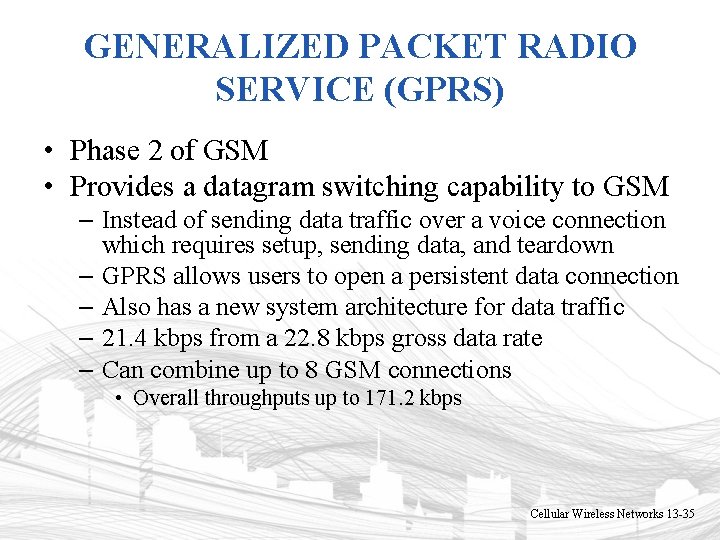

GENERALIZED PACKET RADIO SERVICE (GPRS) • Phase 2 of GSM • Provides a datagram switching capability to GSM – Instead of sending data traffic over a voice connection which requires setup, sending data, and teardown – GPRS allows users to open a persistent data connection – Also has a new system architecture for data traffic – 21. 4 kbps from a 22. 8 kbps gross data rate – Can combine up to 8 GSM connections • Overall throughputs up to 171. 2 kbps Cellular Wireless Networks 13 -35

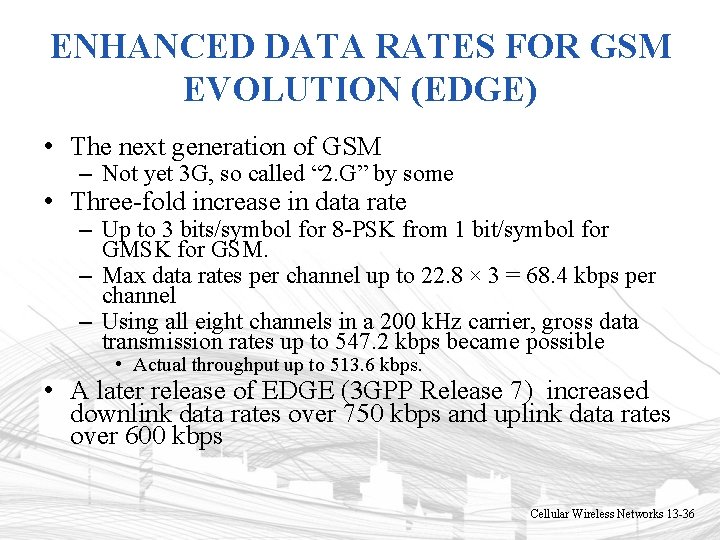

ENHANCED DATA RATES FOR GSM EVOLUTION (EDGE) • The next generation of GSM – Not yet 3 G, so called “ 2. G” by some • Three-fold increase in data rate – Up to 3 bits/symbol for 8 -PSK from 1 bit/symbol for GMSK for GSM. – Max data rates per channel up to 22. 8 × 3 = 68. 4 kbps per channel – Using all eight channels in a 200 k. Hz carrier, gross data transmission rates up to 547. 2 kbps became possible • Actual throughput up to 513. 6 kbps. • A later release of EDGE (3 GPP Release 7) increased downlink data rates over 750 kbps and uplink data rates over 600 kbps Cellular Wireless Networks 13 -36

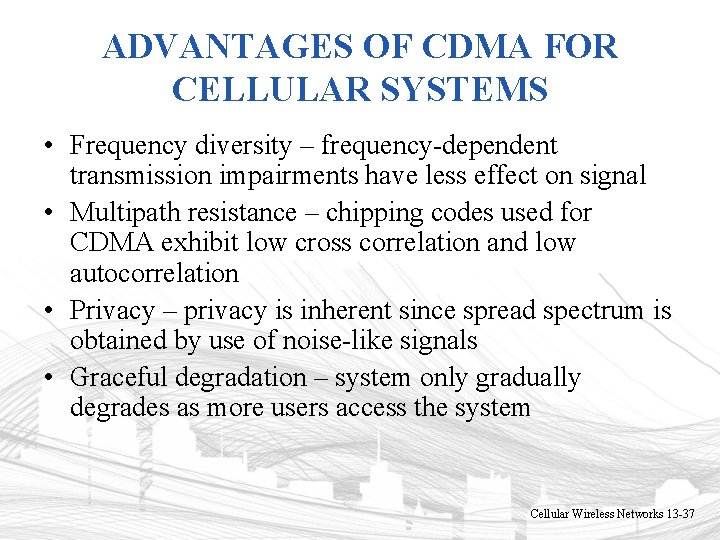

ADVANTAGES OF CDMA FOR CELLULAR SYSTEMS • Frequency diversity – frequency-dependent transmission impairments have less effect on signal • Multipath resistance – chipping codes used for CDMA exhibit low cross correlation and low autocorrelation • Privacy – privacy is inherent since spread spectrum is obtained by use of noise-like signals • Graceful degradation – system only gradually degrades as more users access the system Cellular Wireless Networks 13 -37

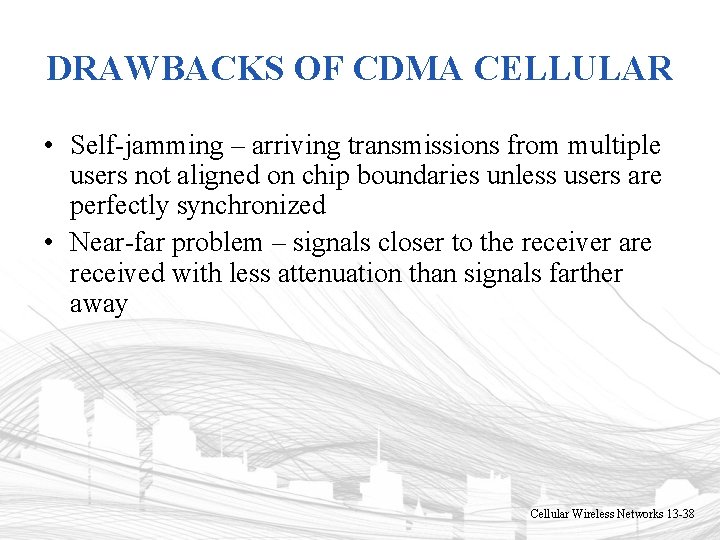

DRAWBACKS OF CDMA CELLULAR • Self-jamming – arriving transmissions from multiple users not aligned on chip boundaries unless users are perfectly synchronized • Near-far problem – signals closer to the receiver are received with less attenuation than signals farther away Cellular Wireless Networks 13 -38

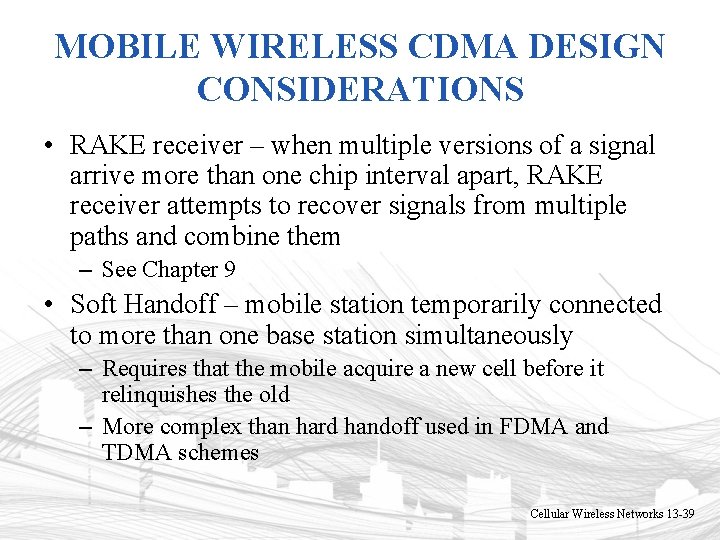

MOBILE WIRELESS CDMA DESIGN CONSIDERATIONS • RAKE receiver – when multiple versions of a signal arrive more than one chip interval apart, RAKE receiver attempts to recover signals from multiple paths and combine them – See Chapter 9 • Soft Handoff – mobile station temporarily connected to more than one base station simultaneously – Requires that the mobile acquire a new cell before it relinquishes the old – More complex than hard handoff used in FDMA and TDMA schemes Cellular Wireless Networks 13 -39

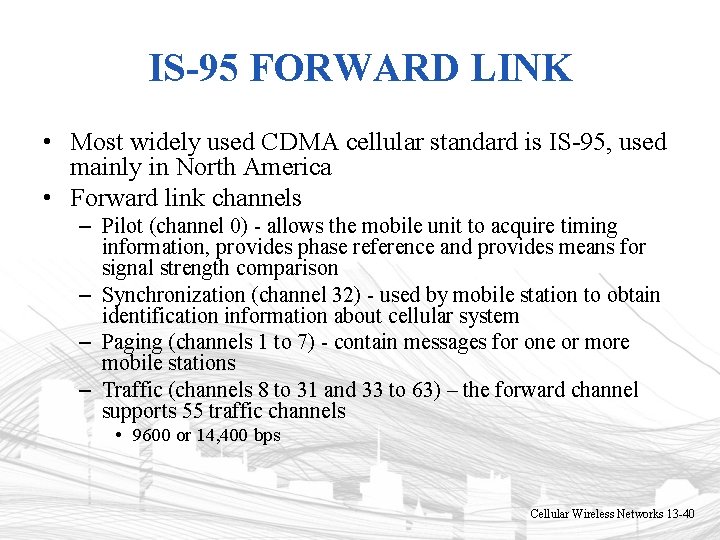

IS-95 FORWARD LINK • Most widely used CDMA cellular standard is IS-95, used mainly in North America • Forward link channels – Pilot (channel 0) - allows the mobile unit to acquire timing information, provides phase reference and provides means for signal strength comparison – Synchronization (channel 32) - used by mobile station to obtain identification information about cellular system – Paging (channels 1 to 7) - contain messages for one or more mobile stations – Traffic (channels 8 to 31 and 33 to 63) – the forward channel supports 55 traffic channels • 9600 or 14, 400 bps Cellular Wireless Networks 13 -40

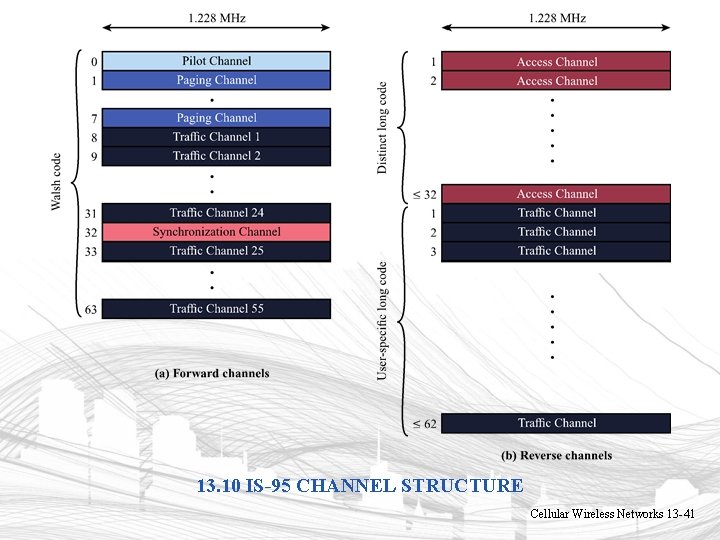

13. 10 IS-95 CHANNEL STRUCTURE Cellular Wireless Networks 13 -41

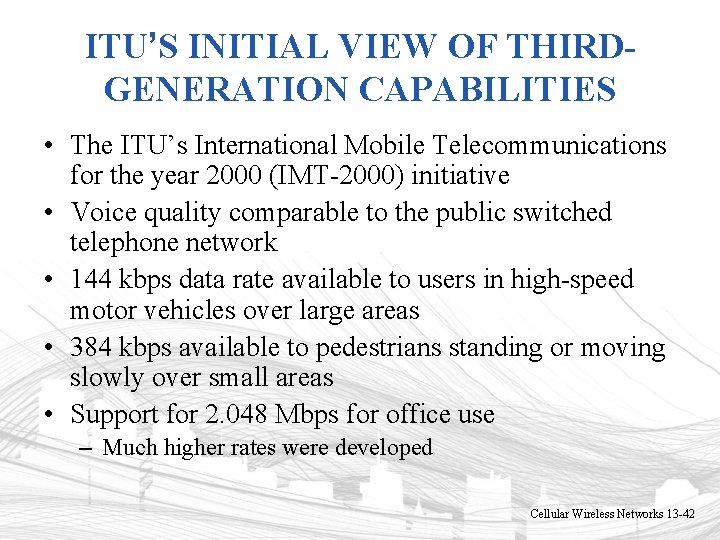

ITU’S INITIAL VIEW OF THIRDGENERATION CAPABILITIES • The ITU’s International Mobile Telecommunications for the year 2000 (IMT-2000) initiative • Voice quality comparable to the public switched telephone network • 144 kbps data rate available to users in high-speed motor vehicles over large areas • 384 kbps available to pedestrians standing or moving slowly over small areas • Support for 2. 048 Mbps for office use – Much higher rates were developed Cellular Wireless Networks 13 -42

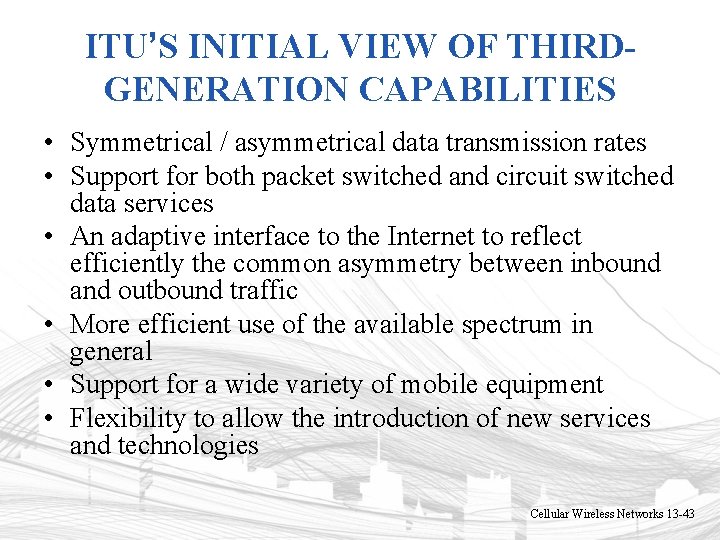

ITU’S INITIAL VIEW OF THIRDGENERATION CAPABILITIES • Symmetrical / asymmetrical data transmission rates • Support for both packet switched and circuit switched data services • An adaptive interface to the Internet to reflect efficiently the common asymmetry between inbound and outbound traffic • More efficient use of the available spectrum in general • Support for a wide variety of mobile equipment • Flexibility to allow the introduction of new services and technologies Cellular Wireless Networks 13 -43

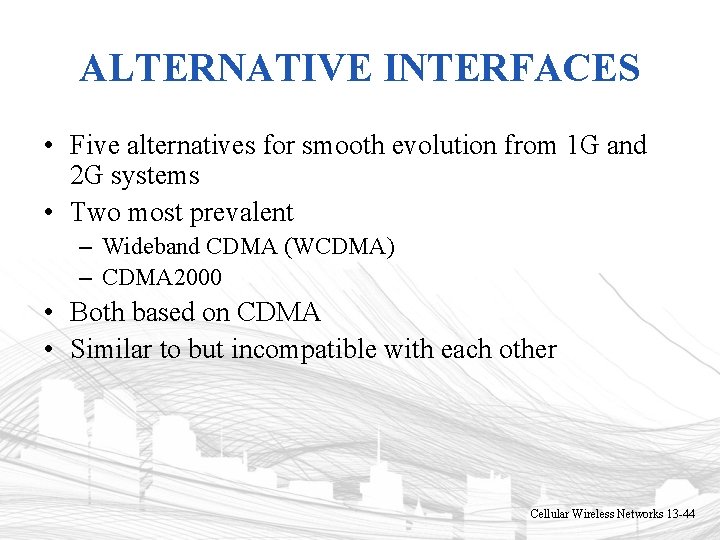

ALTERNATIVE INTERFACES • Five alternatives for smooth evolution from 1 G and 2 G systems • Two most prevalent – Wideband CDMA (WCDMA) – CDMA 2000 • Both based on CDMA • Similar to but incompatible with each other Cellular Wireless Networks 13 -44

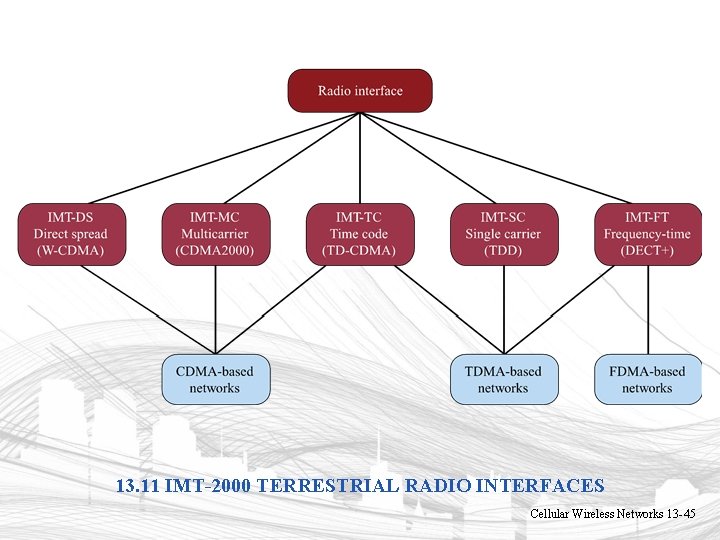

13. 11 IMT-2000 TERRESTRIAL RADIO INTERFACES Cellular Wireless Networks 13 -45

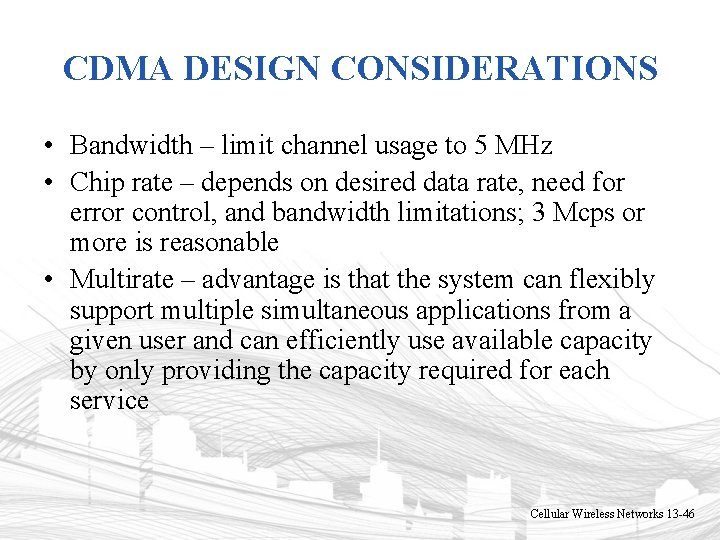

CDMA DESIGN CONSIDERATIONS • Bandwidth – limit channel usage to 5 MHz • Chip rate – depends on desired data rate, need for error control, and bandwidth limitations; 3 Mcps or more is reasonable • Multirate – advantage is that the system can flexibly support multiple simultaneous applications from a given user and can efficiently use available capacity by only providing the capacity required for each service Cellular Wireless Networks 13 -46

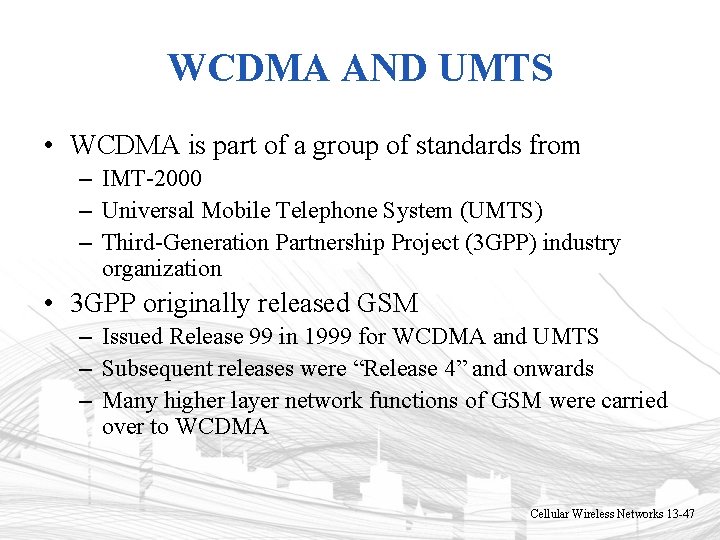

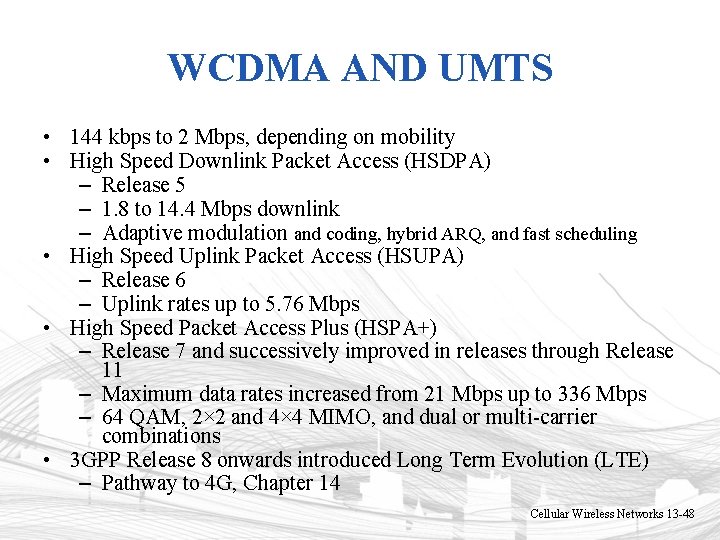

WCDMA AND UMTS • WCDMA is part of a group of standards from – IMT-2000 – Universal Mobile Telephone System (UMTS) – Third-Generation Partnership Project (3 GPP) industry organization • 3 GPP originally released GSM – Issued Release 99 in 1999 for WCDMA and UMTS – Subsequent releases were “Release 4” and onwards – Many higher layer network functions of GSM were carried over to WCDMA Cellular Wireless Networks 13 -47

WCDMA AND UMTS • 144 kbps to 2 Mbps, depending on mobility • High Speed Downlink Packet Access (HSDPA) – Release 5 – 1. 8 to 14. 4 Mbps downlink – Adaptive modulation and coding, hybrid ARQ, and fast scheduling • High Speed Uplink Packet Access (HSUPA) – Release 6 – Uplink rates up to 5. 76 Mbps • High Speed Packet Access Plus (HSPA+) – Release 7 and successively improved in releases through Release 11 – Maximum data rates increased from 21 Mbps up to 336 Mbps – 64 QAM, 2× 2 and 4× 4 MIMO, and dual or multi-carrier combinations • 3 GPP Release 8 onwards introduced Long Term Evolution (LTE) – Pathway to 4 G, Chapter 14 Cellular Wireless Networks 13 -48

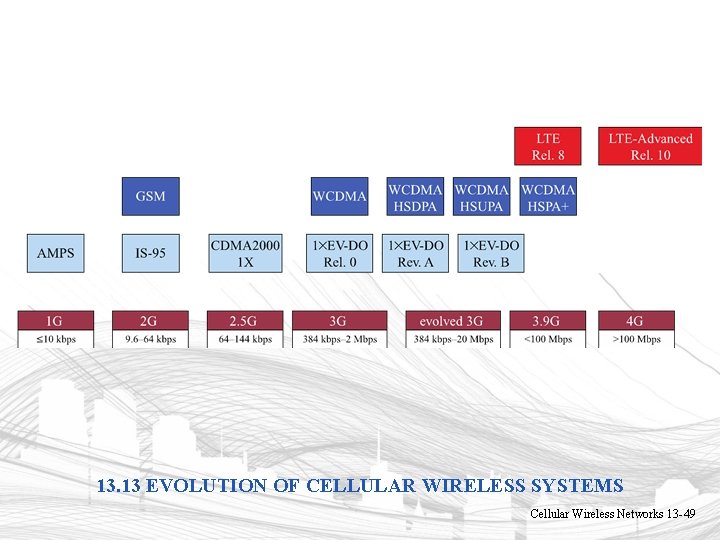

13. 13 EVOLUTION OF CELLULAR WIRELESS SYSTEMS Cellular Wireless Networks 13 -49

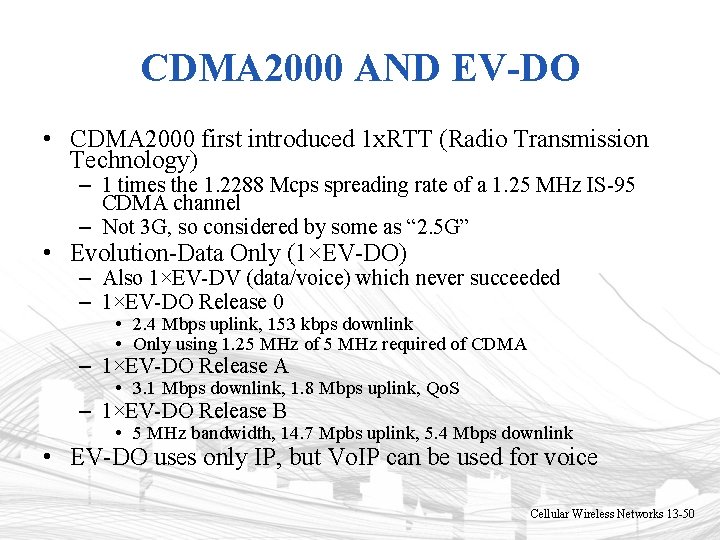

CDMA 2000 AND EV-DO • CDMA 2000 first introduced 1 x. RTT (Radio Transmission Technology) – 1 times the 1. 2288 Mcps spreading rate of a 1. 25 MHz IS-95 CDMA channel – Not 3 G, so considered by some as “ 2. 5 G” • Evolution-Data Only (1×EV-DO) – Also 1×EV-DV (data/voice) which never succeeded – 1×EV-DO Release 0 • 2. 4 Mbps uplink, 153 kbps downlink • Only using 1. 25 MHz of 5 MHz required of CDMA – 1×EV-DO Release A • 3. 1 Mbps downlink, 1. 8 Mbps uplink, Qo. S – 1×EV-DO Release B • 5 MHz bandwidth, 14. 7 Mpbs uplink, 5. 4 Mbps downlink • EV-DO uses only IP, but Vo. IP can be used for voice Cellular Wireless Networks 13 -50

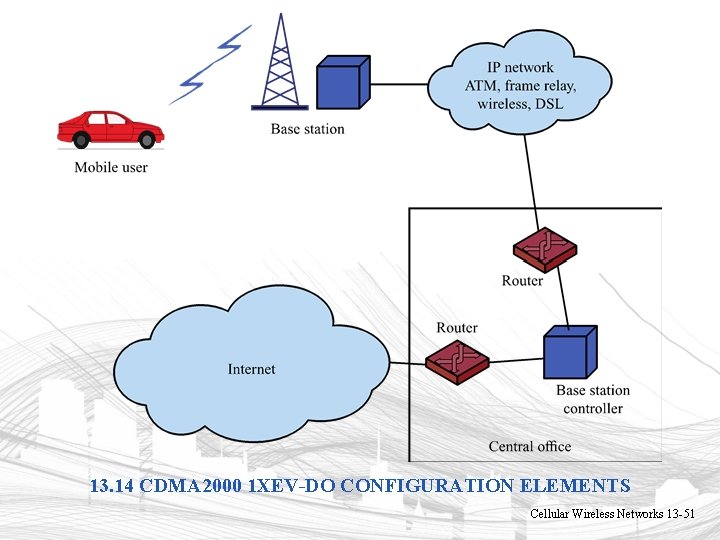

13. 14 CDMA 2000 1 XEV-DO CONFIGURATION ELEMENTS Cellular Wireless Networks 13 -51
