Chapter 35 Plant Structure Growth and Development Power

Chapter 35 Plant Structure, Growth, and Development Power. Point Lectures for Biology, Seventh Edition Neil Campbell and Jane Reece Lectures by Chris Romero Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Overview: No two Plants Are Alike • To some people, the fanwort is an intrusive weed, but to others it is an attractive aquarium plant • This plant exhibits plasticity, the ability to alter itself in response to its environment Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

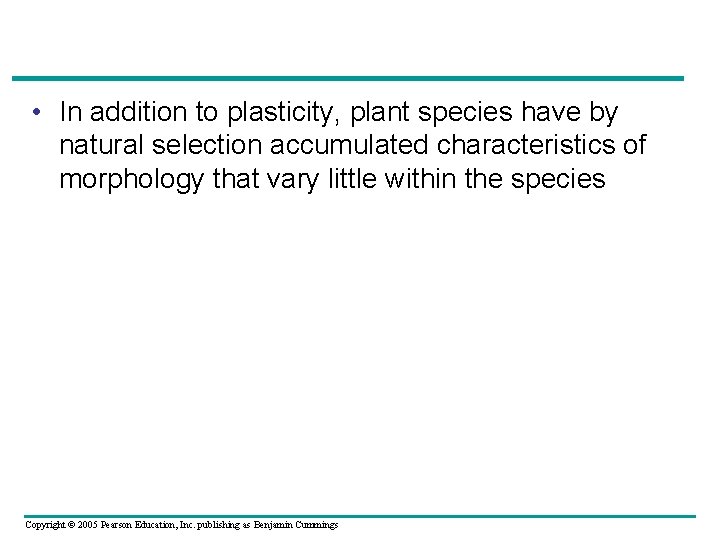

• In addition to plasticity, plant species have by natural selection accumulated characteristics of morphology that vary little within the species Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Concept 35. 1: The plant body has a hierarchy of organs, tissues, and cells • Plants, like multicellular animals, have organs composed of different tissues, which are in turn are composed of cells Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

The Three Basic Plant Organs: Roots, Stems, and Leaves • Basic morphology of vascular plants reflects their evolution as organisms that draw nutrients from below-ground above-ground Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Three basic organs evolved: roots, stems, and leaves • They are organized into a root system and a shoot system Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -2 Reproductive shoot (flower) Terminal bud Node Internode Terminal bud Vegetable shoot Leaf Shoot system Blade Petiole Axillary bud Stem Taproot Lateral roots Root system

Roots • Functions of roots: – Anchoring the plant – Absorbing minerals and water – Often storing organic nutrients Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• In most plants, absorption of water and minerals occurs near the root tips, where vast numbers of tiny root hairs increase the surface area Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Many plants have modified roots Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -4 a Prop roots.

LE 35 -4 b Storage roots.

LE 35 -4 c “Strangling” aerial roots.

LE 35 -4 d Buttress roots.

LE 35 -4 e Pneumatophores.

Stems • A stem is an organ consisting of – An alternating system of nodes, the points at which leaves are attached – Internodes, the stem segments between nodes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• An axillary bud is a structure that has the potential to form a lateral shoot, or branch • A terminal bud is located near the shoot tip and causes elongation of a young shoot Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Many plants have modified stems Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -5 a Stolons.

LE 35 -5 b Storage leaves Stem Roots Bulbs.

LE 35 -5 c Tubers.

LE 35 -5 d Rhizomes. Node Rhizome Root

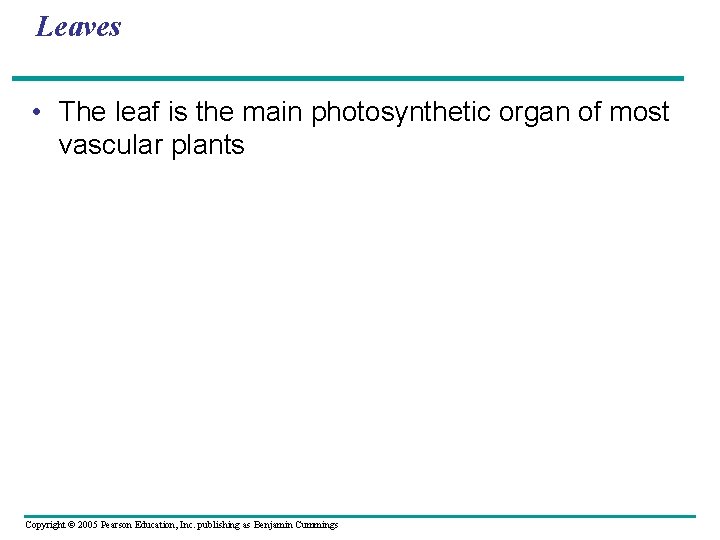

Leaves • The leaf is the main photosynthetic organ of most vascular plants Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

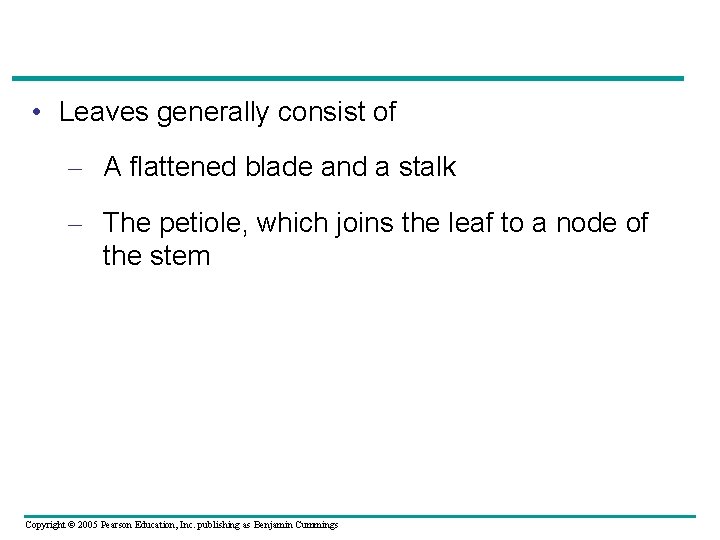

• Leaves generally consist of – A flattened blade and a stalk – The petiole, which joins the leaf to a node of the stem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Monocots and eudicots differ in the arrangement of veins, the vascular tissue of leaves • Most monocots have parallel veins • Most eudicots have branching veins Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• In classifying angiosperms, taxonomists may use leaf morphology as a criterion Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -6 a Simple leaf Petiole Axillary bud

LE 35 -6 b Leaflet Compound leaf Petiole Axillary bud

LE 35 -6 c Doubly compound leaf Leaflet Petiole Axillary bud

• Some plant species have evolved modified leaves that serve various functions Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -7 a Tendrils.

LE 35 -7 b Spines.

LE 35 -7 c Storage leaves.

LE 35 -7 d Bracts.

LE 35 -7 e Reproductive leaves.

The Three Tissue Systems: Dermal, Vascular, and Ground • Each plant organ has dermal, vascular, and ground tissues Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

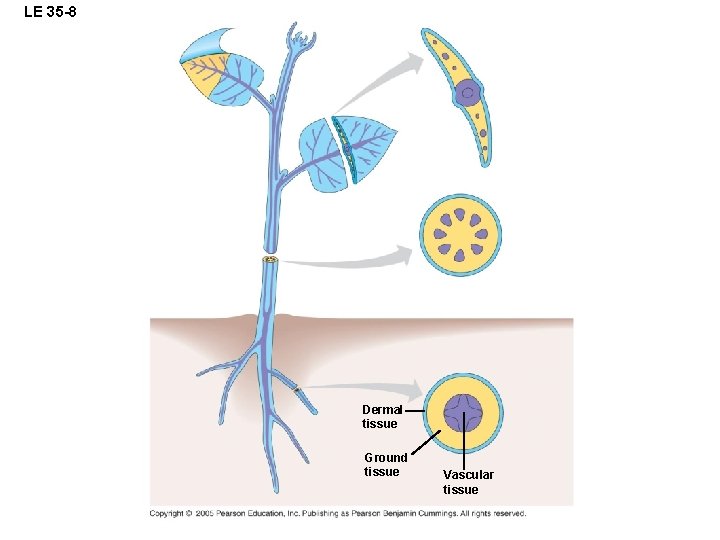

LE 35 -8 Dermal tissue Ground tissue Vascular tissue

• In nonwoody plants, the dermal tissue system consists of the epidermis • In woody plants, protective tissues called periderm replace the epidermis in older regions of stems and roots Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• The vascular tissue system carries out longdistance transport of materials between roots and shoots • The two vascular tissues are xylem and phloem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

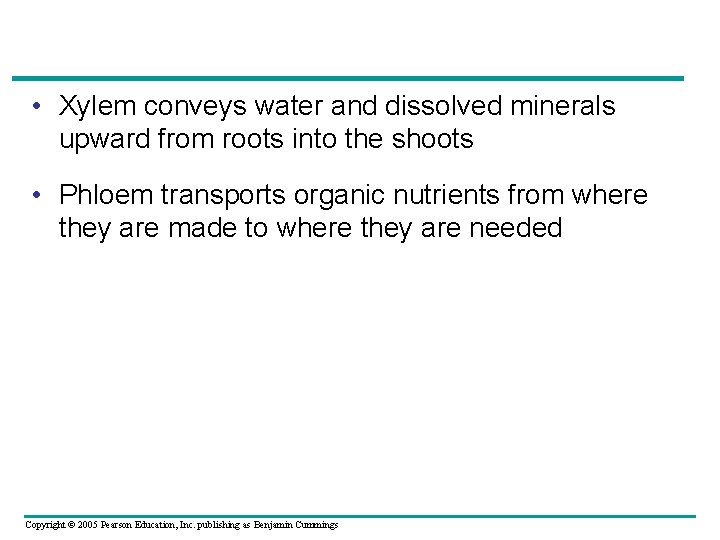

• Xylem conveys water and dissolved minerals upward from roots into the shoots • Phloem transports organic nutrients from where they are made to where they are needed Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• The vascular tissue of a stem or root is collectively called the stele • In angiosperms the stele of the root is a solid central vascular cylinder • The stele of stems and leaves is divided into vascular bundles, strands of xylem and phloem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Tissues that are neither dermal nor vascular are the ground tissue system • Ground tissue includes cells specialized for storage, photosynthesis, and support Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Common Types of Plant Cells • Like any multicellular organism, a plant is characterized by cellular differentiation, the specialization of cells in structure and function Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Some major types of plant cells: – Parenchyma – Collenchyma – Sclerenchyma – Water-conducting cells of the xylem – Sugar-conducting cells of the phloem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -9 WATER-CONDUCTING CELLS OF THE XYLEM PARENCHYMA CELLS Vessel Parenchyma cells in Elodea leaf, with chloroplasts (LM) Tracheids 100 µm 60 µm Pits COLLENCHYMA CELLS 80 µm Cortical parenchyma cells Tracheids and vessels (colorized SEM) Vessel elements with perforated end walls Tracheids SUGAR-CONDUCTING CELLS OF THE PHLOEM Collenchyma cells (in cortex of Sambucus, elderberry; cell walls stained red) (LM) SCLERENCHYMA CELLS Sieve-tube members: longitudinal view (LM) 5 µm Companion cell Sclereid cells in pear (LM) Sieve-tube member Plasmodesma 25 µm Sieve plate Cell wall Nucleus Cytoplasm Companion cell Fiber cells (transverse section from ash tree) (LM) 30 µm 15 µm Sieve-tube members: longitudinal view Sieve plate with pores (LM)

Concept 35. 2: Meristems generate cells for new organs • Apical meristems are located at the tips of roots and in the buds of shoots • Apical meristems elongate shoots and roots, a process called primary growth Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

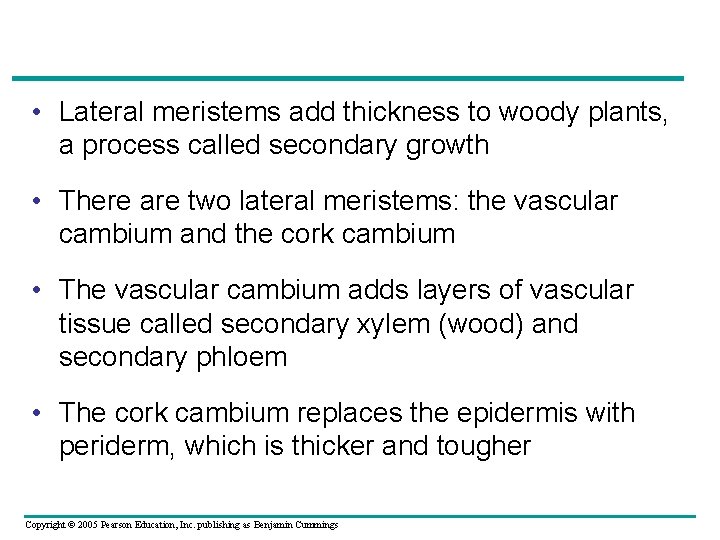

• Lateral meristems add thickness to woody plants, a process called secondary growth • There are two lateral meristems: the vascular cambium and the cork cambium • The vascular cambium adds layers of vascular tissue called secondary xylem (wood) and secondary phloem • The cork cambium replaces the epidermis with periderm, which is thicker and tougher Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -10 Primary growth in stems Shoot apical meristems (in buds) Epidermis Cortex Primary phloem Primary xylem Vascular cambium Lateral meristems Cork cambium Pith Secondary growth in stems Periderm Cork cambium Pith Cortex Primary phloem Primary xylem Root apical meristems Secondary xylem Secondary phloem Vascular cambium

• In woody plants, primary and secondary growth occur simultaneously but in different locations Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

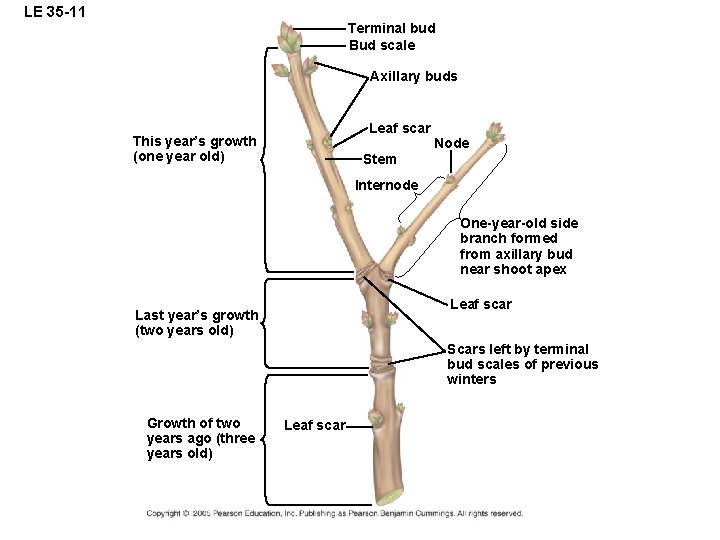

LE 35 -11 Terminal bud Bud scale Axillary buds Leaf scar This year’s growth (one year old) Node Stem Internode One-year-old side branch formed from axillary bud near shoot apex Leaf scar Last year’s growth (two years old) Scars left by terminal bud scales of previous winters Growth of two years ago (three years old) Leaf scar

Concept 35. 3: Primary growth lengthens roots and shoots • Primary growth produces the primary plant body, the parts of the root and shoot systems produced by apical meristems Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Primary Growth of Roots • The root tip is covered by a root cap, which protects the apical meristem as the root pushes through soil • Growth occurs just behind the root tip, in three zones of cells: – Zone of cell division – Zone of elongation – Zone of maturation Video: Root Growth in a Radish Seed (time lapse) Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

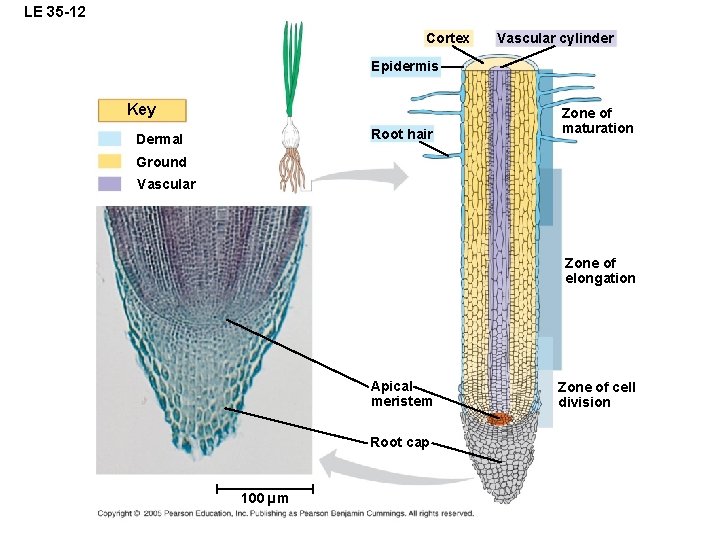

LE 35 -12 Cortex Vascular cylinder Epidermis Key Root hair Dermal Zone of maturation Ground Vascular Zone of elongation Apical meristem Root cap 100 µm Zone of cell division

• The primary growth of roots produces the epidermis, ground tissue, and vascular tissue • In most roots, the stele is a vascular cylinder • The ground tissue fills the cortex, the region between the vascular cylinder and epidermis • The innermost layer of the cortex is called the endodermis Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -13 Epidermis Cortex Vascular cylinder Endodermis Pericycle Core of parenchyma cells Xylem 100 µm Phloem 100 µm Transverse section of a typical root. In the roots of typical gymnosperms and eudicots, as well as some monocots, the stele is a vascular cylinder consisting of a lobed core of xylem with phloem between the lobes. Endodermis Pericycle Transverse section of a root with parenchyma in the center. The stele of many monocot roots is a vascular cylinder with a core of parenchyma surrounded by a ring of alternating xylem and phloem. Key Dermal Ground Vascular Xylem Phloem 50 µm

• Lateral roots arise from within the pericycle, the outermost cell layer in the vascular cylinder Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -14 100 µm Emerging lateral root Cortex Vascular cylinder Epidermis Lateral root

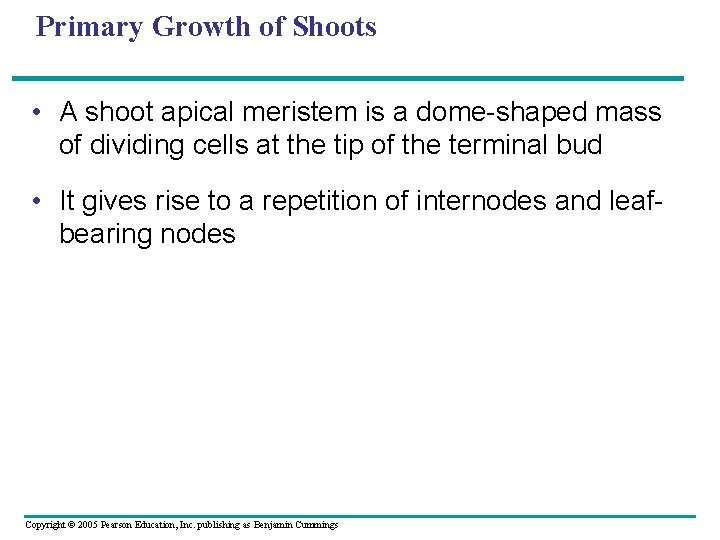

Primary Growth of Shoots • A shoot apical meristem is a dome-shaped mass of dividing cells at the tip of the terminal bud • It gives rise to a repetition of internodes and leafbearing nodes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -15 Apical meristem Leaf primordia Developing vascular strand Axillary bud meristems 0. 25 mm

Tissue Organization of Stems • In gymnosperms and most eudicots, the vascular tissue consists of vascular bundles that are arranged in a ring Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• In most monocot stems, the vascular bundles are scattered throughout the ground tissue, rather than forming a ring Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -16 Phloem Xylem Sclerenchyma (fiber cells) Ground tissue connecting pith to cortex Pith Epidermis Key Cortex Epidermis Vascular bundles Dermal Ground 1 mm A eudicot (sunflower) stem. Vascular bundles form a ring. Ground tissue toward the inside is called pith, and ground tissue toward the outside is called cortex. (LM of transverse section) Vascular bundles 1 mm A monocot (maize) stem. Vascular bundles are scattered throughout the ground tissue. In such an arrangement, ground tissue is not partitioned into pith and cortex. (LM of transverse section)

Tissue Organization of Leaves • The epidermis in leaves is interrupted by stomata, which allow CO 2 exchange between the air and the photosynthetic cells in a leaf • The ground tissue in a leaf is sandwiched between the upper and lower epidermis • The vascular tissue of each leaf is continuous with the vascular tissue of the stem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

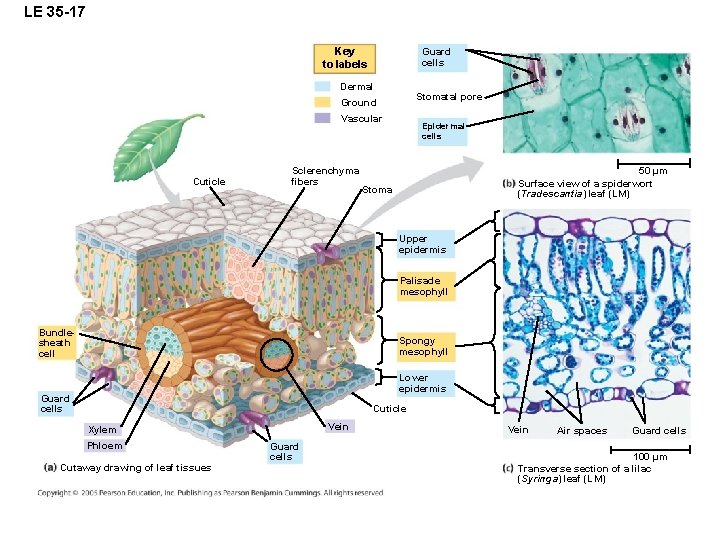

LE 35 -17 Key to labels Guard cells Dermal Stomatal pore Ground Vascular Cuticle Sclerenchyma fibers Epidermal cells 50 µm Surface view of a spiderwort (Tradescantia) leaf (LM) Stoma Upper epidermis Palisade mesophyll Bundlesheath cell Spongy mesophyll Lower epidermis Guard cells Cuticle Vein Xylem Phloem Cutaway drawing of leaf tissues Guard cells Vein Air spaces Guard cells 100 µm Transverse section of a lilac (Syringa) leaf (LM)

Concept 35. 4: Secondary growth adds girth to stems and roots in woody plants • Secondary growth occurs in stems and roots of woody plants but rarely in leaves • The secondary plant body consists of the tissues produced by the vascular cambium and cork cambium Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -18 a Primary and secondary growth in a two-year-old stem Epidermis Cortex Primary phloem Vascular cambium Primary xylem Pith Primary xylem Vascular cambium Primary phloem Cortex Phloem ray Xylem ray Epidermis th Grow Primary xylem Secondary xylem Vascular cambium Secondary phloem Primary phloem First cork cambium Periderm (mainly cork cambia and cork) Cork th Grow Primary phloem Secondary phloem Vascular cambium Secondary xylem Primary xylem Pith Secondary xylem (two years of production) Vascular cambium Secondary phloem Bark Most recent cork cambium Cork Layers of periderm

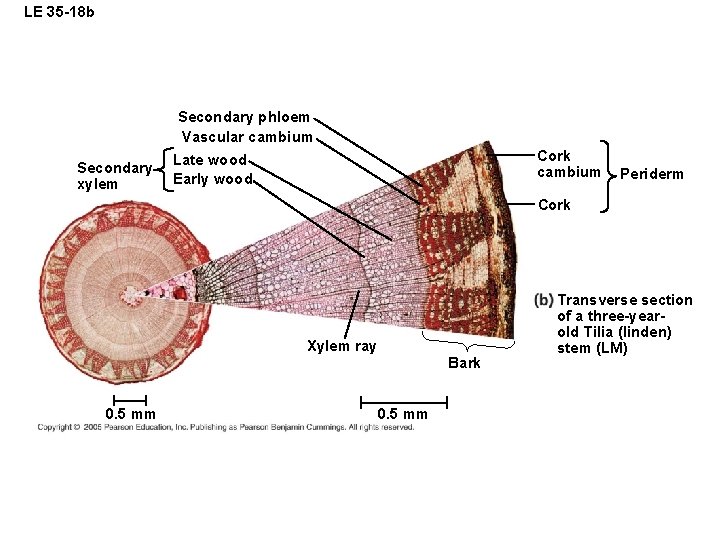

LE 35 -18 b Secondary phloem Vascular cambium Secondary xylem Cork cambium Late wood Early wood Periderm Cork Xylem ray Bark 0. 5 mm Transverse section of a three-yearold Tilia (linden) stem (LM)

The Vascular Cambium and Secondary Vascular Tissue • The vascular cambium is a cylinder of meristematic cells one cell thick • It develops from undifferentiated cells and parenchyma cells that regain the capacity of divide Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• In transverse section, the vascular cambium appears as a ring, with regions of dividing cells called fusiform initials and ray initials • The initials increase the vascular cambium’s circumference and add secondary xylem to the inside and secondary phloem to the outside Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -19 Vascular cambium Types of cell division Accumulation of secondary growth

• As a tree or woody shrub ages, the older layers of secondary xylem, the heartwood, no longer transport water and minerals • The outer layers, known as sapwood, still transport materials through the xylem Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -20 Growth ring Vascular ray Heartwood Secondary xylem Sapwood Vascular cambium Secondary phloem Bark Layers of periderm

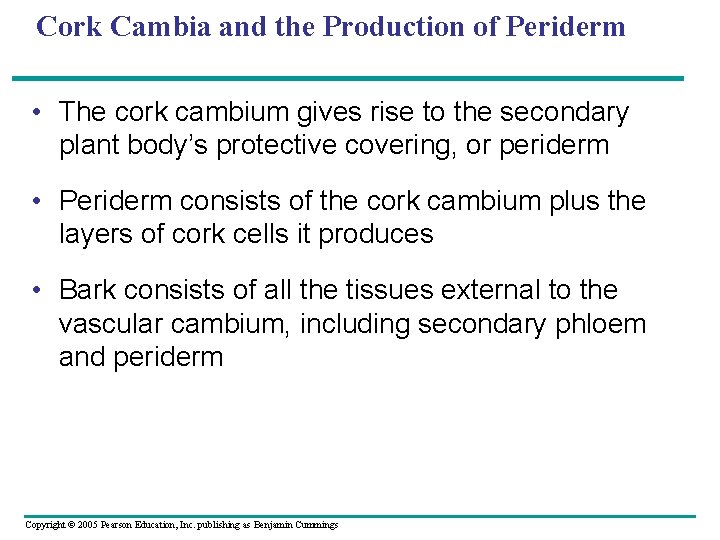

Cork Cambia and the Production of Periderm • The cork cambium gives rise to the secondary plant body’s protective covering, or periderm • Periderm consists of the cork cambium plus the layers of cork cells it produces • Bark consists of all the tissues external to the vascular cambium, including secondary phloem and periderm Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Concept 35. 5: Growth, morphogenesis, and differentiation produce the plant body • The three developmental processes of growth, morphogenesis, and cellular differentiation act in concert to transform the fertilized egg into a plant Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Molecular Biology: Revolutionizing the Study of Plants • New techniques and model systems are catalyzing explosive progress in our understanding of plants • Arabidopsis is the first plant to have its entire genome sequenced Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -21 Cell organization and biogenesis (1. 7%) DNA metabolism (1. 8%) Carbohydrate metabolism (2. 4%) Unknown (36. 6%) Signal transduction (2. 6%) Protein biosynthesis (2. 7%) Electron transport (3%) Protein modification (3. 7%) Protein metabolism (5. 7%) Transcription (6. 1%) Other biological processes (18. 6%) Other metabolism (6. 6%) Transport (8. 5%)

Growth: Cell Division and Cell Expansion • By increasing cell number, cell division in meristems increases the potential for growth • Cell expansion accounts for the actual increase in plant size Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

The Plane and Symmetry of Cell Division • The plane (direction) and symmetry of cell division are immensely important in determining plant form • If the planes of division are parallel to the plane of the first division, a single file of cells is produced Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

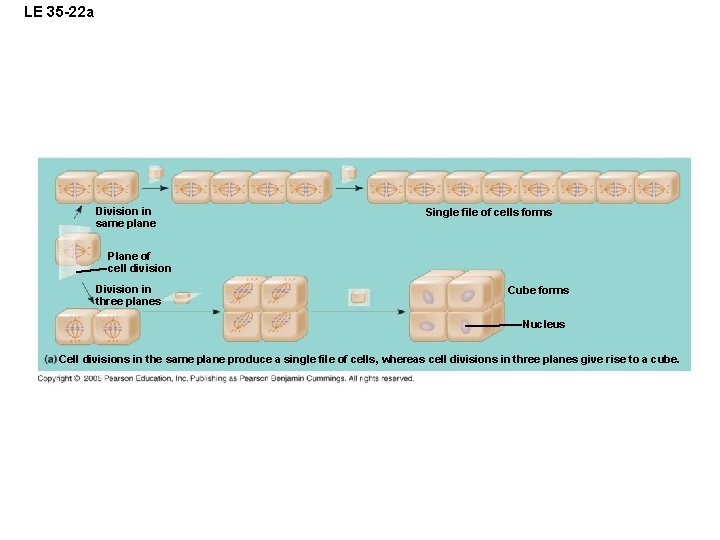

LE 35 -22 a Division in same plane Single file of cells forms Plane of cell division Division in three planes Cube forms Nucleus Cell divisions in the same plane produce a single file of cells, whereas cell divisions in three planes give rise to a cube.

• If the planes of division vary randomly, asymmetrical cell division occurs Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -22 b Developing guard cells Asymmetrical cell division Unspecialized epidermal cell Unspecialized Guard cell epidermal cell “mother cell” Unspecialized epidermal cell An asymmetrical cell division precedes the development of epidermal guard cells, the cells that border stomata (see Figure 35. 17).

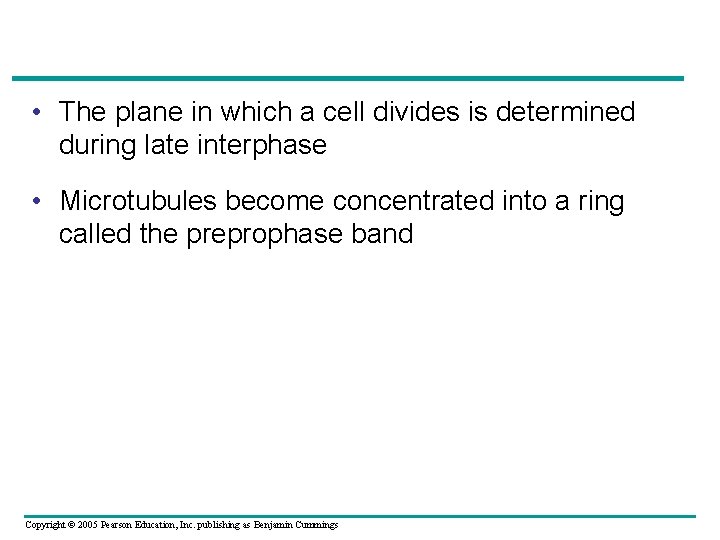

• The plane in which a cell divides is determined during late interphase • Microtubules become concentrated into a ring called the preprophase band Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -23 Preprophase bands of microtubules Nuclei Cell plates 10 µm

Orientation of Cell Expansion • Plant cells rarely expand equally in all directions Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Orientation of the cytoskeleton affects the direction of cell elongation by controlling orientation of cellulose microfibrils within the cell wall Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -24 Cellulose microfibrils Vacuoles Nucleus 5 µm

Microtubules and Plant Growth • Studies of fass mutants of Arabidopsis have confirmed the importance of cytoplasmic microtubules in cell division and expansion Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -25 fass seeding Wild-type seeding Mass fass mutant

Morphogenesis and Pattern Formation • Pattern formation is the development of specific structures in specific locations • It is determined by positional information in the form of signals indicating to each cell its location • Polarity is one type of positional information • In the gnom mutant of Arabidopsis, the establishment of polarity is defective Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Morphogenesis in plants, as in other multicellular organisms, is often controlled by homeotic genes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Gene Expression and Control of Cellular Differentiation • In cellular differentiation, cells of a developing organism synthesize different proteins and diverge in structure and function even though they have a common genome • Cellular differentiation to a large extent depends on positional information and is affected by homeotic genes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -28 Cortical cells 20 µm

Location and a Cell’s Developmental Fate • A cell’s position in a developing organ determines its pathway of differentiation Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

Shifts in Development: Phase Changes • Plants pass through developmental phases, called phase changes, developing from a juvenile phase to an adult phase • The most obvious morphological changes typically occur in leaf size and shape Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -29 Leaves produced by adult phase of apical meristem Leaves produced by juvenile phase of apical meristem

Genetic Control of Flowering • Flower formation involves a phase change from vegetative growth to reproductive growth • It is triggered by a combination of environmental cues and internal signals • Transition from vegetative growth to flowering is associated with the switching-on of floral meristem identity genes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

• Plant biologists have identified several organ identity genes that regulate the development of floral pattern Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -30 Pe Ca St Se Pe Se Normal Arabidopsis flower. Arabidopsis normally has four whorls of flower parts: sepals (Se), petals (Pe), stamens (St), and carpels (Ca). Pe Pe Se Abnormal Arabidopsis flower. This flower has an extra set of petals in place of stamens and an internal flower where normal plants have carpels.

• The ABC model of flower formation identifies how floral organ identity genes direct the formation of the four types of floral organs Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -31 a Sepals Petals Stamens A B Carpels C B+C A+B gene activity A schematic diagram of the ABC hypothesis C gene activity

• An understanding of mutants of the organ identity genes depicts how this model accounts for floral phenotypes Copyright © 2005 Pearson Education, Inc. publishing as Benjamin Cummings

LE 35 -31 b Active genes: Whorls: Carpel Stamen Petal Sepal Wild type Mutant lacking A Side view of organ identity mutant flowers Mutant lacking B Mutant lacking C
