Chapter 3 Working with Symbols and Interactivity 2011

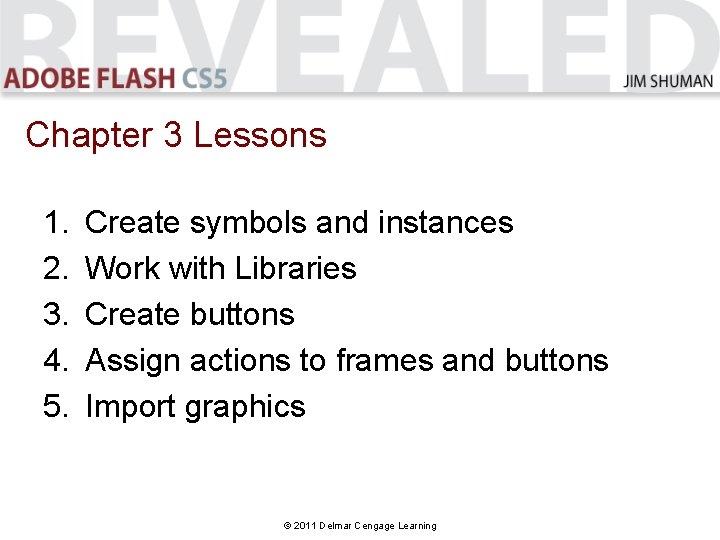

Chapter 3 Lessons 1. 2. 3. 4. 5. Create symbols and instances Work with

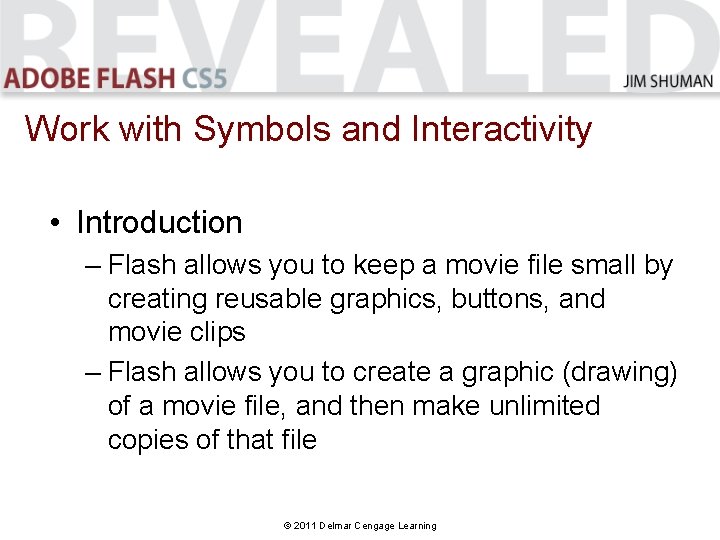

Work with Symbols and Interactivity • Introduction – Flash allows you to keep a movie file small by creating reusable graphics, buttons, and movie clips – Flash allows you to create a graphic (drawing) of a movie file, and then make unlimited copies of that file © 2011 Delmar Cengage Learning

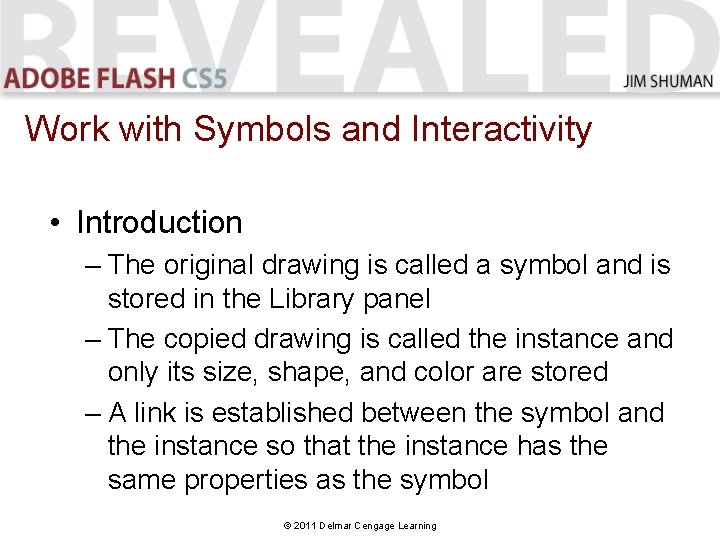

Work with Symbols and Interactivity • Introduction – The original drawing is called a symbol and is stored in the Library panel – The copied drawing is called the instance and only its size, shape, and color are stored – A link is established between the symbol and the instance so that the instance has the same properties as the symbol © 2011 Delmar Cengage Learning

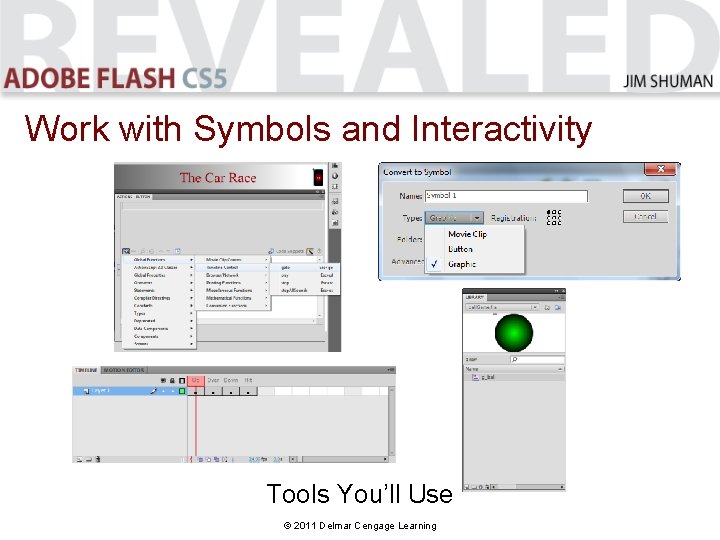

Work with Symbols and Interactivity Tools You’ll Use © 2011 Delmar Cengage Learning

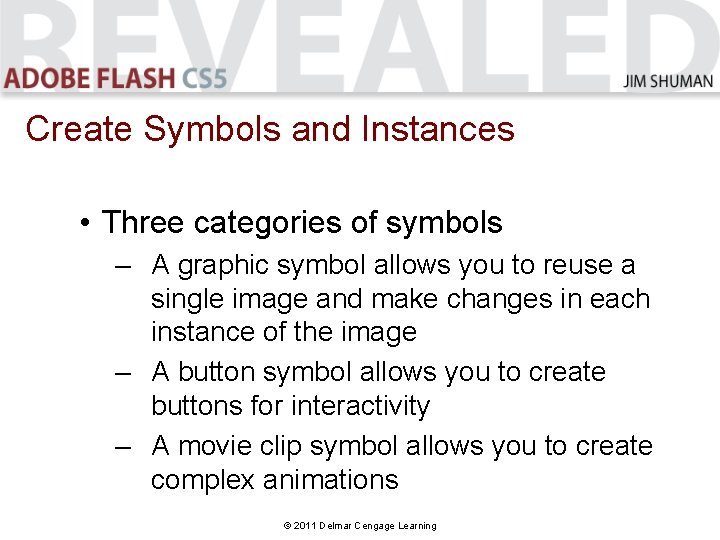

Create Symbols and Instances • Three categories of symbols – A graphic symbol allows you to reuse a single image and make changes in each instance of the image – A button symbol allows you to create buttons for interactivity – A movie clip symbol allows you to create complex animations © 2011 Delmar Cengage Learning

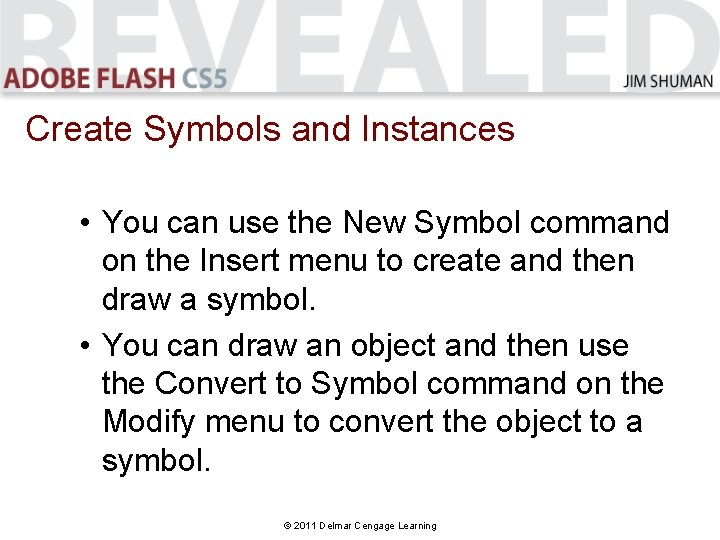

Create Symbols and Instances • You can use the New Symbol command on the Insert menu to create and then draw a symbol. • You can draw an object and then use the Convert to Symbol command on the Modify menu to convert the object to a symbol. © 2011 Delmar Cengage Learning

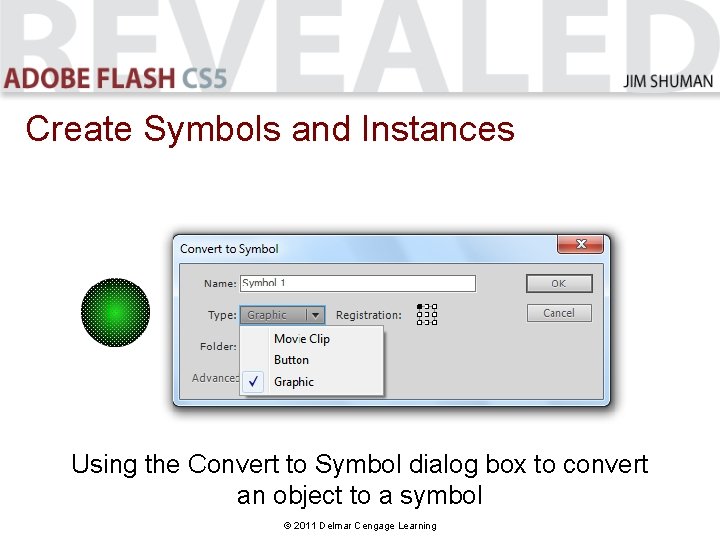

Create Symbols and Instances Using the Convert to Symbol dialog box to convert an

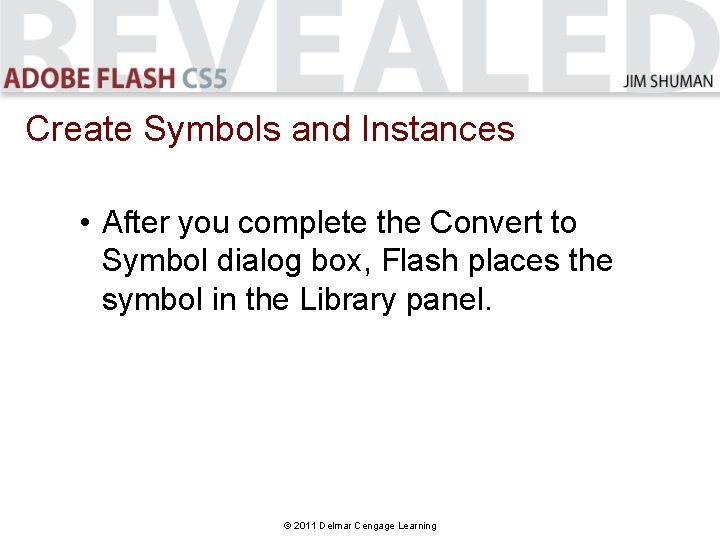

Create Symbols and Instances • After you complete the Convert to Symbol dialog box,

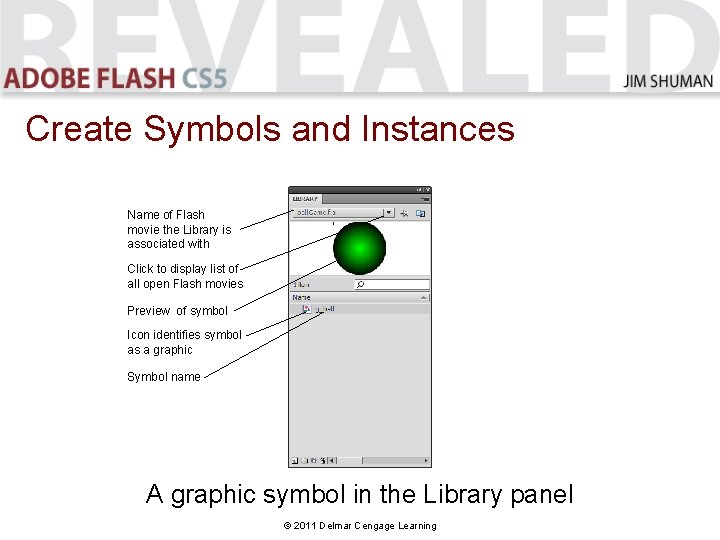

Create Symbols and Instances Name of Flash movie the Library is associated with Click to display list of all open Flash movies Preview of symbol Icon identifies symbol as a graphic Symbol name A graphic symbol in the Library panel © 2011 Delmar Cengage Learning

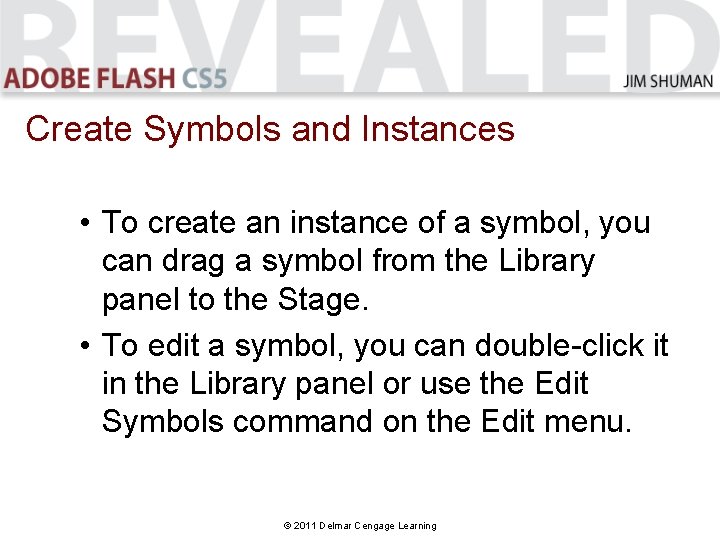

Create Symbols and Instances • To create an instance of a symbol, you can drag a symbol from the Library panel to the Stage. • To edit a symbol, you can double-click it in the Library panel or use the Edit Symbols command on the Edit menu. © 2011 Delmar Cengage Learning

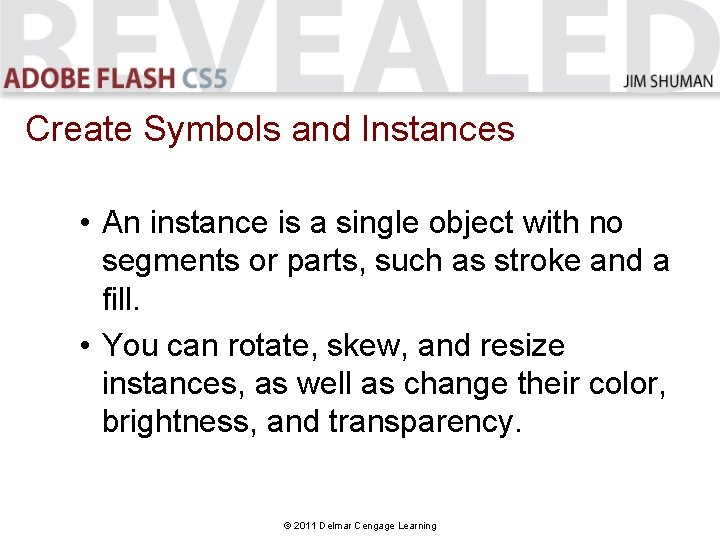

Create Symbols and Instances • An instance is a single object with no segments or parts, such as stroke and a fill. • You can rotate, skew, and resize instances, as well as change their color, brightness, and transparency. © 2011 Delmar Cengage Learning

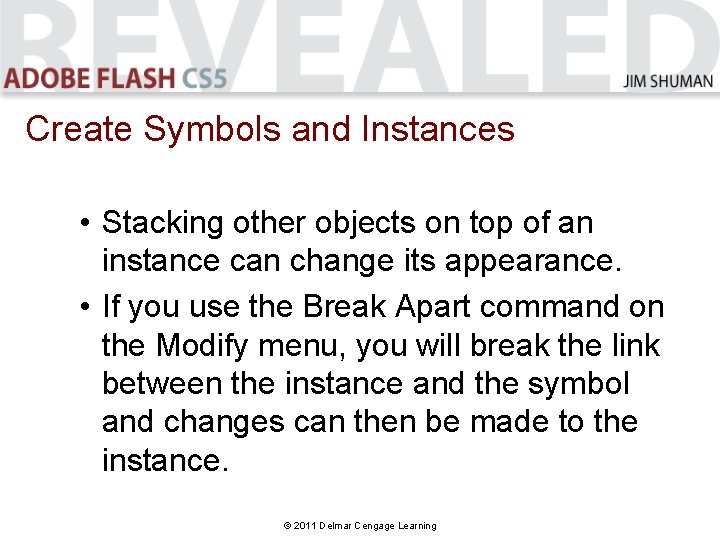

Create Symbols and Instances • Stacking other objects on top of an instance can change its appearance. • If you use the Break Apart command on the Modify menu, you will break the link between the instance and the symbol and changes can then be made to the instance. © 2011 Delmar Cengage Learning

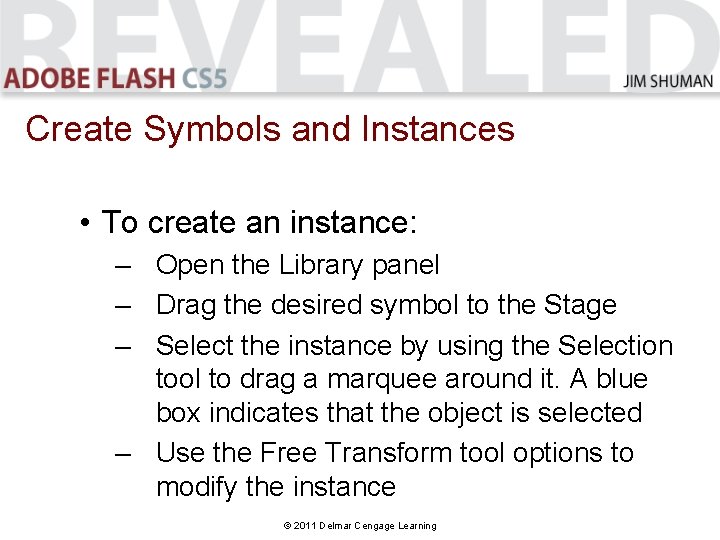

Create Symbols and Instances • To create an instance: – Open the Library panel – Drag the desired symbol to the Stage – Select the instance by using the Selection tool to drag a marquee around it. A blue box indicates that the object is selected – Use the Free Transform tool options to modify the instance © 2011 Delmar Cengage Learning

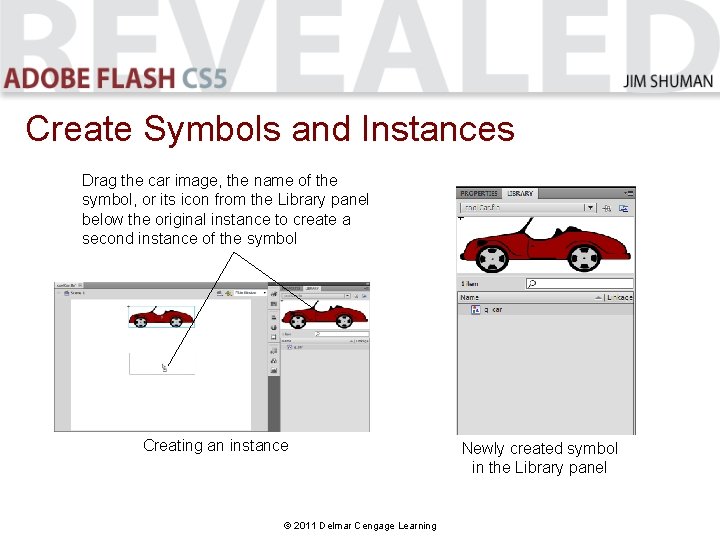

Create Symbols and Instances Drag the car image, the name of the symbol, or its icon from the Library panel below the original instance to create a second instance of the symbol Creating an instance © 2011 Delmar Cengage Learning Newly created symbol in the Library panel

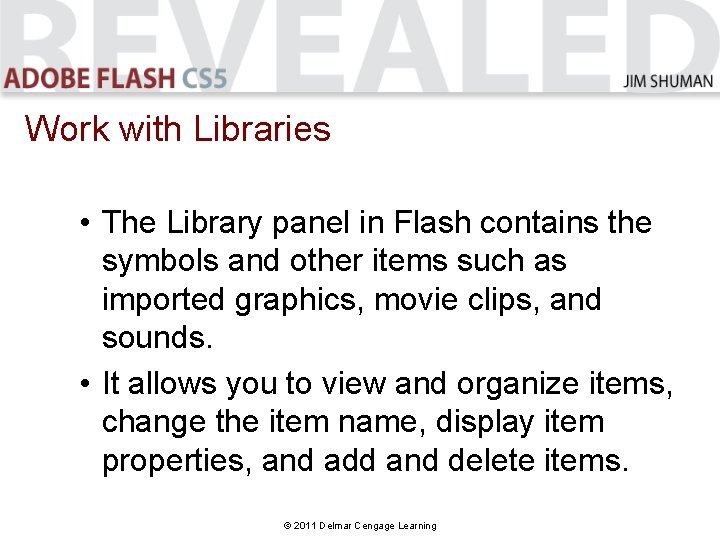

Work with Libraries • The Library panel in Flash contains the symbols and other items such as imported graphics, movie clips, and sounds. • It allows you to view and organize items, change the item name, display item properties, and add and delete items. © 2011 Delmar Cengage Learning

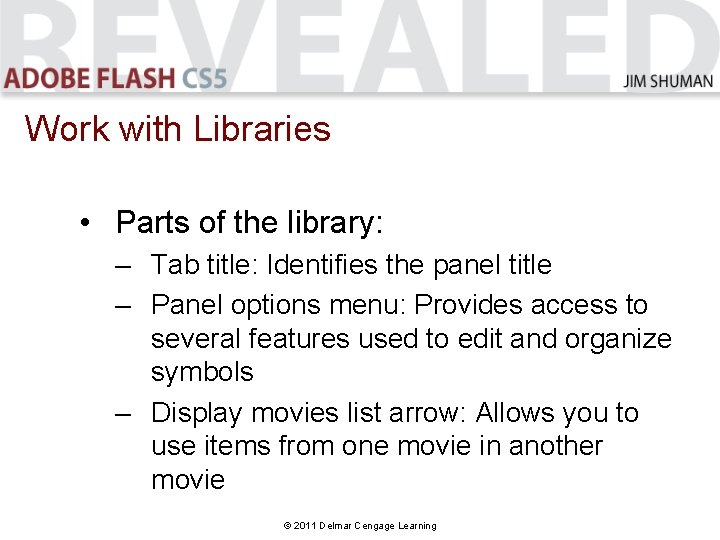

Work with Libraries • Parts of the library: – Tab title: Identifies the panel title – Panel options menu: Provides access to several features used to edit and organize symbols – Display movies list arrow: Allows you to use items from one movie in another movie © 2011 Delmar Cengage Learning

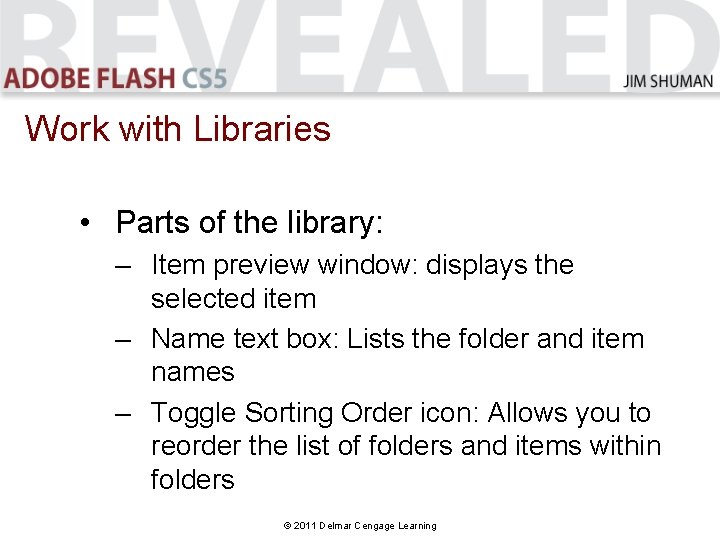

Work with Libraries • Parts of the library: – Item preview window: displays the selected item – Name text box: Lists the folder and item names – Toggle Sorting Order icon: Allows you to reorder the list of folders and items within folders © 2011 Delmar Cengage Learning

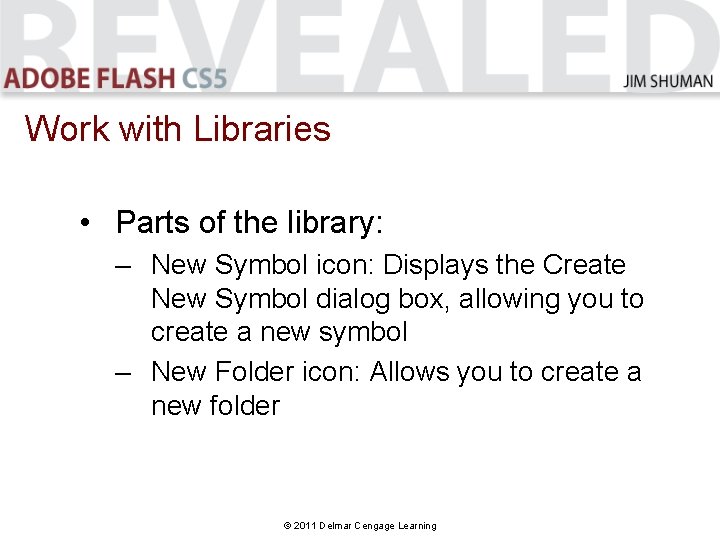

Work with Libraries • Parts of the library: – New Symbol icon: Displays the Create New Symbol dialog box, allowing you to create a new symbol – New Folder icon: Allows you to create a new folder © 2011 Delmar Cengage Learning

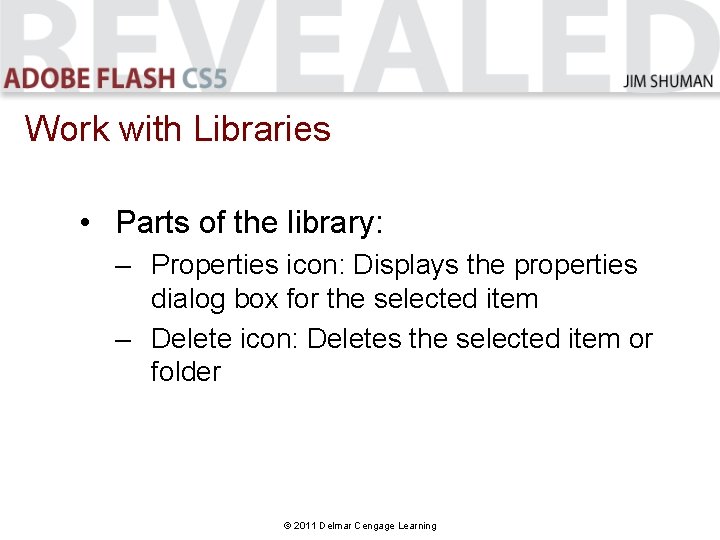

Work with Libraries • Parts of the library: – Properties icon: Displays the properties dialog box for the selected item – Delete icon: Deletes the selected item or folder © 2011 Delmar Cengage Learning

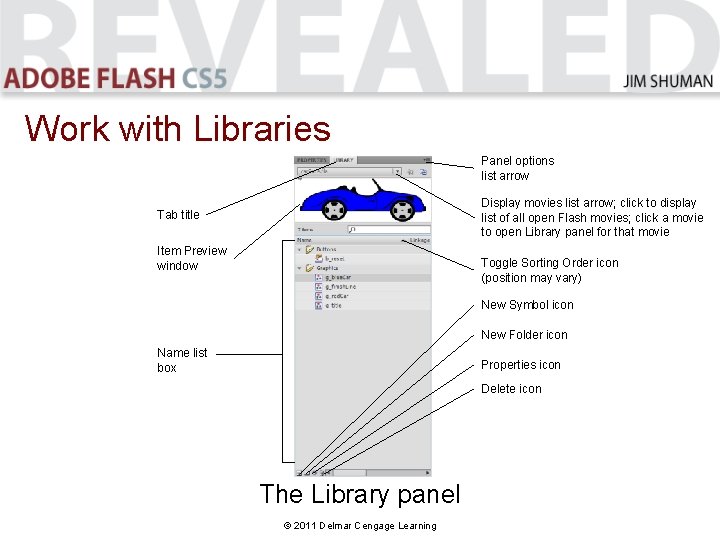

Work with Libraries Panel options list arrow Display movies list arrow; click to display list of all open Flash movies; click a movie to open Library panel for that movie Tab title Item Preview window Toggle Sorting Order icon (position may vary) New Symbol icon New Folder icon Name list box Properties icon Delete icon The Library panel © 2011 Delmar Cengage Learning

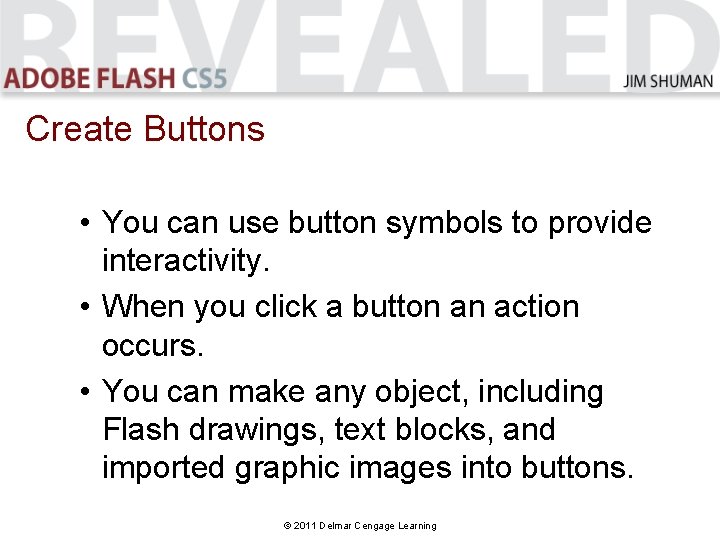

Create Buttons • You can use button symbols to provide interactivity. • When you click a button an action occurs. • You can make any object, including Flash drawings, text blocks, and imported graphic images into buttons. © 2011 Delmar Cengage Learning

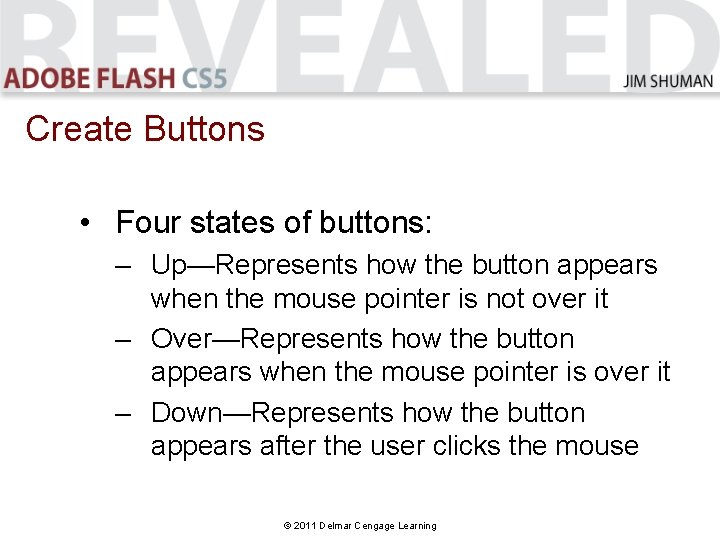

Create Buttons • Four states of buttons: – Up—Represents how the button appears when the mouse pointer is not over it – Over—Represents how the button appears when the mouse pointer is over it – Down—Represents how the button appears after the user clicks the mouse © 2011 Delmar Cengage Learning

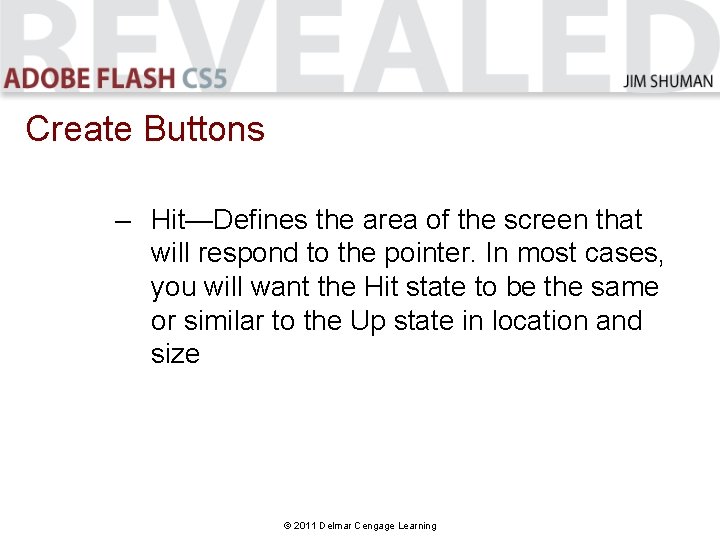

Create Buttons – Hit—Defines the area of the screen that will respond to the pointer. In most cases, you will want the Hit state to be the same or similar to the Up state in location and size © 2011 Delmar Cengage Learning

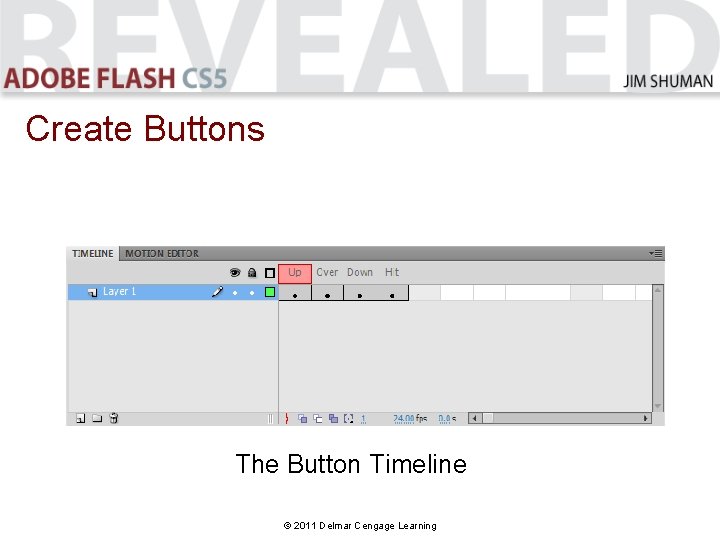

Create Buttons The Button Timeline © 2011 Delmar Cengage Learning

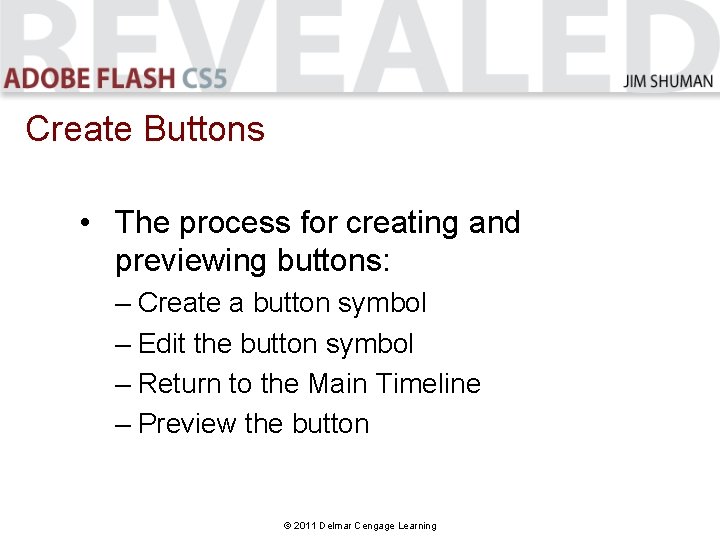

Create Buttons • The process for creating and previewing buttons: – Create a button

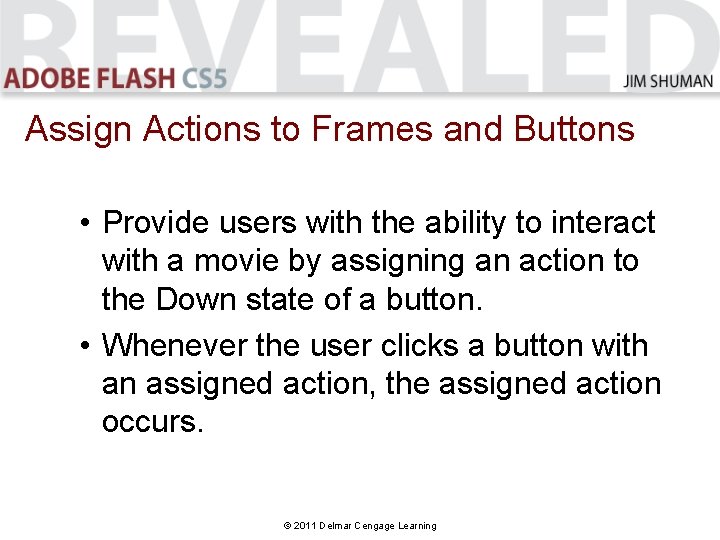

Assign Actions to Frames and Buttons • Provide users with the ability to interact with a movie by assigning an action to the Down state of a button. • Whenever the user clicks a button with an assigned action, the assigned action occurs. © 2011 Delmar Cengage Learning

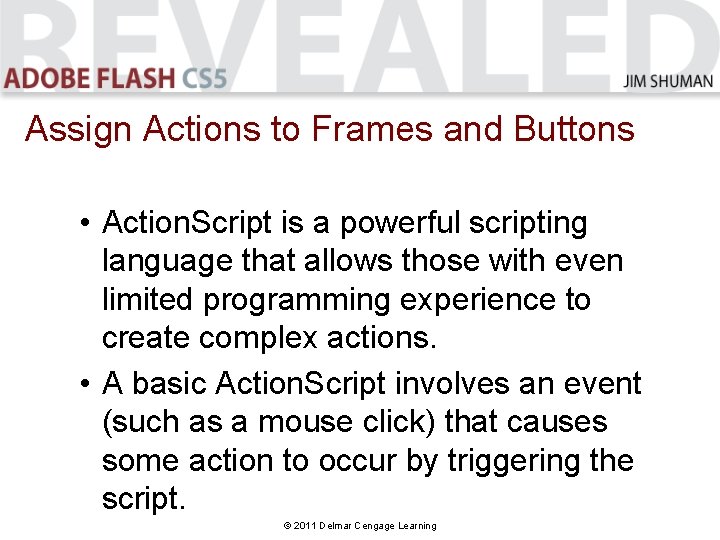

Assign Actions to Frames and Buttons • Action. Script is a powerful scripting language that allows those with even limited programming experience to create complex actions. • A basic Action. Script involves an event (such as a mouse click) that causes some action to occur by triggering the script. © 2011 Delmar Cengage Learning

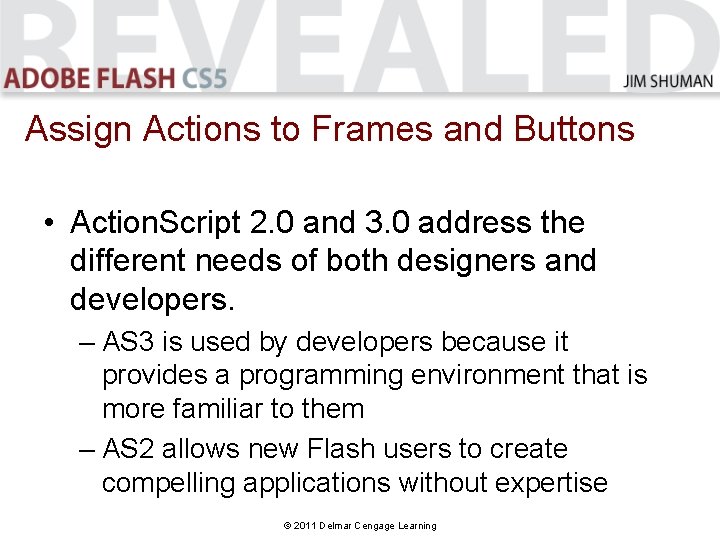

Assign Actions to Frames and Buttons • Action. Script 2. 0 and 3. 0 address the different needs of both designers and developers. – AS 3 is used by developers because it provides a programming environment that is more familiar to them – AS 2 allows new Flash users to create compelling applications without expertise © 2011 Delmar Cengage Learning

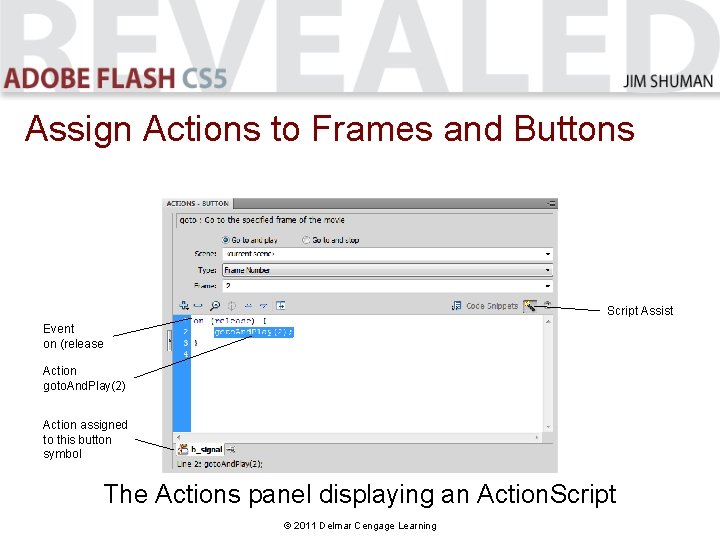

Assign Actions to Frames and Buttons Script Assist Event on (release Action goto. And. Play(2) Action assigned to this button symbol The Actions panel displaying an Action. Script © 2011 Delmar Cengage Learning

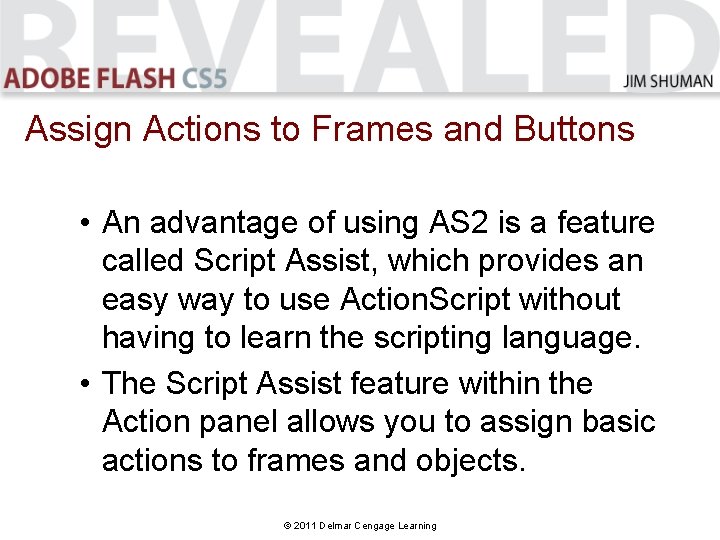

Assign Actions to Frames and Buttons • An advantage of using AS 2 is a feature called Script Assist, which provides an easy way to use Action. Script without having to learn the scripting language. • The Script Assist feature within the Action panel allows you to assign basic actions to frames and objects. © 2011 Delmar Cengage Learning

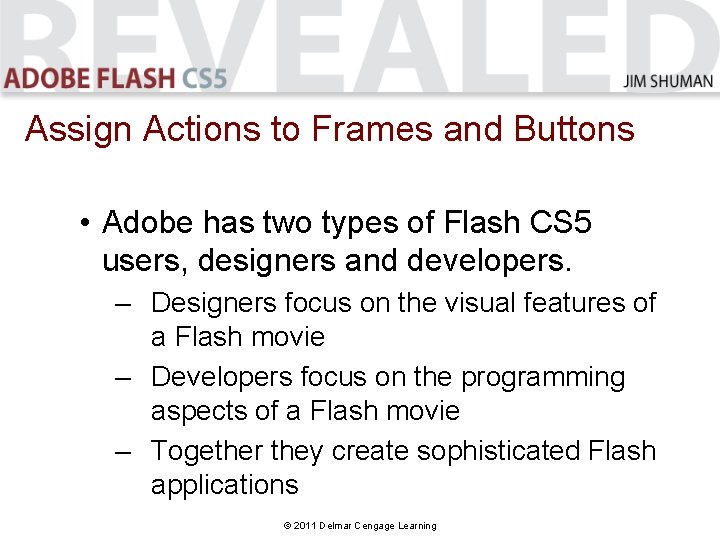

Assign Actions to Frames and Buttons • Adobe has two types of Flash CS 5 users, designers and developers. – Designers focus on the visual features of a Flash movie – Developers focus on the programming aspects of a Flash movie – Together they create sophisticated Flash applications © 2011 Delmar Cengage Learning

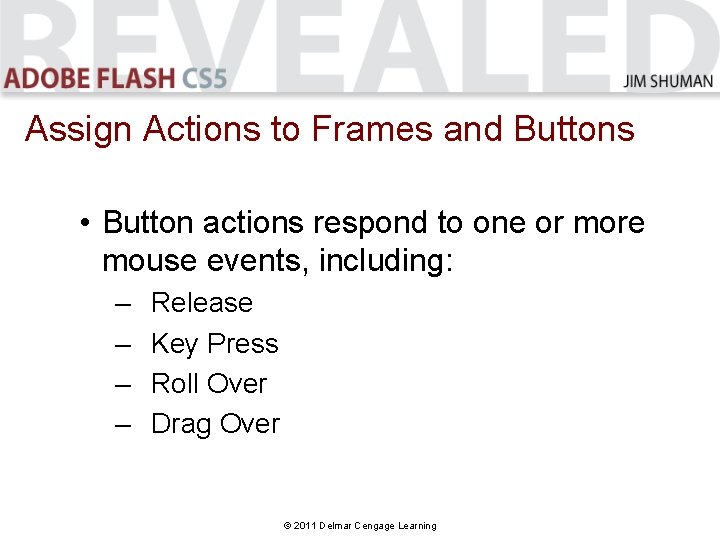

Assign Actions to Frames and Buttons • Button actions respond to one or more

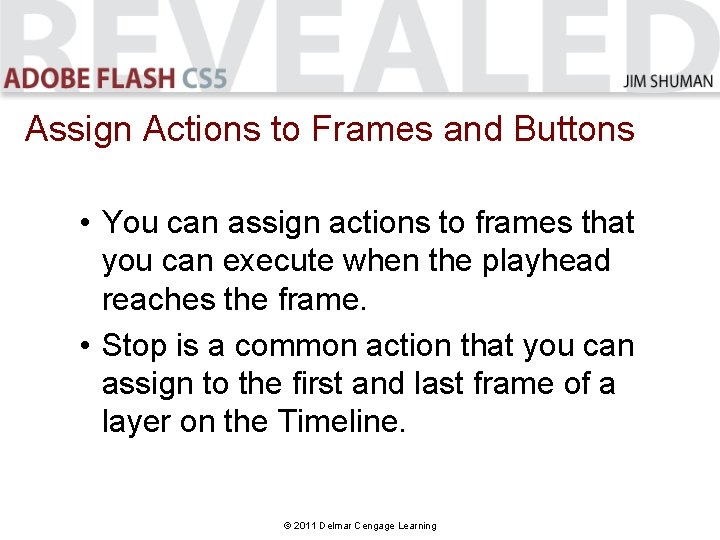

Assign Actions to Frames and Buttons • You can assign actions to frames that you can execute when the playhead reaches the frame. • Stop is a common action that you can assign to the first and last frame of a layer on the Timeline. © 2011 Delmar Cengage Learning

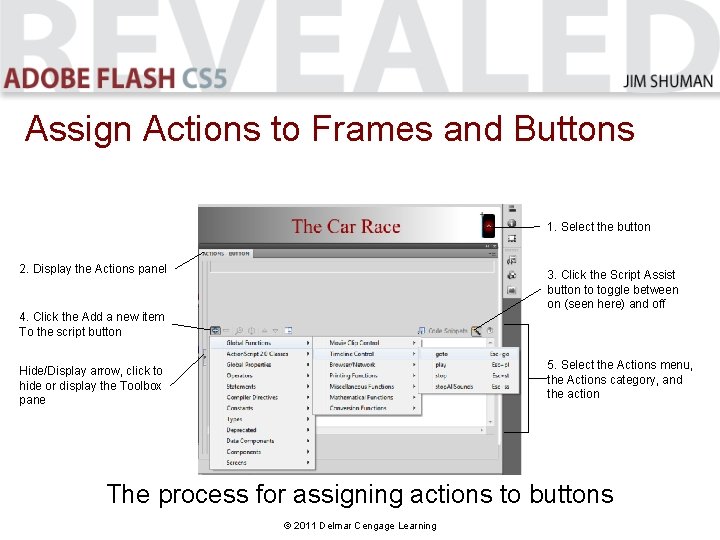

Assign Actions to Frames and Buttons 1. Select the button 2. Display the Actions panel 3. Click the Script Assist button to toggle between on (seen here) and off 4. Click the Add a new item To the script button 5. Select the Actions menu, the Actions category, and the action Hide/Display arrow, click to hide or display the Toolbox pane The process for assigning actions to buttons © 2011 Delmar Cengage Learning

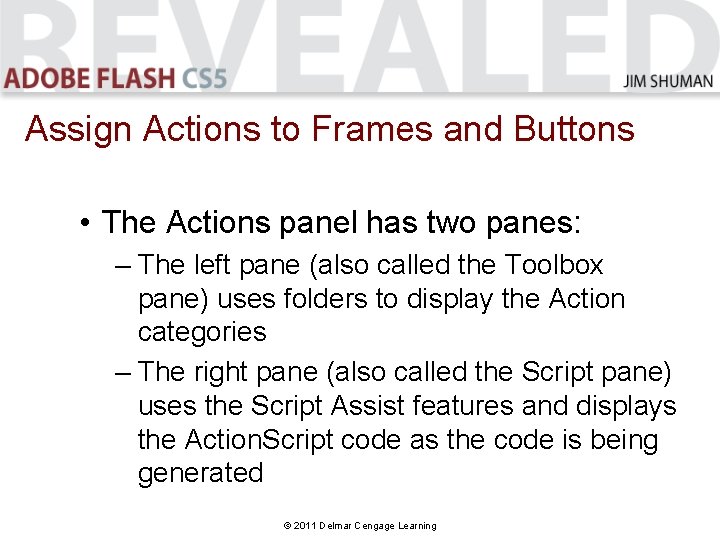

Assign Actions to Frames and Buttons • The Actions panel has two panes: – The left pane (also called the Toolbox pane) uses folders to display the Action categories – The right pane (also called the Script pane) uses the Script Assist features and displays the Action. Script code as the code is being generated © 2011 Delmar Cengage Learning

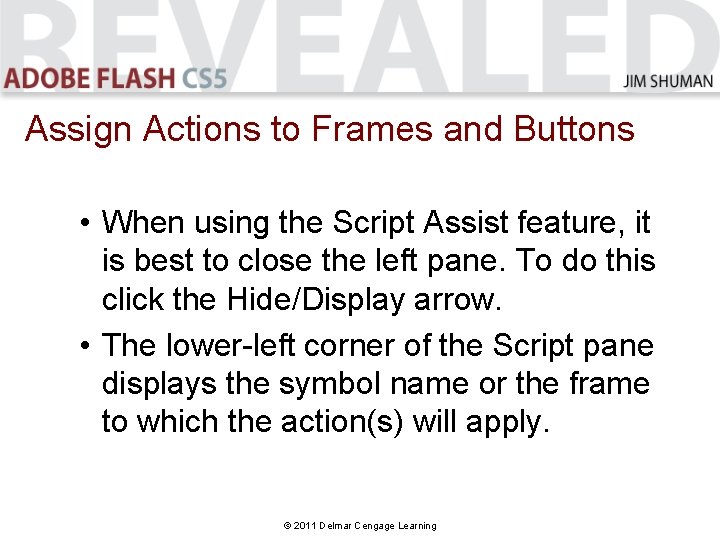

Assign Actions to Frames and Buttons • When using the Script Assist feature, it is best to close the left pane. To do this click the Hide/Display arrow. • The lower-left corner of the Script pane displays the symbol name or the frame to which the action(s) will apply. © 2011 Delmar Cengage Learning

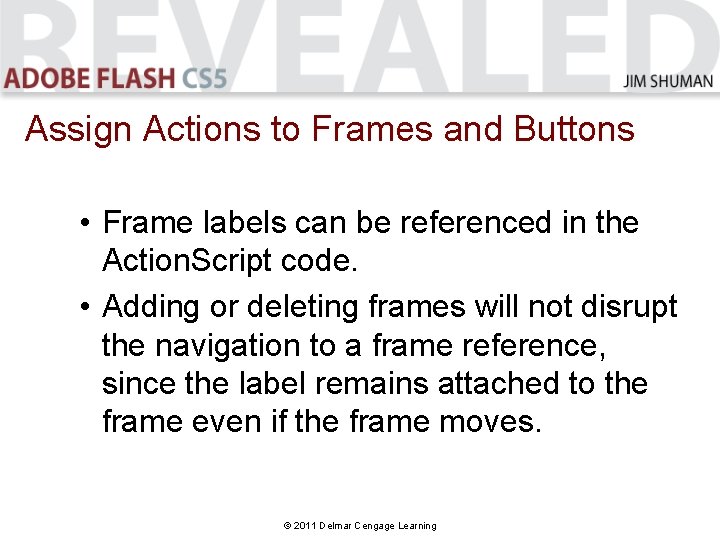

Assign Actions to Frames and Buttons • Frame labels can be referenced in the Action. Script code. • Adding or deleting frames will not disrupt the navigation to a frame reference, since the label remains attached to the frame even if the frame moves. © 2011 Delmar Cengage Learning

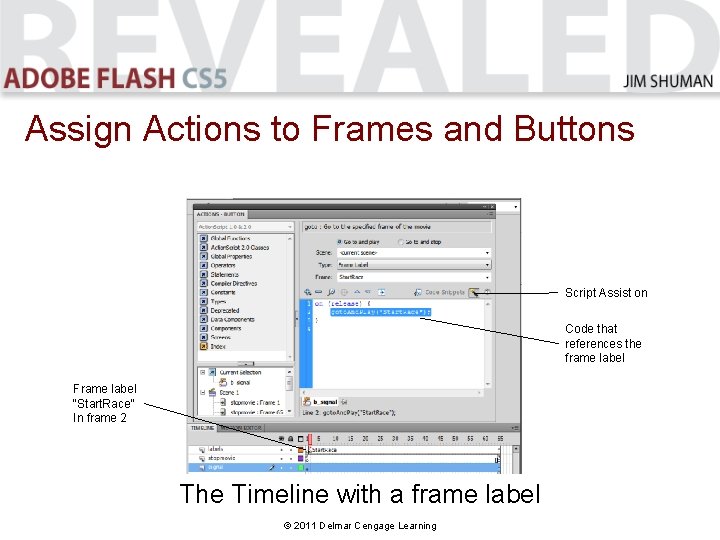

Assign Actions to Frames and Buttons Script Assist on Code that references the frame

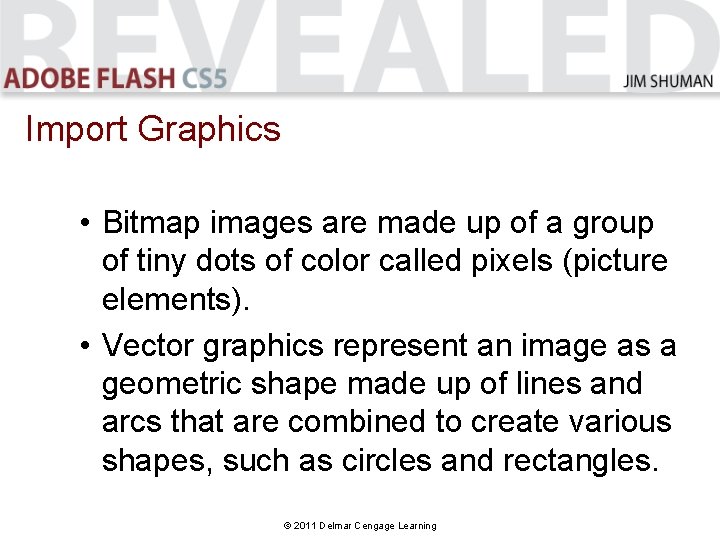

Import Graphics • Bitmap images are made up of a group of tiny dots of color called pixels (picture elements). • Vector graphics represent an image as a geometric shape made up of lines and arcs that are combined to create various shapes, such as circles and rectangles. © 2011 Delmar Cengage Learning

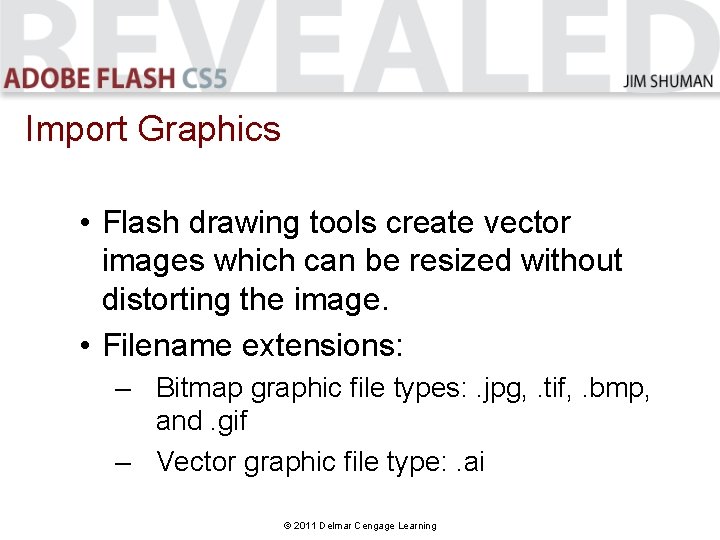

Import Graphics • Flash drawing tools create vector images which can be resized without distorting the image. • Filename extensions: – Bitmap graphic file types: . jpg, . tif, . bmp, and. gif – Vector graphic file type: . ai © 2011 Delmar Cengage Learning

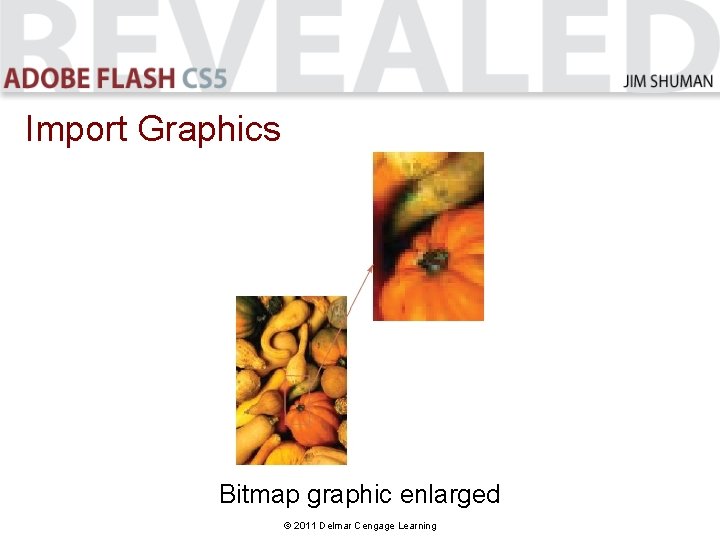

Import Graphics Bitmap graphic enlarged © 2011 Delmar Cengage Learning

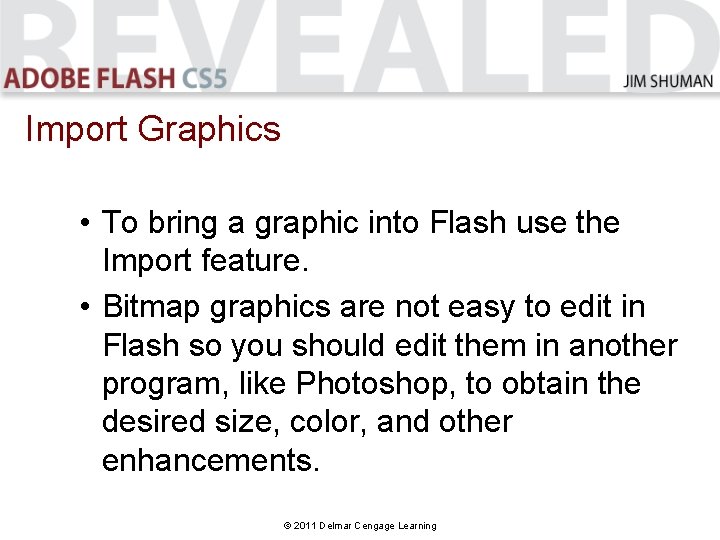

Import Graphics • To bring a graphic into Flash use the Import feature. • Bitmap graphics are not easy to edit in Flash so you should edit them in another program, like Photoshop, to obtain the desired size, color, and other enhancements. © 2011 Delmar Cengage Learning
