Chapter 3 Section 3 Notes Families of Elements

Chapter 3 Section 3 Notes Families of Elements

The Periodic Table n n Elements are classified as metals, nonmetals, and metalloids (semiconductors).

The Periodic Table n n Elements are classified as metals, nonmetals, and metalloids (semiconductors). Metals are found on the left side of the periodic table, while nonmetals are on the right side. ¡ The only exception is hydrogen, which is the only nonmetal on the left side.

Metals, Nonmetals, and Metalloids

Metals, Nonmetals, and Metalloids

Characteristics of Metals n n n Metals are good conductors of heat and electricity.

Characteristics of Metals n n n Metals are good conductors of heat and electricity. Metals are shiny solids that can be shaped. Metals are ductile (can be stretched into thin wires). Metals are malleable (can be pounded into thin sheets). A chemical property of metal is its reaction with water which results in corrosion.

Characteristics of Nonmetals n n Non-metals are poor conductors of heat and electricity. Non-metals

Characteristics of Nonmetals n n Non-metals are poor conductors of heat and electricity. Non-metals are not ductile or malleable. Solid non-metals are dull, brittle and break easily. Many non-metals are gases, but can be solids or liquids. Sulfur

Characteristics of Metalloids n n Metalloids (metallike) have properties of both metals and non-metals.

Characteristics of Metalloids n n Metalloids (metallike) have properties of both metals and non-metals. They are solids that can be shiny or dull. They conduct heat and electricity better than non-metals but not as well as metals. They are ductile and malleable.

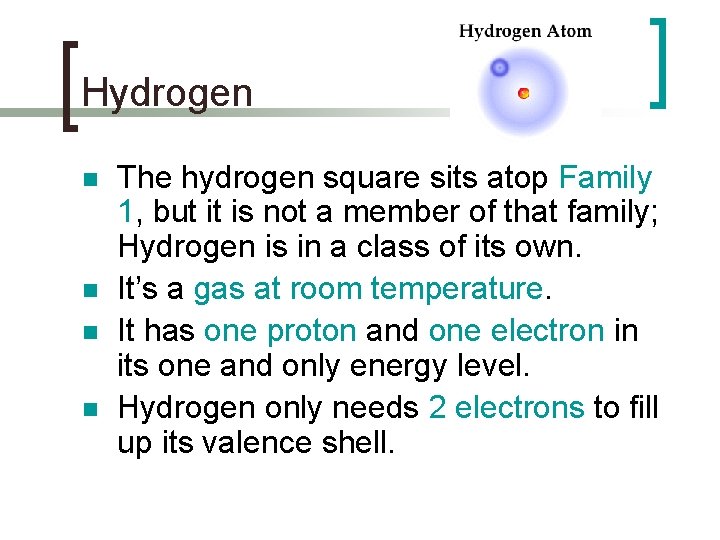

Hydrogen n n The hydrogen square sits atop Family 1, but it is not

Hydrogen n n The hydrogen square sits atop Family 1, but it is not a member of that family; Hydrogen is in a class of its own. It’s a gas at room temperature. It has one proton and one electron in its one and only energy level. Hydrogen only needs 2 electrons to fill up its valence shell.

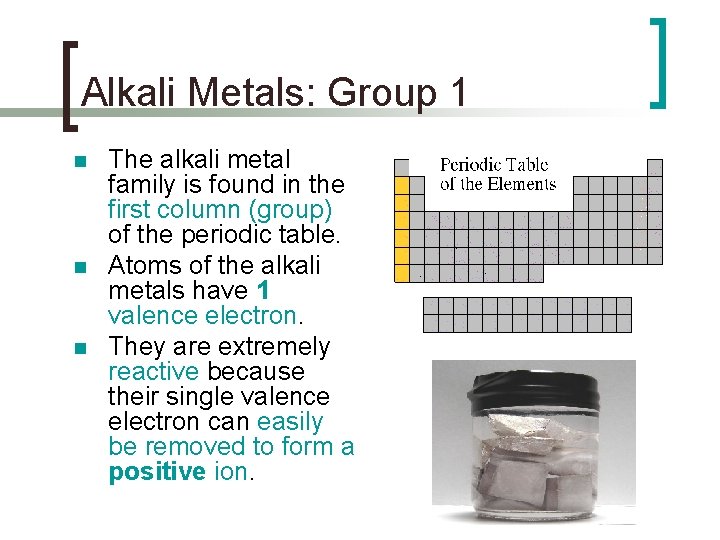

Alkali Metals: Group 1 n n n The alkali metal family is found in

Alkali Metals: Group 1 n n n The alkali metal family is found in the first column (group) of the periodic table. Atoms of the alkali metals have 1 valence electron. They are extremely reactive because their single valence electron can easily be removed to form a positive ion.

Alkali Metals: Group 1 n n n They are shiny, have the consistency of

Alkali Metals: Group 1 n n n They are shiny, have the consistency of clay, and are easily cut with a knife. They react violently with water. Alkali metals are never found as free elements in nature; they are always bonded with another element because they are so reactive.

What are the alkali metals? n n n Lithium (Li) Sodium (Na) Potassium (K)

What are the alkali metals? n n n Lithium (Li) Sodium (Na) Potassium (K) Rubidium (Rb) Cesium (Cs) Francium (Fr)

Alkaline-Earth Metals: Group 2 n n The alkaline-earth metal family is found in the

Alkaline-Earth Metals: Group 2 n n The alkaline-earth metal family is found in the second column (group) of the periodic table. Atoms of Alkaline. Earth metals have 2 valence electrons.

Alkaline-Earth Metals: Group 2 n n They are never found uncombined in nature because

Alkaline-Earth Metals: Group 2 n n They are never found uncombined in nature because they are reactive. To bond, they lose their 2 valence electrons to form cations.

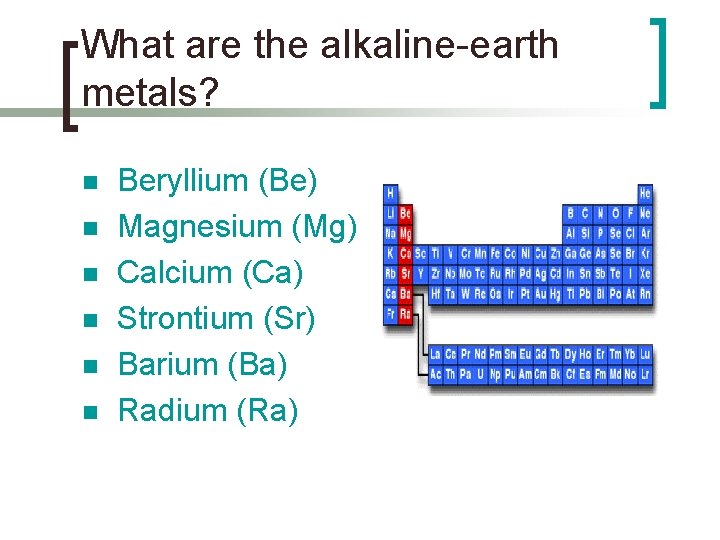

What are the alkaline-earth metals? n n n Beryllium (Be) Magnesium (Mg) Calcium (Ca)

What are the alkaline-earth metals? n n n Beryllium (Be) Magnesium (Mg) Calcium (Ca) Strontium (Sr) Barium (Ba) Radium (Ra)

Transition Metals: Groups 3 -12 n n n Transition Elements include those elements in

Transition Metals: Groups 3 -12 n n n Transition Elements include those elements in groups 3 -12. These are the metals you are probably most familiar with: copper, tin, zinc, iron, nickel, gold, and silver. They are good conductors of heat and electricity.

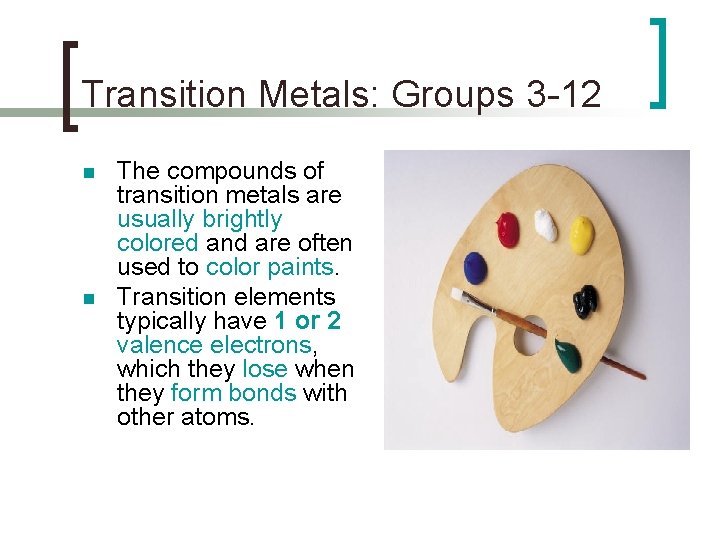

Transition Metals: Groups 3 -12 n n The compounds of transition metals are usually

Transition Metals: Groups 3 -12 n n The compounds of transition metals are usually brightly colored and are often used to color paints. Transition elements typically have 1 or 2 valence electrons, which they lose when they form bonds with other atoms.

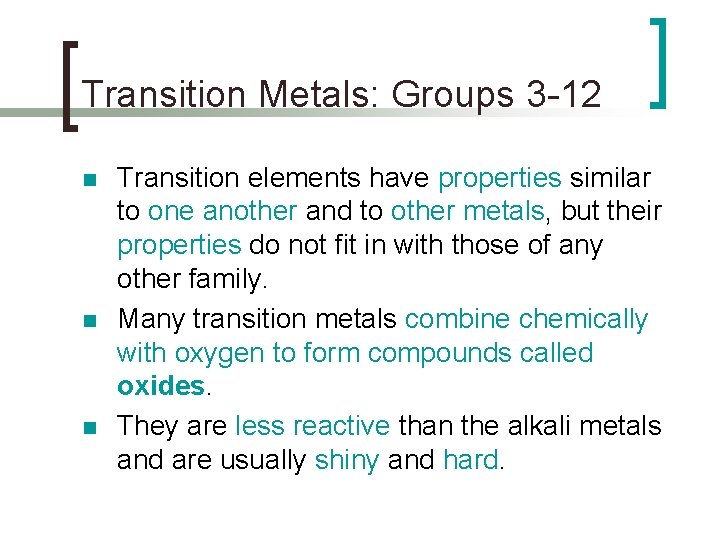

Transition Metals: Groups 3 -12 n n n Transition elements have properties similar to

Transition Metals: Groups 3 -12 n n n Transition elements have properties similar to one another and to other metals, but their properties do not fit in with those of any other family. Many transition metals combine chemically with oxygen to form compounds called oxides. They are less reactive than the alkali metals and are usually shiny and hard.

The Boron Family: Group 13 n n n The Boron Family is named after

The Boron Family: Group 13 n n n The Boron Family is named after the first element in the family. Atoms in this family have 3 valence electrons. This family includes the most abundant metal in the earth’s crust: aluminum.

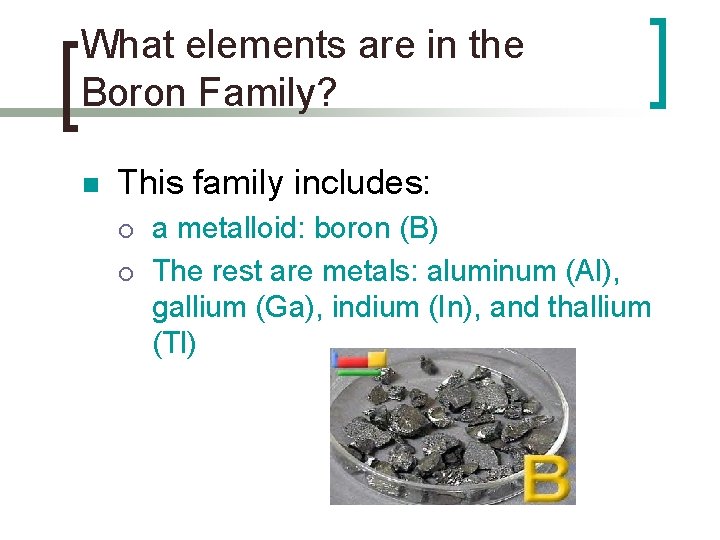

What elements are in the Boron Family? n This family includes: ¡ ¡ a

What elements are in the Boron Family? n This family includes: ¡ ¡ a metalloid: boron (B) The rest are metals: aluminum (Al), gallium (Ga), indium (In), and thallium (Tl)

The Carbon Family: Group 14 n n Atoms of this family have 4 valence

The Carbon Family: Group 14 n n Atoms of this family have 4 valence electrons. The element carbon is called the “basis of life. ” There is an entire branch of chemistry devoted to carbon compounds called organic chemistry.

What elements are in the Carbon Family? n This family includes: ¡ ¡ ¡

What elements are in the Carbon Family? n This family includes: ¡ ¡ ¡ A non-metal: Carbon (C) Metalloids: Silicon (Si) and Germanium (Ge) And metals: Tin (Sn) and Lead (Pb)

3 Forms of Carbon n Graphite: a grayish black crystal substance used for pencil

3 Forms of Carbon n Graphite: a grayish black crystal substance used for pencil lead, oil, and lubricant in machines Diamond: it is the hardest known natural substance Fullerenes: a form of carbon that is not graphite or diamond; composed of 60 or more carbon atoms and occur naturally in small amounts; some molecules are often called “Bucky balls”.

The Nitrogen Family: Group 15 n n The nitrogen family is named after the

The Nitrogen Family: Group 15 n n The nitrogen family is named after the element that makes up 78% of our atmosphere. Atoms in the nitrogen family have 5 valence electrons. They tend to share electrons when they bond.

What elements are in the Nitrogen Family? n This family includes: ¡ ¡ ¡

What elements are in the Nitrogen Family? n This family includes: ¡ ¡ ¡ The non-metals: Nitrogen (N) and Phosphorus (P) The metalloids: Arsenic (As) and Antimony (Sb) A metal: Bismuth (Bi)

The Oxygen Family: Group 16 n n n Atoms of this family have 6

The Oxygen Family: Group 16 n n n Atoms of this family have 6 valence electrons. Most elements in this family share electrons when forming compounds. Oxygen is the most abundant element in the earth’s crust. It is extremely active and combines with almost all elements.

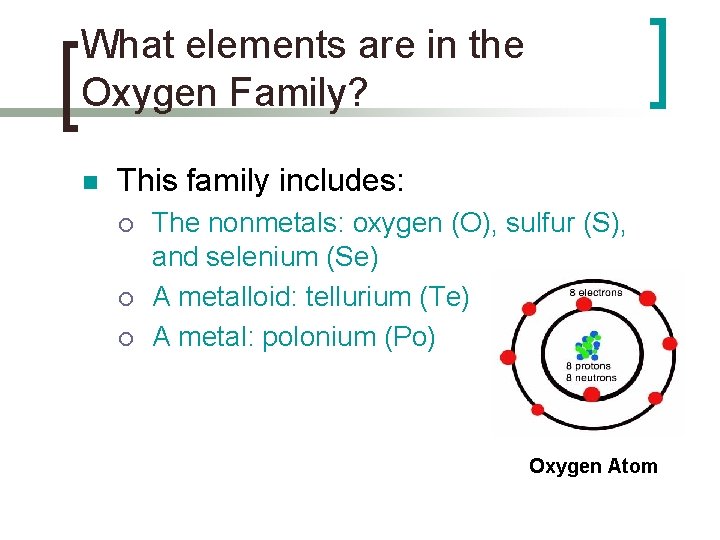

What elements are in the Oxygen Family? n This family includes: ¡ ¡ ¡

What elements are in the Oxygen Family? n This family includes: ¡ ¡ ¡ The nonmetals: oxygen (O), sulfur (S), and selenium (Se) A metalloid: tellurium (Te) A metal: polonium (Po) Oxygen Atom

Halogens: Group 17 n n n Halogens have 7 valence electrons, which explains why

Halogens: Group 17 n n n Halogens have 7 valence electrons, which explains why they are the most active non-metals. They are never found free in nature. Halogen atoms only need to gain 1 electron to fill their outermost energy level. They react with alkali metals to form salts.

What are the halogens? n n n Fluorine (F) Chlorine (Cl) Bromine (Br) Iodine

What are the halogens? n n n Fluorine (F) Chlorine (Cl) Bromine (Br) Iodine (I) Astatine (At)

Noble Gases: Group 18 n n Noble Gases are colorless gases that are extremely

Noble Gases: Group 18 n n Noble Gases are colorless gases that are extremely unreactive. One important property of the noble gases is their inactivity. They are inactive because their outermost energy level is full, so they exist in nature as single atoms rather than as molecules.

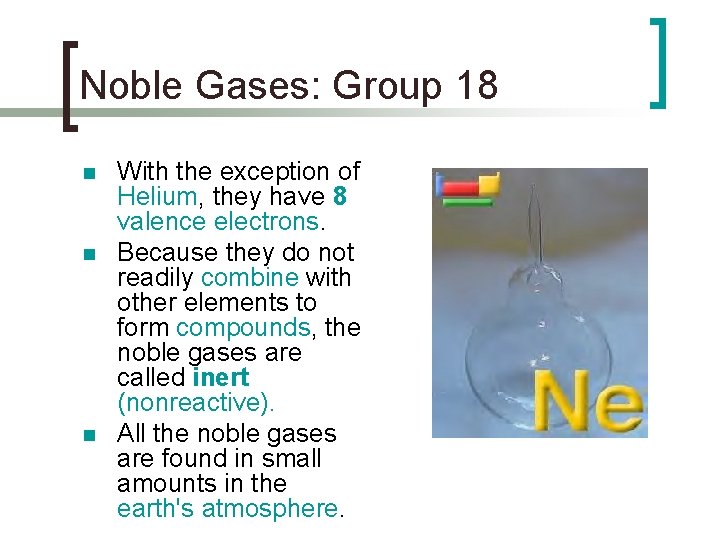

Noble Gases: Group 18 n n n With the exception of Helium, they have

Noble Gases: Group 18 n n n With the exception of Helium, they have 8 valence electrons. Because they do not readily combine with other elements to form compounds, the noble gases are called inert (nonreactive). All the noble gases are found in small amounts in the earth's atmosphere.

What are the Noble Gases? n n n Helium (He) Neon (Ne) Argon (Ar)

What are the Noble Gases? n n n Helium (He) Neon (Ne) Argon (Ar) Krypton (Kr) Xenon (Xe) Radon (Rn)

Rare Earth Metals n n The thirty rare earth elements are made of the

Rare Earth Metals n n The thirty rare earth elements are made of the lanthanide and actinide series. One element of the lanthanide series and most of the elements in the actinide series are called transuranium, which means “synthetic” or “manmade”.
