Chapter 3 Processes Operating System Concepts with Java

Chapter 3: Processes n Process Concept n Process Scheduling n Operations on Processes n

Objectives n To introduce the notion of a process -- a program in execution,

3. 1 Process Concept n An operating system executes a variety of programs: Batch

Process in Memory A program becomes a process when an executable file is loaded

3. 1. 2 Process State n As a process executes, it changes state l

Diagram of Process State Operating System Concepts with Java – 8 th Edition 3.

3. 1. 3 Process Control Block (PCB) Information associated with each process n Process

Process Control Block (PCB) new, ready, running, waiting Accounting information address of the next

CPU Switch From Process to Process Operating System Concepts with Java – 8 th

3. 2 Process Scheduling Queues n Job queue – set of all processes in

Ready Queue And Various I/O Device Queues Operating System Concepts with Java – 8

Representation of Process Scheduling Selected for execution, dispatched Issue I/O request Create subprocess, wait

3. 2. 2 Schedulers n Long-term scheduler (or job scheduler) – selects which processes

Addition of Medium Term Scheduling • Sometimes it can be advantageous to remove process

Schedulers (Cont) n Short-term scheduler is invoked very frequently (milliseconds) (must be fast) n

Context Switch n When CPU switches to another process, the system must save the

Process Creation n Parent process create children processes, which, in turn create other processes,

Process Creation (Cont) n Address space l Child duplicate of parent l Child has

Process Creation Operating System Concepts with Java – 8 th Edition 3. 20 Silberschatz,

$C Program Forking Separate Process int main() { pid_t pid; • child pid =$

Process Creation in Java Operating System Concepts with Java – 8 th Edition 3.

A tree of processes on a typical Solaris Root parent process for all user

Process Termination n Process executes last statement and asks the operating system to delete

Interprocess Communication n Independent process cannot affect or be affected by the execution of

Interprocess Communication n Cooperating processes need interprocess communication (IPC) n Two models of IPC

Communications Models a. Message passing: small amount of data, easier to implement b. Shared

Producer-Consumer Problem n Paradigm for cooperating processes, producer process produces information that is consumed

Simulating Shared Memory in Java Operating System Concepts with Java – 8 th Edition

$Bounded-Buffer – Shared-Memory Solution n Shared data #define BUFFER_SIZE 10 typedef struct {. .$

Bounded-Buffer – Producer item next. Produced; while (true) { /* Produce an item in

Bounded Buffer – Consumer item next. Consumed; while (true) { while (in == out)

Interprocess Communication – Message Passing n Message system – processes communicate with each other

Implementation Questions n How are links established? n Can a link be associated with

Direct Communication n Processes must name each other explicitly: l send (P, message) –

Indirect Communication n Messages are directed and received from mailboxes (also referred to as

Indirect Communication n Operations l create l send a new mailbox and receive messages

Indirect Communication n Mailbox sharing l P 1, P 2, and P 3 share

Synchronization n Message passing may be either blocking or non-blocking n Blocking is considered

Buffering n Queue of messages attached to the link; implemented in one of three

Examples of IPC Systems - POSIX n POSIX Shared Memory l Process first creates

Examples of IPC Systems - Mach n Mach communication is message based l Even

Examples of IPC Systems – Windows XP n Message-passing centric via local procedure call

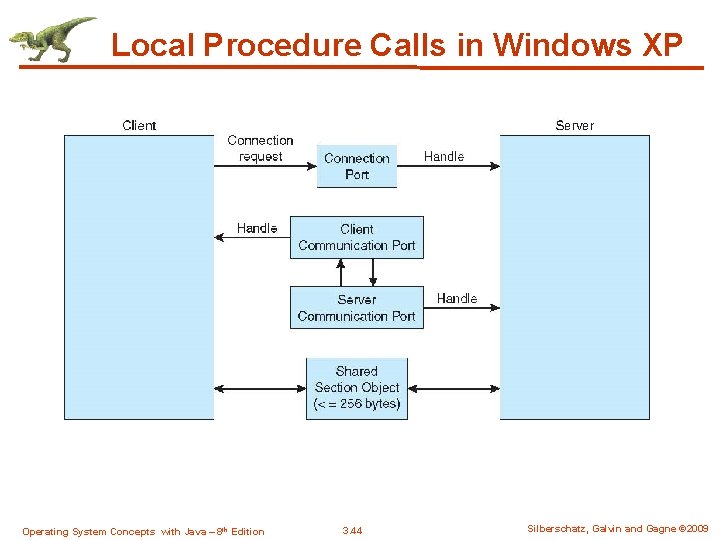

Local Procedure Calls in Windows XP Operating System Concepts with Java – 8 th
