Chapter 3 Processes AE 4 B 33 OSS

Chapter 3: Processes AE 4 B 33 OSS

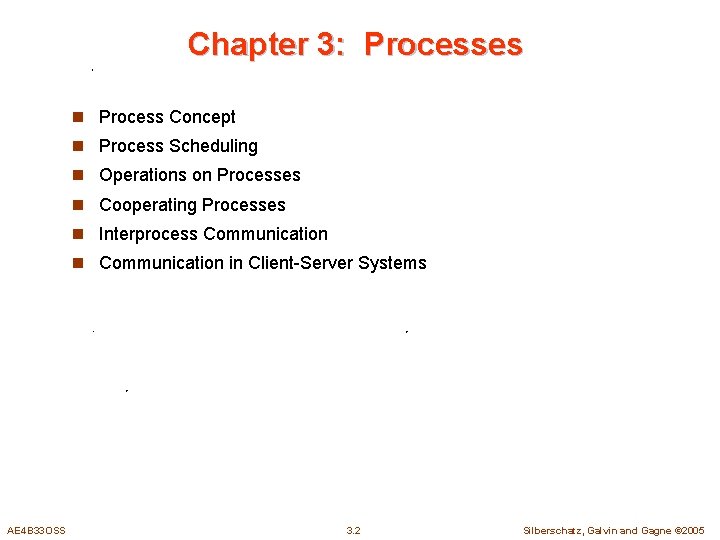

Chapter 3: Processes n Process Concept n Process Scheduling n Operations on Processes n Cooperating Processes n Interprocess Communication n Communication in Client-Server Systems AE 4 B 33 OSS 3. 2 Silberschatz, Galvin and Gagne © 2005

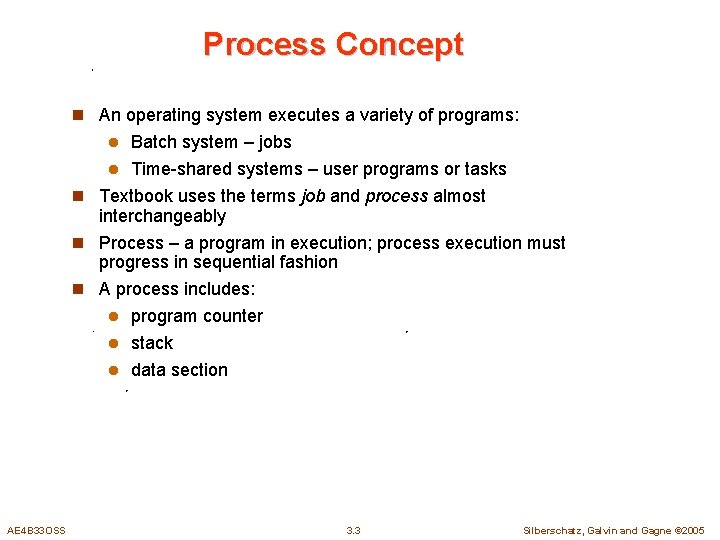

Process Concept n An operating system executes a variety of programs: Batch system – jobs l Time-shared systems – user programs or tasks n Textbook uses the terms job and process almost interchangeably n Process – a program in execution; process execution must progress in sequential fashion n A process includes: l program counter l stack l l AE 4 B 33 OSS data section 3. 3 Silberschatz, Galvin and Gagne © 2005

Process in Memory AE 4 B 33 OSS 3. 4 Silberschatz, Galvin and Gagne

Process State n AE 4 B 33 OSS As a process executes, it changes state l new: The process is being created l running: Instructions are being executed l waiting: The process is waiting for some event to occur l ready: The process is waiting to be assigned to a process l terminated: The process has finished execution 3. 5 Silberschatz, Galvin and Gagne © 2005

Diagram of Process State AE 4 B 33 OSS 3. 6 Silberschatz, Galvin and

Process Control Block (PCB) Information associated with each process n Process state n Program counter n CPU registers n CPU scheduling information n Memory-management information n Accounting information n I/O status information AE 4 B 33 OSS 3. 7 Silberschatz, Galvin and Gagne © 2005

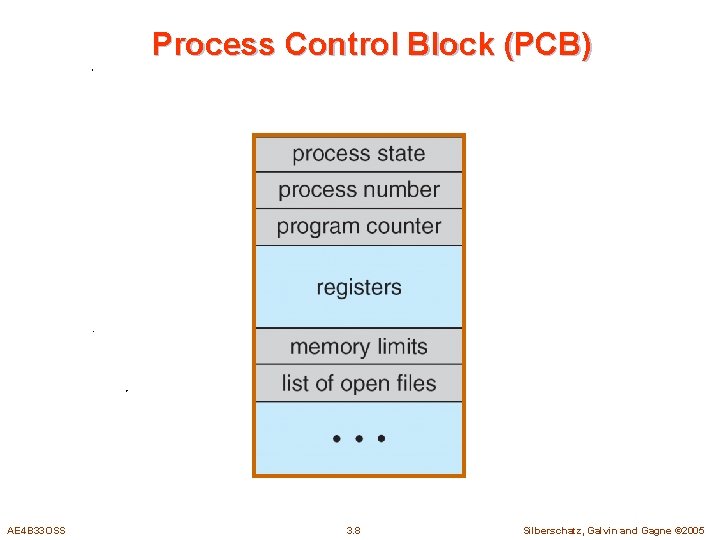

Process Control Block (PCB) AE 4 B 33 OSS 3. 8 Silberschatz, Galvin and

CPU Switch From Process to Process AE 4 B 33 OSS 3. 9 Silberschatz,

Process Scheduling Queues n Job queue – set of all processes in the system n Ready queue – set of all processes residing in main memory, ready and waiting to execute n Device queues – set of processes waiting for an I/O device n Processes migrate among the various queues AE 4 B 33 OSS 3. 10 Silberschatz, Galvin and Gagne © 2005

Ready Queue And Various I/O Device Queues AE 4 B 33 OSS 3. 11

Representation of Process Scheduling AE 4 B 33 OSS 3. 12 Silberschatz, Galvin and

Schedulers n Long-term scheduler (or job scheduler) – selects which processes should be brought into the ready queue n Short-term scheduler (or CPU scheduler) – selects which process should be executed next and allocates CPU AE 4 B 33 OSS 3. 13 Silberschatz, Galvin and Gagne © 2005

Addition of Medium Term Scheduling AE 4 B 33 OSS 3. 14 Silberschatz, Galvin

Schedulers (Cont. ) n Short-term scheduler is invoked very frequently (milliseconds) (must be fast) n Long-term scheduler is invoked very infrequently (seconds, minutes) (may be slow) n The long-term scheduler controls the degree of multiprogramming n Processes can be described as either: AE 4 B 33 OSS l I/O-bound process – spends more time doing I/O than computations, many short CPU bursts l CPU-bound process – spends more time doing computations; few very long CPU bursts 3. 15 Silberschatz, Galvin and Gagne © 2005

Context Switch n When CPU switches to another process, the system must save the state of the old process and load the saved state for the new process n Context-switch time is overhead; the system does no useful work while switching n Time dependent on hardware support AE 4 B 33 OSS 3. 16 Silberschatz, Galvin and Gagne © 2005

Process Creation n Parent process create children processes, which, in turn create other processes, forming a tree of processes n Resource sharing l Parent and children share all resources l Children share subset of parent’s resources l Parent and child share no resources n Execution AE 4 B 33 OSS l Parent and children execute concurrently l Parent waits until children terminate 3. 17 Silberschatz, Galvin and Gagne © 2005

Process Creation (Cont. ) n Address space l Child duplicate of parent l Child has a program loaded into it n UNIX examples AE 4 B 33 OSS l fork system call creates new process l exec system call used after a fork to replace the process’ memory space with a new program 3. 18 Silberschatz, Galvin and Gagne © 2005

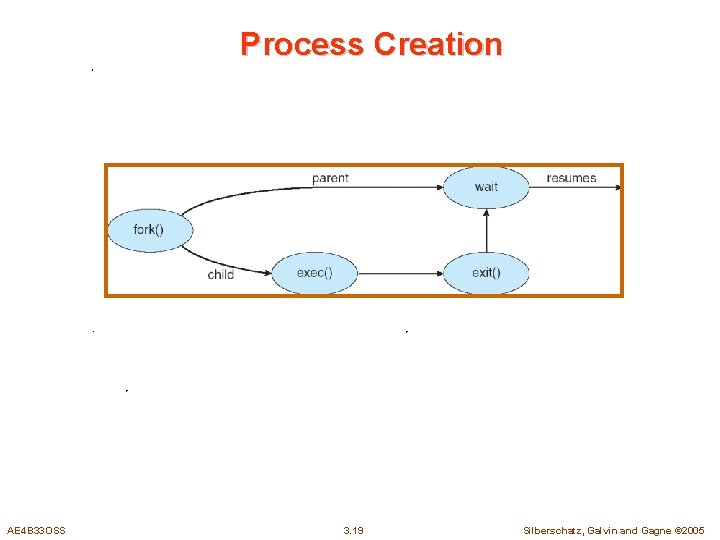

Process Creation AE 4 B 33 OSS 3. 19 Silberschatz, Galvin and Gagne ©

$C Program Forking Separate Process int main() { Pid_t pid; /* fork another process$

C Program Forking Separate Process int main() { Pid_t pid; /* fork another process */ pid = fork(); if (pid < 0) { /* error occurred */ fprintf(stderr, "Fork Failed"); exit(-1); } else if (pid == 0) { /* child process */ execlp("/bin/ls", "ls", NULL); } else { /* parent process */ /* parent will wait for the child to complete */ wait (NULL); printf ("Child Complete"); exit(0); } } AE 4 B 33 OSS 3. 20 Silberschatz, Galvin and Gagne © 2005

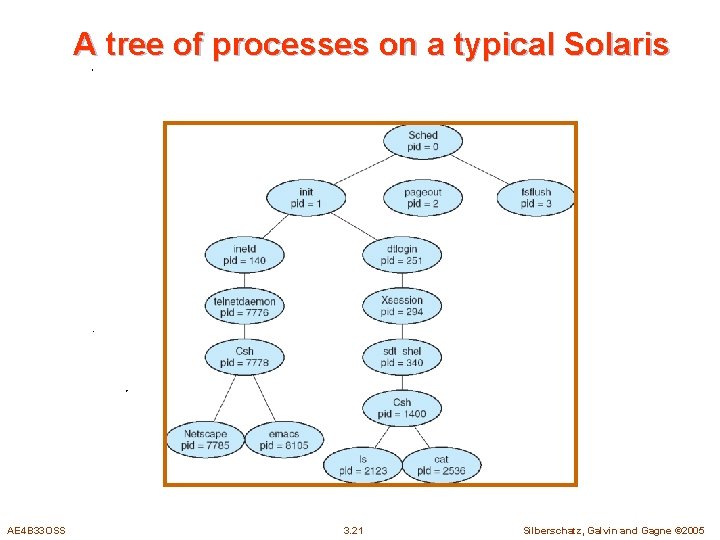

A tree of processes on a typical Solaris AE 4 B 33 OSS 3.

Process Termination n Process executes last statement and asks the operating system to delete it (exit) l Output data from child to parent (via wait) l Process’ resources are deallocated by operating system n Parent may terminate execution of children processes (abort) l Child has exceeded allocated resources l Task assigned to child is no longer required l If parent is exiting 4 Some operating system do not allow child to continue if its parent terminates – AE 4 B 33 OSS All children terminated - cascading termination 3. 22 Silberschatz, Galvin and Gagne © 2005

Cooperating Processes n Independent process cannot affect or be affected by the execution of another process n Cooperating process can affect or be affected by the execution of another process n Advantages of process cooperation AE 4 B 33 OSS l Information sharing l Computation speed-up l Modularity l Convenience 3. 23 Silberschatz, Galvin and Gagne © 2005

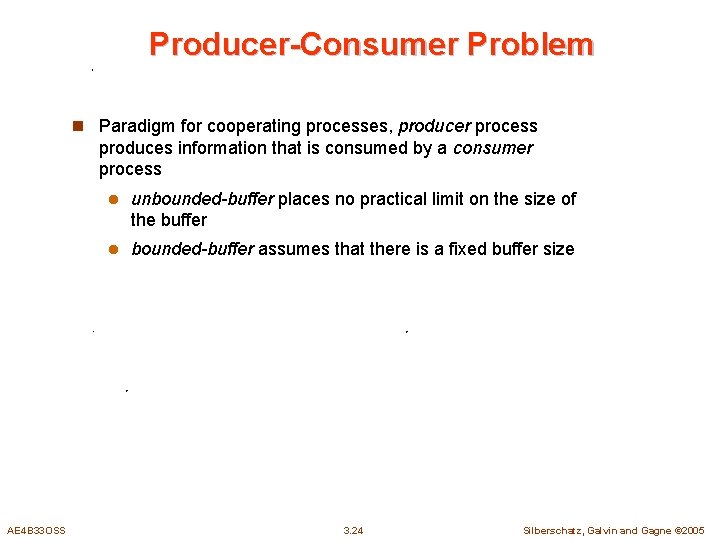

Producer-Consumer Problem n Paradigm for cooperating processes, producer process produces information that is consumed by a consumer process AE 4 B 33 OSS l unbounded-buffer places no practical limit on the size of the buffer l bounded-buffer assumes that there is a fixed buffer size 3. 24 Silberschatz, Galvin and Gagne © 2005

$Bounded-Buffer – Shared-Memory Solution n Shared data #define BUFFER_SIZE 10 Typedef struct {. .$

Bounded-Buffer – Shared-Memory Solution n Shared data #define BUFFER_SIZE 10 Typedef struct {. . . } item; item buffer[BUFFER_SIZE]; int in = 0; int out = 0; n Solution is correct, but can only use BUFFER_SIZE-1 elements AE 4 B 33 OSS 3. 25 Silberschatz, Galvin and Gagne © 2005

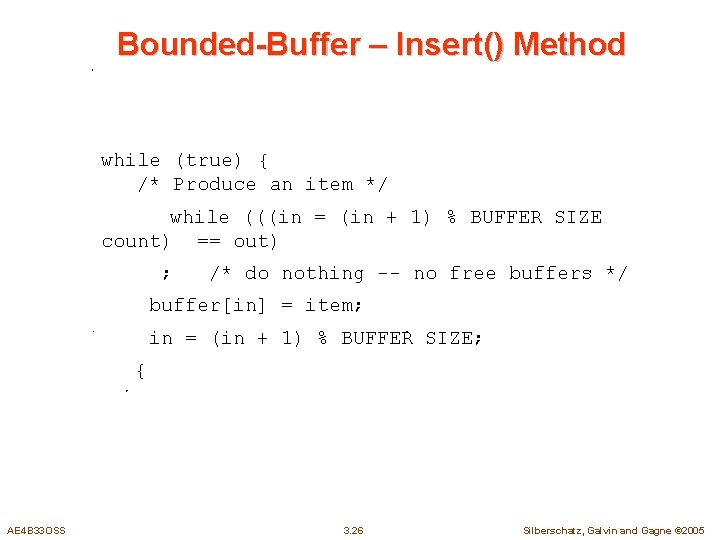

Bounded-Buffer – Insert() Method while (true) { /* Produce an item */ while (((in = (in + 1) % BUFFER SIZE count) == out) ; /* do nothing -- no free buffers */ buffer[in] = item; in = (in + 1) % BUFFER SIZE; { AE 4 B 33 OSS 3. 26 Silberschatz, Galvin and Gagne © 2005

Bounded Buffer – Remove() Method while (true) { while (in == out) ; // do nothing -- nothing to consume // remove an item from the buffer item = buffer[out]; out = (out + 1) % BUFFER SIZE; return item; { AE 4 B 33 OSS 3. 27 Silberschatz, Galvin and Gagne © 2005

Interprocess Communication (IPC) n Mechanism for processes to communicate and to synchronize their actions n Message system – processes communicate with each other without resorting to shared variables n IPC facility provides two operations: l send(message) – message size fixed or variable l receive(message) n If P and Q wish to communicate, they need to: l establish a communication link between them l exchange messages via send/receive n Implementation of communication link physical (e. g. , shared memory, hardware bus) l logical (e. g. , logical properties) l AE 4 B 33 OSS 3. 28 Silberschatz, Galvin and Gagne © 2005

Implementation Questions n How are links established? n Can a link be associated with more than two processes? n How many links can there be between every pair of communicating processes? n What is the capacity of a link? n Is the size of a message that the link can accommodate fixed or variable? n Is a link unidirectional or bi-directional? AE 4 B 33 OSS 3. 29 Silberschatz, Galvin and Gagne © 2005

Communications Models AE 4 B 33 OSS 3. 30 Silberschatz, Galvin and Gagne ©

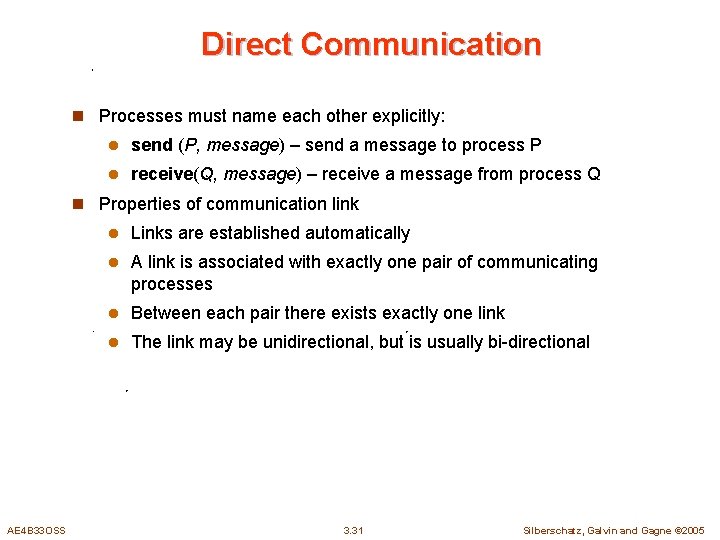

Direct Communication n Processes must name each other explicitly: l send (P, message) – send a message to process P l receive(Q, message) – receive a message from process Q n Properties of communication link AE 4 B 33 OSS l Links are established automatically l A link is associated with exactly one pair of communicating processes l Between each pair there exists exactly one link l The link may be unidirectional, but is usually bi-directional 3. 31 Silberschatz, Galvin and Gagne © 2005

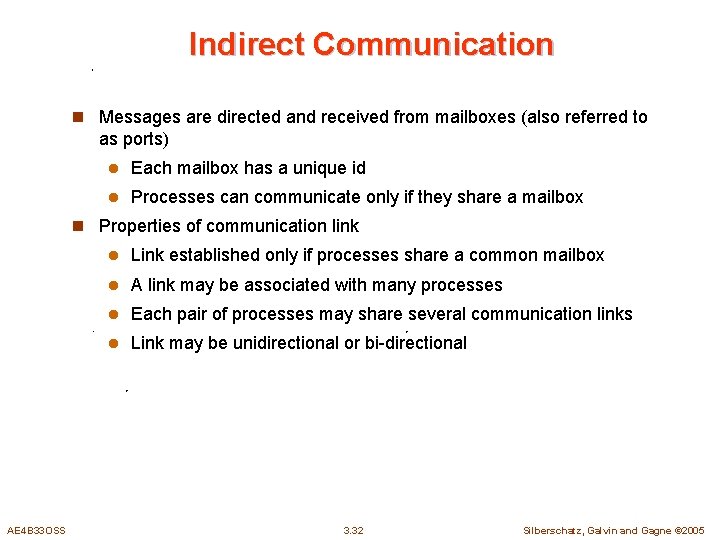

Indirect Communication n Messages are directed and received from mailboxes (also referred to as ports) l Each mailbox has a unique id l Processes can communicate only if they share a mailbox n Properties of communication link AE 4 B 33 OSS l Link established only if processes share a common mailbox l A link may be associated with many processes l Each pair of processes may share several communication links l Link may be unidirectional or bi-directional 3. 32 Silberschatz, Galvin and Gagne © 2005

Indirect Communication n Operations l create a new mailbox l send and receive messages through mailbox l destroy a mailbox n Primitives are defined as: send(A, message) – send a message to mailbox A receive(A, message) – receive a message from mailbox A AE 4 B 33 OSS 3. 33 Silberschatz, Galvin and Gagne © 2005

Indirect Communication n Mailbox sharing l P 1, P 2, and P 3 share mailbox A l P 1, sends; P 2 and P 3 receive l Who gets the message? n Solutions AE 4 B 33 OSS l Allow a link to be associated with at most two processes l Allow only one process at a time to execute a receive operation l Allow the system to select arbitrarily the receiver. Sender is notified who the receiver was. 3. 34 Silberschatz, Galvin and Gagne © 2005

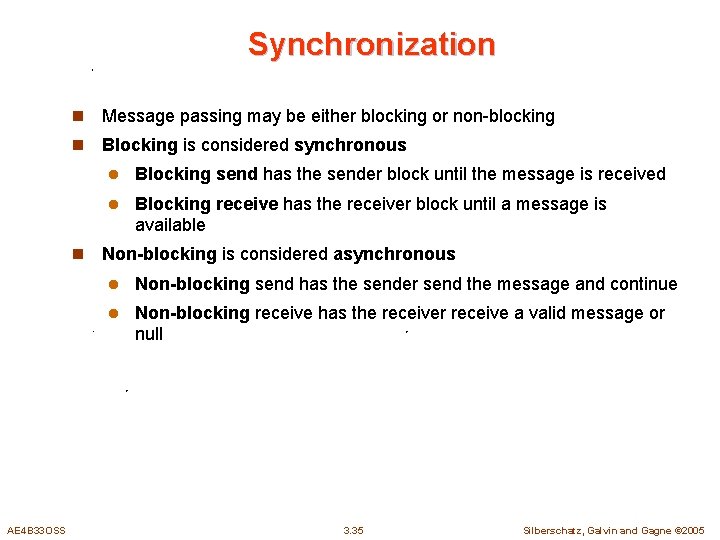

Synchronization n Message passing may be either blocking or non-blocking n Blocking is considered synchronous n AE 4 B 33 OSS l Blocking send has the sender block until the message is received l Blocking receive has the receiver block until a message is available Non-blocking is considered asynchronous l Non-blocking send has the sender send the message and continue l Non-blocking receive has the receiver receive a valid message or null 3. 35 Silberschatz, Galvin and Gagne © 2005

Buffering n Queue of messages attached to the link; implemented in one of three ways 1. Zero capacity – 0 messages Sender must wait for receiver (rendezvous) 2. Bounded capacity – finite length of n messages Sender must wait if link full 3. Unbounded capacity – infinite length Sender never waits AE 4 B 33 OSS 3. 36 Silberschatz, Galvin and Gagne © 2005

Client-Server Communication n Sockets n Remote Procedure Calls n Remote Method Invocation (Java) AE

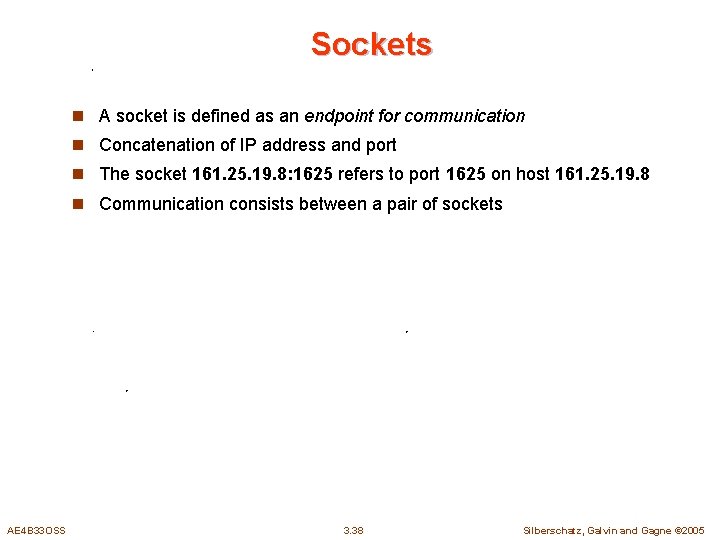

Sockets n A socket is defined as an endpoint for communication n Concatenation of IP address and port n The socket 161. 25. 19. 8: 1625 refers to port 1625 on host 161. 25. 19. 8 n Communication consists between a pair of sockets AE 4 B 33 OSS 3. 38 Silberschatz, Galvin and Gagne © 2005

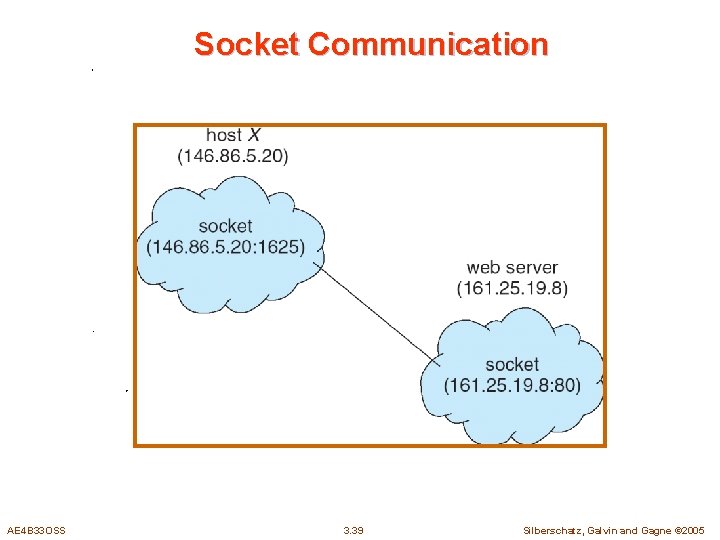

Socket Communication AE 4 B 33 OSS 3. 39 Silberschatz, Galvin and Gagne ©

Remote Procedure Calls n Remote procedure call (RPC) abstracts procedure calls between processes on networked systems. n Stubs – client-side proxy for the actual procedure on the server. n The client-side stub locates the server and marshalls the parameters. n The server-side stub receives this message, unpacks the marshalled parameters, and peforms the procedure on the server. AE 4 B 33 OSS 3. 40 Silberschatz, Galvin and Gagne © 2005

Execution of RPC AE 4 B 33 OSS 3. 41 Silberschatz, Galvin and Gagne

Remote Method Invocation n Remote Method Invocation (RMI) is a Java mechanism similar to RPCs. n RMI allows a Java program on one machine to invoke a method on a remote object. AE 4 B 33 OSS 3. 42 Silberschatz, Galvin and Gagne © 2005

Marshalling Parameters AE 4 B 33 OSS 3. 43 Silberschatz, Galvin and Gagne ©

End of Chapter 3 AE 4 B 33 OSS
