CHAPTER 3 Marine Provinces Measuring bathymetry n n

CHAPTER 3 Marine Provinces

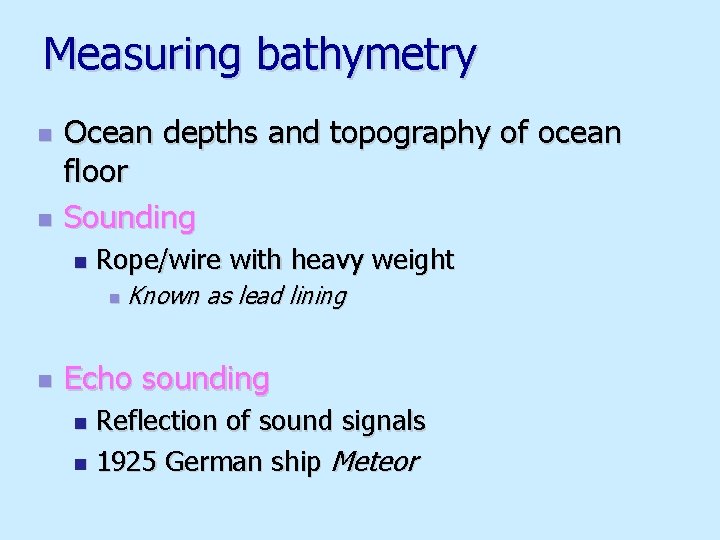

Measuring bathymetry n n Ocean depths and topography of ocean floor Sounding n Rope/wire with heavy weight n n Known as lead lining Echo sounding Reflection of sound signals n 1925 German ship Meteor n

Measuring bathymetry Precision depth recorder (PDR) 1950 s n Focused beam n Multibeam echo sounders n Side-scan sonar n Satellite measurements n Seismic reflection profiles looks at ocean structure beneath sea floor n

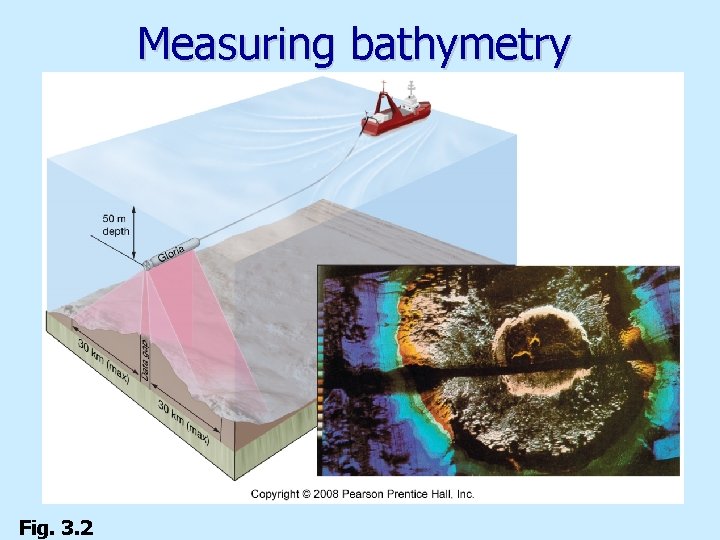

Measuring bathymetry Fig. 3. 2

Ocean provinces n 3 major provinces n Continental margins n Shallow-water n Deep-ocean basins n Deep-water n areas close to shore areas farther from land Mid-ocean ridge n Submarine mountain range

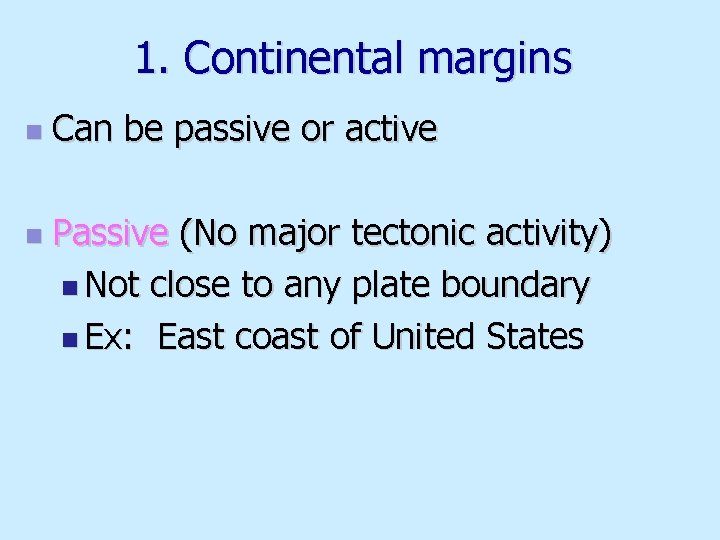

1. Continental margins n n Can be passive or active Passive (No major tectonic activity) n Not close to any plate boundary n Ex: East coast of United States

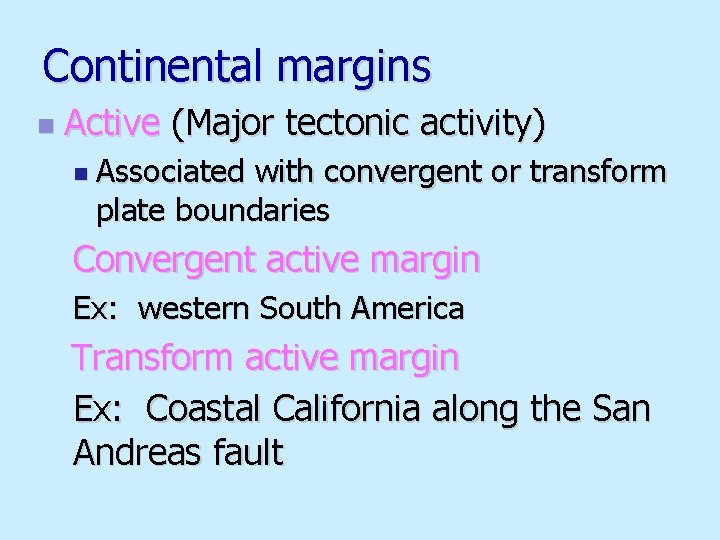

Continental margins n Active (Major tectonic activity) n Associated with convergent or transform plate boundaries Convergent active margin Ex: western South America Transform active margin Ex: Coastal California along the San Andreas fault

Continental margins

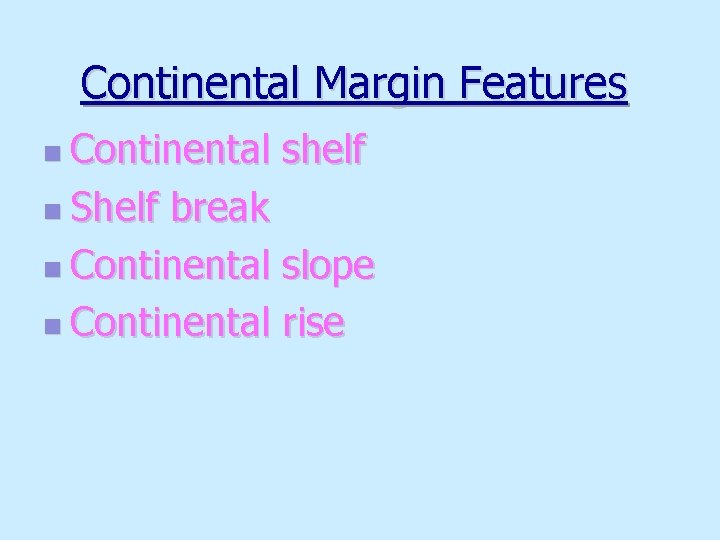

Continental Margin Features n Continental n Shelf shelf break n Continental slope n Continental rise

Continental margin Fig. 3. 7

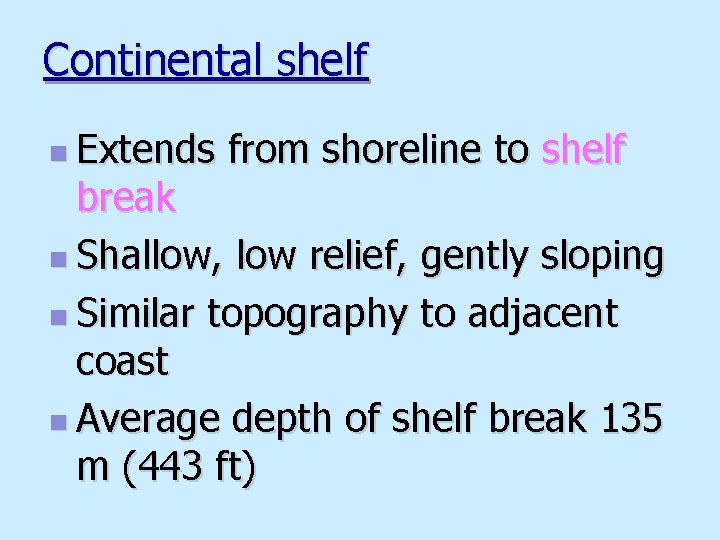

Continental shelf n Extends from shoreline to shelf break n Shallow, low relief, gently sloping n Similar topography to adjacent coast n Average depth of shelf break 135 m (443 ft)

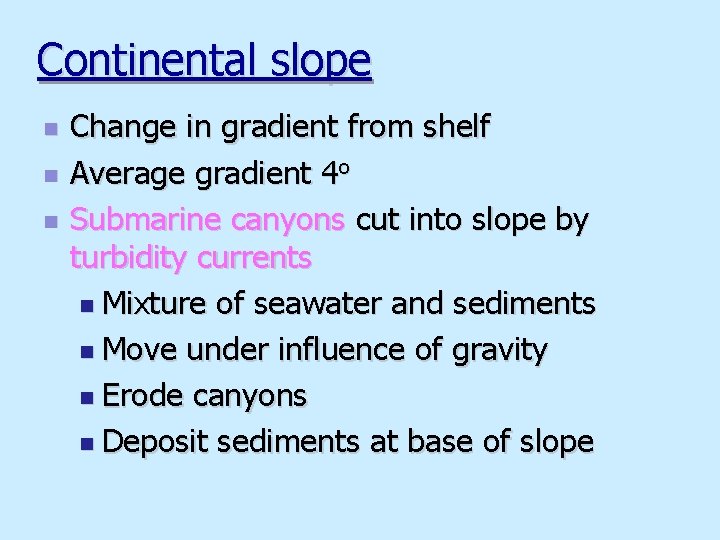

Continental slope n n n Change in gradient from shelf Average gradient 4 o Submarine canyons cut into slope by turbidity currents n Mixture of seawater and sediments n Move under influence of gravity n Erode canyons n Deposit sediments at base of slope

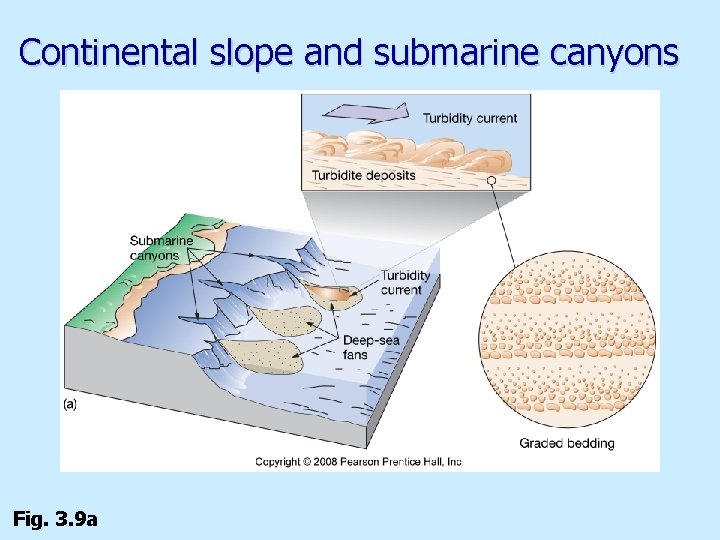

Continental slope and submarine canyons Fig. 3. 9 a

Continental rise Transition between continental crust and oceanic crust n Turbidity deposits n n Graded bedding and submarine fans

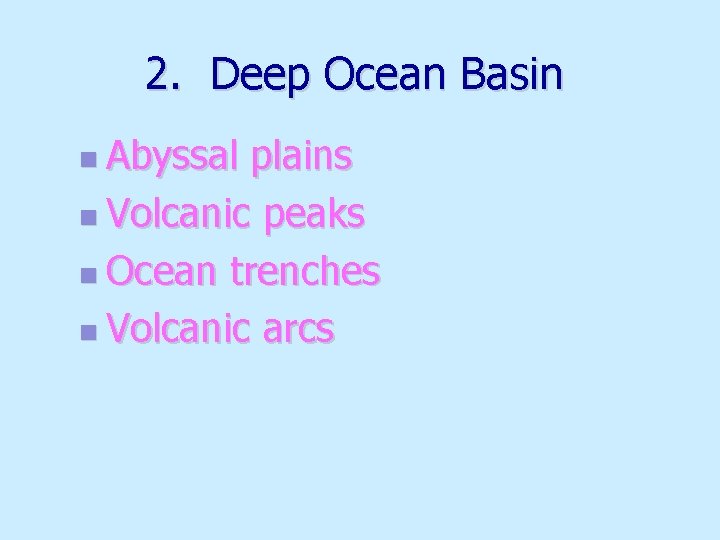

2. Deep Ocean Basin n Abyssal plains n Volcanic peaks n Ocean trenches n Volcanic arcs

Abyssal plains Very flat depositional surfaces from base of continental rise n Suspension settling of very fine particles n Sediments cover ocean crust irregularities – looks smooth n Well-developed in Atlantic and Indian oceans n

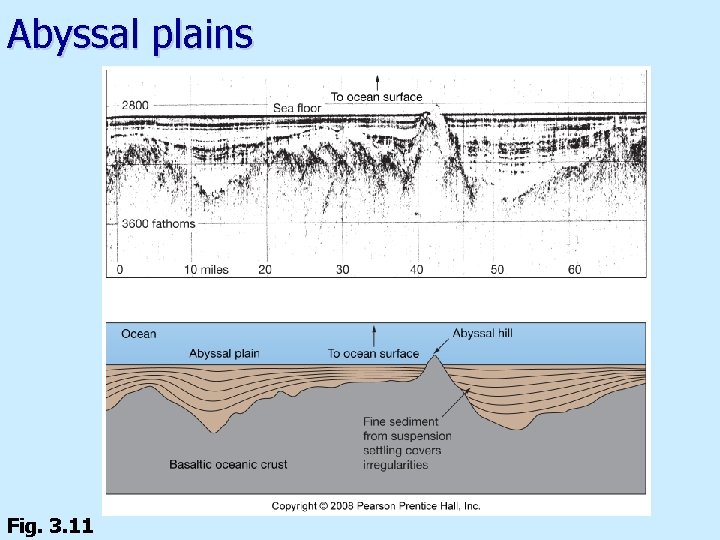

Abyssal plains Fig. 3. 11

Volcanic peaks Poke through sediment cover n Below sea level: n n Seamounts, tablemounts, or guyots at least 1 km (0. 6 m) above sea floor n Abyssal hills are less than 1 km n Above sea level: n Volcanic islands

Seamount v. Guyot n n Guyot reached at one point reached the surface and was eroded away by wind and waves Seamount never made it to the surface and kept its mountain like shape

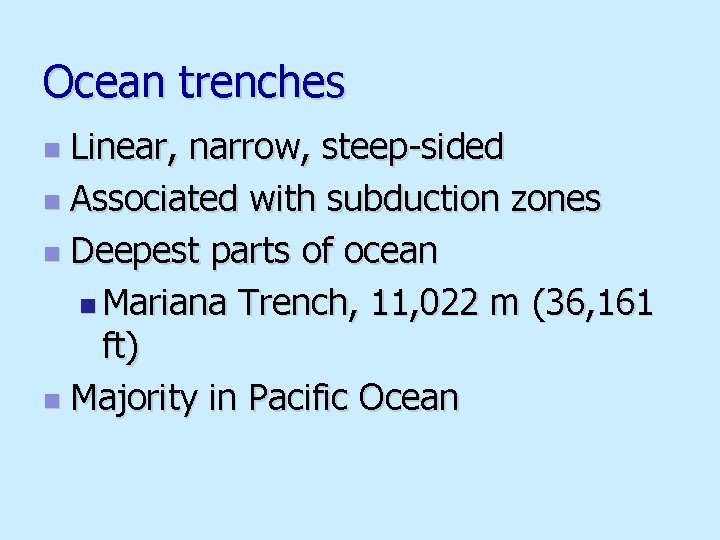

Ocean trenches Linear, narrow, steep-sided n Associated with subduction zones n Deepest parts of ocean n Mariana Trench, 11, 022 m (36, 161 ft) n Majority in Pacific Ocean n

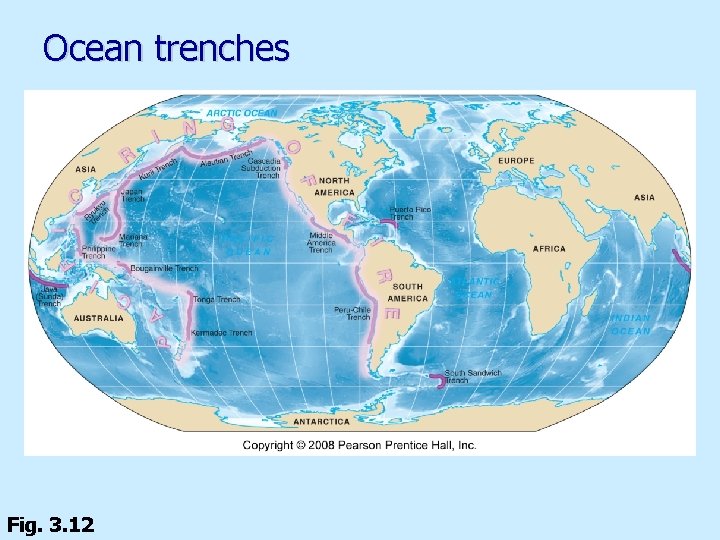

Ocean trenches Fig. 3. 12

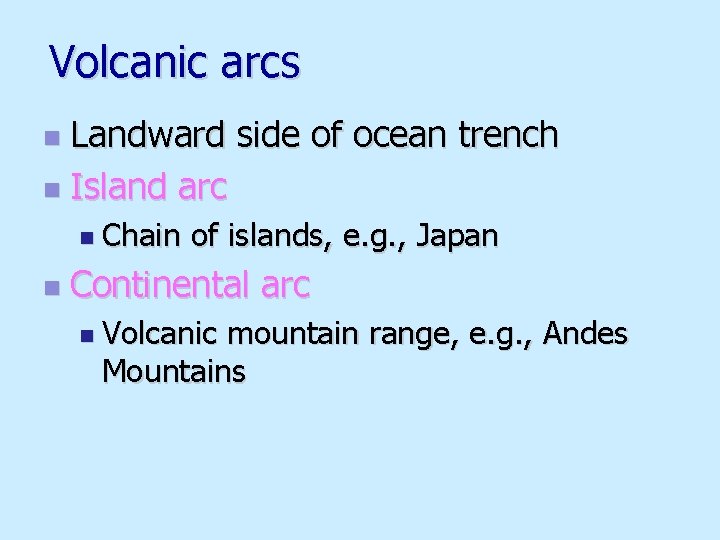

Volcanic arcs Landward side of ocean trench n Island arc n n Chain n of islands, e. g. , Japan Continental arc n Volcanic mountain range, e. g. , Andes Mountains

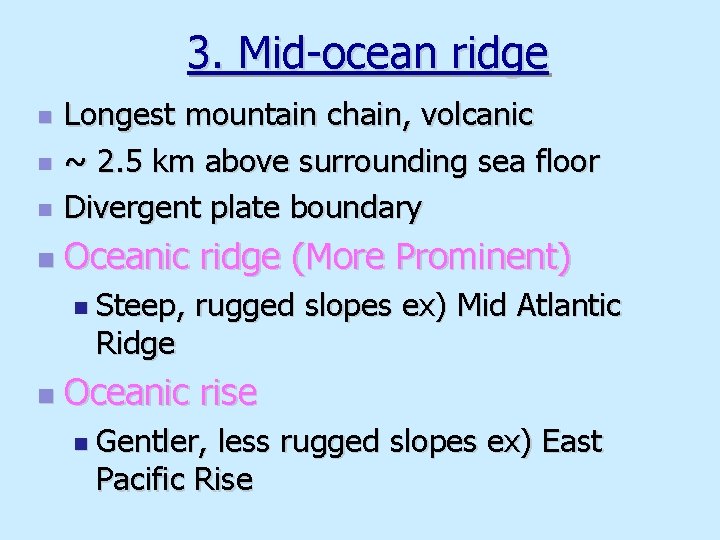

3. Mid-ocean ridge n Longest mountain chain, volcanic ~ 2. 5 km above surrounding sea floor Divergent plate boundary n Oceanic ridge (More Prominent) n n n Steep, Ridge n rugged slopes ex) Mid Atlantic Oceanic rise n Gentler, less rugged slopes ex) East Pacific Rise

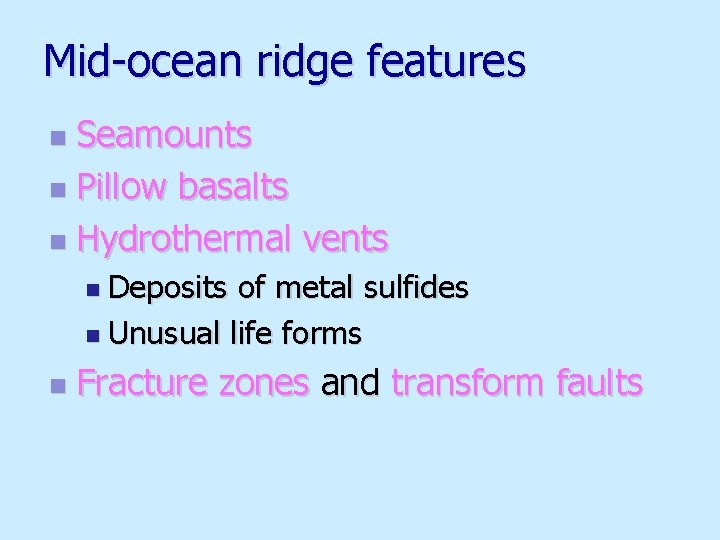

Mid-ocean ridge features Seamounts n Pillow basalts n Hydrothermal vents n n Deposits of metal sulfides n Unusual life forms n Fracture zones and transform faults

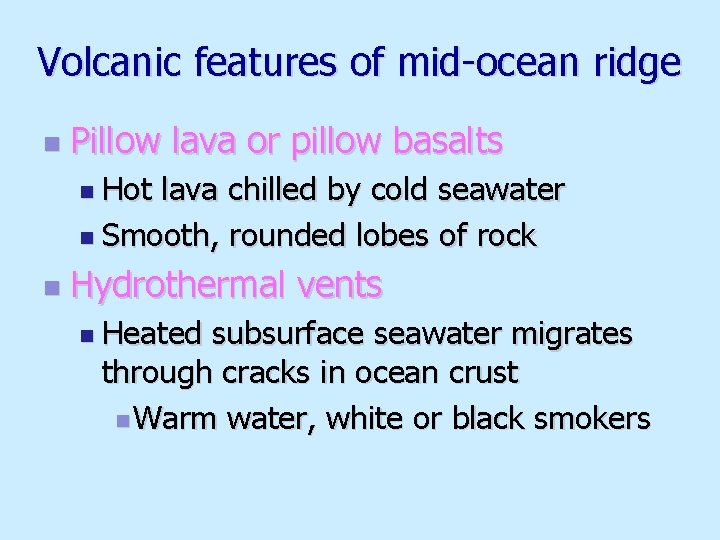

Volcanic features of mid-ocean ridge n Pillow lava or pillow basalts n Hot lava chilled by cold seawater n Smooth, rounded lobes of rock n Hydrothermal vents n Heated subsurface seawater migrates through cracks in ocean crust n Warm water, white or black smokers

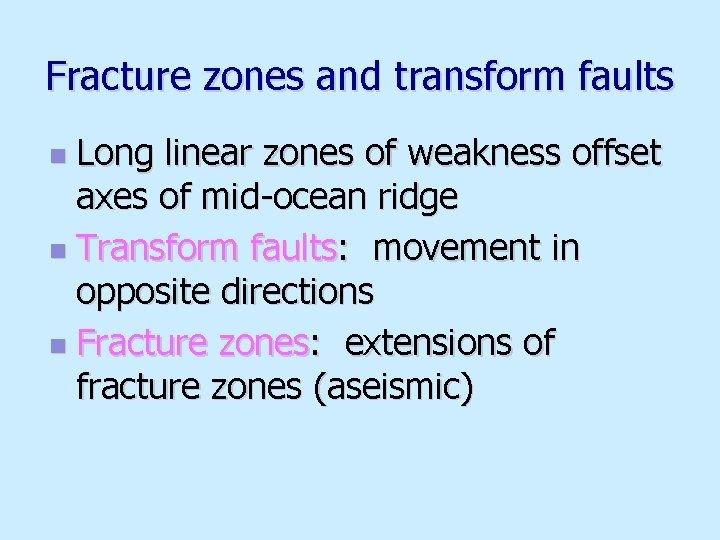

Fracture zones and transform faults Long linear zones of weakness offset axes of mid-ocean ridge n Transform faults: movement in opposite directions n Fracture zones: extensions of fracture zones (aseismic) n

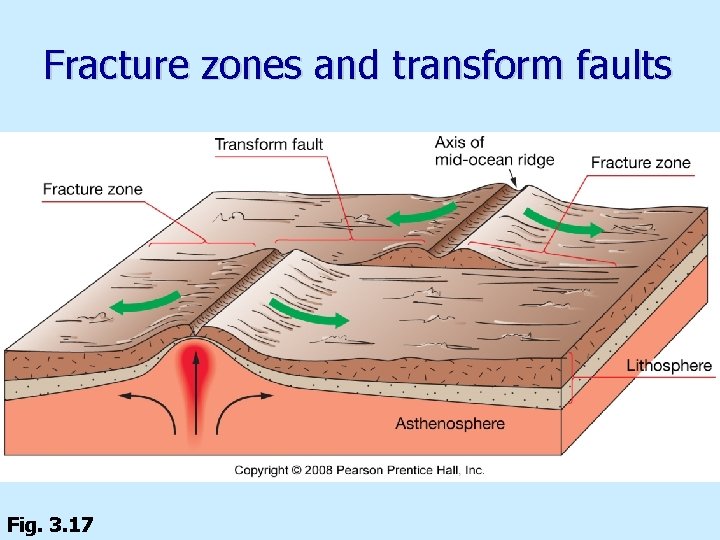

Fracture zones and transform faults Fig. 3. 17
