Chapter 3 LCD and Keyboard Interfacing 1 Pin

Chapter 3 LCD and Keyboard Interfacing 1

Pin Positions for Various LCDs from Optrex 2

Pin Descriptions for LCD Pin 1 2 3 4 Symbol VSS VCC VEE RS I/O ---I 5 R/W I 6 7 8 9 10 11 12 13 14 E DB 0 DB 1 DB 2 DB 3 DB 4 DB 5 DB 6 DB 7 I I/O I/O Description Ground +5 V power supply Power supply to control contrast RS = 0 to select command register, RS = 1 to select data register R/W = 0 for write, R/W = 1 for read Enable The 8 -bit data bus The 4/8 -bit data bus 3

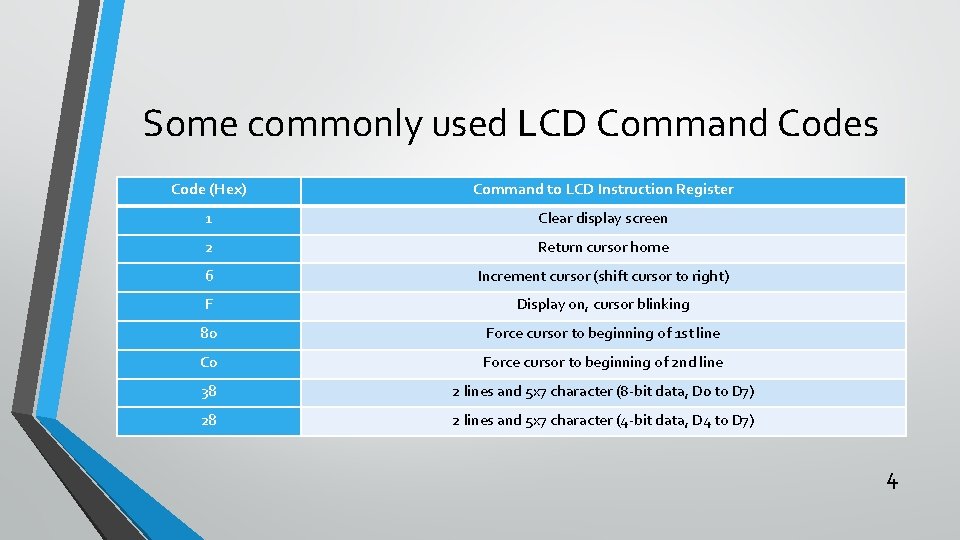

Some commonly used LCD Command Codes Code (Hex) Command to LCD Instruction Register 1 Clear display screen 2 Return cursor home 6 Increment cursor (shift cursor to right) F Display on, cursor blinking 80 Force cursor to beginning of 1 st line C 0 Force cursor to beginning of 2 nd line 38 2 lines and 5 x 7 character (8 -bit data, D 0 to D 7) 28 2 lines and 5 x 7 character (4 -bit data, D 4 to D 7) 4

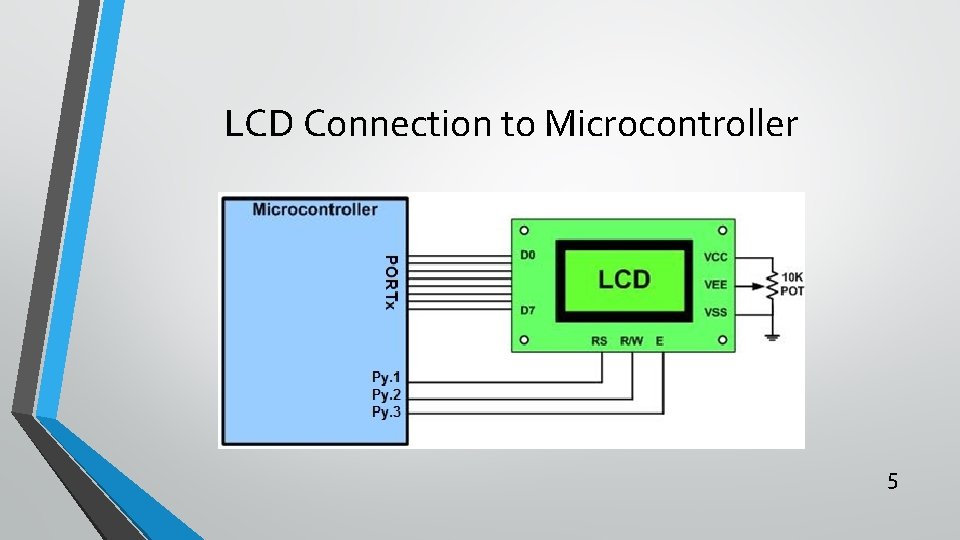

LCD Connection to Microcontroller 5

LCD Connection for 4 -bit Data 6

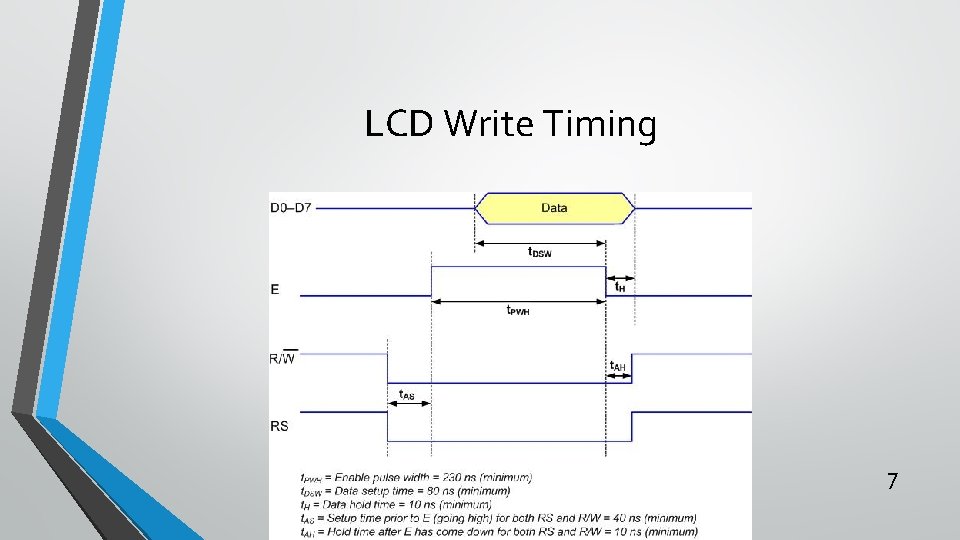

LCD Write Timing 7

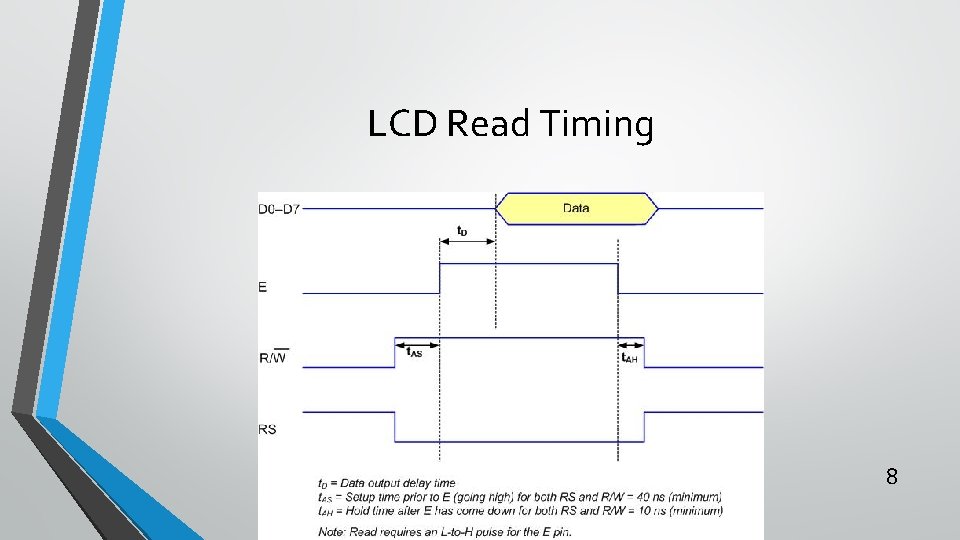

LCD Read Timing 8

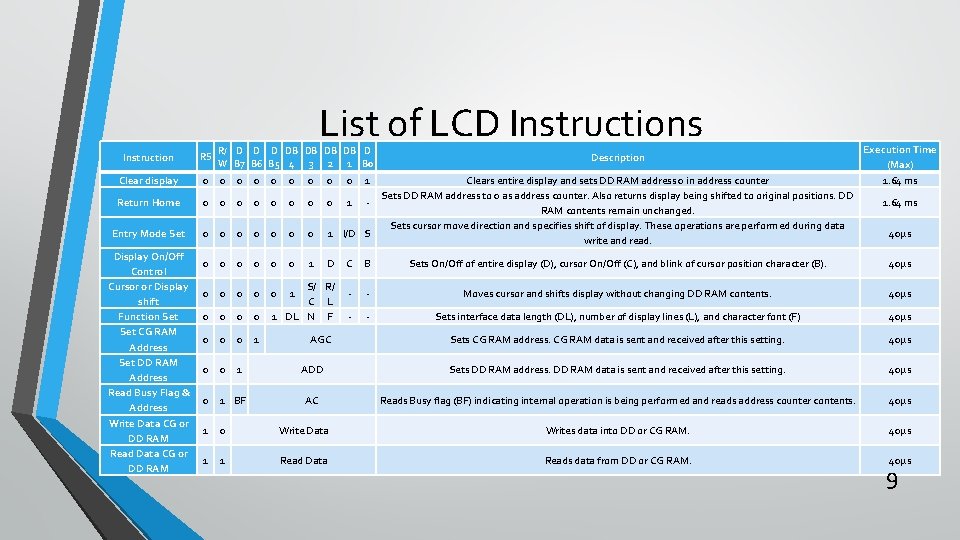

List of LCD Instructions R/ D DB DB D W B 7 B 6 B 5 4 3 2 1 B 0 Instruction RS Clear display 0 0 0 0 0 1 Return Home 0 0 0 0 1 - Entry Mode Set 0 0 0 0 1 I/D S 0 0 0 1 D 0 0 0 1 0 0 1 BF 1 0 1 1 Display On/Off Control Cursor or Display shift Function Set CG RAM Address Set DD RAM Address Read Busy Flag & Address Write Data CG or DD RAM Read Data CG or DD RAM Description Clears entire display and sets DD RAM address 0 in address counter Sets DD RAM address to 0 as address counter. Also returns display being shifted to original positions. DD RAM contents remain unchanged. Sets cursor move direction and specifies shift of display. These operations are performed during data write and read. Execution Time (Max) 1. 64 ms 40µs C B Sets On/Off of entire display (D), cursor On/Off (C), and blink of cursor position character (B). 40µs - - Moves cursor and shifts display without changing DD RAM contents. 40µs - - Sets interface data length (DL), number of display lines (L), and character font (F) 40µs Sets CG RAM address. CG RAM data is sent and received after this setting. 40µs ADD Sets DD RAM address. DD RAM data is sent and received after this setting. 40µs AC Reads Busy flag (BF) indicating internal operation is being performed and reads address counter contents. 40µs Write Data Writes data into DD or CG RAM. 40µs Read Data Reads data from DD or CG RAM. 40µs S/ R/ C L 1 DL N F 1 AGC 9

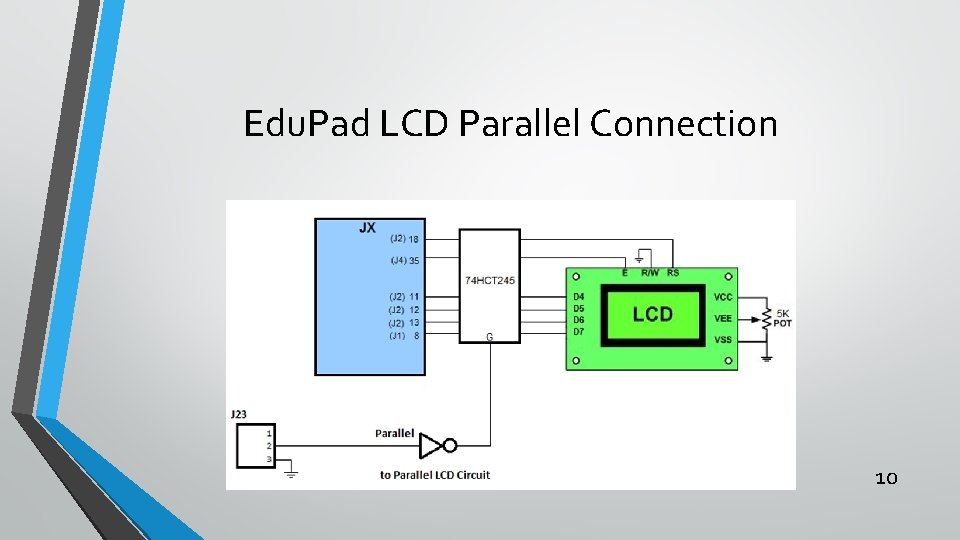

Edu. Pad LCD Parallel Connection 10

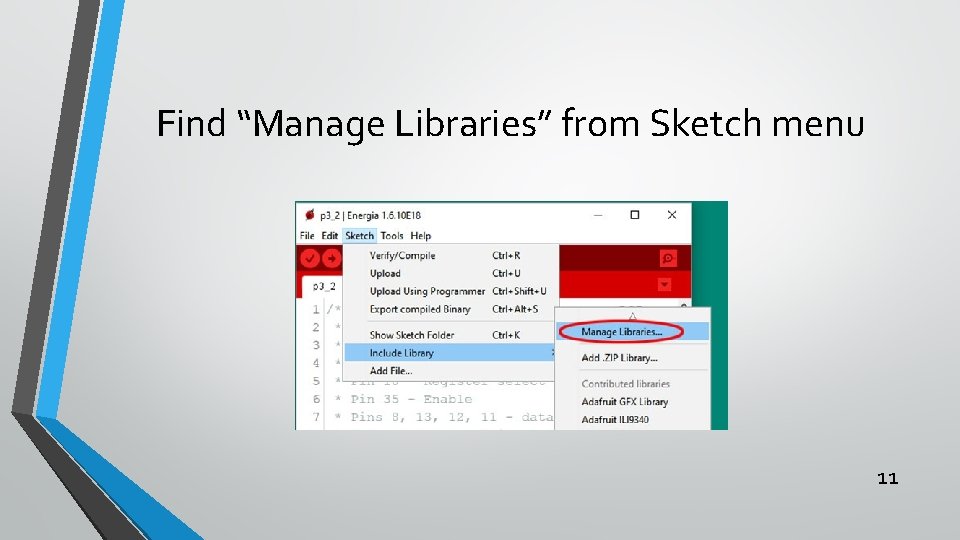

Find “Manage Libraries” from Sketch menu 11

Library Manager with search word Liquid. Crystal 12

LCD Addressing Commands DB 7 DB 6 DB 5 DB 4 DB 3 DB 2 DB 1 DB 0 Line 1 (min) 1 0 0 0 0 Line 1 (max) 1 0 0 1 1 1 Line 2 (min) 1 1 0 0 0 Line 2 (max) 1 1 1 0 0 1 13

Cursor Addresses for Some LCDs 14

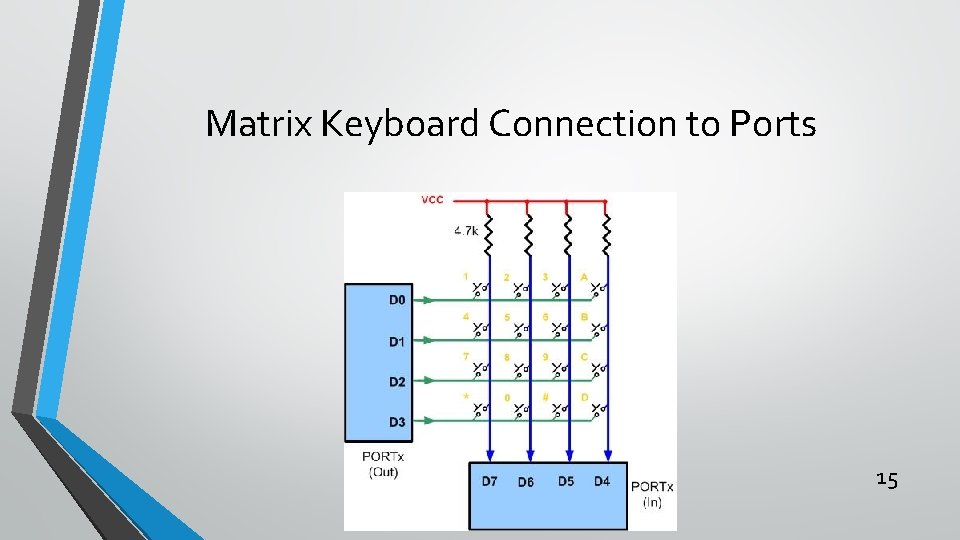

Matrix Keyboard Connection to Ports 15

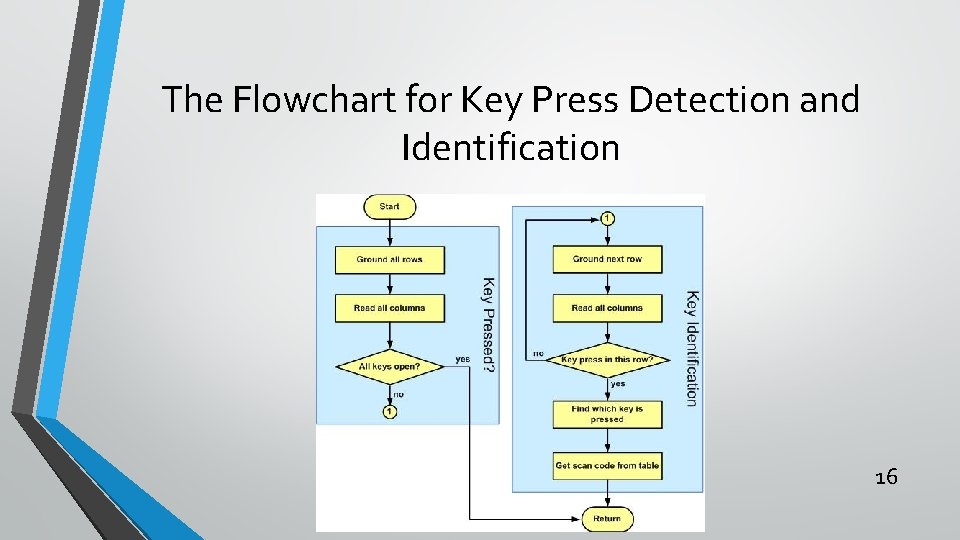

The Flowchart for Key Press Detection and Identification 16

Switch contact bounces 17
