Chapter 3 Global Warming What is global warming
Chapter 3: Global Warming What is global warming? Can anything be done about it? Is there really cause for alarm? How can we assess the information from the popular press?
The Earth’s Energy Balance Greenhouse effect Our atmospheric gases trap and return a major portion of the heat radiating from the Earth. It is a natural, necessary process. 3. 1
CO 2 Concentration vs. Earth’s temperature 3. 2
CO 2 levels appear to be on the rise 3. 2
Review: How to draw Lewis structures 1. Determine the sum of valence electrons. Draw Lewis Structures for: CH 4 2. Use a pair of electrons to form a bond O 2 between each pair of bonded atoms. 3. Arrange the remaining electrons to satisfy octet rule (duet rule for H). 4. Assign formal charges. SO 2 C 2 H 4 SO 42 - CO H 2 SO 4 N 2 ----------------NO 3 O 3 Formal charge = # of v. e. – [# of non-bonding e- + ½ bonding e-] Remember: Resonance, relative lengths and bond order! 3. 3
Representations of methane CH 4 = molecular formula; does not express connectivity Structural formulas show atoms are connected: Lewis structures show connectivity. Space-filling This Lewis structure is drawn in 3 -D. Chargedensity 3. 3

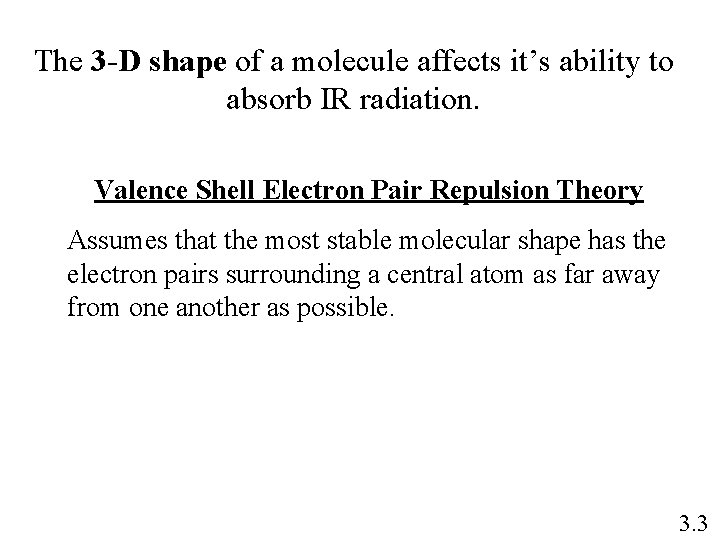

The 3 -D shape of a molecule affects it’s ability to absorb IR radiation. Valence Shell Electron Pair Repulsion Theory Assumes that the most stable molecular shape has the electron pairs surrounding a central atom as far away from one another as possible. 3. 3
Valence Shell Electron Pair Repulsion Theory Consider methane (CH 4), where the central carbon atom has 4 electron pairs around it: Four electron pairs as far from each other as possible indicates a tetrahedral arrangement. A tetrahedral shaped molecule has bond angles of 109. 5 o 3. 3
Valence Shell Electron Pair Repulsion Theory The legs and shaft of a music stand are like the bonds of a tetrahedral molecule. 3. 3

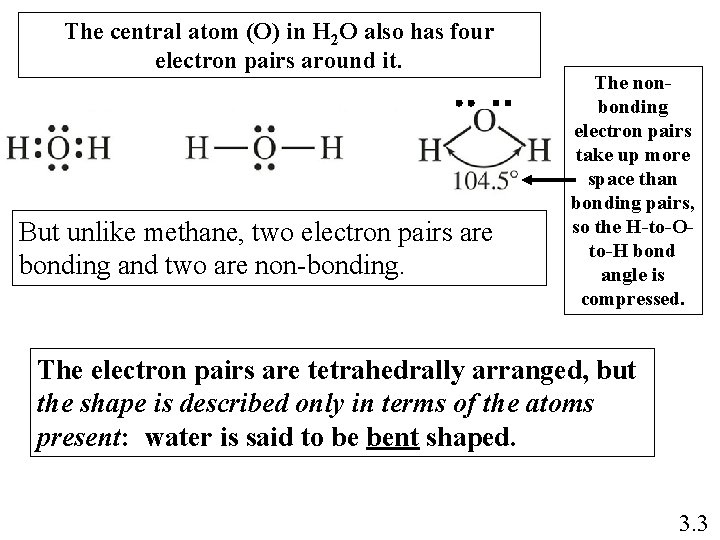

The central atom (O) in H 2 O also has four electron pairs around it. But unlike methane, two electron pairs are bonding and two are non-bonding. The nonbonding electron pairs take up more space than bonding pairs, so the H-to-Oto-H bond angle is compressed. The electron pairs are tetrahedrally arranged, but the shape is described only in terms of the atoms present: water is said to be bent shaped. 3. 3
We can use the VSEPR model to allow us to predict the shape of other molecules. Number of electron pairs around central atom 4 electron pairs, all bonding: CH 4, CF 3 Cl, CF 2 Cl 2 4 electron pairs, three bonding, one non-bonding: NH 3, PCl 3 4 electron pairs, two bonding, two non-bonding: H 2 O, H 2 S Shape of molecule tetrahedral Bond angle 109. 5 o Triangular pyramid about 107 o bent about 105 o Other predictions can be made based on other electron pair arrangements. 3. 3
Now look at the central atom of CO 2: Two groups of four electrons each are associated with the central atom. The two groups of electrons will be 180 o from each other: the CO 2 molecule is linear. 3. 3
Molecular geometry and absorption of IR radiation Molecular vibrations in CO 2. Each spring represents a C=O bond. (a) = no net change in dipole - no IR absorption. (b, c, d) = see a net change in dipole (charge distribution), so these account for IR absorption 3. 4
The infrared spectrum for CO 2 Wavenumber (cm-1) = 10, 000 wavelength (mm) 3. 4
The infrared spectrum for CO 2 As IR radiation is absorbed, the amount of radiation that makes it through the sample is reduced. 3. 4
Molecular response to different types of radiation 3. 4
The carbon cycle 3. 5
CO 2 emission sources from fossil fuel consumption Deforestation contributes another 1 -2 bmt/year 3. 5

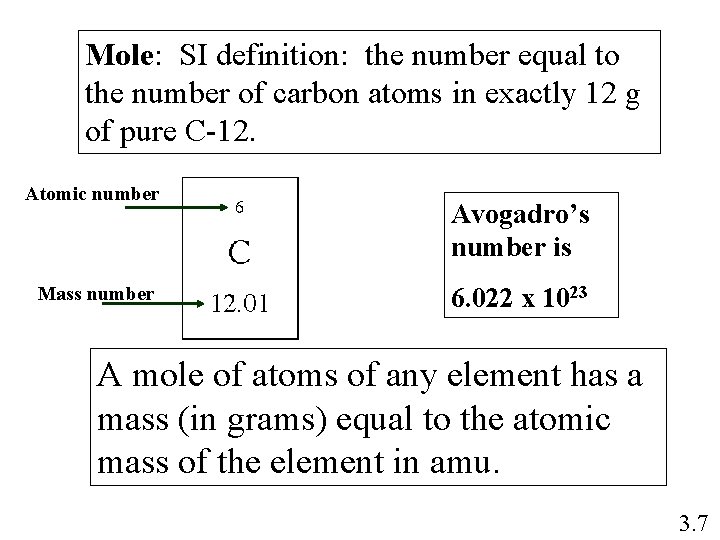

Mole: SI definition: the number equal to the number of carbon atoms in exactly 12 g of pure C-12. Atomic number Mass number Avogadro’s number is 6. 022 x 1023 A mole of atoms of any element has a mass (in grams) equal to the atomic mass of the element in amu. 3. 7

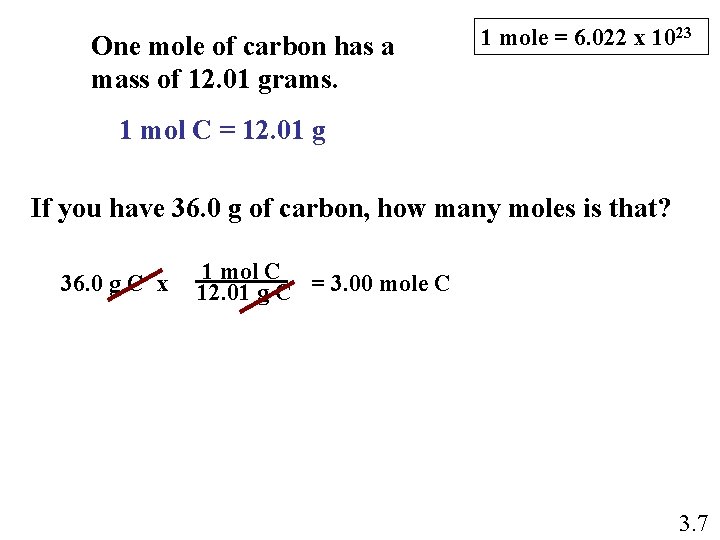

One mole of carbon has a mass of 12. 01 grams. 1 mole = 6. 022 x 1023 1 mol C = 12. 01 g If you have 36. 0 g of carbon, how many moles is that? 36. 0 g C x 1 mol C = 3. 00 mole C 12. 01 g C 3. 7

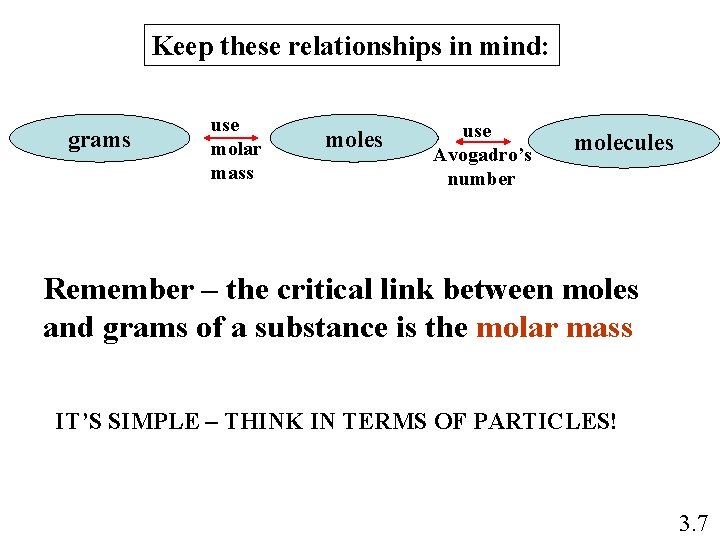

Keep these relationships in mind: grams use molar mass moles use Avogadro’s number molecules Remember – the critical link between moles and grams of a substance is the molar mass IT’S SIMPLE – THINK IN TERMS OF PARTICLES! 3. 7

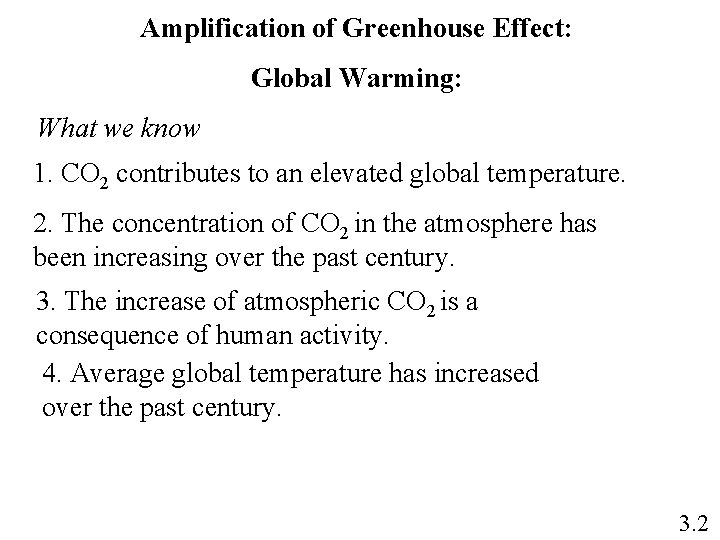

Amplification of Greenhouse Effect: Global Warming: What we know 1. CO 2 contributes to an elevated global temperature. 2. The concentration of CO 2 in the atmosphere has been increasing over the past century. 3. The increase of atmospheric CO 2 is a consequence of human activity. 4. Average global temperature has increased over the past century. 3. 2
What might be true: 1. CO 2 and other gases generated by human activity are responsible for the temperature increase. 2. The average global temperature will continue to rise as emissions of anthropogenic greenhouse gases increase. 3. 8

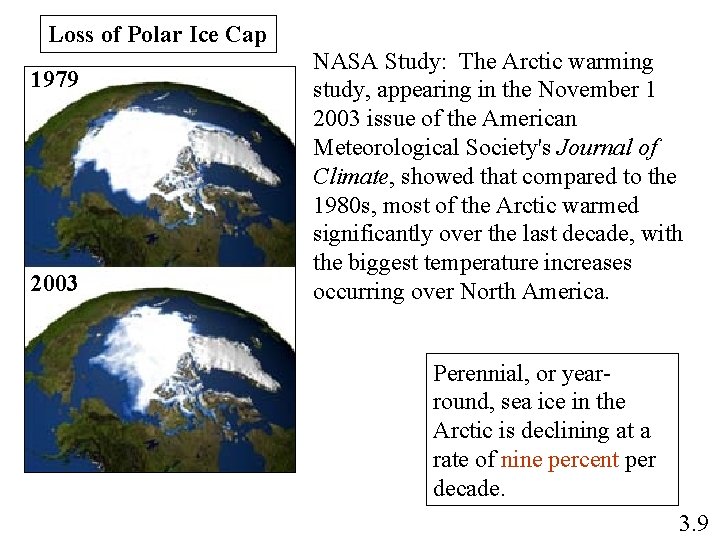

Loss of Polar Ice Cap 1979 2003 NASA Study: The Arctic warming study, appearing in the November 1 2003 issue of the American Meteorological Society's Journal of Climate, showed that compared to the 1980 s, most of the Arctic warmed significantly over the last decade, with the biggest temperature increases occurring over North America. Perennial, or yearround, sea ice in the Arctic is declining at a rate of nine percent per decade. 3. 9

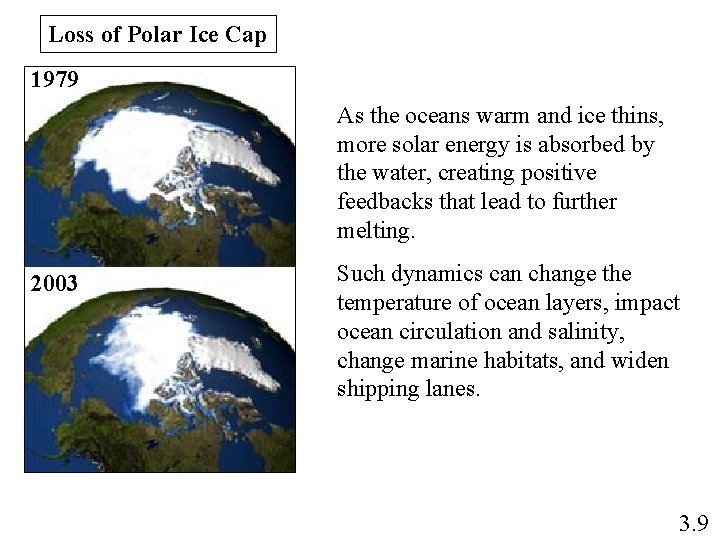

Loss of Polar Ice Cap 1979 As the oceans warm and ice thins, more solar energy is absorbed by the water, creating positive feedbacks that lead to further melting. 2003 Such dynamics can change the temperature of ocean layers, impact ocean circulation and salinity, change marine habitats, and widen shipping lanes. 3. 9
The snows of Kilimanjaro 82% of ice field has been lost since 1912 3. 9
Intergovernmental Panel on Climate Change (IPCC) Recognizing the problem of potential global climate change, the World Meteorological Organization (WMO) and the United Nations Environment Programme (UNEP) established the Intergovernmental Panel on Climate Change (IPCC) in 1988. It is open to all members of the UN and WMO. In 2007, the IPCC stated in a report that scientific evidence for global warming was unequivocal and that human activity is the main cause. 3. 9
Kyoto Protocol - 1997 Conference • Intergovernmental Panel on Climate Change (IPCC) certified the scientific basis of the greenhouse effect. • Kyoto Protocol established goals to stabilize and reduce atmospheric greenhouse gases. • Emission targets set to reduce emissions of six greenhouse gases from 1990 levels. (CO 2, CH 4, NO, HFC’s, PFC’s, and SF 6) • Trading of emission credits allowed. 3. 11
The Kyoto Protocol, an international and legally binding agreement to reduce greenhouse gases emissions worldwide, entered into force on 16 February 2005. Notable country who has not signed 3. 11
