Chapter 3: Authentication, Authorization, and Accounting CCNA Security v 2. 0

Chapter 3: Authentication, Authorization, and Accounting CCNA Security v 2. 0

3. 0 Introduction 3. 1 Purpose of the AAA 3. 2 Local AAA Authentication

3. 0 Introduction 3. 1 Purpose of the AAA 3. 2 Local AAA Authentication 3. 3 Server-Based AAA 3. 4 Server-Based AAA Authentication 3. 5 Server-Based Authorization and Accounting 3. 6 Summary © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 2

Upon completion of this section, you should be able to: • Explain why AAA

Upon completion of this section, you should be able to: • Explain why AAA is critical to network security. • Describe the characteristics of AAA. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 3

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 4

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 4

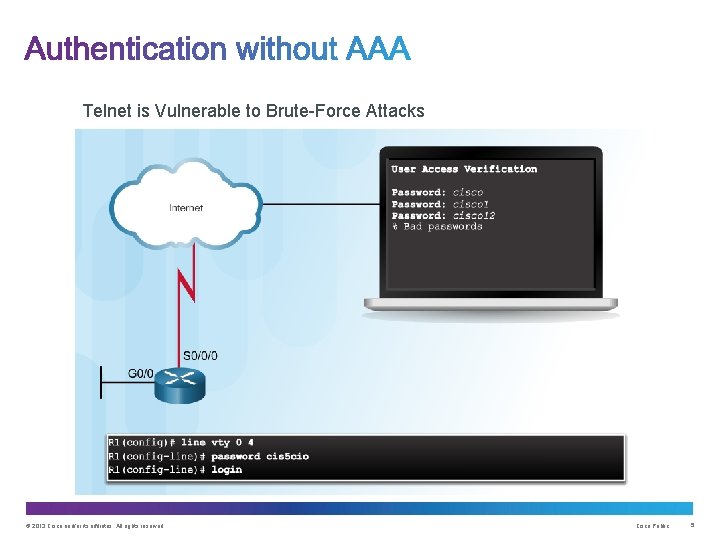

Telnet is Vulnerable to Brute-Force Attacks © 2013 Cisco and/or its affiliates. All rights

Telnet is Vulnerable to Brute-Force Attacks © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 5

SSH and Local Database Method © 2013 Cisco and/or its affiliates. All rights reserved.

SSH and Local Database Method © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 6

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 7

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 7

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 8

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 8

Local AAA Authentication Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights

Local AAA Authentication Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 9

AAA Authorization © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 10

AAA Authorization © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 10

Types of accounting information: • Network • Connection • EXEC AAA Accounting • System

Types of accounting information: • Network • Connection • EXEC AAA Accounting • System • Command • Resource © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 11

Upon completion of this section, you should be able to: • Configure AAA authentication,

Upon completion of this section, you should be able to: • Configure AAA authentication, using the CLI, to validate users against a local database. • Troubleshoot AAA authentication that validates users against a local database. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 12

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 13

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 13

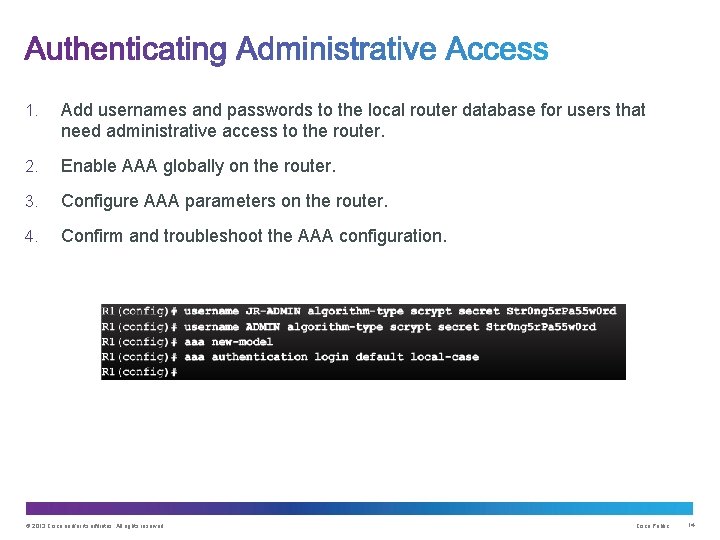

1. Add usernames and passwords to the local router database for users that need

1. Add usernames and passwords to the local router database for users that need administrative access to the router. 2. Enable AAA globally on the router. 3. Configure AAA parameters on the router. 4. Confirm and troubleshoot the AAA configuration. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 14

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 15

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 15

Example Local AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco

Example Local AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 16

Command Syntax Display Locked Out Users Show Unique ID of a Session © 2013

Command Syntax Display Locked Out Users Show Unique ID of a Session © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 17

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 18

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 18

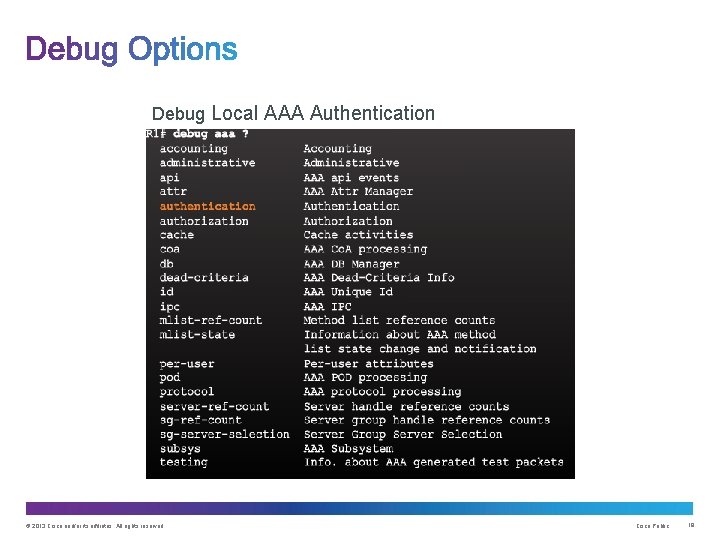

Debug Local AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco

Debug Local AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 19

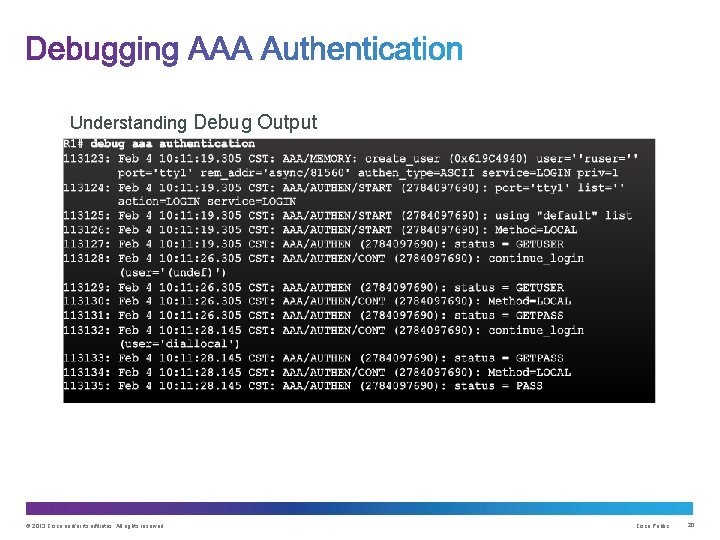

Understanding Debug Output © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public

Understanding Debug Output © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 20

Upon completion of this section, you should be able to: • Describe the benefits

Upon completion of this section, you should be able to: • Describe the benefits of server-based AAA. • Compare the TACACS+ and RADIUS authentication protocols. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 21

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 22

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 22

Local authentication: 1. User establishes a connection with the router. 2. Router prompts the

Local authentication: 1. User establishes a connection with the router. 2. Router prompts the user for a username and password, authentication the user using a local database. Server-based authentication: 1. User establishes a connection with the router. 2. Router prompts the user for a username and password. 3. Router passes the username and password to the Cisco Secure ACS (server or engine) 4. The Cisco Secure ACS authenticates the user. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 23

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 24

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 24

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 25

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 25

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 26

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 26

TACACS+ Authentication Process © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public

TACACS+ Authentication Process © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 27

RADIUS Authentication Process © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public

RADIUS Authentication Process © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 28

Cisco Secure ACS © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public

Cisco Secure ACS © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 29

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 30

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 30

Upon completion of this section, you should be able to: • Configure server-based AAA

Upon completion of this section, you should be able to: • Configure server-based AAA authentication, using the CLI, on Cisco routers. • Troubleshoot server-based AAA authentication. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 31

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 32

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 32

1. Enable AAA. 2. Specify the IP address of the ACS server. 3. Configure

1. Enable AAA. 2. Specify the IP address of the ACS server. 3. Configure the secret key. 4. Configure authentication to use either the RADIUS or TACACS+ server. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 33

Server-Based AAA Reference Topology Configure a AAA TACACS+ Server © 2013 Cisco and/or its

Server-Based AAA Reference Topology Configure a AAA TACACS+ Server © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 34

Configure a AAA RADIUS Server © 2013 Cisco and/or its affiliates. All rights reserved.

Configure a AAA RADIUS Server © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 35

Command Syntax Configure Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights

Command Syntax Configure Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 36

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 37

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 37

Troubleshooting Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco

Troubleshooting Server-Based AAA Authentication © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 38

Troubleshooting RADIUS Troubleshooting TACACS+ © 2013 Cisco and/or its affiliates. All rights reserved. Cisco

Troubleshooting RADIUS Troubleshooting TACACS+ © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 39

AAA Server-Based Authentication Success AAA Server-Based Authentication Failure © 2013 Cisco and/or its affiliates.

AAA Server-Based Authentication Success AAA Server-Based Authentication Failure © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 40

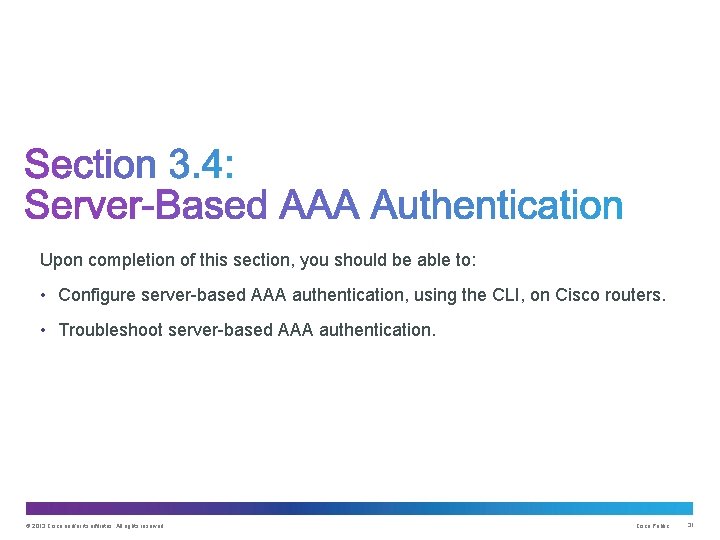

Upon completion of this section, you should be able to: • Configure server-based AAA

Upon completion of this section, you should be able to: • Configure server-based AAA authorization. • Configure server-based AAA accounting. • Explain the functions of 802. 1 x components. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 41

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 42

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 42

Authentication vs. Authorization • Authentication ensures a device or end-user is legitimate • Authorization

Authentication vs. Authorization • Authentication ensures a device or end-user is legitimate • Authorization allows or disallows authenticated users access to certain areas and programs on the network. TACACS+ vs. RADIUS • TACACS+ separates authentication from authorization • RADIUS does not separate authentication from authorization © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 43

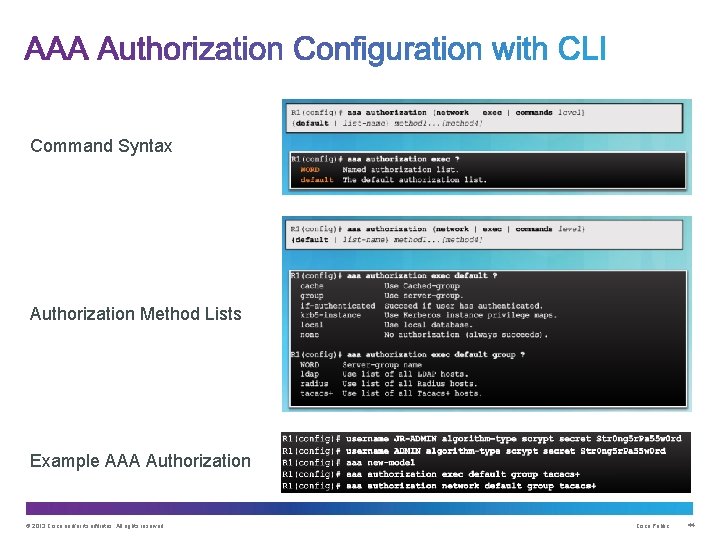

Command Syntax Authorization Method Lists Example AAA Authorization © 2013 Cisco and/or its affiliates.

Command Syntax Authorization Method Lists Example AAA Authorization © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 44

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 45

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 45

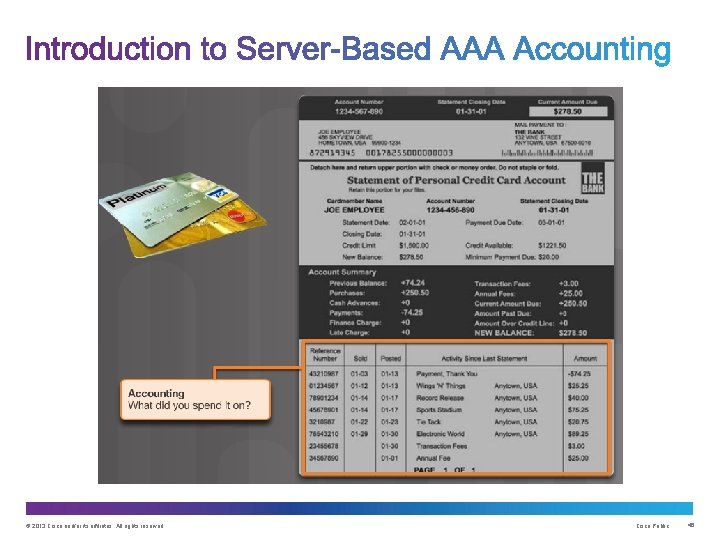

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 46

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 46

Command Syntax Accounting Method Lists Example AAA Accounting © 2013 Cisco and/or its affiliates.

Command Syntax Accounting Method Lists Example AAA Accounting © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 47

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 48

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 48

802. 1 X Roles 802. 1 X Message Exchange © 2013 Cisco and/or its

802. 1 X Roles 802. 1 X Message Exchange © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 49

Command Syntax for dot 1 x port-control © 2013 Cisco and/or its affiliates. All

Command Syntax for dot 1 x port-control © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 50

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 51

© 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 51

Chapter Objectives: • Explain how AAA is used to secure a network. • Implement

Chapter Objectives: • Explain how AAA is used to secure a network. • Implement AAA authentication that validates users against a local database. • Implement server-based AAA authentication using TACACS+ and RADIUS protocols. • Configure server-based AAA authorization and accounting. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Public 52

Thank you.

Thank you.

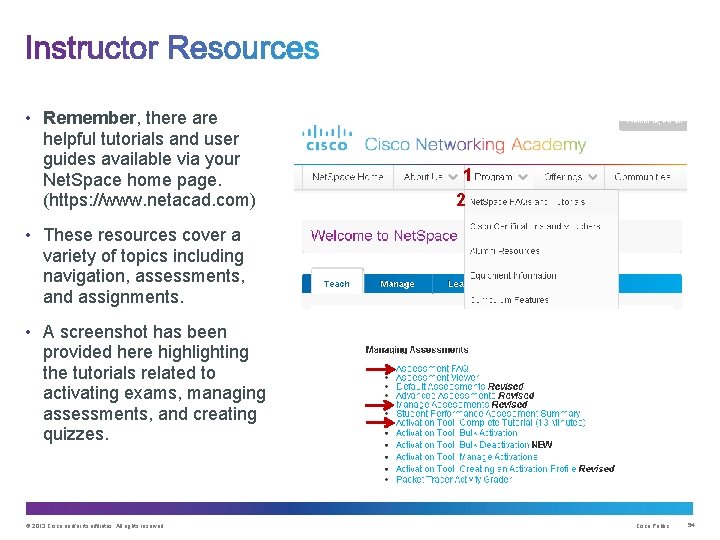

• Remember, there are helpful tutorials and user guides available via your Net.
