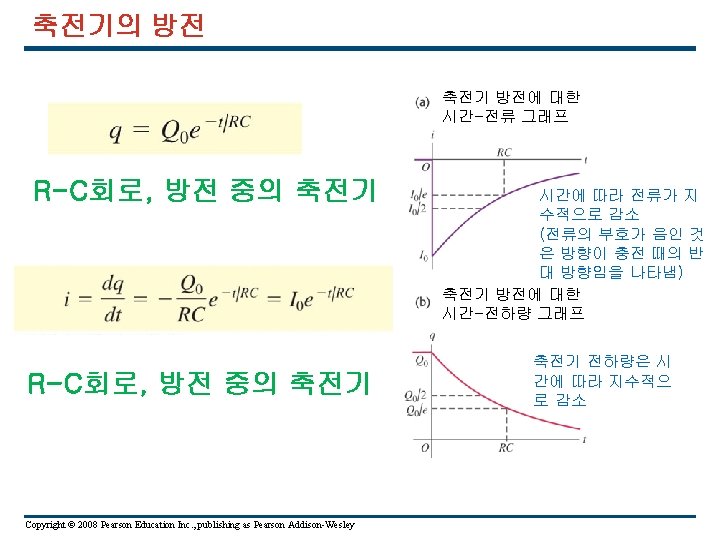

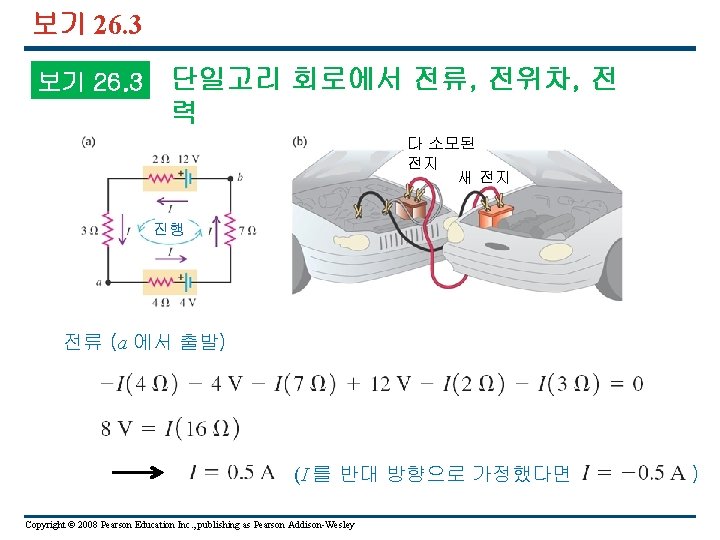

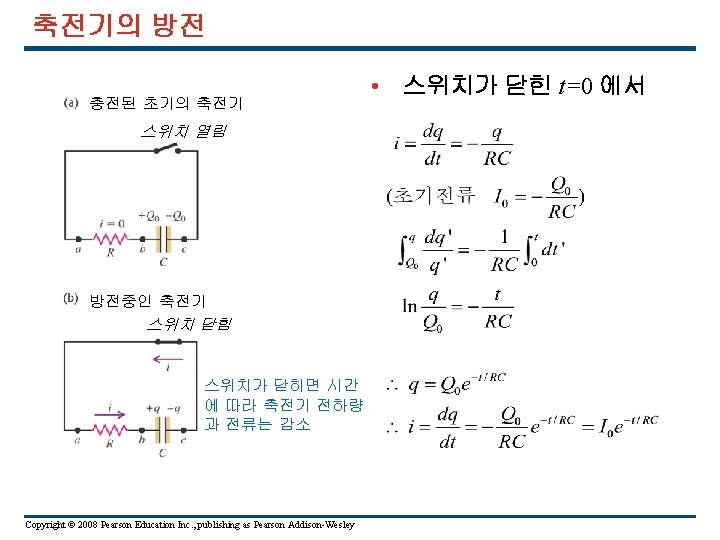

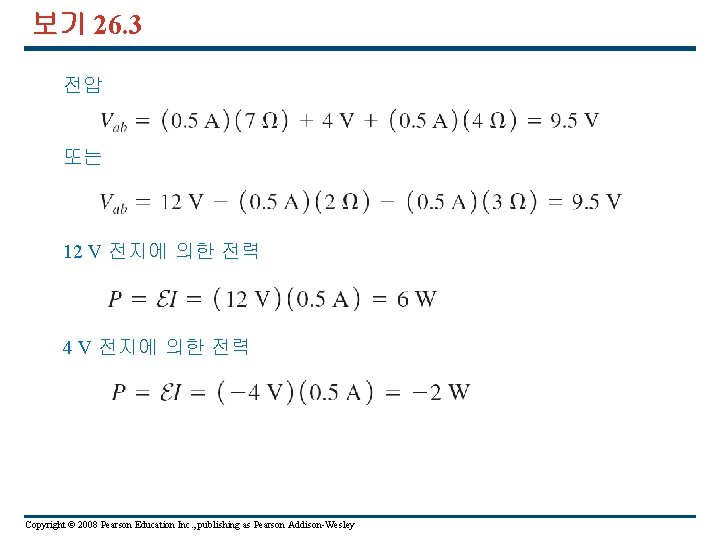

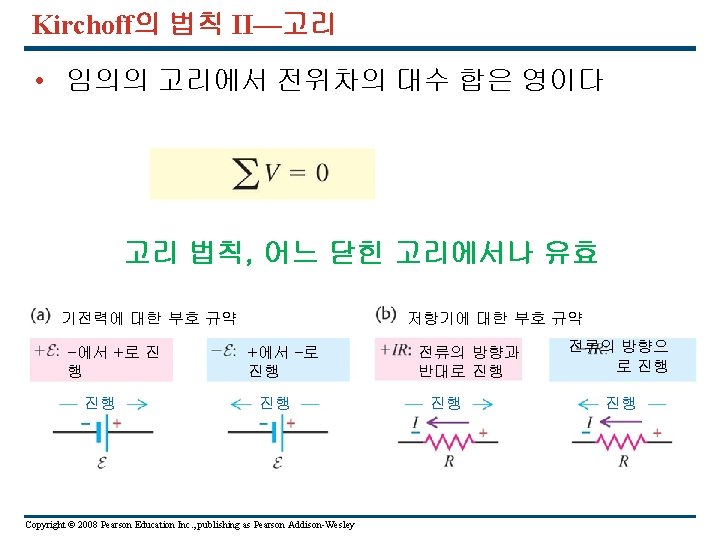

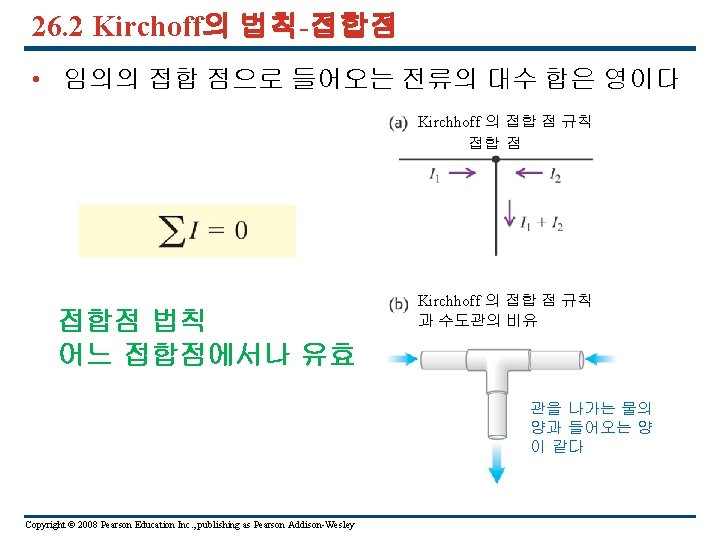

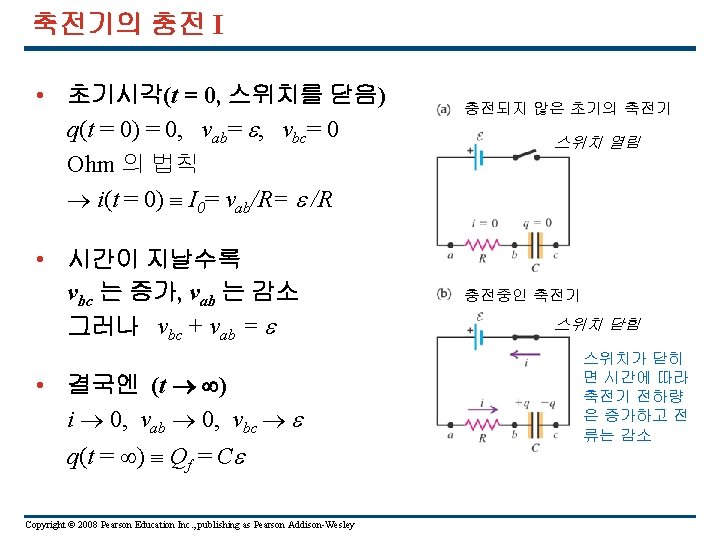

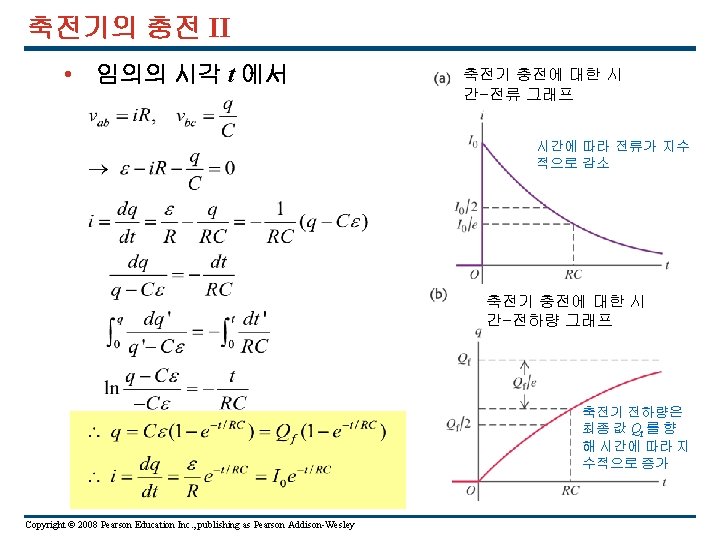

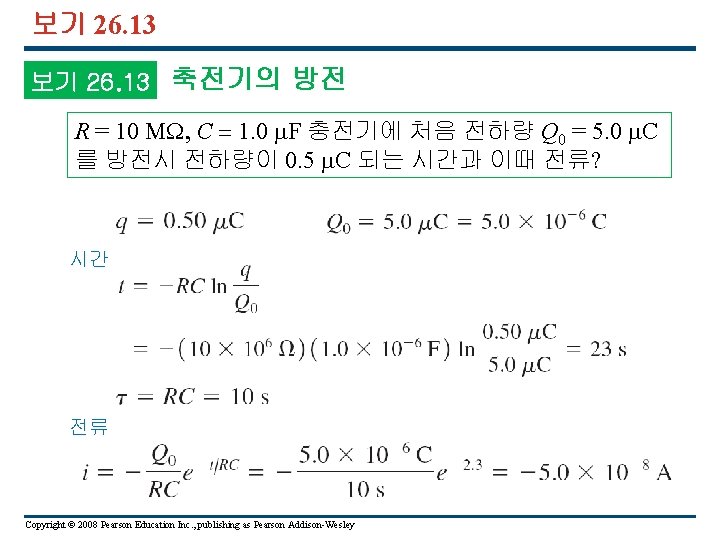

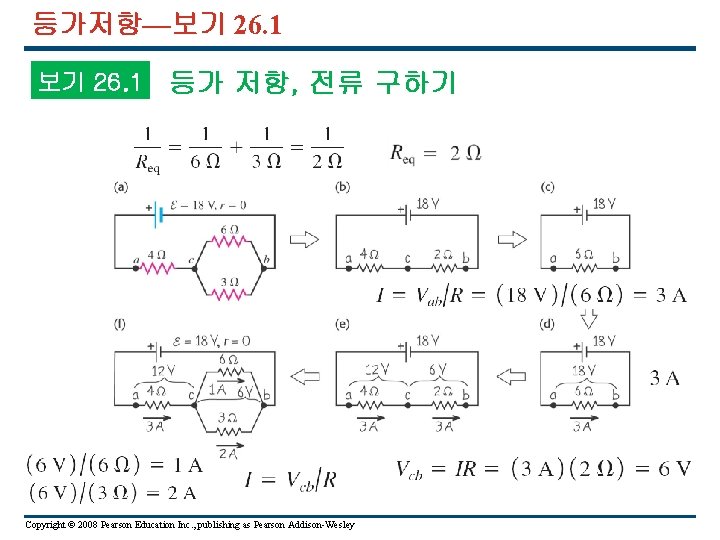

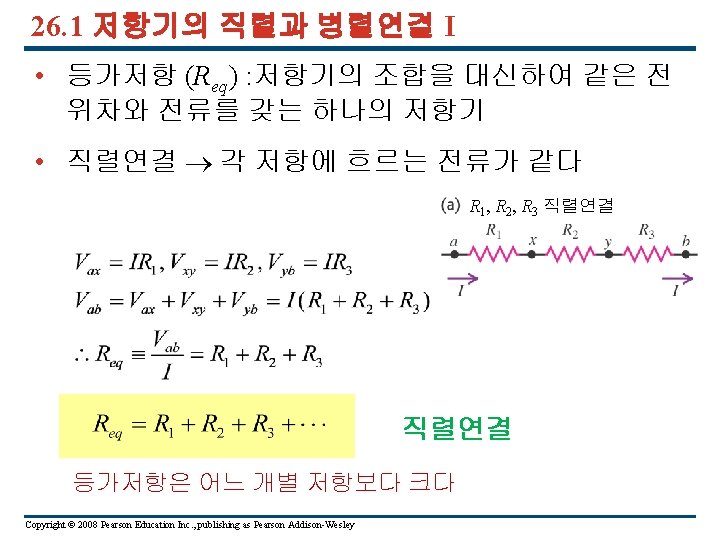

Chapter 26 Power Point Lectures for University Physics Slides: 26 Download presentation Chapter 26 직류회로 Power. Point® Lectures for University Physics, Twelfth Edition – Hugh D. Young and Roger A. Freedman Lectures by James Pazun Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley 26 장의 목표 • 저항의 직렬연결과 병렬연결 학습하기 • Kirchoff 의 법칙 알아보기 • R-C 회로 구성하기 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley 등가저항—보기 26. 1 등가 저항, 전류 구하기 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley Kirchoff 의 법칙-접합점 II 접합 점 고리 1 고리 2 접합 점 아님 고리 3 접합 점 아님 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley Kirchoff의 법칙 III—전략 미지 전류: 점 a 에 접합 점 규칙을 적용해 I 3 소거 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley 보기 26. 3 전압 또는 12 V 전지에 의한 전력 4 V 전지에 의한 전력 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley 보기 26. 13 축전기의 방전 R = 10 MW, C = 1. 0 F 충전기에 처음 전하량 Q 0 = 5. 0 C 를 방전시 전하량이 0. 5 C 되는 시간과 이때 전류? 시간 전류 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley 연습문제 (26. 6) 저항의 직렬/병렬 연결 (26. 22) RC 회로 Copyright © 2008 Pearson Education Inc. , publishing as Pearson Addison-Wesley Frcr physics lecturesHeel effectPower system lecturesUniversity physics with modern physics fifteenth editionReal power formulaPower bi power pointPoint point powerRick trebinoNeonatology lecturesData mining lecturesMedicinal chemistry lecturesUva ppt templateCs614 short lecturesActivity identification approaches in spmMolecular biology lectureRadio astronomy lecturesDr sohail lecturesUtilities and energy lectureWeb engineering lectures pptDo words have powerIntroduction to recursionDifferentiation of rbcAerodynamics lecturesTheory of translation lecturesTheory and practice of translation lecturesTranslation 1Digital logic design lectures
