Chapter 26 Alterations of Pulmonary Function Mosby items
![Chapter 26 Alterations of Pulmonary Function Mosby items and derived items © 2012 Mosby, Chapter 26 Alterations of Pulmonary Function Mosby items and derived items © 2012 Mosby,](https://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-1.jpg)
Chapter 26 Alterations of Pulmonary Function Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 1
![Signs and Symptoms of Pulmonary Disease Dyspnea Subjective sensation of uncomfortable breathing Ø Orthopnea Signs and Symptoms of Pulmonary Disease Dyspnea Subjective sensation of uncomfortable breathing Ø Orthopnea](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-2.jpg)

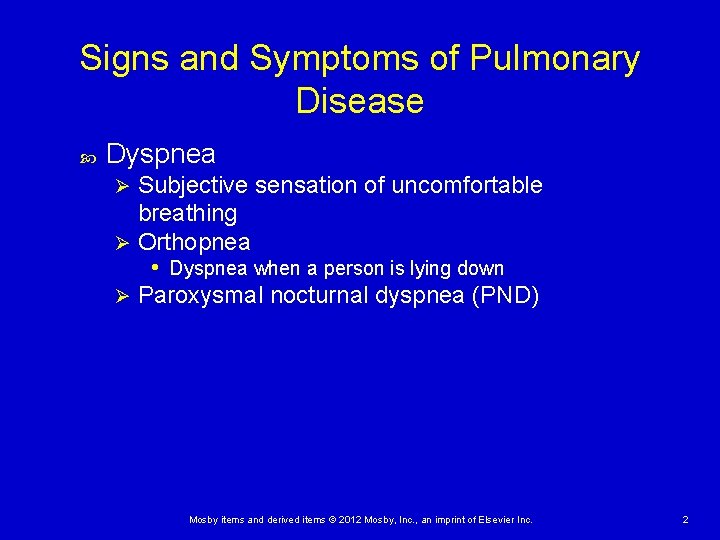

Signs and Symptoms of Pulmonary Disease Dyspnea Subjective sensation of uncomfortable breathing Ø Orthopnea • Dyspnea when a person is lying down Ø Paroxysmal nocturnal dyspnea (PND) Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 2
![Signs and Symptoms of Pulmonary Disease (cont’d) Cough Ø Ø Acute cough Chronic cough Signs and Symptoms of Pulmonary Disease (cont’d) Cough Ø Ø Acute cough Chronic cough](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-3.jpg)
Signs and Symptoms of Pulmonary Disease (cont’d) Cough Ø Ø Acute cough Chronic cough Abnormal sputum Hemoptysis Abnormal breathing patterns: Ø Ø Kussmaul respirations (hyperpnea) Cheyne-Stokes respirations Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 3
![Signs and Symptoms of Pulmonary Disease (cont’d) Hypoventilation Ø Hyperventilation Ø Hypercapnia Hypocapnia Cyanosis Signs and Symptoms of Pulmonary Disease (cont’d) Hypoventilation Ø Hyperventilation Ø Hypercapnia Hypocapnia Cyanosis](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-4.jpg)

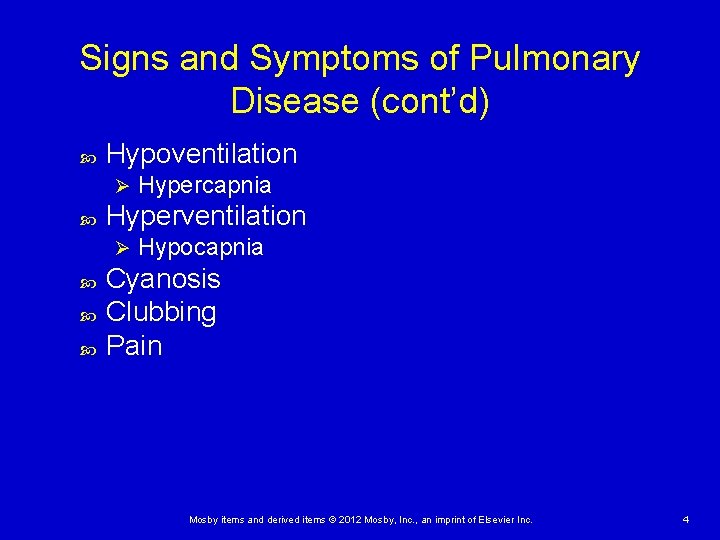

Signs and Symptoms of Pulmonary Disease (cont’d) Hypoventilation Ø Hyperventilation Ø Hypercapnia Hypocapnia Cyanosis Clubbing Pain Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 4
![Clubbing Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Clubbing Mosby items and derived items © 2012 Mosby, Inc. , an imprint of](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-5.jpg)

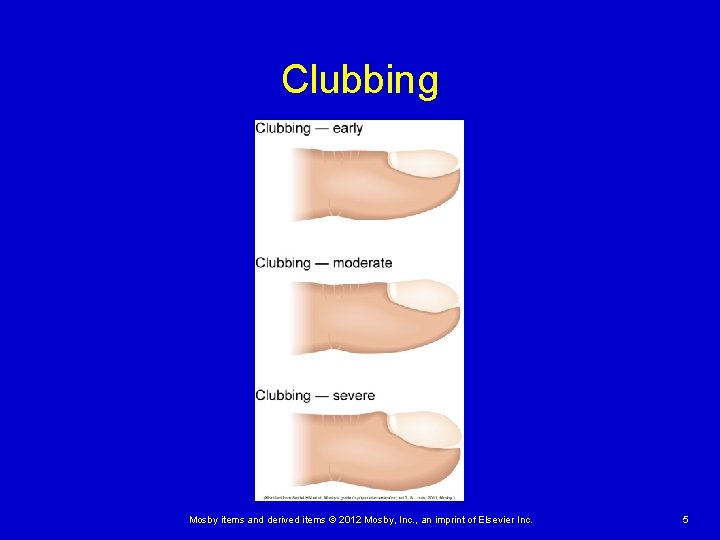

Clubbing Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 5
![Conditions Caused by Pulmonary Disease or Injury Hypercapnia Hypoxemia Ø Ø Hypoxemia versus hypoxia Conditions Caused by Pulmonary Disease or Injury Hypercapnia Hypoxemia Ø Ø Hypoxemia versus hypoxia](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-6.jpg)

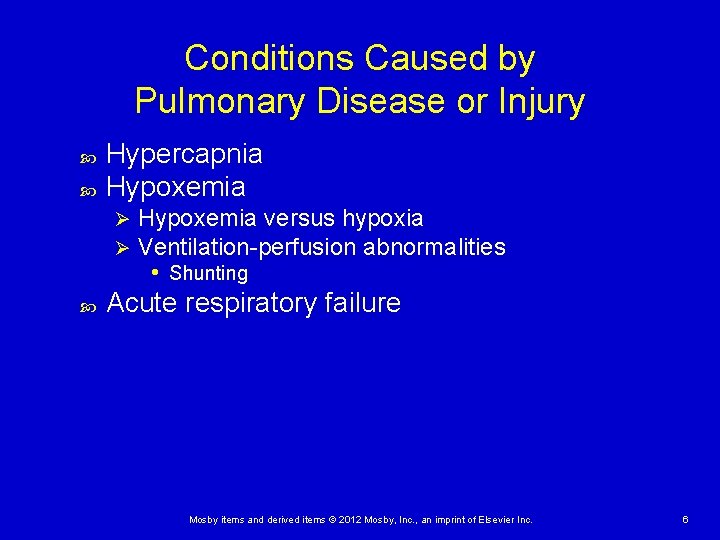

Conditions Caused by Pulmonary Disease or Injury Hypercapnia Hypoxemia Ø Ø Hypoxemia versus hypoxia Ventilation-perfusion abnormalities • Shunting Acute respiratory failure Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 6
![Ventilation-Perfusion Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Ventilation-Perfusion Mosby items and derived items © 2012 Mosby, Inc. , an imprint of](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-7.jpg)

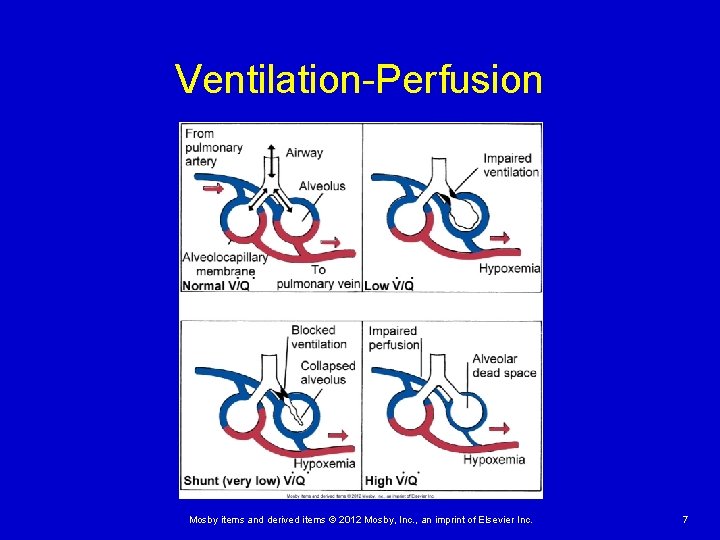

Ventilation-Perfusion Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 7
![Chest Wall Disorders Chest wall restriction Ø Compromised chest wall • Deformation, immobilization, and/or Chest Wall Disorders Chest wall restriction Ø Compromised chest wall • Deformation, immobilization, and/or](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-8.jpg)

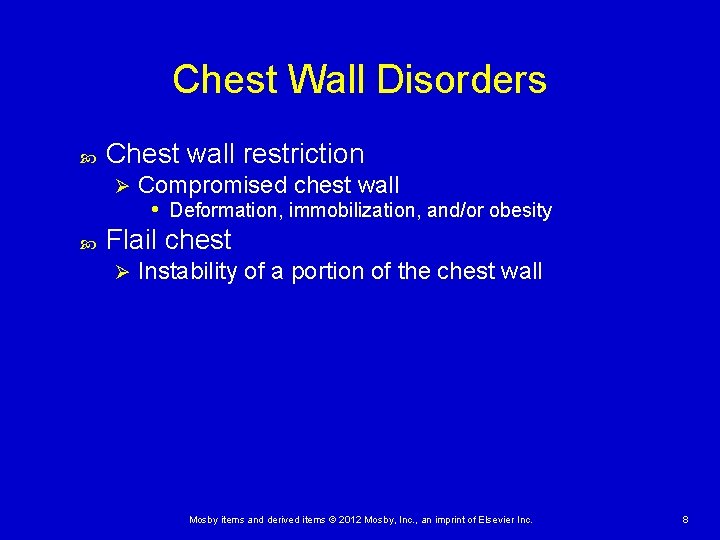

Chest Wall Disorders Chest wall restriction Ø Compromised chest wall • Deformation, immobilization, and/or obesity Flail chest Ø Instability of a portion of the chest wall Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 8
![Flail Chest Mosby items and derived items © 2012 Mosby, Inc. , an imprint Flail Chest Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-9.jpg)

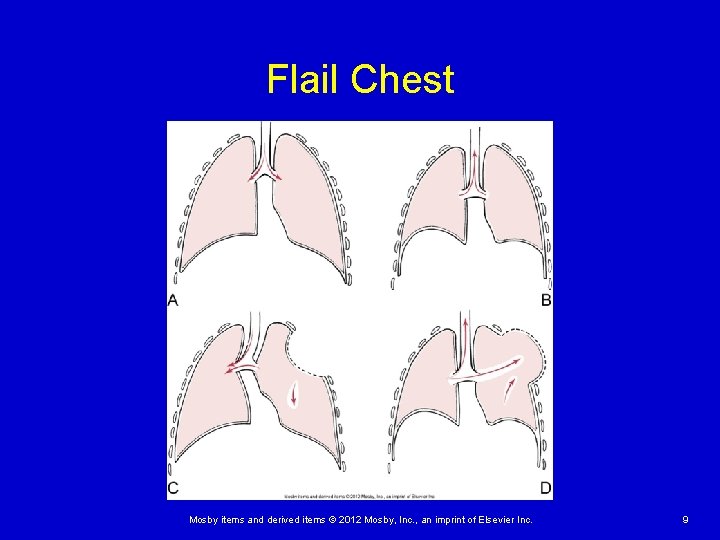

Flail Chest Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 9
![Pleural Abnormalities Pneumothorax Ø Ø Open pneumothorax Tension pneumothorax Spontaneous pneumothorax Secondary pneumothorax Mosby Pleural Abnormalities Pneumothorax Ø Ø Open pneumothorax Tension pneumothorax Spontaneous pneumothorax Secondary pneumothorax Mosby](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-10.jpg)

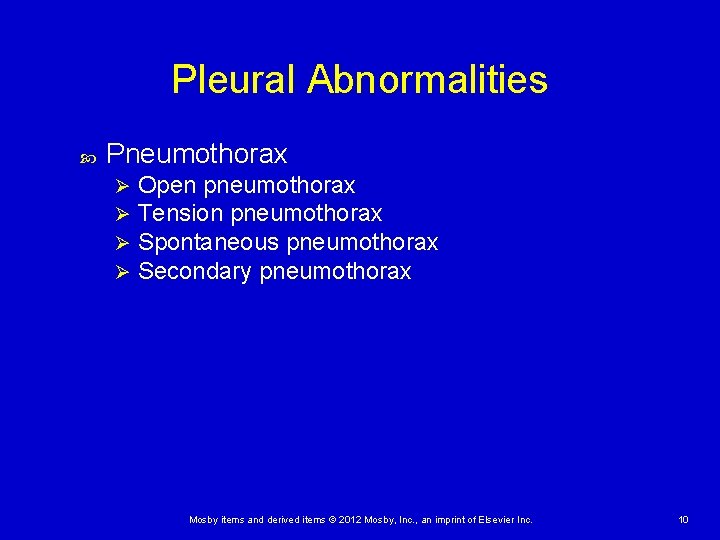

Pleural Abnormalities Pneumothorax Ø Ø Open pneumothorax Tension pneumothorax Spontaneous pneumothorax Secondary pneumothorax Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 10
![Pneumothorax Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Pneumothorax Mosby items and derived items © 2012 Mosby, Inc. , an imprint of](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-11.jpg)

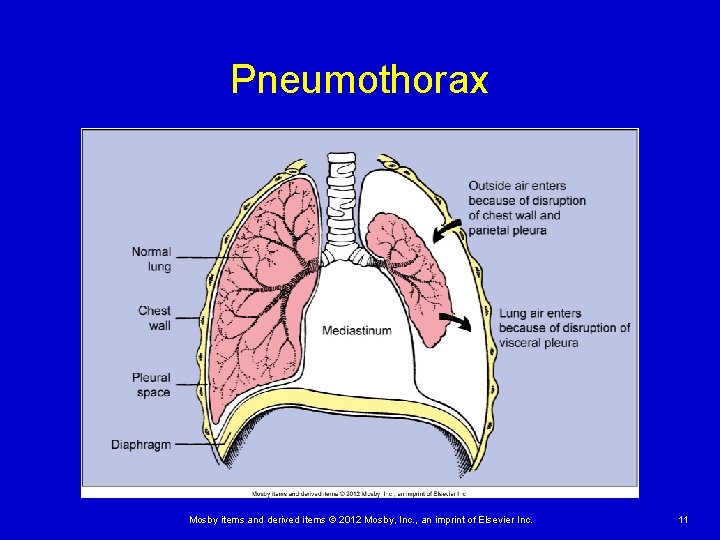

Pneumothorax Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 11
![Pleural Abnormalities Pleural effusion Transudative effusion Exudative effusion Hemothorax Empyema • Infected pleural effusion Pleural Abnormalities Pleural effusion Transudative effusion Exudative effusion Hemothorax Empyema • Infected pleural effusion](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-12.jpg)

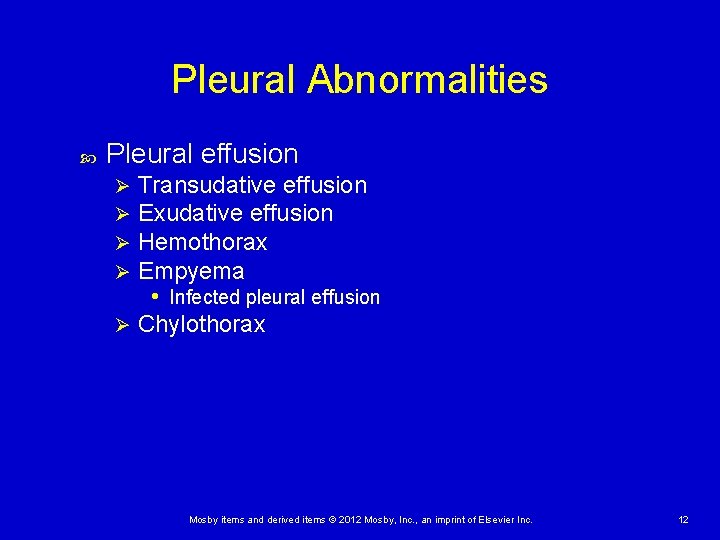

Pleural Abnormalities Pleural effusion Transudative effusion Exudative effusion Hemothorax Empyema • Infected pleural effusion Ø Chylothorax Ø Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 12
![Pulmonary Disorders Restrictive lung diseases: Aspiration • Passage of fluid and solid particles into Pulmonary Disorders Restrictive lung diseases: Aspiration • Passage of fluid and solid particles into](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-13.jpg)

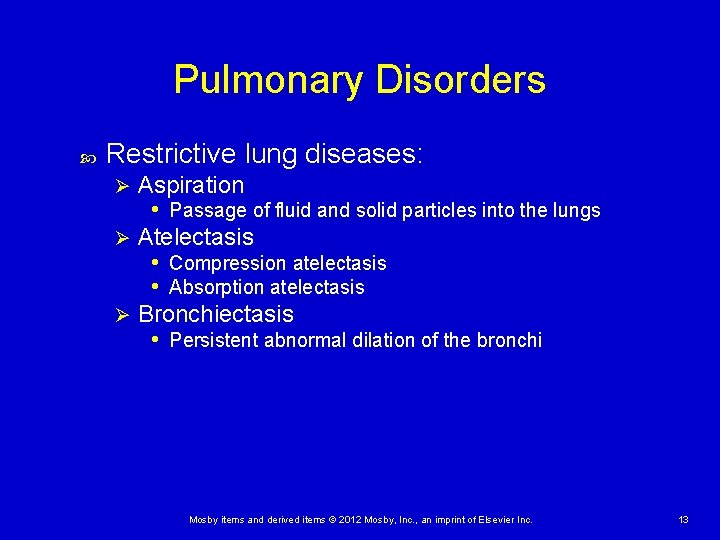

Pulmonary Disorders Restrictive lung diseases: Aspiration • Passage of fluid and solid particles into the lungs Ø Atelectasis • Compression atelectasis • Absorption atelectasis Ø Bronchiectasis • Persistent abnormal dilation of the bronchi Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 13
![Absorption Atelectasis Mosby items and derived items © 2012 Mosby, Inc. , an imprint Absorption Atelectasis Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-14.jpg)

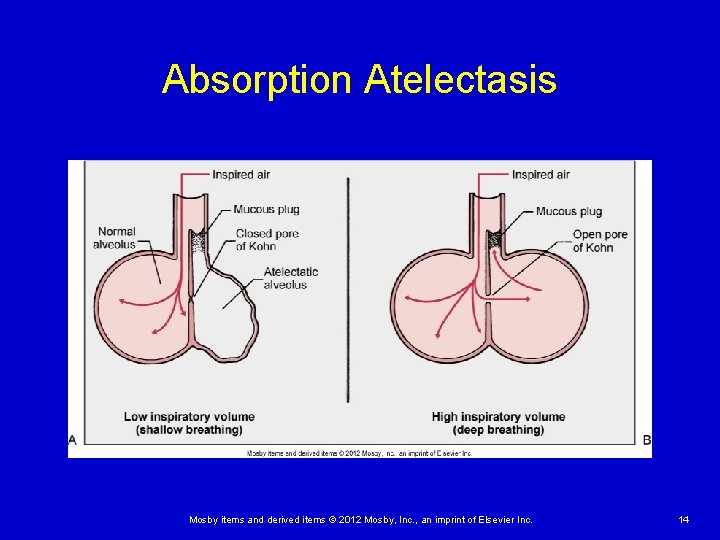

Absorption Atelectasis Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 14
![Pulmonary Disorders Restrictive lung diseases: Ø Bronchiolitis • Inflammatory obstruction of the small airways Pulmonary Disorders Restrictive lung diseases: Ø Bronchiolitis • Inflammatory obstruction of the small airways](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-15.jpg)

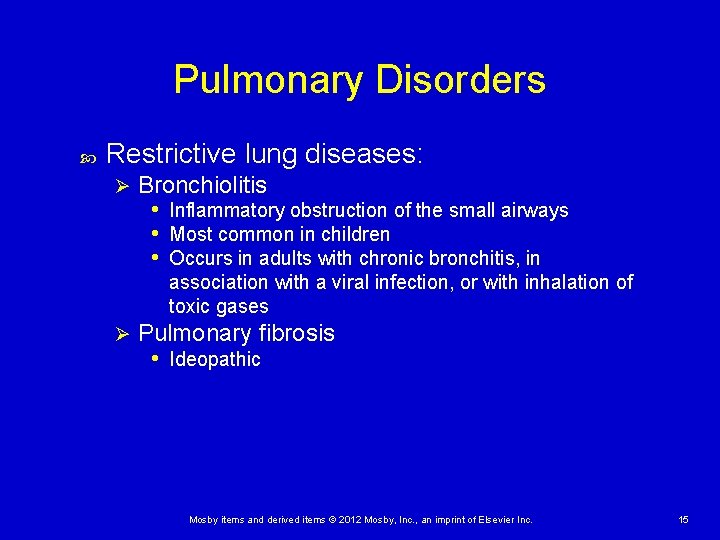

Pulmonary Disorders Restrictive lung diseases: Ø Bronchiolitis • Inflammatory obstruction of the small airways • Most common in children • Occurs in adults with chronic bronchitis, in association with a viral infection, or with inhalation of toxic gases Ø Pulmonary fibrosis • Ideopathic Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 15
![Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Inhalation disorders: • Toxic gases • Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Inhalation disorders: • Toxic gases •](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-16.jpg)

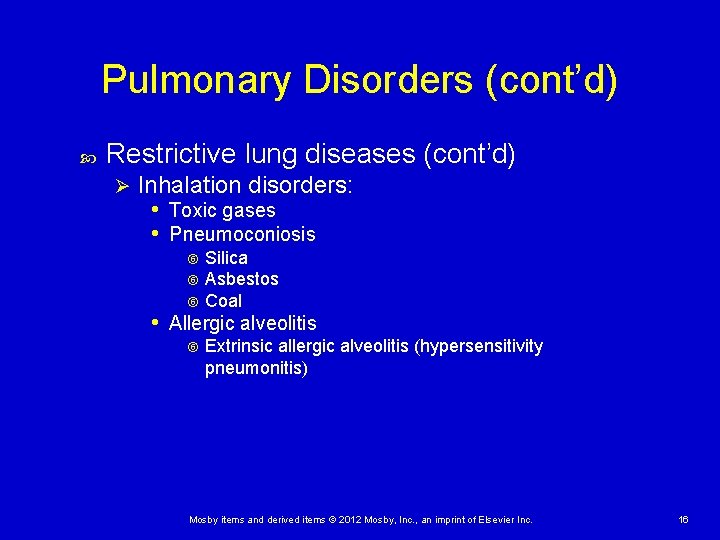

Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Inhalation disorders: • Toxic gases • Pneumoconiosis Silica Asbestos Coal • Allergic alveolitis Extrinsic allergic alveolitis (hypersensitivity pneumonitis) Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 16
![Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Pulmonary edema • Excess water in Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Pulmonary edema • Excess water in](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-17.jpg)

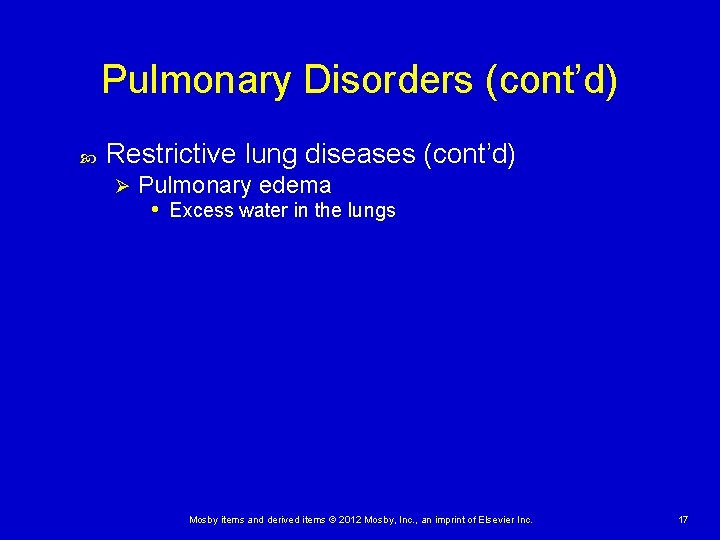

Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Pulmonary edema • Excess water in the lungs Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 17
![Pulmonary Edema Mosby items and derived items © 2012 Mosby, Inc. , an imprint Pulmonary Edema Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-18.jpg)

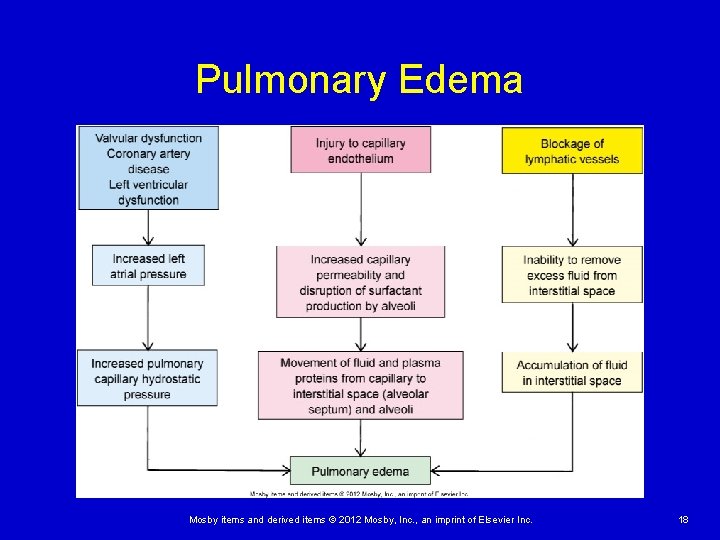

Pulmonary Edema Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 18
![Pulmonary Disorders Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) • Fulminant Pulmonary Disorders Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) • Fulminant](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-19.jpg)

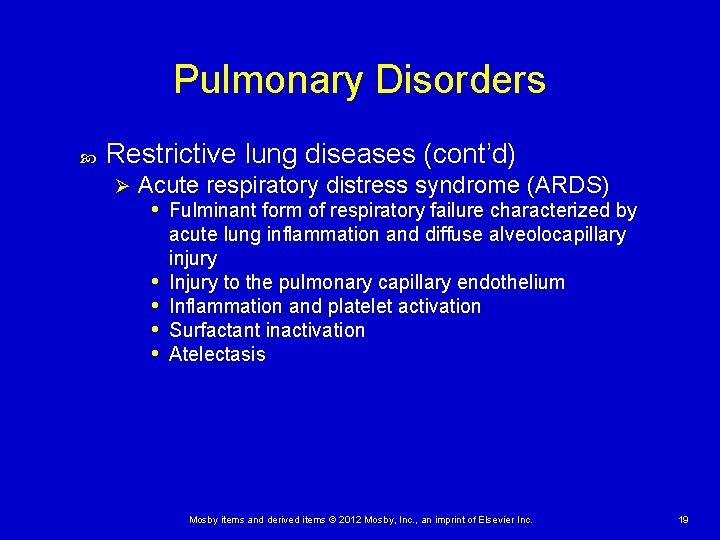

Pulmonary Disorders Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) • Fulminant form of respiratory failure characterized by • • acute lung inflammation and diffuse alveolocapillary injury Injury to the pulmonary capillary endothelium Inflammation and platelet activation Surfactant inactivation Atelectasis Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 19
![Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d) Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d)](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-20.jpg)

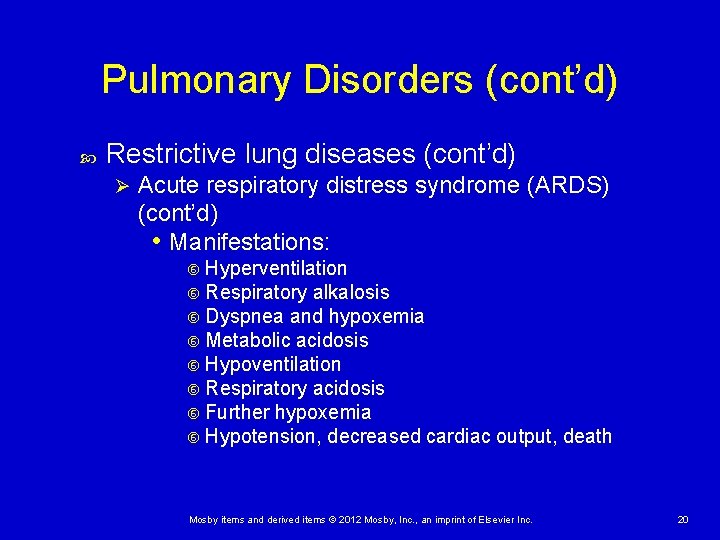

Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d) • Manifestations: Hyperventilation Respiratory alkalosis Dyspnea and hypoxemia Metabolic acidosis Hypoventilation Respiratory acidosis Further hypoxemia Hypotension, decreased cardiac output, death Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 20
![Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d) Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d)](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-21.jpg)
Pulmonary Disorders (cont’d) Restrictive lung diseases (cont’d) Ø Acute respiratory distress syndrome (ARDS) (cont’d) • Evaluation and treatment Physical examination, blood gases, and radiologic examination Supportive therapy with oxygenation and ventilation and prevention of infection Surfactant to improve compliance Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 21
![Acute Respiratory Distress Syndrome (ARDS) Mosby items and derived items © 2012 Mosby, Inc. Acute Respiratory Distress Syndrome (ARDS) Mosby items and derived items © 2012 Mosby, Inc.](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-22.jpg)

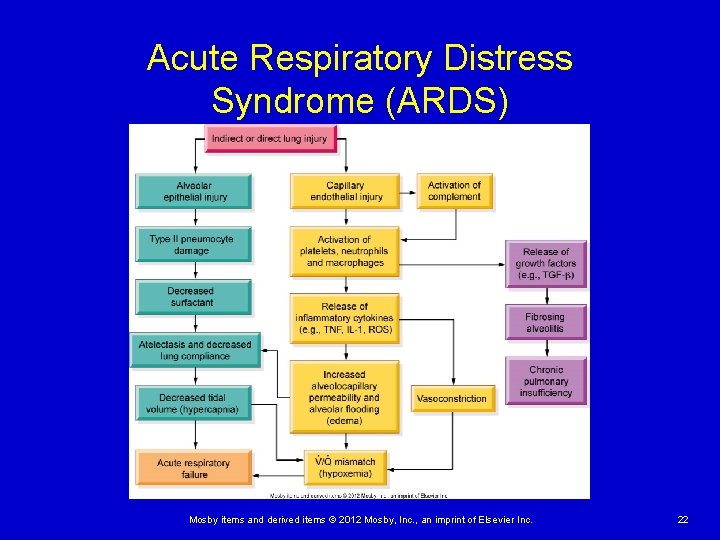

Acute Respiratory Distress Syndrome (ARDS) Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 22
![Pulmonary Disorders Obstructive lung diseases Airway obstruction that is worse with expiration Common signs Pulmonary Disorders Obstructive lung diseases Airway obstruction that is worse with expiration Common signs](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-23.jpg)

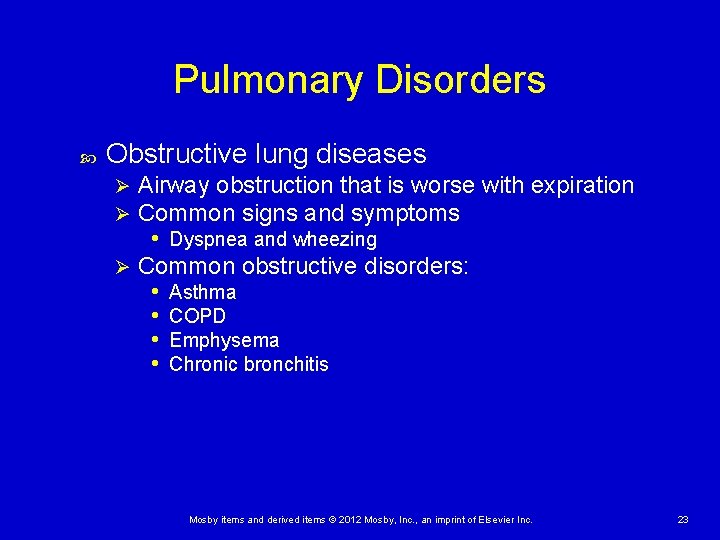

Pulmonary Disorders Obstructive lung diseases Airway obstruction that is worse with expiration Common signs and symptoms • Dyspnea and wheezing Ø Common obstructive disorders: • Asthma • COPD • Emphysema • Chronic bronchitis Ø Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 23
![Asthma Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Asthma Mosby items and derived items © 2012 Mosby, Inc. , an imprint of](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-24.jpg)

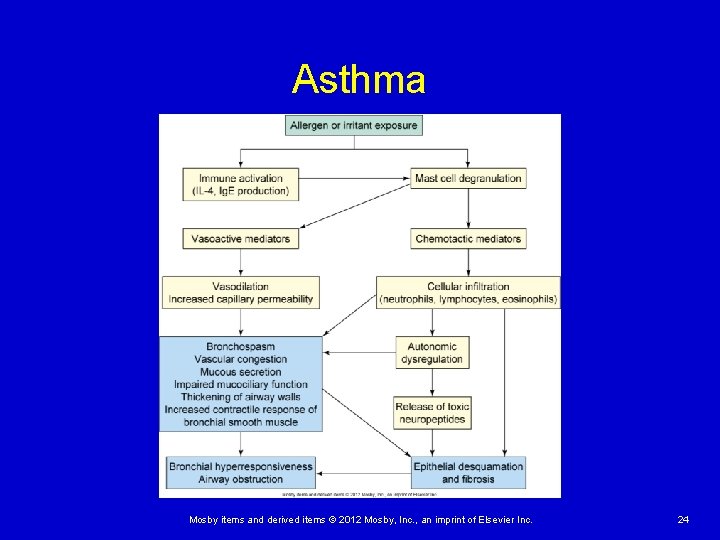

Asthma Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 24
![Pulmonary Disorders Obstructive lung diseases: Asthma Chronic inflammatory disorder of the airways Inflammation results Pulmonary Disorders Obstructive lung diseases: Asthma Chronic inflammatory disorder of the airways Inflammation results](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-25.jpg)

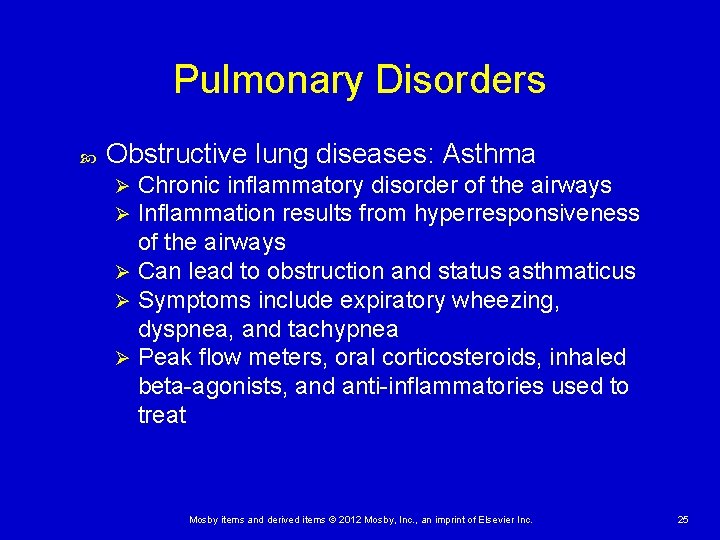

Pulmonary Disorders Obstructive lung diseases: Asthma Chronic inflammatory disorder of the airways Inflammation results from hyperresponsiveness of the airways Ø Can lead to obstruction and status asthmaticus Ø Symptoms include expiratory wheezing, dyspnea, and tachypnea Ø Peak flow meters, oral corticosteroids, inhaled beta-agonists, and anti-inflammatories used to treat Ø Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 25
![Pulmonary Disorders (cont’d) Obstructive lung diseases: COPD Mosby items and derived items © 2012 Pulmonary Disorders (cont’d) Obstructive lung diseases: COPD Mosby items and derived items © 2012](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-26.jpg)

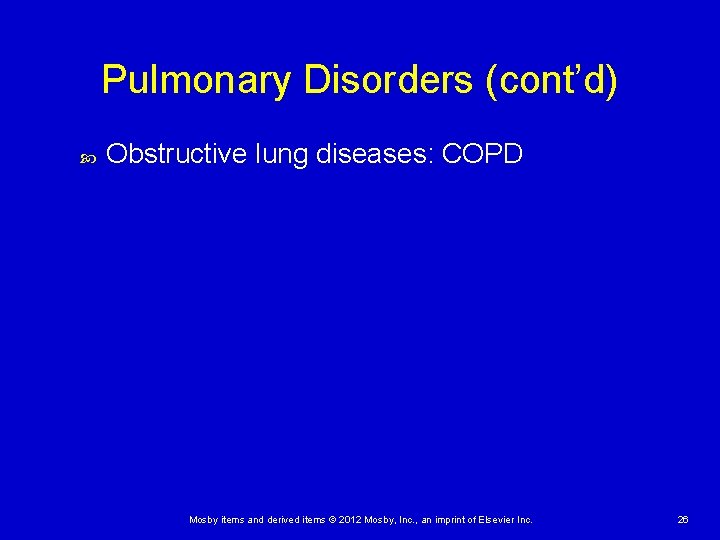

Pulmonary Disorders (cont’d) Obstructive lung diseases: COPD Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 26
![Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. , an Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. , an](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-27.jpg)

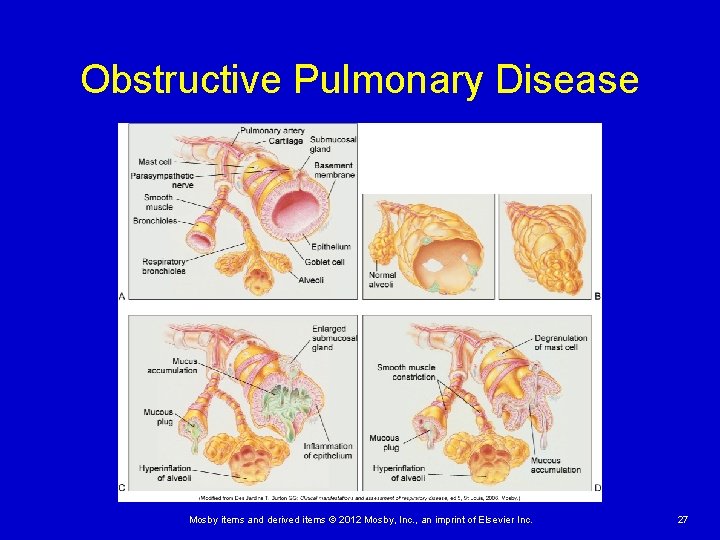

Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 27
![Chronic Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. , Chronic Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. ,](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-28.jpg)

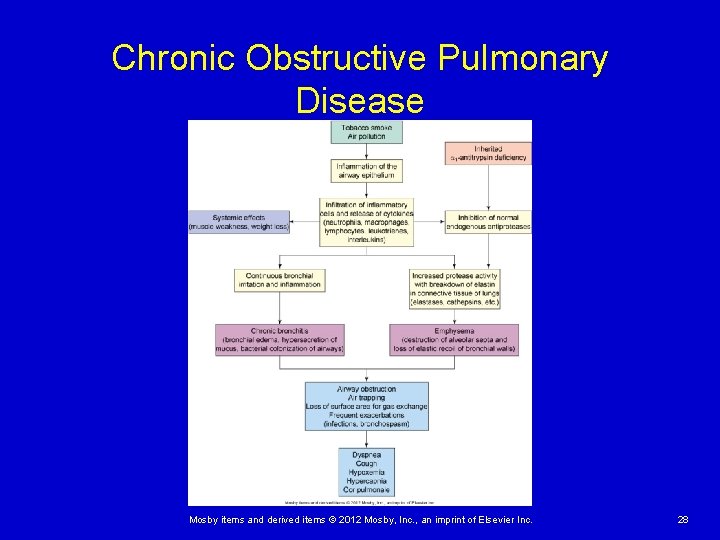

Chronic Obstructive Pulmonary Disease Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 28
![Chronic Obstructive Pulmonary Disease (cont’d) Mosby items and derived items © 2012 Mosby, Inc. Chronic Obstructive Pulmonary Disease (cont’d) Mosby items and derived items © 2012 Mosby, Inc.](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-29.jpg)

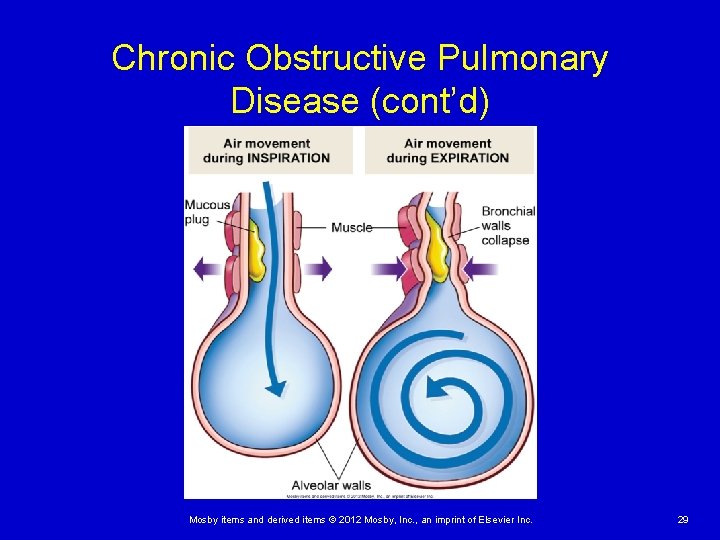

Chronic Obstructive Pulmonary Disease (cont’d) Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 29
![Pulmonary Disorders Obstructive lung diseases: chronic bronchitis Hypersecretion of mucus and chronic productive cough Pulmonary Disorders Obstructive lung diseases: chronic bronchitis Hypersecretion of mucus and chronic productive cough](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-30.jpg)

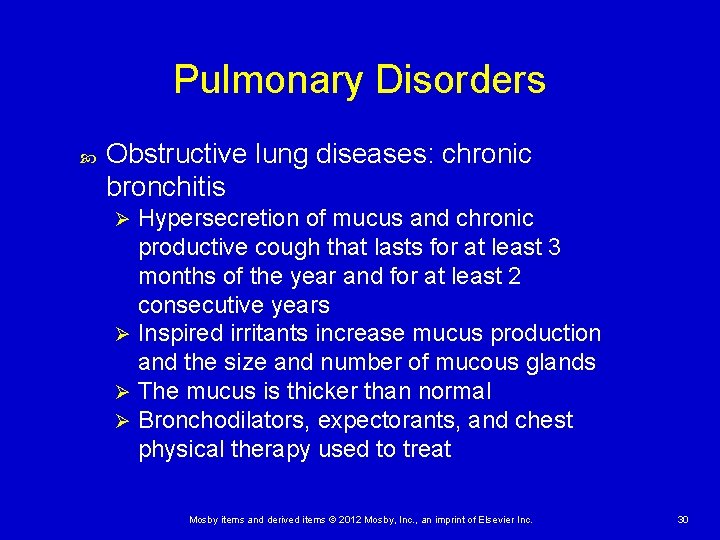

Pulmonary Disorders Obstructive lung diseases: chronic bronchitis Hypersecretion of mucus and chronic productive cough that lasts for at least 3 months of the year and for at least 2 consecutive years Ø Inspired irritants increase mucus production and the size and number of mucous glands Ø The mucus is thicker than normal Ø Bronchodilators, expectorants, and chest physical therapy used to treat Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 30
![Pulmonary Disorders (cont’d) Obstructive lung diseases: emphysema Abnormal permanent enlargement of the gasexchange airways Pulmonary Disorders (cont’d) Obstructive lung diseases: emphysema Abnormal permanent enlargement of the gasexchange airways](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-31.jpg)

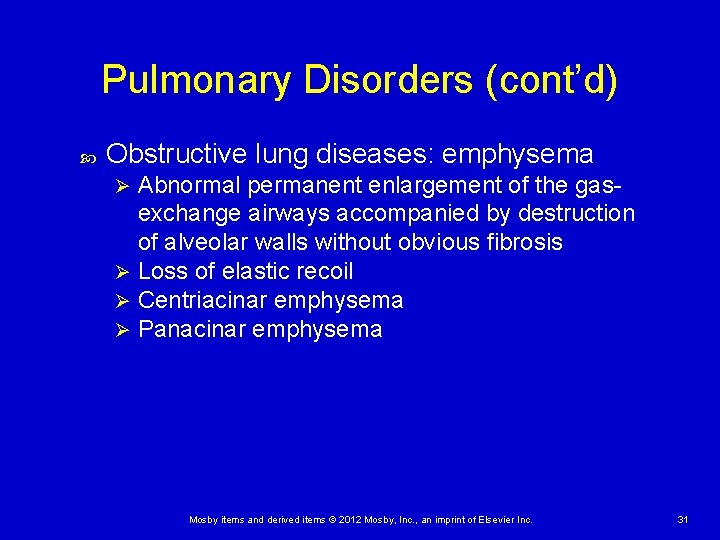

Pulmonary Disorders (cont’d) Obstructive lung diseases: emphysema Abnormal permanent enlargement of the gasexchange airways accompanied by destruction of alveolar walls without obvious fibrosis Ø Loss of elastic recoil Ø Centriacinar emphysema Ø Panacinar emphysema Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 31
![Pulmonary Disorders (cont’d) Respiratory tract infections: pneumonia Ø Ø Pneumococcal Viral Mosby items and Pulmonary Disorders (cont’d) Respiratory tract infections: pneumonia Ø Ø Pneumococcal Viral Mosby items and](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-32.jpg)

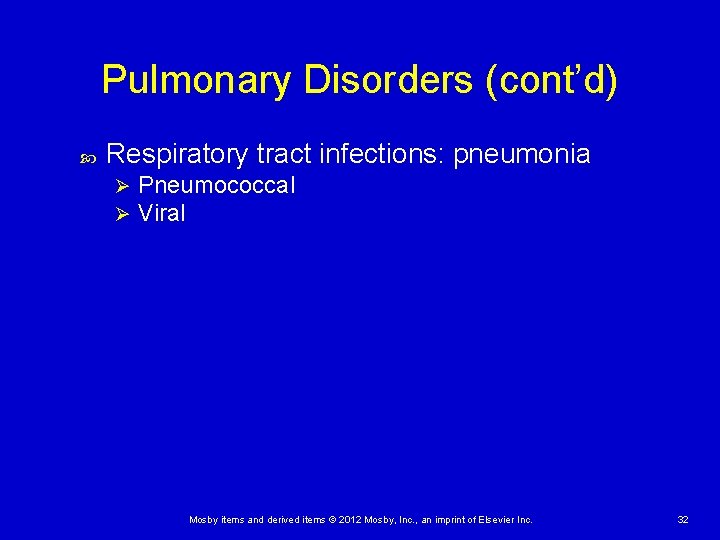

Pulmonary Disorders (cont’d) Respiratory tract infections: pneumonia Ø Ø Pneumococcal Viral Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 32
![Pneumococcal Pneumonia Mosby items and derived items © 2012 Mosby, Inc. , an imprint Pneumococcal Pneumonia Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-33.jpg)

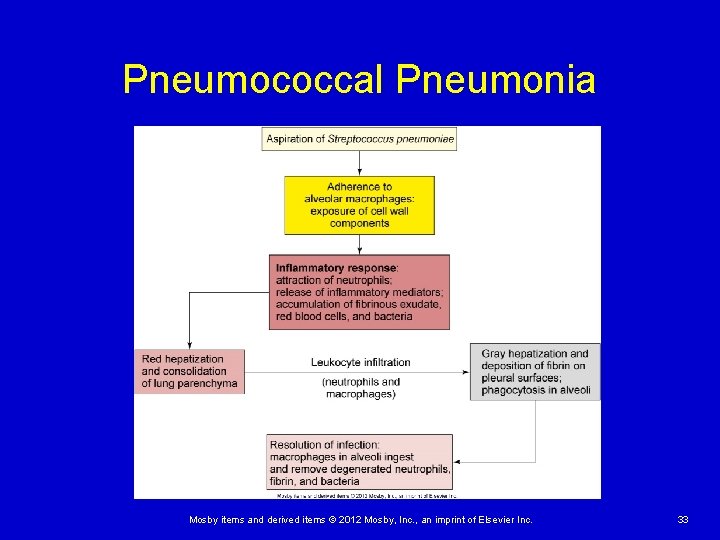

Pneumococcal Pneumonia Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 33
![Pulmonary Disorders Respiratory tract infections Ø Tuberculosis • Mycobacterium tuberculosis • Acid-fast bacillus • Pulmonary Disorders Respiratory tract infections Ø Tuberculosis • Mycobacterium tuberculosis • Acid-fast bacillus •](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-34.jpg)

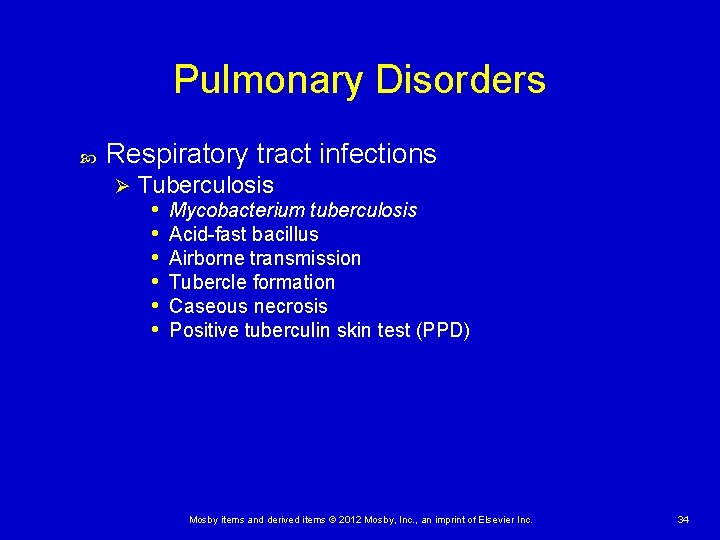

Pulmonary Disorders Respiratory tract infections Ø Tuberculosis • Mycobacterium tuberculosis • Acid-fast bacillus • Airborne transmission • Tubercle formation • Caseous necrosis • Positive tuberculin skin test (PPD) Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 34
![Pulmonary Disorders (cont’d) Respiratory tract infections—acute bronchitis Acute infection or inflammation of the airways Pulmonary Disorders (cont’d) Respiratory tract infections—acute bronchitis Acute infection or inflammation of the airways](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-35.jpg)

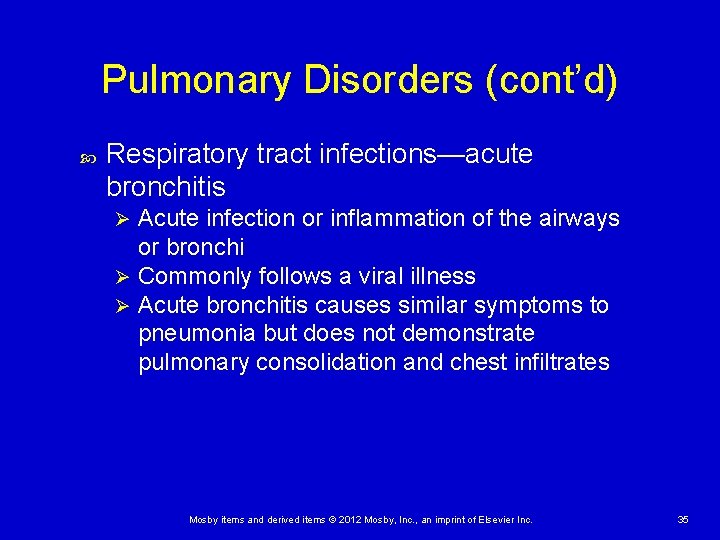

Pulmonary Disorders (cont’d) Respiratory tract infections—acute bronchitis Acute infection or inflammation of the airways or bronchi Ø Commonly follows a viral illness Ø Acute bronchitis causes similar symptoms to pneumonia but does not demonstrate pulmonary consolidation and chest infiltrates Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 35
![Pulmonary Disorders (cont’d) Abscess formation and cavitation Ø Ø Ø Abscess Consolidation Cavitation Mosby Pulmonary Disorders (cont’d) Abscess formation and cavitation Ø Ø Ø Abscess Consolidation Cavitation Mosby](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-36.jpg)

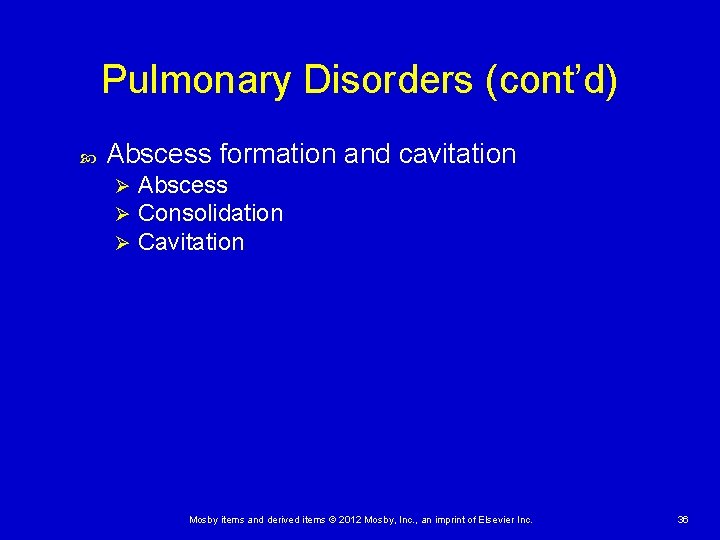

Pulmonary Disorders (cont’d) Abscess formation and cavitation Ø Ø Ø Abscess Consolidation Cavitation Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 36
![Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary embolus Occlusion of a portion of the Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary embolus Occlusion of a portion of the](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-37.jpg)

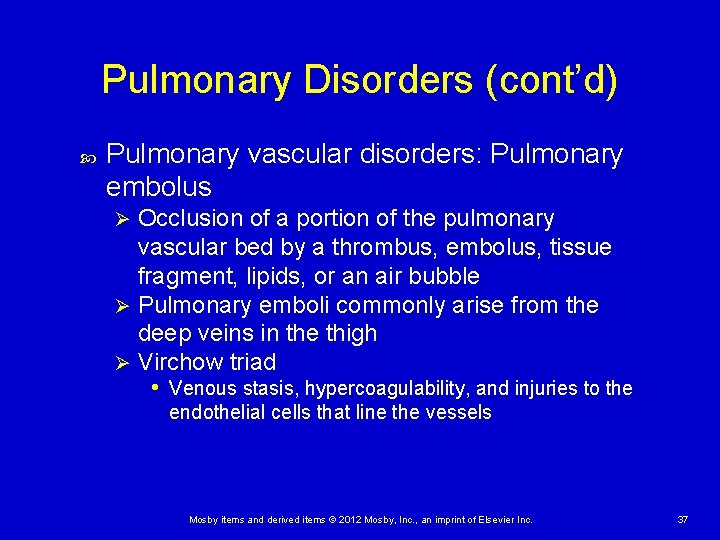

Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary embolus Occlusion of a portion of the pulmonary vascular bed by a thrombus, embolus, tissue fragment, lipids, or an air bubble Ø Pulmonary emboli commonly arise from the deep veins in the thigh Ø Virchow triad • Venous stasis, hypercoagulability, and injuries to the Ø endothelial cells that line the vessels Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 37
![Pulmonary Embolism Mosby items and derived items © 2012 Mosby, Inc. , an imprint Pulmonary Embolism Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-38.jpg)

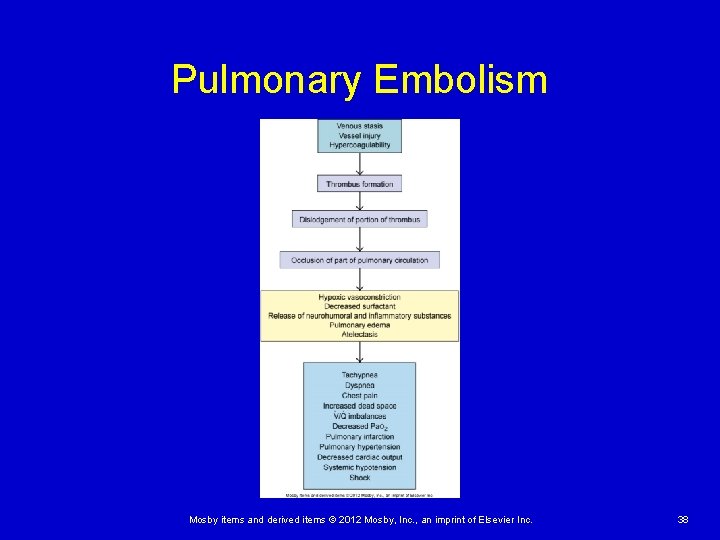

Pulmonary Embolism Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 38
![Pulmonary Disorders Pulmonary vascular disorders: Pulmonary hypertension Mean pulmonary artery pressure 5 to 10 Pulmonary Disorders Pulmonary vascular disorders: Pulmonary hypertension Mean pulmonary artery pressure 5 to 10](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-39.jpg)

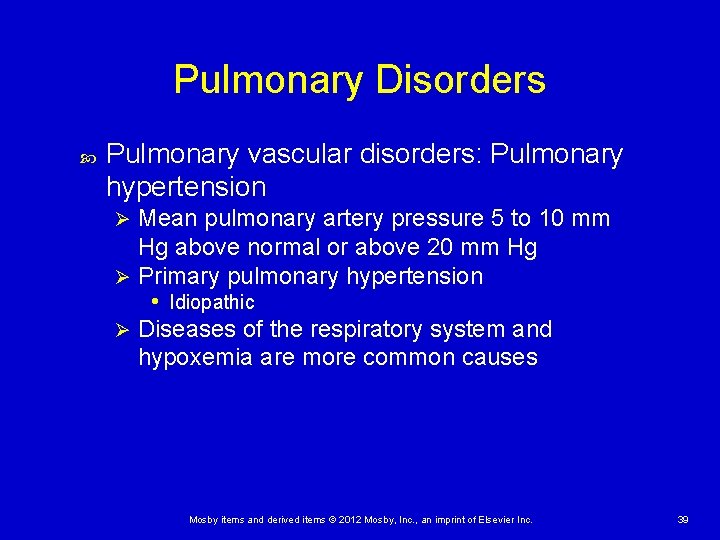

Pulmonary Disorders Pulmonary vascular disorders: Pulmonary hypertension Mean pulmonary artery pressure 5 to 10 mm Hg above normal or above 20 mm Hg Ø Primary pulmonary hypertension • Idiopathic Ø Diseases of the respiratory system and hypoxemia are more common causes Ø Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 39
![Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary hypertension (cont’d) Ø Classifications: • Pulmonary arterial Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary hypertension (cont’d) Ø Classifications: • Pulmonary arterial](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-40.jpg)

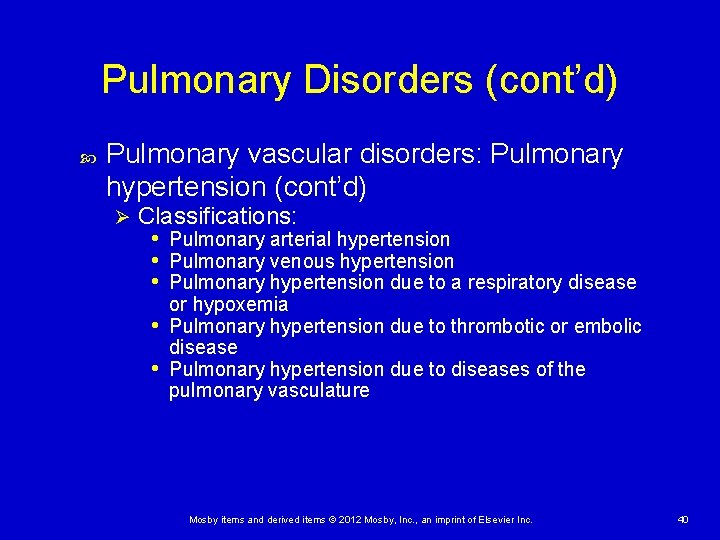

Pulmonary Disorders (cont’d) Pulmonary vascular disorders: Pulmonary hypertension (cont’d) Ø Classifications: • Pulmonary arterial hypertension • Pulmonary venous hypertension • Pulmonary hypertension due to a respiratory disease or hypoxemia • Pulmonary hypertension due to thrombotic or embolic disease • Pulmonary hypertension due to diseases of the pulmonary vasculature Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 40
![Pulmonary Hypertension Mosby items and derived items © 2012 Mosby, Inc. , an imprint Pulmonary Hypertension Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-41.jpg)

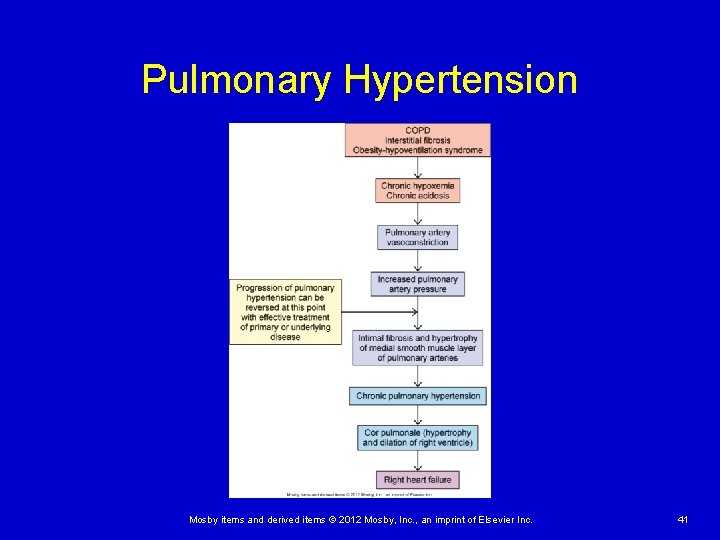

Pulmonary Hypertension Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 41
![Pulmonary Disorders Pulmonary vascular disorders: Cor pulmonale Ø Pulmonary heart disease • Right ventricular Pulmonary Disorders Pulmonary vascular disorders: Cor pulmonale Ø Pulmonary heart disease • Right ventricular](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-42.jpg)

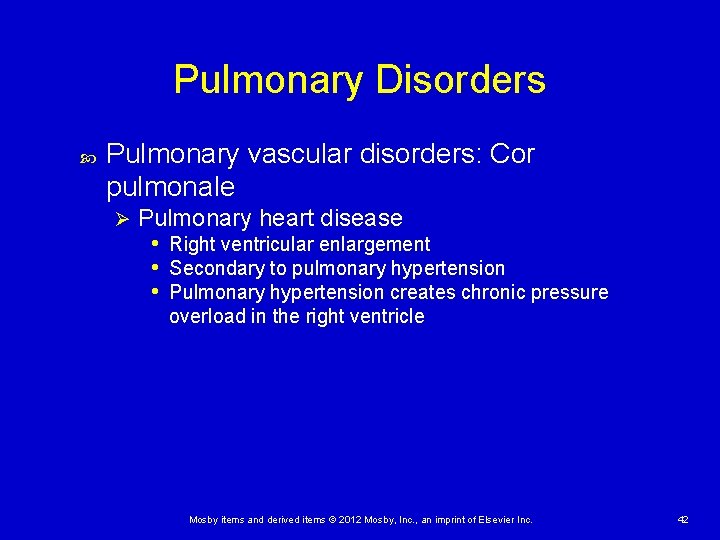

Pulmonary Disorders Pulmonary vascular disorders: Cor pulmonale Ø Pulmonary heart disease • Right ventricular enlargement • Secondary to pulmonary hypertension • Pulmonary hypertension creates chronic pressure overload in the right ventricle Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 42
![Pulmonary Disorders (cont’d) Malignancies of the respiratory tract Lip • Most common form—exophytic • Pulmonary Disorders (cont’d) Malignancies of the respiratory tract Lip • Most common form—exophytic •](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-43.jpg)

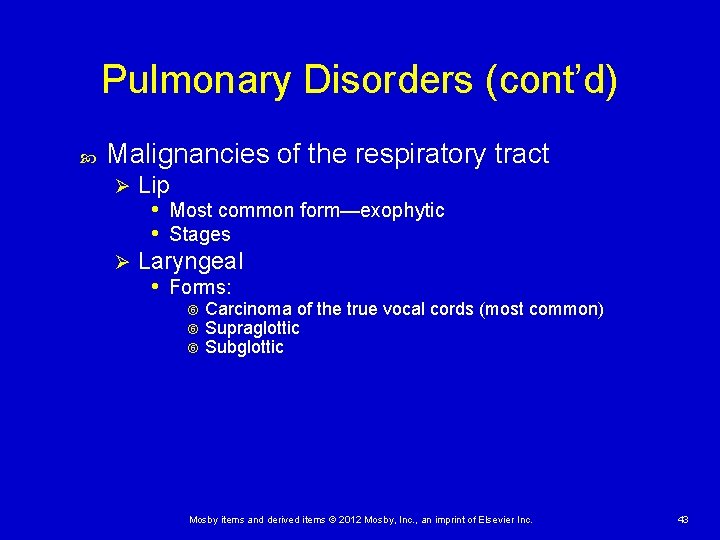

Pulmonary Disorders (cont’d) Malignancies of the respiratory tract Lip • Most common form—exophytic • Stages Ø Laryngeal • Forms: Ø Carcinoma of the true vocal cords (most common) Supraglottic Subglottic Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 43
![Lip Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint Lip Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-44.jpg)
Lip Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 44
![Laryngeal Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint Laryngeal Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-45.jpg)

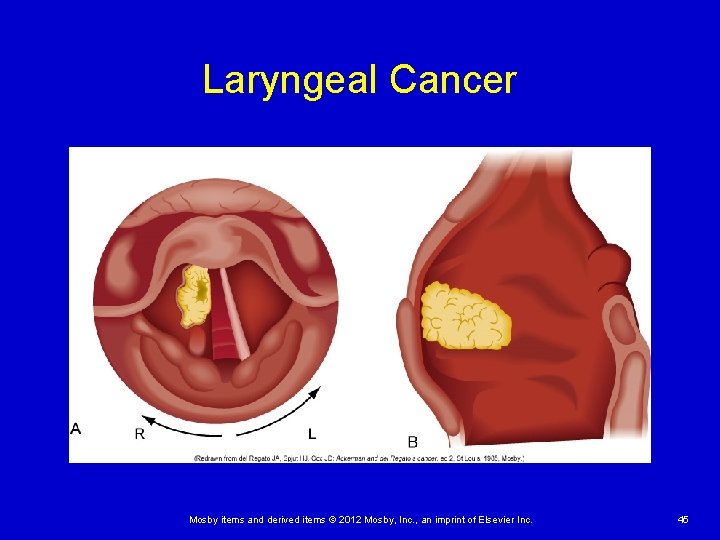

Laryngeal Cancer Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 45
![Pulmonary Disorders Malignancies of the respiratory tract Ø Lung (bronchogenic) • Most common cause Pulmonary Disorders Malignancies of the respiratory tract Ø Lung (bronchogenic) • Most common cause](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-46.jpg)

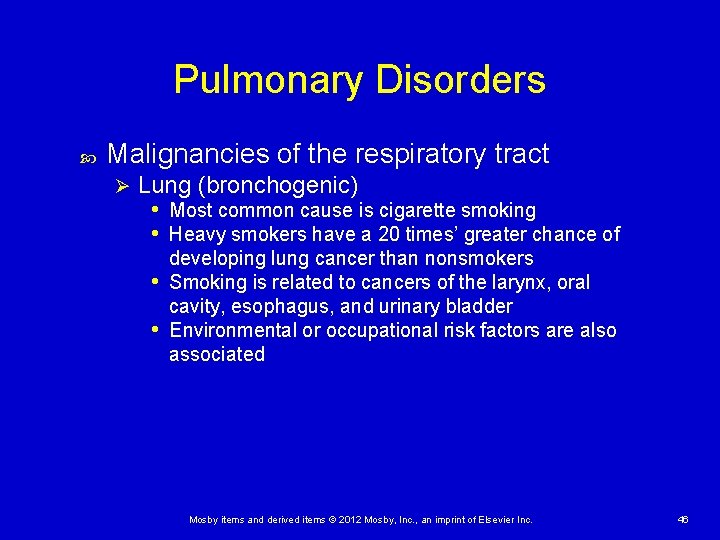

Pulmonary Disorders Malignancies of the respiratory tract Ø Lung (bronchogenic) • Most common cause is cigarette smoking • Heavy smokers have a 20 times’ greater chance of developing lung cancer than nonsmokers • Smoking is related to cancers of the larynx, oral cavity, esophagus, and urinary bladder • Environmental or occupational risk factors are also associated Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 46
![Pulmonary Disorders (cont’d) Malignancies of the respiratory tract (cont’d) Ø Lung • Types: Non-small Pulmonary Disorders (cont’d) Malignancies of the respiratory tract (cont’d) Ø Lung • Types: Non-small](http://slidetodoc.com/presentation_image/612d7f43911ecb7fd6fe10bceb11415f/image-47.jpg)

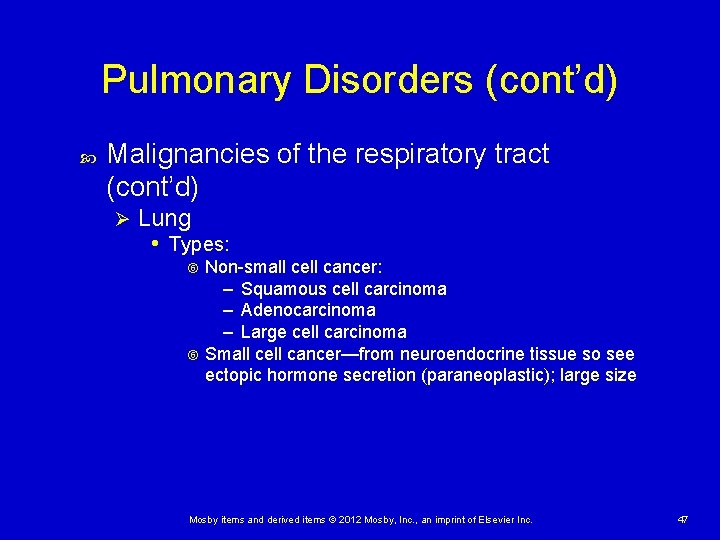

Pulmonary Disorders (cont’d) Malignancies of the respiratory tract (cont’d) Ø Lung • Types: Non-small cell cancer: – Squamous cell carcinoma – Adenocarcinoma – Large cell carcinoma Small cell cancer—from neuroendocrine tissue so see ectopic hormone secretion (paraneoplastic); large size Mosby items and derived items © 2012 Mosby, Inc. , an imprint of Elsevier Inc. 47
