$Chapter 25 Reflection and Refraction$

Chapter 25 Reflection and Refraction

$Reflection and Refraction$

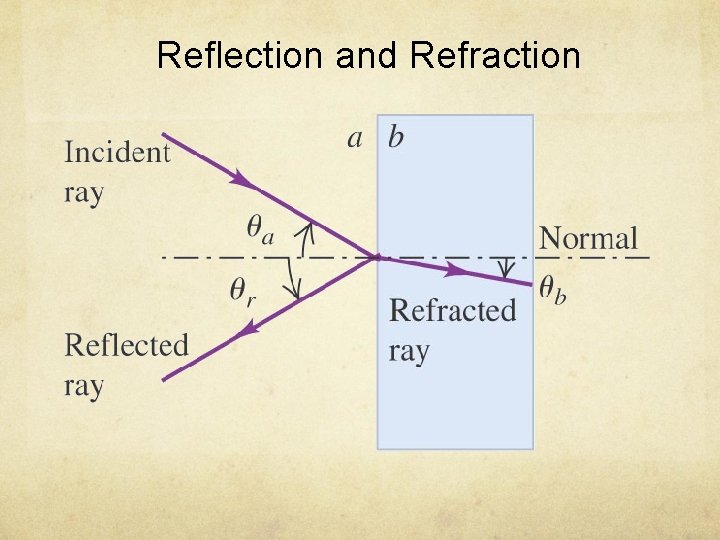

Reflection and Refraction

Reflection

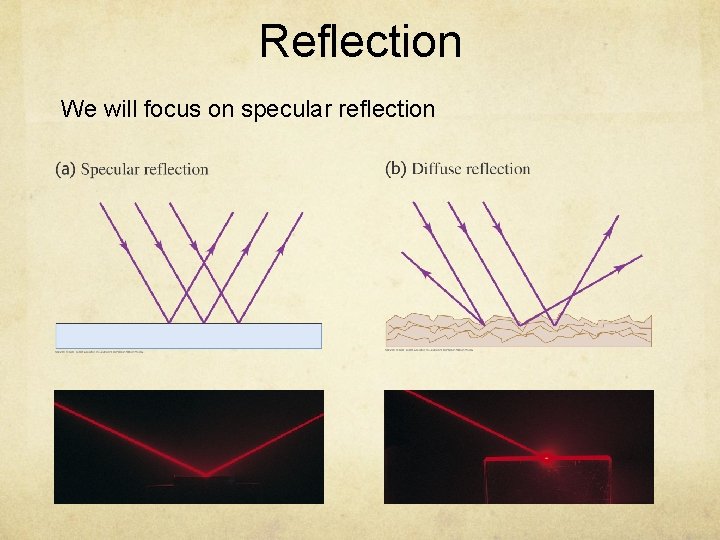

Reflection We will focus on specular reflection

The Law of Reflection All angles are measured with respect to the normal

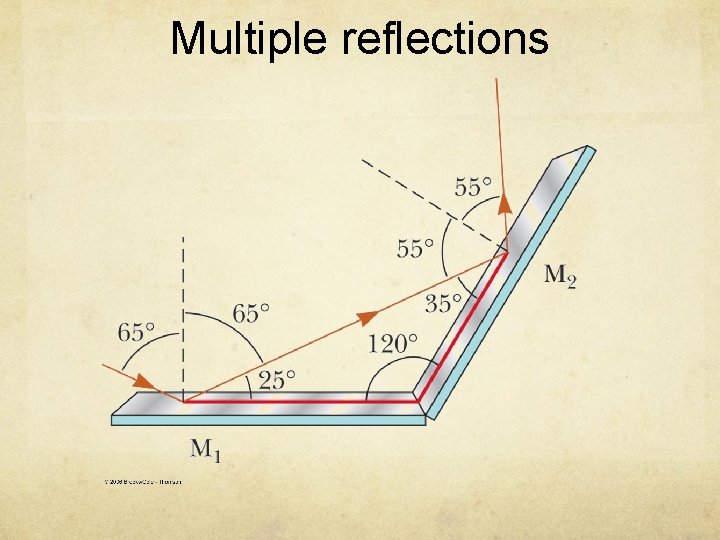

Multiple reflections

$Snell’s Law of Refraction$

Snell’s Law of Refraction

$Refractive Index$

Refractive Index

Useful facts

$Reflection and refraction$

Reflection and refraction

Be careful with the normal

$More on refractive index$

More on refractive index

Wavelength in different medium

$Find the refractive index and the speed of light in the liquid$

Find the refractive index and the speed of light in the liquid

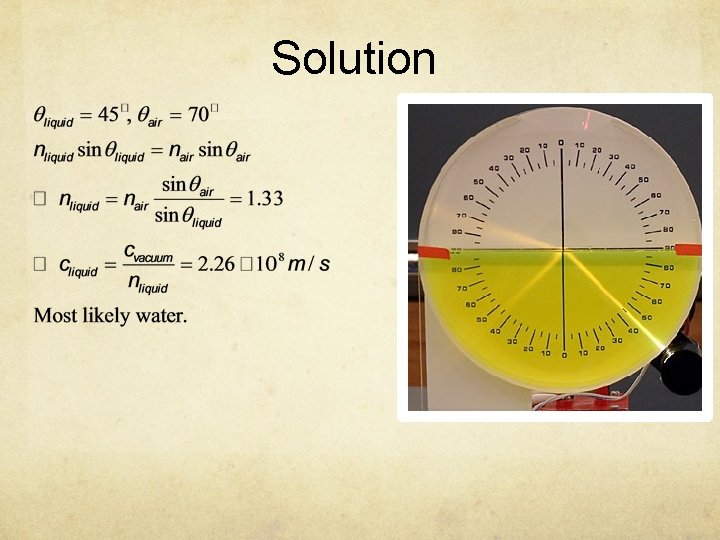

Solution

Different colors different speed

Dispersion

What happened to my ruler?

Explanation

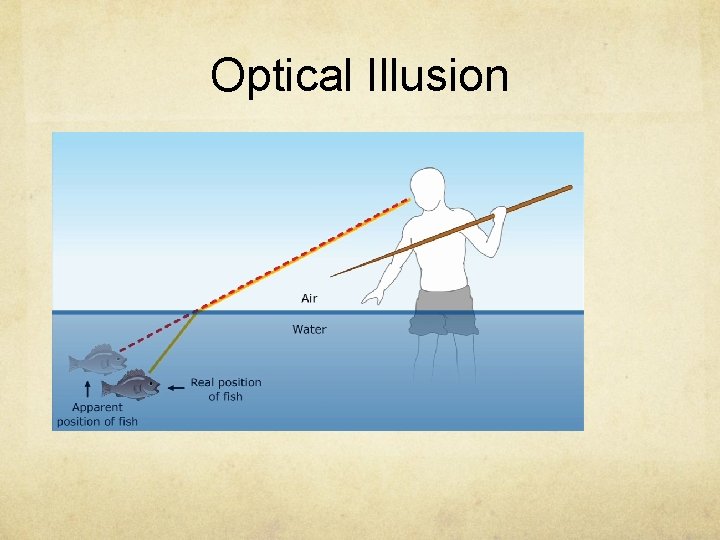

Optical Illusion

The image

How to catch a bug

Find θair for the following cases: θwater θair 40° 47° 48. 75° 50° nwater = 1. 33

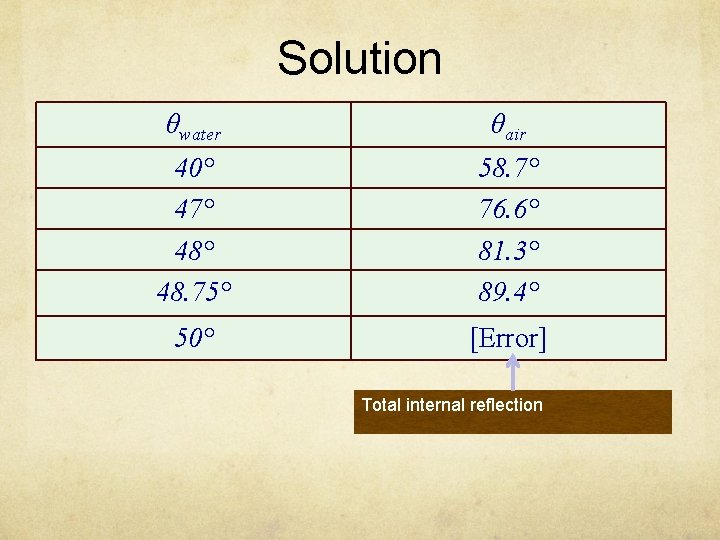

Solution θwater θair 40° 47° 48. 75° 58. 7° 76. 6° 81. 3° 89. 4° 50° [Error] Total internal reflection

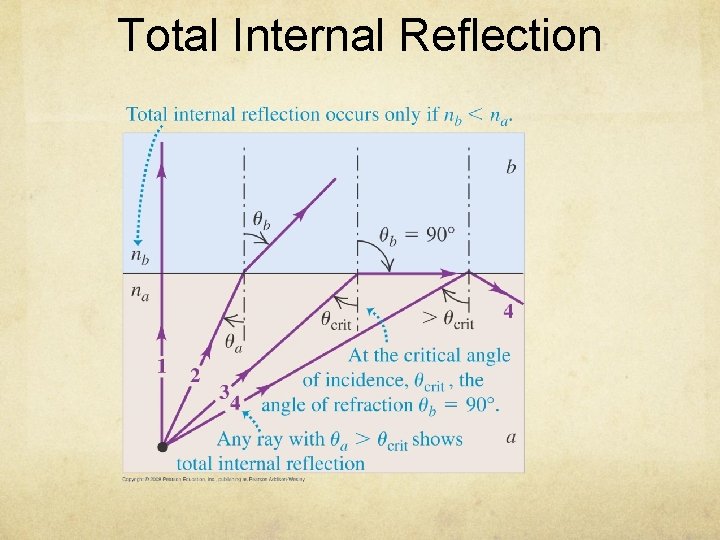

Total Internal Reflection

A slightly more accurate picture

Total internal reflection (TIR) Total internal reflection occurs when θincident > θc. It is when all the refracted light disappear and all the light got reflected back.

$The critical angle, θc θc is the angle of incidence θincidence when θrefraction =$

The critical angle, θc θc is the angle of incidence θincidence when θrefraction = 90 o

Wrong Answers! Define critical angle: X Critical angle is when TIR happens. (Is what? ? ? ) X Critical angle is the angle of incidence when TIR happens. (TIR happens for many values of θincidence) X Critical angle is the angle when TIR begins. (Which angle? ? ? ) Define TIR: X TIR is when the angle of incidence = critical angle. (What about θincidence>θc? ) X TIR is when the angle of incidence > critical angle. (Circular logic)

Find the critical angle for diamond in air

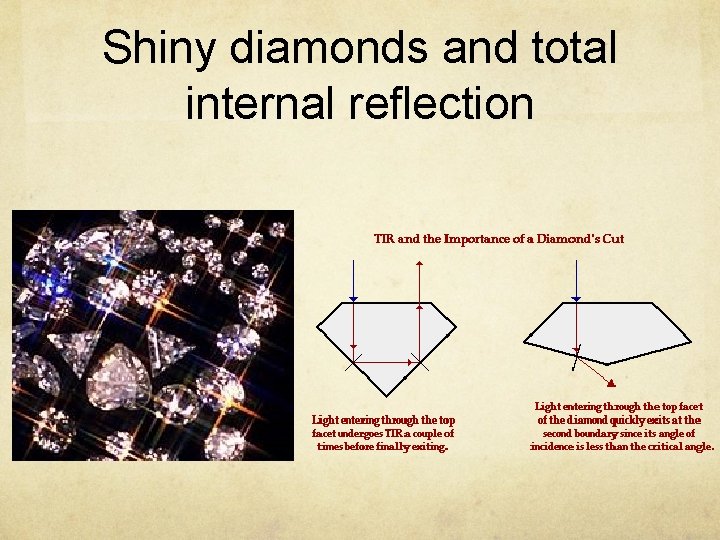

Shiny diamonds and total internal reflection

$Cubic Zirconium Refractive index: 2. 15 to 2. 18 (diamond: 2. 42) Hardness: 8.$

Cubic Zirconium Refractive index: 2. 15 to 2. 18 (diamond: 2. 42) Hardness: 8. 5 to 9 (diamond: 10) Ingredients: zirconium oxide, magnesium, calcium (diamond: carbon)

Applications of TIR Fiberoptics

Total internal reflection

Huygen’s Principle Every point of a wave front may be considered the source of secondary wavelets that spread out in all directions with a speed equal to the speed of wave. The final wave is the sum of all these secondary wavelets.

$Deriving Snell’s Law of Refraction$

Deriving Snell’s Law of Refraction

Principle of Least Time Light always travels between two points in the path that takes the least amount of time.
