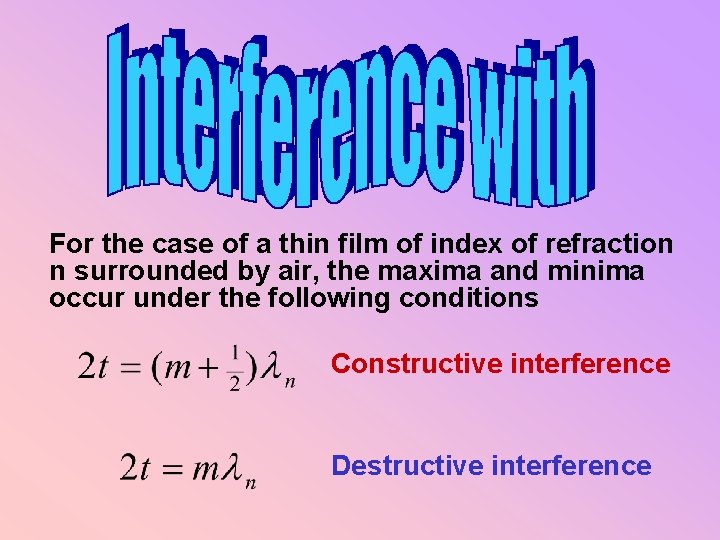

For the case of a thin film of index of refraction n surrounded by air, the maxima and minima occur under the following conditions Constructive interference Destructive interference

In this case, the blue and red rays suffer a 180 o phase change, so the conditions for maxima and minima are exactly the opposite of what appears on the last slide! Air, n = 1 t Water, n = 1. 33 Glass, n = 1. 5

When working problems with thin films, you must first evaluate what happens to the reflected ray at each boundary. For rays travelling from low n to high n, a 180 o phase shift will occur. Then, simply calculate the difference in path length based upon the thickness of the film.

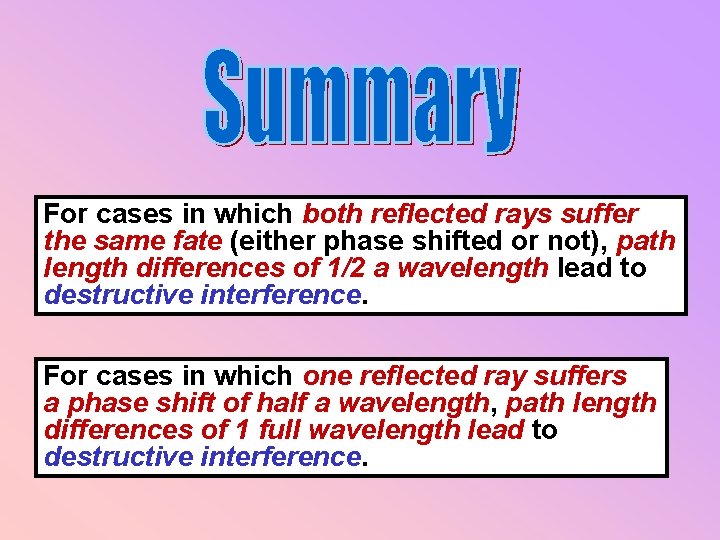

For cases in which both reflected rays suffer the same fate (either phase shifted or not), path length differences of 1/2 a wavelength lead to destructive interference. For cases in which one reflected ray suffers a phase shift of half a wavelength, path length differences of 1 full wavelength lead to destructive interference.

In studying the two slit interference pattern, we’ve made some simplifying assumptions and neglected some important physical processes. Perhaps the most important of these is known as

The way we’ve drawn our diagrams for the two slit interference, we’ve included the process already without really commenting on its existence. Let’s take a close-up view of one of the slits. . .

If light is travelling in a straight path, why don’t we observe the following:

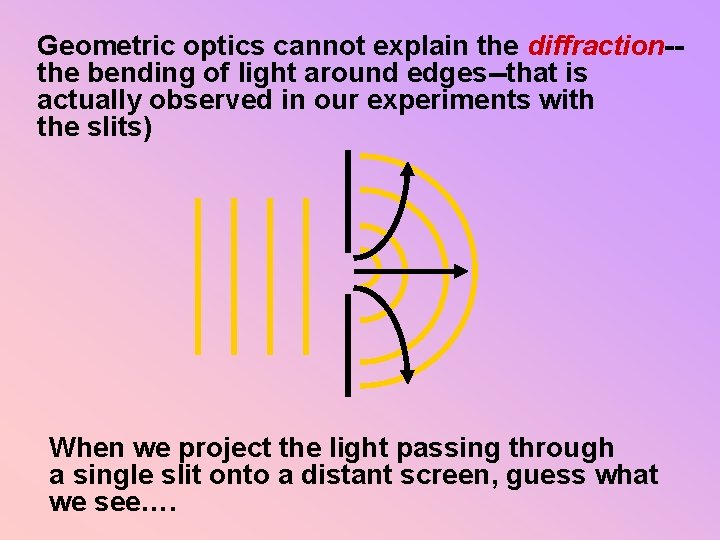

Geometric optics cannot explain the diffraction-the bending of light around edges--that is actually observed in our experiments with the slits) When we project the light passing through a single slit onto a distant screen, guess what we see….

Central maximum 2 1 Secondary maxima 1 Secondary minima 2

Right about this point, you should be asking yourself. . . Why in the world should light from a single slit produce what looks like an interference pattern on the screen? ? It is useful to employ Huygens’ principle to explain our observations. . .

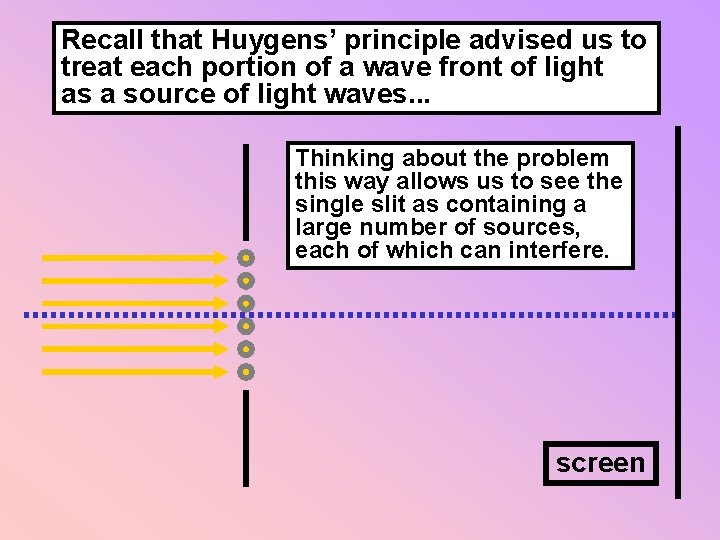

Recall that Huygens’ principle advised us to treat each portion of a wave front of light as a source of light waves. . . Thinking about the problem this way allows us to see the single slit as containing a large number of sources, each of which can interfere. screen

a q minima screen A dark spot will appear on the screen at locations where the path length difference d is half a wavelength.

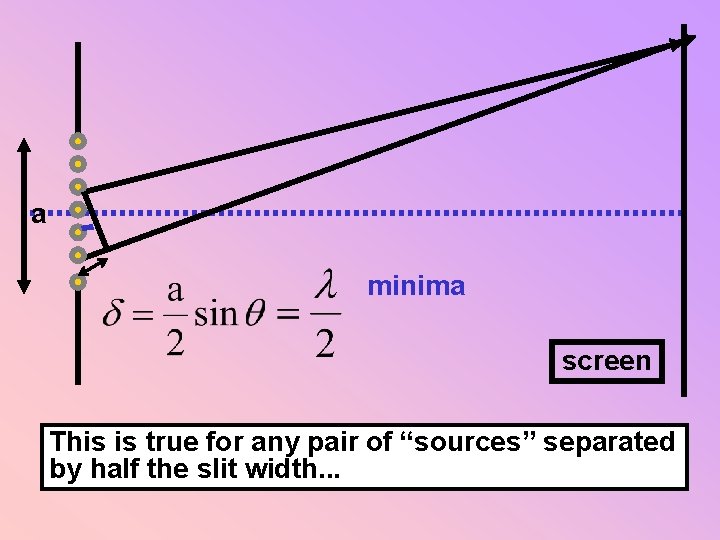

a minima screen This is true for any pair of “sources” separated by half the slit width. . .

Destructive interference will occur as long as the path length difference is some integral multiple of the quantity l/a Therefore, angles at which destructive interference occurs are given by Where m = +/- 1, +/- 2, +/- 3, ….

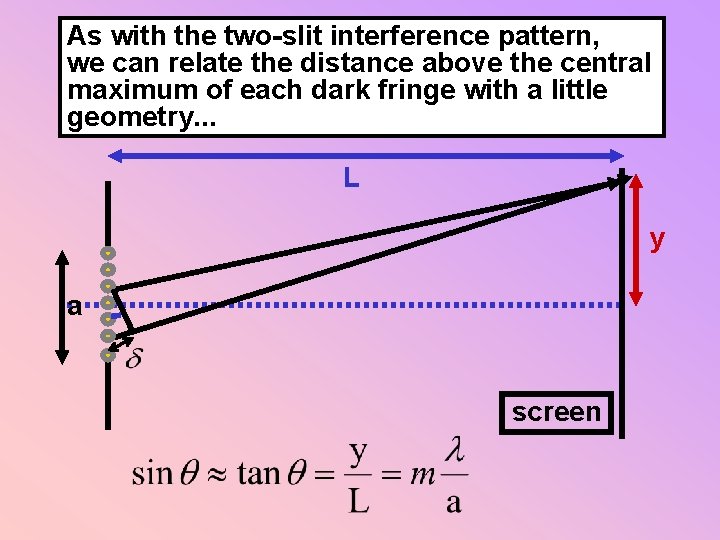

As with the two-slit interference pattern, we can relate the distance above the central maximum of each dark fringe with a little geometry. . . L y a screen

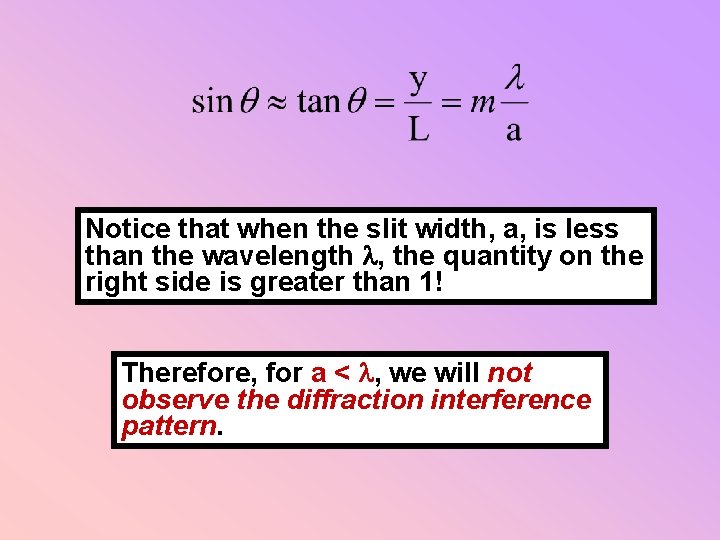

Notice that when the slit width, a, is less than the wavelength l, the quantity on the right side is greater than 1! Therefore, for a < l, we will not observe the diffraction interference pattern.

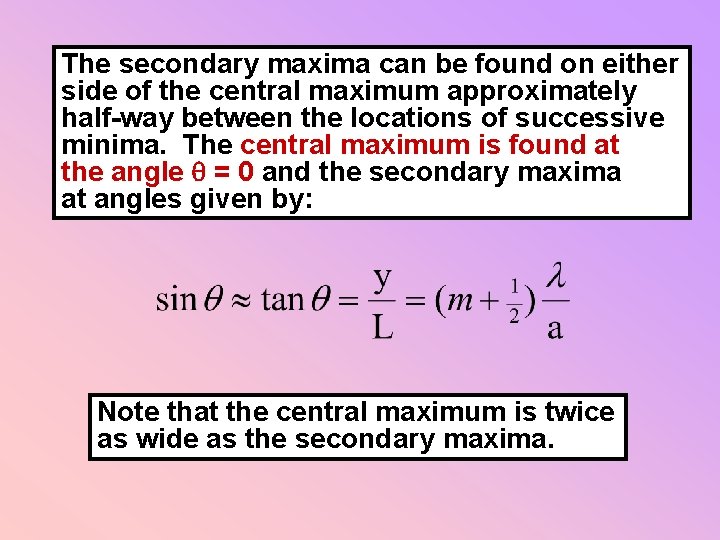

The secondary maxima can be found on either side of the central maximum approximately half-way between the locations of successive minima. The central maximum is found at the angle q = 0 and the secondary maxima at angles given by: Note that the central maximum is twice as wide as the secondary maxima.

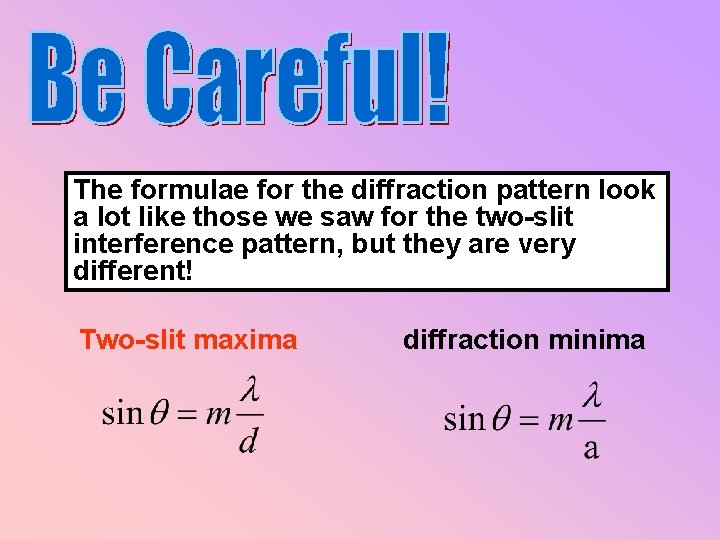

The formulae for the diffraction pattern look a lot like those we saw for the two-slit interference pattern, but they are very different! Two-slit maxima diffraction minima

Conceptually, it’a quite simple to extend our discussion of diffraction and Young’s experiment to the case of the interference pattern produced from an object known as a Instead of the large number of “sources” that we considered in the diffraction pattern using Huygen’s principle, the diffraction grating consists of a very large number of slits, each one of which acts as its own source. You can think of it as an n-slit interference pattern (where n is the number of slits).

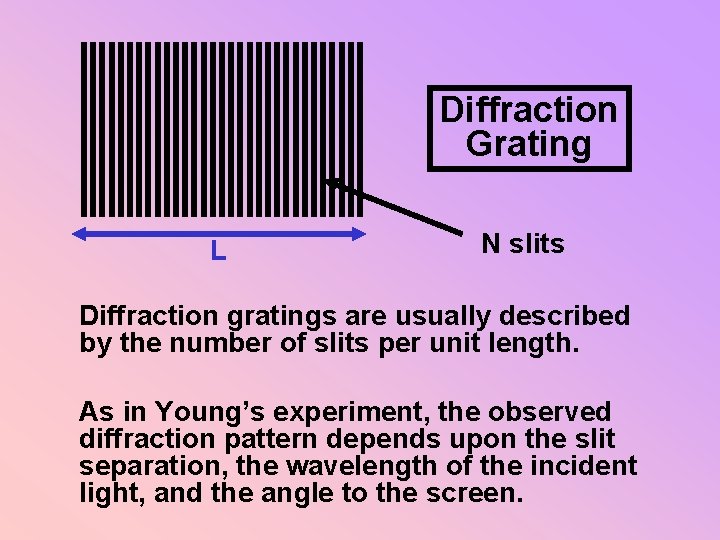

Diffraction Grating L N slits Diffraction gratings are usually described by the number of slits per unit length. As in Young’s experiment, the observed diffraction pattern depends upon the slit separation, the wavelength of the incident light, and the angle to the screen.

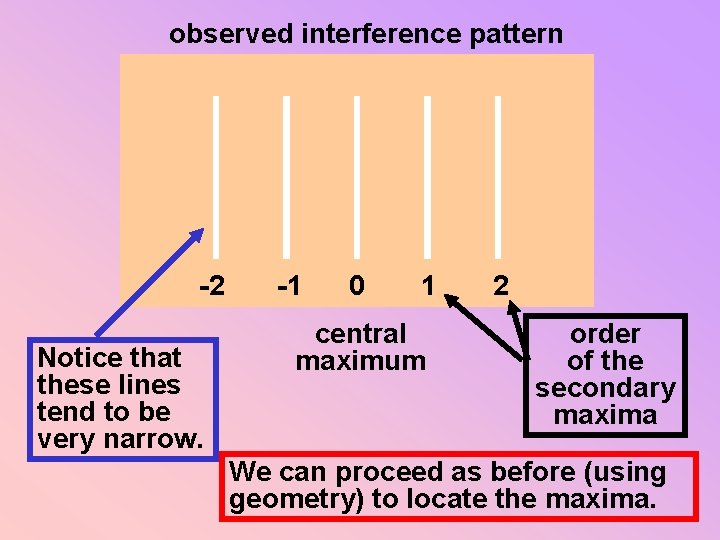

observed interference pattern -2 Notice that these lines tend to be very narrow. -1 0 1 central maximum 2 order of the secondary maxima We can proceed as before (using geometry) to locate the maxima.

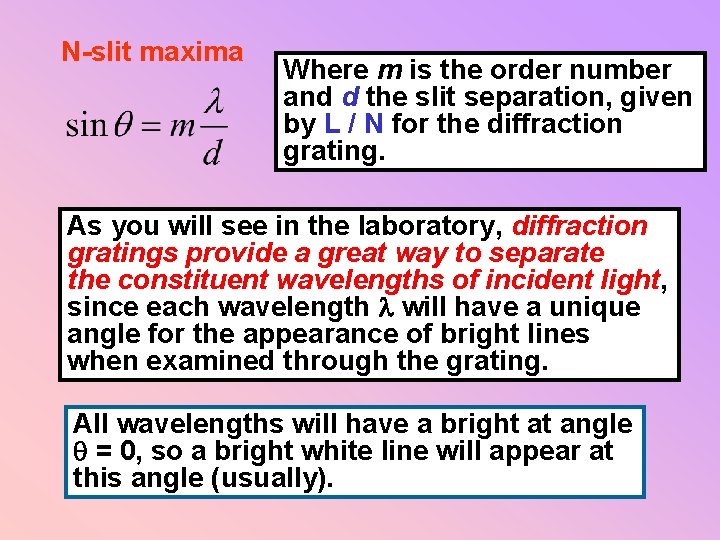

N-slit maxima Where m is the order number and d the slit separation, given by L / N for the diffraction grating. As you will see in the laboratory, diffraction gratings provide a great way to separate the constituent wavelengths of incident light, since each wavelength l will have a unique angle for the appearance of bright lines when examined through the grating. All wavelengths will have a bright at angle q = 0, so a bright white line will appear at this angle (usually).

Geometric Optics Mirrors Lenses Images Interference Diffraction

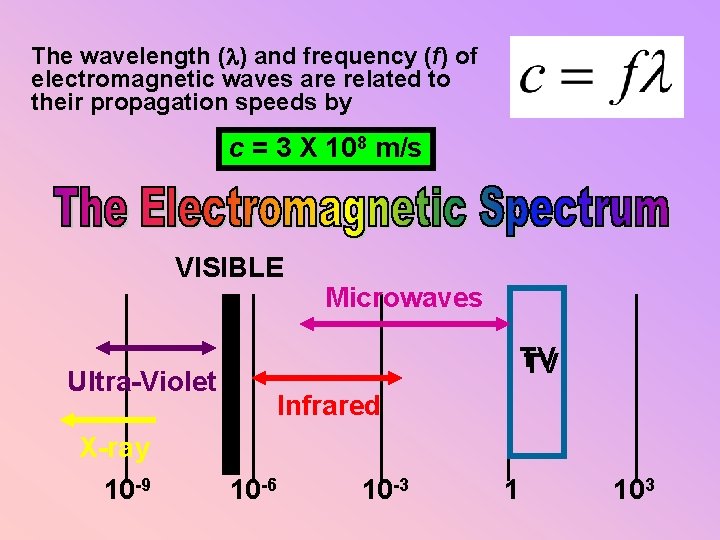

The wavelength (l) and frequency (f) of electromagnetic waves are related to their propagation speeds by c = 3 X 108 m/s VISIBLE TV TV Ultra-Violet X-ray 10 -9 Microwaves Infrared 10 -6 10 -3 1 103

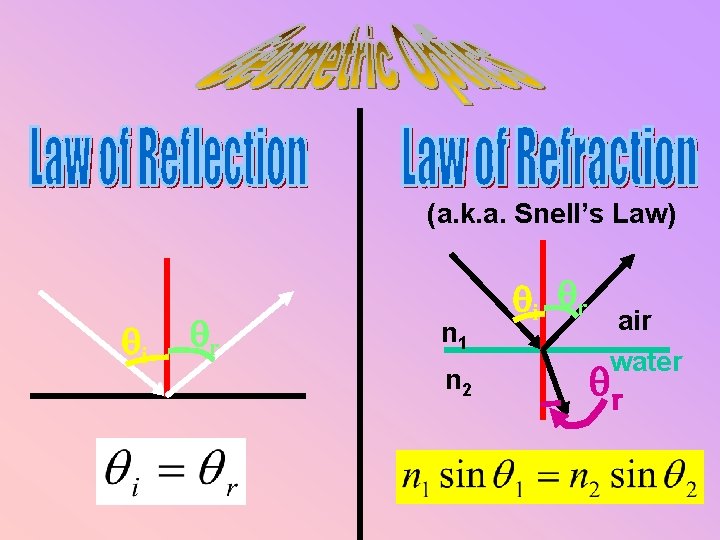

(a. k. a. Snell’s Law) qi qr n 1 n 2 qi qr air water qr

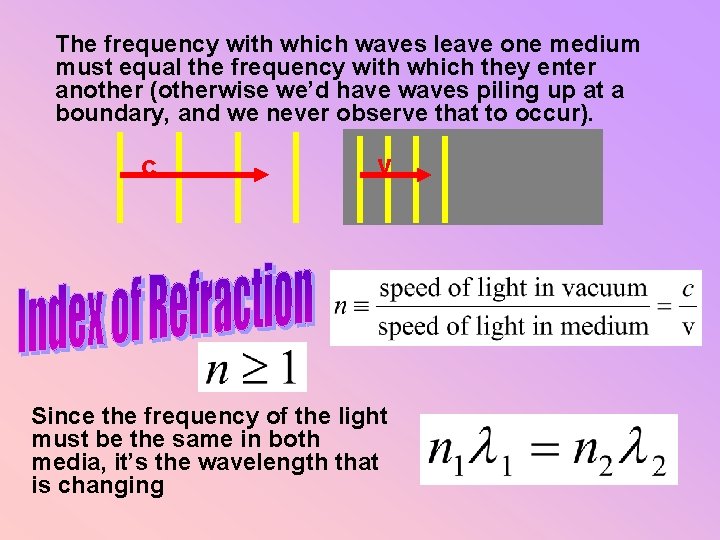

The frequency with which waves leave one medium must equal the frequency with which they enter another (otherwise we’d have waves piling up at a boundary, and we never observe that to occur). c v Since the frequency of the light must be the same in both media, it’s the wavelength that is changing

For light rays travelling into a material with a smaller index of refraction, there exists a critical angle greater than which the light rays cannot enter the second medium. These light rays are totally reflected by the boundary back into the original medium. The law of reflection applies in this case.

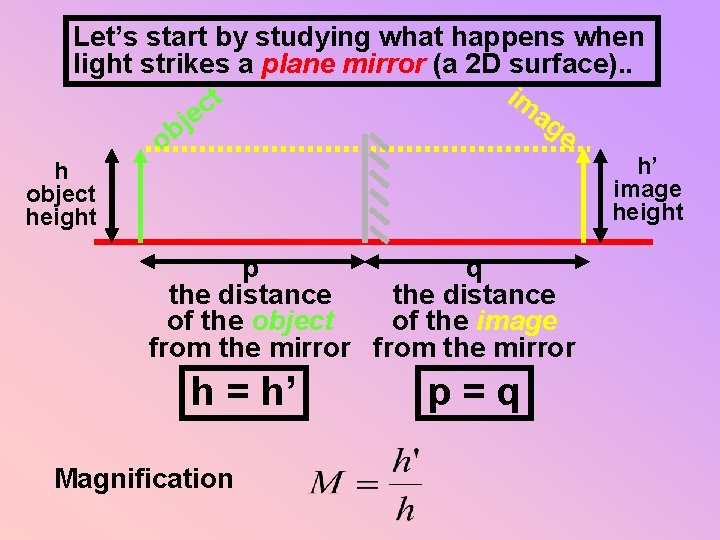

Let’s start by studying what happens when light strikes a plane mirror (a 2 D surface). . im t c ag e j e ob h’ image height h object height p q the distance of the object of the image from the mirror h = h’ Magnification p=q

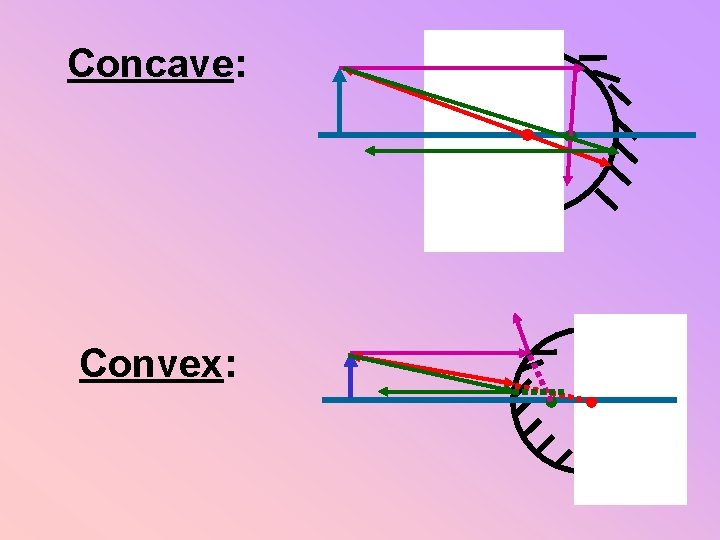

Concave: Convex:

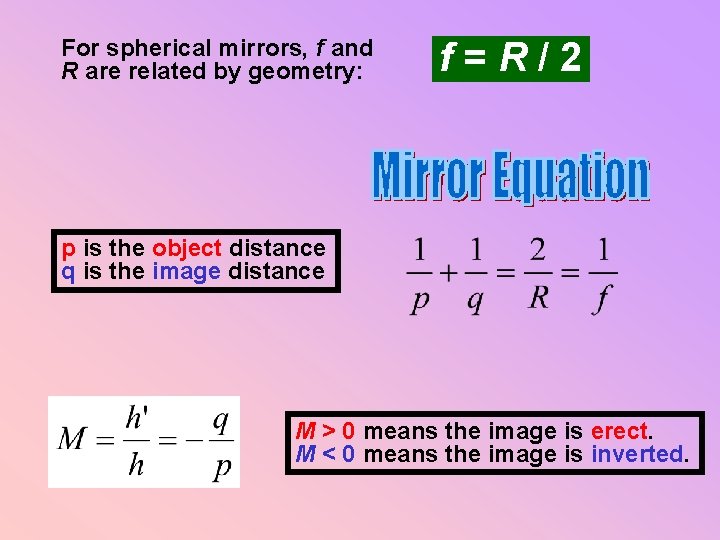

For spherical mirrors, f and R are related by geometry: f=R/2 p is the object distance q is the image distance M > 0 means the image is erect. M < 0 means the image is inverted.

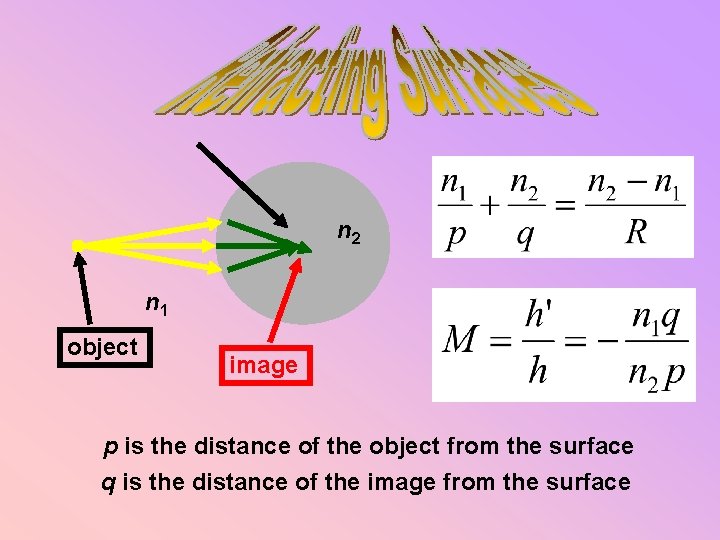

n 2 n 1 object image p is the distance of the object from the surface q is the distance of the image from the surface

A plane has a radius of curvature equal to infinity, so. . . Diverging (f < 0) Converging (f > 0) Thinnest in the middle. Parallel light rays from infinity diverge as they pass through the lens. Thickest in the middle. Bring light rays from infinity to a focus on the opposite side of the lens.

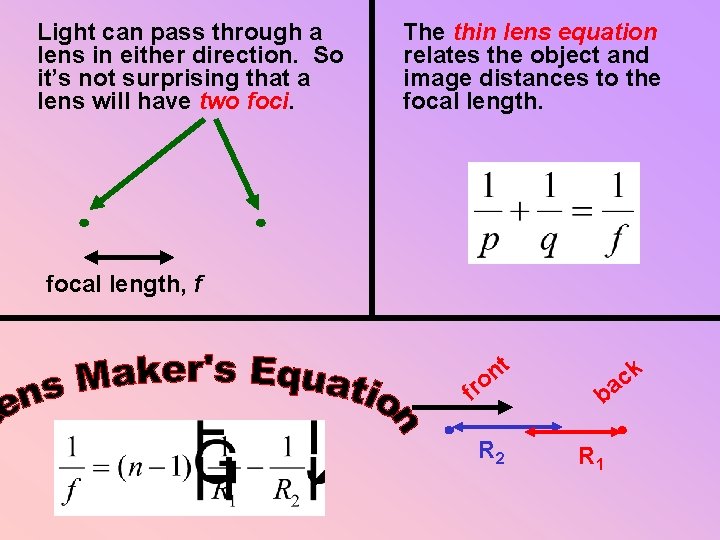

Light can pass through a lens in either direction. So it’s not surprising that a lens will have two foci. The thin lens equation relates the object and image distances to the focal length, f t n o fr R 2 k c ba R 1

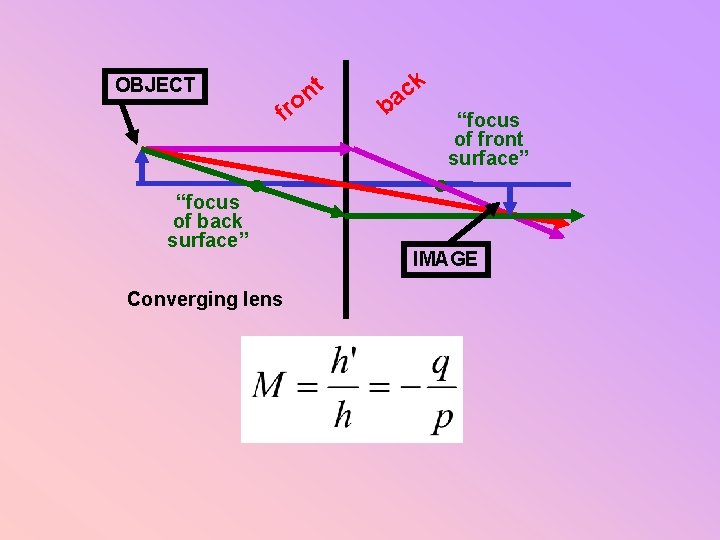

OBJECT fr t n o “focus of back surface” Converging lens k c ba “focus of front surface” IMAGE

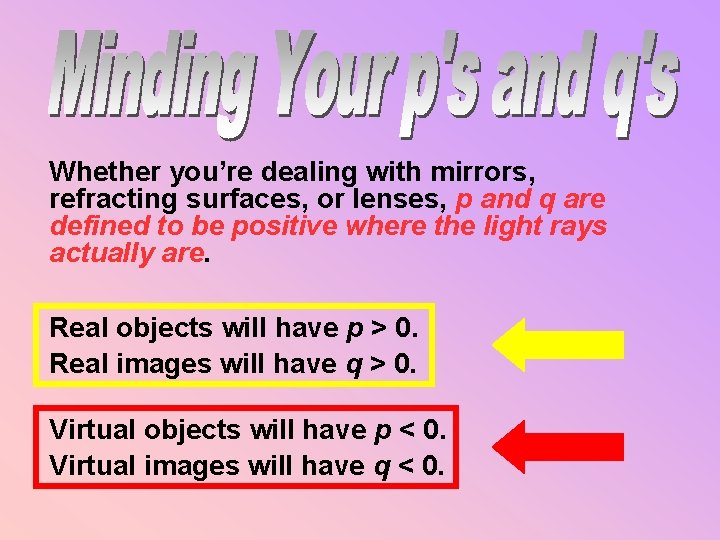

Whether you’re dealing with mirrors, refracting surfaces, or lenses, p and q are defined to be positive where the light rays actually are. Real objects will have p > 0. Real images will have q > 0. Virtual objects will have p < 0. Virtual images will have q < 0.

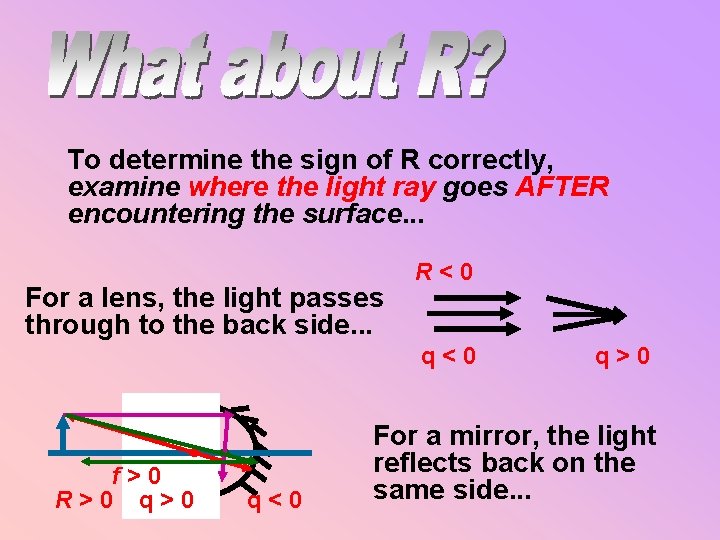

To determine the sign of R correctly, examine where the light ray goes AFTER encountering the surface. . . For a lens, the light passes through to the back side. . . R<0 q<0 f>0 R>0 q<0 q>0 For a mirror, the light reflects back on the same side. . .

1) To determine whether p > 0 or p < 0, ask yourself, “Where is the light coming from? ” On the side of the boundary from which light comes, p > 0! 2) To determine whether q > 0 or q < 0, ask yourself, “Where does the light go? ” On the side of the boundary that light travels after encountering the surface, q > 0.

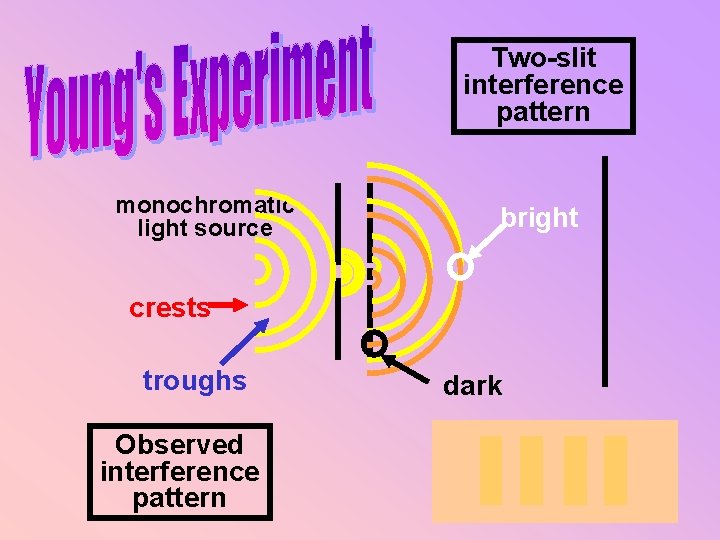

Two-slit interference pattern monochromatic light source bright crests troughs Observed interference pattern dark

r 1 r 2 d L bright fringes dark fringes For small q screen d q q y So,

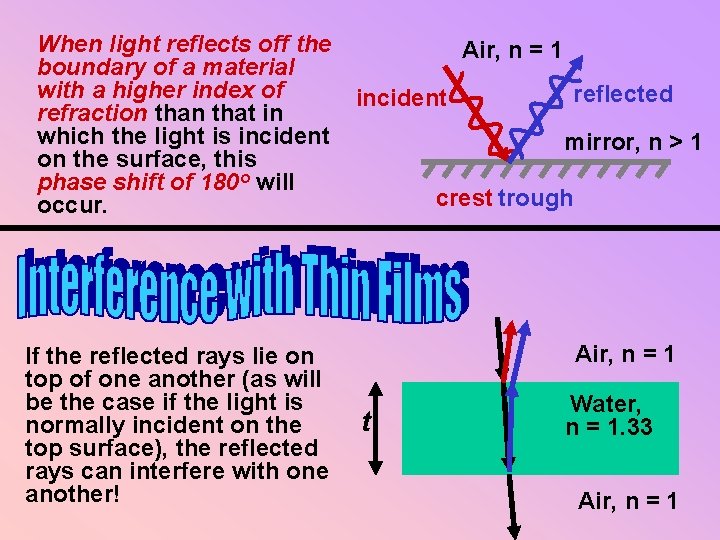

When light reflects off the Air, n = 1 boundary of a material with a higher index of reflected incident refraction that in which the light is incident mirror, n > 1 on the surface, this phase shift of 180 o will crest trough occur. If the reflected rays lie on top of one another (as will be the case if the light is normally incident on the top surface), the reflected rays can interfere with one another! Air, n = 1 t Water, n = 1. 33 Air, n = 1

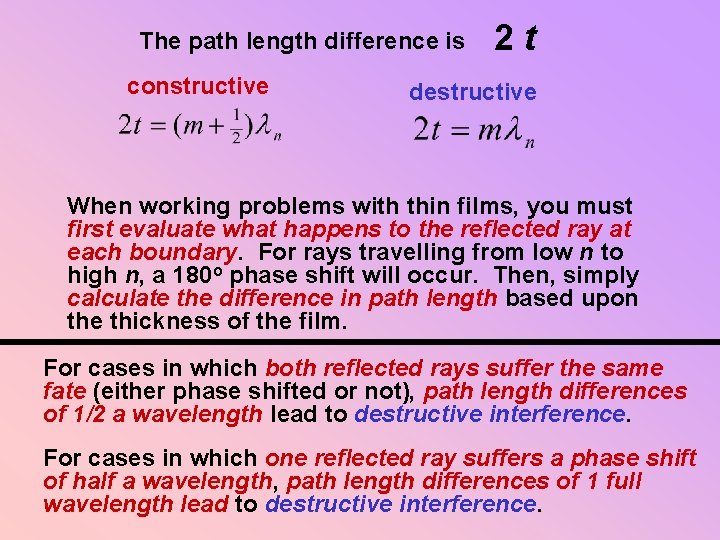

The path length difference is constructive 2 t destructive When working problems with thin films, you must first evaluate what happens to the reflected ray at each boundary. For rays travelling from low n to high n, a 180 o phase shift will occur. Then, simply calculate the difference in path length based upon the thickness of the film. For cases in which both reflected rays suffer the same fate (either phase shifted or not), path length differences of 1/2 a wavelength lead to destructive interference. For cases in which one reflected ray suffers a phase shift of half a wavelength, path length differences of 1 full wavelength lead to destructive interference.
