Chapter 23 Electric Current 26 Sep20 Physics 1

Current Water flows from the reservoir of higher pressure to the reservoir of lower

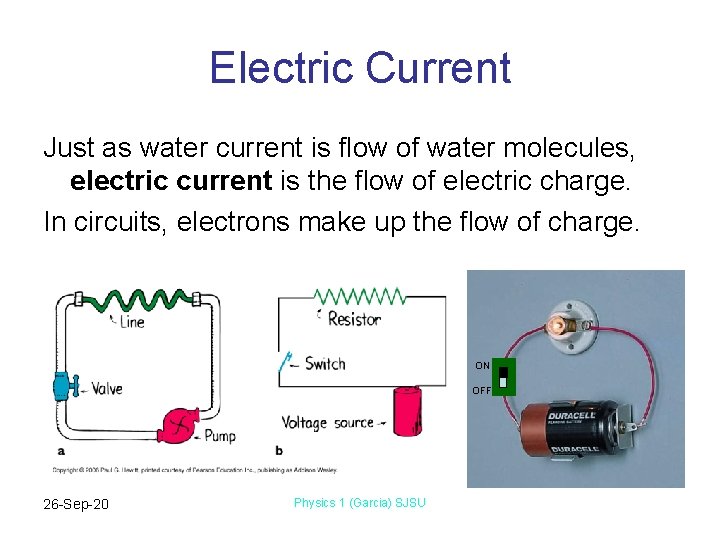

Electric Current Just as water current is flow of water molecules, electric current is

Demo: Ammeter measures electrical current. Due to charge conservation, same current into and out

Voltage Sources Charges flow only when they are “pushed” or “driven. ” A sustained

Chemical Battery Batteries separate positive and negative charges by using a chemical reaction. Chemical

Rechargeable Battery Eventually the battery’s chemicals are consumed unless the reaction can be reversed

Electrical Resistance Current depends not only on the voltage but also on the electrical

Jacob’s Ladder Electrical resistance through air is greater for a larger gap. Biblical Jacob’s

Ohm’s Law Relation between current, voltage, and resistance is Ohm’s law, (Current) = (Voltage)

Lab: Ohm’s Law Measuring voltage, current, and resistance in simple circuits to verify Ohm’s

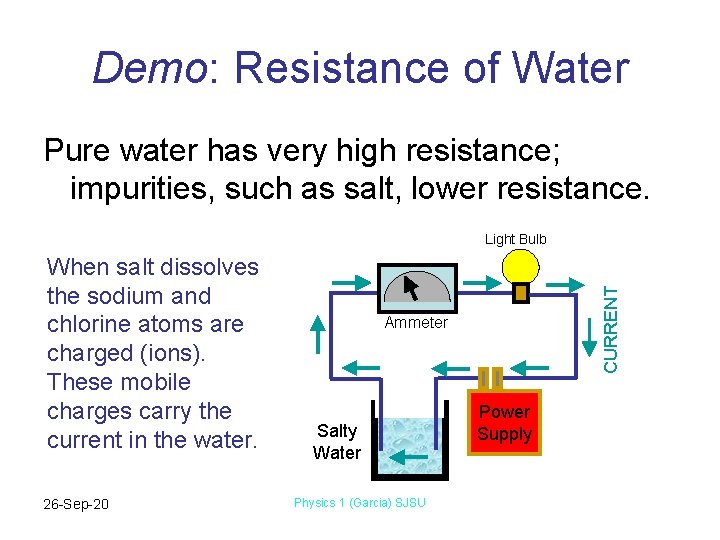

Demo: Resistance of Water Pure water has very high resistance; impurities, such as salt,

Nervous System Nervous systems in animals use electrical currents to signal the contraction and

Conduction in Human Heart The most important electrical signal in our body is the

Conduction in Human Heart The normal electrical conduction in the heart allows the impulse

Electric Shock The damaging effects of shock are the result of current passing through

Check Yourself If your resistance is 100, 000 , what is the current passing

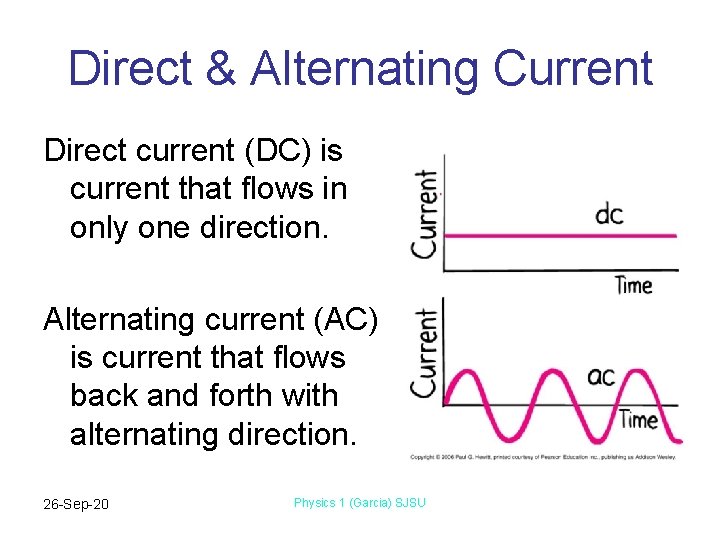

Direct & Alternating Current Direct current (DC) is current that flows in only one

DC vs. AC Easy to produce small DC currents using batteries, which also have

Electrons in Conductors Electrons in a wire are in constant, rapid, but random motion.

Demo: Resistance & Temperature uid n Liq oge tr Ni Resistance in a material

Ohmic Heating Flowing electrons strike atoms in a conductor, heating the material. 26 -Sep-20

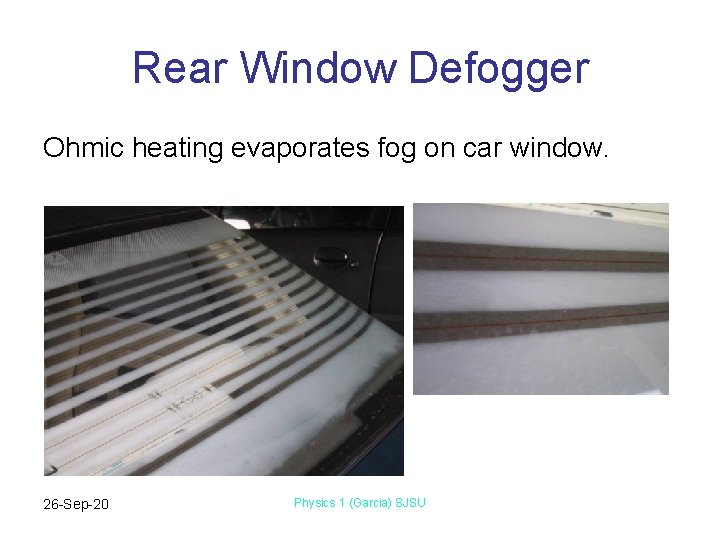

Rear Window Defogger Ohmic heating evaporates fog on car window. 26 -Sep-20 Physics 1

Demo: Ohmic Cooking An electric current running through a hot dog generates enough heat

Electric Power is rate at which energy is delivered. Power = (Voltage) x (Current)

Check Yourself A kilowatt is 1000 watts, and a kilowatt-hour is the amount of

Lab: Simple Electric Circuits Combining circuit elements (battery, wires, bulbs, resistors, etc. ) in

Series Circuit Same current passes through each element. Disconnect one of the bulbs and

Parallel Circuit Same voltage on each bulb; current splits through each branch. Disconnect one

Check Yourself How do the brightnesses of the identical light bulbs compare? Which bulb

Overloading a Circuit More appliances added to a parallel circuit, the more current flows.

Fuses & Circuit Breakers Fuse is designed to melt (due to ohmic heating) when

Check Yourself If a 1200 watt hair dryer is connected to a 120 Volt
