Chapter 22 Part A The Respiratory System Annie

Figure 22. 1 The major respiratory organs in relation to surrounding structures. Nasal cavity

Table 22. 1 The Upper Respiratory System © 2016 Pearson Education, Inc.

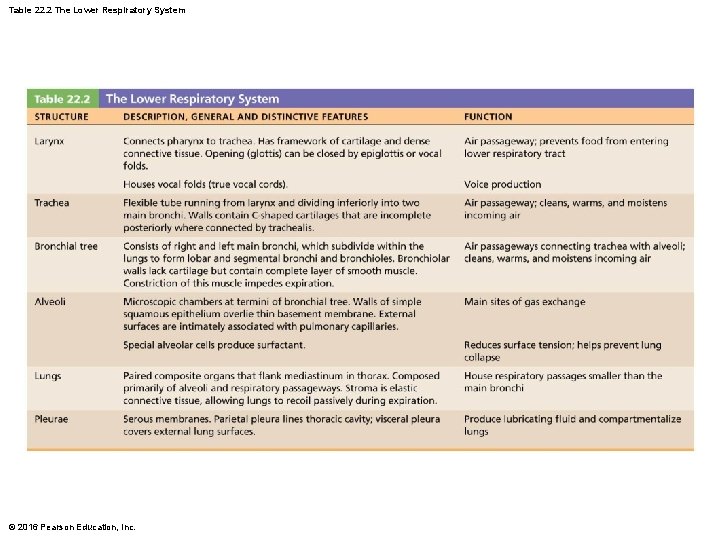

Table 22. 2 The Lower Respiratory System © 2016 Pearson Education, Inc.

Figure 22. 2 a The external nose. Epicranius, frontal belly Root and bridge of

Figure 22. 2 b The external nose. Frontal bone Nasal bone Septal cartilage Maxillary

Figure 22. 3 a The nasal cavity. Posterior nasal aperture Sphenoidal sinus Cribriform plate

Figure 22. 3 b The nasal cavity. Olfactory epithelium Olfactory nerves Nasal cavity •

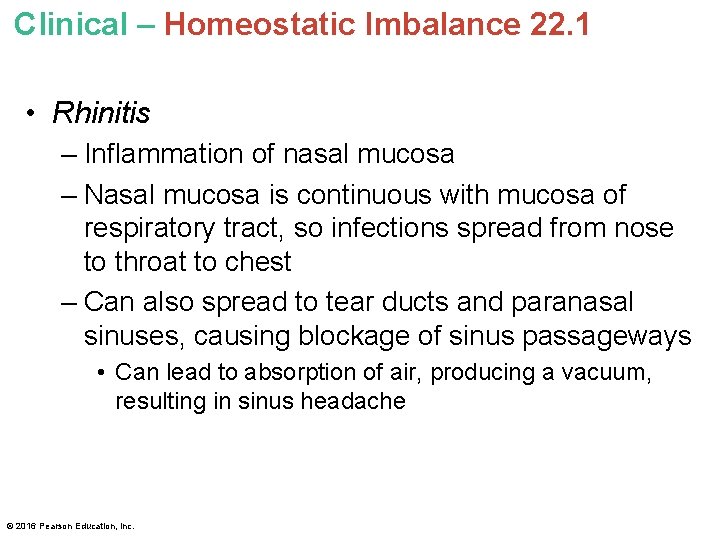

Clinical – Homeostatic Imbalance 22. 1 • Rhinitis – Inflammation of nasal mucosa –

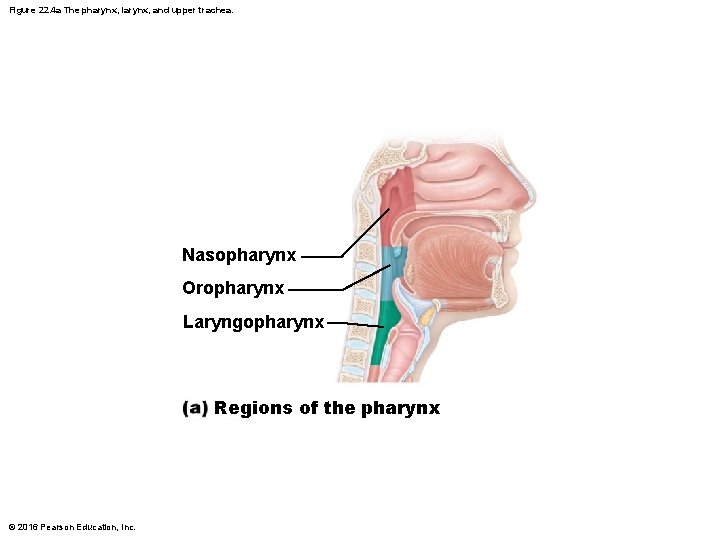

Figure 22. 4 a The pharynx, larynx, and upper trachea. Nasopharynx Oropharynx Laryngopharynx Regions

Figure 22. 4 b The pharynx, larynx, and upper trachea. Posterior nasal aperture Nasopharynx

Clinical – Homeostatic Imbalance 22. 2 • Infected and swollen adenoids can block air

Figure 22. 5 a The larynx. Body of hyoid bone Laryngeal prominence (Adam’s apple)

Figure 22. 5 b The larynx. Epiglottis Thyrohyoid membrane Body of hyoid bone Thyroid

Figure 22. 6 Movements of the vocal folds. Epiglottis Vestibular fold (false vocal cord)

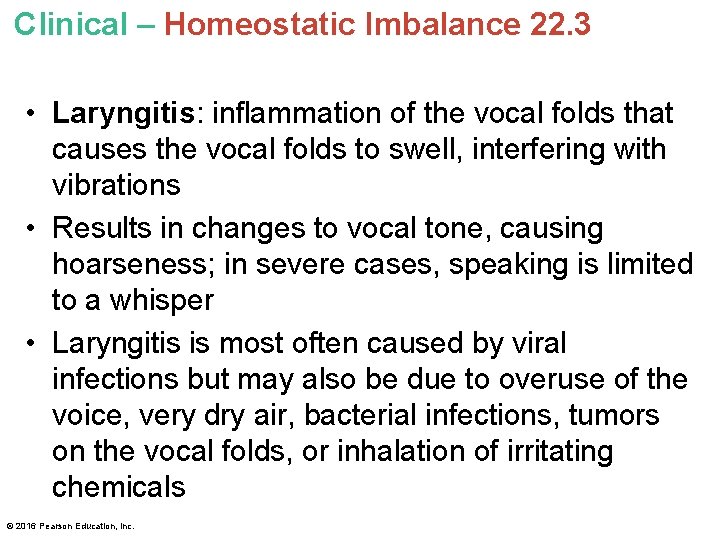

Clinical – Homeostatic Imbalance 22. 3 • Laryngitis: inflammation of the vocal folds that

Figure 22. 7 b Tissue composition of the tracheal wall. Goblet cell Mucosa •

Figure 22. 7 c Tissue composition of the tracheal wall. Scanning electron micrograph of

Clinical – Homeostatic Imbalance 22. 4 • Smoking inhibits and ultimately destroys cilia •

Clinical – Homeostatic Imbalance 22. 5 • Tracheal obstruction is life threatening: many people

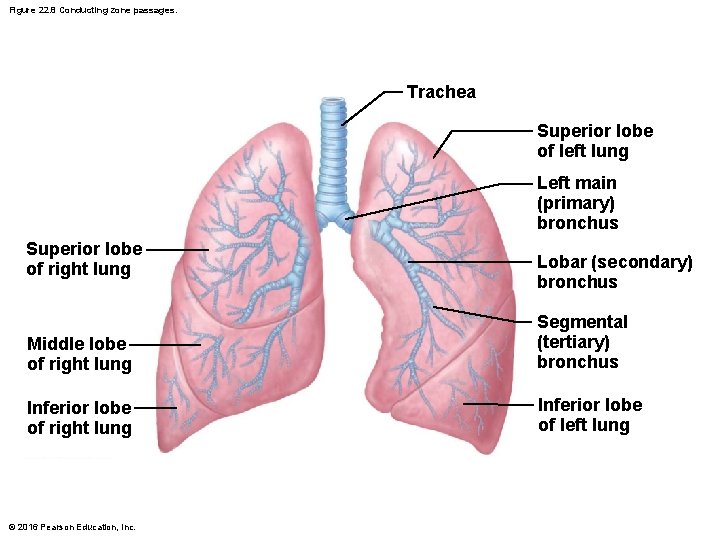

Figure 22. 8 Conducting zone passages. Trachea Superior lobe of left lung Left main

Figure 22. 9 a Respiratory zone structures. Alveoli Alveolar duct Respiratory bronchioles Terminal bronchiole

Figure 22. 9 b Respiratory zone structures. Respiratory bronchiole Alveolar duct Alveoli Alveolar sac

Figure 22. 10 a Alveoli and the respiratory membrane. Terminal bronchiole Respiratory bronchiole Smooth

Figure 22. 10 b Alveoli and the respiratory membrane. Scanning electron micrograph of pulmonary

Figure 22. 10 c Alveoli and the respiratory membrane. Red blood cell Nucleus of

Figure 22. 11 a Anatomical relationships of organs in the thoracic cavity. Lung Trachea

Figure 22. 11 b Anatomical relationships of organs in the thoracic cavity. Apex of

Figure 22. 11 c Anatomical relationships of organs in the thoracic cavity. Vertebra Posterior

Figure 22. 12 A cast of the bronchial tree. Right lung Right superior lobe

Clinical – Homeostatic Imbalance 22. 6 • Pleurisy: inflammation of pleurae that often results

Clinical – Homeostatic Imbalance 22. 6 • Other fluids that may accumulate in pleural

Atmospheric pressure (P ) and intrapleural Figure 22. 13 Intrapulmonary 0 mm Hg (760

Clinical – Homeostatic Imbalance 22. 7 • Atelectasis: lung collapse due to – Plugged

Ruptured visceral pleura Punctured parietal pleura Figure 22. 14 Pneumothorax. (often spontaneous) (e. g.

Figure 22. 15 Changes in thoracic volume and sequence of events during inspiration and

Intrapleural pressure. Pleural cavity pressure becomes more negative as chest wall expands during inspiration.

Clinical – Homeostatic Imbalance 22. 8 • As airway resistance rises, breathing movements become

Clinical – Homeostatic Imbalance 22. 9 • Insufficient quantity of surfactant in premature infants

Clinical – Homeostatic Imbalance 22. 10 • The total compliance of the respiratory system

Figure 22. 18 a Respiratory volumes and capacities. 6000 Milliliters (ml) 5000 Inspiratory reserve

Figure 22. 18 b Respiratory volumes and capacities. Respiratory volumes Respiratory capacities Measurement Adult

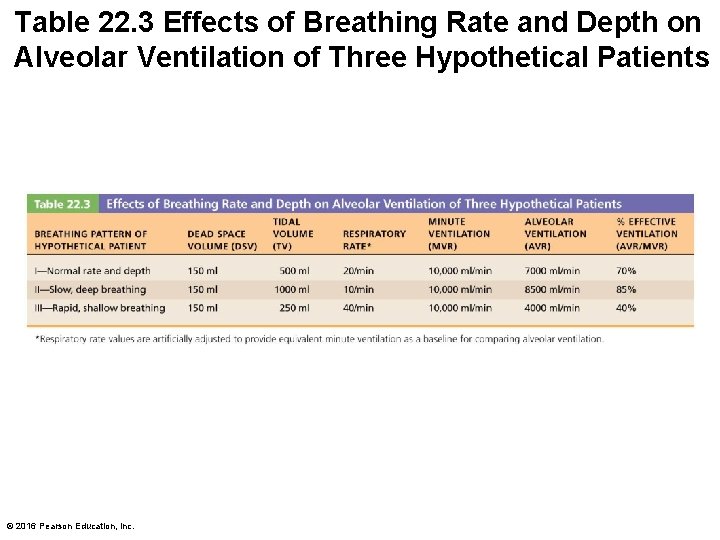

Table 22. 3 Effects of Breathing Rate and Depth on Alveolar Ventilation of Three

22. 6 Gas Exchange • Gas exchange occurs between lungs and blood as well

Clinical – Homeostatic Imbalance 22. 11 • Breathing O 2 gas at 2 atm

Table 22. 4 Comparison of Gas Partial Pressures and Approximate Percentages in the Atmosphere

Figure 22. 19 Partial pressure gradients promoting gas movements in the body. Inspired air:

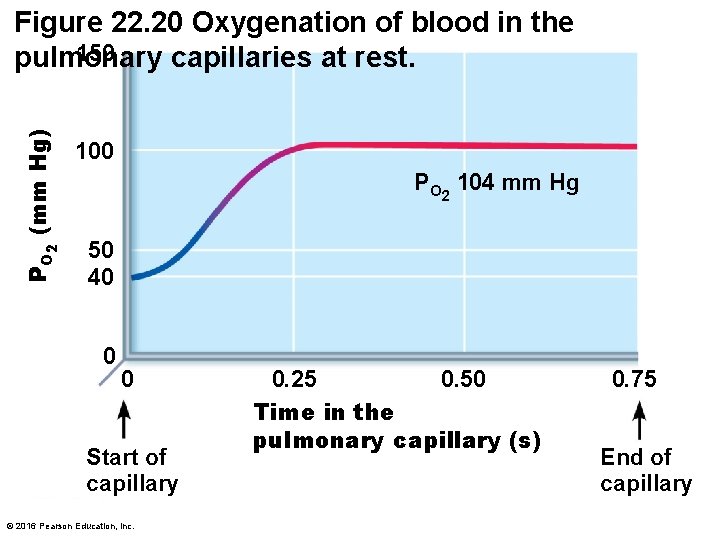

PO 2 (mm Hg) Figure 22. 20 Oxygenation of blood in the 150 pulmonary

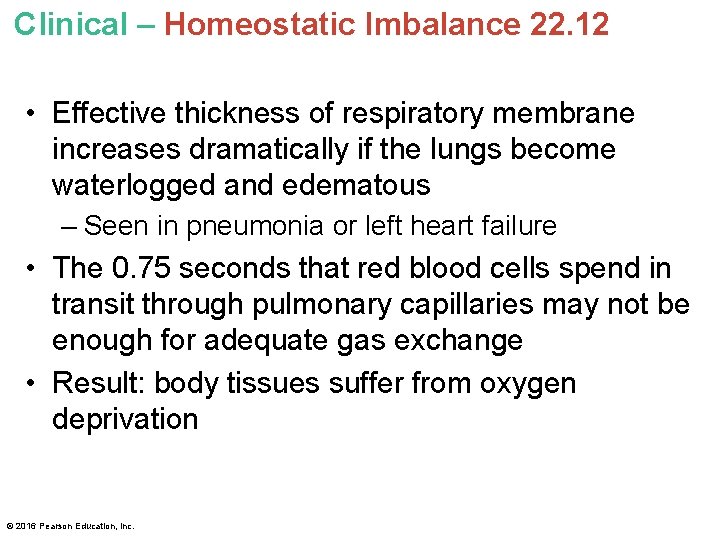

Clinical – Homeostatic Imbalance 22. 12 • Effective thickness of respiratory membrane increases dramatically

Clinical – Homeostatic Imbalance 22. 13 • Certain pulmonary diseases drastically reduce alveolar surface

Figure 22. 21 Ventilation-perfusion coupling. Ventilation less than perfusion Mismatch of ventilation and perfusion
