Chapter 22 Families of Organic Compounds Tetrahedral Carbon

Chapter 22 Families of Organic Compounds

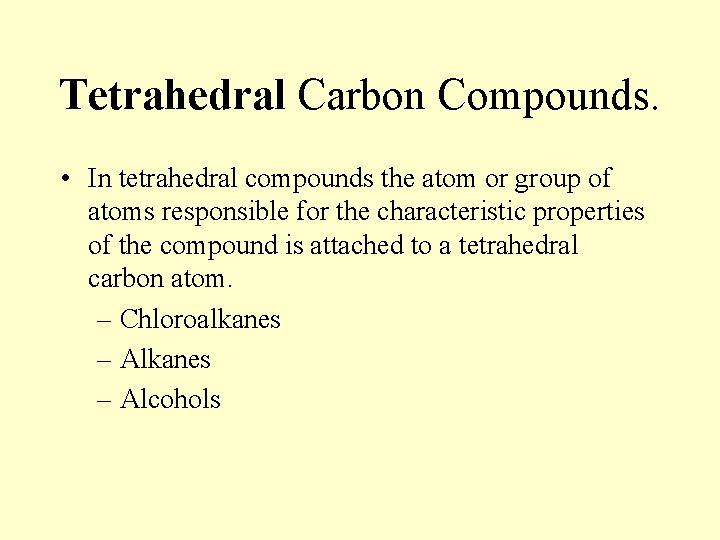

Tetrahedral Carbon Compounds. • In tetrahedral compounds the atom or group of atoms responsible for the characteristic properties of the compound is attached to a tetrahedral carbon atom. – Chloroalkanes – Alcohols

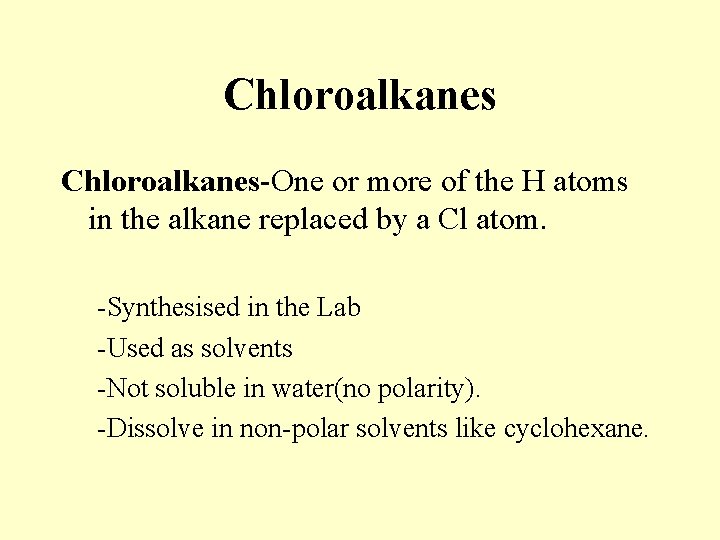

Chloroalkanes-One or more of the H atoms in the alkane replaced by a Cl atom. -Synthesised in the Lab -Used as solvents -Not soluble in water(no polarity). -Dissolve in non-polar solvents like cyclohexane.

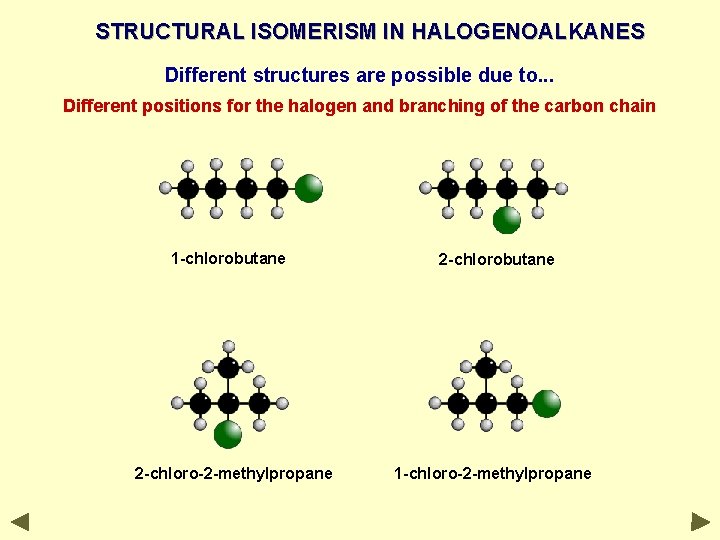

STRUCTURAL ISOMERISM IN HALOGENOALKANES Different structures are possible due to. . . Different positions for the halogen and branching of the carbon chain 1 -chlorobutane 2 -chloro-2 -methylpropane 2 -chlorobutane 1 -chloro-2 -methylpropane

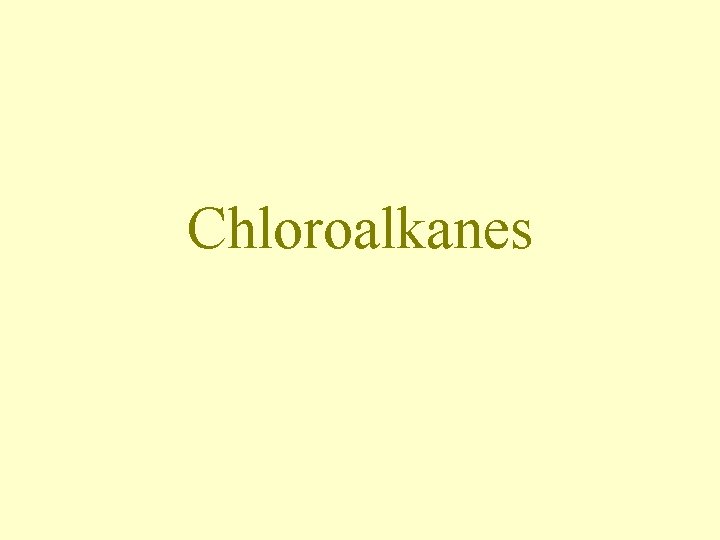

Chloroalkanes

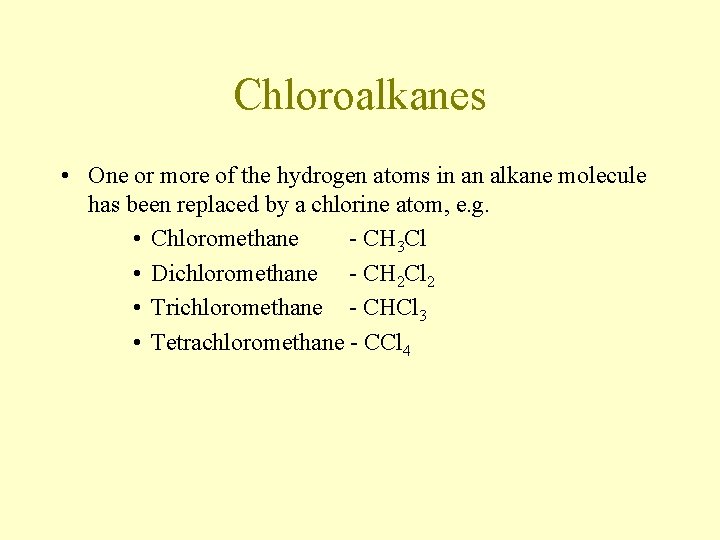

Chloroalkanes • One or more of the hydrogen atoms in an alkane molecule has been replaced by a chlorine atom, e. g. • Chloromethane - CH 3 Cl • Dichloromethane - CH 2 Cl 2 • Trichloromethane - CHCl 3 • Tetrachloromethane - CCl 4

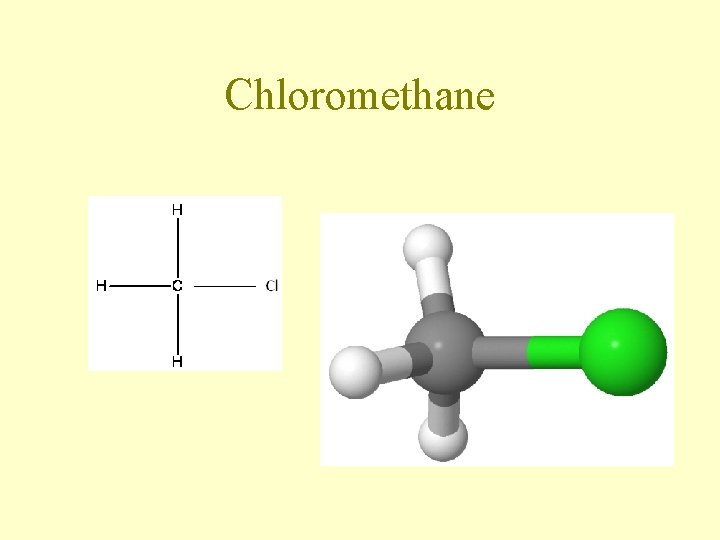

Chloromethane

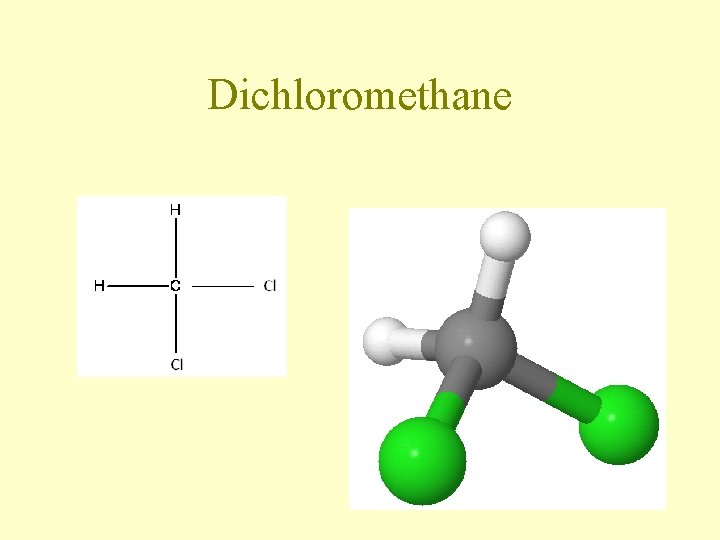

Dichloromethane

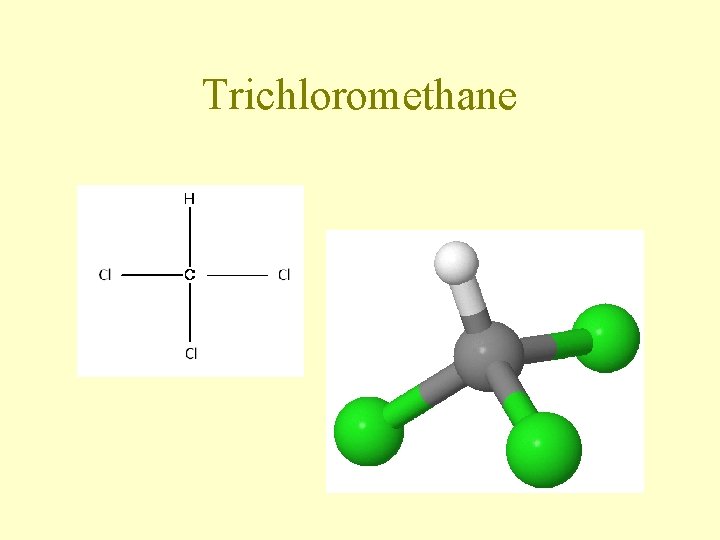

Trichloromethane

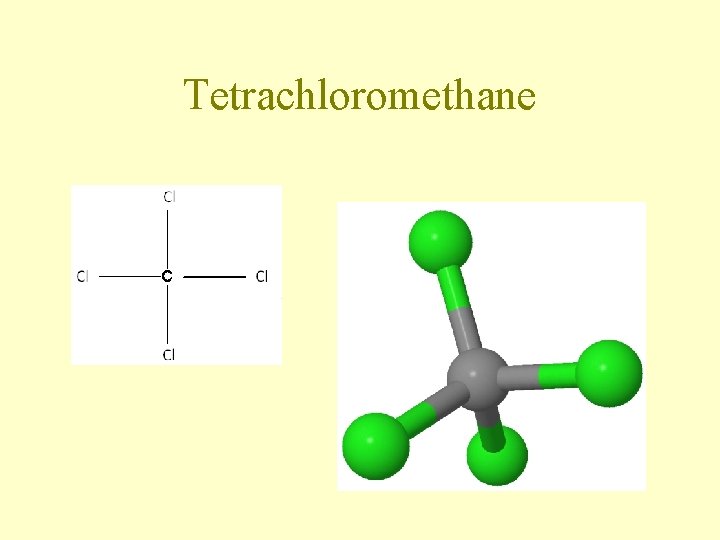

Tetrachloromethane

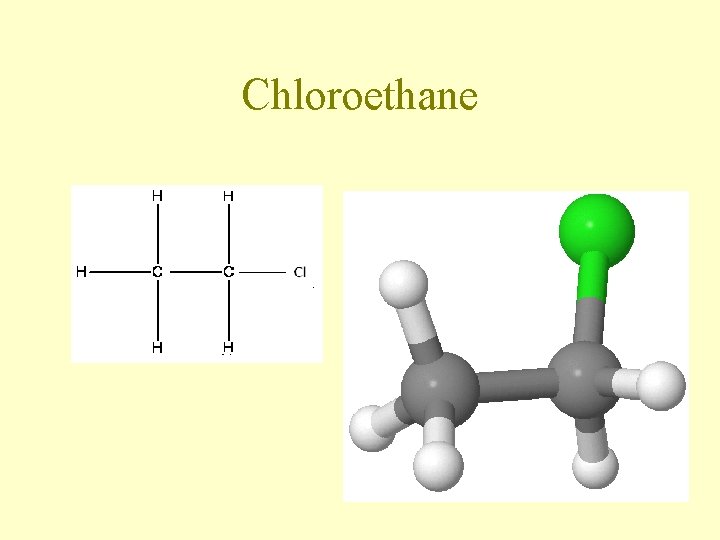

Chloroethane

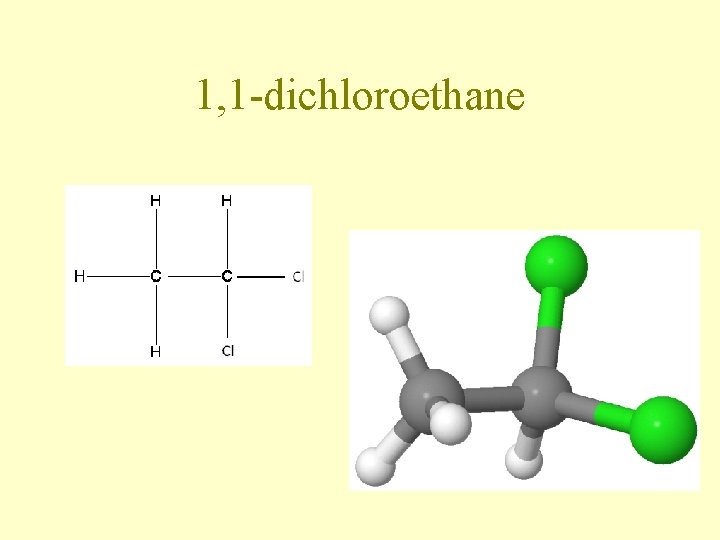

1, 1 -dichloroethane

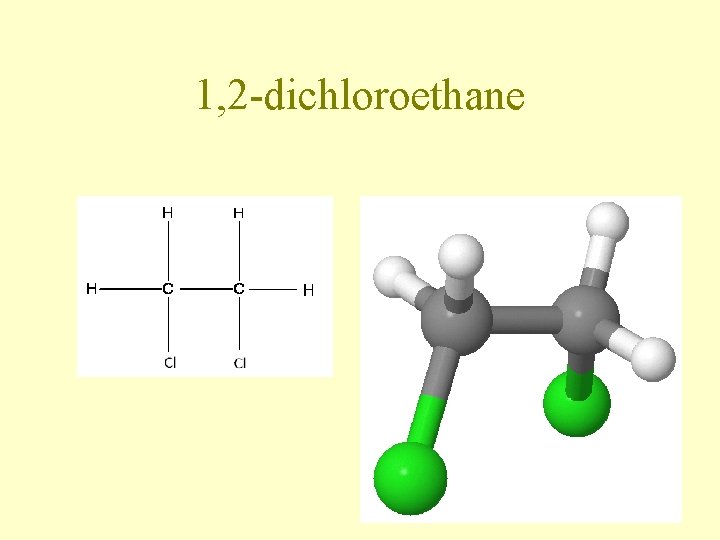

1, 2 -dichloroethane

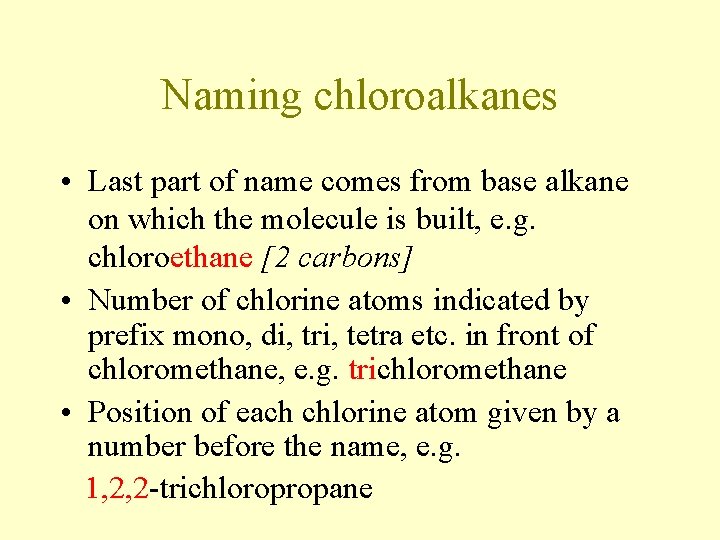

Naming chloroalkanes • Last part of name comes from base alkane on which the molecule is built, e. g. chloroethane [2 carbons] • Number of chlorine atoms indicated by prefix mono, di, tri, tetra etc. in front of chloromethane, e. g. trichloromethane • Position of each chlorine atom given by a number before the name, e. g. 1, 2, 2 -trichloropropane

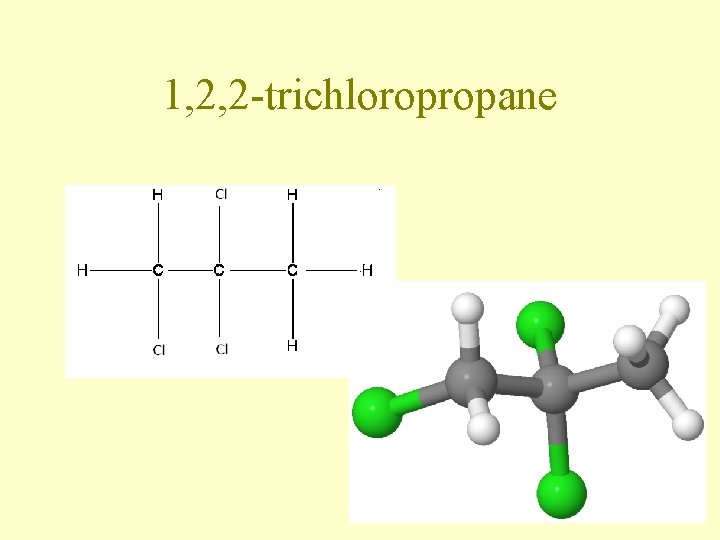

1, 2, 2 -trichloropropane

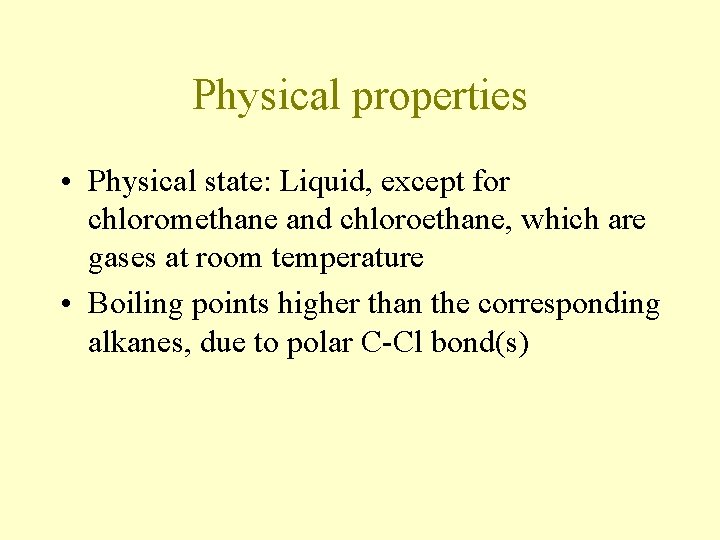

Physical properties • Physical state: Liquid, except for chloromethane and chloroethane, which are gases at room temperature • Boiling points higher than the corresponding alkanes, due to polar C-Cl bond(s)

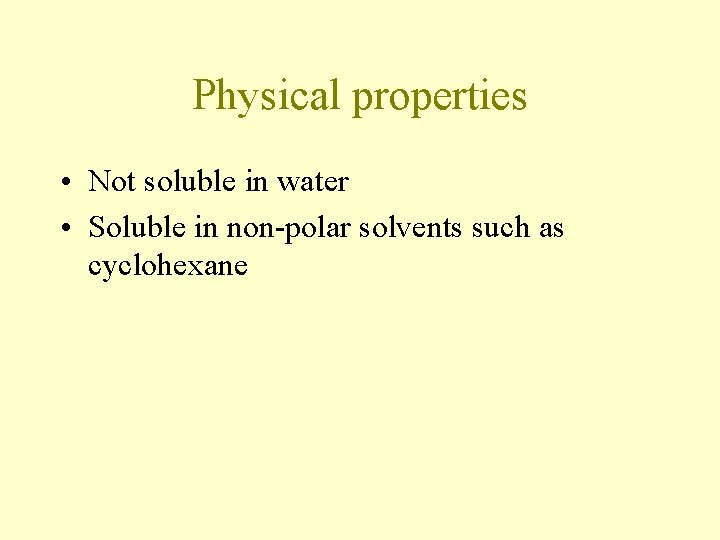

Physical properties • Not soluble in water • Soluble in non-polar solvents such as cyclohexane

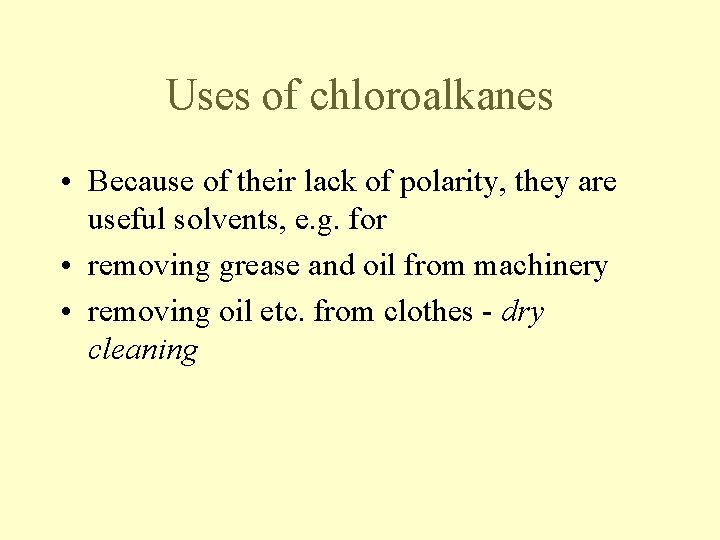

Uses of chloroalkanes • Because of their lack of polarity, they are useful solvents, e. g. for • removing grease and oil from machinery • removing oil etc. from clothes - dry cleaning

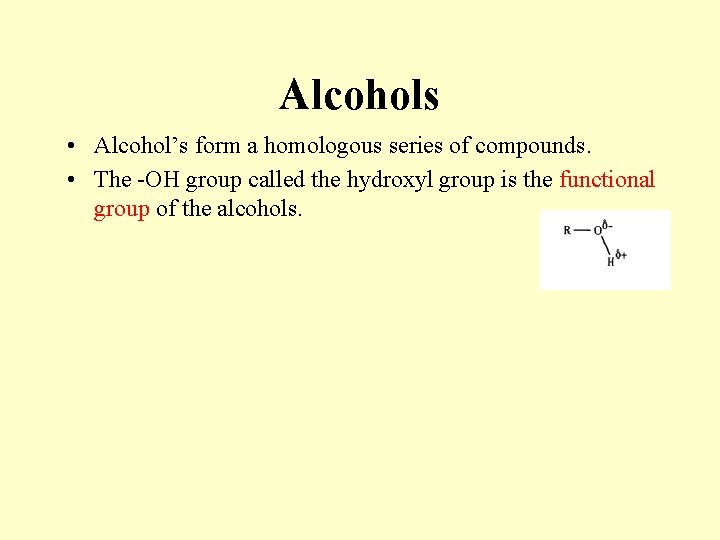

Alcohols • Alcohol’s form a homologous series of compounds. • The -OH group called the hydroxyl group is the functional group of the alcohols.

Alcohols

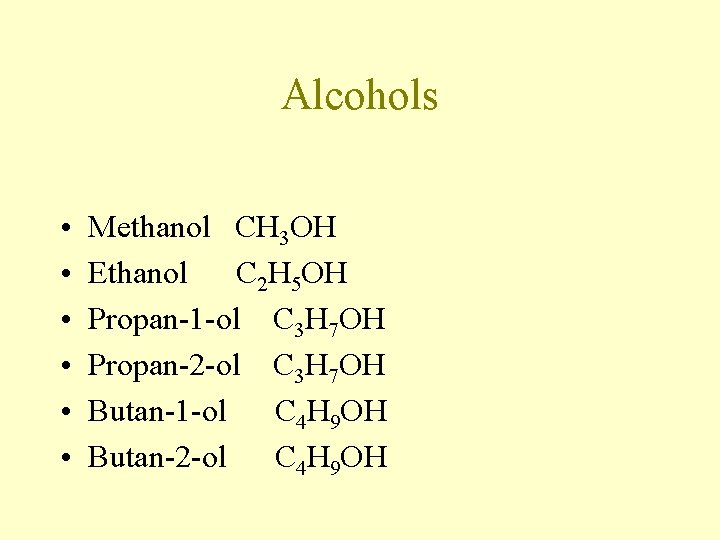

Alcohols • • • Methanol CH 3 OH Ethanol C 2 H 5 OH Propan-1 -ol C 3 H 7 OH Propan-2 -ol C 3 H 7 OH Butan-1 -ol C 4 H 9 OH Butan-2 -ol C 4 H 9 OH

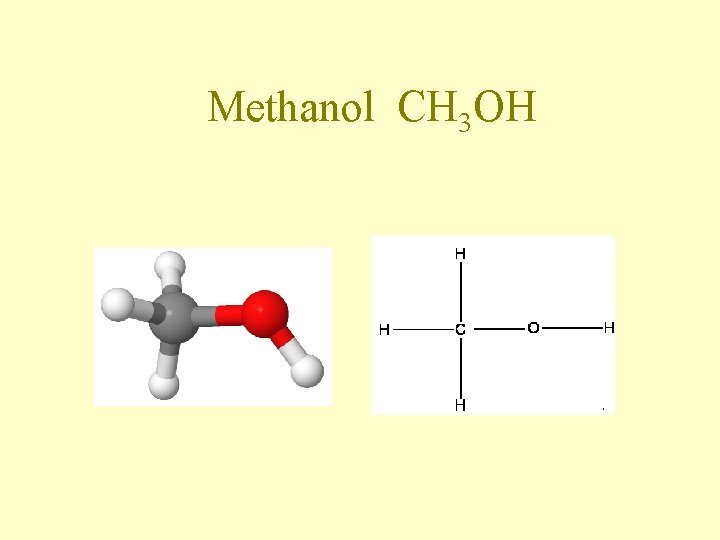

Methanol CH 3 OH

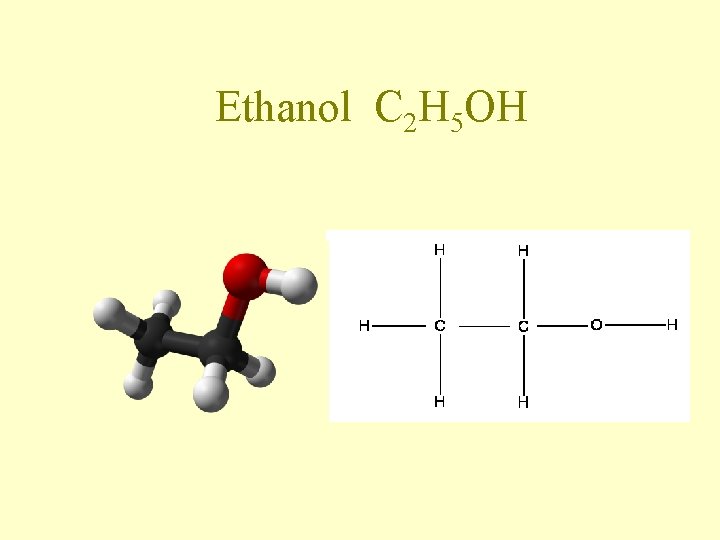

Ethanol C 2 H 5 OH

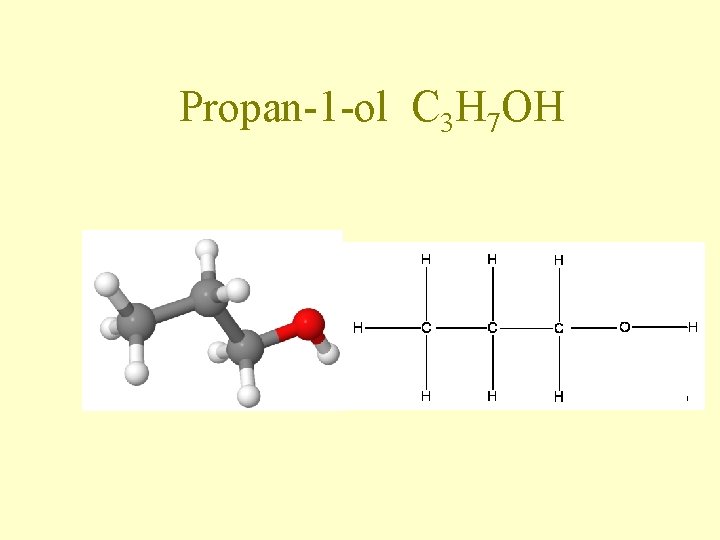

Propan-1 -ol C 3 H 7 OH

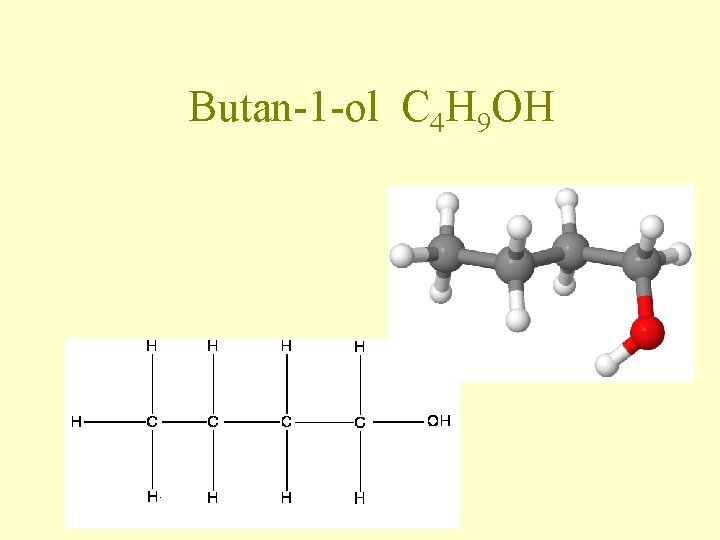

Butan-1 -ol C 4 H 9 OH

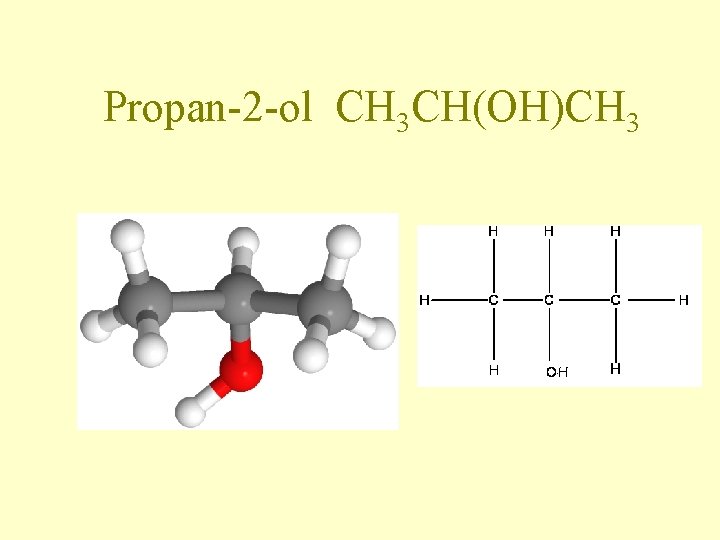

Propan-2 -ol CH 3 CH(OH)CH 3

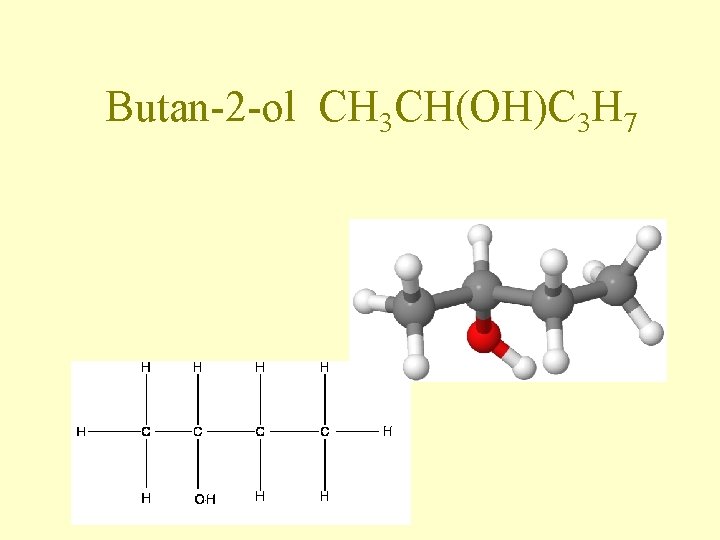

Butan-2 -ol CH 3 CH(OH)C 3 H 7

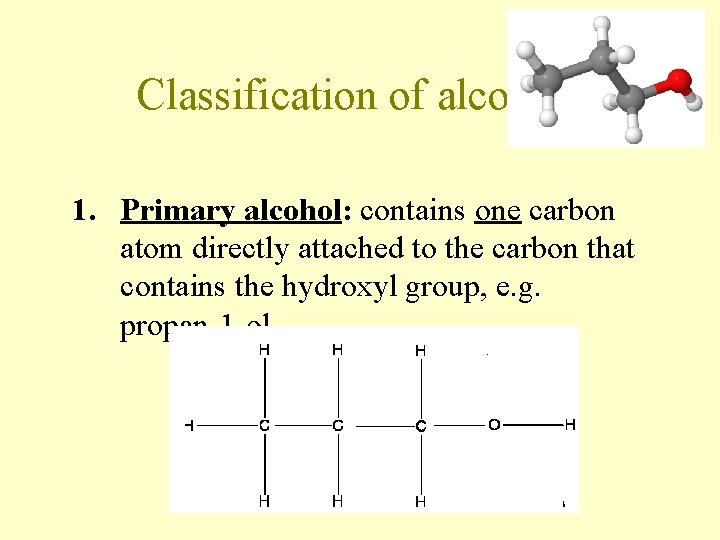

Classification of alcohols 1. Primary alcohol: contains one carbon atom directly attached to the carbon that contains the hydroxyl group, e. g. propan-1 -ol

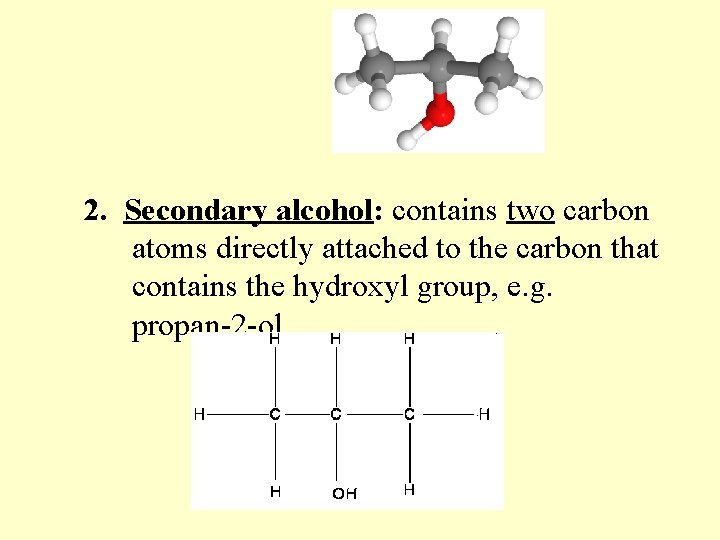

2. Secondary alcohol: contains two carbon atoms directly attached to the carbon that contains the hydroxyl group, e. g. propan-2 -ol

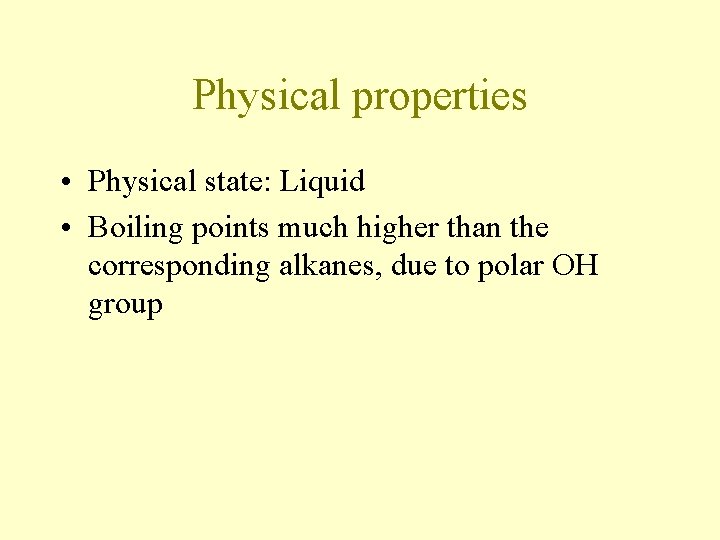

Physical properties • Physical state: Liquid • Boiling points much higher than the corresponding alkanes, due to polar OH group

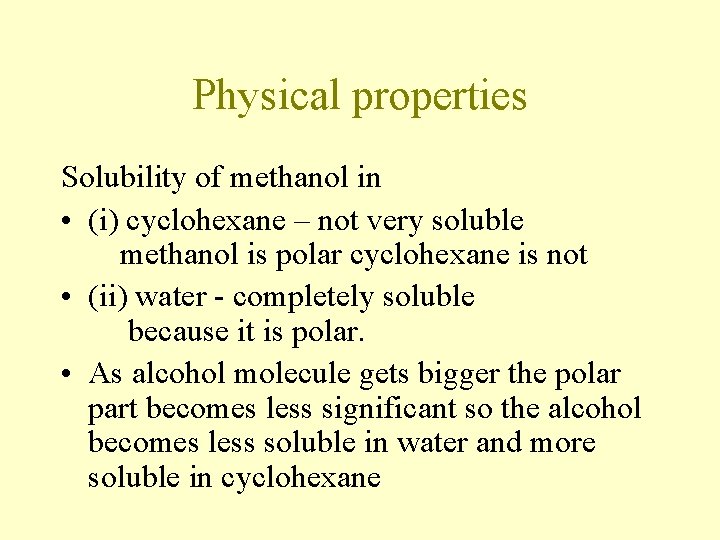

Physical properties Solubility of methanol in • (i) cyclohexane – not very soluble methanol is polar cyclohexane is not • (ii) water - completely soluble because it is polar. • As alcohol molecule gets bigger the polar part becomes less significant so the alcohol becomes less soluble in water and more soluble in cyclohexane

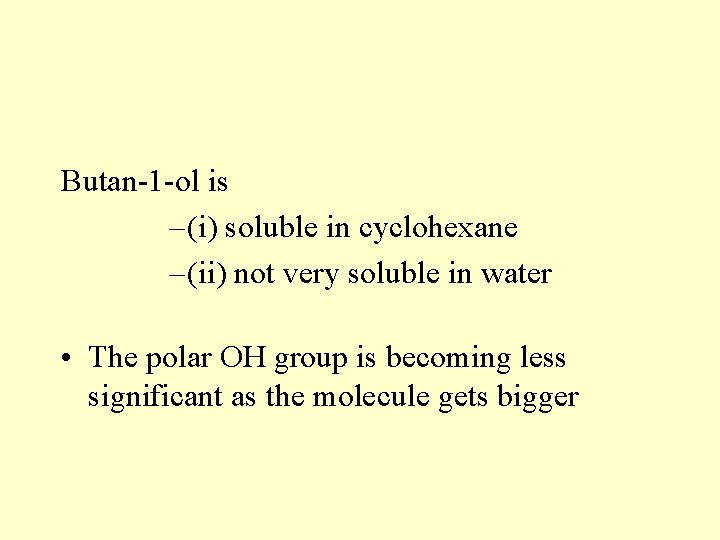

Butan-1 -ol is – (i) soluble in cyclohexane – (ii) not very soluble in water • The polar OH group is becoming less significant as the molecule gets bigger

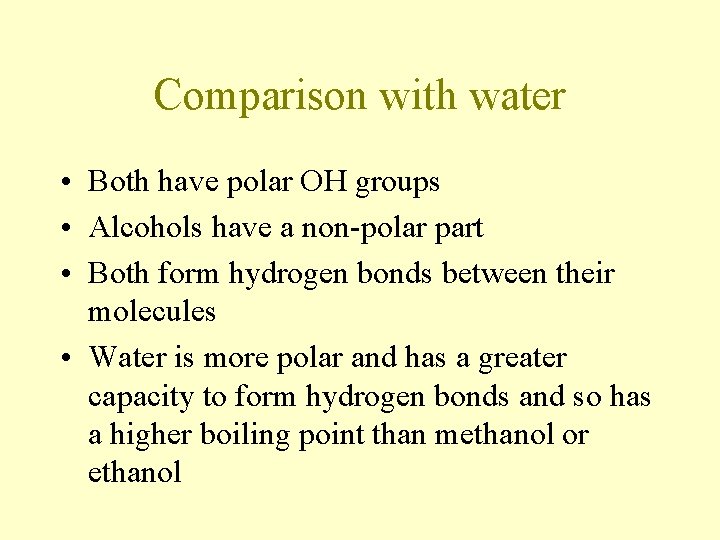

Comparison with water • Both have polar OH groups • Alcohols have a non-polar part • Both form hydrogen bonds between their molecules • Water is more polar and has a greater capacity to form hydrogen bonds and so has a higher boiling point than methanol or ethanol

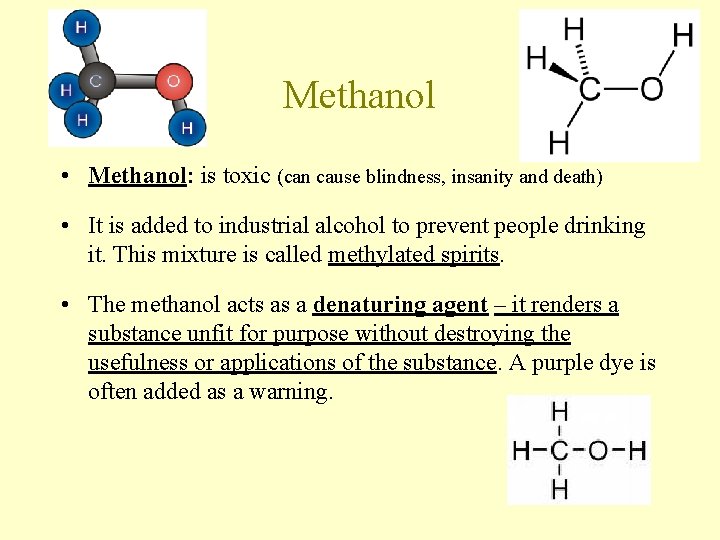

Methanol • Methanol: is toxic (can cause blindness, insanity and death) • It is added to industrial alcohol to prevent people drinking it. This mixture is called methylated spirits. • The methanol acts as a denaturing agent – it renders a substance unfit for purpose without destroying the usefulness or applications of the substance. A purple dye is often added as a warning.

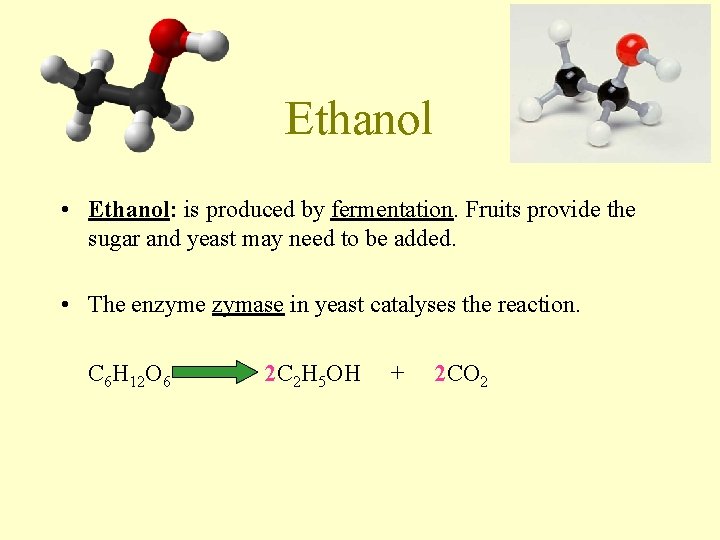

Ethanol • Ethanol: is produced by fermentation. Fruits provide the sugar and yeast may need to be added. • The enzyme zymase in yeast catalyses the reaction. C 6 H 12 O 6 2 C 2 H 5 OH + 2 CO 2

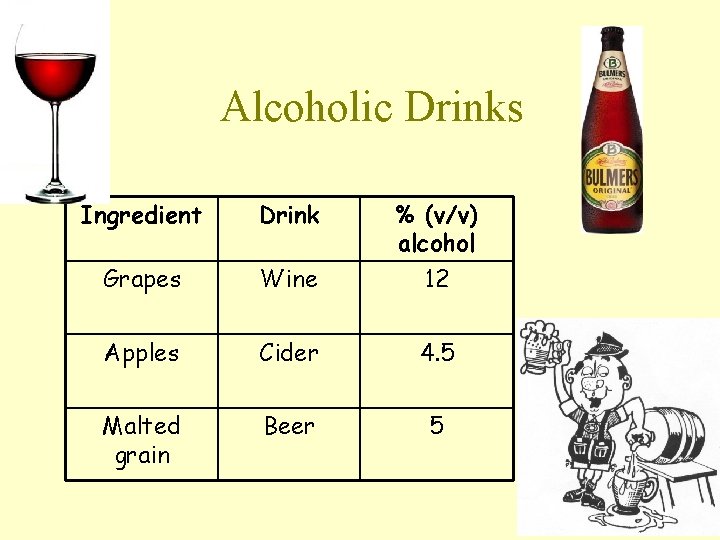

Alcoholic Drinks Ingredient Drink % (v/v) alcohol Grapes Wine 12 Apples Cider 4. 5 Malted grain Beer 5

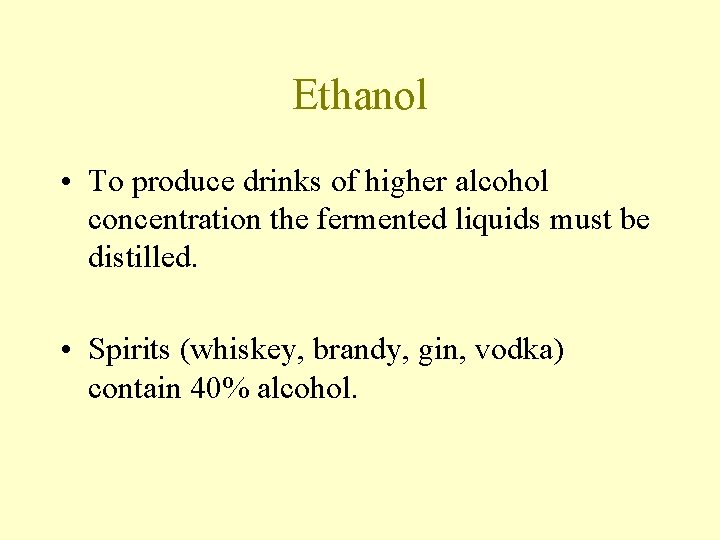

Ethanol • To produce drinks of higher alcohol concentration the fermented liquids must be distilled. • Spirits (whiskey, brandy, gin, vodka) contain 40% alcohol.

Gasohol • Ethanol obtained from sugar cane is used for making gasohol in Brazil. This is then used as a fuel.

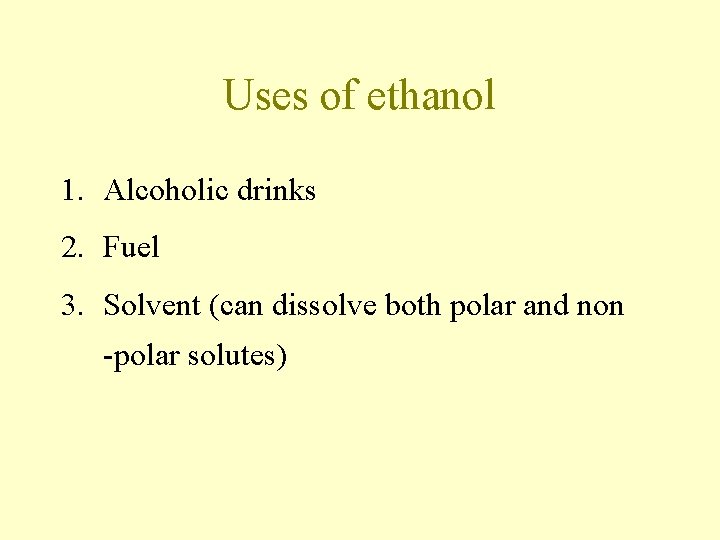

Uses of ethanol 1. Alcoholic drinks 2. Fuel 3. Solvent (can dissolve both polar and non -polar solutes)

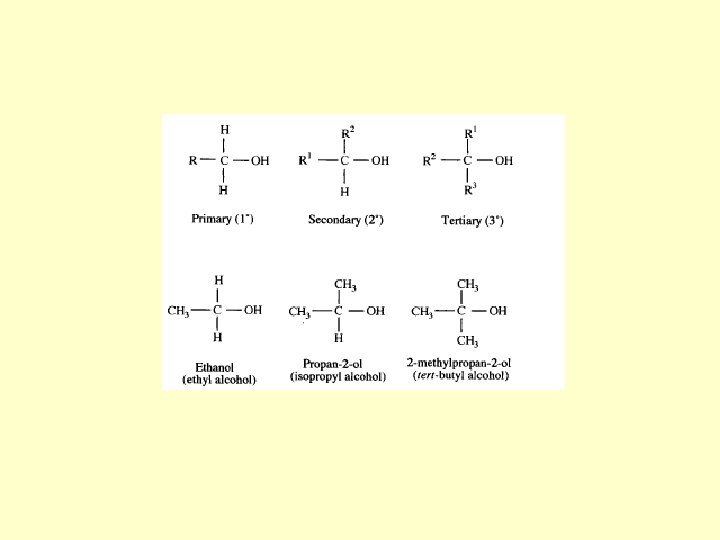

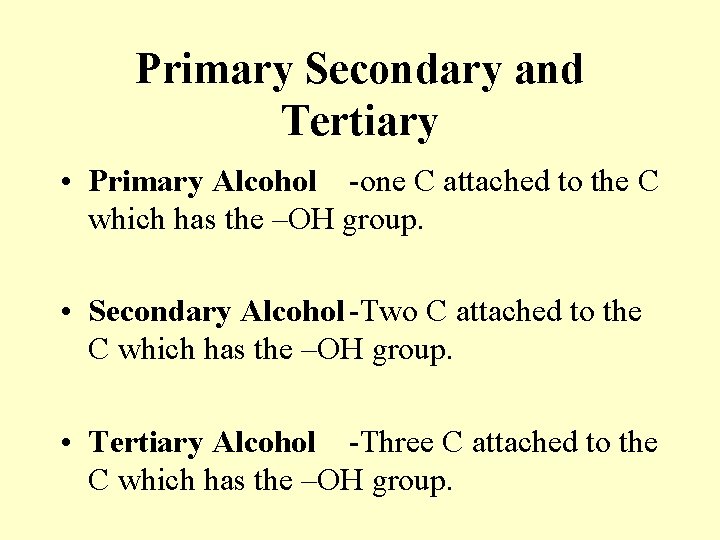

Primary Secondary and Tertiary • Primary Alcohol -one C attached to the C which has the –OH group. • Secondary Alcohol -Two C attached to the C which has the –OH group. • Tertiary Alcohol -Three C attached to the C which has the –OH group.

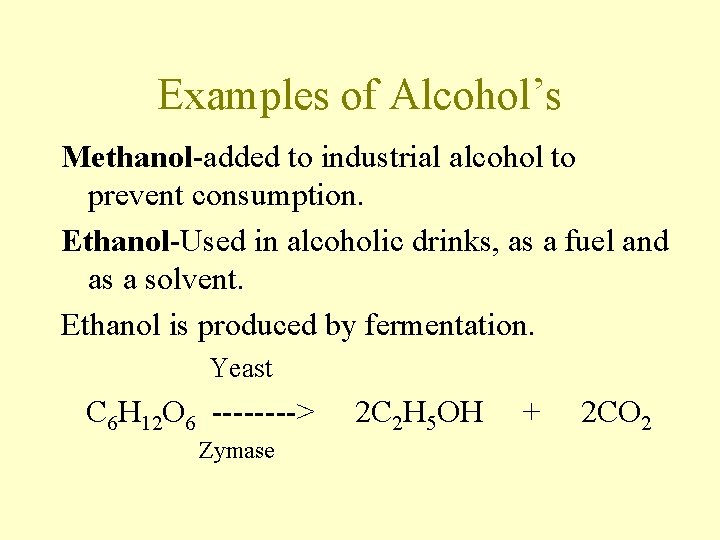

Examples of Alcohol’s Methanol-added to industrial alcohol to prevent consumption. Ethanol-Used in alcoholic drinks, as a fuel and as a solvent. Ethanol is produced by fermentation. Yeast C 6 H 12 O 6 ----> Zymase 2 C 2 H 5 OH + 2 CO 2

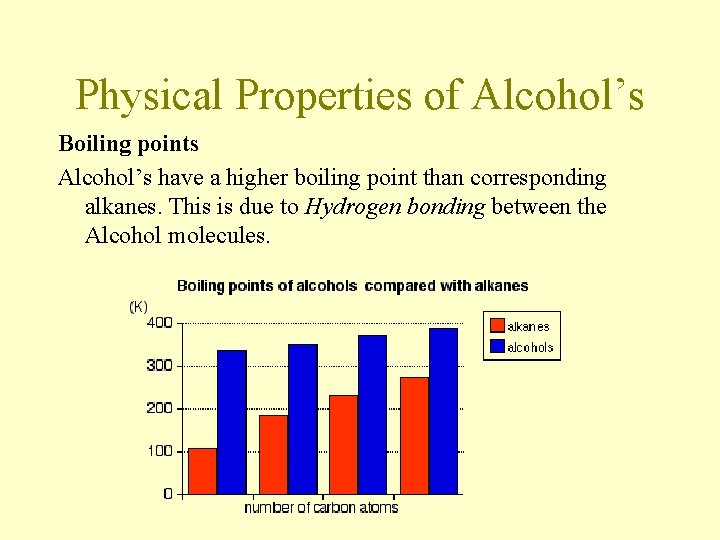

Physical Properties of Alcohol’s Boiling points Alcohol’s have a higher boiling point than corresponding alkanes. This is due to Hydrogen bonding between the Alcohol molecules.

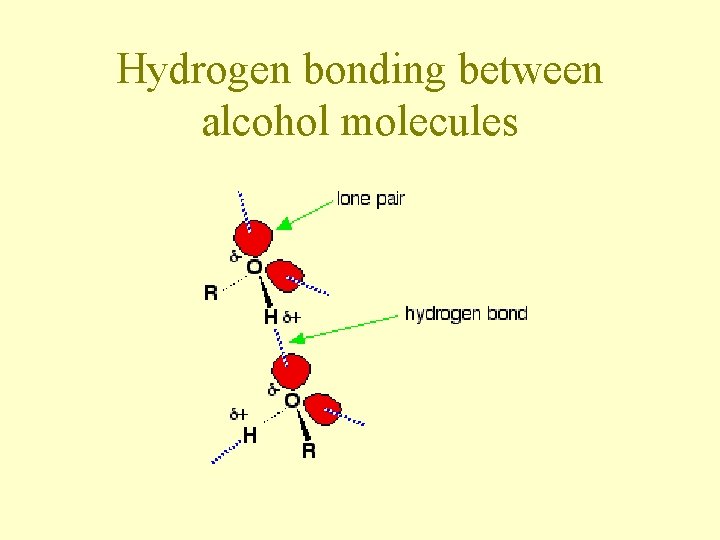

Hydrogen bonding between alcohol molecules

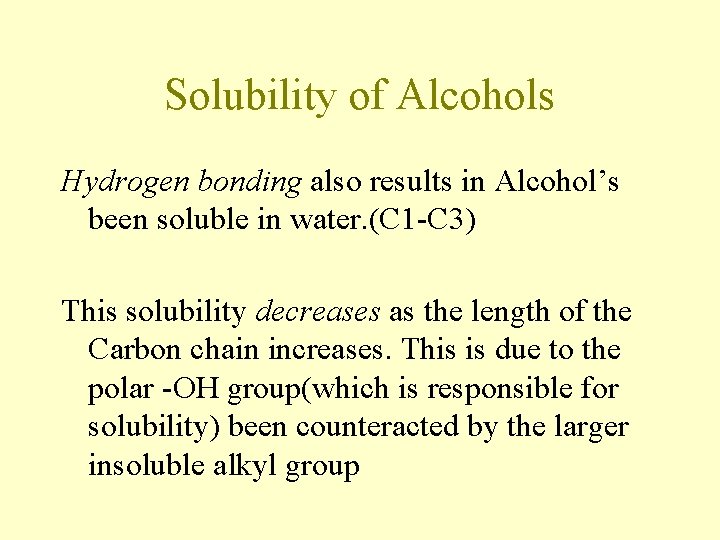

Solubility of Alcohols Hydrogen bonding also results in Alcohol’s been soluble in water. (C 1 -C 3) This solubility decreases as the length of the Carbon chain increases. This is due to the polar -OH group(which is responsible for solubility) been counteracted by the larger insoluble alkyl group

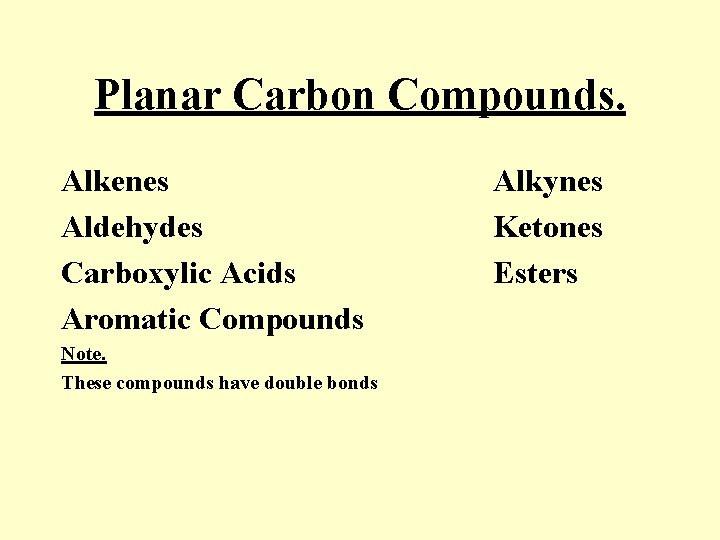

Planar Carbon Compounds. Alkenes Aldehydes Carboxylic Acids Aromatic Compounds Note. These compounds have double bonds Alkynes Ketones Esters

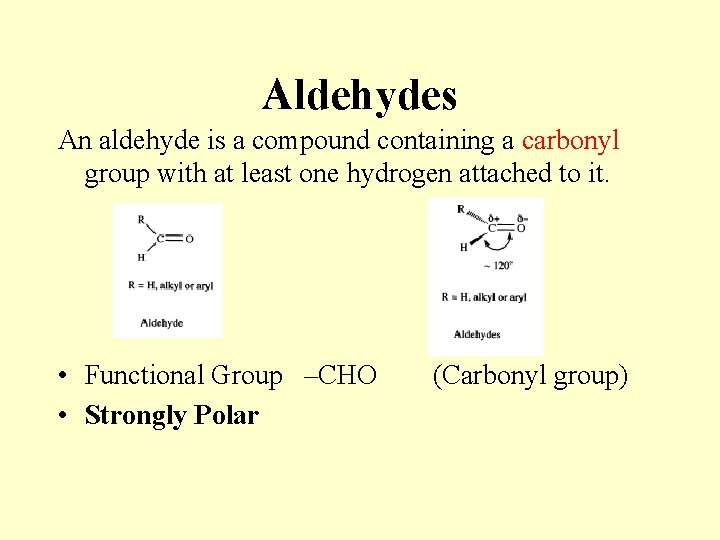

Aldehydes An aldehyde is a compound containing a carbonyl group with at least one hydrogen attached to it. • Functional Group –CHO • Strongly Polar (Carbonyl group)

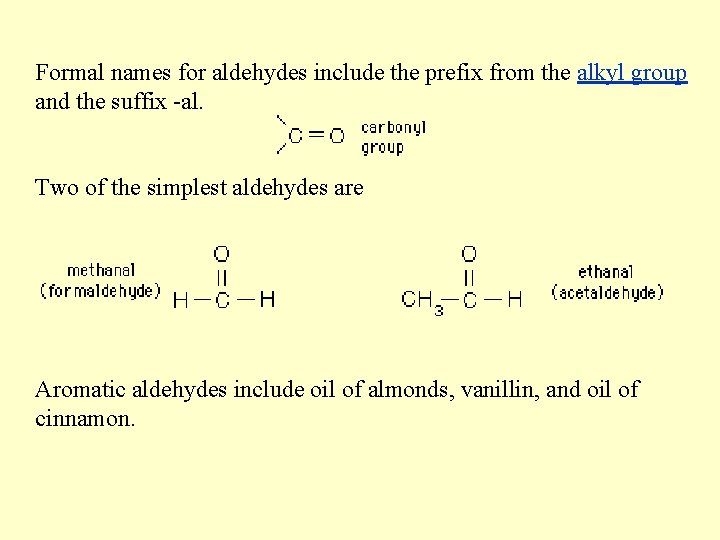

Formal names for aldehydes include the prefix from the alkyl group and the suffix -al. Two of the simplest aldehydes are Aromatic aldehydes include oil of almonds, vanillin, and oil of cinnamon.

Aldehydes

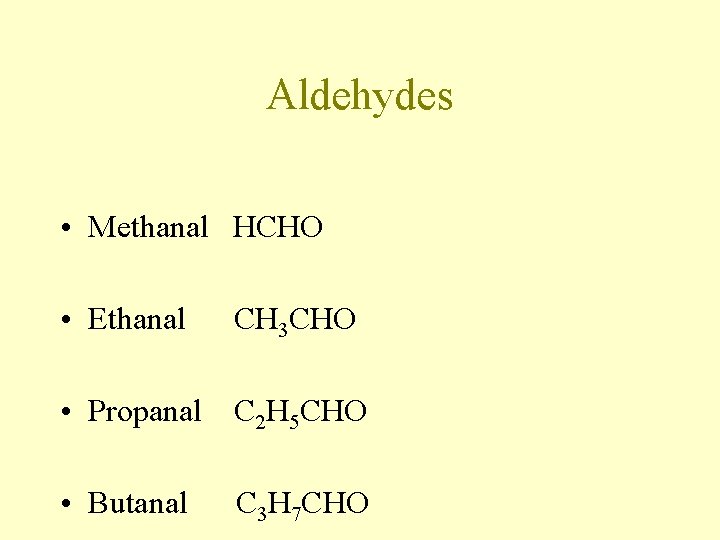

Aldehydes • Methanal HCHO • Ethanal CH 3 CHO • Propanal C 2 H 5 CHO • Butanal C 3 H 7 CHO

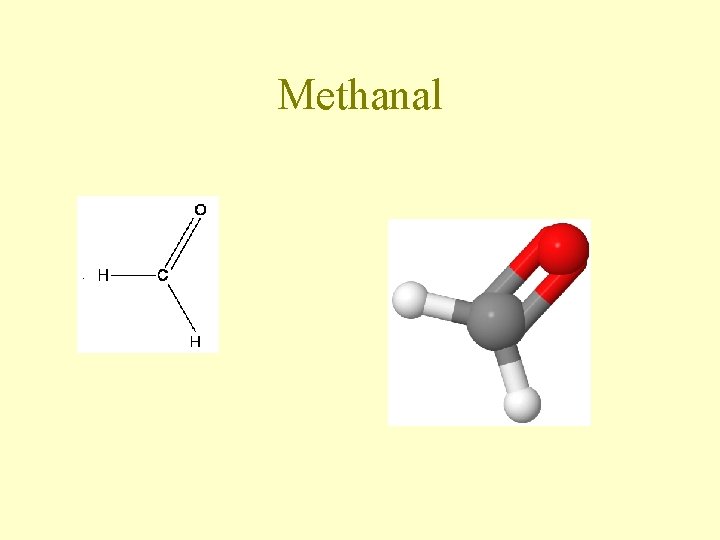

Methanal

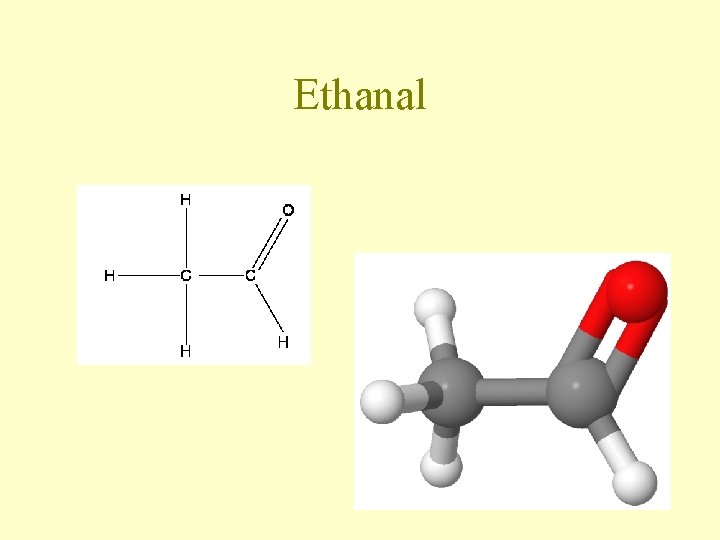

Ethanal

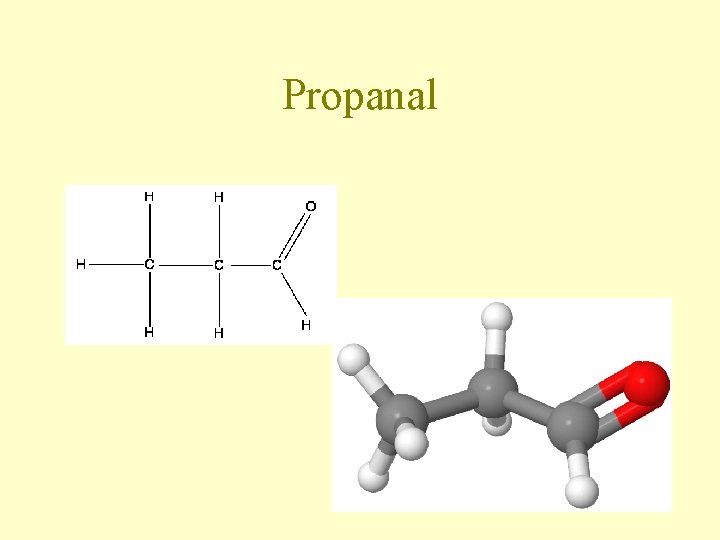

Propanal

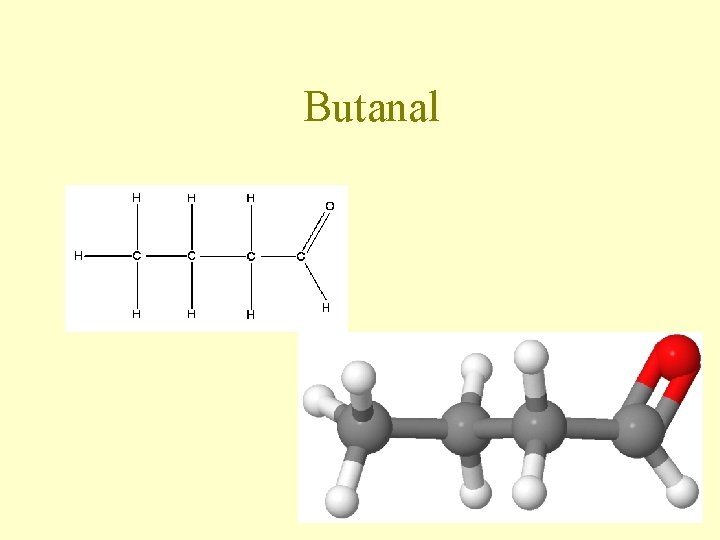

Butanal

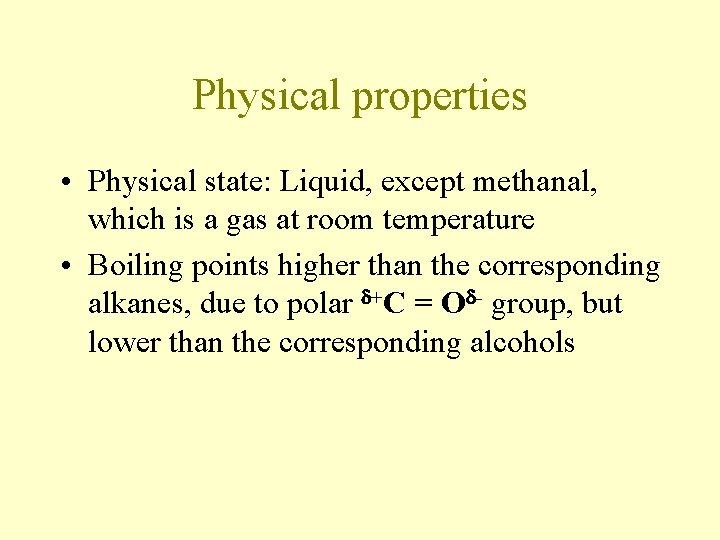

Physical properties • Physical state: Liquid, except methanal, which is a gas at room temperature • Boiling points higher than the corresponding alkanes, due to polar +C = O - group, but lower than the corresponding alcohols

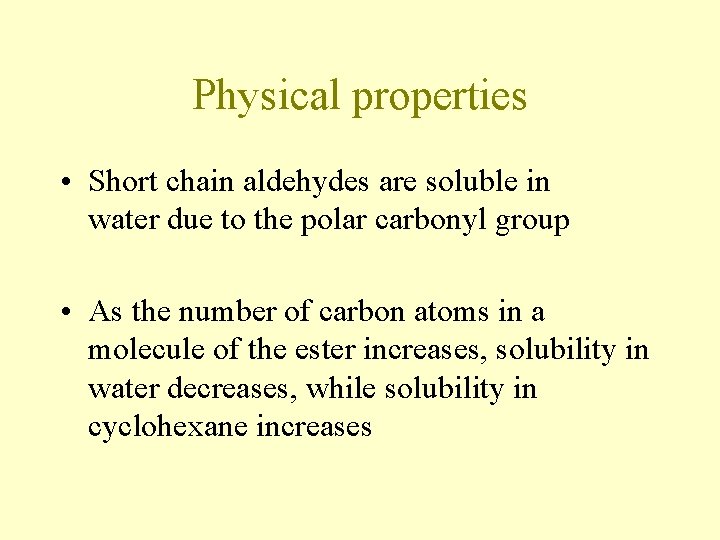

Physical properties • Short chain aldehydes are soluble in water due to the polar carbonyl group • As the number of carbon atoms in a molecule of the ester increases, solubility in water decreases, while solubility in cyclohexane increases

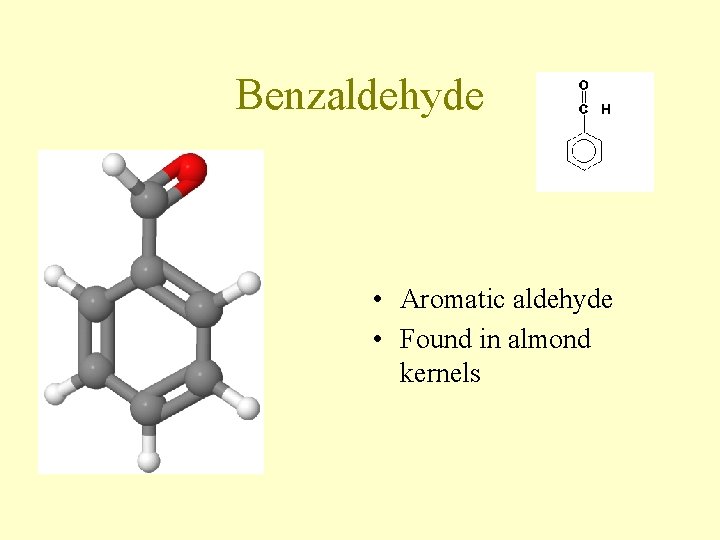

Benzaldehyde • Aromatic aldehyde • Found in almond kernels

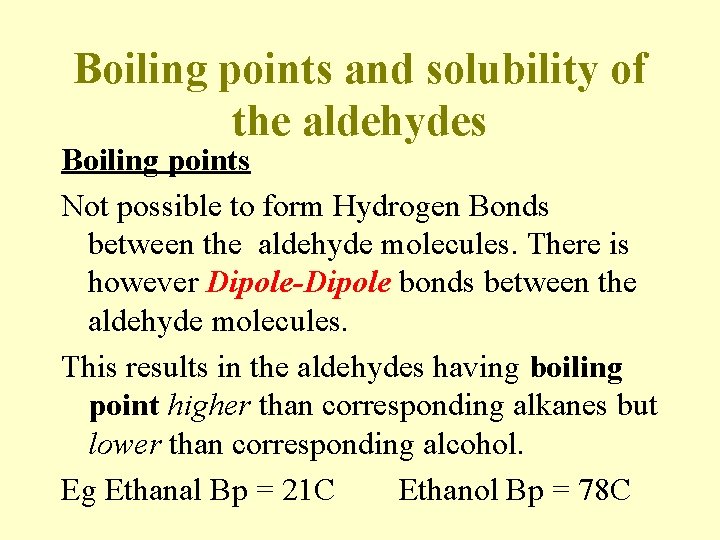

Boiling points and solubility of the aldehydes Boiling points Not possible to form Hydrogen Bonds between the aldehyde molecules. There is however Dipole-Dipole bonds between the aldehyde molecules. This results in the aldehydes having boiling point higher than corresponding alkanes but lower than corresponding alcohol. Eg Ethanal Bp = 21 C Ethanol Bp = 78 C

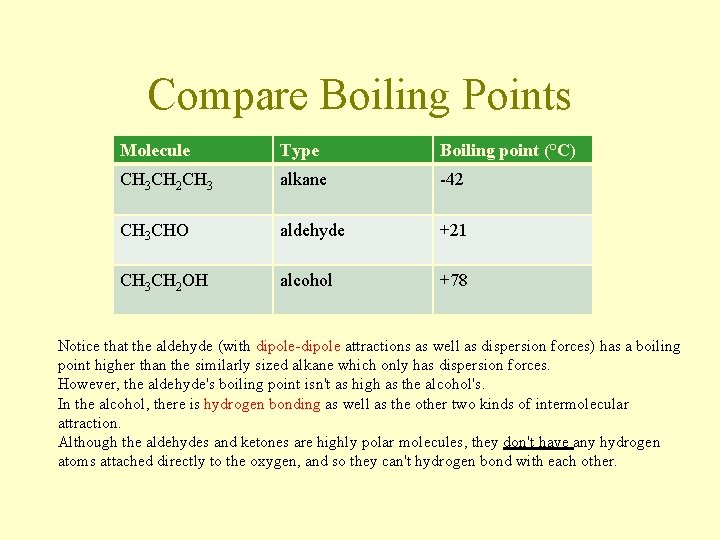

Compare Boiling Points Molecule Type Boiling point (°C) CH 3 CH 2 CH 3 alkane -42 CH 3 CHO aldehyde +21 CH 3 CH 2 OH alcohol +78 Notice that the aldehyde (with dipole-dipole attractions as well as dispersion forces) has a boiling point higher than the similarly sized alkane which only has dispersion forces. However, the aldehyde's boiling point isn't as high as the alcohol's. In the alcohol, there is hydrogen bonding as well as the other two kinds of intermolecular attraction. Although the aldehydes and ketones are highly polar molecules, they don't have any hydrogen atoms attached directly to the oxygen, and so they can't hydrogen bond with each other.

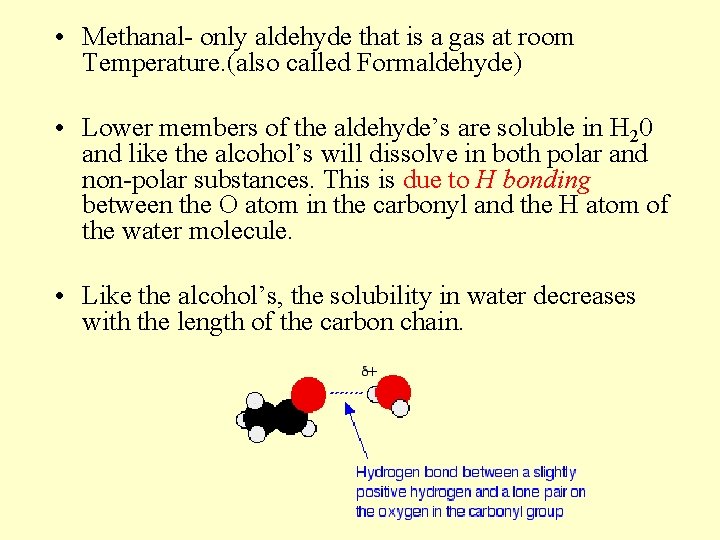

• Methanal- only aldehyde that is a gas at room Temperature. (also called Formaldehyde) • Lower members of the aldehyde’s are soluble in H 20 and like the alcohol’s will dissolve in both polar and non-polar substances. This is due to H bonding between the O atom in the carbonyl and the H atom of the water molecule. • Like the alcohol’s, the solubility in water decreases with the length of the carbon chain.

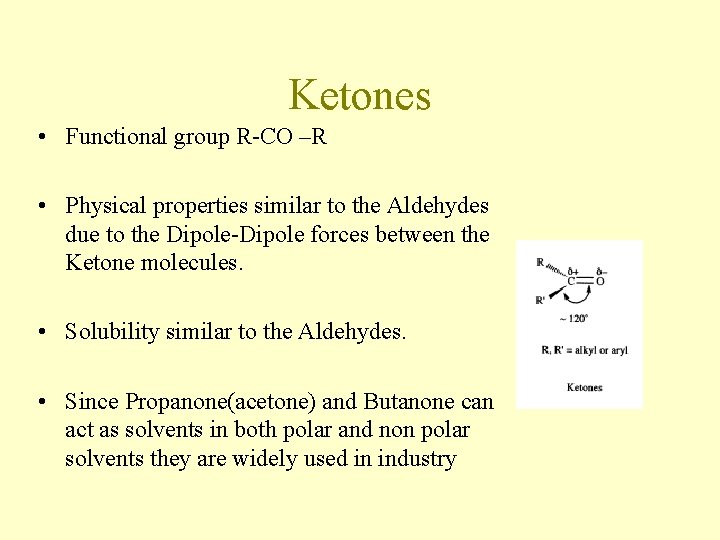

Ketones • Functional group R-CO –R • Physical properties similar to the Aldehydes due to the Dipole-Dipole forces between the Ketone molecules. • Solubility similar to the Aldehydes. • Since Propanone(acetone) and Butanone can act as solvents in both polar and non polar solvents they are widely used in industry

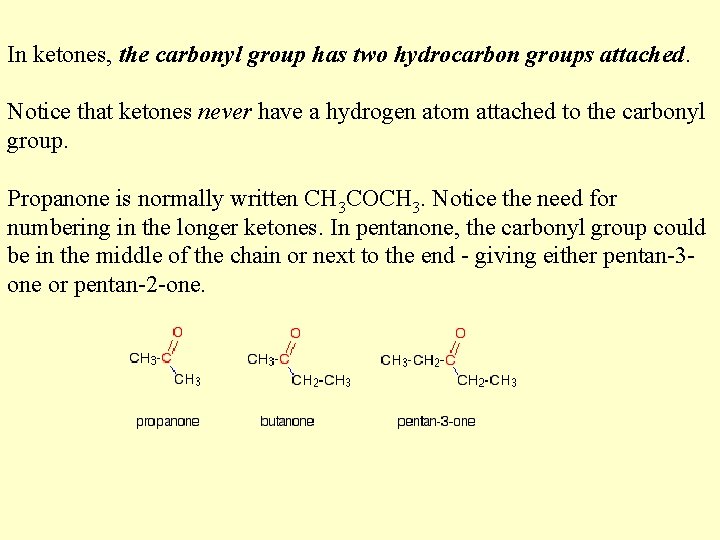

In ketones, the carbonyl group has two hydrocarbon groups attached. Notice that ketones never have a hydrogen atom attached to the carbonyl group. Propanone is normally written CH 3 COCH 3. Notice the need for numbering in the longer ketones. In pentanone, the carbonyl group could be in the middle of the chain or next to the end - giving either pentan-3 one or pentan-2 -one.

Ketones

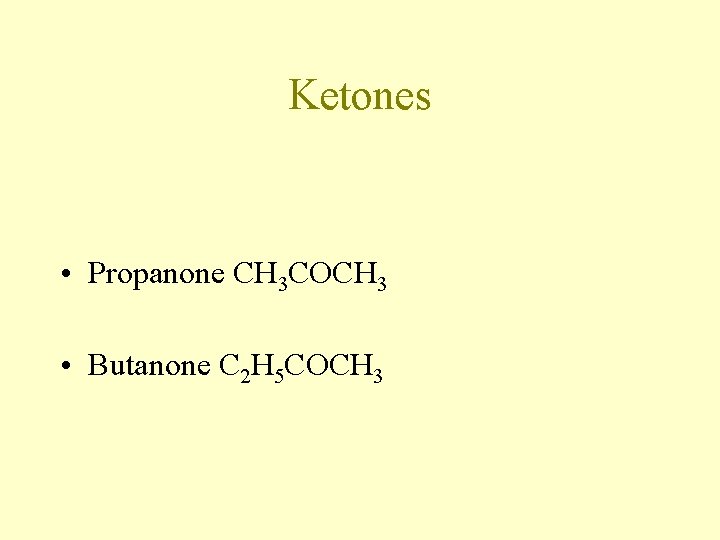

Ketones • Propanone CH 3 COCH 3 • Butanone C 2 H 5 COCH 3

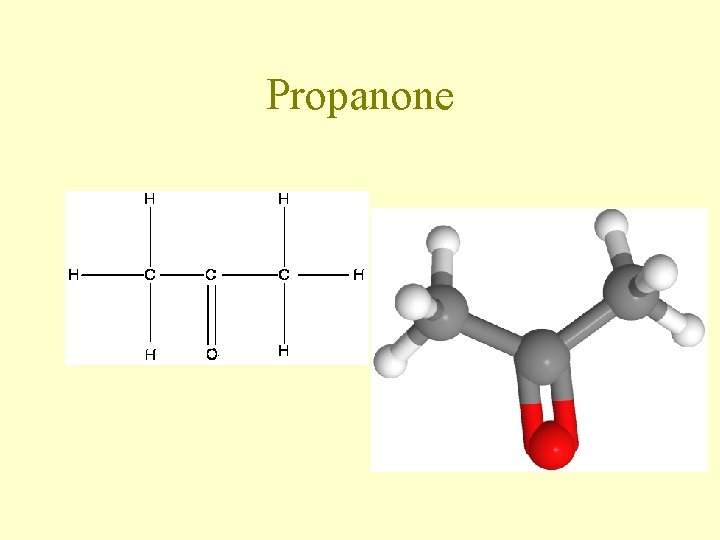

Propanone

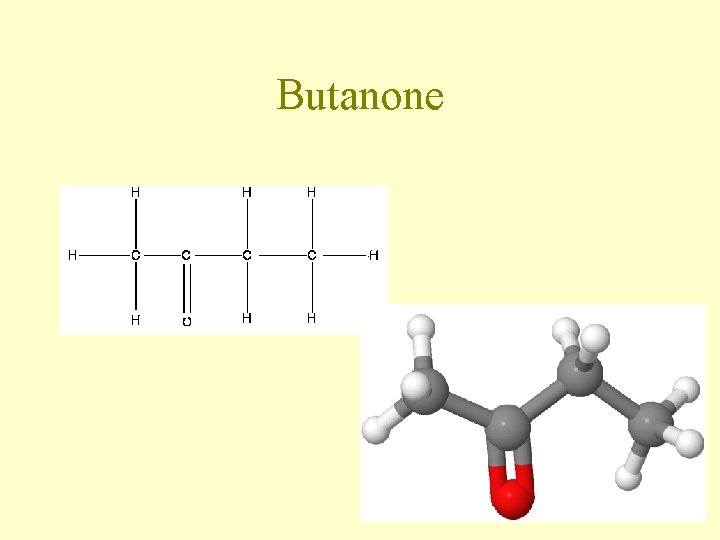

Butanone

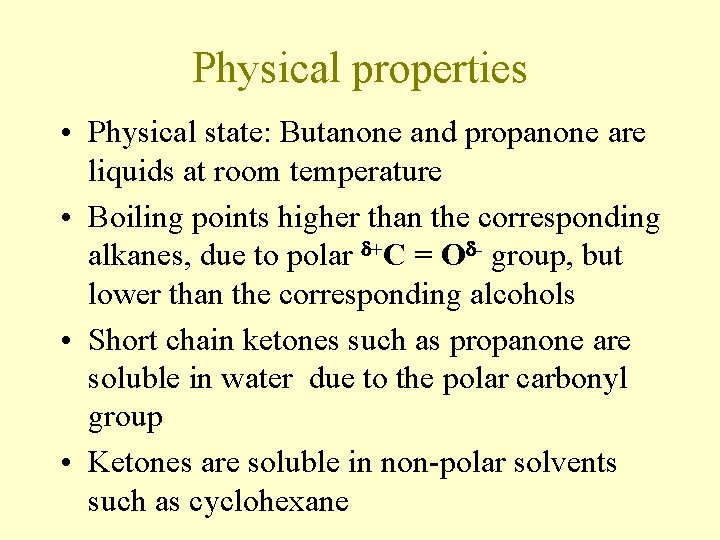

Physical properties • Physical state: Butanone and propanone are liquids at room temperature • Boiling points higher than the corresponding alkanes, due to polar +C = O - group, but lower than the corresponding alcohols • Short chain ketones such as propanone are soluble in water due to the polar carbonyl group • Ketones are soluble in non-polar solvents such as cyclohexane

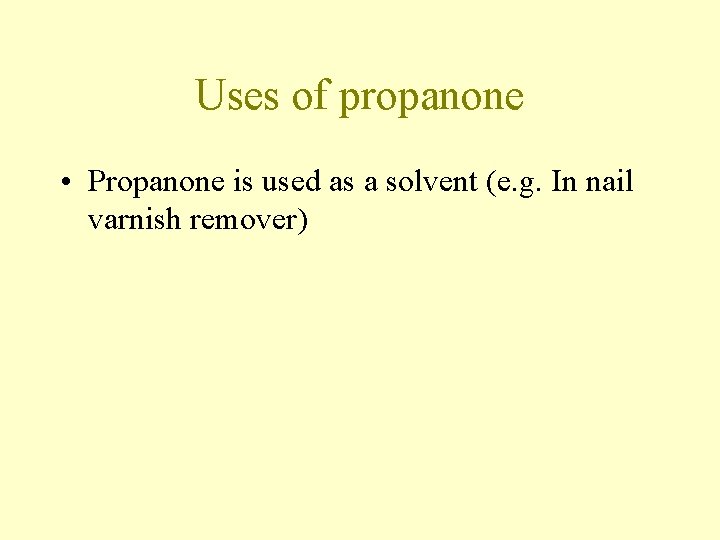

Uses of propanone • Propanone is used as a solvent (e. g. In nail varnish remover)

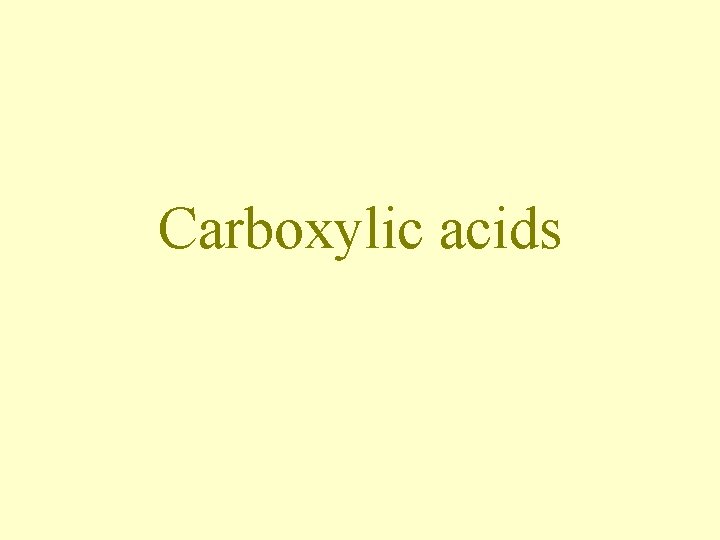

Carboxylic acids

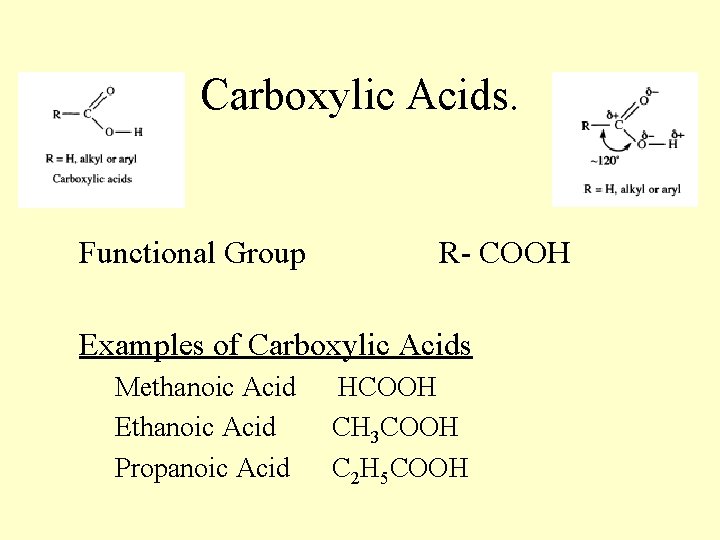

Carboxylic Acids. Functional Group R- COOH Examples of Carboxylic Acids Methanoic Acid Ethanoic Acid Propanoic Acid HCOOH CH 3 COOH C 2 H 5 COOH

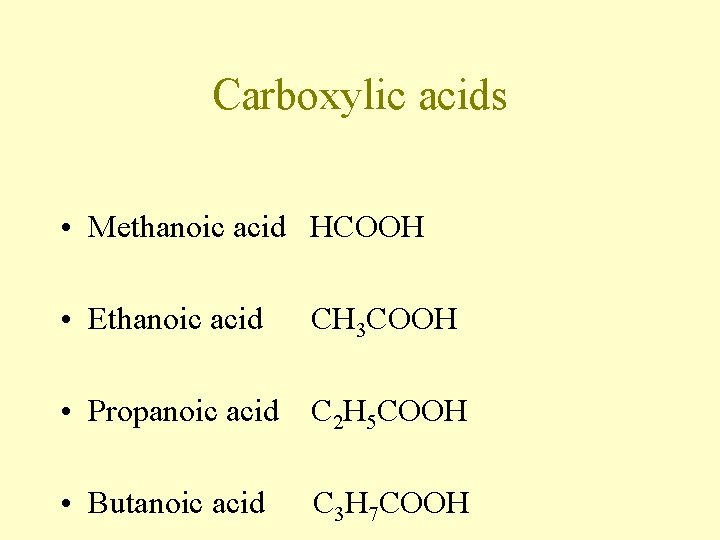

Carboxylic acids • Methanoic acid HCOOH • Ethanoic acid CH 3 COOH • Propanoic acid C 2 H 5 COOH • Butanoic acid C 3 H 7 COOH

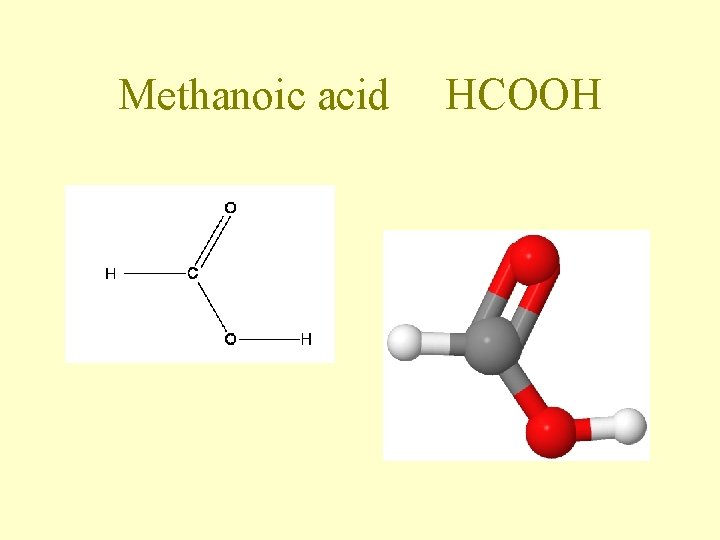

Methanoic acid HCOOH

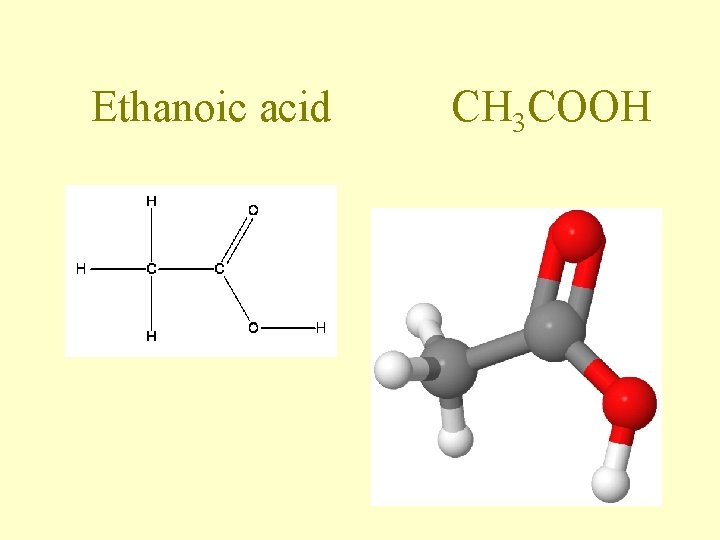

Ethanoic acid CH 3 COOH

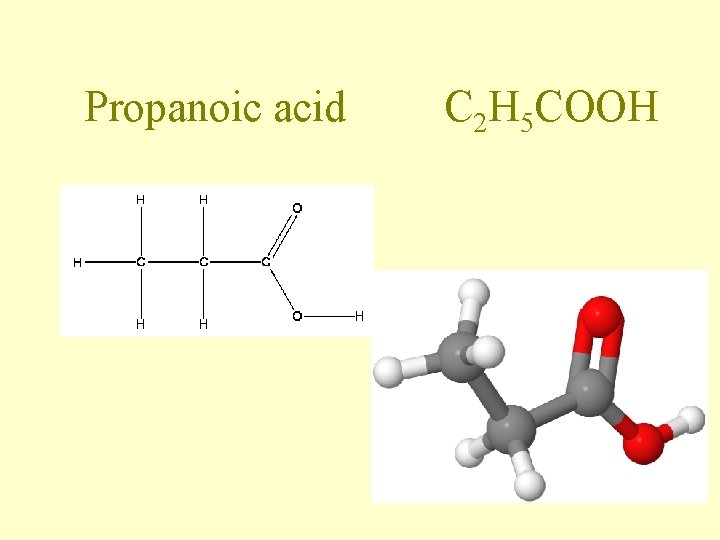

Propanoic acid C 2 H 5 COOH

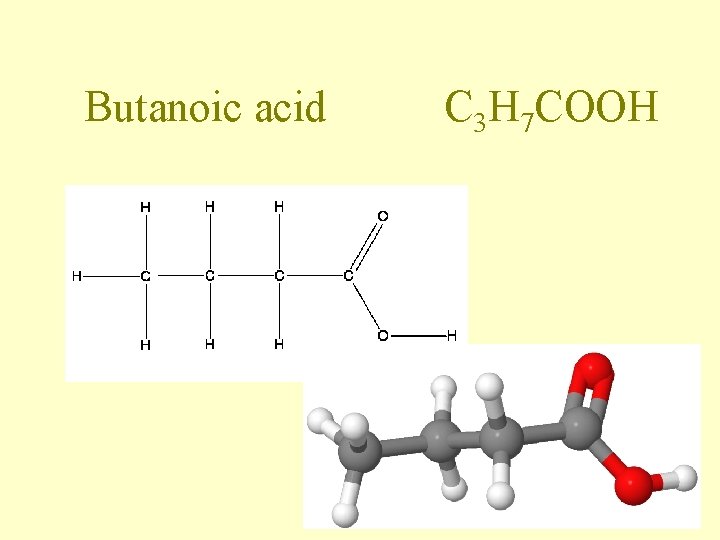

Butanoic acid C 3 H 7 COOH

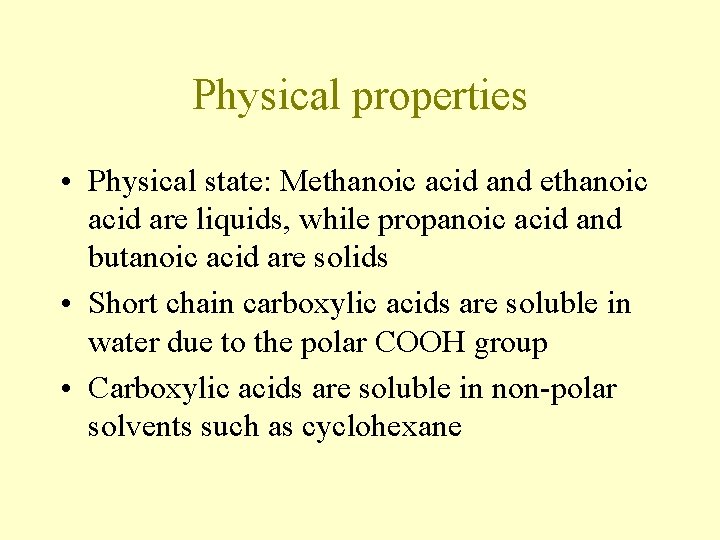

Physical properties • Physical state: Methanoic acid and ethanoic acid are liquids, while propanoic acid and butanoic acid are solids • Short chain carboxylic acids are soluble in water due to the polar COOH group • Carboxylic acids are soluble in non-polar solvents such as cyclohexane

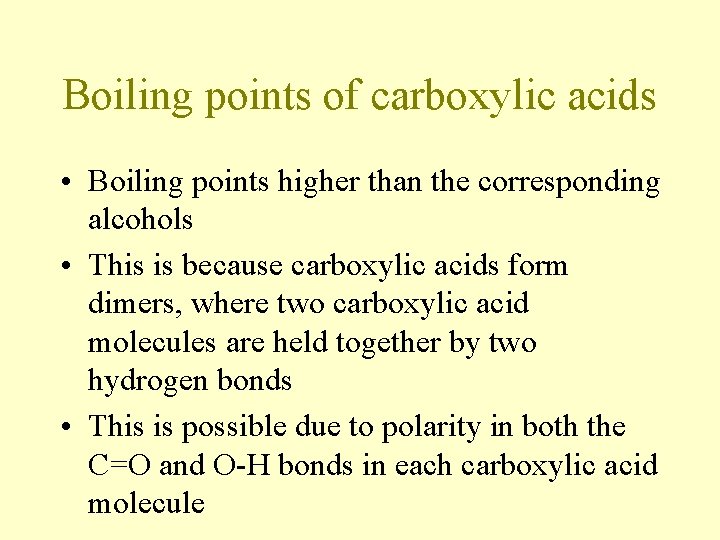

Boiling points of carboxylic acids • Boiling points higher than the corresponding alcohols • This is because carboxylic acids form dimers, where two carboxylic acid molecules are held together by two hydrogen bonds • This is possible due to polarity in both the C=O and O-H bonds in each carboxylic acid molecule

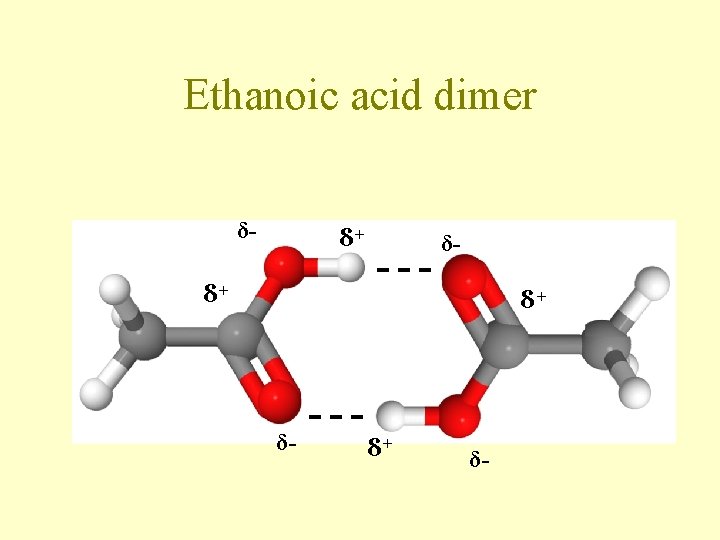

Ethanoic acid dimer δ- δ+ δ+ δ-

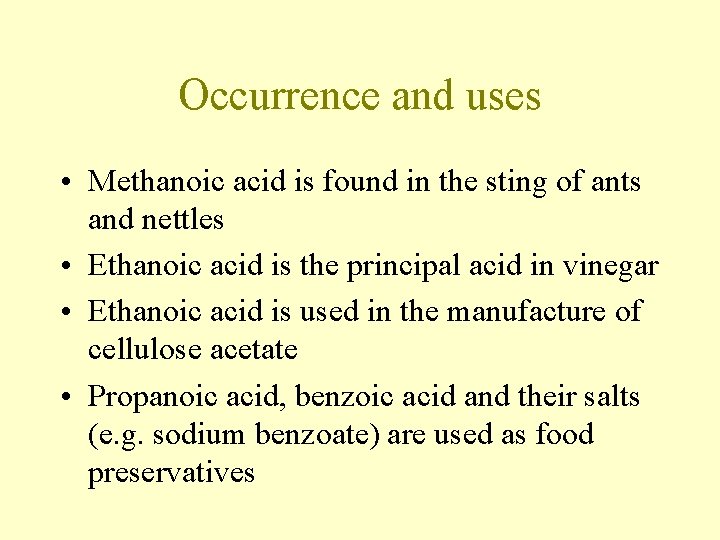

Occurrence and uses • Methanoic acid is found in the sting of ants and nettles • Ethanoic acid is the principal acid in vinegar • Ethanoic acid is used in the manufacture of cellulose acetate • Propanoic acid, benzoic acid and their salts (e. g. sodium benzoate) are used as food preservatives

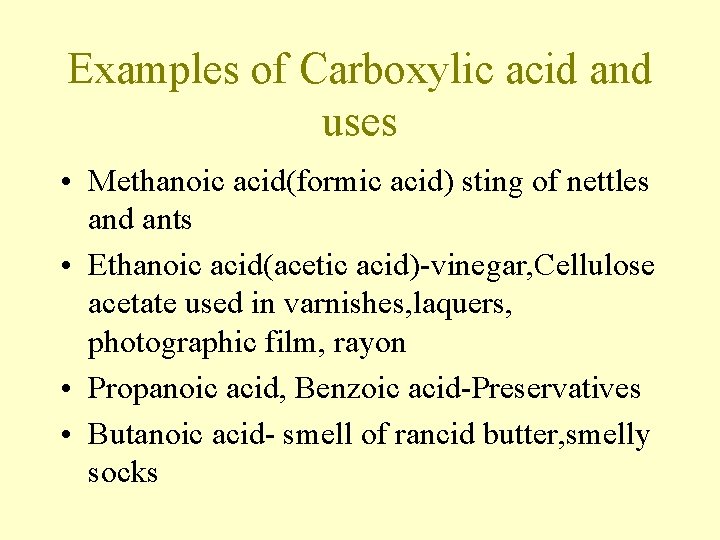

Examples of Carboxylic acid and uses • Methanoic acid(formic acid) sting of nettles and ants • Ethanoic acid(acetic acid)-vinegar, Cellulose acetate used in varnishes, laquers, photographic film, rayon • Propanoic acid, Benzoic acid-Preservatives • Butanoic acid- smell of rancid butter, smelly socks

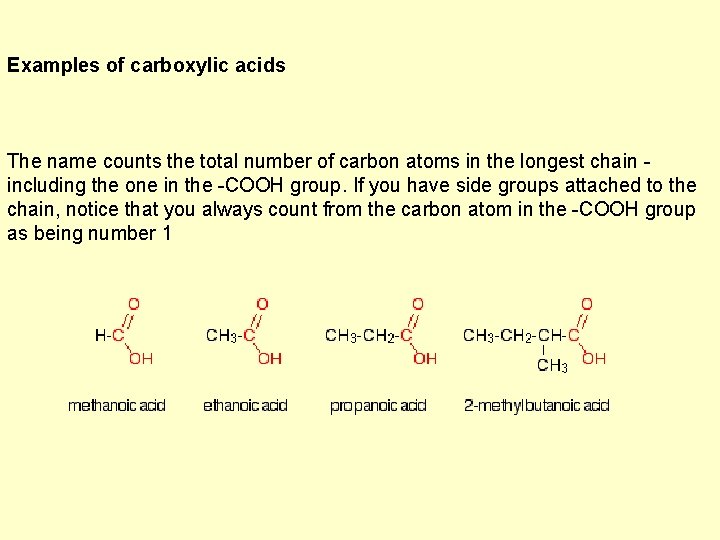

Examples of carboxylic acids The name counts the total number of carbon atoms in the longest chain including the one in the -COOH group. If you have side groups attached to the chain, notice that you always count from the carbon atom in the -COOH group as being number 1

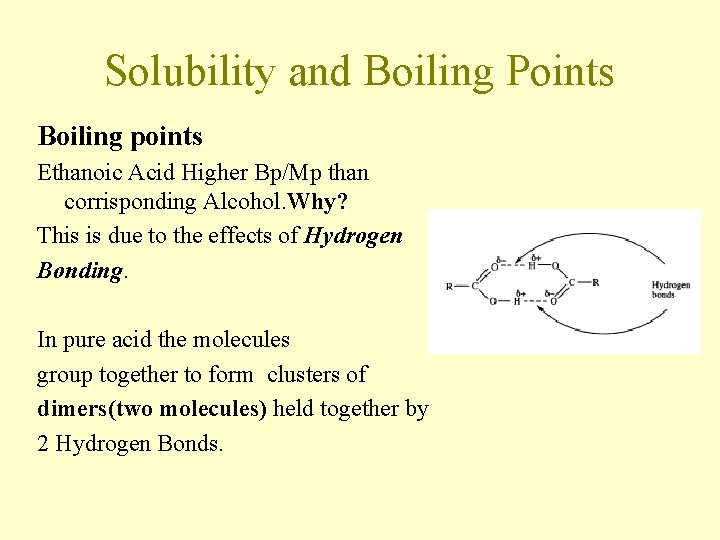

Solubility and Boiling Points Boiling points Ethanoic Acid Higher Bp/Mp than corrisponding Alcohol. Why? This is due to the effects of Hydrogen Bonding. In pure acid the molecules group together to form clusters of dimers(two molecules) held together by 2 Hydrogen Bonds.

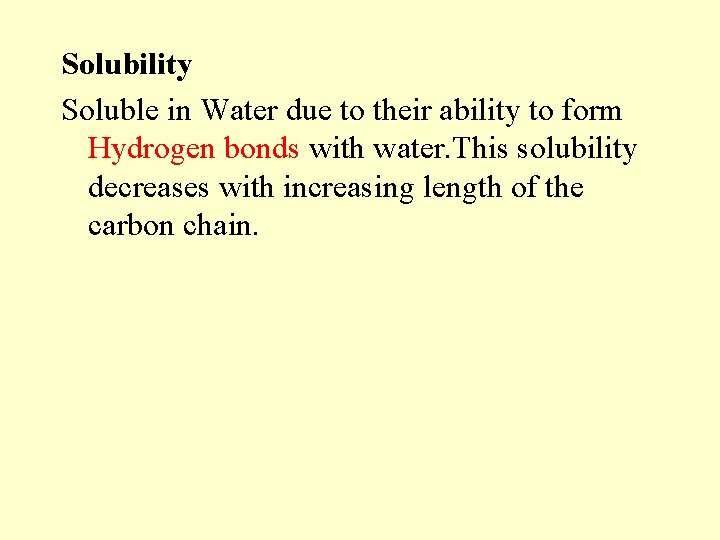

Solubility Soluble in Water due to their ability to form Hydrogen bonds with water. This solubility decreases with increasing length of the carbon chain.

Esters

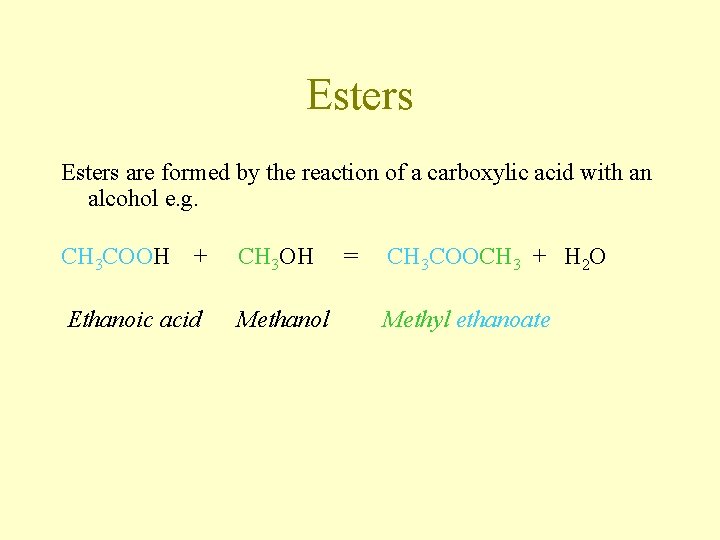

Esters are formed by the reaction of a carboxylic acid with an alcohol e. g. CH 3 COOH + Ethanoic acid CH 3 OH Methanol = CH 3 COOCH 3 + H 2 O Methyl ethanoate

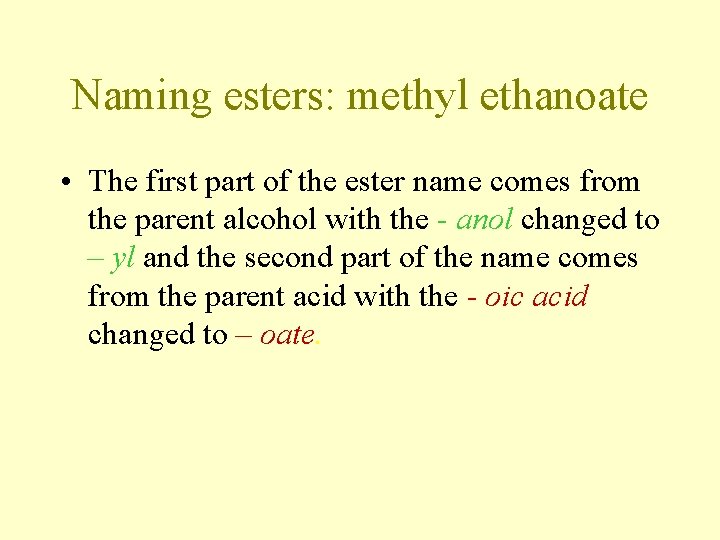

Naming esters: methyl ethanoate • The first part of the ester name comes from the parent alcohol with the - anol changed to – yl and the second part of the name comes from the parent acid with the - oic acid changed to – oate.

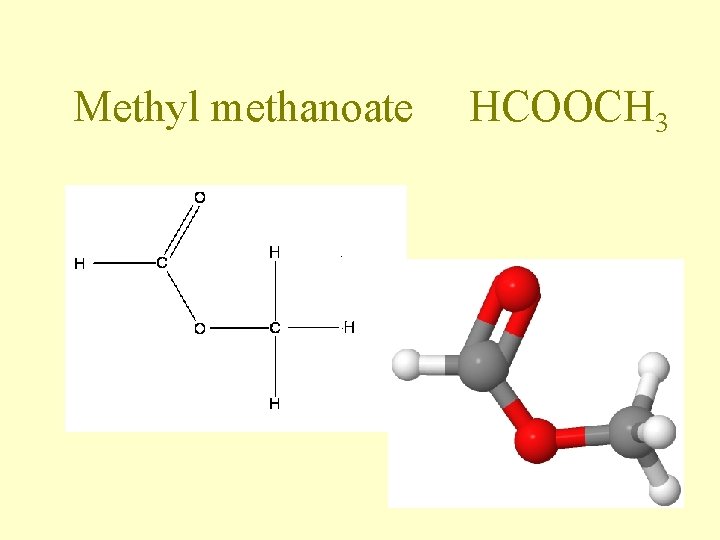

Methyl methanoate HCOOCH 3

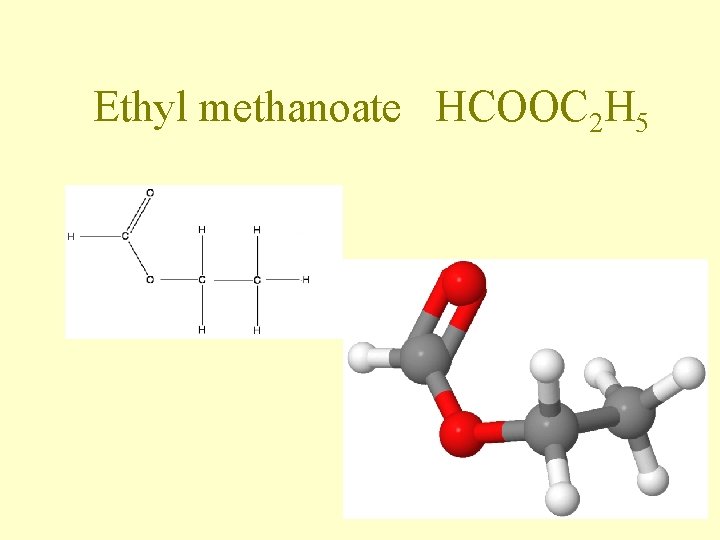

Ethyl methanoate HCOOC 2 H 5

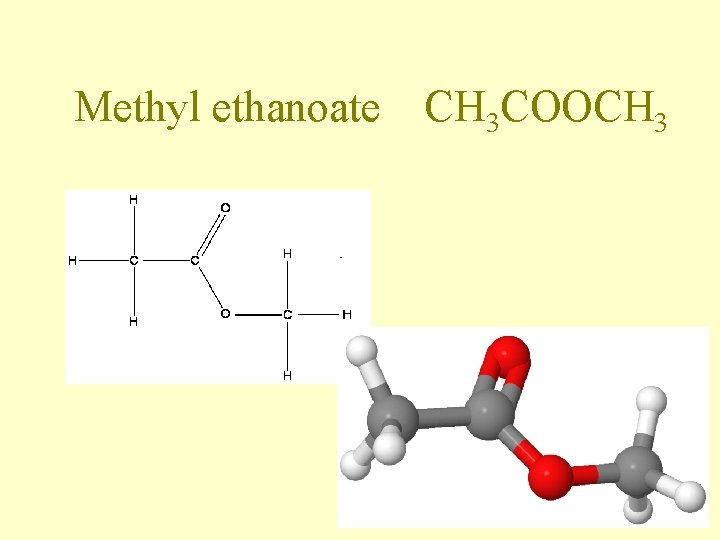

Methyl ethanoate CH 3 COOCH 3

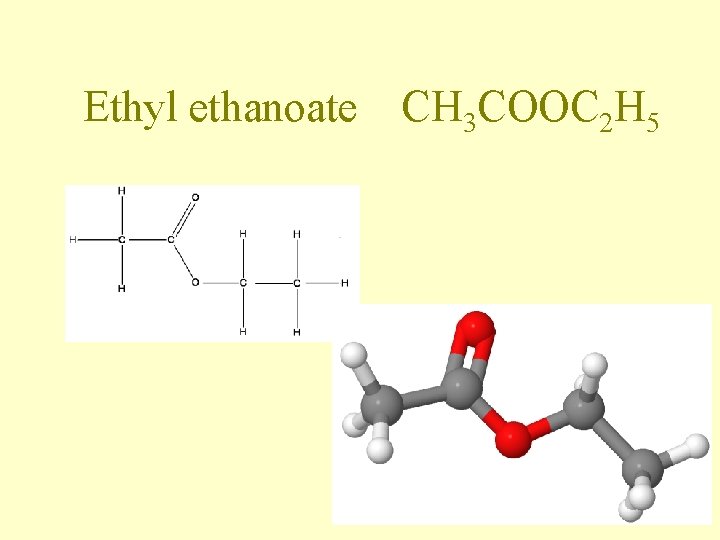

Ethyl ethanoate CH 3 COOC 2 H 5

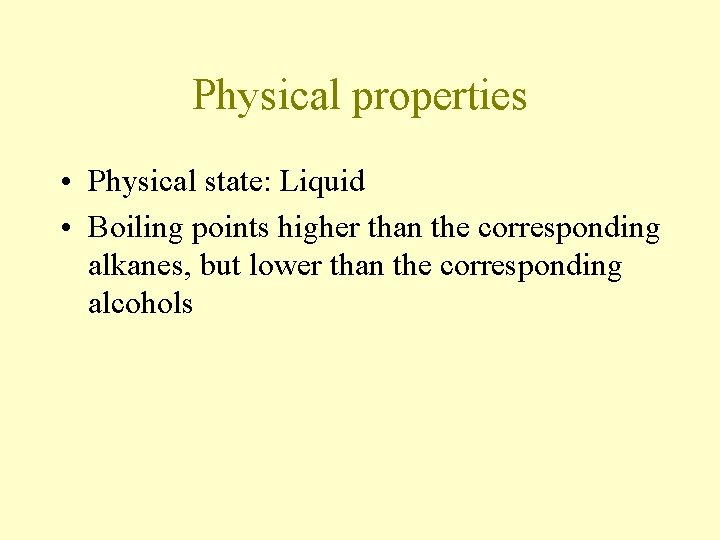

Physical properties • Physical state: Liquid • Boiling points higher than the corresponding alkanes, but lower than the corresponding alcohols

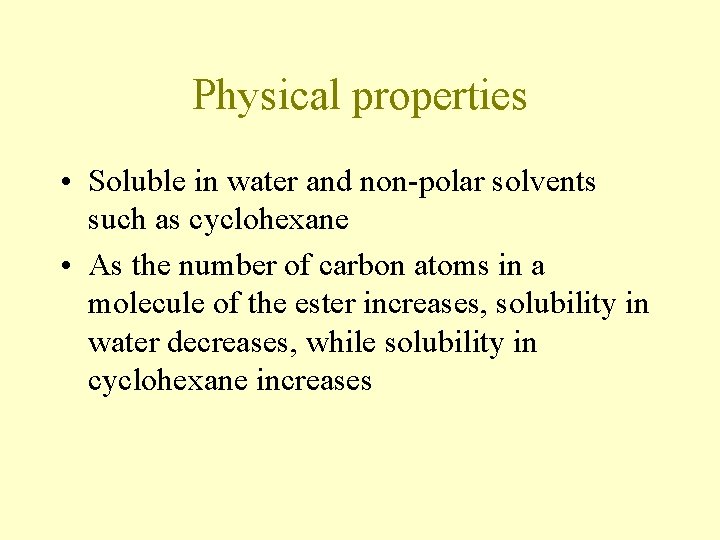

Physical properties • Soluble in water and non-polar solvents such as cyclohexane • As the number of carbon atoms in a molecule of the ester increases, solubility in water decreases, while solubility in cyclohexane increases

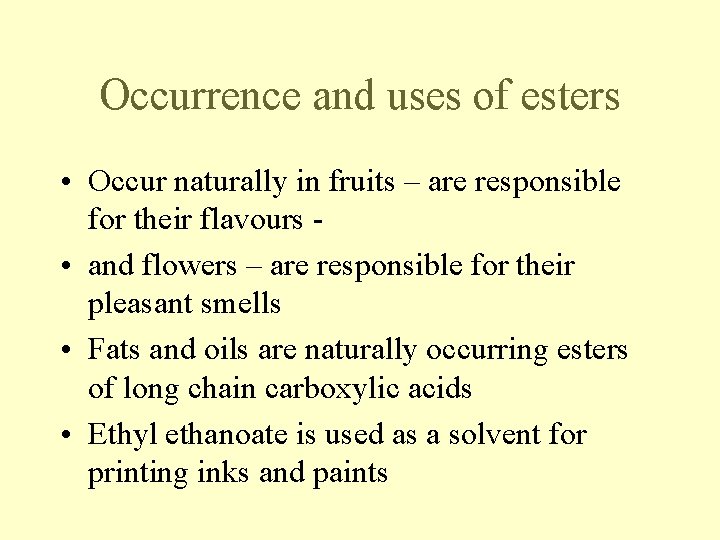

Occurrence and uses of esters • Occur naturally in fruits – are responsible for their flavours • and flowers – are responsible for their pleasant smells • Fats and oils are naturally occurring esters of long chain carboxylic acids • Ethyl ethanoate is used as a solvent for printing inks and paints

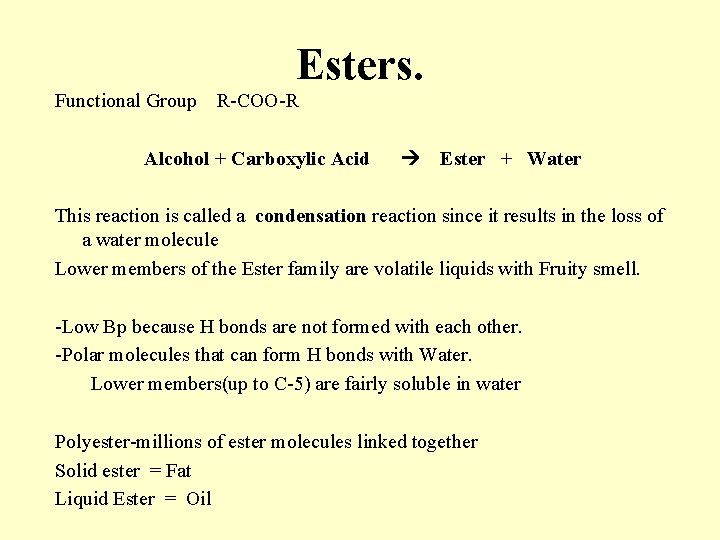

Esters. Functional Group R-COO-R Alcohol + Carboxylic Acid Ester + Water This reaction is called a condensation reaction since it results in the loss of a water molecule Lower members of the Ester family are volatile liquids with Fruity smell. -Low Bp because H bonds are not formed with each other. -Polar molecules that can form H bonds with Water. Lower members(up to C-5) are fairly soluble in water Polyester-millions of ester molecules linked together Solid ester = Fat Liquid Ester = Oil

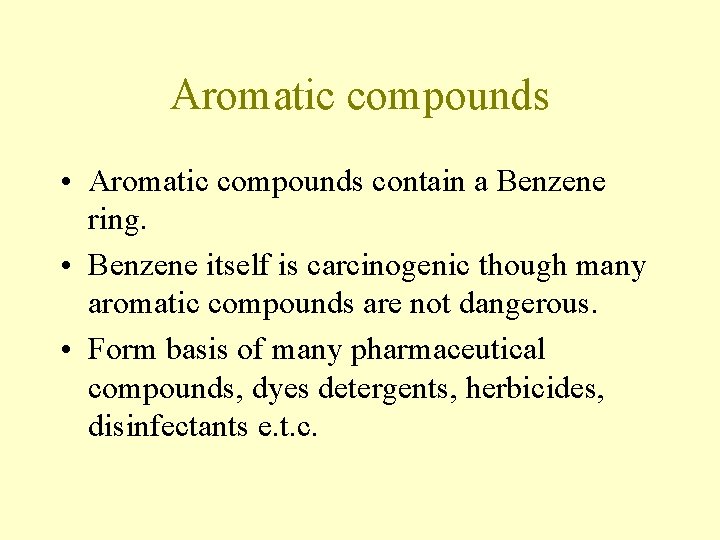

Aromatic compounds • Aromatic compounds contain a Benzene ring. • Benzene itself is carcinogenic though many aromatic compounds are not dangerous. • Form basis of many pharmaceutical compounds, dyes detergents, herbicides, disinfectants e. t. c.

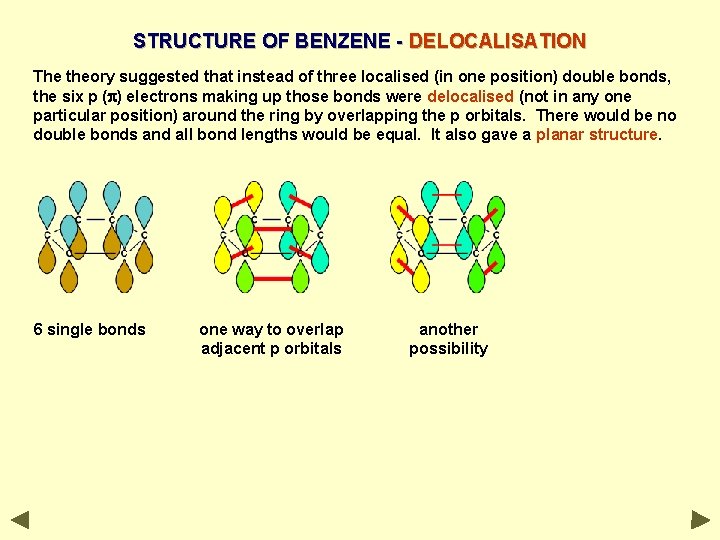

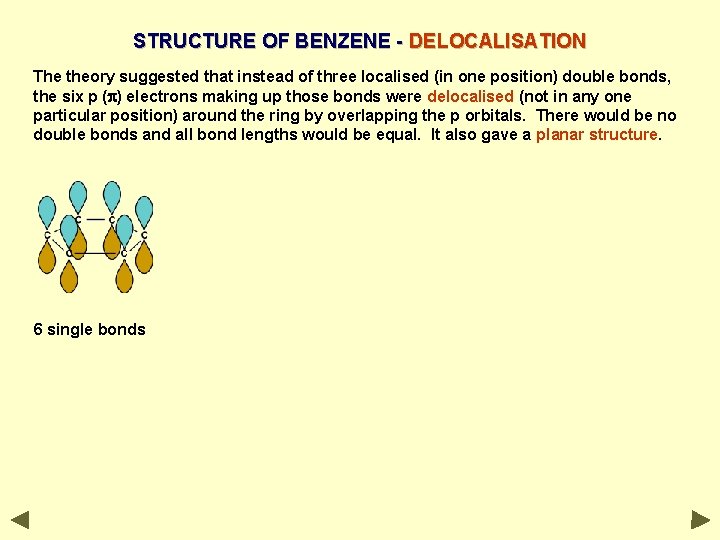

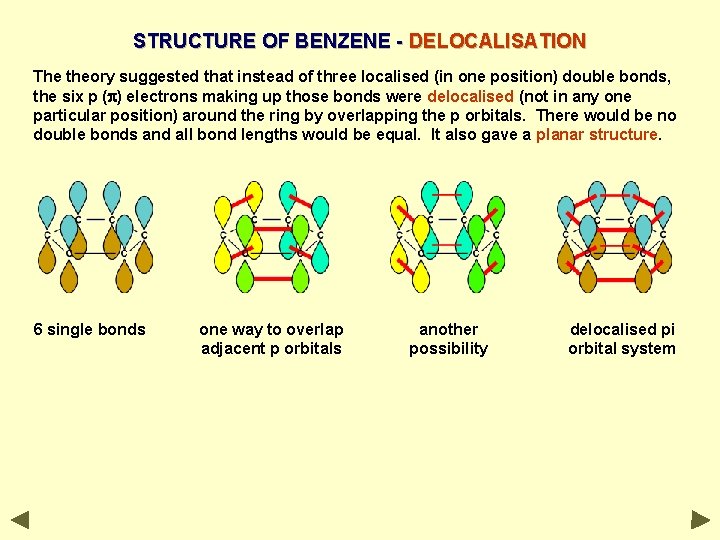

STRUCTURE OF BENZENE - DELOCALISATION The theory suggested that instead of three localised (in one position) double bonds, the six p (p) electrons making up those bonds were delocalised (not in any one particular position) around the ring by overlapping the p orbitals. There would be no double bonds and all bond lengths would be equal. It also gave a planar structure. 6 single bonds

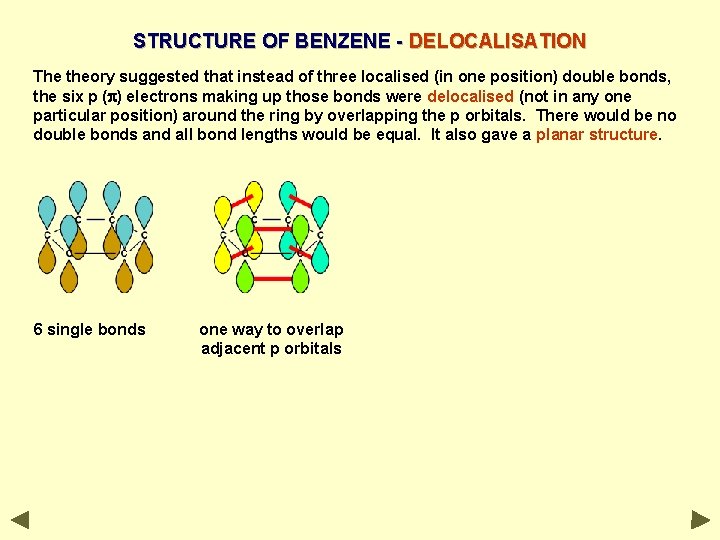

STRUCTURE OF BENZENE - DELOCALISATION The theory suggested that instead of three localised (in one position) double bonds, the six p (p) electrons making up those bonds were delocalised (not in any one particular position) around the ring by overlapping the p orbitals. There would be no double bonds and all bond lengths would be equal. It also gave a planar structure. 6 single bonds one way to overlap adjacent p orbitals

STRUCTURE OF BENZENE - DELOCALISATION The theory suggested that instead of three localised (in one position) double bonds, the six p (p) electrons making up those bonds were delocalised (not in any one particular position) around the ring by overlapping the p orbitals. There would be no double bonds and all bond lengths would be equal. It also gave a planar structure. 6 single bonds one way to overlap adjacent p orbitals another possibility

STRUCTURE OF BENZENE - DELOCALISATION The theory suggested that instead of three localised (in one position) double bonds, the six p (p) electrons making up those bonds were delocalised (not in any one particular position) around the ring by overlapping the p orbitals. There would be no double bonds and all bond lengths would be equal. It also gave a planar structure. 6 single bonds one way to overlap adjacent p orbitals another possibility delocalised pi orbital system

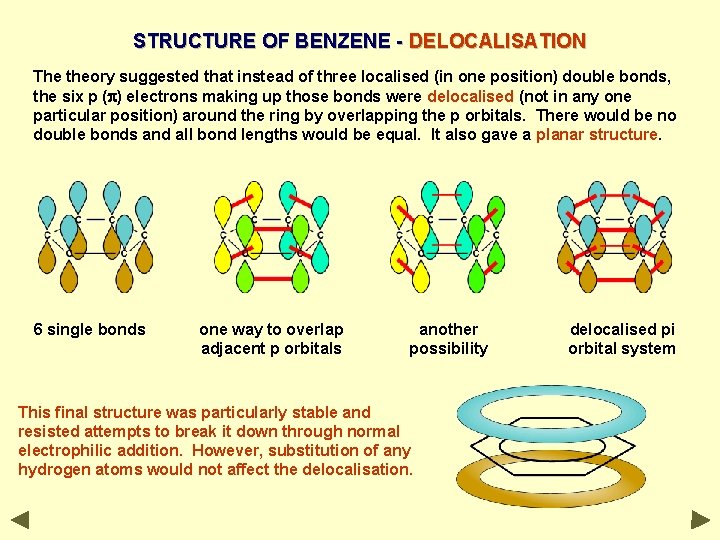

STRUCTURE OF BENZENE - DELOCALISATION The theory suggested that instead of three localised (in one position) double bonds, the six p (p) electrons making up those bonds were delocalised (not in any one particular position) around the ring by overlapping the p orbitals. There would be no double bonds and all bond lengths would be equal. It also gave a planar structure. 6 single bonds one way to overlap adjacent p orbitals another possibility This final structure was particularly stable and resisted attempts to break it down through normal electrophilic addition. However, substitution of any hydrogen atoms would not affect the delocalisation. delocalised pi orbital system

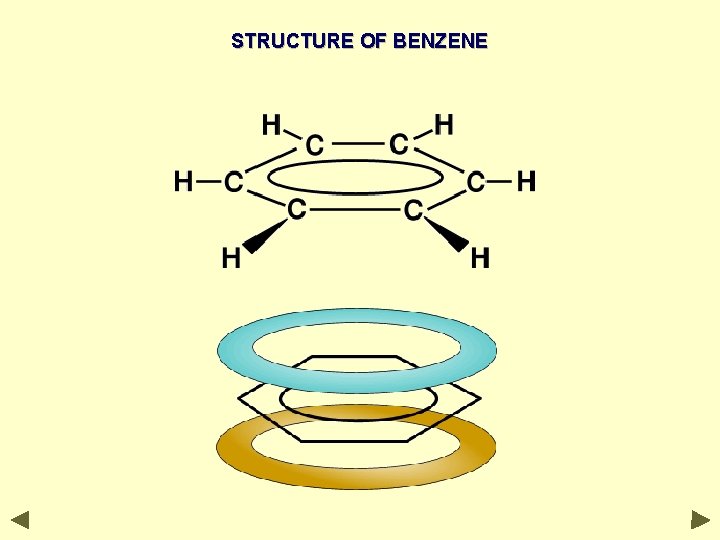

STRUCTURE OF BENZENE

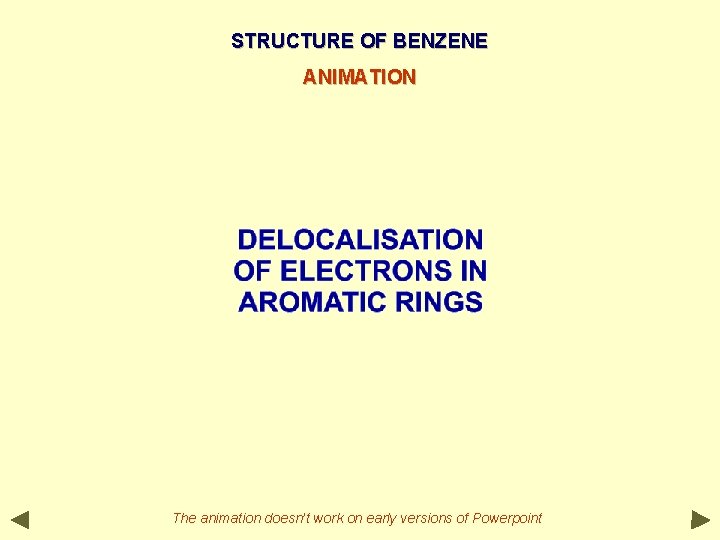

STRUCTURE OF BENZENE ANIMATION The animation doesn’t work on early versions of Powerpoint

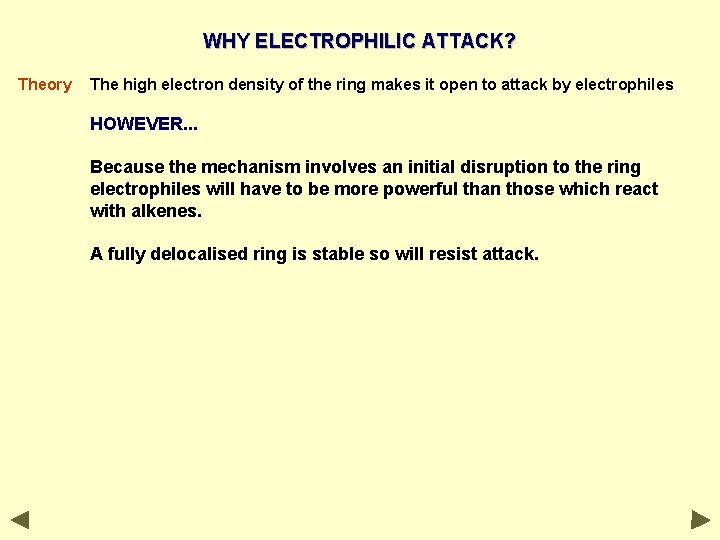

WHY ELECTROPHILIC ATTACK? Theory The high electron density of the ring makes it open to attack by electrophiles HOWEVER. . . Because the mechanism involves an initial disruption to the ring electrophiles will have to be more powerful than those which react with alkenes. A fully delocalised ring is stable so will resist attack.

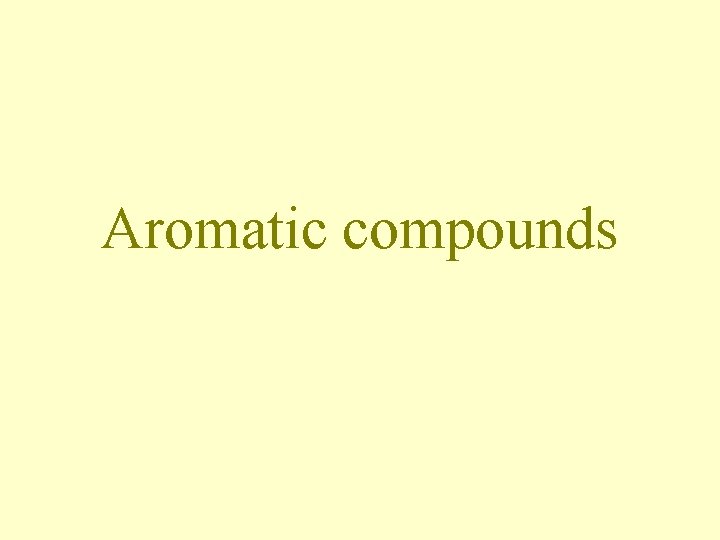

Aromatic compounds

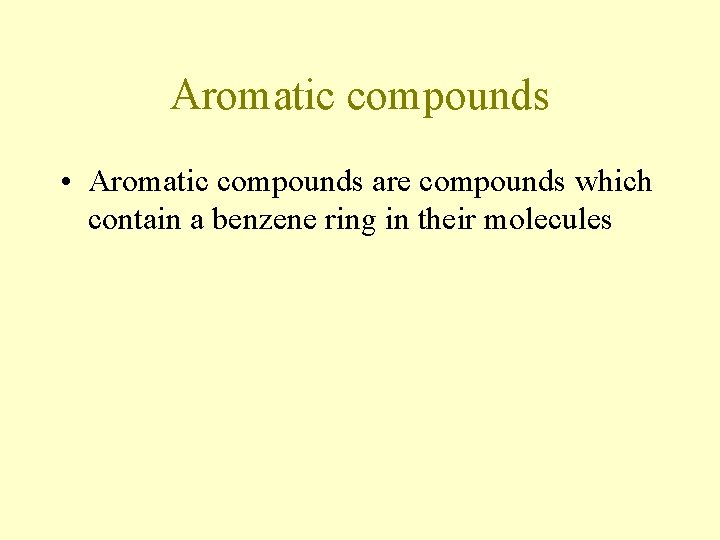

Aromatic compounds • Aromatic compounds are compounds which contain a benzene ring in their molecules

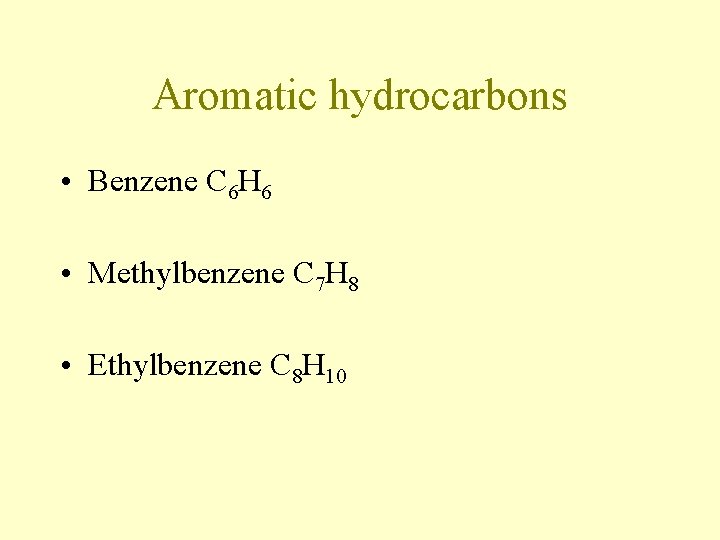

Aromatic hydrocarbons • Benzene C 6 H 6 • Methylbenzene C 7 H 8 • Ethylbenzene C 8 H 10

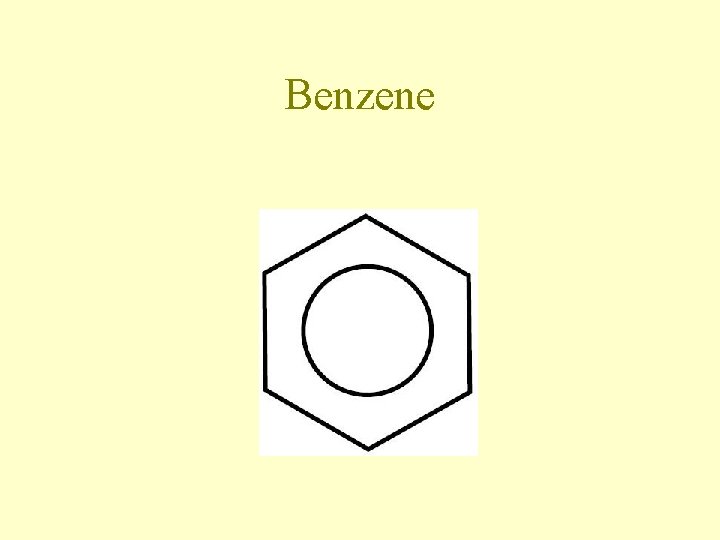

Benzene

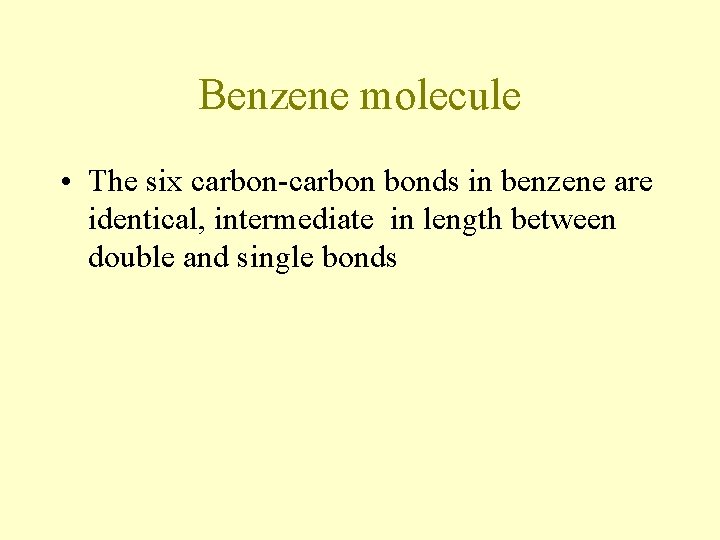

Benzene molecule • The six carbon-carbon bonds in benzene are identical, intermediate in length between double and single bonds

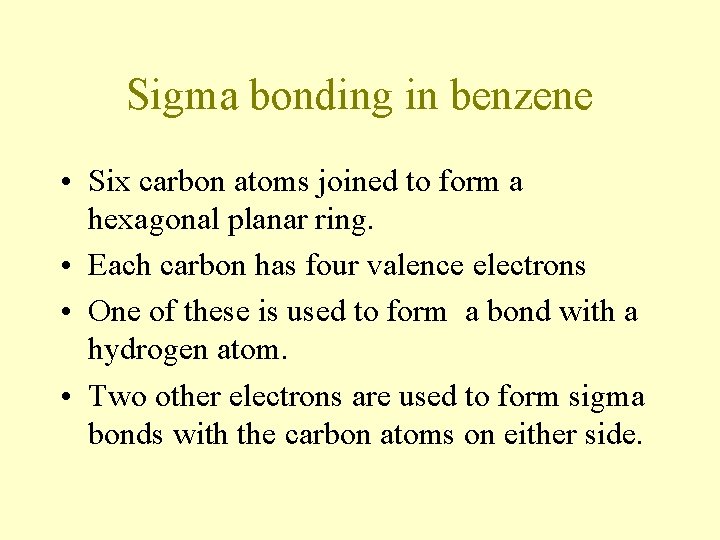

Sigma bonding in benzene • Six carbon atoms joined to form a hexagonal planar ring. • Each carbon has four valence electrons • One of these is used to form a bond with a hydrogen atom. • Two other electrons are used to form sigma bonds with the carbon atoms on either side.

What the circle means • The 6 valence electrons not involved in sigma bonding are shared between the six carbon atoms in the molecule • not localised into 3 double bonds • For convenience the C and H atoms are not shown • Ring in centre indicates a delocalised pi bond

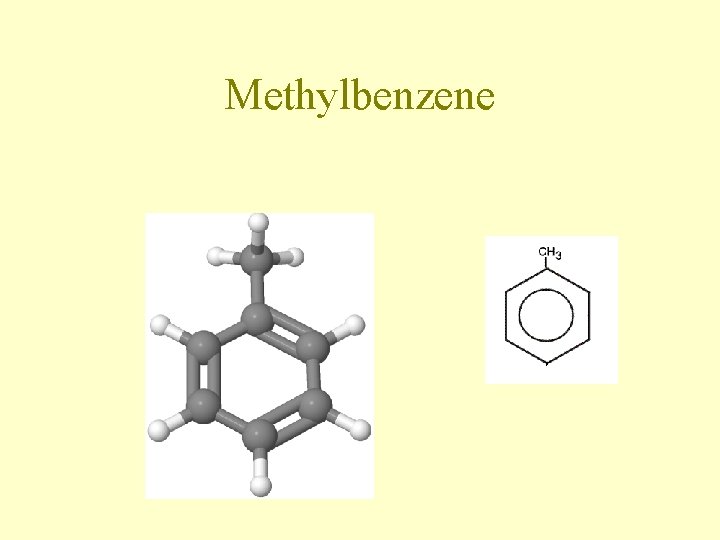

Methylbenzene

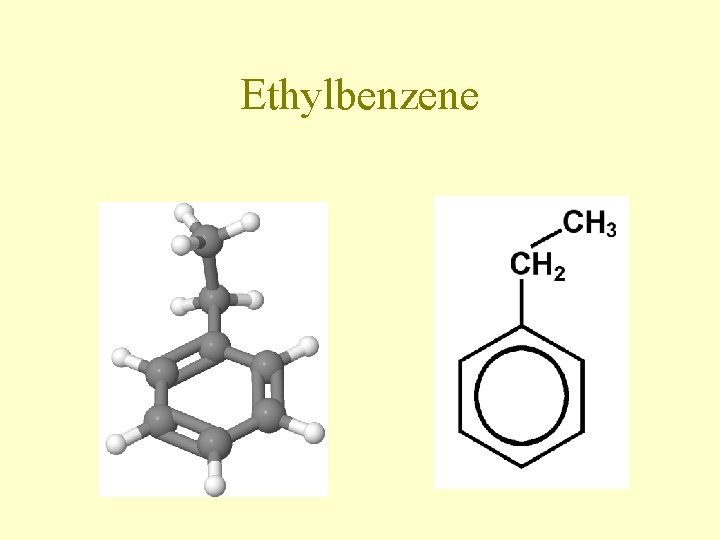

Ethylbenzene

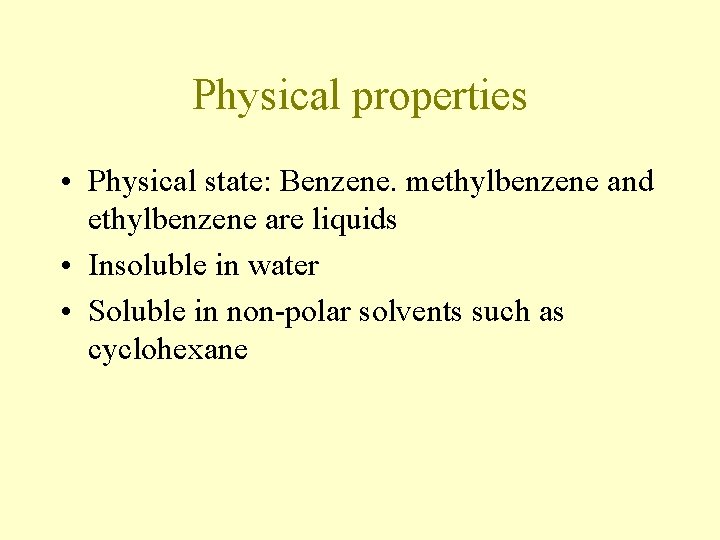

Physical properties • Physical state: Benzene. methylbenzene and ethylbenzene are liquids • Insoluble in water • Soluble in non-polar solvents such as cyclohexane

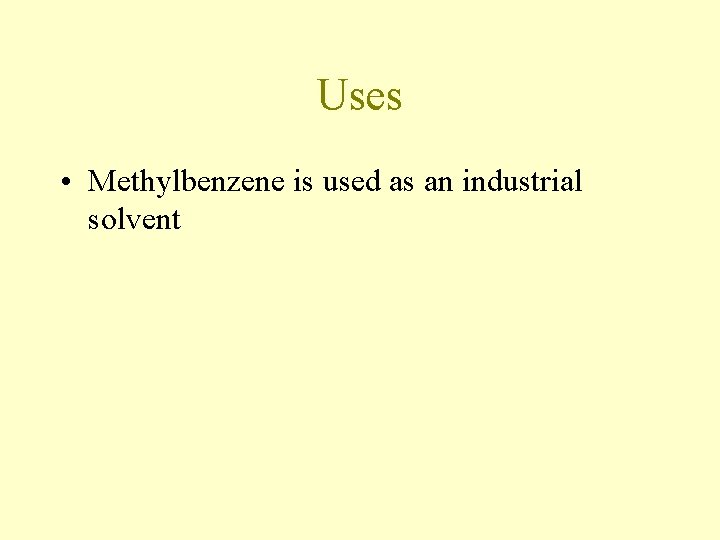

Uses • Methylbenzene is used as an industrial solvent

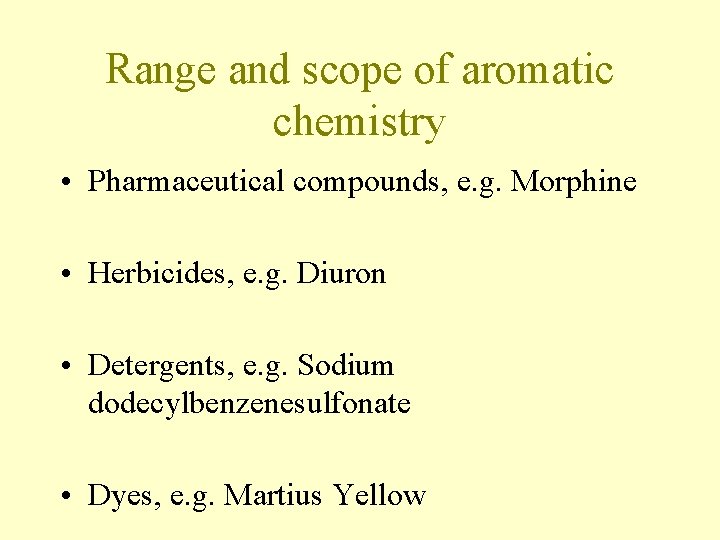

Range and scope of aromatic chemistry • Pharmaceutical compounds, e. g. Morphine • Herbicides, e. g. Diuron • Detergents, e. g. Sodium dodecylbenzenesulfonate • Dyes, e. g. Martius Yellow

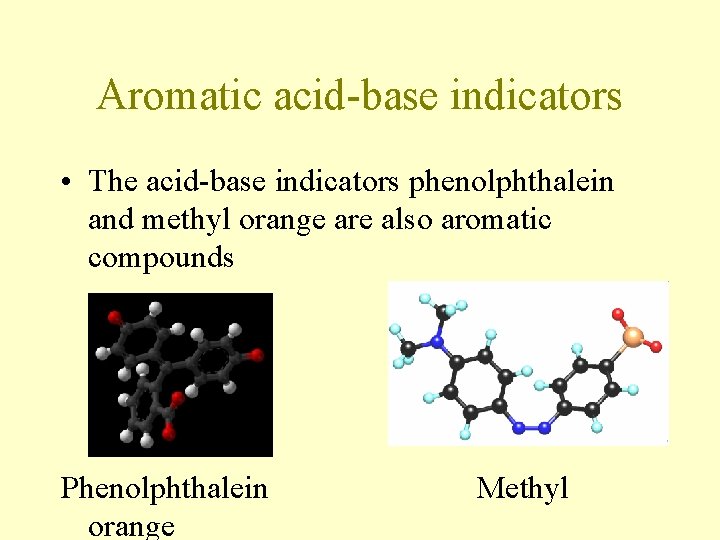

Aromatic acid-base indicators • The acid-base indicators phenolphthalein and methyl orange are also aromatic compounds Phenolphthalein orange Methyl

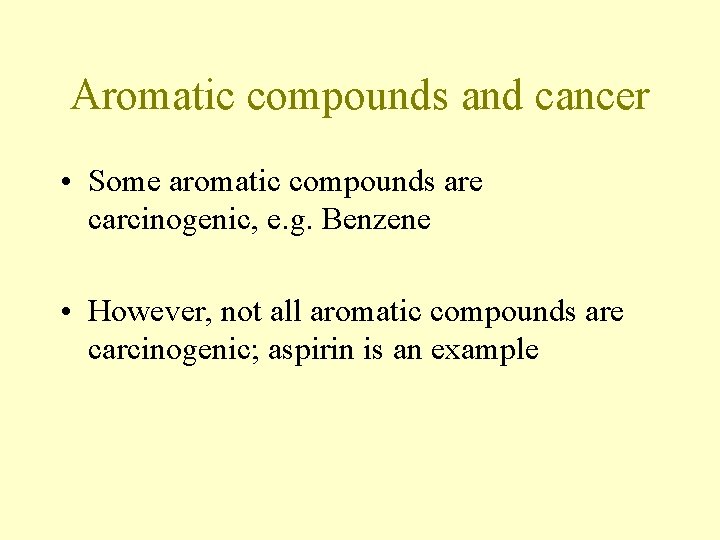

Aromatic compounds and cancer • Some aromatic compounds are carcinogenic, e. g. Benzene • However, not all aromatic compounds are carcinogenic; aspirin is an example

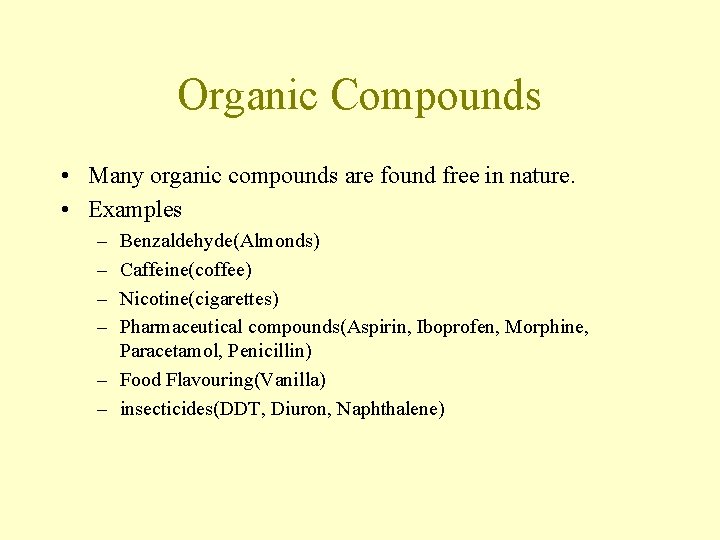

Organic Compounds • Many organic compounds are found free in nature. • Examples – – Benzaldehyde(Almonds) Caffeine(coffee) Nicotine(cigarettes) Pharmaceutical compounds(Aspirin, Iboprofen, Morphine, Paracetamol, Penicillin) – Food Flavouring(Vanilla) – insecticides(DDT, Diuron, Naphthalene)

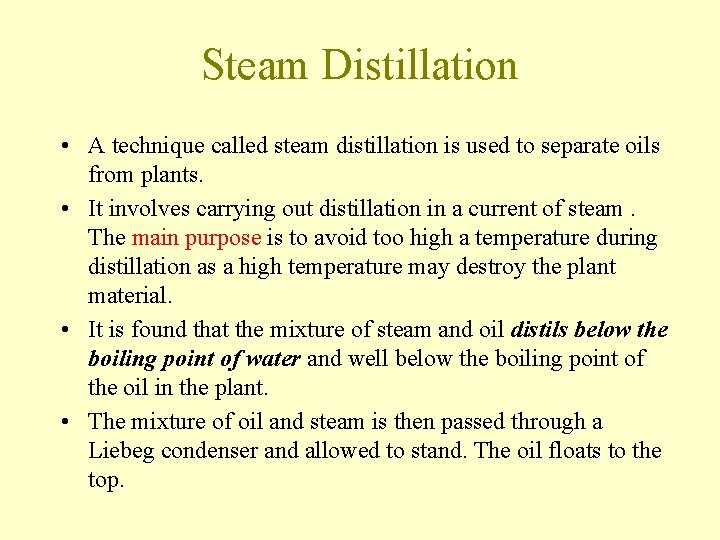

Steam Distillation • A technique called steam distillation is used to separate oils from plants. • It involves carrying out distillation in a current of steam. The main purpose is to avoid too high a temperature during distillation as a high temperature may destroy the plant material. • It is found that the mixture of steam and oil distils below the boiling point of water and well below the boiling point of the oil in the plant. • The mixture of oil and steam is then passed through a Liebeg condenser and allowed to stand. The oil floats to the top.

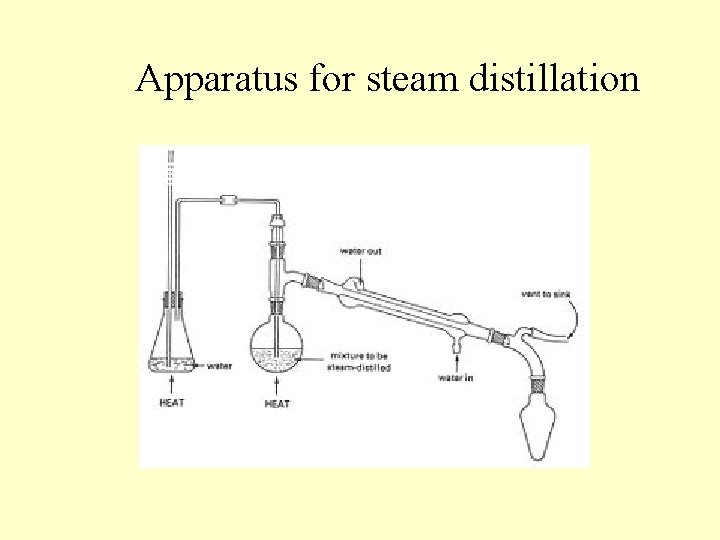

Apparatus for steam distillation

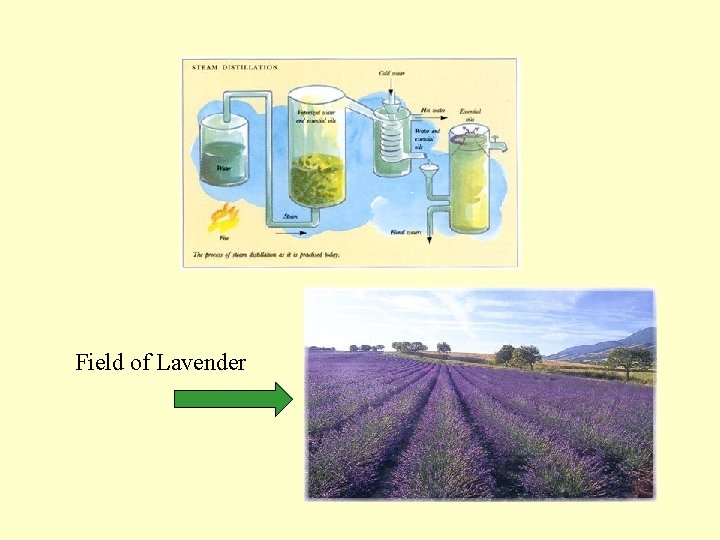

Field of Lavender

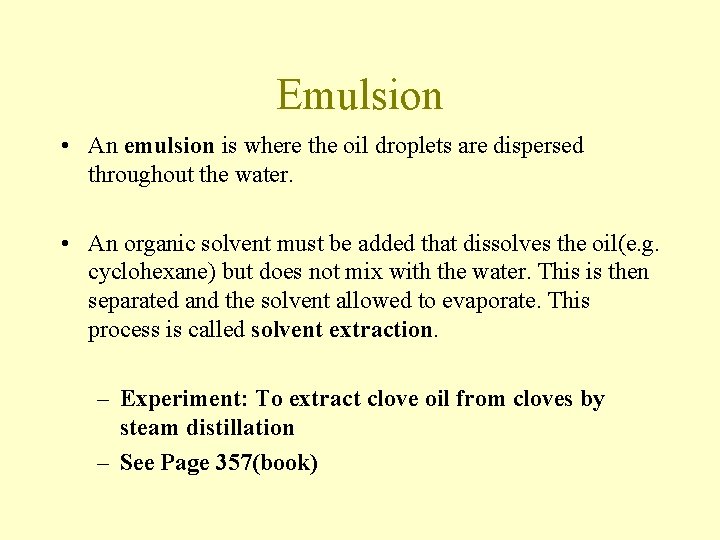

Emulsion • An emulsion is where the oil droplets are dispersed throughout the water. • An organic solvent must be added that dissolves the oil(e. g. cyclohexane) but does not mix with the water. This is then separated and the solvent allowed to evaporate. This process is called solvent extraction. – Experiment: To extract clove oil from cloves by steam distillation – See Page 357(book)
