Chapter 22 Bulk Electrolysis: Electrogravimetry and Coulometry

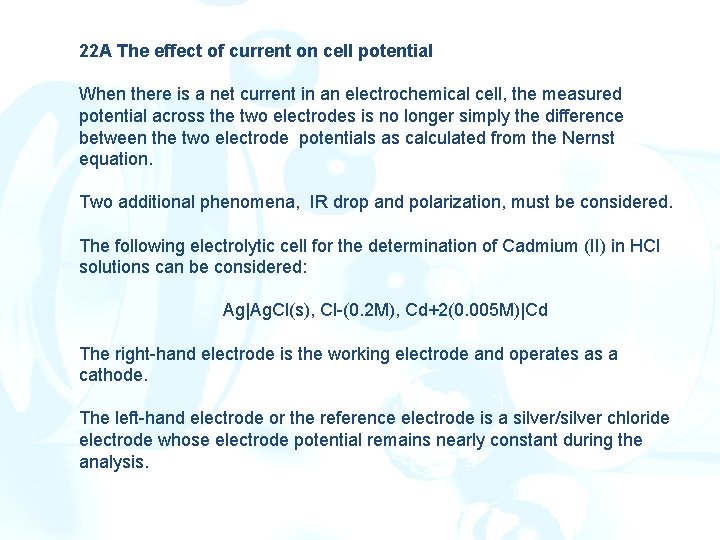

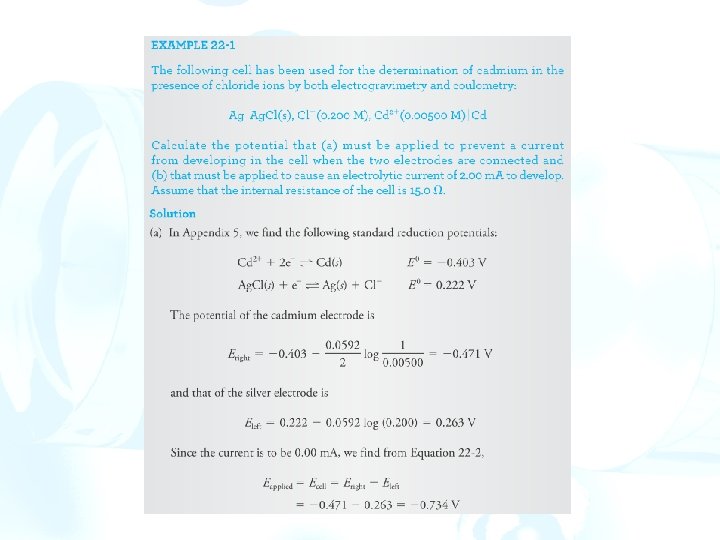

22 A The effect of current on cell potential When there is a net current in an electrochemical cell, the measured potential across the two electrodes is no longer simply the difference between the two electrode potentials as calculated from the Nernst equation. Two additional phenomena, IR drop and polarization, must be considered. The following electrolytic cell for the determination of Cadmium (II) in HCl solutions can be considered: Ag|Ag. Cl(s), Cl-(0. 2 M), Cd+2(0. 005 M)|Cd The right-hand electrode is the working electrode and operates as a cathode. The left-hand electrode or the reference electrode is a silver/silver chloride electrode whose electrode potential remains nearly constant during the analysis.

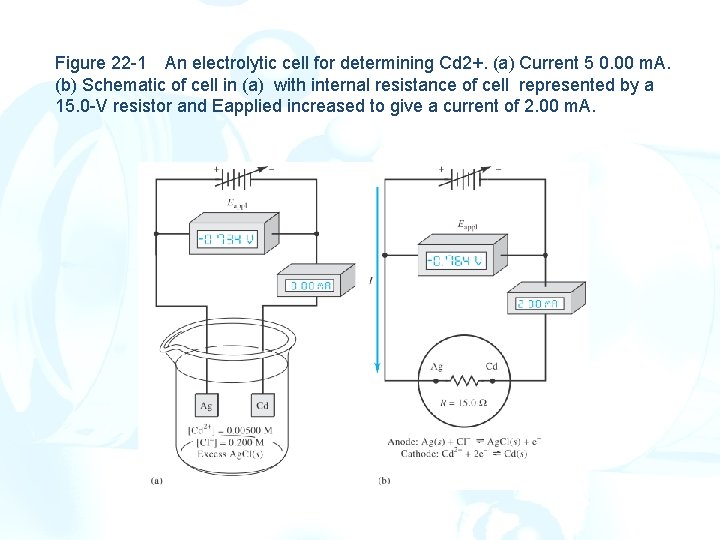

Figure 22 -1 An electrolytic cell for determining Cd 2+. (a) Current 5 0. 00 m. A. (b) Schematic of cell in (a) with internal resistance of cell represented by a 15. 0 -V resistor and Eapplied increased to give a current of 2. 00 m. A.

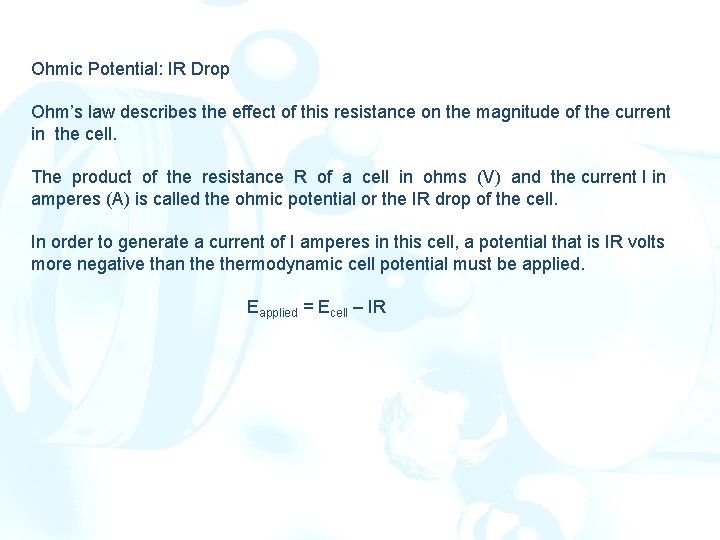

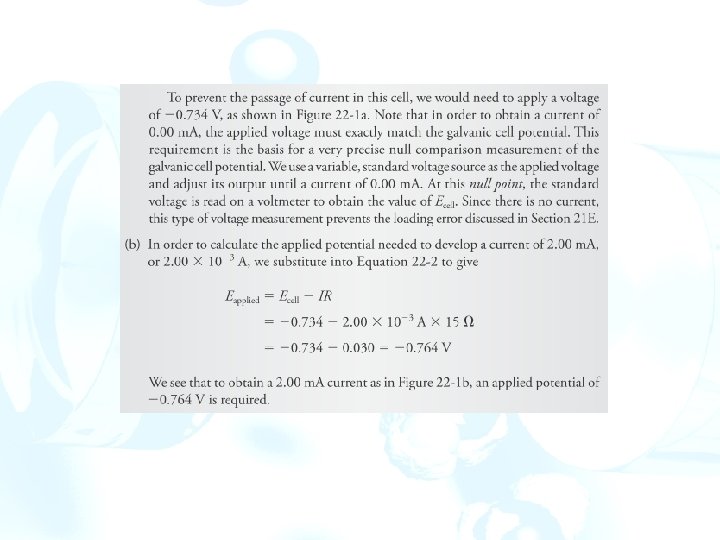

Ohmic Potential: IR Drop Ohm’s law describes the effect of this resistance on the magnitude of the current in the cell. The product of the resistance R of a cell in ohms (V) and the current I in amperes (A) is called the ohmic potential or the IR drop of the cell. In order to generate a current of I amperes in this cell, a potential that is IR volts more negative than thermodynamic cell potential must be applied. Eapplied = Ecell – IR

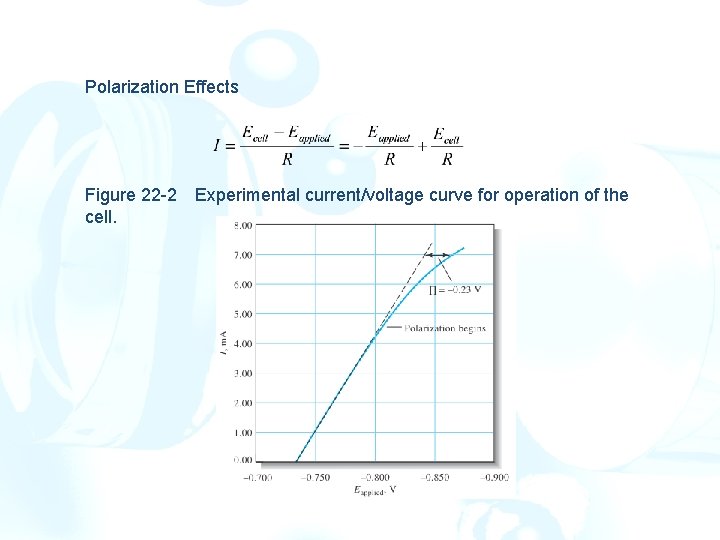

Polarization Effects Figure 22 -2 cell. Experimental current/voltage curve for operation of the

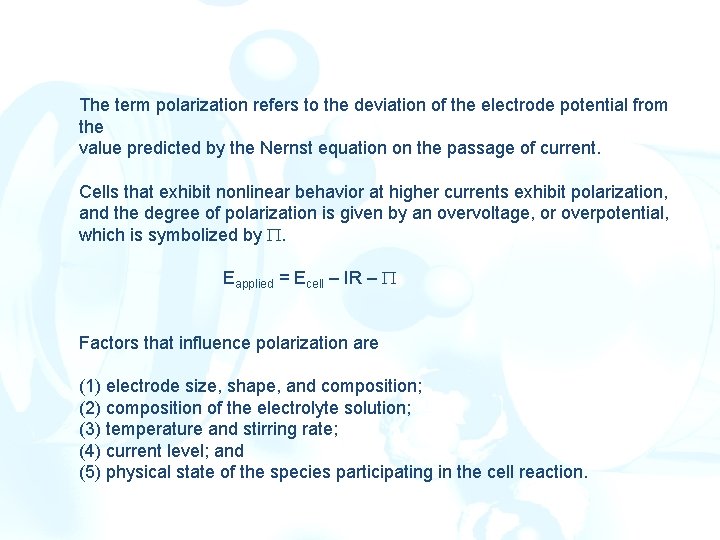

The term polarization refers to the deviation of the electrode potential from the value predicted by the Nernst equation on the passage of current. Cells that exhibit nonlinear behavior at higher currents exhibit polarization, and the degree of polarization is given by an overvoltage, or overpotential, which is symbolized by . Eapplied = Ecell – IR – Factors that influence polarization are (1) electrode size, shape, and composition; (2) composition of the electrolyte solution; (3) temperature and stirring rate; (4) current level; and (5) physical state of the species participating in the cell reaction.

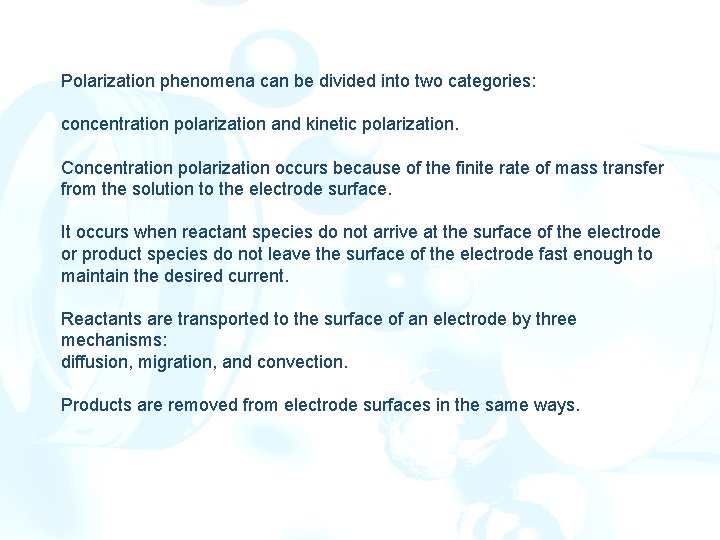

Polarization phenomena can be divided into two categories: concentration polarization and kinetic polarization. Concentration polarization occurs because of the finite rate of mass transfer from the solution to the electrode surface. It occurs when reactant species do not arrive at the surface of the electrode or product species do not leave the surface of the electrode fast enough to maintain the desired current. Reactants are transported to the surface of an electrode by three mechanisms: diffusion, migration, and convection. Products are removed from electrode surfaces in the same ways.

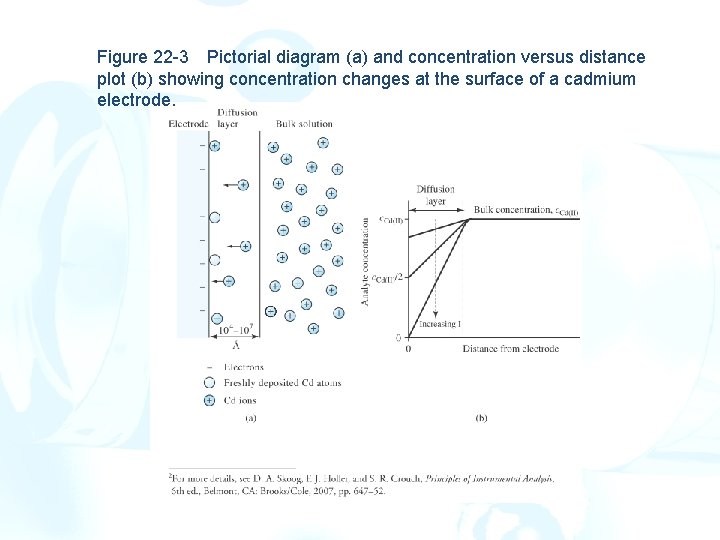

Figure 22 -3 Pictorial diagram (a) and concentration versus distance plot (b) showing concentration changes at the surface of a cadmium electrode.

Figure 22 -4 Current-potential curve for electrolysis showing the linear or ohmic region, the onset of polarization, and the limiting current plateau. In the limiting current region, the electrode is said to be completely polarized since its potential can be changed widely without affecting the current. rate of diffusion to cathode surface = k’([Cd 2+] - [Cd 2+]0)

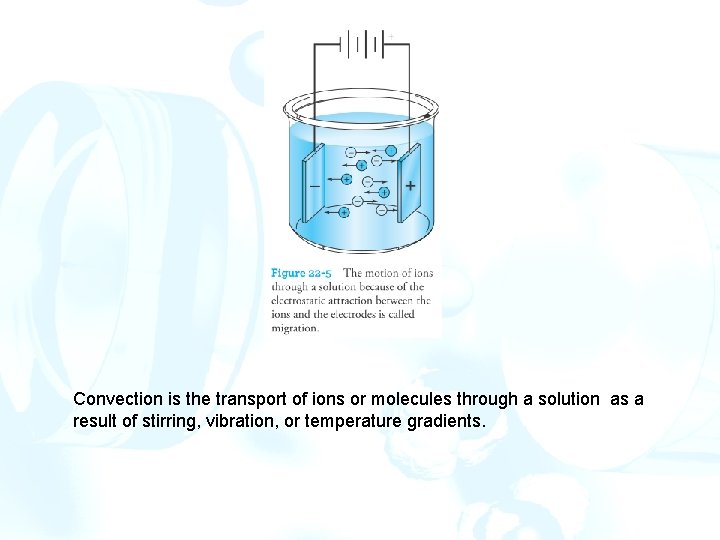

Convection is the transport of ions or molecules through a solution as a result of stirring, vibration, or temperature gradients.

22 B The selectivity of electrolytic methods

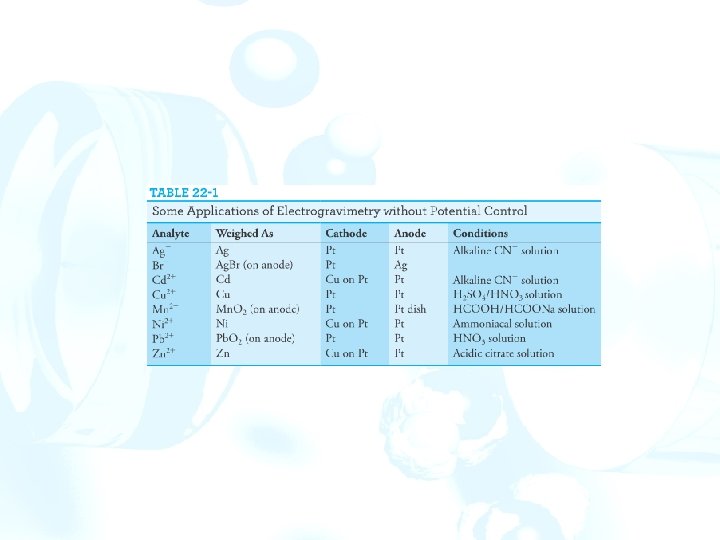

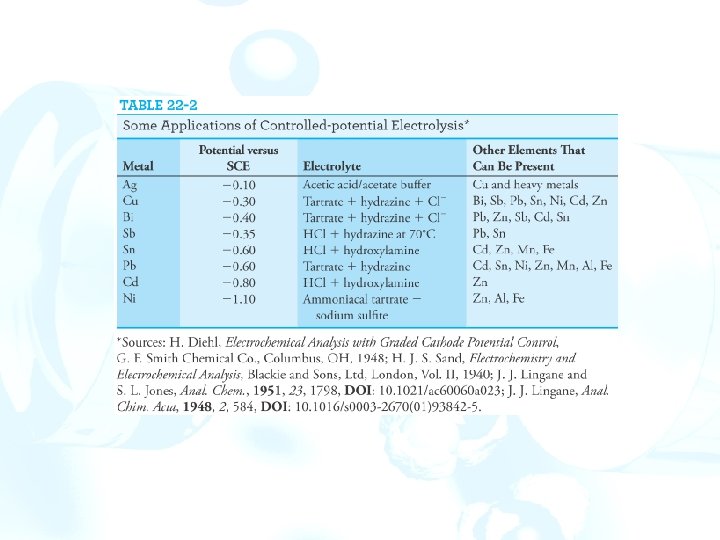

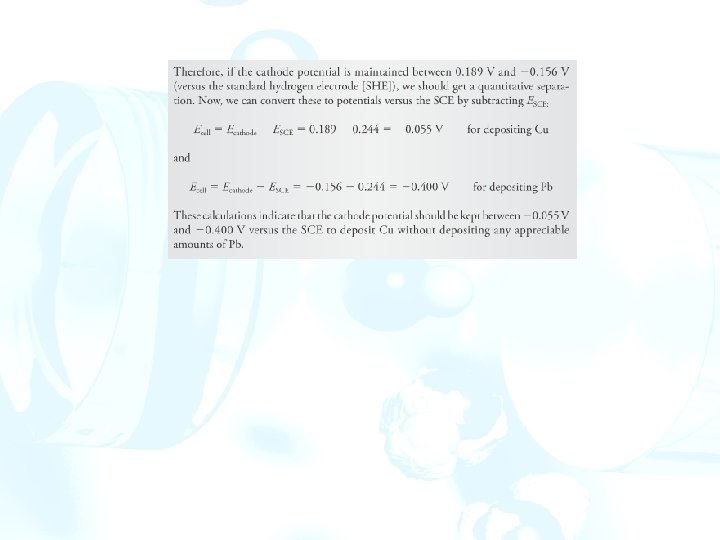

22 C Electrogravimetric methods They are of two general types: (1) the potential of the working electrode is uncontrolled, and the applied cell potential is held at a more or less constant level that provides a large enough current to complete the electrolysis in a reasonable length of time. (2) the controlled-potential or potentiostatic method the potential of the working electrode is maintained at a constant level versus a reference electrode, such as a SCE.

Figure 22 -6 control. Apparatus for electrodeposition of metals without cathode-potential

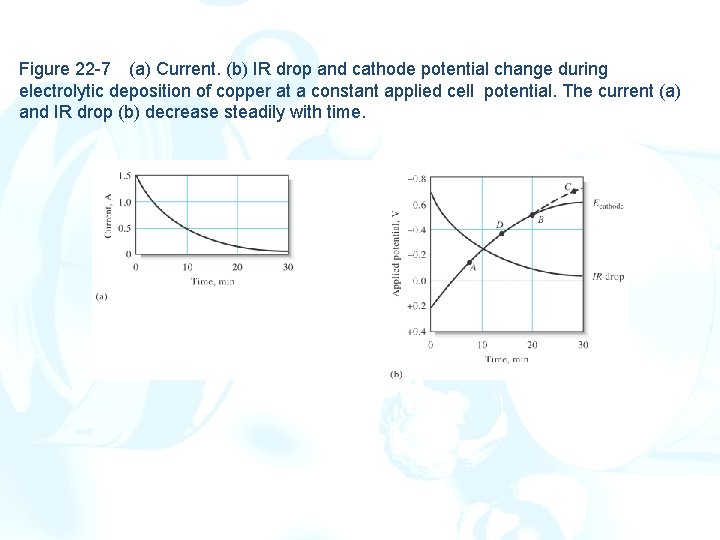

Figure 22 -7 (a) Current. (b) IR drop and cathode potential change during electrolytic deposition of copper at a constant applied cell potential. The current (a) and IR drop (b) decrease steadily with time.

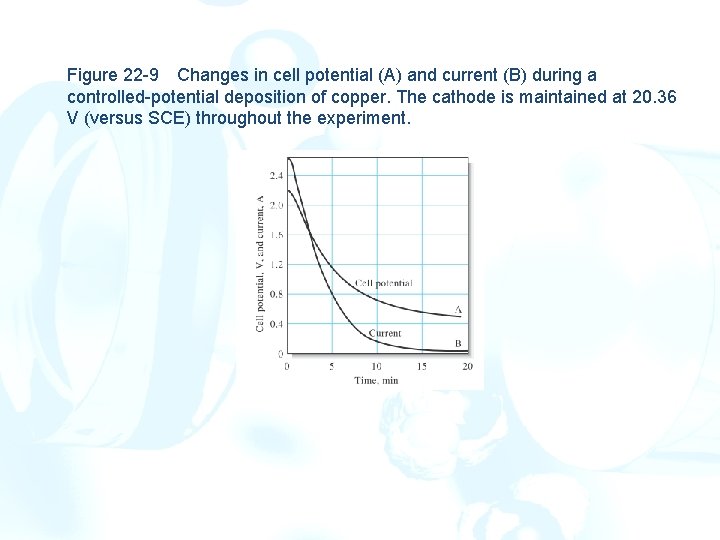

Figure 22 -9 Changes in cell potential (A) and current (B) during a controlled-potential deposition of copper. The cathode is maintained at 20. 36 V (versus SCE) throughout the experiment.

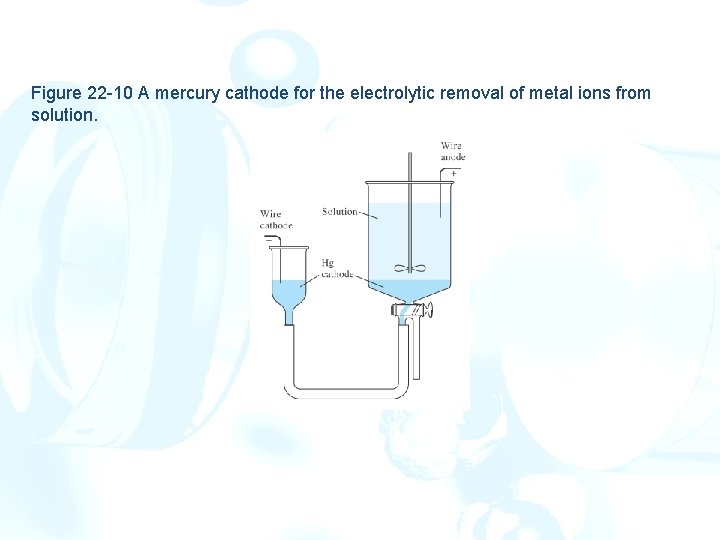

Figure 22 -10 A mercury cathode for the electrolytic removal of metal ions from solution.

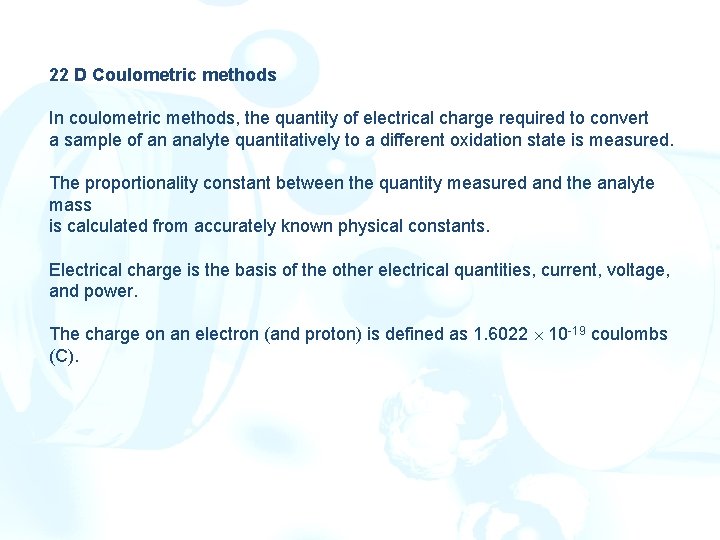

22 D Coulometric methods In coulometric methods, the quantity of electrical charge required to convert a sample of an analyte quantitatively to a different oxidation state is measured. The proportionality constant between the quantity measured and the analyte mass is calculated from accurately known physical constants. Electrical charge is the basis of the other electrical quantities, current, voltage, and power. The charge on an electron (and proton) is defined as 1. 6022 10 -19 coulombs (C).

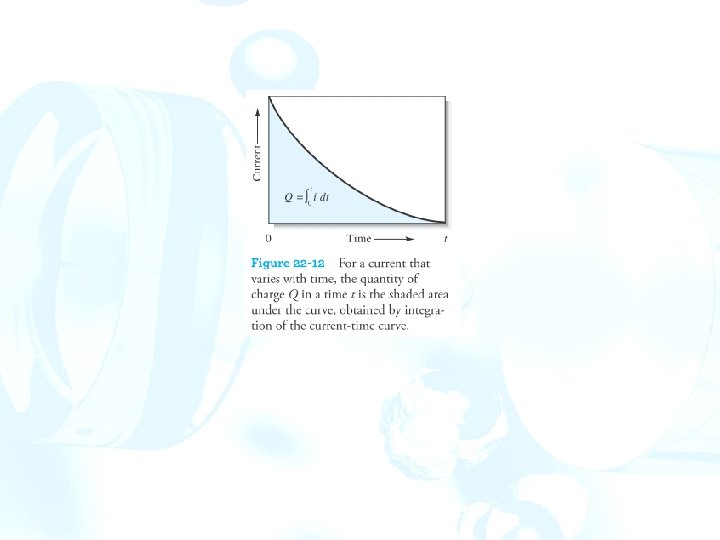

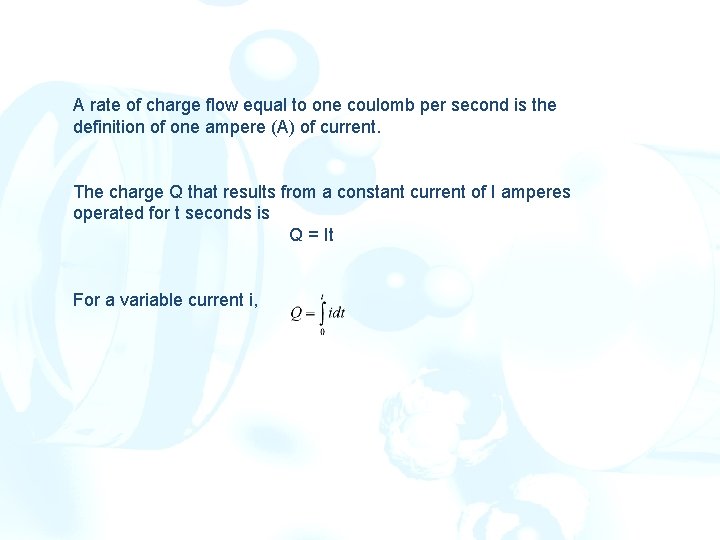

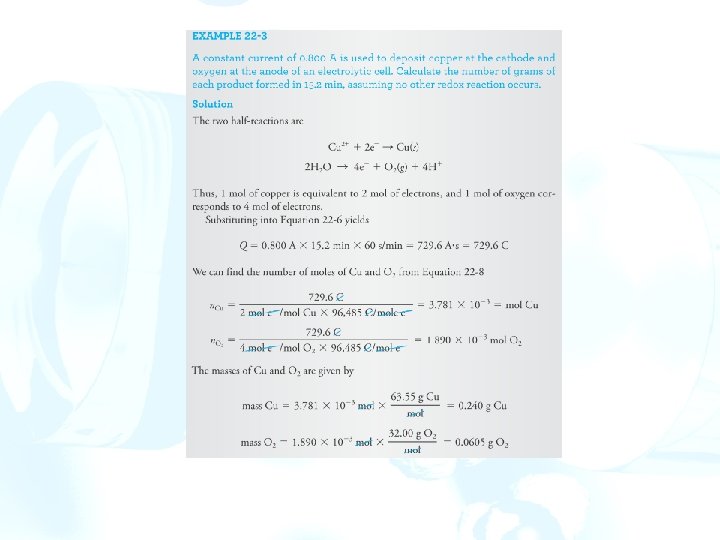

A rate of charge flow equal to one coulomb per second is the definition of one ampere (A) of current. The charge Q that results from a constant current of I amperes operated for t seconds is Q = It For a variable current i,

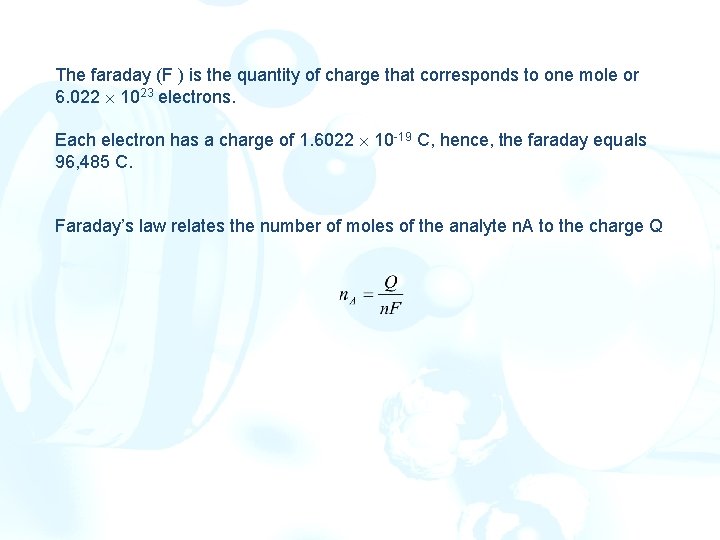

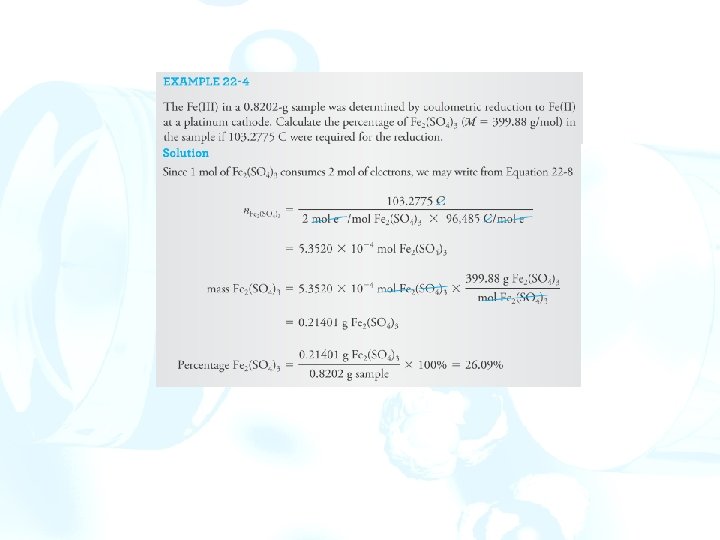

The faraday (F ) is the quantity of charge that corresponds to one mole or 6. 022 1023 electrons. Each electron has a charge of 1. 6022 10 -19 C, hence, the faraday equals 96, 485 C. Faraday’s law relates the number of moles of the analyte n. A to the charge Q

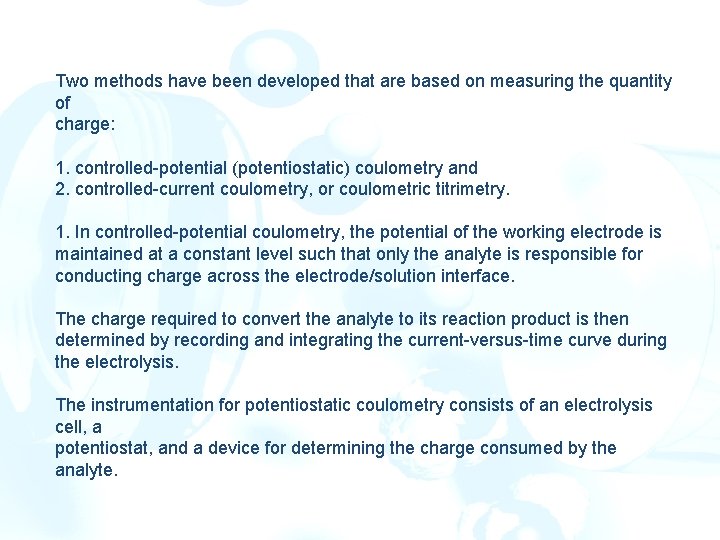

Two methods have been developed that are based on measuring the quantity of charge: 1. controlled-potential (potentiostatic) coulometry and 2. controlled-current coulometry, or coulometric titrimetry. 1. In controlled-potential coulometry, the potential of the working electrode is maintained at a constant level such that only the analyte is responsible for conducting charge across the electrode/solution interface. The charge required to convert the analyte to its reaction product is then determined by recording and integrating the current-versus-time curve during the electrolysis. The instrumentation for potentiostatic coulometry consists of an electrolysis cell, a potentiostat, and a device for determining the charge consumed by the analyte.

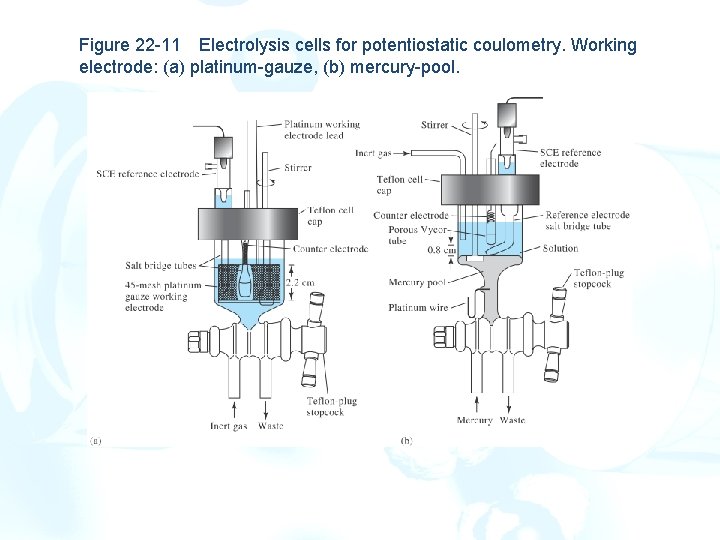

Figure 22 -11 Electrolysis cells for potentiostatic coulometry. Working electrode: (a) platinum-gauze, (b) mercury-pool.

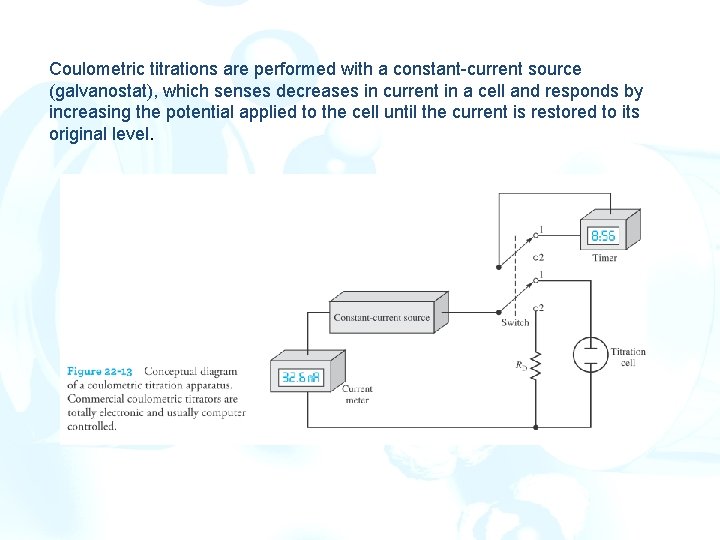

Coulometric titrations are performed with a constant-current source (galvanostat), which senses decreases in current in a cell and responds by increasing the potential applied to the cell until the current is restored to its original level.

Figure 22 -14 A typical coulometric titration cell.

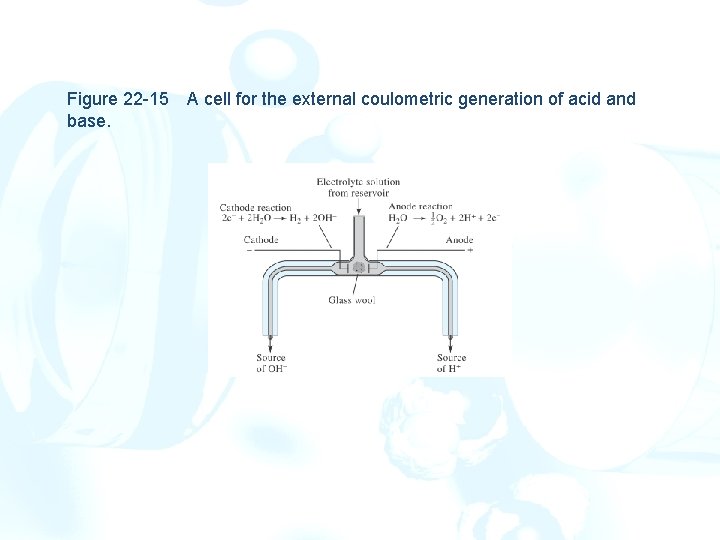

Figure 22 -15 A cell for the external coulometric generation of acid and base.

Applications of Coulometric Titrations 1. Neutralization titrations 2. Precipitation and Complex-formation reactions

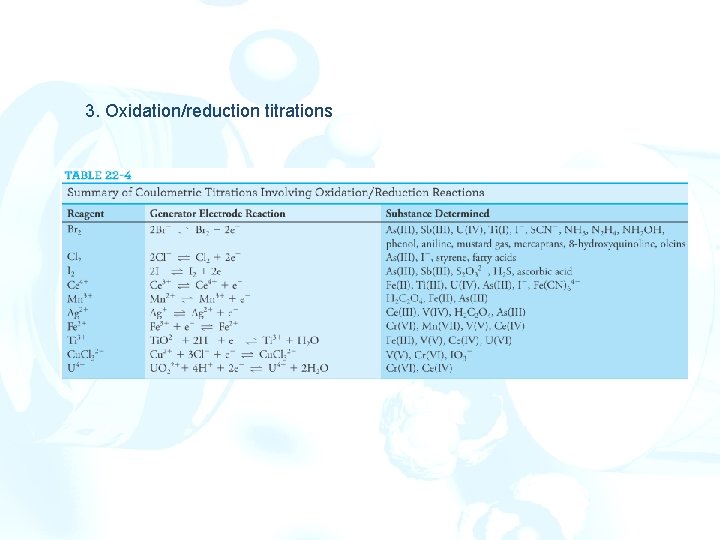

3. Oxidation/reduction titrations
