Chapter 21 Open Economy Macroeconomic Policy and Adjustment

Topics to be Covered • • • Internal Balance vs. External Balance Macroeconomic Equilibrium

Open Economy Goals: Internal and External Balance • Internal Balance—a steady growth of the

Tools of Macroeconomic Policy • Fiscal Policy—government spending and taxation. • Monetary Policy—central bank

Macroeconomic Equilibrium • Macroeconomic Equilibrium requires equilibrium in three major markets: – Goods Market

IS–LM–BP Model • The IS curve represents the goods market equilibrium. • The LM

FIGURE 21. 1 Equilibrium in the Goods Market, Money Market (LM), and Balance of

The IS Curve • The IS curve shows combinations of the interest rate (i)

Deriving the IS Curve • Refer to Figure 21. 2 IS curve derivation •

FIGURE 21. 2 Derivation of the IS Curve Copyright © 2010 Pearson Addison-Wesley. All

Why is the IS Curve Downwardsloping? • When the interest rate falls, more potential

The LM Curve • The LM curve shows combinations of i and Y that

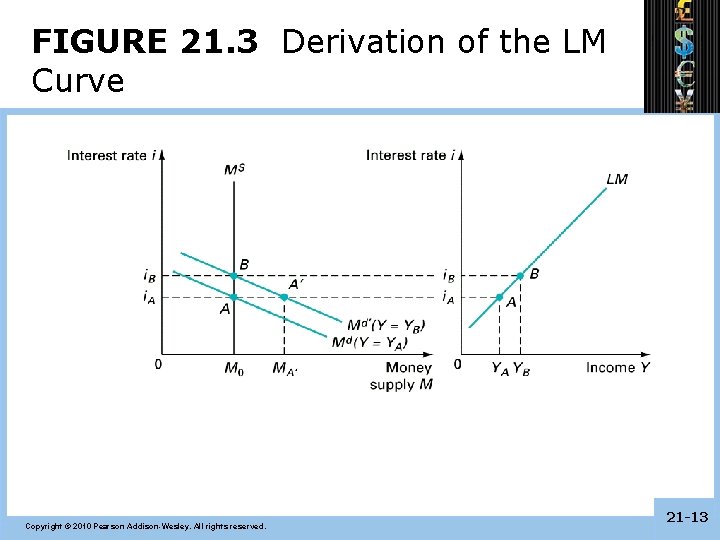

FIGURE 21. 3 Derivation of the LM Curve Copyright © 2010 Pearson Addison-Wesley. All

Deriving the LM Curve • Refer to Figure 21. 3 • Assumptions: – Money

Why is the LM Curve Upwardsloping? • As income increases, demand for money would

The BP Curve • The BP Curve shows combinations of i and Y that

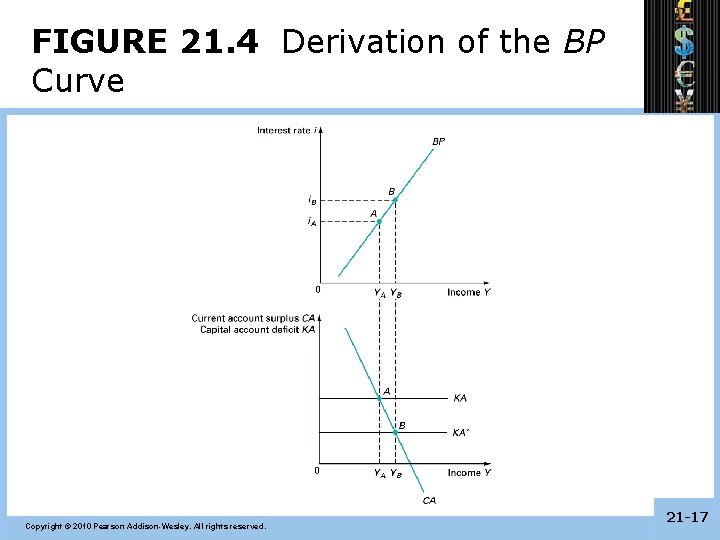

FIGURE 21. 4 Derivation of the BP Curve Copyright © 2010 Pearson Addison-Wesley. All

Deriving the BP Curve • Refer to Figure 21. 4 • The current account

Why is the BP Curve Upwardsloping? • If the interest rate increases, domestic financial

Macroeconomic Equilibrium • Equilibrium for the economy requires that all three markets (goods, money,

IS–LM–BP Model with Fixed Exchange Rates • Effects of Expansionary Monetary Policy • Effects

Monetary Policy Under Fixed Exchange Rates • With fixed exchange rates, the central bank

Monetary Policy under Fixed XR (cont. ) • If the central bank increases the

FIGURE 21. 5 Monetary Expansion with Fixed Exchange Rates and Perfect Capital Mobility Copyright

Fiscal Policy Under Fixed Exchange Rates • BP curve is horizontal at initial equilibrium

FIGURE 21. 6 Fiscal Expansion with Fixed Exchange Rates and Perfect Capital Mobility Copyright

IS–LM–BP Model With Floating Exchange Rates • The IS–LM–BP model with flexible exchange rates

Monetary Policy Under Floating Exchange Rates • With floating exchange rates, the domestic monetary

FIGURE 21. 7 Monetary Expansion with Floating Exchange Rates and Perfect Capital Mobility Copyright

Fiscal Policy Under Floating Exchange Rates • Refer to Figure 21. 8 • Expansionary

FIGURE 21. 8 Fiscal Expansion with Floating Exchange Rates and Perfect Capital Mobility Copyright

The Open Economy Multiplier • Assuming that saving and imports are each proportional to

$Open Economy Multiplier (cont. ) • Since s and m are fractions less than$

Multiplier Effect • Refer to Figure 21. 9 • If exports increase, then the

FIGURE 21. 9 The Effect of an Increase in Exports Copyright © 2010 Pearson

Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -36

Slides: 36

Download presentation

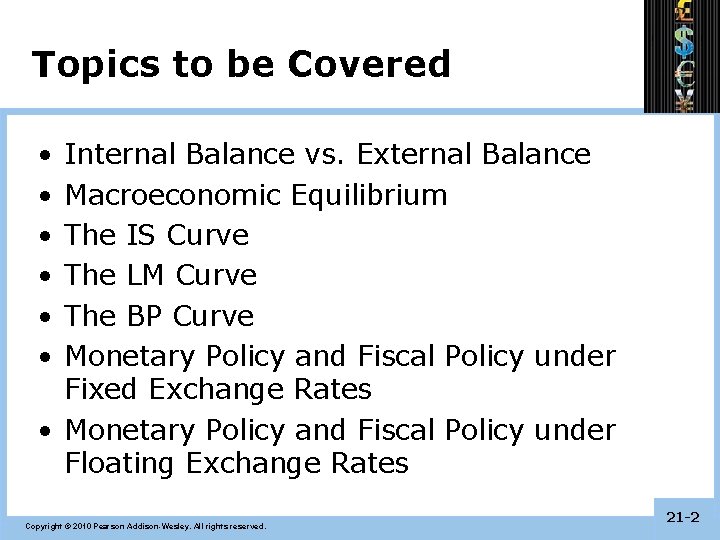

Topics to be Covered • • • Internal Balance vs. External Balance Macroeconomic Equilibrium The IS Curve The LM Curve The BP Curve Monetary Policy and Fiscal Policy under Fixed Exchange Rates • Monetary Policy and Fiscal Policy under Floating Exchange Rates Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -2

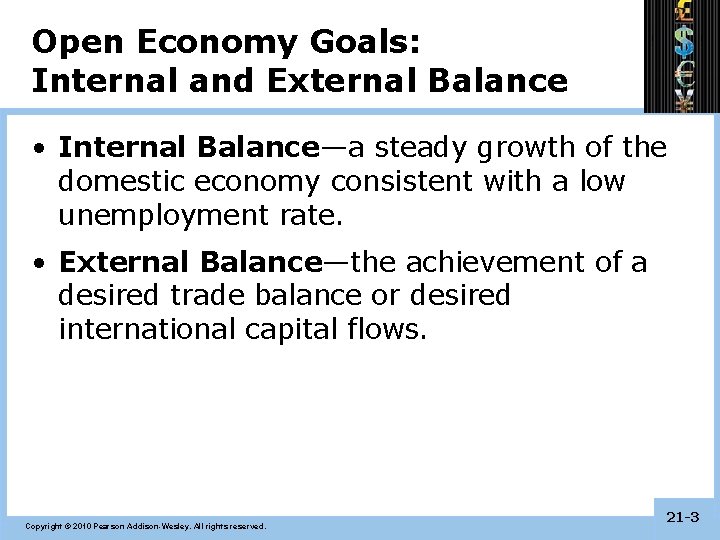

Open Economy Goals: Internal and External Balance • Internal Balance—a steady growth of the domestic economy consistent with a low unemployment rate. • External Balance—the achievement of a desired trade balance or desired international capital flows. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -3

Tools of Macroeconomic Policy • Fiscal Policy—government spending and taxation. • Monetary Policy—central bank control of the money supply and credit. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -4

Macroeconomic Equilibrium • Macroeconomic Equilibrium requires equilibrium in three major markets: – Goods Market Equilibrium: the quantity of goods and services supplied is equal to the quantity demanded. – Money Market Equilibrium: the quantity of money supplied is equal to the quantity demanded. – Balance of Payments Equilibrium: the current account deficit (surplus) is equal to the capital account surplus (deficit), so that the official settlements balance equals zero. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -5

IS–LM–BP Model • The IS curve represents the goods market equilibrium. • The LM curve represents the money market equilibrium. • The BP curve represents the balance of payments equilibrium. • Macroeconomic equilibrium is achieved at the point where all the curves intersect. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -6

The IS Curve • The IS curve shows combinations of the interest rate (i) and output (Y) that provide equilibrium in the goods market, holding other things (e. g. , the price level) constant. • Equilibrium occurs when leakages (saving, taxes, and imports) equal injections (investment, government spending, and exports), that is: Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -8

Deriving the IS Curve • Refer to Figure 21. 2 IS curve derivation • Assumptions: – S and IM depend positively on income – T, I, G, and EX are independent of income – I depends negatively on interest rate • S + T + IM line is upward-sloping because as domestic income rises, S and IM increase. • I + G + EX line is horizontal since I, G, and EX are independent of income. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -9

Why is the IS Curve Downwardsloping? • When the interest rate falls, more potential investment projects become profitable, and thus investment increases (I + G + EX line shifts upwards). As investment rises, equilibrium income also rises. • We must remember that the IS curve is drawn holding the domestic price level and the EXR constant. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -11

The LM Curve • The LM curve shows combinations of i and Y that provide equilibrium in the money market. • Graphically, money market equilibrium occurs at the intersection of the money supply curve and the money demand curve (refer to Figure 21. 3). Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -12

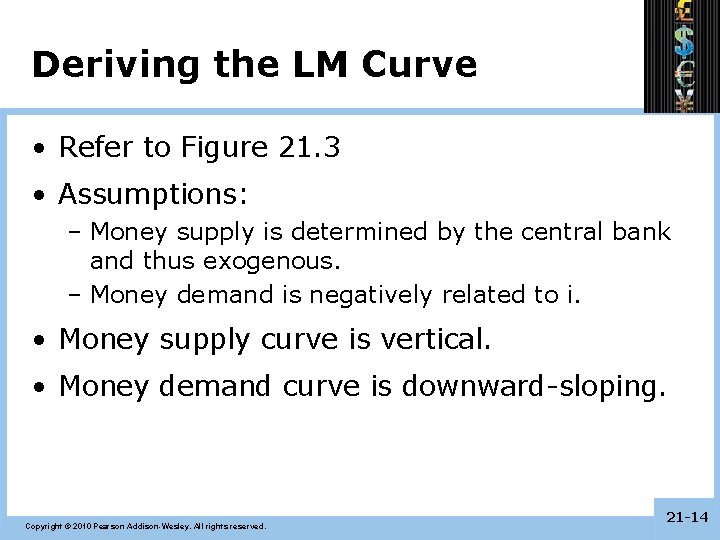

Deriving the LM Curve • Refer to Figure 21. 3 • Assumptions: – Money supply is determined by the central bank and thus exogenous. – Money demand is negatively related to i. • Money supply curve is vertical. • Money demand curve is downward-sloping. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -14

Why is the LM Curve Upwardsloping? • As income increases, demand for money would increase (money demand curve shifts upward). Given a fixed money supply, there will be an excess demand for money at the original interest rate. The desire to hold more money than is available will cause the interest rate to rise to a new equilibrium level. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -15

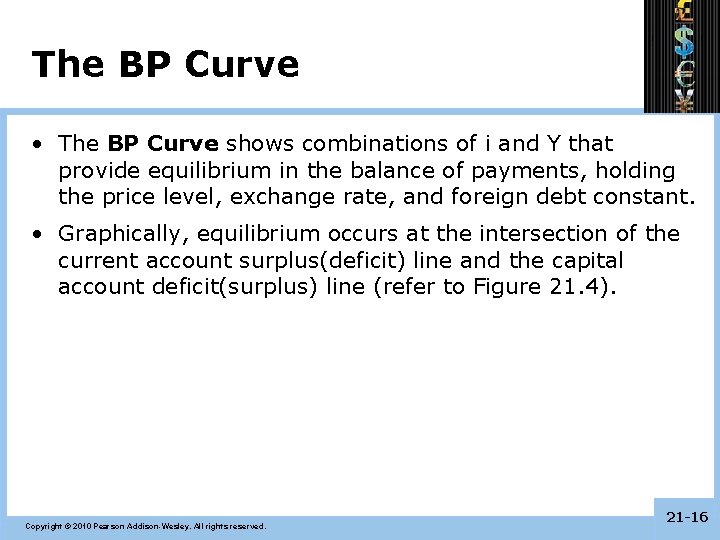

The BP Curve • The BP Curve shows combinations of i and Y that provide equilibrium in the balance of payments, holding the price level, exchange rate, and foreign debt constant. • Graphically, equilibrium occurs at the intersection of the current account surplus(deficit) line and the capital account deficit(surplus) line (refer to Figure 21. 4). Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -16

Deriving the BP Curve • Refer to Figure 21. 4 • The current account line is downwardsloping because as income increases, imports rise and the current account surplus falls. • The capital account line is horizontal since the capital account is determined by i, not Y. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -18

Why is the BP Curve Upwardsloping? • If the interest rate increases, domestic financial assets become more attractive to foreign buyers, and the capital account deficit falls. At the old income level, the current account surplus will exceed the capital account deficit, so income must rise to a new equilibrium level. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -19

Macroeconomic Equilibrium • Equilibrium for the economy requires that all three markets (goods, money, and balance of payments) be in equilibrium. • This occurs at the intersection point of the IS, LM, and BP curves. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -20

Monetary Policy Under Fixed Exchange Rates • With fixed exchange rates, the central bank is not free to conduct monetary policy independent of the rest of the world. • Given perfect asset substitutability and perfect capital mobility, the domestic interest rate and foreign interest rate are equal, and the BP line is horizontal at i = i. F. (refer to Figure 21. 5) Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -22

Monetary Policy under Fixed XR (cont. ) • If the central bank increases the money supply, then the LM curves shifts to the right, resulting in a higher Y and lower i. • The lower i causes a capital outflow and pressure on the domestic currency to depreciate. • To maintain the fixed exchange rate, the central bank sells foreign exchange to buy domestic currency, thus reducing money supply and shifting the LM curve back to restore the initial equilibrium. • Summary: Monetary policy is ineffective in changing Y under fixed exchange rates and perfect capital mobility. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -23

Fiscal Policy Under Fixed Exchange Rates • BP curve is horizontal at initial equilibrium interest rate (refer to Figure 21. 6). • An increase in government spending shifts the IS curve to the right, resulting in both higher i and Y. • Higher i causes a capital inflow and pressure on the domestic currency to appreciate. The central bank must buy foreign exchange with domestic currency, thus increasing the money supply and shifting LM curve to the right. The new equilibrium is at the original interest rate but at a higher income level. • Summary: Under fixed exchange rates, fiscal policy can increase income. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -25

IS–LM–BP Model With Floating Exchange Rates • The IS–LM–BP model with flexible exchange rates and perfect capital mobility is also called the Mundell-Fleming model. • Effects of Expansionary Monetary Policy • Effects of Expansionary Fiscal Policy Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -27

Monetary Policy Under Floating Exchange Rates • With floating exchange rates, the domestic monetary policy is independent. • Refer to Figure 21. 7 An increase in money supply shifts LM to the right, resulting in a lower i and higher Y. • The lower i causes a capital outflow and a depreciation of the domestic currency. The depreciation makes domestic goods relatively cheaper and stimulates net exports, thus shifting the IS curve to the right. The new equilibrium settles at the original i but at a higher income. • Summary: Monetary policy can change income under floating exchange rates. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -28

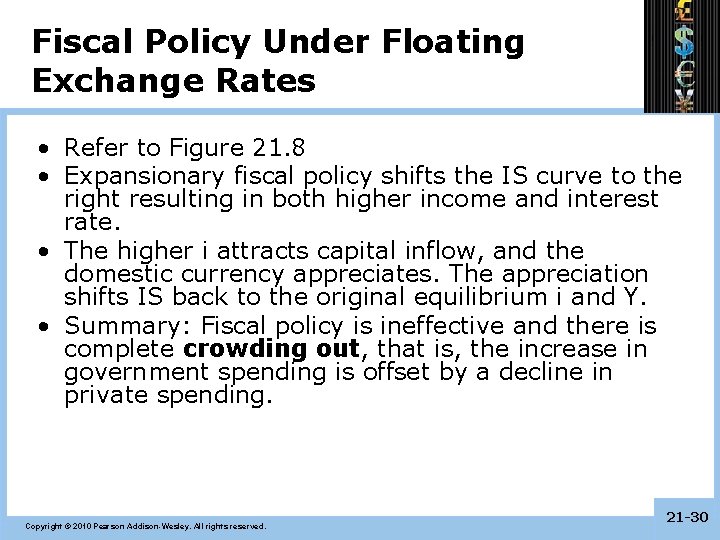

Fiscal Policy Under Floating Exchange Rates • Refer to Figure 21. 8 • Expansionary fiscal policy shifts the IS curve to the right resulting in both higher income and interest rate. • The higher i attracts capital inflow, and the domestic currency appreciates. The appreciation shifts IS back to the original equilibrium i and Y. • Summary: Fiscal policy is ineffective and there is complete crowding out, that is, the increase in government spending is offset by a decline in private spending. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -30

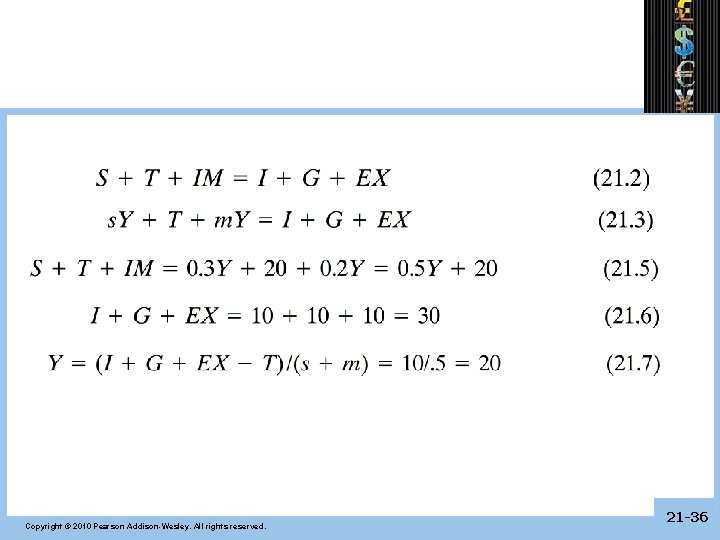

The Open Economy Multiplier • Assuming that saving and imports are each proportional to income and that interest rate is fixed, the equilibrium national income can be expressed as: where s is the marginal propensity to save and m is the marginal propensity to import. • The term 1/(s+m) is the open economy multiplier. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -32

$Open Economy Multiplier (cont. ) • Since s and m are fractions less than$

Open Economy Multiplier (cont. ) • Since s and m are fractions less than 1, then the multiplier is expected to be greater than 1. Thus, an increase in I, G, or EX would cause the equilibrium income level to rise by more than the change in spending. • Conversely, a decline in exports to the U. S. and the large European countries could lead to a fall in the equilibrium income of other countries. Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -33

Multiplier Effect • Refer to Figure 21. 9 • If exports increase, then the incomes of factors employed in the export industry will rise. These resource-owners (e. g. , workers) will increase their spending on goods and services, thereby stimulating production, and further increases in income and spending (the multiplier effect). Copyright © 2010 Pearson Addison-Wesley. All rights reserved. 21 -34
