Chapter 20 Electric Circuits The Battery A battery

Chapter 20 Electric Circuits

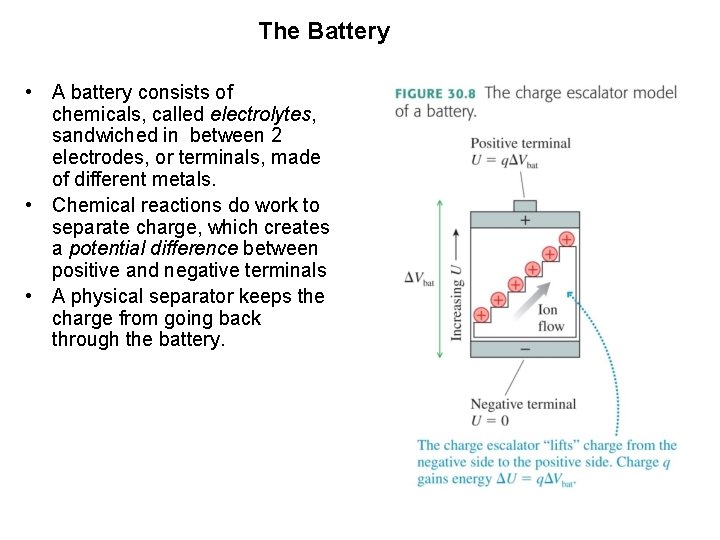

The Battery • A battery consists of chemicals, called electrolytes, sandwiched in between 2 electrodes, or terminals, made of different metals. • Chemical reactions do work to separate charge, which creates a potential difference between positive and negative terminals • A physical separator keeps the charge from going back through the battery.

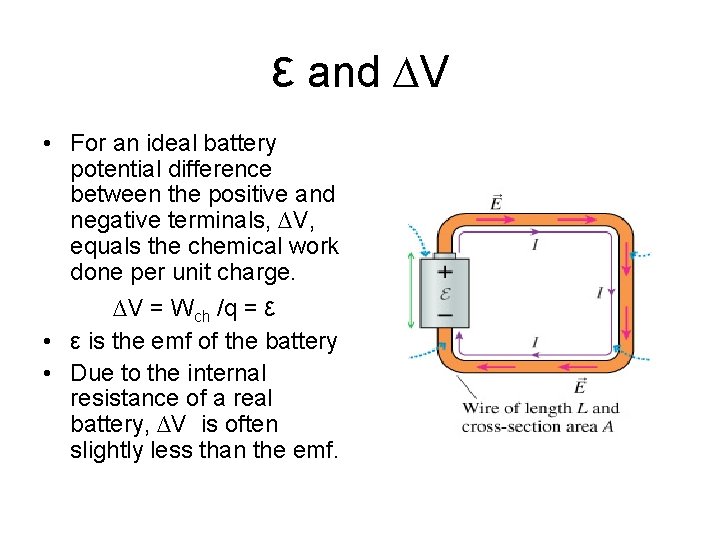

ε and ∆V • For an ideal battery potential difference between the positive and negative terminals, ∆V, equals the chemical work done per unit charge. ∆V = Wch /q = ε • ε is the emf of the battery • Due to the internal resistance of a real battery, ∆V is often slightly less than the emf.

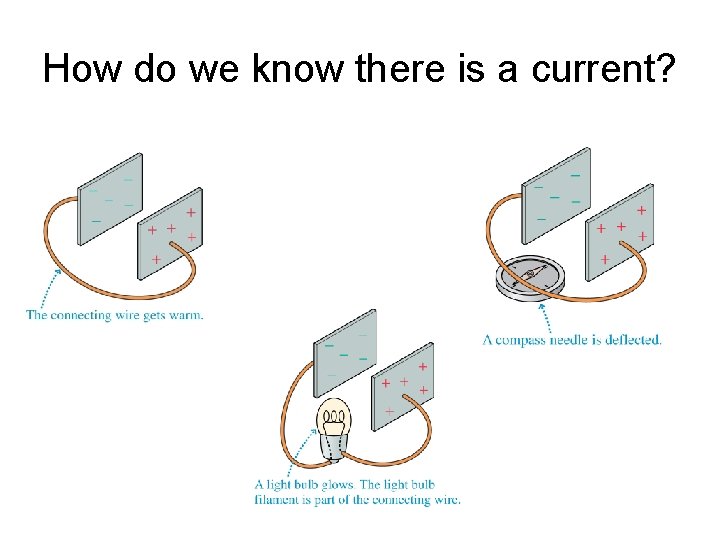

How do we know there is a current?

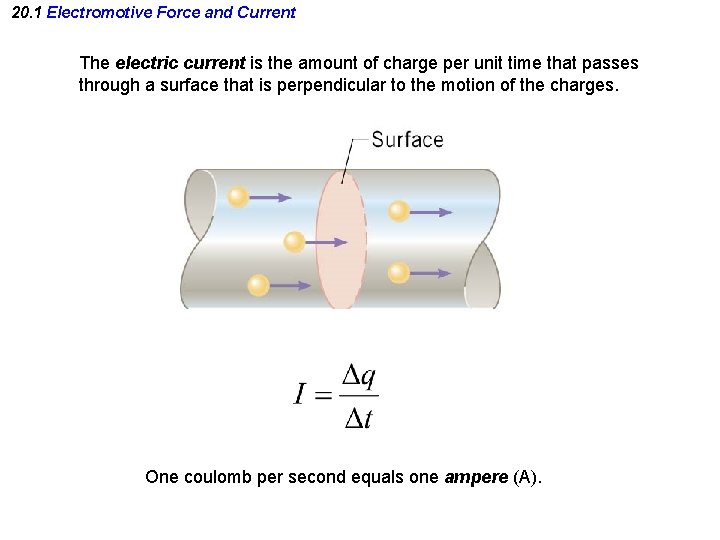

20. 1 Electromotive Force and Current The electric current is the amount of charge per unit time that passes through a surface that is perpendicular to the motion of the charges. One coulomb per second equals one ampere (A).

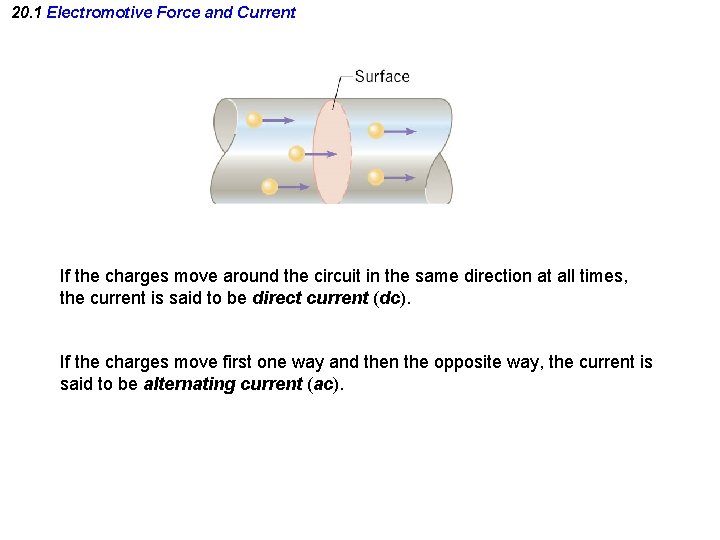

20. 1 Electromotive Force and Current If the charges move around the circuit in the same direction at all times, the current is said to be direct current (dc). If the charges move first one way and then the opposite way, the current is said to be alternating current (ac).

EOC #3 A fax machine uses 0. 110 A of current in its normal mode of operation, but only 0. 067 A in the standby mode. The machine uses a potential difference of 120 V. (a) In one minute (60 s!), how much more charge passes through the machine in the normal mode than in the standby mode? (b) How much more energy is used?

EOC #3 A fax machine uses 0. 110 A of current in its normal mode of operation, but only 0. 067 A in the standby mode. The machine uses a potential difference of 120 V. (a) In one minute (60 s!), how much more charge passes through the machine in the normal mode than in the standby mode? 2. 6 C (b) How much more energy is used? 310 J

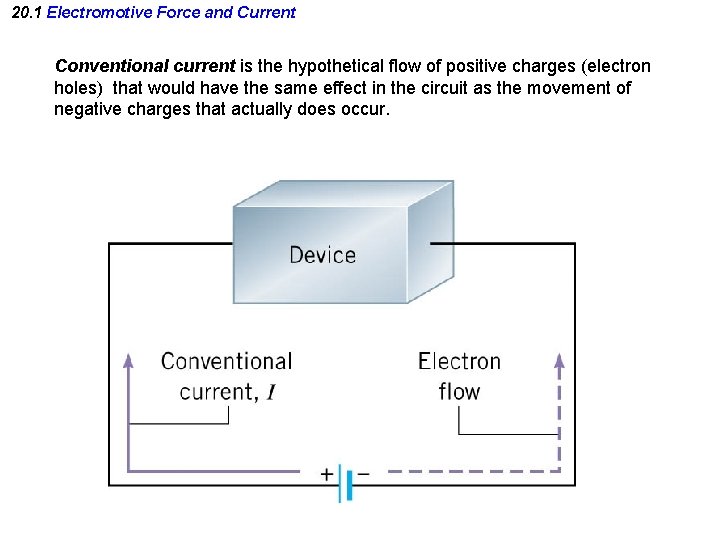

20. 1 Electromotive Force and Current Conventional current is the hypothetical flow of positive charges (electron holes) that would have the same effect in the circuit as the movement of negative charges that actually does occur.

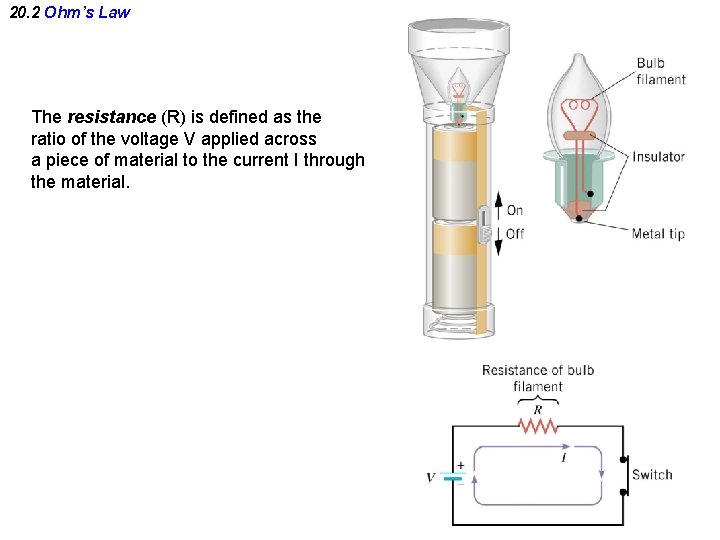

20. 2 Ohm’s Law The resistance (R) is defined as the ratio of the voltage V applied across a piece of material to the current I through the material.

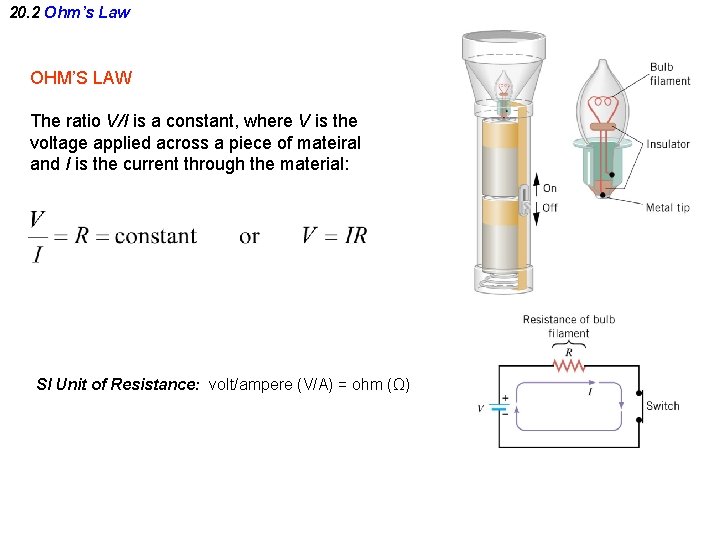

20. 2 Ohm’s Law OHM’S LAW The ratio V/I is a constant, where V is the voltage applied across a piece of mateiral and I is the current through the material: SI Unit of Resistance: volt/ampere (V/A) = ohm (Ω)

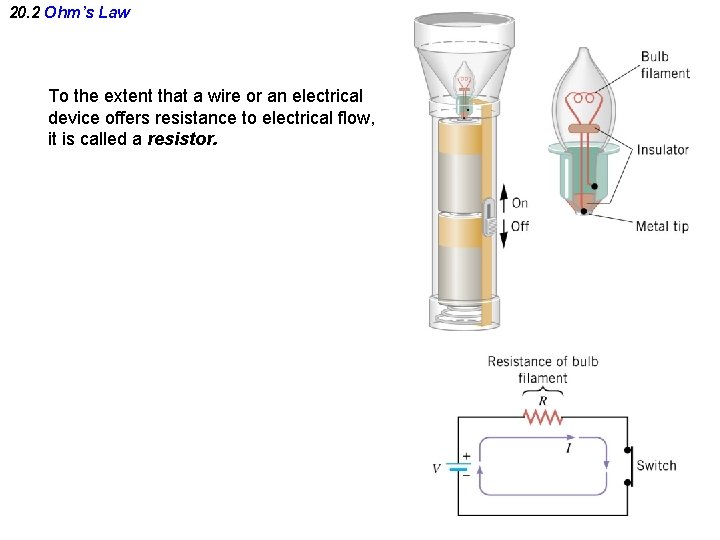

20. 2 Ohm’s Law To the extent that a wire or an electrical device offers resistance to electrical flow, it is called a resistor.

20. 2 Ohm’s Law Example 2 A Flashlight The filament in a light bulb is a resistor in the form of a thin piece of wire. The wire becomes hot enough to emit light because of the current in it. The flashlight uses two 1. 5 -V batteries to provide a current of 0. 40 A in the filament. Determine the resistance of the glowing filament.

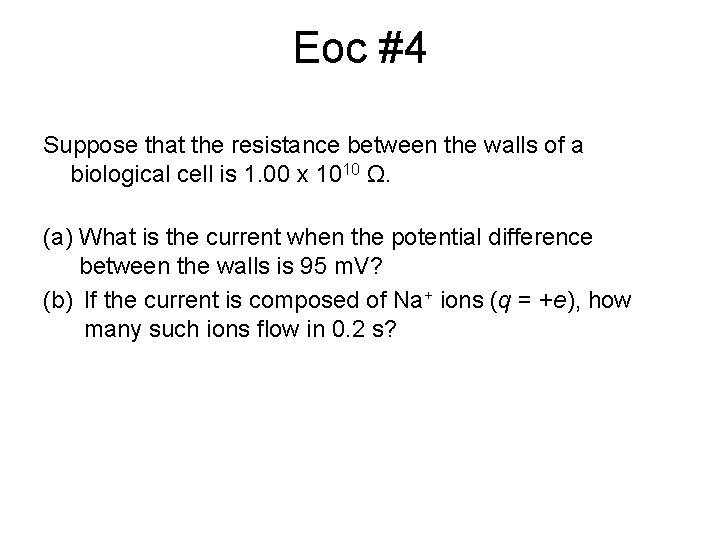

Eoc #4 Suppose that the resistance between the walls of a biological cell is 1. 00 x 1010 Ω. (a) What is the current when the potential difference between the walls is 95 m. V? (b) If the current is composed of Na+ ions (q = +e), how many such ions flow in 0. 2 s?

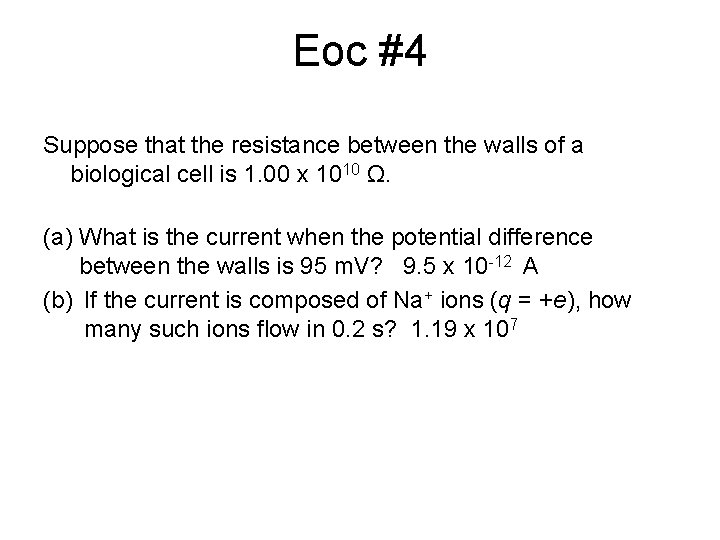

Eoc #4 Suppose that the resistance between the walls of a biological cell is 1. 00 x 1010 Ω. (a) What is the current when the potential difference between the walls is 95 m. V? 9. 5 x 10 -12 A (b) If the current is composed of Na+ ions (q = +e), how many such ions flow in 0. 2 s? 1. 19 x 107

Ratio Reasoning using Ohm’s Law In circuit #1, the battery has twice as much potential difference as the battery in circuit #2. However, the current in circuit # 1 is only ½ the current in circuit #2. Therefore R 1 is____ the resistance R 2 : A. twice D. four times B. one half E. 1/4 C. equal to

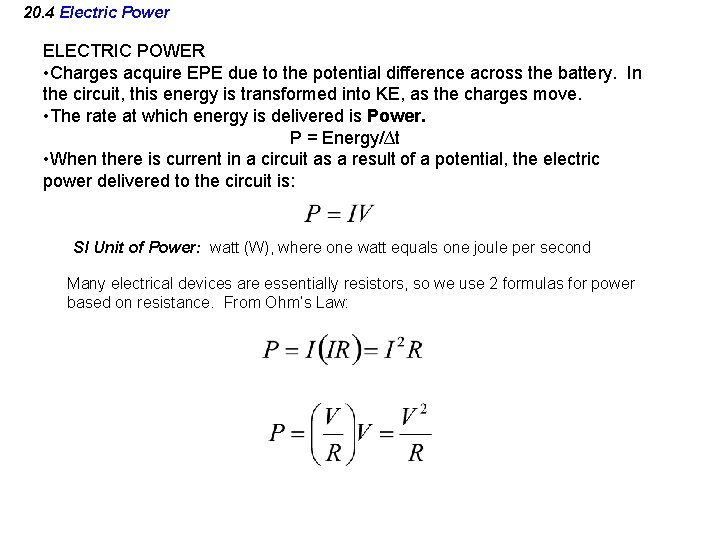

20. 4 Electric Power ELECTRIC POWER • Charges acquire EPE due to the potential difference across the battery. In the circuit, this energy is transformed into KE, as the charges move. • The rate at which energy is delivered is Power. P = Energy/∆t • When there is current in a circuit as a result of a potential, the electric power delivered to the circuit is: SI Unit of Power: watt (W), where one watt equals one joule per second Many electrical devices are essentially resistors, so we use 2 formulas for power based on resistance. From Ohm’s Law:

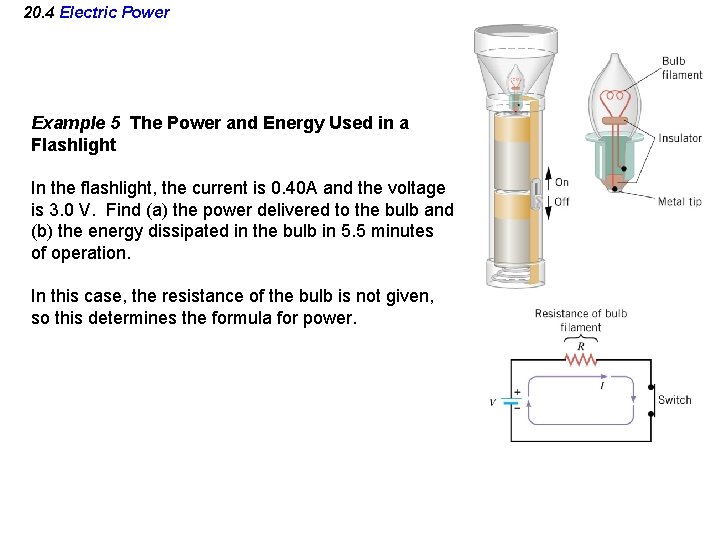

20. 4 Electric Power Example 5 The Power and Energy Used in a Flashlight In the flashlight, the current is 0. 40 A and the voltage is 3. 0 V. Find (a) the power delivered to the bulb and (b) the energy dissipated in the bulb in 5. 5 minutes of operation. In this case, the resistance of the bulb is not given, so this determines the formula for power.

20. 4 Electric Power (a) (b)

Power in a circuit Through which resistor is the most power dissipated? A. b B. bd C. d D. a

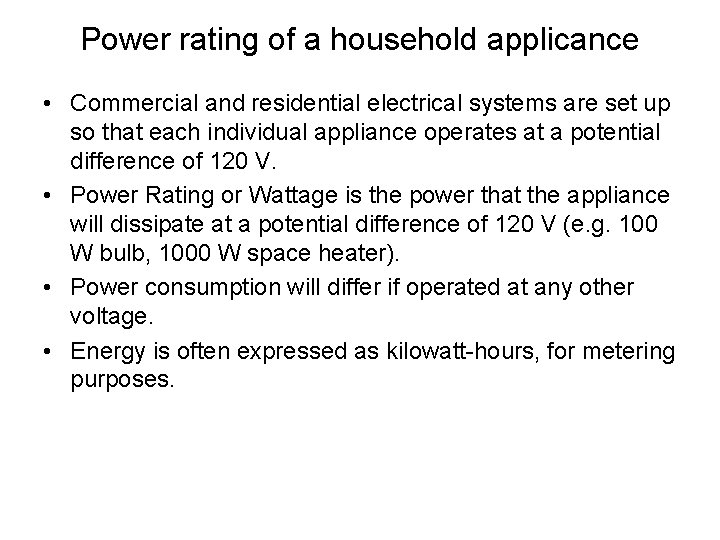

Power rating of a household applicance • Commercial and residential electrical systems are set up so that each individual appliance operates at a potential difference of 120 V. • Power Rating or Wattage is the power that the appliance will dissipate at a potential difference of 120 V (e. g. 100 W bulb, 1000 W space heater). • Power consumption will differ if operated at any other voltage. • Energy is often expressed as kilowatt-hours, for metering purposes.

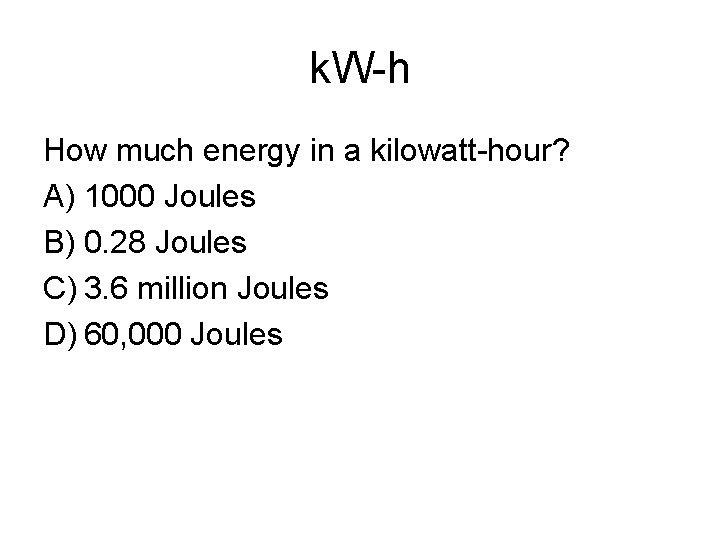

k. W-h How much energy in a kilowatt-hour? A) 1000 Joules B) 0. 28 Joules C) 3. 6 million Joules D) 60, 000 Joules

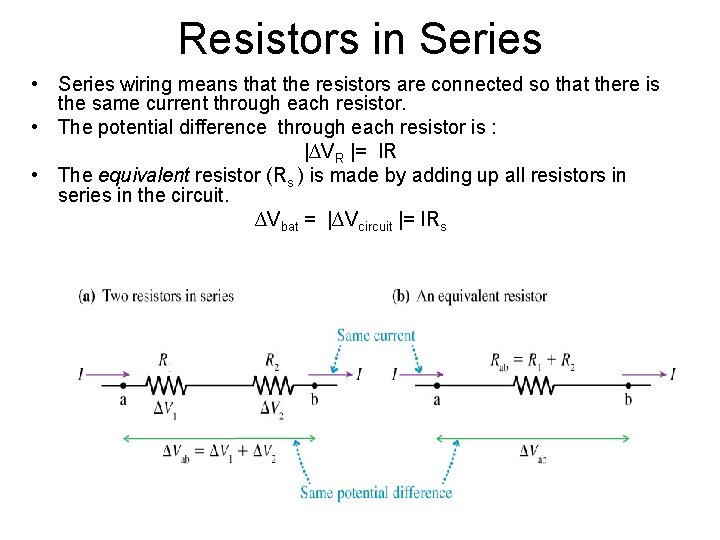

Resistors in Series • Series wiring means that the resistors are connected so that there is the same current through each resistor. • The potential difference through each resistor is : |∆VR |= IR • The equivalent resistor (Rs ) is made by adding up all resistors in series in the circuit. ∆Vbat = |∆Vcircuit |= IRs

20. 6 Series Wiring • By understanding that the potential difference across any circuit resistor will be a voltage DROP, while the potential difference back through the battery (charge escalator) will be a GAIN, one can replace the ΔV with “V” , and dispense with the absolute value signs V 1 (voltage drop across the resistor 1) = IR 1 V 2 (voltage drop across the resistor 2) = IR 2 Vbat = Vcir = IReq

20. 6 Series Wiring Resistors in a Series Circuit A 6. 00 Ω resistor and a 3. 00 Ω resistor are connected in series with a 12. 0 V battery. Assuming the battery contributes no resistance to the circuit, find (a) the current, (b) the power dissipated in each resistor, and (c) the total power delivered to the resistors by the battery.

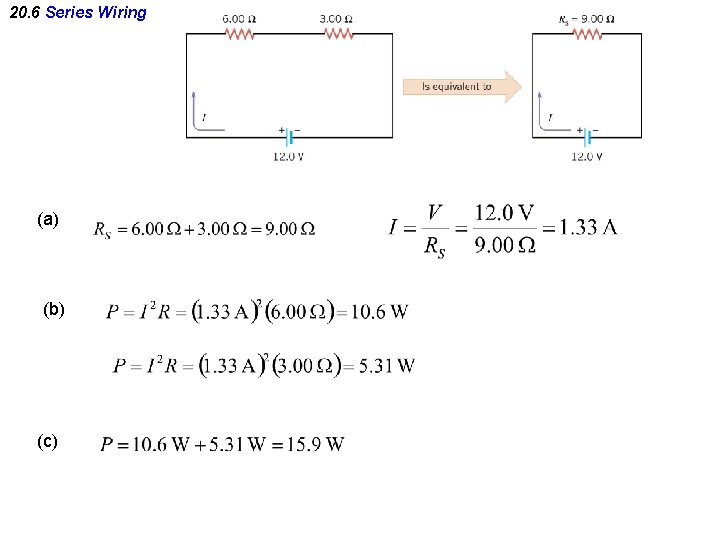

20. 6 Series Wiring (a) (b) (c)

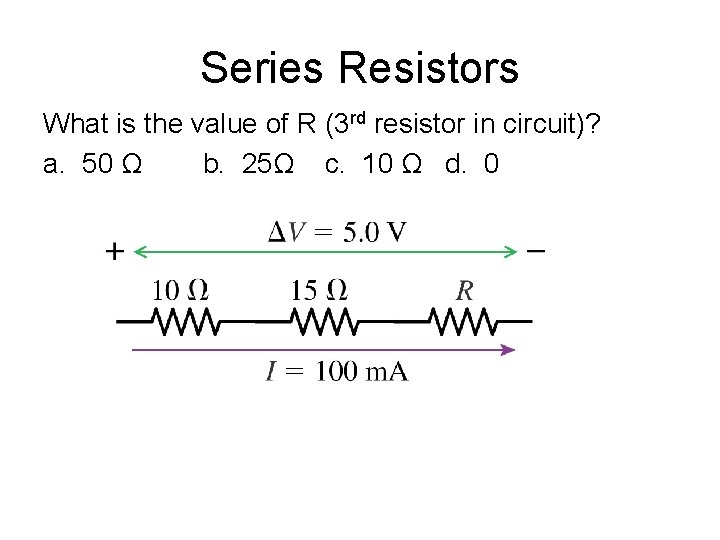

Series Resistors What is the value of R (3 rd resistor in circuit)? a. 50 Ω b. 25Ω c. 10 Ω d. 0

20. 7 Parallel Wiring Parallel wiring means that the devices are connected in such a way that the same voltage is applied across each device. When two resistors are connected in parallel, each receives current from the battery as if the other was not present. Therefore the two resistors connected in parallel draw more current than does either resistor alone.

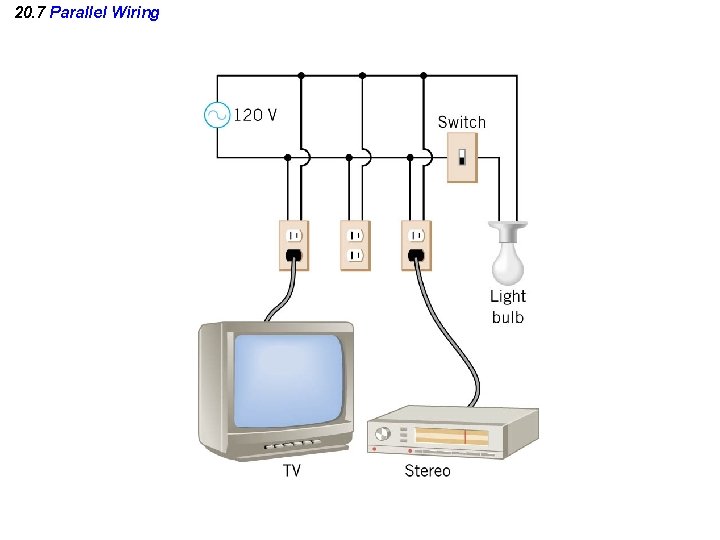

20. 7 Parallel Wiring

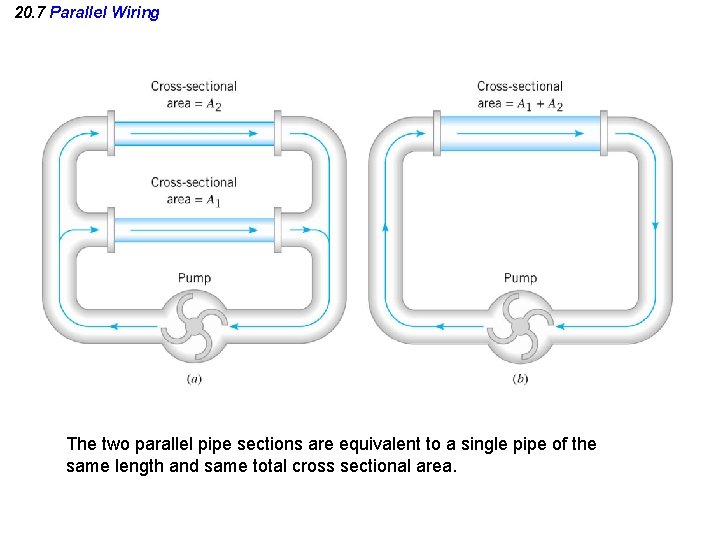

20. 7 Parallel Wiring The two parallel pipe sections are equivalent to a single pipe of the same length and same total cross sectional area.

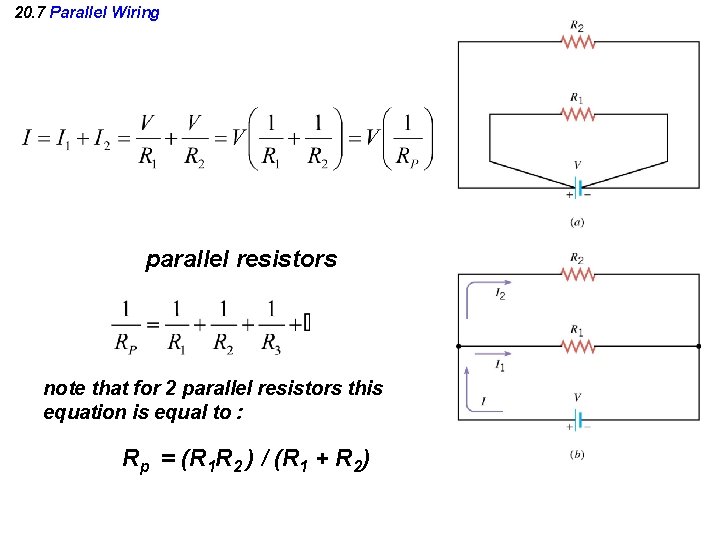

20. 7 Parallel Wiring parallel resistors note that for 2 parallel resistors this equation is equal to : Rp = (R 1 R 2 ) / (R 1 + R 2)

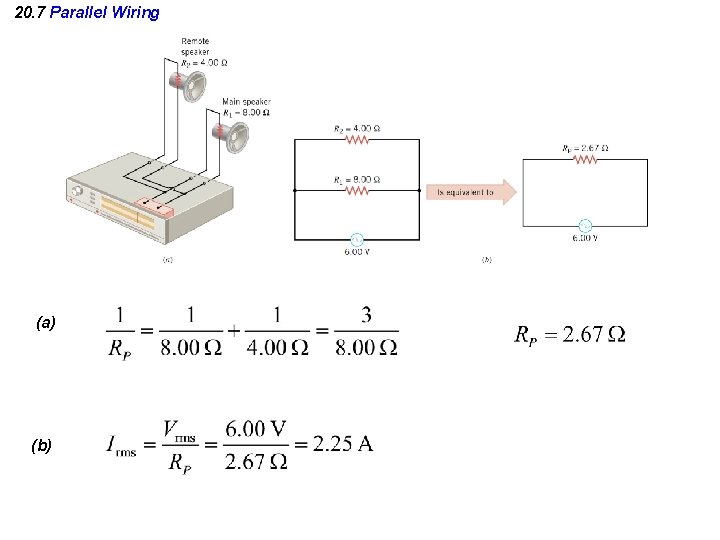

20. 7 Parallel Wiring Example 10 Main and Remote Stereo Speakers Most receivers allow the user to connect to “remote” speakers in addition to the main speakers. At the instant represented in the picture, the voltage across the speakers is 6. 00 V. Determine (a) the equivalent resistance of the two speakers, (b) the total current supplied by the receiver, (c) the current in each speaker, and (d) the power dissipated in each speaker.

20. 7 Parallel Wiring (a) (b)

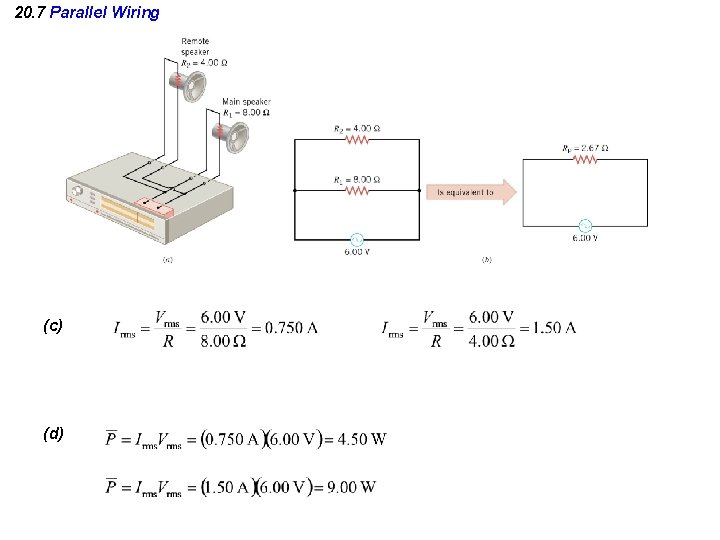

20. 7 Parallel Wiring (c) (d)

Circuits Wired Partially in Series and Partially in Parallel Example 12 Find a) the total current supplied by the battery and b) the voltage drop between points A and B.

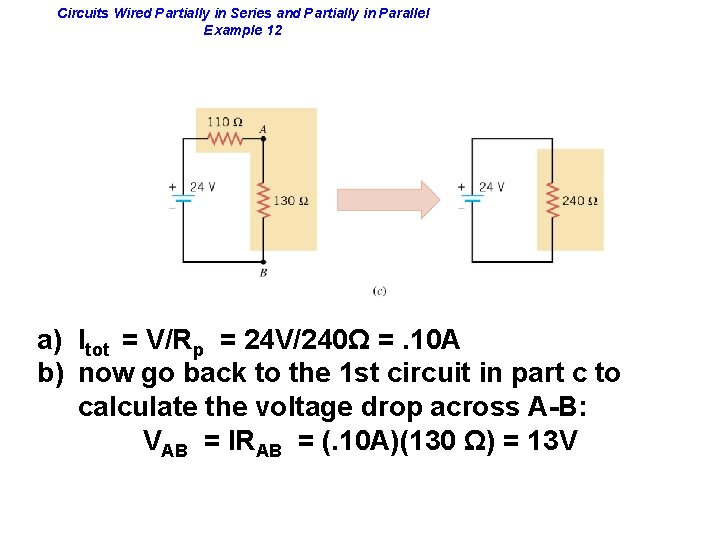

Circuits Wired Partially in Series and Partially in Parallel Example 12 a) Itot = V/Rp = 24 V/240Ω =. 10 A b) now go back to the 1 st circuit in part c to calculate the voltage drop across A-B: VAB = IRAB = (. 10 A)(130 Ω) = 13 V

Your Understanding • What is the ratio of the power supplied by the battery in parallel circuit A to the power supplied by the battery in series circuit B? a. ¼ c. 2 e. 1 b. 4 d. 2 A. B.

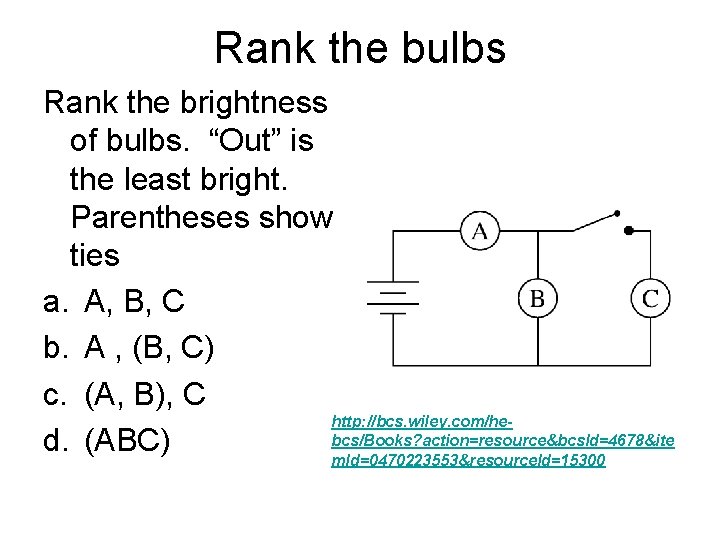

Rank the bulbs Rank the brightness of bulbs. “Out” is the least bright. Parentheses show ties a. A, B, C b. A , (B, C) c. (A, B), C http: //bcs. wiley. com/hebcs/Books? action=resource&bcs. Id=4678&ite d. (ABC) m. Id=0470223553&resource. Id=15300

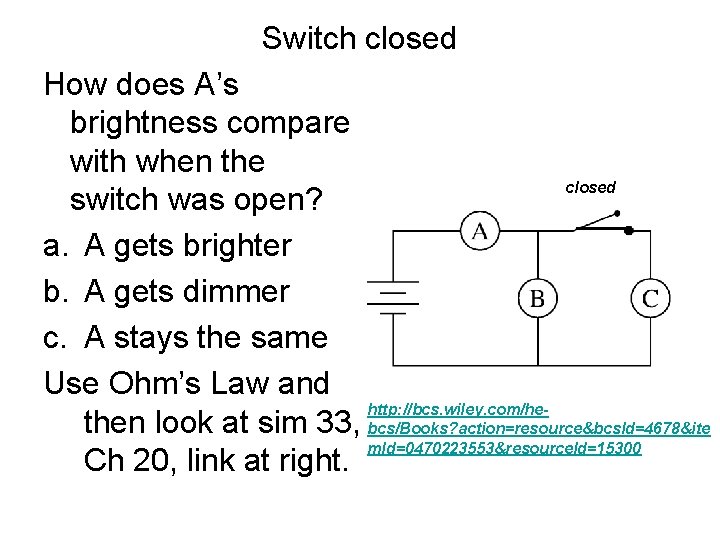

Switch closed How does A’s brightness compare with when the closed switch was open? a. A gets brighter b. A gets dimmer c. A stays the same Use Ohm’s Law and http: //bcs. wiley. com/hethen look at sim 33, bcs/Books? action=resource&bcs. Id=4678&ite m. Id=0470223553&resource. Id=15300 Ch 20, link at right.

20. 11 The Measurement of Current and Voltage An ammeter must be inserted into a circuit so that the current passes directly through it. The resistance of the ammeter changes the current through the circuit. The ideal ammeter has a very low resistance

20. 11 The Measurement of Current and Voltage To measure the voltage between two points, in a circuit, a voltmeter is connected in parallel, between the points. A voltmeter takes some current away from the circuit it measures. The ideal voltmeter has a very large resistance so it diverts a negligible current.
