Chapter 20 21 23 Review The behavior of

Chapter 20 -21 -23 Review

The behavior of bar magnets

Our Earth itself has a magnetic field

Charges moving with respect to a field

The Right Hand Rule Using the right hand rule, one may determine the direction of the field produced by a moving positive charge.

Magnetism and circular motion F = |q|v. B If the motion is Circular F = mv 2/R R = mv/ |q|B ω = v/R = |q|B/m

Force on a conductor with current F = ILB

Applications of force on a conductor

Magnetic field of long straight conductor

Magnetic field of a long, straight wire: B = μ 0 I/(2πr) r is the distance from the wire μ 0 is called the permeability of vacuum μ 0 = 4π x 10 -7 T. m/A

Fields in two conductors side-by-side

2 wires with currents flowing in the same direction attract each other 2 wires with currents flowing in opposite directions repel each other F = μ 0 L(I 1 I 2)/(2πr) Force per unit length F/L = μ 0 (I 1 I 2)/(2πr)

Currents in a loop Magnetic field at the center of a circular loop B = μo. I /(2 R) For N loops: B = μo NI /(2 R)

Electromagnetic Induction

Does the field induce a current or not?

Magnetic flux at various orientations

FRADAY’s LAW • When the magnetic flux ΦB changes in time, there is a an induced emf directly proportional to the time rate of change of the magnetic flux : ɛ = |Δ ΦB /Δt | If we have a coil with N identical turns, then ɛ = N |Δ ΦB /Δt |

Vab = v. BL a b

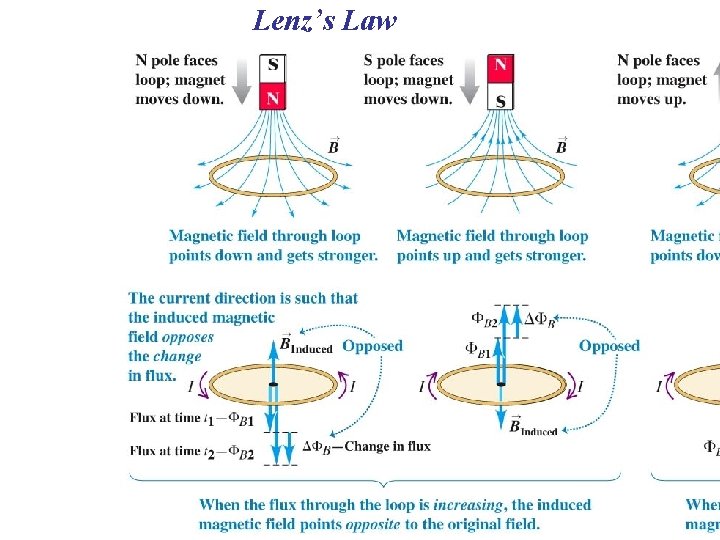

Lenz’s Law

Transformers

TRANSFORMERS V 2 / V 1 = N 2 / N 1 If energy completely transformed V 1 I 1 = V 2 I 2

Energy associated with an induced current. • energy is stored in an electronic device.

The R-L circuit

The L-C circuit • Copyright © 2007 Pearson Education, Inc. publishing as Addison-Wesley

In the case of an inductor with a capacitor, the energy is transferred from the electric field (capacitor) to magnetic field (inductor) and vice versa. The total energy is however conserved: The back and forth of the energy constitutes an oscillatory behavior with a frequency ω:

• A metal loop moves at constant velocity toward a long wire carrying a steady current , as shown in the figure. The current induced in the loop is directed • A) Clockwise B) counterclockwise C) zero

• A metal loop moves at constant velocity toward a long wire carrying a steady current , as shown in the figure. The current induced in the loop is directed • A) Clockwise B) counterclockwise C) zero B out of page increasing ΔΦ out of page Bi into page

• The slide wire of the variable resistor in the figure is moved steadily to the right, increasing the resistance in the circuit. While this is being done, the current induced in the small circuit A is directed : • A) clockwise B) counterclockwise C) zero

• A) clockwise B) counterclockwise C) zero I=V/R I decreases when R increases B due to I decreases as I decreases B out of page and decreases hence ΔΦ into page Bi out of page I
