CHAPTER 2 SYSTEMS INTEGRATION 1 Learning Objectives Understand

CHAPTER 2 SYSTEMS INTEGRATION 1

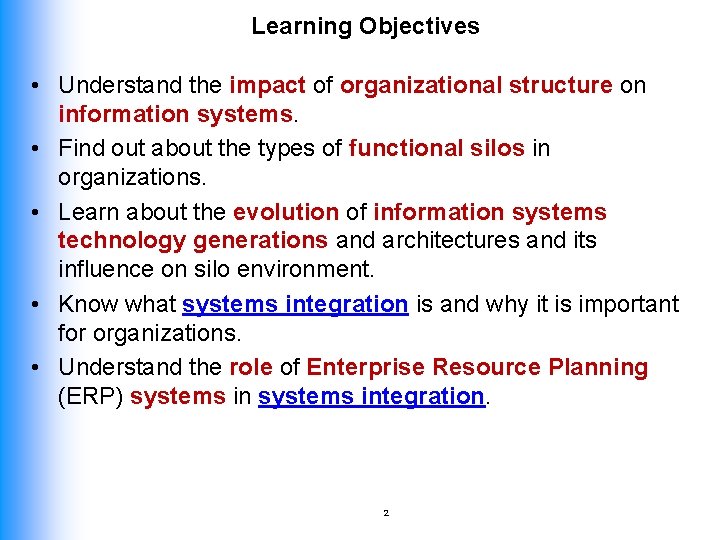

Learning Objectives • Understand the impact of organizational structure on information systems. • Find out about the types of functional silos in organizations. • Learn about the evolution of information systems technology generations and architectures and its influence on silo environment. • Know what systems integration is and why it is important for organizations. • Understand the role of Enterprise Resource Planning (ERP) systems integration. 2

Preview • Systems integration means that you allow a heterogeneous (hodgepodge) IS to communicate or integrate and share information (or data) seamlessly with one another. • The keyword here is seamlessly, because the challenge is that Information Systems have shared information with each other for a long time, however, they relied on a human link, which takes much longer time, errors and inaccurate and • Without system integration, Information sharing can not happen in real time between the various organization stakeholders. E. g. warehouse employee dose not know the status of shipped product. • Systems integration is a key issue for an organization for its growth; therefore, management needs to pay close attention to this issue. 3

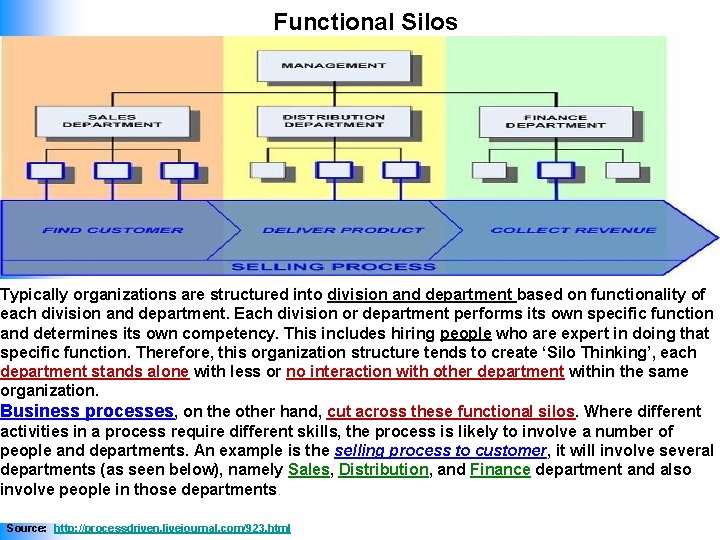

Functional Silos Typically organizations are structured into division and department based on functionality of each division and department. Each division or department performs its own specific function and determines its own competency. This includes hiring people who are expert in doing that specific function. Therefore, this organization structure tends to create ‘Silo Thinking’, each department stands alone with less or no interaction with other department within the same organization. Business processes, on the other hand, cut across these functional silos. Where different activities in a process require different skills, the process is likely to involve a number of people and departments. An example is the selling process to customer, it will involve several departments (as seen below), namely Sales, Distribution, and Finance department and also involve people in those departments. Source: http: //processdriven. livejournal. com/923. html

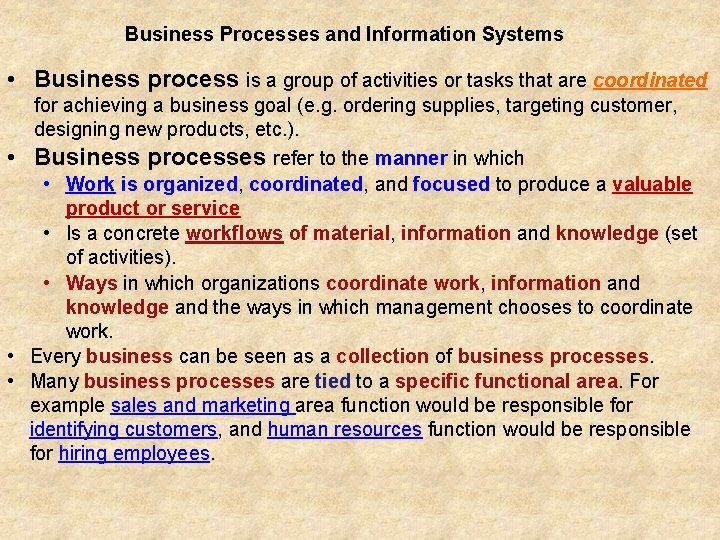

Business Processes and Information Systems • Business process is a group of activities or tasks that are coordinated for achieving a business goal (e. g. ordering supplies, targeting customer, designing new products, etc. ). • Business processes refer to the manner in which • Work is organized, coordinated, and focused to produce a valuable product or service • Is a concrete workflows of material, information and knowledge (set of activities). • Ways in which organizations coordinate work, information and knowledge and the ways in which management chooses to coordinate work. • Every business can be seen as a collection of business processes. • Many business processes are tied to a specific functional area. For example sales and marketing area function would be responsible for identifying customers, and human resources function would be responsible for hiring employees.

Business Processes and Information Systems Other business processes cross many different functional areas and require coordination across departments. For example fulfilling customer order: First sales department would receive a sales order. The order will pass first to accounting to ensure the customer can pay for the order. Then, production department pull the product from inventory and finally product needs to be shipped. Can you provide other example Fulfilling a customer order involves a complex set of steps that requires the close coordination of the sales, accounting, and manufacturing functions.

Functional Silos • Silos (tower of protecting products) are basically compartmentalized operating units isolated from their environment. • Why have Information System and organizations evolved into functional silos? To understand the reason, we first need to look at the horizontal evolution of modern organizations and the system supporting their Information requirements. Horizontal Silos • The functional model POSDCORB (Planning, Organizing, Staffing, Directing, Coordinating, Reporting and Budgeting) categorization proposed by Luther Gulick led to a set of formal organization functions such as control, management, supervision, and administration starting in late 1930 s. • Classification of organizations into departments like Accounting and Human Resources, reflects the breaking of complex tasks into smaller manageable tasks that could be assigned to a group of people who could then be held responsible. 7

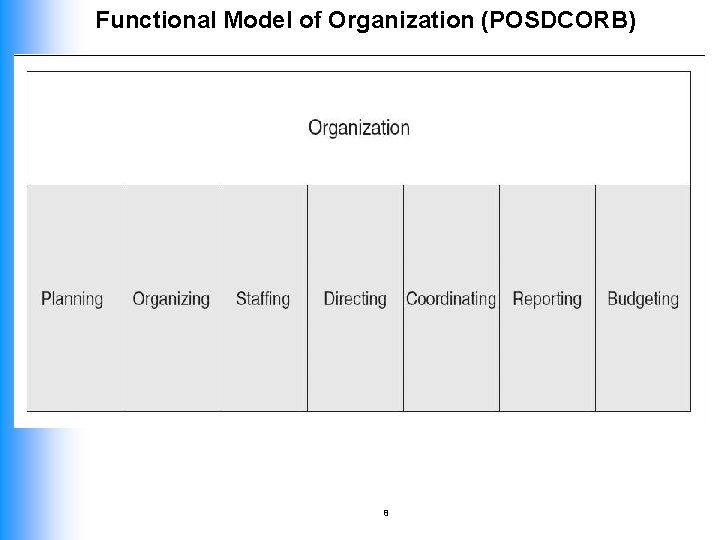

Functional Model of Organization (POSDCORB) 8

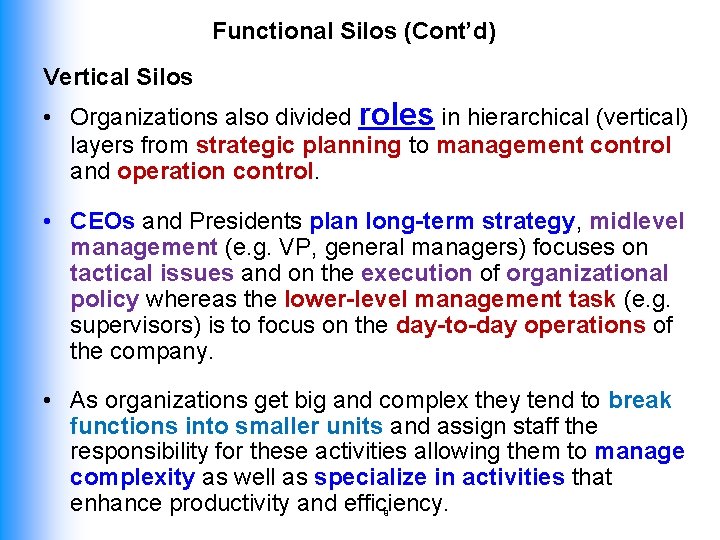

Functional Silos (Cont’d) Vertical Silos • Organizations also divided roles in hierarchical (vertical) layers from strategic planning to management control and operation control. • CEOs and Presidents plan long-term strategy, midlevel management (e. g. VP, general managers) focuses on tactical issues and on the execution of organizational policy whereas the lower-level management task (e. g. supervisors) is to focus on the day-to-day operations of the company. • As organizations get big and complex they tend to break functions into smaller units and assign staff the responsibility for these activities allowing them to manage complexity as well as specialize in activities that enhance productivity and efficiency. 9

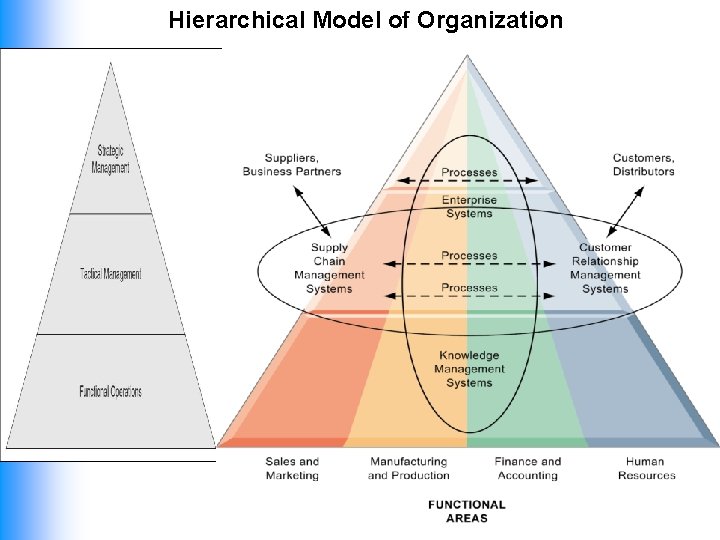

Hierarchical Model of Organization 10

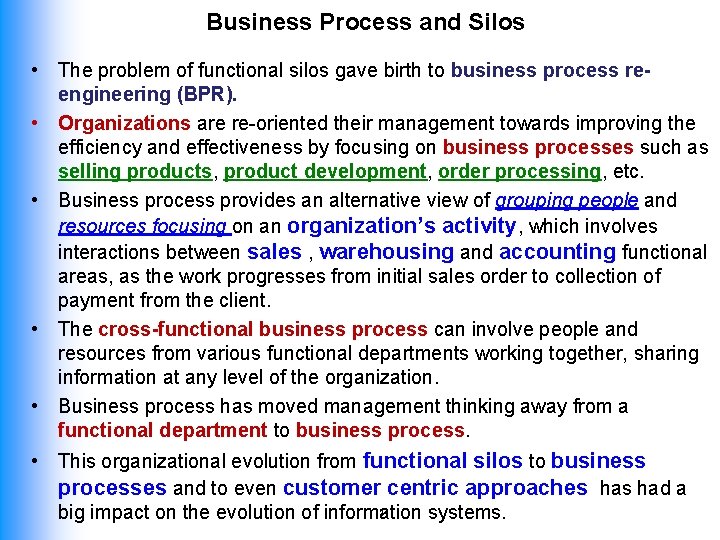

Business Process and Silos • The problem of functional silos gave birth to business process reengineering (BPR). • Organizations are re-oriented their management towards improving the efficiency and effectiveness by focusing on business processes such as selling products, product development, order processing, etc. • Business process provides an alternative view of grouping people and resources focusing on an organization’s activity, which involves interactions between sales , warehousing and accounting functional areas, as the work progresses from initial sales order to collection of payment from the client. • The cross-functional business process can involve people and resources from various functional departments working together, sharing information at any level of the organization. • Business process has moved management thinking away from a functional department to business process. • This organizational evolution from functional silos to business processes and to even customer centric approaches had a 11 big impact on the evolution of information systems.

Matrix Structure of Organization 12

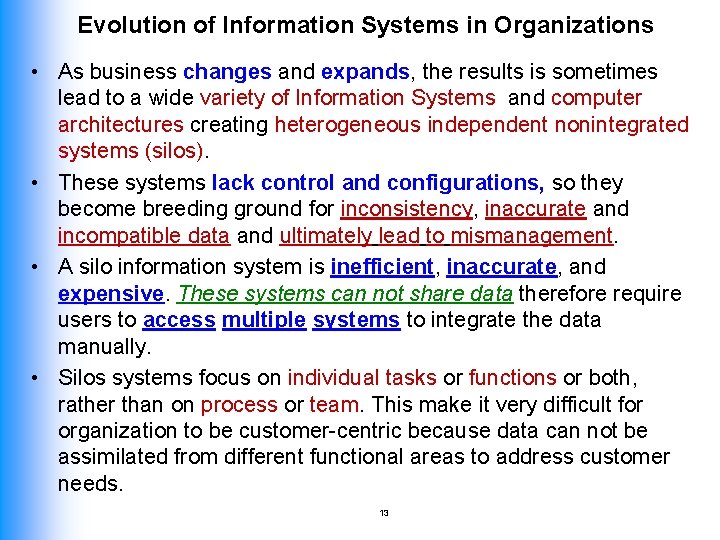

Evolution of Information Systems in Organizations • As business changes and expands, the results is sometimes lead to a wide variety of Information Systems and computer architectures creating heterogeneous independent nonintegrated systems (silos). • These systems lack control and configurations, so they become breeding ground for inconsistency, inaccurate and incompatible data and ultimately lead to mismanagement. • A silo information system is inefficient, inaccurate, and expensive. These systems can not share data therefore require users to access multiple systems to integrate the data manually. • Silos systems focus on individual tasks or functions or both, rather than on process or team. This make it very difficult for organization to be customer-centric because data can not be assimilated from different functional areas to address customer needs. 13

Evolution of Information Systems in Organizations • Organizations have been designed around functions for long time (e. g. , sales, manufacturing, and HR). These functions are important as they provide a structure by which an organization functions runs smoothly. – The system creates bottlenecks for everyone and information is not available in real-time. • The evolution of IS suggests that its role has generally been to support evolving information needs of the organization. 14

Functional Silos in Organization • Silo environment is inefficient, inaccurate and expensive. • Information is captured and reentered several times and is not available in real time. • Silo environments hamper enterprise decision making, because key information never makes it out of the different pockets of the organization in time for decision maker. • In Silo environment, only selective employees from that department have access to information, customers, partners, and suppliers are dependent on there employees to provide them with answers. • Example: UPS package tracking system.

Information Systems Evolution Chart 16

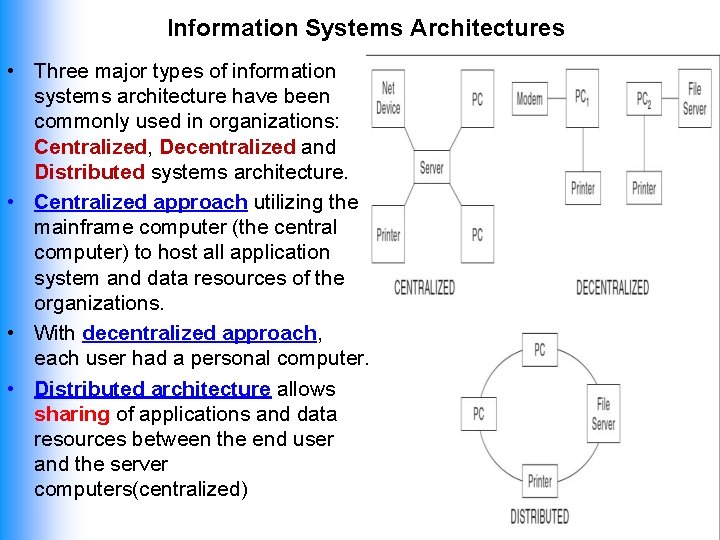

Information Systems Architectures • Three major types of information systems architecture have been commonly used in organizations: Centralized, Decentralized and Distributed systems architecture. • Centralized approach utilizing the mainframe computer (the central computer) to host all application system and data resources of the organizations. • With decentralized approach, each user had a personal computer. • Distributed architecture allows sharing of applications and data resources between the end user and the server computers(centralized) 17

IS Functionalization • In addition to serving the different management levels, IS also supports major business functions, such as manufacturing, marketing, accounting, finance, and HR. • Each functional area has different information needs and report requirements. • Each functional area in an organization also has multiple levels of management, each requiring different levels of analysis and details of information. 18

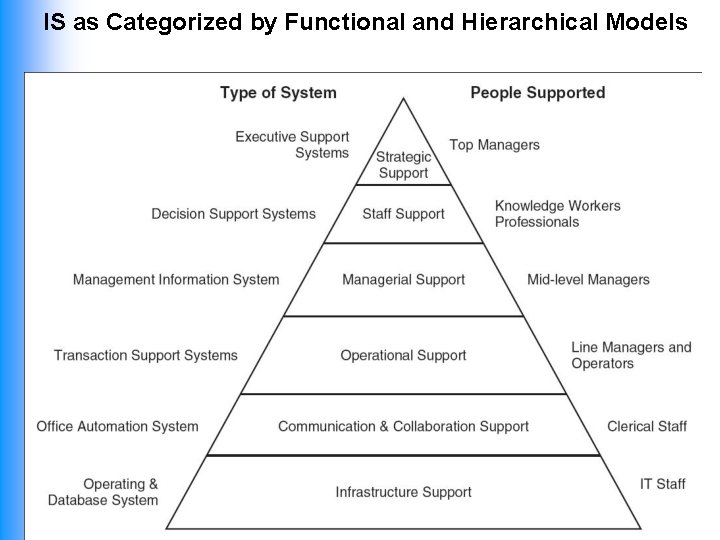

IS as Categorized by Functional and Hierarchical Models 19

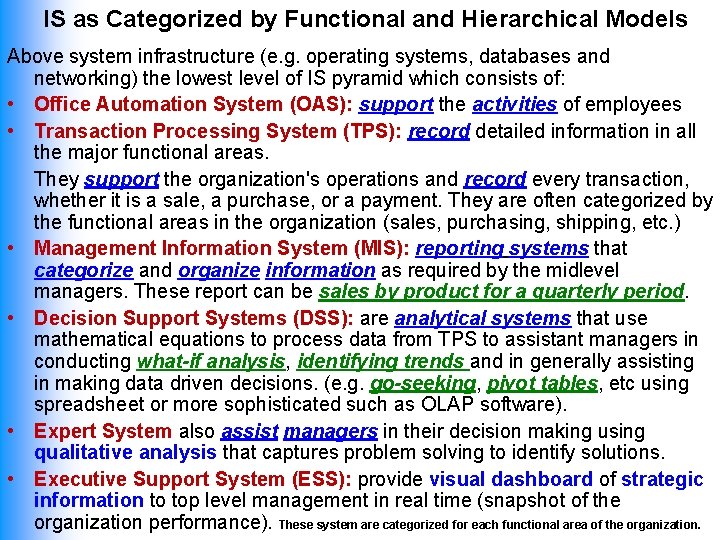

IS as Categorized by Functional and Hierarchical Models Above system infrastructure (e. g. operating systems, databases and networking) the lowest level of IS pyramid which consists of: • Office Automation System (OAS): support the activities of employees • Transaction Processing System (TPS): record detailed information in all the major functional areas. They support the organization's operations and record every transaction, whether it is a sale, a purchase, or a payment. They are often categorized by the functional areas in the organization (sales, purchasing, shipping, etc. ) • Management Information System (MIS): reporting systems that categorize and organize information as required by the midlevel managers. These report can be sales by product for a quarterly period. • Decision Support Systems (DSS): are analytical systems that use mathematical equations to process data from TPS to assistant managers in conducting what-if analysis, identifying trends and in generally assisting in making data driven decisions. (e. g. go-seeking, pivot tables, etc using spreadsheet or more sophisticated such as OLAP software). • Expert System also assist managers in their decision making using qualitative analysis that captures problem solving to identify solutions. • Executive Support System (ESS): provide visual dashboard of strategic information to top level management in real time (snapshot of the organization performance). These system are categorized for each functional area of the organization.

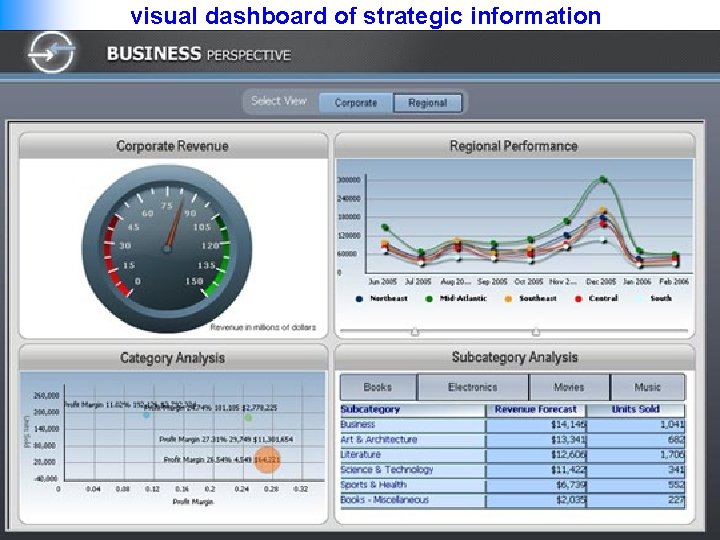

visual dashboard of strategic information 21

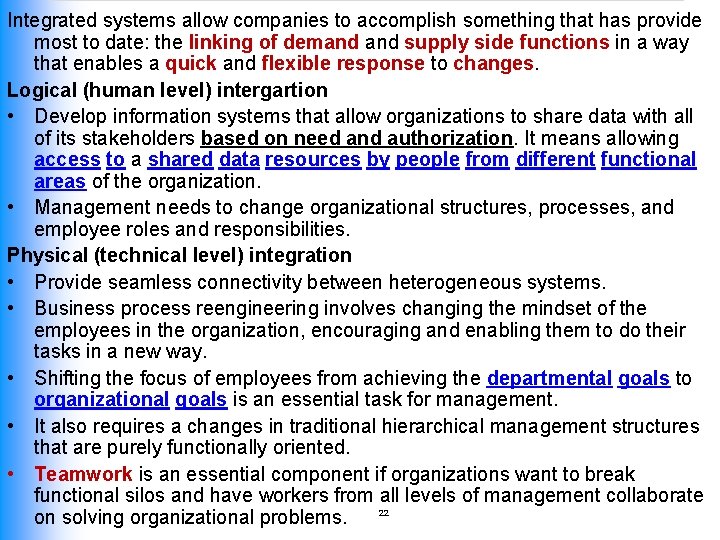

Integrated systems allow companies to accomplish something that has provide most to date: the linking of demand supply side functions in a way that enables a quick and flexible response to changes. Logical (human level) intergartion • Develop information systems that allow organizations to share data with all of its stakeholders based on need and authorization. It means allowing access to a shared data resources by people from different functional areas of the organization. • Management needs to change organizational structures, processes, and employee roles and responsibilities. Physical (technical level) integration • Provide seamless connectivity between heterogeneous systems. • Business process reengineering involves changing the mindset of the employees in the organization, encouraging and enabling them to do their tasks in a new way. • Shifting the focus of employees from achieving the departmental goals to organizational goals is an essential task for management. • It also requires a changes in traditional hierarchical management structures that are purely functionally oriented. • Teamwork is an essential component if organizations want to break functional silos and have workers from all levels of management collaborate 22 on solving organizational problems.

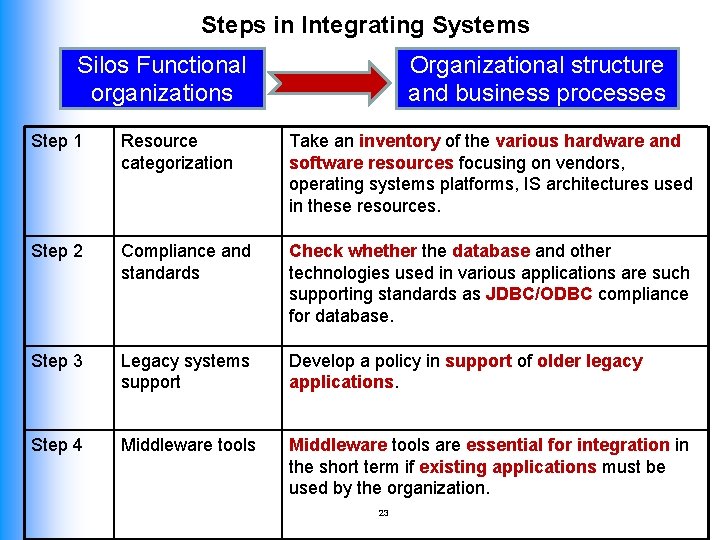

Steps in Integrating Systems Silos Functional organizations Organizational structure and business processes Step 1 Resource categorization Take an inventory of the various hardware and software resources focusing on vendors, operating systems platforms, IS architectures used in these resources. Step 2 Compliance and standards Check whether the database and other technologies used in various applications are such supporting standards as JDBC/ODBC compliance for database. Step 3 Legacy systems support Develop a policy in support of older legacy applications. Step 4 Middleware tools are essential for integration in the short term if existing applications must be used by the organization. 23

Steps in Integrating Systems (Cont’d) Step 5 Authentication and authorization policies Single sign-on policy for application and data access because all employees and external partners will need access to an integrated system from anywhere, anytime. Step 6 Centralized IT services and support The IT staff needs to be able to support all applications and platforms with a centralized IT help desk support. Step 7 Back-up, recovery, and security A good back-up and recovery system is essential if there is a system failure or a major disaster. Step 8 Hardware and software standardization Develop organization standards and policy on acquisition of new hardware and software which is aligned with organization IT strategy. 24

Benefits and Limitations of Systems Integration Benefits Limitations Increased Revenue and Growth High Initial Set-up Costs Leveling the Competitive Environment Power and Interdepartmental Conflicts (due to the sharing of information) Enhanced Information Visibility Long-term and Intangible ROI (Usually several years) Increased Standardization Creativity Limitations (Restricts Creativity and Independence) 25

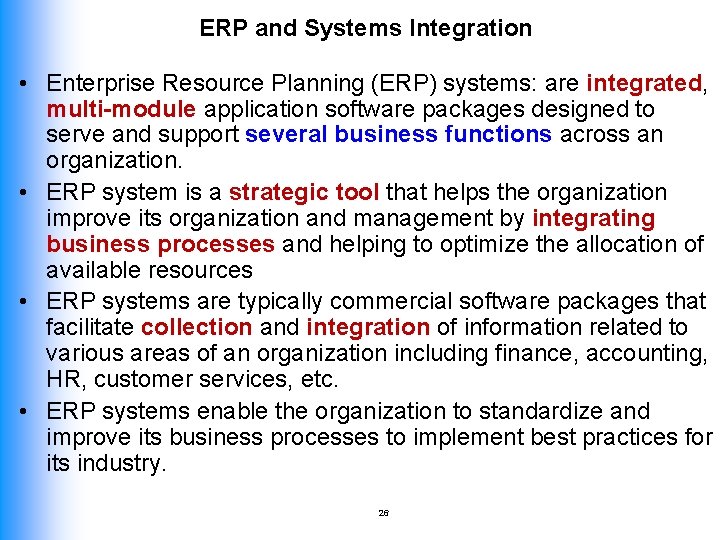

ERP and Systems Integration • Enterprise Resource Planning (ERP) systems: are integrated, multi-module application software packages designed to serve and support several business functions across an organization. • ERP system is a strategic tool that helps the organization improve its organization and management by integrating business processes and helping to optimize the allocation of available resources • ERP systems are typically commercial software packages that facilitate collection and integration of information related to various areas of an organization including finance, accounting, HR, customer services, etc. • ERP systems enable the organization to standardize and improve its business processes to implement best practices for its industry. 26

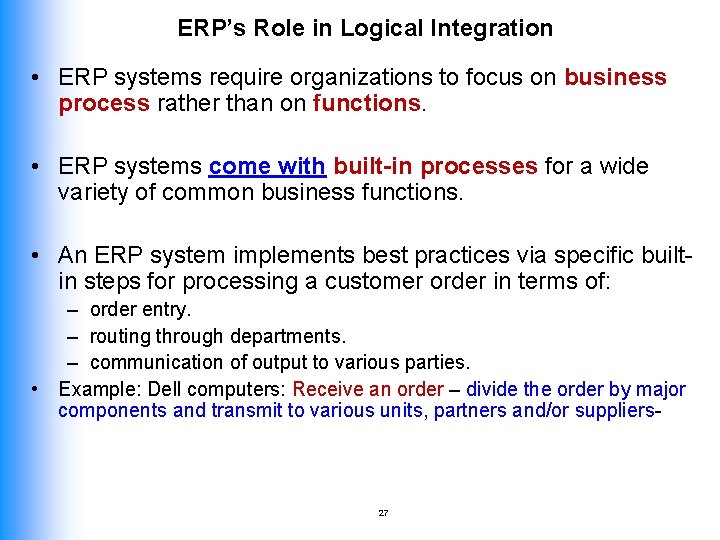

ERP’s Role in Logical Integration • ERP systems require organizations to focus on business process rather than on functions. • ERP systems come with built-in processes for a wide variety of common business functions. • An ERP system implements best practices via specific builtin steps for processing a customer order in terms of: – order entry. – routing through departments. – communication of output to various parties. • Example: Dell computers: Receive an order – divide the order by major components and transmit to various units, partners and/or suppliers- 27

ERP’s Role in Physical Integration • Before installing the ERP system, an organization may have to upgrade or install middleware or get rid of their legacy system’s hardware and software. • Integration is also required at the Data level (one database), Client level (standardizing on all client platforms), and at the Application level (common user interface design, back end access and back-up recovery plan). • A good ERP implementation improves operational efficiency with better business processes that focuses on organizational goals rather than on individual departmental goals. • Improved efficiency with a paperless flow and electronic data interchange (EDI) or business-to-business (B 2 B) commerce environment with partners. 28

Implications for Management • Silos do not work. – Most organizations lose out in the long-term when information is not shared in real time across the functional boundaries within the company. – In today’s globally competitive environment, organizations have to compete both on lower cost, and by providing better customer services through alliances and partnerships with competitions. • System integration has many hidden benefits. – Allows decision making to be cascaded to all departments – Allows employees at lower-levels to make better decisions while interacting with clients or partners. • System integration has many challenges. – Replacing old hardware and software – Working with IT consultants in developing middleware – Human challenges, such as impact on IT staff, department heads losing control of data, and rumors 29 of layoffs

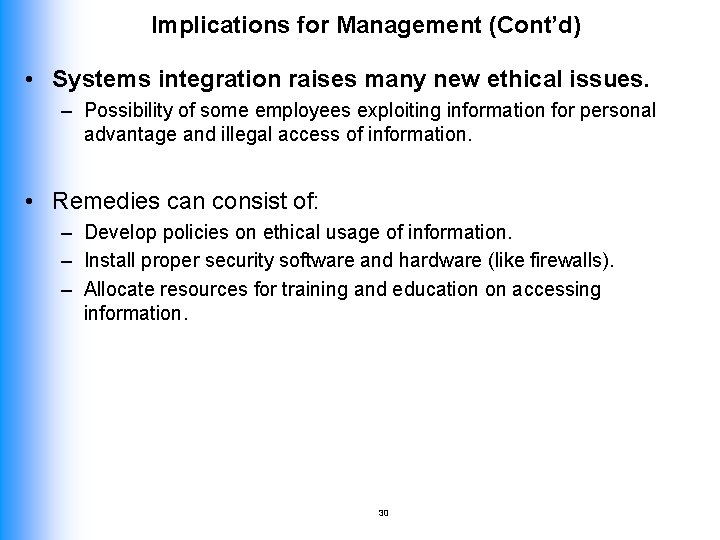

Implications for Management (Cont’d) • Systems integration raises many new ethical issues. – Possibility of some employees exploiting information for personal advantage and illegal access of information. • Remedies can consist of: – Develop policies on ethical usage of information. – Install proper security software and hardware (like firewalls). – Allocate resources for training and education on accessing information. 30

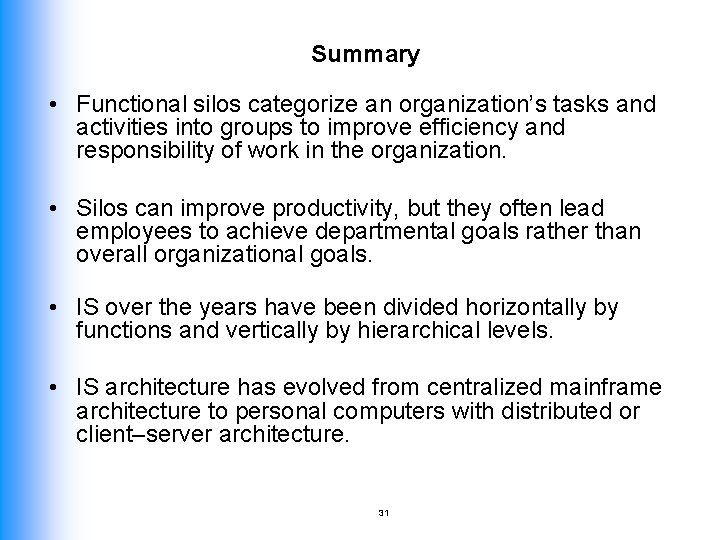

Summary • Functional silos categorize an organization’s tasks and activities into groups to improve efficiency and responsibility of work in the organization. • Silos can improve productivity, but they often lead employees to achieve departmental goals rather than overall organizational goals. • IS over the years have been divided horizontally by functions and vertically by hierarchical levels. • IS architecture has evolved from centralized mainframe architecture to personal computers with distributed or client–server architecture. 31

Summary (Cont’d) • In order for systems integration to be successful, organizations have to focus both on the human or logical level and on the physical or systems level. • ERP systems thus make the process of systems integration easier, but they are expensive and often require organizations to start from scratch. • System integration involves the whole organization, requiring top-management support and resources for a long-term period. Management must be ready to face the human and ethical challenges in a systems integration project. 32

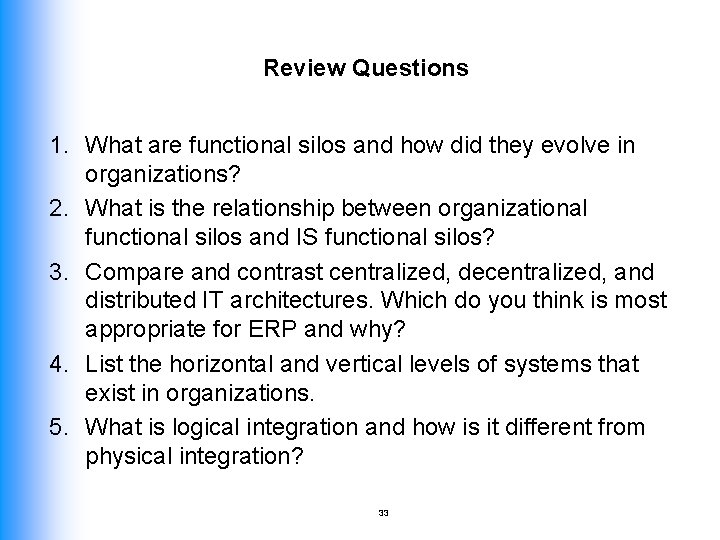

Review Questions 1. What are functional silos and how did they evolve in organizations? 2. What is the relationship between organizational functional silos and IS functional silos? 3. Compare and contrast centralized, decentralized, and distributed IT architectures. Which do you think is most appropriate for ERP and why? 4. List the horizontal and vertical levels of systems that exist in organizations. 5. What is logical integration and how is it different from physical integration? 33

Review Questions (Cont’d) 6. Describe at least five steps involved in system integration. 7. What are the key benefits and limitations of system integration? 8. What is the role of ERP systems in system integration? 9. Summarize the role of management in systems integration. 34
