Chapter 2 Syntax and Symbolization 80 210 Logic

Chapter 2: Syntax and Symbolization 80 -210: Logic & Proofs July 2, 2009 Karin Howe

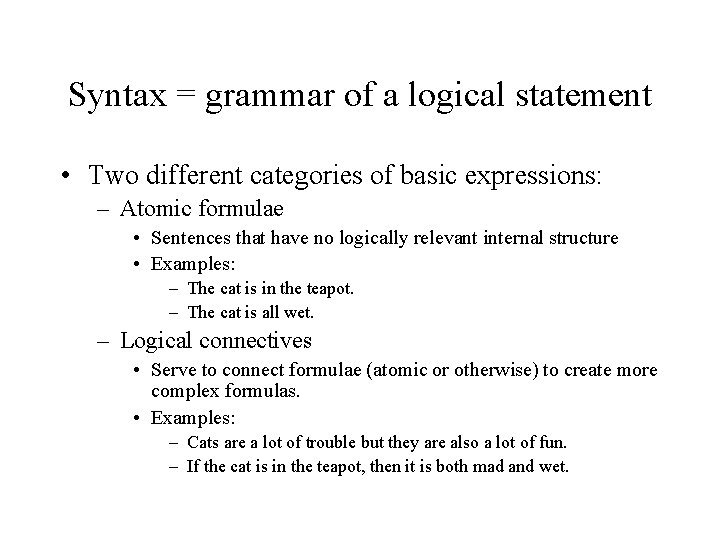

Syntax = grammar of a logical statement • Two different categories of basic expressions: – Atomic formulae • Sentences that have no logically relevant internal structure • Examples: – The cat is in the teapot. – The cat is all wet. – Logical connectives • Serve to connect formulae (atomic or otherwise) to create more complex formulas. • Examples: – Cats are a lot of trouble but they are also a lot of fun. – If the cat is in the teapot, then it is both mad and wet.

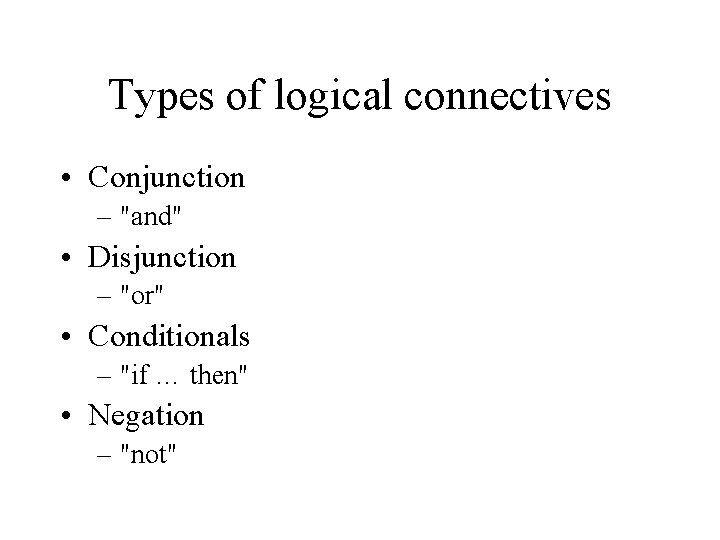

Types of logical connectives • Conjunction – "and" • Disjunction – "or" • Conditionals – "if … then" • Negation – "not"

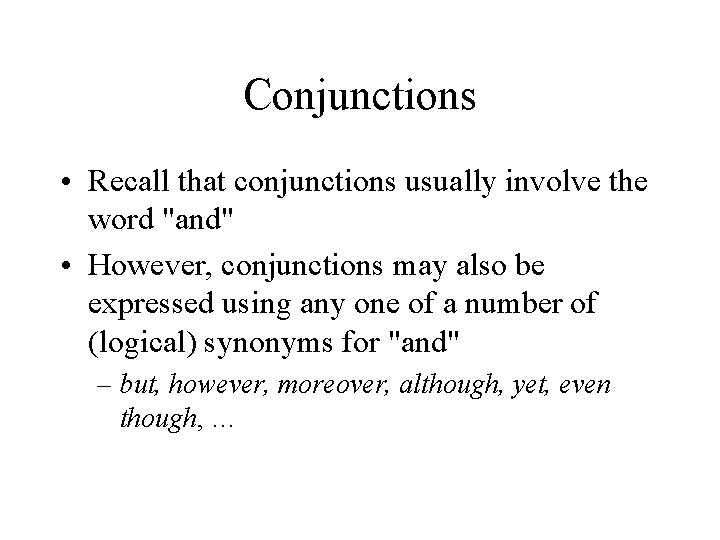

Conjunctions • Recall that conjunctions usually involve the word "and" • However, conjunctions may also be expressed using any one of a number of (logical) synonyms for "and" – but, however, moreover, although, yet, even though, …

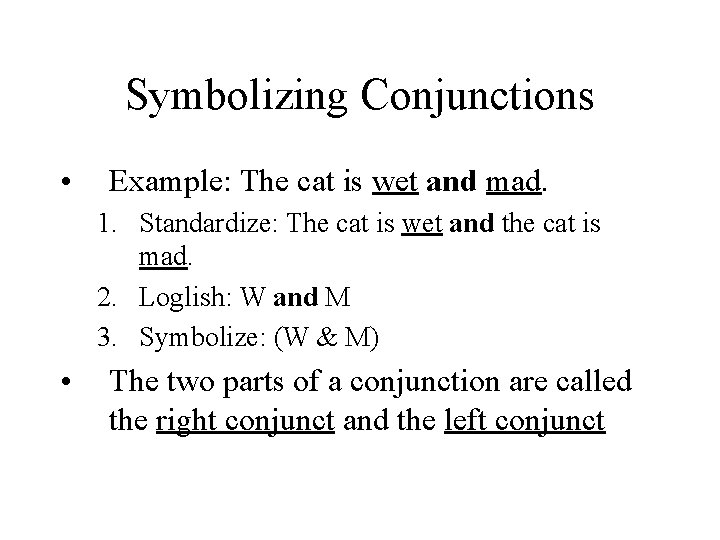

Symbolizing Conjunctions • Example: The cat is wet and mad. 1. Standardize: The cat is wet and the cat is mad. 2. Loglish: W and M 3. Symbolize: (W & M) • The two parts of a conjunction are called the right conjunct and the left conjunct

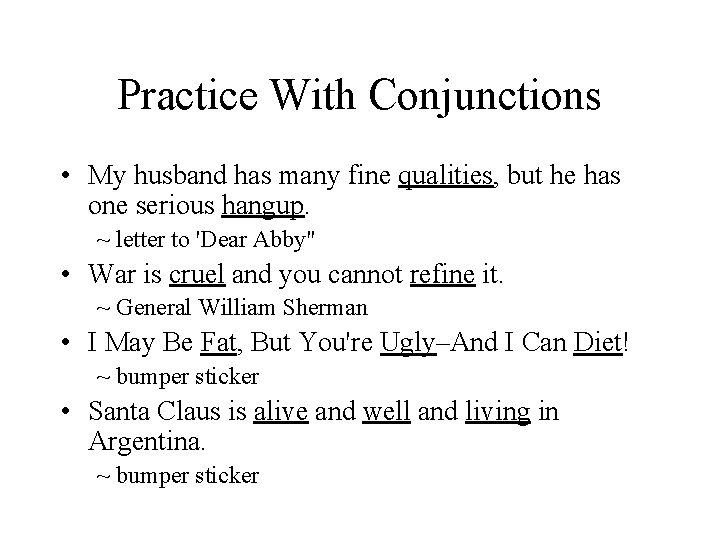

Practice With Conjunctions • My husband has many fine qualities, but he has one serious hangup. ~ letter to 'Dear Abby" • War is cruel and you cannot refine it. ~ General William Sherman • I May Be Fat, But You're Ugly–And I Can Diet! ~ bumper sticker • Santa Claus is alive and well and living in Argentina. ~ bumper sticker

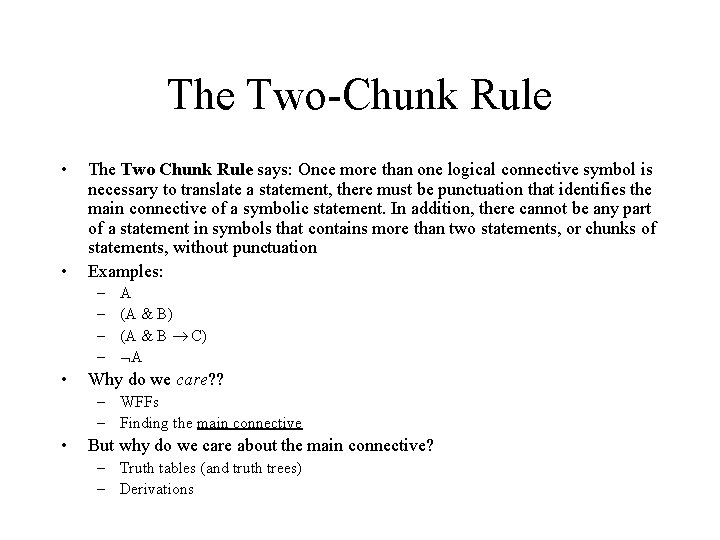

The Two-Chunk Rule • • The Two Chunk Rule says: Once more than one logical connective symbol is necessary to translate a statement, there must be punctuation that identifies the main connective of a symbolic statement. In addition, there cannot be any part of a statement in symbols that contains more than two statements, or chunks of statements, without punctuation Examples: – – • A (A & B) (A & B C) A Why do we care? ? – WFFs – Finding the main connective • But why do we care about the main connective? – Truth tables (and truth trees) – Derivations

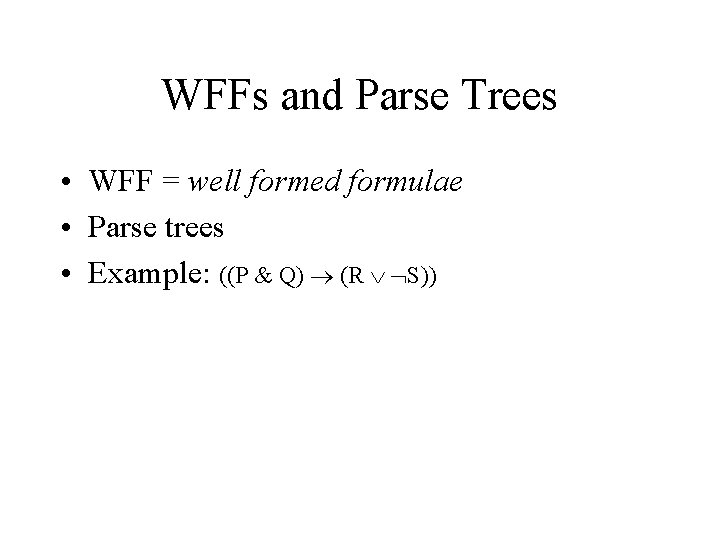

WFFs and Parse Trees • WFF = well formed formulae • Parse trees • Example: ((P & Q) (R S))

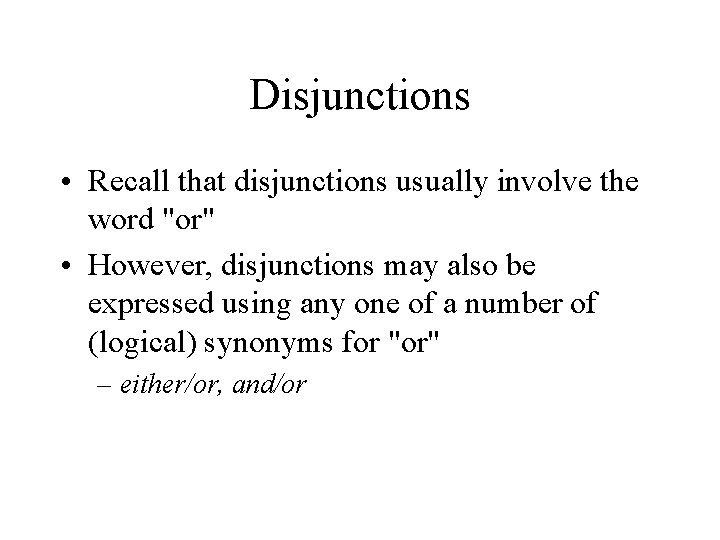

Disjunctions • Recall that disjunctions usually involve the word "or" • However, disjunctions may also be expressed using any one of a number of (logical) synonyms for "or" – either/or, and/or

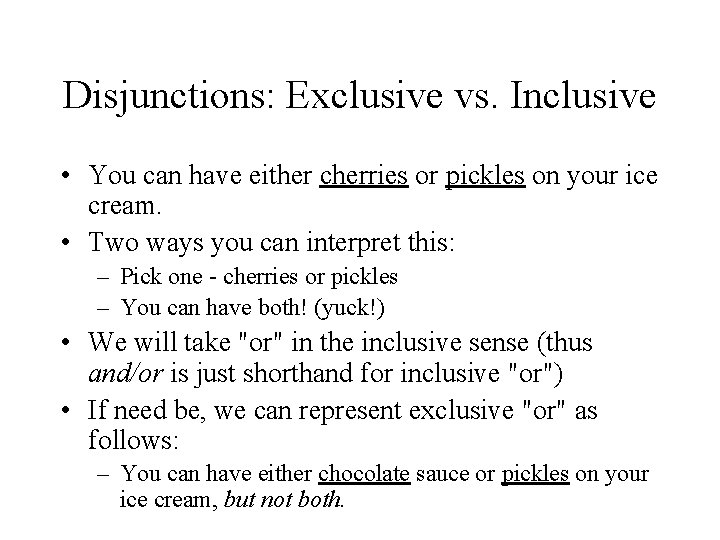

Disjunctions: Exclusive vs. Inclusive • You can have either cherries or pickles on your ice cream. • Two ways you can interpret this: – Pick one - cherries or pickles – You can have both! (yuck!) • We will take "or" in the inclusive sense (thus and/or is just shorthand for inclusive "or") • If need be, we can represent exclusive "or" as follows: – You can have either chocolate sauce or pickles on your ice cream, but not both.

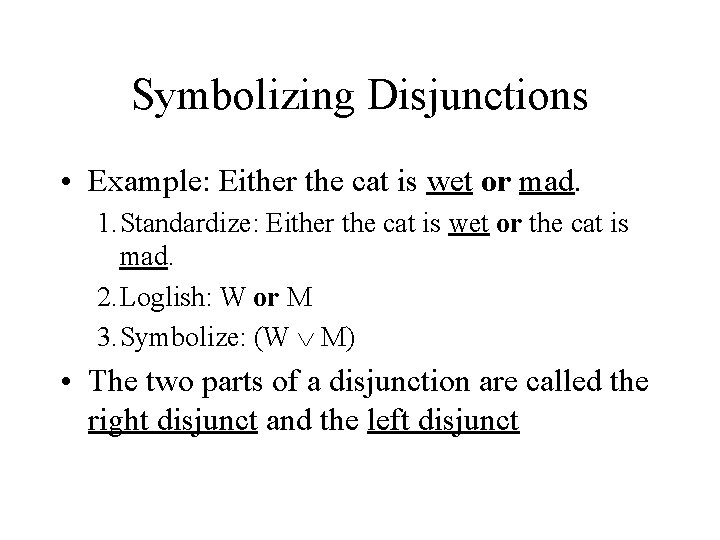

Symbolizing Disjunctions • Example: Either the cat is wet or mad. 1. Standardize: Either the cat is wet or the cat is mad. 2. Loglish: W or M 3. Symbolize: (W M) • The two parts of a disjunction are called the right disjunct and the left disjunct

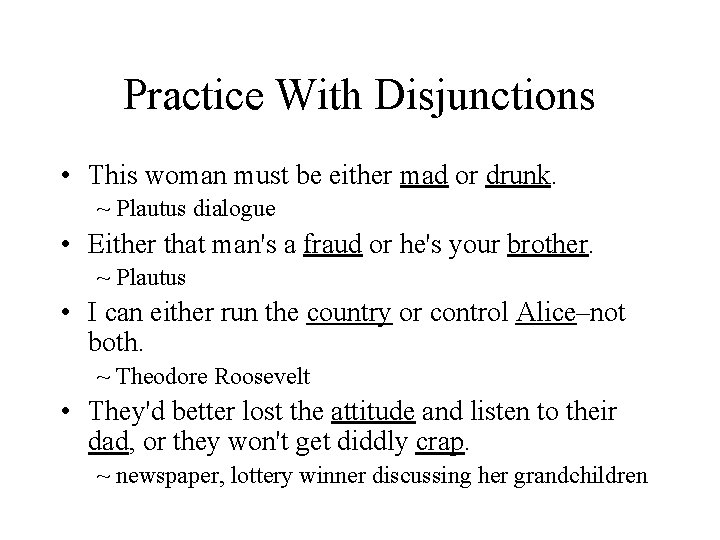

Practice With Disjunctions • This woman must be either mad or drunk. ~ Plautus dialogue • Either that man's a fraud or he's your brother. ~ Plautus • I can either run the country or control Alice–not both. ~ Theodore Roosevelt • They'd better lost the attitude and listen to their dad, or they won't get diddly crap. ~ newspaper, lottery winner discussing her grandchildren

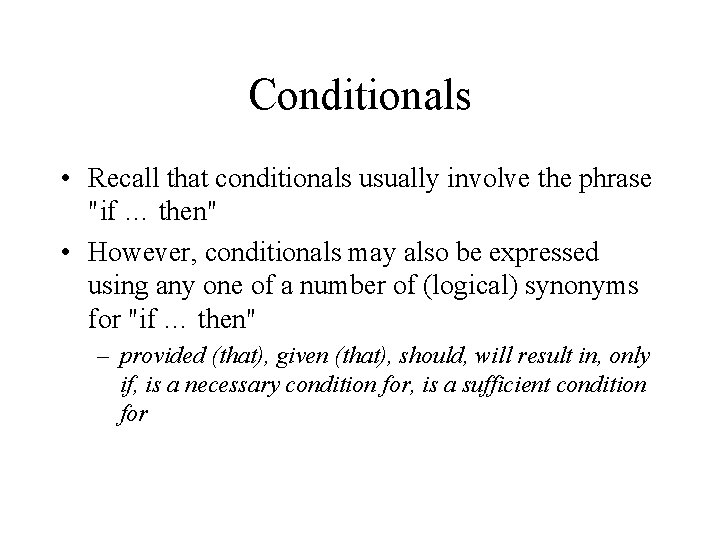

Conditionals • Recall that conditionals usually involve the phrase "if … then" • However, conditionals may also be expressed using any one of a number of (logical) synonyms for "if … then" – provided (that), given (that), should, will result in, only if, is a necessary condition for, is a sufficient condition for

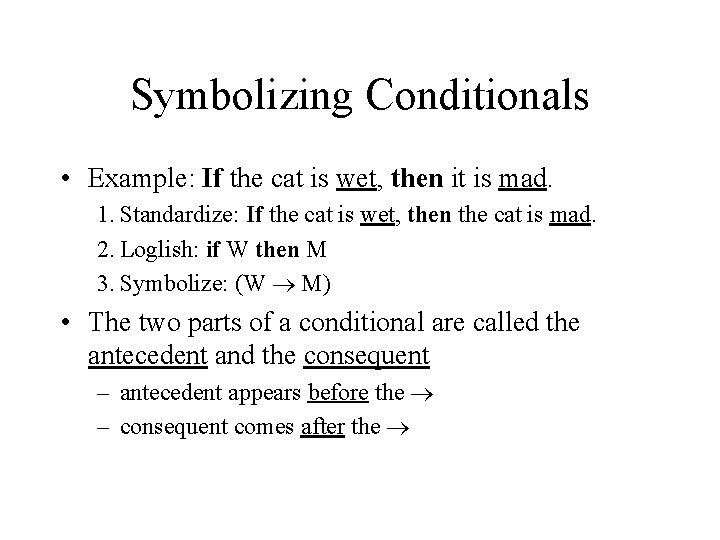

Symbolizing Conditionals • Example: If the cat is wet, then it is mad. 1. Standardize: If the cat is wet, then the cat is mad. 2. Loglish: if W then M 3. Symbolize: (W M) • The two parts of a conditional are called the antecedent and the consequent – antecedent appears before the – consequent comes after the

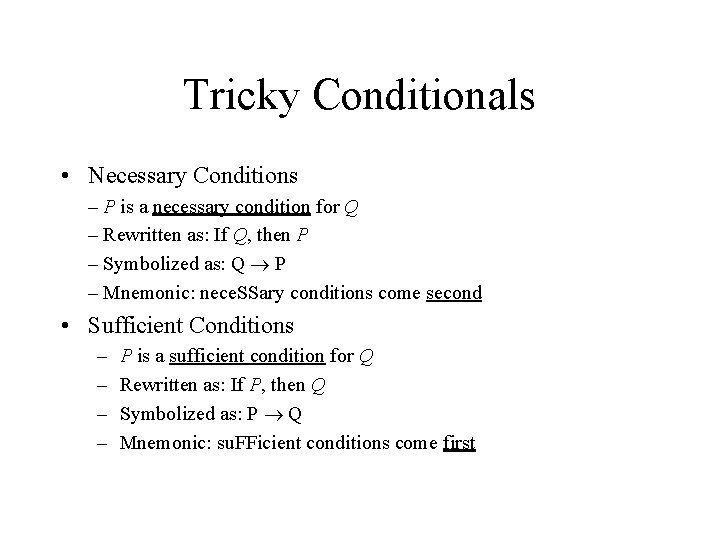

Tricky Conditionals • Necessary Conditions – P is a necessary condition for Q – Rewritten as: If Q, then P – Symbolized as: Q P – Mnemonic: nece. SSary conditions come second • Sufficient Conditions – – P is a sufficient condition for Q Rewritten as: If P, then Q Symbolized as: P Q Mnemonic: su. FFicient conditions come first

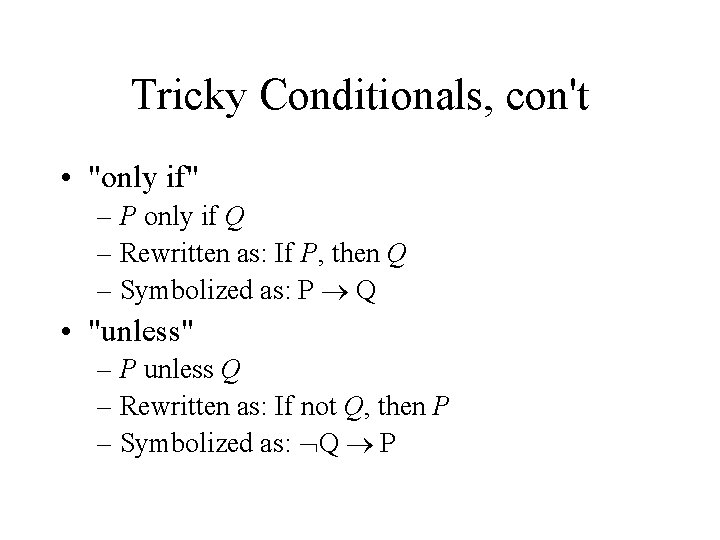

Tricky Conditionals, con't • "only if" – P only if Q – Rewritten as: If P, then Q – Symbolized as: P Q • "unless" – P unless Q – Rewritten as: If not Q, then P – Symbolized as: Q P

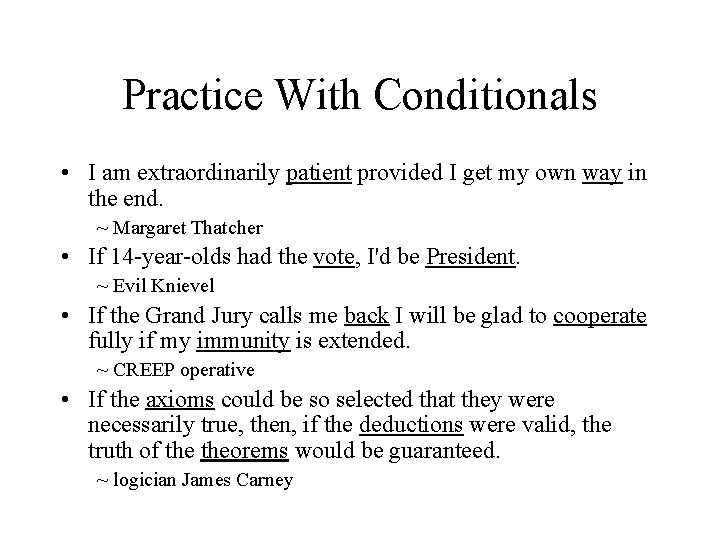

Practice With Conditionals • I am extraordinarily patient provided I get my own way in the end. ~ Margaret Thatcher • If 14 -year-olds had the vote, I'd be President. ~ Evil Knievel • If the Grand Jury calls me back I will be glad to cooperate fully if my immunity is extended. ~ CREEP operative • If the axioms could be so selected that they were necessarily true, then, if the deductions were valid, the truth of theorems would be guaranteed. ~ logician James Carney

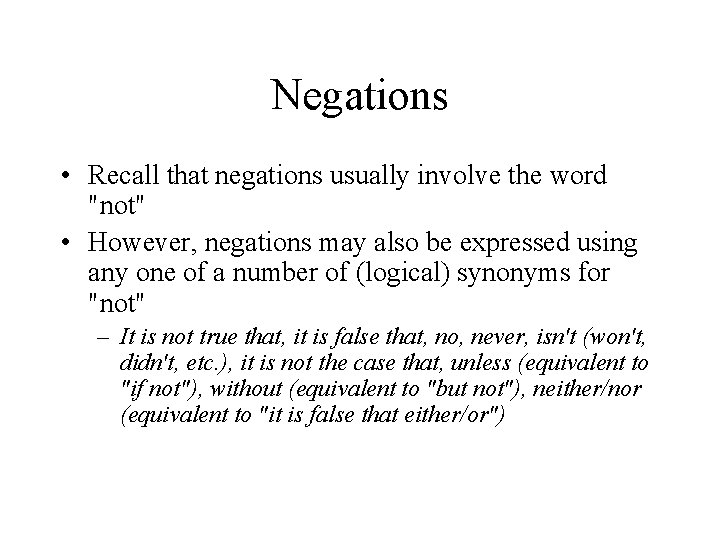

Negations • Recall that negations usually involve the word "not" • However, negations may also be expressed using any one of a number of (logical) synonyms for "not" – It is not true that, it is false that, no, never, isn't (won't, didn't, etc. ), it is not the case that, unless (equivalent to "if not"), without (equivalent to "but not"), neither/nor (equivalent to "it is false that either/or")

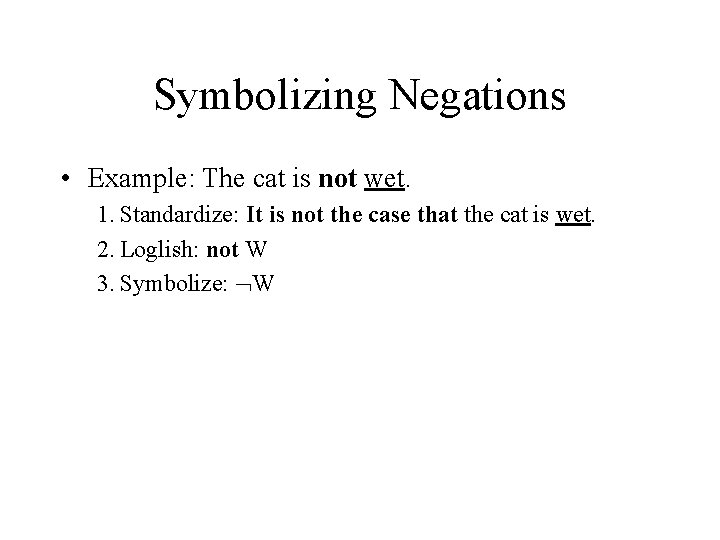

Symbolizing Negations • Example: The cat is not wet. 1. Standardize: It is not the case that the cat is wet. 2. Loglish: not W 3. Symbolize: W

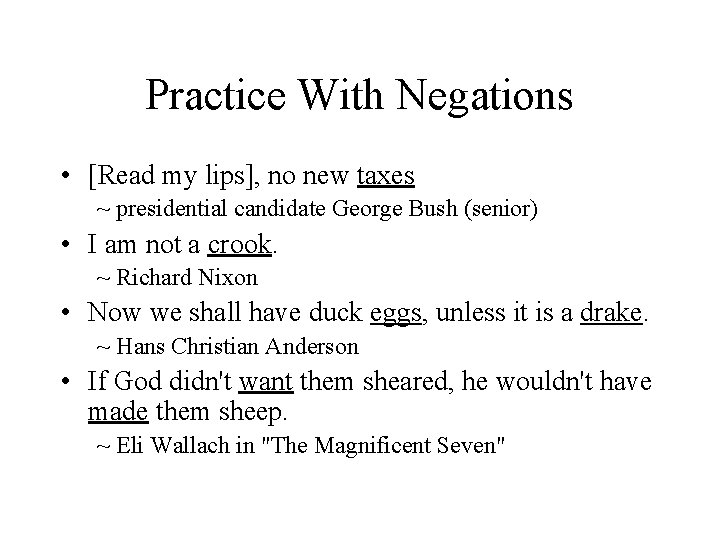

Practice With Negations • [Read my lips], no new taxes ~ presidential candidate George Bush (senior) • I am not a crook. ~ Richard Nixon • Now we shall have duck eggs, unless it is a drake. ~ Hans Christian Anderson • If God didn't want them sheared, he wouldn't have made them sheep. ~ Eli Wallach in "The Magnificent Seven"

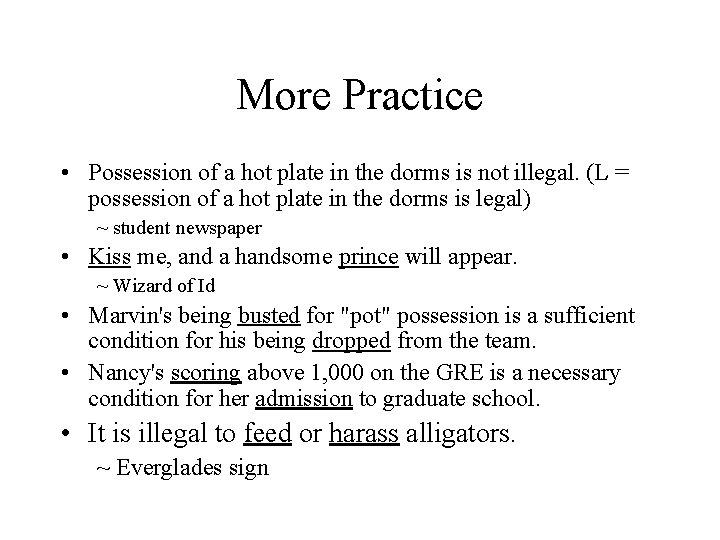

More Practice • Possession of a hot plate in the dorms is not illegal. (L = possession of a hot plate in the dorms is legal) ~ student newspaper • Kiss me, and a handsome prince will appear. ~ Wizard of Id • Marvin's being busted for "pot" possession is a sufficient condition for his being dropped from the team. • Nancy's scoring above 1, 000 on the GRE is a necessary condition for her admission to graduate school. • It is illegal to feed or harass alligators. ~ Everglades sign

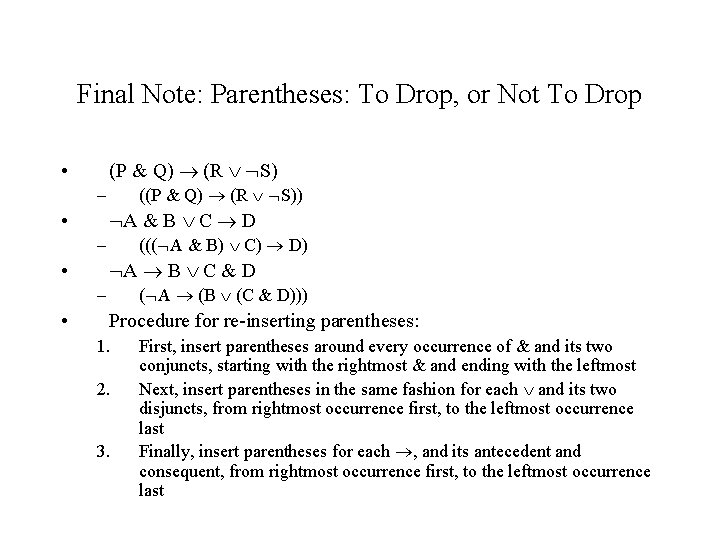

Final Note: Parentheses: To Drop, or Not To Drop (P & Q) (R S) • ((P & Q) (R S)) – A & B C D • ((( A & B) C) D) – A B C & D • ( A (B (C & D))) – • Procedure for re-inserting parentheses: 1. 2. 3. First, insert parentheses around every occurrence of & and its two conjuncts, starting with the rightmost & and ending with the leftmost Next, insert parentheses in the same fashion for each and its two disjuncts, from rightmost occurrence first, to the leftmost occurrence last Finally, insert parentheses for each , and its antecedent and consequent, from rightmost occurrence first, to the leftmost occurrence last
