CHAPTER 2 Power transmission rotational power Belt drives

CHAPTER -2

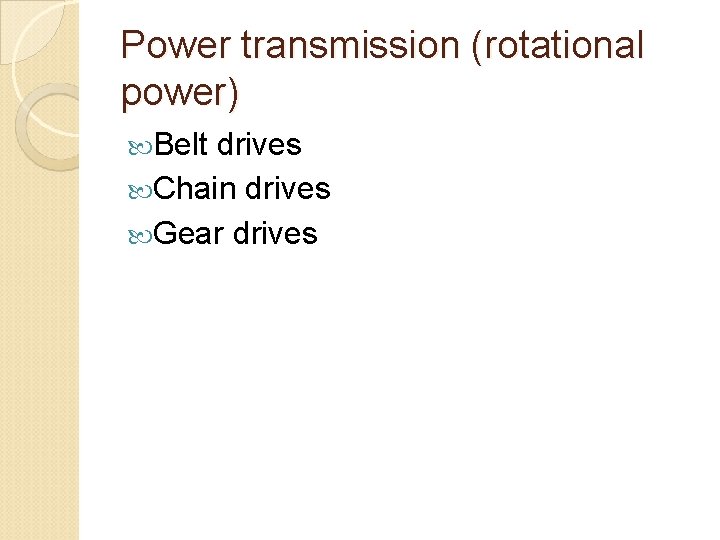

Power transmission (rotational power) Belt drives Chain drives Gear drives

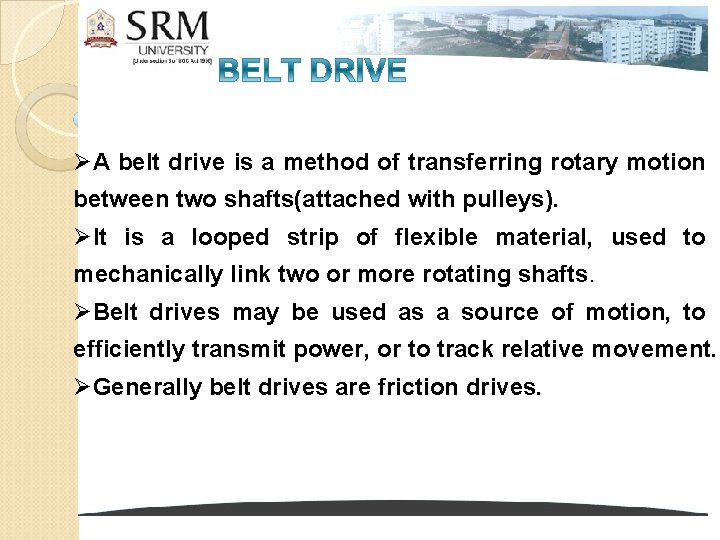

ØA belt drive is a method of transferring rotary motion between two shafts(attached with pulleys). ØIt is a looped strip of flexible material, used to mechanically link two or more rotating shafts. ØBelt drives may be used as a source of motion, to efficiently transmit power, or to track relative movement. ØGenerally belt drives are friction drives.

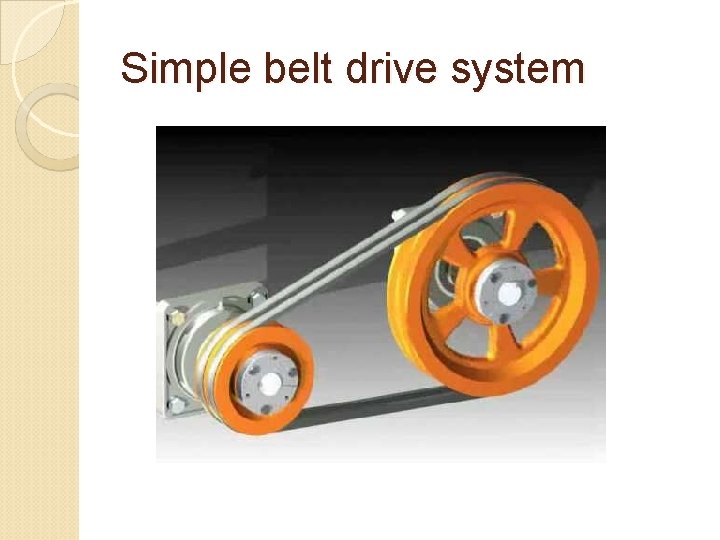

Simple belt drive system

Application Where the rotational speeds are different Distance between the shafts is high Motion or power that needs to be transmitted to more number of applications

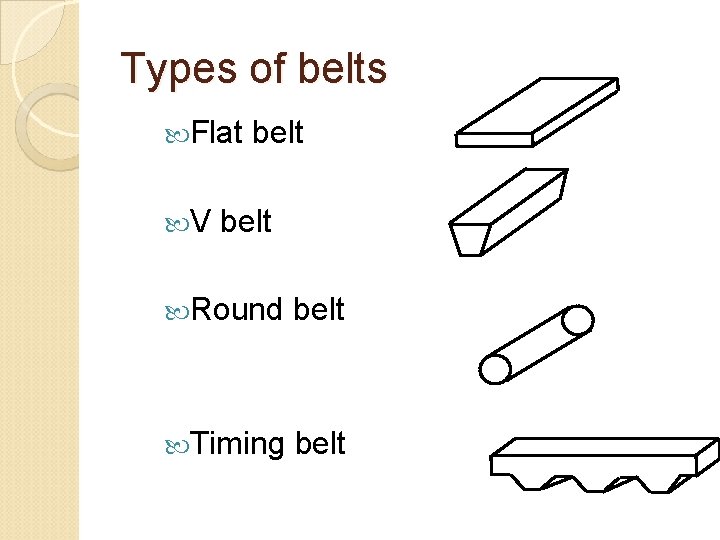

Types of belts Flat V belt Round belt Timing belt

Pictorial view of belts Flat belt

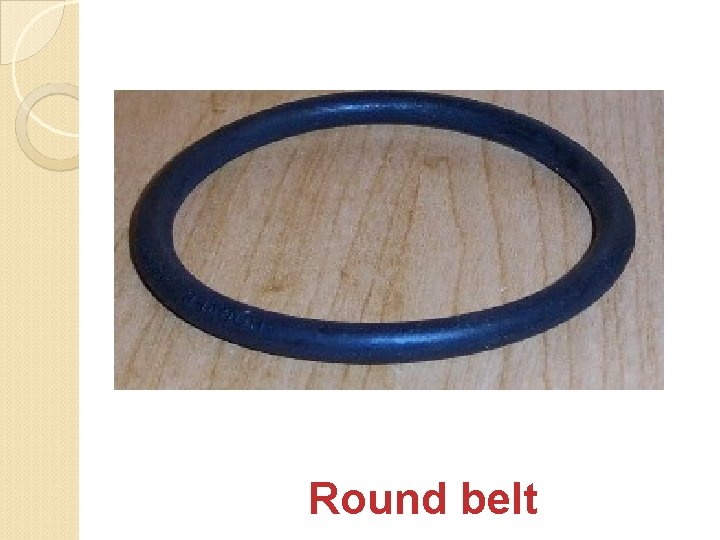

Round belt

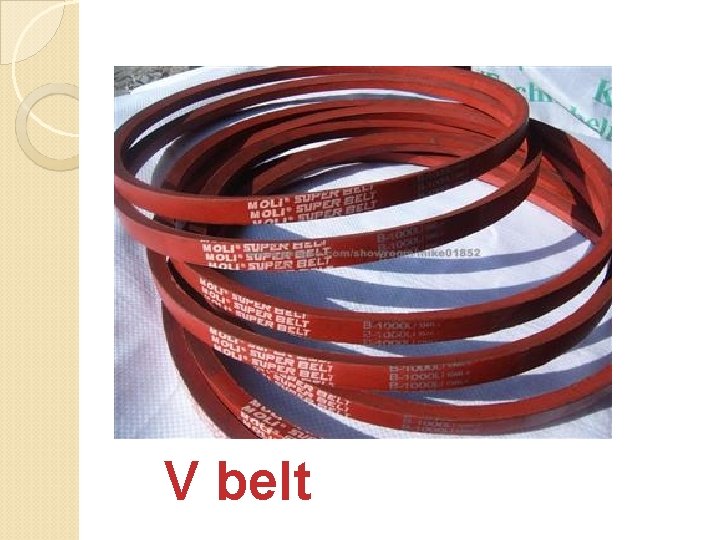

V belt

Timing or grooved belt

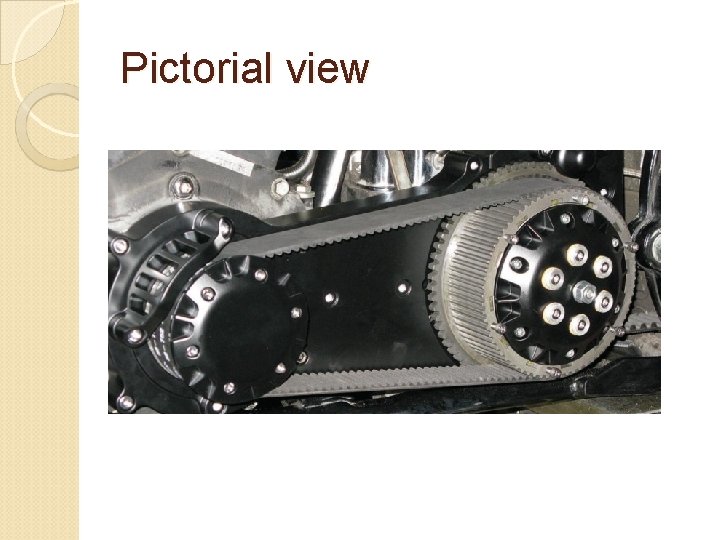

Pictorial view

Pictorial view

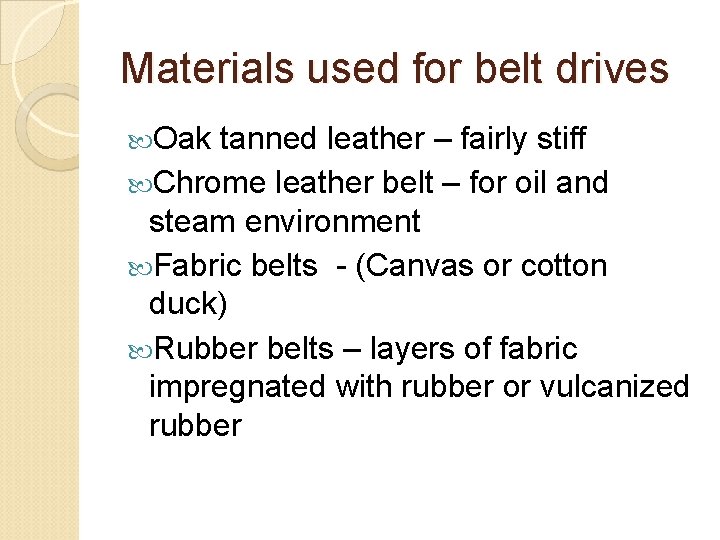

Materials used for belt drives Oak tanned leather – fairly stiff Chrome leather belt – for oil and steam environment Fabric belts - (Canvas or cotton duck) Rubber belts – layers of fabric impregnated with rubber or vulcanized rubber

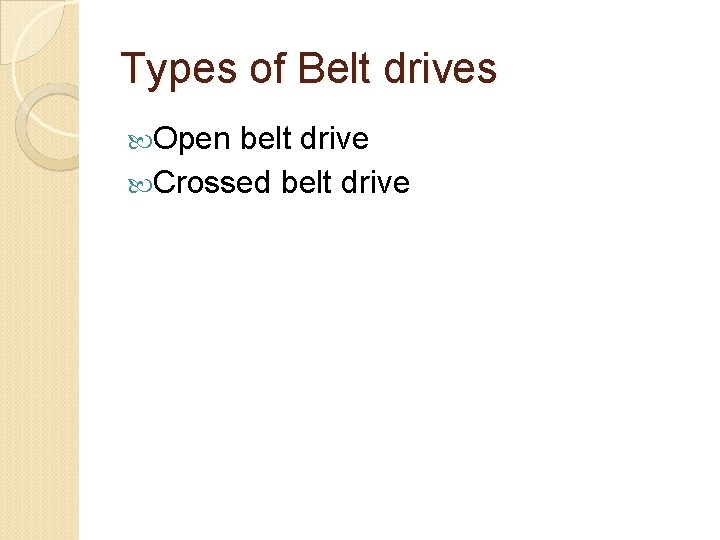

Types of Belt drives Open belt drive Crossed belt drive

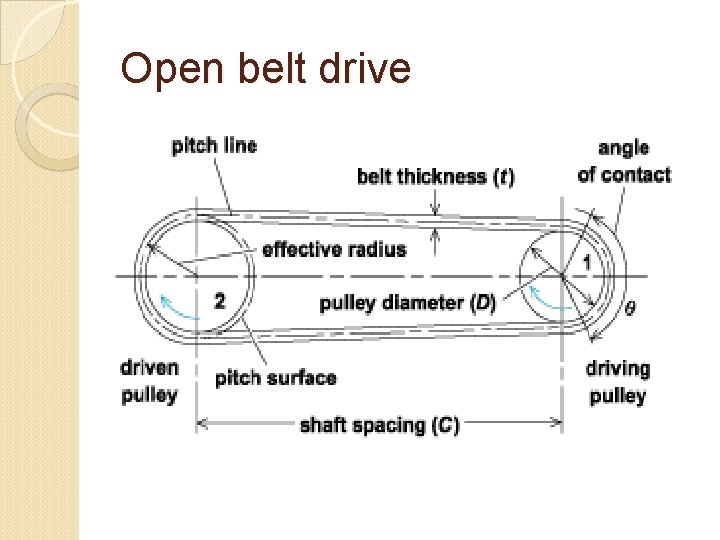

Open belt drive

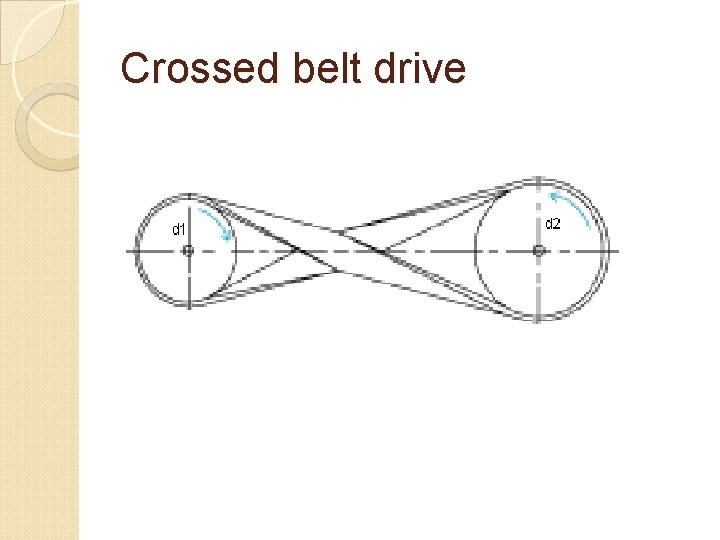

Crossed belt drive

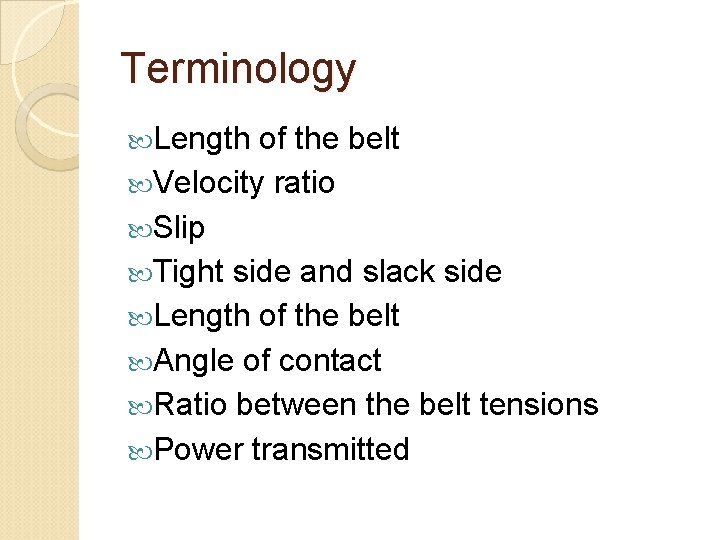

Terminology Length of the belt Velocity ratio Slip Tight side and slack side Length of the belt Angle of contact Ratio between the belt tensions Power transmitted

Ratios b/w belt tension and Power R= T 1/T 2 =eµθ T 1 = Tension in the tight side T 2 = Tension on the slack side µ= coefficient of friction θ= angle of contact Power transmitted P = (T 1 -T 2 )V V= velocity of the belt V= πd 1 * N/60 m/s

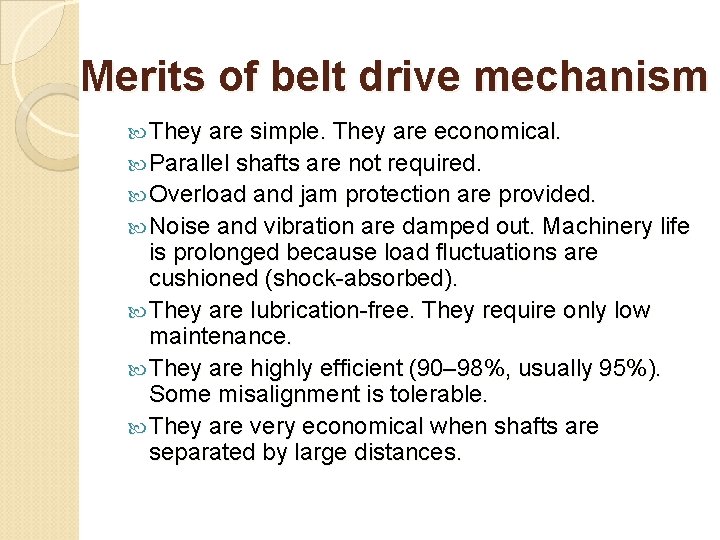

Merits of belt drive mechanism They are simple. They are economical. Parallel shafts are not required. Overload and jam protection are provided. Noise and vibration are damped out. Machinery life is prolonged because load fluctuations are cushioned (shock-absorbed). They are lubrication-free. They require only low maintenance. They are highly efficient (90– 98%, usually 95%). Some misalignment is tolerable. They are very economical when shafts are separated by large distances.

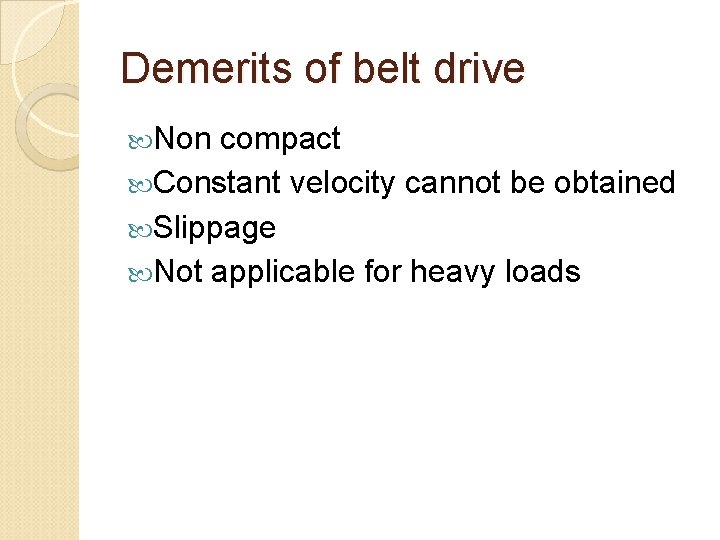

Demerits of belt drive Non compact Constant velocity cannot be obtained Slippage Not applicable for heavy loads

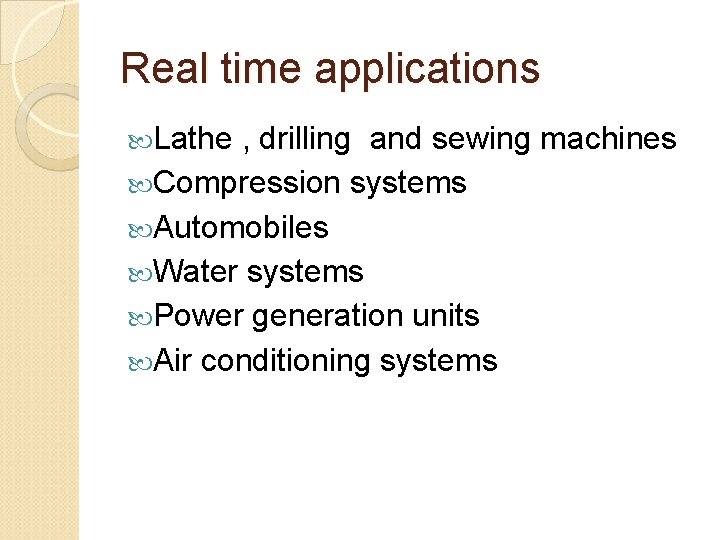

Real time applications Lathe , drilling and sewing machines Compression systems Automobiles Water systems Power generation units Air conditioning systems

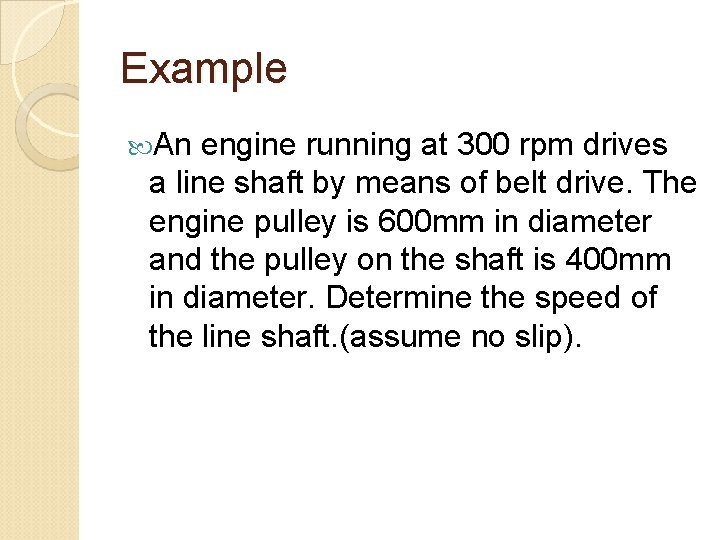

Example An engine running at 300 rpm drives a line shaft by means of belt drive. The engine pulley is 600 mm in diameter and the pulley on the shaft is 400 mm in diameter. Determine the speed of the line shaft. (assume no slip).

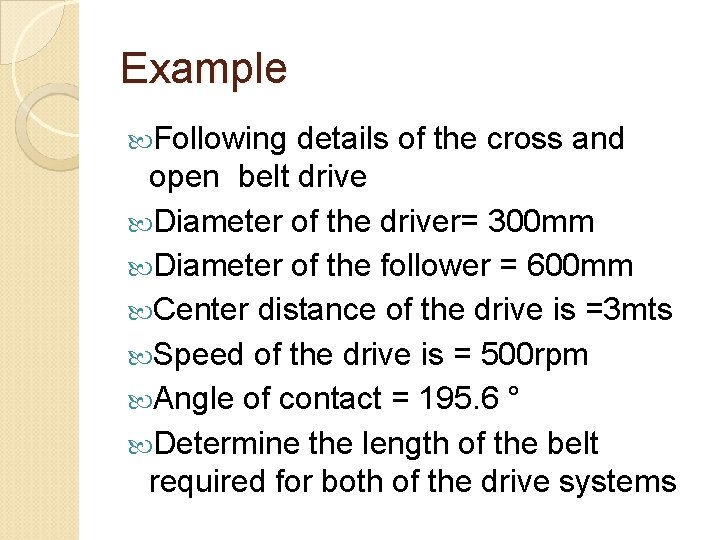

Example Following details of the cross and open belt drive Diameter of the driver= 300 mm Diameter of the follower = 600 mm Center distance of the drive is =3 mts Speed of the drive is = 500 rpm Angle of contact = 195. 6 ° Determine the length of the belt required for both of the drive systems

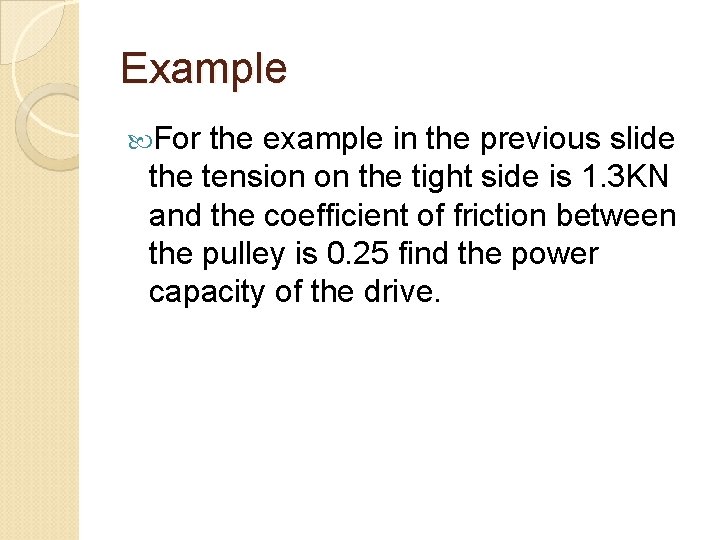

Example For the example in the previous slide the tension on the tight side is 1. 3 KN and the coefficient of friction between the pulley is 0. 25 find the power capacity of the drive.

CHAIN DRIVES

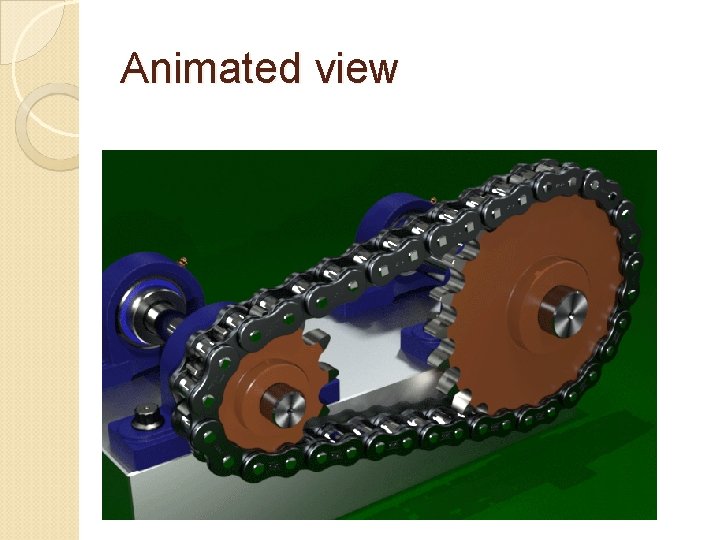

Animated view

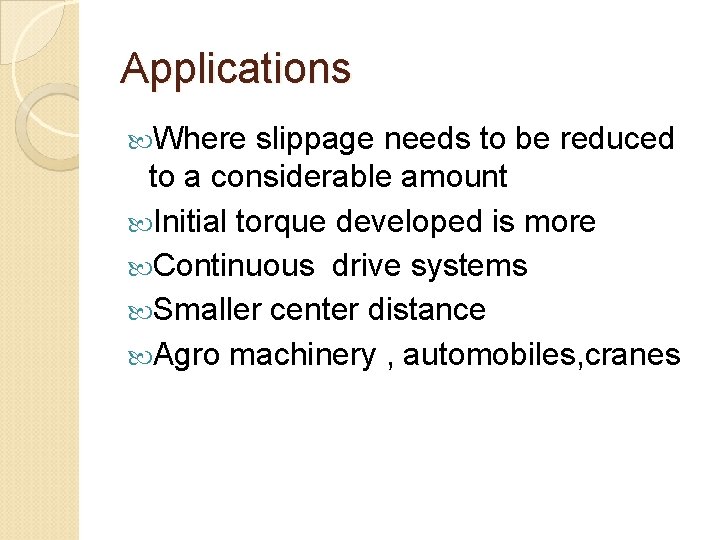

Applications Where slippage needs to be reduced to a considerable amount Initial torque developed is more Continuous drive systems Smaller center distance Agro machinery , automobiles, cranes

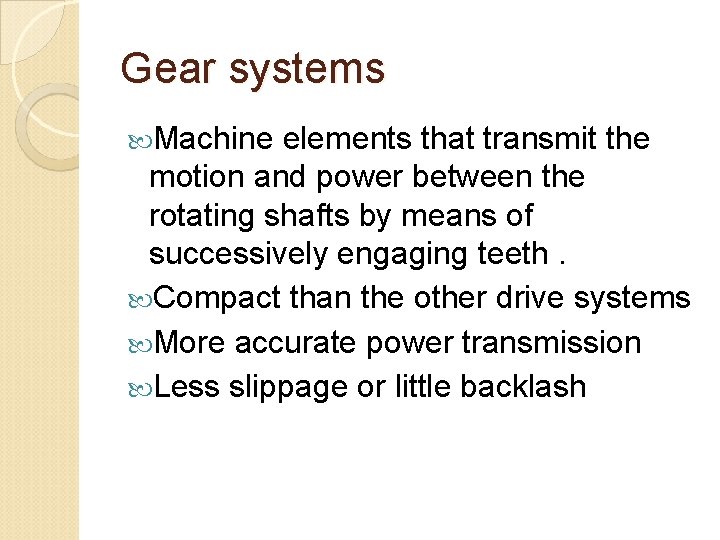

Gear systems Machine elements that transmit the motion and power between the rotating shafts by means of successively engaging teeth. Compact than the other drive systems More accurate power transmission Less slippage or little backlash

Common forms of gear configuration Gears for connecting parallel shafts Gears for connecting intersecting shafts Gears for connecting neither parallel nor intersecting shafts

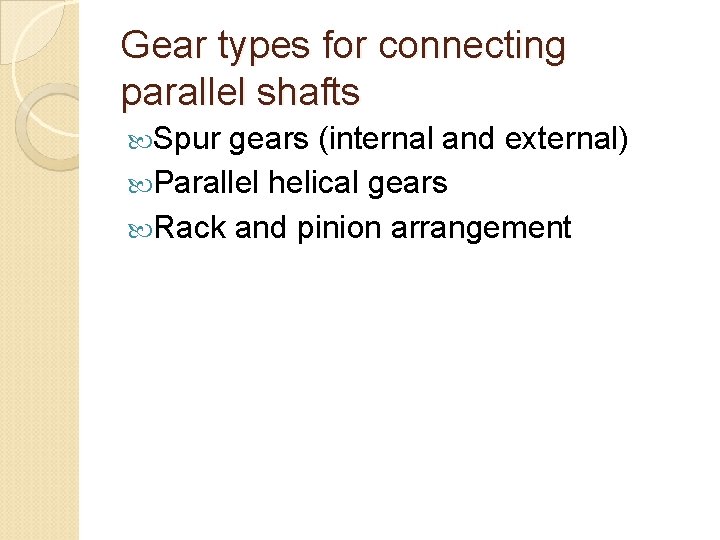

Gear types for connecting parallel shafts Spur gears (internal and external) Parallel helical gears Rack and pinion arrangement

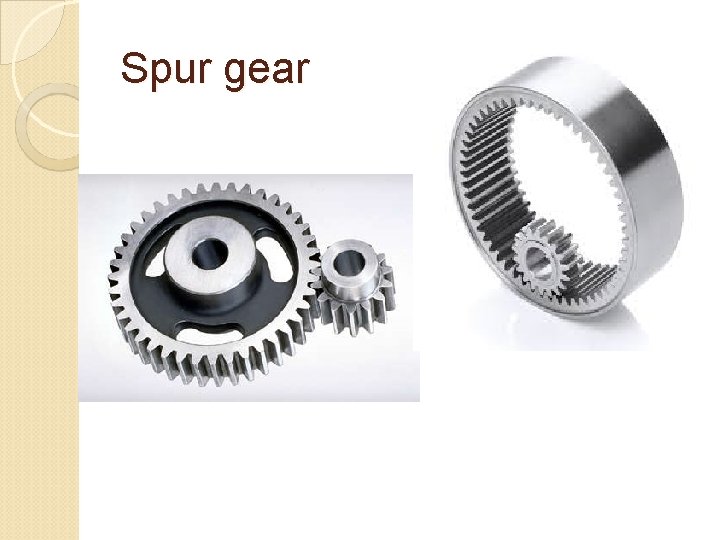

Spur gear

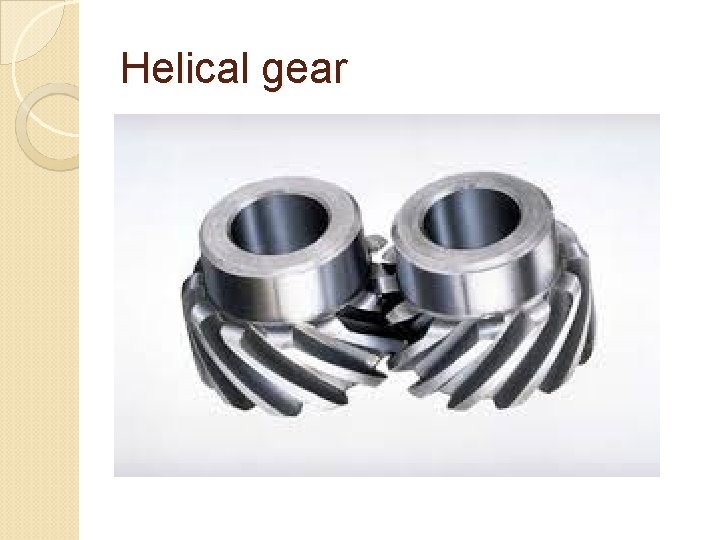

Helical gear

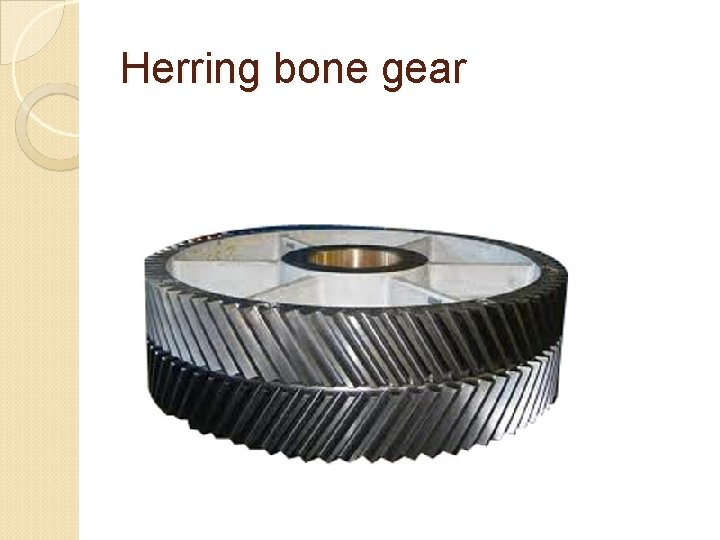

Herring bone gear

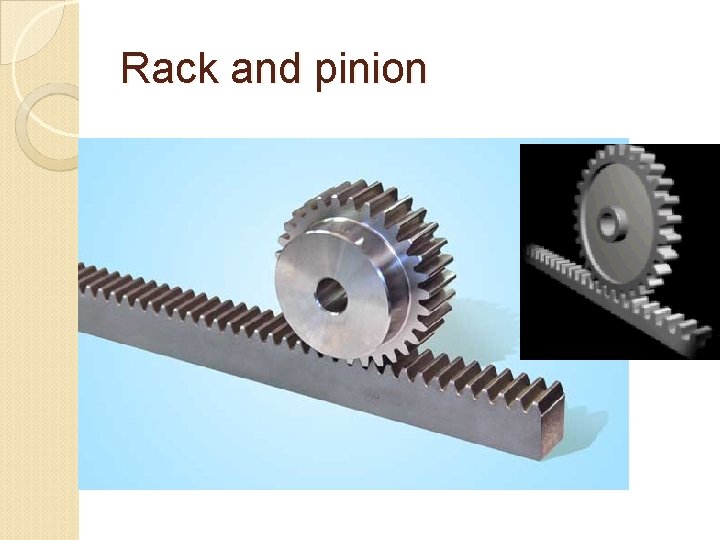

Rack and pinion

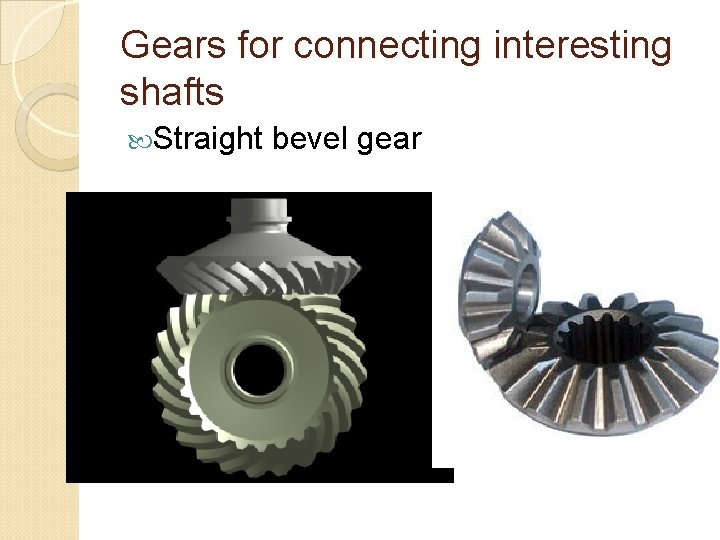

Gears for connecting interesting shafts Straight bevel gear

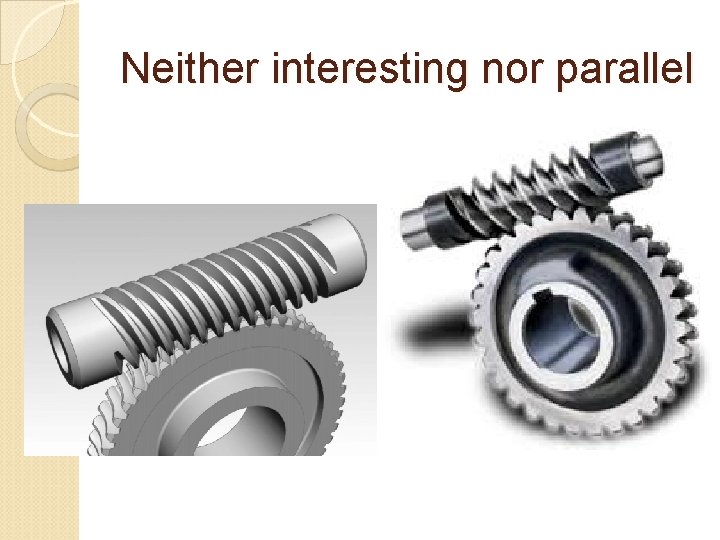

Neither interesting nor parallel

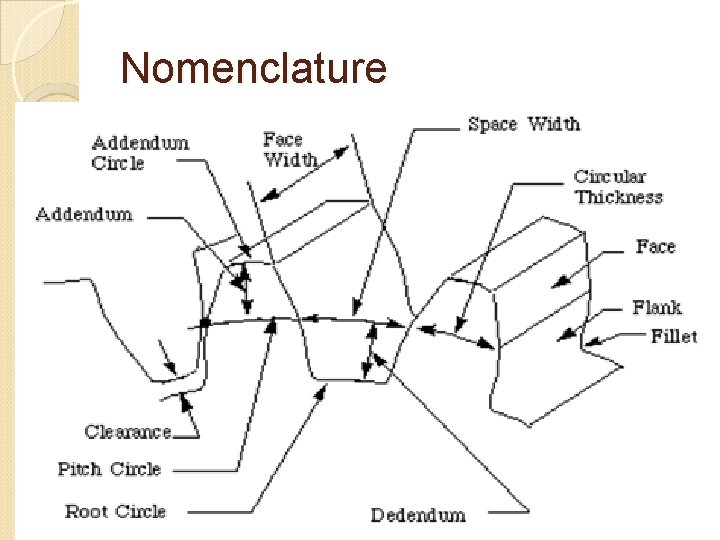

Nomenclature

Terminologies Pitch circle Tooth space Addendum circle Backlash Root circle Circular pitch Addendum Diametral pitch Dedundum Module Clearance Face of the tooth Flank of tooth Tooth space Tooth thickness or circular thickness

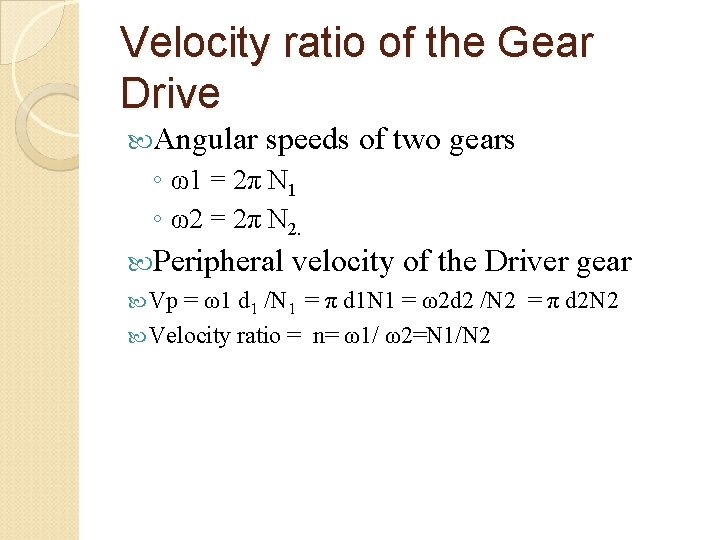

Velocity ratio of the Gear Drive Angular speeds of two gears ◦ ω1 = 2π N 1 ◦ ω2 = 2π N 2. Peripheral Vp velocity of the Driver gear = ω1 d 1 /N 1 = π d 1 N 1 = ω2 d 2 /N 2 = π d 2 N 2 Velocity ratio = n= ω1/ ω2=N 1/N 2

Gear trains A combination of two or more gears for transmission of energy. Size /number of teeth makes a speed change(reduction or increment). Preferred when large speed change is required in a compact space.

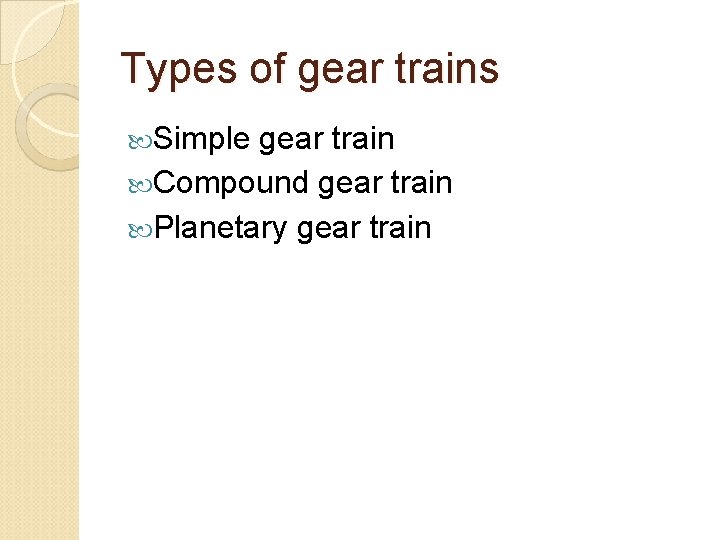

Types of gear trains Simple gear train Compound gear train Planetary gear train

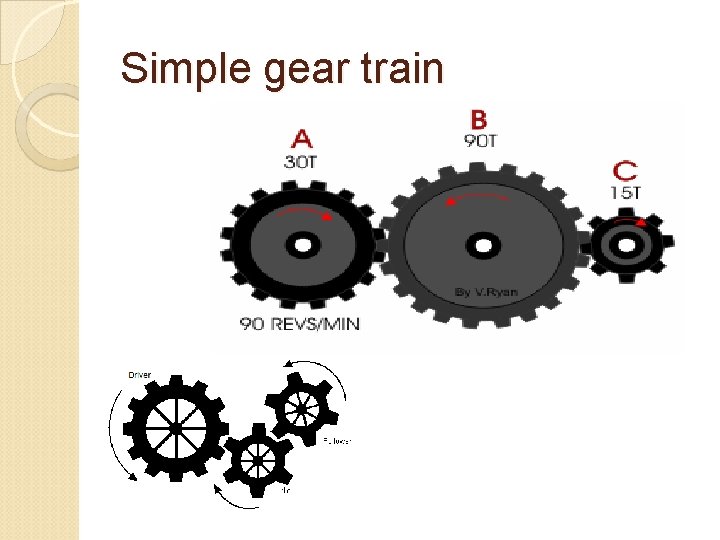

Simple gear train

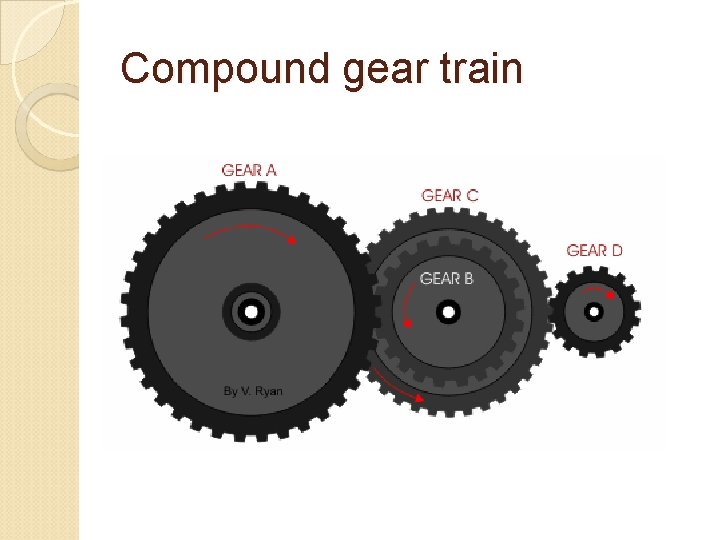

Compound gear train

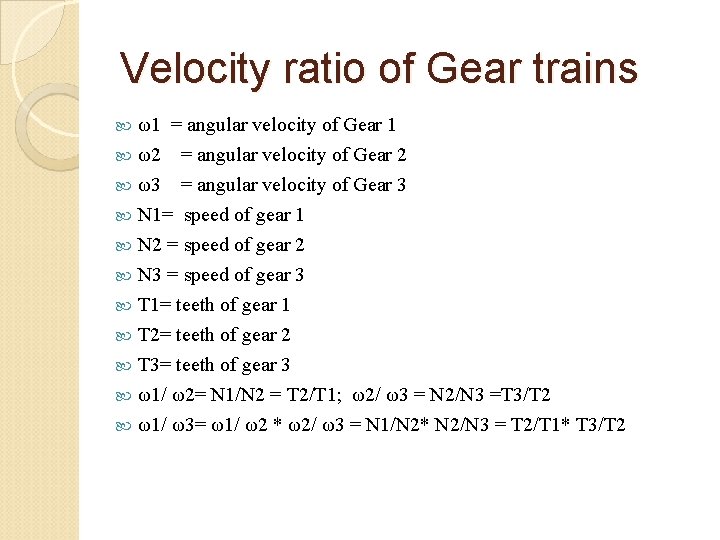

Velocity ratio of Gear trains ω1 = angular velocity of Gear 1 ω2 = angular velocity of Gear 2 ω3 = angular velocity of Gear 3 N 1= speed of gear 1 N 2 = speed of gear 2 N 3 = speed of gear 3 T 1= teeth of gear 1 T 2= teeth of gear 2 T 3= teeth of gear 3 ω1/ ω2= N 1/N 2 = T 2/T 1; ω2/ ω3 = N 2/N 3 =T 3/T 2 ω1/ ω3= ω1/ ω2 * ω2/ ω3 = N 1/N 2* N 2/N 3 = T 2/T 1* T 3/T 2

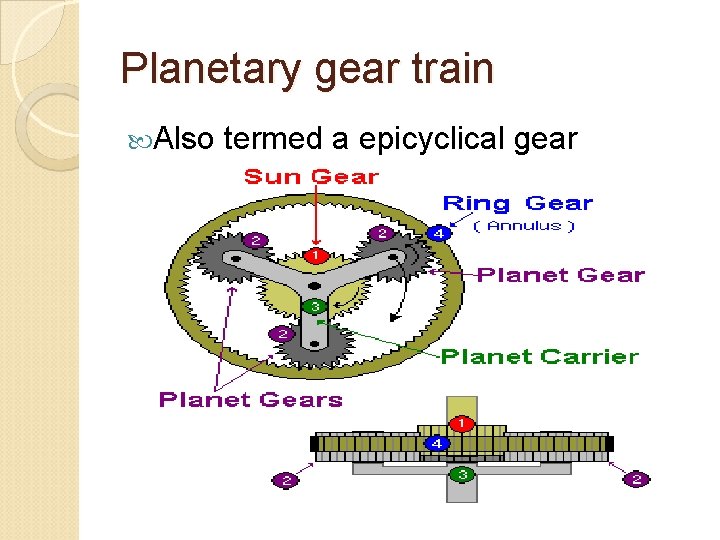

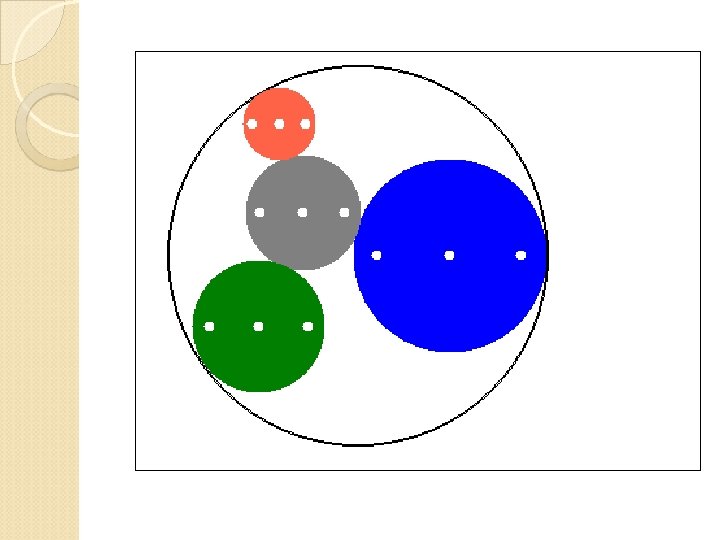

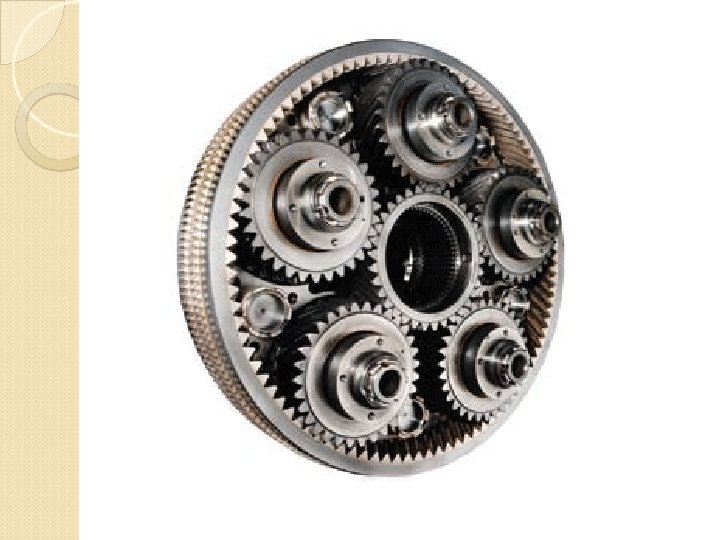

Planetary gear train Also termed a epicyclical gear

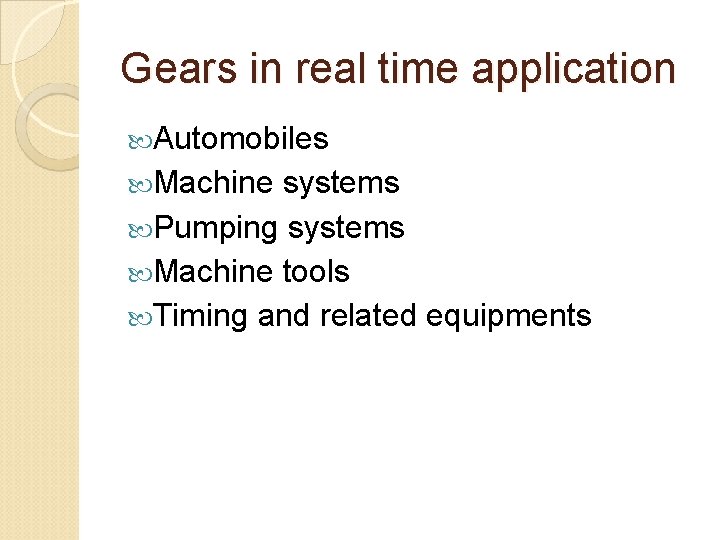

Gears in real time application Automobiles Machine systems Pumping systems Machine tools Timing and related equipments

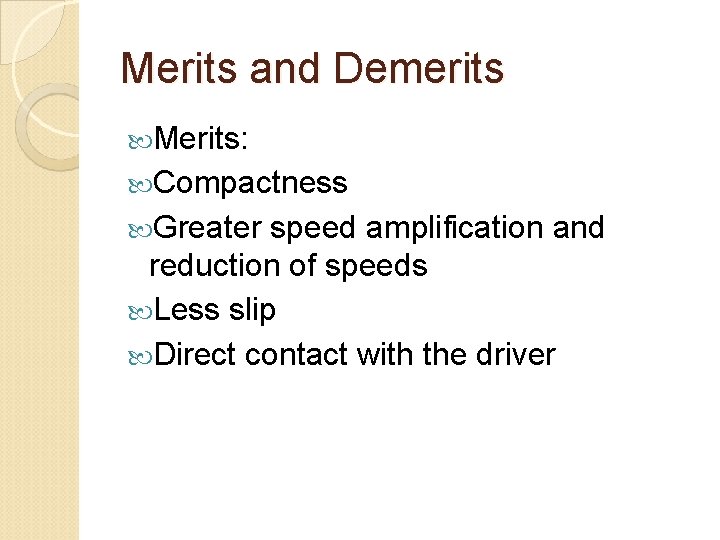

Merits and Demerits Merits: Compactness Greater speed amplification and reduction of speeds Less slip Direct contact with the driver

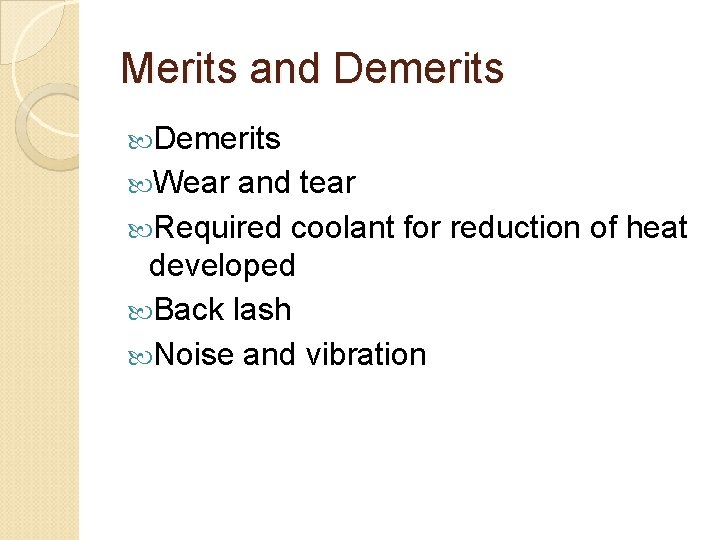

Merits and Demerits Wear and tear Required coolant for reduction of heat developed Back lash Noise and vibration
