Chapter 2 Descriptive Statistics Tabular and Graphical Methods
Chapter 2 Descriptive Statistics: Tabular and Graphical Methods n n Summarizing Qualitative Data Summarizing Quantitative Data Exploratory Data Analysis Crosstabulations and Scatter Diagrams Slide 1

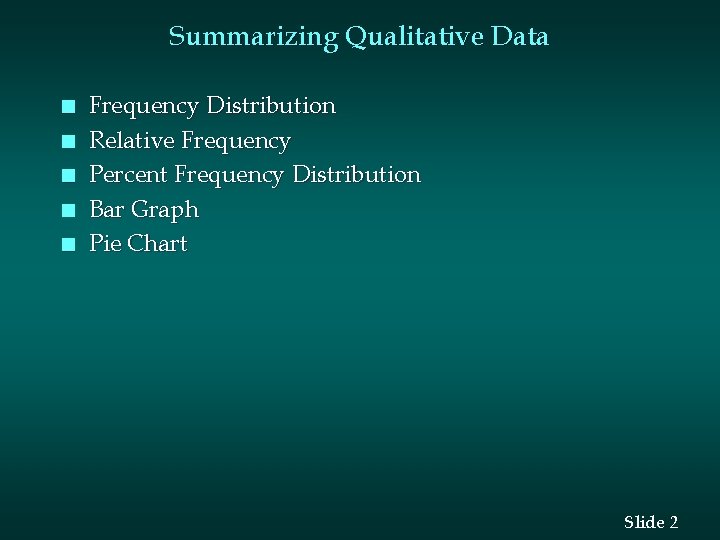

Summarizing Qualitative Data n n n Frequency Distribution Relative Frequency Percent Frequency Distribution Bar Graph Pie Chart Slide 2

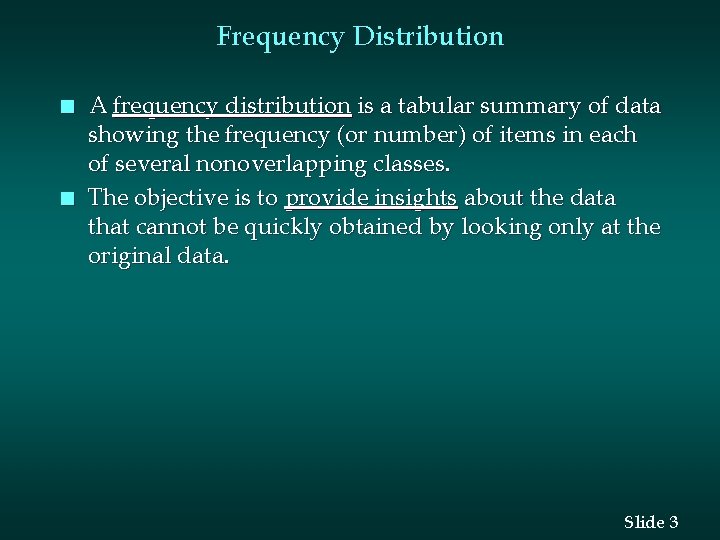

Frequency Distribution n n A frequency distribution is a tabular summary of data showing the frequency (or number) of items in each of several nonoverlapping classes. The objective is to provide insights about the data that cannot be quickly obtained by looking only at the original data. Slide 3

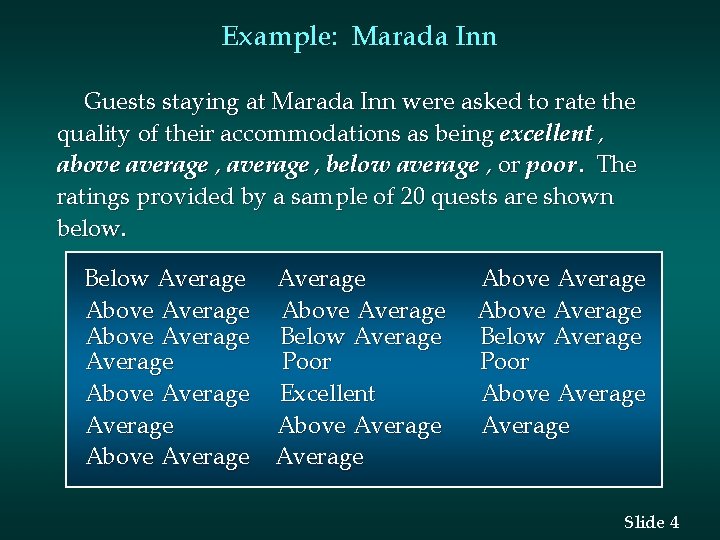

Example: Marada Inn Guests staying at Marada Inn were asked to rate the quality of their accommodations as being excellent , above average , below average , or poor. The ratings provided by a sample of 20 quests are shown below. Below Average Above Average Below Average Poor Above Average Excellent Average Above Average Below Average Poor Above Average Slide 4

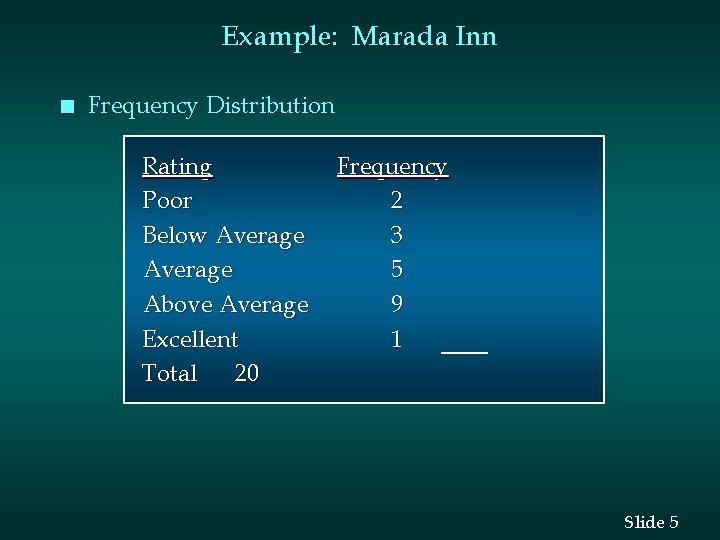

Example: Marada Inn n Frequency Distribution Rating Poor Below Average Above Average Excellent Total 20 Frequency 2 3 5 9 1 Slide 5
Relative Frequency Distribution n n The relative frequency of a class is the fraction or proportion of the total number of data items belonging to the class. A relative frequency distribution is a tabular summary of a set of data showing the relative frequency for each class. Slide 6
Percent Frequency Distribution n n The percent frequency of a class is the relative frequency multiplied by 100. A percent frequency distribution is a tabular summary of a set of data showing the percent frequency for each class. Slide 7

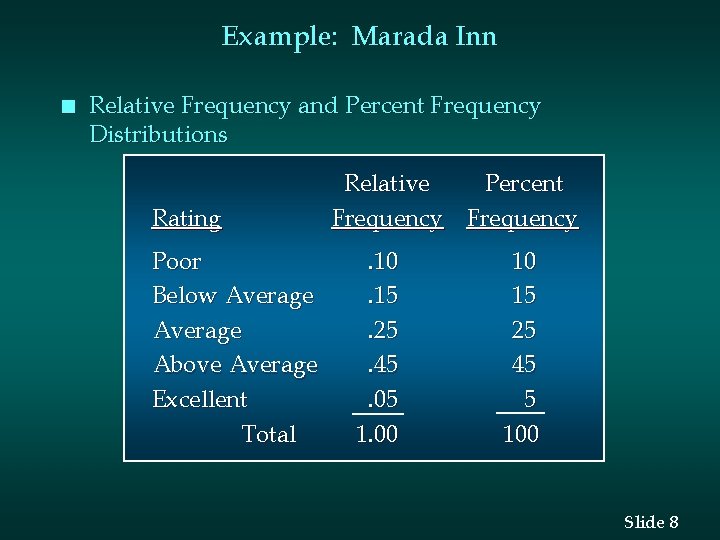

Example: Marada Inn n Relative Frequency and Percent Frequency Distributions Rating Poor Below Average Above Average Excellent Total Relative Percent Frequency. 10. 15. 25. 45. 05 1. 00 10 15 25 45 5 100 Slide 8
Bar Graph n n n A bar graph is a graphical device for depicting qualitative data. On the horizontal axis we specify the labels that are used for each of the classes. A frequency, relative frequency, or percent frequency scale can be used for the vertical axis. Using a bar of fixed width drawn above each class label, we extend the height appropriately. The bars are separated to emphasize the fact that each class is a separate category. Slide 9
Example: Marada Inn n Bar Graph 9 Frequency 8 7 6 5 4 3 2 1 Poor Below Average Above Excellent Average Rating Slide 10
Pie Chart n n n The pie chart is a commonly used graphical device for presenting relative frequency distributions for qualitative data. First draw a circle; then use the relative frequencies to subdivide the circle into sectors that correspond to the relative frequency for each class. Since there are 360 degrees in a circle, a class with a relative frequency of. 25 would consume. 25(360) = 90 degrees of the circle. Slide 11
Example: Marada Inn n Pie Chart Exc. Poor 5% 10% Above Average 45% Below Average 15% Average 25% Quality Ratings Slide 12

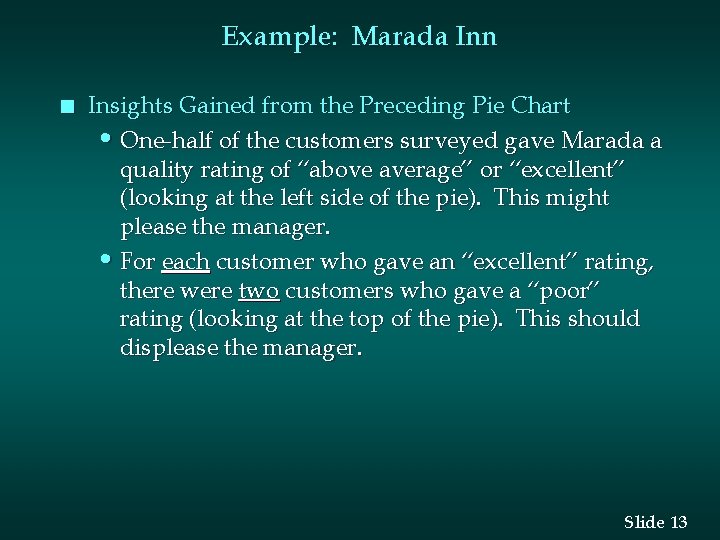

Example: Marada Inn n Insights Gained from the Preceding Pie Chart • One-half of the customers surveyed gave Marada a quality rating of “above average” or “excellent” (looking at the left side of the pie). This might please the manager. • For each customer who gave an “excellent” rating, there were two customers who gave a “poor” rating (looking at the top of the pie). This should displease the manager. Slide 13

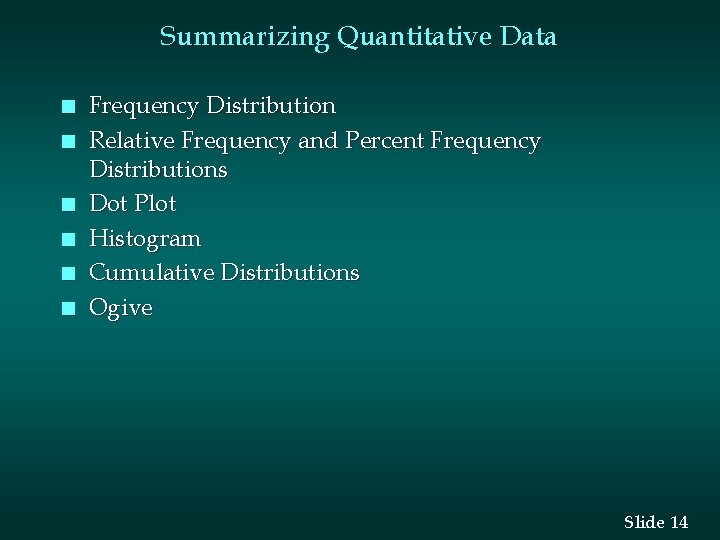

Summarizing Quantitative Data n n n Frequency Distribution Relative Frequency and Percent Frequency Distributions Dot Plot Histogram Cumulative Distributions Ogive Slide 14
Example: Hudson Auto Repair The manager of Hudson Auto would like to get a better picture of the distribution of costs for engine tune-up parts. A sample of 50 customer invoices has been taken and the costs of parts, rounded to the nearest dollar, are listed below. Slide 15

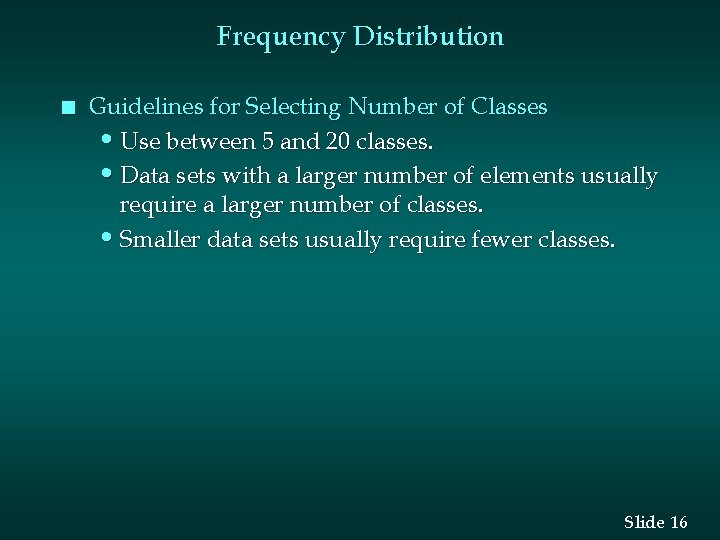

Frequency Distribution n Guidelines for Selecting Number of Classes • Use between 5 and 20 classes. • Data sets with a larger number of elements usually require a larger number of classes. • Smaller data sets usually require fewer classes. Slide 16

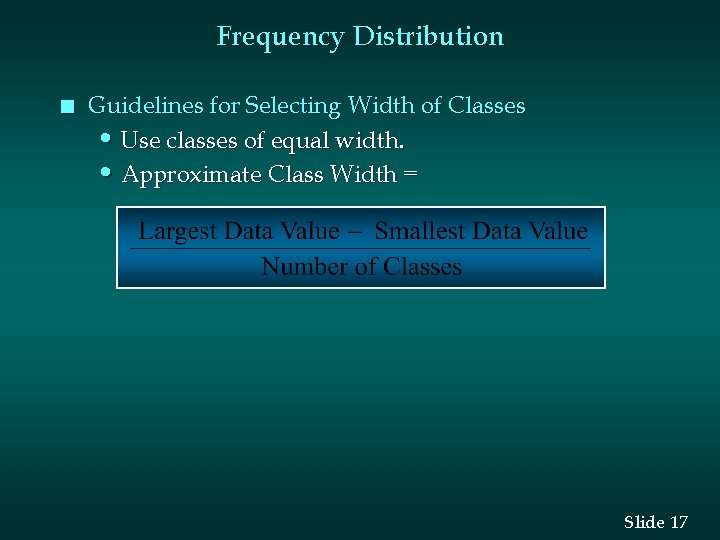

Frequency Distribution n Guidelines for Selecting Width of Classes • Use classes of equal width. • Approximate Class Width = Slide 17

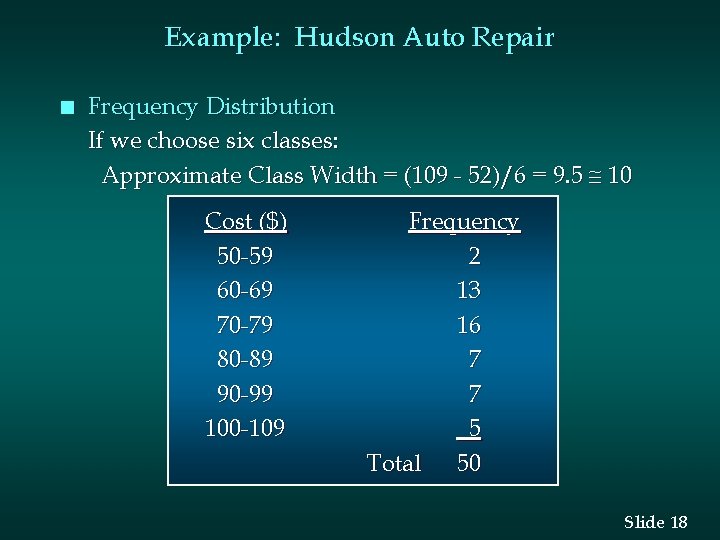

Example: Hudson Auto Repair n Frequency Distribution If we choose six classes: Approximate Class Width = (109 - 52)/6 = 9. 5 10 Cost ($) 50 -59 60 -69 70 -79 80 -89 90 -99 100 -109 Frequency 2 13 16 7 7 5 Total 50 Slide 18
Example: Hudson Auto Repair n Relative Frequency and Percent Frequency Distributions Relative Cost ($) Frequency 50 -59. 04 60 -69. 26 70 -79. 32 80 -89. 14 90 -99. 14 100 -109. 10 Total 1. 00 Percent Frequency 4 26 32 14 14 10 100 Slide 19
Example: Hudson Auto Repair n Insights Gained from the Percent Frequency Distribution • Only 4% of the parts costs are in the $50 -59 class. • 30% of the parts costs are under $70. • The greatest percentage (32% or almost one-third) of the parts costs are in the $70 -79 class. • 10% of the parts costs are $100 or more. Slide 20
Dot Plot n n n One of the simplest graphical summaries of data is a dot plot. A horizontal axis shows the range of data values. Then each data value is represented by a dot placed above the axis. Slide 21
Example: Hudson Auto Repair n Dot Plot . 50 . . . 60 70 80 90 100 110 Cost ($) Slide 22

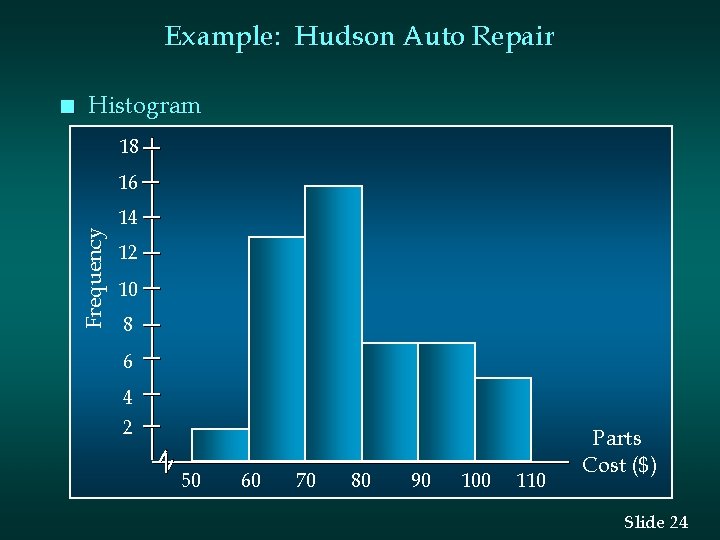

Histogram n n Another common graphical presentation of quantitative data is a histogram. The variable of interest is placed on the horizontal axis. A rectangle is drawn above each class interval with its height corresponding to the interval’s frequency, relative frequency, or percent frequency. Unlike a bar graph, a histogram has no natural separation between rectangles of adjacent classes. Slide 23
Example: Hudson Auto Repair Histogram 18 16 Frequency n 14 12 10 8 6 4 2 50 60 70 80 90 100 110 Parts Cost ($) Slide 24

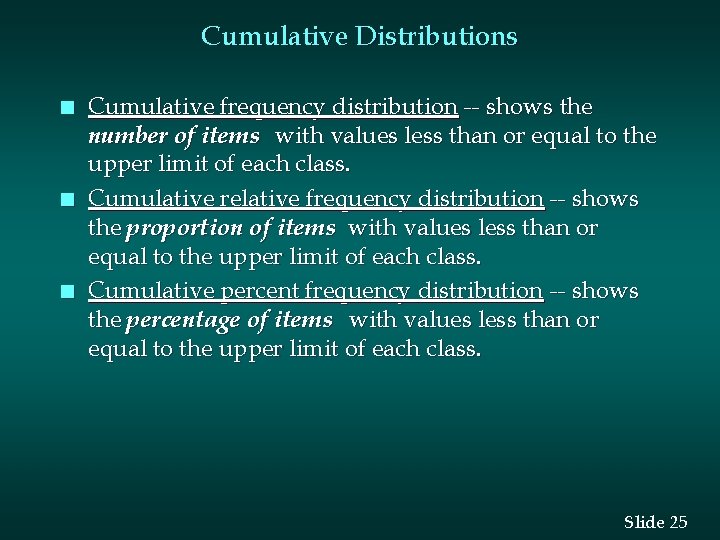

Cumulative Distributions n n n Cumulative frequency distribution -- shows the number of items with values less than or equal to the upper limit of each class. Cumulative relative frequency distribution -- shows the proportion of items with values less than or equal to the upper limit of each class. Cumulative percent frequency distribution -- shows the percentage of items with values less than or equal to the upper limit of each class. Slide 25

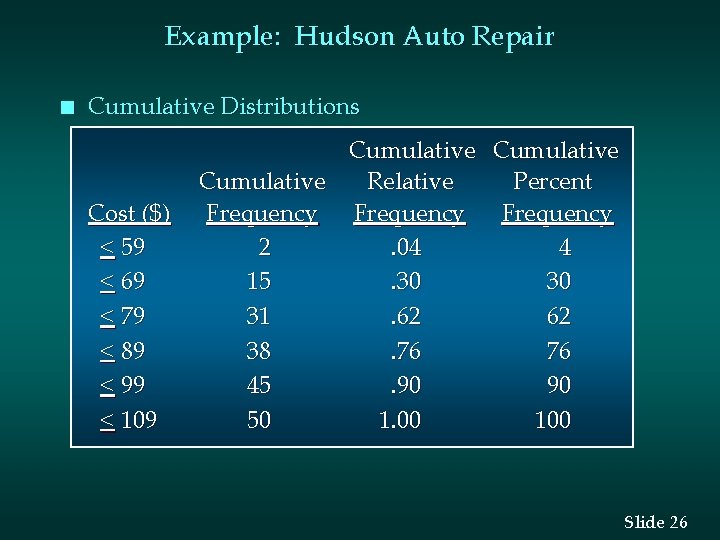

Example: Hudson Auto Repair n Cumulative Distributions Cost ($) < 59 < 69 < 79 < 89 < 99 < 109 Cumulative Relative Percent Frequency 2. 04 4 15. 30 30 31. 62 62 38. 76 76 45. 90 90 50 1. 00 100 Slide 26

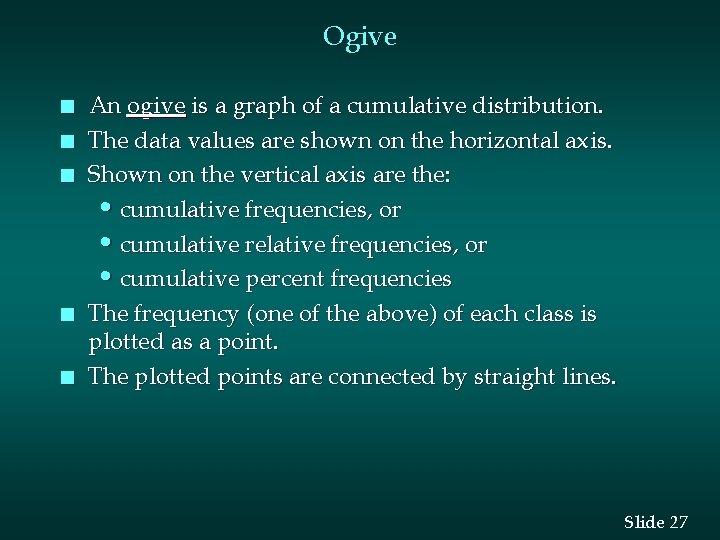

Ogive n n n An ogive is a graph of a cumulative distribution. The data values are shown on the horizontal axis. Shown on the vertical axis are the: • cumulative frequencies, or • cumulative relative frequencies, or • cumulative percent frequencies The frequency (one of the above) of each class is plotted as a point. The plotted points are connected by straight lines. Slide 27

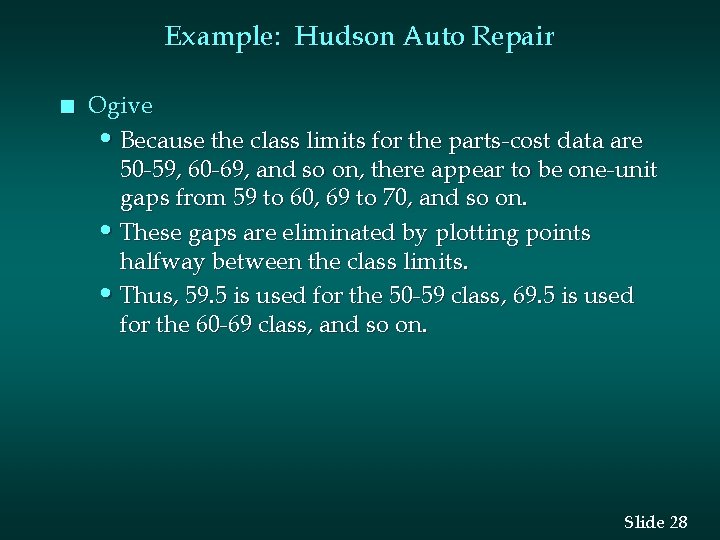

Example: Hudson Auto Repair n Ogive • Because the class limits for the parts-cost data are 50 -59, 60 -69, and so on, there appear to be one-unit gaps from 59 to 60, 69 to 70, and so on. • These gaps are eliminated by plotting points halfway between the class limits. • Thus, 59. 5 is used for the 50 -59 class, 69. 5 is used for the 60 -69 class, and so on. Slide 28

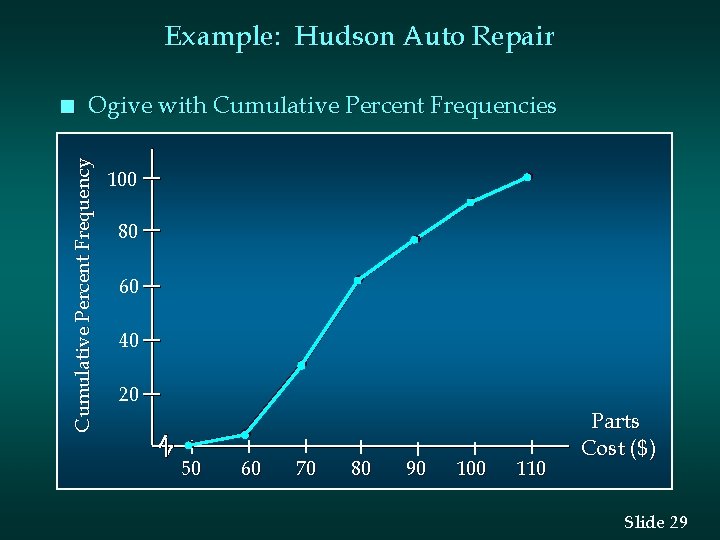

Example: Hudson Auto Repair Ogive with Cumulative Percent Frequencies Cumulative Percent Frequency n 100 80 60 40 20 50 60 70 80 90 100 110 Parts Cost ($) Slide 29
Exploratory Data Analysis n n The techniques of exploratory data analysis consist of simple arithmetic and easy-to-draw pictures that can be used to summarize data quickly. One such technique is the stem-and-leaf display. Slide 30
Stem-and-Leaf Display n n n A stem-and-leaf display shows both the rank order and shape of the distribution of the data. It is similar to a histogram on its side, but it has the advantage of showing the actual data values. The first digits of each data item are arranged to the left of a vertical line. To the right of the vertical line we record the last digit for each item in rank order. Each line in the display is referred to as a stem. Each digit on a stem is a leaf. 8 57 9 3678 Slide 31

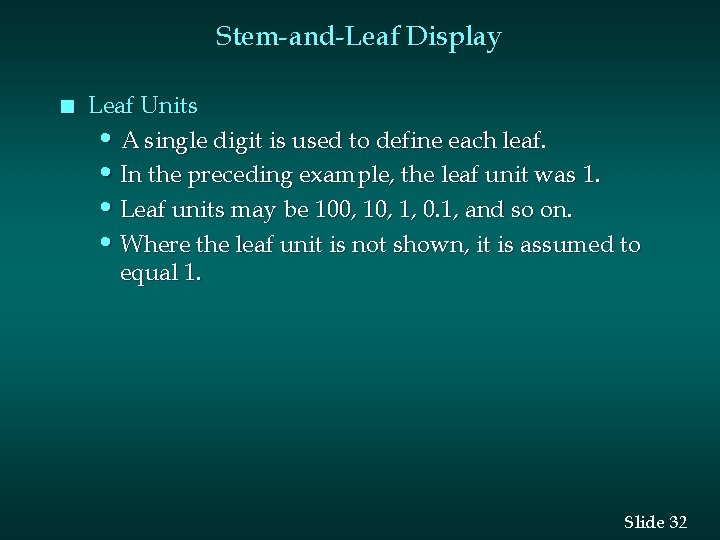

Stem-and-Leaf Display n Leaf Units • A single digit is used to define each leaf. • In the preceding example, the leaf unit was 1. • Leaf units may be 100, 1, 0. 1, and so on. • Where the leaf unit is not shown, it is assumed to equal 1. Slide 32

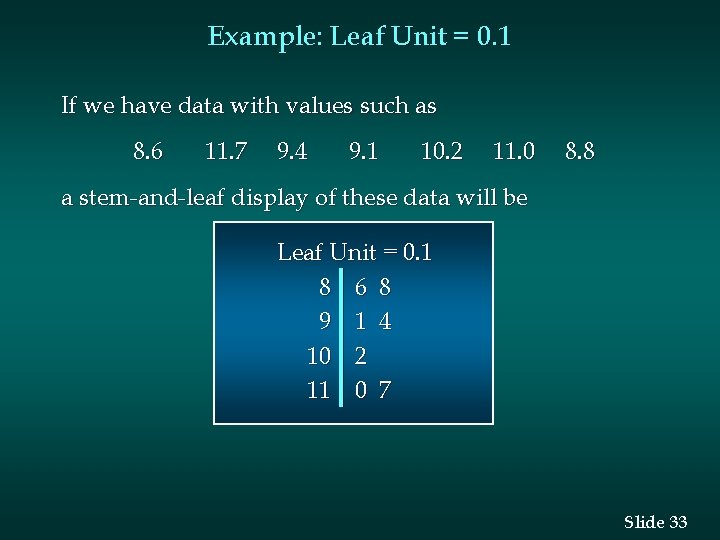

Example: Leaf Unit = 0. 1 If we have data with values such as 8. 6 11. 7 9. 4 9. 1 10. 2 11. 0 8. 8 a stem-and-leaf display of these data will be Leaf Unit = 0. 1 8 6 8 9 1 4 10 2 11 0 7 Slide 33
Example: Leaf Unit = 10 If we have data with values such as 1806 1717 1974 1791 1682 1910 1838 a stem-and-leaf display of these data will be Leaf Unit = 10 16 8 17 1 9 18 0 3 19 1 7 Slide 34
Example: Hudson Auto Repair n Stem-and-Leaf Display 5 6 7 8 9 10 2 2 1 0 1 1 7 2 1 0 3 4 2 2 2 7 5 2 2 3 7 5 5 3 5 7 9 6 4 8 8 7 8 8 8 9 9 9 4 5 5 5 6 7 8 9 9 9 Slide 35

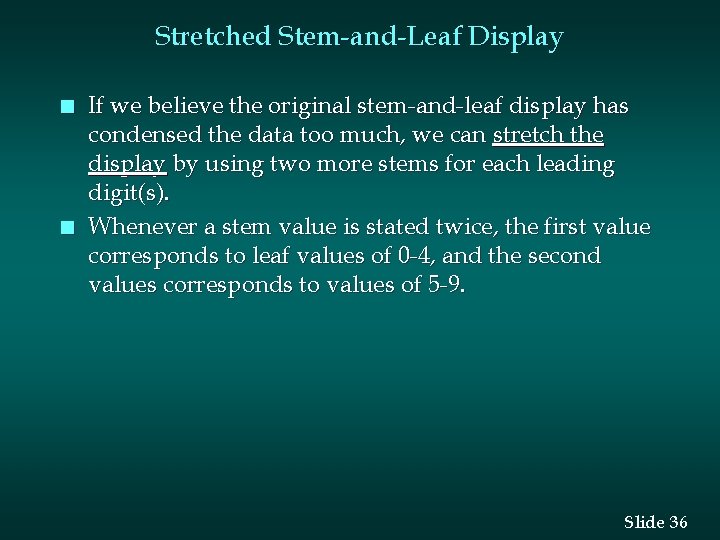

Stretched Stem-and-Leaf Display n n If we believe the original stem-and-leaf display has condensed the data too much, we can stretch the display by using two more stems for each leading digit(s). Whenever a stem value is stated twice, the first value corresponds to leaf values of 0 -4, and the second values corresponds to values of 5 -9. Slide 36
Example: Hudson Auto Repair n Stretched Stem-and-Leaf Display 5 5 6 6 7 7 8 8 9 9 10 10 2 7 2 5 1 5 0 5 1 7 1 5 2 6 1 5 0 8 3 7 4 5 2 7 2 5 2 9 2 8 2 6 3 8 3 7 8 4 8 9 9 9 4 9 9 9 7 8 9 9 Slide 37

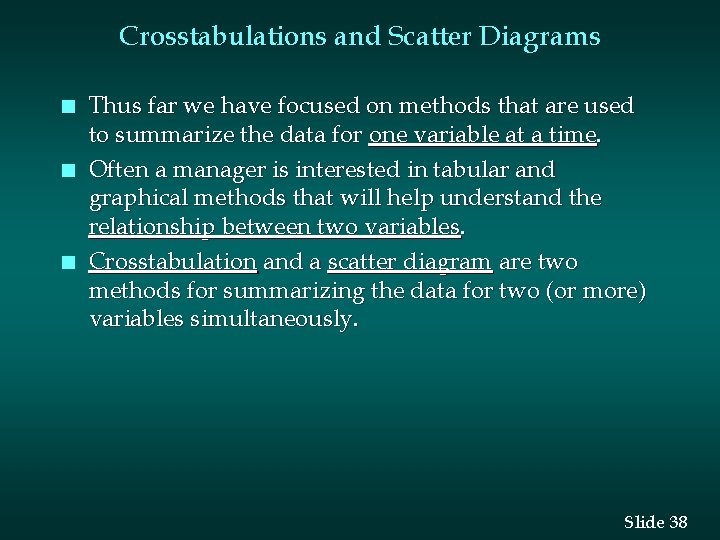

Crosstabulations and Scatter Diagrams n n n Thus far we have focused on methods that are used to summarize the data for one variable at a time. Often a manager is interested in tabular and graphical methods that will help understand the relationship between two variables. Crosstabulation and a scatter diagram are two methods for summarizing the data for two (or more) variables simultaneously. Slide 38

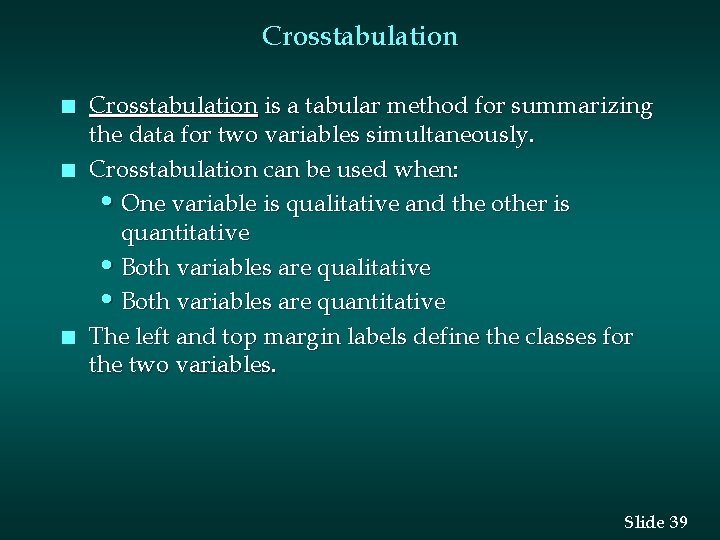

Crosstabulation n Crosstabulation is a tabular method for summarizing the data for two variables simultaneously. Crosstabulation can be used when: • One variable is qualitative and the other is quantitative • Both variables are qualitative • Both variables are quantitative The left and top margin labels define the classes for the two variables. Slide 39
Example: Finger Lakes Homes n Crosstabulation The number of Finger Lakes homes sold for each style and price for the past two years is shown below. Price Range < $99, 000 > $99, 000 Total Home Style Colonial Ranch Split A-Frame Total 18 12 6 14 19 16 12 3 55 45 30 20 35 15 100 Slide 40

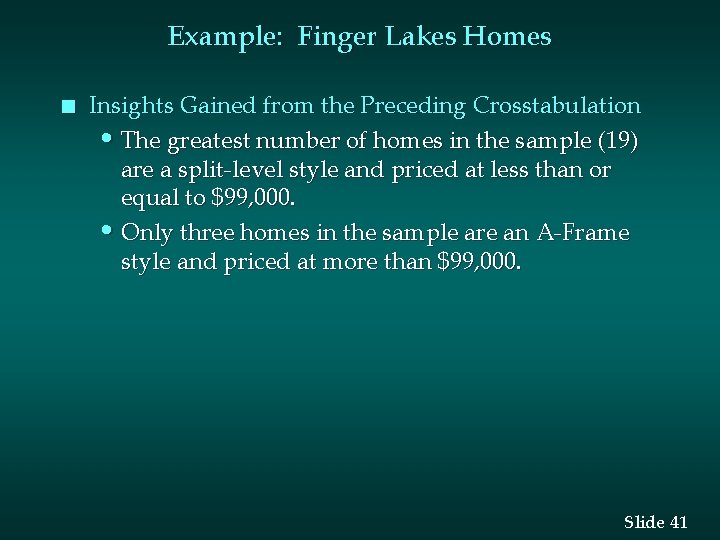

Example: Finger Lakes Homes n Insights Gained from the Preceding Crosstabulation • The greatest number of homes in the sample (19) are a split-level style and priced at less than or equal to $99, 000. • Only three homes in the sample are an A-Frame style and priced at more than $99, 000. Slide 41

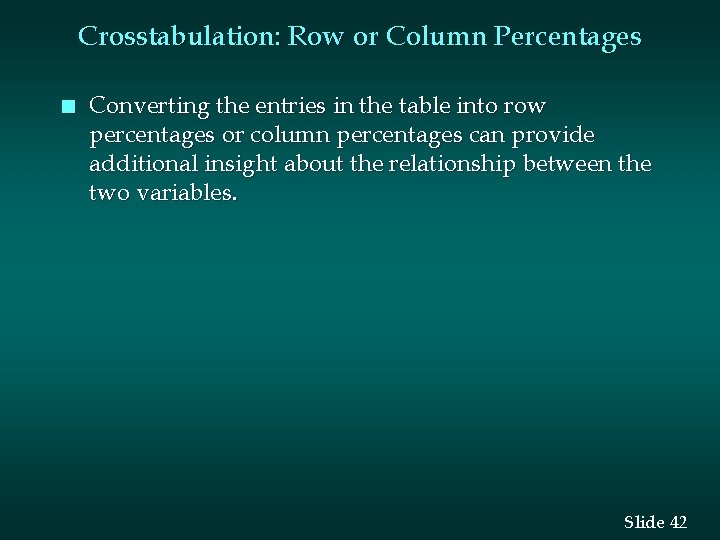

Crosstabulation: Row or Column Percentages n Converting the entries in the table into row percentages or column percentages can provide additional insight about the relationship between the two variables. Slide 42
Example: Finger Lakes Homes n Row Percentages Price Range < $99, 000 > $99, 000 Home Style Colonial Ranch Split A-Frame Total 32. 73 26. 67 10. 91 34. 55 31. 11 35. 56 21. 82 6. 67 100 Note: row totals are actually 100. 01 due to rounding. Slide 43
Example: Finger Lakes Homes n Column Percentages Price Range < $99, 000 > $99, 000 Total Home Style Colonial Ranch Split A-Frame 60. 00 40. 00 100 30. 00 54. 29 70. 00 45. 71 80. 00 20. 00 100 100 Slide 44

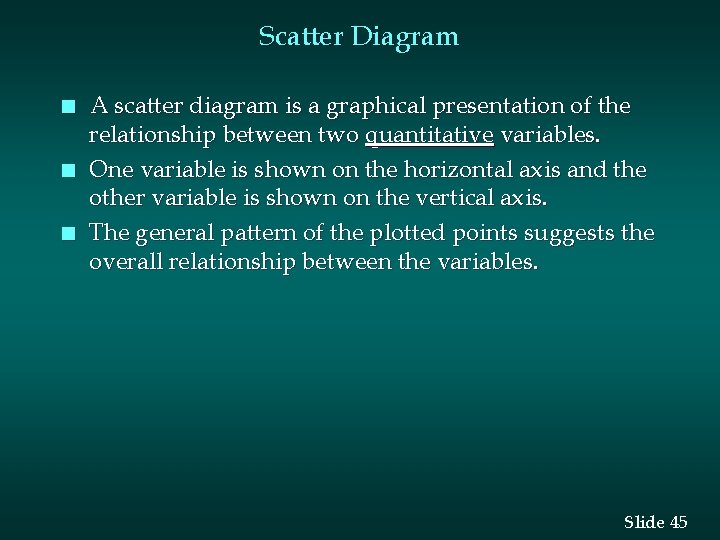

Scatter Diagram n n n A scatter diagram is a graphical presentation of the relationship between two quantitative variables. One variable is shown on the horizontal axis and the other variable is shown on the vertical axis. The general pattern of the plotted points suggests the overall relationship between the variables. Slide 45

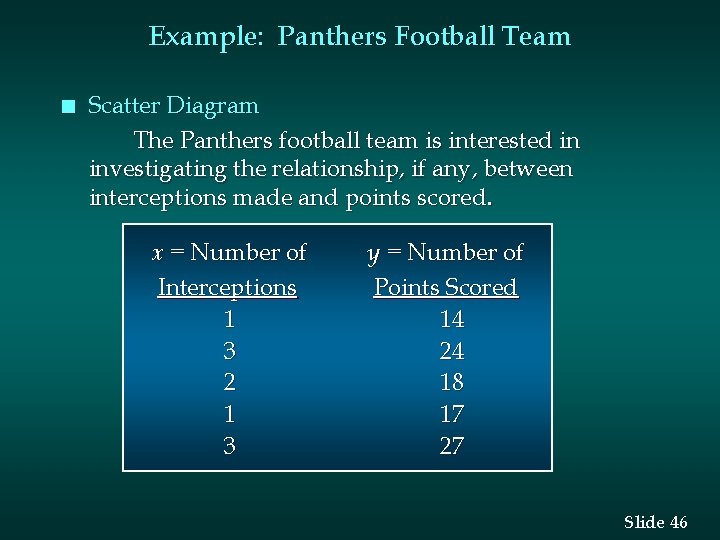

Example: Panthers Football Team n Scatter Diagram The Panthers football team is interested in investigating the relationship, if any, between interceptions made and points scored. x = Number of Interceptions 1 3 2 1 3 y = Number of Points Scored 14 24 18 17 27 Slide 46
Example: Panthers Football Team Scatter Diagram Number of Points Scored n y 30 25 20 15 10 5 0 0 1 2 3 Number of Interceptions x Slide 47
Example: Panthers Football Team n n n The preceding scatter diagram indicates a positive relationship between the number of interceptions and the number of points scored. Higher points scored are associated with a higher number of interceptions. The relationship is not perfect; all plotted points in the scatter diagram are not on a straight line. Slide 48
Scatter Diagram n A Positive Relationship y x Slide 49

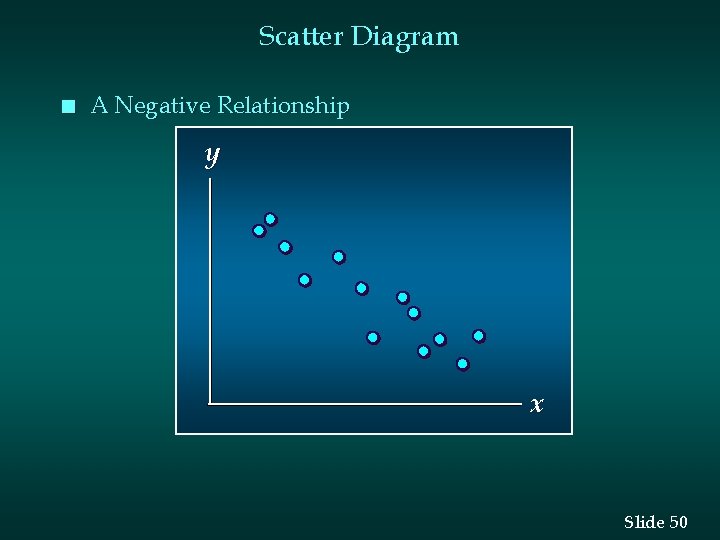

Scatter Diagram n A Negative Relationship y x Slide 50
Scatter Diagram n No Apparent Relationship y x Slide 51
Tabular and Graphical Procedures Data Qualitative Data Tabular Methods • Frequency Distribution • Rel. Freq. Dist. • % Freq. Dist. • Crosstabulation Graphical Methods • Bar Graph • Pie Chart Quantitative Data Tabular Methods • Frequency Distribution • Rel. Freq. Dist. • Cum. Rel. Freq. Distribution • Crosstabulation Graphical Methods • Dot Plot • Histogram • Ogive • Scatter Diagram Slide 52
