Chapter 2 – Coputer Hardware Computer Components - Hardware Lecture 2

Chapter 2 – Coputer Hardware Computer Components - Hardware Lecture 2

Outline Computer § Components Hardware Components Central Processing Unit Ø Input Units Ø Output

Outline Computer § Components Hardware Components Central Processing Unit Ø Input Units Ø Output Units Ø Memory Unit Ø Storage Units Ø 2

Computer Components Computers have two main components: Hardware Physical components like screen and keyboard

Computer Components Computers have two main components: Hardware Physical components like screen and keyboard Software Set of instructions that tells the computer what to do and how to do it 3

Hardware Components Central Processing Unit Input Units Output Units Memory Unit Storage Units 4

Hardware Components Central Processing Unit Input Units Output Units Memory Unit Storage Units 4

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 5

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 5

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 6

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 6

Central Processing Unit (CPU) Every PC system unit contains at least one chip called

Central Processing Unit (CPU) Every PC system unit contains at least one chip called microprocessor (CPU) attached on motherboard. Ø The CPU follow the instructions to process the data to produce the information 7

Central Processing Unit (CPU) Its is the brain of Computer. It interprets and executes

Central Processing Unit (CPU) Its is the brain of Computer. It interprets and executes the instruction contained in software program. It determines how fast your computer will run. Its speed measured in MHz/GHz ( Megahertz or Gigahertz ) 8

Central Processing Unit (CPU) CPU Components Control Unit(CU) Arithmetic Logic Unit (ALU) Registers 9

Central Processing Unit (CPU) CPU Components Control Unit(CU) Arithmetic Logic Unit (ALU) Registers 9

Central Processing Unit (CPU) Control Unit (CU) tells the rest of the computer system

Central Processing Unit (CPU) Control Unit (CU) tells the rest of the computer system how to carry out the program’s instructions. it moves the electronic signals (data) between : Ø Main memory and Arithmetic unit. Ø Main memory and Input/ output devices 10

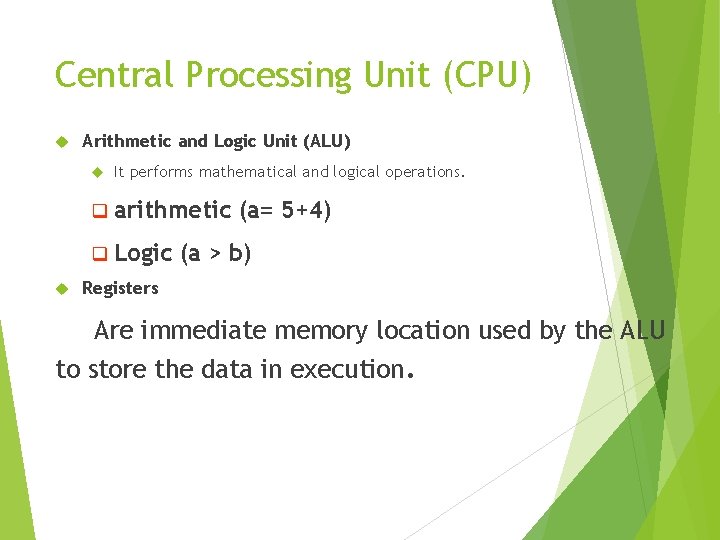

Central Processing Unit (CPU) Arithmetic and Logic Unit (ALU) It performs mathematical and logical

Central Processing Unit (CPU) Arithmetic and Logic Unit (ALU) It performs mathematical and logical operations. q arithmetic q Logic (a= 5+4) (a > b) Registers Are immediate memory location used by the ALU to store the data in execution. 11

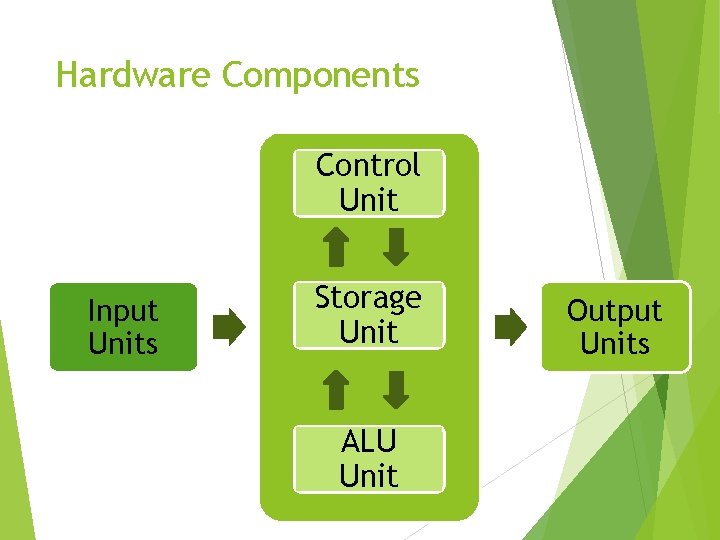

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 12

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 12

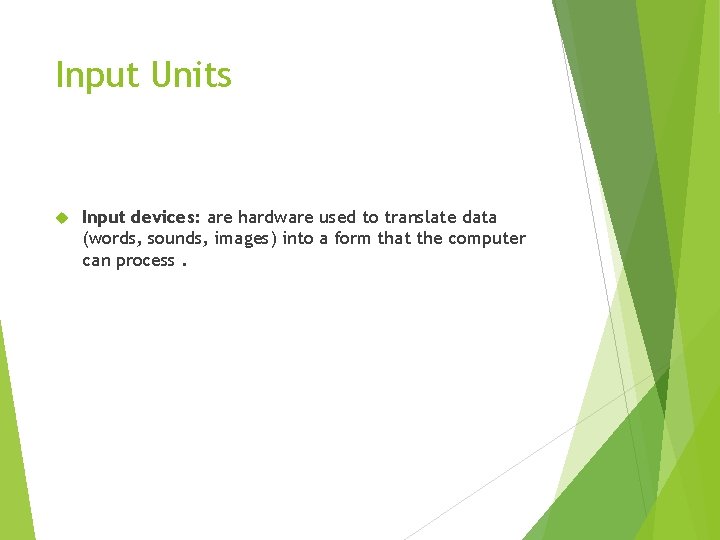

Input Units Input devices: are hardware used to translate data (words, sounds, images) into

Input Units Input devices: are hardware used to translate data (words, sounds, images) into a form that the computer can process. 13

Input Units Keyboard Scanner OMR Mouse Bar Code Reader Microphone Trackball Joy Stick Magnetic

Input Units Keyboard Scanner OMR Mouse Bar Code Reader Microphone Trackball Joy Stick Magnetic Strip Touch Pad Light Pen 14

Input Units Keyboard It is a board containing the keys of letters, numbers and

Input Units Keyboard It is a board containing the keys of letters, numbers and some functions which allows you to type information into the computer. 15

Input Units The Mouse A small hand-held device used to point, select, click on

Input Units The Mouse A small hand-held device used to point, select, click on items and to drag and drop items from one place to another. Trackball : it is a mouse turned upside down. The user rotate the ball with the fingers to move the cursor on the screen, and it saves the space which is taken up by the mouse 16

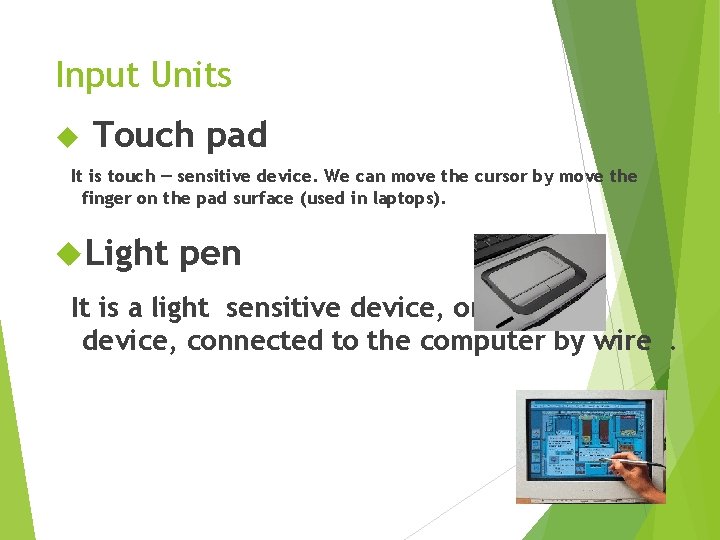

Input Units Touch pad It is touch – sensitive device. We can move the

Input Units Touch pad It is touch – sensitive device. We can move the cursor by move the finger on the pad surface (used in laptops). Light pen It is a light sensitive device, or pen-like device, connected to the computer by wire. 17

Input Units Scanner It allows you to scan pictures, text and images and save

Input Units Scanner It allows you to scan pictures, text and images and save it to your computer in a digital form. Ø The Scanners can read the bar codes. Scanner Types Next slide 18

 Flat. Bad Sheet Fed hand. Held Stationary Scanner Drum Scanner 19

Flat. Bad Sheet Fed hand. Held Stationary Scanner Drum Scanner 19

Input Units Bar Code Reader It is a Photoelectric scanner that translates the bar

Input Units Bar Code Reader It is a Photoelectric scanner that translates the bar code symbols into digital form. Joystick Small hand-lever that can be moved in any directions to control movement on the screen. It can be used for playing games 20

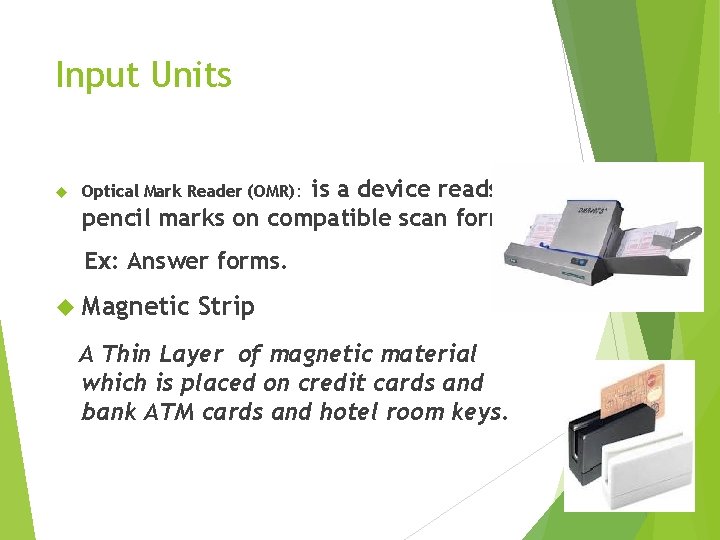

Input Units is a device reads pencil marks on compatible scan form Optical Mark

Input Units is a device reads pencil marks on compatible scan form Optical Mark Reader (OMR): Ex: Answer forms. Magnetic Strip A Thin Layer of magnetic material which is placed on credit cards and bank ATM cards and hotel room keys. 21

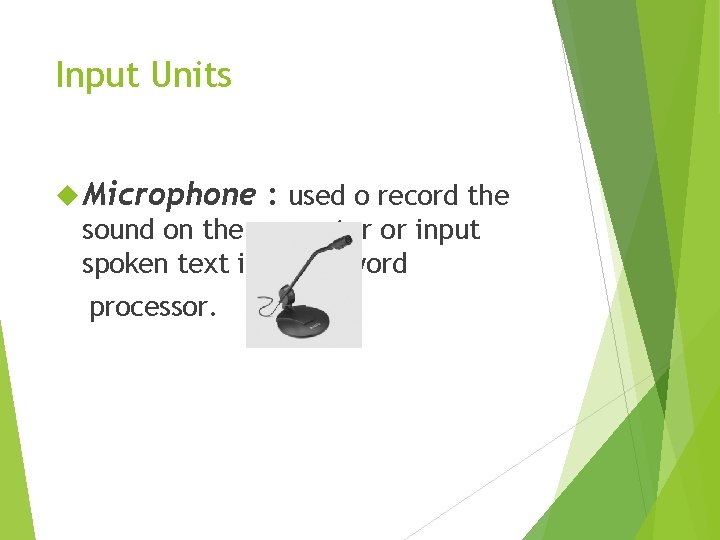

Input Units Microphone : used o record the sound on the computer or input

Input Units Microphone : used o record the sound on the computer or input spoken text into the word processor. 22

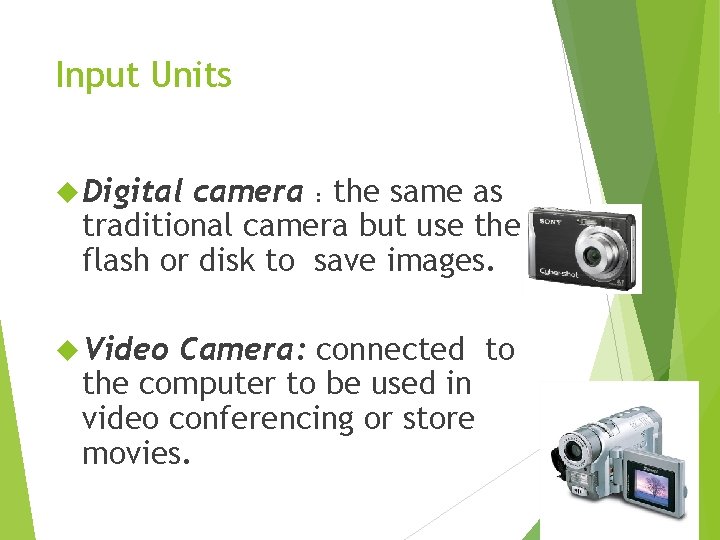

Input Units Digital camera : the same as traditional camera but use the flash

Input Units Digital camera : the same as traditional camera but use the flash or disk to save images. Video Camera: connected to the computer to be used in video conferencing or store movies. 23

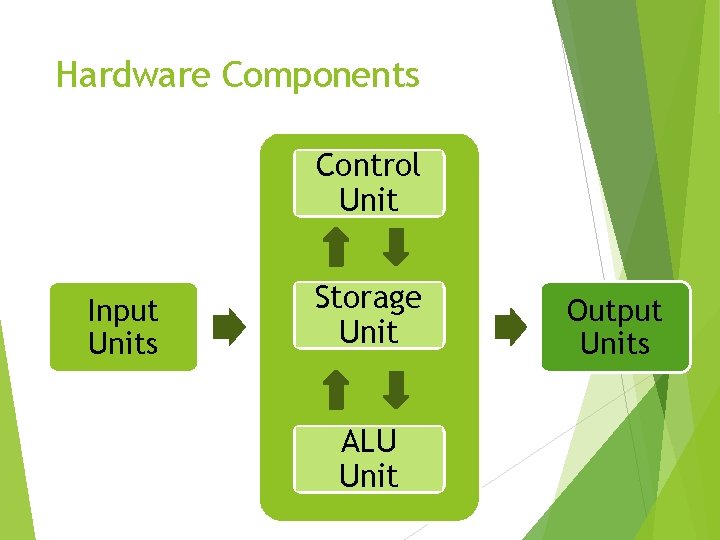

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 24

Hardware Components Control Unit Input Units Storage Unit ALU Unit Output Units 24

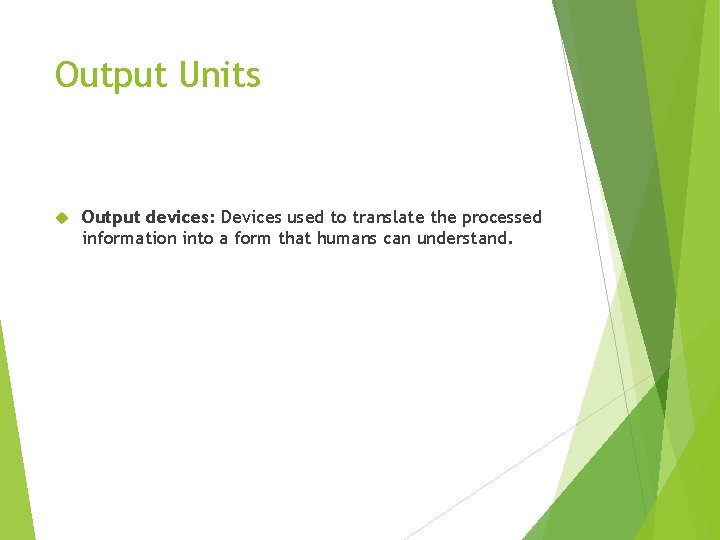

Output Units Output devices: Devices used to translate the processed information into a form

Output Units Output devices: Devices used to translate the processed information into a form that humans can understand. 25

Output Units Speakers Projector Plotters Printers 26 Monitors

Output Units Speakers Projector Plotters Printers 26 Monitors

Output Units Monitors (Computer Screens ) It displays the text, information and pictures. They

Output Units Monitors (Computer Screens ) It displays the text, information and pictures. They are different in sizes, resolution and color. Types of monitors: 1 - Cathode Ray Tube (CRT) 2 - Flat-Panel Display Technologies include : liquid crystal display (LCD), plasma displays. 27

Output Units Printers -It is used to print the information or output of computers

Output Units Printers -It is used to print the information or output of computers on papers. Printer Type 1 - Daisy wheel characters are raised on the wheel , which strike the ribbon placed between them and the paper. (noisy and slow and produce carbon copies) 2 -Dot matrix 28

Output Units 2 -Dot matrix use the pins to strike on an inked ribbon

Output Units 2 -Dot matrix use the pins to strike on an inked ribbon against paper. (inexpensive, produce carbon copies) 3 -Inkjet spray one or more colors of small droplets of ink at high speed onto paper. and its running cost is high. (carbon copies can’t be produced). (use one color or multiple colors) 29

Output Units 4 -Laser printer use a laser beam source to create a dot-like

Output Units 4 -Laser printer use a laser beam source to create a dot-like images on a drum. And these image treated magnetically charged inklike toner and transferred from drum to paper. (high quality, used for heavy use, expensive, can’t produce carbon copies) 30

Output Units (3 -Plotters) q Plotters A special Printer use pen to draw on

Output Units (3 -Plotters) q Plotters A special Printer use pen to draw on the paper under the computer control and the mapping software (used to draw maps). 31

Output Units Speaker/Head phones They are used to output voice from a computer. Projectors

Output Units Speaker/Head phones They are used to output voice from a computer. Projectors Device that connect to computer to display output to large board 32

Input & Output Devices Touch Screen A touch screen is an electronic visual display

Input & Output Devices Touch Screen A touch screen is an electronic visual display that can detect the presence and location of a touch within the display area. It can be used as both Input and output device at the same time, receives input from a finger or pin, and displays output on the screen. 33
