Chapter 2 Baseband Transmission and Digital Multiplexing Learning

Chapter 2: Baseband Transmission and Digital Multiplexing

Learning Objectives LO 2. 1 – Know how to convert digital data to digital signal using various line codes for reliable baseband transmission. LO 2. 2 – Discuss intersymbol interference (ISI) problem in digital transmission. LO 2. 3 – Hypothesize Nyquist pulse shaping and outline equalizer schemes to minimize the effects of ISI. LO 2. 4 – Illustrate the concept of digital multiplexer and design TDM systems. LO 2. 5 – Integrate TDM-PCM encoded digital carrier systems and calculate their data rates.

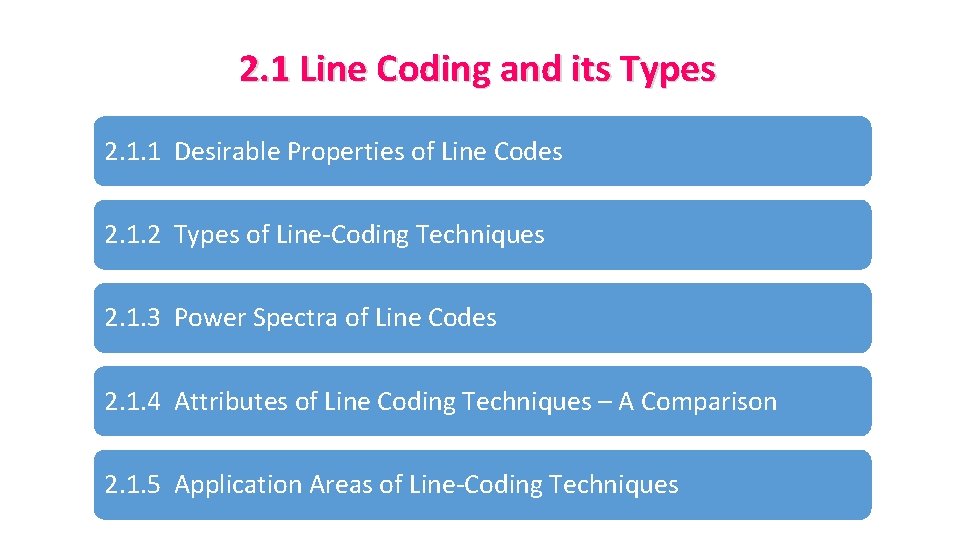

2. 1 Line Coding and its Types 2. 1. 1 Desirable Properties of Line Codes 2. 1. 2 Types of Line-Coding Techniques 2. 1. 3 Power Spectra of Line Codes 2. 1. 4 Attributes of Line Coding Techniques – A Comparison 2. 1. 5 Application Areas of Line-Coding Techniques

Baseband Digital Transmission Waveform Coder Analog or Speech Signal Line Coding (Baseband Modulation) Regenerative Repeater Channel (Wireline) To Receiver Figure 2. 1. 1 Line Encoding – A process by which digital symbols are transformed into waveforms that are compatible with the characteristics of the baseband channel

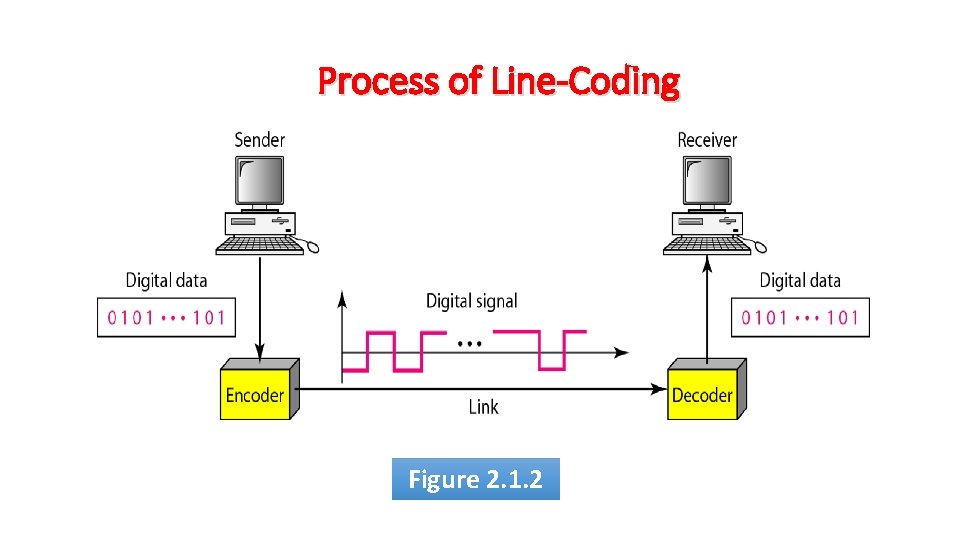

Process of Line-Coding Figure 2. 1. 2

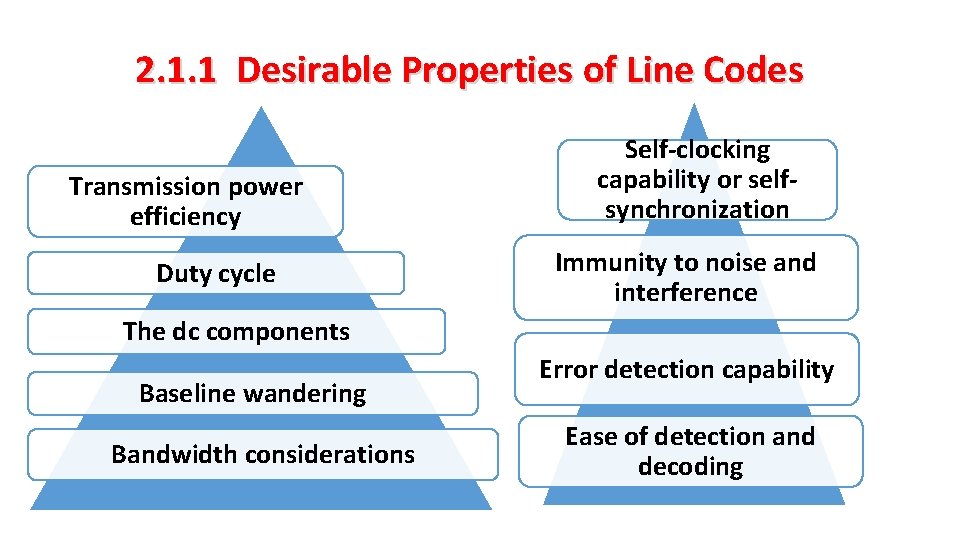

2. 1. 1 Desirable Properties of Line Codes Transmission power efficiency Duty cycle Self-clocking capability or selfsynchronization Immunity to noise and interference The dc components Baseline wandering Bandwidth considerations Error detection capability Ease of detection and decoding

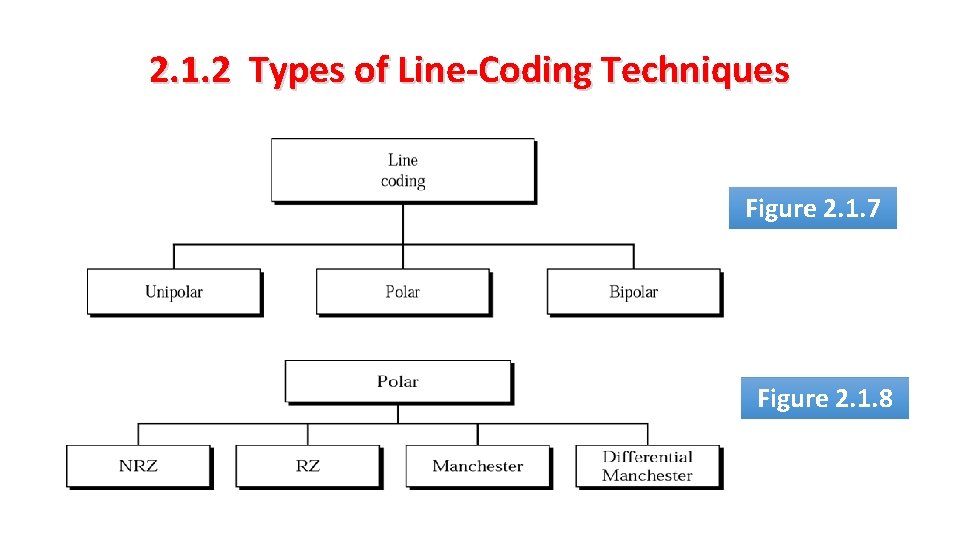

2. 1. 2 Types of Line-Coding Techniques Figure 2. 1. 7 Figure 2. 1. 8

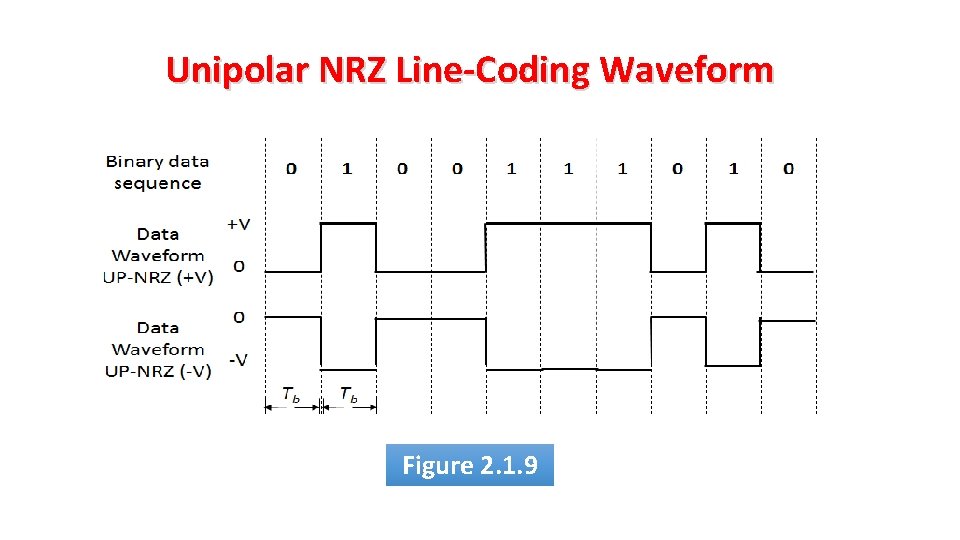

Unipolar NRZ Line-Coding Waveform Figure 2. 1. 9

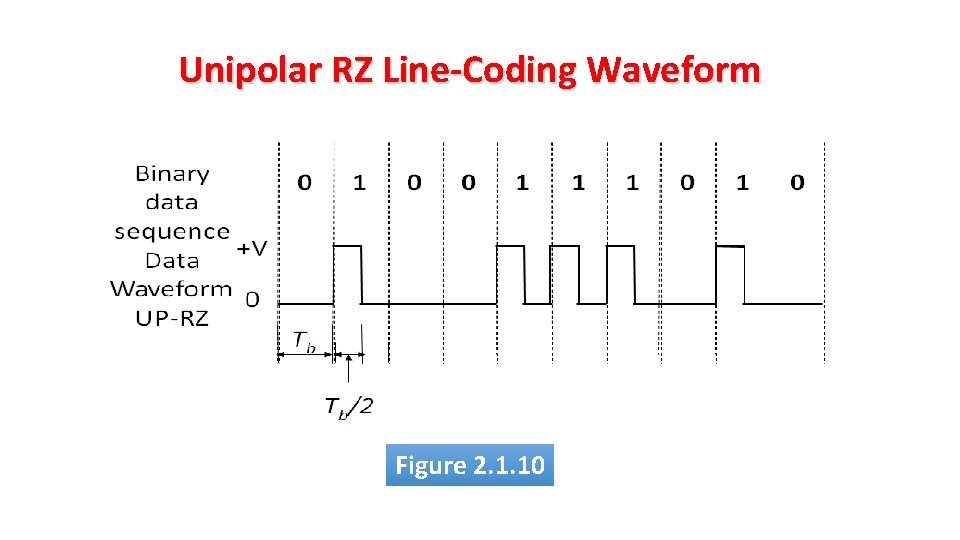

Unipolar RZ Line-Coding Waveform Figure 2. 1. 10

Polar NRZ-L Line-Coding Waveform Figure 2. 1. 11

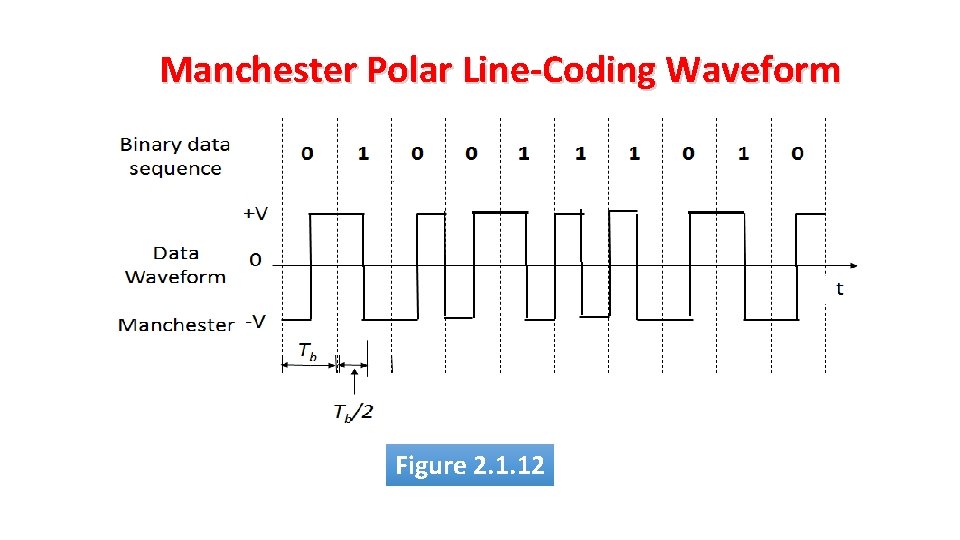

Manchester Polar Line-Coding Waveform Figure 2. 1. 12

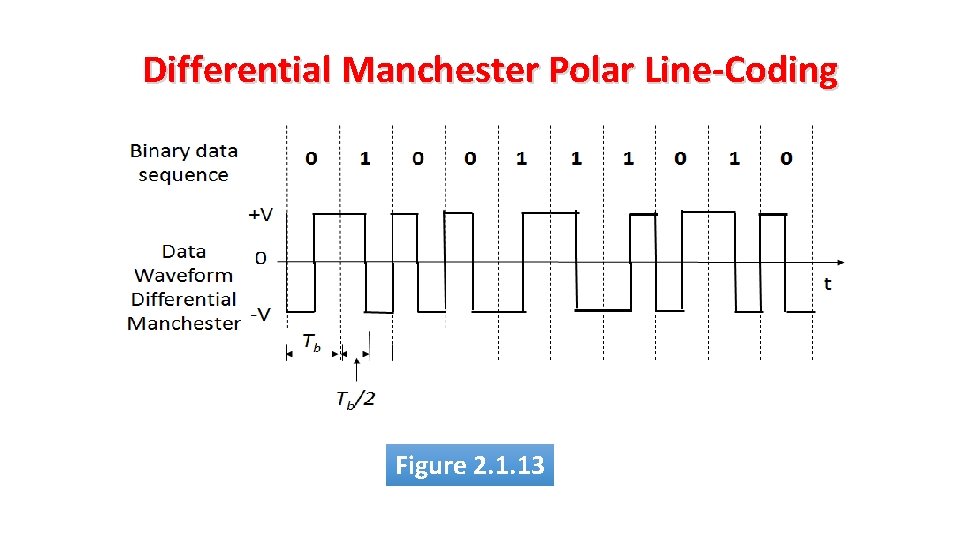

Differential Manchester Polar Line-Coding Figure 2. 1. 13

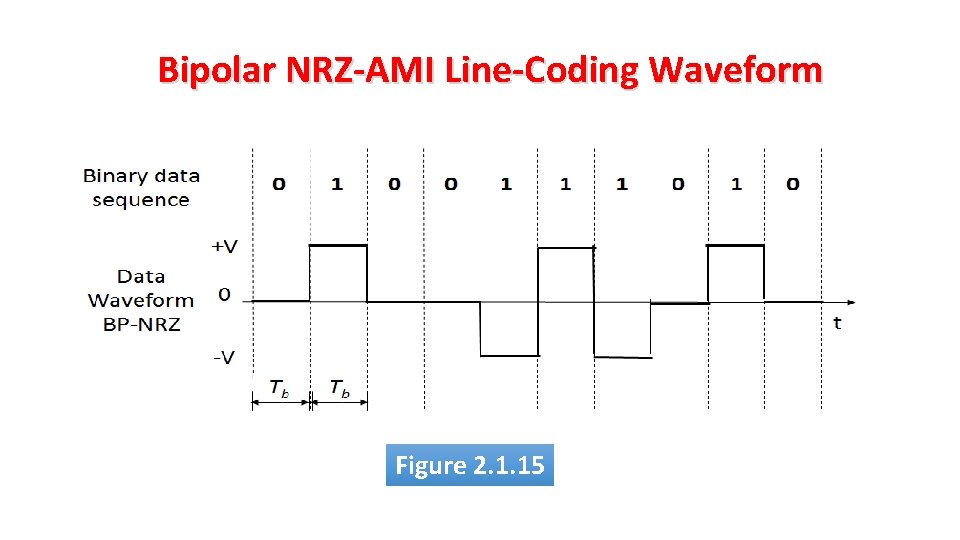

Bipolar NRZ-AMI Line-Coding Waveform Figure 2. 1. 15

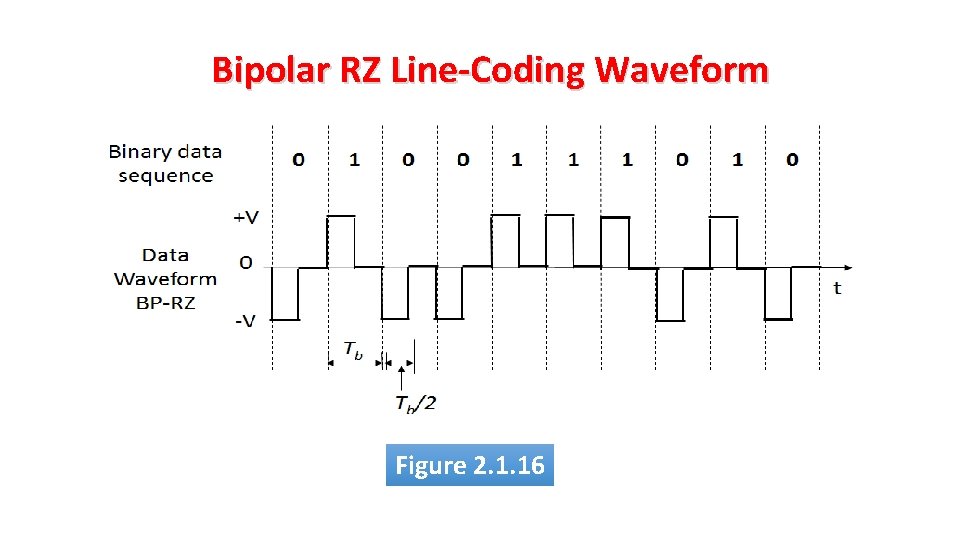

Bipolar RZ Line-Coding Waveform Figure 2. 1. 16

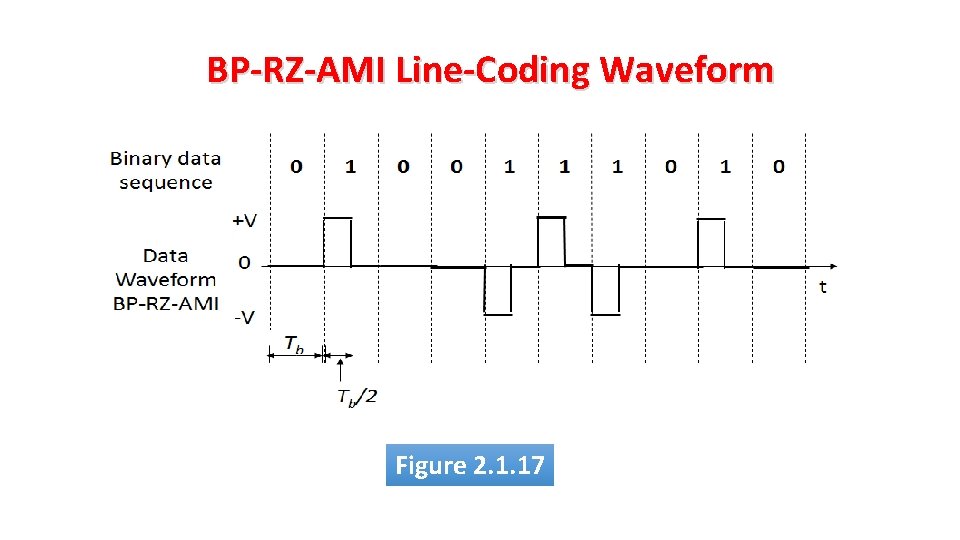

BP-RZ-AMI Line-Coding Waveform Figure 2. 1. 17

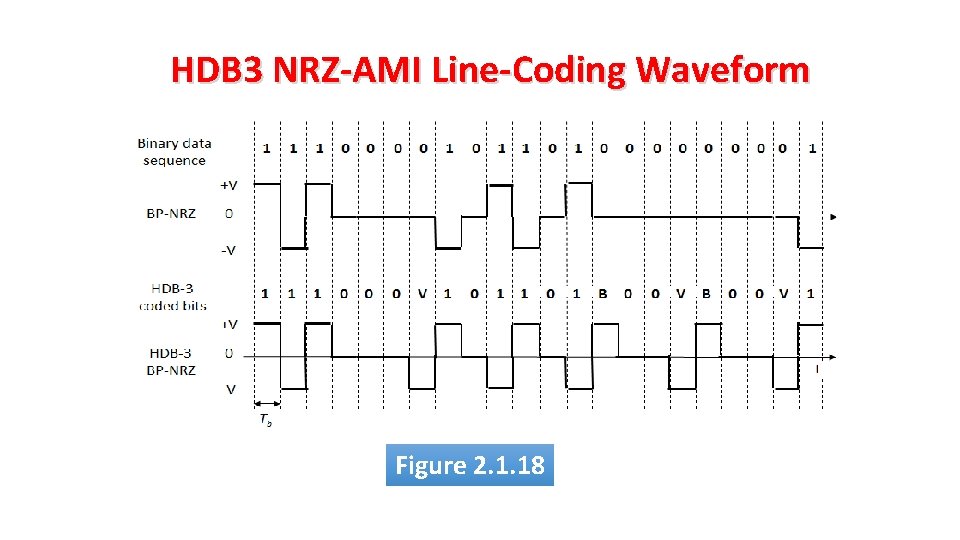

HDB 3 NRZ-AMI Line-Coding Waveform Figure 2. 1. 18

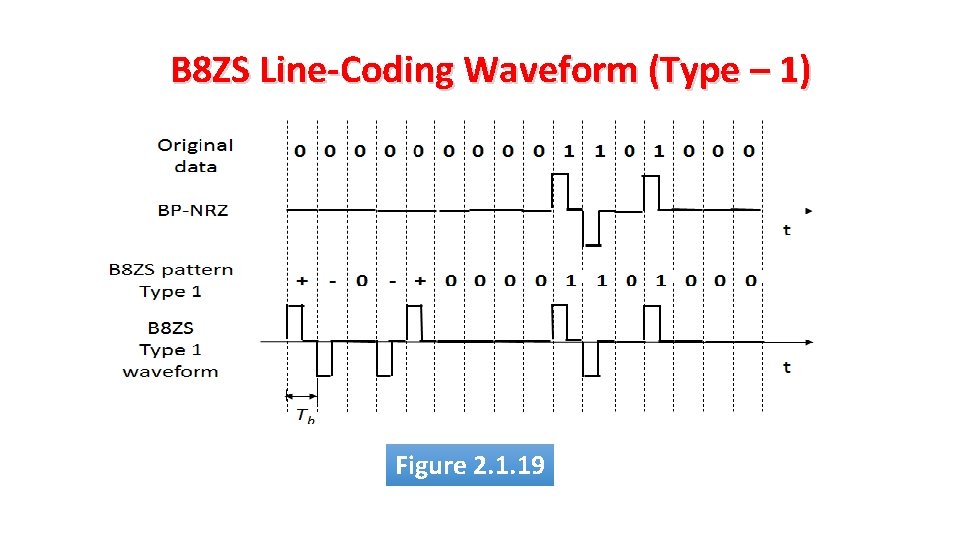

B 8 ZS Line-Coding Waveform (Type – 1) Figure 2. 1. 19

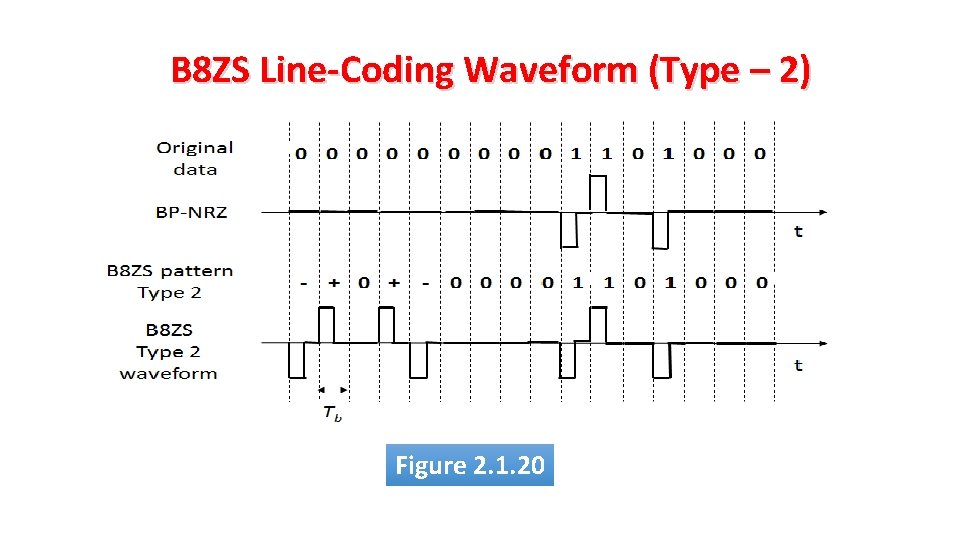

B 8 ZS Line-Coding Waveform (Type – 2) Figure 2. 1. 20

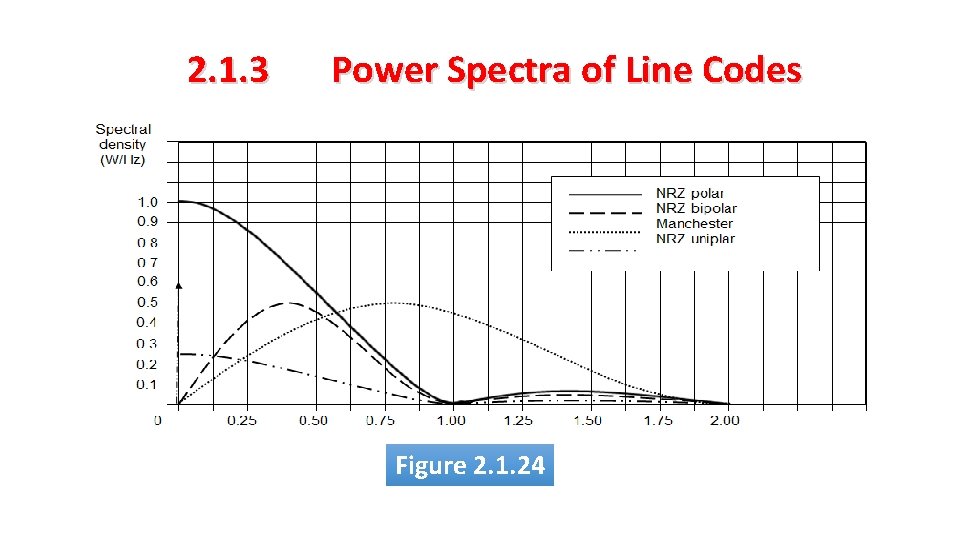

2. 1. 3 Power Spectra of Line Codes Figure 2. 1. 24

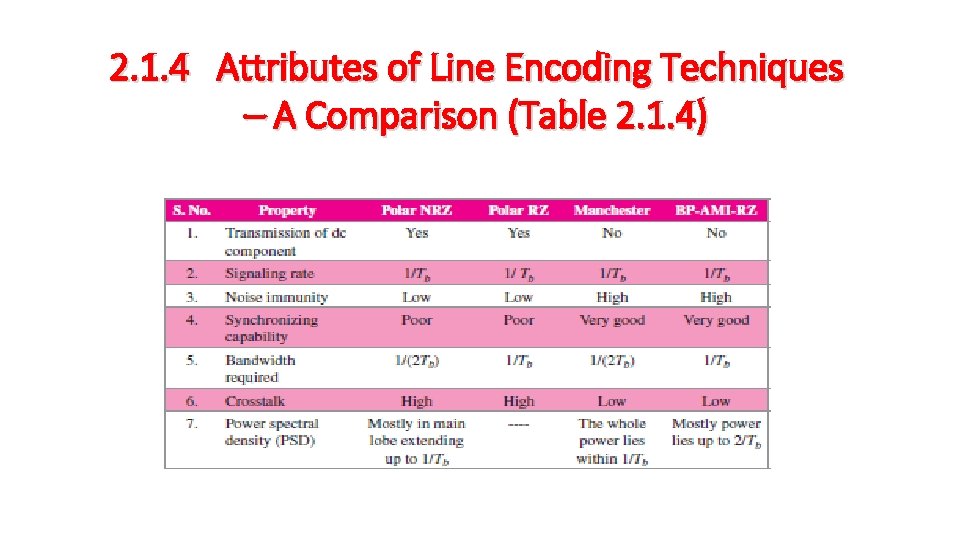

2. 1. 4 Attributes of Line Encoding Techniques – A Comparison (Table 2. 1. 4)

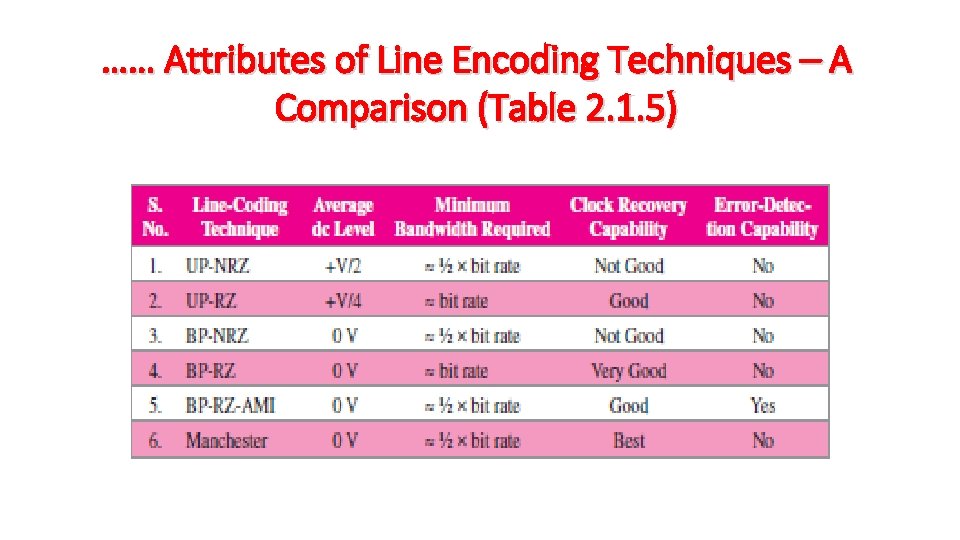

…… Attributes of Line Encoding Techniques – A Comparison (Table 2. 1. 5)

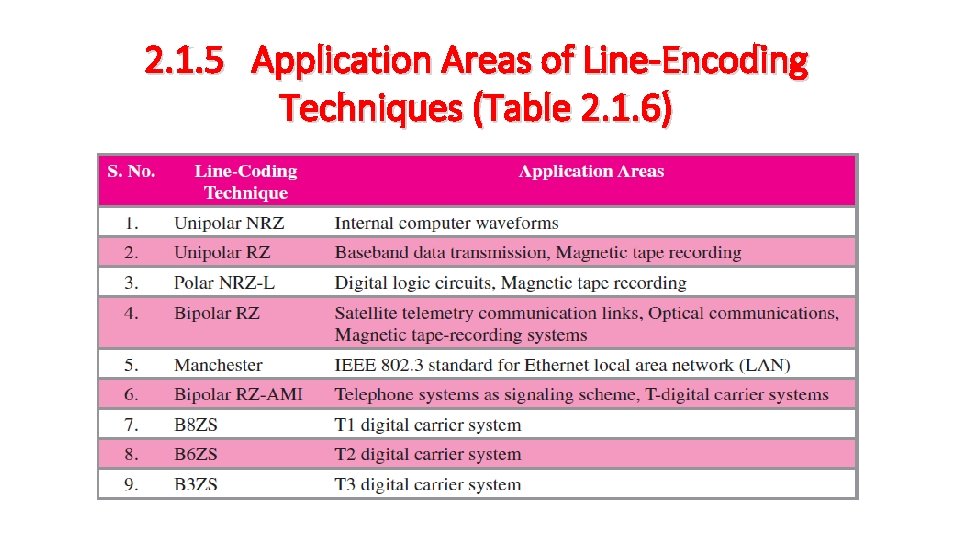

2. 1. 5 Application Areas of Line-Encoding Techniques (Table 2. 1. 6)

2. 2 Intersymbol Interference (ISI) 2. 2. 1 Effects of ISI 2. 2. 2 Eye Diagram

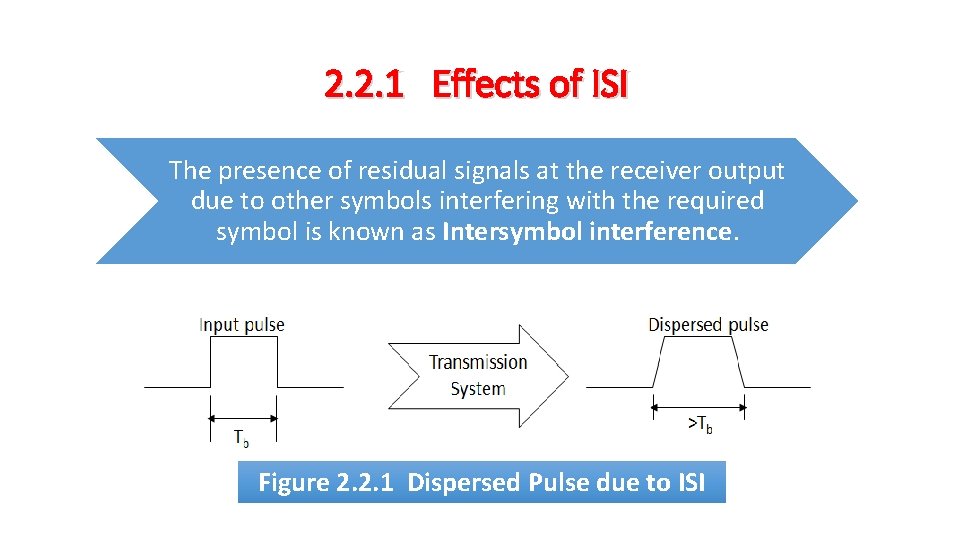

2. 2. 1 Effects of ISI The presence of residual signals at the receiver output due to other symbols interfering with the required symbol is known as Intersymbol interference. Figure 2. 2. 1 Dispersed Pulse due to ISI

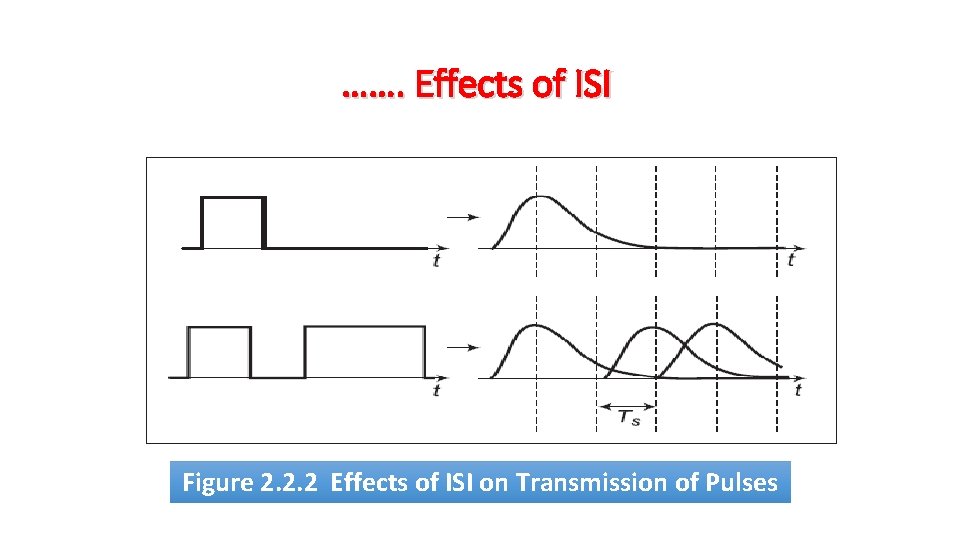

……. Effects of ISI Figure 2. 2. 2 Effects of ISI on Transmission of Pulses

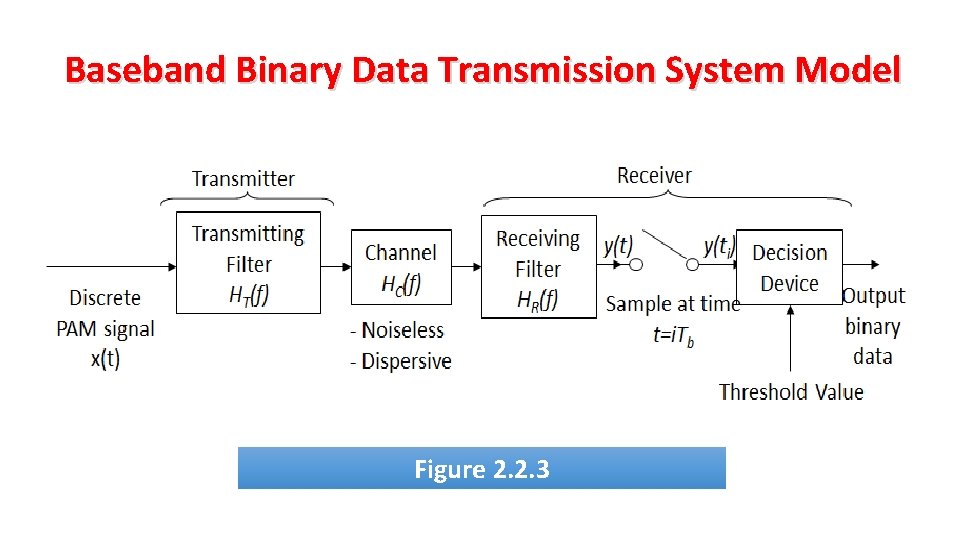

Baseband Binary Data Transmission System Model Figure 2. 2. 3

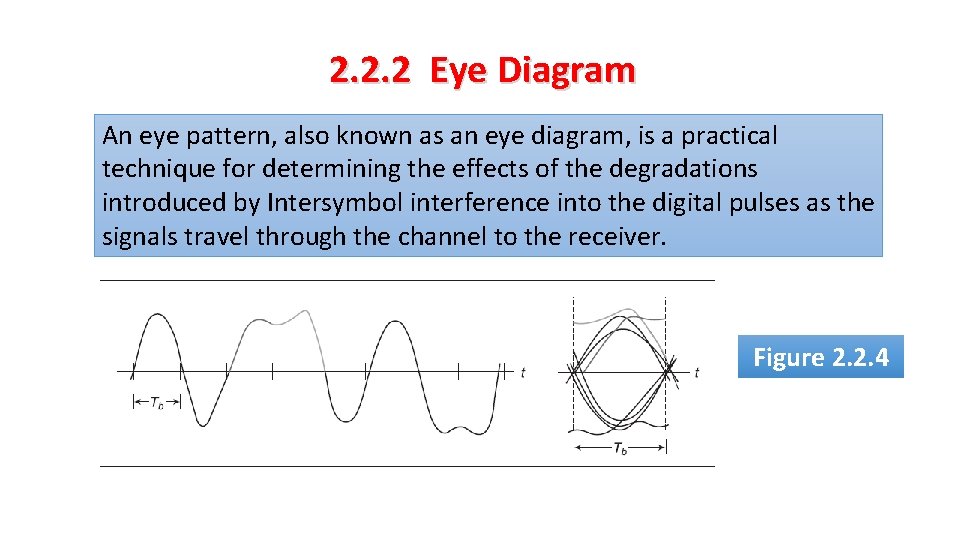

2. 2. 2 Eye Diagram An eye pattern, also known as an eye diagram, is a practical technique for determining the effects of the degradations introduced by Intersymbol interference into the digital pulses as the signals travel through the channel to the receiver. Figure 2. 2. 4

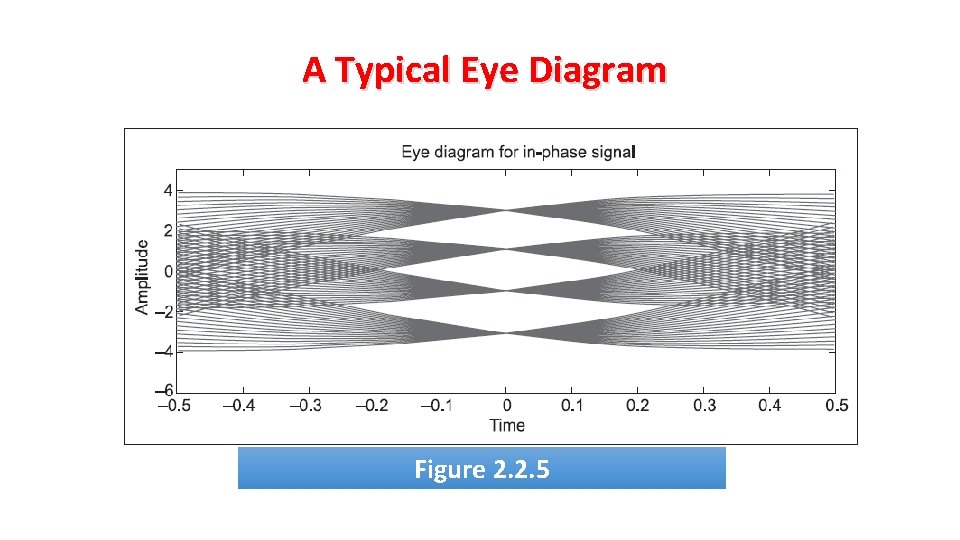

A Typical Eye Diagram Figure 2. 2. 5

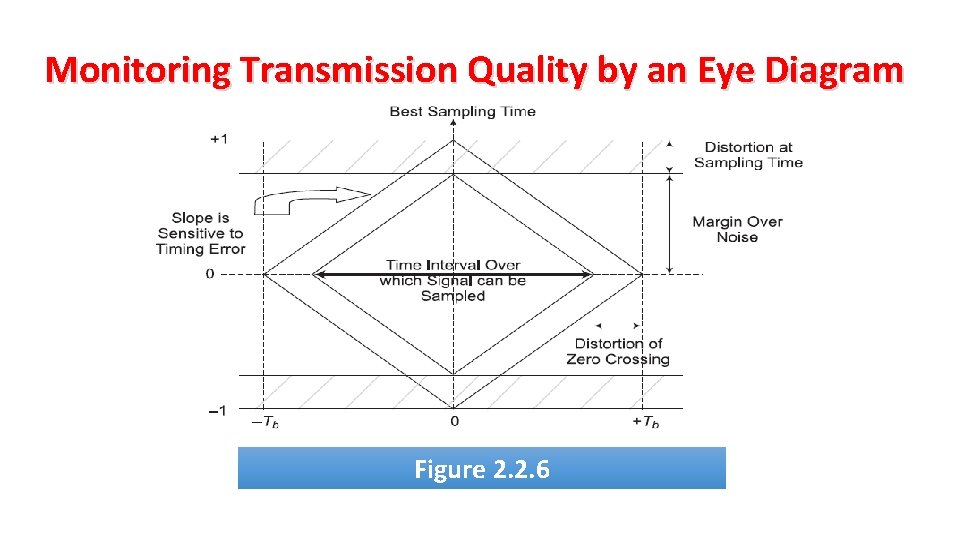

Monitoring Transmission Quality by an Eye Diagram Figure 2. 2. 6

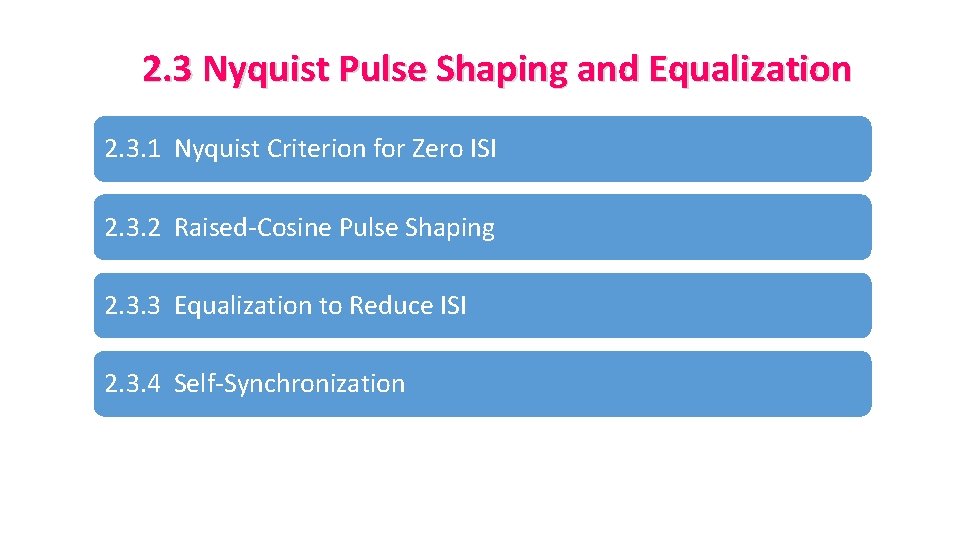

2. 3 Nyquist Pulse Shaping and Equalization 2. 3. 1 Nyquist Criterion for Zero ISI 2. 3. 2 Raised-Cosine Pulse Shaping 2. 3. 3 Equalization to Reduce ISI 2. 3. 4 Self-Synchronization

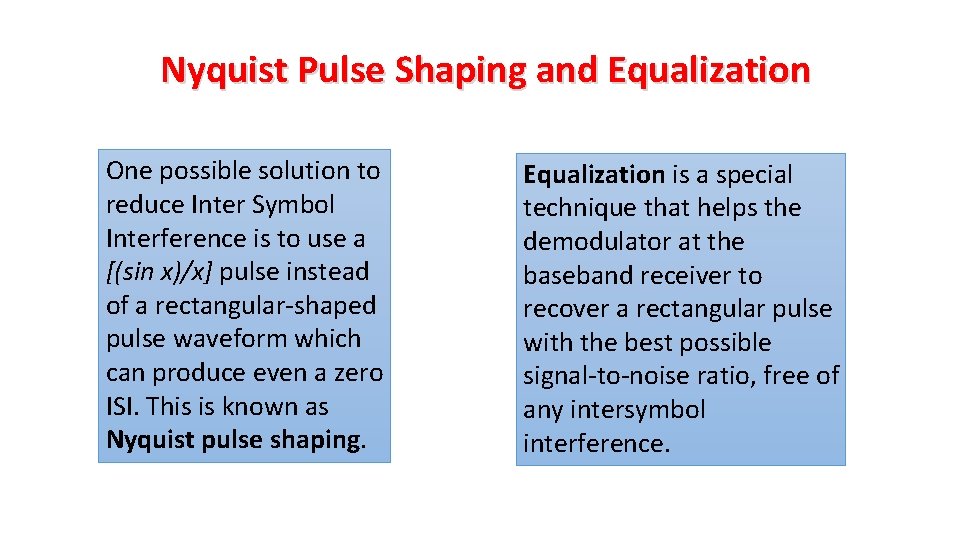

Nyquist Pulse Shaping and Equalization One possible solution to reduce Inter Symbol Interference is to use a [(sin x)/x] pulse instead of a rectangular-shaped pulse waveform which can produce even a zero ISI. This is known as Nyquist pulse shaping. Equalization is a special technique that helps the demodulator at the baseband receiver to recover a rectangular pulse with the best possible signal-to-noise ratio, free of any intersymbol interference.

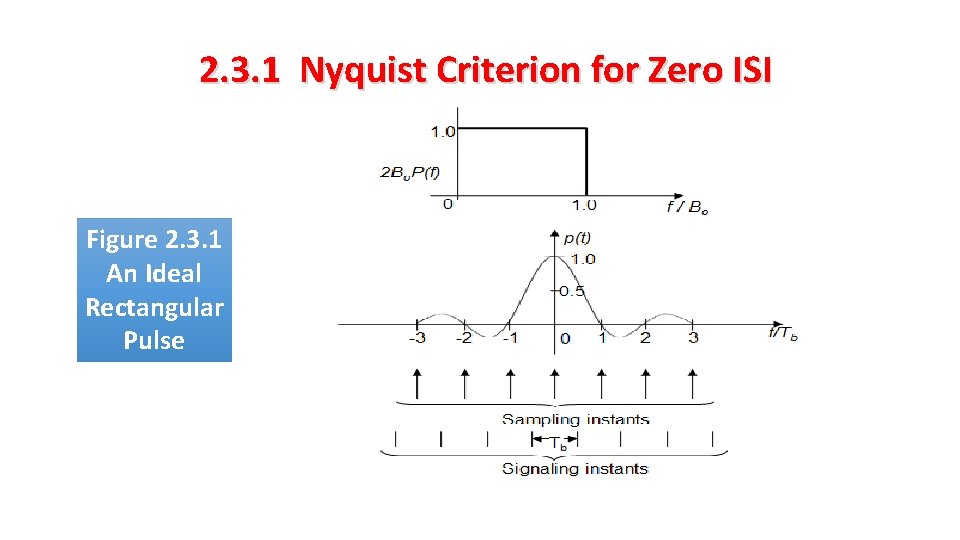

2. 3. 1 Nyquist Criterion for Zero ISI Figure 2. 3. 1 An Ideal Rectangular Pulse

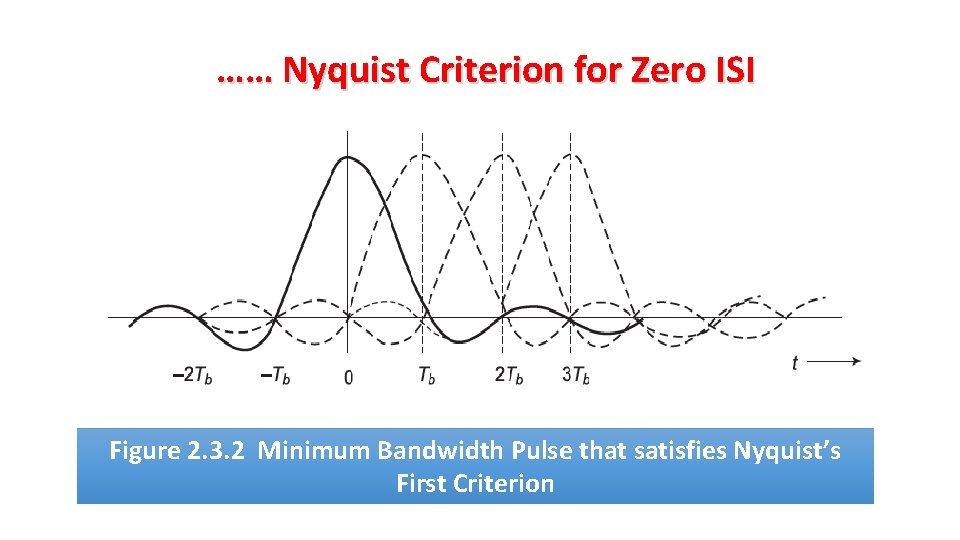

…… Nyquist Criterion for Zero ISI Figure 2. 3. 2 Minimum Bandwidth Pulse that satisfies Nyquist’s First Criterion

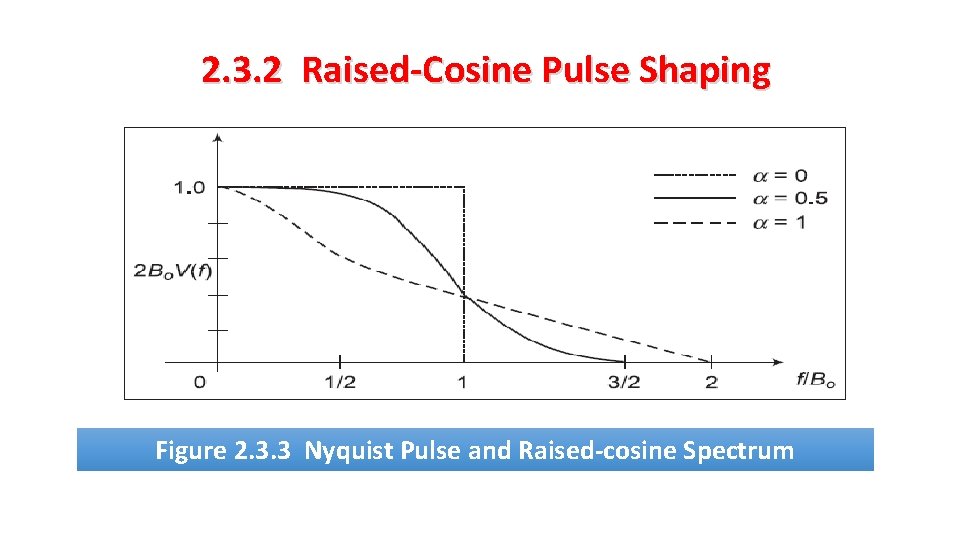

2. 3. 2 Raised-Cosine Pulse Shaping Figure 2. 3. 3 Nyquist Pulse and Raised-cosine Spectrum

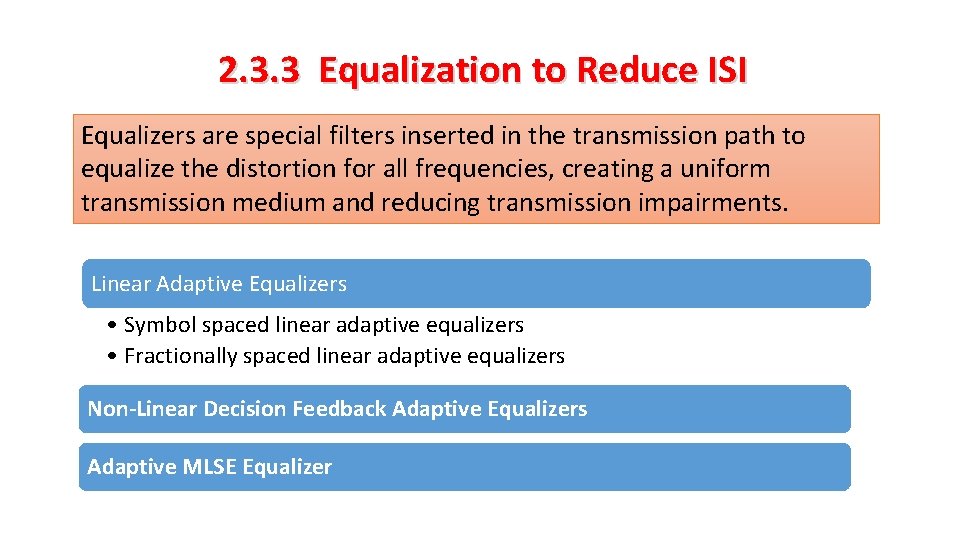

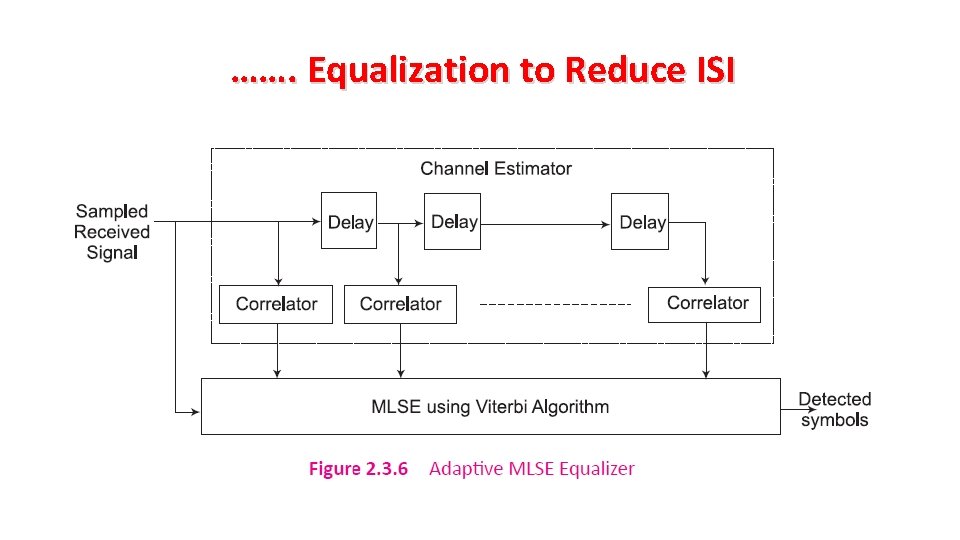

2. 3. 3 Equalization to Reduce ISI Equalizers are special filters inserted in the transmission path to equalize the distortion for all frequencies, creating a uniform transmission medium and reducing transmission impairments. Linear Adaptive Equalizers • Symbol spaced linear adaptive equalizers • Fractionally spaced linear adaptive equalizers Non-Linear Decision Feedback Adaptive Equalizers Adaptive MLSE Equalizer

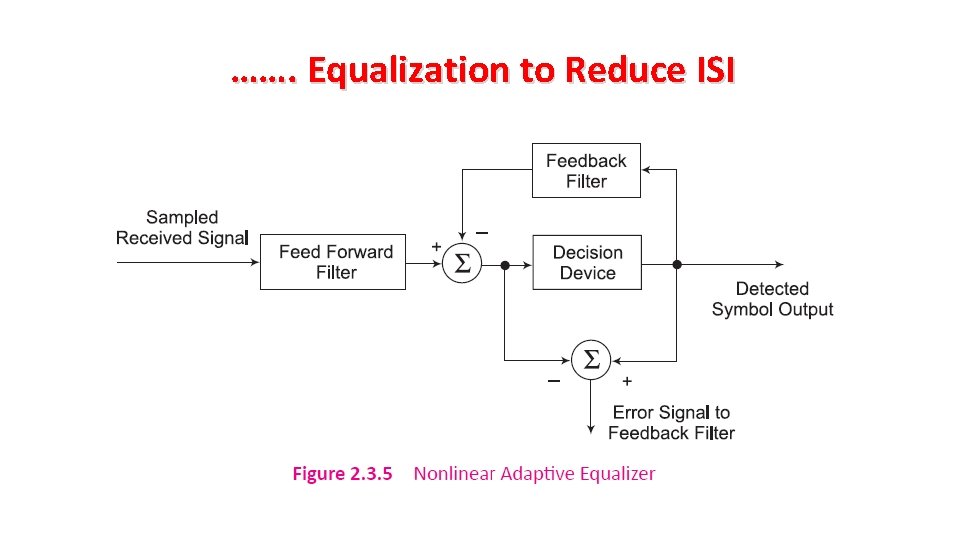

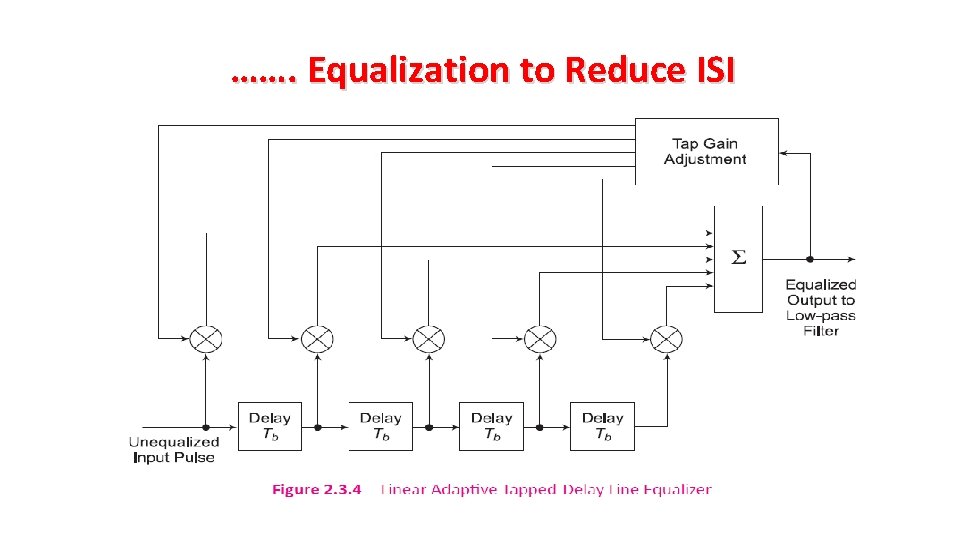

……. Equalization to Reduce ISI

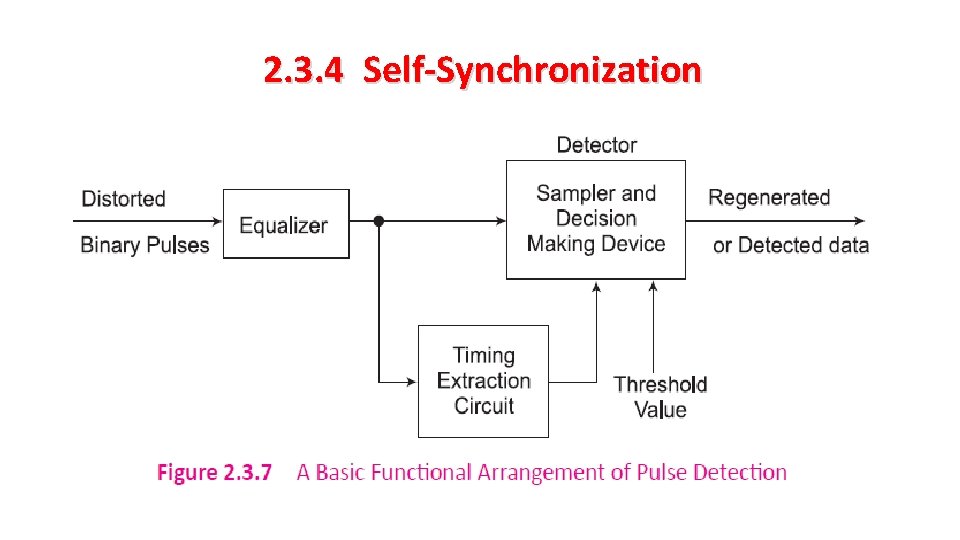

2. 3. 4 Self-Synchronization

2. 4 Digital Multiplexing and TDM 2. 4. 1 Synchronous TDM 2. 4. 2 Asynchronous TDM

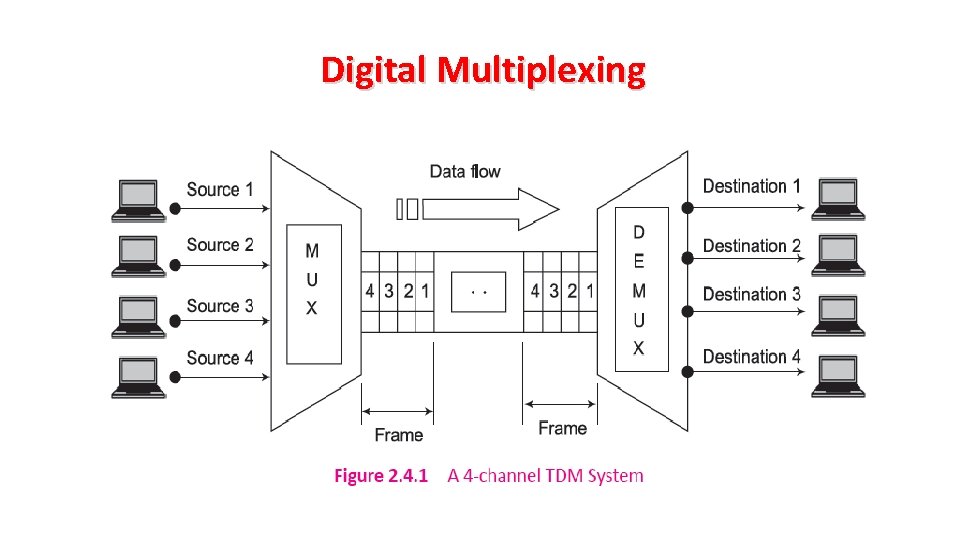

Digital Multiplexing

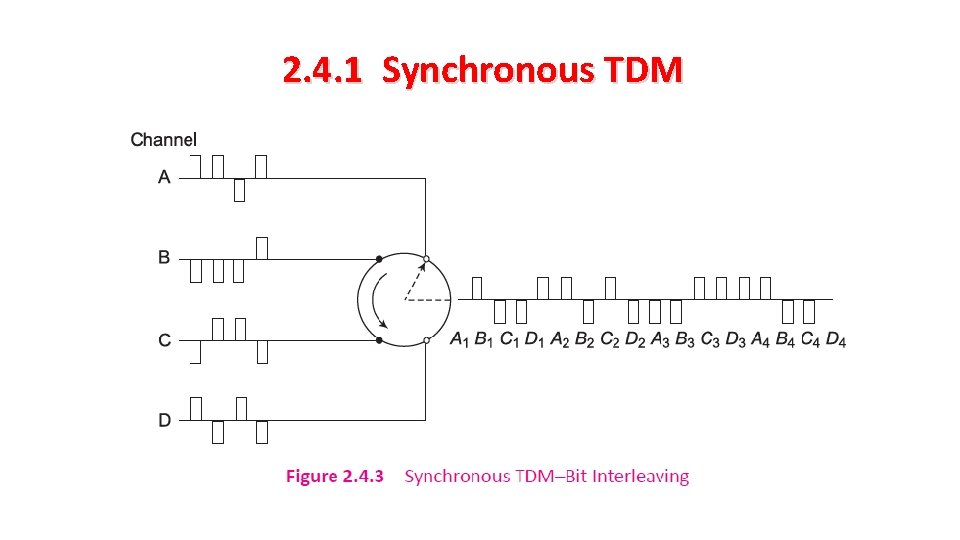

2. 4. 1 Synchronous TDM

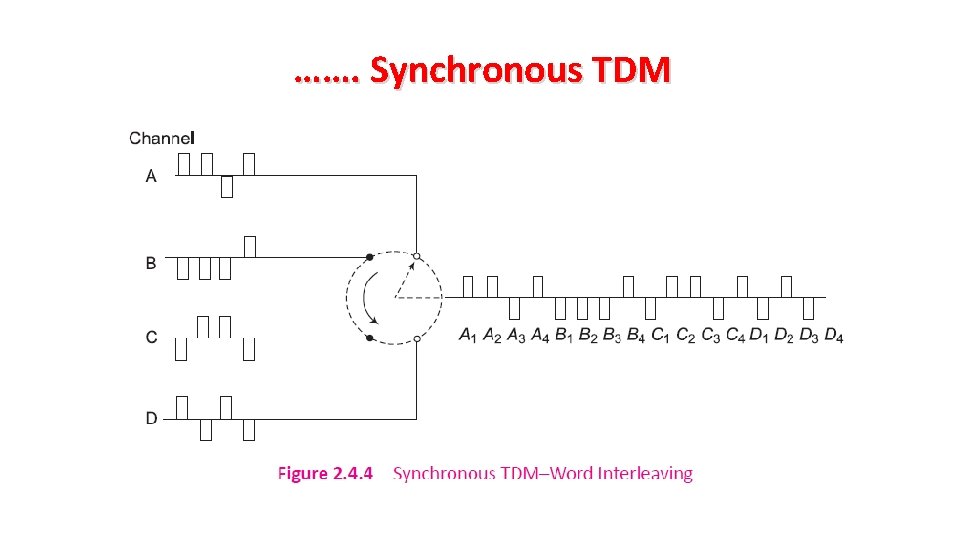

……. Synchronous TDM

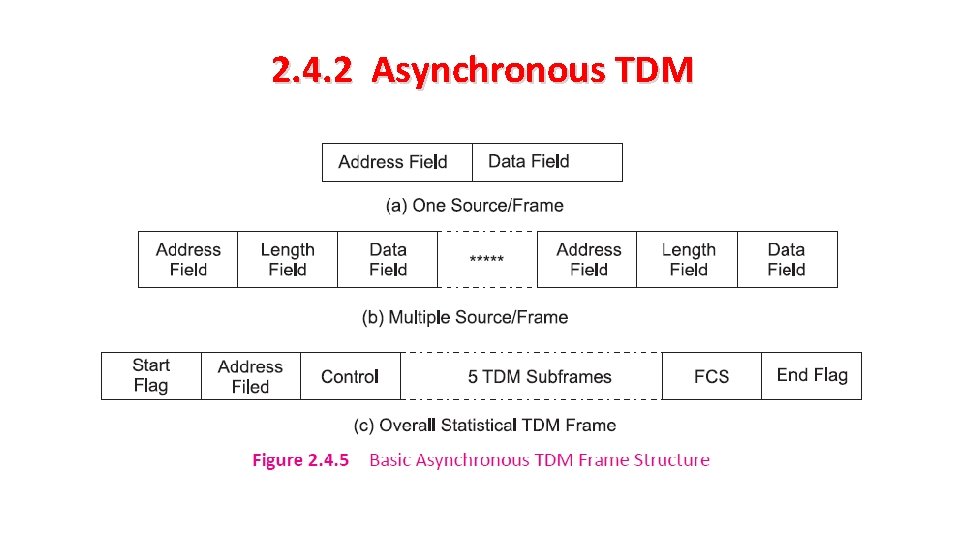

2. 4. 2 Asynchronous TDM

2. 5 Digital Carrier Systems 2. 5. 1 North American Digital Carrier System 2. 5. 2 European Digital Carrier System

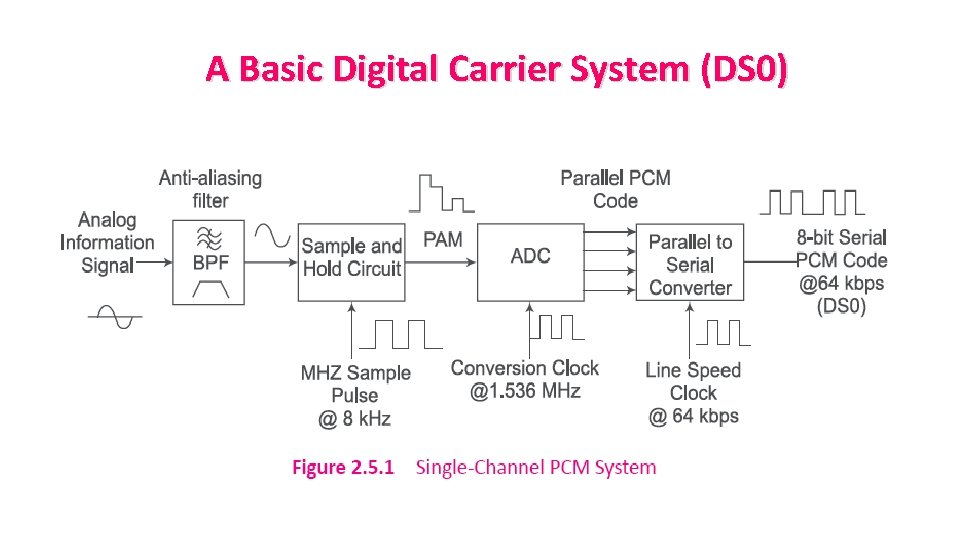

A Basic Digital Carrier System (DS 0)

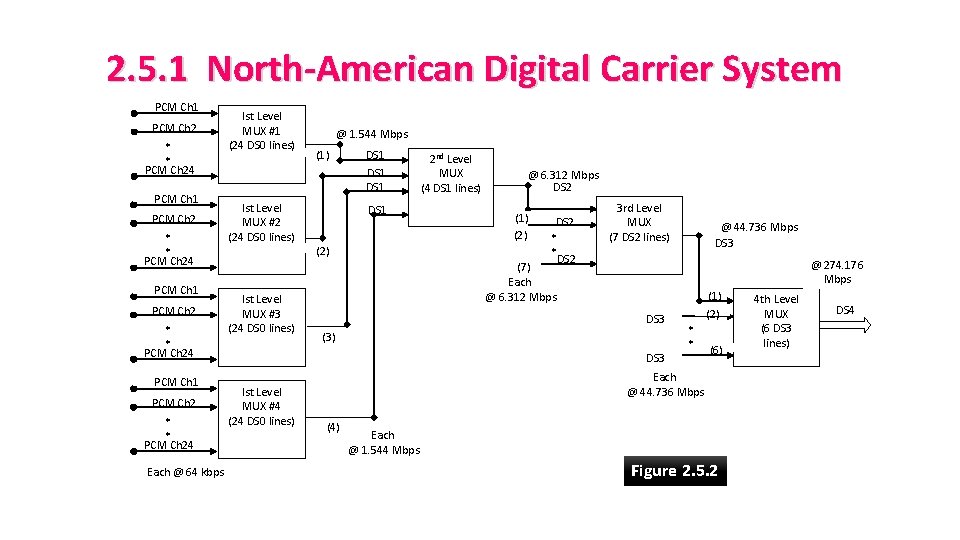

2. 5. 1 North-American Digital Carrier System PCM Ch 1 PCM Ch 2 * * PCM Ch 24 Each @ 64 kbps Ist Level MUX #1 (24 DS 0 lines) Ist Level MUX #2 (24 DS 0 lines) Ist Level MUX #3 (24 DS 0 lines) @ 1. 544 Mbps (1) DS 1 (2) 2 nd Level MUX (4 DS 1 lines) @ 6. 312 Mbps DS 2 (1) (2) DS 2 * * DS 2 3 rd Level MUX (7 DS 2 lines) @ 274. 176 Mbps (7) Each @ 6. 312 Mbps (1) DS 3 (3) DS 3 Ist Level MUX #4 (24 DS 0 lines) @ 44. 736 Mbps DS 3 (2) * * (6) Each @ 44. 736 Mbps (4) Each @ 1. 544 Mbps Figure 2. 5. 2 4 th Level MUX (6 DS 3 lines) DS 4

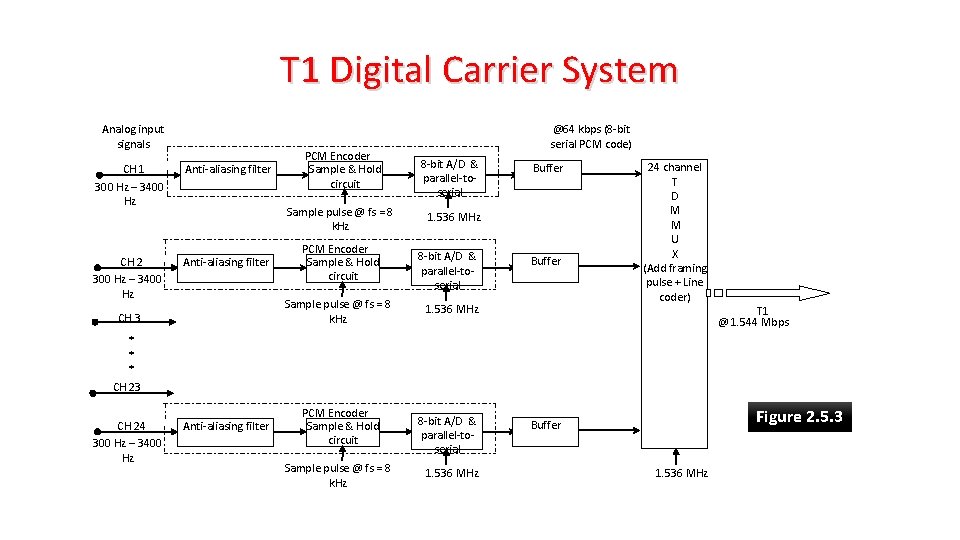

T 1 Digital Carrier System Analog input signals CH 1 300 Hz – 3400 Hz CH 2 300 Hz – 3400 Hz Anti-aliasing filter PCM Encoder Sample & Hold circuit Sample pulse @ fs = 8 k. Hz CH 3 @64 kbps (8 -bit serial PCM code) 8 -bit A/D & parallel-toserial Buffer 1. 536 MHz 24 channel T D M M U X (Add framing pulse + Line coder) T 1 @ 1. 544 Mbps * * * CH 23 CH 24 300 Hz – 3400 Hz Anti-aliasing filter PCM Encoder Sample & Hold circuit Sample pulse @ fs = 8 k. Hz 8 -bit A/D & parallel-toserial 1. 536 MHz Figure 2. 5. 3 Buffer 1. 536 MHz

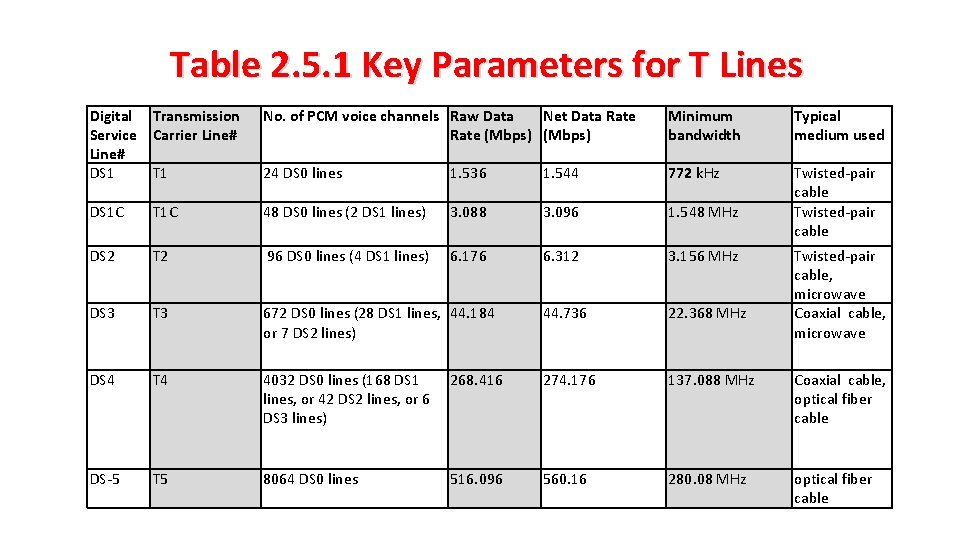

Table 2. 5. 1 Key Parameters for T Lines Digital Transmission Service Carrier Line# DS 1 T 1 No. of PCM voice channels Raw Data Net Data Rate (Mbps) Minimum bandwidth Typical medium used 24 DS 0 lines 1. 536 1. 544 772 k. Hz DS 1 C T 1 C 48 DS 0 lines (2 DS 1 lines) 3. 088 3. 096 1. 548 MHz Twisted-pair cable DS 2 T 2 96 DS 0 lines (4 DS 1 lines) 6. 176 6. 312 3. 156 MHz DS 3 T 3 672 DS 0 lines (28 DS 1 lines, 44. 184 or 7 DS 2 lines) 44. 736 22. 368 MHz DS 4 T 4 4032 DS 0 lines (168 DS 1 lines, or 42 DS 2 lines, or 6 DS 3 lines) 268. 416 274. 176 137. 088 MHz Coaxial cable, optical fiber cable DS-5 T 5 8064 DS 0 lines 516. 096 560. 16 280. 08 MHz optical fiber cable Twisted-pair cable, microwave Coaxial cable, microwave

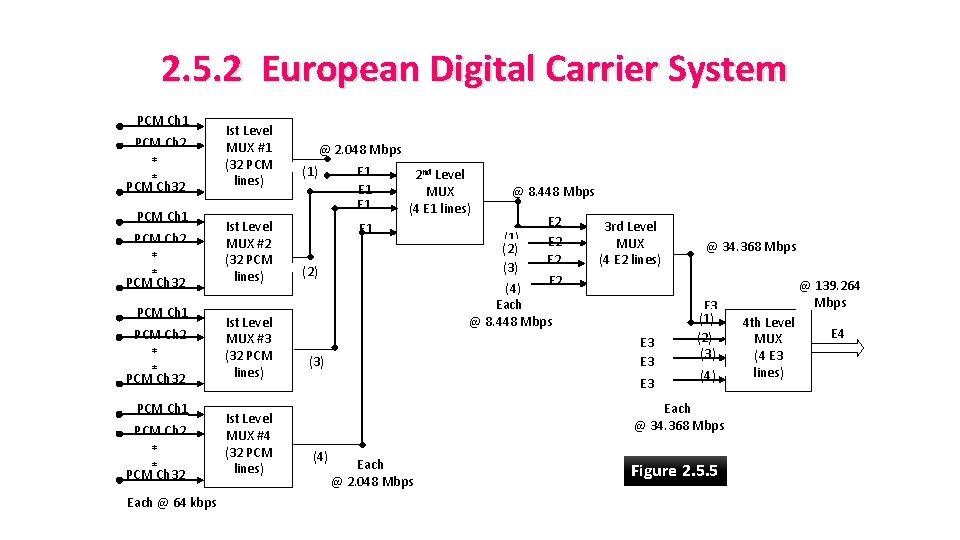

2. 5. 2 European Digital Carrier System PCM Ch 1 PCM Ch 2 * * PCM Ch 32 Each @ 64 kbps Ist Level MUX #1 (32 PCM lines) Ist Level MUX #2 (32 PCM lines) Ist Level MUX #3 (32 PCM lines) Ist Level MUX #4 (32 PCM lines) @ 2. 048 Mbps (1) E 1 E 1 2 nd Level MUX (4 E 1 lines) E 1 (2) @ 8. 448 Mbps E 2 E 2 (1) (2) (3) (4) Each @ 8. 448 Mbps 3 rd Level MUX (4 E 2 lines) E 3 (3) E 3 @ 34. 368 Mbps E 3 (1) (2) (3) (4) Each @ 34. 368 Mbps (4) Each @ 2. 048 Mbps Figure 2. 5. 5 @ 139. 264 Mbps 4 th Level MUX (4 E 3 lines) E 4

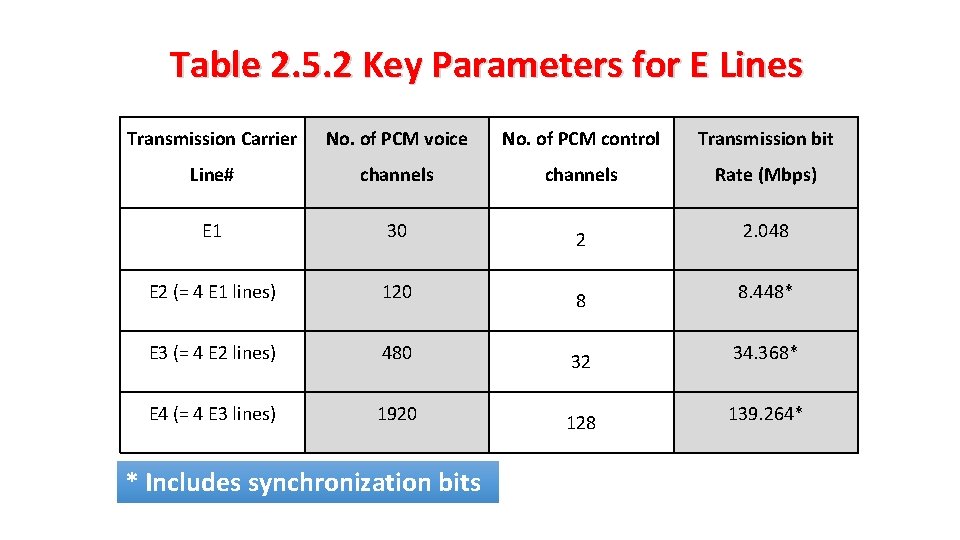

Table 2. 5. 2 Key Parameters for E Lines Transmission Carrier No. of PCM voice No. of PCM control Transmission bit Line# channels Rate (Mbps) E 1 30 2 2. 048 E 2 (= 4 E 1 lines) 120 8 8. 448* E 3 (= 4 E 2 lines) 480 32 34. 368* E 4 (= 4 E 3 lines) 1920 128 139. 264* * Includes synchronization bits
