Chapter 19 The Skeleton Copyright 2011 Wolters Kluwer

Chapter Objectives § § § § Axial skeleton and appendicular skeleton. Formation of bone

Key Terms Normal Structure and Function acetabulum The bony socket in the hip bone

Key Terms Normal Structure and Function (cont’d) diarthrosis A freely movable joint; also called

Key Terms Normal Structure and Function (cont’d) ossification The formation of bone tissue (from

Key Terms Normal Structure and Function (cont’d) skeleton The bony framework of the body,

Key Terms Disorders ankylosing spondylitis A chronic, progressive inflammatory disease involving the joints of

Key Terms Disorders (cont’d) gout A form of acute arthritis, usually beginning in the

Key Terms Disorders (cont’d) osteomyelitis Inflammation of bone and bone marrow caused by infection,

Key Terms Disorders (cont’d) rheumatoid factor A group of antibodies found in the blood

Key Terms Treatment alkaline phosphatase An enzyme needed in the formation of bone; serum

Key Terms Drugs antiinflammatory agent Drug that reduces inflammation; includes steroids, such as cortisone,

Supplementary Terms Normal Structure and Function annulus fibrosus The outer ringlike portion of an

Supplementary Terms Normal Structure and Function (cont’d) malleolus The projection of the tibia or

Supplementary Terms Symptoms and Conditions achondroplasia Decreased growth of cartilage in the growth plate

Supplementary Terms Symptoms and Conditions (cont’d) Ewing tumor A bone tumor that usually appears

Supplementary Terms Symptoms and Conditions (cont’d) Heberden nodes Small, hard nodules formed in the

Supplementary Terms Symptoms and Conditions (cont’d) osteochondrosis Disease of a bone's growth center in

Supplementary Terms Symptoms and Conditions (cont’d) sprain Trauma to a joint involving the ligaments

Supplementary Terms Diagnosis and Treatment allograft Graft of tissue between individuals of the same

Supplementary Terms Diagnosis and Treatment (cont’d) goniometer A device used to measure joint angles

Abbreviations ACL Anterior cruciate ligament AE Above the elbow AK Above the knee ASF

Abbreviations (cont’d) DEXA Dual-energy x-ray absorptiometry (scan) DIP Distal interphalangeal (joint) DJD Degenerative joint

Abbreviations (cont’d) NSAID(s) Nonsteroidal antiinflammatory drug(s) OA Osteoarthritis OI Osteogenesis imperfecta ORIF Open reduction

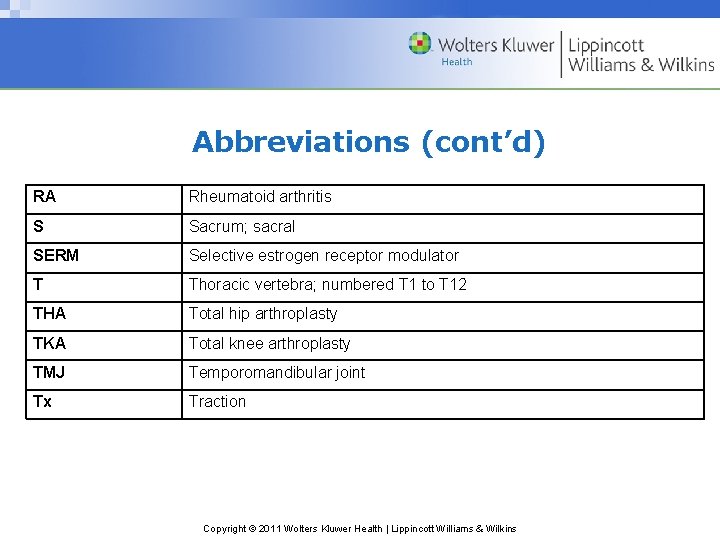

Abbreviations (cont’d) RA Rheumatoid arthritis S Sacrum; sacral SERM Selective estrogen receptor modulator T

The Skeletal System Axial Skeleton Appendicular skeleton Skull Shoulder girdle Spinal column Arms Thorax

Axial Skeleton • Consists of: – Skull • Cranial bones (8) • Facial bones

Axial Skeleton (cont’d) – Thorax • Ribs (12 pair) • True ribs (pairs 1

Appendicular Skeleton • Attached to axial skeleton • Consists of: – Shoulder girdle •

Appendicular Skeleton (cont’d) – Arm bones • Humerus • Radius • Ulna • Carpals

Appendicular Skeleton (cont’d) – Pelvis • 2 pelvic bones • Formed of 3 fused

Appendicular Skeleton (cont’d) – Leg bones • Femur • Patella • Tibia • Fibula

Skeleton Illustrated Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Skull Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Vertebral Column Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Pelvic Bones Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Roots for the Skeleton Root crani/o Meaning skull, cranium Example craniometry Definition of Example

Roots for the Skeleton (cont’d) Root sacr/o Meaning sacrum Example presacral Definition of Example

Bone Formation • Bones formed from cartilage • Ossification begins at birth and continues

Structure of Long Bone • Diaphysis = shaft of compact bone tissue – Yellow

Structure of Long Bone (cont’d) • Metaphysis = region between diaphysis and epiphysis –

Structure of a Long Bone Copyright © 2011 Wolters Kluwer Health | Lippincott Williams

Roots for Bones and Joints Root oste/o Meaning bone Example osteopenia Definition of Example

Joints • Known as articulations • Classified by amount of movement they allow –

Joints (cont’d) • Synovial fluid contained within diarthrotic cavity – Protects joint by cushioning

Clinical Aspects of the Skeleton • Orthopedics = study of diseases of skeletal and

Clinical Aspects of the Skeleton (cont’d) • Infections – Osteomyelitis = inflammation of bone

Clinical Aspects of the Skeleton (cont’d) • Fractures – Break in bone • Usually

Types of Fractures Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

$Fracture Treatment • Reduction of fracture – Realignment of broken bone – Closed -$

Metabolic Bone Diseases • Osteoporosis = loss of bone mass – Weakens bones –

Metabolic Bone Diseases (cont’d) • Osteomalacia = softening of bone tissue – Possible causes:

Metabolic Bone Diseases (cont’d) • Paget disease (osteitis deformans) – Disorder of aging –

Neoplasms • Osteogenic sarcoma = highly malignant tumor – Most commonly occurs in growing

Arthritis • Joint inflammation – Most common form is osteoarthritis • Joint cavity narrows

Rheumatoid Arthritis • Systemic inflammatory disease of joints – Cause may involve immunologic reactions

Gout • Increased uric acid in blood causes salt deposits in joints • May

Joint Repair • Arthroscopy = examination of joint interior and perform surgical repairs •

Disorders of the Spine • Ankylosing spondylitis – Disease of spine mainly in males

Disorders of the Spine (cont’d) • Spondylolisthesis – Forward sliding of vertebrae over vertebrae

Herniated Disk • Central mass of intervertebral disk protrudes into spinal column • Commonly

Herniated Disk Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Curvatures of the Spine • Kyphosis = exaggerated curve in thoracic region, “hunchback” •

Pretest 1. The root oste/o means: (a) cartilage (b) fat (c) bone (d) heart

Pretest 2. The root myel/o refers to the spinal cord. Used in reference to

Pretest 3. A bone of the spinal column is a: (a) cortex (b) ventricle

Pretest 4. The large, flared superior bone of the pelvis is the: (a) duodenum

Pretest 5. The bones of the wrist are the: (a) ribs (b) cervices (c)

Pretest 6. The bone of the thigh is the: (a) patella (b) umbilicus (c)

Pretest 7. A general term for inflammation of a joint is: (a) arthritis (b)

Pretest 8. Chondrosarcoma is a tumor that originates in: (a) adipose tissue (b) bone
