Chapter 18 The Senses Copyright 2011 Wolters Kluwer

Chapter Objectives • Role of the sensory system. • Ear and the eye; the

Key Terms The Senses Normal Structure and Function Equilibrium The sense of balance Gestation

General Senses • Distributed throughout body – Pain – Touch – Pressure – Temperature

Special Senses • Located within complex sense organs • Gustation = sense of taste

Suffixes Pertaining to the Senses Suffix -esthesia Meaning sensation Example cryesthesia Definition of Example

Key Terms The Ear Normal Structure and Function cerumen The brownish, waxlike secretion formed

Key Terms The Ear Normal Structure and Function (cont’d) malleus The ossicle of the

Key Terms The Ear Normal Structure and Function (cont’d) vestibular apparatus The portion of

Key Terms The Ear - Disorders acoustic neuroma A tumor of the eighth cranial

Key Terms The Ear – Disorders (cont’d) otosclerosis Formation of abnormal and sometimes hardened

Key Terms The Ear - Treatment myringotomy Surgical incision of the tympanic membrane; performed

Supplementary Terms The Ear Normal Structure and Function aural Pertaining to or perceived by

Supplementary Terms The Ear Symptoms and Conditions cholesteatoma A cystlike mass containing cholesterol that

Supplementary Terms The Ear Diagnosis and Treatment audiometry Measurement of hearing electronystagmography (ENG) A

Abbreviations The Ear ABR Auditory brainstem response AC Air conduction AD Right ear (Latin,

Abbreviations The Ear (cont’d) HL Hearing level Hz Hertz OL Otolaryngology OM Otitis media

The Ear Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

The Ear • Used for both hearing and equilibrium • Divided into three parts

The Ear (cont’d) – Outer ear • Pinna (auricle) • External auditory canal (meatus)

The Ear (cont’d) • Middle ear – Houses three ossicles • Malleus (hammer) •

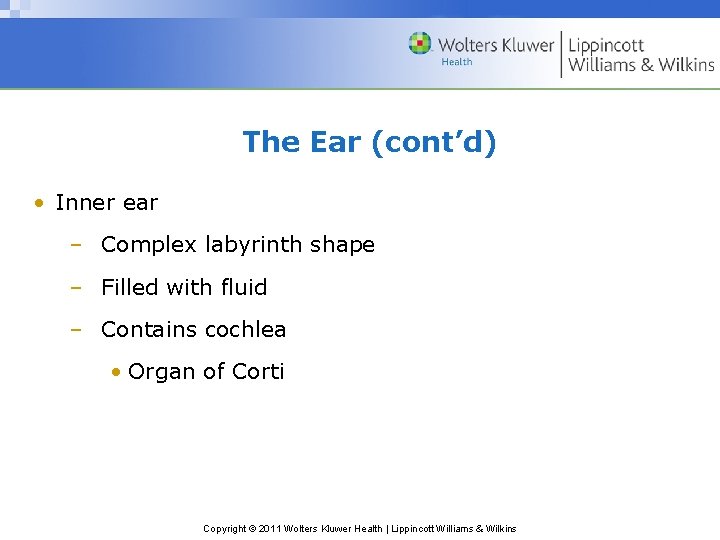

The Ear (cont’d) • Inner ear – Complex labyrinth shape – Filled with fluid

The Ear (cont’d) Inner ear (cont’d) – Vestibular apparatus • Sense of equilibrium •

Roots Pertaining to the Ear and Hearing Root audi/o Example audiology Definition of Example

Roots Pertaining to the Ear and Hearing (cont’d) Root salping/o staped/o, stapedi/o labyrinth/o vestibul/o

Hearing Loss • Sensorineural hearing loss – Damage to eighth cranial nerve or central

Hearing Loss (cont’d) • Conductive hearing loss – Results from blockage in sound transmission

Otitis • Inflammation of the ear – Otitis media = infection leading to accumulation

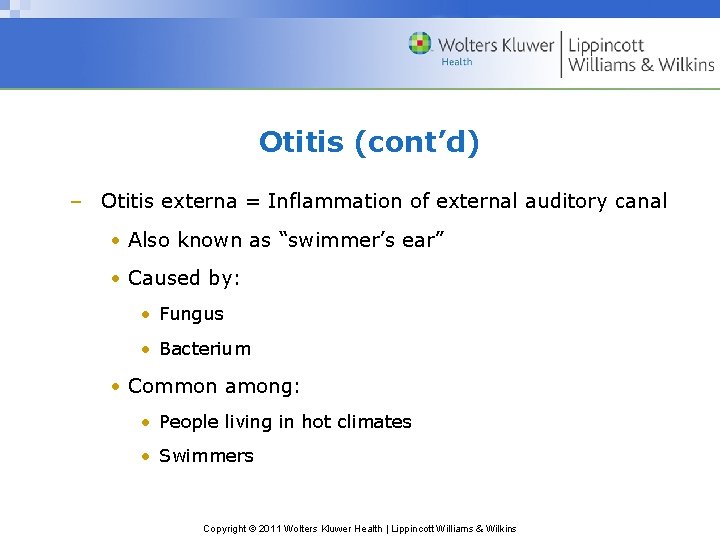

Otitis (cont’d) – Otitis externa = Inflammation of external auditory canal • Also known

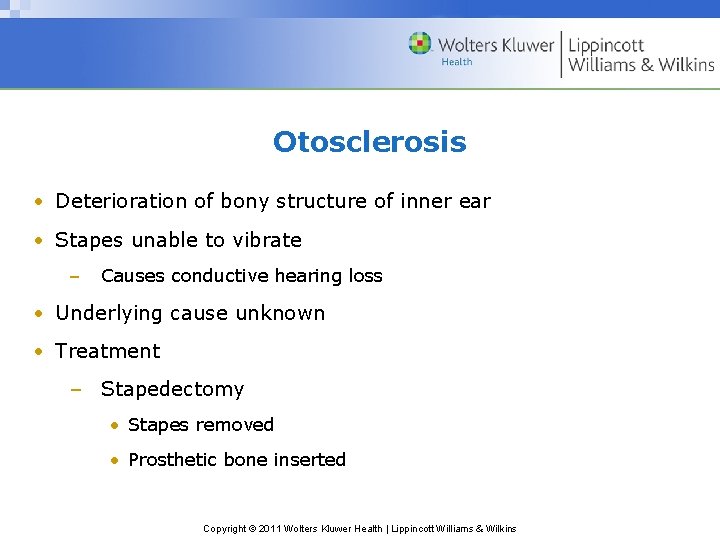

Otosclerosis • Deterioration of bony structure of inner ear • Stapes unable to vibrate

Ménière Disease • Involves production and circulation of inner ear fluid • Symptoms –

Acoustic Neuroma • Tumor arising from neurilemma of eighth cranial nerve • Presses on

Key Terms The Eye Normal Structure and Function accommodation Adjustment of the lens’ curvature

Key Terms The Eye Normal Structure and Function (cont’d) eye The organ of vision

Key Terms The Eye Normal Structure and Function (cont’d) optic disk The point where

Key Terms The Eye Normal Structure and Function (cont’d) rod A specialized cell in

Key Terms The Eye Disorders age-related macular degeneration (AMD) Deterioration of the macula associated

$Key Terms The Eye Disorders (cont’d) myopia An error of refraction in which light$

Supplementary Terms The Eye Normal Structure and Function canthus The angle at either end

Supplementary Terms The Eye Symptoms and Conditions amblyopia A condition that occurs when visual

Supplementary Terms The Eye Symptoms and Conditions (cont’d) hordeolum Inflammation of a sebaceous gland

Supplementary Terms The Eye Symptoms and Conditions (cont’d) papilledema Swelling of the optic disk

Supplementary Terms The Eye Symptoms and Conditions (cont’d) scotoma An area of diminished vision

Supplementary Terms The Eye Diagnosis and Treatment canthotomy Surgical division of a canthus cystitome

Supplementary Terms The Eye Diagnosis and Treatment (cont’d) phorometer An instrument for determining the

Abbreviations The Eye A, Accommodation AMD Age-related macular degeneration ARC Abnormal retinal correspondence As,

Abbreviations The Eye (cont’d) IOL Intraocular lens IOP Intraocular pressure NRC Normal retinal correspondence

The Eye and Vision • The eye has three layers – Sclera – Uvea

The Eye and Vision (cont’d) – Sclera Outermost layer Known as “White of the

The Eye and Vision (cont’d) – Uvea Middle, vascular layer Consists of: • Choroid

The Eye and Vision (cont’d) • Retina – Innermost layer – Actual visual receptor

The Eye and Vision (cont’d) • Cones • Active in bright light • High

The Eye Copyright © 2011 Wolters Kluwer Health | Lippincott Williams & Wilkins

Roots for External Eye Structures Root blephar/o Meaning eyelid Example symblepharon palpebr/o eyelid palpebral

Roots for Eye and Vision Root Meaning Example Definition of Example opt/o eye, vision

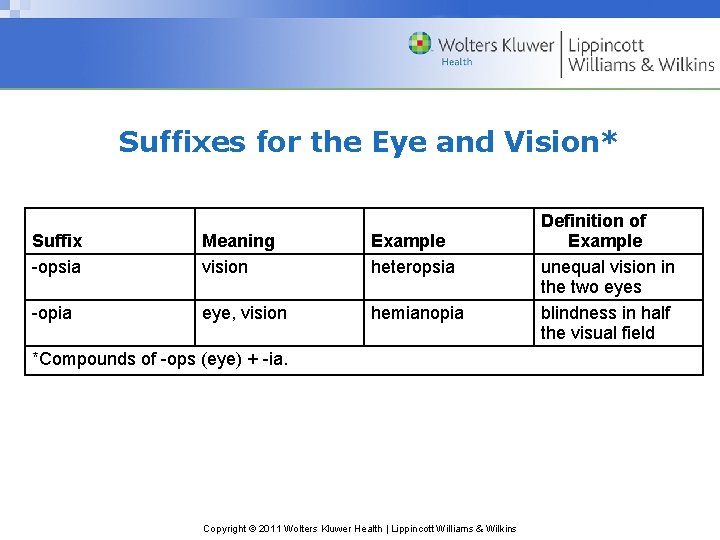

Suffixes for the Eye and Vision* Suffix -opsia Meaning vision Example heteropsia -opia eye,

$Vision • Requires refraction – Focuses on specific point on retina – Energy transmitted$

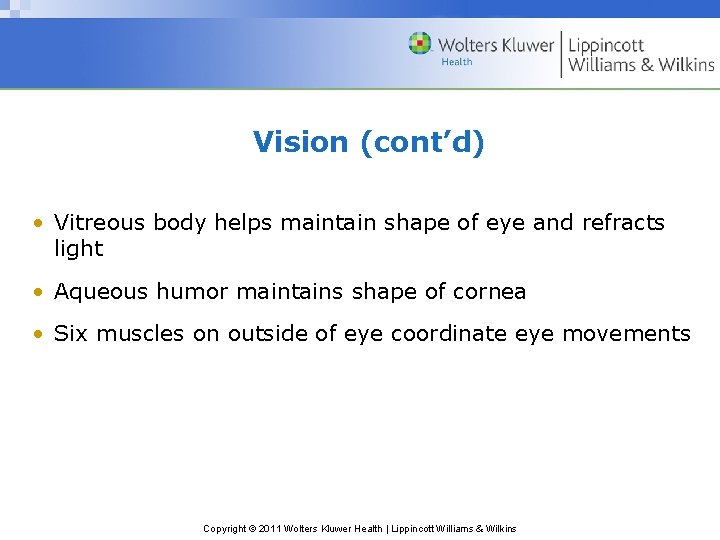

$Vision (cont’d) • Vitreous body helps maintain shape of eye and refracts light •$

$Errors of Refraction • Myopia = nearsightedness – Eyeball too long – Images form$

Infection • Conjunctivitis = inflammation of conjunctiva – Commonly known as “pinkeye” – Highly

Disorders of Retina • Retinal detachment – Separation of retina from choroid – Caused

Disorders of Retina (cont’d) • Age-related macular degeneration – Macula degenerates – Caused by:

Diabetic Retinopathy • Cause – Circulatory problems associated with diabetes mellitus • Leaves yellowish,

Cataract • Opacity of lens caused by: – Disease – Injury – Chemicals –

Glaucoma • Increased pressure within eyeball • More aqueous humor produced than can be

Pretest 1. The scientific name for the sense of smell is: (a) osmosis (b)

Pretest 2. The term tactile refers to the sense of: (a) pain (b) touch

Pretest 3. The two senses located in the ear are: (a) hearing and equilibrium

Pretest 4. Inflammation of the ear is called: (a) parotitis (b) mastitis (c) otitis

Pretest 5. The receptor layer of the eye is the: (a) lens (b) cornea

Pretest 6. The scientific name for the white of the eye is: (a) sclera

Pretest 7. Clouding of the lens is termed: (a) vertigo (b) tinnitus (c) cataract
