Chapter 18 ObjectOriented Systems Analysis and Design Using

Chapter 18 Object-Oriented Systems Analysis and Design Using UML Systems Analysis and Design Kendall & Kendall Sixth Edition © Copyright Prentice Hall, 2005 Slide Design by Kendall & Kendall

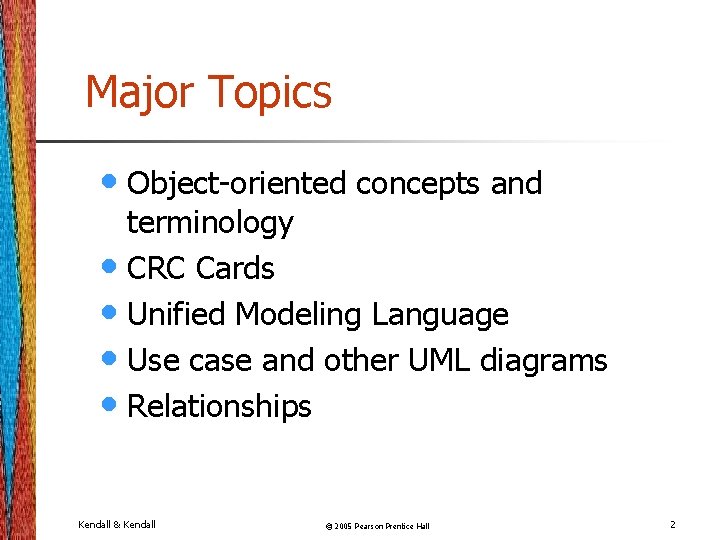

Major Topics • Object-oriented concepts and terminology • CRC Cards • Unified Modeling Language

Object-Oriented Overview • Object-oriented (o-o) techniques work well in situations where complicated systems are undergoing continuous maintenance, adaptation, and design. • The Unified Modeling Language (UML) is an industry standard for modeling object-oriented systems. Kendall & Kendall © 2005 Pearson Prentice Hall 3

Goals of O-O Analysis • Reusability is the main goal. • Maintaining systems is an important goal. • Making a change in one object has a minimal impact on other objects. Kendall & Kendall © 2005 Pearson Prentice Hall 4

Object-Oriented Concepts Definitions and concepts: • An object, represents a real-world thing or event. • Objects may be customers, items, orders and so on. • Objects may be GUI displays or text areas on a display. Kendall & Kendall © 2005 Pearson Prentice Hall 5

Object-Oriented Concepts Definitions and concepts (continued): • Objects are represented by and grouped into • classes. A class, or group of related objects has a set of shared attributes and behaviors. • Instantiate is a term used when an object is created from • • Kendall & Kendall a class. Attributes are properties of a class possessed by all objects. A method is an action that can be requested from any object in the class. © 2005 Pearson Prentice Hall 6

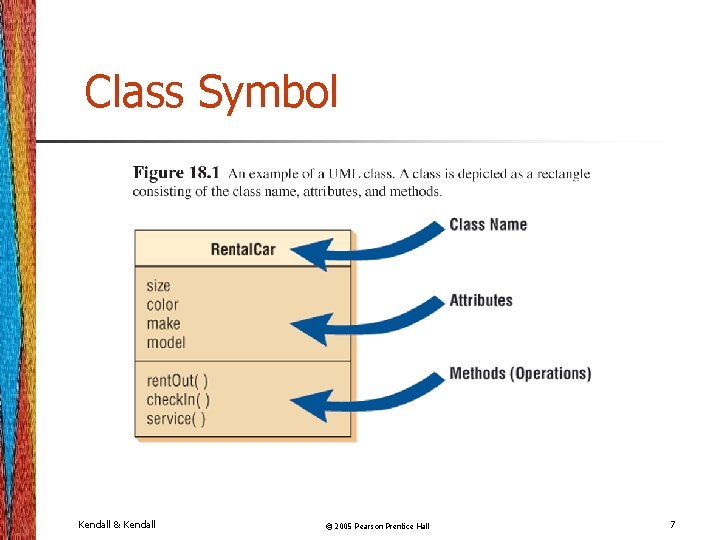

Class Symbol Kendall & Kendall © 2005 Pearson Prentice Hall 7

Inheritance • Inheritance is when a new class is created from another class. • The original class is the parent or base class. • The new class is the child or derived class. • The child class receives the attributes and methods of the parent class. Kendall & Kendall © 2005 Pearson Prentice Hall 8

CRC Cards Class, responsibilities, and collaborators (CRC) cards are used to represent the responsibilities of classes and the interaction between the classes. Kendall & Kendall © 2005 Pearson Prentice Hall 9

Creating CRC Cards Analysts create CRC cards by: • Finding all the nouns and verbs in a problem statement. • Creating scenarios that are actually walkthroughs of system functions. • Identifying and refining responsibilities into smaller and smaller tasks, if possible. Kendall & Kendall © 2005 Pearson Prentice Hall 10

Creating CRC Cards Analysts create CRC cards by (continued): • Determining how tasks are fulfilled by objects or interact with other things. • Identifying responsibilities that evolve into methods or operations. Kendall & Kendall © 2005 Pearson Prentice Hall 11

The Unified Modeling Language (UML) UML has three categories: • Things, the objects. • Relationships, the glue that holds things together. • Diagrams, categorized as either structure or behavioral. Kendall & Kendall © 2005 Pearson Prentice Hall 12

Two General Groupings of Things There are two general groupings of things in UML: • Structural things that define the conceptual and • Kendall & Kendall physical structures of an O-O system and are described by nouns. Behavioral things, the verbs of a UML model that represent the behavior of the system and the states of the system before, during, and after the behaviors occur. © 2005 Pearson Prentice Hall 13

Structural Things Structural things are the most common and include: • Classes. • Use

Behavioral Things/Diagrams Behavioral things include: • Interactions. • State machines. Kendall & Kendall ©

Types of Relationships There are two types of relationships that hold things together: • Structural relationships tie things together in structural diagrams. • Behavioral relationship are used in behavioral diagrams. Kendall & Kendall © 2005 Pearson Prentice Hall 16

Structural Relationships Structural relationships are: • Dependencies. • Aggregations. • Associations. • Generalizations. Kendall

Behavioral Relationships • Behavioral relationships are: • Communicates. • Includes. • Extends. • Generalizes.

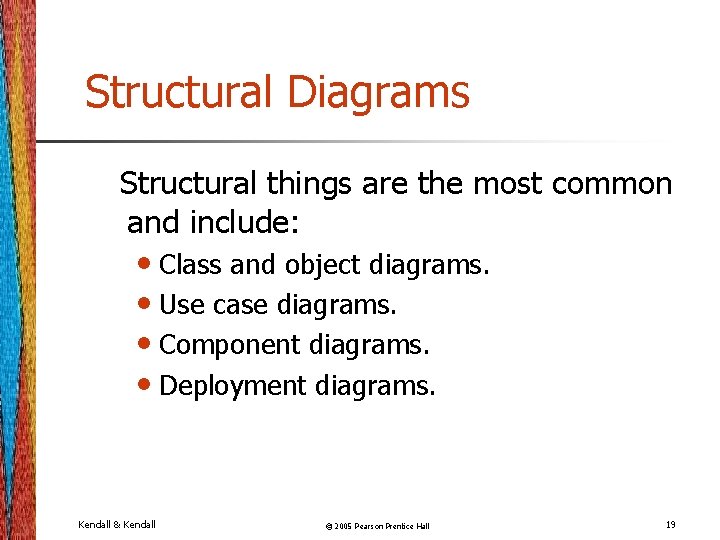

Structural Diagrams Structural things are the most common and include: • Class and object diagrams. • Use case diagrams. • Component diagrams. • Deployment diagrams. Kendall & Kendall © 2005 Pearson Prentice Hall 19

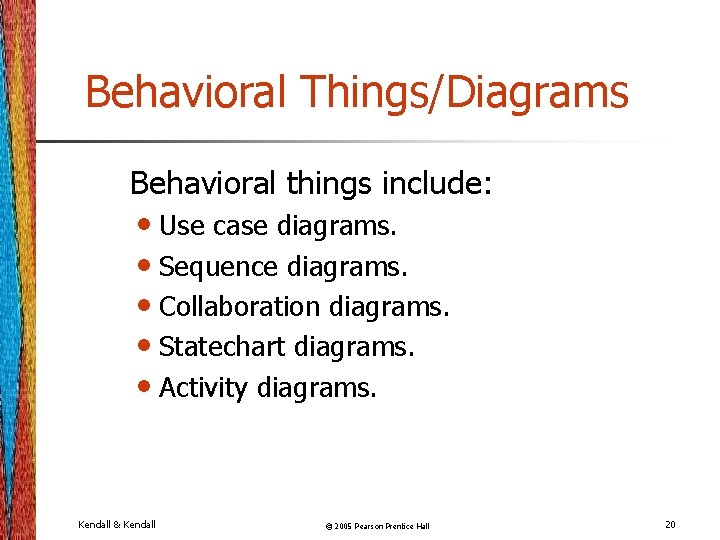

Behavioral Things/Diagrams Behavioral things include: • Use case diagrams. • Sequence diagrams. • Collaboration diagrams. • Statechart diagrams. • Activity diagrams. Kendall & Kendall © 2005 Pearson Prentice Hall 20

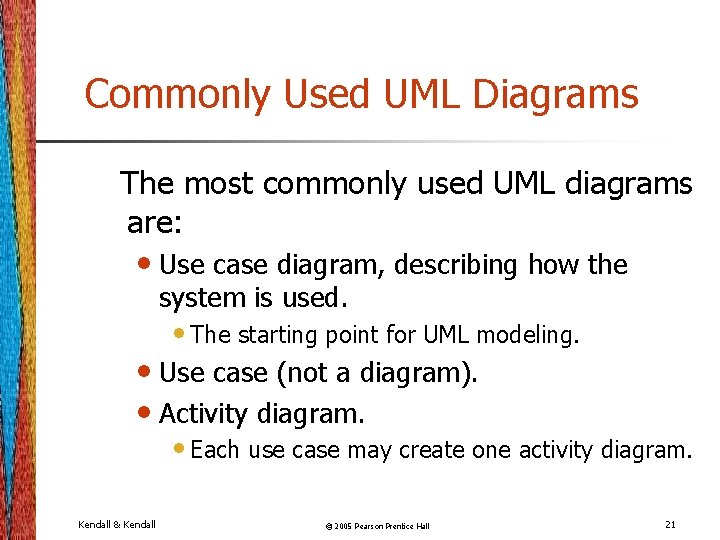

Commonly Used UML Diagrams The most commonly used UML diagrams are: • Use case diagram, describing how the system is used. • The starting point for UML modeling. • Use case (not a diagram). • Activity diagram. • Each use case may create one activity diagram. Kendall & Kendall © 2005 Pearson Prentice Hall 21

Commonly Used UML Diagrams The most commonly used UML diagrams (continued): • Sequence diagram, showing the sequence of activities and class relationships. • Each use case may create one or more sequence diagrams. • A collaboration diagram is an alternative to a sequence diagram. Kendall & Kendall © 2005 Pearson Prentice Hall 22

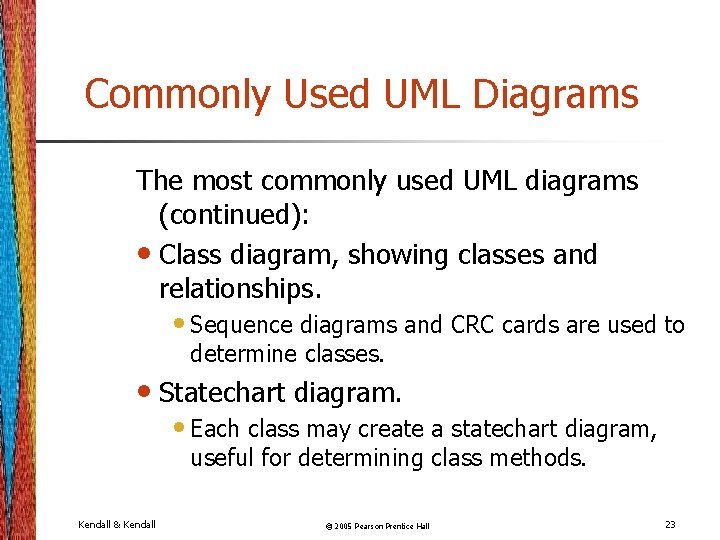

Commonly Used UML Diagrams The most commonly used UML diagrams (continued): • Class diagram, showing classes and relationships. • Sequence diagrams and CRC cards are used to determine classes. • Statechart diagram. • Each class may create a statechart diagram, useful for determining class methods. Kendall & Kendall © 2005 Pearson Prentice Hall 23

Overview of UML Diagrams Kendall & Kendall © 2005 Pearson Prentice Hall 24

Use Case Diagram • • • A use (yoos) case describes what the system does, not how it does the work. The use case model reflects the view of the system of the user outside of the system. Symbols are: • Actor, a stick figure. • Use case, an oval. • Connecting lines. Kendall & Kendall © 2005 Pearson Prentice Hall 25

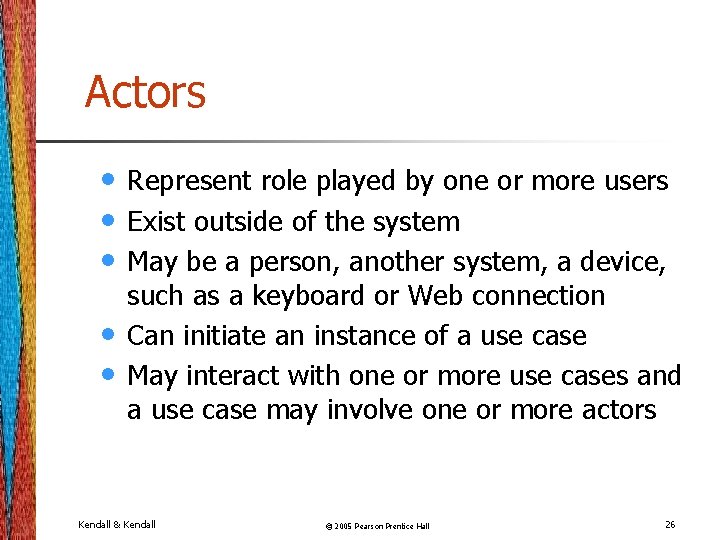

Actors • • • Represent role played by one or more users Exist outside of the system May be a person, another system, a device, such as a keyboard or Web connection Can initiate an instance of a use case May interact with one or more use cases and a use case may involve one or more actors Kendall & Kendall © 2005 Pearson Prentice Hall 26

Actors (Continued) • Actors may be divided into two groups: • Primary actors supply data or receive information from the system • Secondary actors help to keep the system running or provide help • Help desk, analysts, programmers, etc. Kendall & Kendall © 2005 Pearson Prentice Hall 27

Use Case • Consists of three things: • An actor (user) that initiates an event. • An event that triggers a use case. • The use case that performs the actions triggered by the event. Kendall & Kendall © 2005 Pearson Prentice Hall 28

Use Case (Continued) • Better to create fewer use cases • 20 use cases for a large system • 50 use cases would be the maximum for a large system • Can nest use cases, if needed Kendall & Kendall © 2005 Pearson Prentice Hall 29

Use Case Relationships • Communicates • Connect an actor to a use case • Includes • Use case contains a behavior that is common to more than one use case. • The common use case is included in other use cases. • Dotted arrow points toward common use case. Kendall & Kendall © 2005 Pearson Prentice Hall 30

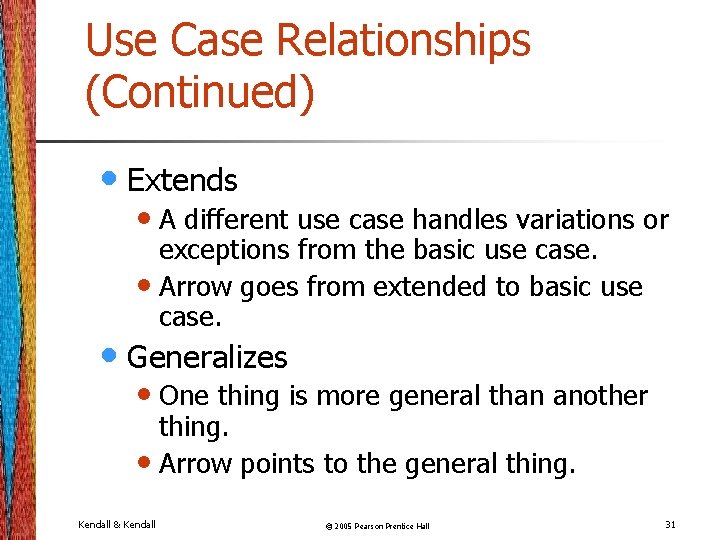

Use Case Relationships (Continued) • Extends • A different use case handles variations or exceptions from the basic use case. • Arrow goes from extended to basic use case. • Generalizes • One thing is more general than another thing. • Arrow points to the general thing. Kendall & Kendall © 2005 Pearson Prentice Hall 31

Use Case Relationships Kendall & Kendall © 2005 Pearson Prentice Hall 32

Steps for Creating a Use Case Model The steps required to create a use case model are: • Review the business specifications and identify the actors within the problem domain. • Identify the high-level events and develop the primary use cases that describe the events and how actors initiate them. Kendall & Kendall © 2005 Pearson Prentice Hall 33

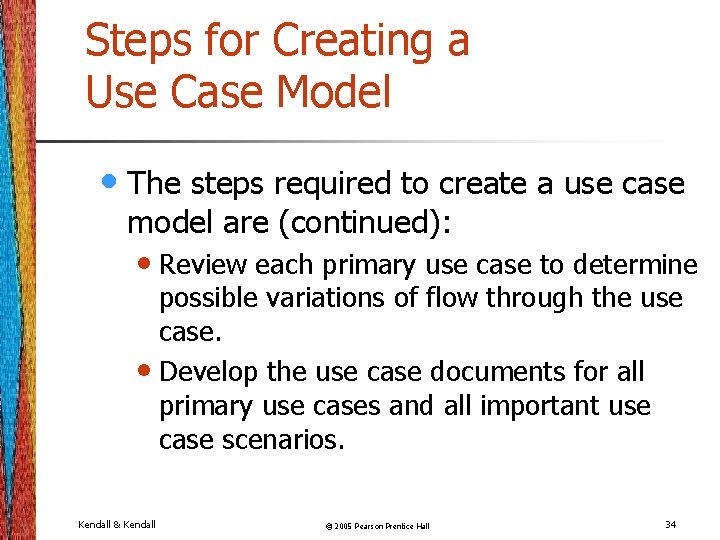

Steps for Creating a Use Case Model • The steps required to create a use case model are (continued): • Review each primary use case to determine possible variations of flow through the use case. • Develop the use case documents for all primary use cases and all important use case scenarios. Kendall & Kendall © 2005 Pearson Prentice Hall 34

Use Case Scenario • A use case scenario may be created for the standard flow through the use case. • Other scenarios may be created for variations on the main flow. • A use case includes: • Use case identifiers and initiators. • Steps performed. • Conditions, assumptions, and questions. Kendall & Kendall © 2005 Pearson Prentice Hall 35

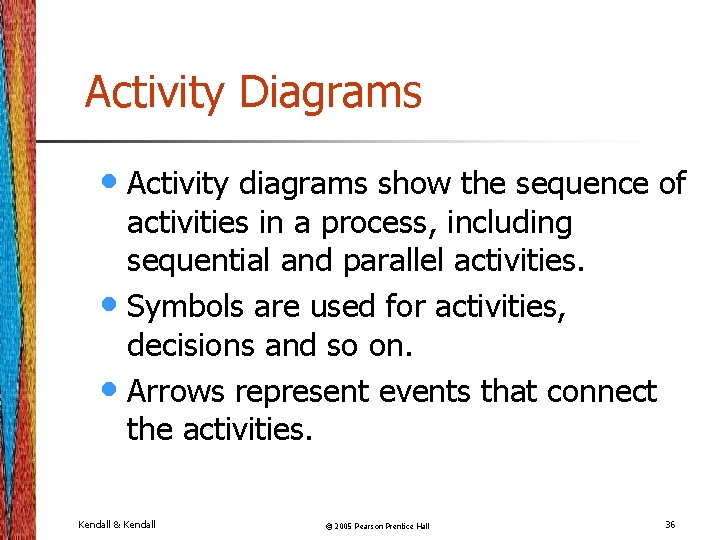

Activity Diagrams • Activity diagrams show the sequence of activities in a process, including sequential and parallel activities. • Symbols are used for activities, decisions and so on. • Arrows represent events that connect the activities. Kendall & Kendall © 2005 Pearson Prentice Hall 36

Activity Diagram Symbols Kendall & Kendall © 2005 Pearson Prentice Hall 37

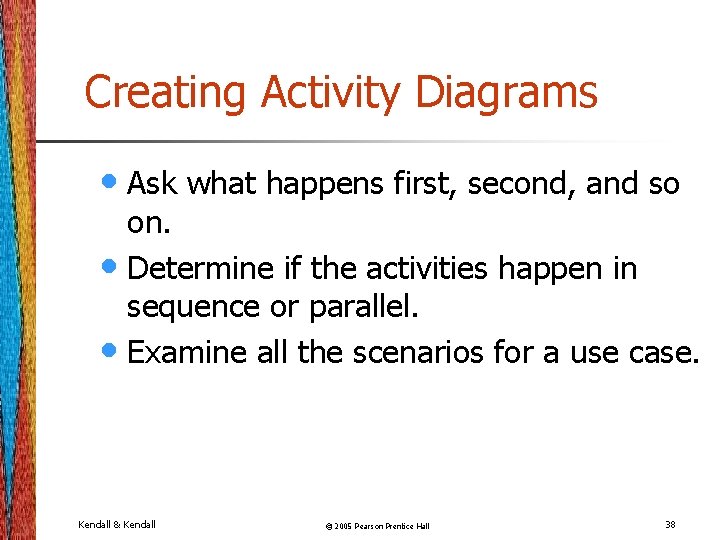

Creating Activity Diagrams • Ask what happens first, second, and so on. • Determine if the activities happen in sequence or parallel. • Examine all the scenarios for a use case. Kendall & Kendall © 2005 Pearson Prentice Hall 38

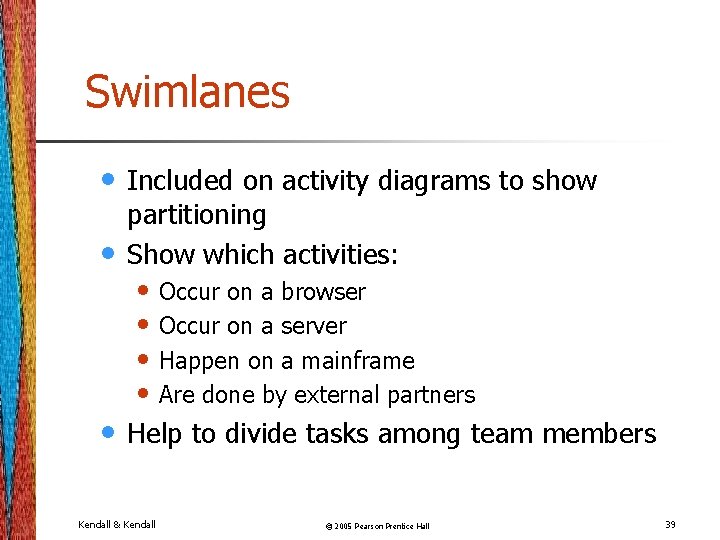

Swimlanes • • Included on activity diagrams to show partitioning Show which activities: • Help to divide tasks among team members • Occur on a browser • Occur on a server • Happen on a mainframe • Are done by external partners Kendall & Kendall © 2005 Pearson Prentice Hall 39

Swimlane Boundaries When an event crosses swimlane boundaries, data must be transmitted. • A Web form is sent to a server. • Data are placed into middleware to transmit it between a server and a mainframe. • Data are transmitted to and from an external partner. Kendall & Kendall © 2005 Pearson Prentice Hall 40

Sequence Diagrams • Sequence diagrams show a succession of interactions between classes or object instances over time. • It also shows the processing described in a single scenario. • The leftmost object is the starting object. • Time sequence is from top to bottom. Kendall & Kendall © 2005 Pearson Prentice Hall 41

Sequence Diagrams (Continued) • Horizontal arrows represent messages or signals sent between classes. • Solid arrowheads represent synchronous calls, the sending class waits for a response. • Half or open arrowheads represent asynchronous calls, those sent without waiting for a returning signal. Kendall & Kendall © 2005 Pearson Prentice Hall 42

Message Name Formats Message names may be in the following formats: message. Name() message. Name(parameter 1, parameter 2, …) message. Name(parameter. Type: parameter. Name)(default. Value) Kendall & Kendall © 2005 Pearson Prentice Hall 43

Sequence Diagram Example Kendall & Kendall © 2005 Pearson Prentice Hall 44

Collaboration Diagrams • Collaboration Diagrams show the same information as a sequence diagram. • The emphasis is on the organization of the objects. • Sequence is shown by including a sequence number on the message. Kendall & Kendall © 2005 Pearson Prentice Hall 45

Collaboration Diagram Example Kendall & Kendall © 2005 Pearson Prentice Hall 46

Class Diagrams • Class diagrams show classes, attributes, and operations or methods. • A

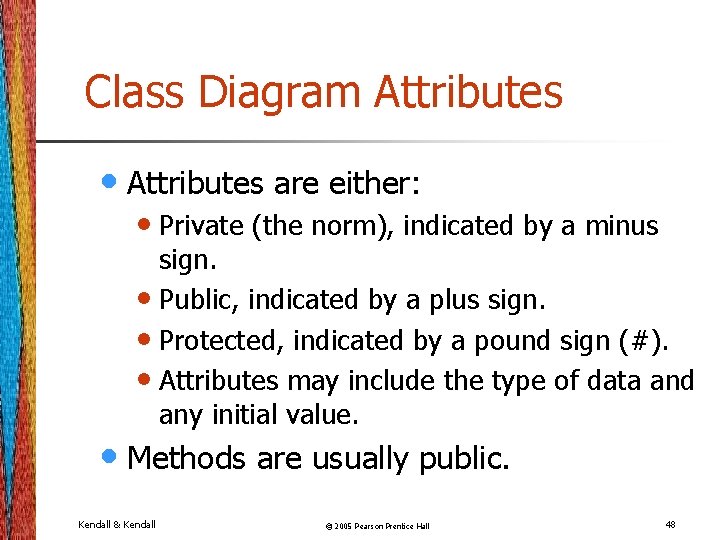

Class Diagram Attributes • Attributes are either: • Private (the norm), indicated by a minus sign. • Public, indicated by a plus sign. • Protected, indicated by a pound sign (#). • Attributes may include the type of data and any initial value. • Methods are usually public. Kendall & Kendall © 2005 Pearson Prentice Hall 48

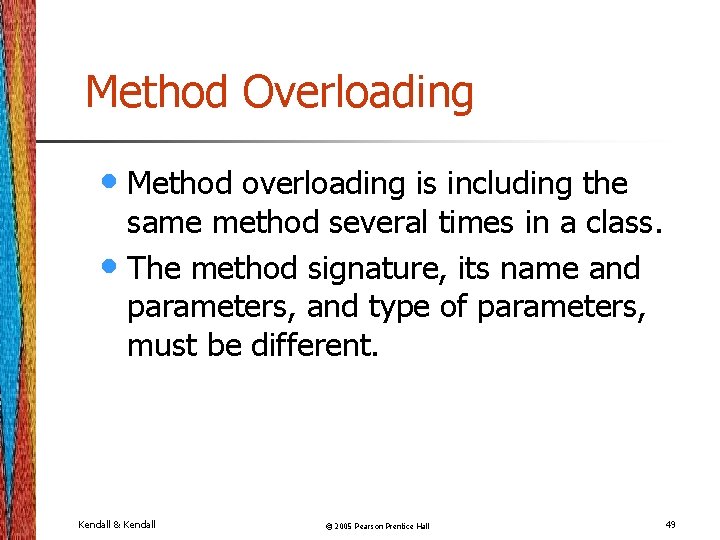

Method Overloading • Method overloading is including the same method several times in a class. • The method signature, its name and parameters, and type of parameters, must be different. Kendall & Kendall © 2005 Pearson Prentice Hall 49

Types of Classes • Classes fall into several categories: • Entity classes. • Boundary or interface classes. • Abstract classes. • Control classes. • Each class may use a special symbol, called a UML stereotype. Kendall & Kendall © 2005 Pearson Prentice Hall 50

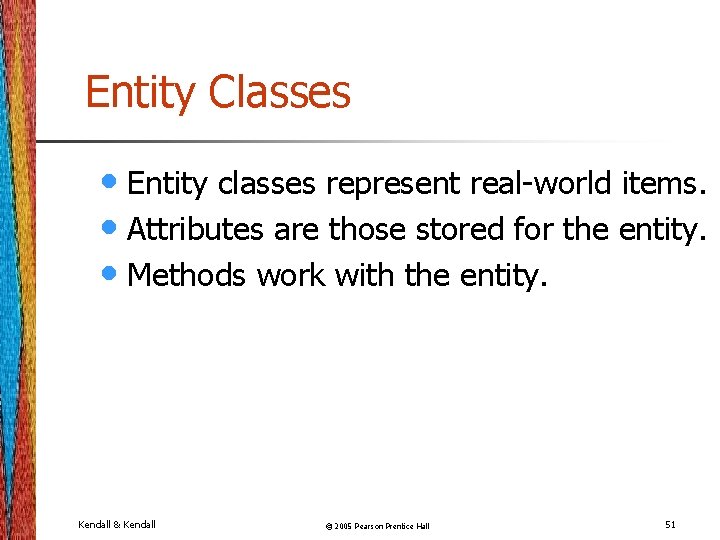

Entity Classes • Entity classes represent real-world items. • Attributes are those stored for

Boundary or Interface Classes • Provide a means for users to work with the system. • Display screens, windows, dialogue boxes, touch-tone telephone, external systems. • Methods required to send or reset the display screen, or to produce a report. Kendall & Kendall © 2005 Pearson Prentice Hall 52

Abstract Classes • Abstract classes are the parent or general class in a generalization/specialization relationship. • Abstract classes may not be directly instantiated. • Only the child classes can create objects. Kendall & Kendall © 2005 Pearson Prentice Hall 53

Control or Active Classes • Control or active classes are used to control the flow of activities. • Many small control classes may be included to achieve reuse. • Attributes are those needed temporarily by the control class. • Methods are those used in control activities. Kendall & Kendall © 2005 Pearson Prentice Hall 54

Sequence Diagram Example Using Class Stereotype Symbols Kendall & Kendall © 2005 Pearson Prentice

Relationships on a Class Diagram • Relationships are the connections between classes and include: • Associations, showing the one-to-many relationships between classes. • An asterisk (*) is used to represent many. • Association classes are used to break up a many-to-many association between classes. Kendall & Kendall © 2005 Pearson Prentice Hall 56

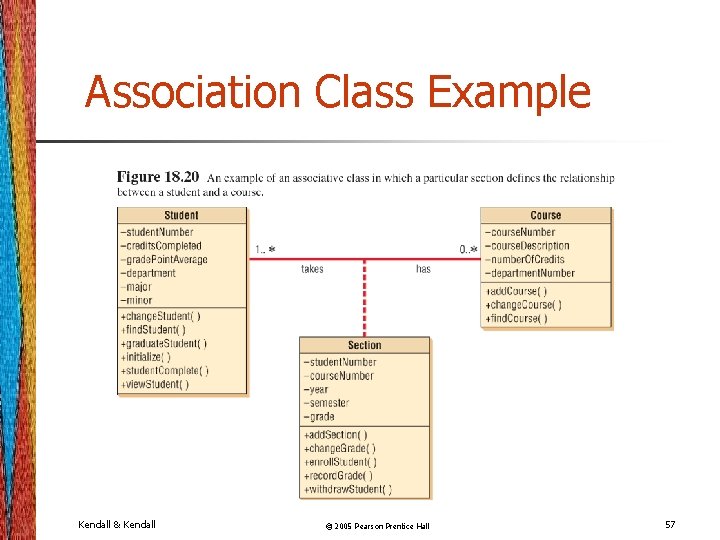

Association Class Example Kendall & Kendall © 2005 Pearson Prentice Hall 57

Whole/Part Relationships • One class represents the whole, other classes represent the parts contained in the whole. • Three types of whole/part relationships: • Aggregation. • Collection. • Composition. Kendall & Kendall © 2005 Pearson Prentice Hall 58

Aggregation • Aggregation is a “has a” relationship. • The whole is composed of the sum of the parts. • If the whole is removed, the part may still exist. • The diamond at the end of the line is not filled in. Kendall & Kendall © 2005 Pearson Prentice Hall 59

Collection • Consists of a whole and its members • Examples are a library with books or a voting district with voters • If the part is removed, the whole retains its identity • A weak association Kendall & Kendall © 2005 Pearson Prentice Hall 60

Composition • The whole has a responsibility for the parts, and is a stronger relationship. • If the whole is removed, the parts are removed • Shown with a filled-in diamond on the line • Example: an insurance policy with riders Kendall & Kendall © 2005 Pearson Prentice Hall 61

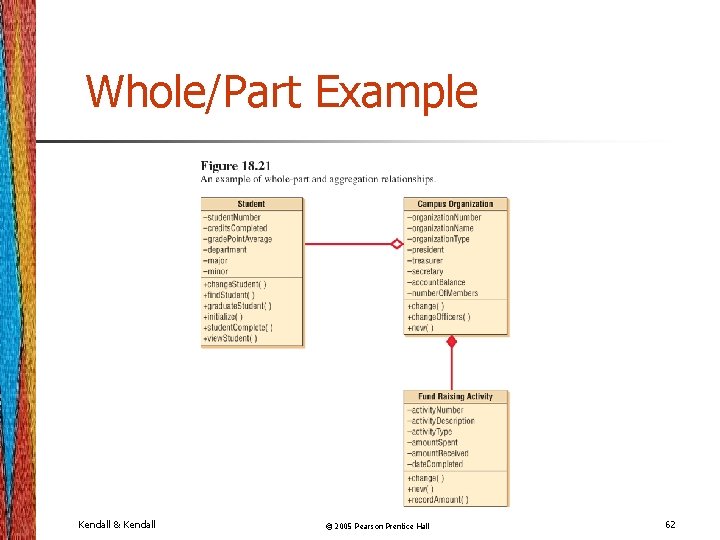

Whole/Part Example Kendall & Kendall © 2005 Pearson Prentice Hall 62

Generalization/Specialization Diagrams • • • Generalization/specialization or gen/spec diagrams show the relationship between a more general thing and a specific kind of thing. This relationship is described as an “is a” relationship. For example: a car is a vehicle, a truck is a vehicle. Generalization relationship is used to model inheritance. General class is a parent, base, or superclass. Specialized class is a child, derived, or subclass. Kendall & Kendall © 2005 Pearson Prentice Hall 63

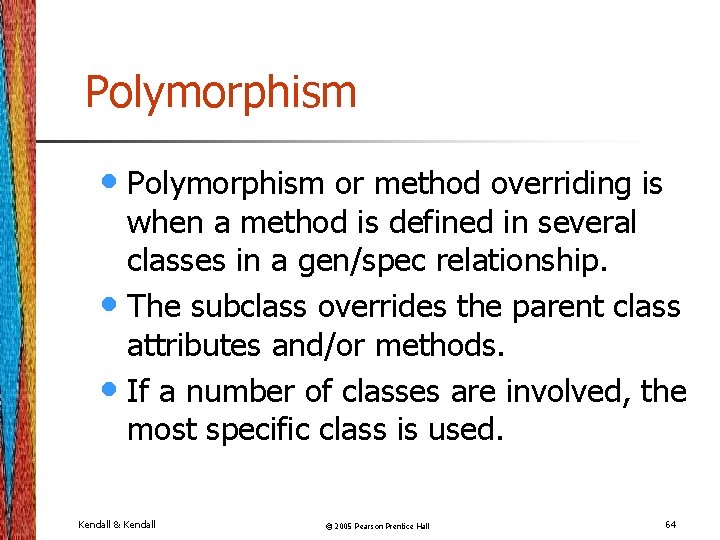

Polymorphism • Polymorphism or method overriding is when a method is defined in several classes in a gen/spec relationship. • The subclass overrides the parent class attributes and/or methods. • If a number of classes are involved, the most specific class is used. Kendall & Kendall © 2005 Pearson Prentice Hall 64

Gen/Spec Example Kendall & Kendall © 2005 Pearson Prentice Hall 65

Finding Classes may be discovered: • During interviews or JAD sessions. • During brainstorming sessions. • By using CRC cards. • By examining use cases, looking for nouns. • Each noun may lead to a candidate or potential class. Kendall & Kendall © 2005 Pearson Prentice Hall 66

Determining Class Methods Class methods may be determined by: • Using a CRUD matrix. • Looking at messages sent between classes. • The receiving class must have the message name as a method. • Using statechart diagrams. Kendall & Kendall © 2005 Pearson Prentice Hall 67

Statechart Diagrams • • Statechart diagrams show class states and the events that cause them to transition between states. It is also called a state transition diagram An event happens at a specific time and place. They cause a change of state, or the transition “fires” Kendall & Kendall © 2005 Pearson Prentice Hall 68

Statechart Diagrams (Continued) • Each time an object changes state, some of its attributes must change. • There must be a method to change the attributes. • Often there is a display screen or Web form to enter the attributes. Kendall & Kendall © 2005 Pearson Prentice Hall 69

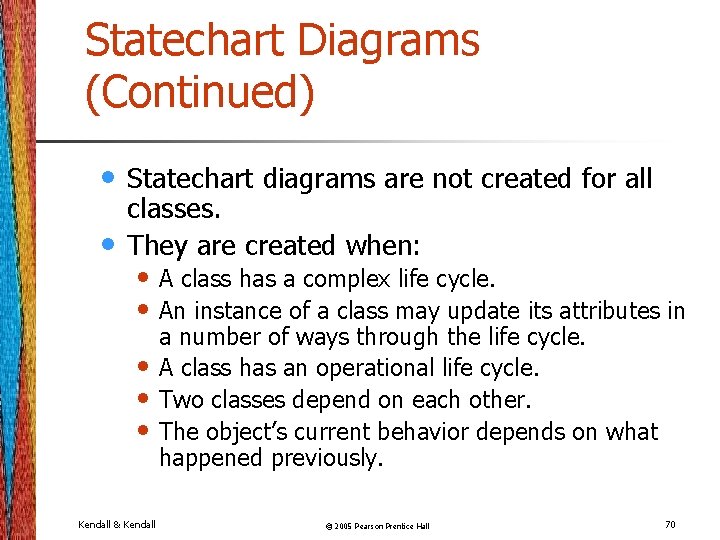

Statechart Diagrams (Continued) • • Statechart diagrams are not created for all classes. They are created when: • A class has a complex life cycle. • An instance of a class may update its attributes in • • • Kendall & Kendall a number of ways through the life cycle. A class has an operational life cycle. Two classes depend on each other. The object’s current behavior depends on what happened previously. © 2005 Pearson Prentice Hall 70

Statechart Example Kendall & Kendall © 2005 Pearson Prentice Hall 71

Packages • Containers for other UML things • Show system partitioning • Indicate which use cases or classes are grouped into a subsystem • Can show component packages • Can be physical subsystems • Use a folder symbol Kendall & Kendall © 2005 Pearson Prentice Hall 72

Package Example Kendall & Kendall © 2005 Pearson Prentice Hall 73

Steps Used in UML The steps used in UML are: • Define the use case model. • Continue UML diagramming to model the system. • • Kendall & Kendall during the systems analysis phase. Develop the class diagrams. Draw statechart diagrams. Begin systems design by refining the UML diagrams. Document your system design in detail. © 2005 Pearson Prentice Hall 74
