Chapter 18 Bose-Einstein Gases

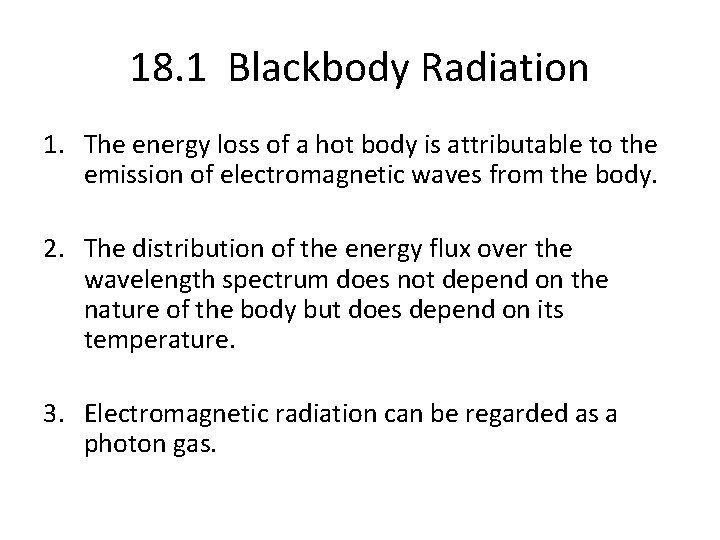

18. 1 Blackbody Radiation 1. The energy loss of a hot body is attributable to the emission of electromagnetic waves from the body. 2. The distribution of the energy flux over the wavelength spectrum does not depend on the nature of the body but does depend on its temperature. 3. Electromagnetic radiation can be regarded as a photon gas.

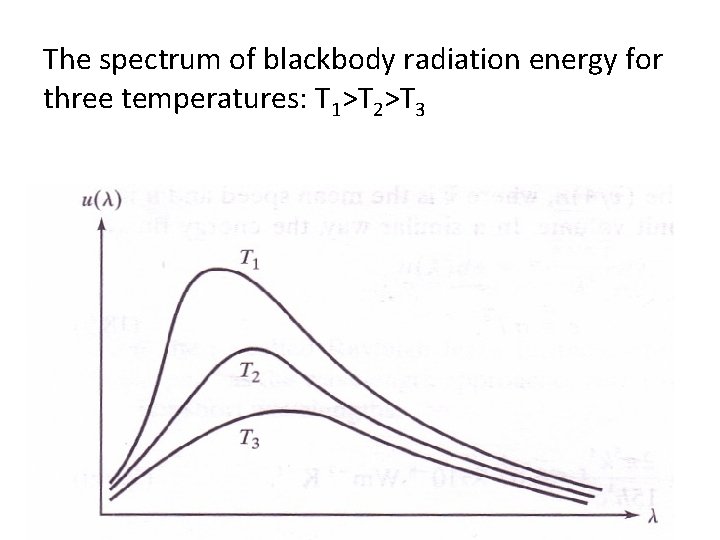

The spectrum of blackbody radiation energy for three temperatures: T 1>T 2>T 3

4. Photons emitted by one energy level can be absorbed at another, so the total number of photons is not constant, i. e. ΣNJ = N does not apply. 5. The Lagrange multiplier α that was determined by ΣNJ = N becomes 0 (i. e. the chemical potential µ becomes 0!), so that e- a= e-0 = 1 6. Photons are bosons of spin 1 and thus obey Bose. Einstein Statistics

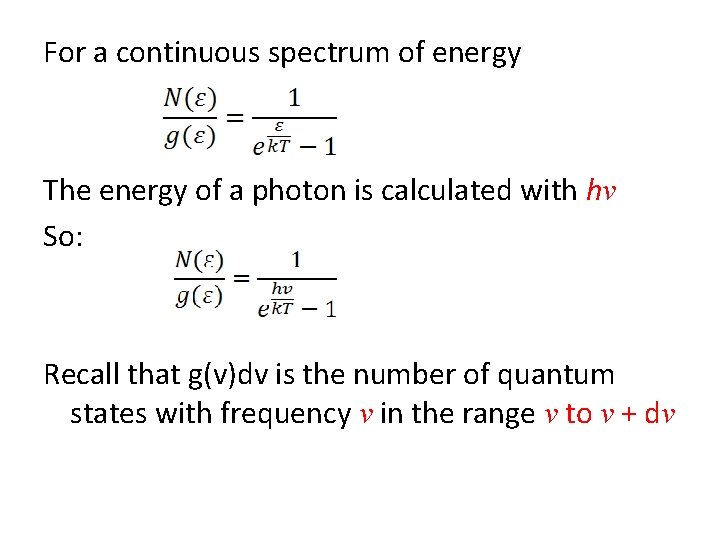

For a continuous spectrum of energy The energy of a photon is calculated with hv So: Recall that g(v)dv is the number of quantum states with frequency v in the range v to v + dv

For phonon gas (chapter 16) g(v) In a photon gas, there are two states of polarization corresponding to the two independent directions of polarization of an electromagnetic wave. As a result Where c is the speed of electromagnetic wave (i. e. light)

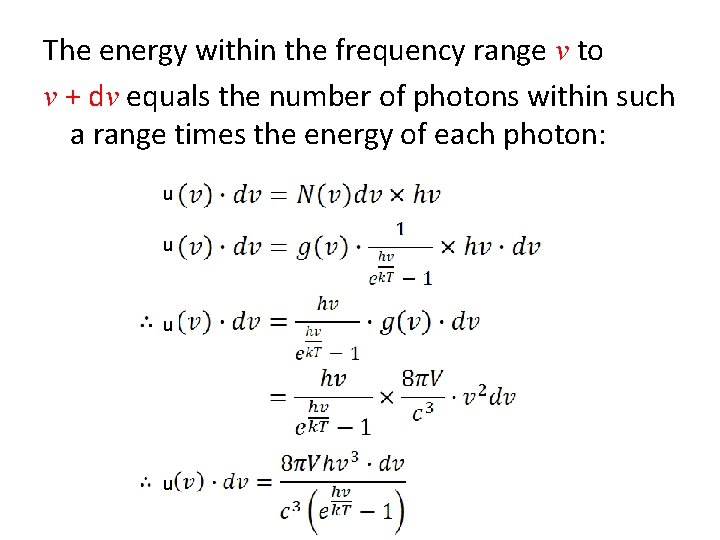

The energy within the frequency range v to v + dv equals the number of photons within such a range times the energy of each photon: u u

• The above is the Planck radiation formula, which gives the energy per unit frequency. • When expressed in terms of the wavelength: Since

u Here U(λ) is the energy per unit wavelength The Stephan-Boltzmann Law states that the total radiation energy is proportional to T 4

The total energy can be calculated Setting one has The integral has a value of with

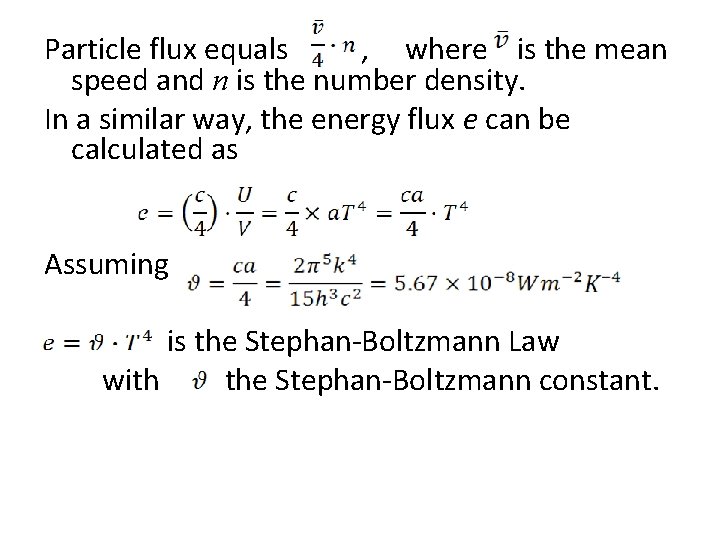

Particle flux equals , where is the mean speed and n is the number density. In a similar way, the energy flux e can be calculated as Assuming is the Stephan-Boltzmann Law with the Stephan-Boltzmann constant.

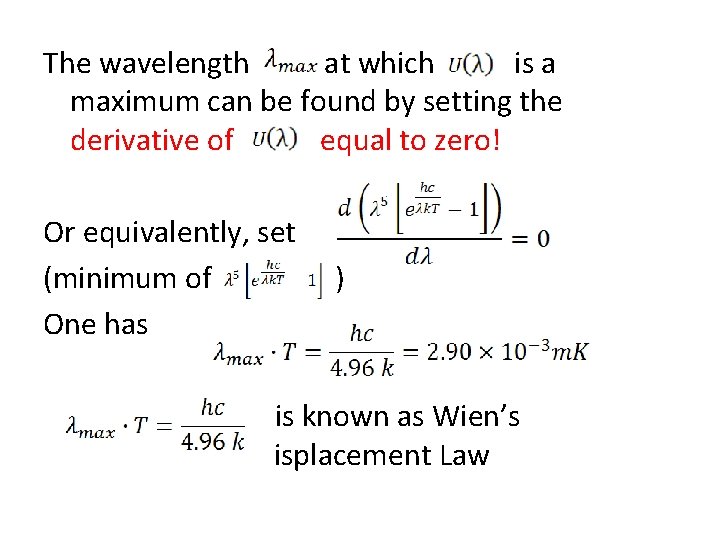

The wavelength at which is a maximum can be found by setting the derivative of equal to zero! Or equivalently, set (minimum of One has ) is known as Wien’s isplacement Law

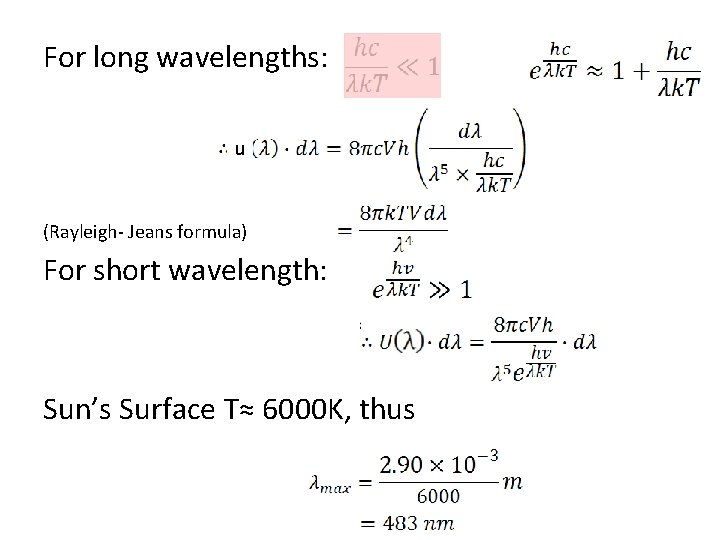

For long wavelengths: u (Rayleigh- Jeans formula) For short wavelength: Sun’s Surface T≈ 6000 K, thus

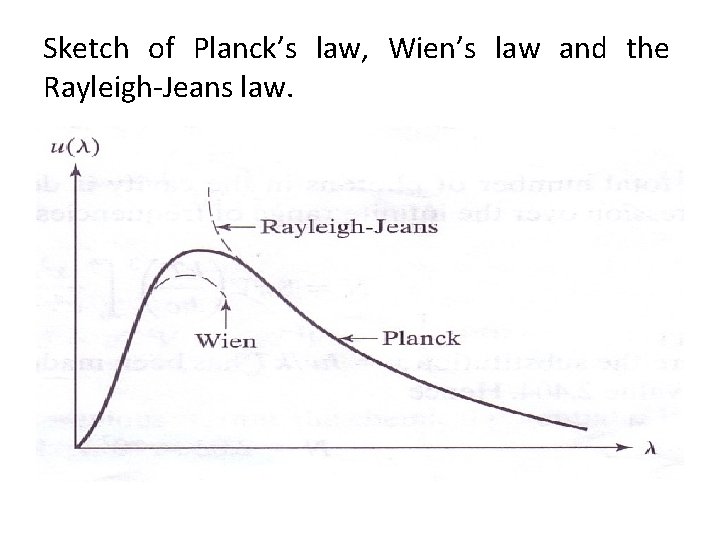

Sketch of Planck’s law, Wien’s law and the Rayleigh-Jeans law.

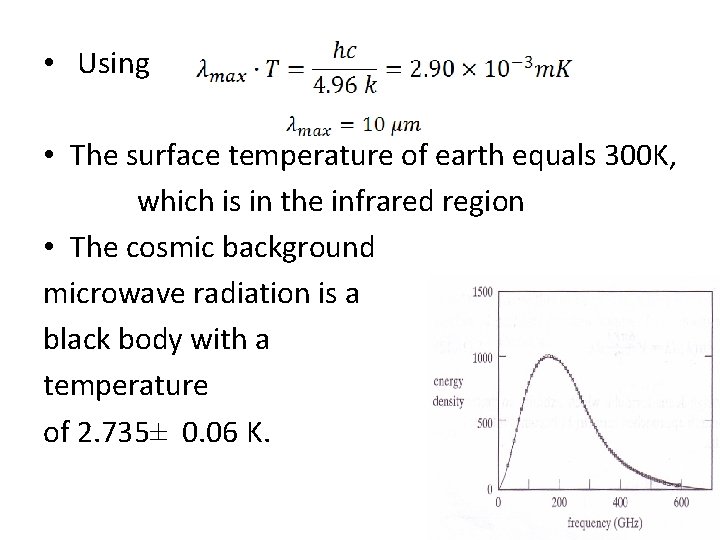

• Using • The surface temperature of earth equals 300 K, which is in the infrared region • The cosmic background microwave radiation is a black body with a temperature of 2. 735± 0. 06 K.

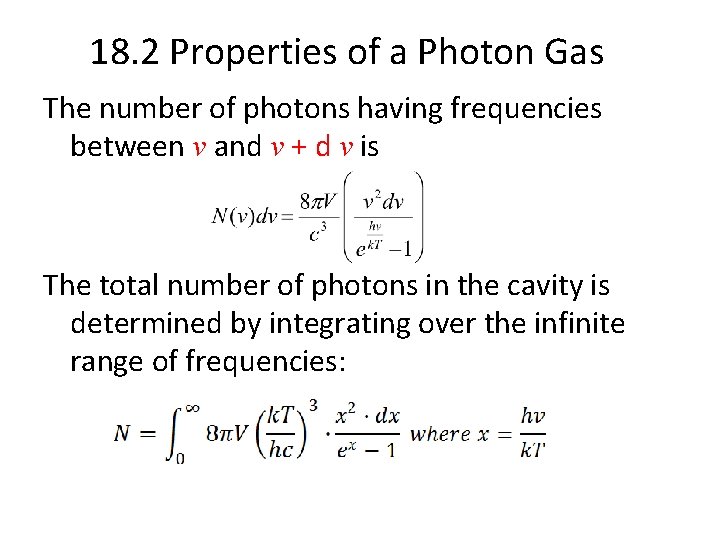

18. 2 Properties of a Photon Gas The number of photons having frequencies between v and v + d v is The total number of photons in the cavity is determined by integrating over the infinite range of frequencies:

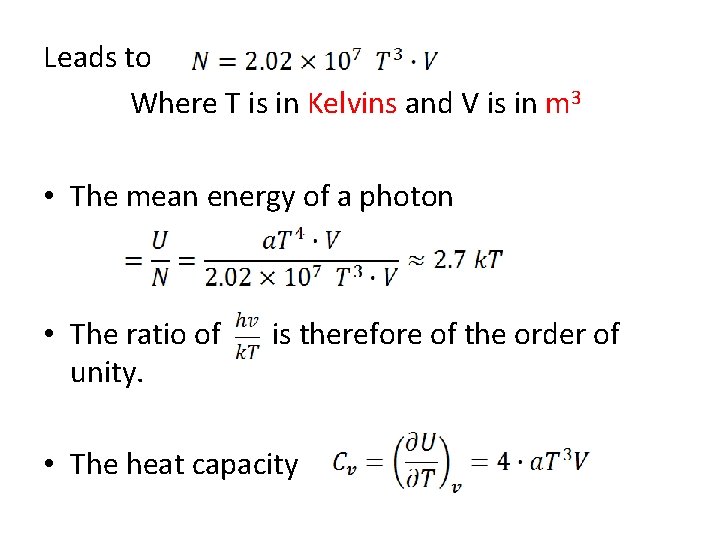

Leads to Where T is in Kelvins and V is in m 3 • The mean energy of a photon • The ratio of unity. is therefore of the order of • The heat capacity

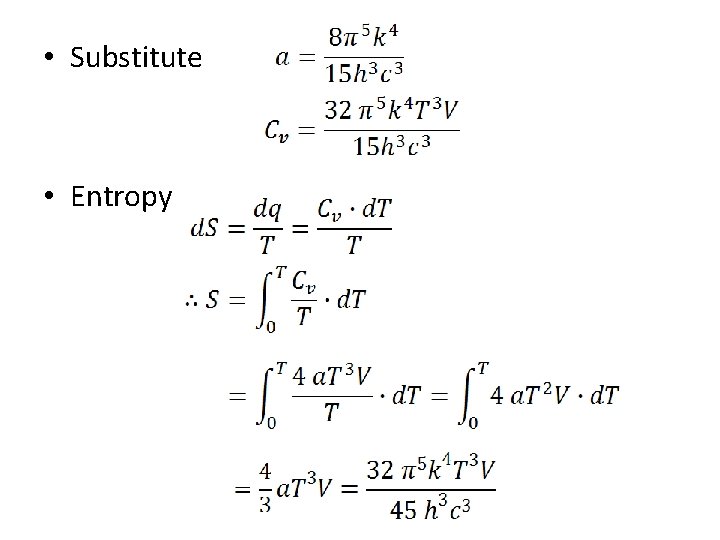

• Substitute • Entropy

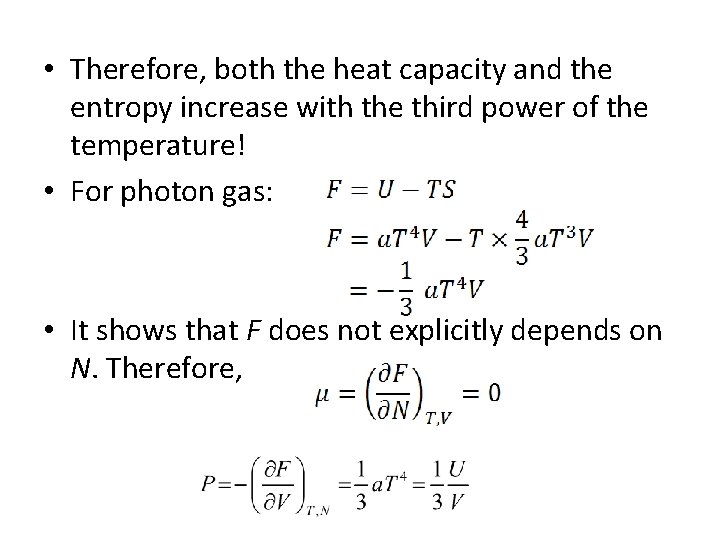

• Therefore, both the heat capacity and the entropy increase with the third power of the temperature! • For photon gas: • It shows that F does not explicitly depends on N. Therefore,

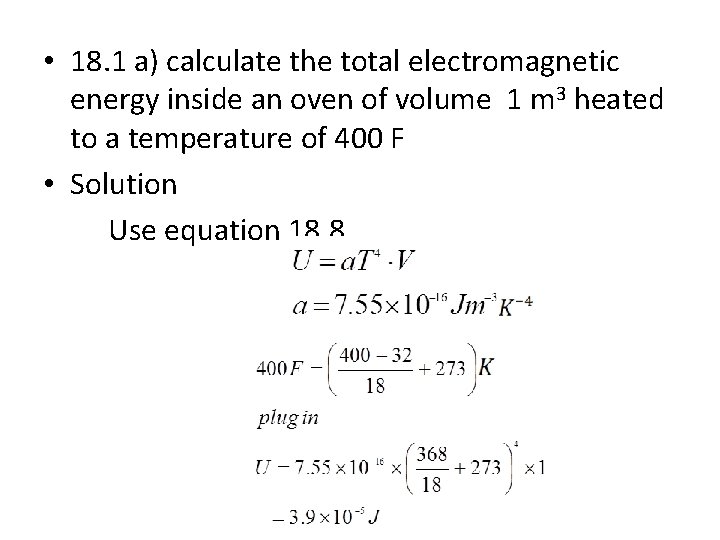

• 18. 1 a) calculate the total electromagnetic energy inside an oven of volume 1 m 3 heated to a temperature of 400 F • Solution Use equation 18. 8

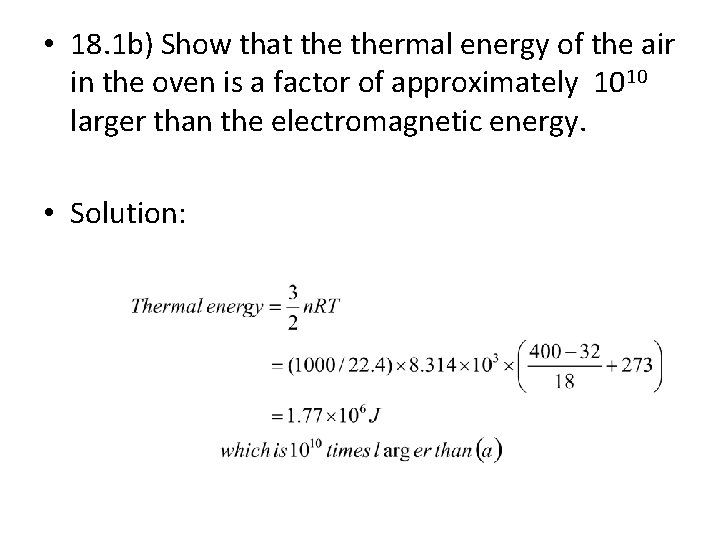

• 18. 1 b) Show that thermal energy of the air in the oven is a factor of approximately 1010 larger than the electromagnetic energy. • Solution:

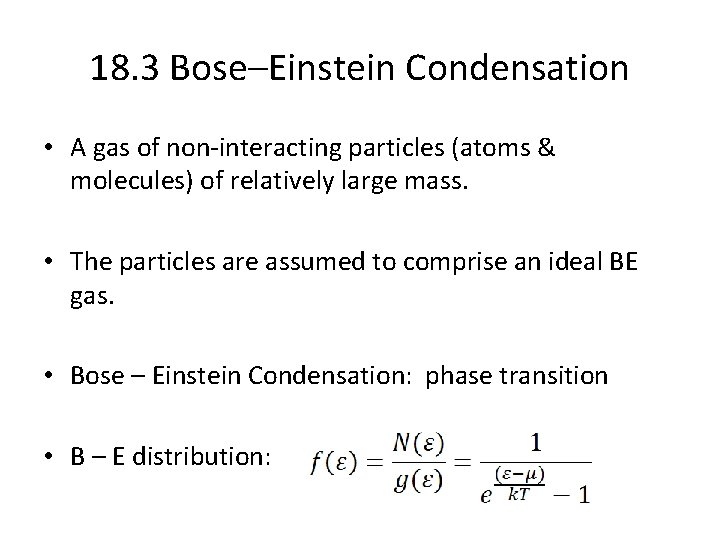

18. 3 Bose–Einstein Condensation • A gas of non-interacting particles (atoms & molecules) of relatively large mass. • The particles are assumed to comprise an ideal BE gas. • Bose – Einstein Condensation: phase transition • B – E distribution:

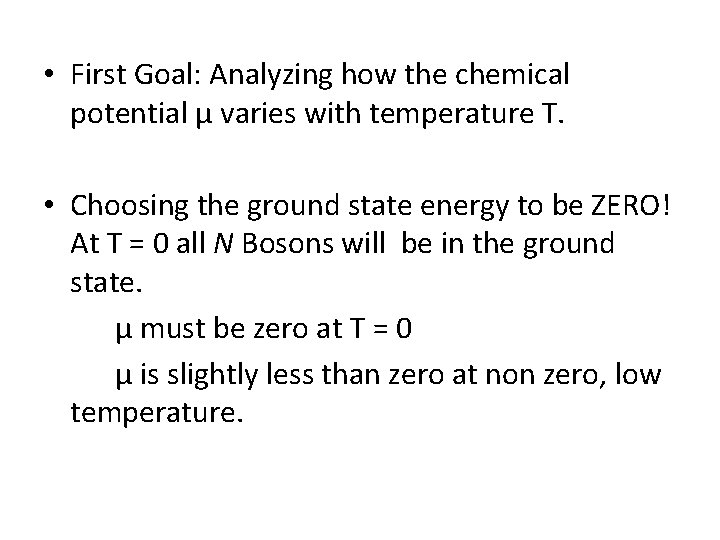

• First Goal: Analyzing how the chemical potential μ varies with temperature T. • Choosing the ground state energy to be ZERO! At T = 0 all N Bosons will be in the ground state. μ must be zero at T = 0 μ is slightly less than zero at non zero, low temperature.

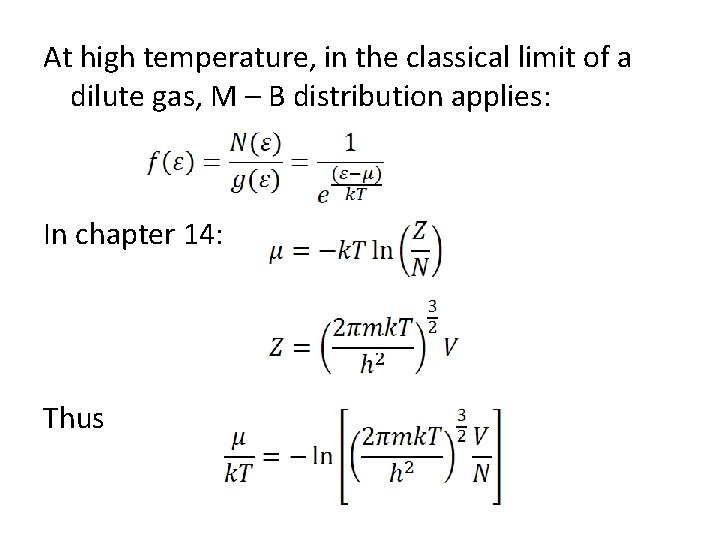

At high temperature, in the classical limit of a dilute gas, M – B distribution applies: In chapter 14: Thus

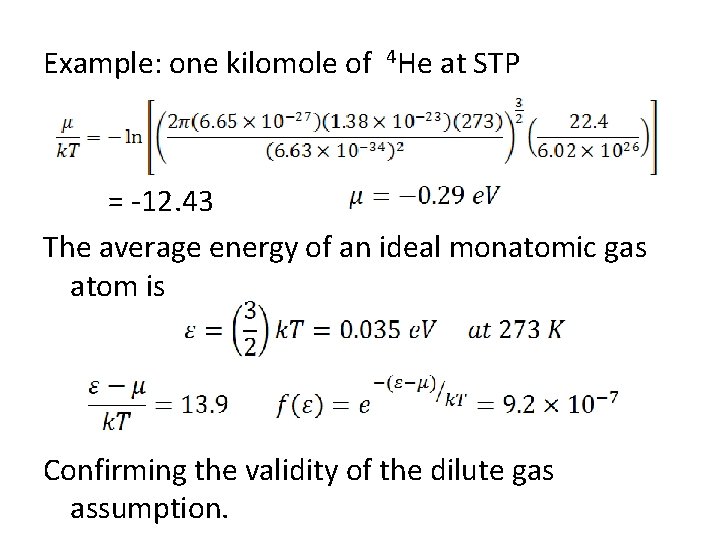

Example: one kilomole of 4 He at STP = -12. 43 The average energy of an ideal monatomic gas atom is Confirming the validity of the dilute gas assumption.

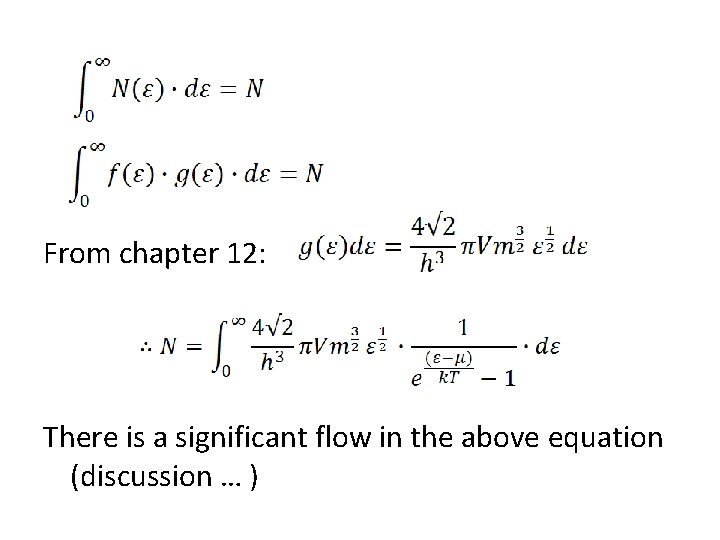

From chapter 12: There is a significant flow in the above equation (discussion … )
