Chapter 17 Designing Databases Systems Analysis and Design

Chapter 17 Designing Databases Systems Analysis and Design Kendall and Kendall Fifth Edition © Copyright Prentice Hall, 2002

Major Topics n n n n Files Databases Normalization Key design Using the database

Data Storage Design Objectives n n n Data must be available when the user wants it Data must have integrity -- accurate & consistent Efficient data storage, maintenance and retrieval Information retrieval be purposeful Information obtained must be useful for n n Managing Planning Controlling Decision making Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 3

Data Storage Approaches n Store data in individual files; each unique to a particular application. n n Can be designed and built quite rapidly. Concerns for data availability and security are minimized Choose an appropriate file structure according to the system requirements Store data in a database. n A formally defined and centrally controlled store of data intended for use in many different applications Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 4

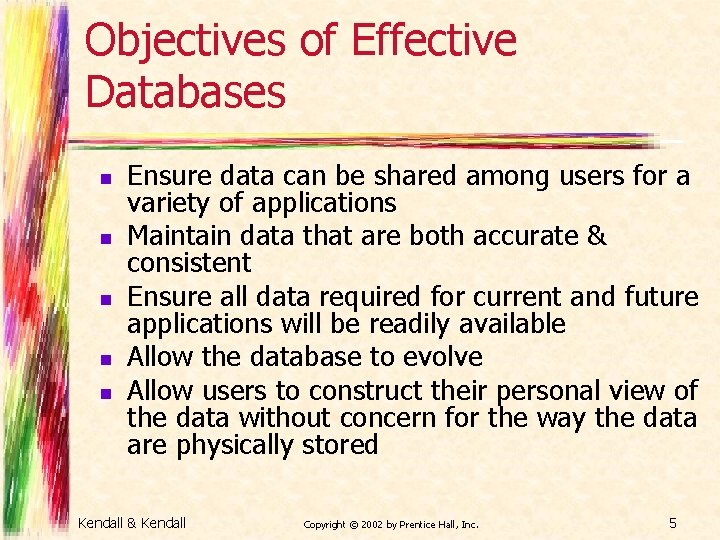

Objectives of Effective Databases n n n Ensure data can be shared among users for a variety of applications Maintain data that are both accurate & consistent Ensure all data required for current and future applications will be readily available Allow the database to evolve Allow users to construct their personal view of the data without concern for the way the data are physically stored Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 5

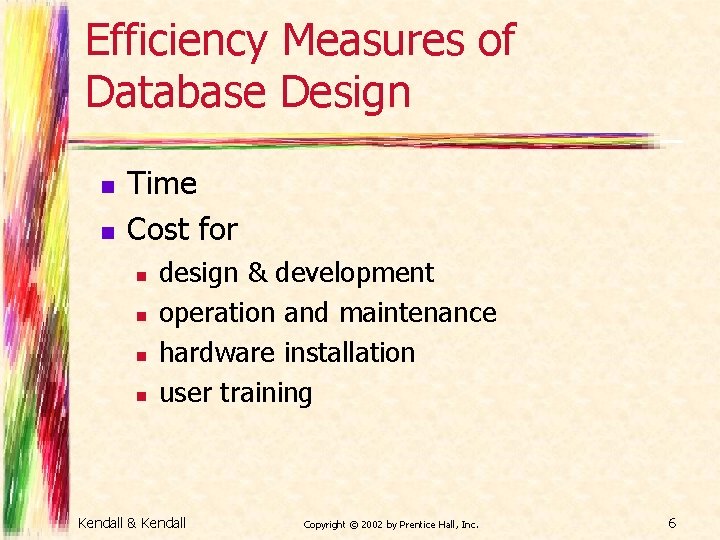

Efficiency Measures of Database Design n n Time Cost for n n design & development operation and maintenance hardware installation user training Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 6

Entities n n A distinct collection of data for one person, place, thing, or

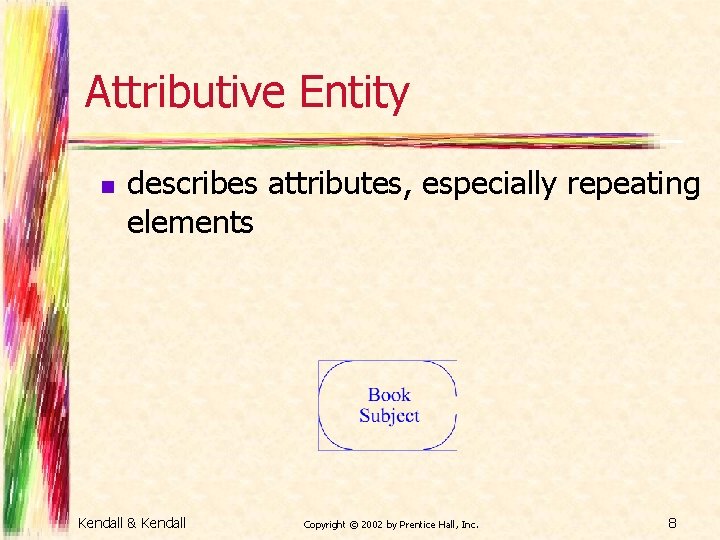

Attributive Entity n describes attributes, especially repeating elements Kendall & Kendall Copyright © 2002

Associative Entity n n The relationship line between a many-to -many relationship becomes an associative entity. Sometimes called a composite entity or gerund Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 9

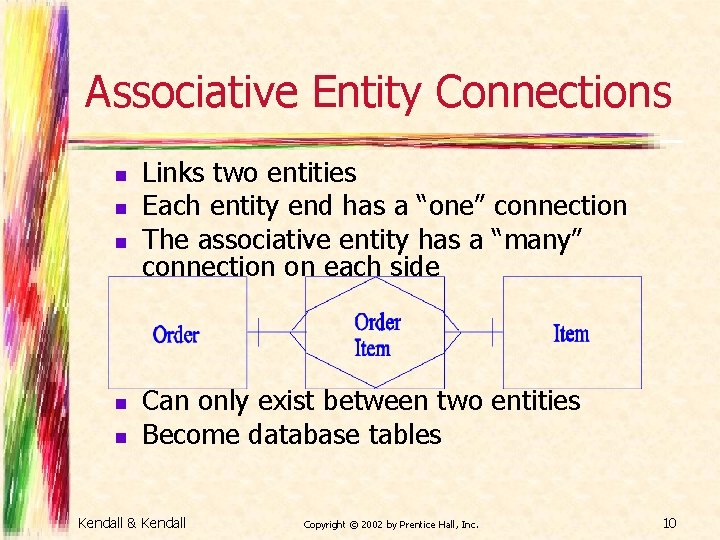

Associative Entity Connections n n n Links two entities Each entity end has a “one” connection The associative entity has a “many” connection on each side Can only exist between two entities Become database tables Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 10

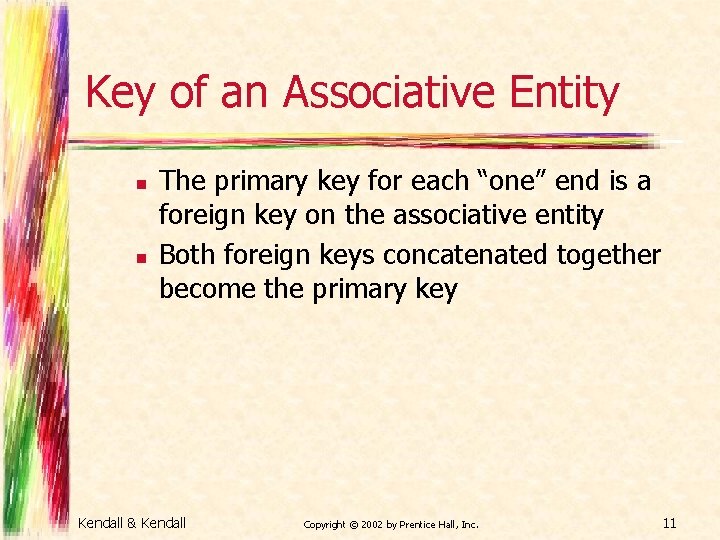

Key of an Associative Entity n n The primary key for each “one” end is a foreign key on the associative entity Both foreign keys concatenated together become the primary key Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 11

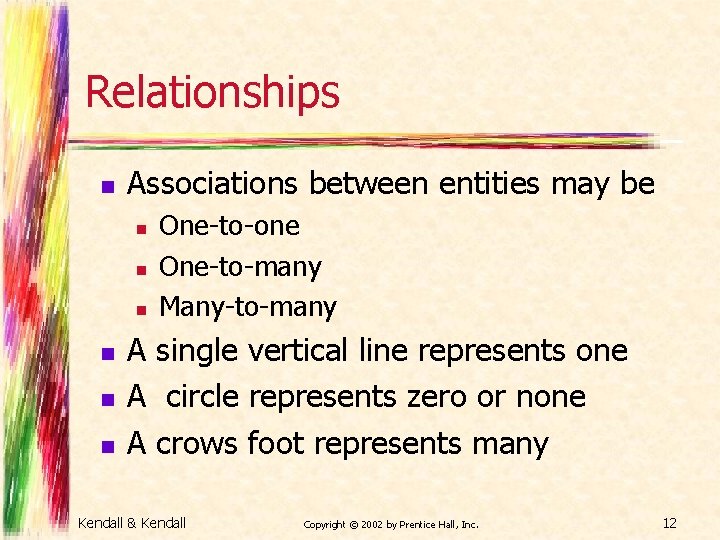

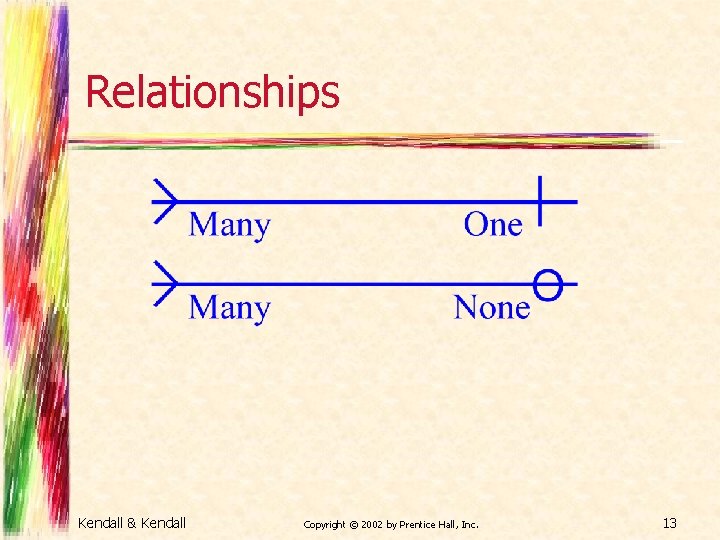

Relationships n Associations between entities may be n n n One-to-one One-to-many Many-to-many A single vertical line represents one A circle represents zero or none A crows foot represents many Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 12

Relationships Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 13

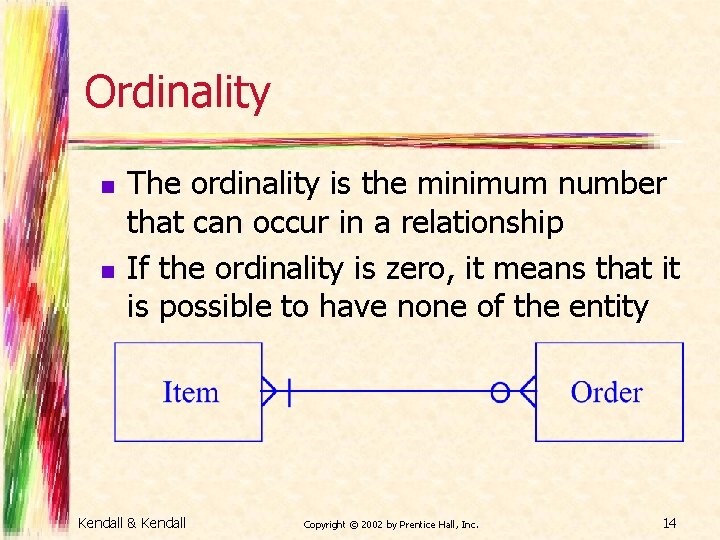

Ordinality n n The ordinality is the minimum number that can occur in a relationship If the ordinality is zero, it means that it is possible to have none of the entity Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 14

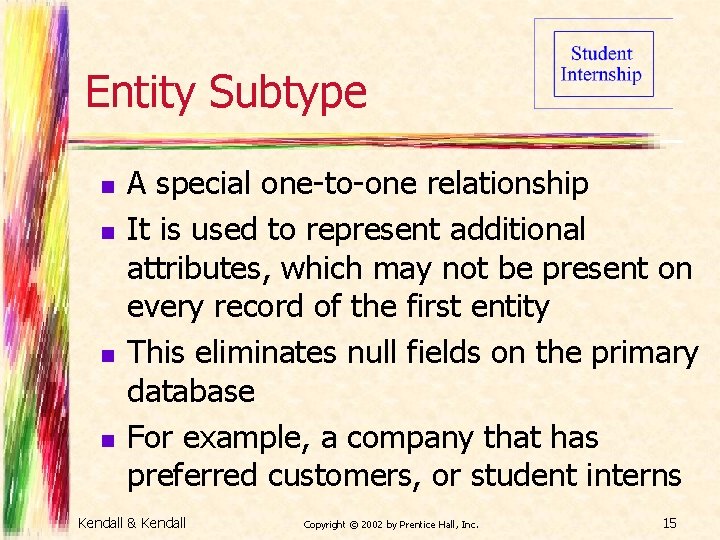

Entity Subtype n n A special one-to-one relationship It is used to represent additional attributes, which may not be present on every record of the first entity This eliminates null fields on the primary database For example, a company that has preferred customers, or student interns Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 15

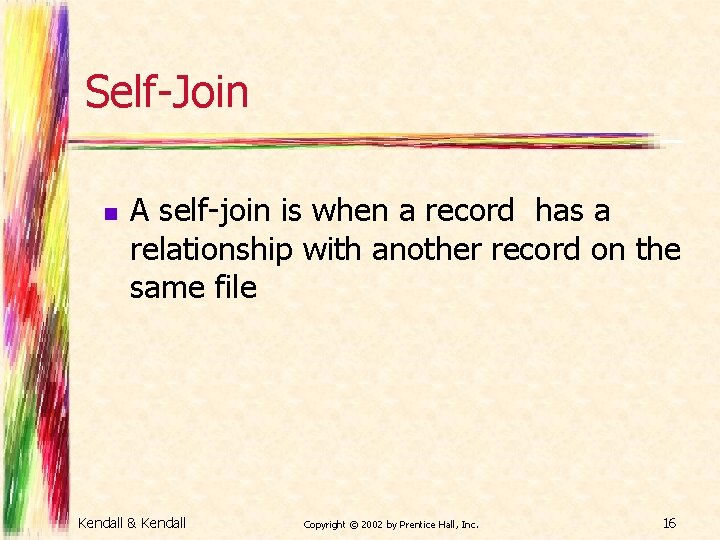

Self-Join n A self-join is when a record has a relationship with another record

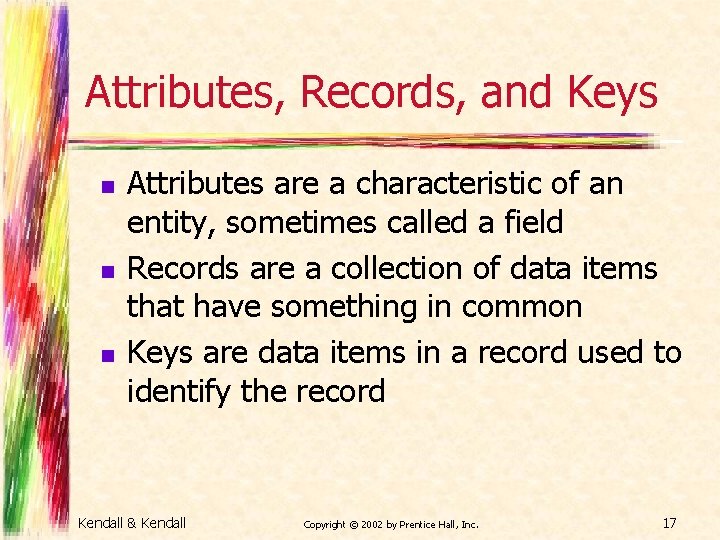

Attributes, Records, and Keys n n n Attributes are a characteristic of an entity, sometimes called a field Records are a collection of data items that have something in common Keys are data items in a record used to identify the record Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 17

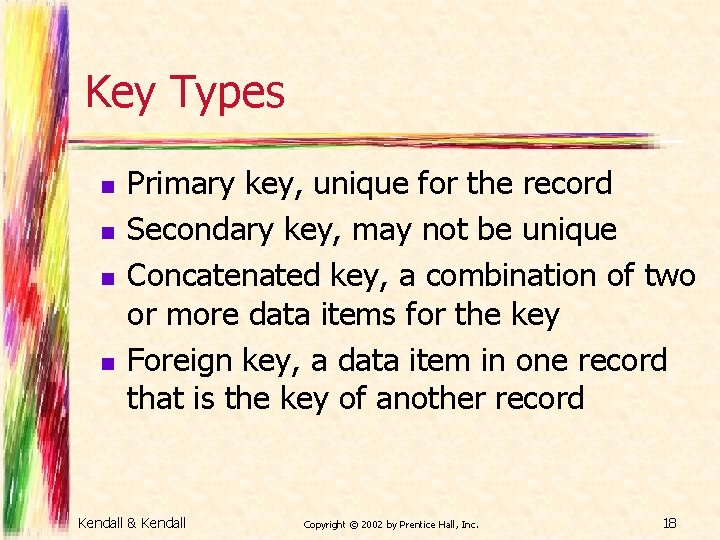

Key Types n n Primary key, unique for the record Secondary key, may not be unique Concatenated key, a combination of two or more data items for the key Foreign key, a data item in one record that is the key of another record Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 18

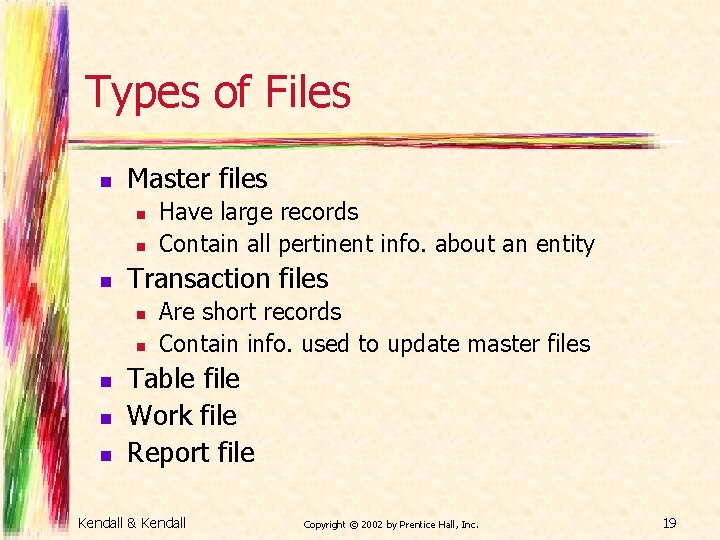

Types of Files n Master files n n n Transaction files n n n Have large records Contain all pertinent info. about an entity Are short records Contain info. used to update master files Table file Work file Report file Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 19

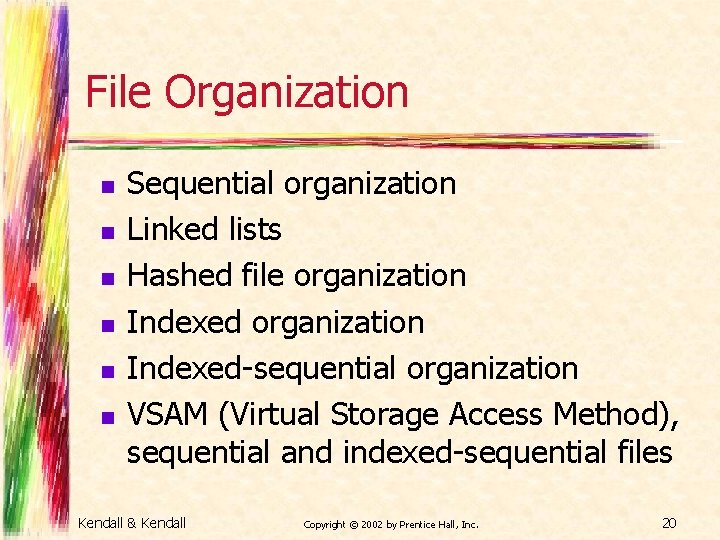

File Organization n n n Sequential organization Linked lists Hashed file organization Indexed-sequential organization VSAM (Virtual Storage Access Method), sequential and indexed-sequential files Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 20

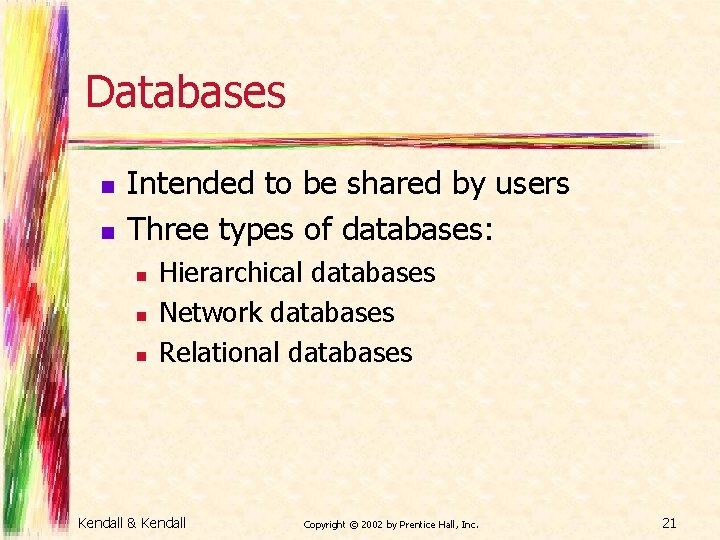

Databases n n Intended to be shared by users Three types of databases: n

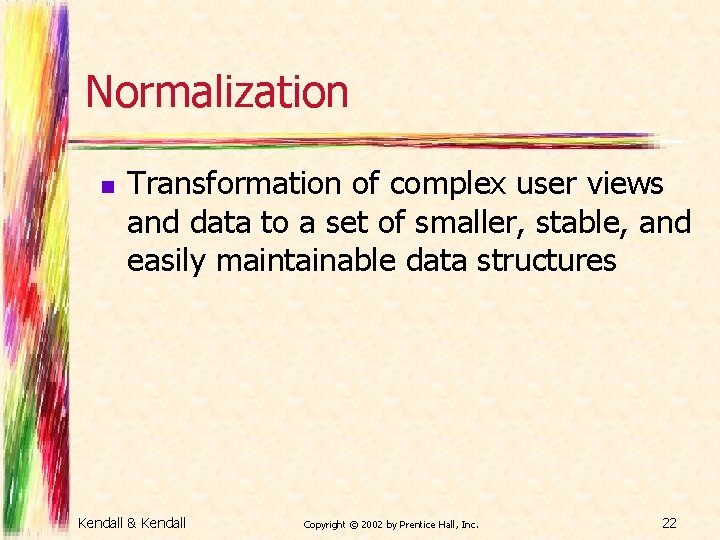

Normalization n Transformation of complex user views and data to a set of smaller,

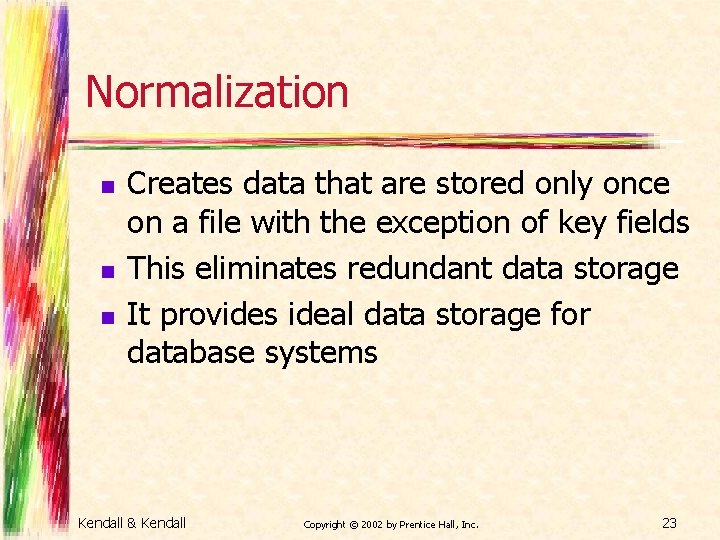

Normalization n Creates data that are stored only once on a file with the exception of key fields This eliminates redundant data storage It provides ideal data storage for database systems Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 23

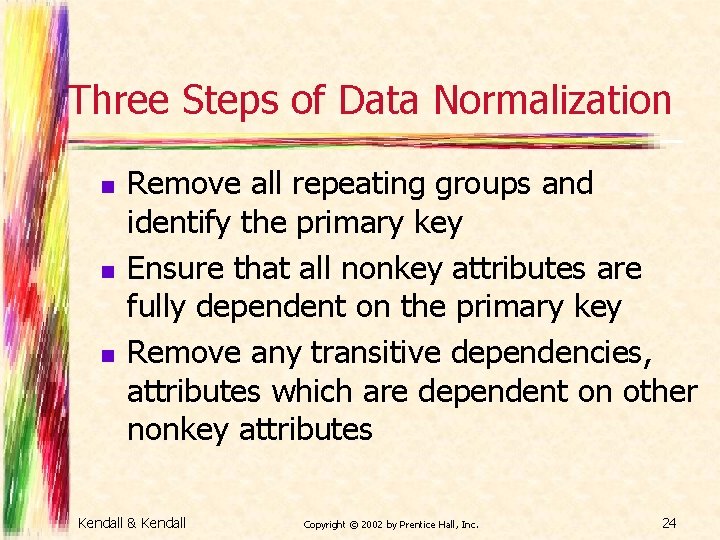

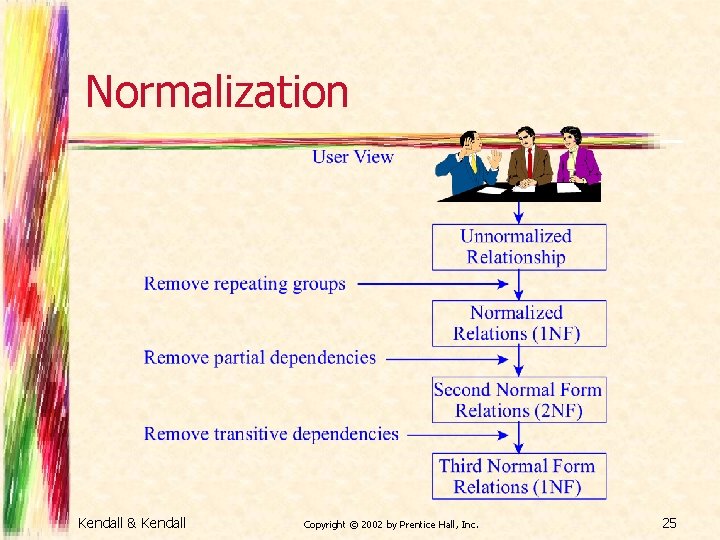

Three Steps of Data Normalization n Remove all repeating groups and identify the primary key Ensure that all nonkey attributes are fully dependent on the primary key Remove any transitive dependencies, attributes which are dependent on other nonkey attributes Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 24

Normalization Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 25

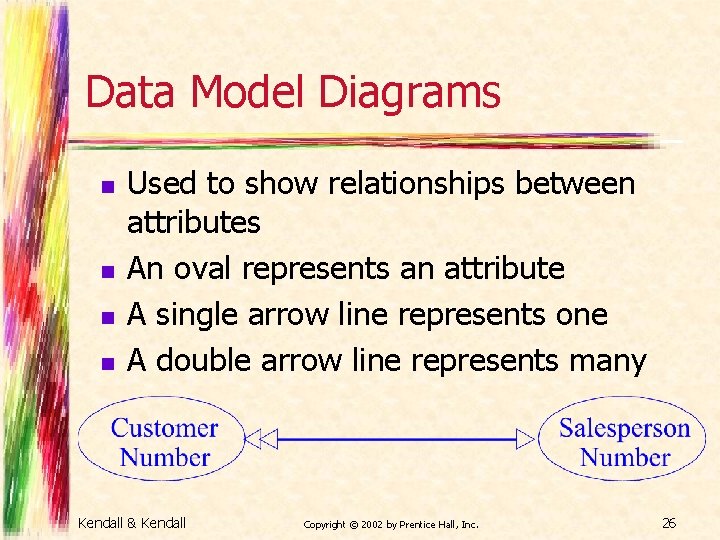

Data Model Diagrams n n Used to show relationships between attributes An oval represents an attribute A single arrow line represents one A double arrow line represents many Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 26

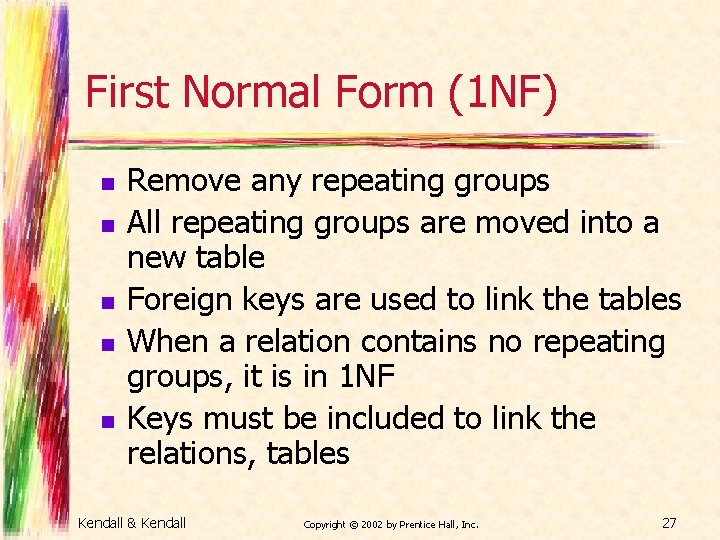

First Normal Form (1 NF) n n n Remove any repeating groups All repeating groups are moved into a new table Foreign keys are used to link the tables When a relation contains no repeating groups, it is in 1 NF Keys must be included to link the relations, tables Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 27

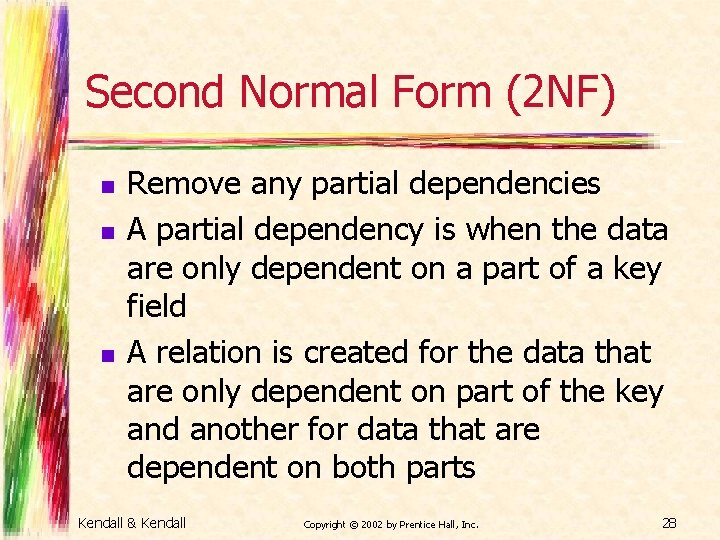

Second Normal Form (2 NF) n n n Remove any partial dependencies A partial dependency is when the data are only dependent on a part of a key field A relation is created for the data that are only dependent on part of the key and another for data that are dependent on both parts Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 28

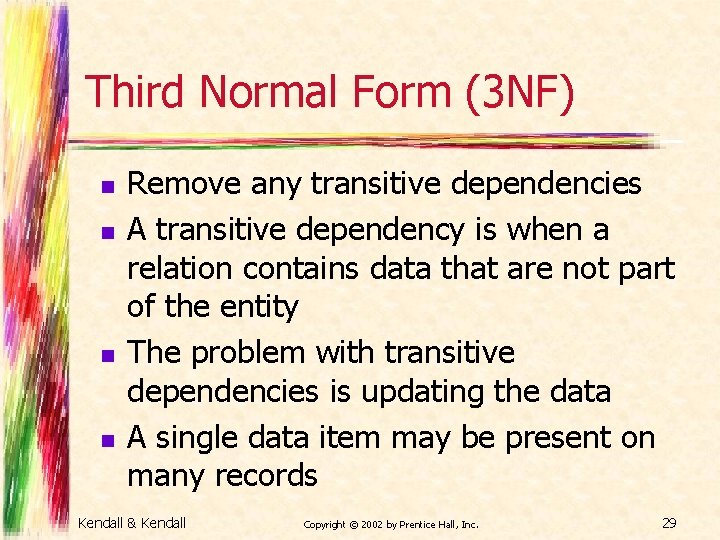

Third Normal Form (3 NF) n n Remove any transitive dependencies A transitive dependency is when a relation contains data that are not part of the entity The problem with transitive dependencies is updating the data A single data item may be present on many records Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 29

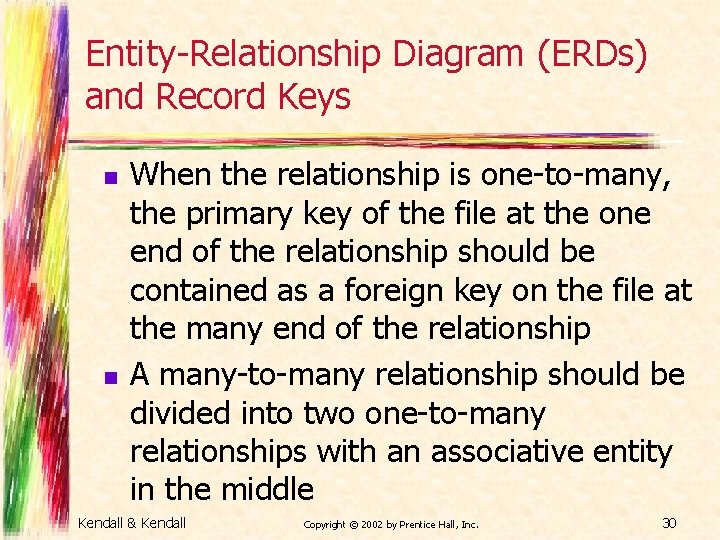

Entity-Relationship Diagram (ERDs) and Record Keys n n When the relationship is one-to-many, the primary key of the file at the one end of the relationship should be contained as a foreign key on the file at the many end of the relationship A many-to-many relationship should be divided into two one-to-many relationships with an associative entity in the middle Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 30

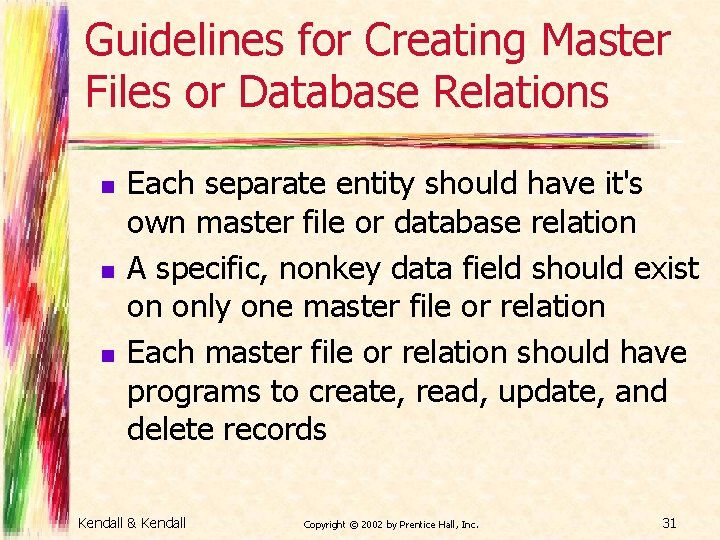

Guidelines for Creating Master Files or Database Relations n n n Each separate entity should have it's own master file or database relation A specific, nonkey data field should exist on only one master file or relation Each master file or relation should have programs to create, read, update, and delete records Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 31

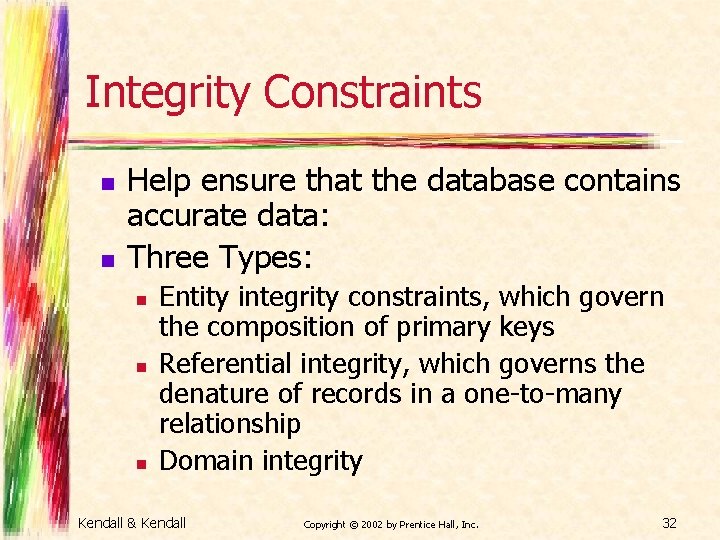

Integrity Constraints n n Help ensure that the database contains accurate data: Three Types: n n n Entity integrity constraints, which govern the composition of primary keys Referential integrity, which governs the denature of records in a one-to-many relationship Domain integrity Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 32

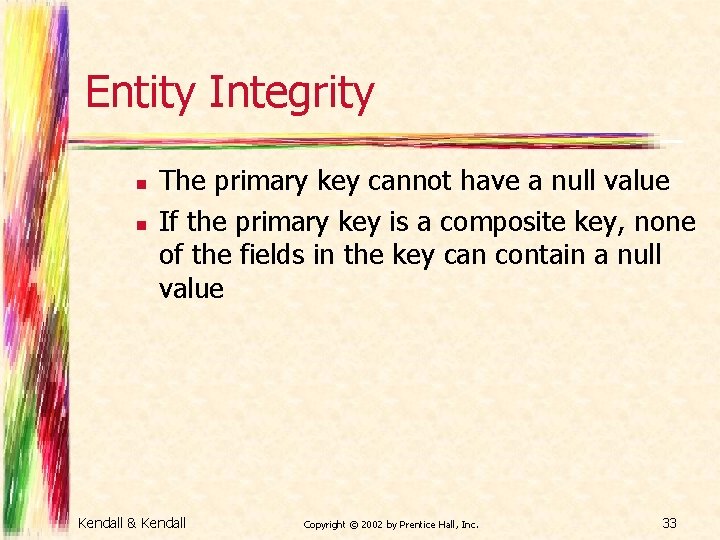

Entity Integrity n n The primary key cannot have a null value If the primary key is a composite key, none of the fields in the key can contain a null value Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 33

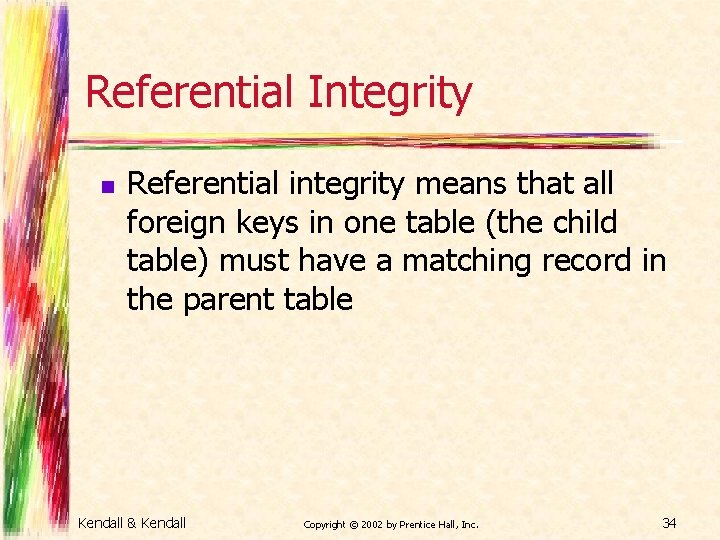

Referential Integrity n Referential integrity means that all foreign keys in one table (the child table) must have a matching record in the parent table Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 34

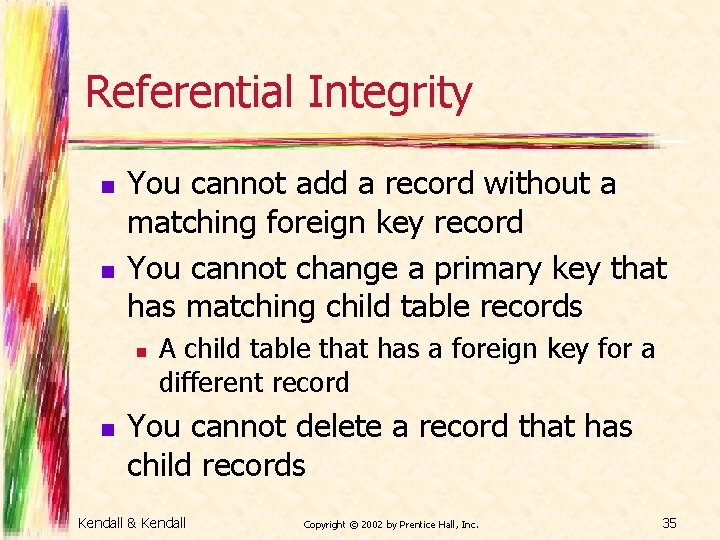

Referential Integrity n n You cannot add a record without a matching foreign key record You cannot change a primary key that has matching child table records n n A child table that has a foreign key for a different record You cannot delete a record that has child records Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 35

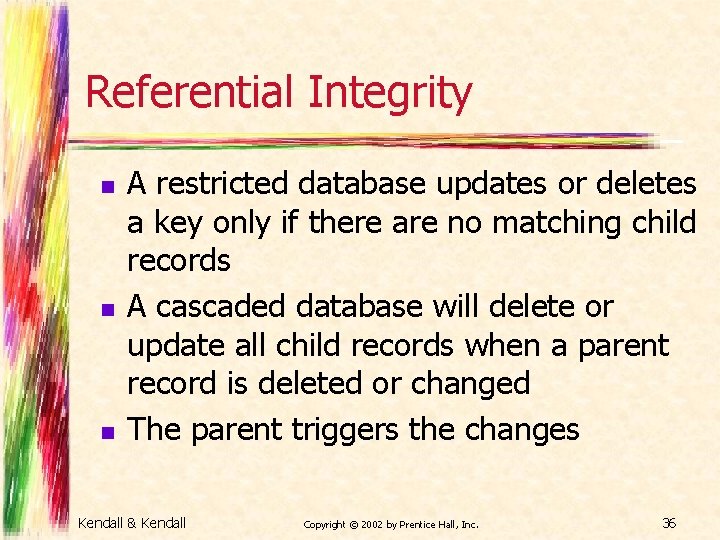

Referential Integrity n n n A restricted database updates or deletes a key only if there are no matching child records A cascaded database will delete or update all child records when a parent record is deleted or changed The parent triggers the changes Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 36

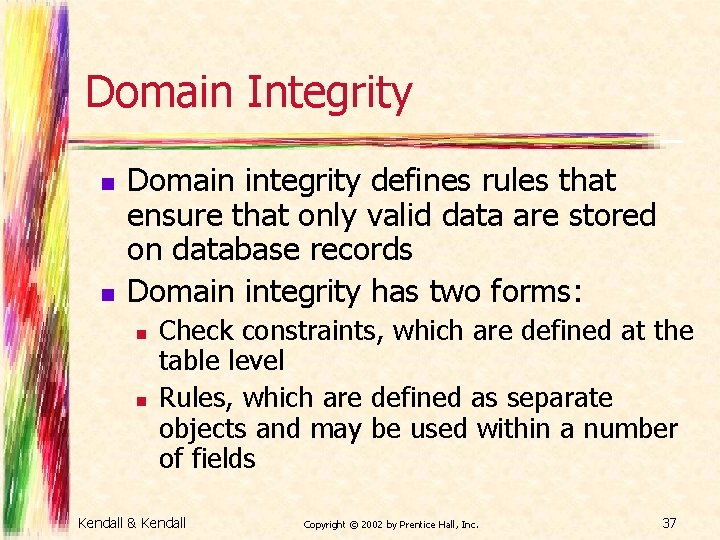

Domain Integrity n n Domain integrity defines rules that ensure that only valid data are stored on database records Domain integrity has two forms: n n Check constraints, which are defined at the table level Rules, which are defined as separate objects and may be used within a number of fields Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 37

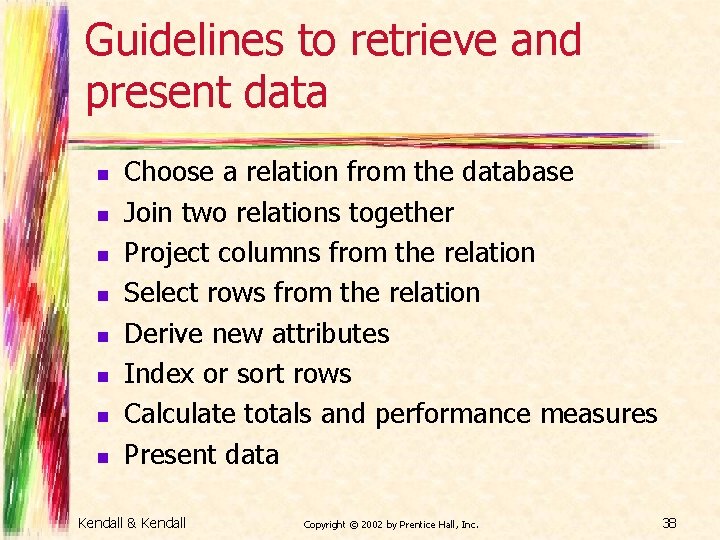

Guidelines to retrieve and present data n n n n Choose a relation from the database Join two relations together Project columns from the relation Select rows from the relation Derive new attributes Index or sort rows Calculate totals and performance measures Present data Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 38

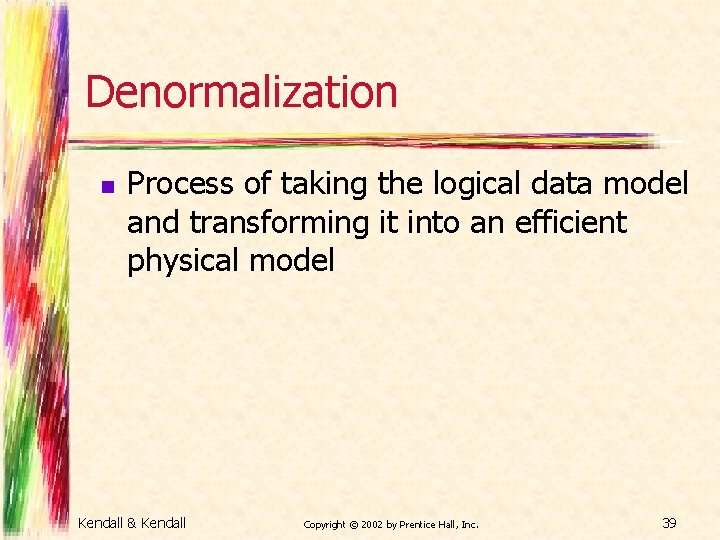

Denormalization n Process of taking the logical data model and transforming it into an

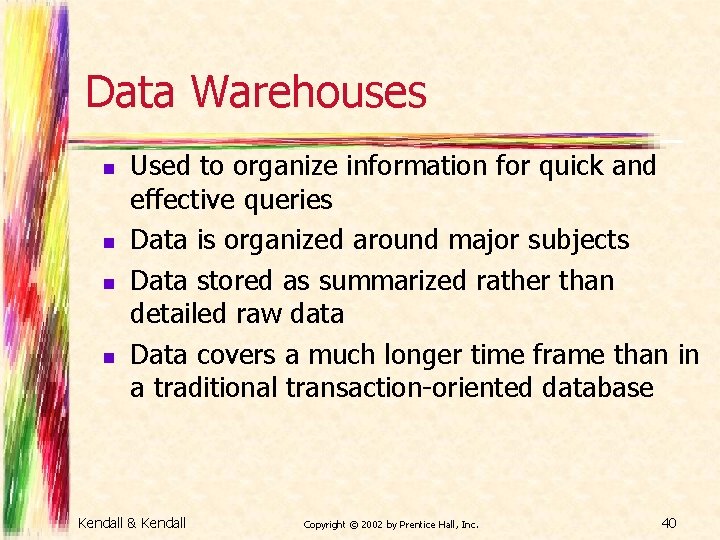

Data Warehouses n n Used to organize information for quick and effective queries Data is organized around major subjects Data stored as summarized rather than detailed raw data Data covers a much longer time frame than in a traditional transaction-oriented database Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 40

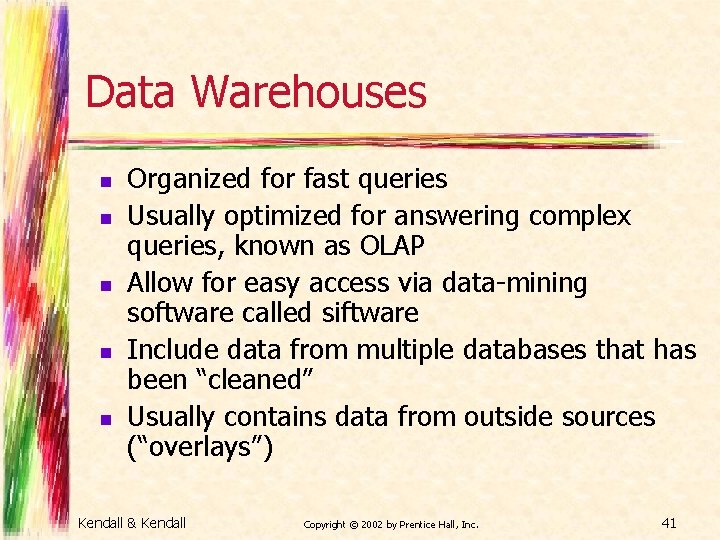

Data Warehouses n n n Organized for fast queries Usually optimized for answering complex queries, known as OLAP Allow for easy access via data-mining software called siftware Include data from multiple databases that has been “cleaned” Usually contains data from outside sources (“overlays”) Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 41

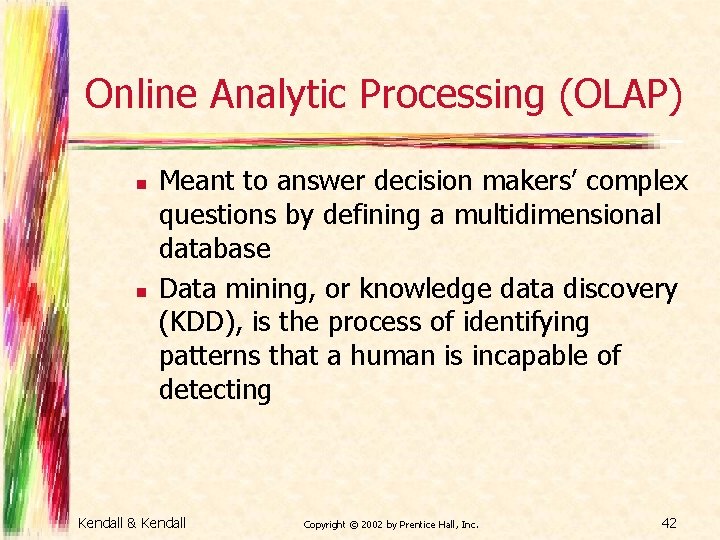

Online Analytic Processing (OLAP) n n Meant to answer decision makers’ complex questions by defining a multidimensional database Data mining, or knowledge data discovery (KDD), is the process of identifying patterns that a human is incapable of detecting Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 42

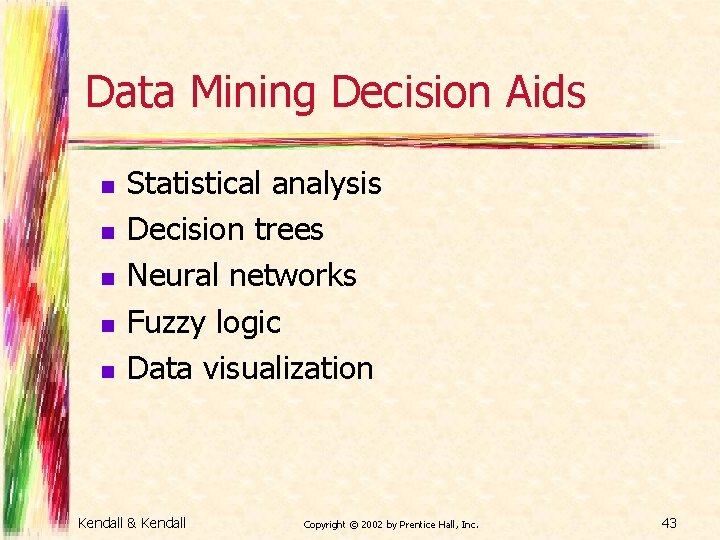

Data Mining Decision Aids n n n Statistical analysis Decision trees Neural networks Fuzzy

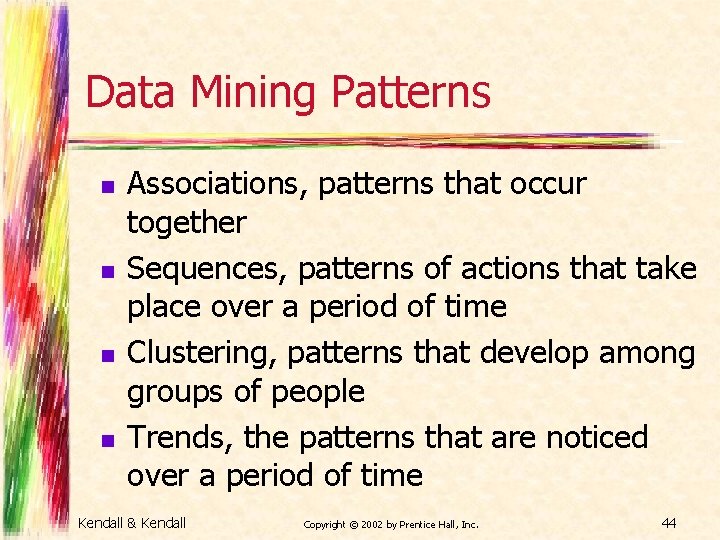

Data Mining Patterns n n Associations, patterns that occur together Sequences, patterns of actions that take place over a period of time Clustering, patterns that develop among groups of people Trends, the patterns that are noticed over a period of time Kendall & Kendall Copyright © 2002 by Prentice Hall, Inc. 44
