Chapter 17 Cleavage and Foliations Cleavage Cleavage A

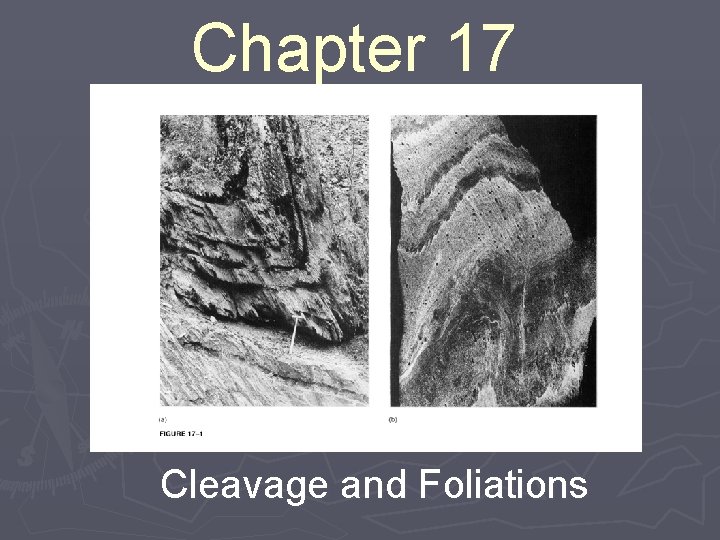

Chapter 17 Cleavage and Foliations

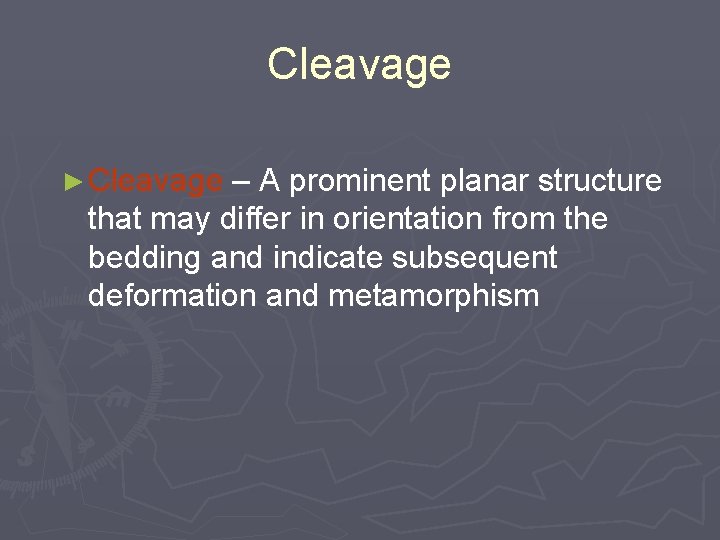

Cleavage ► Cleavage – A prominent planar structure that may differ in orientation from the bedding and indicate subsequent deformation and metamorphism

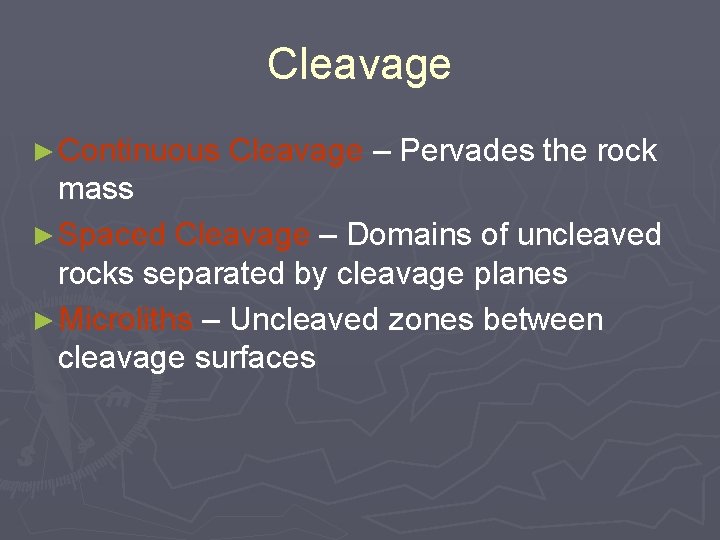

Cleavage ► Continuous Cleavage – Pervades the rock mass ► Spaced Cleavage – Domains of uncleaved rocks separated by cleavage planes ► Microliths – Uncleaved zones between cleavage surfaces

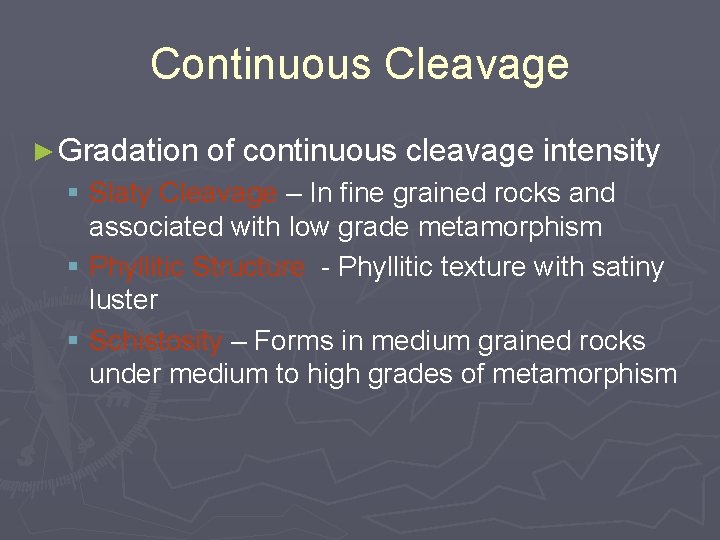

Continuous Cleavage ► Gradation of continuous cleavage intensity § Slaty Cleavage – In fine grained rocks and associated with low grade metamorphism § Phyllitic Structure - Phyllitic texture with satiny luster § Schistosity – Forms in medium grained rocks under medium to high grades of metamorphism

S-Surfaces ► S-Surface – All planar and some curved structures in deformed rocks § i. e. Cleavage, foliations, and bedding § S 0 – Oldest surface, S 1 – next oldest, etc. § Fold Sets – F 1, F 2, etc. § Linear Structures – L 1, etc. § Deformation Structures – D 1, D 2, etc.

Cleavage Surface at Multiple Scales

Spaced Cleavage ► Disjunctive – Crosscutting and not related to original layering § § Stylotic – Columnar pattern Anastomosing – Interconnected paths Rough – Irregular cleavage Smooth – Regular cleavage pattern ► Crenulation Cleavage – Small-scale crinkling of existing layers. § Discrete – Broken distinct cleavage areas § Zonal – More ductile continuous cleavage areas

Types of Cleavage Residues of insoluble materials Anastomosing slaty cleavage Smooth Cleavage Stylolitic Seam Rough Cleavage

Discrete Versus Zonal Crenulations

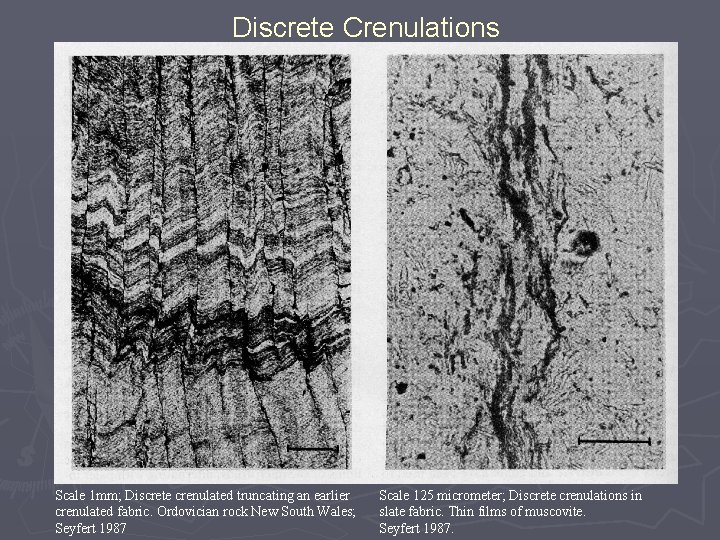

Discrete Crenulations Scale 1 mm; Discrete crenulated truncating an earlier crenulated fabric. Ordovician rock New South Wales; Seyfert 1987 Scale 125 micrometer; Discrete crenulations in slate fabric. Thin films of muscovite. Seyfert 1987.

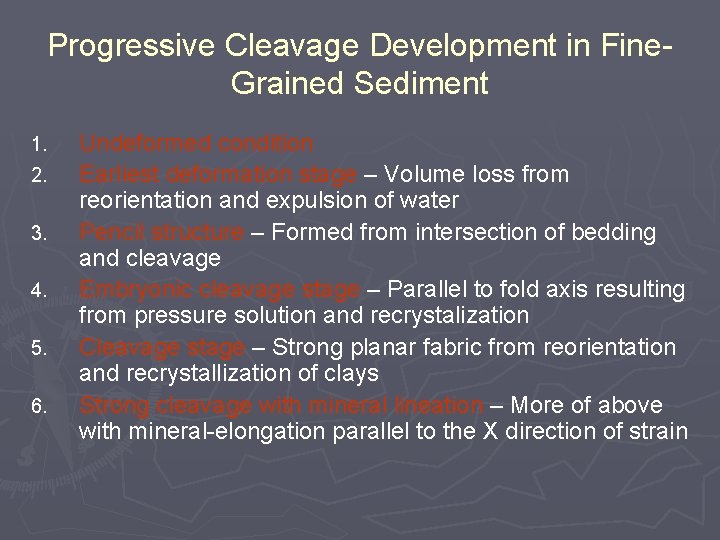

Progressive Cleavage Development in Fine. Grained Sediment 1. 2. 3. 4. 5. 6. Undeformed condition Earliest deformation stage – Volume loss from reorientation and expulsion of water Pencil structure – Formed from intersection of bedding and cleavage Embryonic cleavage stage – Parallel to fold axis resulting from pressure solution and recrystalization Cleavage stage – Strong planar fabric from reorientation and recrystallization of clays Strong cleavage with mineral lineation – More of above with mineral-elongation parallel to the X direction of strain

Zonal Crenulations Scale 500 micrometers; Zonal crenulations in schist fabric from South Australia. Dissolution of quartz and albite in microlithons and increase in biotite. Seyfert 1987. Scale 2 mm; Zonal crenulations of carbonaceous and micaceous domains with dissolution of quartz in the initial fabric from New South Wales; Seyfert 1987.

Stages of Cleavage Development Pencil structure Cleavage Embryonic Cleavage Stage Cleavage stage Well-developed stage with mineral lineations

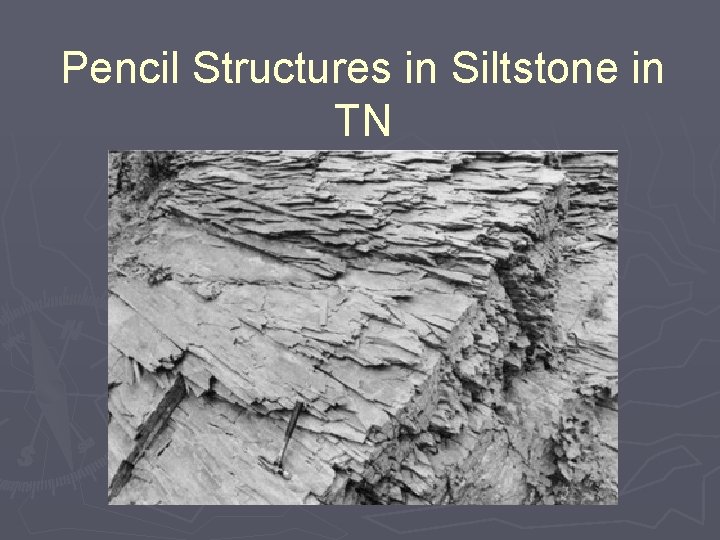

Pencil Structures in Siltstone in TN

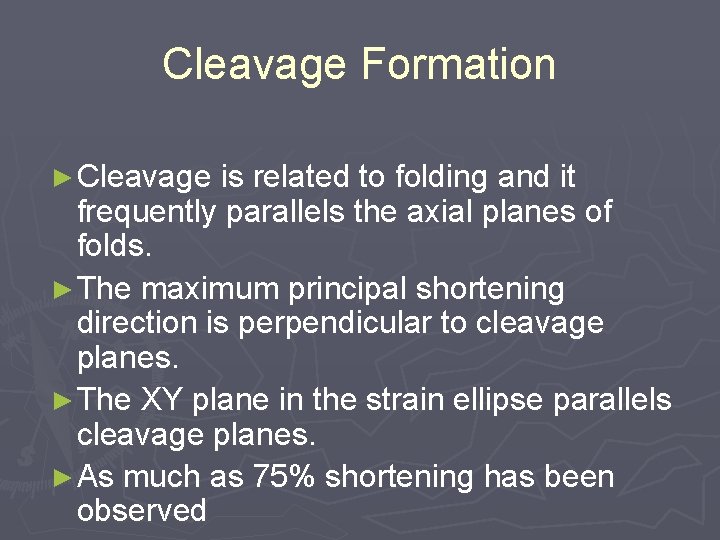

Cleavage Formation ► Cleavage is related to folding and it frequently parallels the axial planes of folds. ► The maximum principal shortening direction is perpendicular to cleavage planes. ► The XY plane in the strain ellipse parallels cleavage planes. ► As much as 75% shortening has been observed

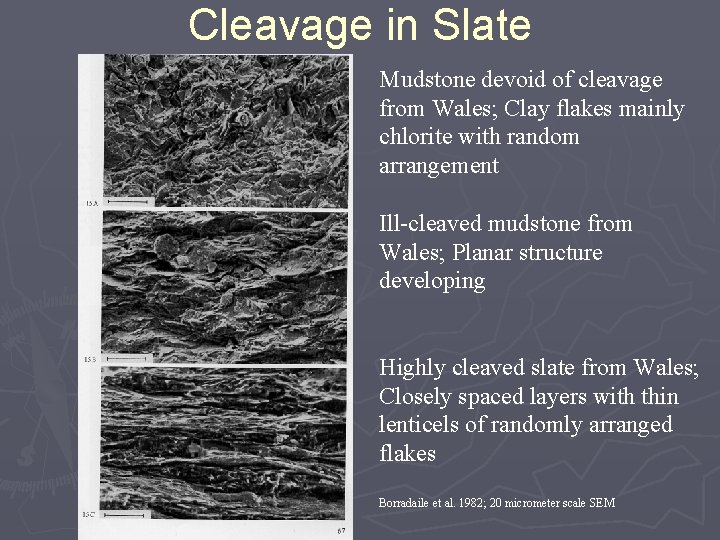

Cleavage in Slate Mudstone devoid of cleavage from Wales; Clay flakes mainly chlorite with random arrangement Ill-cleaved mudstone from Wales; Planar structure developing Highly cleaved slate from Wales; Closely spaced layers with thin lenticels of randomly arranged flakes Borradaile et al. 1982; 20 micrometer scale SEM

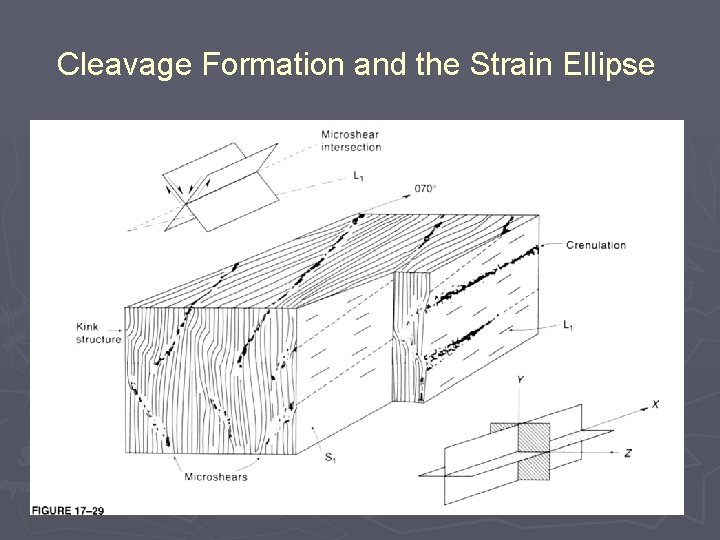

Cleavage Formation and the Strain Ellipse
