Chapter 17 B HEAT EXCHANGER EQUIPMENT Agami Reddy

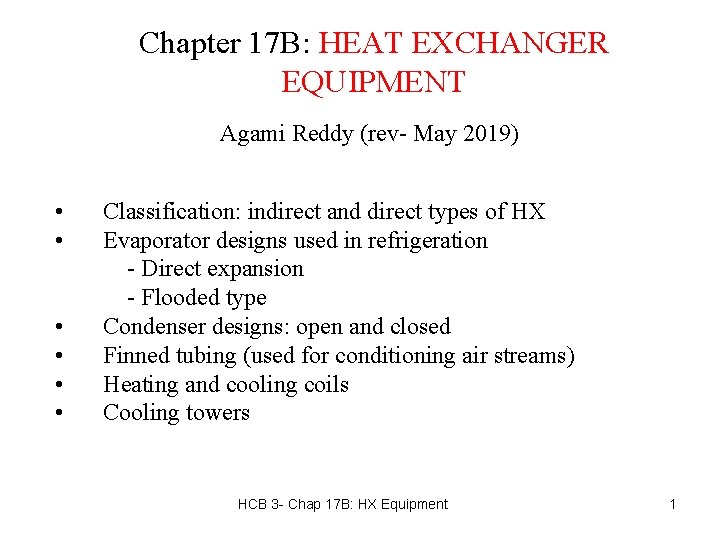

Chapter 17 B: HEAT EXCHANGER EQUIPMENT Agami Reddy (rev- May 2019) • • • Classification: indirect and direct types of HX Evaporator designs used in refrigeration - Direct expansion - Flooded type Condenser designs: open and closed Finned tubing (used for conditioning air streams) Heating and cooling coils Cooling towers HCB 3 - Chap 17 B: HX Equipment 1

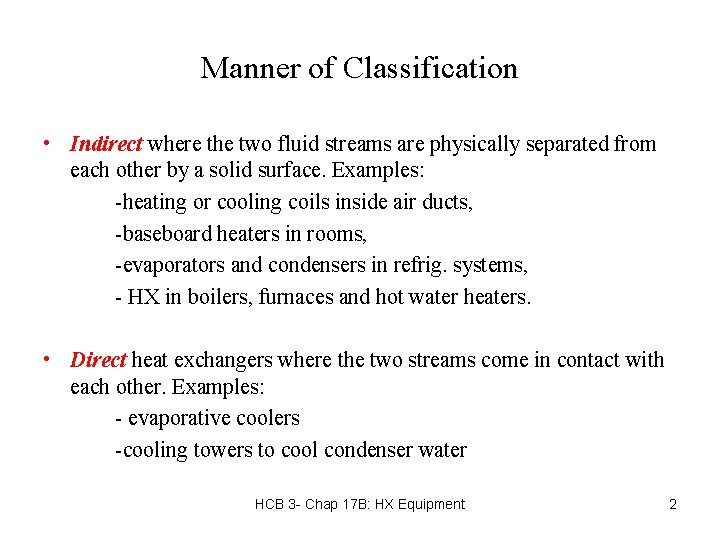

Manner of Classification • Indirect where the two fluid streams are physically separated from each other by a solid surface. Examples: -heating or cooling coils inside air ducts, -baseboard heaters in rooms, -evaporators and condensers in refrig. systems, - HX in boilers, furnaces and hot water heaters. • Direct heat exchangers where the two streams come in contact with each other. Examples: - evaporative coolers -cooling towers to cool condenser water HCB 3 - Chap 17 B: HX Equipment 2

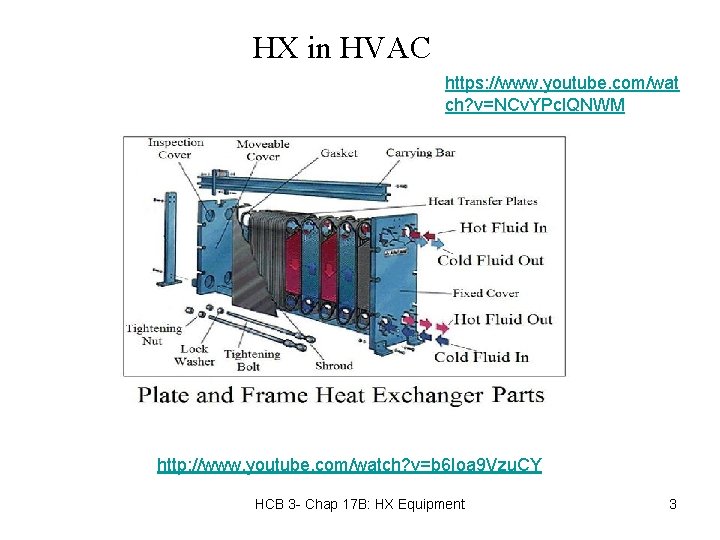

HX in HVAC https: //www. youtube. com/wat ch? v=NCv. YPcl. QNWM http: //www. youtube. com/watch? v=b 6 Ioa 9 Vzu. CY HCB 3 - Chap 17 B: HX Equipment 3

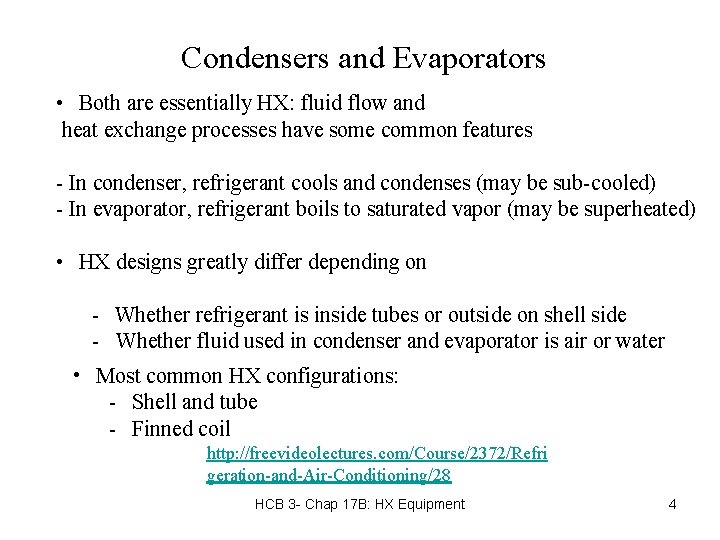

Condensers and Evaporators • Both are essentially HX: fluid flow and heat exchange processes have some common features - In condenser, refrigerant cools and condenses (may be sub-cooled) - In evaporator, refrigerant boils to saturated vapor (may be superheated) • HX designs greatly differ depending on - Whether refrigerant is inside tubes or outside on shell side - Whether fluid used in condenser and evaporator is air or water • Most common HX configurations: - Shell and tube - Finned coil http: //freevideolectures. com/Course/2372/Refri geration-and-Air-Conditioning/28 HCB 3 - Chap 17 B: HX Equipment 4

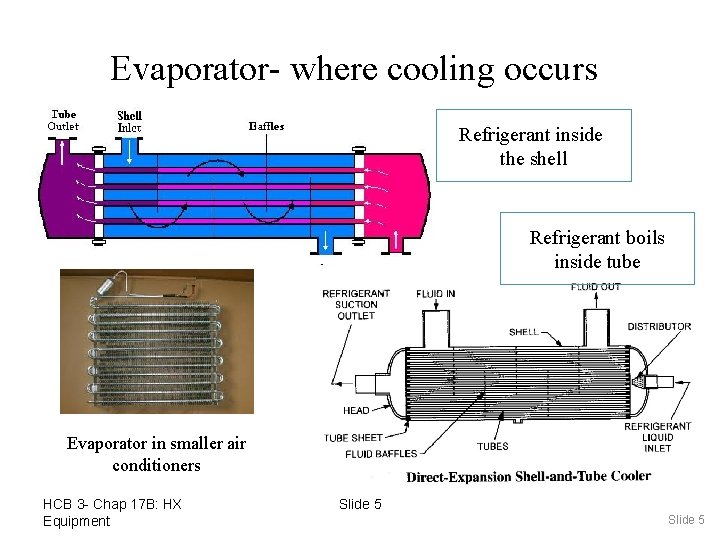

Evaporator- where cooling occurs Refrigerant inside the shell Refrigerant boils inside tube Evaporator in smaller air conditioners HCB 3 - Chap 17 B: HX Equipment Slide 5

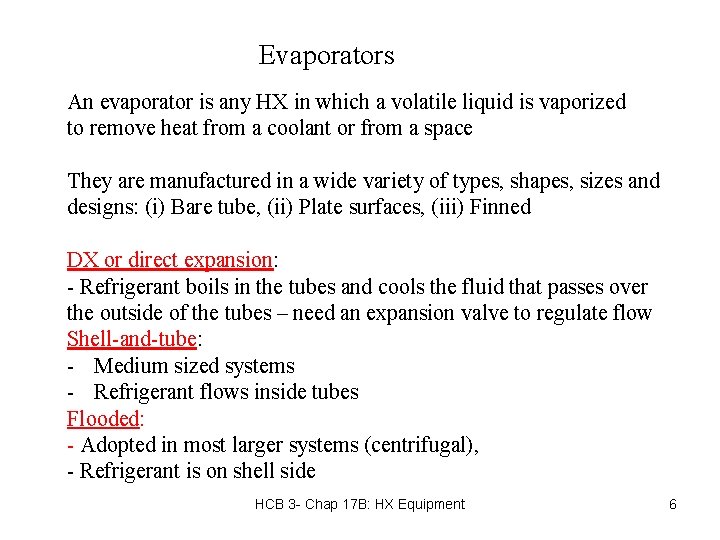

Evaporators An evaporator is any HX in which a volatile liquid is vaporized to remove heat from a coolant or from a space They are manufactured in a wide variety of types, shapes, sizes and designs: (i) Bare tube, (ii) Plate surfaces, (iii) Finned DX or direct expansion: - Refrigerant boils in the tubes and cools the fluid that passes over the outside of the tubes – need an expansion valve to regulate flow Shell-and-tube: - Medium sized systems - Refrigerant flows inside tubes Flooded: - Adopted in most larger systems (centrifugal), - Refrigerant is on shell side HCB 3 - Chap 17 B: HX Equipment 6

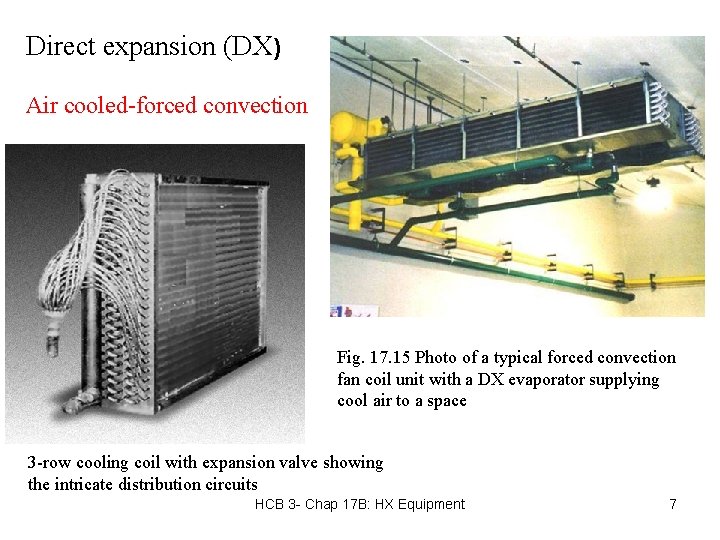

Direct expansion (DX) Air cooled-forced convection Fig. 17. 15 Photo of a typical forced convection fan coil unit with a DX evaporator supplying cool air to a space 3 -row cooling coil with expansion valve showing the intricate distribution circuits HCB 3 - Chap 17 B: HX Equipment 7

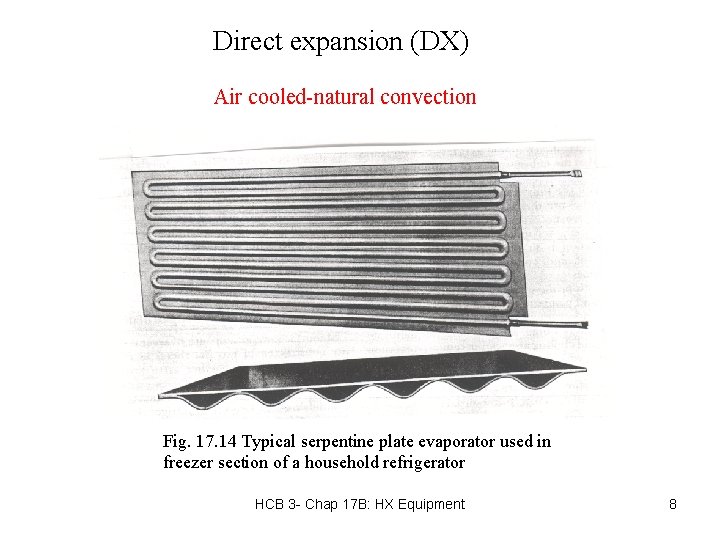

Direct expansion (DX) Air cooled-natural convection Fig. 17. 14 Typical serpentine plate evaporator used in freezer section of a household refrigerator HCB 3 - Chap 17 B: HX Equipment 8

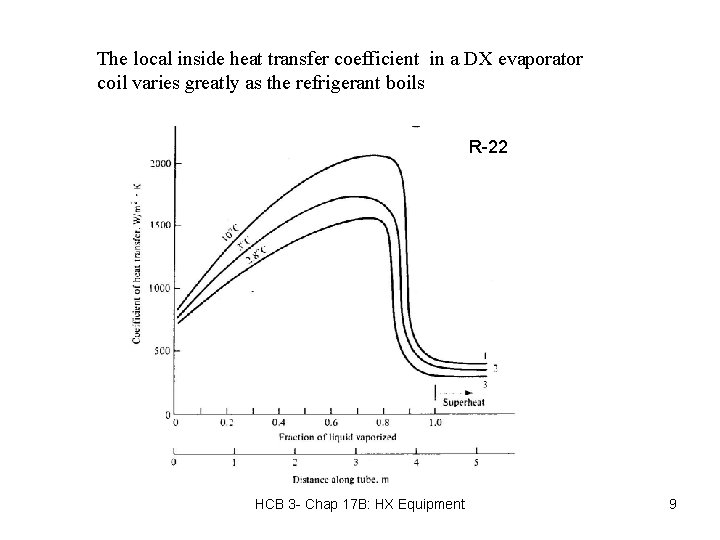

The local inside heat transfer coefficient in a DX evaporator coil varies greatly as the refrigerant boils R-22 HCB 3 - Chap 17 B: HX Equipment 9

Shell and tube water cooled evaporators For medium sized chillers-Refrigerant boils inside tubes HCB 3 - Chap 17 B: HX Equipment 10

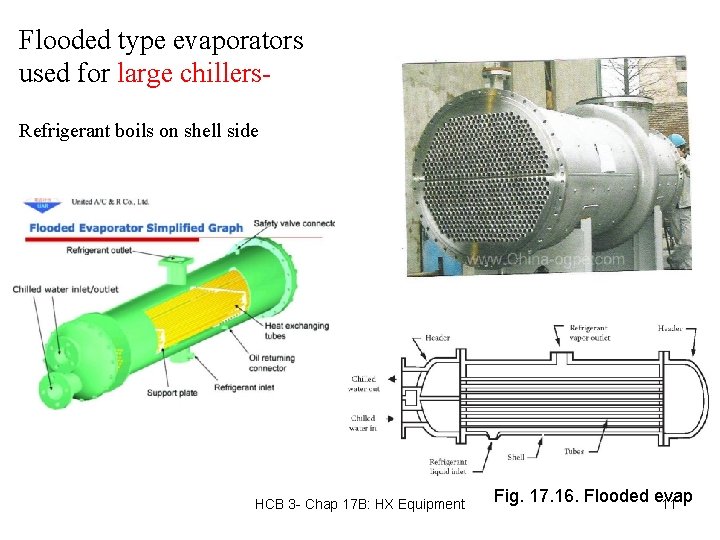

Flooded type evaporators used for large chillers. Refrigerant boils on shell side HCB 3 - Chap 17 B: HX Equipment Fig. 17. 16. Flooded evap 11

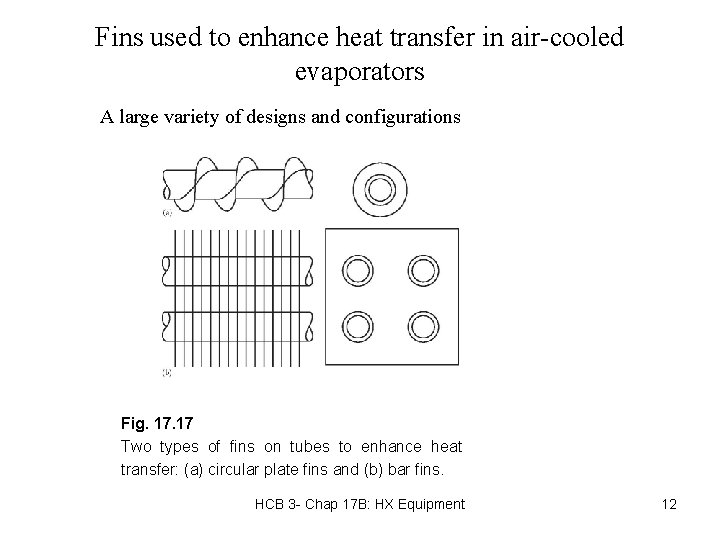

Fins used to enhance heat transfer in air-cooled evaporators A large variety of designs and configurations Fig. 17 Two types of fins on tubes to enhance heat transfer: (a) circular plate fins and (b) bar fins. HCB 3 - Chap 17 B: HX Equipment 12

Condenser- where heat rejection occurs Different Types: 1. Air Cooled Condenser: Heat is rejected directly to the air Suitable for small systems (refrigerator and window AC) 2. Water Cooled Condenser : Heat is rejected to cooling water first and then to the air in cooling tower – cooling plant 3. Evaporative Condenser: Uses both latent and sensible heat rejection Note: üCondenser type affects COP by impacting heat rejection temperature üSelection of type of condenser based on first cost, operating cost, maintenance, and water use Air cooled HCB 3 - Chap 17 B: HX Equipment Slide 13 Water cooled Slide 13

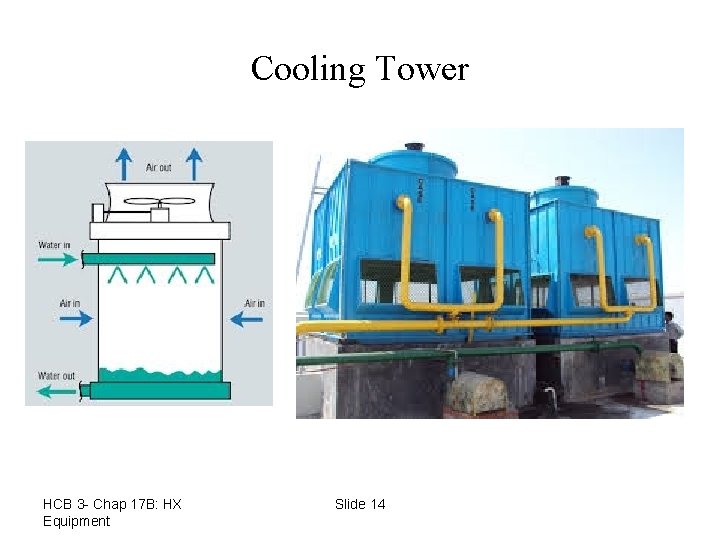

Cooling Tower HCB 3 - Chap 17 B: HX Equipment Slide 14

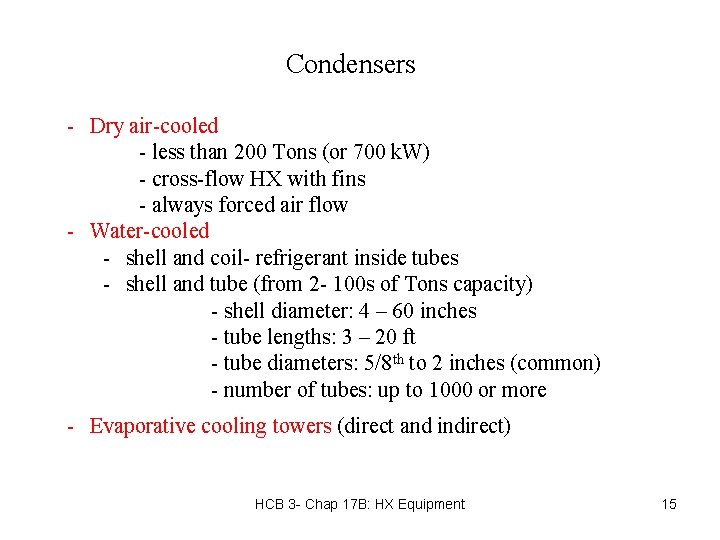

Condensers - Dry air-cooled - less than 200 Tons (or 700 k. W) - cross-flow HX with fins - always forced air flow - Water-cooled - shell and coil- refrigerant inside tubes - shell and tube (from 2 - 100 s of Tons capacity) - shell diameter: 4 – 60 inches - tube lengths: 3 – 20 ft - tube diameters: 5/8 th to 2 inches (common) - number of tubes: up to 1000 or more - Evaporative cooling towers (direct and indirect) HCB 3 - Chap 17 B: HX Equipment 15

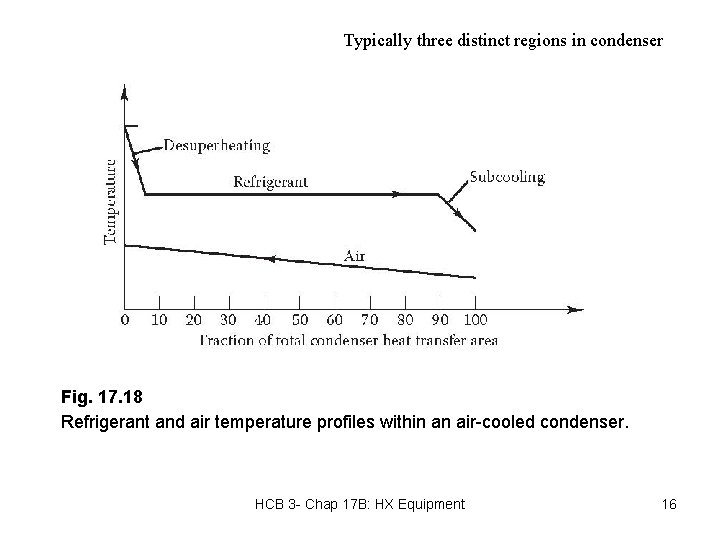

Typically three distinct regions in condenser Fig. 17. 18 Refrigerant and air temperature profiles within an air-cooled condenser. HCB 3 - Chap 17 B: HX Equipment 16

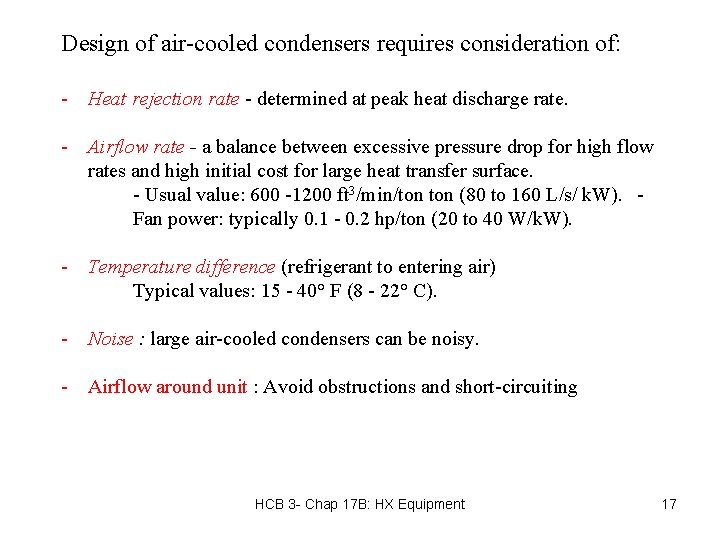

Design of air-cooled condensers requires consideration of: - Heat rejection rate - determined at peak heat discharge rate. - Airflow rate - a balance between excessive pressure drop for high flow rates and high initial cost for large heat transfer surface. - Usual value: 600 -1200 ft 3/min/ton (80 to 160 L/s/ k. W). Fan power: typically 0. 1 - 0. 2 hp/ton (20 to 40 W/k. W). - Temperature difference (refrigerant to entering air) Typical values: 15 - 40° F (8 - 22° C). - Noise : large air-cooled condensers can be noisy. - Airflow around unit : Avoid obstructions and short-circuiting HCB 3 - Chap 17 B: HX Equipment 17

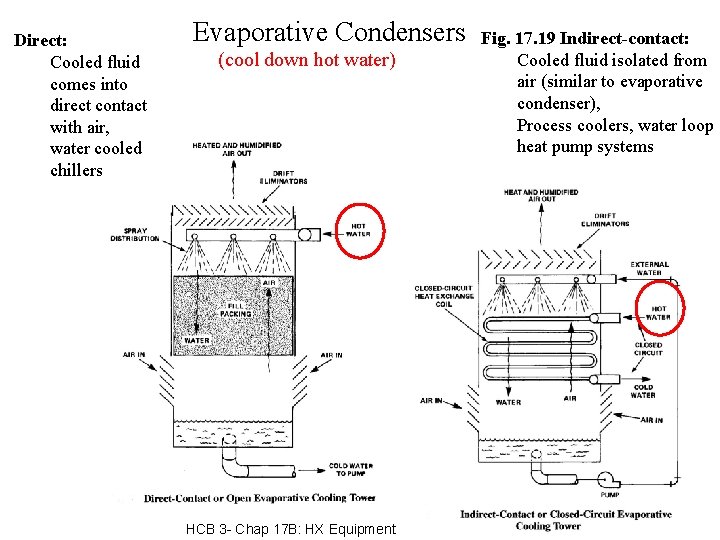

Direct: Cooled fluid comes into direct contact with air, water cooled chillers Evaporative Condensers (cool down hot water) Fig. 17. 19 Indirect-contact: Cooled fluid isolated from air (similar to evaporative condenser), Process coolers, water loop heat pump systems 18 HCB 3 - Chap 17 B: HX Equipment

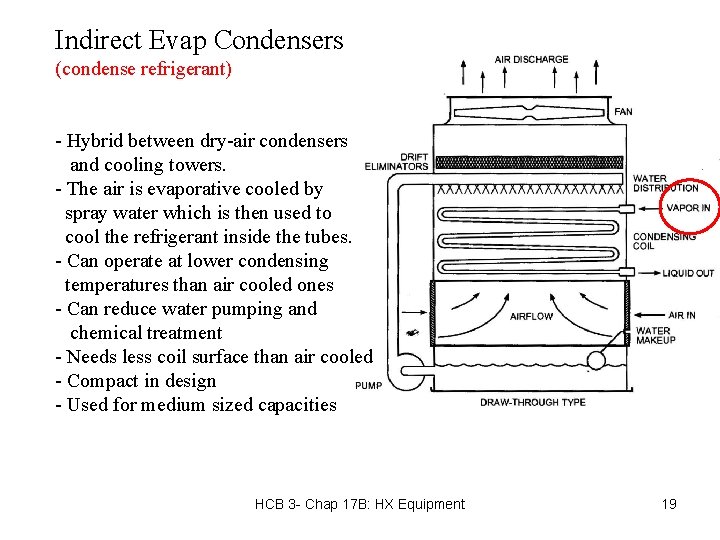

Indirect Evap Condensers (condense refrigerant) - Hybrid between dry-air condensers and cooling towers. - The air is evaporative cooled by spray water which is then used to cool the refrigerant inside the tubes. - Can operate at lower condensing temperatures than air cooled ones - Can reduce water pumping and chemical treatment - Needs less coil surface than air cooled - Compact in design - Used for medium sized capacities HCB 3 - Chap 17 B: HX Equipment 19

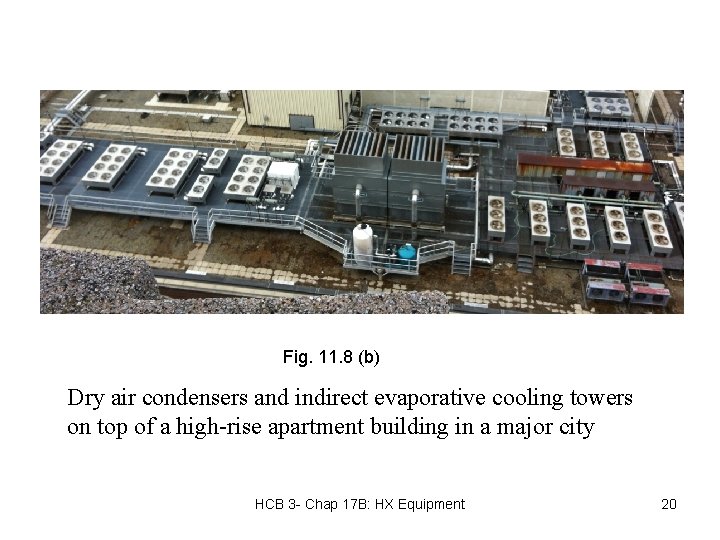

Fig. 11. 8 (b) Dry air condensers and indirect evaporative cooling towers on top of a high-rise apartment building in a major city HCB 3 - Chap 17 B: HX Equipment 20

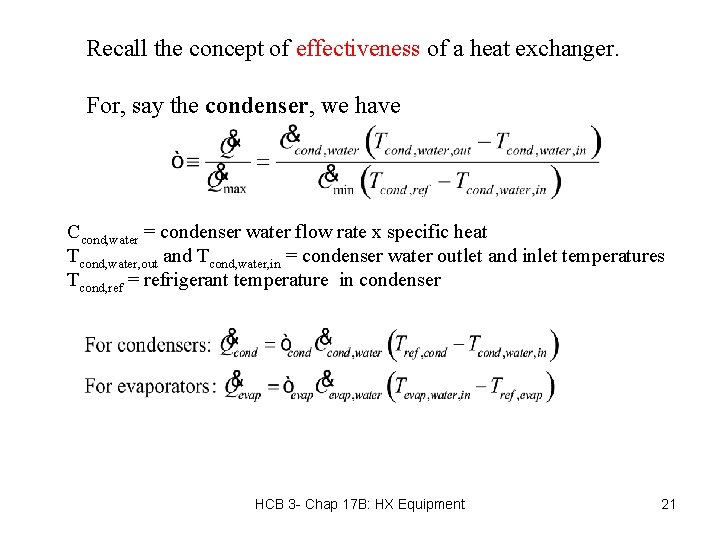

Recall the concept of effectiveness of a heat exchanger. For, say the condenser, we have Ccond, water = condenser water flow rate x specific heat Tcond, water, out and Tcond, water, in = condenser water outlet and inlet temperatures Tcond, ref = refrigerant temperature in condenser HCB 3 - Chap 17 B: HX Equipment 21

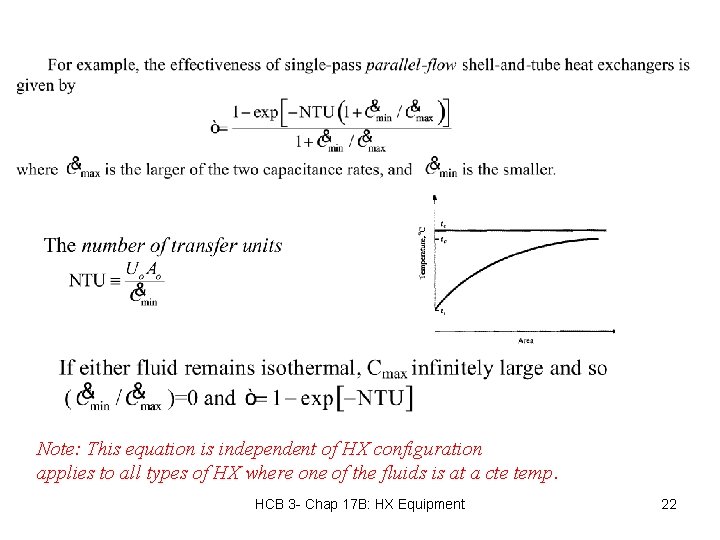

Note: This equation is independent of HX configuration applies to all types of HX where one of the fluids is at a cte temp. HCB 3 - Chap 17 B: HX Equipment 22

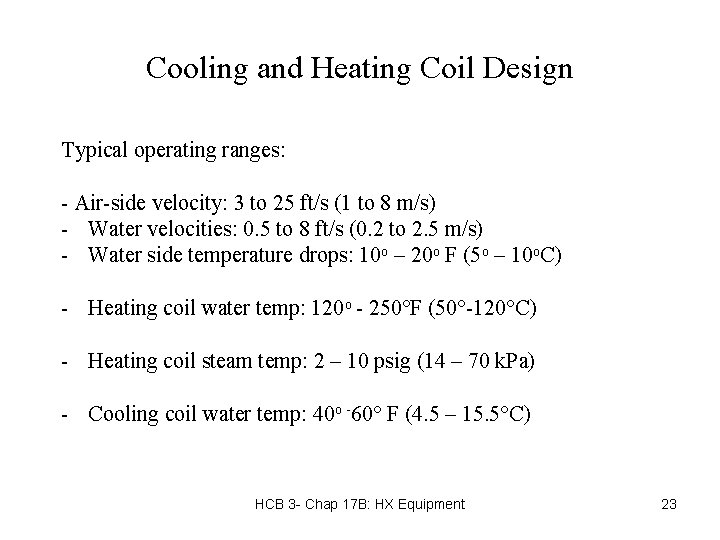

Cooling and Heating Coil Design Typical operating ranges: - Air-side velocity: 3 to 25 ft/s (1 to 8 m/s) - Water velocities: 0. 5 to 8 ft/s (0. 2 to 2. 5 m/s) - Water side temperature drops: 10 o – 20 o F (5 o – 10 o. C) - Heating coil water temp: 120 o - 250°F (50°-120°C) - Heating coil steam temp: 2 – 10 psig (14 – 70 k. Pa) - Cooling coil water temp: 40 o -60° F (4. 5 – 15. 5°C) HCB 3 - Chap 17 B: HX Equipment 23

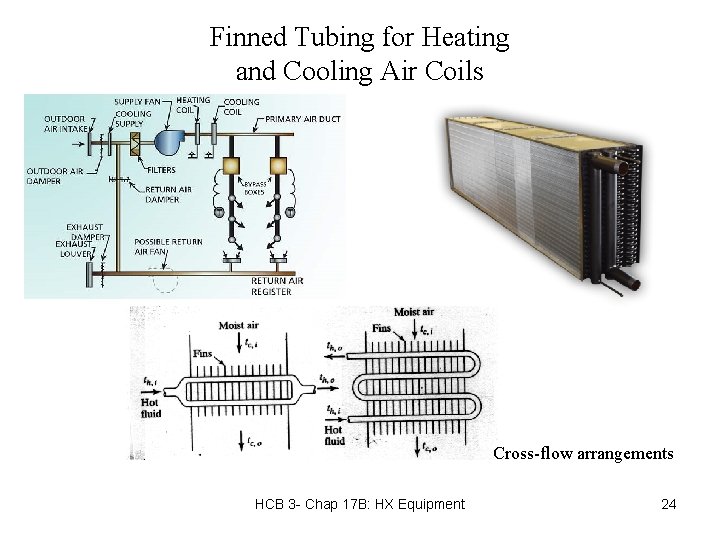

Finned Tubing for Heating and Cooling Air Coils Cross-flow arrangements HCB 3 - Chap 17 B: HX Equipment 24

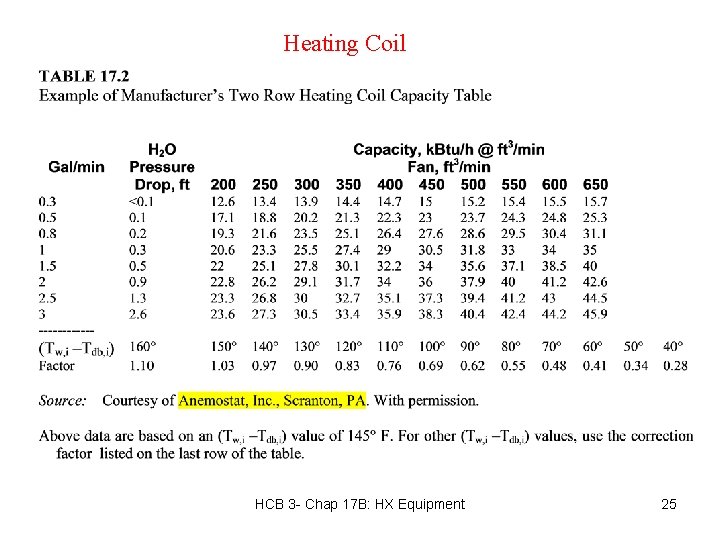

Heating Coil HCB 3 - Chap 17 B: HX Equipment 25

Solution HCB 3 - Chap 17 B: HX Equipment 26

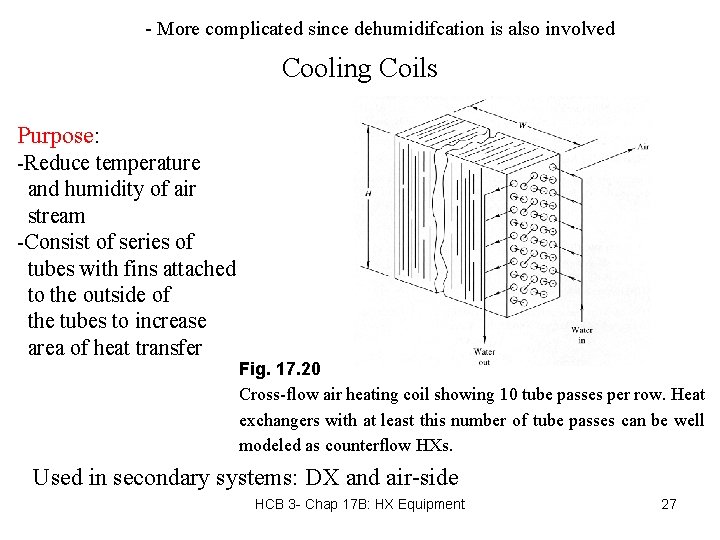

- More complicated since dehumidifcation is also involved Cooling Coils Purpose: -Reduce temperature and humidity of air stream -Consist of series of tubes with fins attached to the outside of the tubes to increase area of heat transfer Fig. 17. 20 Cross-flow air heating coil showing 10 tube passes per row. Heat exchangers with at least this number of tube passes can be well modeled as counterflow HXs. Used in secondary systems: DX and air-side HCB 3 - Chap 17 B: HX Equipment 27

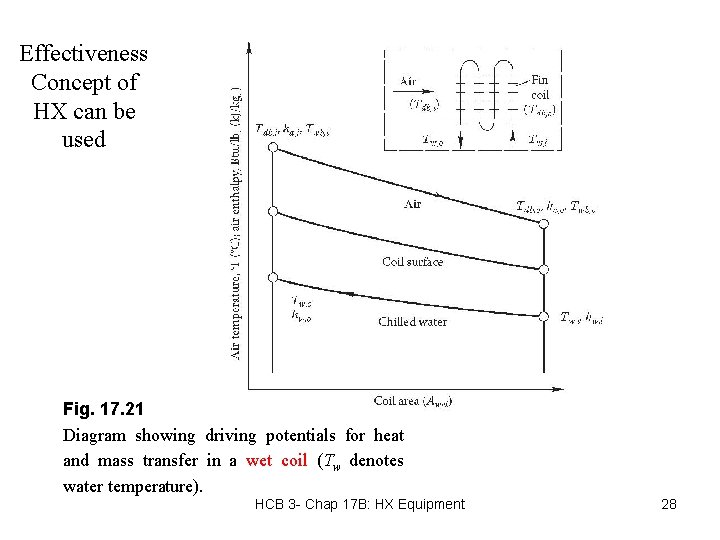

Effectiveness Concept of HX can be used Fig. 17. 21 Diagram showing driving potentials for heat and mass transfer in a wet coil (Tw denotes water temperature). HCB 3 - Chap 17 B: HX Equipment 28

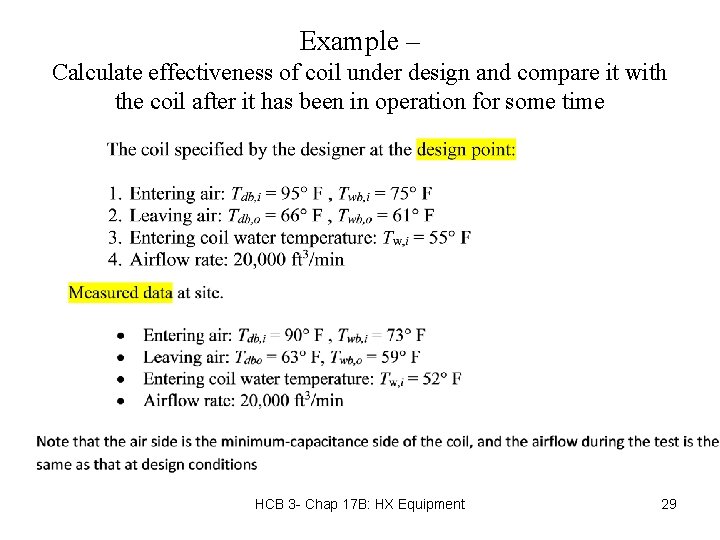

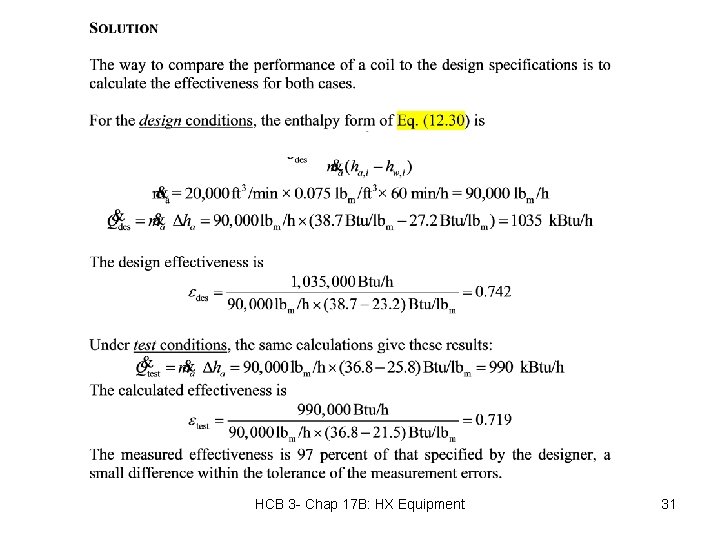

Example – Calculate effectiveness of coil under design and compare it with the coil after it has been in operation for some time HCB 3 - Chap 17 B: HX Equipment 29

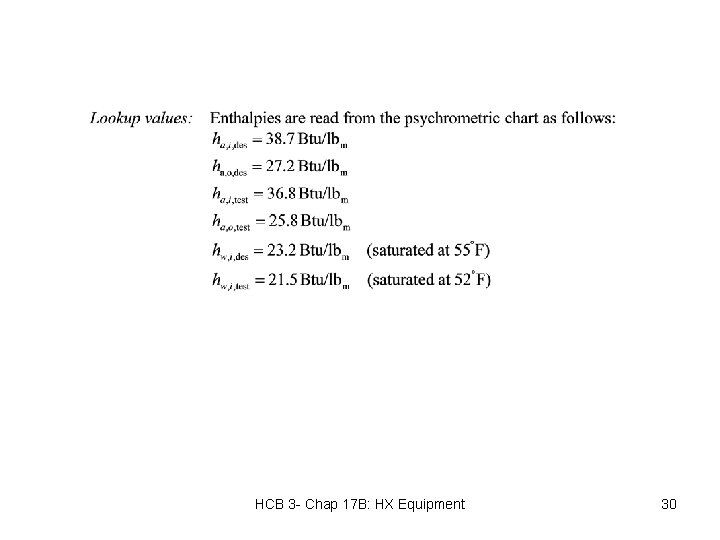

HCB 3 - Chap 17 B: HX Equipment 30

HCB 3 - Chap 17 B: HX Equipment 31

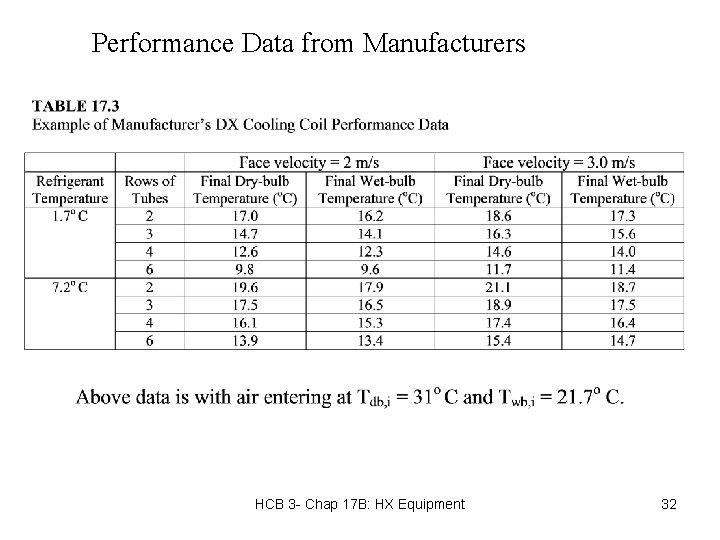

Performance Data from Manufacturers HCB 3 - Chap 17 B: HX Equipment 32

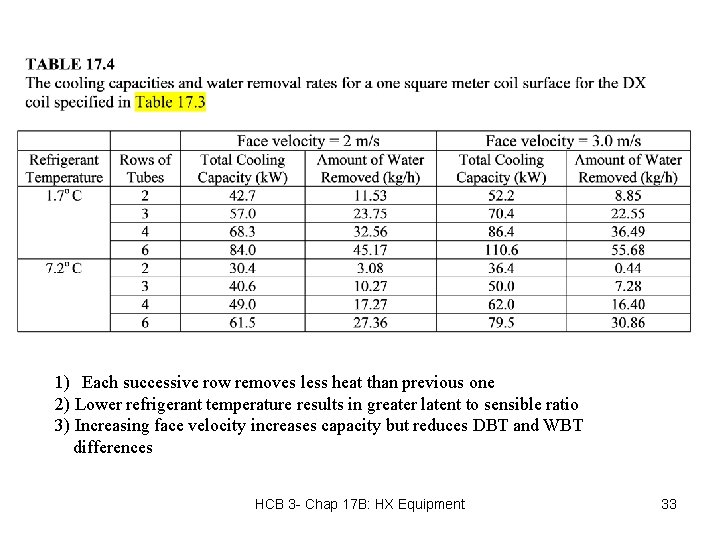

1) Each successive row removes less heat than previous one 2) Lower refrigerant temperature results in greater latent to sensible ratio 3) Increasing face velocity increases capacity but reduces DBT and WBT differences HCB 3 - Chap 17 B: HX Equipment 33

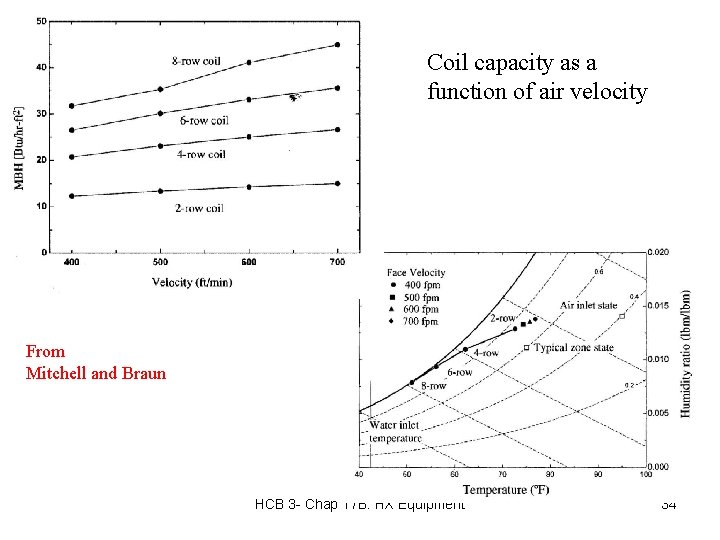

Coil capacity as a function of air velocity From Mitchell and Braun HCB 3 - Chap 17 B: HX Equipment 34

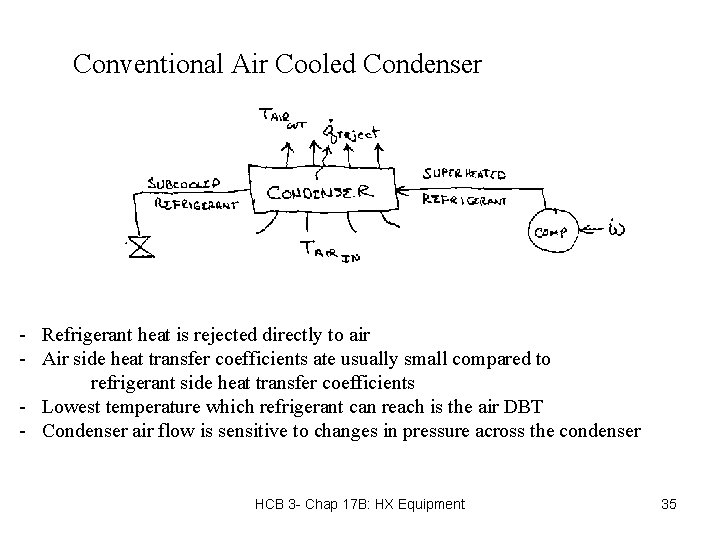

Conventional Air Cooled Condenser - Refrigerant heat is rejected directly to air - Air side heat transfer coefficients ate usually small compared to refrigerant side heat transfer coefficients - Lowest temperature which refrigerant can reach is the air DBT - Condenser air flow is sensitive to changes in pressure across the condenser HCB 3 - Chap 17 B: HX Equipment 35

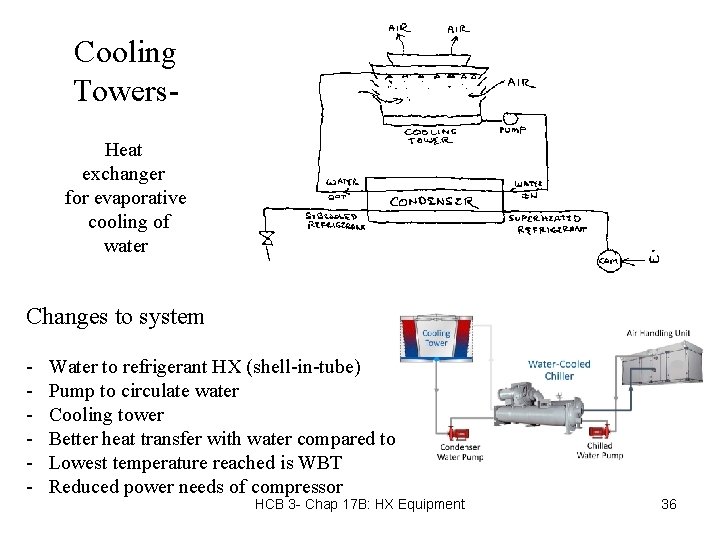

Cooling Towers. Heat exchanger for evaporative cooling of water Changes to system - Water to refrigerant HX (shell-in-tube) Pump to circulate water Cooling tower Better heat transfer with water compared to air Lowest temperature reached is WBT Reduced power needs of compressor HCB 3 - Chap 17 B: HX Equipment 36

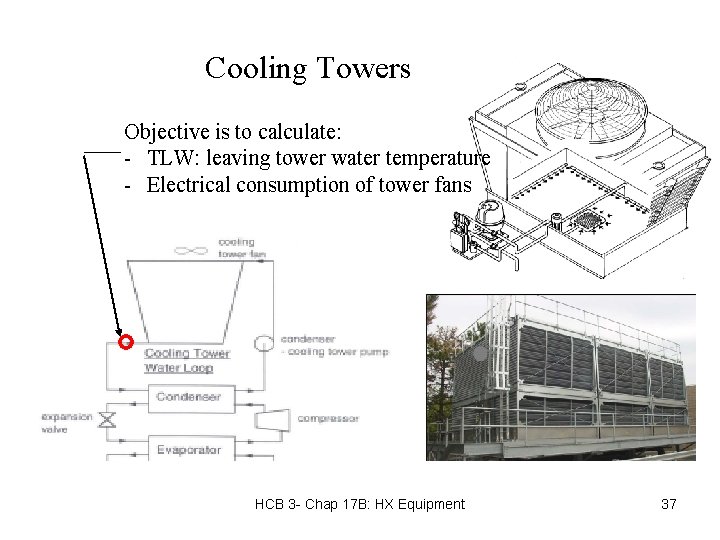

Cooling Towers Objective is to calculate: - TLW: leaving tower water temperature - Electrical consumption of tower fans HCB 3 - Chap 17 B: HX Equipment 37

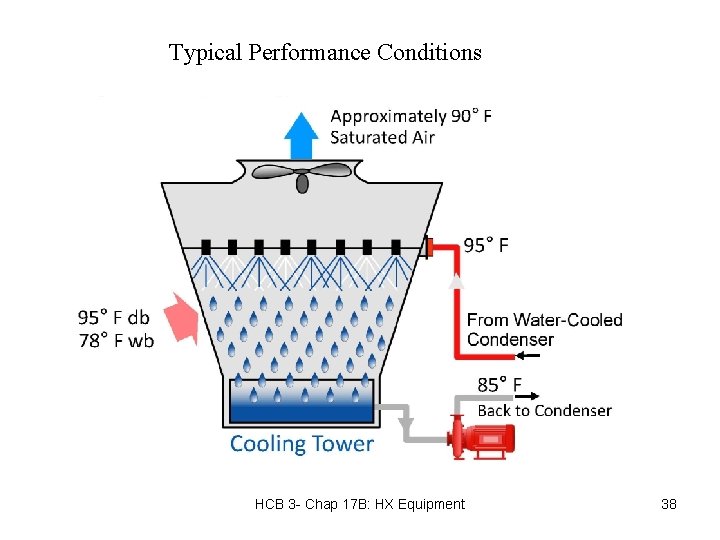

Typical Performance Conditions HCB 3 - Chap 17 B: HX Equipment 38

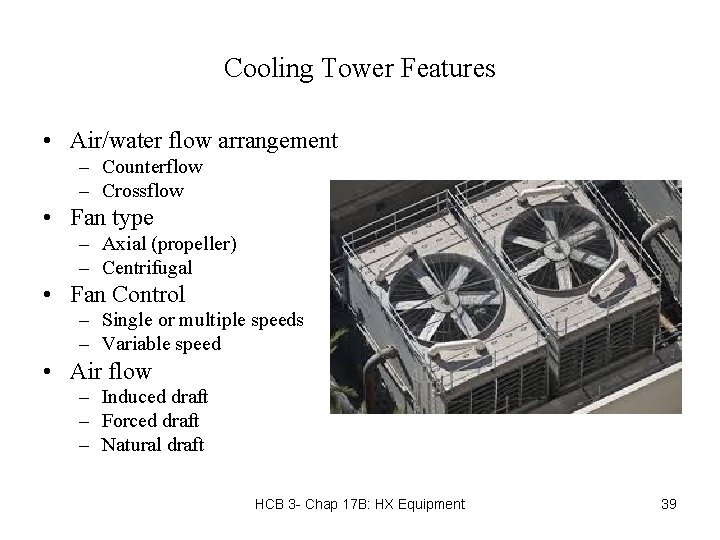

Cooling Tower Features • Air/water flow arrangement – Counterflow – Crossflow • Fan type – Axial (propeller) – Centrifugal • Fan Control – Single or multiple speeds – Variable speed • Air flow – Induced draft – Forced draft – Natural draft HCB 3 - Chap 17 B: HX Equipment 39

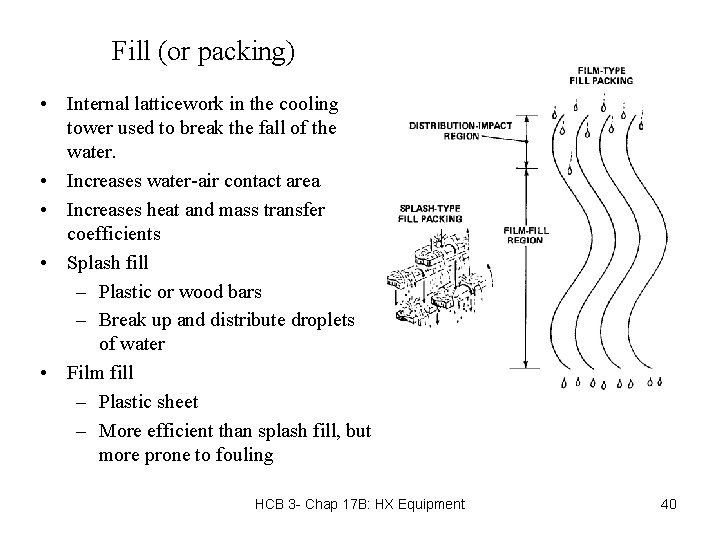

Fill (or packing) • Internal latticework in the cooling tower used to break the fall of the water. • Increases water-air contact area • Increases heat and mass transfer coefficients • Splash fill – Plastic or wood bars – Break up and distribute droplets of water • Film fill – Plastic sheet – More efficient than splash fill, but more prone to fouling HCB 3 - Chap 17 B: HX Equipment 40

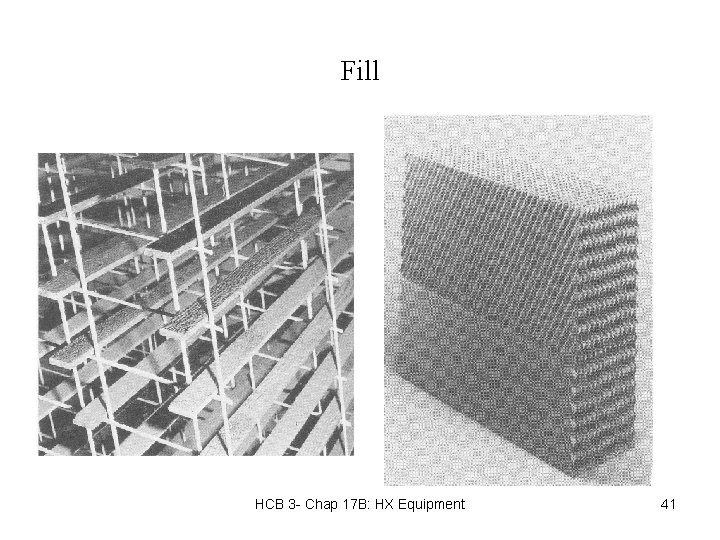

Fill HCB 3 - Chap 17 B: HX Equipment 41

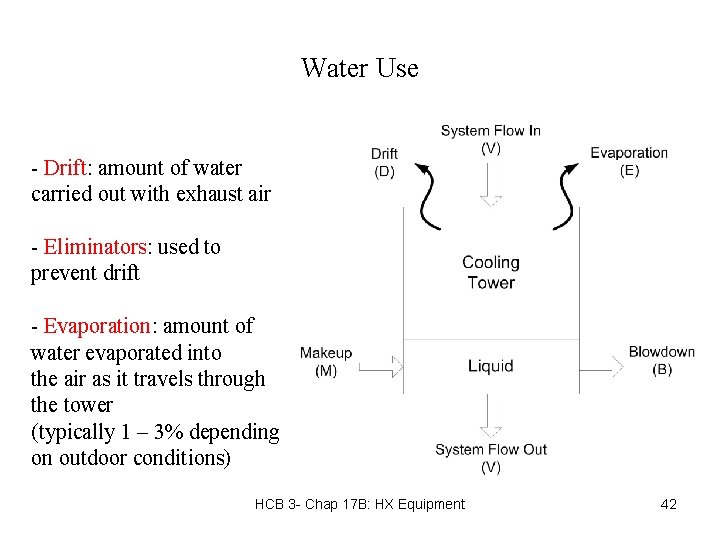

Water Use - Drift: amount of water carried out with exhaust air - Eliminators: used to prevent drift - Evaporation: amount of water evaporated into the air as it travels through the tower (typically 1 – 3% depending on outdoor conditions) HCB 3 - Chap 17 B: HX Equipment 42

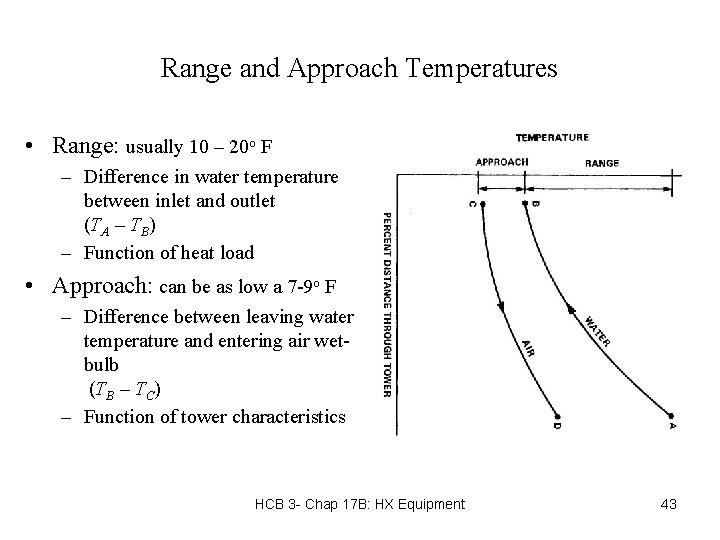

Range and Approach Temperatures • Range: usually 10 – 20 o F – Difference in water temperature between inlet and outlet (TA – TB) – Function of heat load • Approach: can be as low a 7 -9 o F – Difference between leaving water temperature and entering air wetbulb (TB – TC) – Function of tower characteristics HCB 3 - Chap 17 B: HX Equipment 43

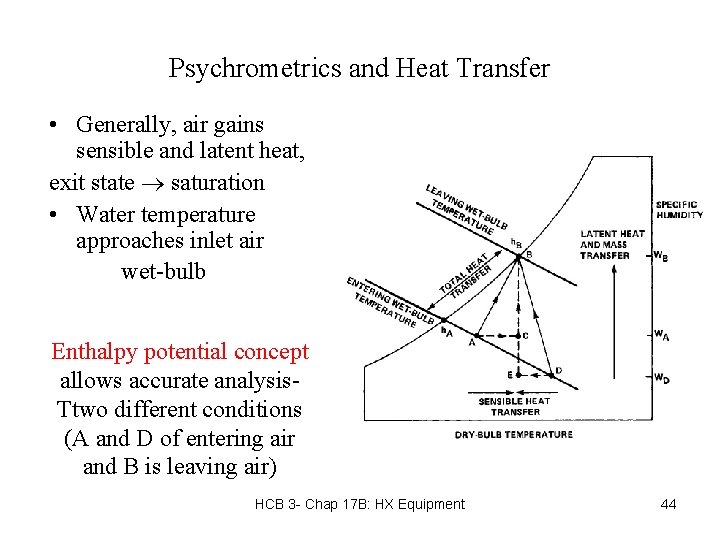

Psychrometrics and Heat Transfer • Generally, air gains sensible and latent heat, exit state saturation • Water temperature approaches inlet air wet-bulb Enthalpy potential concept allows accurate analysis. Ttwo different conditions (A and D of entering air and B is leaving air) HCB 3 - Chap 17 B: HX Equipment 44

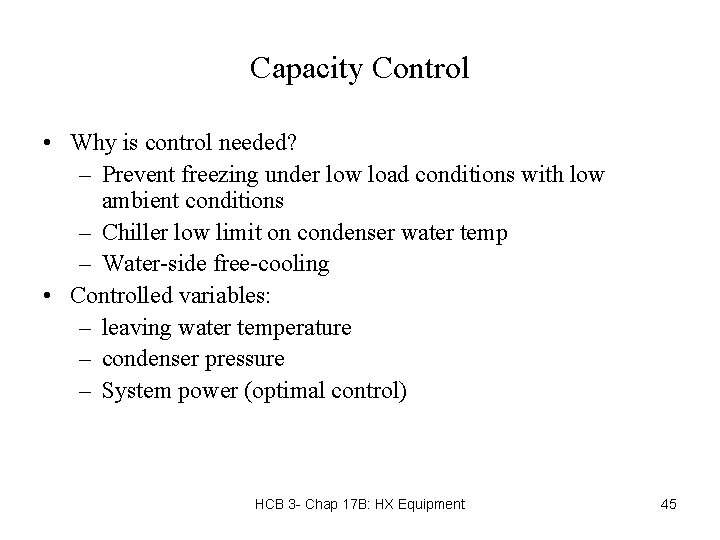

Capacity Control • Why is control needed? – Prevent freezing under low load conditions with low ambient conditions – Chiller low limit on condenser water temp – Water-side free-cooling • Controlled variables: – leaving water temperature – condenser pressure – System power (optimal control) HCB 3 - Chap 17 B: HX Equipment 45

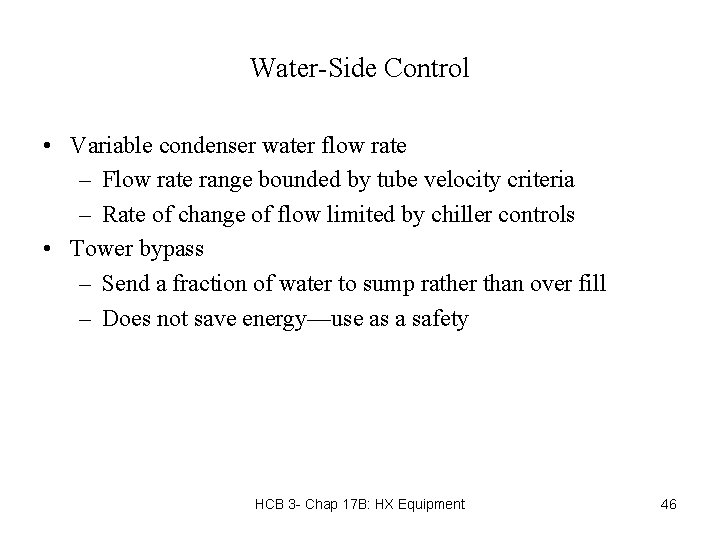

Water-Side Control • Variable condenser water flow rate – Flow rate range bounded by tube velocity criteria – Rate of change of flow limited by chiller controls • Tower bypass – Send a fraction of water to sump rather than over fill – Does not save energy—use as a safety HCB 3 - Chap 17 B: HX Equipment 46

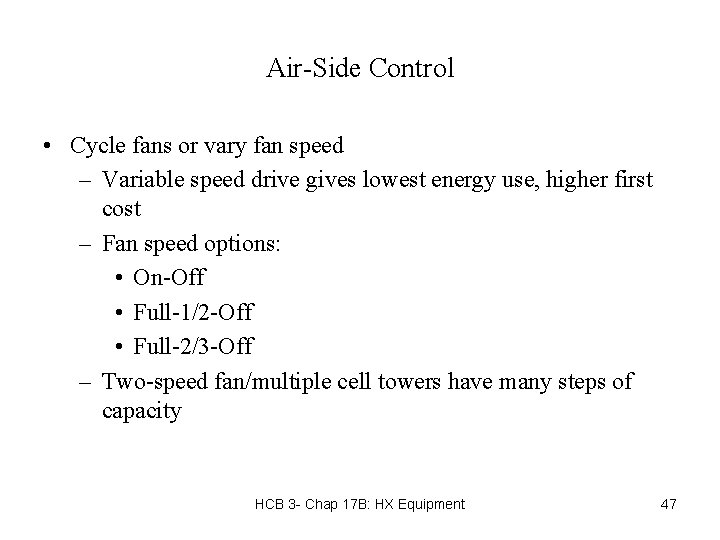

Air-Side Control • Cycle fans or vary fan speed – Variable speed drive gives lowest energy use, higher first cost – Fan speed options: • On-Off • Full-1/2 -Off • Full-2/3 -Off – Two-speed fan/multiple cell towers have many steps of capacity HCB 3 - Chap 17 B: HX Equipment 47

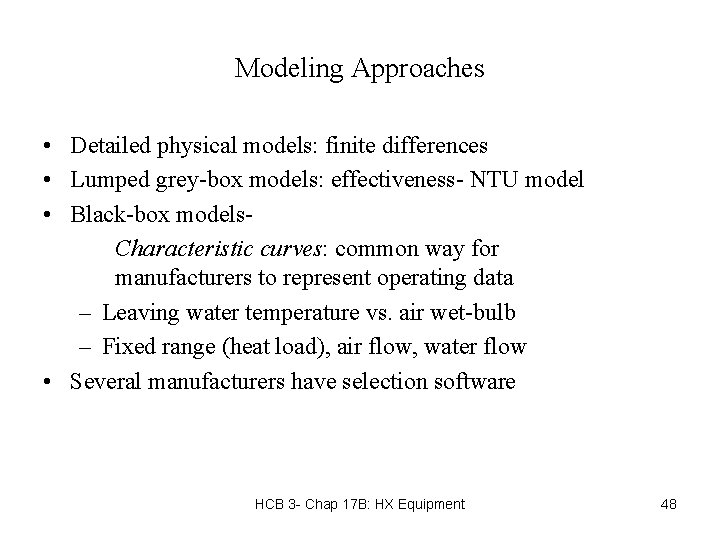

Modeling Approaches • Detailed physical models: finite differences • Lumped grey-box models: effectiveness- NTU model • Black-box models. Characteristic curves: common way for manufacturers to represent operating data – Leaving water temperature vs. air wet-bulb – Fixed range (heat load), air flow, water flow • Several manufacturers have selection software HCB 3 - Chap 17 B: HX Equipment 48

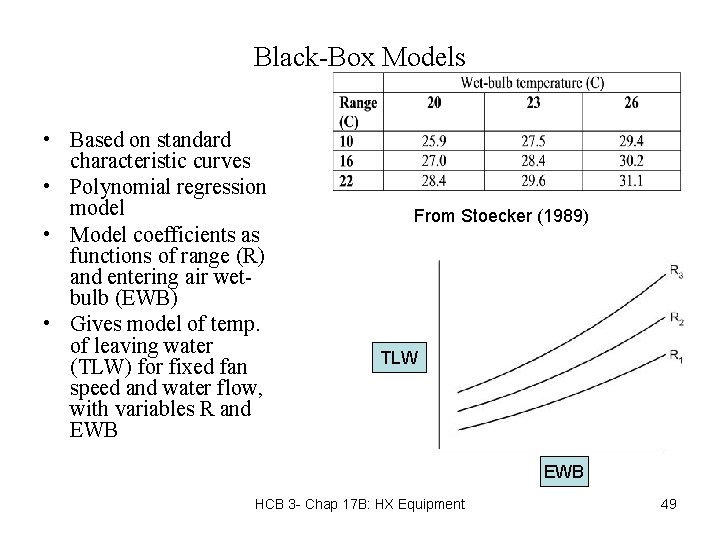

Black-Box Models • Based on standard characteristic curves • Polynomial regression model • Model coefficients as functions of range (R) and entering air wetbulb (EWB) • Gives model of temp. of leaving water (TLW) for fixed fan speed and water flow, with variables R and EWB From Stoecker (1989) TLW EWB HCB 3 - Chap 17 B: HX Equipment 49

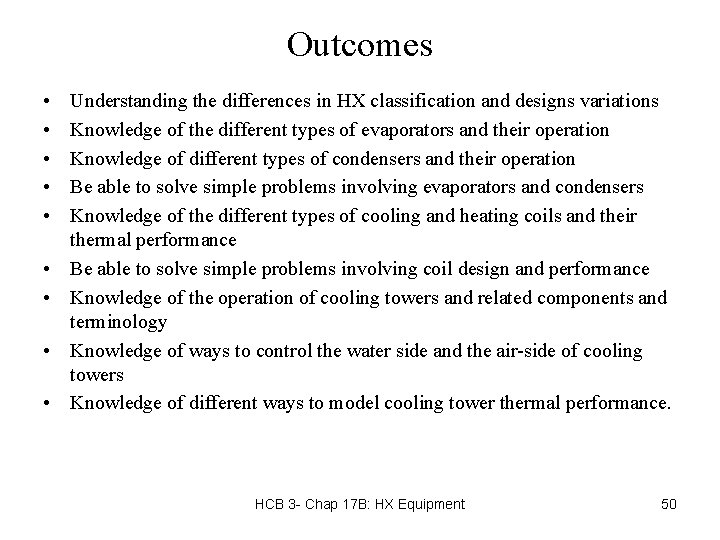

Outcomes • • • Understanding the differences in HX classification and designs variations Knowledge of the different types of evaporators and their operation Knowledge of different types of condensers and their operation Be able to solve simple problems involving evaporators and condensers Knowledge of the different types of cooling and heating coils and their thermal performance Be able to solve simple problems involving coil design and performance Knowledge of the operation of cooling towers and related components and terminology Knowledge of ways to control the water side and the air-side of cooling towers Knowledge of different ways to model cooling tower thermal performance. HCB 3 - Chap 17 B: HX Equipment 50
