Chapter 15 Wireless LANs Prof. Choong Seon HONG Kyung Hee University 1
IEEE 802 Standards Working Groups Wi. MAX, an acronym that stands for Worldwide Interoperability for Microwave Access(802. 16) Wi. Fi (Wireless Fidelity) : 802. 11 Kyung Hee University 2
Introduction v Architecture v Physical Layer v MAC Layer v Addressing Mechanism Kyung Hee University 3
15. 1 IEEE 802. 11 - Architecture q Basic Service Set (BSS) q Extended Service Set (ESS) Kyung Hee University 4
Basic Service Set • made up of stationary or mobile wireless stations, and possibly a central base station (access point) • BSS without an AP is stand-alone, cannot send data to other BSSs Kyung Hee University 5
ESS – Extended Service Set q Made up of two or more BSSs with APs – connected through a distribution system (usually a wired LAN) Kyung Hee University 6
Station Types q No-transition mobility – either stationary or moving only inside a BSS q BSS-transition mobility – can move from one BSS to another, confined to one ESS q ESS-transition mobility – can move from one ESS to another Kyung Hee University 7
Physical layer specifications q 802. 11 defines the specs for the conversion of bits to a signal Kyung Hee University 8
FHSS – Frequency hopping spread spectrum q sender sends on one carrier frequency for a short amount of time, hops to another frequency for the same time, then another, and so on, eventually the cycle is repeated q makes it difficult for unauthorized person to make sense of data q 2. 4 GHz industrial, scientific, and medical (ISM) band – 79 subbands of 1 MHz q modulation is FSK (two-level or four-level) Kyung Hee University 9
Frequency-Hopping example q Kyung Hee University 10
DSSS – direct sequence spread spectrum q Each bit sent is replaced by a chip code (similar to CDMA, but this is at the physical layer, not a multipleaccess data link layer method) q 2. 4 GHz ISM band q Modulation is PSK (BPSK or QPSK) Kyung Hee University 11
802. 11 q 802. 11 Infrared v. Two capacities 1 Mbps or 2 Mbps. v. Range is 10 to 20 meters and cannot penetrate walls. v. Does not work outdoors. q 802. 11 FHSS (Frequence Hopping Spread Spectrum) v. The main issue is multipath fading. v 79 non-overlapping channels, each 1 Mhz wide at low end of 2. 4 GHz ISM band. v. Same pseudo-random number generator used by all stations. v. Dwell time: min. time on channel before hopping (400 msec). Kyung Hee University 12
801. 11 a, b, g q 802. 11 a OFDM – orthogonal frequency division multiplexing v 5 -GHz ISM band v 48 subbands for sending 48 groups of bits at a time, 4 subbands for control information v PSK for 18 Mbps and QAM for 54 Mbps q 802. 11 b HR-DSSS – high-rate direct sequence spread spectrum v 2. 4 GHz band v similar to DSSS except for encoding, complementary code keying (CCK), encodes 4 or 8 bits to one CCK symbol v modulation BPSK and QPSK v 4 data rates (1, 2, 5. 5, and 11 Mbps) : DSSS for 1, 2 Mbps, BPSKllfor 5. 5, QPSK for 11 Mbps v. Range is 7 times greater than 11 a. q Kyung Hee University 802. 11 b and 11 a are incompatible!! 13
801. 11 a, b, g (cont’d) q 802. 11 g OFDM v 2. 4 GHz band v 54 -Mbps data rate v Is backward compatible with 802. 11 b. Kyung Hee University 14
MAC layers in IEEE 802. 11 standard PCF : Point Coordination Function DCF : Distributed Coordination Function Kyung Hee University 15
CSMA/CA q Cannot implement CSMA/CD: v collision detection implies the ability to send and receive at the same time, which implies costly stations and increased bandwidth requirements v collision may not be detected because of a hidden terminal v distance could cause signal fading which could prevent a station from hearing a collision Kyung Hee University 16
Hidden and Exposed Terminals q (a)The hidden station problem Kyung Hee University (b) The exposed station problem 17
CSMA/CA flowchart Kyung Hee University 18
CSMA/CA and NAV DIFS – distributed interframe spread NAV – network allocation vector SIFS – short interframe spread collision only occurs during RTS – request to send handshake period (RTS, CTS) CTS – clear to send Kyung Hee University 19
Frame format Kyung Hee University 20
Subfields in FC(frame control) field Field Explanation Version The current version is 0. Type of information: management (00), control (01), or data (10). Subtype Defines the subtype of each type (see ). To DS Defined later. From DS Defined later. More flag When set to 1, means more fragments. Retry When set to 1, means retransmitted frame. Pwr mgt When set to 1, means station is in power management mode. More data When set to 1, means station has more data to send. WEP Wired equivalent privacy. When set to 1, means encryption implemented. Rsvd Kyung Hee University Reserved. 21
Control frames Kyung Hee University 22

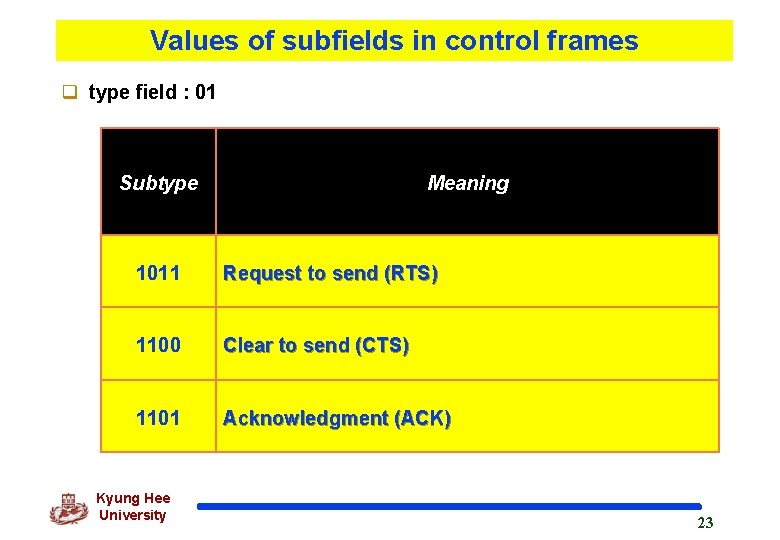

Values of subfields in control frames q type field : 01 Subtype Meaning 1011 Request to send (RTS) 1100 Clear to send (CTS) 1101 Acknowledgment (ACK) Kyung Hee University 23
Subfields in FC field q To DS From DS 0 0 1 1 Kyung Hee University Address 1 Address 2 Address 3 Address 4 0 Destination station Source station BSS ID N/A 1 Destination station Sending AP Source station N/A 0 Receiving AP Source station Destination station N/A 1 Receiving AP Sending AP Destination station Source station 24
Addressing mechanism: case 1 • To DS = 0 and From DS = 0 • Frame is not going to a distribution system • Frame is going from one station in a BSS to another • ACK sent to original sender Kyung Hee University 25
Addressing mechanism: case 2 q To DS = 0 and From DS = 1 q Frame is coming from a distribution system q Frame is coming from an AP and going to a station q ACK sent to AP Kyung Hee University 26
Addressing mechanism: case 3 • q To DS = 1 and From DS = 0 q Frame is going to a distribution system q Frame is coming from a station to an AP q ACK sent to original station q address 3 contains final destination of frame Kyung Hee University 27
Addressing mechanism: case 4 q To DS = 1 and From DS = 1 q Distribution system is wireless q Frame is coming from an AP going to another AP Kyung Hee University 28
15. 2 Bluetooth • Architecture • Radio Layer • Baseband Layer • L 2 CAP Layer • Other Upper Layers Kyung Hee University 29
Architecture - Two Types of Networks q Piconets q Scatternet Kyung Hee University 30
Piconet q up to eight stations, one is the master, rest are slaves q slaves synchronize their clocks and hopping sequence with master q only one master q communication between master and slave can be 1 -1 or 1 -many q can have up to eight additional slaves in parked state q slave in parked state is synchronized, but cannot communicate Kyung Hee University 31
Scatternet q scatternet – combined piconets q slave in one piconet can be master in another Kyung Hee University 32
Bluetooth layers Kyung Hee University 33
Radio Layers q roughly equivalent to the physical layer of the Internet model q 2. 4 -GHz ISM band q FHSS – frequency hopping spread spectrum q modulation – sophisticated version of FSK, called GFSK (FSK w/ Gaussian bandwidth filtering) Kyung Hee University 34

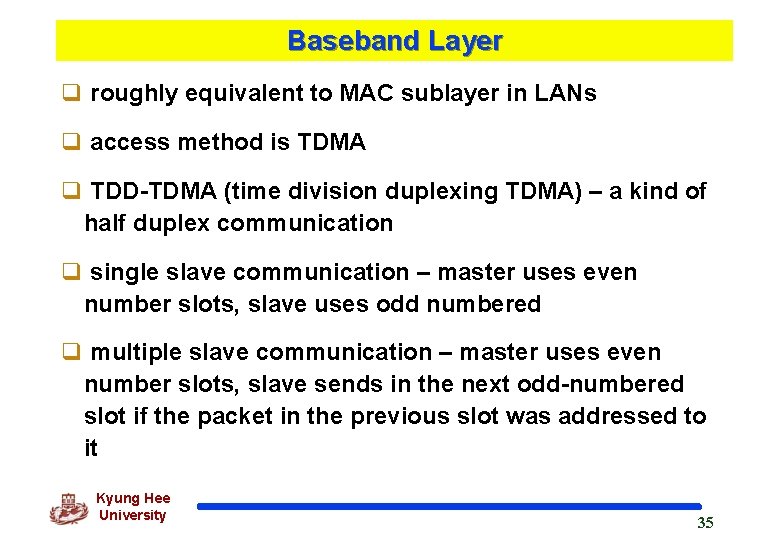

Baseband Layer q roughly equivalent to MAC sublayer in LANs q access method is TDMA q TDD-TDMA (time division duplexing TDMA) – a kind of half duplex communication q single slave communication – master uses even number slots, slave uses odd numbered q multiple slave communication – master uses even number slots, slave sends in the next odd-numbered slot if the packet in the previous slot was addressed to it Kyung Hee University 35
Single-slave Communication Kyung Hee University 36
Multiple-slave communication Kyung Hee University 37
Physical Links q SCO – synchronous connection oriented link – avoiding latency is more important than integrity – damaged packet is never retransmitted q ACL – asynchronous connectionless link – data integrity is more important than avoiding latency – if packet is damaged, it is retransmitted Kyung Hee University 38
Frame Format Types Kyung Hee University 39
L 2 CAP data packet format q Logical link control and adaptation protocol – roughly equivalent to the LLC sublayer in LANs q used for data exchange on an ACL link q specific duties: multiplexing, segmentation and reassembly, quality of service, and group management Kyung Hee University 40
Questions ! Kyung Hee University 41
