CHAPTER 15 Urinary System Copyright 2011 Delmar Cengage

Urinary System Overview • Functions of urinary system – Removes waste products from blood

Structures of the Urinary System • Kidneys – Reddish-brown, bean-shaped organs located on either

Structures of the Urinary System • Kidneys: Components of nephron – Glomerulus • Ball-shaped

Structures of the Urinary System • Kidneys: Components of nephron – Renal tubule •

Structures of the Urinary System • Kidneys – Medulla • Inner layer of kidney

Structures of the Urinary System • Kidneys – Medulla • Minor calyces merge to

Structures of the Urinary System • Ureters – Muscular tubes lined with mucous membrane

Structures of the Urinary System • Bladder – Hollow, muscular sac in pelvic cavity

Structures of the Urinary System • Urethra – Mucous membrane-lined tube that leads from

Structures of the Urinary System Copyright © 2011 Delmar, Cengage Learning. ALL RIGHTS RESERVED.

Question True or False: The core unit of the kidney’s filtration system is the

Answer True. Our kidneys contain millions of these microscopic filtration units. Copyright © 2011

Question The layer in the kidney that collects the urine and ultimately forms the

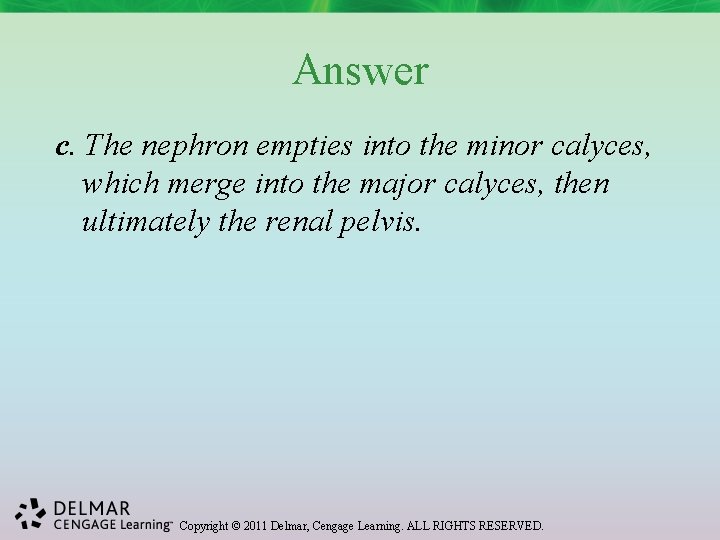

Answer c. The nephron empties into the minor calyces, which merge into the major

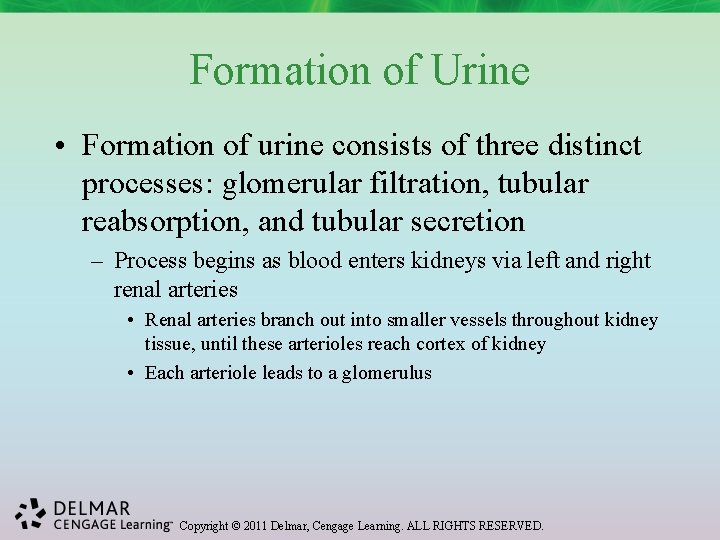

Formation of Urine • Formation of urine consists of three distinct processes: glomerular filtration,

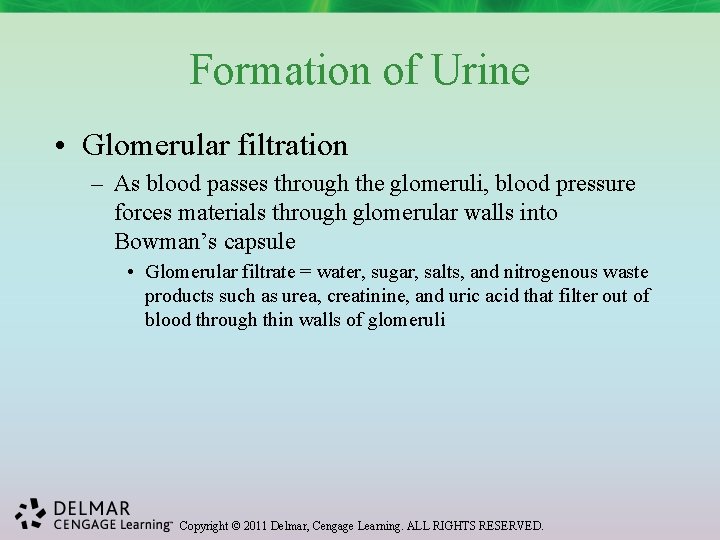

Formation of Urine • Glomerular filtration – As blood passes through the glomeruli, blood

Formation of Urine • Tubular reabsorption – As glomerular filtrate passes through renal tubules,

Formation of Urine • Urine – Urine consists of water and other materials that

Animation Click Here to Play Urine Formation Animation Copyright © 2011 Delmar, Cengage Learning.

Question True or False: Basically, the formation of urine begins in the glomerulus. Copyright

Answer True. Only 1 percent of what started as glomerular filtrate is excreted as

Characteristics of Normal Urine • Color – From pale yellow to a deep golden

Characteristics of Normal Urine • Clarity – Normal urine is clear – Cloudy, turbid

Characteristics of Normal Urine • Odor – Normal urine is aromatic – Has a

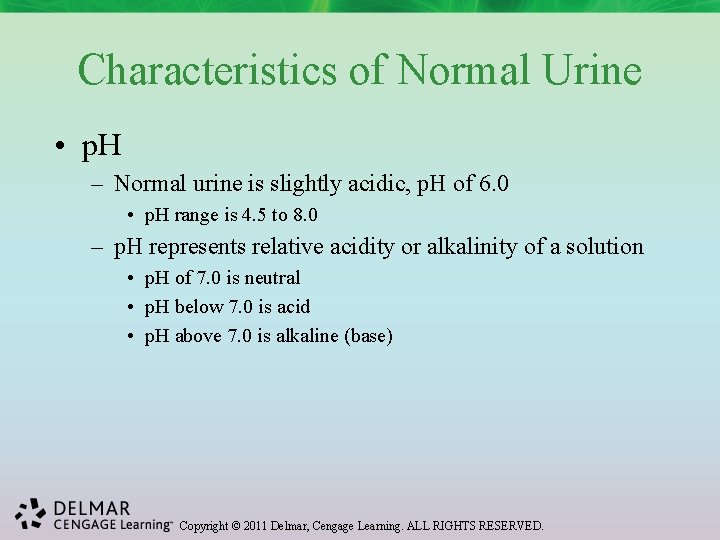

Characteristics of Normal Urine • p. H – Normal urine is slightly acidic, p.

Characteristics of Normal Urine • Protein – Normal urine may have small amounts of

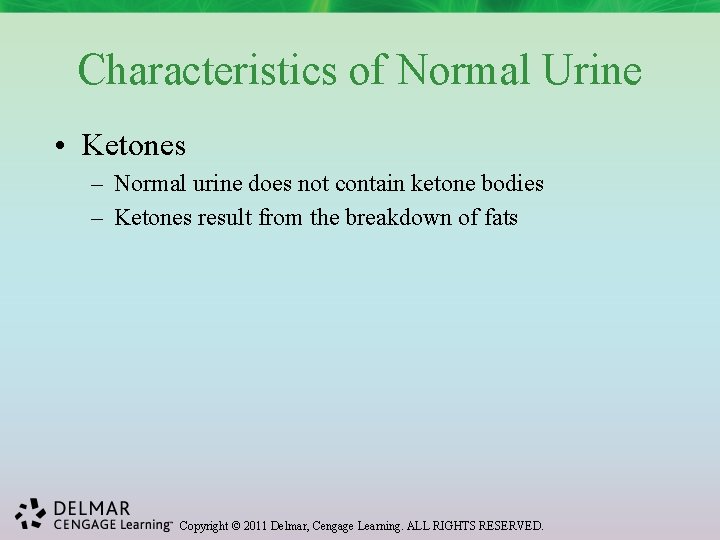

Characteristics of Normal Urine • Ketones – Normal urine does not contain ketone bodies

Question Which substance can be found in normal urine, but only in insignificant amounts?

Answer b. Although normal conditions can show ketones and glucose in the urine, there

Common Signs and Symptoms • Albuminuria – Presence in urine of abnormally large quantities

Common Signs and Symptoms • Bacteriuria – Presence of bacteria in urine • Dysuria

Common Signs and Symptoms • Fatigue – State of exhaustion or loss of strength

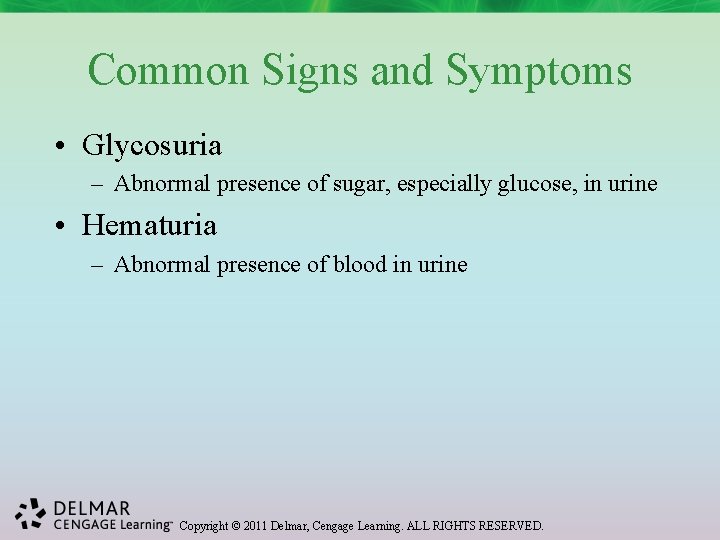

Common Signs and Symptoms • Glycosuria – Abnormal presence of sugar, especially glucose, in

Common Signs and Symptoms • Ketonuria – Presence of excessive amounts of ketone bodies

Common Signs and Symptoms • Malaise – Vague feeling of bodily weakness or discomfort,

Common Signs and Symptoms • Oliguria – Secretion of a diminished amount of urine

Common Signs and Symptoms • Polyuria – Excretion of abnormally large amounts of urine

Question True or False: Frequency, urgency, and bacteriuria are common symptoms of a kidney

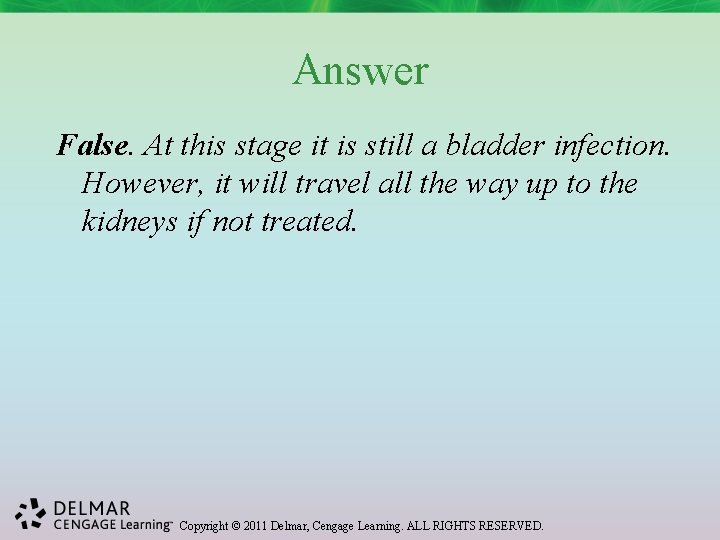

Answer False. At this stage it is still a bladder infection. However, it will

PATHOLOGICAL CONDITIONS Urinary System Copyright © 2011 Delmar, Cengage Learning. ALL RIGHTS RESERVED.

Cystitis • Pronounced – (siss-TYE-tis) • Defined – Inflammation of urinary bladder • Characterized

Glomerulonephritis (Acute) • Pronounced – (gloh-mair-yoo-loh-neh-FRYE-tis) • Defined – Inflammation of glomerulus of kidneys

Hydronephrosis • Pronounced – (high-droh-neh-FROH-sis) • Defined – Distension of pelvis and calyces of

Hydronephrosis Copyright © 2011 Delmar, Cengage Learning. ALL RIGHTS RESERVED.

Nephrotic Syndrome • Pronounced – (neh-FROT-ik SIN-drohm) • Defined – Clinical symptoms occurring when

Polycystic Kidney Disease • Pronounced – (pol-ee-SISS-tik kidney dih-ZEEZ) • Defined – Hereditary disorder

Question Distention of the kidney and ureter due to an obstruction is called _______.

Answer b. A renal calculus is the primary cause of this condition. Copyright ©

Pyelonephritis (Acute) • Pronounced – (pye-eh-loh-neh-FRY-tis) • Defined – Bacterial infection of the renal

Renal Calculi • Pronounced – (REE-nal KAL-kew-lye) • Defined – Stone formations in kidney

Renal Cell Carcinoma • Pronounced – (REE-nal SELL kar-sin-OH-mah) • Defined – Malignant tumor

Renal Failure, Chronic • Pronounced – (REE-nal FAIL-yoor, KRON-ik) • Defined – Progressively slow

Vesicoureteral Reflux • Pronounced – (vess-ih-koh-yoo-REE-ter-al REE-fluks) • Defined – Abnormal backflow (reflux) of

Wilm’s Tumor • Pronounced – (VILMZ TOO-mor) • Defined – Malignant tumor of the

Question True or False: Unfortunately, in renal cell carcinoma a person is asymptomatic until

Answer True. Finding this in the early stages is usually an incidental finding while

Treatment of Renal Failure • Peritoneal dialysis – Mechanical filtering process – Used to

Treatment of Renal Failure • Continuous ambulatory peritoneal dialysis (CAPD) – Requires transfer set,

Treatment of Renal Failure Continuous Ambulatory Peritoneal Dialysis Copyright © 2011 Delmar, Cengage Learning.

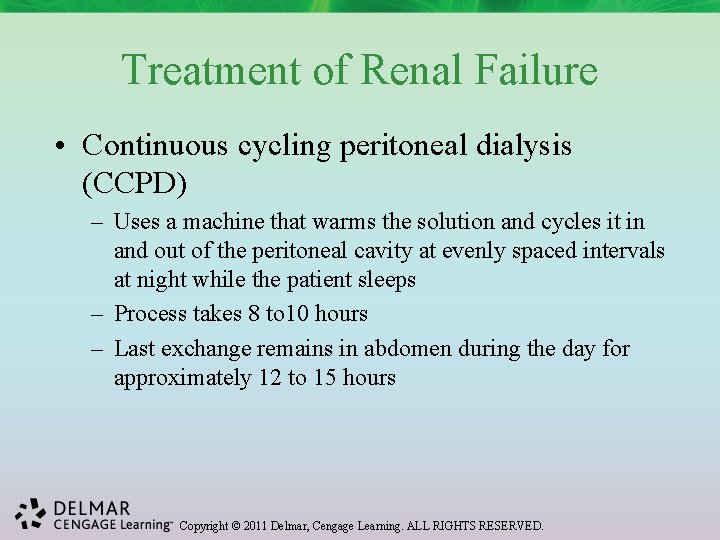

Treatment of Renal Failure • Continuous cycling peritoneal dialysis (CCPD) – Uses a machine

Treatment of Renal Failure Continuous Cycling Peritoneal Dialysis Copyright © 2011 Delmar, Cengage Learning.

Treatment of Renal Failure • Hemodialysis – Process of removing excess fluids and toxins

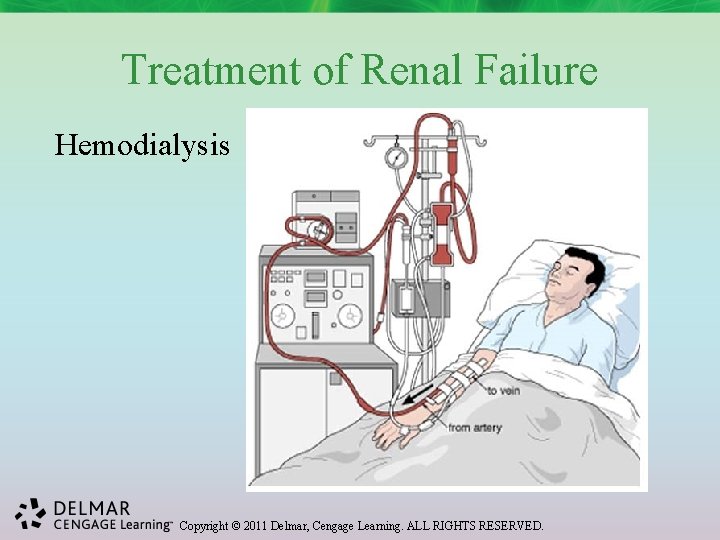

Treatment of Renal Failure Hemodialysis Copyright © 2011 Delmar, Cengage Learning. ALL RIGHTS RESERVED.

Treatment of Renal Failure • Arteriovenous fistula – Access vessel created for use with

Treatment of Renal Failure Arteriovenous fistula for hemodialysis Copyright © 2011 Delmar, Cengage Learning.

Treatment of Renal Failure • Kidney transplantation – Surgical implantation of a healthy, human

Treatment of Renal Failure • Kidney transplantation – – Donor kidney surgically placed in

Question With some good training, this method can be done by the patient and

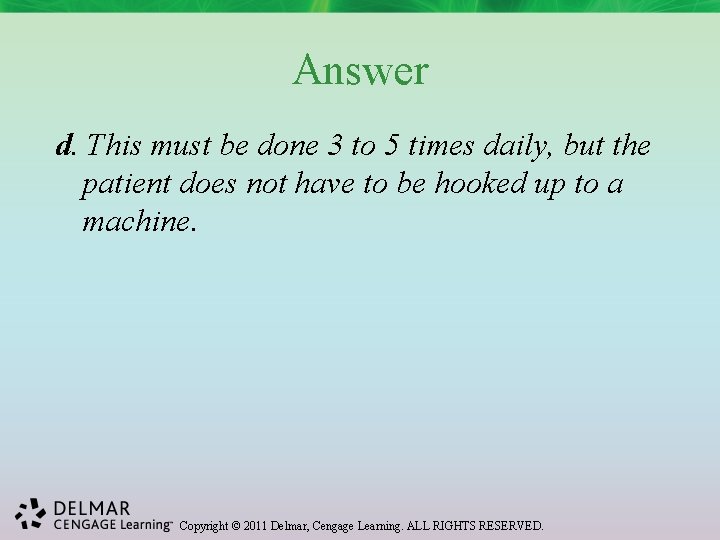

Answer d. This must be done 3 to 5 times daily, but the patient

Question True or False: When a healthy kidney is implanted, the natural kidney must

Answer False. In fact, even the blood supply to the recipient’s kidney is left

DIAGNOSTIC TECHNIQUES, TREATMENTS, AND PROCEDURES Urinary System Copyright © 2011 Delmar, Cengage Learning. ALL

Diagnostic Techniques, Treatments, and Procedures • Blood urea nitrogen (BUN) – Blood test performed

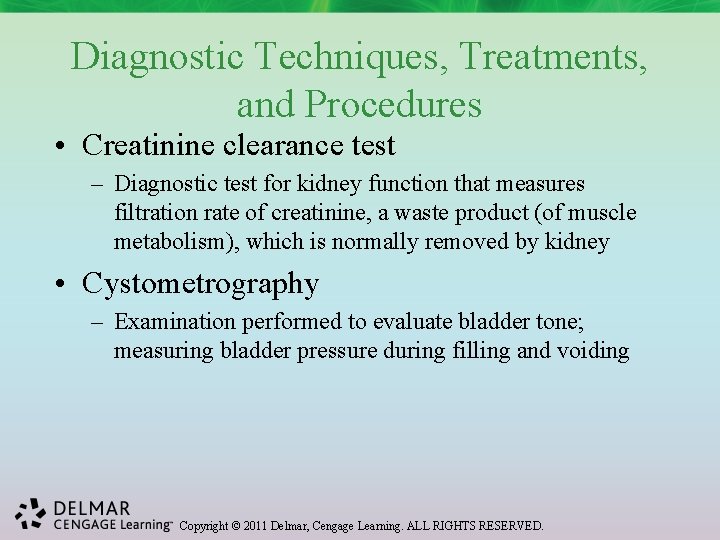

Diagnostic Techniques, Treatments, and Procedures • Creatinine clearance test – Diagnostic test for kidney

Diagnostic Techniques, Treatments, and Procedures • Cystoscopy – Process of viewing interior of bladder

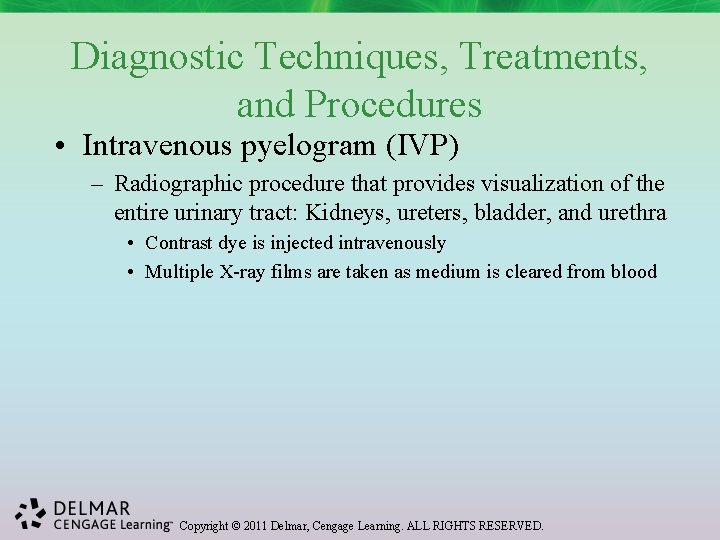

Diagnostic Techniques, Treatments, and Procedures • Intravenous pyelogram (IVP) – Radiographic procedure that provides

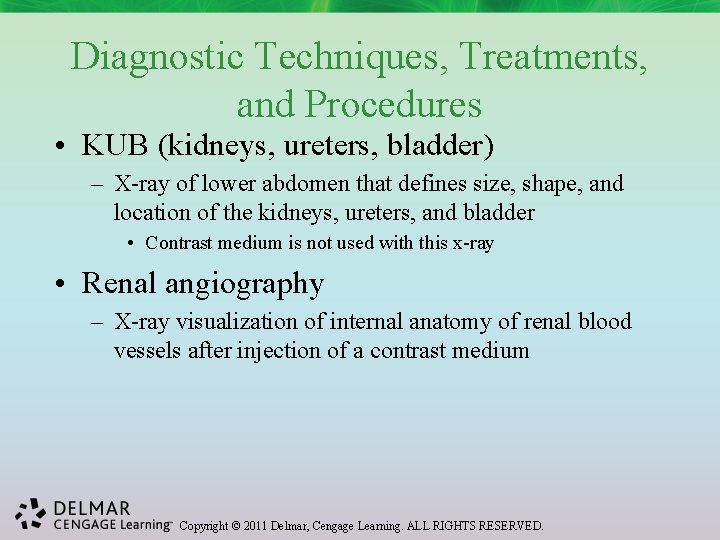

Diagnostic Techniques, Treatments, and Procedures • KUB (kidneys, ureters, bladder) – X-ray of lower

Question True or False: An intravenous pyelogram (IVP) is useful in identifying an obstruction

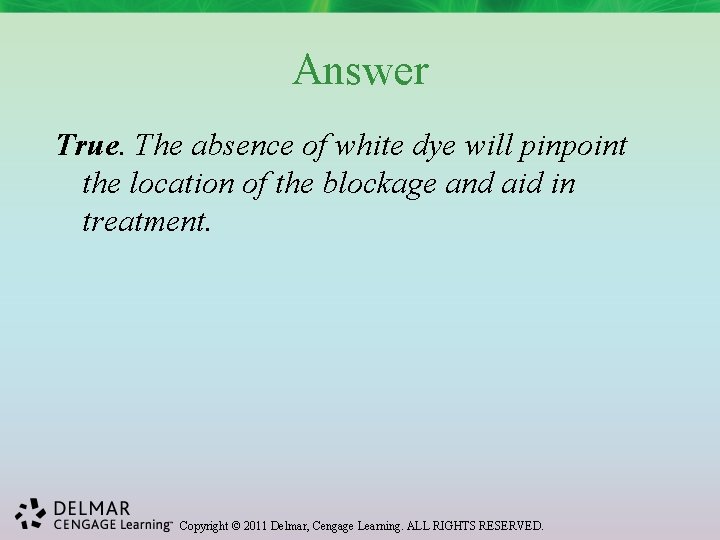

Answer True. The absence of white dye will pinpoint the location of the blockage

Diagnostic Techniques, Treatments, and Procedures • Renal scan – Radioactive isotope (tracer) is injected

Diagnostic Techniques, Treatments, and Procedures • Retrograde Pyelogram (RP) – Radiographic procedure in which

Diagnostic Techniques, Treatments, and Procedures • Ultrasonography – Procedure in which sound waves are

Diagnostic Techniques, Treatments, and Procedures • Urine culture – Procedure used to cultivate the

Diagnostic Techniques, Treatments, and Procedures • 24 -Hour urine specimen – Collection of urine

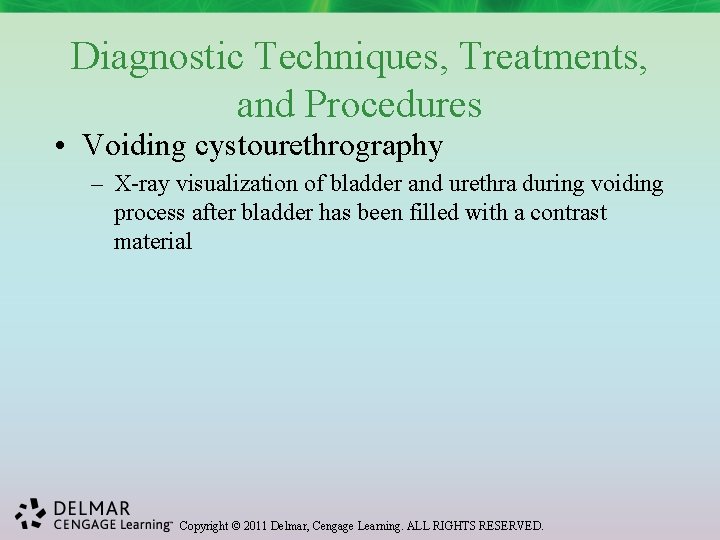

Diagnostic Techniques, Treatments, and Procedures • Voiding cystourethrography – X-ray visualization of bladder and

Question Which of the following would be done if a bladder infection was suspected?

Answer d. A urinalysis is done first. If bacteriuria is found, a urine culture

Urine Specimen Collections • Catheterized specimen – Also known as a sterile specimen –

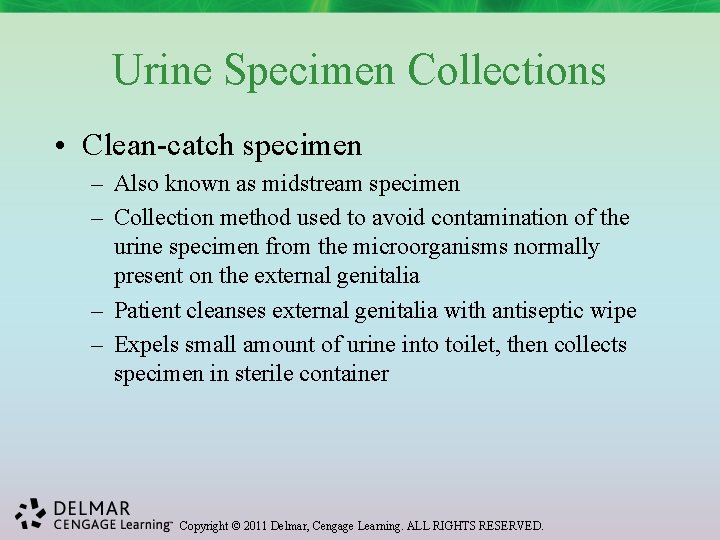

Urine Specimen Collections • Clean-catch specimen – Also known as midstream specimen – Collection

Urine Specimen Collections • First-voided specimen – Also known as an early-morning specimen –

Urine Specimen Collections • Random specimen – Urine specimen that is collected at any

Question The term used for urine left over after voiding is called _____. a.

Answer a. High residuals could indicate a physical problem in the bladder, urethra, or
