Chapter 15 Baboon text Cell Signaling and Communication

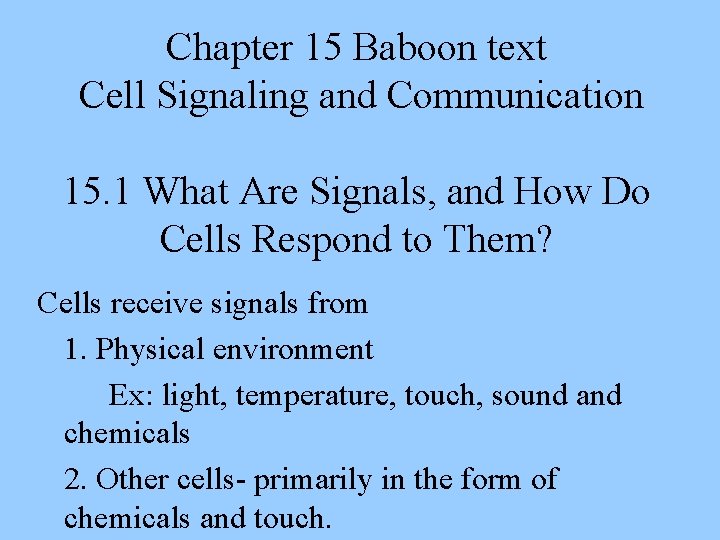

Chapter 15 Baboon text Cell Signaling and Communication 15. 1 What Are Signals, and How Do Cells Respond to Them? Cells receive signals from 1. Physical environment Ex: light, temperature, touch, sound and chemicals 2. Other cells- primarily in the form of chemicals and touch.

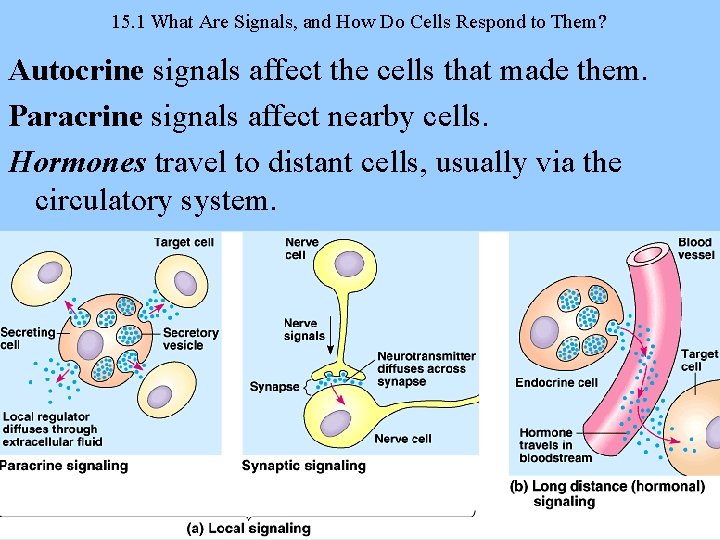

15. 1 What Are Signals, and How Do Cells Respond to Them? Autocrine signals affect the cells that made them. Paracrine signals affect nearby cells. Hormones travel to distant cells, usually via the circulatory system.

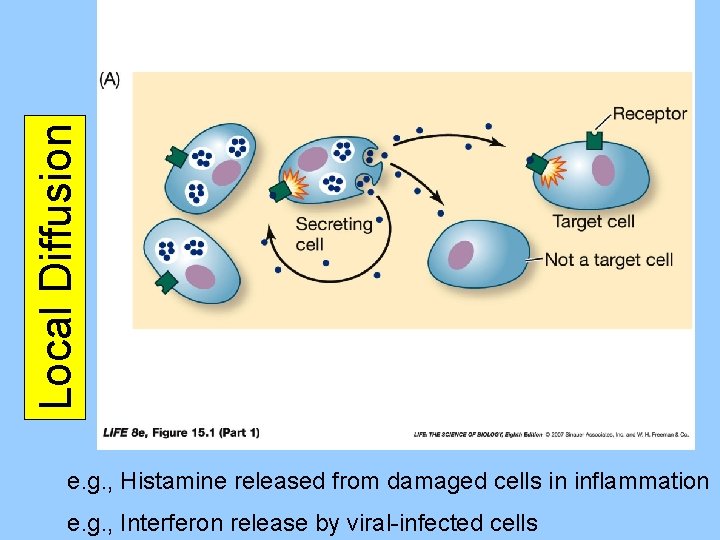

Local Diffusion e. g. , Histamine released from damaged cells in inflammation e. g. , Interferon release by viral-infected cells

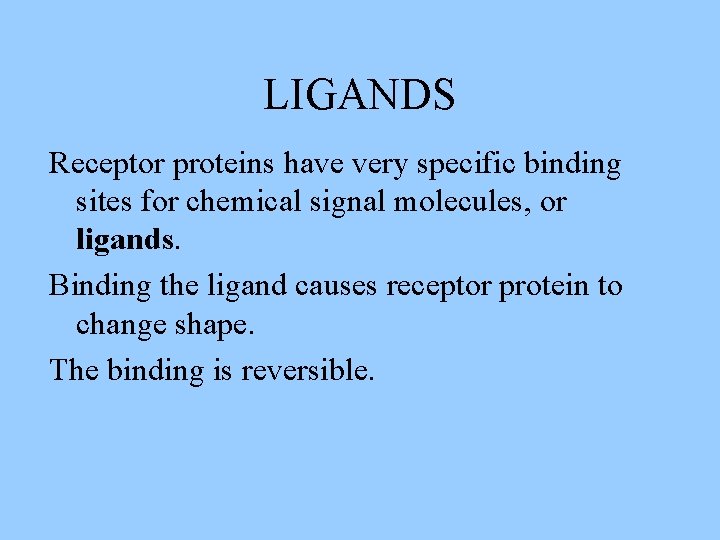

LIGANDS Receptor proteins have very specific binding sites for chemical signal molecules, or ligands. Binding the ligand causes receptor protein to change shape. The binding is reversible.

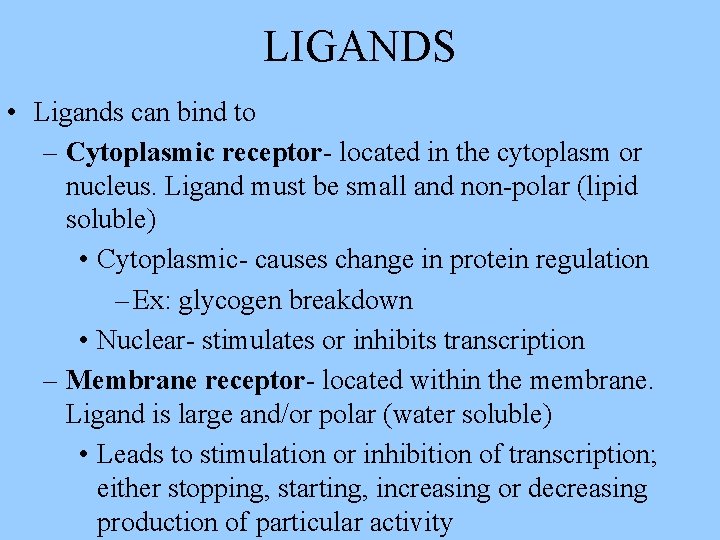

LIGANDS • Ligands can bind to – Cytoplasmic receptor- located in the cytoplasm or nucleus. Ligand must be small and non-polar (lipid soluble) • Cytoplasmic- causes change in protein regulation – Ex: glycogen breakdown • Nuclear- stimulates or inhibits transcription – Membrane receptor- located within the membrane. Ligand is large and/or polar (water soluble) • Leads to stimulation or inhibition of transcription; either stopping, starting, increasing or decreasing production of particular activity

Ligands Extracellular Reception e. g. , insulin and epinephrine Intracellular Reception e. g. , nitric oxide and steroid hormone

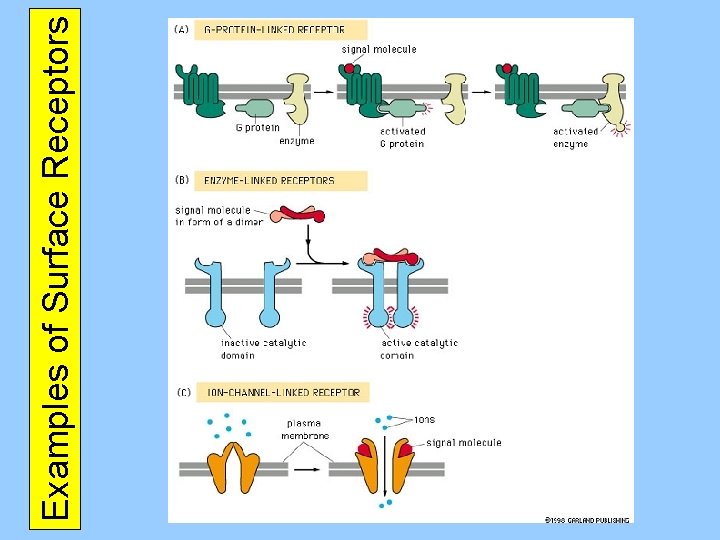

Examples of Surface Receptors

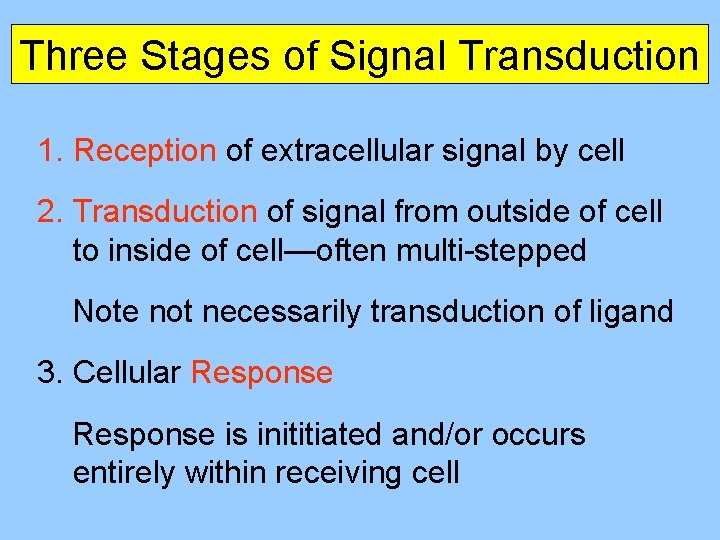

Three Stages of Signal Transduction 1. Reception of extracellular signal by cell 2. Transduction of signal from outside of cell to inside of cell—often multi-stepped Note not necessarily transduction of ligand 3. Cellular Response is inititiated and/or occurs entirely within receiving cell

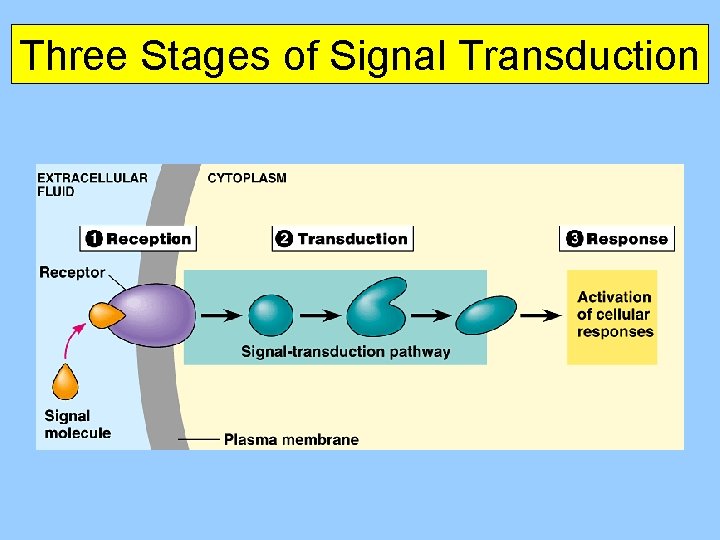

Three Stages of Signal Transduction

Three Stages 1. Reception 2 a. Transduction 2 b. Transduction 3. Response

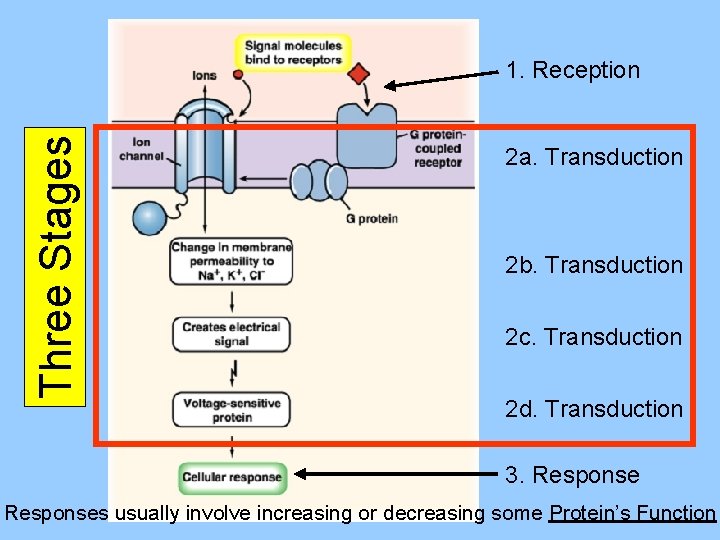

Three Stages 1. Reception 2 a. Transduction 2 b. Transduction 2 c. Transduction 2 d. Transduction 3. Responses usually involve increasing or decreasing some Protein’s Function

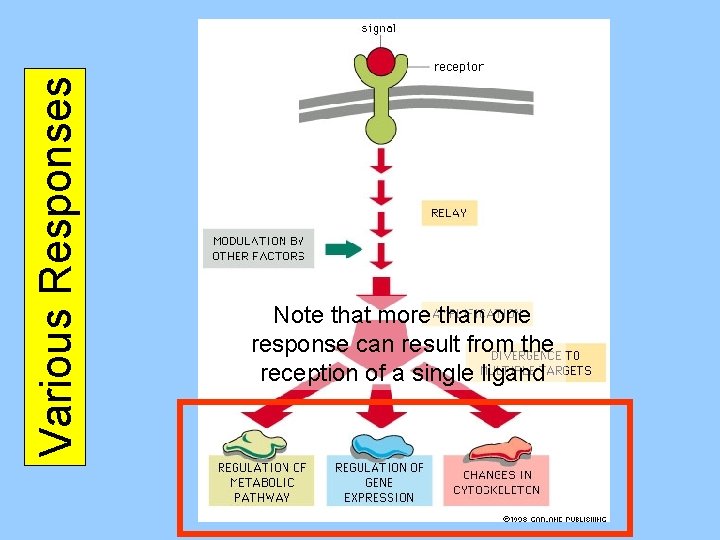

Various Responses Note that more than one response can result from the reception of a single ligand

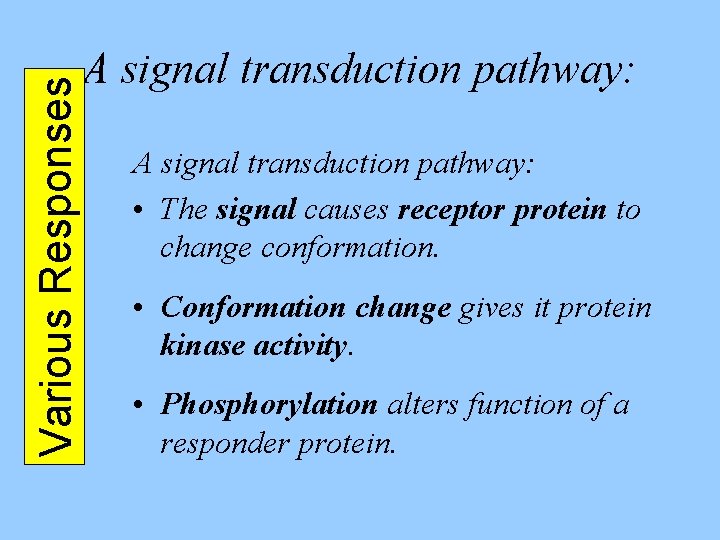

Various Responses A signal transduction pathway: • The signal causes receptor protein to change conformation. • Conformation change gives it protein kinase activity. • Phosphorylation alters function of a responder protein.

Various Responses

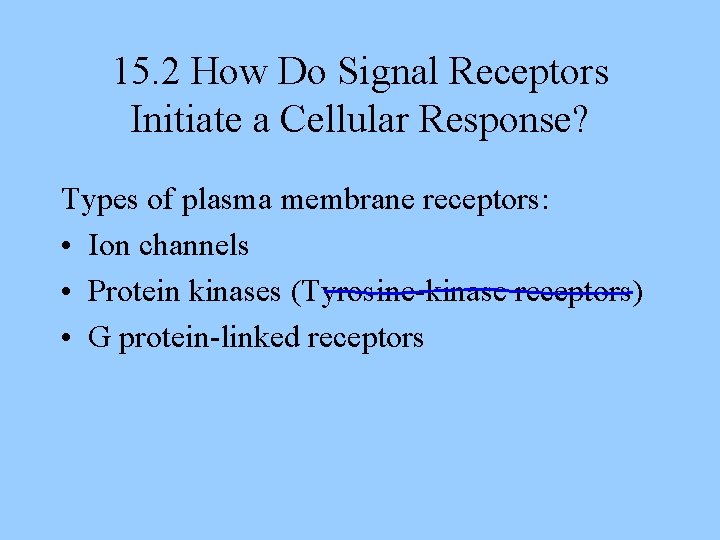

15. 2 How Do Signal Receptors Initiate a Cellular Response? Types of plasma membrane receptors: • Ion channels • Protein kinases (Tyrosine-kinase receptors) • G protein-linked receptors

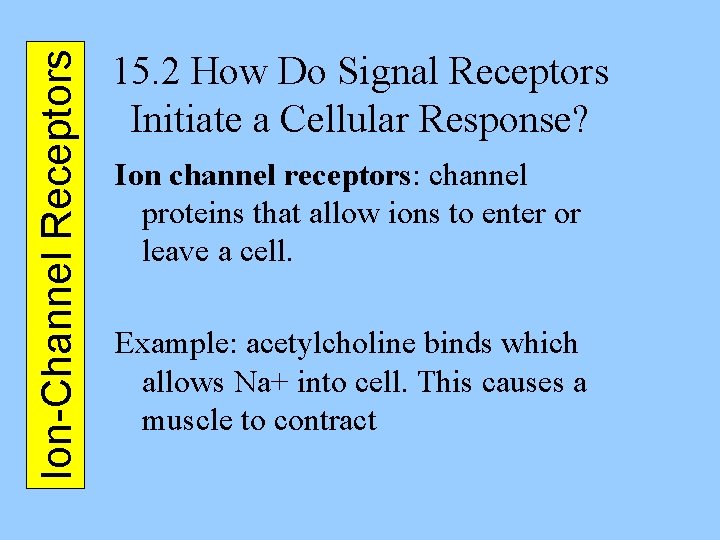

Ion-Channel Receptors 15. 2 How Do Signal Receptors Initiate a Cellular Response? Ion channel receptors: channel proteins that allow ions to enter or leave a cell. Example: acetylcholine binds which allows Na+ into cell. This causes a muscle to contract

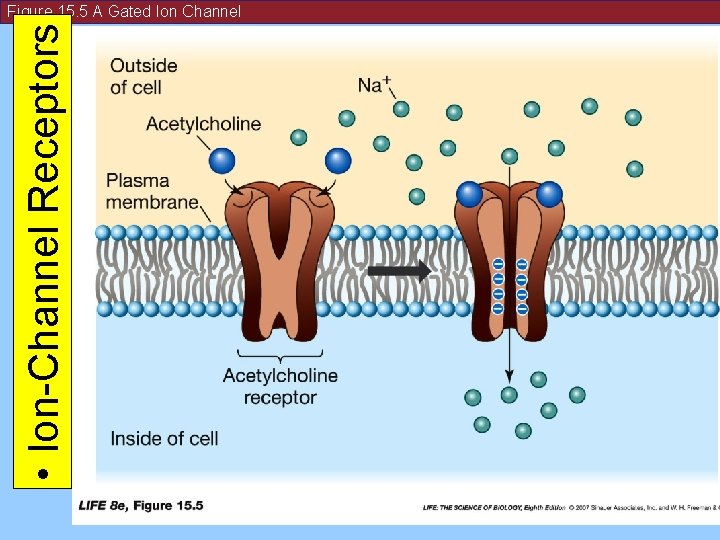

• Ion-Channel Receptors Figure 15. 5 A Gated Ion Channel

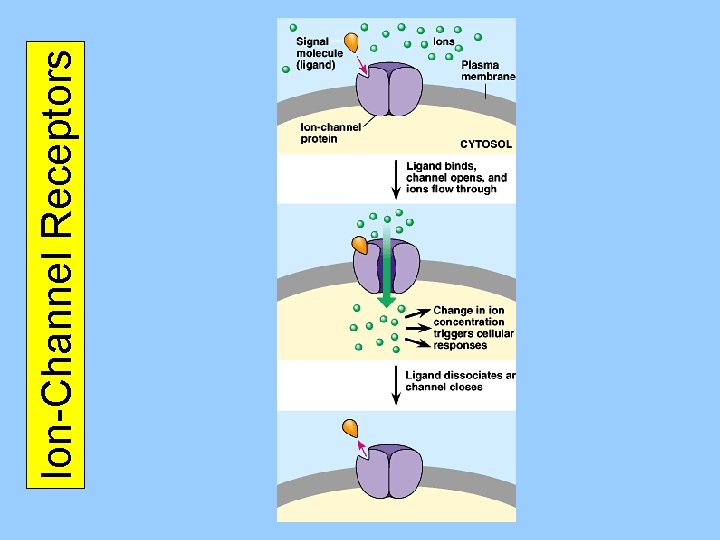

Ion-Channel Receptors

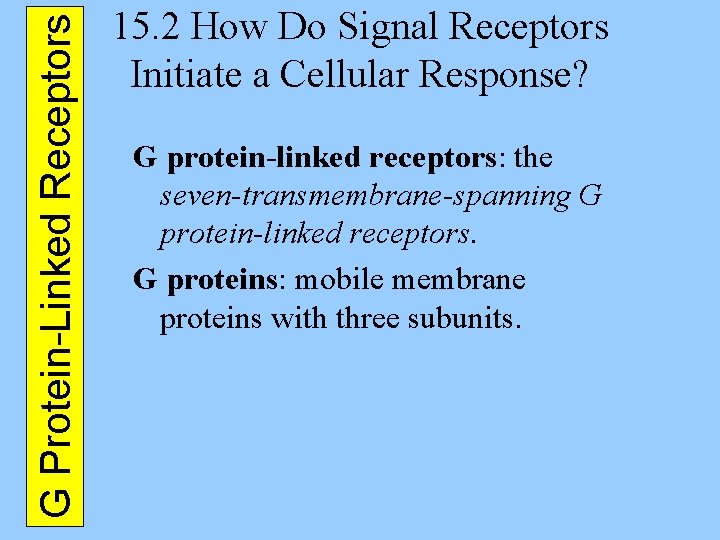

G Protein-Linked Receptors 15. 2 How Do Signal Receptors Initiate a Cellular Response? G protein-linked receptors: the seven-transmembrane-spanning G protein-linked receptors. G proteins: mobile membrane proteins with three subunits.

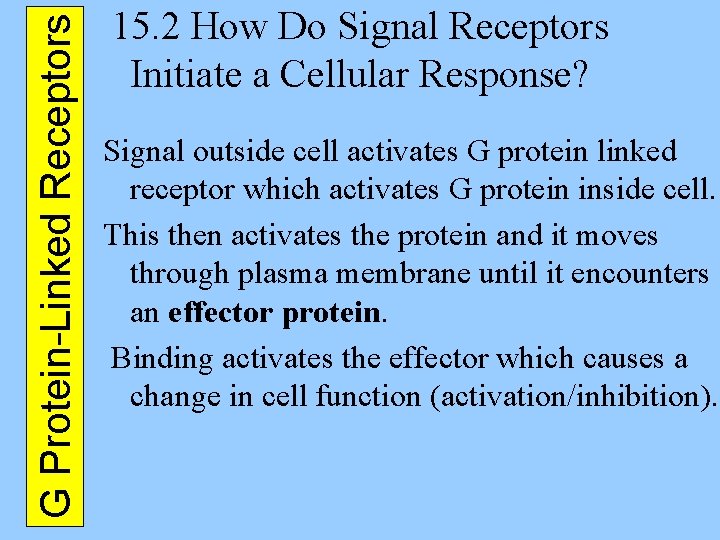

G Protein-Linked Receptors 15. 2 How Do Signal Receptors Initiate a Cellular Response? Signal outside cell activates G protein linked receptor which activates G protein inside cell. This then activates the protein and it moves through plasma membrane until it encounters an effector protein. Binding activates the effector which causes a change in cell function (activation/inhibition).

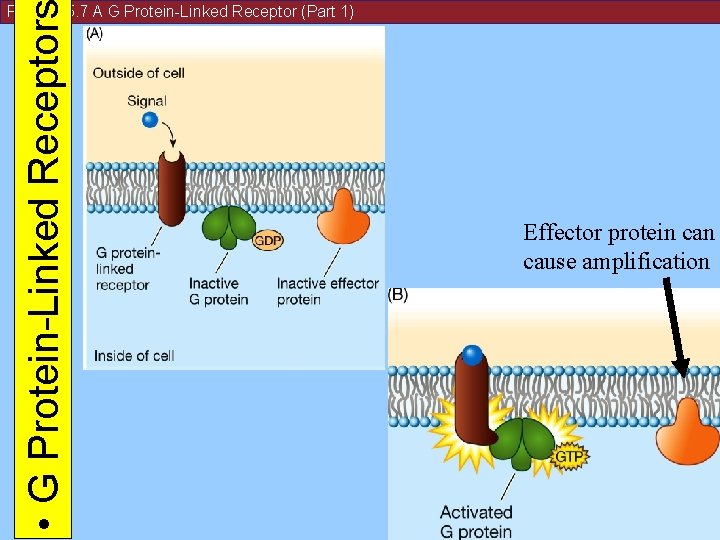

• G Protein-Linked Receptor Figure 15. 7 A G Protein-Linked Receptor (Part 1) Effector protein cause amplification

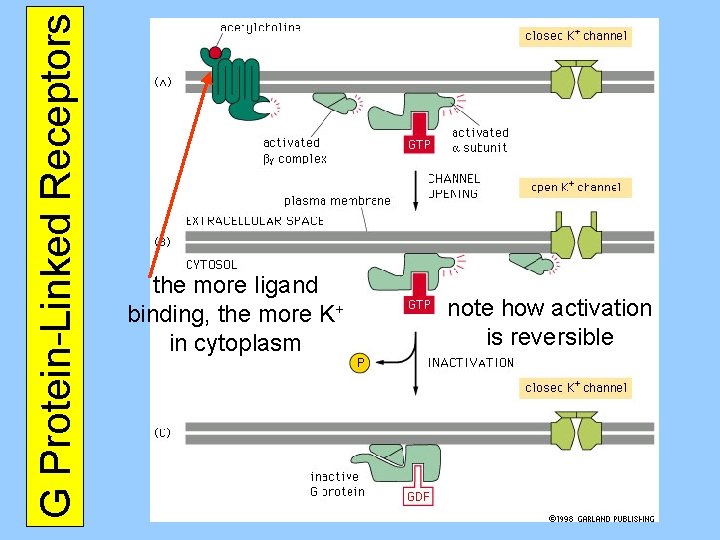

G Protein-Linked Receptors the more ligand binding, the more K+ in cytoplasm note how activation is reversible

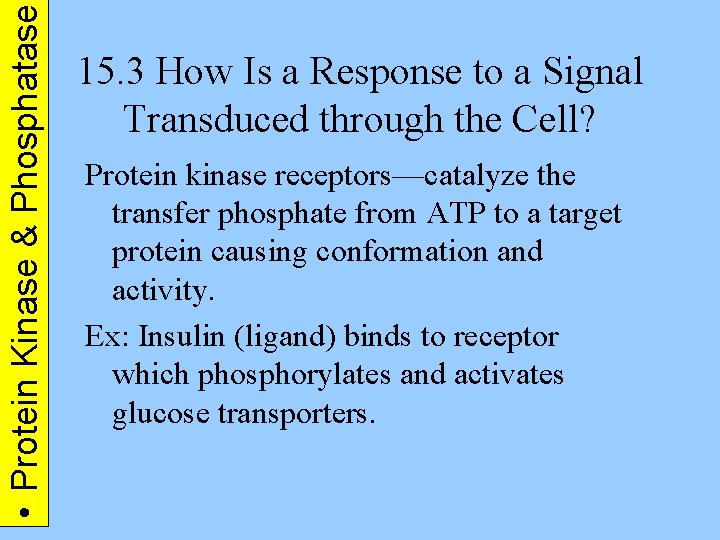

• Protein Kinase & Phosphatase 15. 3 How Is a Response to a Signal Transduced through the Cell? Protein kinase receptors—catalyze the transfer phosphate from ATP to a target protein causing conformation and activity. Ex: Insulin (ligand) binds to receptor which phosphorylates and activates glucose transporters.

• Protein Kinase & Phosphatase Figure 15. 10 A Protein Kinase Cascade

Signal Amplification (Direct Cascade) 15. 3 How Is a Response to a Signal Transduced through the Cell? Direct transductionthe receptor causes the change and occurs at membrane.

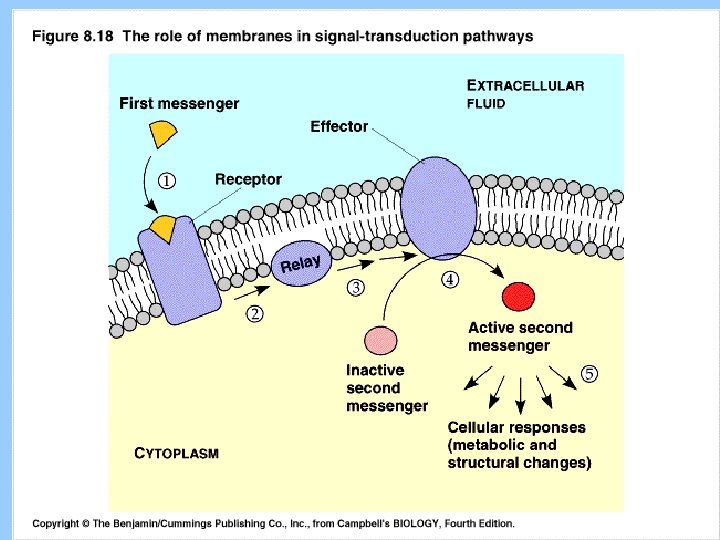

15. 3 How Is a Response to a Signal Transduced through the Cell? Signal Amplification (Indirect Cascade) Indirect transduction- involves a second messenger.

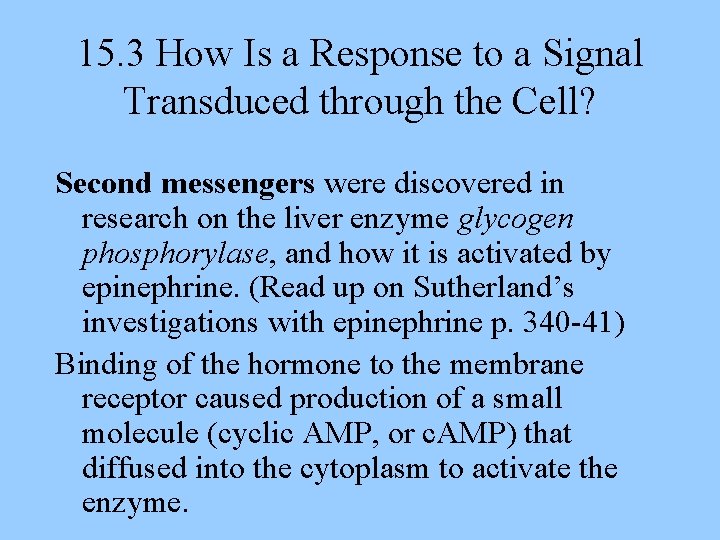

15. 3 How Is a Response to a Signal Transduced through the Cell? Second messengers were discovered in research on the liver enzyme glycogen phosphorylase, and how it is activated by epinephrine. (Read up on Sutherland’s investigations with epinephrine p. 340 -41) Binding of the hormone to the membrane receptor caused production of a small molecule (cyclic AMP, or c. AMP) that diffused into the cytoplasm to activate the enzyme.

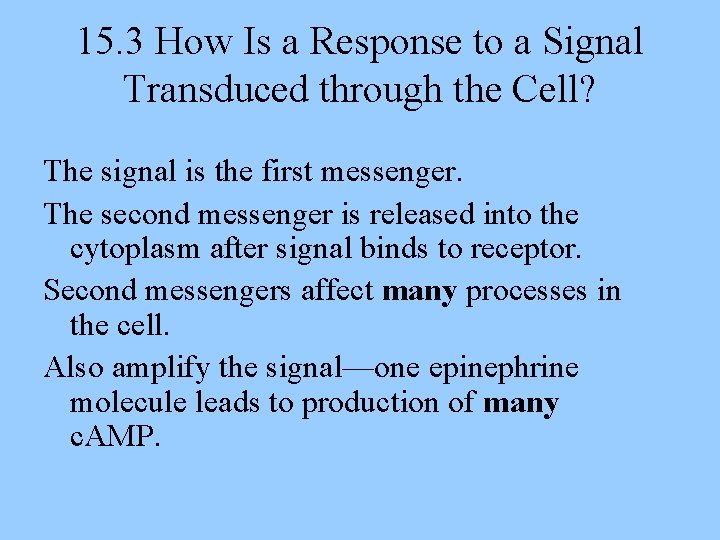

15. 3 How Is a Response to a Signal Transduced through the Cell? The signal is the first messenger. The second messenger is released into the cytoplasm after signal binds to receptor. Second messengers affect many processes in the cell. Also amplify the signal—one epinephrine molecule leads to production of many c. AMP.

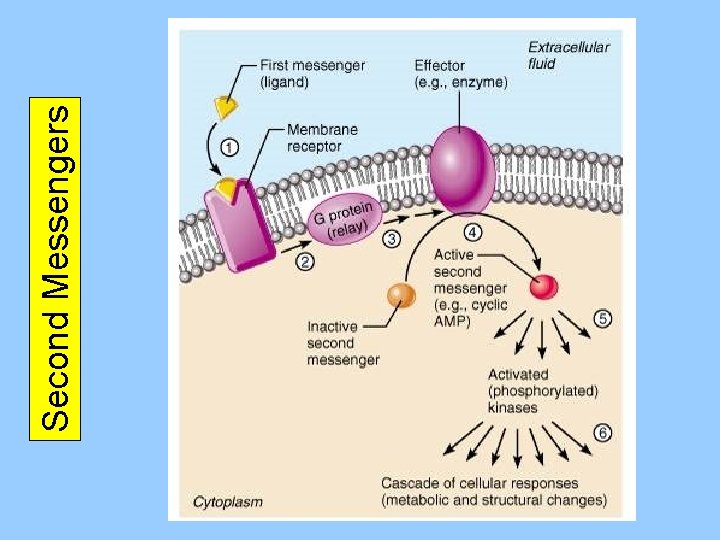

Second Messengers

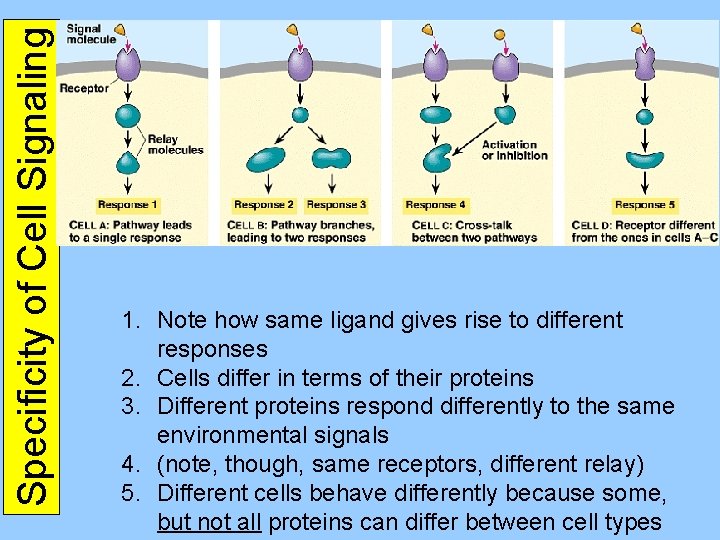

Specificity of Cell Signaling 1. Note how same ligand gives rise to different responses 2. Cells differ in terms of their proteins 3. Different proteins respond differently to the same environmental signals 4. (note, though, same receptors, different relay) 5. Different cells behave differently because some, but not all proteins can differ between cell types

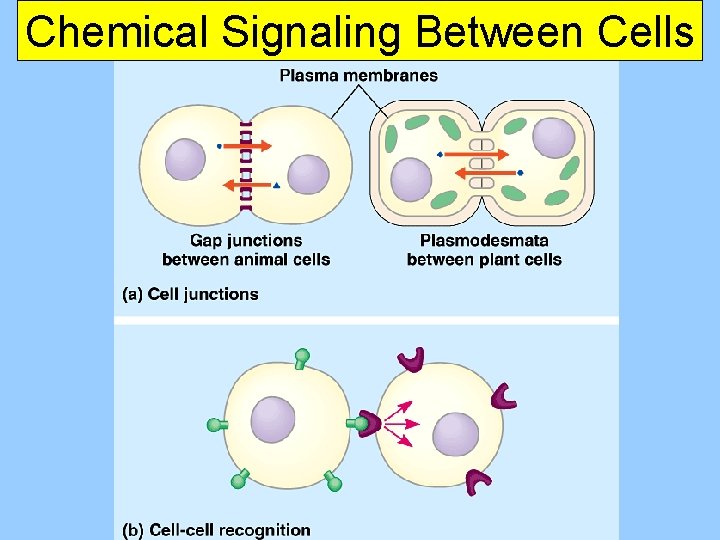

Chemical Signaling Between Cells

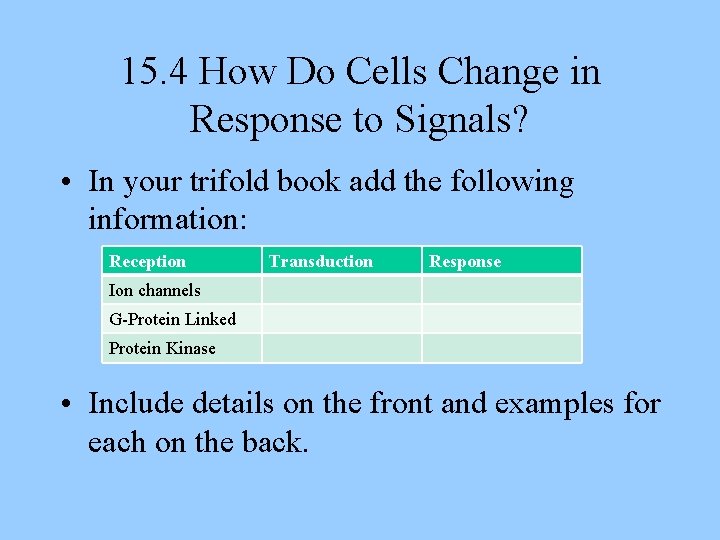

15. 4 How Do Cells Change in Response to Signals? • In your trifold book add the following information: Reception Transduction Response Ion channels G-Protein Linked Protein Kinase • Include details on the front and examples for each on the back.

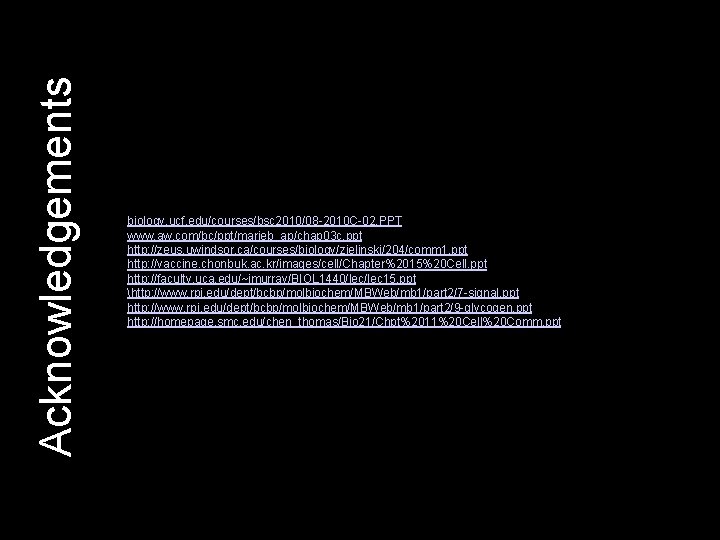

Acknowledgements biology. ucf. edu/courses/bsc 2010/08 -2010 C-02. PPT www. aw. com/bc/ppt/marieb_ap/chap 03 c. ppt http: //zeus. uwindsor. ca/courses/biology/zielinski/204/comm 1. ppt http: //vaccine. chonbuk. ac. kr/images/cell/Chapter%2015%20 Cell. ppt http: //faculty. uca. edu/~jmurray/BIOL 1440/lec 15. ppt http: //www. rpi. edu/dept/bcbp/molbiochem/MBWeb/mb 1/part 2/7 -signal. ppt http: //www. rpi. edu/dept/bcbp/molbiochem/MBWeb/mb 1/part 2/9 -glycogen. ppt http: //homepage. smc. edu/chen_thomas/Bio 21/Chpt%2011%20 Cell%20 Comm. ppt

Putting the information to work

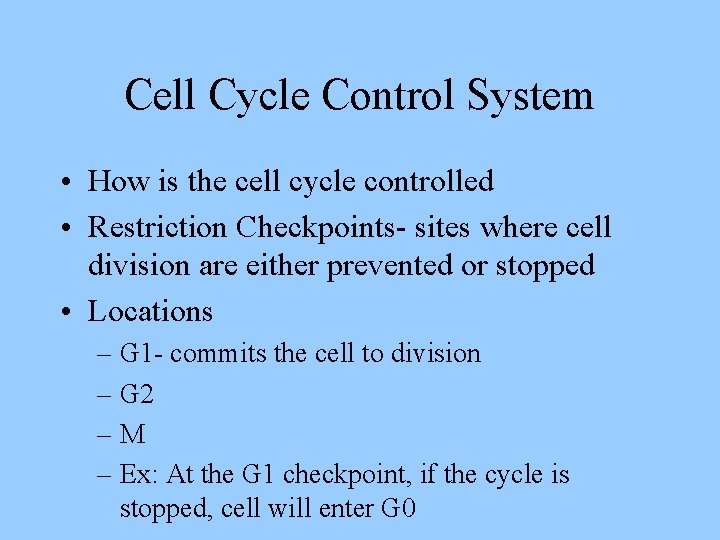

Cell Cycle Control System • How is the cell cycle controlled • Restriction Checkpoints- sites where cell division are either prevented or stopped • Locations – G 1 - commits the cell to division – G 2 –M – Ex: At the G 1 checkpoint, if the cycle is stopped, cell will enter G 0

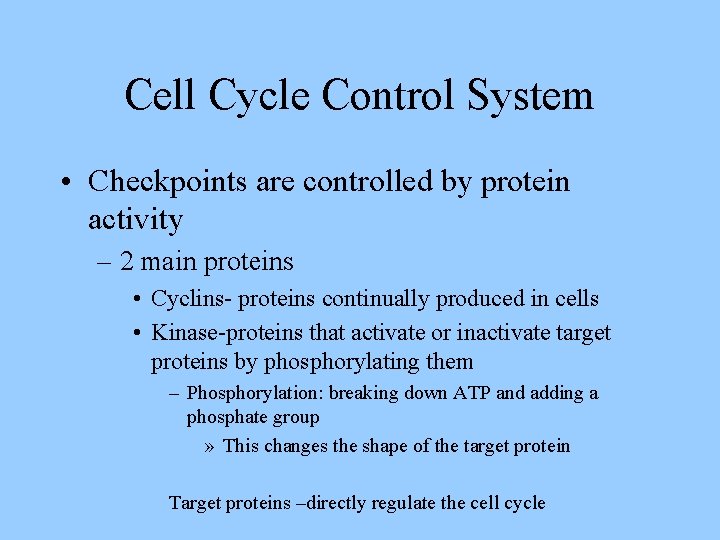

Cell Cycle Control System • Checkpoints are controlled by protein activity – 2 main proteins • Cyclins- proteins continually produced in cells • Kinase-proteins that activate or inactivate target proteins by phosphorylating them – Phosphorylation: breaking down ATP and adding a phosphate group » This changes the shape of the target protein Target proteins –directly regulate the cell cycle

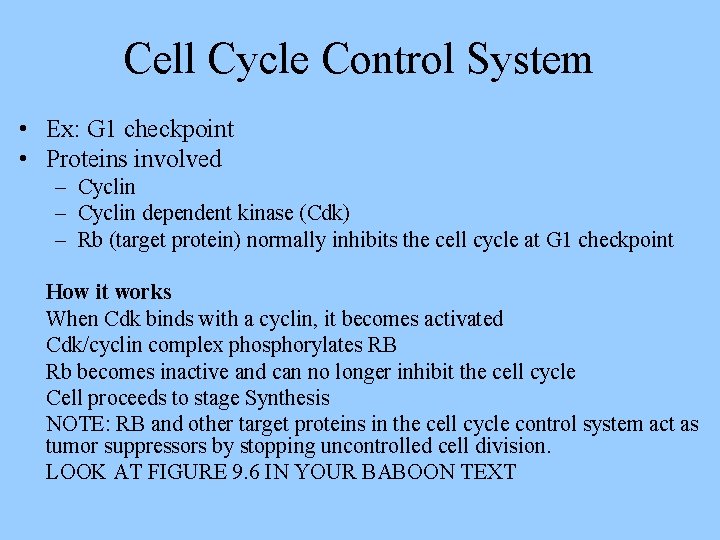

Cell Cycle Control System • Ex: G 1 checkpoint • Proteins involved – Cyclin dependent kinase (Cdk) – Rb (target protein) normally inhibits the cell cycle at G 1 checkpoint How it works When Cdk binds with a cyclin, it becomes activated Cdk/cyclin complex phosphorylates RB Rb becomes inactive and can no longer inhibit the cell cycle Cell proceeds to stage Synthesis NOTE: RB and other target proteins in the cell cycle control system act as tumor suppressors by stopping uncontrolled cell division. LOOK AT FIGURE 9. 6 IN YOUR BABOON TEXT

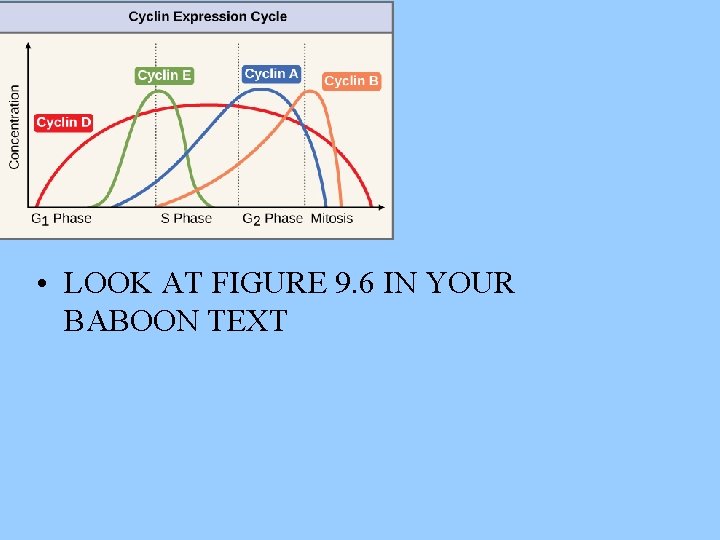

• LOOK AT FIGURE 9. 6 IN YOUR BABOON TEXT
