Chapter 15 Advanced Recursive Algorithms Building a Ruler

Chapter 15 – Advanced Recursive Algorithms Building a Ruler: draw. Ruler() Recursive calls for fib(5) Merge Algorithm Example (4 slides) Effect of fib(5) Using Dynamic Programming Partitioning and Merging of Sublists in merge. Sort() The 8 -Queens Example (3 slides) Function calls in merge. Sort() Summary Slides (6 slides) Quicksort Example (8 slides) Finding kth – Largest Element power. Set() Example 1 Main Index Contents

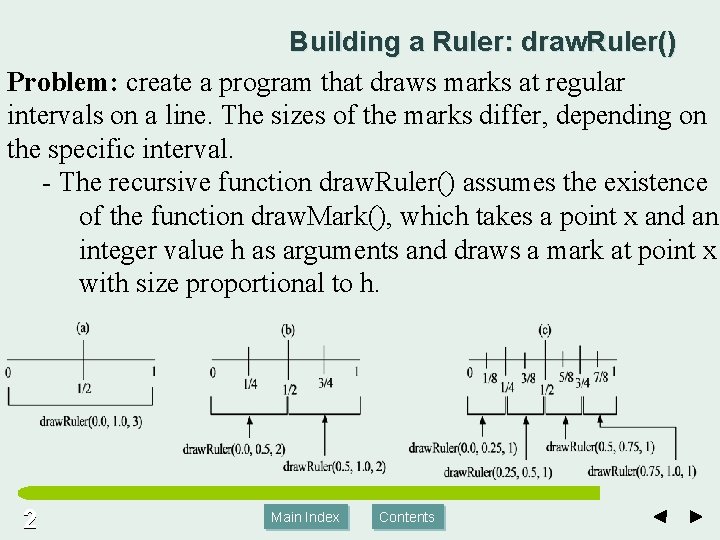

Building a Ruler: draw. Ruler() Problem: create a program that draws marks at regular intervals on a line. The sizes of the marks differ, depending on the specific interval. - The recursive function draw. Ruler() assumes the existence of the function draw. Mark(), which takes a point x and an integer value h as arguments and draws a mark at point x with size proportional to h. 2 Main Index Contents

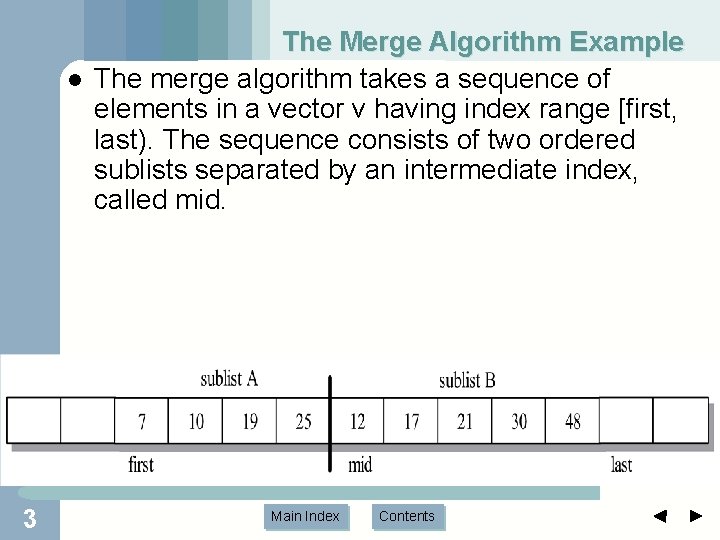

l 3 The Merge Algorithm Example The merge algorithm takes a sequence of elements in a vector v having index range [first, last). The sequence consists of two ordered sublists separated by an intermediate index, called mid. Main Index Contents

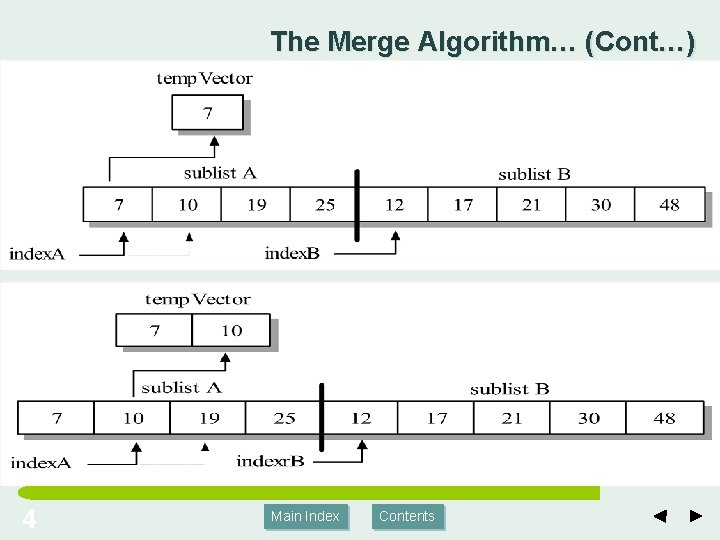

The Merge Algorithm… (Cont…) 4 Main Index Contents

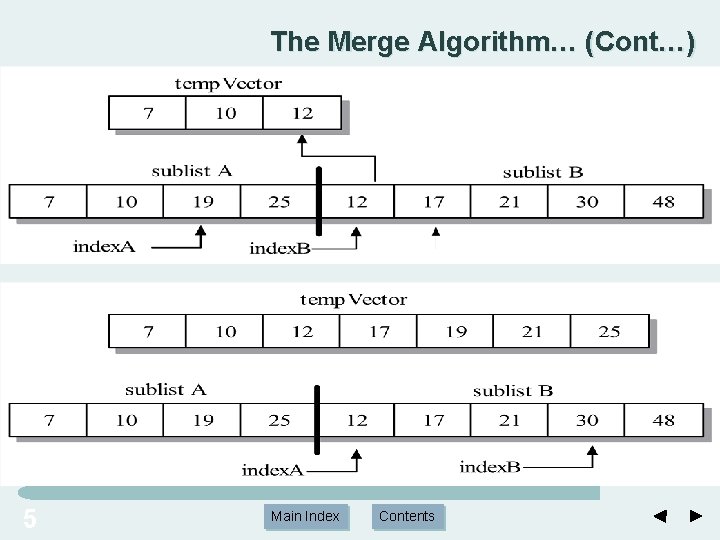

The Merge Algorithm… (Cont…) 5 Main Index Contents

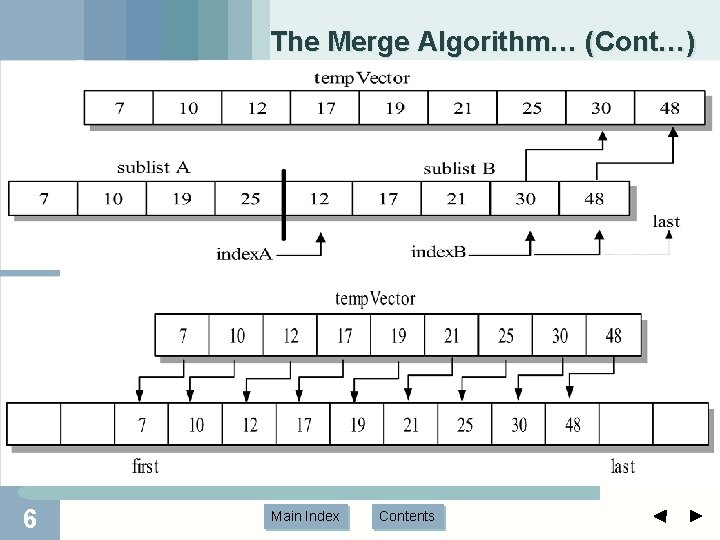

The Merge Algorithm… (Cont…) 6 Main Index Contents

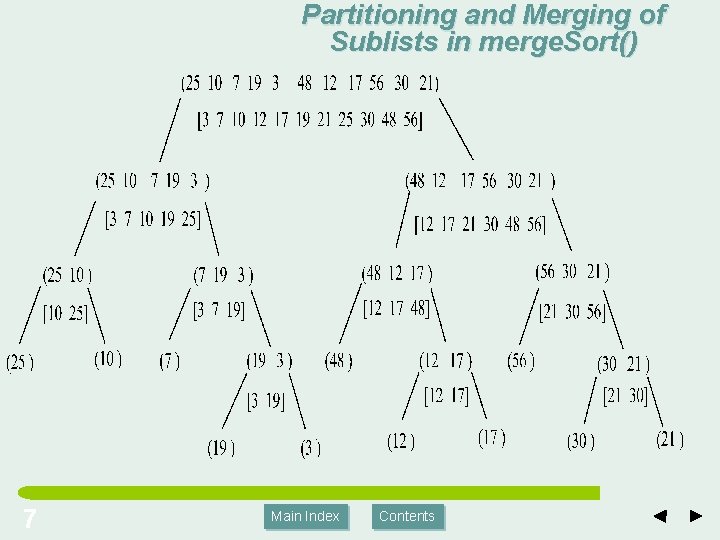

Partitioning and Merging of Sublists in merge. Sort() 7 Main Index Contents

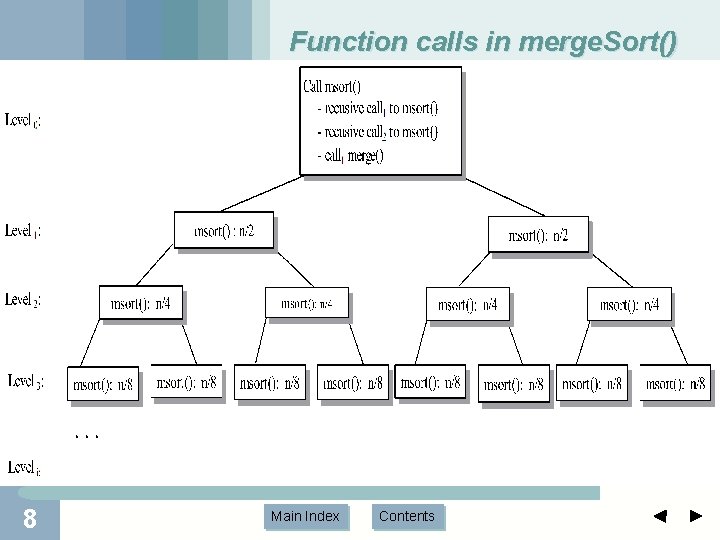

Function calls in merge. Sort() 8 Main Index Contents

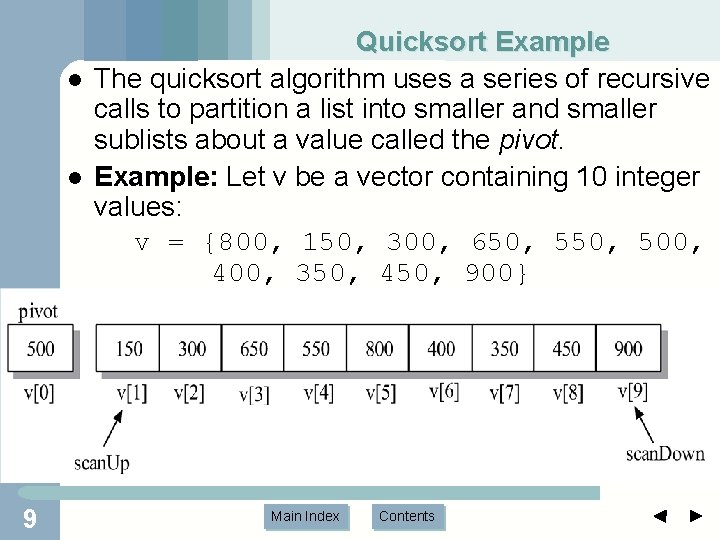

l l 9 Quicksort Example The quicksort algorithm uses a series of recursive calls to partition a list into smaller and smaller sublists about a value called the pivot. Example: Let v be a vector containing 10 integer values: v = {800, 150, 300, 650, 500, 400, 350, 450, 900} Main Index Contents

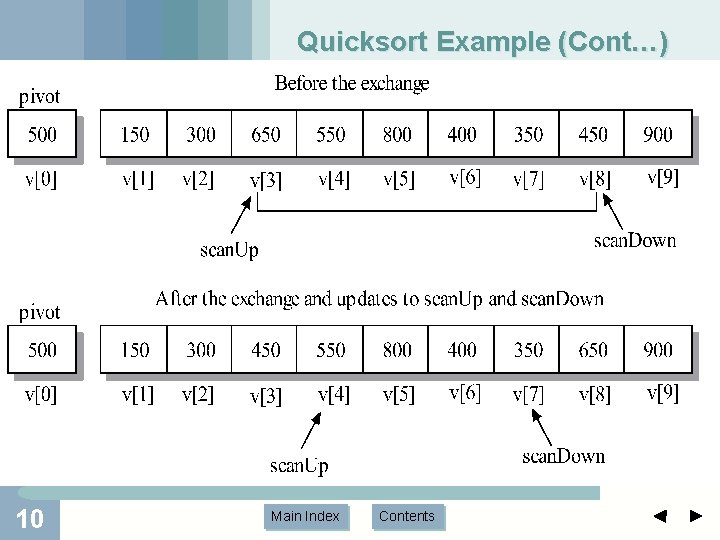

Quicksort Example (Cont…) 10 Main Index Contents

Quicksort Example (Cont…) 11 Main Index Contents

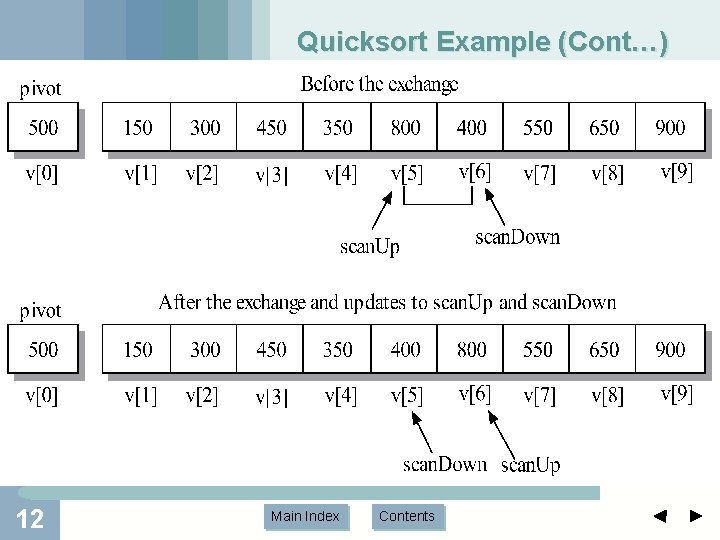

Quicksort Example (Cont…) 12 Main Index Contents

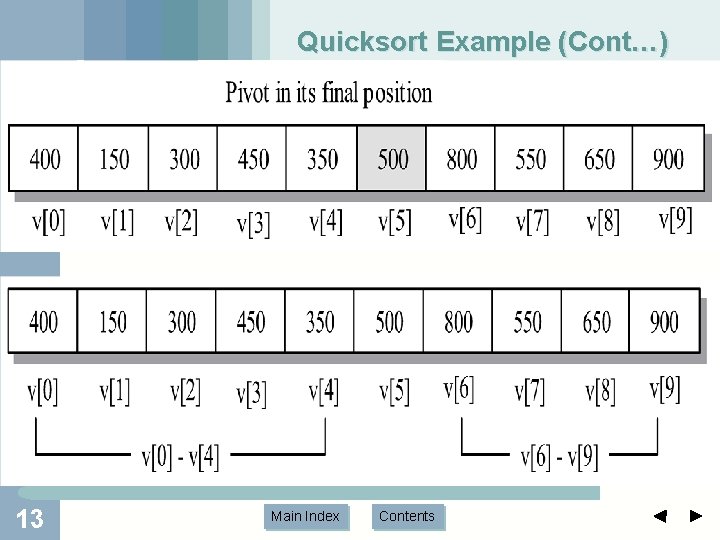

Quicksort Example (Cont…) 13 Main Index Contents

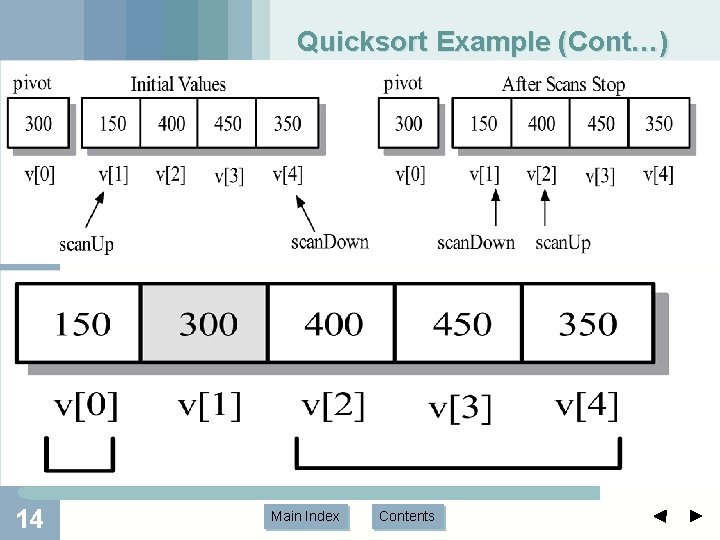

Quicksort Example (Cont…) 14 Main Index Contents

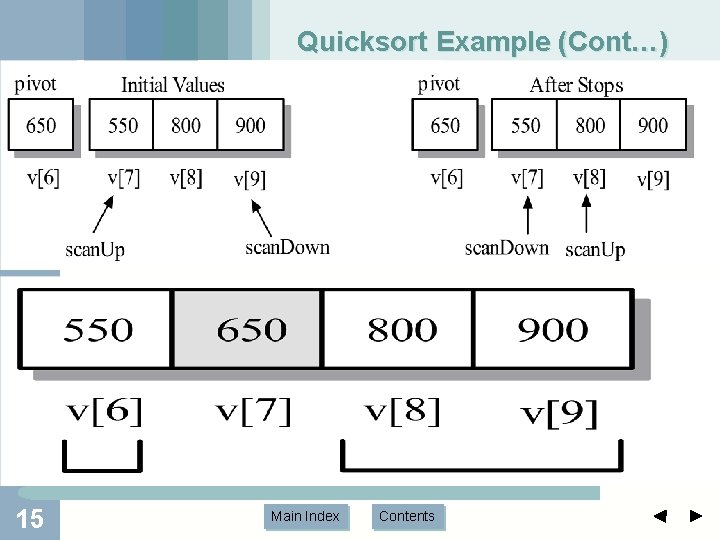

Quicksort Example (Cont…) 15 Main Index Contents

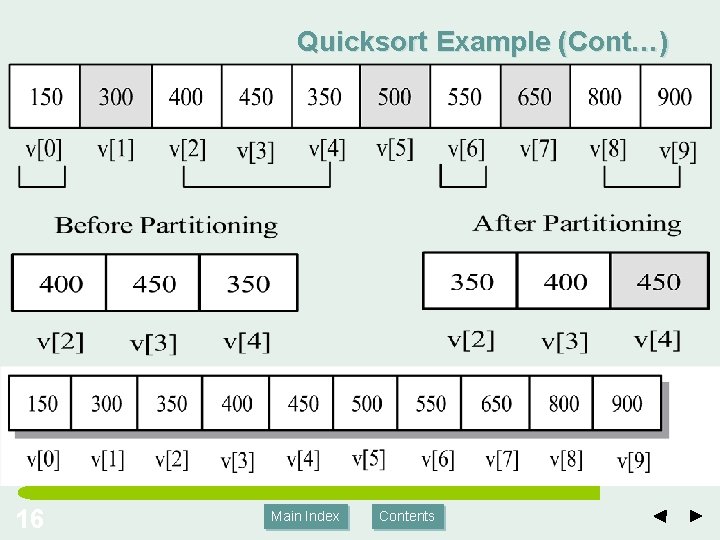

Quicksort Example (Cont…) 16 Main Index Contents

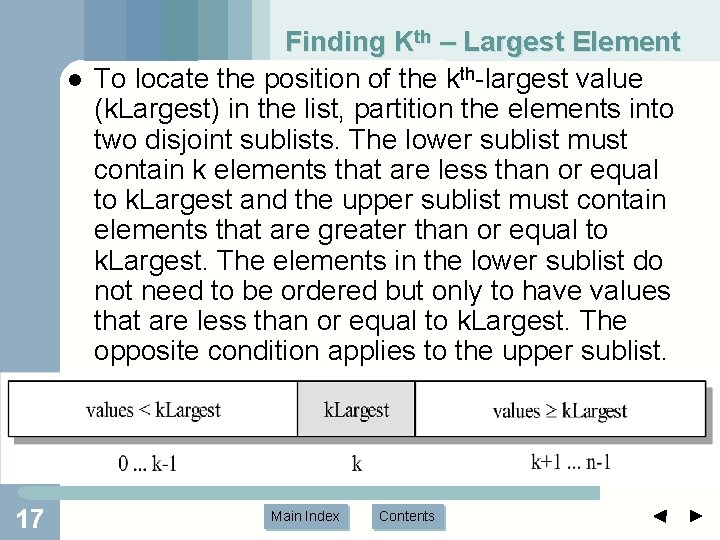

l 17 Finding Kth – Largest Element To locate the position of the kth-largest value (k. Largest) in the list, partition the elements into two disjoint sublists. The lower sublist must contain k elements that are less than or equal to k. Largest and the upper sublist must contain elements that are greater than or equal to k. Largest. The elements in the lower sublist do not need to be ordered but only to have values that are less than or equal to k. Largest. The opposite condition applies to the upper sublist. Main Index Contents

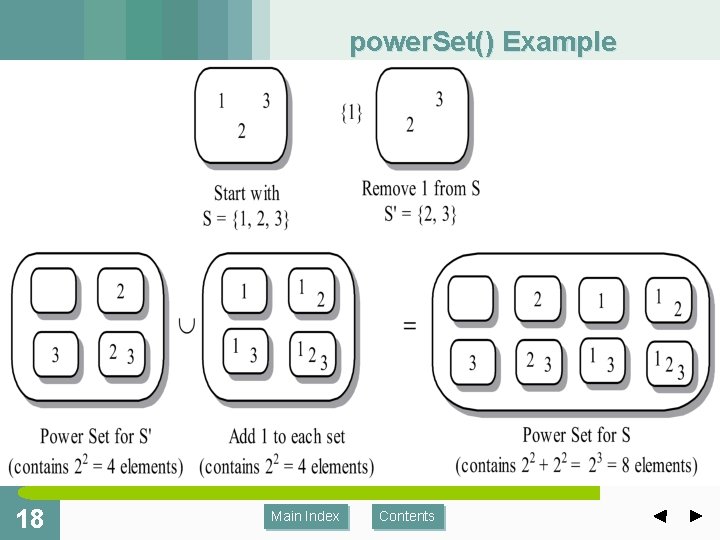

power. Set() Example 18 Main Index Contents

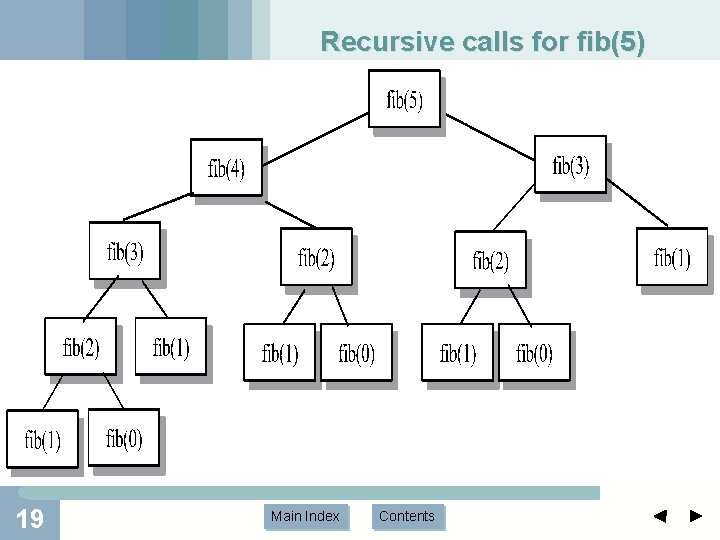

Recursive calls for fib(5) 19 Main Index Contents

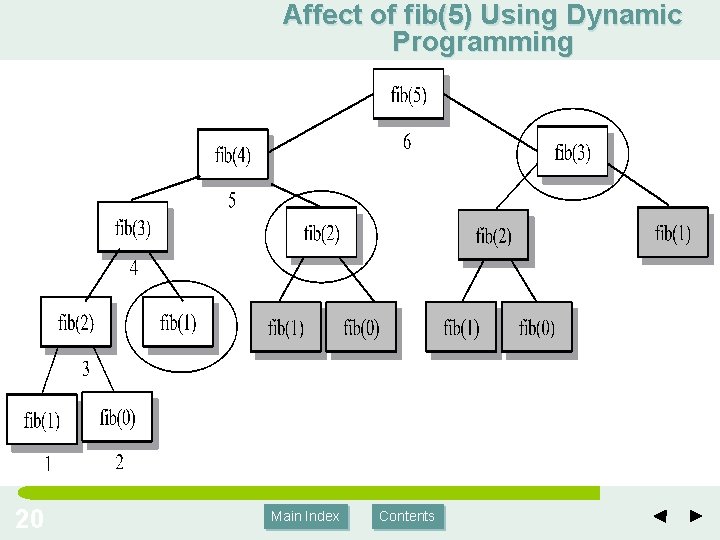

Affect of fib(5) Using Dynamic Programming 20 Main Index Contents

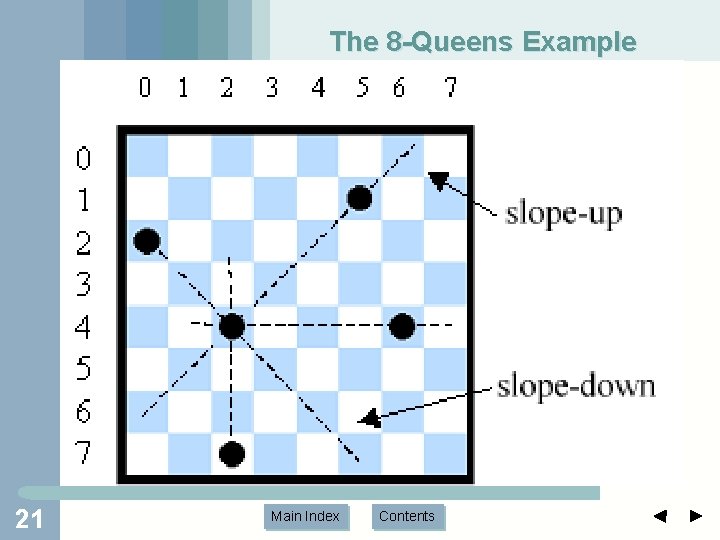

The 8 -Queens Example 21 Main Index Contents

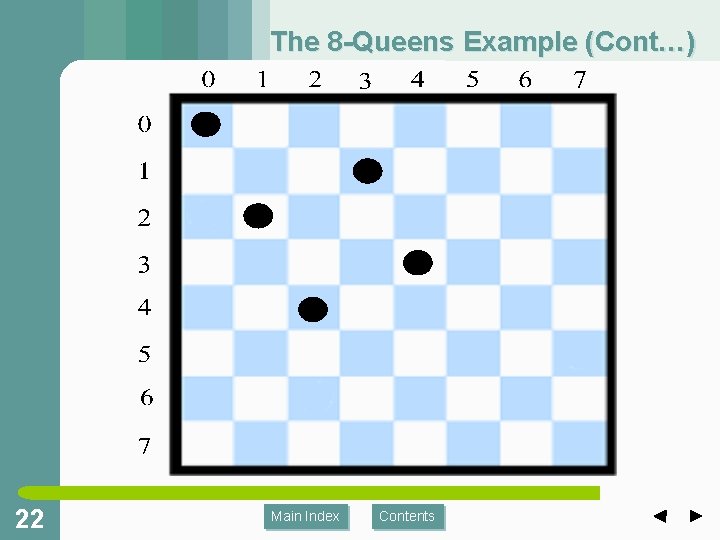

The 8 -Queens Example (Cont…) 22 Main Index Contents

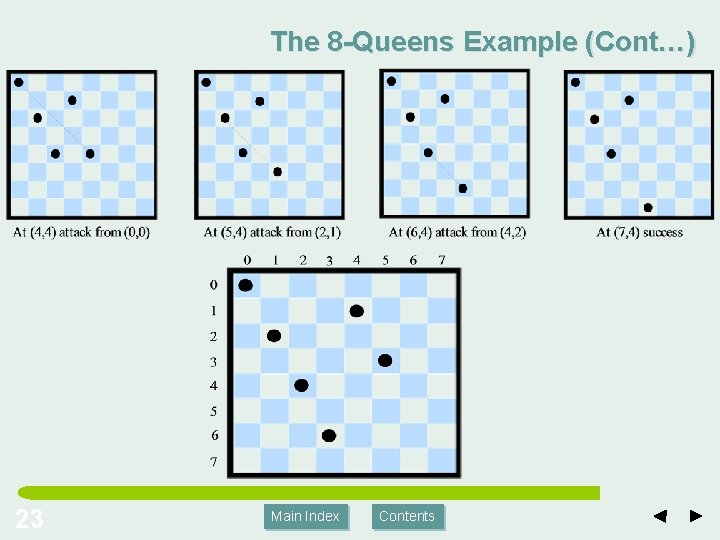

The 8 -Queens Example (Cont…) 23 Main Index Contents

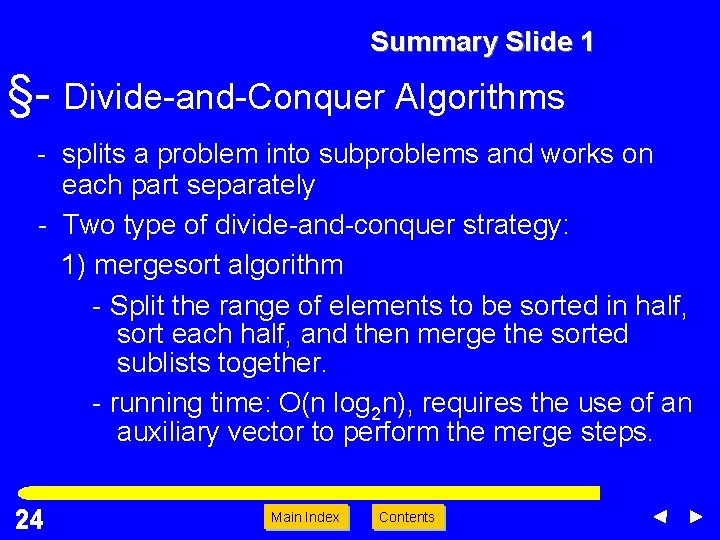

Summary Slide 1 §- Divide-and-Conquer Algorithms - splits a problem into subproblems and works on each part separately - Two type of divide-and-conquer strategy: 1) mergesort algorithm - Split the range of elements to be sorted in half, sort each half, and then merge the sorted sublists together. - running time: O(n log 2 n), requires the use of an auxiliary vector to perform the merge steps. 24 Main Index Contents

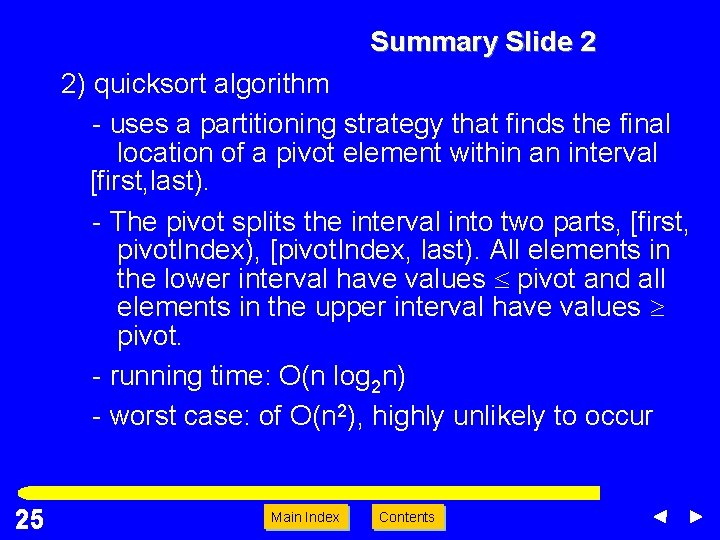

Summary Slide 2 2) quicksort algorithm - uses a partitioning strategy that finds the final location of a pivot element within an interval [first, last). - The pivot splits the interval into two parts, [first, pivot. Index), [pivot. Index, last). All elements in the lower interval have values pivot and all elements in the upper interval have values pivot. - running time: O(n log 2 n) - worst case: of O(n 2), highly unlikely to occur 25 Main Index Contents

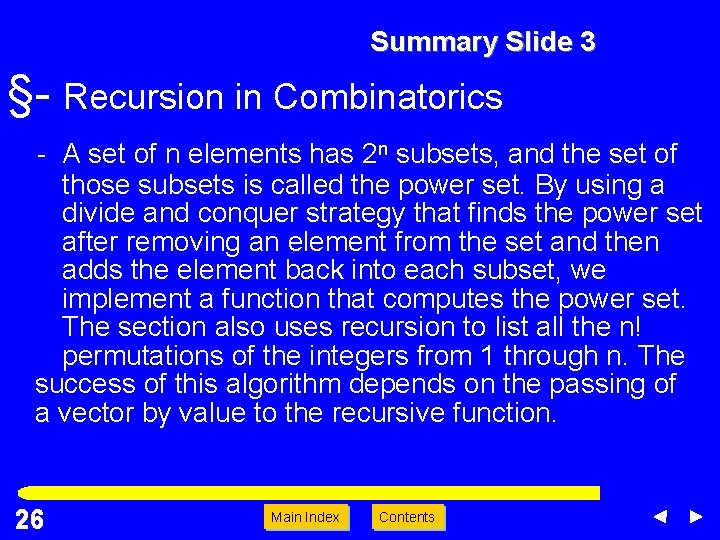

Summary Slide 3 §- Recursion in Combinatorics - A set of n elements has 2 n subsets, and the set of those subsets is called the power set. By using a divide and conquer strategy that finds the power set after removing an element from the set and then adds the element back into each subset, we implement a function that computes the power set. The section also uses recursion to list all the n! permutations of the integers from 1 through n. The success of this algorithm depends on the passing of a vector by value to the recursive function. 26 Main Index Contents

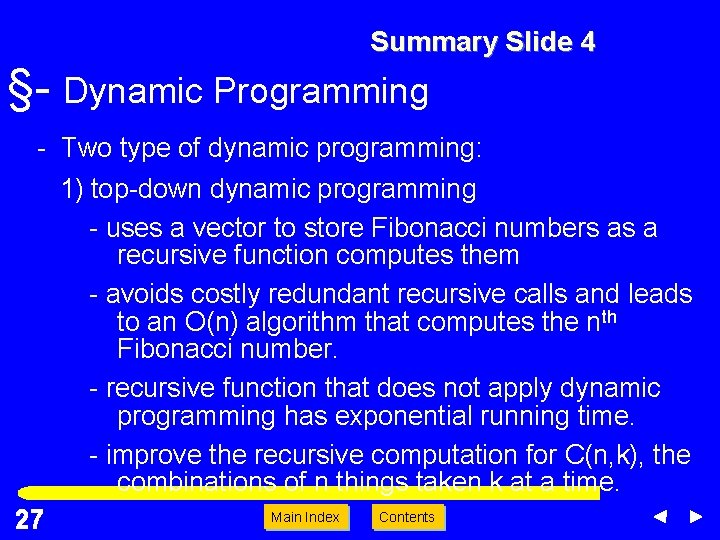

Summary Slide 4 §- Dynamic Programming - Two type of dynamic programming: 1) top-down dynamic programming - uses a vector to store Fibonacci numbers as a recursive function computes them - avoids costly redundant recursive calls and leads to an O(n) algorithm that computes the nth Fibonacci number. - recursive function that does not apply dynamic programming has exponential running time. - improve the recursive computation for C(n, k), the combinations of n things taken k at a time. 27 Main Index Contents

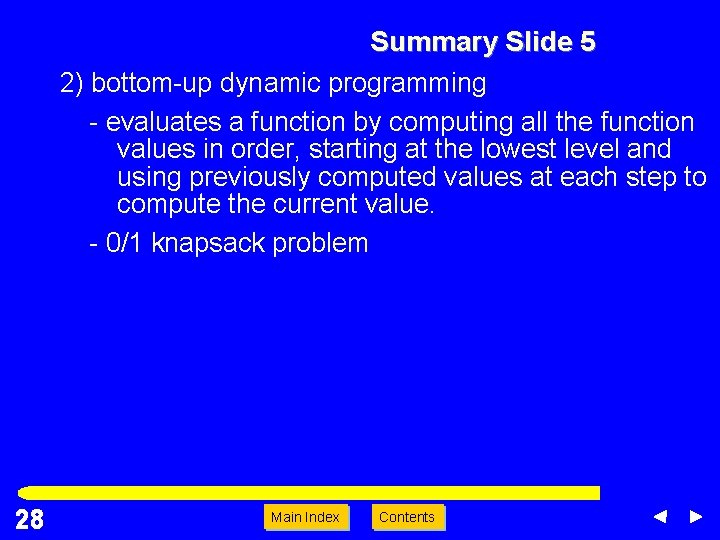

Summary Slide 5 2) bottom-up dynamic programming - evaluates a function by computing all the function values in order, starting at the lowest level and using previously computed values at each step to compute the current value. - 0/1 knapsack problem 28 Main Index Contents

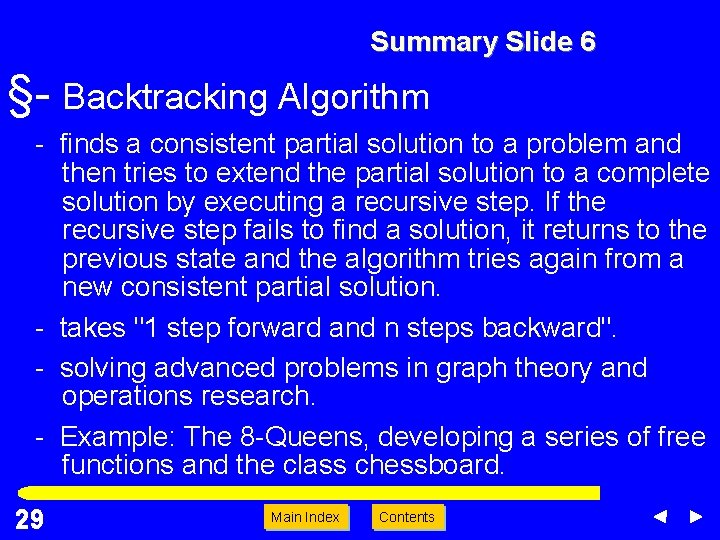

Summary Slide 6 §- Backtracking Algorithm - finds a consistent partial solution to a problem and then tries to extend the partial solution to a complete solution by executing a recursive step. If the recursive step fails to find a solution, it returns to the previous state and the algorithm tries again from a new consistent partial solution. - takes "1 step forward and n steps backward". - solving advanced problems in graph theory and operations research. - Example: The 8 -Queens, developing a series of free functions and the class chessboard. 29 Main Index Contents
