Chapter 14 Switching Circuit Switching Packet Switching Message

  • Slides: 22
Download presentation
Chapter 14 Switching • Circuit Switching • Packet Switching • Message Switching WCB/Mc. Graw-Hill

Chapter 14 Switching • Circuit Switching • Packet Switching • Message Switching WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -1 WCB/Mc. Graw-Hill Switched Network The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -1 WCB/Mc. Graw-Hill Switched Network The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -2 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -2 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -3 Circuit-Switched Network WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -3 Circuit-Switched Network WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -4 Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -4 Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -5 WCB/Mc. Graw-Hill Folded Switch The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -5 WCB/Mc. Graw-Hill Folded Switch The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -6 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -6 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

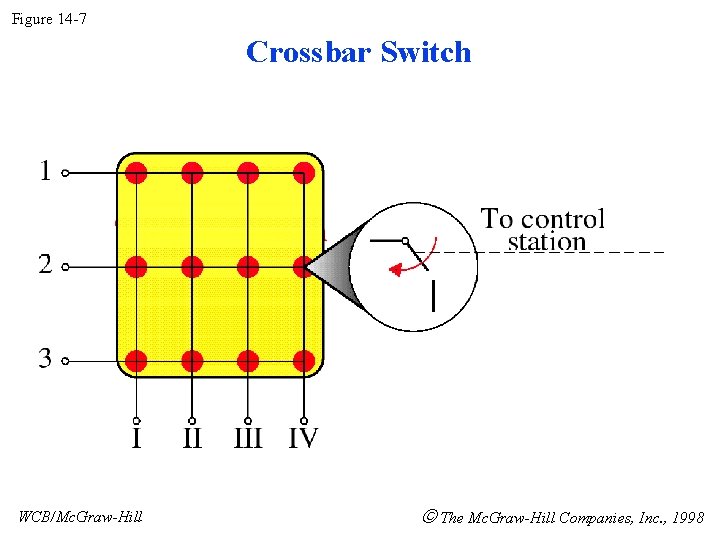

Figure 14 -7 Crossbar Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -7 Crossbar Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -8 Multistage Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -8 Multistage Switch WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -9 Switching Path WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -9 Switching Path WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -9 -continued Switching Path WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. ,

Figure 14 -9 -continued Switching Path WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -10 TDM without TSI WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. ,

Figure 14 -10 TDM without TSI WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -10 -continued TDM with TSI WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc.

Figure 14 -10 -continued TDM with TSI WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

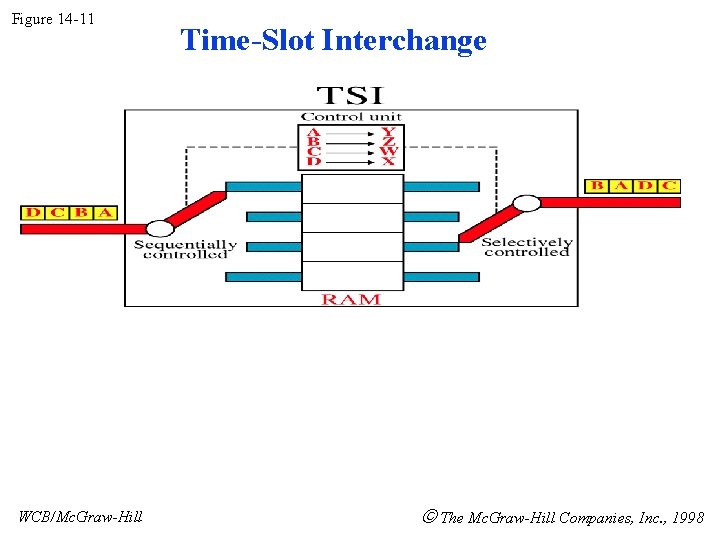

Figure 14 -11 WCB/Mc. Graw-Hill Time-Slot Interchange The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -11 WCB/Mc. Graw-Hill Time-Slot Interchange The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -12 WCB/Mc. Graw-Hill TST Switch The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -12 WCB/Mc. Graw-Hill TST Switch The Mc. Graw-Hill Companies, Inc. , 1998

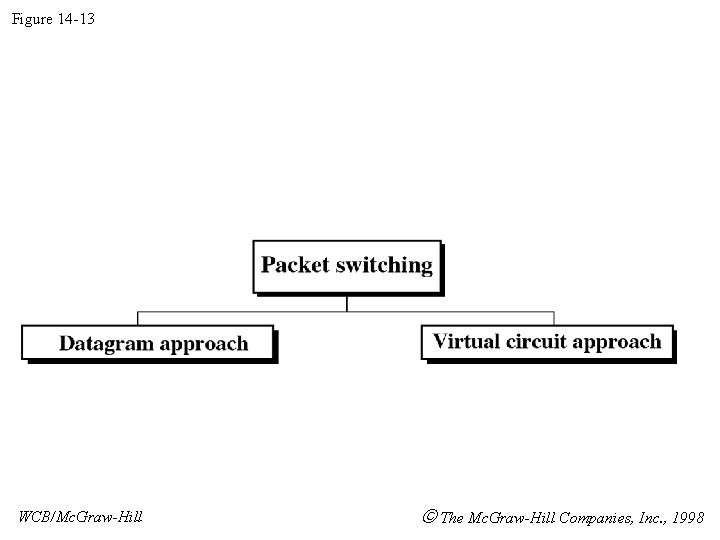

Figure 14 -13 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -13 WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -14 Datagram Approach WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -14 Datagram Approach WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -15 Datagram Approach, Multiple Channels WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc.

Figure 14 -15 Datagram Approach, Multiple Channels WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -16 Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. ,

Figure 14 -16 Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -16 -continued Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc.

Figure 14 -16 -continued Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -16 -continued Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc.

Figure 14 -16 -continued Switched Virtual Circuit WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -17 Message Switching WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998

Figure 14 -17 Message Switching WCB/Mc. Graw-Hill The Mc. Graw-Hill Companies, Inc. , 1998
