Chapter 14 Mineral Resources Some Important Elements Symbols

Chapter 14 Mineral Resources

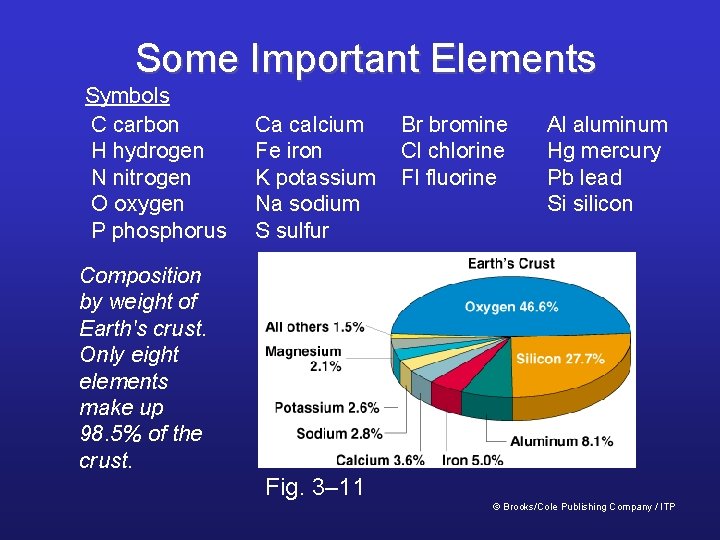

Some Important Elements Symbols C carbon H hydrogen N nitrogen O oxygen P phosphorus Ca calcium Fe iron K potassium Na sodium S sulfur Br bromine Cl chlorine Fl fluorine Al aluminum Hg mercury Pb lead Si silicon Composition by weight of Earth's crust. Only eight elements make up 98. 5% of the crust. Fig. 3– 11 © Brooks/Cole Publishing Company / ITP

Mineral Resources mineral resource: a naturally occurring concentration of solid, liquid, or gaseous material in or on Earth's crust that can be processed into useful materials at an affordable cost. • energy resources: coal, oil, natural gas, uranium, geothermal energy sources; • metallic mineral resources: iron, copper, aluminum…; - ore is a metal–yielding material that can be economically extracted; - to be profitable, copper must be concentrated 86 times, gold 1, 000 times, & mercury 100, 000 times the crustal average; - the average 18 karat ring produces 20 tons of waste • nonmetallic mineral resources: salt, gypsum, clay, sand, phosphates, water, & soil.

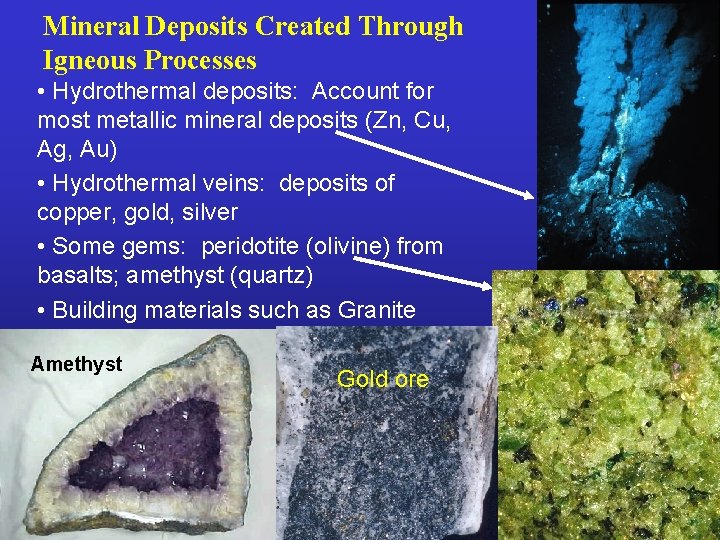

Mineral Deposits Created Through Igneous Processes • Hydrothermal deposits: Account for most metallic mineral deposits (Zn, Cu, Ag, Au) • Hydrothermal veins: deposits of copper, gold, silver • Some gems: peridotite (olivine) from basalts; amethyst (quartz) • Building materials such as Granite Amethyst Gold ore

Hydrothermal Deposits Hydrothermal circulation leaches metals from rocks, then concentrates and deposits them in Volcanogenic Massive Sulfide deposits (VMS). Sulfur is often the element combined with the metal to make sulfide minerals. Ore minerals and metals found at VMS’s: Ore mineral Sphalerite (Zn. S) Chalcopyrite (Cu. Fe. S 2) Galena (Pb. S) Metal zinc copper lead

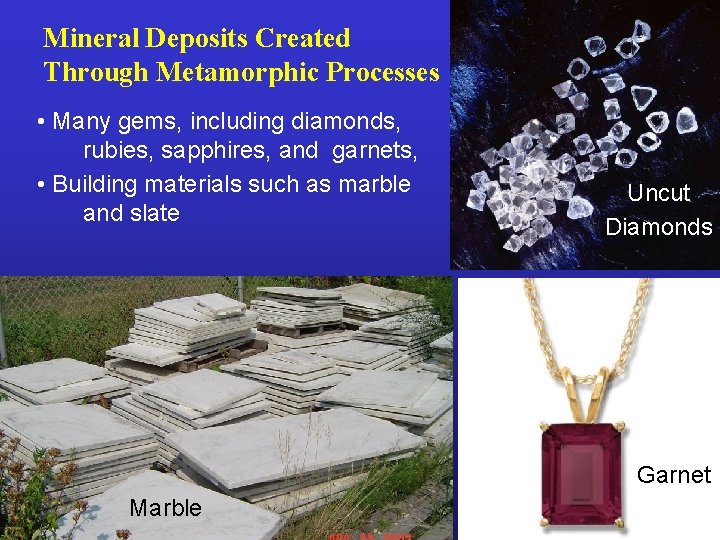

Mineral Deposits Created Through Metamorphic Processes • Many gems, including diamonds, rubies, sapphires, and garnets, • Building materials such as marble and slate Uncut Diamonds Garnet Marble

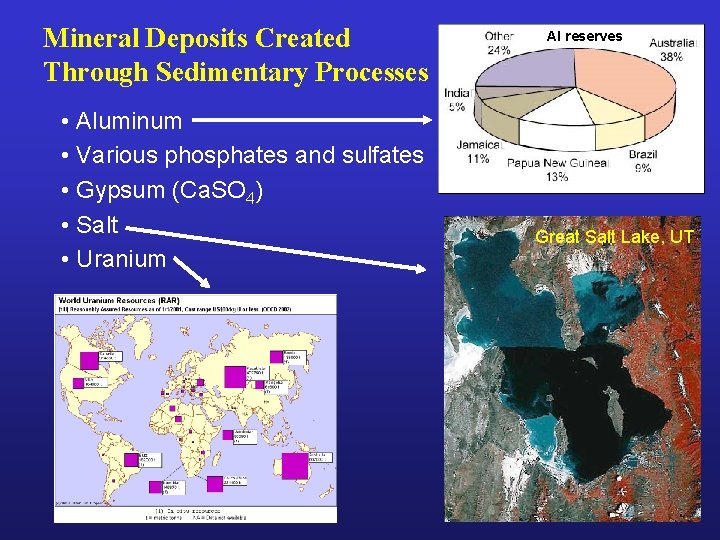

Mineral Deposits Created Through Sedimentary Processes • Aluminum • Various phosphates and sulfates • Gypsum (Ca. SO 4) • Salt • Uranium Al reserves Great Salt Lake, UT

Mineral Resources The U. S. Geological Survey (USGS) divides mineral resources into two broad categories: • identified resources: deposits of a particular mineral resource that have known location, quantity, & quality; • undiscovered resources: deposits of a particular mineral resource that are assumed to exist, based on geologic knowledge & theory, but for which specific locations, quantities, & quality are unknown. Al Ore (Bauxite) Uranium Ore (Carnotite)

Mineral Resources Reserves are identified resources that can be extracted economically at current prices using current mining technology. Other resources are identified & undiscovered resources not classified as reserves. Fig. 14– 6 © Brooks/Cole Publishing Company / ITP

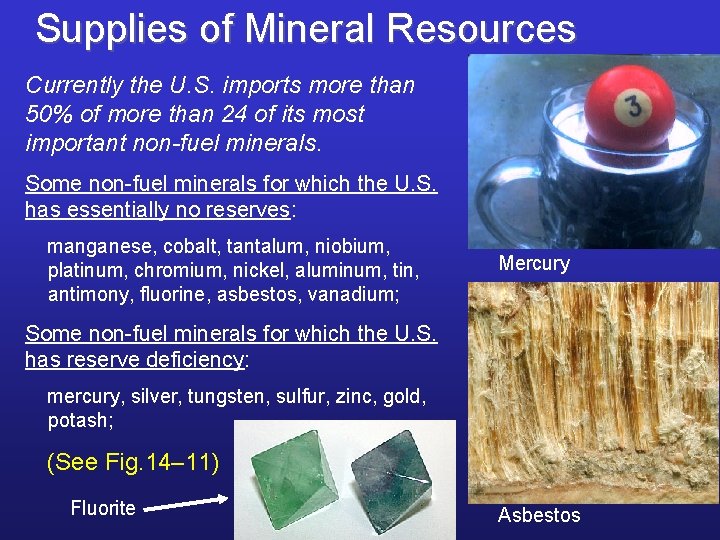

Supplies of Mineral Resources Currently the U. S. imports more than 50% of more than 24 of its most important non-fuel minerals. Some non-fuel minerals for which the U. S. has essentially no reserves: manganese, cobalt, tantalum, niobium, platinum, chromium, nickel, aluminum, tin, antimony, fluorine, asbestos, vanadium; Mercury Some non-fuel minerals for which the U. S. has reserve deficiency: mercury, silver, tungsten, sulfur, zinc, gold, potash; (See Fig. 14– 11) Fluorite Asbestos

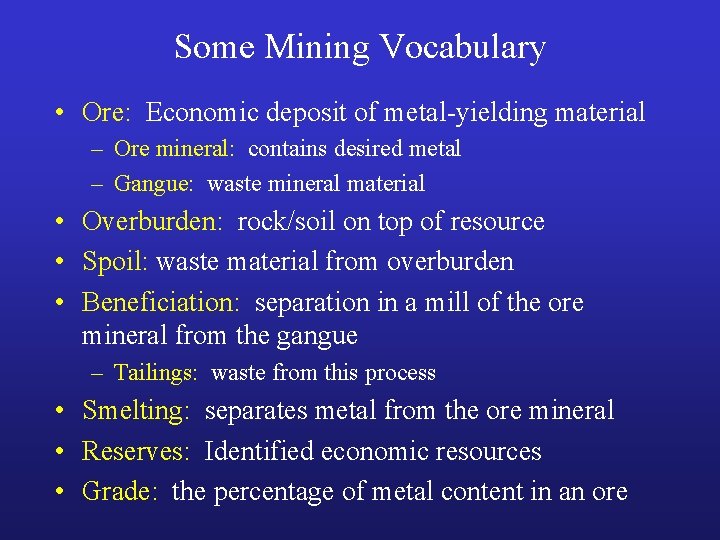

Some Mining Vocabulary • Ore: Economic deposit of metal-yielding material – Ore mineral: contains desired metal – Gangue: waste mineral material • Overburden: rock/soil on top of resource • Spoil: waste material from overburden • Beneficiation: separation in a mill of the ore mineral from the gangue – Tailings: waste from this process • Smelting: separates metal from the ore mineral • Reserves: Identified economic resources • Grade: the percentage of metal content in an ore

Extracting Mineral Resources • strip mining is surface mining in which the upper layer is removed to get at the desired mineral resource (see example, left); • subsurface mining involves use of drill holes or tunnels to extract mineral resources that are too deep to be accessible Fig. 14– 9 by surface mining. © Brooks/Cole Publishing Company / ITP

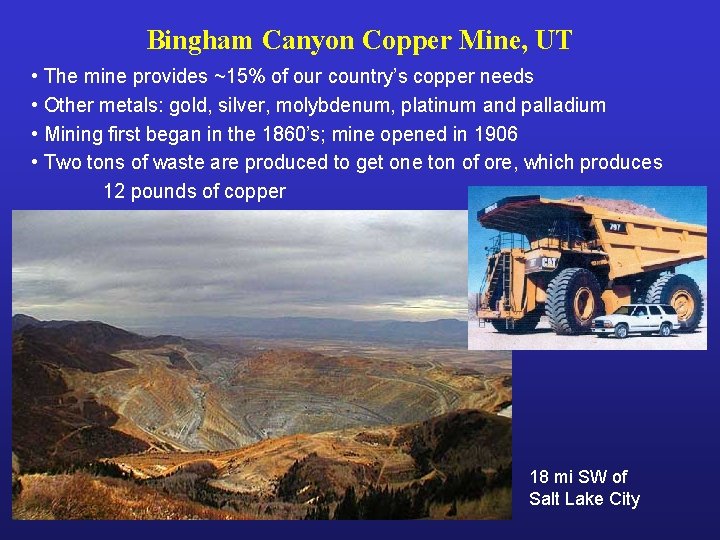

Bingham Canyon Copper Mine, UT • The mine provides ~15% of our country’s copper needs • Other metals: gold, silver, molybdenum, platinum and palladium • Mining first began in the 1860’s; mine opened in 1906 • Two tons of waste are produced to get one ton of ore, which produces 12 pounds of copper 18 mi SW of Salt Lake City

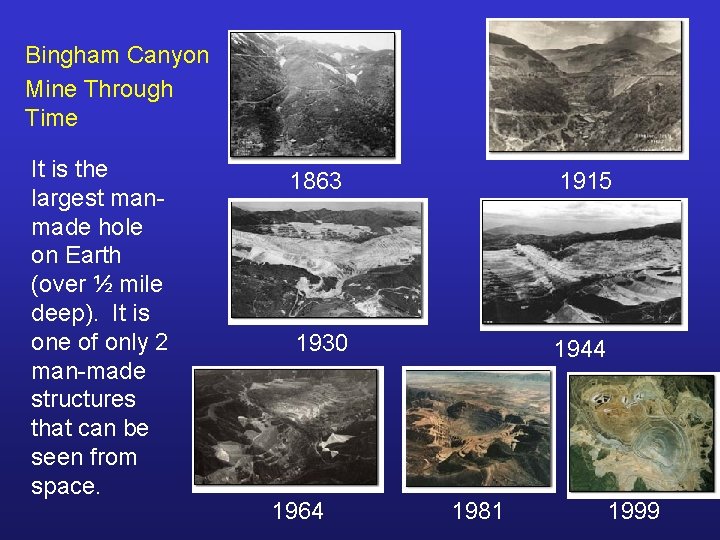

Bingham Canyon Mine Through Time It is the largest manmade hole on Earth (over ½ mile deep). It is one of only 2 man-made structures that can be seen from space. 1863 1915 1930 1944 1964 1981 1999

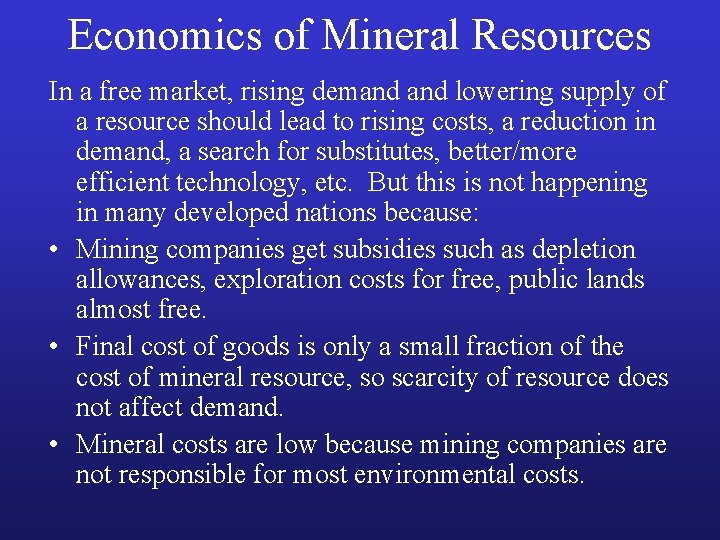

Economics of Mineral Resources In a free market, rising demand lowering supply of a resource should lead to rising costs, a reduction in demand, a search for substitutes, better/more efficient technology, etc. But this is not happening in many developed nations because: • Mining companies get subsidies such as depletion allowances, exploration costs for free, public lands almost free. • Final cost of goods is only a small fraction of the cost of mineral resource, so scarcity of resource does not affect demand. • Mineral costs are low because mining companies are not responsible for most environmental costs.

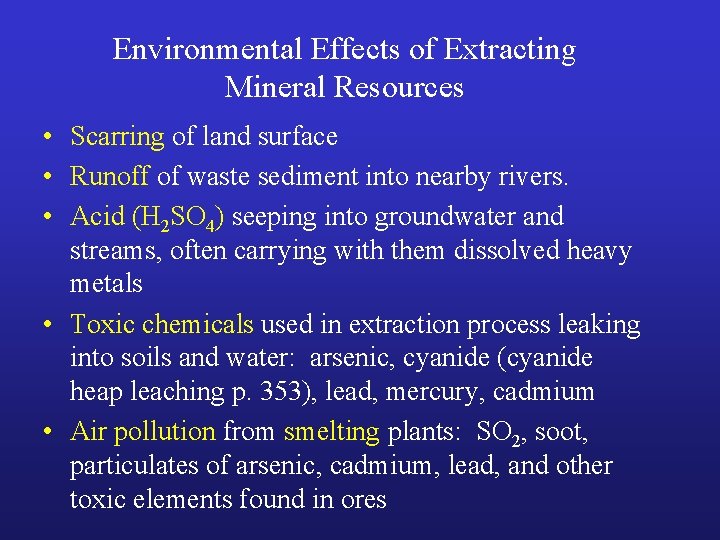

Environmental Effects of Extracting Mineral Resources • Scarring of land surface • Runoff of waste sediment into nearby rivers. • Acid (H 2 SO 4) seeping into groundwater and streams, often carrying with them dissolved heavy metals • Toxic chemicals used in extraction process leaking into soils and water: arsenic, cyanide (cyanide heap leaching p. 353), lead, mercury, cadmium • Air pollution from smelting plants: SO 2, soot, particulates of arsenic, cadmium, lead, and other toxic elements found in ores

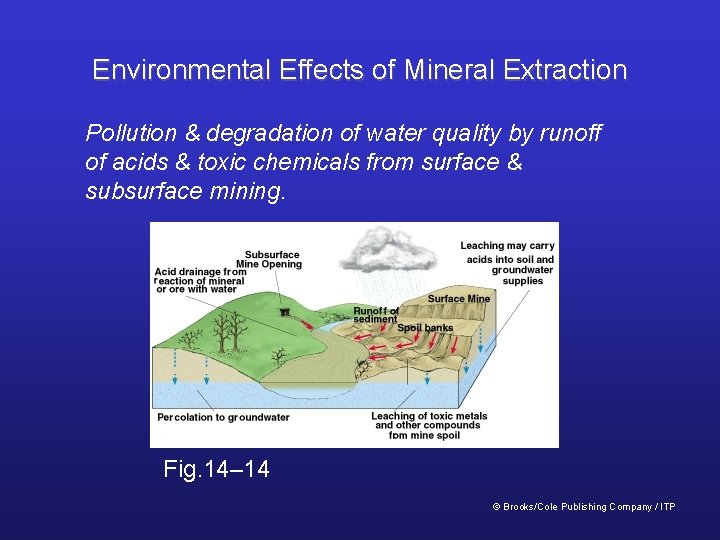

Environmental Effects of Mineral Extraction Pollution & degradation of water quality by runoff of acids & toxic chemicals from surface & subsurface mining. Fig. 14– 14 © Brooks/Cole Publishing Company / ITP

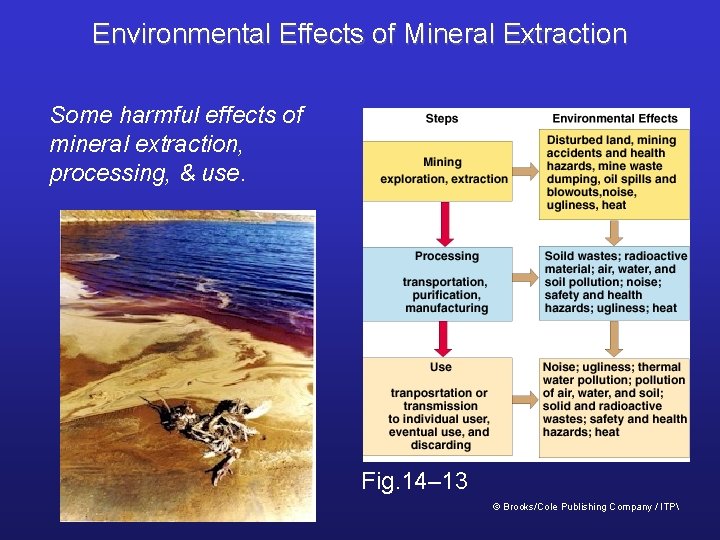

Environmental Effects of Mineral Extraction Some harmful effects of mineral extraction, processing, & use. Fig. 14– 13 © Brooks/Cole Publishing Company / ITP

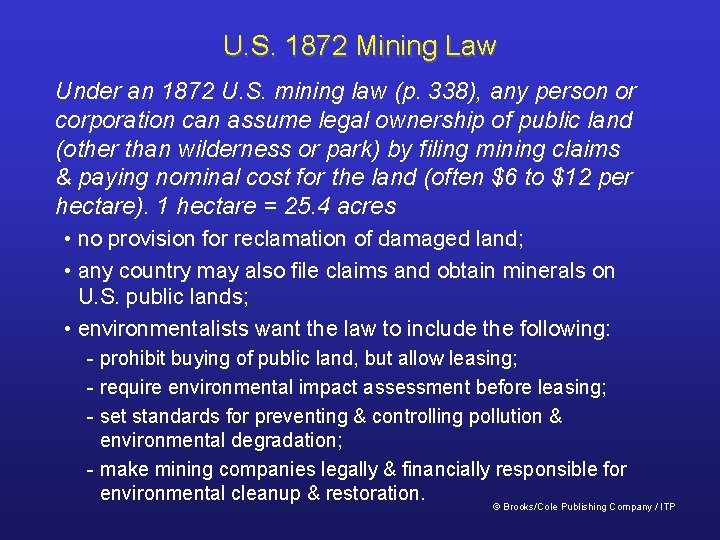

U. S. 1872 Mining Law Under an 1872 U. S. mining law (p. 338), any person or corporation can assume legal ownership of public land (other than wilderness or park) by filing mining claims & paying nominal cost for the land (often $6 to $12 per hectare). 1 hectare = 25. 4 acres • no provision for reclamation of damaged land; • any country may also file claims and obtain minerals on U. S. public lands; • environmentalists want the law to include the following: - prohibit buying of public land, but allow leasing; - require environmental impact assessment before leasing; - set standards for preventing & controlling pollution & environmental degradation; - make mining companies legally & financially responsible for environmental cleanup & restoration. © Brooks/Cole Publishing Company / ITP

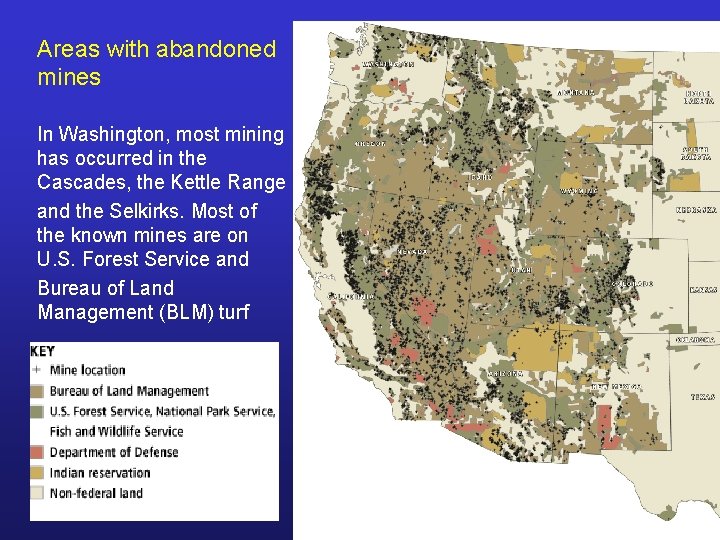

Areas with abandoned mines In Washington, most mining has occurred in the Cascades, the Kettle Range and the Selkirks. Most of the known mines are on U. S. Forest Service and Bureau of Land Management (BLM) turf

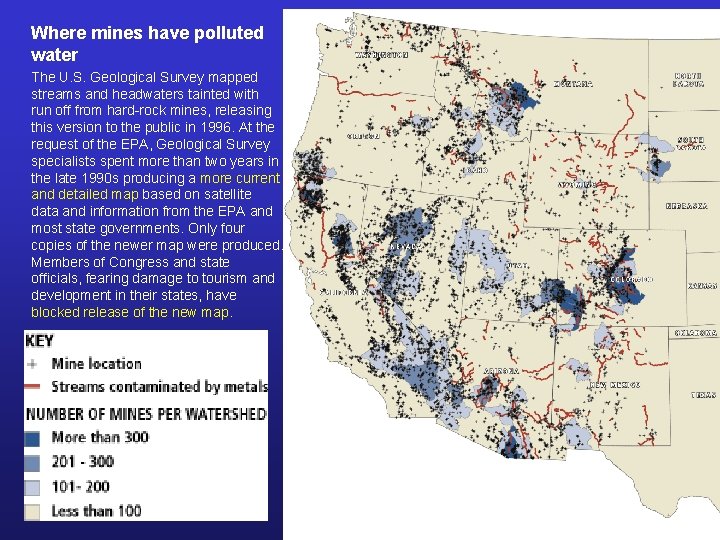

Where mines have polluted water The U. S. Geological Survey mapped streams and headwaters tainted with run off from hard-rock mines, releasing this version to the public in 1996. At the request of the EPA, Geological Survey specialists spent more than two years in the late 1990 s producing a more current and detailed map based on satellite data and information from the EPA and most state governments. Only four copies of the newer map were produced. Members of Congress and state officials, fearing damage to tourism and development in their states, have blocked release of the new map.
