Chapter 14 Microstrip antennas Contents 1 Introduction 2

  • Slides: 24
Download presentation
Chapter 14. Microstrip antennas

Chapter 14. Microstrip antennas

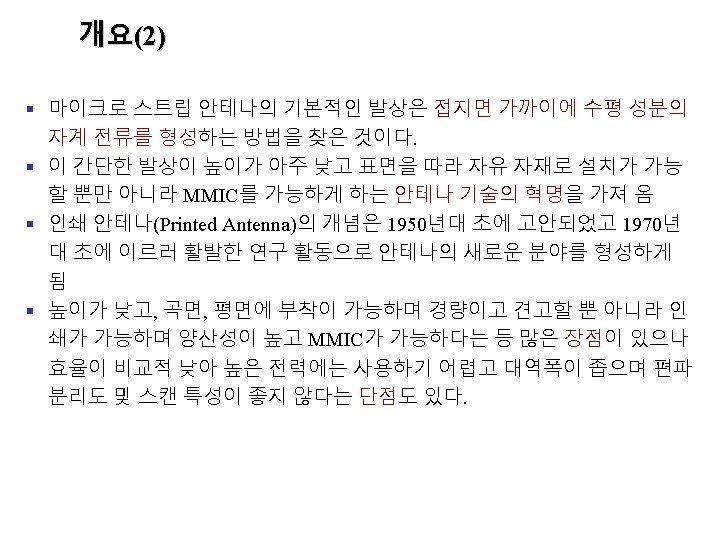

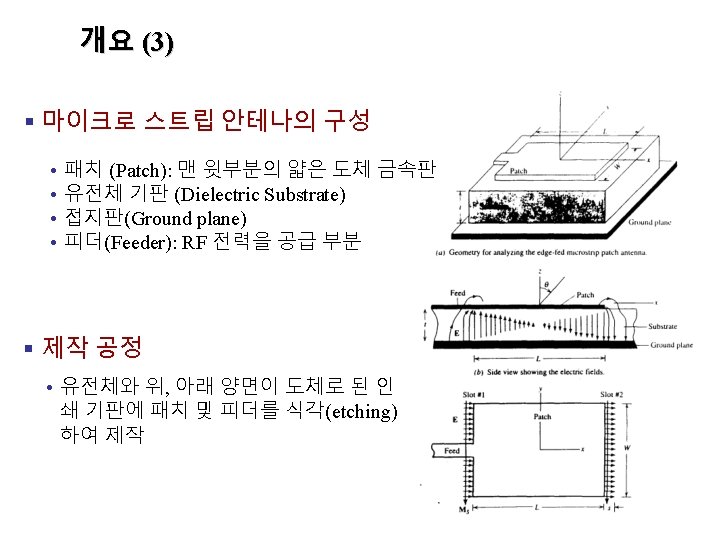

Contents 1. Introduction 2. Rectangular patch 3. Circular patch 4. Quality factor, Bandwidth, and

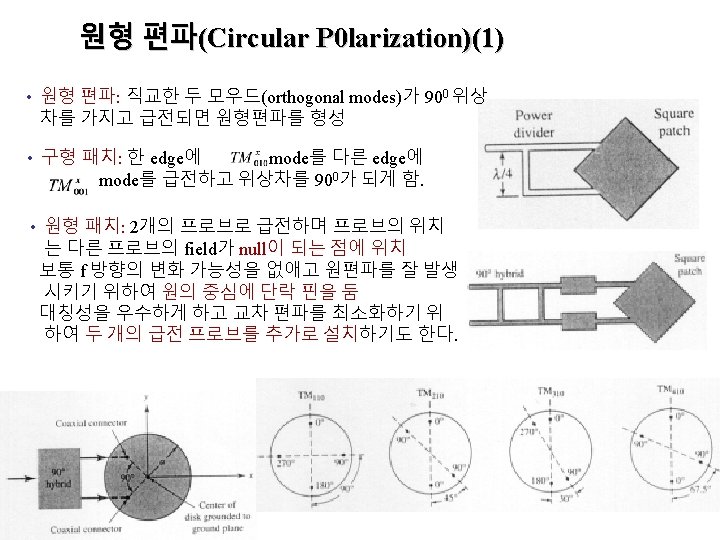

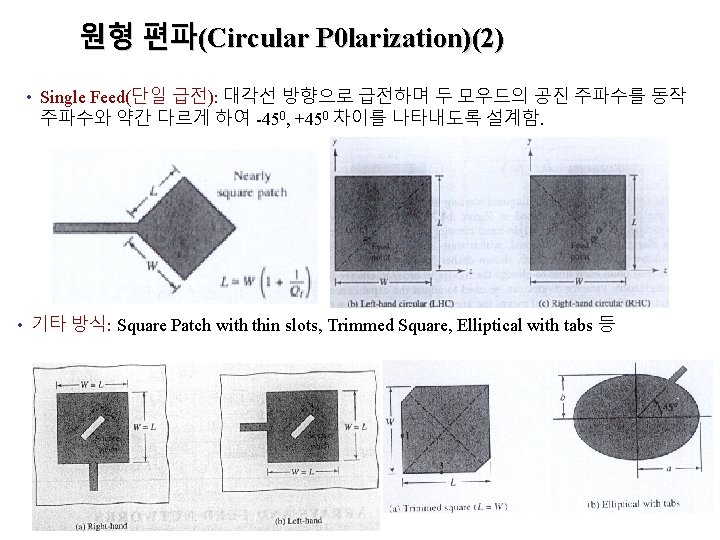

Contents 1. Introduction 2. Rectangular patch 3. Circular patch 4. Quality factor, Bandwidth, and efficiency 5. Input impedance 6. Coupling 7. Circular polarization 8. Arrays and feed networks

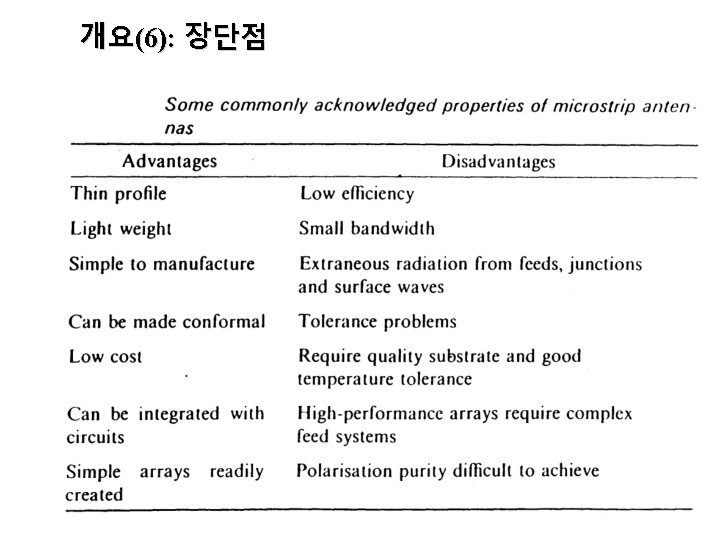

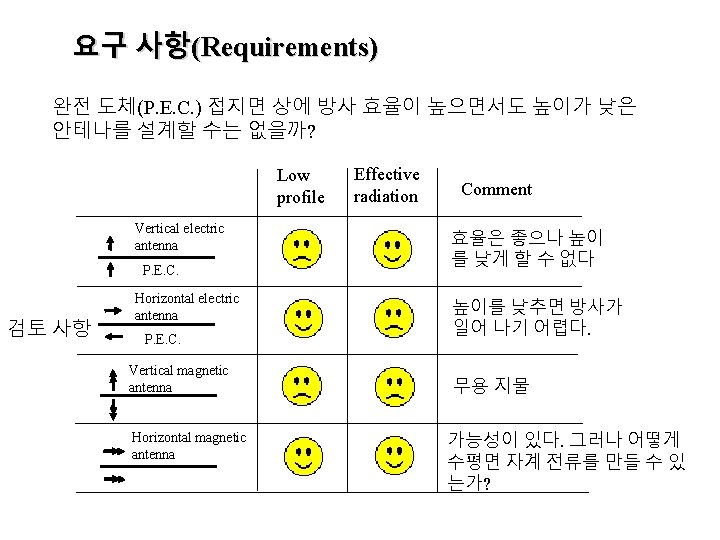

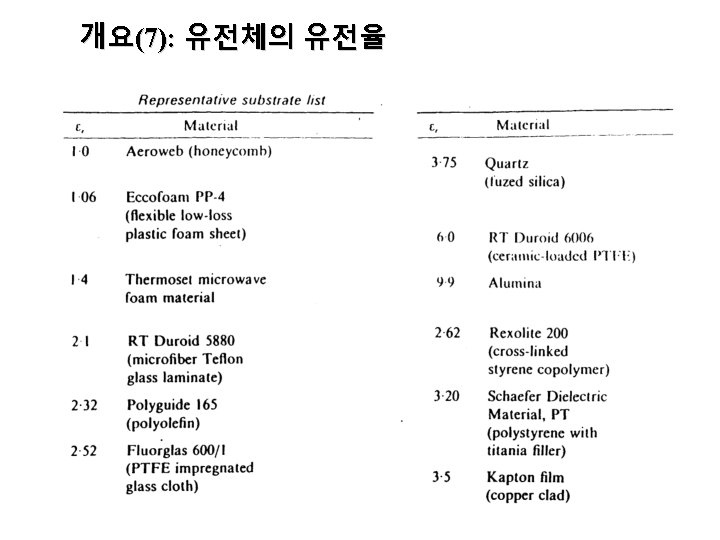

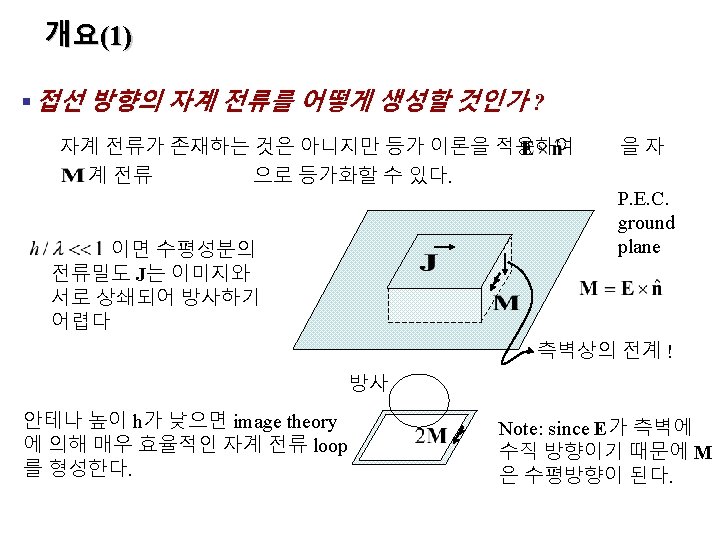

Rectangular & circular patch E-field distribution Current distribution

Rectangular & circular patch E-field distribution Current distribution

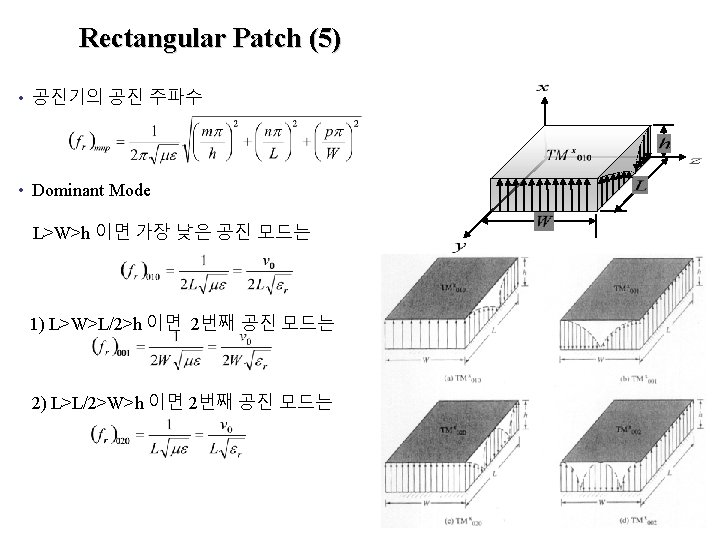

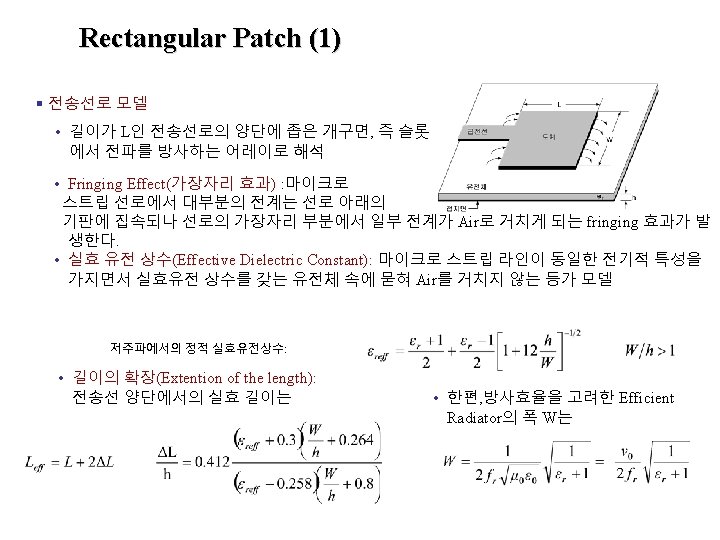

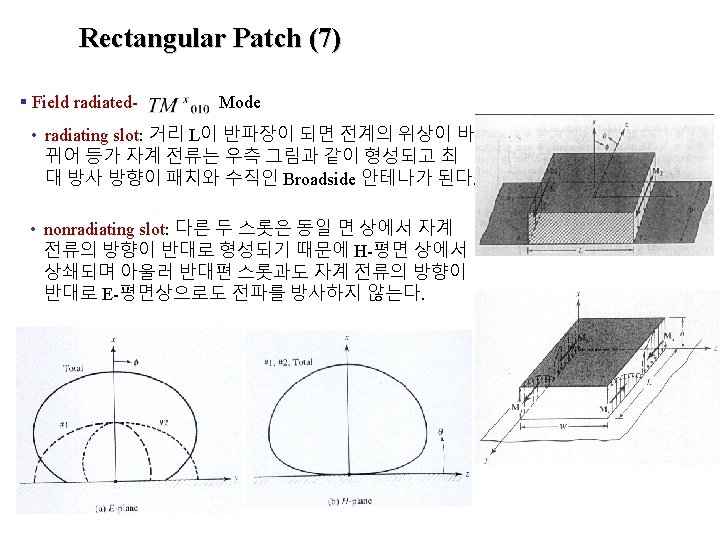

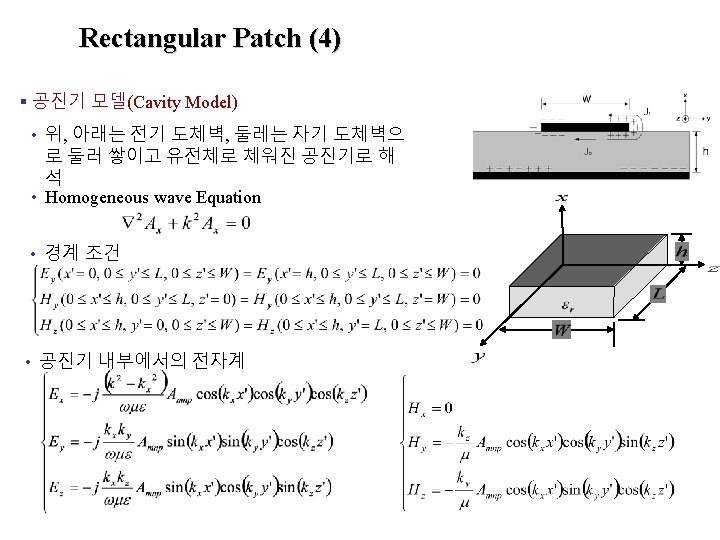

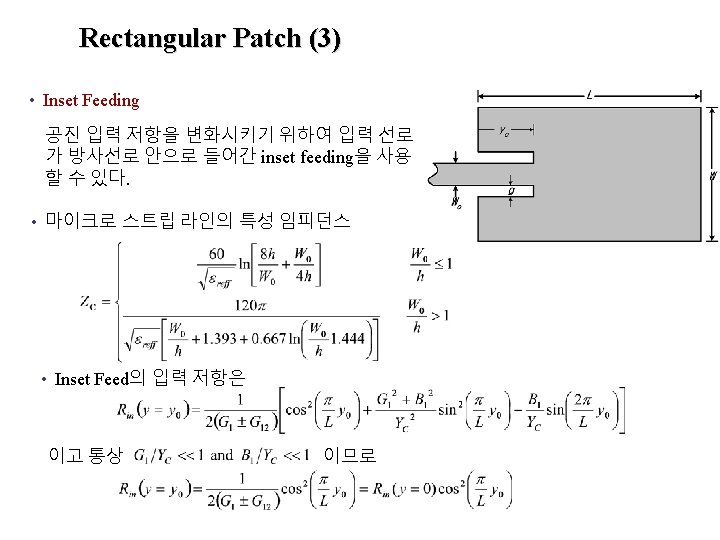

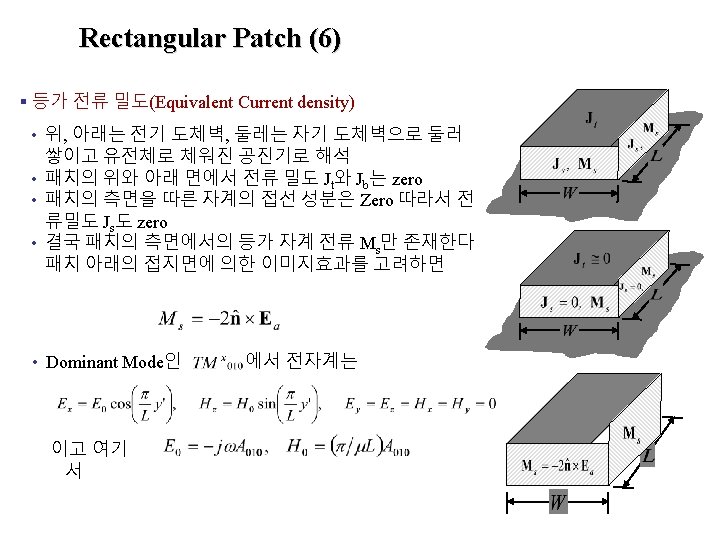

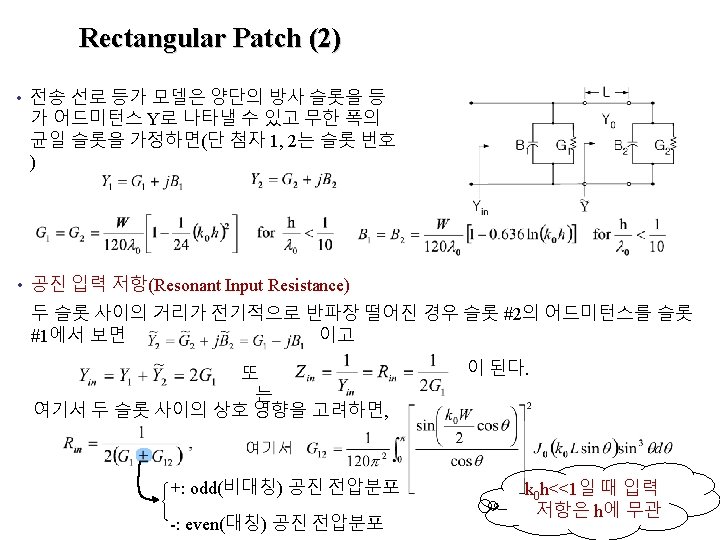

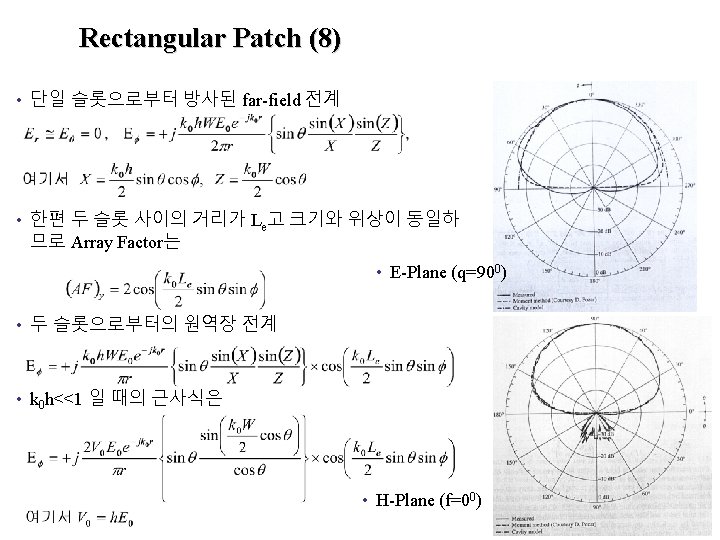

Rectangular Patch (9) u 지향성 (Directivity) • Single slot (k 0 h<<1) v single

Rectangular Patch (9) u 지향성 (Directivity) • Single slot (k 0 h<<1) v single slot의 지향성은 substrate 의 높이 h와 무관하다. 근사식 : • Two slot (k 0 h<<1) 근사식 : 지향성(Directivity)

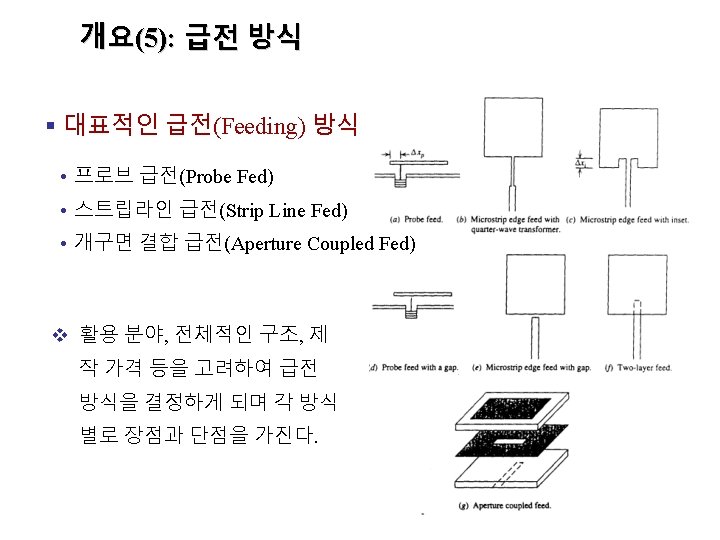

급전 회로 (Feeding Network) u series-feed network • fixed beam 이나 주파수 변화에 의한

급전 회로 (Feeding Network) u series-feed network • fixed beam 이나 주파수 변화에 의한 스 캐닝 • 단일/이중 편파를 갖는 선형/평판 어레 이 u corporate-feed network • tapered lines, l/4 transformer • scanning phased arrays, multi-beam arrays, shaped-beam arrays • probe feeds, aperture coupling u Cavity Backed • 표면파 문제 개선
