Chapter 14 Induction Motor Drives Extremely large potential
- Slides: 31
Chapter 14 Induction Motor Drives • Extremely large potential as adjustable speed drives Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -1

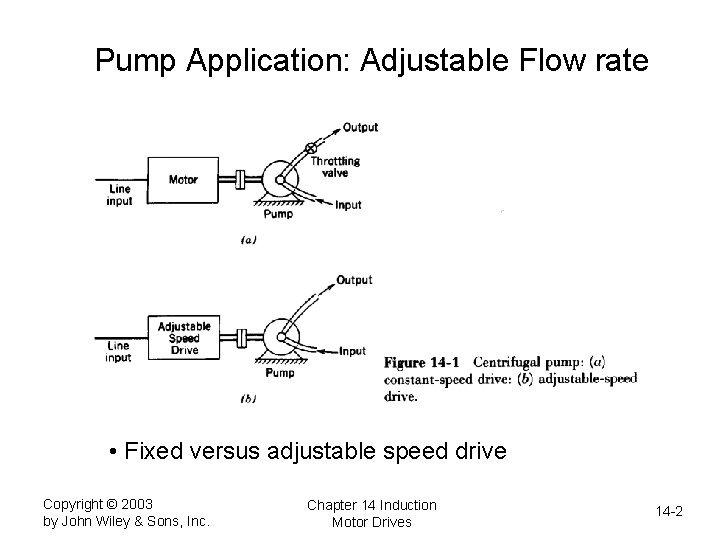

Pump Application: Adjustable Flow rate • Fixed versus adjustable speed drive Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -2

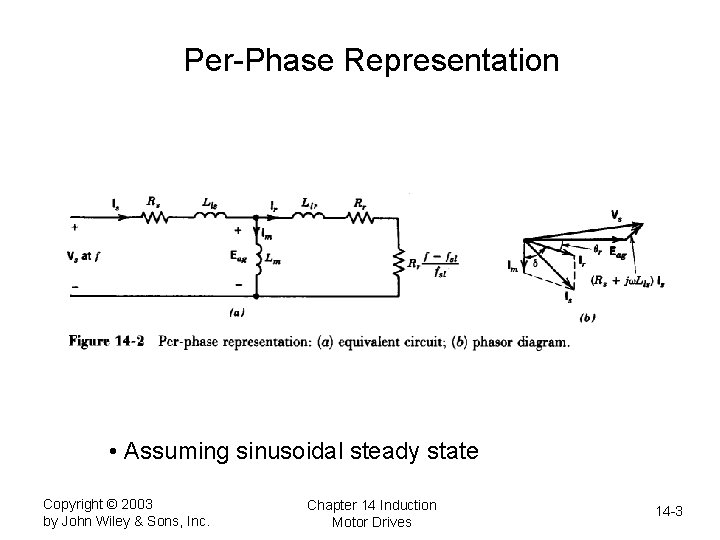

Per-Phase Representation • Assuming sinusoidal steady state Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -3
Important Relationships in an Induction Machine • Not necessary for our purposes to know the exact expressions for constants used here Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -4
Torque-Speed Characteristics • The linear part of the characteristic is utilized in adjustable speed drives Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -5
Plot of Normalized Rotor Current • It increases with slip and slip frequency Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -6

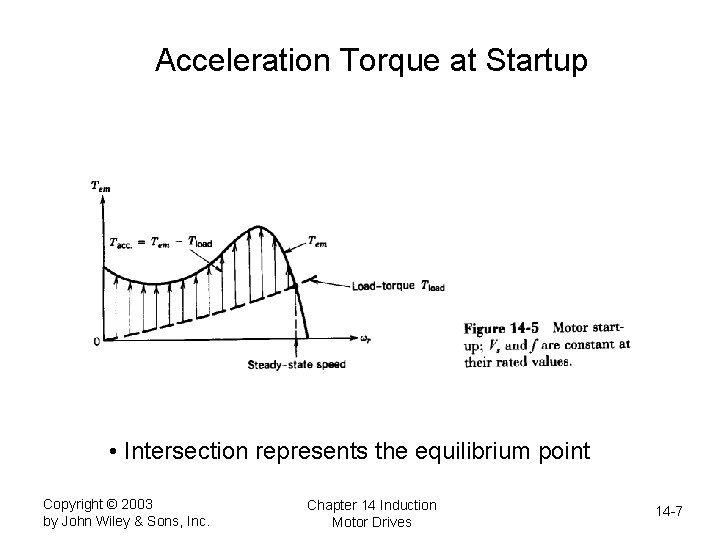

Acceleration Torque at Startup • Intersection represents the equilibrium point Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -7
Torque Speed Characteristics at various Frequencies of Applied Voltage • The air gap flux is kept constant Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -8
Adjusting Speed of a Centrifugal Load • The load torque is proportional to speed squared Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -9
Frequency at Startup • The torque is limited to limit current draw Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -10
Increasing Speed at Startup • The ramp rate of frequency depends on load inertia Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -11
Phasor Diagram at Small Value of Slip Frequency • The rotor branch is assumed to be purely resistive Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -12
Voltage Boost to Keep Air Gap Flux at its Rated Value • Depends on the torque loading of the machine Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -13
Induction Motor Drive Capability Curves • Mainly two regions Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -14
Generator Mode of Operation • Rotor speeds exceed the synchronous speed Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -15
Regenerative Braking Mode to Slow Down • Machine is made to go into the generator mode Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -16

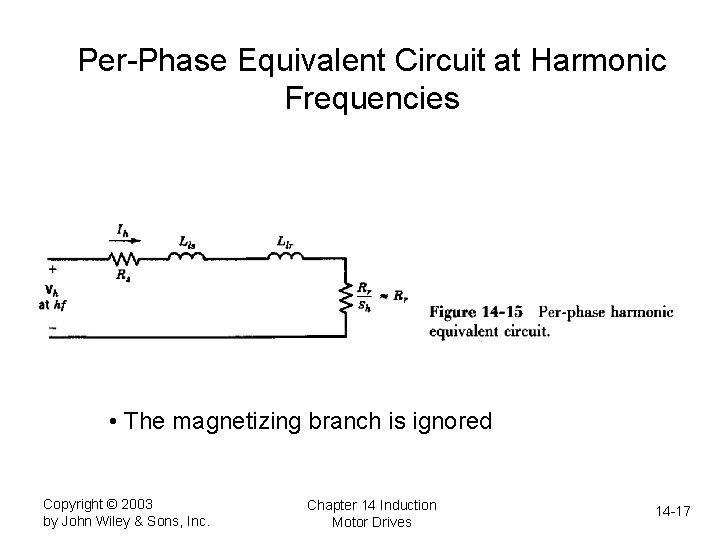

Per-Phase Equivalent Circuit at Harmonic Frequencies • The magnetizing branch is ignored Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -17
Torque Pulsations due to Harmonics • Rotations of fields due to the fifth and the seventh harmonics are in opposite directions Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -18

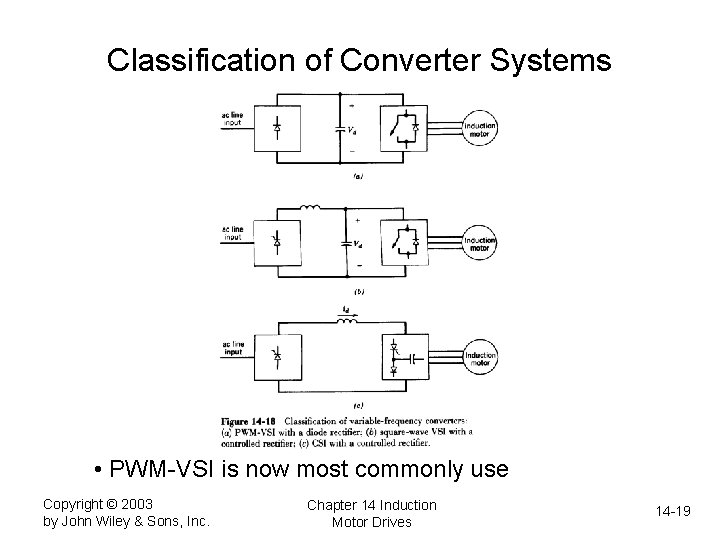

Classification of Converter Systems • PWM-VSI is now most commonly use Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -19
PWM-VSI System • Diode rectifier for unidirectional power flow Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -20
PWM-VSI System • Options for recovered energy during regenerative braking Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -21
General-Purpose Speed Controller • High dynamic performance is not the objective here Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -22

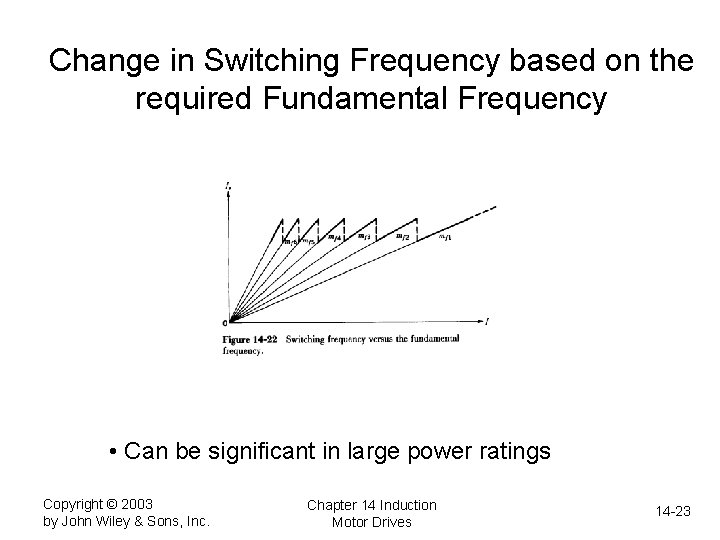

Change in Switching Frequency based on the required Fundamental Frequency • Can be significant in large power ratings Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -23

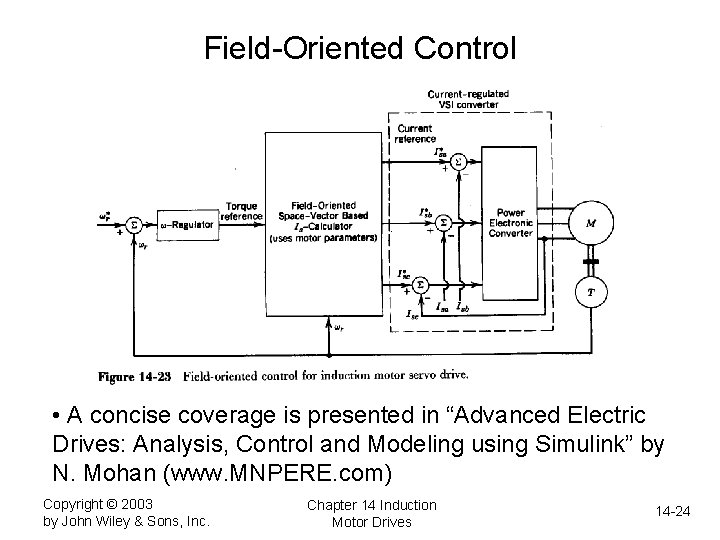

Field-Oriented Control • A concise coverage is presented in “Advanced Electric Drives: Analysis, Control and Modeling using Simulink” by N. Mohan (www. MNPERE. com) Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -24
Square-Wave VSI Waveforms • Large peak-peak ripple in currents Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -25

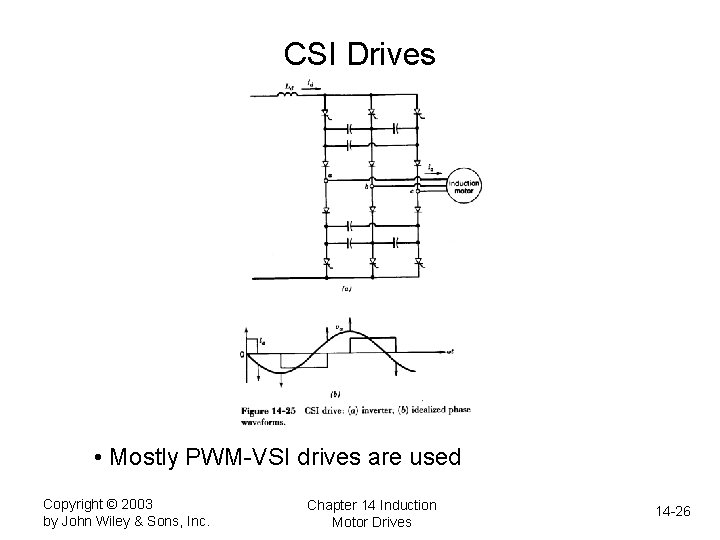

CSI Drives • Mostly PWM-VSI drives are used Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -26

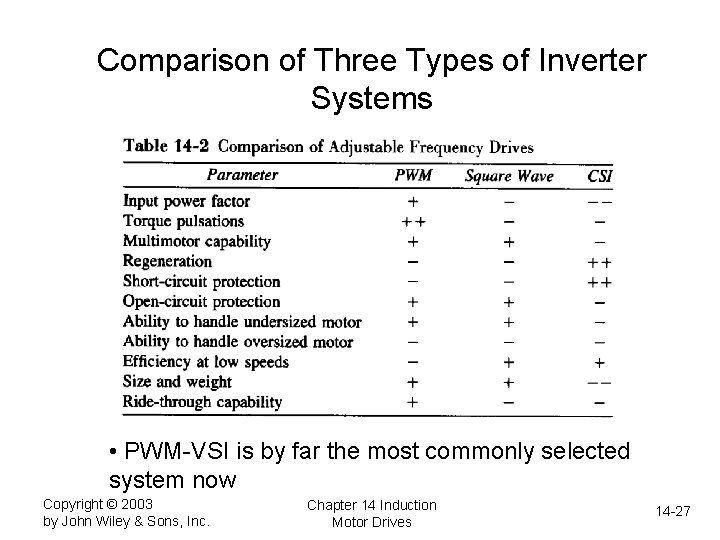

Comparison of Three Types of Inverter Systems • PWM-VSI is by far the most commonly selected system now Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -27
Speed Control by Adjusting the Stator Voltage • Highly inefficient in most cases Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -28
Controlling the Stator Voltage Magnitude • Results in distorted current and torque pulsations Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -29
Torque-Speed Curves for Wound-Rotor Machines • Highly energy-inefficient unless using energy recovery schemes Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -30
Static Slip Recovery • Applications in very large power ratings where the speed is to be adjusted over a very limited range Copyright © 2003 by John Wiley & Sons, Inc. Chapter 14 Induction Motor Drives 14 -31
