Chapter 14 Amplifier Frequency Response

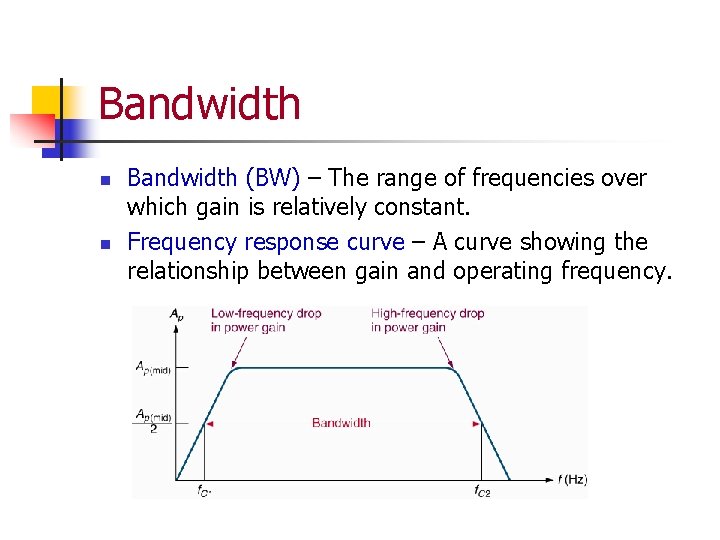

Bandwidth n n Bandwidth (BW) – The range of frequencies over which gain is relatively constant. Frequency response curve – A curve showing the relationship between gain and operating frequency.

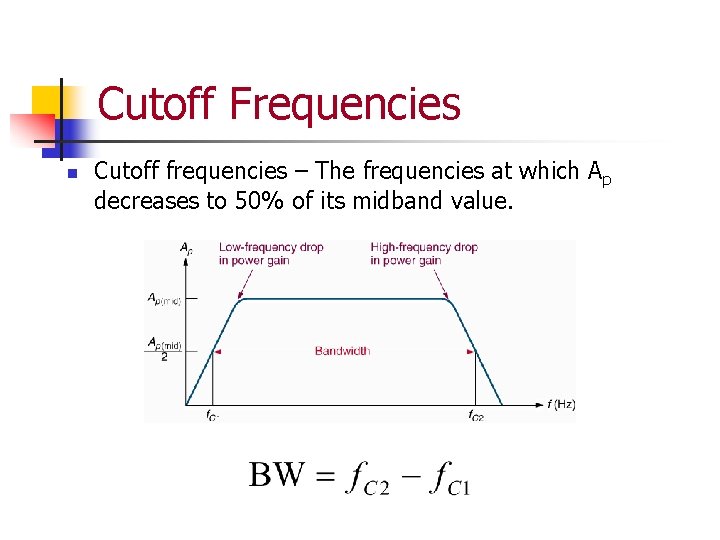

Cutoff Frequencies n Cutoff frequencies – The frequencies at which Ap decreases to 50% of its midband value.

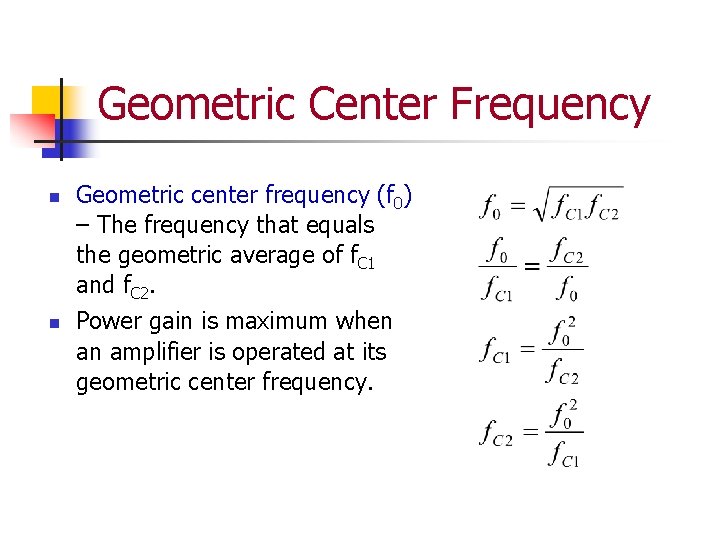

Geometric Center Frequency n n Geometric center frequency (f 0) – The frequency that equals the geometric average of f. C 1 and f. C 2. Power gain is maximum when an amplifier is operated at its geometric center frequency.

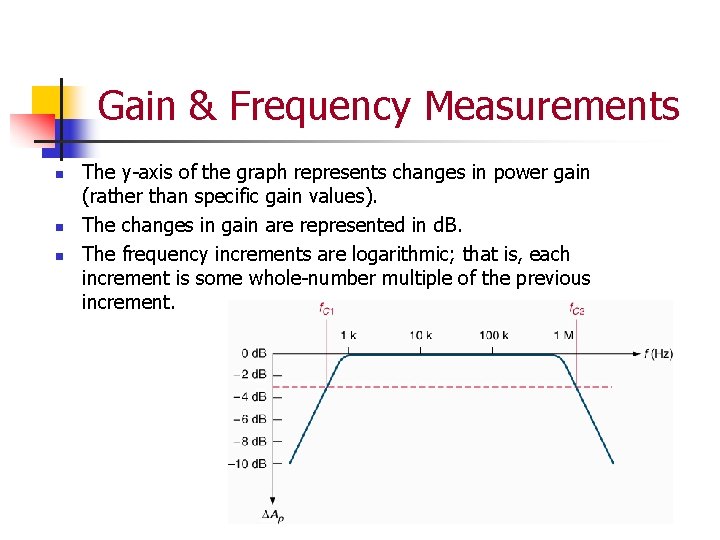

Gain & Frequency Measurements n n n The y-axis of the graph represents changes in power gain (rather than specific gain values). The changes in gain are represented in d. B. The frequency increments are logarithmic; that is, each increment is some whole-number multiple of the previous increment.

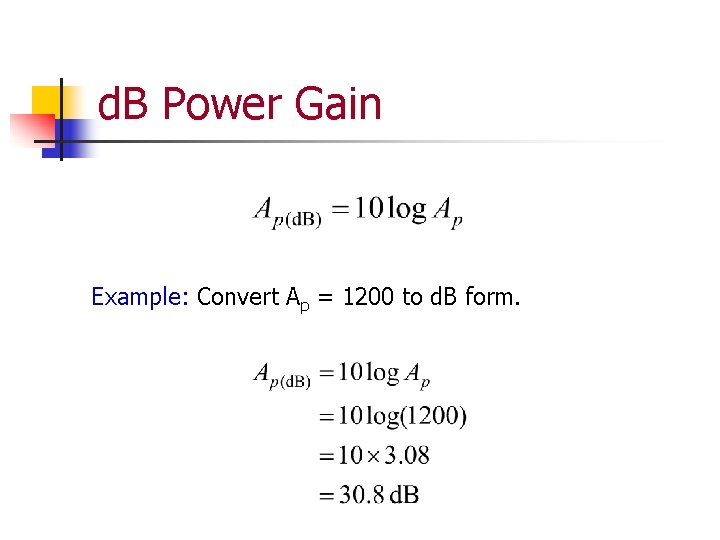

d. B Power Gain Example: Convert Ap = 1200 to d. B form.

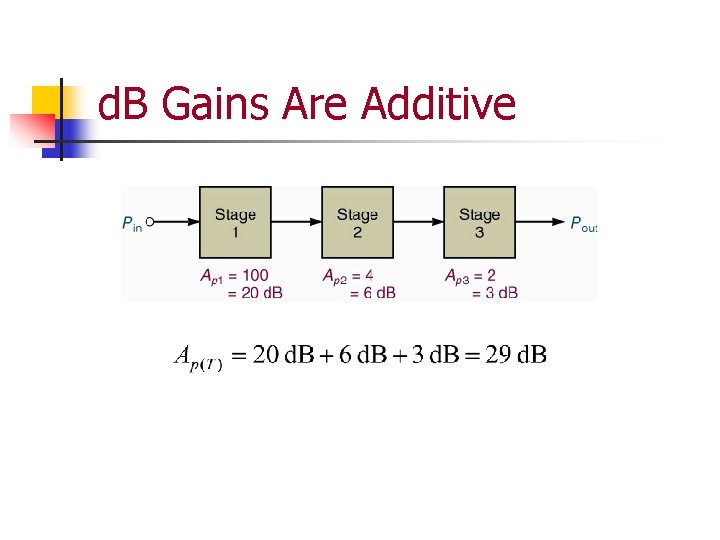

d. B Gains Are Additive

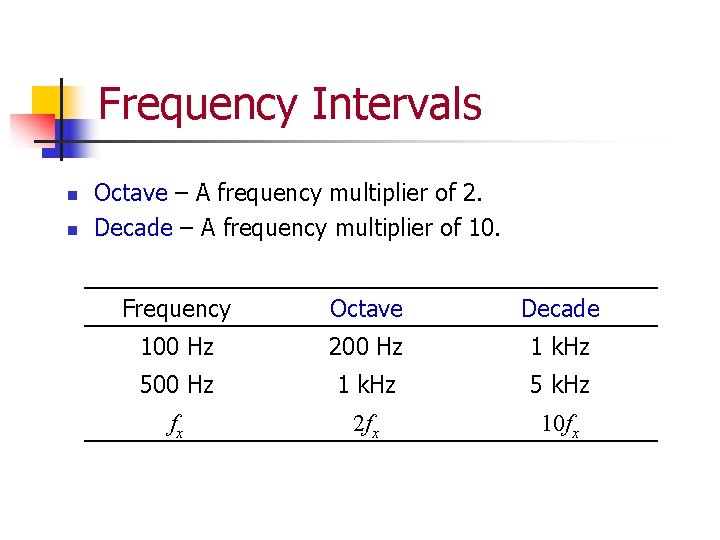

Frequency Intervals n n Octave – A frequency multiplier of 2. Decade – A frequency multiplier of 10. Frequency Octave Decade 100 Hz 200 Hz 1 k. Hz 5 k. Hz fx 2 fx 10 fx

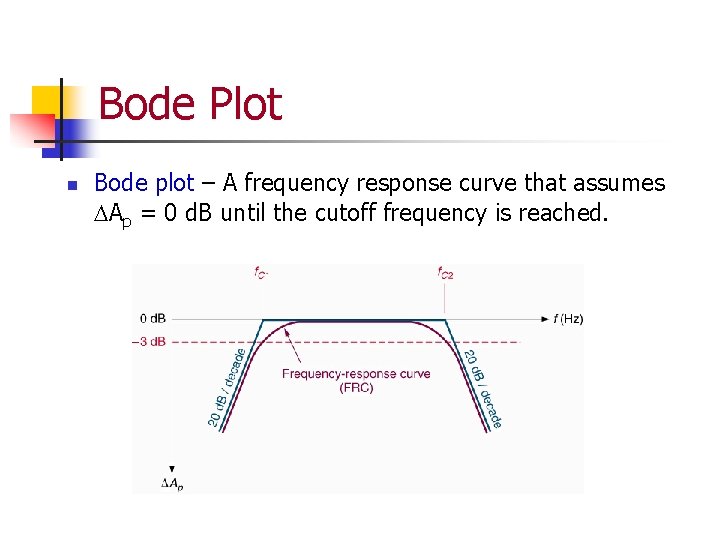

Bode Plot n Bode plot – A frequency response curve that assumes Ap = 0 d. B until the cutoff frequency is reached.

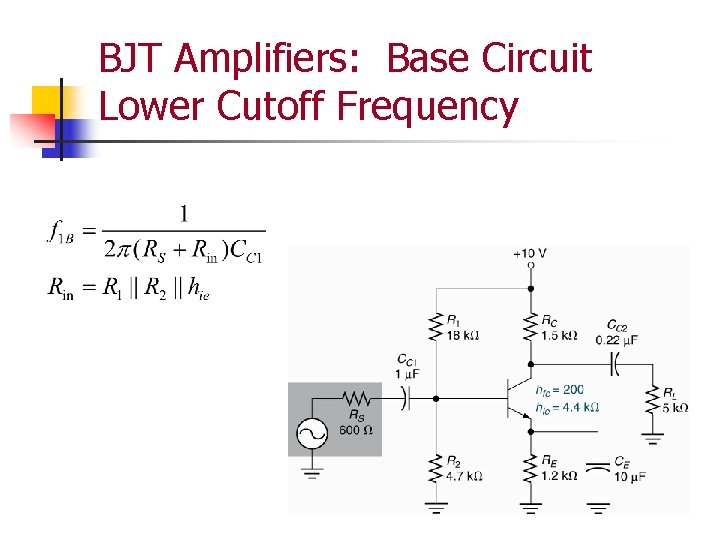

BJT Amplifiers: Base Circuit Lower Cutoff Frequency

BJT Amplifiers: Collector Circuit Lower Cutoff Frequency

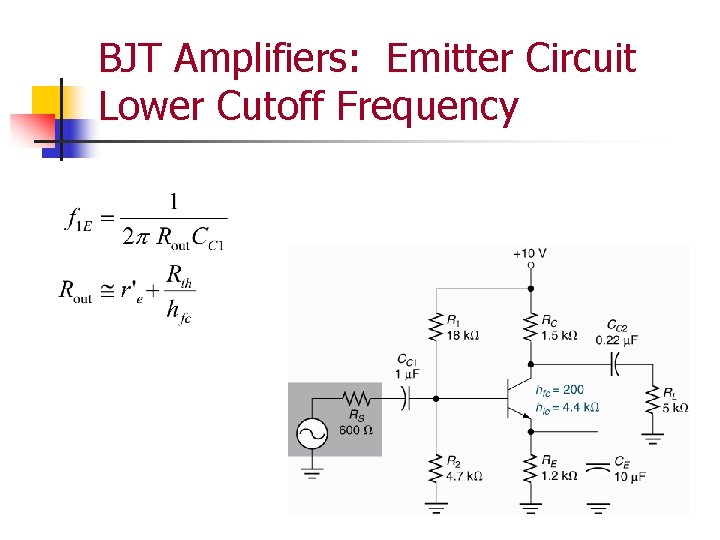

BJT Amplifiers: Emitter Circuit Lower Cutoff Frequency

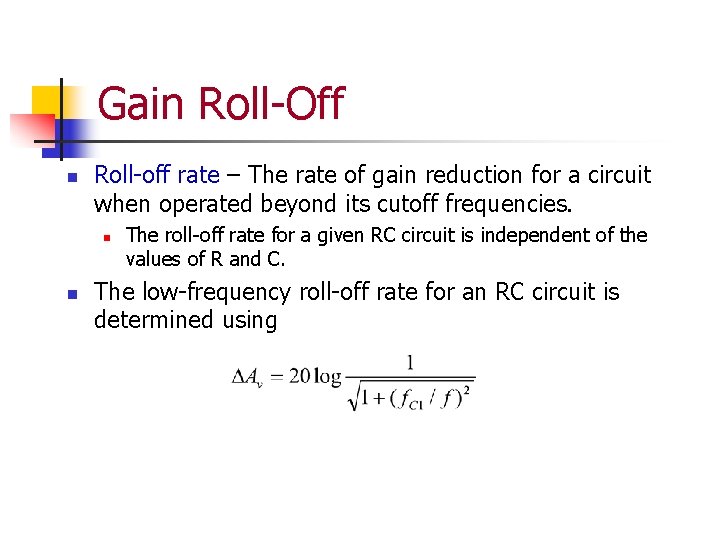

Gain Roll-Off n Roll-off rate – The rate of gain reduction for a circuit when operated beyond its cutoff frequencies. n n The roll-off rate for a given RC circuit is independent of the values of R and C. The low-frequency roll-off rate for an RC circuit is determined using

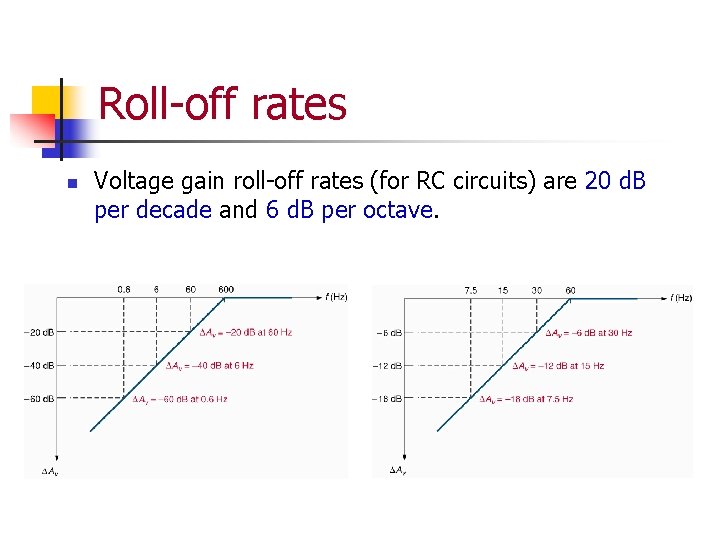

Roll-off rates n Voltage gain roll-off rates (for RC circuits) are 20 d. B per decade and 6 d. B per octave.

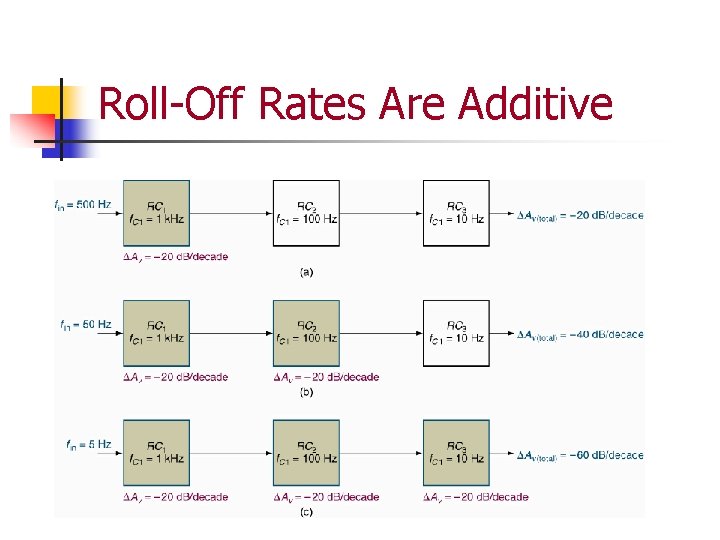

Roll-Off Rates Are Additive

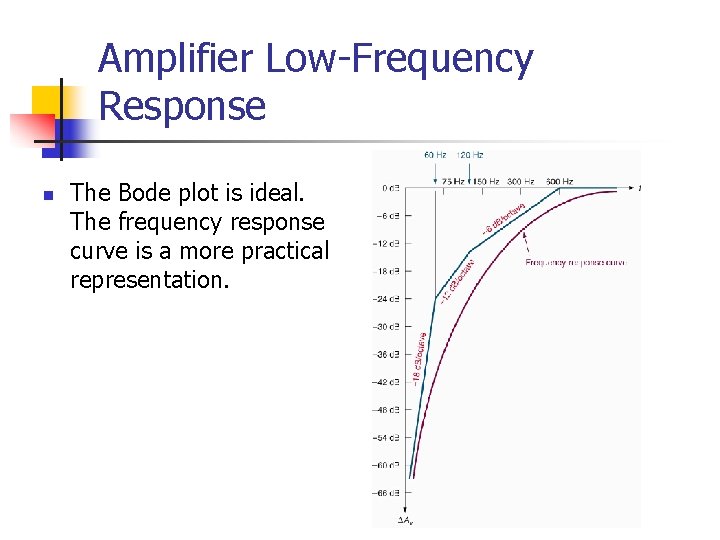

Amplifier Low-Frequency Response n The Bode plot is ideal. The frequency response curve is a more practical representation.

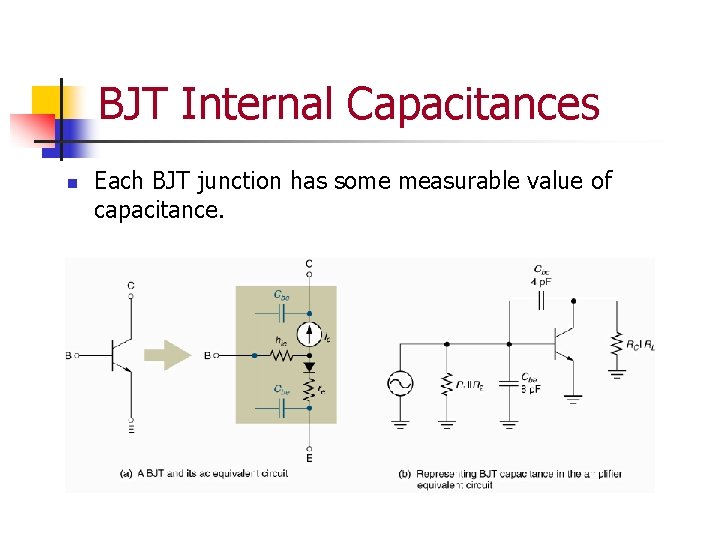

BJT Internal Capacitances n Each BJT junction has some measurable value of capacitance.

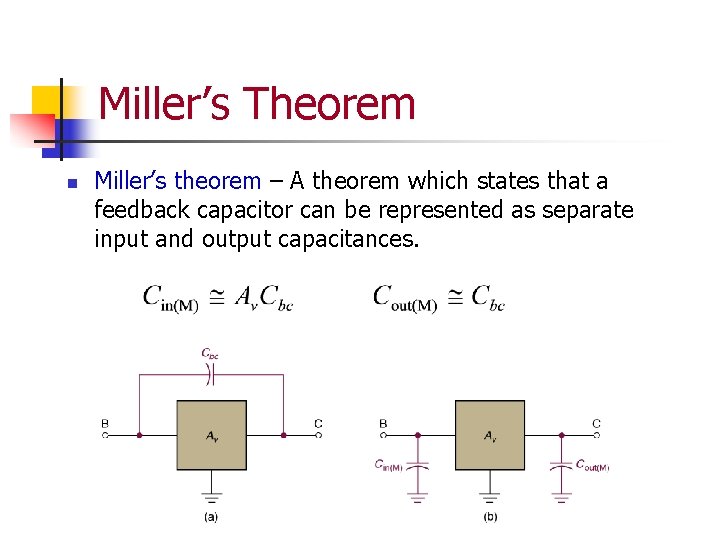

Miller’s Theorem n Miller’s theorem – A theorem which states that a feedback capacitor can be represented as separate input and output capacitances.

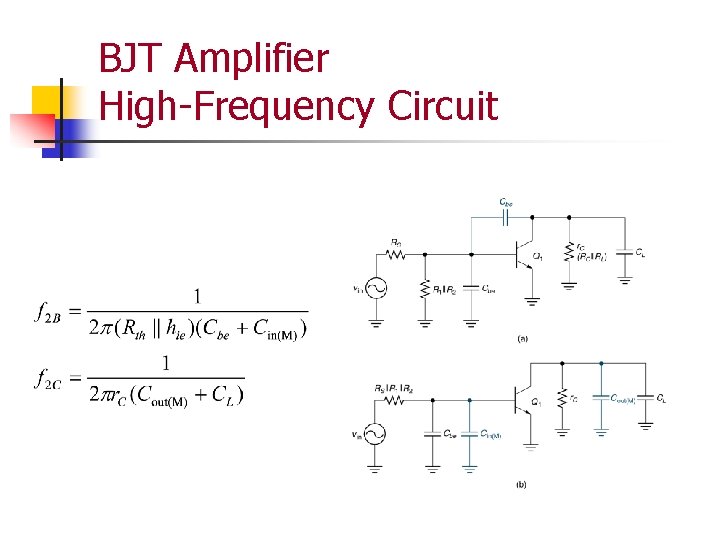

BJT Amplifier High-Frequency Circuit

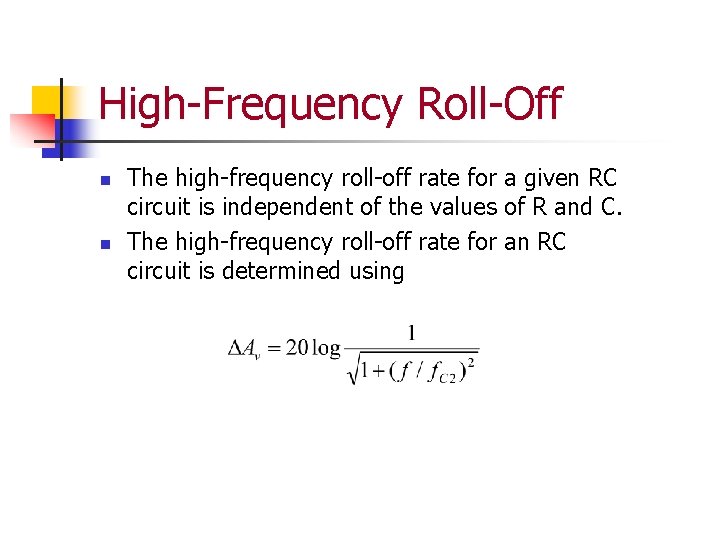

High-Frequency Roll-Off n n The high-frequency roll-off rate for a given RC circuit is independent of the values of R and C. The high-frequency roll-off rate for an RC circuit is determined using

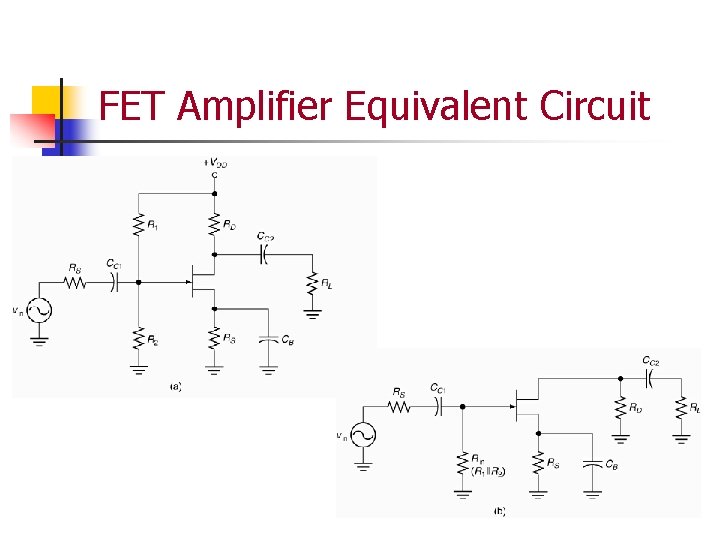

FET Amplifier Equivalent Circuit

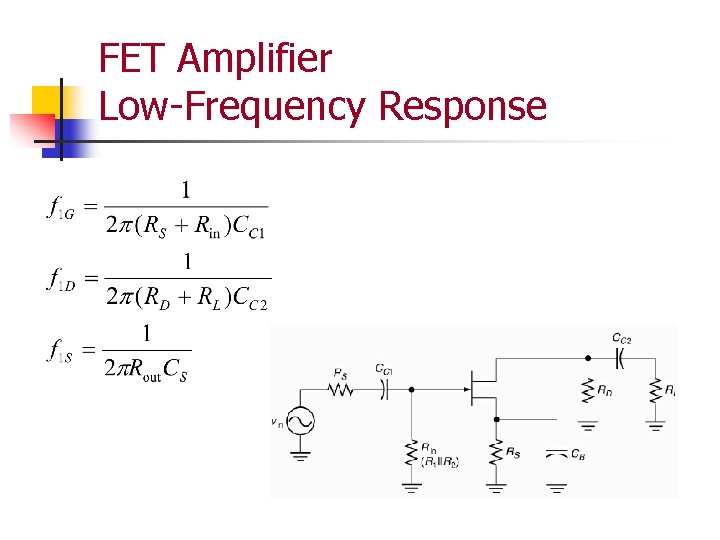

FET Amplifier Low-Frequency Response

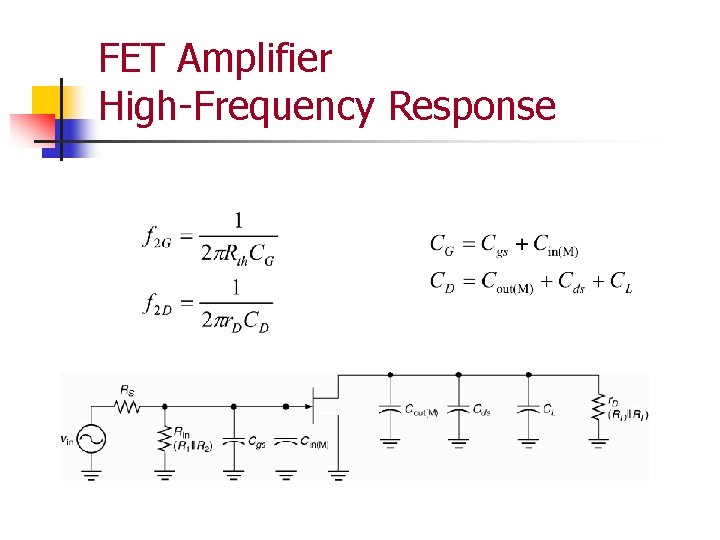

FET Amplifier High-Frequency Response

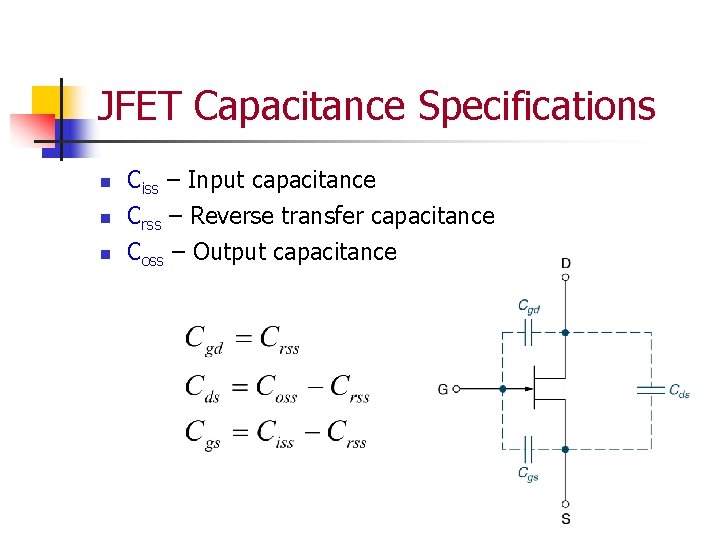

JFET Capacitance Specifications n n n Ciss – Input capacitance Crss – Reverse transfer capacitance Coss – Output capacitance

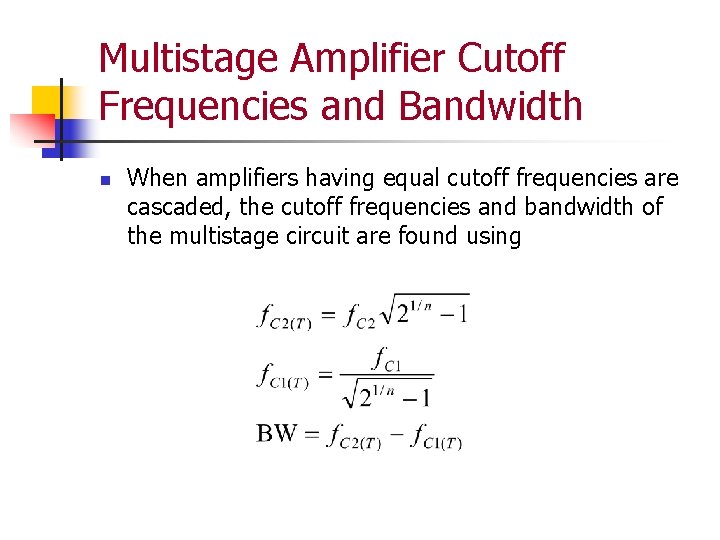

Multistage Amplifier Cutoff Frequencies and Bandwidth n When amplifiers having equal cutoff frequencies are cascaded, the cutoff frequencies and bandwidth of the multistage circuit are found using
