Chapter 13 Routing Protocols RIP OSPF BGP Http

Chapter 13 Routing Protocols (RIP, OSPF, BGP) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 1

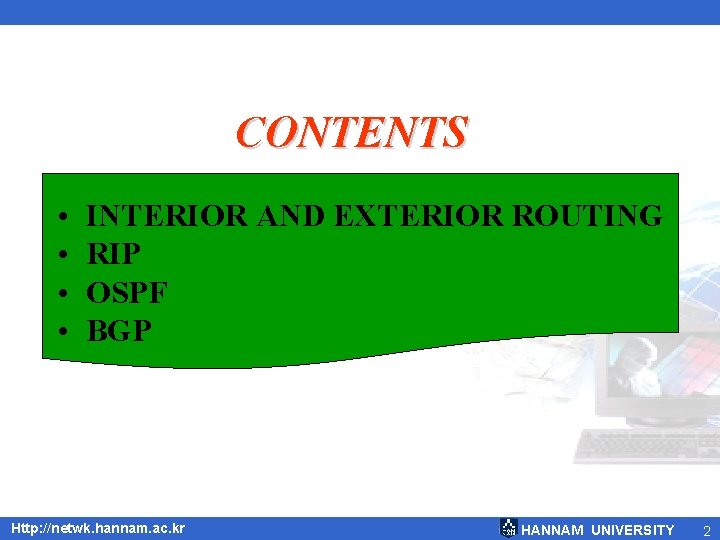

CONTENTS • • INTERIOR AND EXTERIOR ROUTING RIP OSPF BGP Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 2

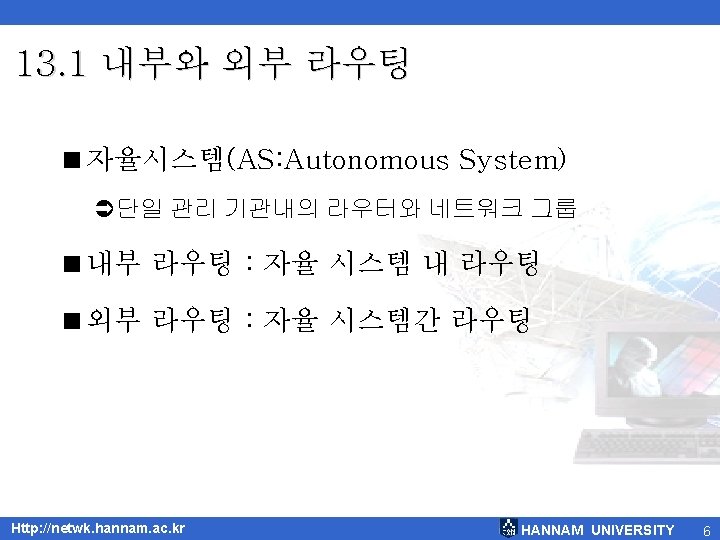

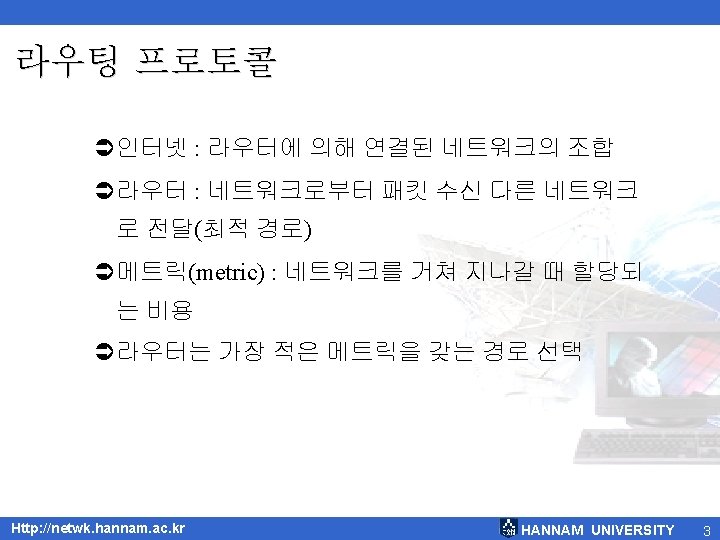

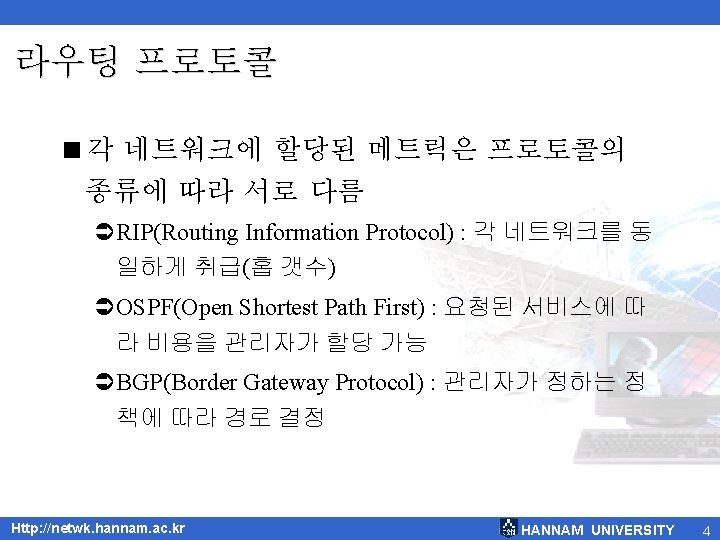

13. 1 Http: //netwk. hannam. ac. kr INTERIOR AND EXTERIOR ROUTING HANNAM UNIVERSITY 5

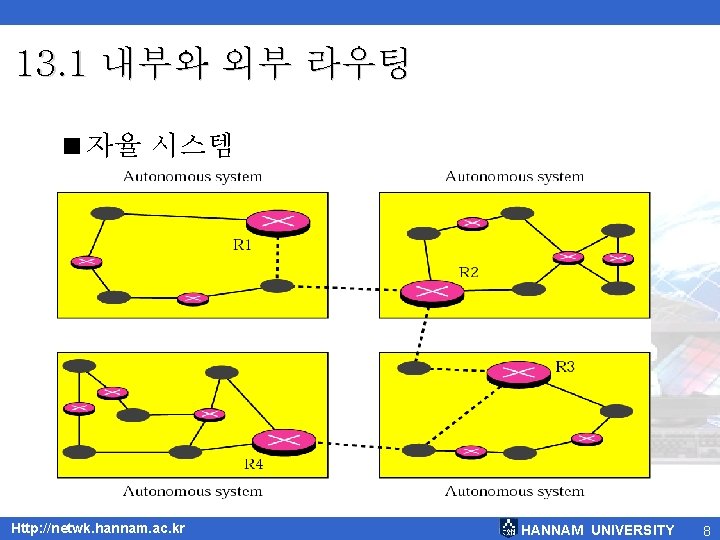

13. 1 내부와 외부 라우팅 <자율 시스템 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 8

13. 2 Http: //netwk. hannam. ac. kr RIP: Routing Information Protocol HANNAM UNIVERSITY 9

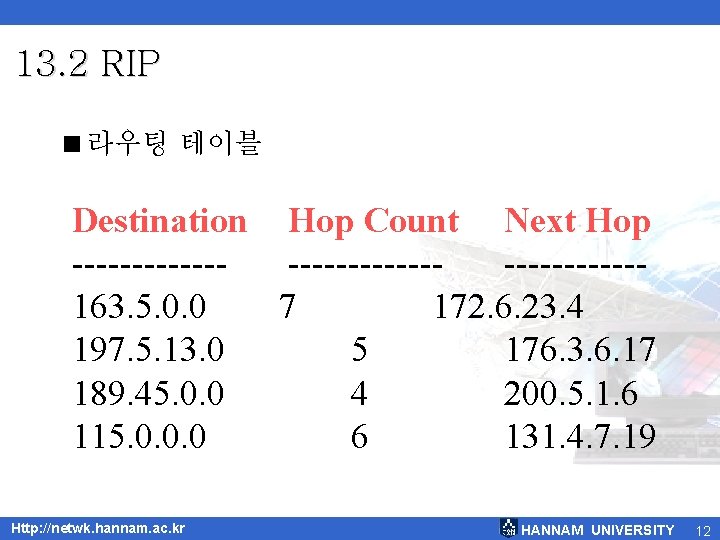

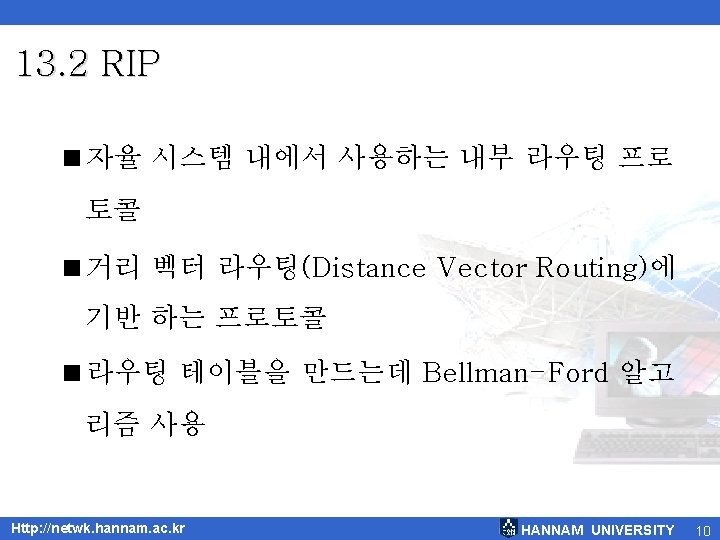

13. 2 RIP <라우팅 테이블 Destination Hop Count Next Hop ------------------163. 5. 0. 0 7 172. 6. 23. 4 197. 5. 13. 0 5 176. 3. 6. 17 189. 45. 0. 0 4 200. 5. 1. 6 115. 0. 0. 0 6 131. 4. 7. 19 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 12

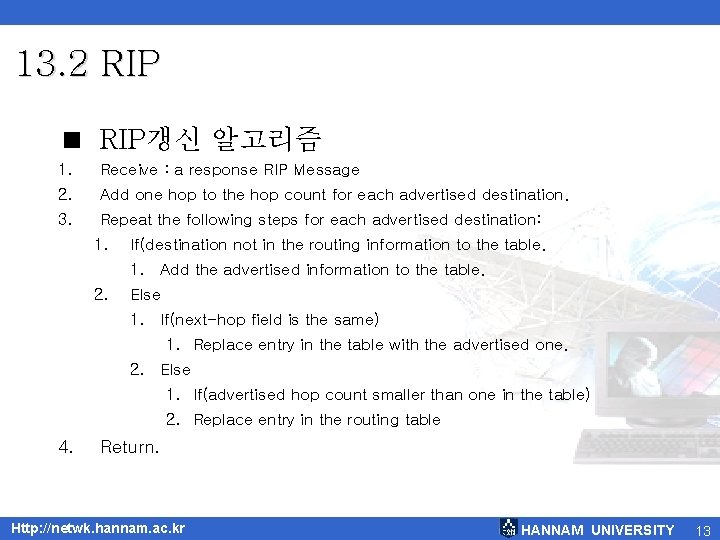

13. 2 RIP < RIP갱신 알고리즘 1. Receive : a response RIP Message 2. Add one hop to the hop count for each advertised destination. 3. Repeat the following steps for each advertised destination: 1. If(destination not in the routing information to the table. 1. Add the advertised information to the table. 2. Else 1. If(next-hop field is the same) 1. Replace entry in the table with the advertised one. 2. Else 1. If(advertised hop count smaller than one in the table) 2. Replace entry in the routing table 4. Return. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 13

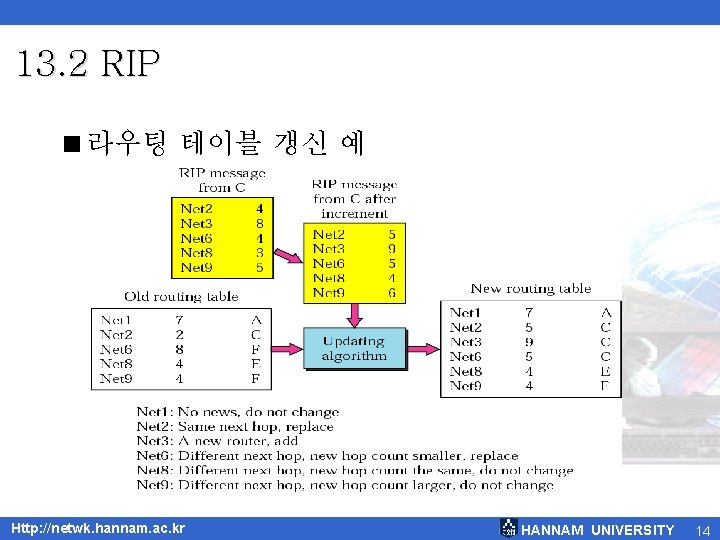

13. 2 RIP <라우팅 테이블 갱신 예 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 14

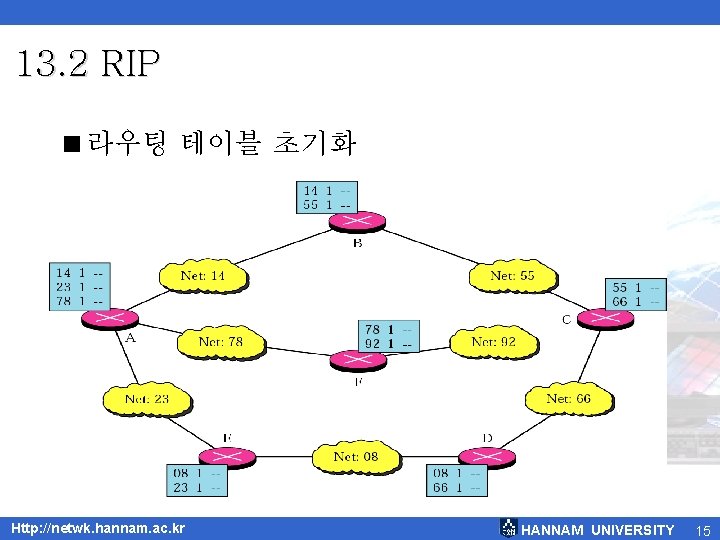

13. 2 RIP <라우팅 테이블 초기화 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 15

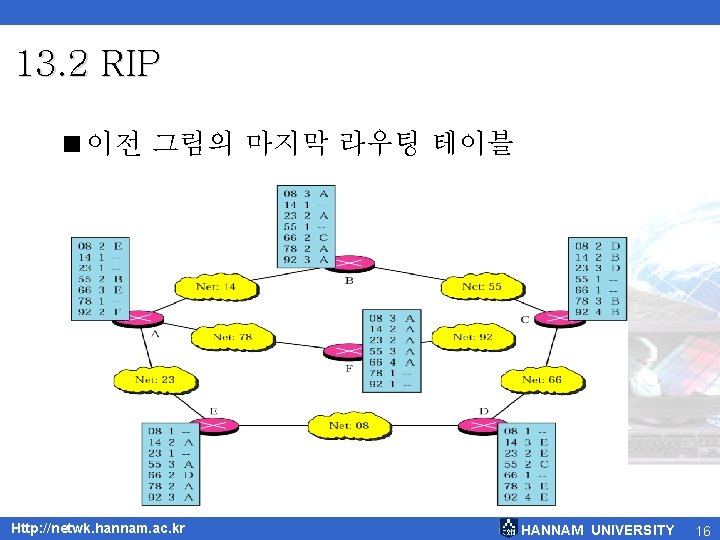

13. 2 RIP <이전 그림의 마지막 라우팅 테이블 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 16

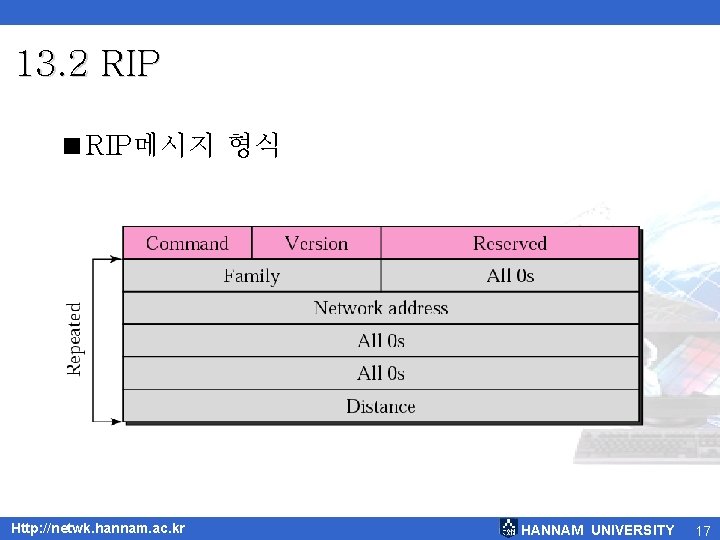

13. 2 RIP <RIP메시지 형식 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 17

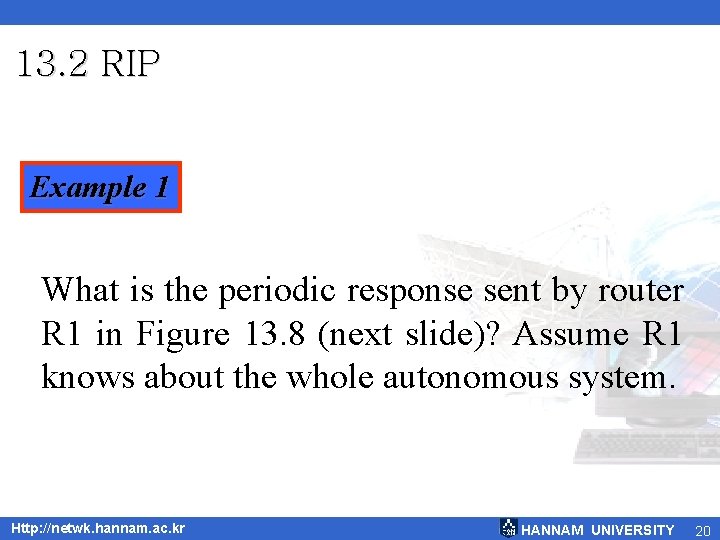

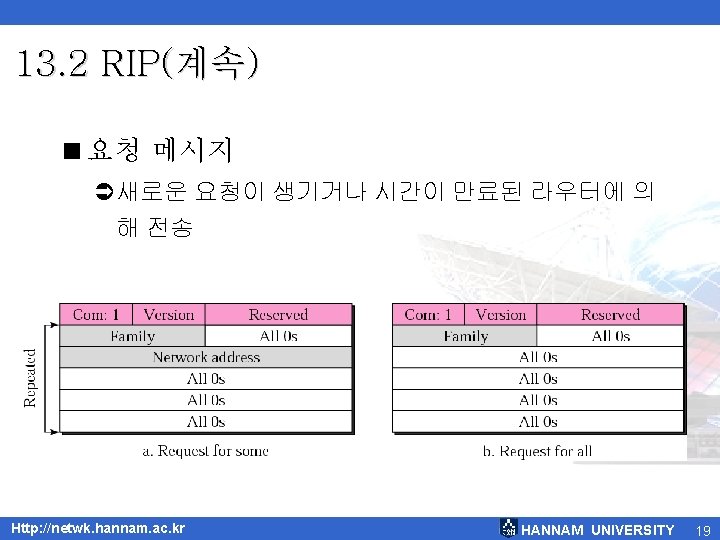

13. 2 RIP Example 1 What is the periodic response sent by router R 1 in Figure 13. 8 (next slide)? Assume R 1 knows about the whole autonomous system. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 20

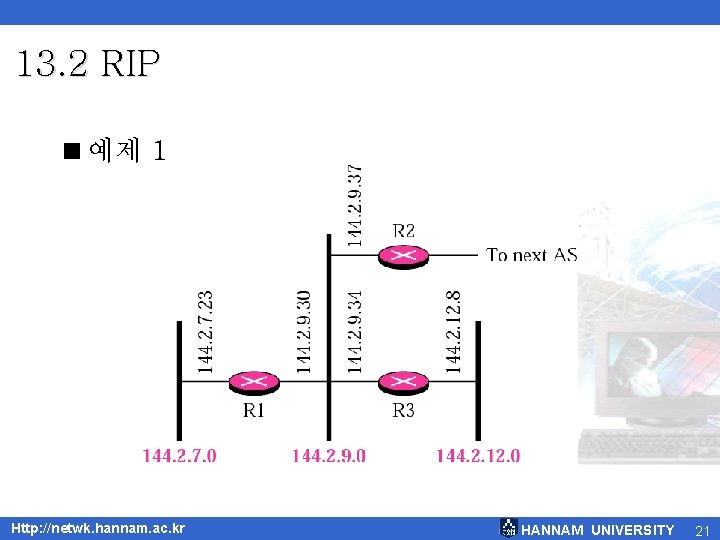

13. 2 RIP <예제 1 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 21

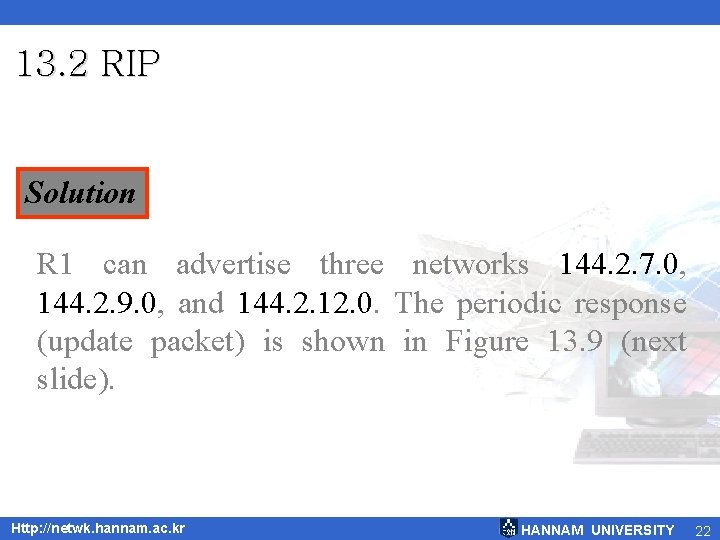

13. 2 RIP Solution R 1 can advertise three networks 144. 2. 7. 0, 144. 2. 9. 0, and 144. 2. 12. 0. The periodic response (update packet) is shown in Figure 13. 9 (next slide). Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 22

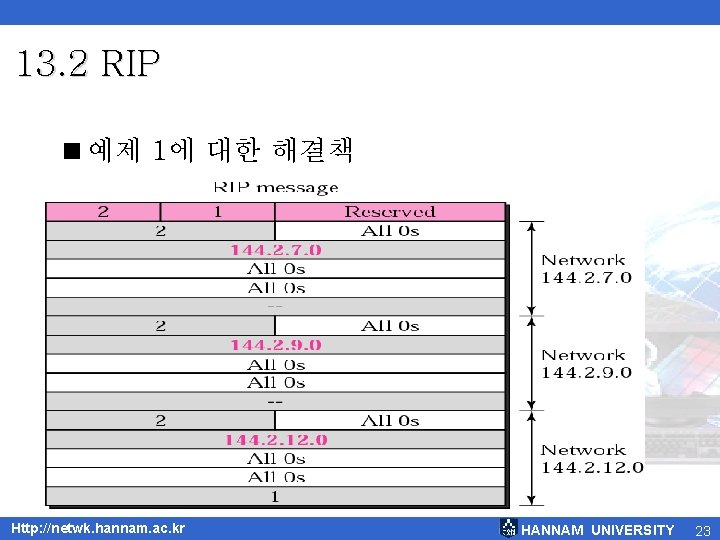

13. 2 RIP <예제 1에 대한 해결책 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 23

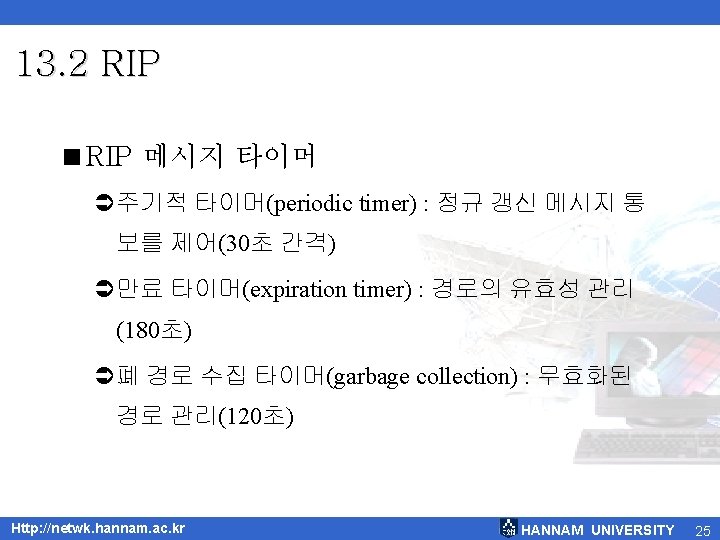

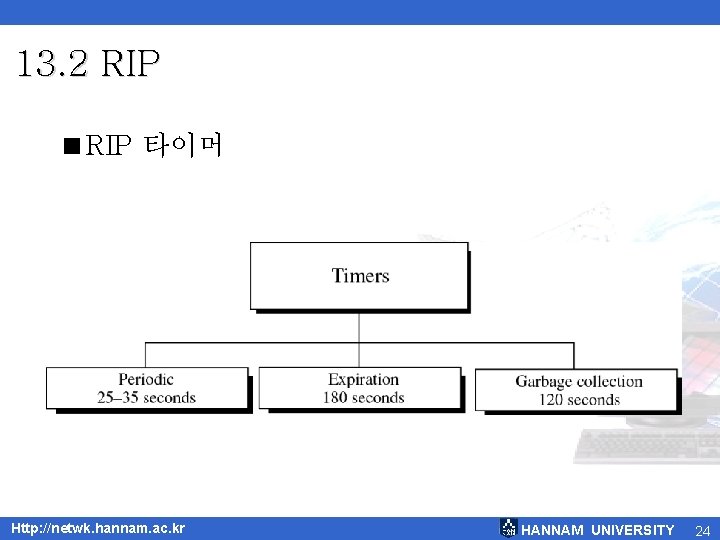

13. 2 RIP <RIP 타이머 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 24

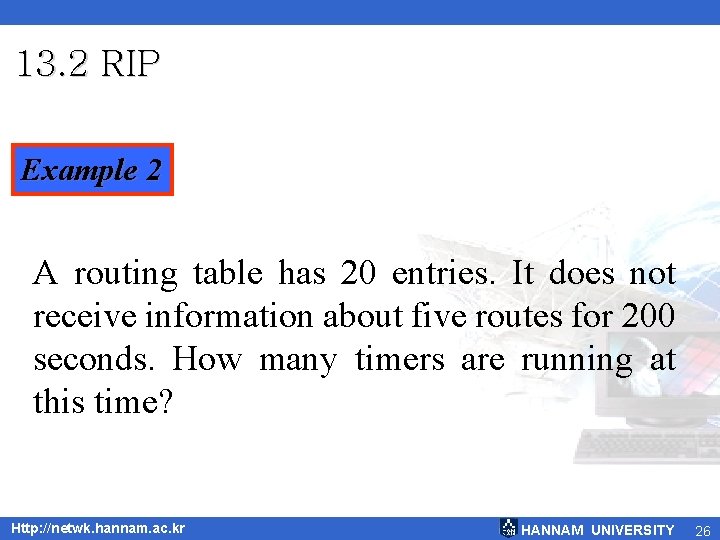

13. 2 RIP Example 2 A routing table has 20 entries. It does not receive information about five routes for 200 seconds. How many timers are running at this time? Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 26

13. 2 RIP Solution The timers are listed below: Periodic timer: 1 Expiration timer: 20 - 5 = 15 Garbage collection timer: 5 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 27

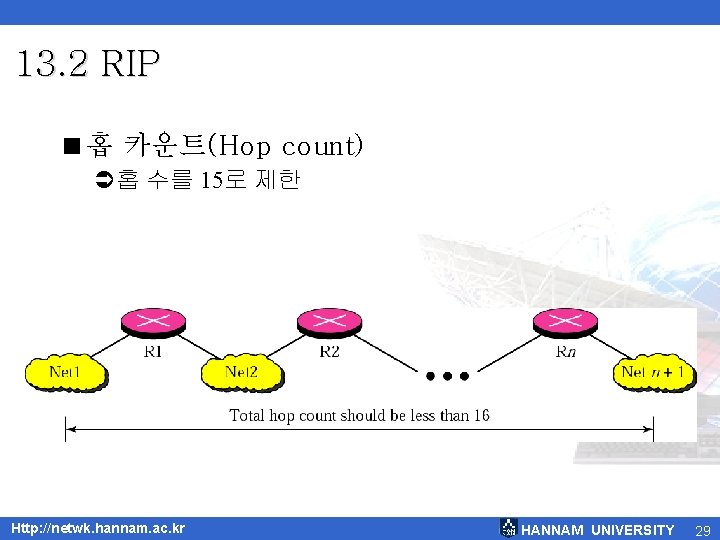

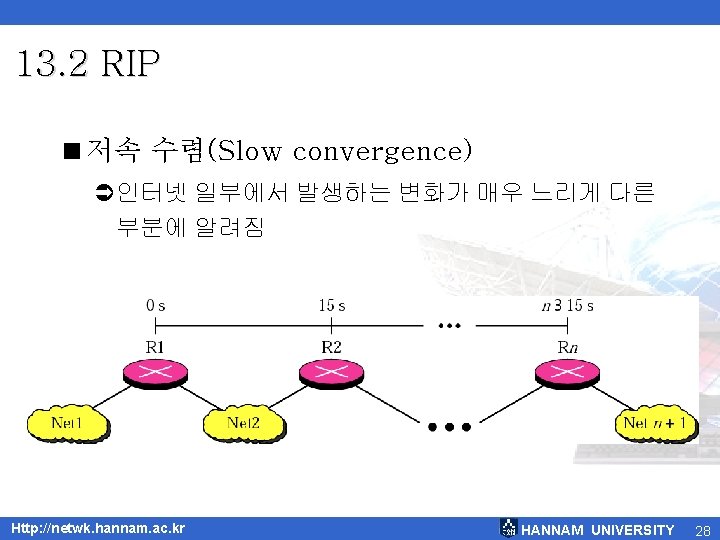

13. 2 RIP <홉 카운트(Hop count) Ü홉 수를 15로 제한 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 29

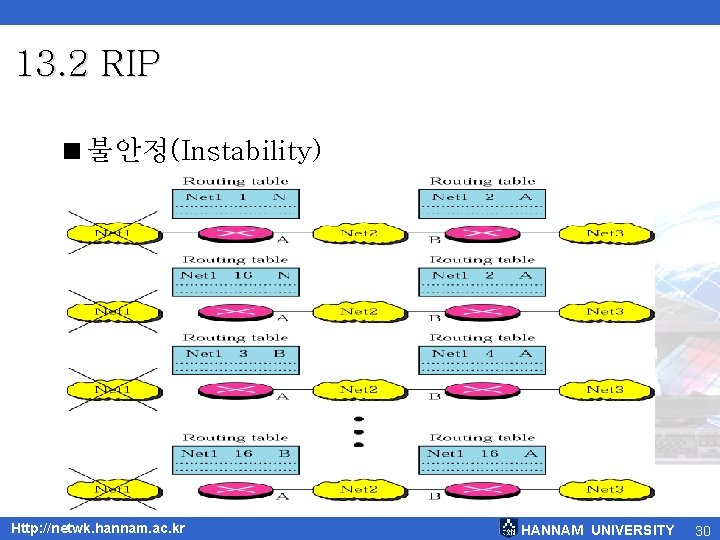

13. 2 RIP <불안정(Instability) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 30

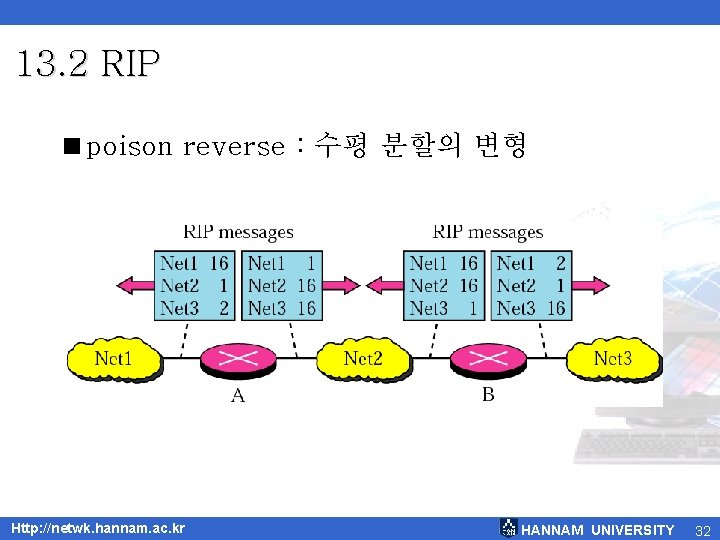

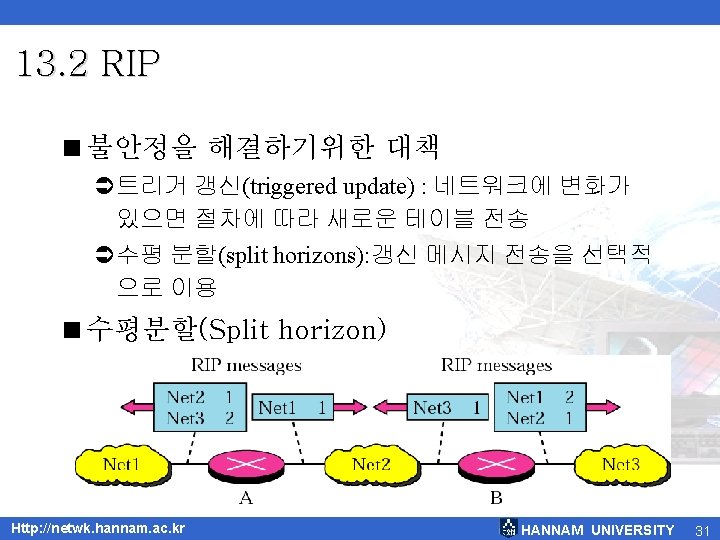

13. 2 RIP <poison reverse : 수평 분할의 변형 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 32

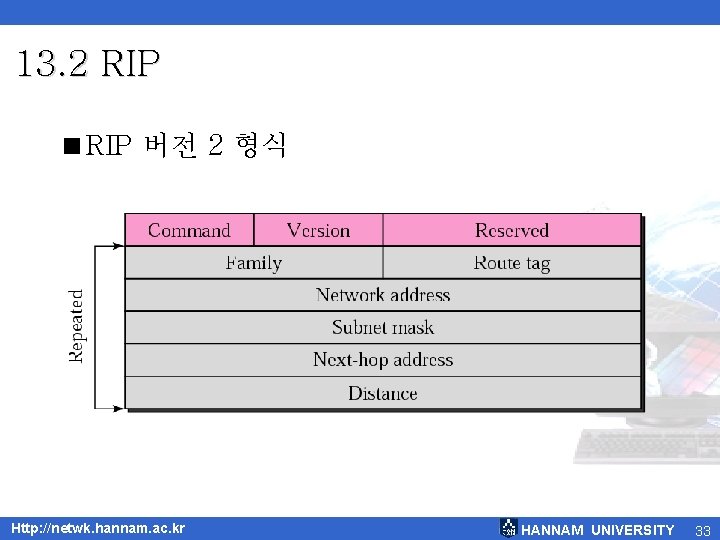

13. 2 RIP <RIP 버전 2 형식 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 33

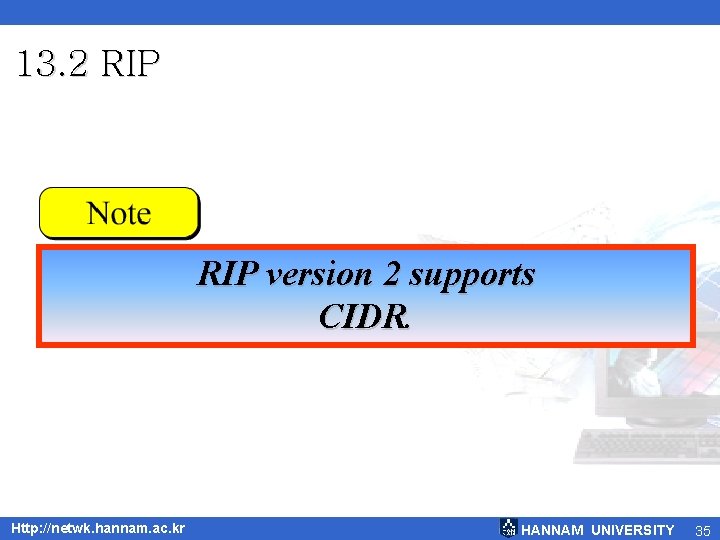

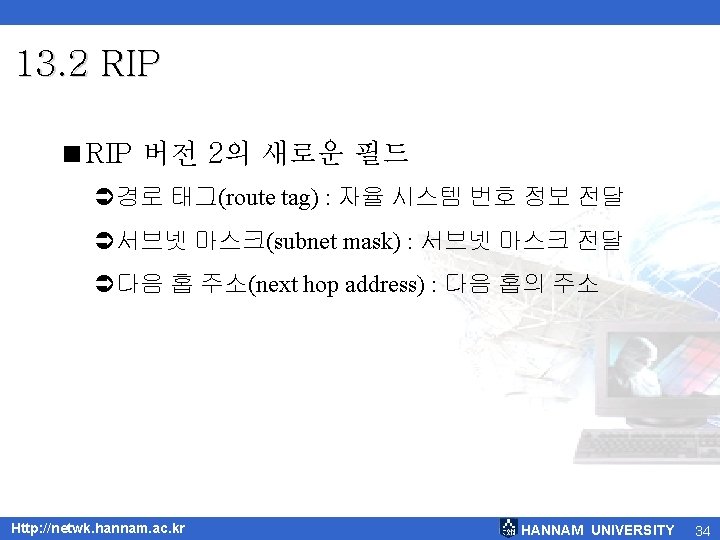

13. 2 RIP version 2 supports CIDR. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 35

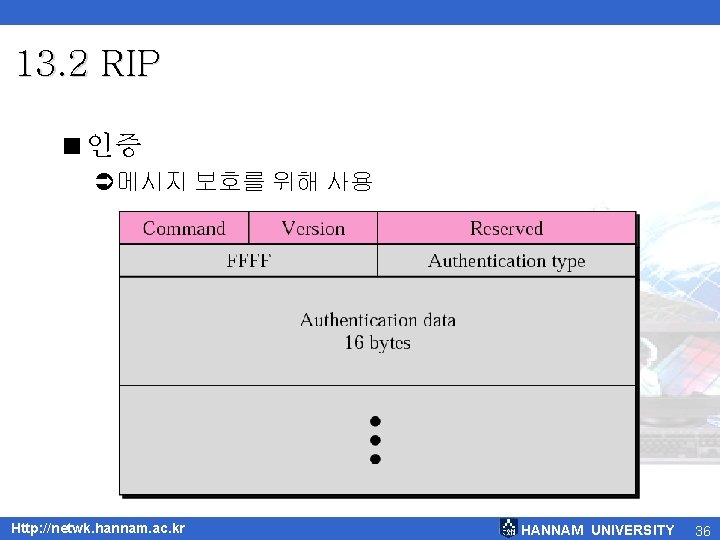

13. 2 RIP <인증 Ü메시지 보호를 위해 사용 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 36

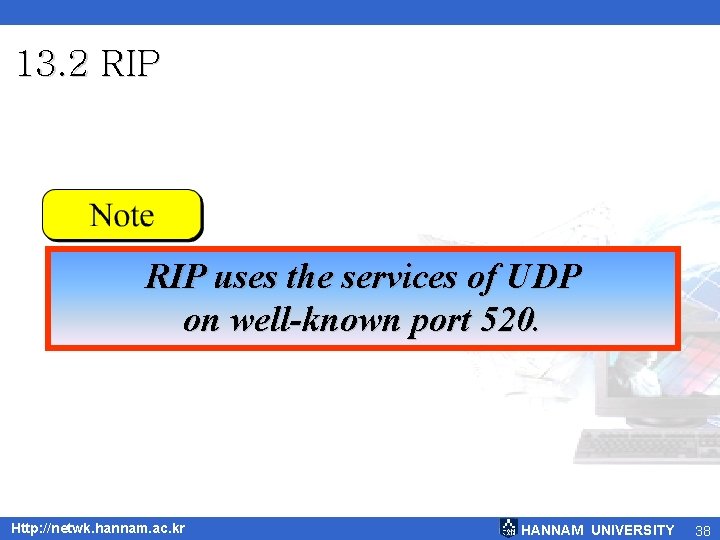

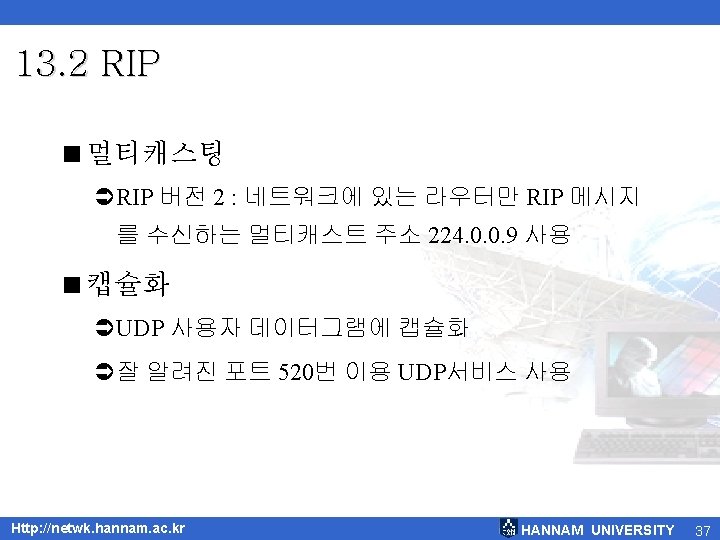

13. 2 RIP uses the services of UDP on well-known port 520. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 38

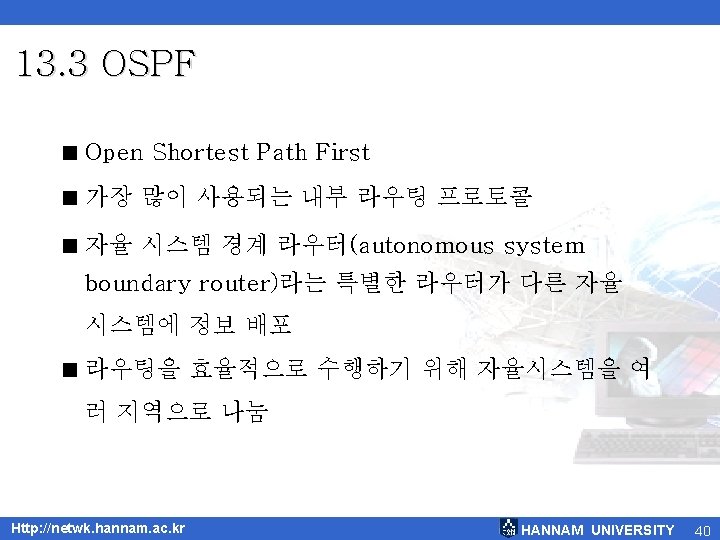

13. 3 OSPF: Open Shortest Path First Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 39

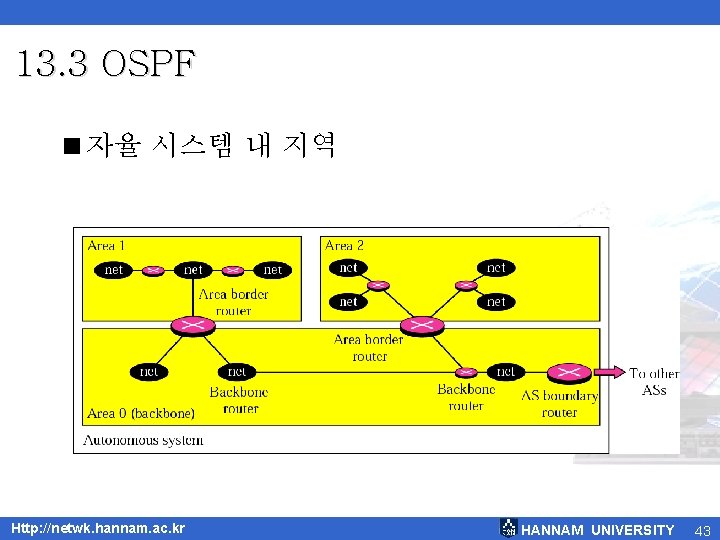

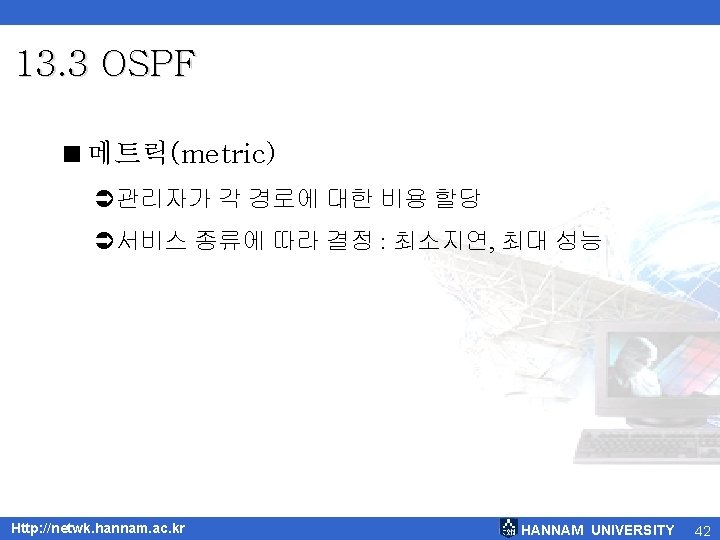

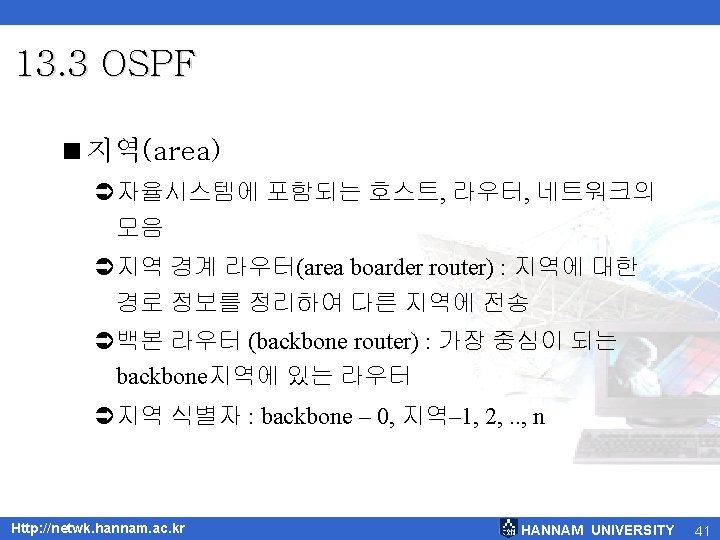

13. 3 OSPF <자율 시스템 내 지역 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 43

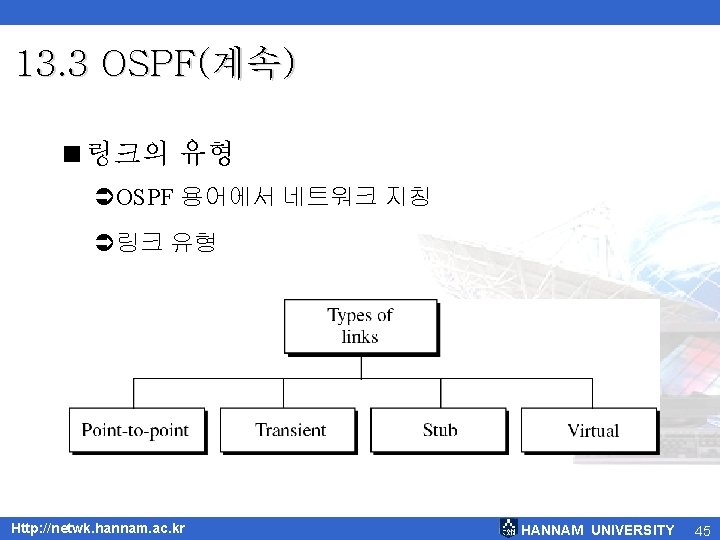

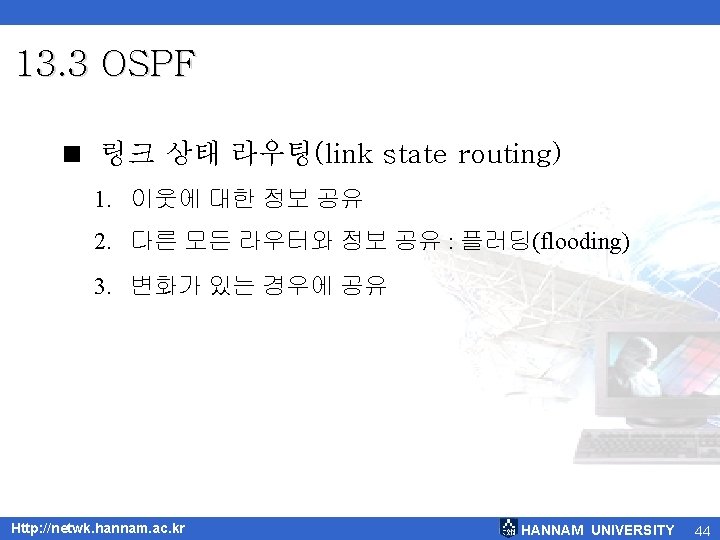

13. 3 OSPF(계속) <링크의 유형 ÜOSPF 용어에서 네트워크 지칭 Ü링크 유형 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 45

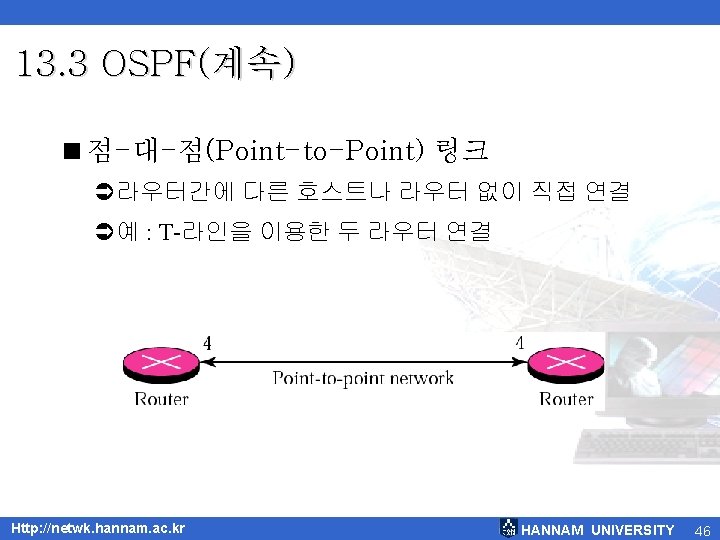

13. 3 OSPF(계속) <경유(transient) 링크 Ü몇 개의 라우터가 연결되어 있는 네트워크 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 47

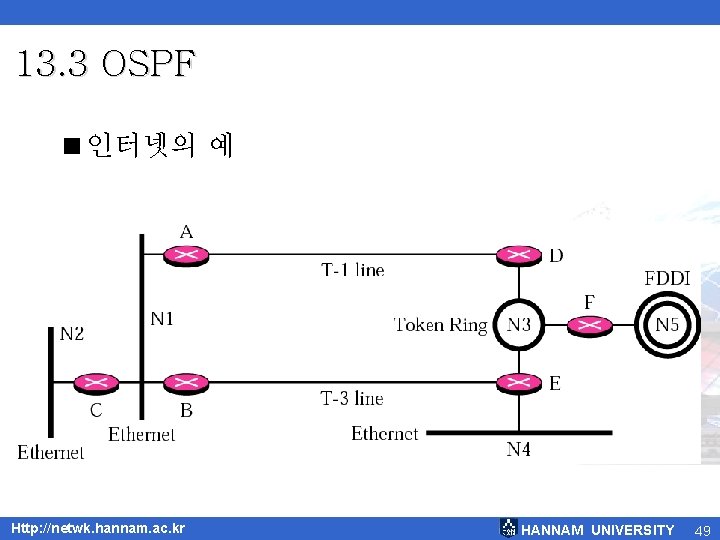

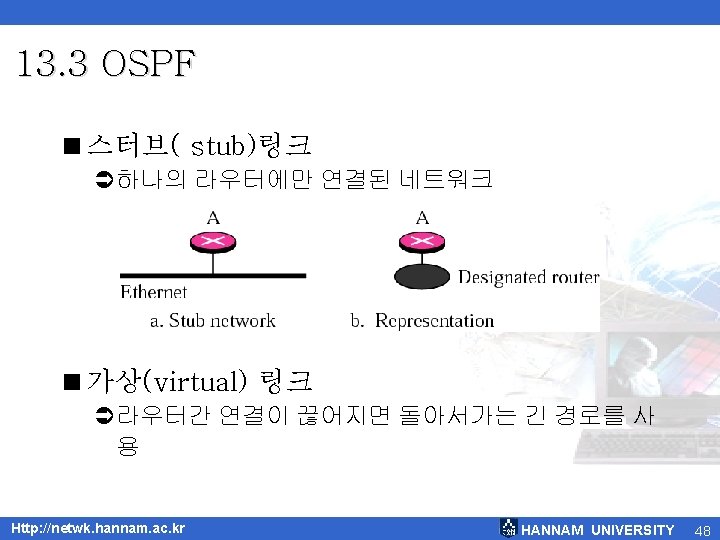

13. 3 OSPF <인터넷의 예 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 49

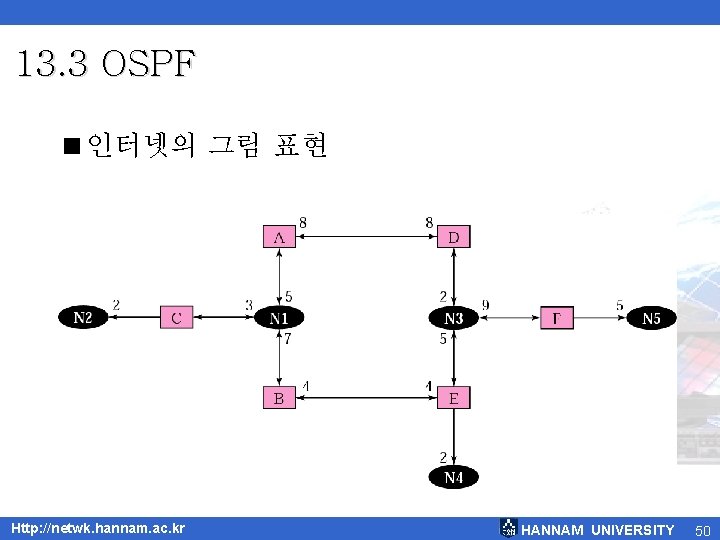

13. 3 OSPF <인터넷의 그림 표현 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 50

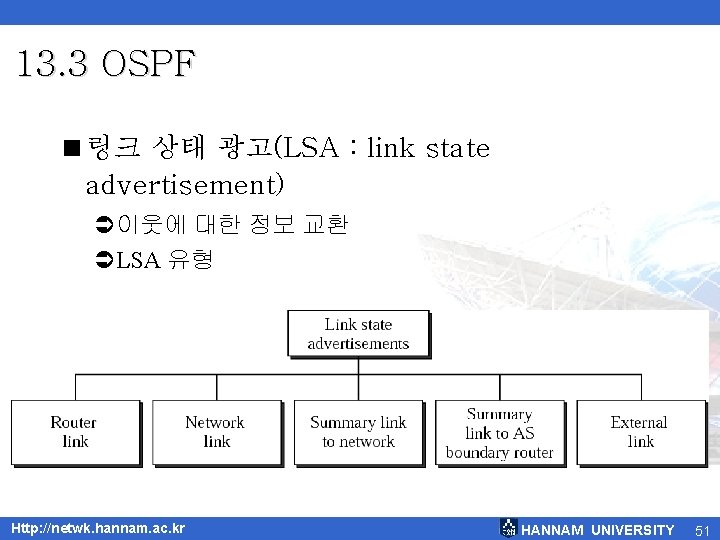

13. 3 OSPF <링크 상태 광고(LSA : link state advertisement) Ü이웃에 대한 정보 교환 ÜLSA 유형 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 51

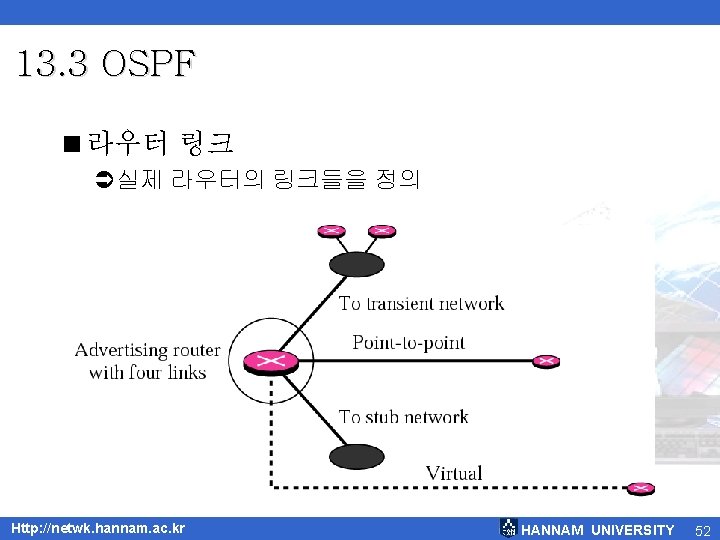

13. 3 OSPF <라우터 링크 Ü실제 라우터의 링크들을 정의 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 52

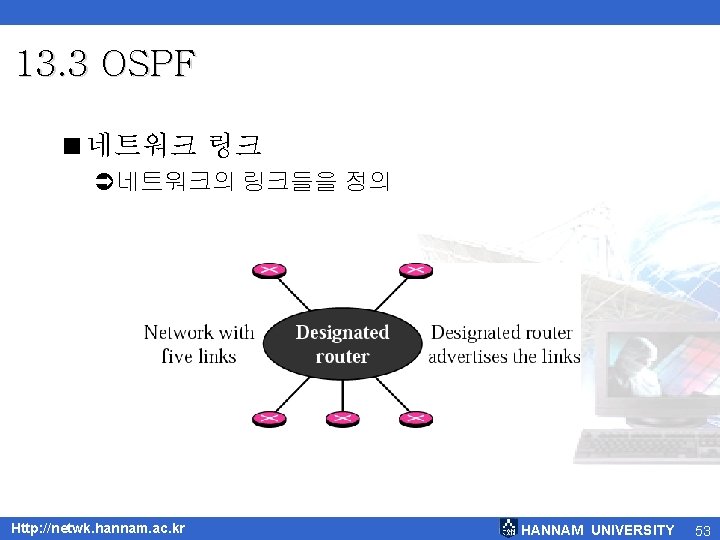

13. 3 OSPF <네트워크 링크 Ü네트워크의 링크들을 정의 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 53

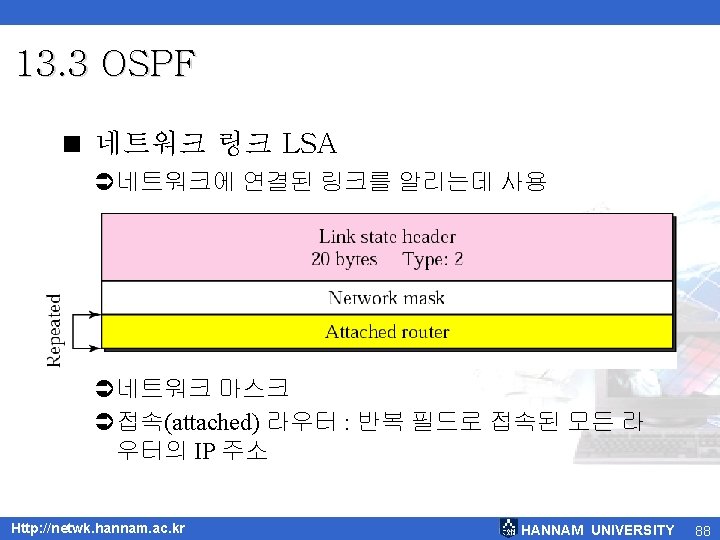

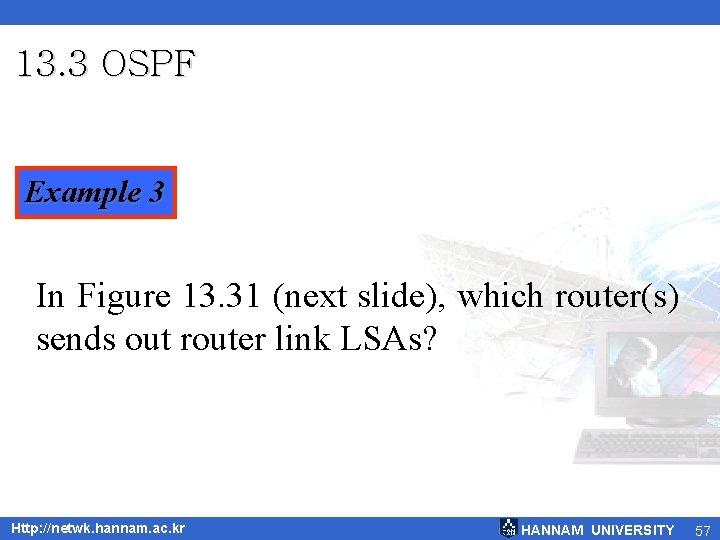

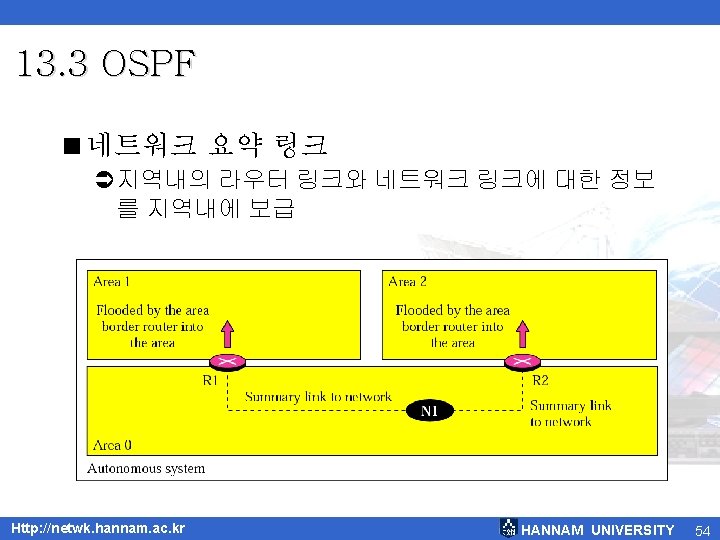

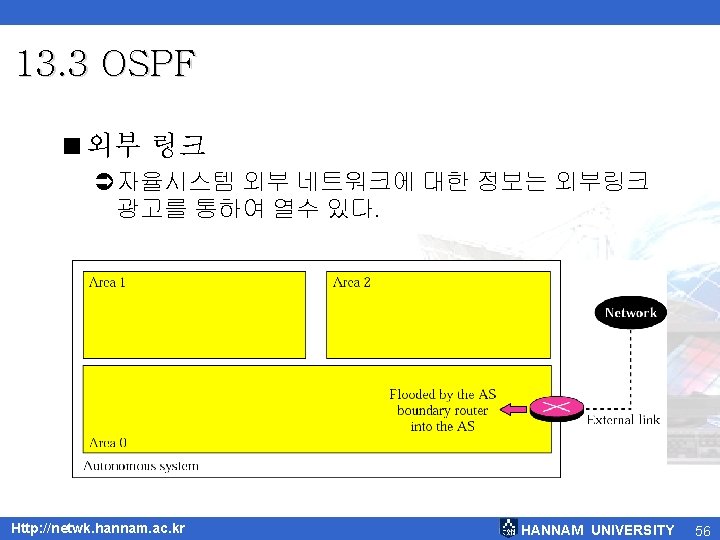

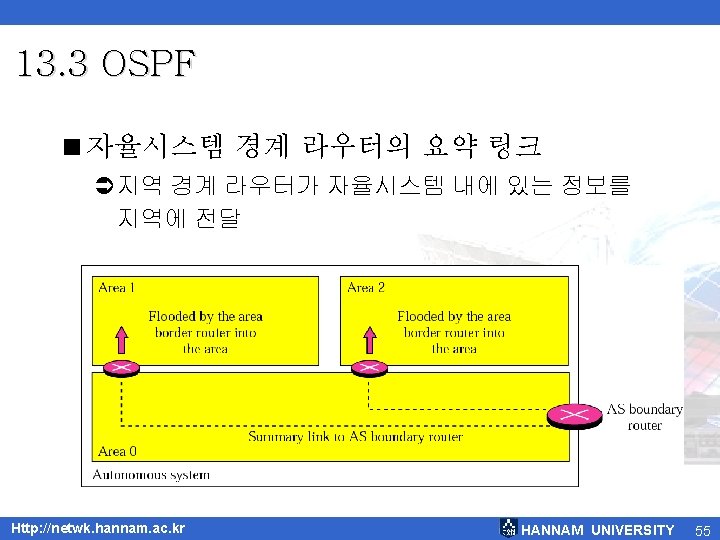

13. 3 OSPF Example 3 In Figure 13. 31 (next slide), which router(s) sends out router link LSAs? Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 57

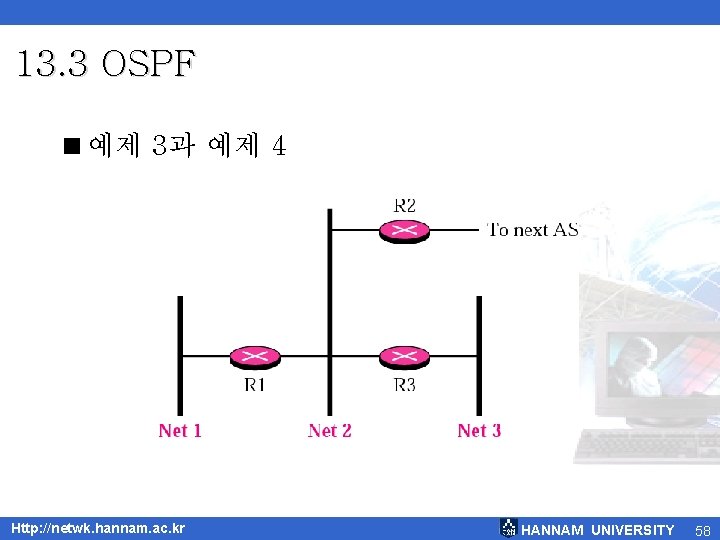

13. 3 OSPF <예제 3과 예제 4 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 58

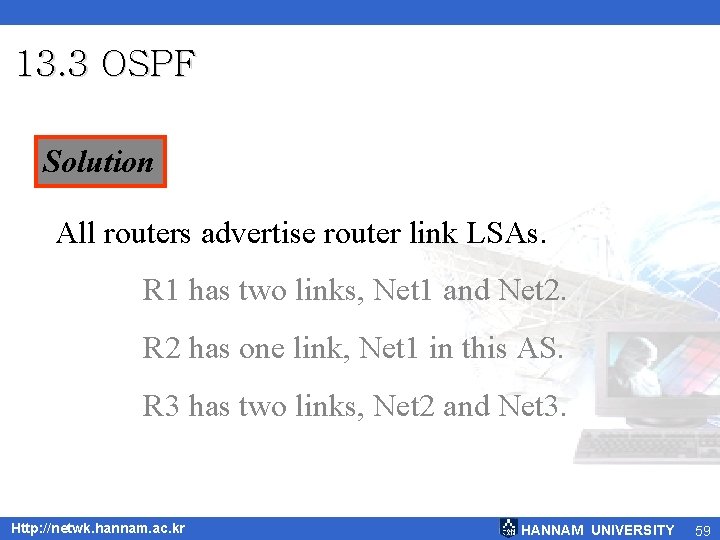

13. 3 OSPF Solution All routers advertise router link LSAs. R 1 has two links, Net 1 and Net 2. R 2 has one link, Net 1 in this AS. R 3 has two links, Net 2 and Net 3. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 59

13. 3 OSPF Example 4 In Figure 13. 31, which router(s) sends out the network link LSAs? Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 60

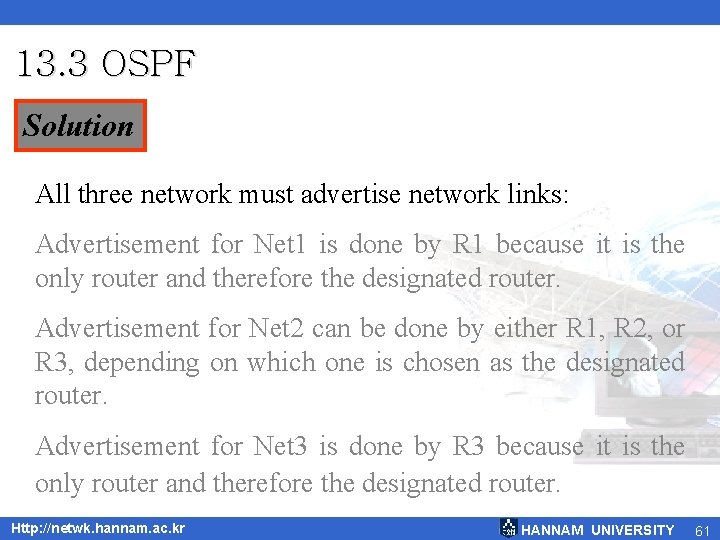

13. 3 OSPF Solution All three network must advertise network links: Advertisement for Net 1 is done by R 1 because it is the only router and therefore the designated router. Advertisement for Net 2 can be done by either R 1, R 2, or R 3, depending on which one is chosen as the designated router. Advertisement for Net 3 is done by R 3 because it is the only router and therefore the designated router. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 61

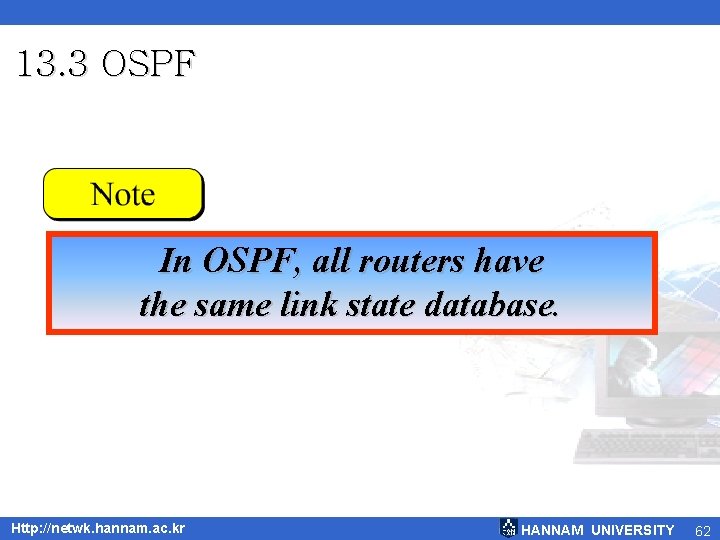

13. 3 OSPF In OSPF, all routers have the same link state database. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 62

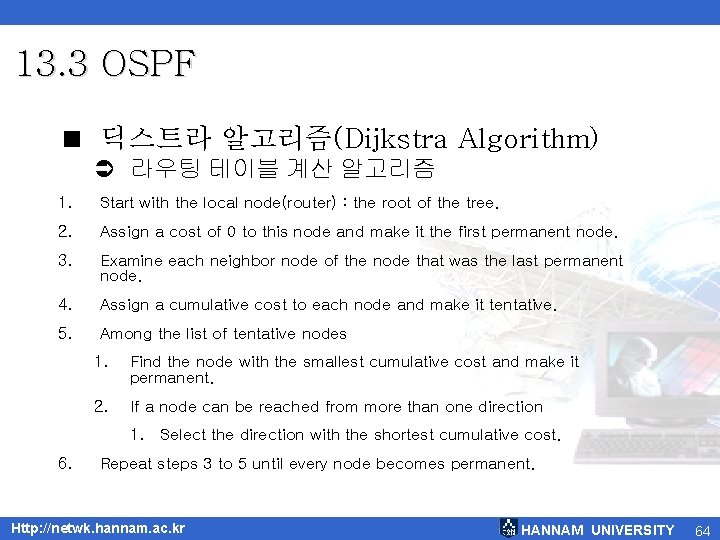

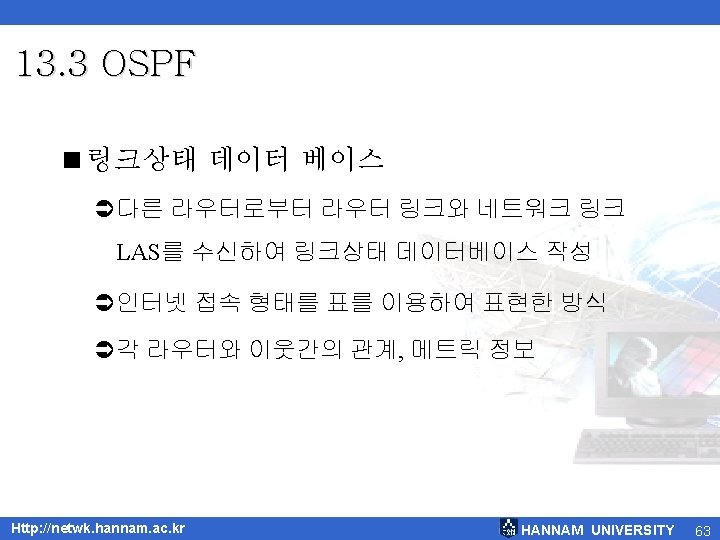

13. 3 OSPF < 딕스트라 알고리즘(Dijkstra Algorithm) Ü 라우팅 테이블 계산 알고리즘 1. Start with the local node(router) : the root of the tree. 2. Assign a cost of 0 to this node and make it the first permanent node. 3. Examine each neighbor node of the node that was the last permanent node. 4. Assign a cumulative cost to each node and make it tentative. 5. Among the list of tentative nodes 1. Find the node with the smallest cumulative cost and make it permanent. 2. If a node can be reached from more than one direction 1. Select the direction with the shortest cumulative cost. 6. Repeat steps 3 to 5 until every node becomes permanent. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 64

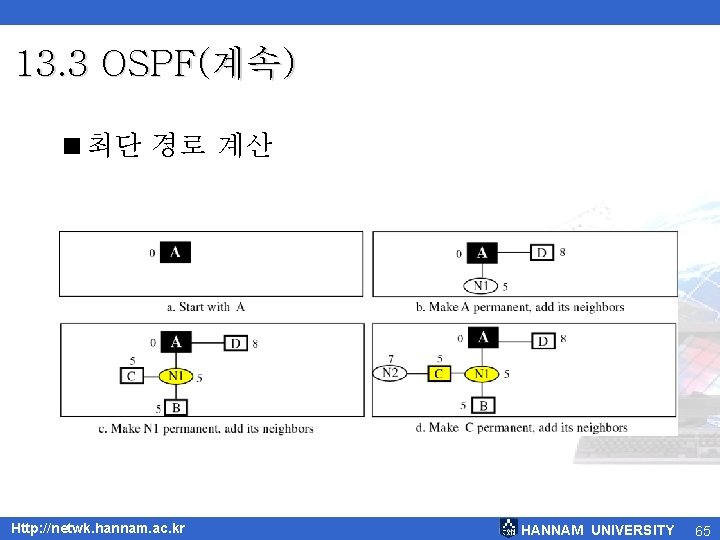

13. 3 OSPF(계속) <최단 경로 계산 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 65

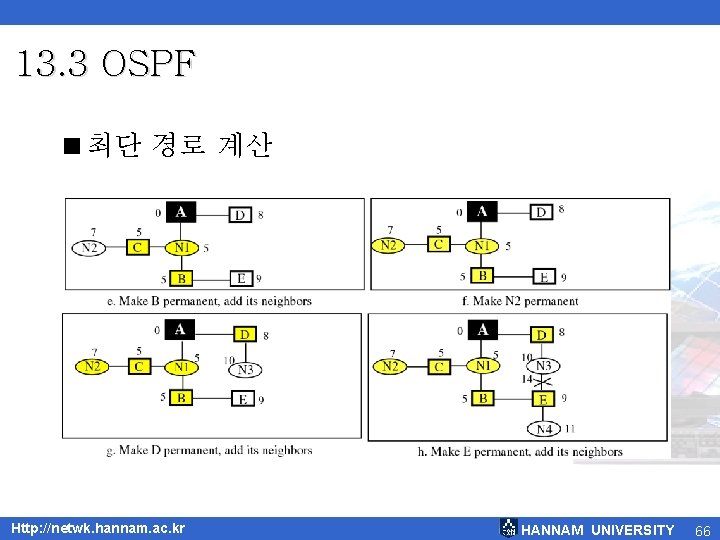

13. 3 OSPF <최단 경로 계산 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 66

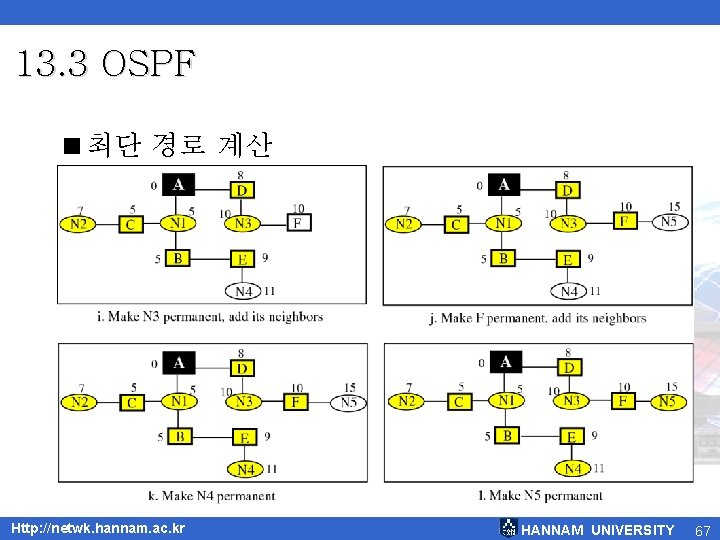

13. 3 OSPF <최단 경로 계산 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 67

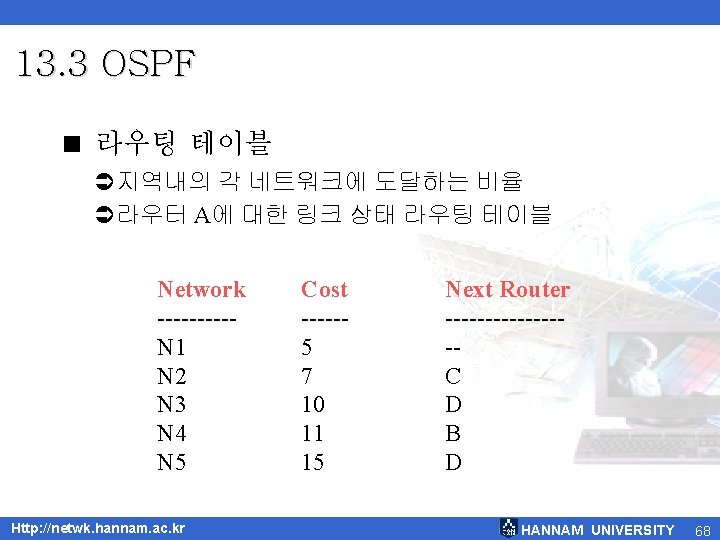

13. 3 OSPF < 라우팅 테이블 Ü지역내의 각 네트워크에 도달하는 비율 Ü라우터 A에 대한 링크 상태 라우팅 테이블 Network -----N 1 N 2 N 3 N 4 N 5 Http: //netwk. hannam. ac. kr Cost -----5 7 10 11 15 Next Router --------C D B D HANNAM UNIVERSITY 68

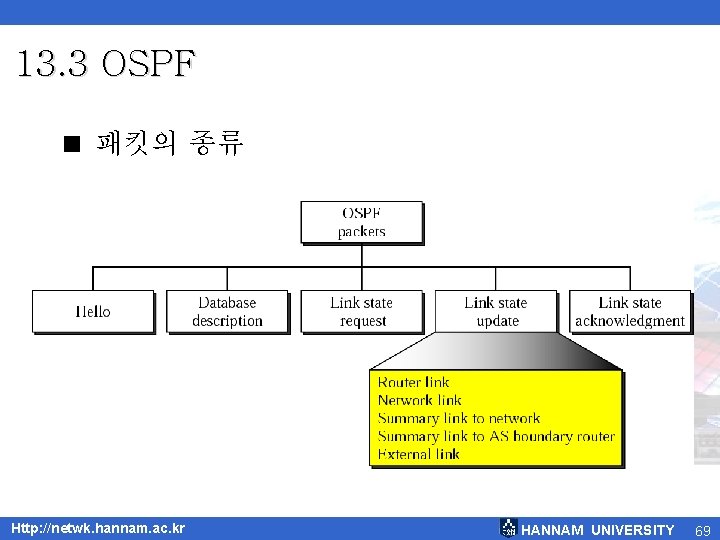

13. 3 OSPF < 패킷의 종류 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 69

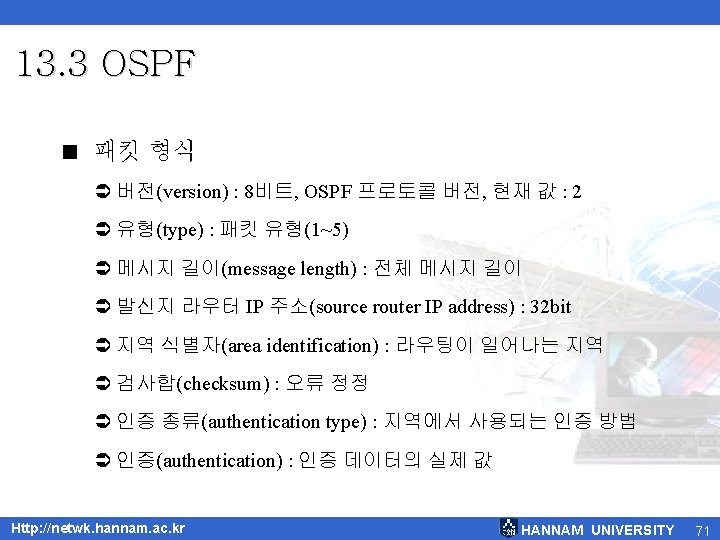

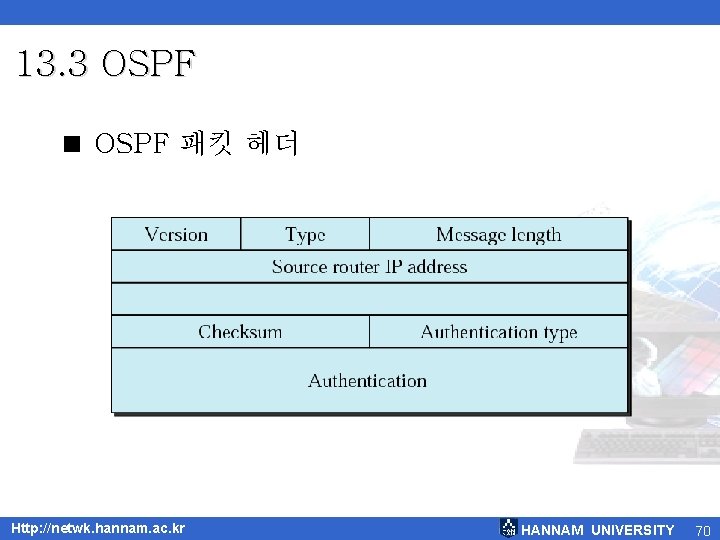

13. 3 OSPF < OSPF 패킷 헤더 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 70

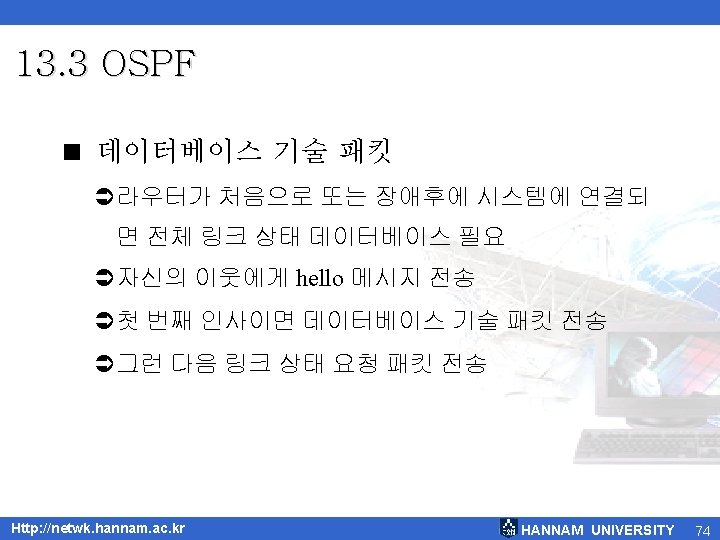

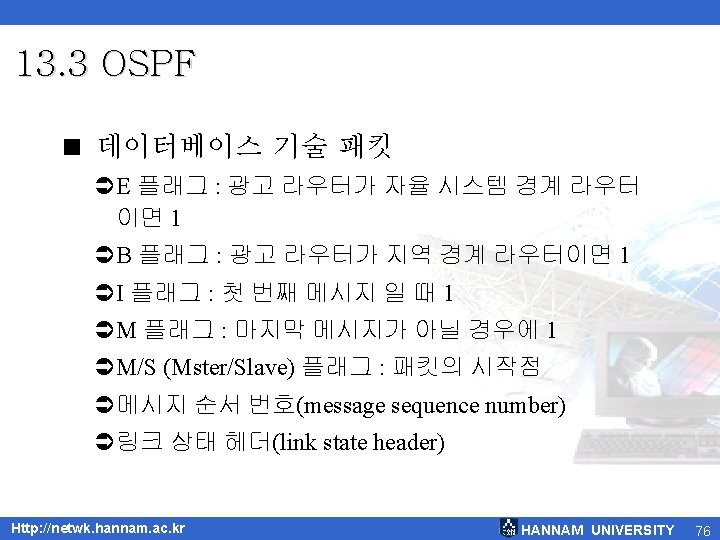

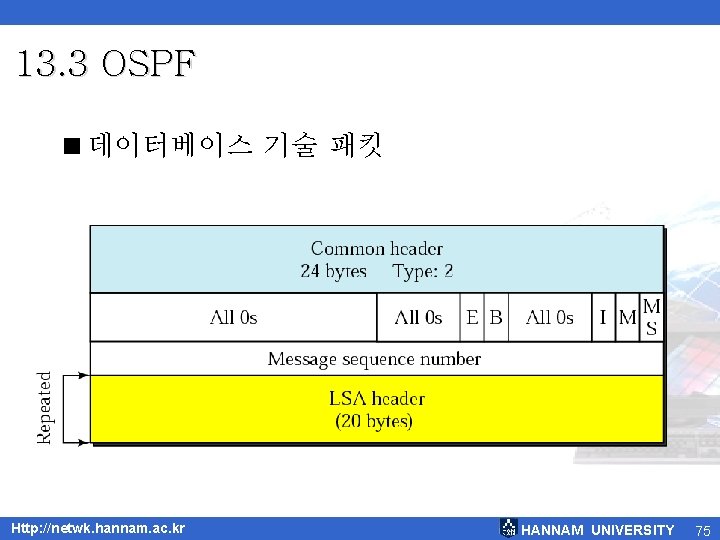

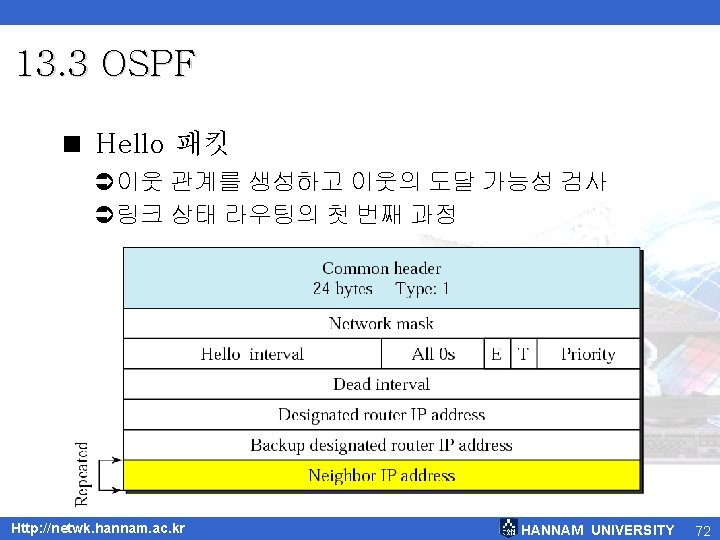

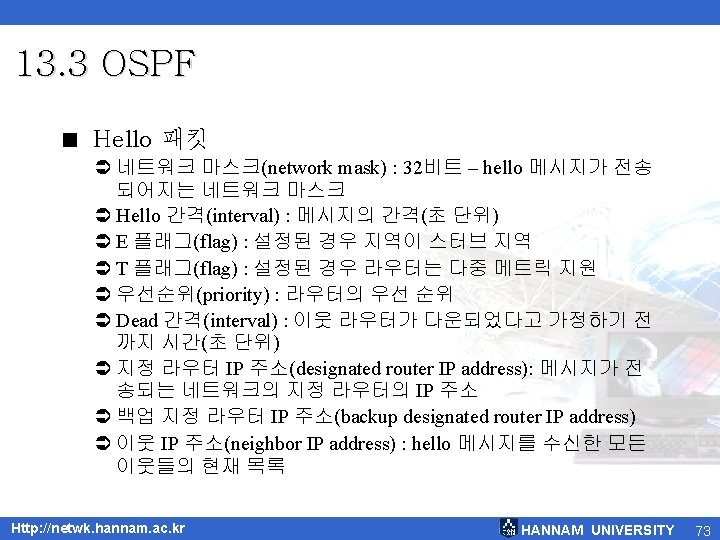

13. 3 OSPF <데이터베이스 기술 패킷 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 75

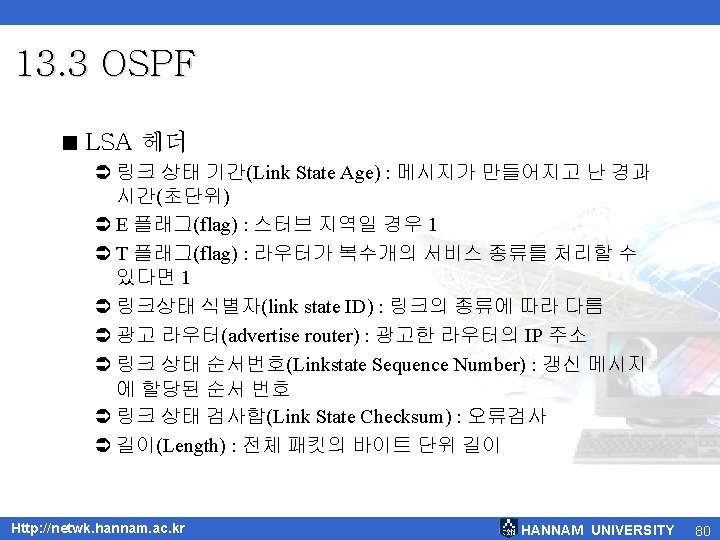

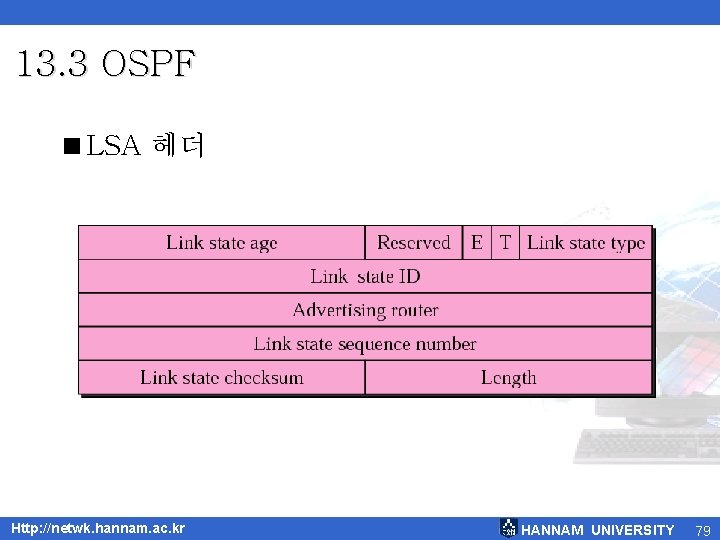

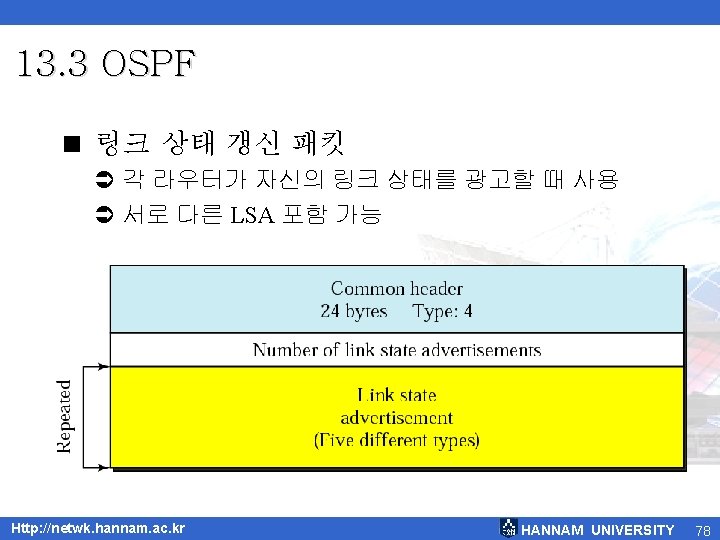

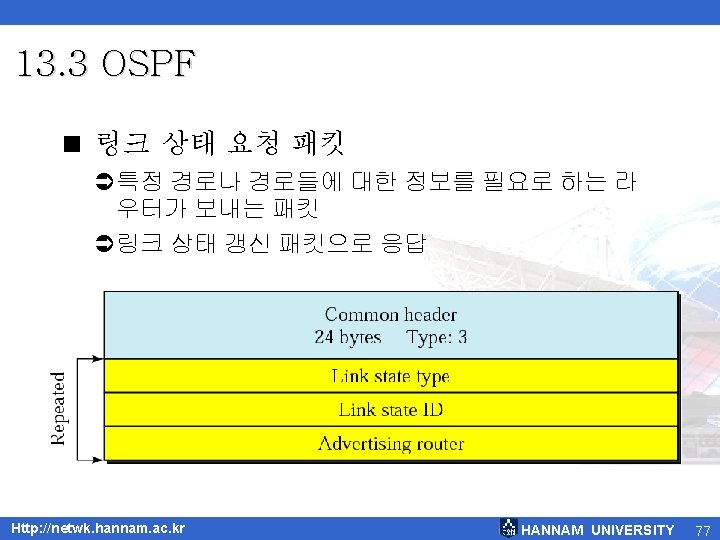

13. 3 OSPF <LSA 헤더 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 79

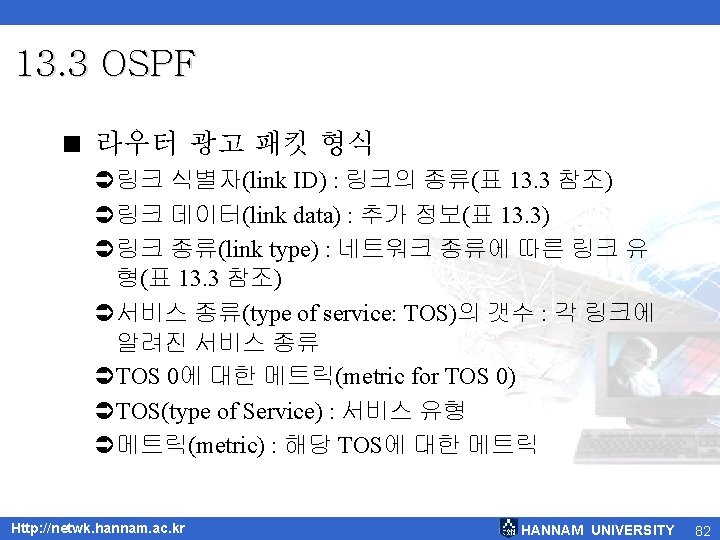

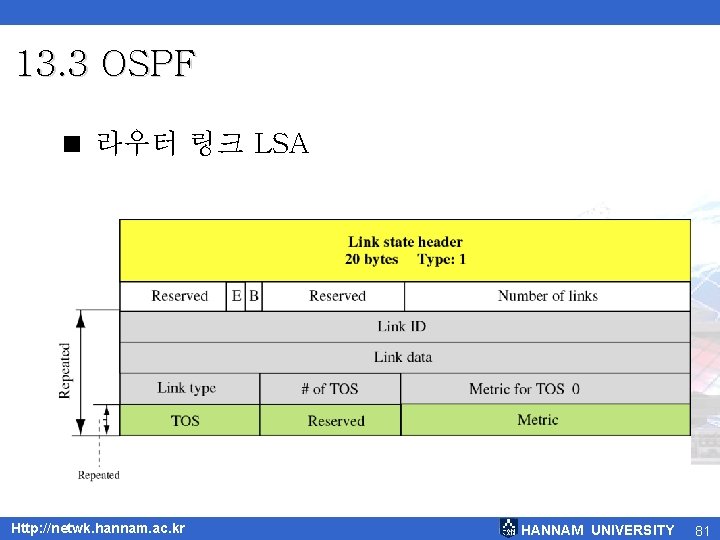

13. 3 OSPF < 라우터 링크 LSA Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 81

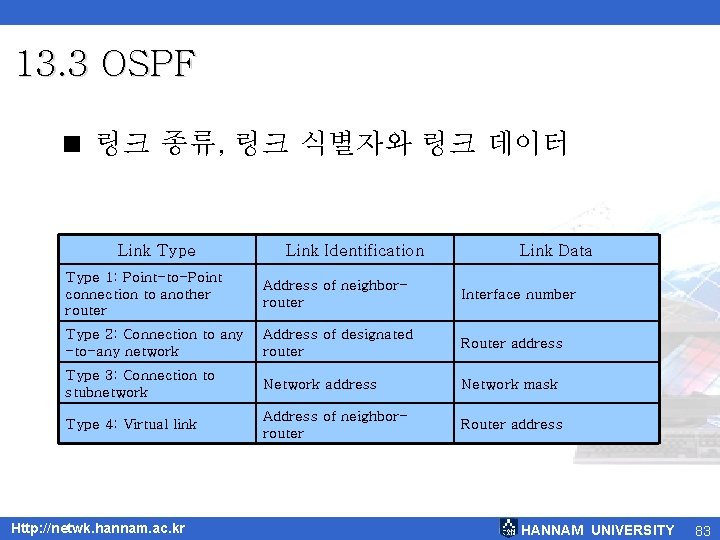

13. 3 OSPF < 링크 종류, 링크 식별자와 링크 데이터 Link Type Link Identification Link Data Type 1: Point-to-Point connection to another router Address of neighborrouter Interface number Type 2: Connection to any -to-any network Address of designated router Router address Type 3: Connection to stubnetwork Network address Network mask Type 4: Virtual link Address of neighborrouter Router address Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 83

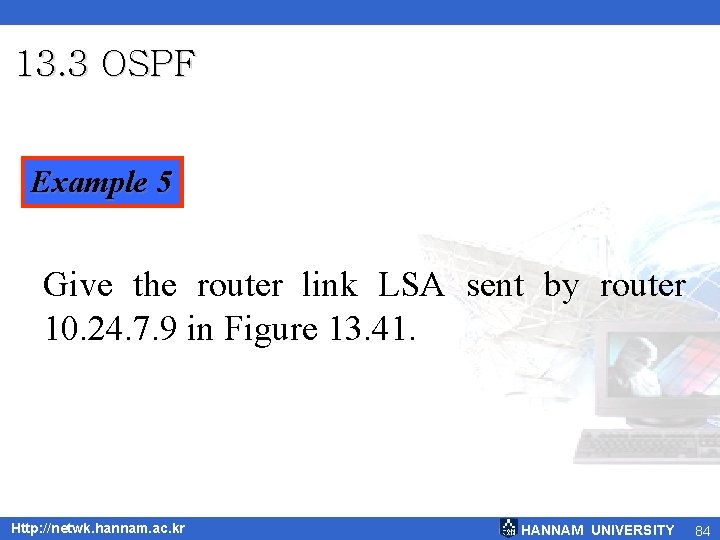

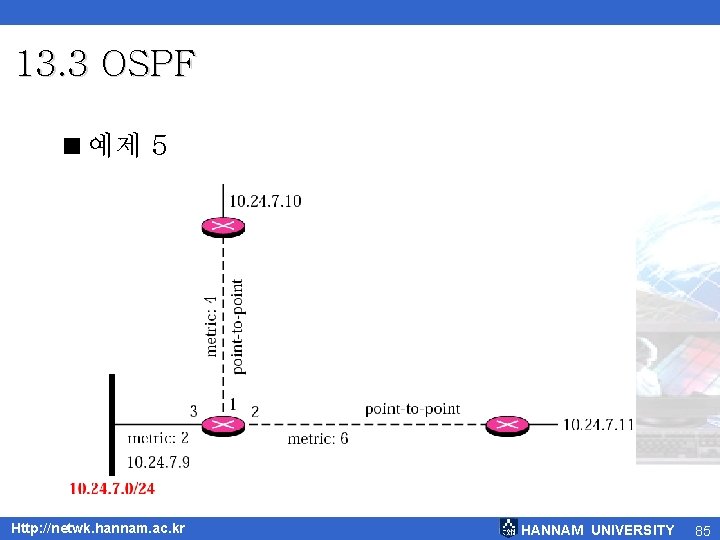

13. 3 OSPF Example 5 Give the router link LSA sent by router 10. 24. 7. 9 in Figure 13. 41. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 84

13. 3 OSPF <예제 5 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 85

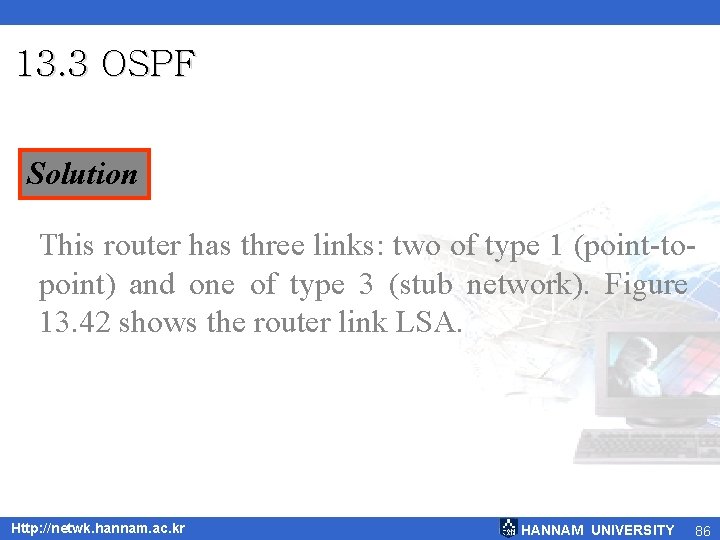

13. 3 OSPF Solution This router has three links: two of type 1 (point-topoint) and one of type 3 (stub network). Figure 13. 42 shows the router link LSA. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 86

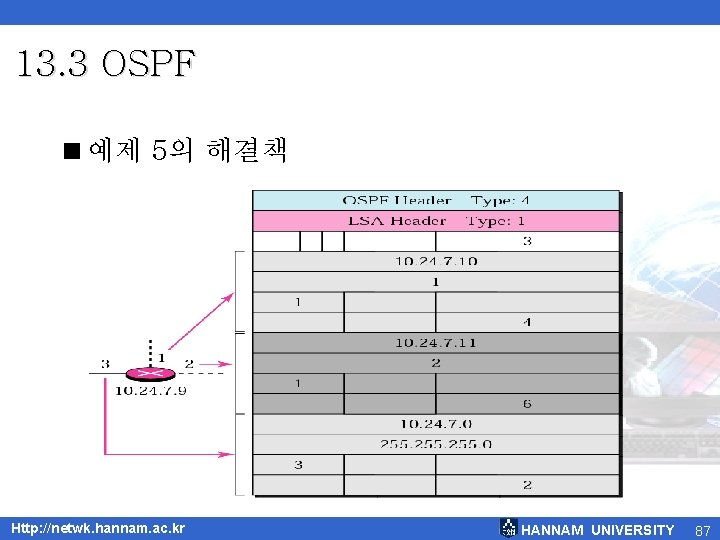

13. 3 OSPF <예제 5의 해결책 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 87

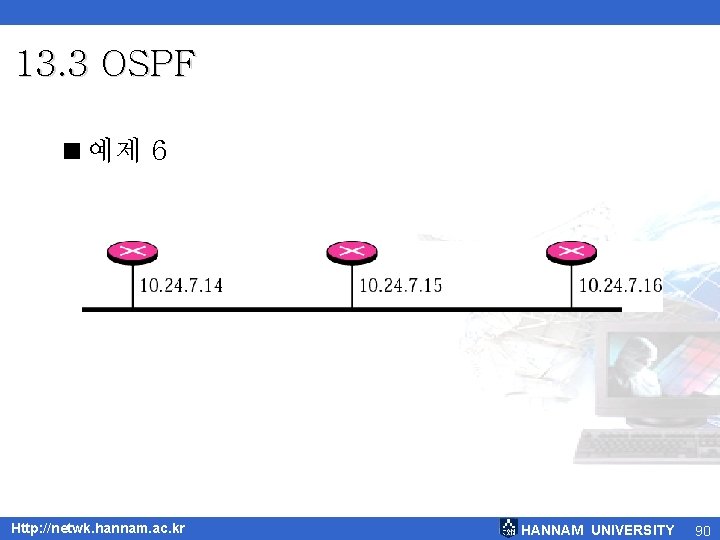

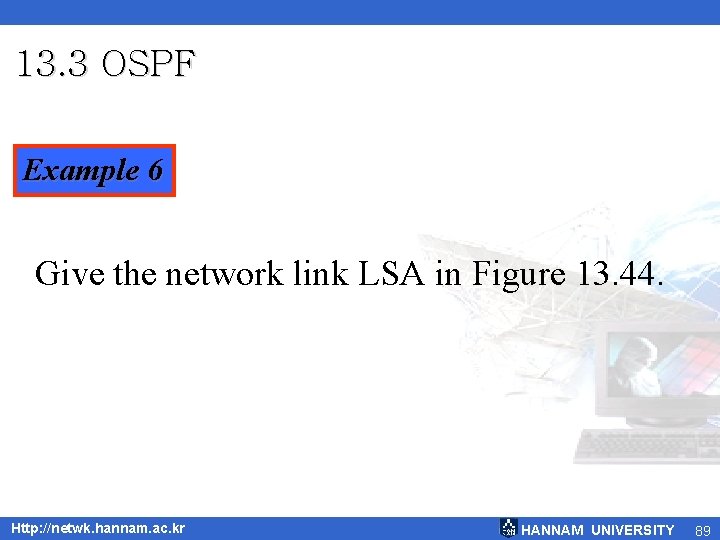

13. 3 OSPF Example 6 Give the network link LSA in Figure 13. 44. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 89

13. 3 OSPF <예제 6 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 90

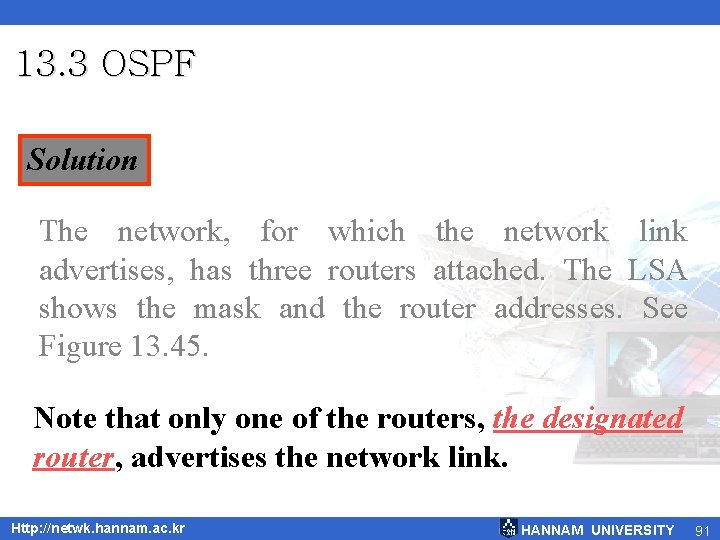

13. 3 OSPF Solution The network, for which the network link advertises, has three routers attached. The LSA shows the mask and the router addresses. See Figure 13. 45. Note that only one of the routers, the designated router, advertises the network link. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 91

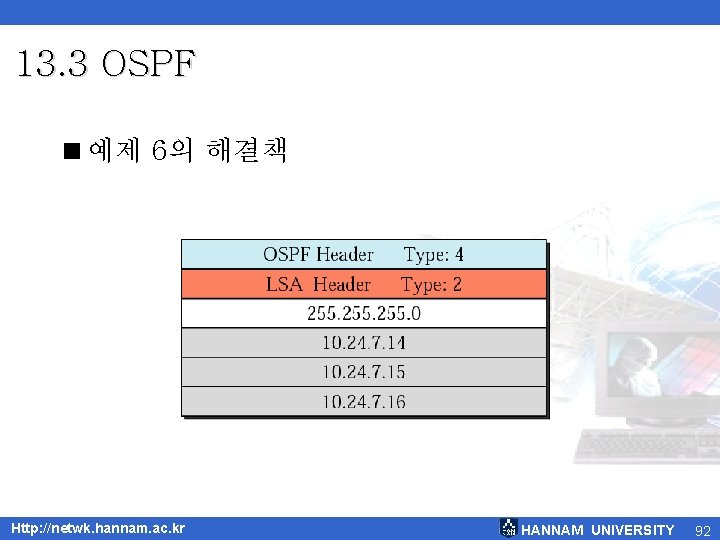

13. 3 OSPF <예제 6의 해결책 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 92

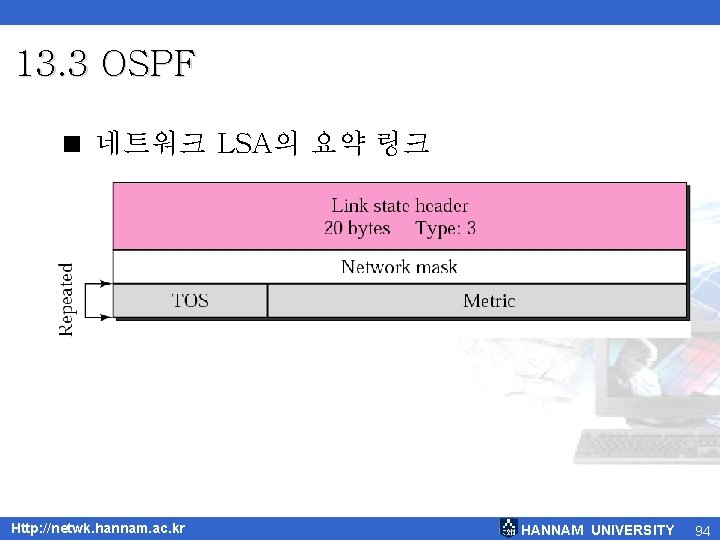

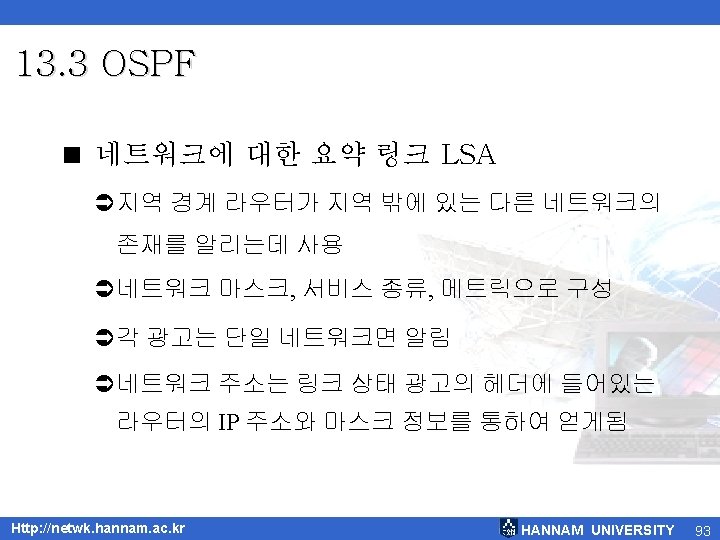

13. 3 OSPF < 네트워크 LSA의 요약 링크 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 94

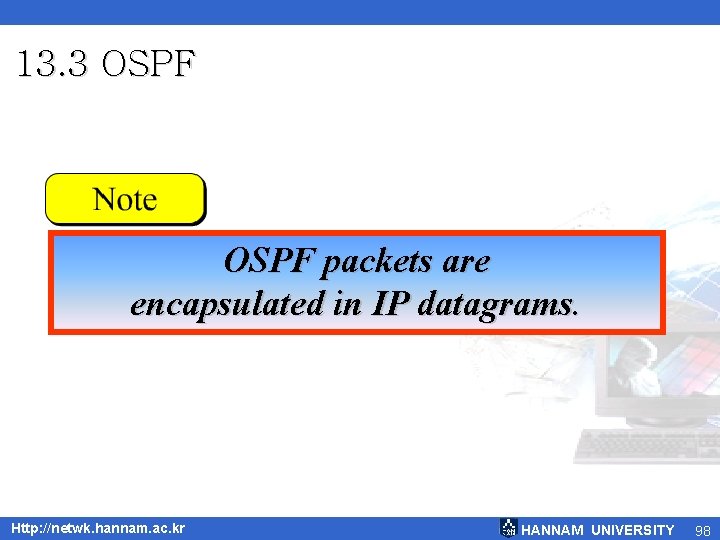

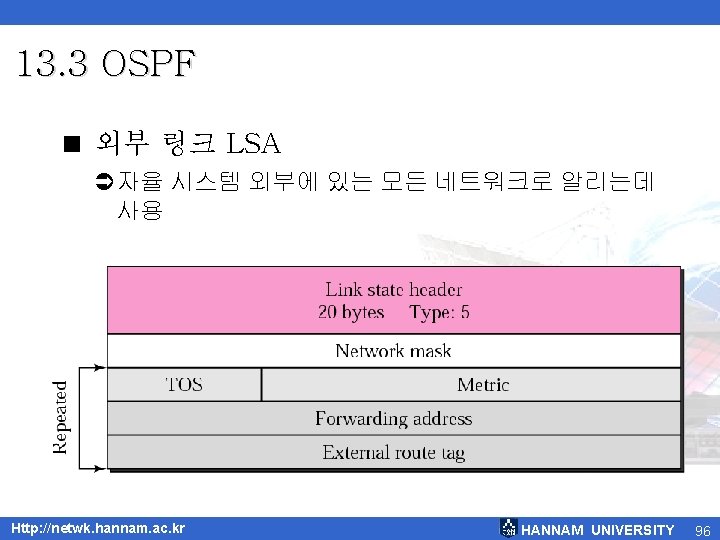

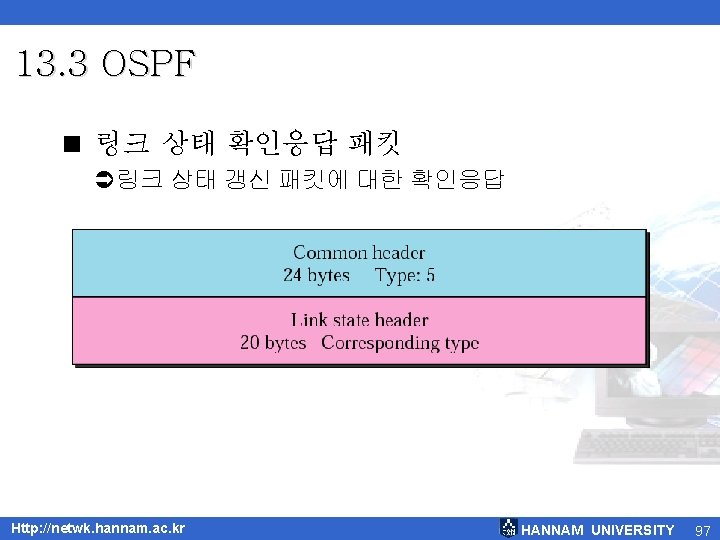

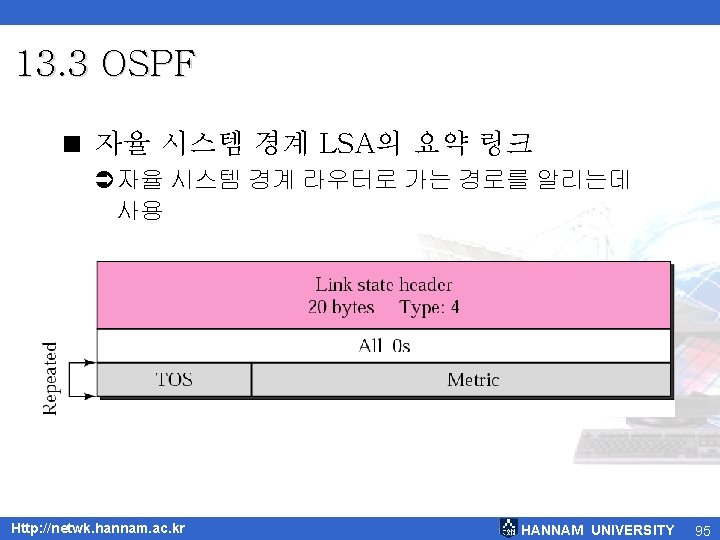

13. 3 OSPF packets are encapsulated in IP datagrams. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 98

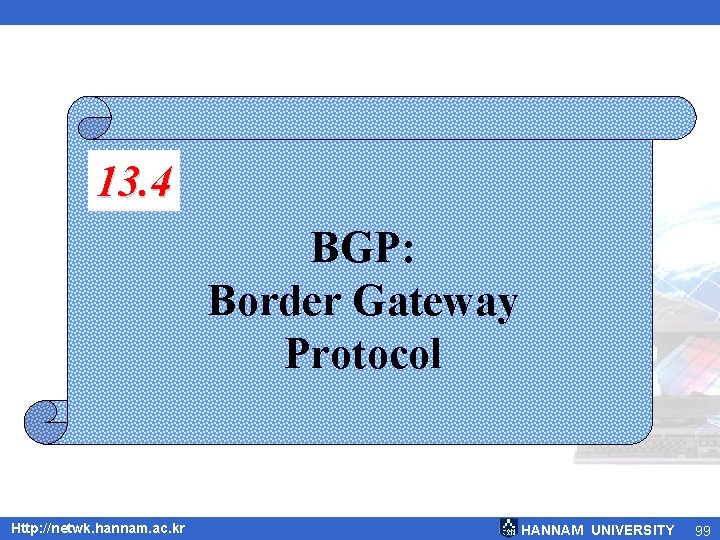

13. 4 BGP: Border Gateway Protocol Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 99

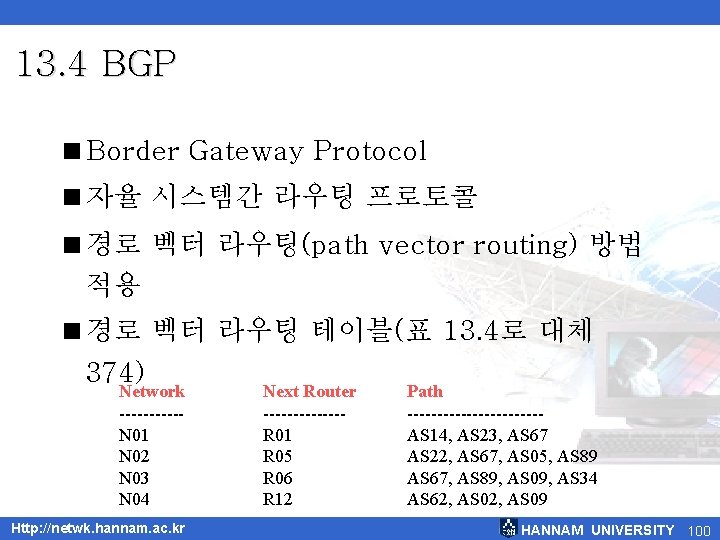

13. 4 BGP <Border Gateway Protocol <자율 시스템간 라우팅 프로토콜 <경로 벡터 라우팅(path vector routing) 방법 적용 <경로 벡터 라우팅 테이블(표 13. 4로 대체 374) Network -----N 01 N 02 N 03 N 04 Http: //netwk. hannam. ac. kr Next Router -------R 01 R 05 R 06 R 12 Path -----------AS 14, AS 23, AS 67 AS 22, AS 67, AS 05, AS 89 AS 67, AS 89, AS 09, AS 34 AS 62, AS 09 HANNAM UNIVERSITY 100

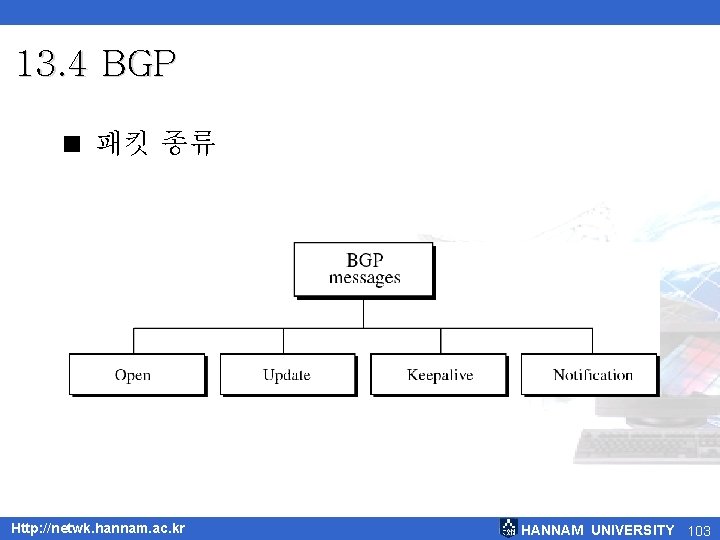

13. 4 BGP < 패킷 종류 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 103

13. 4 BGP supports classless addressing and CIDR. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 104

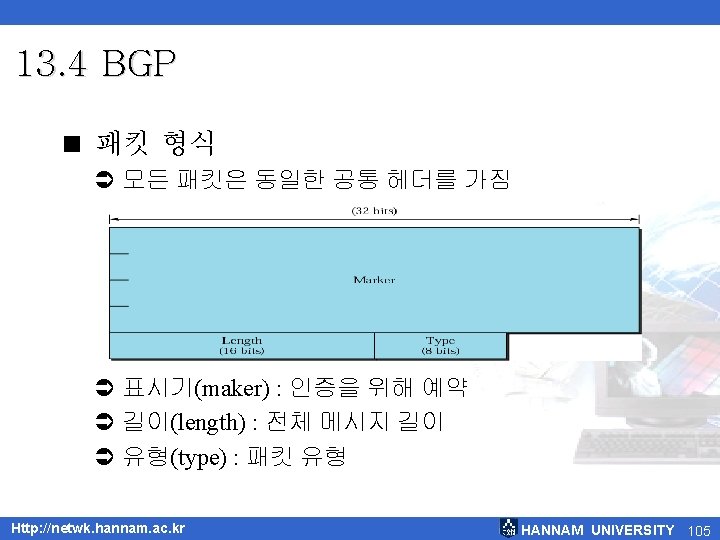

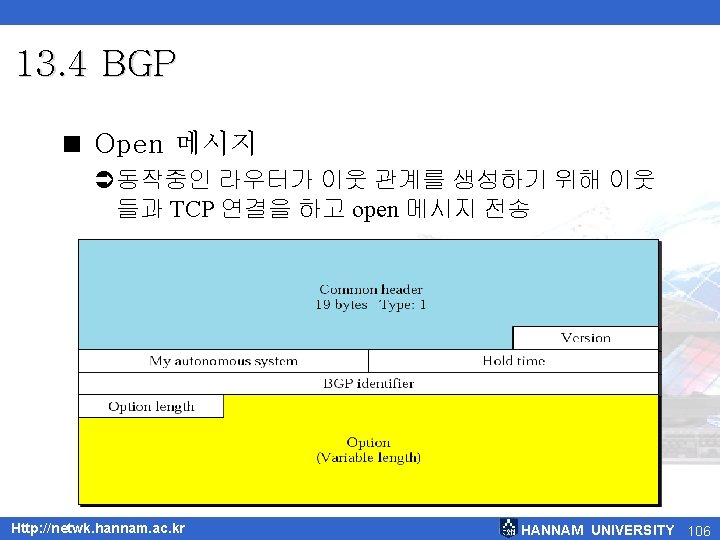

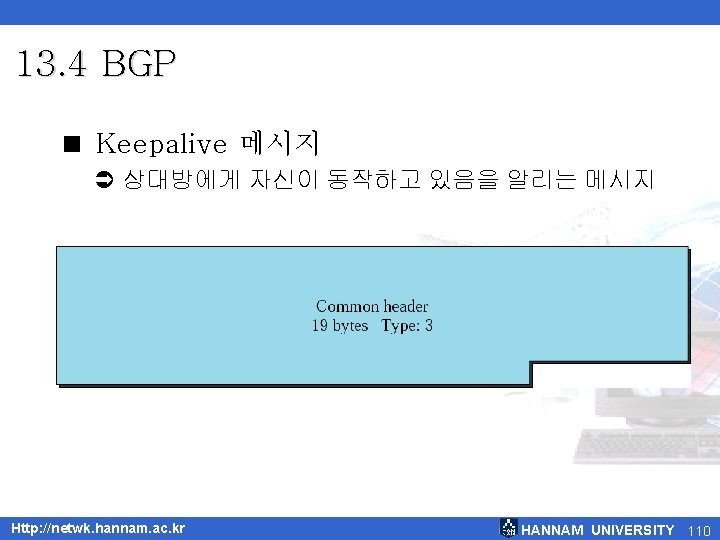

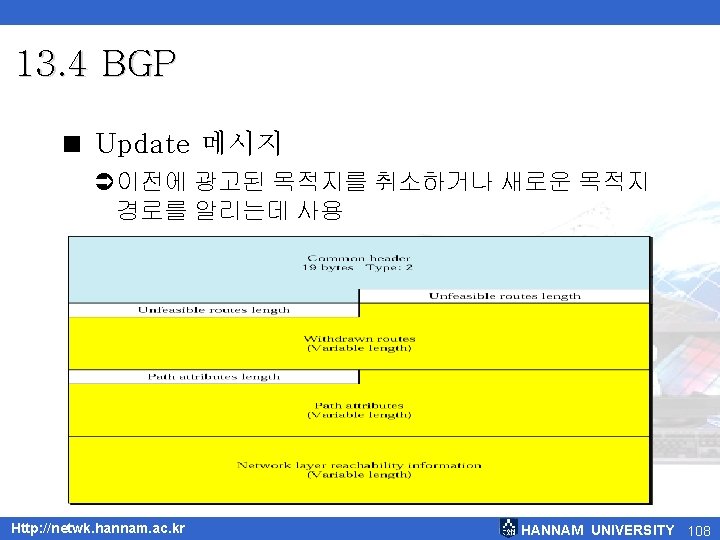

13. 4 BGP < Keepalive 메시지 Ü 상대방에게 자신이 동작하고 있음을 알리는 메시지 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 110

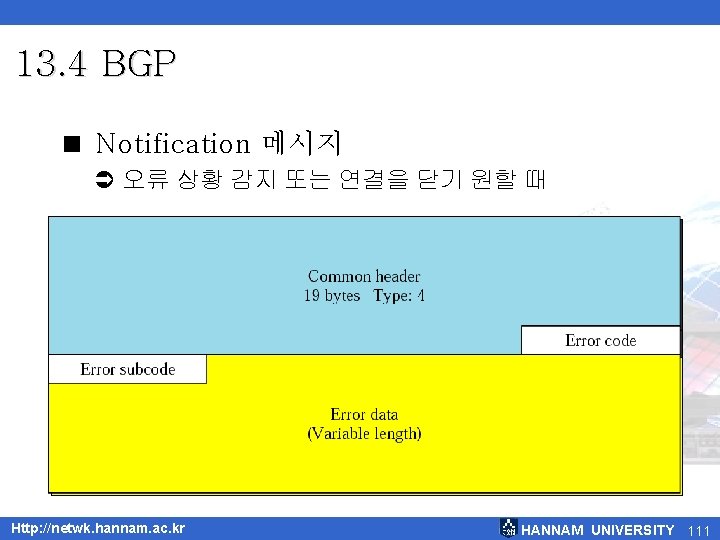

13. 4 BGP < Notification 메시지 Ü 오류 상황 감지 또는 연결을 닫기 원할 때 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 111

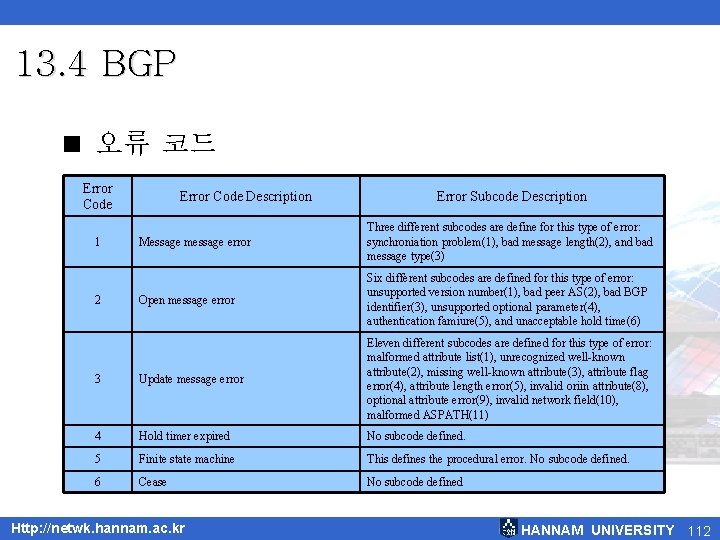

13. 4 BGP < 오류 코드 Error Code Description Error Subcode Description Message message error Three different subcodes are define for this type of error: synchroniation problem(1), bad message length(2), and bad message type(3) Open message error Six different subcodes are defined for this type of error: unsupported version number(1), bad peer AS(2), bad BGP identifier(3), unsupported optional parameter(4), authentication famiure(5), and unacceptable hold time(6) 3 Update message error Eleven different subcodes are defined for this type of error: malformed attribute list(1), unrecognized well-known attribute(2), missing well-known attribute(3), attribute flag error(4), attribute length error(5), invalid oriin attribute(8), optional attribute error(9), invalid network field(10), malformed ASPATH(11) 4 Hold timer expired No subcode defined. 5 Finite state machine This defines the procedural error. No subcode defined. 6 Cease No subcode defined 1 2 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 112

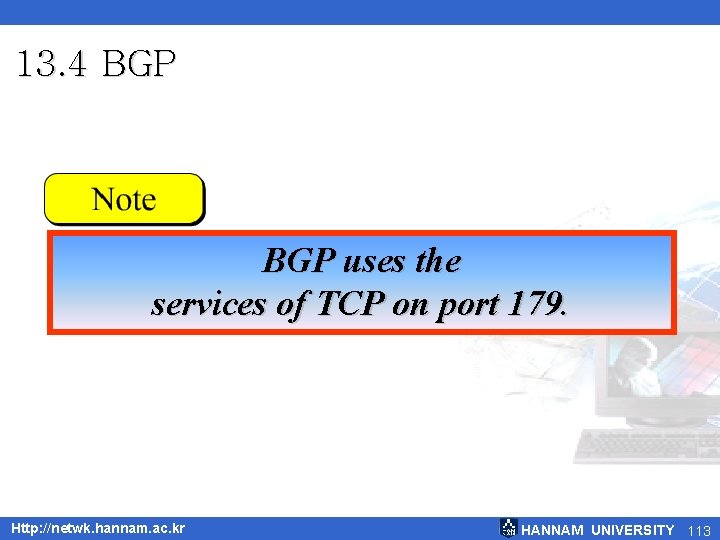

13. 4 BGP uses the services of TCP on port 179. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 113
