Chapter 13 유선 LAN : 이더넷 (Wired LANs : Ethernet) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY

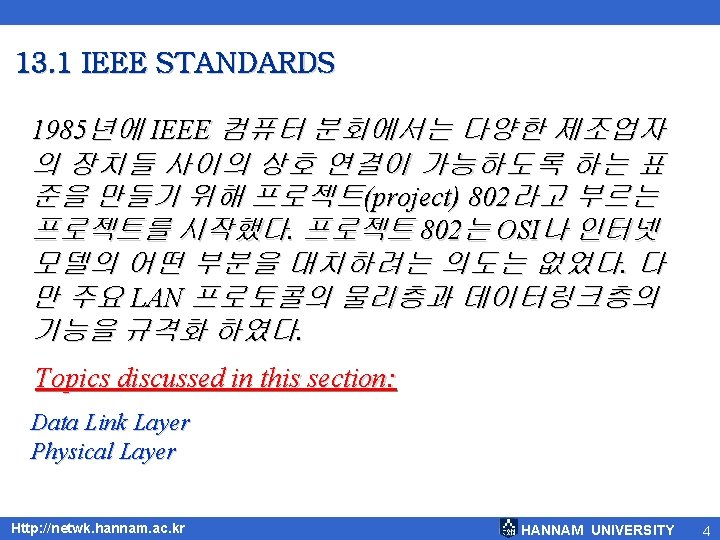

13 장 유선LAN : 이더넷 (Ethernet) 13. 1 IEEE 표준화 13. 2 표준 이더넷 13. 3 표준 변경 13. 4 고속 이더넷 13. 5 기가비트 이더넷 13. 6 요 약 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 2
유선LAN : 이더넷(Ethernet) q 이더넷의 세 가지 세대 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 3

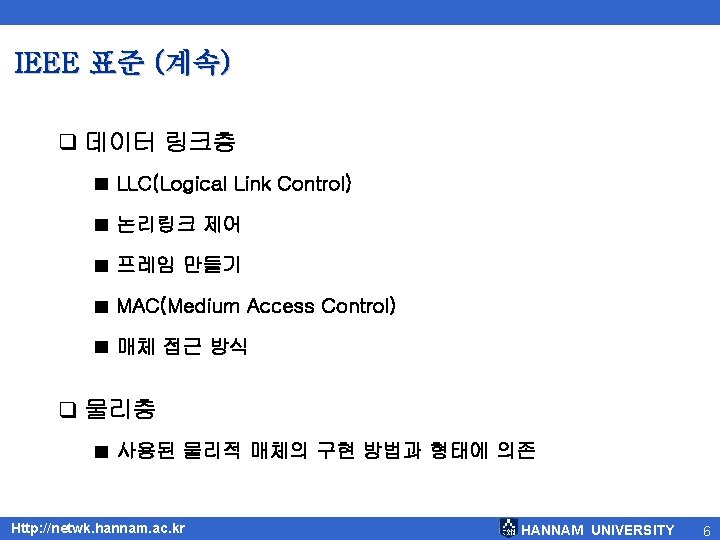

IEEE 표준 (계속) q IEEE standard for LANs Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 5
IEEE 표준 (계속) q HDLC frame compared with LLC and MAC frames Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 7

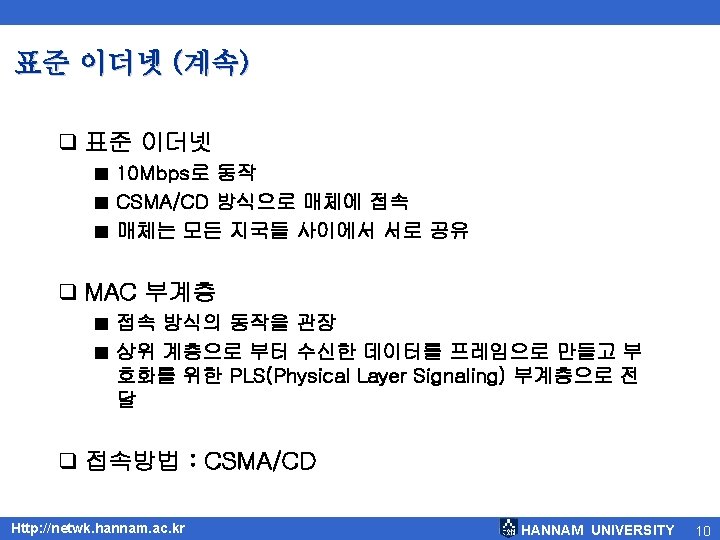

13. 2 STANDARD ETHERNET 원 래 이 더 넷 은 1976년 제 록 스 의 팔 로 알 토 연 구 소 (Palo Alto Research Center)에서 만들어졌다. 그 이후 4세대로 발전하였다 여기서는 표준 이더넷에 대해 살펴본다. Topics discussed in this section: MAC Sublayer Physical Layer Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 8
표준 이더넷 (계속) q Ethernet evolution through four generations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 9

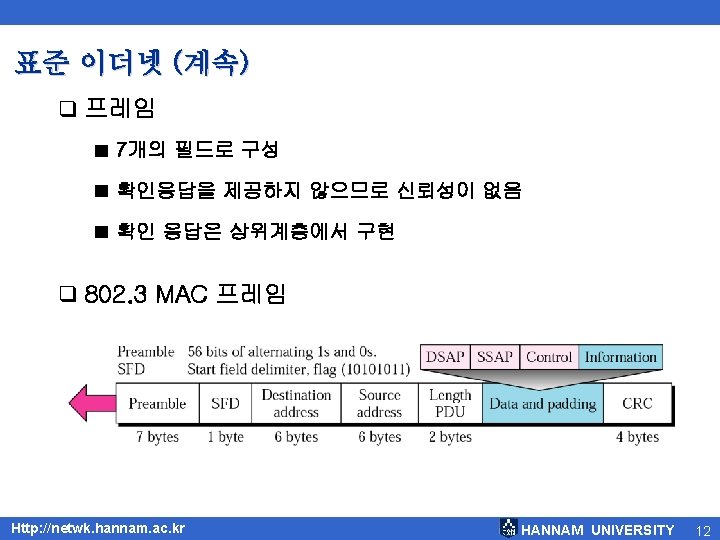

표준 이더넷 (계속) q 802. 3 MAC frame Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 11
표준 이더넷 (계속) q 프레임 형식 ■ 프리엠블(Preamble) – alert, timing, start synchronization ■ 시작 프레임 지시기(SFD ; Start frame delimiter)-프레임시 작 ■ 목적지 주소(DA ; Destination address) ■ 발신지 주소(SA ; Source address) ■ PDU 길이/유형 ■ 데이터 ■ CRC – 오류 발견정보, CRC-32 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 13

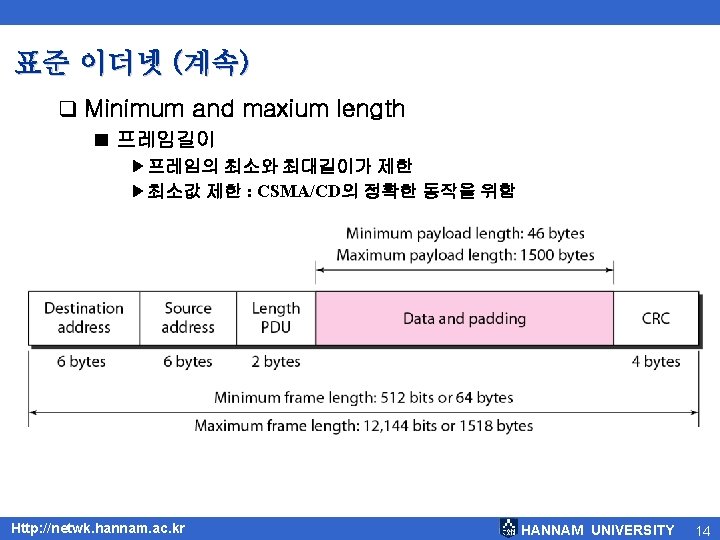

표준 이더넷 (계속) 프레임 길이 : 최소 : 64바이트(512비트) 최대 : 1, 518바이트(12, 144비트) Frame length: Minimum: 64 bytes (512 bits) Maximum: 1518 bytes (12, 144 bits) Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 15

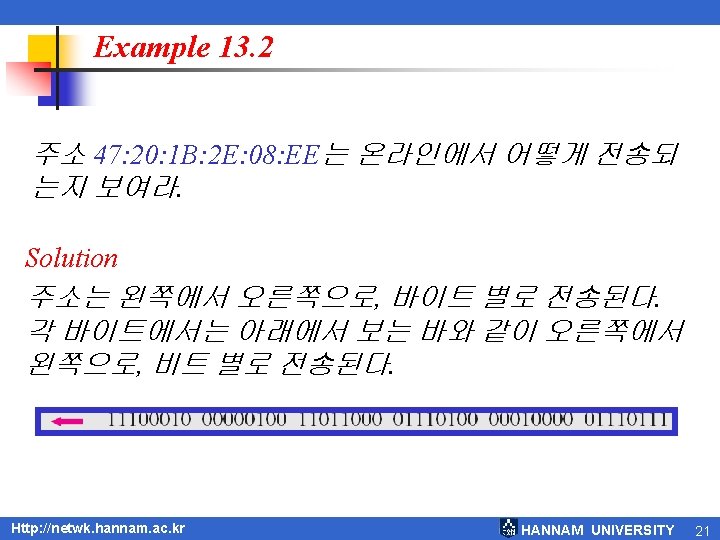

표준 이더넷 (계속) q Example of an Ethernet address in hexadecimal notation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 16

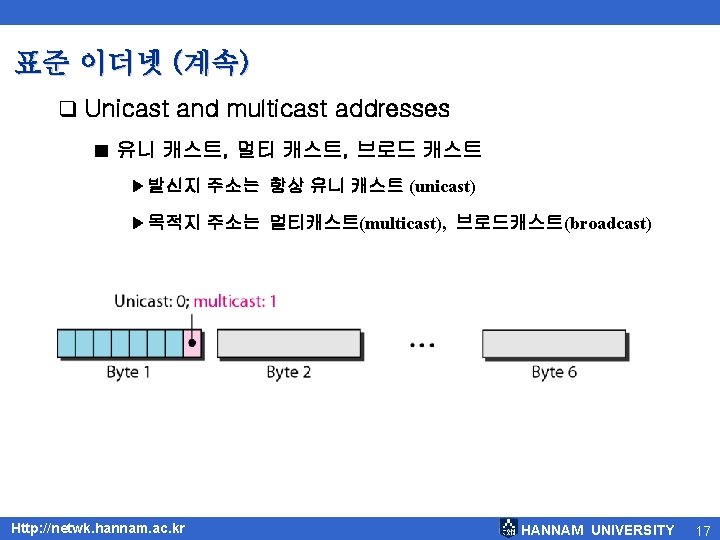

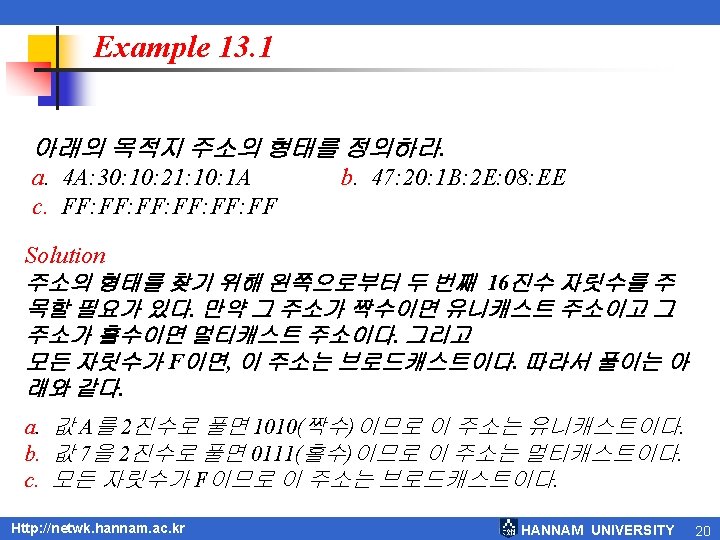

표준 이더넷 (계속) 만약 목적지 주소에 있는 첫 번째 바이트의 마지막 비트 (LSB)가 0이라면 이는 유니캐스트 주소를 의미하고 1이 라면 멀티캐스트 주소를 의미한다. The least significant bit of the first byte defines the type of address. If the bit is 0, the address is unicast; otherwise, it is multicast. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 18
표준 이더넷 (계속) 목적지 브로드캐스트 주소는 전체 비트가 1인 멀티캐스트 의 특별한 경우이다. The broadcast destination address a special case of the multicast address which all bits are 1 s. Http: //netwk. hannam. ac. kr is in HANNAM UNIVERSITY 19
표준 이더넷 (계속) q Category of Standard Ethernet Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 22
표준 이더넷 (계속) q Encoding in a Standard Ethernet implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 23
표준 이더넷 (계속) q 10 Base 5 implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 24
표준 이더넷 (계속) q 10 Base 2 implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 25
표준 이더넷 (계속) q 10 Base-T implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 26
표준 이더넷 (계속) q 10 Base-F implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 27
표준 이더넷 (계속) q Summary of Standard Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 28

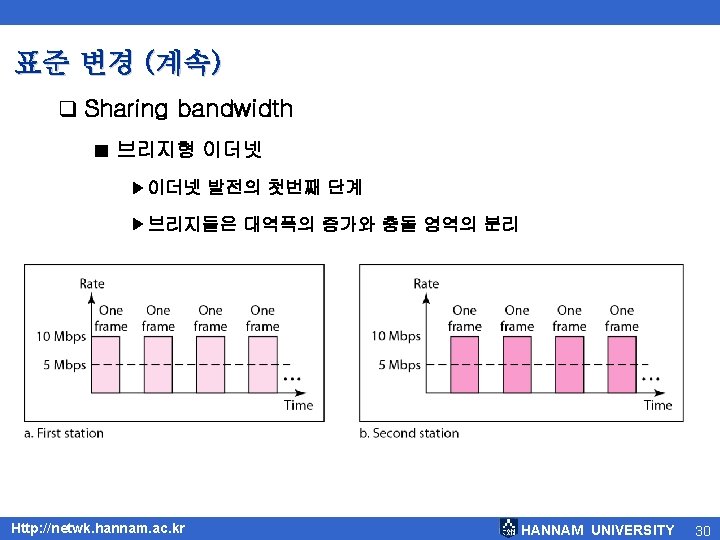

표준 변경 (계속) q A network with and without a bridge Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 31
표준 변경 (계속) q Collision domains in an unbridged network and a bridged network Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 32
표준 변경 (계속) q Switched Ethernet Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 33
표준 변경 (계속) q Full-duplex switched Ethernet Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 34

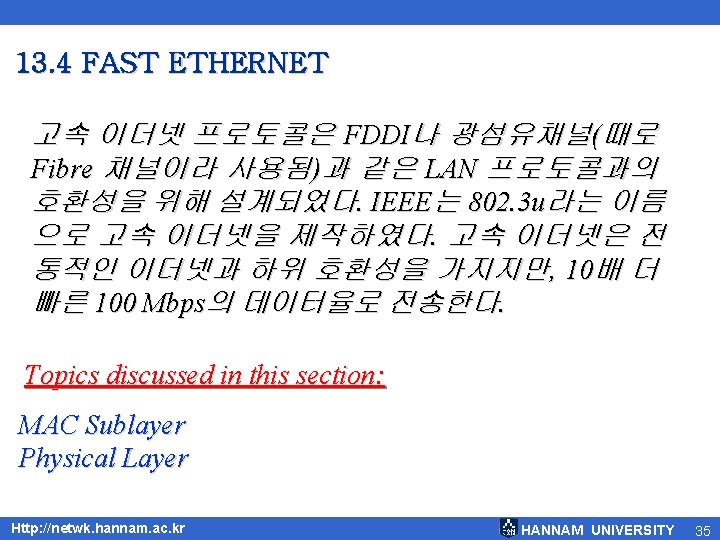

고속 이더넷 (계속) q Fast Ethernet topology Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 36
고속 이더넷 (계속) q Fast Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 37
고속 이더넷 (계속) q Encoding for Fast Ethernet implementation Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 38
고속 이더넷 (계속) q Summary of Fast Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 39
13. 5 GIGABIT ETHERNET 매우 높은 데이터율의 요구에 대한 결과로써 기가비 트 이더넷 프로토콜(1000 Mbps)이 설계되었다. IEEE 위원회에서는 802. 3 z 표준으로 부른다. Topics discussed in this section: MAC Sublayer Physical Layer Ten-Gigabit Ethernet Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 40
기가비트 이더넷 (계속) 기가비트 이더넷의 전이중 모드에서 충돌은 없다. 케이블 의 최대 길이는 케이블의 신호감쇠에 의해서 결정된다. In the full-duplex mode of Gigabit Ethernet, there is no collision; the maximum length of the cable is determined by the signal attenuation in the cable. Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 41
기가비트 이더넷 (계속) q Topologies of Gigabit Ethernet Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 42
기가비트 이더넷 (계속) q Gigabit Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 43
기가비트 이더넷 (계속) q Encoding in Gigabit Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 44
기가비트 이더넷 (계속) q Summary of Gigabit Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 45
기가비트 이더넷 (계속) q Summary of Ten-Gigabit Ethernet implementations Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 46
13. 6 요약 Q & A Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY 47
q Report ■ 연습 문제 풀이 ■ 다음주 이 시간까지 Http: //netwk. hannam. ac. kr HANNAM UNIVERSITY
